PRGE2800 - Generator RIBIMEX - Free user manual and instructions

USER MANUAL PRGE2800 RIBIMEX

RIBIMEX® garden & tools

Two Ribimex portable electric cookers with black and red casing, wheels, and a handle (no visible text or symbols)

PRGE2800 / 605126

PRGE5500 / 605136

FR

GROUPE ELECTROGENE

Original instructions

IT

GENERATORE DI ENERGIA A BENZINA

Carefully read this instruction manual before operating this product.

Incorrect operation may cause injury and/or damages.

Please keep this manual for future reference.

AVVERTENZA:

Technical diagram of a vehicle chassis with numbered components labeled 3, 4, and 5

Interior view of a vehicle chassis frame with numbered components (no visible text or symbols)

Technical diagram showing labeled components of a mechanical or electrical assembly with numbered parts 1 to 5.

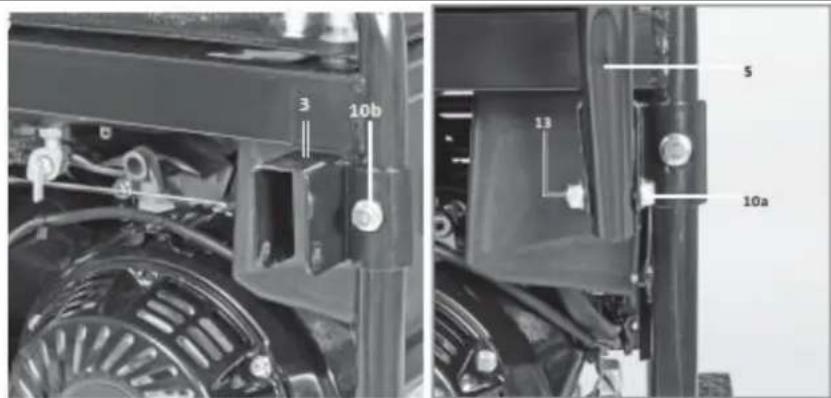

6 7 8 9 10a 10b 11 12 13

PRGE5500 - Assemblage

Technical diagram of a vehicle chassis with labeled components, showing front and side views with numbered parts.

1 9 12 4 12

3 10b 5 13 10a

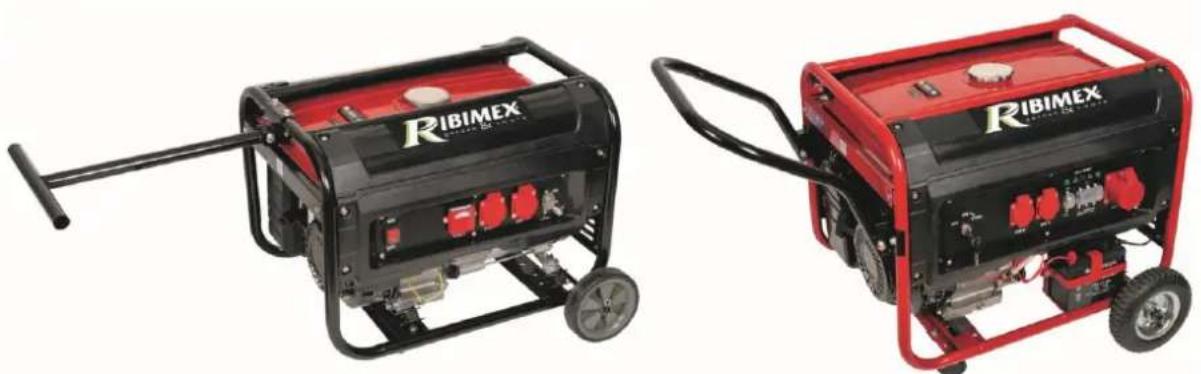

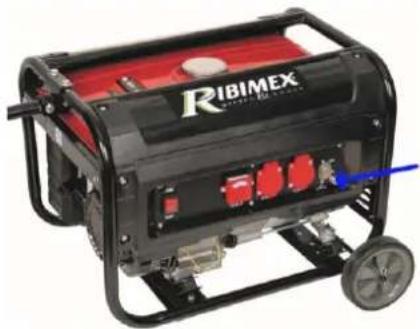

RIBIMEX portable electricity generator with red and black casing, wheels, and a blue arrow pointing to the side (no visible text or symbols on device body)

PRGE2800

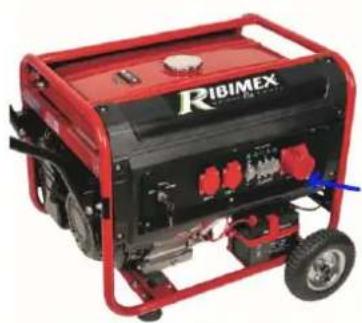

Red and black RIBIMEX portable electricity generator with visible wheels and control panel (no text or symbols on body)

PRGE5500

Fig. 5

Outdoor installation with a white cylindrical sensor and blue cable, surrounded by soil (no visible text or symbols)

Fig. 6

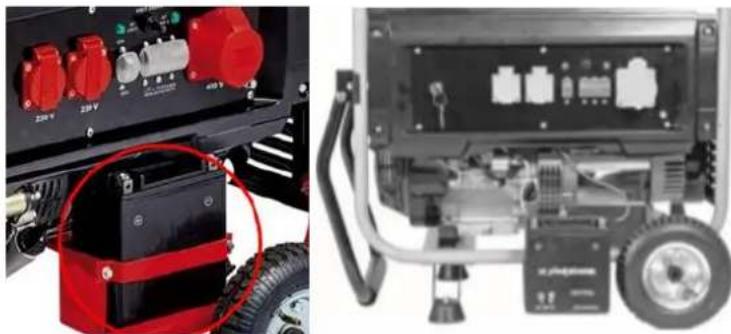

Two-panel image showing a red battery connected to an open electrical device with visible wiring and components (no text or symbols)

Fig. 7
Fig. 8

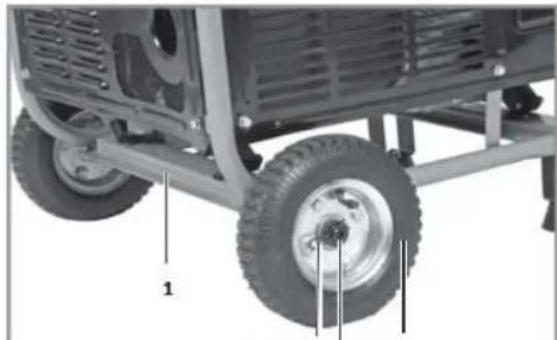

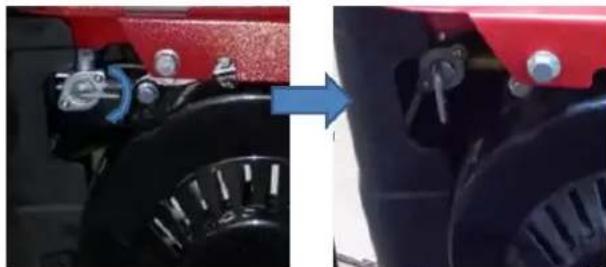

Close-up of a red vehicle wheel assembly with a blue arrow indicating rotation (no text or symbols visible)

Fig. 9

Close-up of a red Ribimex engine power supply unit with visible buttons and mounting holes (no readable text or symbols)

PRGE2800

ON OFF START

PRGE5500
Fig. 10

Red portable power plant interior showing fan blades and cooling pipes (no text or symbols visible)

Fig. 11

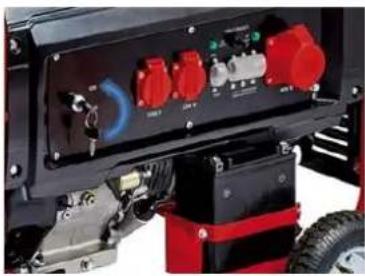

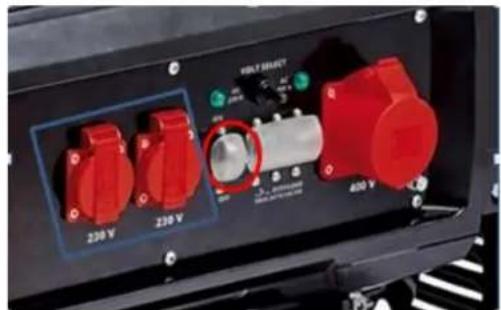

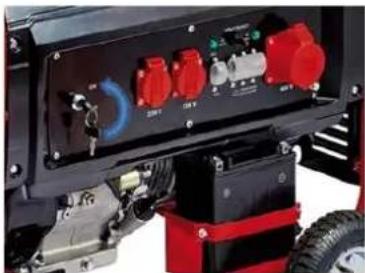

Close-up of a black electrical enclosure with red and gray components, no visible text or symbols

Fig. 13

RIBIMEX garden & tools VOLT 23V 23V

PRGE2800

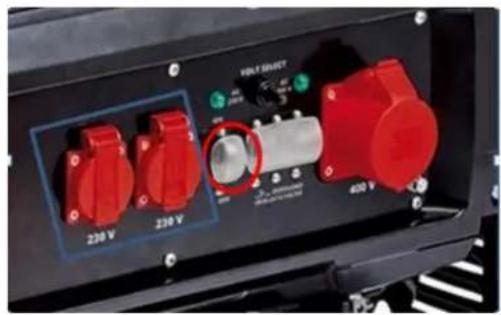

Close-up of a black industrial electrical control panel with red buttons and a cylindrical component, no visible text or symbols.

PRGE5500
Fig. 14

Close-up of a Ribimex industrial power supply unit with red and black buttons and a blue indicator light (no readable text or symbols)

PRGE2800

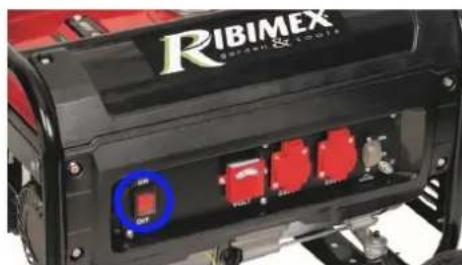

Close-up of a red and black industrial machine with visible control knobs and components (no text or symbols)

PRGE5500
Fig. 15

Close-up of a red vehicle's wheel assembly before and after replacement, showing mechanical components and tire alignment (no text or symbols visible)

Fig. 16

V. UTILISATION

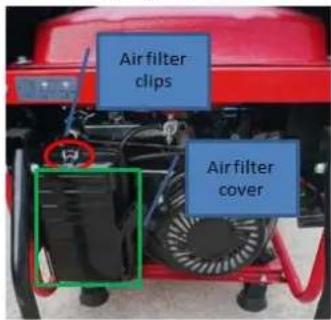

Air filter clips Air filter cover

Fig. 17

Close-up of a mechanical component with a blue circular annotation highlighting a metallic connector (no visible text or symbols)

Fig. 18

EN – Original instructions

I. Parts List

III. Safety instructions

V. Operation

II. Characteristics

IV. Getting Started

VI. Maintenance, Storage and Troubleshooting

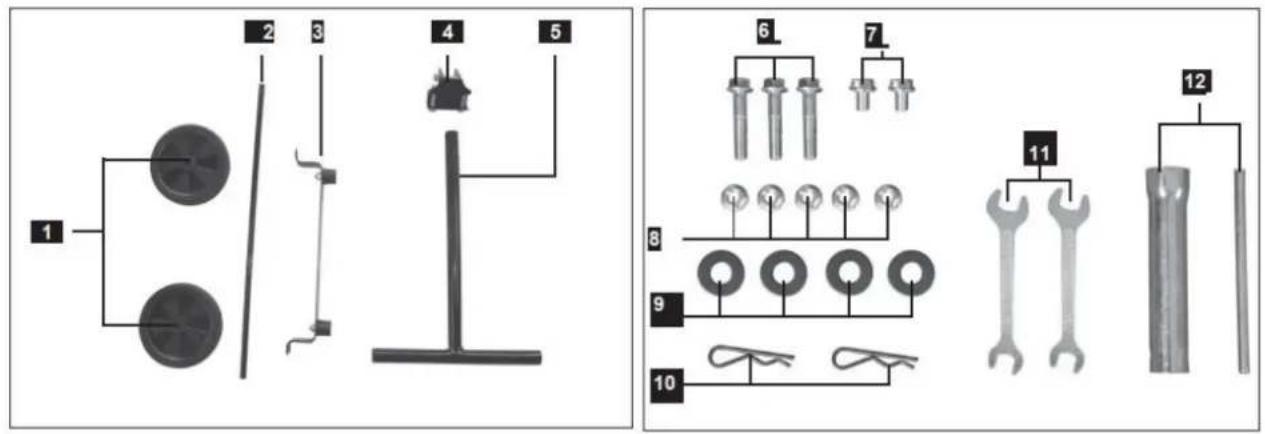

I. PARTS LIST

See figures

II. CHARACTÉRISTICS

Description		Gasoline Generator	Gasoline Generator
Reference		PRGE2800 / 605126	PRGE5500 / 605136
Model / Type		ART2800T	BLD5500
Engine	Type	4-stroke gasoline OHV	4-stroke gasoline OHV
	Cooling system	Air-cooled	Air-cooled
	Cylinder arrangement	Inclined, single cylinder	Inclined, single cylinder
	Displacement	207.7 cm^3	389cm^3
	Engine speed	3000 min^-1	3000 min^-1
	Operation hours	Rated load 7.5hrs, 2/3 load 11hrs	Rated load 10hrs, 2/3 load 11.2hrs
	Fuel	Normal unleaded gasoline	Normal unleaded gasoline
	Fuel tank capacity	15L	25L
	Engine oil capacity	0.6 L	1.1 L
	Ignition system	TCI	TCI
	Spark plug	LGF7RTC	F7RTC
	Sound power level	96 dB(A)	96 dB(A)
AC Output	Rated voltage	230V	2x230V~	400V 3~
	Rated frequency	50Hz	50Hz
	Rated current	11.3A	5.2A	13A
	Rated output	2600kW	3kW	3.6kW
	Maximum output	2800kW	3.3kW	4.8kW
Net weight	In Kg	42	83.5
Dimensions	(L×W×H) (mm)	610 x 460 x 460	710 x 575 x 585

III. SAFETY INSTRUCTIONS

Before using this product, carefully read this manual and familiarise yourself with its content and understand all safety instructions. Do not operate or service the product unless you clearly understand this manual. Always follow the safety instructions to minimize risk of damage to property, and to minimize any risk of damages and injuries to yourself and other persons and/or animals. Keep the manual with the product or in a safe place, so that you can read it whenever you have a question about its use or servicing.

Safety notes and attention statements should always be observed.

3.1- Symbols

	Do not expose to weather conditions (ex.: storm, rain, snow ...) or moisture. Do not use during weather conditions.
	Caution! Risk of injury and/or damage and/or deterioration of product in case of non-compliance to safety requirements.
	Beware of electrical voltage
	Read the instructions manual. Make sure all users read the instructions. Keep this manual for future reference
	Wear protective equipment (face shield or goggles, ear protection)Your hearing is at risk of irreparable damage. Anyone operating this machine under conditions of conscious daily use may be exposed to a noise level equal to or exceeding 85 dB (A). The operator must wear Personal Protective Equipment (PPE). In order to protect the operator's hearing.
	Wear protective gloves and protective boots.
	Never operate this tool or any other power equipment if you are tired, ill, or under the influence of alcohol, drugs, or any substance that could affect your ability or judgement.
	Danger: Fire hazard!Fuel is inflammable. Do not spill!
	Keep away from naked flames and any other heat source.Do not smoke. Do not spill fuel.Never attempt to refill while the motor is running or hot!
	Warning! Hot surfaces! Do NOT touch, burn hazard.During operation and for a certain time after the machine has been switched off, cylinder, motor casing etc. will be hot.Do not touch them until they have cooled down. You risk getting burnt.
	Warning: Read the information on the manual.Use 2-stroke automotive lubricating oil.
	Never run the engine indoors.Make sure there is always good ventilation when operating the product. Fumes from engine exhaust contain carbon monoxide, which can cause serious injury or death.
	Sound power level.
	Do not dispose of this product with household rubbish. Dispose of this product in the nearest recycle centre. Please contact your local authority or local recycle centre for further information for its safe disposal.

3.2- GENERAL SAFETY INFORMATION

1. Keep work area clean

Cluttered areas invite accidents and injuries.

1. Consider work area environment

Do not expose product to rain or to humidity.

Do not use product in damp or wet locations, during weather conditions.

Keep work area well lit (natural light or sufficient artificial lighting).

Do not use product indoors.

1. Guard against electric shock

Avoid contact with electrical parts.

1. Keep children away

Do not let bystanders touch the product.

All bystanders (esp. children) should be kept away from product and work area.

Keep the product away from children or from their environment. Never allow children to operate the appliance. Children should be supervised to ensure that they do not play with the product.

1. Store idle product

When not in use, product should be stored in a dry, high or locked up place, out of reach of children.

1. Do not force the product

It will do the job better and safer at the rate speed for which it is intended.

Do not use the product for purposes other than those for which it is intended. The product will do a better and safer job if it is used only for the purposes it was designed for.

1. Use the right product

Do not force small products or attachments to do the job of heavy-duty tools.

1. Dress properly

Do not wear loose clothing or jewellery; they can be caught in moving parts.

Wear protecting hair covering to contain long hair.

1. Use protective equipment

Wear protective equipment appropriate to working conditions and work environment

Wear protective helmet, safety goggles, ear mufflers, face or dust mask or breathing mask with proper filter, rubber gloves and non-skid footwear to reduce the risk of personal injury during products use or manipulation.

1. Do not overreach

Keep proper footing and balance at all times.

Do not work on unsecured scaffolding, ladders...

1. Maintain product with care

Keep product clean for better and safer performance.

Follow instructions for lubrication and changing accessories.

Keep handles dry, clean and free from oil and grease.

Ensure that ventilation slots are kept clean and free from dust at all times (to avoid product from overheating)

1. Switch off product when not in use, before servicing and when changing accessories.

2. Always be sure to include this manual when selling, lending or otherwise transferring the ownership of the product

3. Always keep the warning labels clean and nice at any time without any scratches or damages.

If warning seals peel off or become soiled and impossible to read, you should contact the dealer from which you purchased the product to order new seals and affix the new seals.

Please tear down the original soiled warning label before affixing a new one. Let the surface dry thoroughly and then affix the new label on the original position.

15. Stay alert

Watch what you are doing. Use common sense.

Never operate this machine or other power equipment if you are tired, ill, or under the influence of alcohol, drugs, or any other substance that could affect your ability of judgment.

16. Check damaged parts

Before further use or reuse of the product, it should be carefully checked to determine that it will operate properly and perform its intended function.

1. Defective switches or other part that is damaged should be properly repaired or replaced by an authorized service centre.

Do not use the product if the switch does not turn it on and off.

18. Warning

The use of any accessory or attachment, other than those recommended in this instruction manual, may present a risk of injury to persons or animals and may cause damages.

The user and/or operator are responsible for any damages or injury caused to properties and/or persons.

19. Have your product repaired by qualified personnel

Unless otherwise indicated in this instruction manual, repairs or replacement of any damaged part in an authorised service centre is recommended.

This product is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts; otherwise this may result in considerable danger to the user.

20. Remarks:

The safety precautions and instructions given in this manual are unable to cover in detail all the conditions and situations that may arise.

The operator and/or user must use common sense and caution when operating the product especially for any matters that are not referred in the above

1. Note: For specific maintenance and safety information about this product, consult the user's manual provided with it. If it has been lost or misplaced, contact your local retailer for a replacement.

2. Important: The information contained in this instruction's manual describes components available at the time of publication. We reserve the right to make changes without prior notice and without obligation to make alterations to components previously manufactured.

3.3- WARNING! SPECIFIC SAFETY PRECAUTIONS

1. Never permit a person without training or instruction to operate this machine.

2. Make sure there is always good ventilation when operating the product. Fumes from engine exhaust can cause serious injury or death.

3. Never run the engine indoors!

4. Please avoid running the engine in areas without good ventilation such as indoors, plastic green houses, tunnels, underground caves etc.

5. Make sure there are no missing or loose fasteners, and that the stop switch is working properly.

6. Stop the motor immediately if the product suddenly begins to vibrate or shake. Inspect for

broken, missing or improperly installed parts or attachments.

1. Never smoke or light fires near the hedge trimmer. Keep the trimmer away from excessive heat. Engine fuel is very flammable and fire could lead to serious personal injury or property damage.
2. Make sure of no fuel leaking from Fuel tank, Fuel cap, Fuel pipe and Carburetor and other parts which fuel may leak. Repair the machine if fuel leaking, make sure no leaking again.
3. Don't get product close to inflammable materials such as ropes, dead leaves, waste paper and oilcloth etc.
4. After refueling, screw the fuel cap back tightly onto the fuel tank and then carry the product to a spot 3m or more away from where it was refueled before turning on the engine.

11. Refueling

➢ Never store cans of fuel or refill the fuel tank in any place where is a boiler stove, wood fire, electrical sparks, welding sparks or any other source of heat or fire which might ignite the fuel.
- Don't smoke when handling the fuel.
When refilling the tank, always turn off the engine first and take a careful look around to make sure that there are no sparks or open flames anywhere nearby before refueling.

1. If any fuel spillage occurs during refuelling, use a dry rag to wipe up spills before turning the engine back on again.

2. Do not transport this unit on an uneven surface of the road for a long time when the fuel tank is full. This may cause fuel spillage after the tank cap is loosened as a result of bumping and impacting.

3. Before starting engine, keep children and animals out of the working area.
4. Never touch the muffler, spark plug and plug wire while the engine is in operation or immediately after stopping the engine. Doing so could result in electric shock and/or serious burns because of high temperature.
5. For safe operation, use caution and keep the children away from the spot where the engine is in operation.
6. The working temperature should be within 5°C and 40°C.

3.4- Fuel

3.4.1- Check fuel level

ATTENTION: always check the fuel level before each use and startup.

Check the fuel level with engine switched off and with generator on flat ground.

3.4.2- Fuel recommendations

1. Use unleaded gasoline only.
2. You can use unleaded gasoline with 10% ethanol.
3. Unleaded gasoline pollutes the engine and sparkplug less and preserves the life of the exhaust system.
4. Never use stale or contaminated gasoline or an oil/gasoline mixture.
5. Avoid getting dirt or water in the fuel tank.

DANGER:

➢ Fuel catches fire easily. So be careful with your operation to avoid fire.
➢ Smoking is extremely dangerous: always be sure to keep lit cigarettes away when mixing fuel

or refilling fuel tank.

When refilling the tank in operation, always turn off the engine first. Don't refill the tank until the engine is cooled.

➢ Never put any inflammables material near the air exhaust, engine openings when it is running.

After refueling and before starting engine, clean any fuel drops or spills with a dry cloth. If any fuel spillage occurs during refueling, use a dry rag to wipe up spills before turning the engine back on again.

ATTENTION: Gasoline is a flammable and explosive product.

You can get burn or be seriously injured during handling.

- Stay away from any spark or flame

- Handle only in outdoors

- Clean if overflows

3.5- Oil

3.5.1- Oil level check

ATTENTION: always check the oil level before each use and startup

Running the engine with a low oil level can cause engine damage Check the engine oil level with engine switched off and with pump on flat ground.

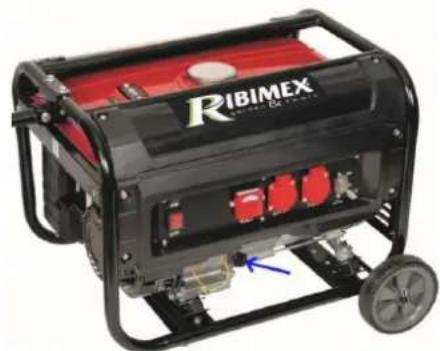

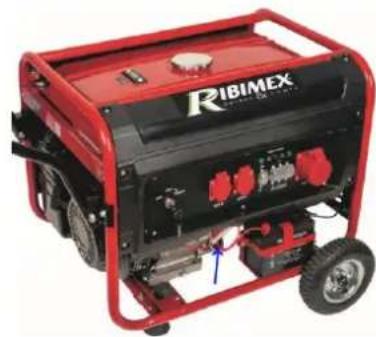

1. Loosen and remove the oil dipstick (Fig. 1) and wipe it.
2. Check the oil level by reinserting the dipstick in the neck.
3. If the line on the dipstick is between both marks, the oil level is correct. If the line does not reach the lower mark, the oil level is too low, fill to the upper limit with the recommended oil (Fig. 2).
4. Screw in the oil dipstick.
5. Make sure there is no oil leakage on the generator.

RIBIMEX portable electricity generator with red panel and wheels (no visible text or symbols)

PRGE2800

Red and black portable RIBIMEX electric generator with wheels and control panel (no visible text or symbols)

PRGE5500
Fig. 1

LIMITE SUPERIEURE LIMITE INFERIEURE

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

Fig. 2

3.5.2- Engine oil recommendations

Oil is a major factor affecting performance and service life. Use 4-stroke automotive lubricating oil. 4T SAE 15W/40.

IV. GETTING STARTED

4.1- Unpacking

• Remove product from its packaging.
• Check that tool and accessories are not damaged

4.2- Assembly

PRGE2800 – Spare parts' list

Technical diagram showing mechanical assembly components with numbered parts and labeled parts

PRGE2800 - Assembly

Technical diagram of a vehicle chassis with numbered components and wheel layout annotations

Technical diagram of a vehicle chassis with numbered components labeled 3, 4, and 5

Interior view of a vehicle chassis frame with numbered components (no visible text or symbols)

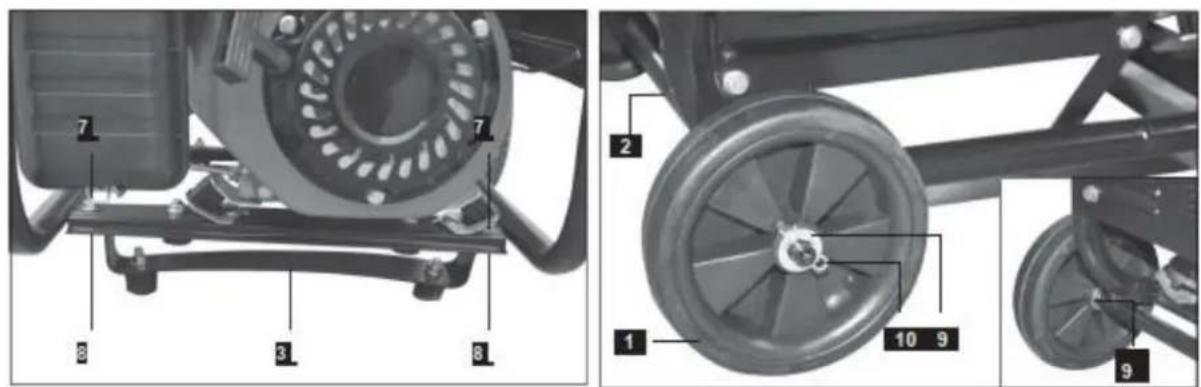

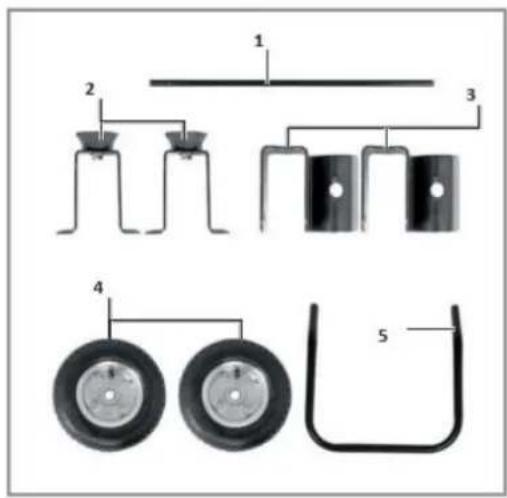

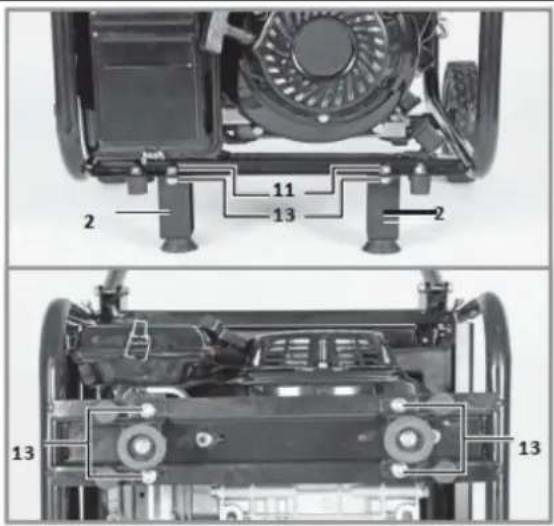

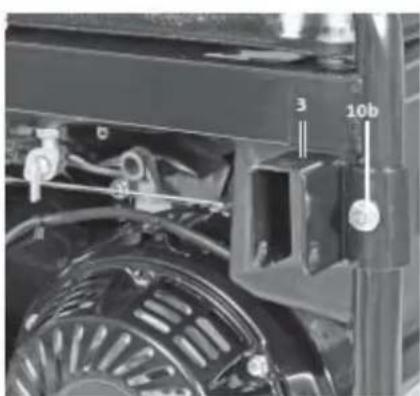

1. Assemble the feet (3) under the frame using bolts (7) and nuts (8).

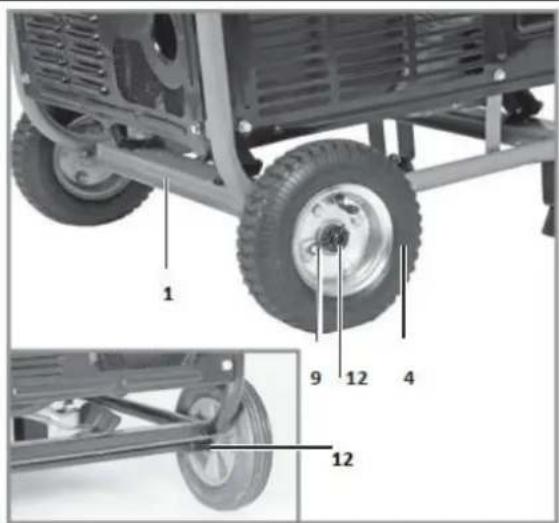

2. Assemble the axle and wheels by placing the axle (2) in the hole of the frame, in the washer (9) and the wheels (1) and secure it with the cotter pin (10).

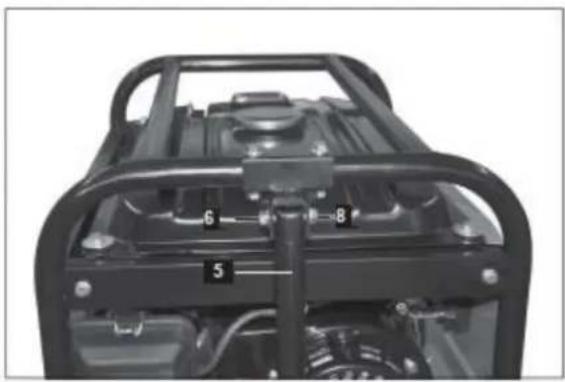

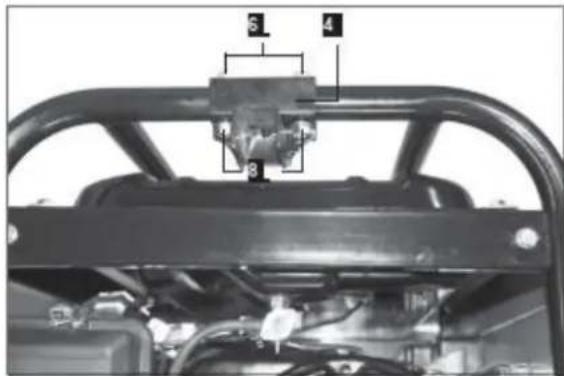

3. Assemble the handle bracket (4) to the frame with a bolt (6) and a nut (8).
4. Assemble the handle (5) by securing it to the bracket with a bolt (6) and a nut (8).

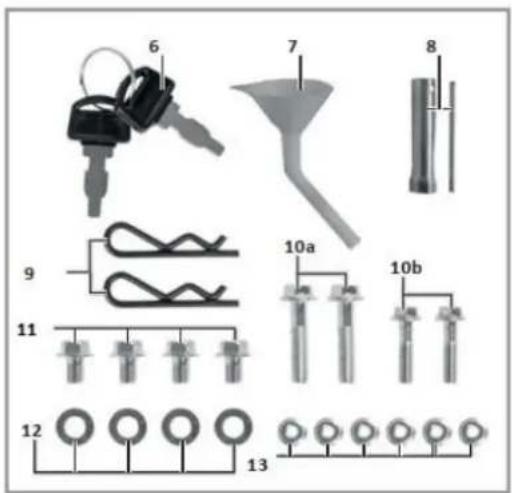

PRGE5500 - Spare parts' list

Technical diagram showing labeled components of a mechanical or electrical assembly with numbered parts 1 to 5.

6 7 8 9 10a 10b 11 12 13

PRGE5500 - Assembly

11 13 2 2 13 13

1 9 12 4 12

3 10b 5 13 10a

1. Mount the feet (2) under the frame, use the bolt (11) and the nut (13).
2. Assemble the axle and the wheels: place the axle (1) in the hole in the frame, then in the washer (12) and the wheels (4), then fix it with the cotter pin (9).
3. Assemble the handle bracket to the frame with a bolt (10b).
4. Assemble the handle (5) by securing it to the bracket with a bolt (10a) and a nut (13).

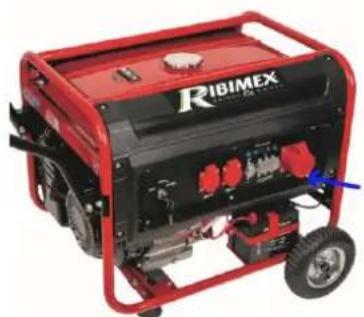

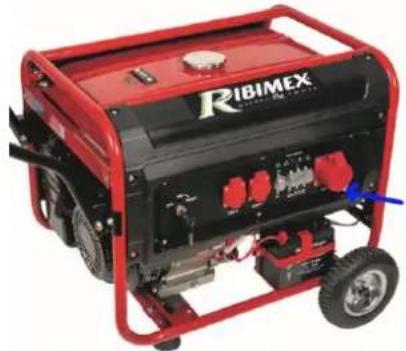

4.3- Starting the generator

WARNING! Before starting the engine, the generator must be grounded to discharge static electricity. Connect one end of a cable to the generator ground connection (Fig. 5) and the other end to an external ground (Fig. 6).

RIBIMEX portable electricity generator with red panel and wheels (no visible text or symbols)

PRGE2800

Red and black RIBIMEX portable electricity generator with wheels and control panel (no visible text or symbols)

PRGE5500

Fig. 5

Outdoor installation with a cylindrical pipe and blue cable, surrounded by sandy soil (no visible text or symbols)

Fig. 6

Battery (only applicable for PRGE5500)

Attention! If you wish to service the battery and/or dispose it, you must read or follow the manufacturer's safety instructions.

Attention! The person replacing the battery should remove all metal armbands, wristwatches, rings, etc., before handling the battery. If any of these components come into contact with the battery poles or current-conducting cables, there is a risk of burns.

Inserting and removing the battery (Fig. 7).

Attention! Use the generator only with a maintenance-free 12V battery.

Open the battery cover with a screwdriver (Fig. 7). Place the battery (Fig. 7) on the base. First connect the red (+) cable then the black (-) cable (Fig. 8). To remove the battery, perform the procedure in reverse.

Two-panel image showing a black industrial machine with red buttons and a battery connected to a red cable (no visible text or symbols)

Fig. 7
Fig. 8

Attention! Do not disconnect the battery while in use as this may destroy the electronics. The battery is charged by the generator during its operation.

Maintenance and care of the battery

• Make sure your battery is always working and safe.
- A perfect connection to the electrical system cable network must be ensured at all times.
- Keep the battery clean and dry.

Fill up with oil and fuel before starting the generator (see 3.4- and 3.5-)

Starting the engine with the reversing starter.

1. Open the fuel tap (Fig. 9) while turning it

Close-up of a red tractor wheel assembly with a blue arrow indicating rotation (no text or symbols visible)

Fig. 9

1. Place the ON/OFF switch to the ON position (Fig. 10).

Close-up of a Ribimex industrial power supply unit with red and black components, no visible text or symbols on the main body.

PRGE2800

ON OFF START

PRGE5500
Fig. 10

1. Place the choke lever (pos. 11 for PRGE2800 and pos. 14 for PRGE5500) in position ∅.
2. Gently pull the reversible starter until you feel a resistance then pull it firmly. If the engine does not start, pull again (Fig. 11).
3. Place the choke lever back to its original position once the engine has started.

Close-up of a red portable electricity generator with visible fan and cooling unit (no text or symbols)

Fig. 11

Starting using the electric starter (only for PRGE5500):

1. Open the fuel tap (Fig. 9).
2. Turn the ON / OFF switch to the ON position (Fig. 10 PRGE5500).
3. Place the choke level (pos. 14) in position ∅.
4. Start the engine by turning the ignition key to the START position (Fig. 12). Once the engine has started, immediately return the ignition key to its original position. Do not operate the ignition key while the engine is running, this will damage the starter system.

ON START OFF

Fig. 12

1. Place the choke lever back to its original position once the engine has started. Connect electrical appliances you wish to use to the generator: 230V\~ and/or 400V 3\~ sockets (for PRGE5500).

For PRGE2800:

Outlets can be charged continuously (S1) with 3000W and temporarily (S2) for a maximum of 5 minutes with 3300W.

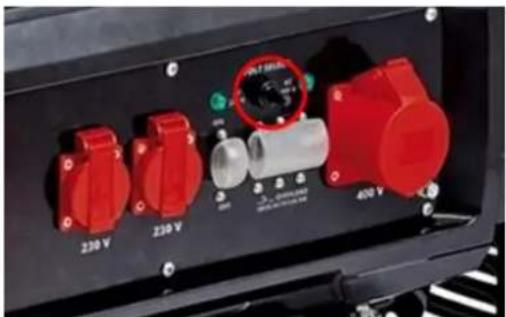

For PRGE5500:

Outlets can be charged continuously (S1) with 2600W and temporarily (S2) for a maximum of 5 minutes with 2800 W or for a maximum of 2 minutes (with a cold engine) with 3100W.

Set the selector (Fig. 13) to the right to activate the 400V 3 \~ socket.

This outlet can be continuously charged (S1) at 3600 W and temporarily for a maximum of 2 minutes at 5500 W (when stopped, the generator being cooled) or for at most 5 minutes at 4800 W (at operating temperature).

Close-up of a black industrial electrical enclosure with red and white components, no visible text or symbols

Fig. 13

The generator is suitable for 220-240V\~ AC devices.

Do not connect the generator to your home mains as this could damage it to other electrical appliances in your home.

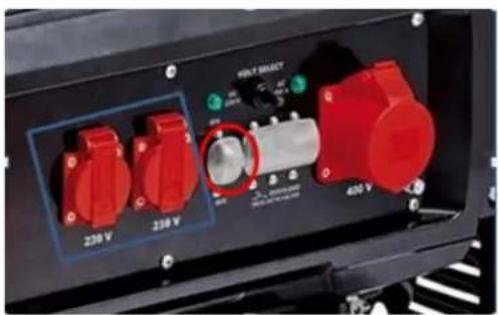

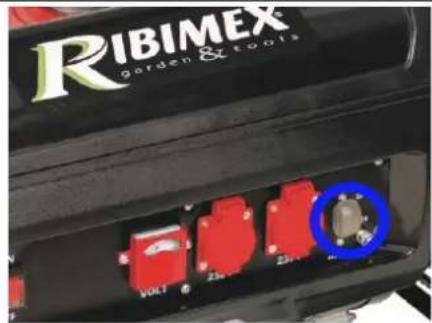

Important! The generator comes with an overload cut-off.

This disconnects the power outlets in case of overload. If applicable: Reduce the electrical power you draw from the generator or remove the connected defective devices and then restart sockets by pressing the safety switch (Fig. 14).

RIBIMEX garden & tools VOLT 25V 25V

PRGE2800

Close-up of a black industrial electrical control panel with red buttons and a cylindrical component (no visible text or symbols)

PRGE5500
Fig. 14

4.4- Switching off the generator

Before turning off the generator, let it run briefly without any consumers to allow it to cool.

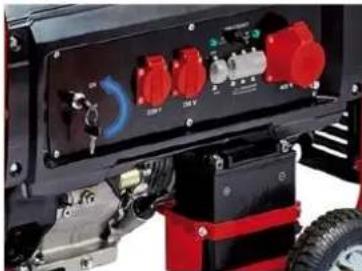

1. Place the ON / OFF switch in position OFF (Fig. 15).

Close-up of a Ribimex portable electricity generator with red buttons and a blue indicator light (no visible text or symbols)

PRGE2800

Close-up of a red industrial machine's internal components with red switches and wiring (no visible text or symbols)

PRGE5500
Fig. 15

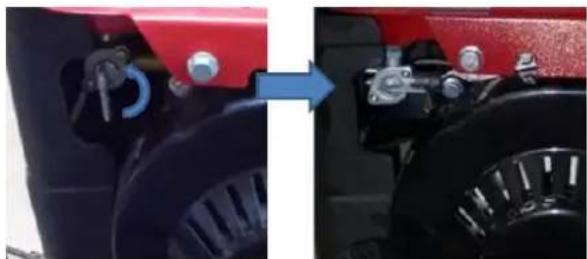

1. Close the petrol cock (Fig. 16).

Close-up of a red vehicle wheel assembly with a blue arrow indicating transformation (no text or symbols visible)

Fig. 16

V. OPERATION

This device is a generator for outdoor use only. Never use this generator indoors even if windows or doors are open. The device is suitable for all uses intended for operation with a voltage of 230V\~ / 400V 3\~. Please observe the limits indicated in the safety instructions. The purpose of this generator is to power appliances and lighting sources. Check the suitability of the appliances as indicated by the supplier. If in doubt, contact a specialized dealer. The machine must only be used in accordance with its assignment. Each use beyond this assignment is considered non-compliant and dangerous. For resulting damage / injury, we accept no liability and the operator is solely responsible. Our devices have been designed to be used in a personal environment. We decline all responsibility if the device is used in a professional or industrial setting and any other equivalent activity.

VI. MAINTENANCE, STORAGE AND TROUBLESHOOTING

Before any intervention on product, ensure that the generator is turned off (OFF position) and disconnected any devices.

Reminder: Make sure to maintain the machine in good working condition, carry out regular maintenance of the machine after each use and before storage. Any breach or default of adequate maintenance reduces the life of the machine and increases the risk of breakdowns and accidents.

To preserve the security system throughout the life of the machine, it is important to perform maintenance and proper cleaning, DO NOT use non-compliant replacement parts and do NOT dismantle yourself the machine or change the security features.

6.1- General product maintenance

Clean plastic parts with a soft clean cloth.

Do not use aggressive cleansers (solvents or abrasive cleansers), abrasive sponge or sharp objects. Do not put or immerse product in water or any other liquid.

1. Keep all safety devices, vents and engine housing free of dirt and dust as much as possible. Wipe the equipment with a clean cloth or blow it with low-pressure compressed air.
2. We recommend that you clean the unit immediately and after each use.
3. Clean the equipment regularly with a damp cloth and mild soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Make sure no water can seep into the unit.

6.1.1- Air filter

1. Clean the air filter at regular intervals and replace if necessary.
2. Open both clips at the back of the generator (Fig. 17) and remove the air filter cover.

Air filter clips Air filter cover

Fig. 17

1. Remove the foam filter.
2. Do not use abrasive cleaners or gasoline to clean items.
3. Clean items by tapping them on a flat surface. Then clean with soapy water then rinse thoroughly with clear water and allow to dry.
4. Reassemble the air filter by following the above steps in the opposite order.

6.1.2- Spark plug

Check the spark plug for the first time after 20 hours of operation. Clean it with a copper brush if necessary. Then carry out maintenance of the spark plug every 50 hours of operation.

1. Remove the spark plug lug.
2. Remove the spark plug using the supplied spark plug wrench (Fig.18).

Close-up of a mechanical component with a metallic connector and mounting holes (no visible text or symbols)

Fig. 18

1. Replace the spark plug by following the above steps in the opposite order.

6.1.3- Draining and checking the oil level (before each use)

The draining of engine oil must be done when the engine is at operating temperature.

1. Place the generator on a suitable support slightly at an angle with the oil draining screw.
2. Open the oil draining screw.
3. Open the oil draining plug and drain the oil into a receiving container.
4. After draining the generator, close the oil drain plug and return the generator to the ground.
5. Fill with recommended oil up to the upper mark on the oil level gauge. Do not screw the dipstick for the oil level check, only insert it to the thread.

The generator is equipped with an automatic shutdown system in case of low oil level.

6.1.4- Replacement of defective fuses (for PRGE5500 Fig. 17)

Open the fuse compartment and replace the defective fuse with a new model. Only use fuses of the same type as the one installed (check the maximum current on the fuse). If in doubt, contact our customer service or an electrician.

6.2- Storage

Note! Failure to follow these recommendations may result in deposits on the inside wall of the accelerator, which in turn results in a difficult start or lasting damage to the machine.

1. Perform all maintenance work.
2. Run the fuel from the tank (using a fuel pump for example).
3. Once the fuel is empty, start the machine.
4. Allow the machine to run empty until it stops. This cleans the carburetor of any remaining fuel.
5. Cool the machine (about 5 minutes).
6. Remove the spark plug.
7. Clean the outer casing of the machine.
8. Store the machine in a cool, dry place out of reach of ignition sources and flammable substances.
9. Ideally, cover the machine to protect it from dust.

6.3- Disposal

When discarding the generator, drain it from the fuel and oil and be sure to follow local regulations. Do not throw in or with garbage.

6.4- Transportation

1. Use the handle for transporting the generator.
2. Transport the equipment only by carrying it by the handle.
3. Protect the equipment against unexpected knocks and vibrations.

6.5- Troubleshooting

Fault	Possible cause	Remedy
Engine does not function	Automatic oil cut-out has not responded	Check oil level, top up engine oil
	Spark plug fouled	Clean or replace spark plug (electrode spacing 0.6 mm)
	No fuel	Refuel / have the petrol
		cock checked
Generator has too little or no voltage	Controller or capacitor defectiveOvercurrent circuit-breaker has triggeredAir filter dirty	Contact your dealerActuate the circuit-breaker and reduce the consumersClean or replace the filter

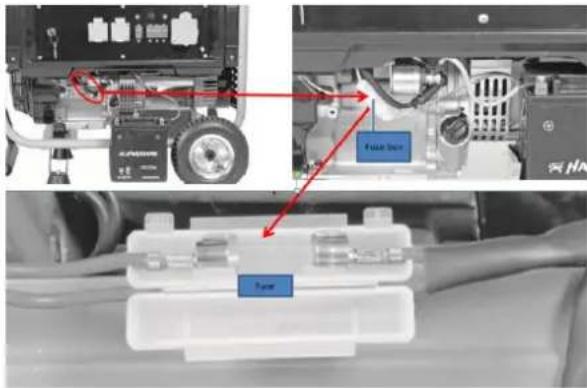

The battery does not charge up	Poor contact to the batteryBattery defectiveDefective fuse (Fig. 17)Fig. 17	Clean the contactsHave the battery checked by an expert and replace it if necessaryCheck the function of the equipment using a different battery; replace the fuse
Starter does not turn	Battery dischargedBattery not connected	Charge the batteryConnect the battery

6.6- Information about the guarantee

The product is guaranteed in accordance with the legislation of the country of sale.

The guarantee starts from the date of purchase (subject to proof of purchase, ie. Sales receipt with purchase date)

The guarantee only covers defects in materials or workmanship.

Repairs (under the guarantee) can only be performed by an authorized service center.

When making a claim under the guarantee, the original sales receipt (with purchase date) must be submitted.

The guarantee does not apply in the following:

- Normal wears and tears (on the product itself or wear parts).

- Incorrect use, eg overloading of the device, use of non-approved accessories

- Abuse or damage to the product, and damage caused by external factors.

- Damage caused by non-compliance with the instructions and guidelines of the manual, e.g. connection to the wrong power source or non-compliance with instructions for assembly or installation.

• Partially or totally disassembled device.
• Partially or fully modified device with parts not recommended by the manufacturer

Special provisions:

A 6 months guarantee is given for rechargeable batteries.

In case of dispute or litigation concerning the product or guarantee, the Melun Commercial Court has exclusive jurisdiction.

Our warranty conditions are available from our STAV department [*] and on our website.

Should you have any repair requests under the warranty, please contact your retailer or our STAV [*] who will inform you on the procedure.

Should you have any parts and/or accessories request, you can contact our STAV [*] to ask for the product exploded view by indicating our reference and the serial number or batch number appearing on the nameplate.

[*] STAV = Technical and After-Sales Service department

STAV contact details: Ribimex, 56 Route de Paris, F-77340 Pontault-Combault.

Tel : [phone] (0,34€/min ; only in France) ; email : [e-mail]

Internet Website: www.ribimex.com

Pure mechanical diagram showing a tool interacting with a surface, no text or symbols present

Fig. 2

Mechanical assembly diagram showing a vehicle chassis with labeled components (no readable text or symbols)

Mechanical vehicle chassis with numbered components (no visible text or symbols)

Technical diagram showing labeled components of a mechanical or electrical assembly with numbered parts

6 7 8 9 10a 10b 11 12 13

Mechanical assembly diagram showing internal components with numbered labels (13), no readable text or symbols present.

Close-up of a vehicle chassis with visible tire, wheels, and structural components (no text or symbols)

9 12 4 12

Close-up of a mechanical assembly with labeled parts (3 and 10b), no readable text or symbols beyond labels

13 5 10a

Exterior view of a Ribimex gas generator with red panel and wheels (no visible text or symbols)

PRGE2800

Red and black Ribimex Gas turbine with wheels and control panel (no visible text or symbols)

PRGE5500
Fig. 5

Outdoor installation of a cylindrical water meter connected to a blue cable, with soil and dirt ground visible (no text or symbols)

Fig. 6

Two views of a portable electric vehicle: front view shows red buttons and battery, side view shows internal components with no visible text or symbols.

Fig. 7 Fig. 8

Close-up of a red vehicle wheel assembly with a blue arrow pointing to the component (no visible text or symbols)

Fig. 9

RIBIMEX Renew & Coats UP UPS

PRGE2800

ON OFF START

PRGE5500
Fig. 10

Close-up of a red portable power plant's front panel showing internal fan and motor blades (no text or symbols visible)

Fig. 11

Close-up of a black industrial electrical control panel with red and gray buttons, no visible text or symbols

Fig. 13

RIBIMEX garden & tools VOLT 230 230

PRGE2800

Close-up of a black industrial electrical control panel with red buttons and a cylindrical component, no visible text or symbols.

PRGE5500
Fig. 14

Close-up of a Ribimex engine with red buttons and a blue indicator light (no readable text or symbols)

PRGE2800

Close-up of a mechanical device's front panel with red and black components, no visible text or symbols

PRGE5500
Fig. 15

Close-up of a red vehicle wheel assembly with a blue arrow indicating transformation (no text or symbols visible)

Fig. 16

V. FUNZIONAMENTO

Air filter clips Air filter cover

Fig. 17

Close-up of a mechanical component with a blue circular annotation highlighting a metallic part, mounted on a black surface (no visible text or symbols)

Fig. 18
