USER MANUAL Ribiland PRPVC1501V RIBIMEX

RIBILAND® by RIBIMEX

Exterior view of a small industrial water filter with black and green components (no text or symbols visible)

PRPVC751V / 511671

Small industrial water level control device with black and metallic casing, green handle, and wiring (no visible text or symbols)

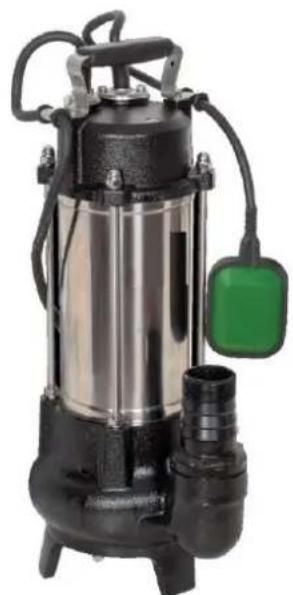

PRPVC1501V / 511641

Carefully read this instruction manual before operating this appliance.

Incorrect operation may cause injury and/or damages.

Please keep this manual for future reference.

AVVERTENZA:

Warning: This pump is not intended for pumping drinking water or any other food liquid.

Non-contractual photos and illustrations.

EN - Original instructions

I. Parts List

II. Characteristics

III. Safety instructions

IV. Getting Started

V. Operation

VI. Maintenance and Storage

I. PARTS LIST See Fig.1

II. CHARACTERISTICS See Table

III. SAFETY INSTRUCTIONS

Before using this product, read and understand all safety instructions.

Always follow the safety instructions to minimize risk of damage to property, and to minimize any risk of damages and injuries to persons and animals.

Symbols (Explanation of symbols appearing on the product, when applicable)

		Caution! Risk of injury and/or damage and/or deterioration of product in case of non- compliance to safety requirements
		Read the instructions manual.
		Keep persons (esp. children) and animals away from product and working area
		Keep hands (and all body parts) away from impeller to avoid any injury hazard.Warning! Contact with the turbine while it is in operation can cause serious injury and damages.
		Disconnect product from its power source before maintenance, cleaning or any intervention on product; or when you do not use product.Disconnect product from its main power source, if product, power cable, or extension cord is damaged or cut during operation.Unplug product by pulling the plug. Do not pull the cable.
		Do not dispose of this product with household rubbish.Dispose of this product in the nearest recycle centre.Please contact your local authority or local recycle centre for further information for its safe disposal.

3.1- READ ALL THE INFORMATION BEFORE OPERATING THE PRODUCT.

1. Keep work area clean

Cluttered areas and benches invite accidents and injuries.

1. Consider work area environment

Keep work area well lit (natural light or sufficient artificial lighting).

Keep work area well ventilated.

Do not use product where there is risk to cause fire or explosion (in the presence of flammable liquids, solids or gas).

1. Guard against electric shock

Avoid body contact with earthed or grounded surfaces (e.g. pipes, radiators, ranges, refrigerators).

1. Keep children away

Do not let bystanders touch the product or its power cable or extension cord.

All bystanders (esp. children) should be kept away from product and work area.

Keep the product away from children or from their environment. Never allow children to operate the appliance. Children should be supervised to ensure that they do not play with the appliance.

1. Store idle products

When not in use, product should be stored in a dry, high or locked up place, out of reach of children.

1. Do not force the product

It will do the job better and safer at the rate speed for which it is intended.

Do not use the product for purposes other than those for which it is intended. The product will do a better and safer job if it is used only for the purposes it was designed for.

1. Use the right product

Do not force small products or attachments to do the job of a heavy-duty product.

8. Dress properly

When installing, do not wear loose clothing or jewellery; they can be caught in moving parts.

Wear protecting hair covering to contain long hair.

9. Use protective equipment

When installing, wear protective equipment appropriate to working conditions and work environment

Wear protective helmet, safety goggles, ear mufflers, face or dust mask, rubber gloves and non-skid footwear to reduce the risk of personal injury during products use or manipulation.

10. Do not abuse the power cable

Never carry the product by the cable or yank it to disconnect it from the socket.

Keep the cable away from heat, oil and sharp edges.

Inspect product cable periodically and if damaged have it repaired by an authorized service facility.

Inspect extension cords periodically and replace, if damaged.

11. Do not overreach

When installing, keep proper footing and balance at all times.

12. Maintain product with care

Keep product clean for better and safer performance.

13. Disconnect product

When not in use, before servicing and when changing accessories.

14. Avoid unintentional starting

Ensure switch is off when plugging in.

15. Use of extension leads

When product is used with extension cord, ensure that extension cord withstands product ratings.

If used outdoors, use only extension cords intended for outdoor use.

16. Stay alert

Watch what you are doing. Use common sense.

Do not operate product when you are tired, under the influence of alcohol, prescription medicines or drugs.

17. Check damaged parts

Before further use or reuse of the product, it should be carefully checked to determine that it will operate properly and perform its intended function.

1. Defective switches or other part that is damaged should be properly repaired or replaced by an authorized service centre. Do not use the product if the switch does not turn it on and off.

19. Warning

The use of any accessory or attachment, other than those recommended in this instruction manual, may present a risk of injury to persons or animals and may cause damages.

The user and/or operator are responsible for any damages or injury caused to properties and/or persons.

20. Have your product repaired by a qualified person

Unless otherwise indicated in this instruction manual, repairs or replacement of any damaged part in an authorized service centre is recommended.

This electric product is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.

21. Remarks:

The safety precautions and instructions given in this manual are unable to cover in detail all the conditions and situations that may arise.

The operator and/or user must use common sense and caution when operating the product especially for any matters that are not referred in the above

3.2- Special warnings when using the pump

1. Become familiar with the controls and the proper use of the equipment.
2. The use of this product by children without adult supervision is forbidden.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- children shall not play with the appliance.

- cleaning and user maintenance shall not be made by children without supervision

1. If the power cable is damaged, it must be replaced by the manufacturer, its after sales service or a person with similar qualification in order to avoid any danger.

If the power cable or extension cord is damaged or cut during operation, immediately disconnect plug from its main power source. Do not touch the cable or extension cord before unplugging from main power.

1. Make sure the electrical connection is carried out according to local or national regulations. If necessary, seek advice or assistance from a qualified electrician.
2. Make sure that the power supply corresponds with the connection specifications of the device before it is connected.
3. Lay the extension cord in such a way that it cannot get into contact with the liquid being conveyed.
4. Do not install or turn on the product if there are persons or animals in the conveying medium.

(e. g. swimming pool) or making contact with the conveying medium.

1. Do not leave the device unsupervised. Unplug the mains plug during periods of extended absence.

2. As a general rule, repairs are only to be carried out by an electrician. If repairs are performed improperly, there is danger of liquid getting into the electronic components of the device.

3. Symbols affixed to the tool may not be removed or covered. Information on the product that is no longer legible must be replaced immediately. Contact your retailer to get new labels.

3.3- Safety prescriptions

1. The supply voltage should correspond to that given on the description label (230 V-50Hz).
   Do not use any other type of power supply.
2. The pump should be supplied by a circuit containing a residual current device (circuit breaker, RCD) with a sensitivity not exceeding 30 mA.
   Consult with a qualified electrician.
3. The supply cable should be checked periodically and before each use to see if there are any signs of ageing or damage.
   If the pump is not in good condition, do not use it. Have it repaired by an authorized centre.
4. If an extension is used, ensure that it is officially approved. Keep it well away from sharp edges, heat sources and combustibles.
5. The plug-in connector for the extension should be of the 2-pole + earth type of 10-16A/250V, in accordance with EEC standards. The wire section in the cable should be equal to or greater than 1mm. The cable should not be lighter than cables of HO7 RN-F.
6. When disconnecting the power cable from the socket, always grip the plug itself and not the cable.
7. These pumps can be used in swimming pools, garden ponds (e.g. ponds and / or garden pond, fountains ...).

If the pump is used for emptying a swimming pool or pond, it should not be used when people or animals are in the water.

Similarly, to avoid accidents during pump operation, it is strictly forbidden to bathe, to swim, to wash, or to water animals near the pump.

Ensure to remove the pump before allowing people and / or animals to enter the water.

1. When the pump is immersed, handling should not be carried out using the power cable, but using a device (for ex. a rope) connected to the carrying handle.
2. Do not use power cable or float switch cable for carrying or hanging up the pump.

IV. GETTING STARTED

Before any intervention on product, ensure that product is disconnected from its power source.

4.1- Unpacking

• Remove product from its packaging.
• Check that product and accessories are not damage

4.2- Electrical connection

Connect the pump to a socket of 2 pole + earth type of 10-16A/250V, fitted with residual current device (RCD) or circuit breaker with a sensitivity not exceeding 30 mA.

4.3- Connecting the evacuation hose

1. Ensure the connector (1) is tightly screwed onto the ring flange of pump outlet.
2. Wedge the discharge hose (not included) onto the connector.
3. Add a fixing collar (hose clamp not supplied) to complete the seal.

4.4- Pump set-up

1. If the pump is installed in an enclosed area with emission of noxious fumes (eg septic tank, tank, pit sump ...), the installation must be carried out in compliance with local and/or national laws by qualified personnel so as to avoid danger.
2. The pump must be in a vertical position over 0.5m from the water bottom (ensure that it is stable during operation).
3. Ensure that the float switch can move freely.
4. The suction holes must never be obstructed (e.g. avoid clogging by weed or other matter).
   It is therefore preferable that the pump should never be placed directly on the ground or on the bottom of the well, pond or vessel.
   For example, place the pump on a brick.

4.5- Application of the floating switch

1. The float switch (2) enables the automatic start of the pump. The pump starts when the centre line of the floating switch and water level angle is more than 28^ . The pump will stop automatically when the centre line of the floating switch and water level angle is less than 28^ .

4.6- Start-up

Before starting the pump, check:

• the direction of motor rotation: trial-run the pump for no more than 1 minute to check the motor rotates clockwise (when looking at pump from above);
• that electrical connection is correctly setup;
• that the electrical cable and drain hose are properly laid to avoid accidents;
• that check valves (if fitted) are opened

V. OPERATION

5.1- Intended use

1. This submersible pump can be used for domestic, industrial or farming applications, for pumping sewage water, dirty water, mud, or drain water with particles in suspension that are less than 35mm (for 750W) or 45mm (for 1500W) in diameter.
   Caution! Do not permanently leave the pump in a septic tank. Once the tank is drained, remove pump from the tank, proceed with its cleaning and storage.
2. The pump is fully submersible: the immersion depth must not exceed 5m (refer to characteristics table).
3. The pump should not be used for sucking up liquids or materials that are corrosive, combustible/flammable or explosive.
4. The temperature of liquids sucked up should not exceed 35°C (750W) or 40°C (1500W).
5. Any other use, other than that described in the instructions, is likely to damage the pump and to put the user in serious danger.

5.2- Operation

5.2.1- In automatic functioning mode,

Connect pump to mains power.

The pump will start and stop as soon as the float switch reaches the pre-set angle (see 4.5)

5.2.2- In manual functioning mode,

Connect pump to mains power

Set the float switch at proper angle to start or stop the pump (see 4.5).

In this case, the minimum pumping water height may be reduced.

5.2.3- Warning!

Never operate the pump without water.

Check the water level frequently while in operation, to see whether it is lowering and the pump shall not be out of water while running.

The submersible pump must be immersed before switching on.

5.3- Advise for users

1. if discharge stops although the pump continues to function, switch it off immediately.

Unplug the pump from the mains and check to see what is causing the problem.

Never attempt to remove the turbine when the pump is still connected to the power supply.

1. Never place hands anywhere near the turbine during this phase. If remedial action is necessary, always unplug the pump from the power supply first.

VI. MAINTENANCE AND STORAGE

Before any intervention on product, ensure that product is disconnected from its power source.

6.1- Maintenance

- The pump does not require specific cleansing.

- However, if you remove pump for storage, rinse out the pump with clean water, including the suction circuit.

- After using the pump in a swimming pool or garden pond/basin, thoroughly rinse it with clean water, including the suction line.

- Before each re-use, ensure that all parts of the pump are in good working order.

- Do not use aggressive cleansers (solvents or abrasive cleansers), or an abrasive sponge or sharp point scrapers.

6.2- Breakdown

Never attempt to dismantle the pump.

If necessary, have it checked and repaired by an authorized centre (consult your dealer).

6.3- Trouble shooting

Trouble	Main reasons	Solution
Difficult start	1. Power voltage too low;2. Impeller clogged3. Big loss of cable voltage4. Stator winding burnt	1. Adjust voltage to 0.9 to 1.1 times the rated range.2. Adjust clogged part.3. Select the proper cable4. Rewind and overhaul
Less water outlet	1. Head too high2. Strainer and inlet hole clogged3. Impeller worn badly4. Submersion too shallow and air sucked in.5. Discharge hose disconnected, leaking or worn out	1. Use within the rated head range2. Remove water weed or foreign matter3. Replace impeller4. Adjust the submersion depth to no less than 0.5m5. Check hose connection, fix it or replace if required.
Sudden stop	1. Switch disconnected or fuse burnt2. Impeller clogged3. Stator winding burnt	1. check whether the head in use or power voltage are in compliance with requirements and adjust accordingly.2. Remove foreign matter3. Rewind and overhaul
Stator winding burnt	1- Run too long2. Winding turn-to-turn short circuit or short circuit between phases due to mechanical seal leakage3. Impeller clogged4. Pump started too frequently5. Pump overloaded	Seek assistance from vendor or authorised service centre

6.4- Storage

Clean the pump.

Pump must be stored in a dry, ventilated location. Always lock up product and keep out of reach of children.

6.5- Discarding

• Do not dispose the product with household garbage. Do not throw into the environment.
• Dispose of the product in a collection centre for waste of electrical and electronic equipment, or a waste drop-off centre; or seek advice from your local municipality.
• Proceed with the disposal of the product, accessories and packaging in accordance with local legislation related to environment protection.
