USER MANUAL BF300 Prixton

Line drawing of a stationary exercise bike with adjustable arms and legs (no text or symbols)

BICICLETA ESTÁTICA SPINNING BIKE FIT SPINNING

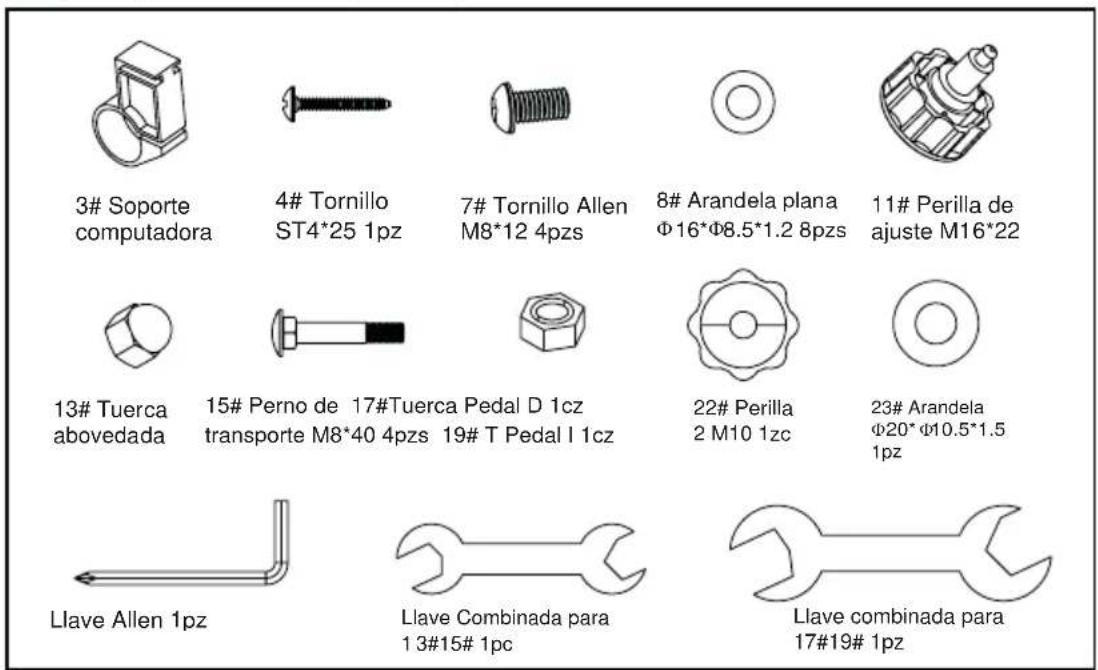

Technical diagram of a stationary exercise bike with numbered components for identification

3# Soporte computadora 4# Tornillo ST4*25 1pz 7# Tornillo Allen M8*12 4pzs 8# Arandela plana Φ16*Φ8.5*1.2 8pzs 11# Perilla de ajuste M16*22 13# Tuerca abovedada 15# Perno de 17#Tuerca Pedal D 1cz transporte M8*40 4pzs 19# T Pedal I 1cz 22# Perilla 2 M10 1zc 23# Arandela Φ20* Φ10.5*1.5 1pz Llave Allen 1pz Llave Combinada para 13#15# 1pc Llave combinada para 17#19# 1pz

INSTALACIÓN

Technical diagram of an exercise bike with numbered components for identification

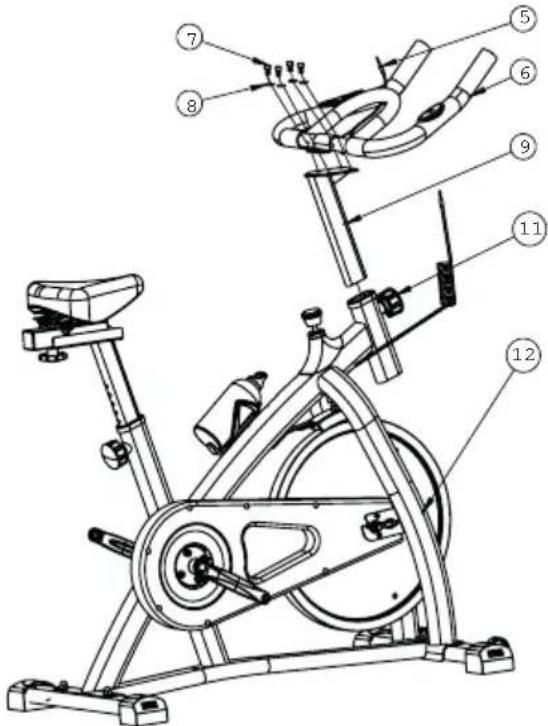

PASO 7 : Inserte el Poste del Manillar (9) al Marco Principal (12) Apriete mediante la Perilla de Ajuste (11).

Technical diagram of an exercise bike with numbered components for identification

Technical diagram of a mechanical device with numbered components and labeled parts in Chinese

Technical diagram of an exercise bike with numbered components for identification

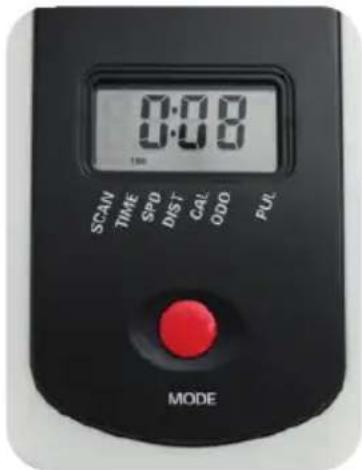

PANEL DE CONTROL

ESPECIFICACIONES

TIEMPO 00:00-99:59MIN

VELOCIDAD(SPD)0.0-99.9KM/H(ML/H)

DISTANCIA(DST) 0.00-99.99KM(ML)

CALORÍAS(CAL) 0.00-999.9KCAL

ODÓMETRO(ODO) 0-9999KM(ML)

PULSO(PUL) 40-240BPM

0:08 SCAN TIME SPD DIST CAL ODO PLR MODE

IMPORTANT SAFETY INFORMATION

GENERAL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in serious injury. Save all warnings and instructions for future reference.

SAFETY

The warnings, precautions and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUC-TIONS before operating. Failure to follow the safety rules and other basic safety precautions It is the responsibility of the owner to ensure that all users of the exercise bike are adequately informed of all precautions.

Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

Use the exercise bike only as described in this manual.

The exercise bike is intended for home use only. Do not use the exercise bike in a commercial, rental, or institutional setting.

Keep the exercise bike indoors, away from moisture and dust. Do not put the exercise bike in a garage or covered patio or near water.

Place the exercise bike on a level surface with at least 2 ft. (0.6 m) of clearance around the exercise bike. To protect the floor or carpet from damage, place a mat under the bike.

Inspect and properly tighten all parts regularly. Replace any worn parts immediately.

Keep children under age 12 and pets away from the exercise bike at all times.

Wear appropriate clothes while exercising; do not wear loose clothes that could become caught on the exercise bike. Always wear athletic shoes for foot protection.

The exercise bike should not be used by persons weighing more than 264 lbs. (120 kg).

Be careful when mounting and dismounting the exercise bike.

Always keep your back straight while using the exercise bike; do not arch your back

The heart rate monitor is not a medical device. Various factors, including the user's movement, may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

Over exercising may result in serious injury or death. If you feel faint or if you experience pain while exercising, stop immediately and cool down.

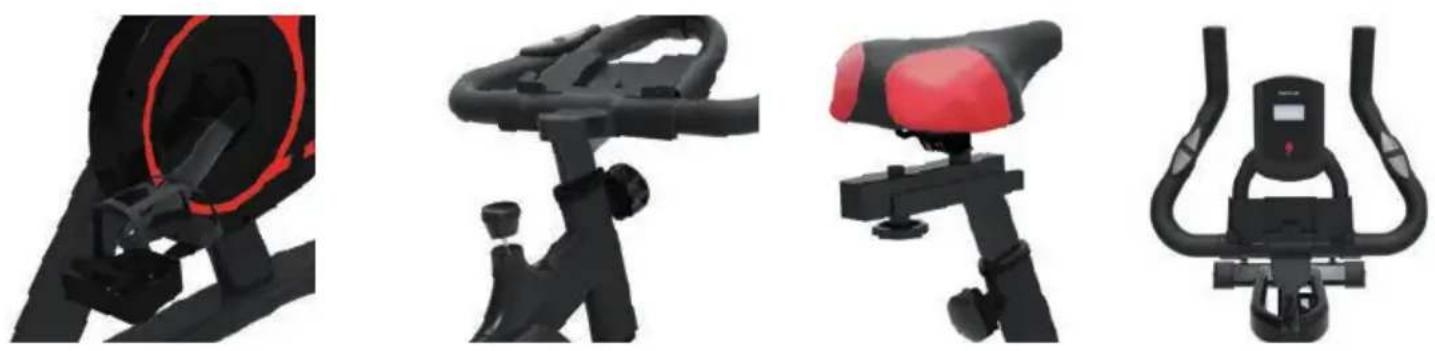

FEATURES AND SPECIFICATIONS

FEATURES

Ultra-comfortable saddle.

Positive-locking seat post adjustment.

Top-down, easy-to-use resistance system (felt brake pad).

LCD display: Time, Speed, Distance, Calories, ODO, Pulse.

Super quiet pedal boards adjustable height up and down.

Adjustable handlebar.

Adjustable bicycle saddle.

Stable base.

Descriptions.

It is ideal for indoor healthy and fitness exercising.

Super durable frame for long time using.

Electrodeless speed change.

SPECIFICATIONS

COLOR BLACK

FLYWHEEL 6KGS

MATERIAL STEEL, PU, ABS, PP, PVC

MAX USER WELGHT 264LBS(120KG)

PRODUCT SIZE 115x50x115cm

CARTON SIZE 99.5x24.5x84.5cm

PRODUCT WELGHT 53LBS(24KG)

PARTS DIAGRAM AND LIST

#	DESCRIPTION QTY
1	Computer	1
2	Contact Line	3
3	Computer Holder	1
4	Screw	1
5	Pulse Line	2
6	Handlebar	1
7	Allen Key Bolt	4
8	Flat Washer	8
9	Handle Post	1
10	Sensor Contact Line	1
11	Adjusting Knob	2
12	Main Frame	1
13	Domed Nut	4
14	Front Base	1
15	Carriage Bolt	4
16	Right Pedal	1
17	Nut for R Pedal Lock	1
18	Rear Base	1
19	Nut for L Pedal Lock	1
20	Left Pedal	1
21	Seat Post	1
22	Knob 2	1
23	Flat Washer	1
24	Saddle Slider	1
25	Seat	1
26	iPad holder	1

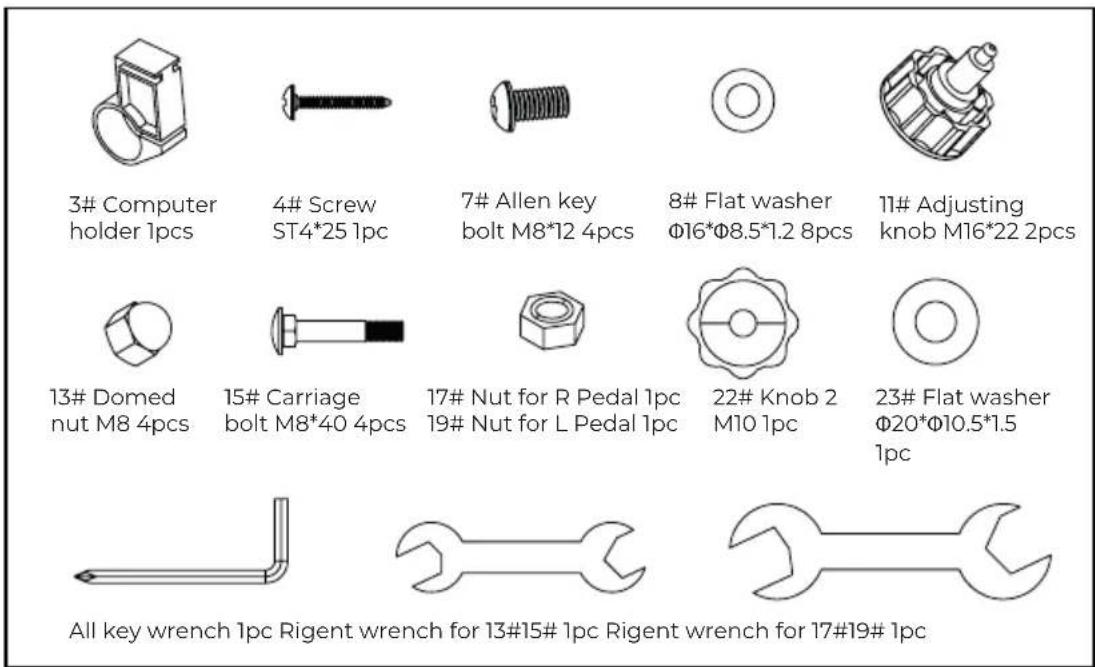

Technical diagram of a stationary exercise bike with numbered components and labeled parts

3# Computer holder 1pcs 4# Screw ST4*25 1pc 7# Allen key bolt M8*12 4pcs 8# Flat washer Φ16*Φ8.5*1.2 8pcs 11# Adjusting knob M16*22 2pcs 13# Domed nut M8 4pcs 15# Carriage bolt M8*40 4pcs 17# Nut for R Pedal 1pc 19# Nut for L Pedal 1pc 22# Knob 2 M10 1pc 23# Flat washer Φ20*Φ10.5*1.5 1pc All key wrench 1pc Rigent wrench for 13#15# 1pc Rigent wrench for 17#19# 1pc

INSTALLATION

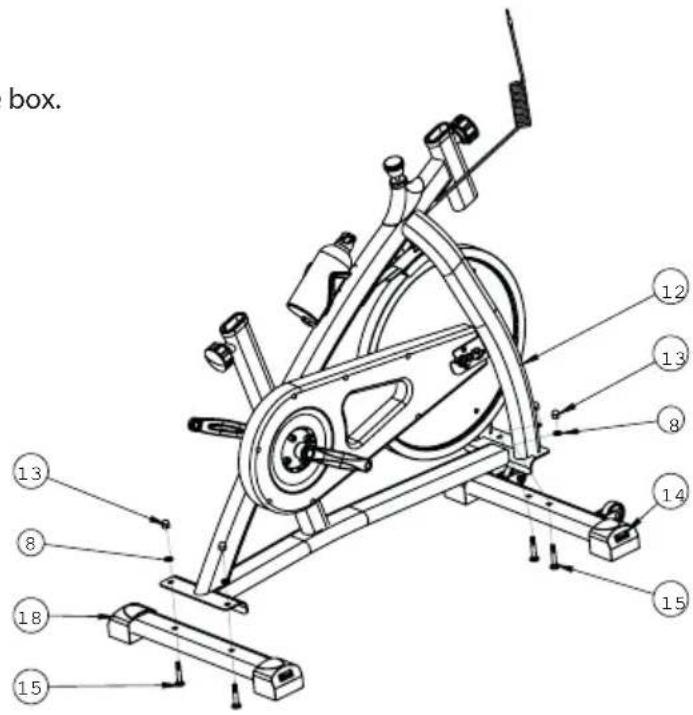

STEP 1: Take the bike frame out of the box.

box. 12 13 8 14 15 13 8 18

STEP 2: Attach the front base(14) to the Main Frame using the carriage bolt(15), Washer(8) and the Domed Nut(13) and tighten with a wrench.

STEP 3: Attach the rear base (18) to the Main Frame using the carriage bolt(15), Washer(8) and the Domed Nut(13) and tighten with a wrench.

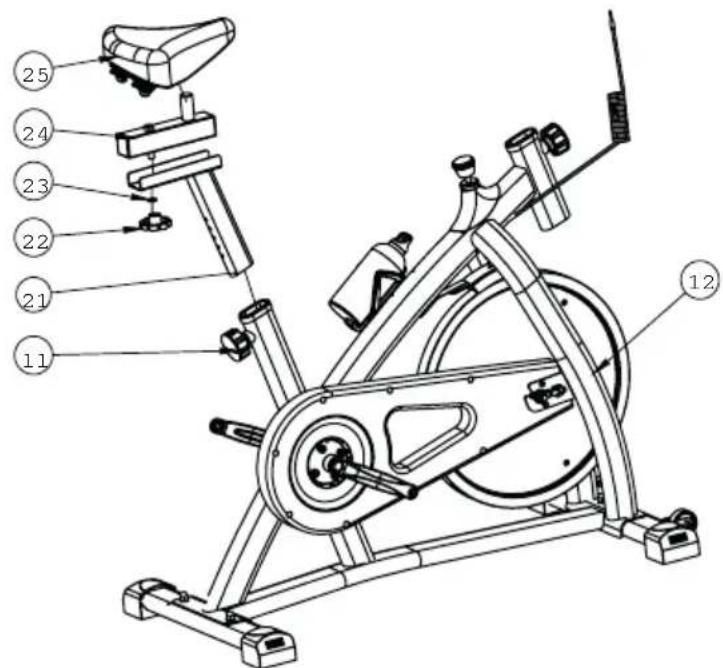

STEP 4: Insert the Saddle Post(21) to the main frame, fasten it with adjusting Knob(11).

STEP 5: Attach the Saddle Slider (24) to the Saddle Post (21), fasten it using a Washer (23) and Knob (22).

STEP 6: Attach the saddle(25) to the saddle slider(24), tighten with a wrench.

Technical diagram of an exercise bike with numbered components for identification

STEP 7 : Insert Handle Post(9) to the Main Frame(12) Tighten by the Adjusting Knob(11).

Technical diagram of an exercise bike with numbered components for identification

STEP 8: Attach the Handle Bar(6) to the Handle Post(9) using Allen Key Bolt(7) and Washer(8), Tighten with the Allen Key Wrench.

Technical diagram of a mechanical device with numbered parts and labeled parts for assembly or maintenance.

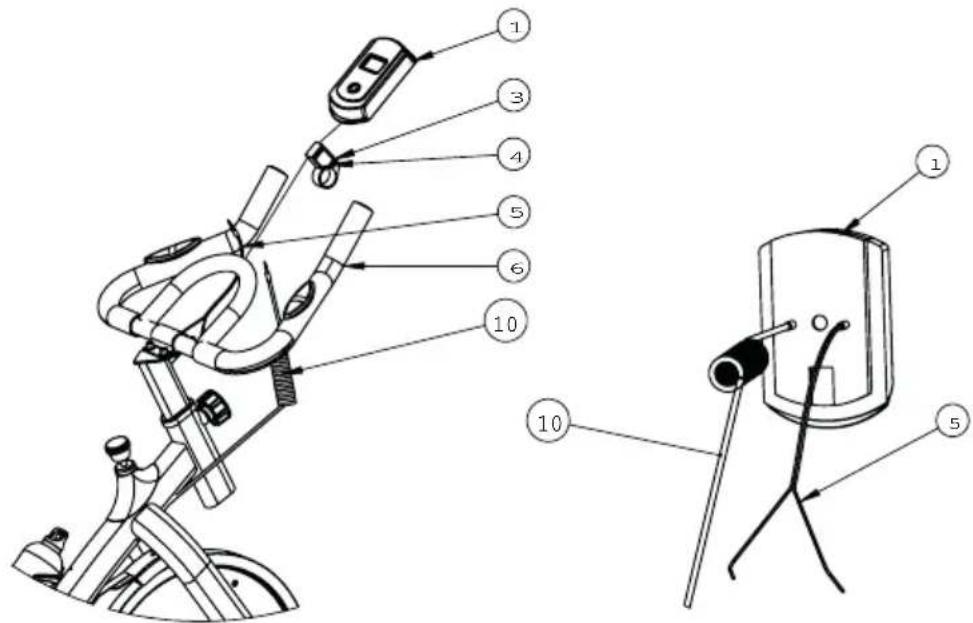

STEP 9: Attach the Computer Holder(3) to the Handle Bar, using a screw(4) to tighten(this part may already be assembled by producer). Slide the Computer(1) into the Computer Holder(3), then connect the cable of sensor(10) and pulse(5) to the computer. Put two batteries in the computer.

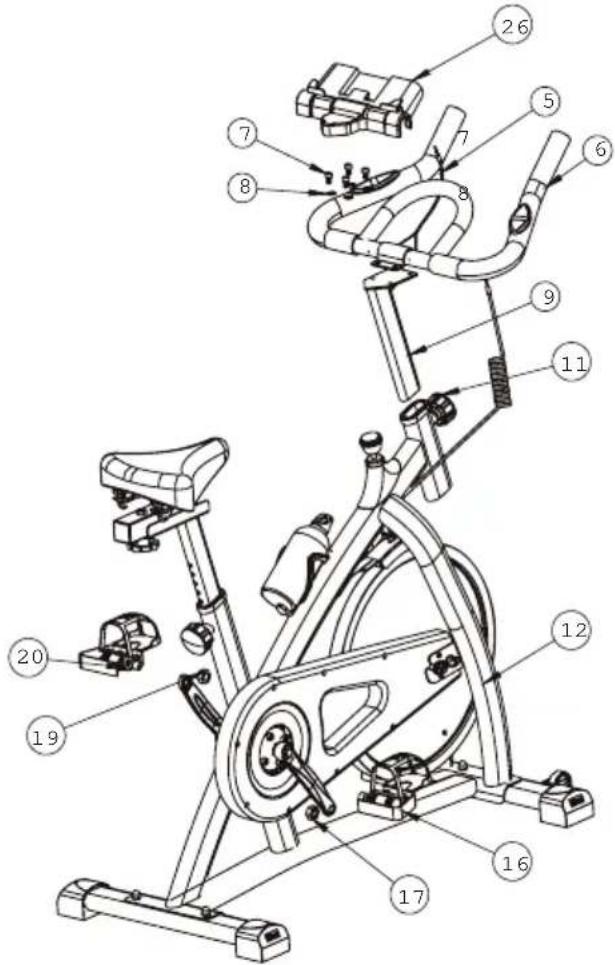

STEP 10: Remove the Nut(17) on the Right Pedal(16) then attach the Right Pedal(16) to the Crank by Turning clockwise. Lock the removed Nut(17) using the Wrench, tighten.

Technical diagram of an exercise bike with numbered components for identification

STEP 11: Remove the Nut(19) on the Left Pedal(20) then attach the Left Pedal(20) to the Crank by Turning counter-clockwise. Lock the removed Nut(19) using the wrench, tighten.

STEP 12: Clip the iPad holder on the handlebar.

NOTE: The Right Pedal(16) should be threaded clockwise and the Left Pedal(20) should be threaded counter-clockwise.

SAVE THESE INSTRUCTIONS.

EXERCISE INSTRUCTIONS

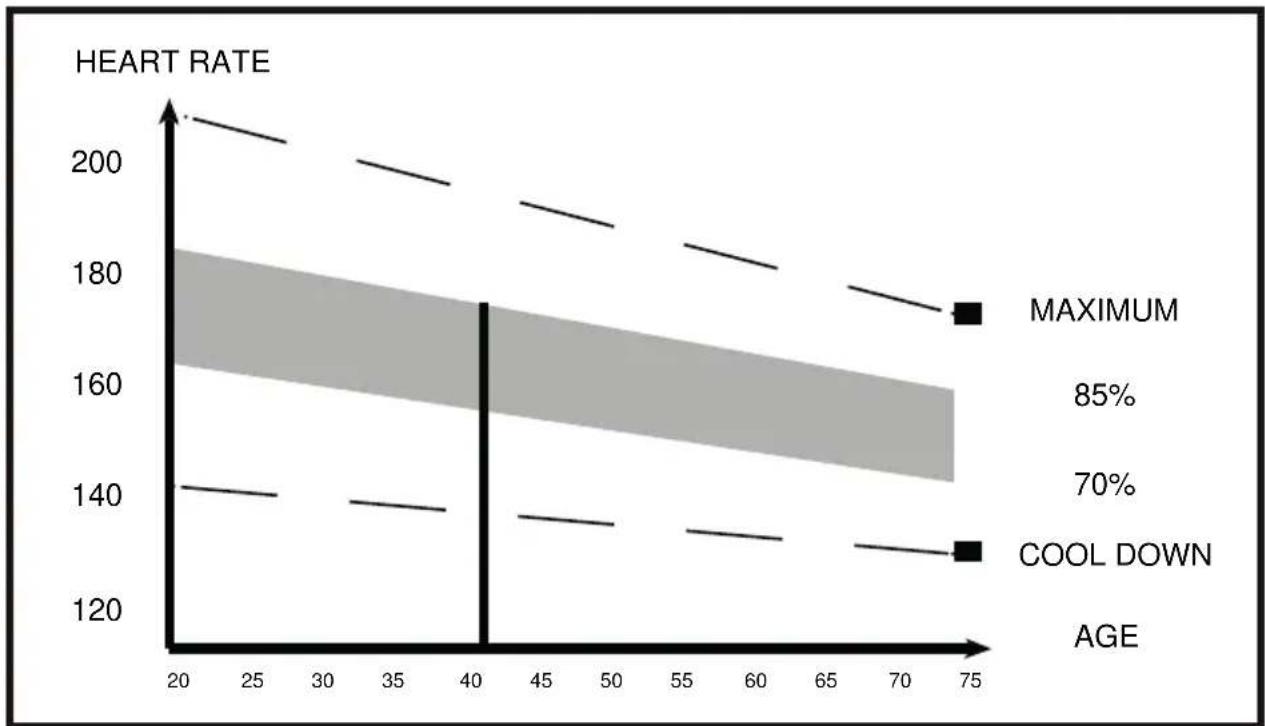

Using your new Exercise Bike, will provide you with several benefits. It can help you improve your physical fitness, tone muscles and in conjunction with a controlled diet, help you lose weight.

Warming up before using the bike. This will help get your blood flowing and muscles working. This will also reduce the risk of cramps and injury. It is advisable to do stretching exercises prior to using the stationary bike. Each of the following stretches should be held for approximately 30 Seconds.

After regular use, the muscles in your legs will become more flexible. Work at your own peace. It is imperative you maintain a steady tempa throughout your workout. The rate of work should be sufficient to raise your heartbeat to the target zone shown below.

CONTROL PANEL

SPECIFICATIONS

TIME 00:00-99:59MIN

SPEED(SPD) 0.0-99.9KM/H(ML/H)

DISTANCE(DST) 0.00-99.99KM(ML)

MODE: This key lets you select and lock on the function you want. The monitor will be reset by changing the battery or pressing the MODE key for 3-4 seconds

AUTO ON/OFF: The system turns on when any key is depressed or when it senses input from the speed sensor.

MODE: To choose the SCAN or LOCK option if you do not want the SCAN mode, press the MODE key when the indicator is on the function you want starts blinking.

TIME: Press the MODE key until the indicator locks on TIME. The total working time will be shown when pedaling starts.

SPEED: Press the MODE button until the indicator lands on SPEED, the current speed will be shown.

DISTANCE: Press the MODE button until the indicator lands on DISTANCE, the distance of your workout will be displayed.

CALORIE: Press the MODE button until the indicator lands on CALORIE, the calories burned will be displayed.

ODOMETER: Press the MODE button until the indicator lands on ODOMETER, the total accumulated distance of your workout will be displayed.

PULSE: Press the MODE button until the indicator lands on PULSE, the user's current heart rate will be displayed in beats per minute. Place the palms of your hands on both contact pads located on the handlebars and wait for 30 seconds for the most accurate reading.

SCAN: This automatically displays changes every 4 seconds.

NOTE: If there is an incorrect readout on the monitor, change or replace the batteries.

WARRANTY POLICY

This product is guaranteed for 2 years from the date of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form.

These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.

SIMPLIFIED EU DECLARATION OF CONFORMITY

We, La Trastienda Digital located in Avenida Cervantes 49, módulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:

BRAND	MODEL NAME DESCRIPTION	CATEGORY
Prixton BF300	BIKE FIT X-TREME	FITNESS

Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.

The complete text of the UE Declaration of conformity is available anytime at this website address:

www.prixton.com

LA TRASTIENDA DIGITAL

CONSIGNES IMPORTANTS DE SÉCURITÉ

AVERTISSEMENTS GÉNÉRAUX DE SÉCURITÉ

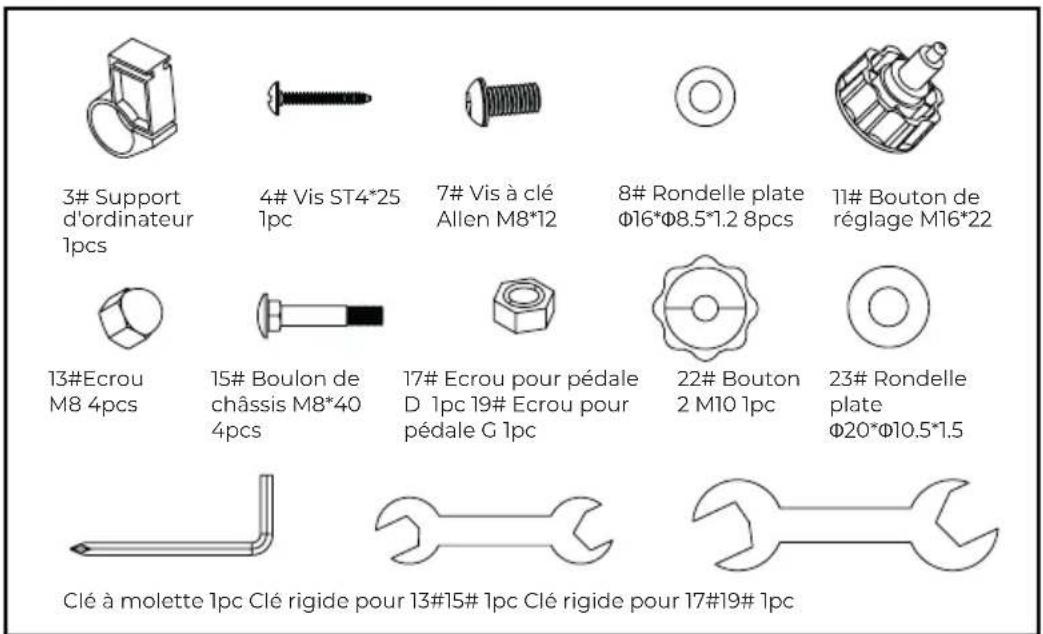

Technical diagram of a stationary exercise machine with numbered components for identification

Technical diagram of an exercise bike with numbered components for identification

Technical diagram of an exercise bike with numbered components for identification

Technical diagram of a mechanical device with numbered components and labeled parts in Chinese

Technical diagram of an exercise bike with numbered components for identification

SPÉCIFICATIONS

HEURE 00:00-99:59MIN

VITESSE(SPD) 0.0-99.9KM/H(ML/H)

DISTANCE(DST) 0.00-99.99KM(ML)

DÉCLARATION DE CONFORMITÉ SIMPLIFIÉE

Four different stationary exercise bikes shown from front, side, top, and back views (no text or labels visible)

SPECIFICHE

COLORE NERO

MANUBRIO 6KGS

MATERIALE ACCIAIO,PU,ABS,PP,PVC

MASSIMO PESO 264LBS(120KG)

DIMENS. PRODOTTO 115x50x115cm

DIMENS. CONF. 99.5x24.5x84.5cm

PESO PRODOTTO 53LBS(24KG)

ELENCO DELLE COMPONENTI

Technical diagram of a stationary exercise bike with numbered components for identification

3# Supporto Pc 1pz

4# Vite ST4*251pc

7# Bullone Allen M8*12 4pz

8# Rondella piatta piatto Φ 16*Φ8.5*1.2 8pz

11# Manopola regolabile M16*22

13# Bullone a cupola M8

15# Bull. carrello 1pc M8*40 4pz

17# Bullone pedaleR 19# Bullone pedaleS

22# Maniglia 2

23# Rondella piatta Φ20*Φ10.5*1.5

one. 12 13 8 14 15 13 8 18 15

Technical diagram of an exercise bike with numbered components and labeled parts

Technical diagram of an exercise bike with numbered components for identification

Technical diagram of a mechanical device with numbered components and labeled parts in Chinese

Technical diagram of an exercise bike with numbered components for identification

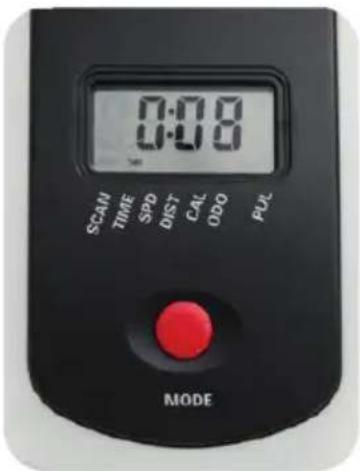

PANNELLO DI CONTROLLO

SPECIFICHE

TEMPO 00:00-99:59MIN

VELOCITÀ(SPD) 0.0-99.9KM/H(ML/H)

DISTANZA(DST) 0.00-99.99KM(ML)

CALORIE(CAL) 0.00-999.9KCAL

ODOMETRO(ODO) 0-9999KM(ML)

BATTITO(PUL) 40-240BPM

0:08 SCAN TIME SPD DIST CAL ODO PUL MODE

FUNZIONI CHIAVE

PRODUKTGRÖßE 115x50x115cm

KARTONGRÖßE 99.5x24.5x84.5cm

Technical diagram of a stationary exercise machine with numbered components for identification

Technical diagram of an exercise bike with numbered components for identification

Technical diagram of an exercise bike with numbered components for identification

Technical diagram of a mechanical device with numbered components and labeled parts in Chinese

Technical diagram of an exercise bike with numbered components for identification

MATERIAL AÇO, PU, ABS, PP, PVC

PESO MÁX DO UTILIZADOR 264LBS (120KG)

TAMANHO DO PRODUTO 115x50x115cm

TAMANHO DA EMBALAGEM 99.5x24.5x84.5cm

PESO DO PRODUTO 53LBS (24KG)

DIAGRAMA E LISTA DE PEÇAS

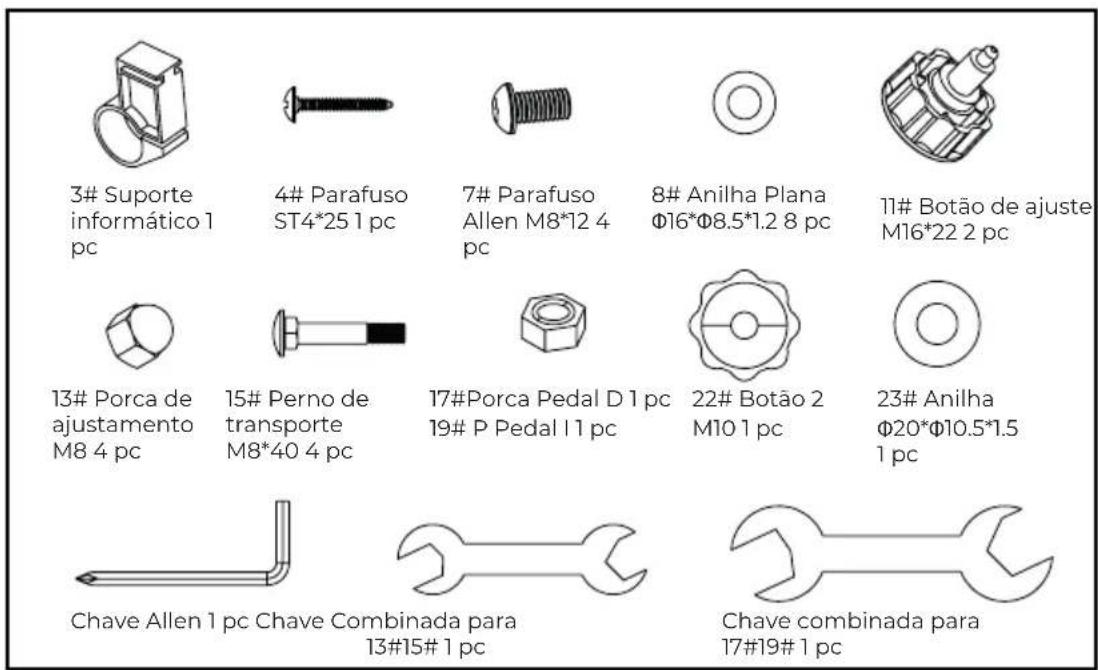

Technical diagram of a stationary exercise bike with numbered components for identification

3# Suporte informático 1 pc 4# Parafuso ST4*25 1 pc 7# Parafuso Allen M8*12 4 pc 8# Anilha Plana Φ16*Φ8.5*1.2 8 pc 11# Botão de ajuste M16*22 2 pc 13# Porca de ajustamento M8 4 pc 15# Perno de transporte M8*40 4 pc 17#Porca Pedal D 1 pc 19# P Pedal I 1 pc 22# Botão 2 M10 1 pc 23# Anilha Φ20*Φ10.5*1.5 1 pc Chave Allen 1 pc Chave Combinada para 13#15# 1 pc Chave combinada para 17#19# 1 pc

INSTALAÇÃO

Technical diagram of an exercise bike with numbered components for identification

Technical diagram of an exercise bike with numbered components for identification

Technical diagram of a mechanical device with numbered components and labeled parts in Chinese

Technical diagram of an exercise bike with numbered components for identification

PAINEL DE CONTROLO

ESPECIFICAÇÕES

TEMPO 00:00-99:59MIN

Four black exercise bikes with different designs and mounting features, shown from different angles (no text or labels visible)

SPECIFICATIES

KLEURZWART

VLIEGWIEL 6KG

MATERIAAL STAAL, PU, ABS, PP, PVC

Technical diagram of a stationary exercise bike with numbered components for identification

Technical diagram of a stationary exercise bike with numbered components and labeled parts

Technical diagram of an exercise bike with numbered components for identification

Technical diagram of a mechanical device with numbered components and labeled parts in Chinese

Technical diagram of an exercise bike with numbered components for identification
