USER MANUAL DD 4G 18.0-EC Flex

Three technical illustrations of mechanical connectors, showing different types of installation (no text or symbols present)

Illustration of a power tool with a cylindrical shaft and base housing (no text or symbols)

Exploded view diagram of a power drill with numbered parts for identification

Mechanical assembly diagram showing two steps of tool manipulation (no text or symbols)

i HINWEIS

Technical diagram showing mechanical assembly steps with numbered labels indicating component identification

3. 4.

Diagram showing two mechanical components with numbered labels indicating assembly steps

Demontieren

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Mechanical assembly diagram showing a drill bit being inserted into a pipe, with arrows indicating force direction (no text or symbols present)

Diagram of a drill bit with labeled components and directional arrows indicating working principle

Demontieren

Diagram of a drill bit with numbered instructions for tool manipulation

Diagram of a device with labeled parts, showing two numbered arrows pointing to a component.

VORSICHT!

Diagram illustrating the process of a drill press tool with labeled components and directional arrows indicating motion or sequence.

Illustration of a drill press with tool and directional arrows (no text or symbols)

Gerät ausschalten:

Illustration of a robotic arm firing a weapon, with no visible text or symbols

Illustration of a drill bit with a screwdriver, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

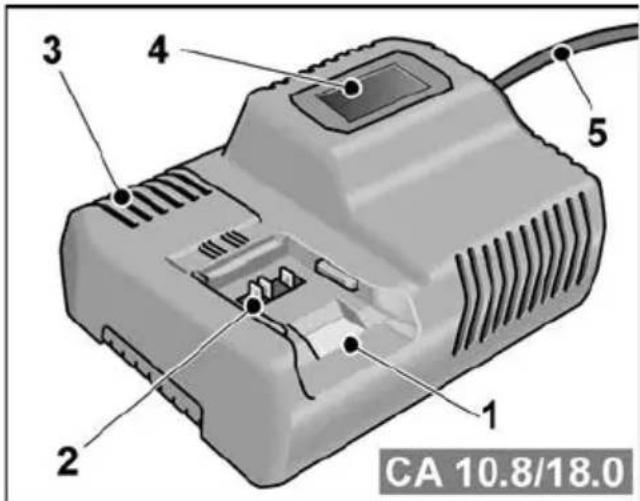

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Rihle Bhat D.1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

16.07.2018

Symbols used in this manual ..... 16

Symbols on the power tool 16

Important safety information ..... 16

Noise and vibration 18

Technical data 19

Overview 20

Instructions for use 21

Maintenance and care 26

Transport 27

C€ conformity 27

Disposal information 27

Exemption from liability ..... 27

Symbols used in this manual

WARNING!

Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a potentially dangerous situation. Non-observance of this warning may result in injury or damage to property.

NOTE

Denotes application tips and important information.

Symbols on the power tool

Before switching on the power tool for the first time, read the operating manual.

Wear protective goggles.

Short-circuit-proof safety transformer.

Protect the battery against heat, including prolonged sunshine, and fire. Explosion hazard!.

Do not throw the battery into a fire. Explosion hazard!

The tool is only suitable for use indoors. Do not expose the tool to rain. Store power tools and batteries in dry rooms.

Disposal information (see page 27).

Important safety information

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Before using the power tool, please read the following and act accordingly:

– these operating instructions,
- the "General safety instructions" on the handling of power tools in the enclosed booklet (leaflet no.: 315.915),
- the currently valid site rules and the regulations for the prevention of accidents. This power tool is state of the art and has been constructed in accordance with the acknowledged safety regulations.

Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged.

The power tool may be operated only if it is

• for its intended use,
• in perfect working order.

Faults which compromise safety must be repaired immediately.

Intended use

The DD 4G 18.0-EC cordless drill driver is intended

– for commercial use in industry and trade,
– for inserting and releasing screws,
– for drilling in wood, metal, ceramic and plastic.

Safety instructions for drills and drivers

• Hold the power tool by the insulated gripping surfaces when performing an operation where the cutting accessory or the screw may contact hidden wiring or its own power cord. The screw contacting a “live” wire may make exposed metal parts of the power tool “live” and cause an electric shock.
  ■ Use auxiliary handles if these are supplied with the power tool. The loss of control may result in injuries.
  ■ Use suitable detectors to detect concealed power supply cables or consult your local supply company. Contact with electric cables may result in a fire and/or electric shock. A damaged gas pipe may cause an explosion. Cutting into a water pipe will cause damage to property.
  ■ Switch off the power tool immediately when the cutting accessory jams. Be prepared for high reaction torques which cause kickback. The cutting accessory jams when:

– the power tool is overloaded or

– it snags in the workpiece to be machined.

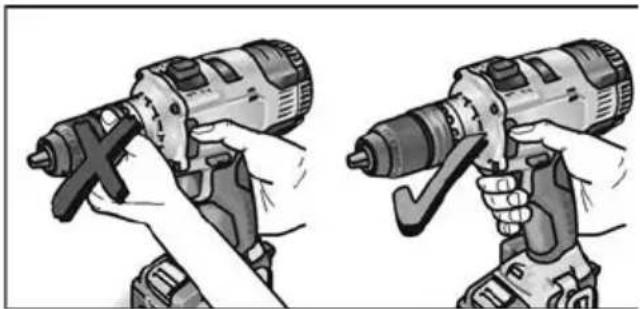

■ Maintain a firm grip on the power tool. High reaction torques can occur briefly when screws are tightened and released.
- Secure the workpiece. A workpiece is held more securely in a clamping device or vice than by hand.
■ Wait until the power tool has come to a stop before putting it down. The cutting accessory may snag, causing the operator to lose control of the power tool.
■ Use only original batteries with the voltage indicated on the type plate of your power tool. The use of other batteries, e.g. imitations, reconditioned batteries or other makes, increases the risk of injury and damage to property by exploding batteries.

Safety instructions for handling batteries

■ Do not open the battery. Short-circuiting hazard!
■ Protect the battery against heat, including prolonged sunshine, fire, water and moisture. Explosion hazard!
■ A damaged or incorrectly used battery may result in the emission of fumes. Ensure a supply of fresh air and consult a doctor in the event of any physical complications. The fumes may irritate the respiratory tracts.
- Liquid may leak out of the battery if the battery is incorrectly used. Avoid contact with such liquid. If contact accidentally occurs, rinse with water. If liquid contacts eyes, seek medical attention. Liquid discharged from the battery may cause irritation or burns.
■ Recharge batteries only with chargers recommended by the manufacturer. A charger that is suitable for one type of battery may create a fire hazard when used with another battery.
■ The battery may be damaged by pointed objects such as e.g. nails or screwdrivers or by external application of force. This may give rise to an internal short circuit, causing the battery to burn, smoke, explode or overheat.

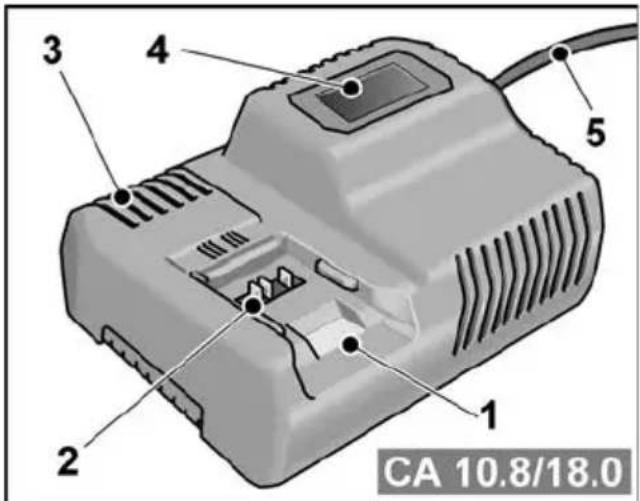

Charger

■ Always check whether the mains voltage matches the voltage indicated on the type plate of the charger.
■ The charger plug must fit in the power socket. Never modify the plug in any way. Do not use any adapter plugs together with earthed (grounded) power tools. Unmodified plugs and matching power sockets will reduce the risk of electric shock.
■ Only use the charger in dry rooms and avoid all contact with moisture and rain. The ingress of water into the charger increases the risk of electric shock.
■ Never use the charger if cables, plugs or the device itself are damaged as a result of external influence. Take the charger to the nearest authorised repair shop.

■ Under no circumstances open the charger. In the event of a fault, take it to an authorised repair shop.
■ Do not place any objects on the charger and do not place the charger on soft surfaces. Fire hazard!

Special safety instructions

■ Before carrying out any work on the power tool, move the direction preselector switch (4) to the middle position.
■ Operate the direction preselector switch (4) or torque setting turning dial (3) only when the tool is stopped.
■ Identify the power tool with stickers only. Do not drill any holes into the housing.

Noise and vibration

i NOTE

The noise and vibration values have been determined in accordance with EN 62841. The values are set out in the “Technical data” table.

WARNING!

The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.

i NOTE

The vibration emission level given in this information sheet has been measured in accordance with a measurement method standardised in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The specified vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different cutting accessories or poorly maintained, the vibration emission level may differ.

This may significantly increase the exposure level over the total working period. Tomake an accurate estimation of the vibration exposure level, it is also necessary to take into account the times when the tool is switched off or running but not actually in use. This may significantly decrease the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the cutting accessories, keep the hands warm, organisation of work patterns.

CAUTION!

Wear ear defenders at a sound pressure above 85 dB(A).

Technical data

Tool DD 4G 18.0-EC
Type Drill driver
Battery		AP 18.0/2.5AP 18.0/5.0
Charging time (depending on state of charge)– AP 18.0/2.5– AP 18.0/5.0	minmin	0–400–45
Torque, max.– Soft screwdriving case– Hard screwdriving case	NmNm	64135
Torque settings		20
Idling speed– Stage 1– Stage 2– Stage 3– Stage 4	r.p.m.r.p.m.r.p.m.r.p.m.	0...4600...9100...21000...4200
Chuck mm 1.5–13
Max. drill diameter– in wood– in steel– in masonry	mmmmmm	601316
Weight according to “EPTA Procedure 01/2003” (without battery)	kg 1.5
Weight battery 2.5 Ah5.0 Ah	kgkg	0.40.7
A-weighted sound pressure level
Sound pressure level L_pA	dB(A) 78*
Sound power level L_WA	dB(A) 89*
Uncertainty K db 3.0
Overall vibration values (vector sum of three directions)
Vibration emission value ah when ....
– drilling in metal	m/s ^2	<2.5
– screwing	m/s ^2	<2.5
Uncertainty K	m/s ^2	1.5

* drilling in metal

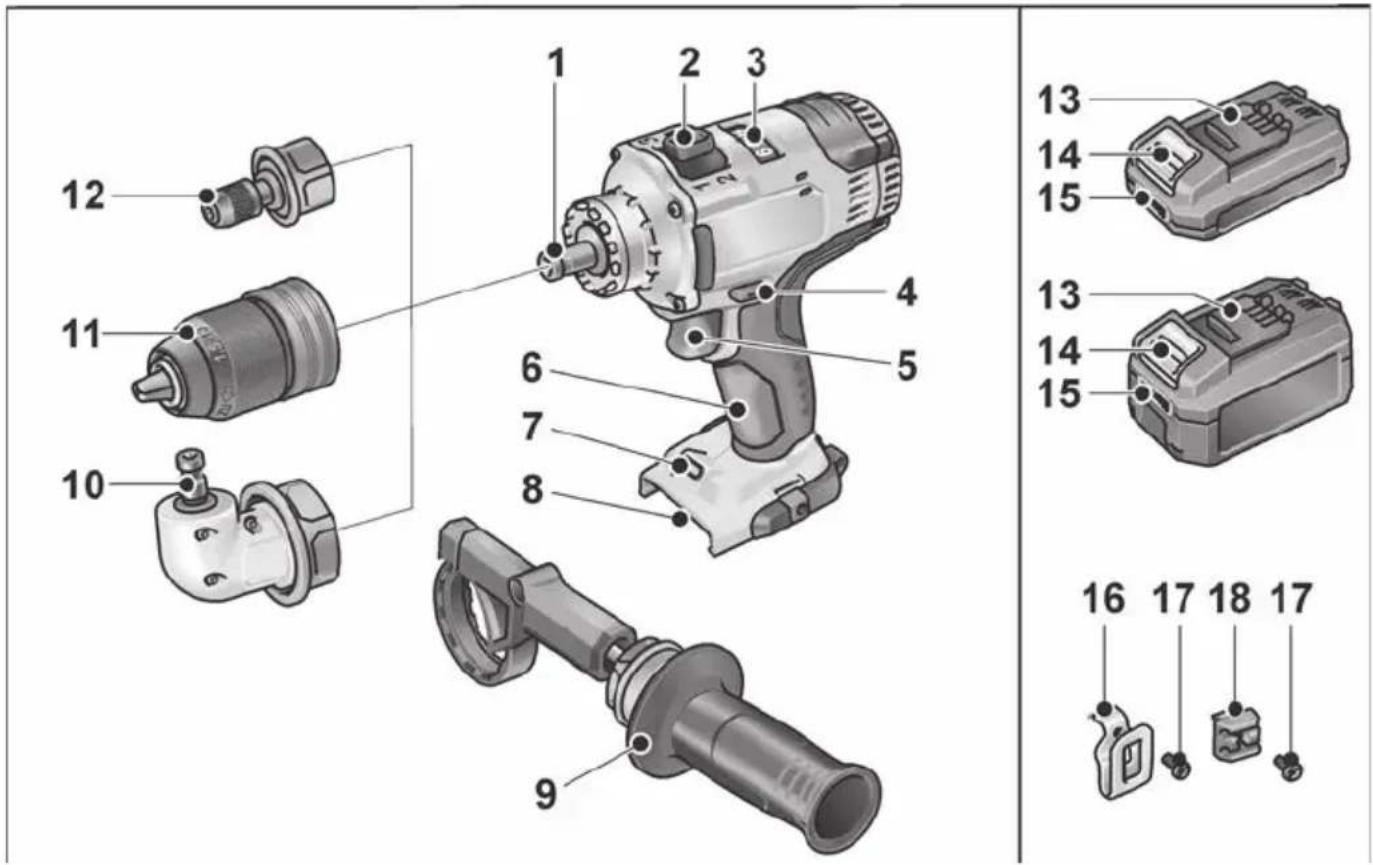

Overview

Exploded view diagram of a drill bit with numbered parts and exploded views for each component

1 Tool holder

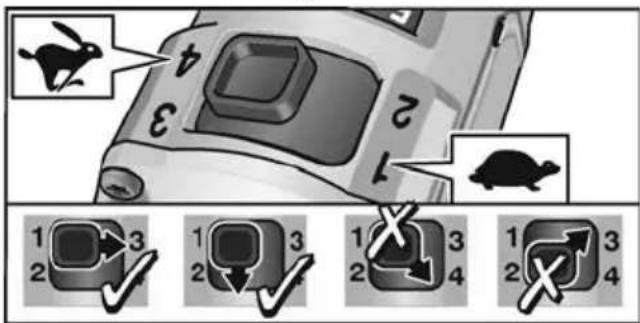

2 Speed selector switch
3 Turning dial for torque setting
4 Direction preselector switch

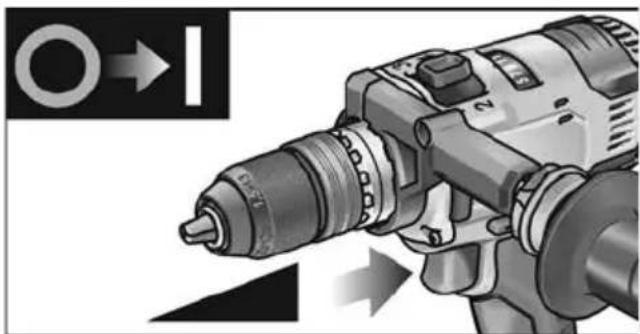

5 Trigger switch

For switching on and off and for accelerating up to maximum rotational speed.

6 Handle

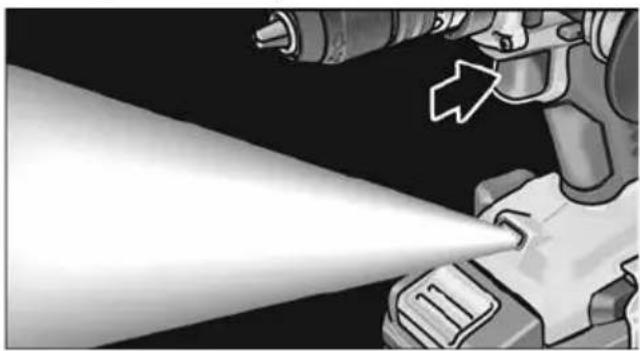

7 Workplace lighting
8 Insertion slot for battery
9 Auxiliary handle

Handle can be fitted to the left or right.

10 Angle attachment with release ring
11 Exchange chuck with release ring
12 Bit holder attachment with release ring
13 Li-ion battery (2.5 Ah or 5.0 Ah)
14 Release button for battery
15 State of charge indicator
16 Belt clip
17 Fastening screw
18 Bit bracket

Instructions for use

Before initial operation

■ Unpack the power tool and accessories and check that no parts are missing or damaged.

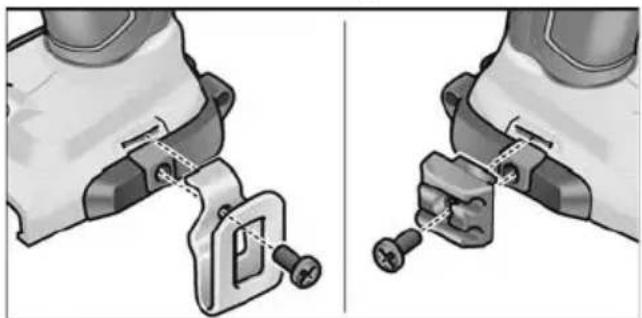

■ Attach the belt clip and bit holder with the enclosed fastening screw.

Two-step diagram showing mechanical clamping or fastening process with no visible text or symbols

i NOTE

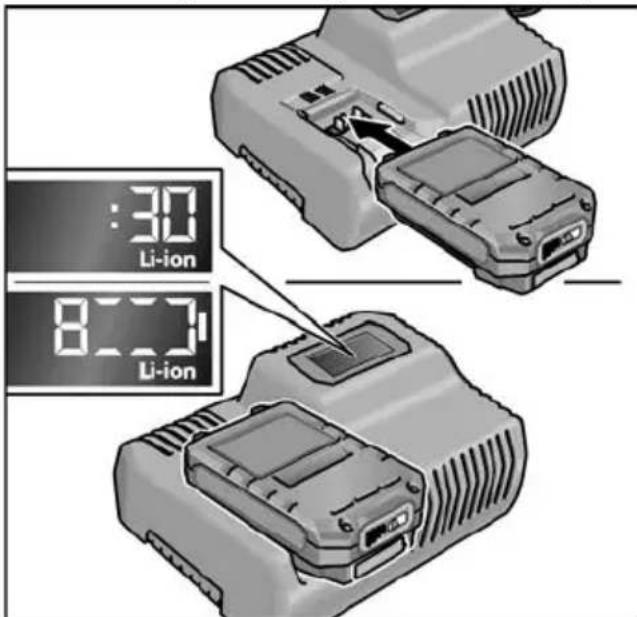

The batteries are not fully charged on delivery. Prior to initial operation, charge the batteries fully. See "Charger/Charging process".

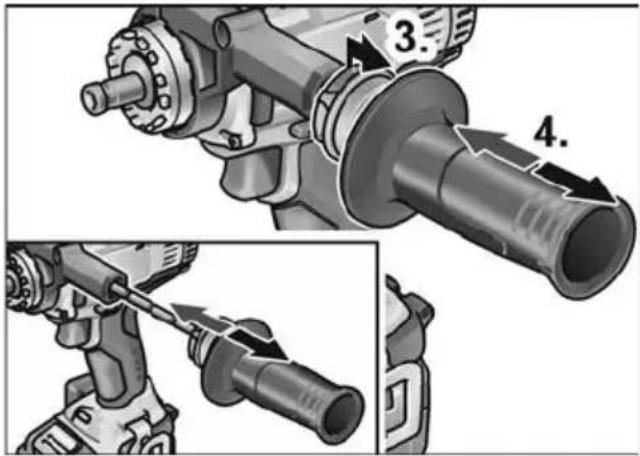

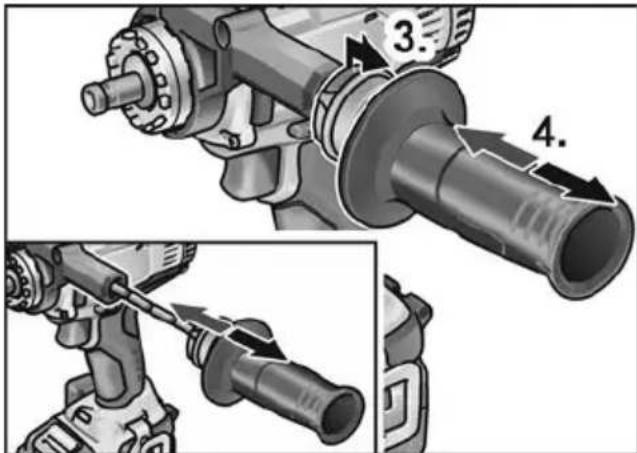

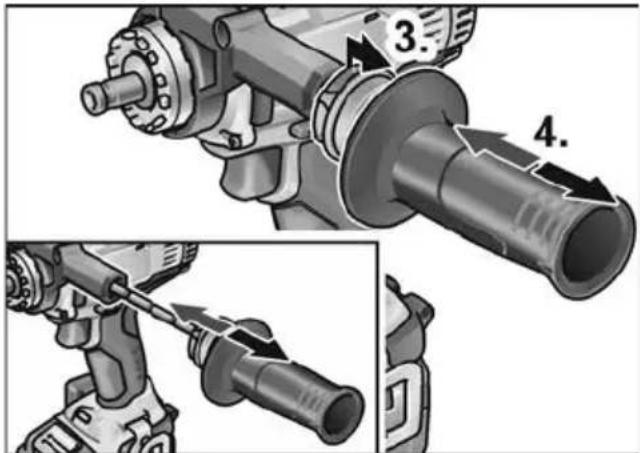

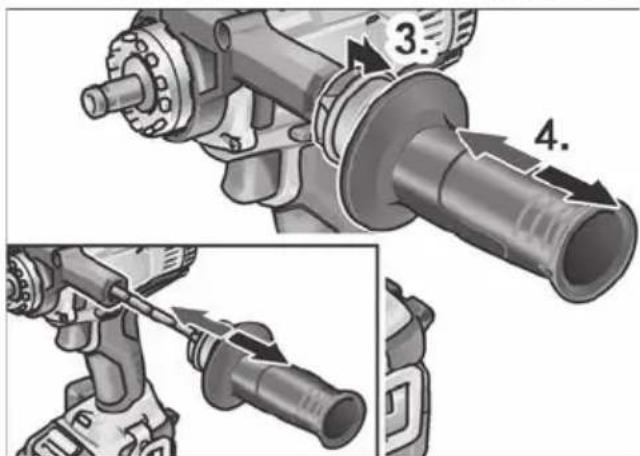

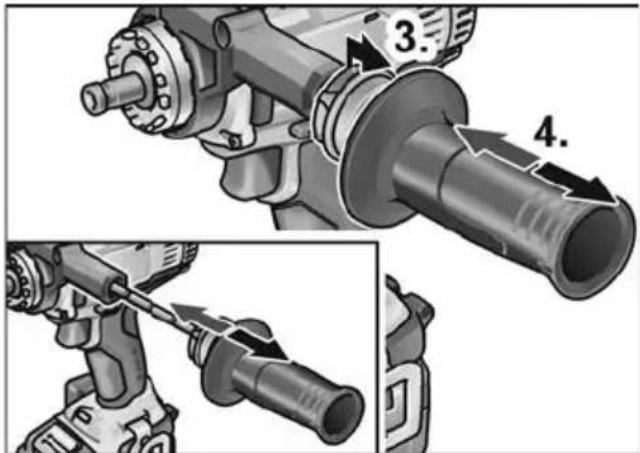

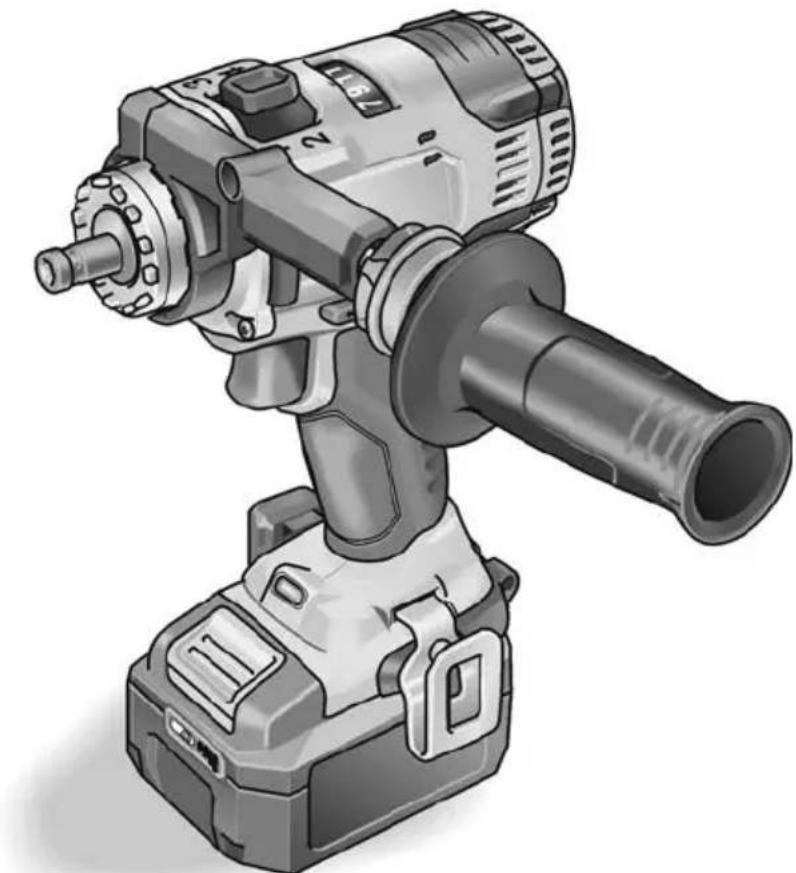

Fitting/removing the auxiliary handle

CAUTION!

Use auxiliary handles if these are supplied with the power tool. The loss of control may result in injuries.

Technical diagram showing mechanical assembly steps with numbered annotations indicating component placement

Technical diagram showing mechanical assembly steps with numbered labels 3 and 4, including a close-up of a tool.

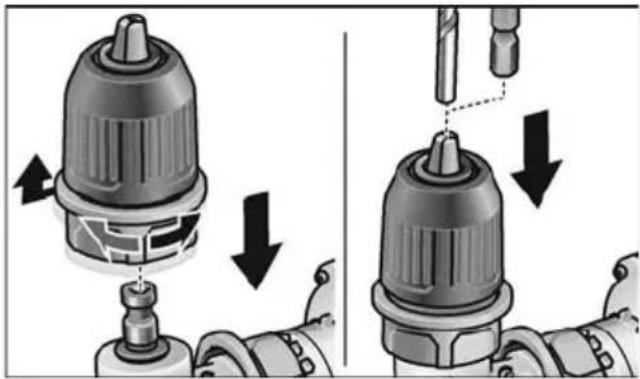

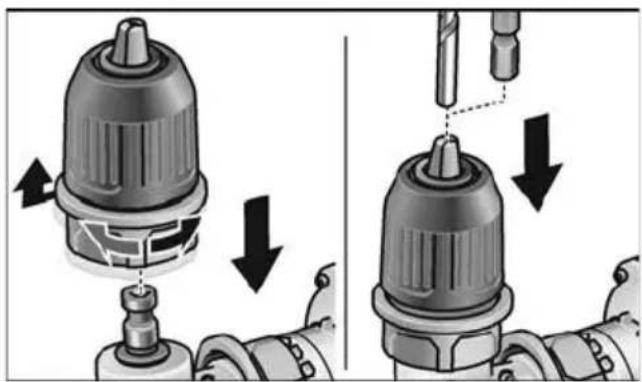

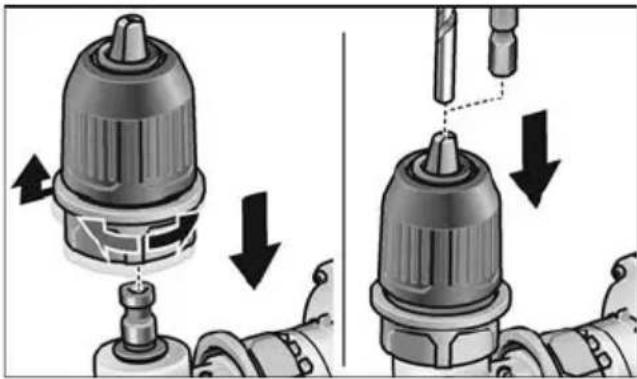

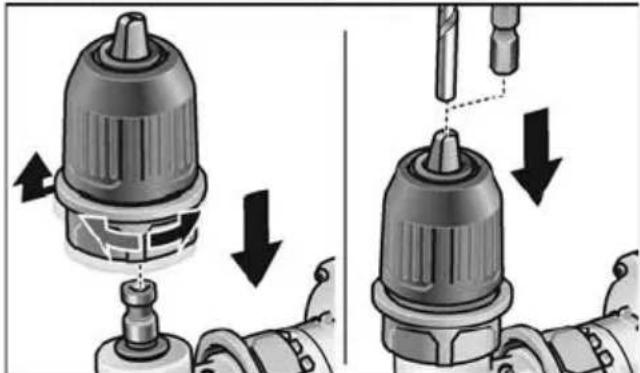

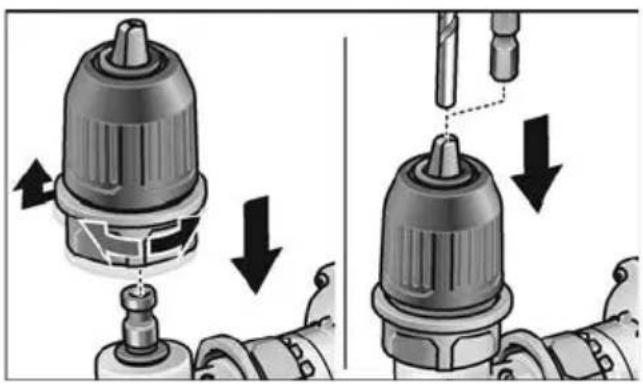

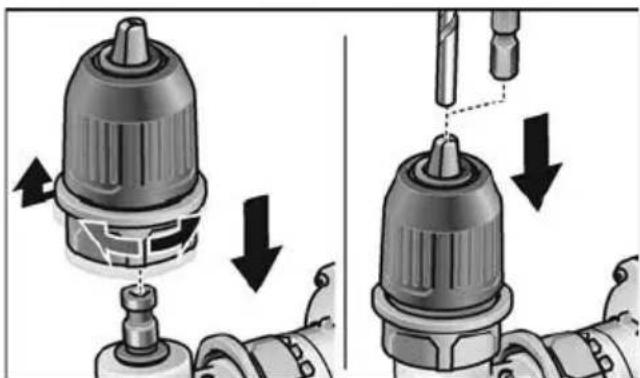

Changeable drill chuck BF 18.0-EC

CAUTION!

Before carrying out any work on the power tool, move the direction preselector switch (4) to the middle position.

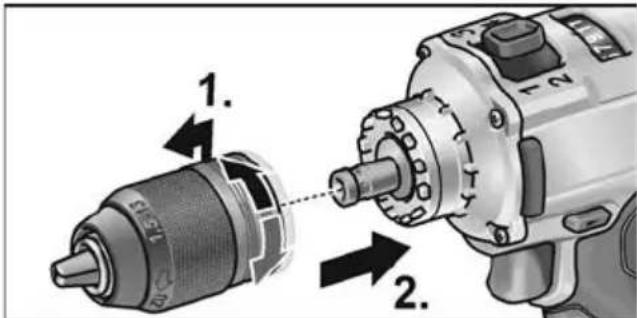

Assemble

■ Pull unlocking ring forwards (1.) and press the drill chuck all the way onto the tool holder (2.).
■ Release unlocking ring. Check that the drill chuck is locked in position.

Diagram showing two mechanical components with numbered labels indicating assembly steps

Disassemble

■ Pull unlocking ring forwards and remove the drill chuck.

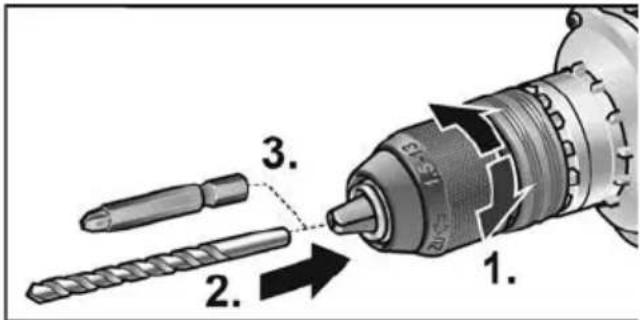

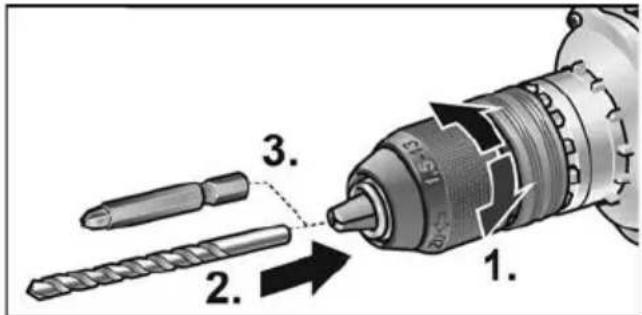

Inserting the tools

Drill bits with a diameter of 1.5–13 mm, 12 " screwdriver bits and 12 " bit holders are securely held in the drill chuck.

Grip the power tool firmly with one hand and turn the chuck with the other hand.
– Turn counterclockwise to open the chuck further.
- Turn clockwise to close the chuck.

1. 2. 3.

• Insert the tool.
  ■ Close the chuck fully.

i NOTE

Carry out a test run to check that the tool is chucked in the centre.

Angle attachment WV 18.0-EC

CAUTION!

Before carrying out any work on the power tool, move the direction preselector switch (4) to the middle position.

The angle attachment facilitates working in places which are difficult to access.

The angle attachment can be locked in different 30^ angular positions.

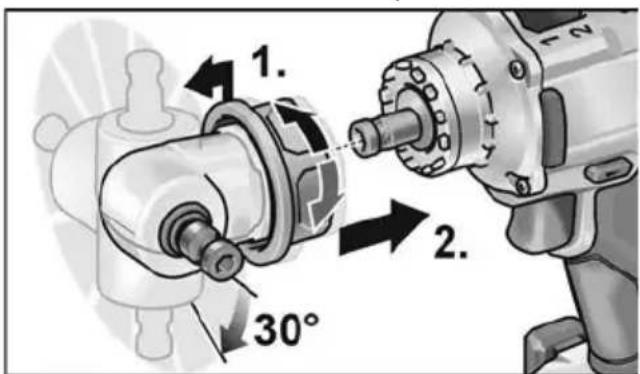

Assemble

■ Pull unlocking ring forwards (1.) and press angle attachment all the way onto the tool holder (2.).
■ Lock angle attachment in the required angular position.
■ Release unlocking ring. Check that the attachment is locked in position.

1. 2. 30°

Disassemble

■ Pull unlocking ring forwards and remove angle attachment.

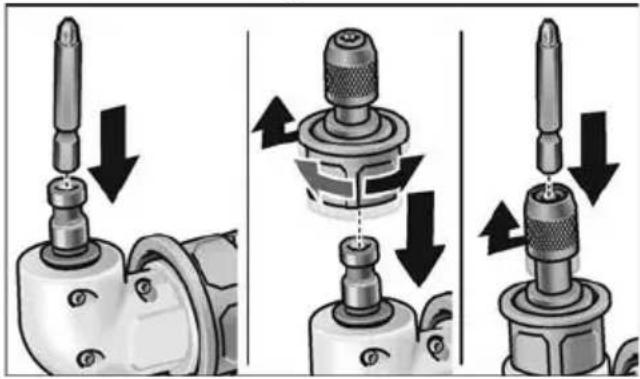

Inserting the tools

The angle attachment has a 12 " tool holder. Screwdriver bits and bit holders are securely held in the tool holder.

The keyless chuck (see "Changeable drill chuck BF 18.0-EC") or the bit holder (see "Bit holder attachment BV 18.0-EC") can be mounted on the angle attachment.

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Mechanical assembly diagram showing two stages of a drill bit with arrows indicating motion (no text or symbols)

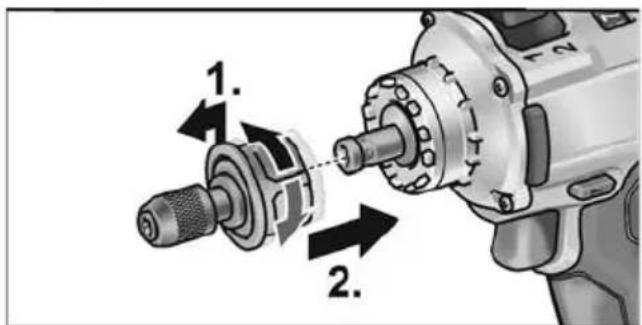

Bit holder attachment BV 18.0-EC

CAUTION!

Before carrying out any work on the power tool, move the direction preselector switch (4) to the middle position.

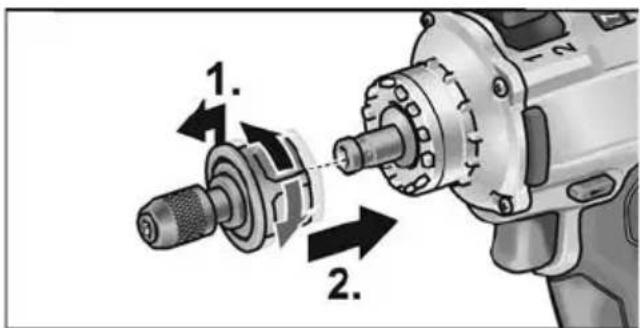

Assemble

■ Pull unlocking ring forwards (1.) and press bit holder attachment all the way onto the tool holder (2.).
■ Release unlocking ring. Check that the bit holder attachment is locked in position.

Diagram of a drill bit with labeled components and directional arrows indicating assembly steps

Disassemble

■ Pull unlocking ring forwards and remove bit holder attachment.

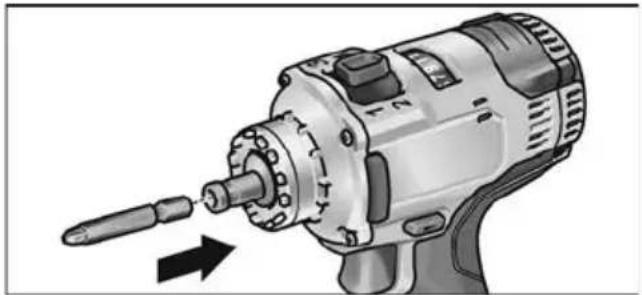

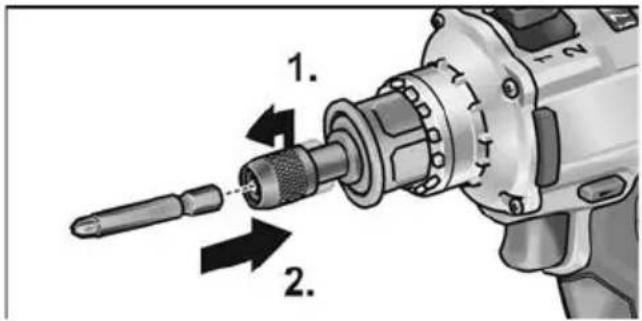

Inserting the tools

The bit holder attachment has a 12 " tool holder. Screw-driver bits are securely held in the tool holder.

■ Pull tool lock forwards (1.) and press in the tool all the way (2.).
■ Release tool lock.

Diagram of a drill bit with labeled parts, showing how to move the drill bit into a screwdriver.

■ To remove the tool, pull tool lock backwards.

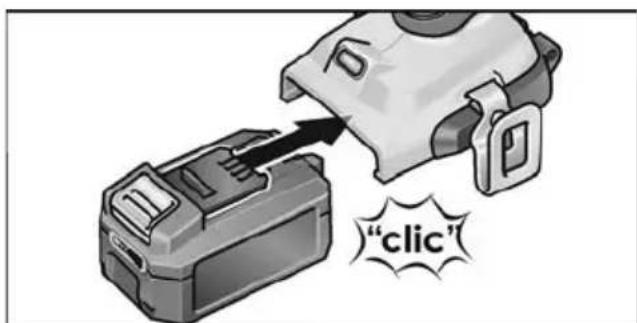

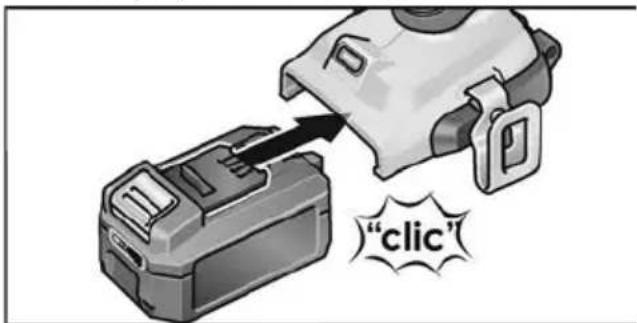

Inserting/replacing the battery

■ Press the charged battery into the power tool until it clicks into place.

"clic"

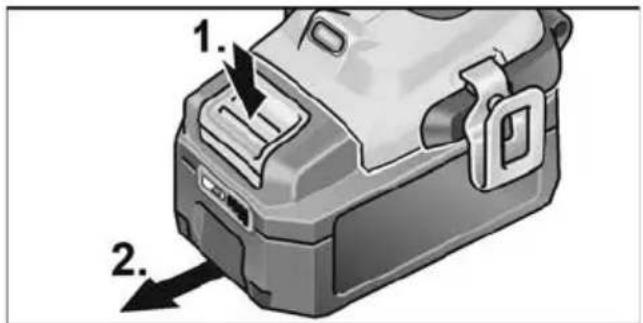

■ To remove, press the release button (1.) and pull out the battery (2.).

1. 2.

CAUTION!

Protect the battery contacts when the battery is not being used. Loose metal parts may short-circuit the contacts – Explosion and fire hazard!

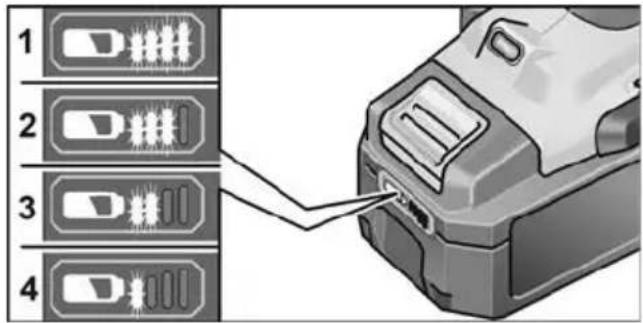

Battery state of charge

■ Press the button to check the state of charge at the state of charge indicator LEDs.

Diagram showing four labeled components connected to a device with a connector, likely illustrating a mechanical or electrical assembly.

The indicator goes out after 5 seconds. If one of the LEDs flashes, the battery must be recharged. If none of the LEDs light up after the button is pressed, the battery is faulty and must be replaced.

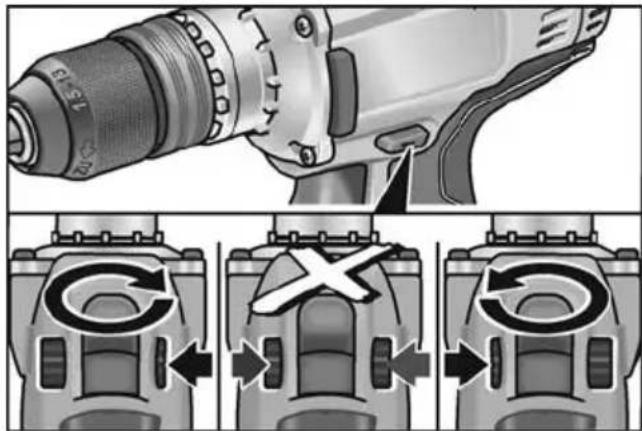

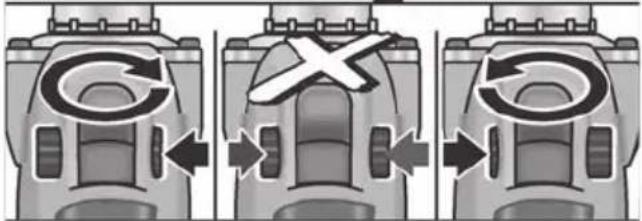

Direction preselection

CAUTION!

Change the direction of rotation only when the power tool is stopped.

Diagram illustrating the process of a drill press tool with labeled components and directional arrows indicating rotation or adjustment.

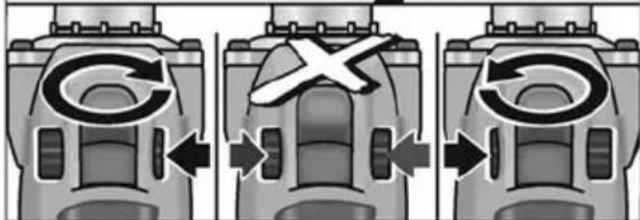

■ Move the direction preselector switch to the required position:

• Left: counterclockwise (remove screws, release screws)
• Right: clockwise (drill, insert screws, tighten down screws)
• Middle: switch-on interlock (tool change, when working on the power tool)

Torque preselection

CAUTION!

Change the torque only when the power tool is stopped.

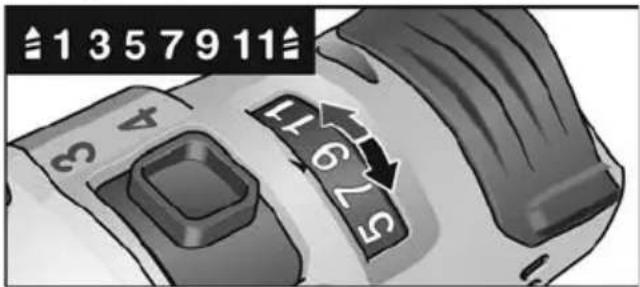

■ Move the torque setting turning dial to the required position.

1357911 7675

1–11: Screwing

Drilling

NOTE

The safety clutch is deactivated in the Drilling setting

Speed preselection

CAUTION!

Change the speed only when the power tool is stopped.

It is only possible to select the speed in the direction indicated by the arrows!

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

■ Move the selector switch to the required stage:

1: Low speed, high torque

4: High speed, low torque

Switching on the power tool

To switch the power tool on:

■ Press the trigger switch.

The power tool trigger switch allows the operator to increase the speed in increments up to the maximum speed.

Illustration of a drill press with tool and directional arrows (no text or symbols)

To switch the power tool off:

■ Release the trigger switch.

NOTE

• The power tool is equipped with a brake which stops the cutting accessory as soon as the trigger switch is released.
• When using the power tool continuously, the operator should work primarily with the trigger switch fully depressed.

Workplace lamp on/off switch

Illustration of a robotic arm firing a weapon, with no visible text or symbols

1. Turn direction of rotation preselector switch (2) to "Forwards" or "Reverse".
2. Press electric tool on/off switch (5)

- Workplace lamp lights up

1. Release electric tool on/off switch (5)

- Workplace lamp goes out automatically after approx. 10 sec.

Working with the power tool

CAUTION!

Before carrying out any work on the power tool, move the direction preselector switch (4) to the middle position.

NOTE

To facilitate handling of the appliance when inserting screws, the screwdriver bit can be inserted directly into the tool holder of the appliance.

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

1. Assemble the tool head (drill chuck, angle attachment, bit holder attachment).
2. Insert the battery.
3. Insert the tool (drill bits, srewdriver bits, bit holders).
4. Set torque preselection to the required setting.
5. Set speed to the required setting.
6. Set the required direction of rotation.

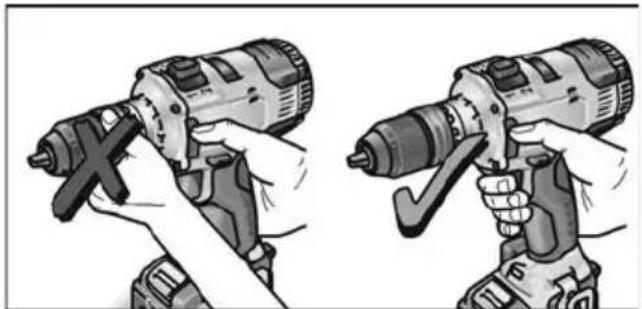

7. Hold the power tool with one hand on the handle and assume the working position. If the power tool is running, never actuate the direction preselector switch or torque setting turning dial.

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Switch on the power tool.
   At the end of work:
2. Release the trigger switch.
3. Move the direction preselector switch (4) to the middle position.

Charger

CA 10.8/18.0

1 Insertion slot for battery
2 Contacts
3 Ventilation slots
4 Operating state display
5 Power cord with mains plug

The CA 10.8/18.0 charger is designed to charge FLEX batteries of the following types

• AP 10.8 (2.5 Ah),
• AP 18.0 (2.5 Ah),
• AP 10.8 (5.0 Ah),
• AP 18.0 (5.0 Ah).

Tips for a long battery service life

CAUTION!

• Never charge batteries at temperatures below 0 °C or above 55 °C.
• Do not charge batteries in environments with high air humidity or ambient temperature
• Do not cover batteries and the charger during the charging process.
  – Pull out the charger mains plug at the end of the charging process.

Battery and charger heat up during the charging process. This is perfectly normal! Lithium-ion batteries do not exhibit the established "memory effect". Nevertheless a battery should be completely discharged before charging and the charging process should always be fully completed.

If batteries are not used for an extended period of time, store them partially charged in a cool place.

Charging process

CAUTION!

Insert only original batteries in the supplied charger.

■ Insert the charger mains plug. The display backlighting lights up green for 2 seconds and then goes out again. OK is displayed.

:30 Li-ion 8000 Li-ion

■ Insert the battery fully into the charger until it clicks into place.

- The time remaining in the charging process (until the battery is fully charged) and a graphic representation of the state of charge are shown alternately in the display.

- The display backlighting lights up orange when the battery is charged less than 80%.

- When the battery charge reaches 80% the display lights up green and OK is indicated.

■ The battery is fully charged when the display appears.

The green backlighting goes out after a short time.

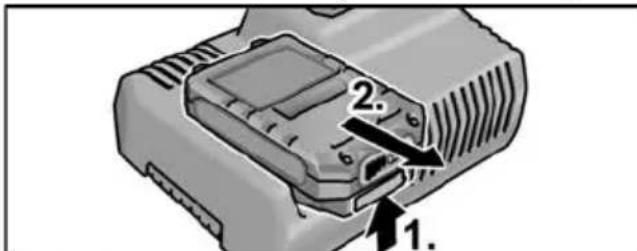

■ Remove the battery from the charger.

1. 2.

■ Pull out the mains plug.

NOTE

If the display flashes after the battery is inserted in the charger, there is a fault in the battery or in the charger.

Display flashes slowly. Backlighting orange.

The battery is too hot or too cold. The charging process starts when the battery reaches the charging temperature (0°C...55°C).

Display flashes rapidly. Backlighting red.

Remove the battery from the charger and insert again. If the same display persists, the battery is faulty. Replace the battery or have it checked at an authorised repair shop.

If this error message is displayed again with a different battery, this indicates that there is a fault in the charger. Have the charger checked at an authorised repair shop.

Maintenance and care

Cleaning

WARNING!

If metals are worked over a prolonged period, electroconductive dust may become deposited inside the housing.

■ Clean the power tool and ventilation slots at regular intervals. Frequency of cleaning is dependent on the material machined and the duration of use.
■ Regularly blow out the housing interior and motor with dry compressed air. Keep the power tool running while doing this.

Charger

WARNING!

Before performing any work, pull out the mains plug. Do not use water or liquid detergents.

■ Remove dirt and dust from the housing with a brush or a dry cloth.

Repairs

Repairs may be carried out by an authorised customer service centre only.

Spare parts and accessories

For other accessories, in particular cutting accessories, please refer to the manufacturer's catalogues.

Exploded drawings and spare-part lists can be found on our homepage:

www.flex-tools.com

Transport

The lithium equivalent content of the batteries contained in the scope of delivery is below the relevant limit values. Therefore the battery as a separate component and the power tool with its scope of delivery are not subject to national or international dangerous goods regulations. If several devices containing lithium-ion batteries are transported, these regulations may become relevant and require special safety measures (e.g. for the packaging). In this case acquaint yourself with the regulations that apply to the country of use.

CE conformity

We declare on our sole responsibility that the product described in "Technical data" conforms to the following standards or normative documents:

EN 62841 according to the provisions of Directives 2014/30/EU, 2006/42/EC, 2011/65/EU.

Responsible for technical documents: FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr

B. R. 0 - 1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

- mains operated power tool by removing the power cord,

- battery operated power tool by removing the battery.

EU countries only.

Do not dispose of electric power tools in the household waste! In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its incorporation into national law, used power tools must be collected separately and recycled in an environmentally friendly manner.

Raw material recovery instead of waste disposal.

Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.

WARNING!

Do not throw batteries into the household waste, fire or water. Do not open disused batteries.

Accumulators/batteries should be collected, recycled or disposed of in an environmentally friendly manner.

EU countries only.

In accordance with the European Directive 2006/66/EC on Waste Electrical and Electronic Equipment and its incorporation into national law, defective or used batteries must be collected separately and recycled in an environmentally friendly manner.

NOTE

Please ask your dealer about disposal options.

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product. The manufacturer and his representative are not liable for any damage which was caused by improper use of the product or by use of the product with products from other manufacturers.

Table des matières

Exploded view diagram of a drill bit with numbered parts for identification

Mechanical assembly diagram showing two steps of tool installation (no text or symbols)

i REMARQUE

Technical diagram showing mechanical assembly steps with numbered annotations indicating component identification

Technical diagram showing mechanical assembly steps with numbered labels 3 and 4, including a close-up of a tool.

Mandrin de perçage interchangeable BF 18.0-EC

PRUDENCE!

Diagram showing two mechanical components with numbered labels indicating assembly steps

Démontage

Three-step diagram showing mechanical tool manipulation: disassembly, assembly, and end-assembly (no text or symbols)

Mechanical assembly diagram showing a drill bit being inserted into a pump, with arrows indicating force direction (no text or symbols present)

Adaptateur porte-embout BV 18.0-EC

PRUDENCE!

Diagram of a drill bit with labeled components and directional arrows indicating tool movement

Démontage

Diagram of a drill bit with labeled parts, showing tool insertion and disassembly steps

Diagram illustrating the process of a drill press tool with labeled components and directional arrows indicating rotation or cycle.

Illustration of a drill bit with motion arrows indicating tool movement (no text or symbols)

Illustration of a robotic arm firing a weapon, with no visible text or symbols

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Allumez l'appareil.

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Klaus Peter Weinper Head of Quality Department (QD)

16.07.2018

Exploded view diagram of a drill bit with numbered parts for identification

Two-step diagram showing mechanical assembly with screws and a bracket (no text or symbols)

i AVVERTENZA

Technical diagram showing mechanical assembly steps with numbered labels indicating component placement

3. 4.

Mandrino intercambiabile BF 18.0-EC

PRUDENZA!

Technical diagram showing two mechanical components with numbered callouts indicating assembly steps

Smontaggio

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Mechanical assembly diagram showing two stages of a drill bit with arrows indicating motion (no text or symbols present)

Diagram of a drill bit with labeled components and directional arrows indicating tool movement

Smontaggio

Diagram of a drill bit with labeled parts, showing how to move the drill bit into a screwdriver.

Diagram illustrating the process of a drill press tool with labeled components and directional arrows indicating rotation or adjustment.

Illustration of a drill bit with motion arrows indicating tool movement (no text or symbols)

Illustration of a weapon system with a pointed beam and arrow, no visible text or symbols

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill bit (no text or symbols present)

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Diagram of a device component with numbered parts labeled 1 and 2, showing internal structure and directional arrow.

■ Estrarre la spina d'alimentazione.

i AVVERTENZA

Handwritten signature or name with a circular outline and partial text below

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

16/07/2018

Exploded view diagram of a power drill with numbered parts for identification

Two-step diagram showing a mechanical clamp or bracket being inserted into a tool, with no visible text or symbols.

i NOTA

Technical diagram showing mechanical assembly steps with numbered annotations indicating component identification

Technical diagram showing mechanical assembly steps with numbered labels 3 and 4 indicating different states or components.

Portabrocas intercambiable BF 18.0-EC

¡CUIDADO!

Diagram showing two mechanical components with numbered labels indicating assembly steps

Desmontaje

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Mechanical assembly diagram showing a drill bit and screwdriver tool (no text or labels)

Adaptador portabrocas BV 18.0-EC

¡CUIDADO!

Diagram of a drill bit with labeled components and directional arrows indicating tool movement

Desmontaje

Diagram of a drill bit with labeled parts, showing how to move the drill bit into a screwdriver.

Diagram illustrating the process of a drill press tool with labeled components and directional arrows indicating motion or sequence.

Illustration of a drill bit with motion arrows indicating tool movement (no text or symbols)

Illustration of a robotic arm firing a weapon, with no visible text or symbols

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

CA 10.8/18.0

Rille Bhat D-1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

16.07.2018

Exploded view diagram of a power drill with numbered parts for identification

Two-step diagram showing a mechanical clamp or bracket being inserted into a tool, with no visible text or symbols.

i INDICAÇÃO

Technical diagram showing mechanical assembly steps with numbered annotations

Diagram showing two mechanical components with numbered labels indicating parts of each, likely illustrating a disassembly or assembly process.

Desmontar

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Mechanical assembly diagram showing a drill bit and screwdriver tool (no text or labels)

Diagram of a drill bit with labeled components and directional arrows indicating tool movement

Desmontar

Diagram of a drill bit with labeled parts, showing how to move the drill bit into a screwdriver.

Close-up illustration of a drill bit with attached screwdriver (no text or symbols visible)

Diagram showing three sequential steps of a device with labeled arrows and symbols, including 'C', 'X', and 'O'.

Diagram showing a helicopter's key and control buttons with icons and numbers, including a rabbit icon and four labeled buttons with checkmarks.

Illustration of a drill bit with motion arrows indicating tool movement (no text or symbols)

Illustration of a robotic arm firing a bright light beam, with an arrow pointing to the motion (no text or symbols present)

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Diagram of a device component with numbered parts and directional arrows indicating parts 1 and 2.

■ Desligar a ficha da tomada.

INDICAÇÃO

Rille Bhat Q.,

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

16.07.2018

Exploded view diagram of a drill bit with numbered parts for identification

Mechanical assembly diagram showing two steps of clamping a component (no text or symbols present)

i LET OP

Technical diagram showing mechanical assembly steps with numbered annotations indicating component identification

Technical diagram showing mechanical assembly steps with numbered labels 3 and 4, including a close-up of a tool.

Diagram showing two mechanical components with numbered labels indicating assembly steps

Demonteren

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Mechanical assembly diagram showing a drill bit and screwdriver tool (no text or labels)

Diagram of a drill bit with labeled components and directional arrows indicating tool movement

Demonteren

Diagram of a drill bit with labeled parts, showing how to move the drill bit into a screwdriver.

Diagram showing four labeled components connected to a device with a connector, likely illustrating a mechanical or electrical component assembly.

Diagram illustrating the process of a drill press tool with labeled components and directional arrows indicating rotation or adjustment.

Illustration of a drill press with tool and directional arrows indicating motion (no text or symbols)

Close-up of a robotic arm with a pointed tool emitting light, no visible text or symbols

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Handwritten signature or scribble on a document, possibly a signature or official note

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

16.07.2018

Exploded view diagram of a power drill with numbered parts for identification

Mechanical assembly diagram showing two steps of clamping a component (no text or symbols present)

i BEMAERK

Technical diagram showing mechanical assembly steps with numbered annotations indicating component identification

Technical diagram showing mechanical assembly steps with numbered annotations (3, 4) indicating different states or components.

Vekselpatron BF 18.0-EC

FORSIGTIG!

Technical diagram showing two mechanical components with numbered callouts indicating assembly steps

Afmontering

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Mechanical assembly diagram showing a drill bit and screwdriver tool (no text or labels)

Bitholderforsats BV 18.0-EC

FORSIGTIG!

Diagram of a drill bit with labeled components and directional arrows indicating motion or assembly.

Afmontering

Diagram of a drill bit with labeled parts, showing how to move the drill bit into a screwdriver.

Diagram of a device with labeled parts, showing two numbered arrows pointing to a component.

FORSIGTIG!

Diagram illustrating the process of a drill press tool with labeled components and directional arrows indicating rotation or cycle.

Illustration of a drill bit with tool handle and motion arrows indicating movement (no text or symbols)

Slukke maskinen:

■ Slip afbryderen.

i BEMAERK

Illustration of a robotic arm firing a bright light beam, with an arrow pointing to the motion (no text or symbols present)

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Tænd maskinen.

CA 10.8/18.0

Rille Bhat Q-1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

16.07.2018

Exploded view diagram of a power drill with numbered parts and exploded views for each component

Mechanical assembly diagram showing two steps of clamping a bracket with screws (no text or symbols)

i HENVISNING

Technical diagram showing mechanical assembly steps with numbered annotations indicating component placement

Technical diagram showing mechanical assembly steps with numbered labels 3 and 4, including a close-up of a tool.

Skiftechuck BF 18.0-EC

! FORSIKTIG!

Diagram showing two mechanical components with numbered labels indicating assembly steps

Demontering

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Mechanical assembly diagram showing a drill bit and screwdriver tool (no text or labels)

Bitsholderforsats BV 18.0-EC

FORSIKTIG!

Diagram showing a drill bit being inserted into a motor, with numbered instructions indicating the process.

Demontering

Diagram of a drill bit with labeled parts, showing tool insertion and disassembly steps

Diagram of a device with labeled parts, showing two numbered arrows pointing to a component.

FORSIKTIG!

Diagram showing a drill press with three views of the drill press, highlighting a 'X' mark and directional arrows.

Illustration of a drill presser with directional arrows indicating tool movement (no text or symbols)

Illustration of a robotic arm firing a weapon, with no visible text or symbols

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Henvisninger for lang batteri-levetid

FORSIKTIG!

Handwritten signature or name with a circular outline and partial text below

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

Exploded view diagram of a drill bit with numbered parts for identification

Mechanical assembly diagram showing two steps of clamping a component (no text or symbols present)

Technical diagram showing mechanical assembly steps with numbered annotations indicating component placement

Technical diagram showing mechanical assembly steps with numbered labels 3 and 4, including a close-up of a tool.

Snabbchuck BF 18.0-EC

VAR FÖRSIKTIG!

Diagram showing two mechanical components with numbered labels indicating assembly steps

Demontera

Diagram illustrating three-step mechanical assembly steps with downward arrows indicating process flow

Mechanical assembly diagram showing a drill bit being inserted into a pump, with arrows indicating force direction (no text or symbols present)

Diagram of a drill bit with labeled components and directional arrows indicating motion or assembly.

Demontera

Diagram of a drill bit with labeled parts, showing how to move the drill bit into a screwdriver.

Diagram illustrating the process of a drill press tool with labeled components and directional arrows indicating rotation or adjustment.

Illustration of a drill bit with motion arrows indicating tool movement (no text or symbols)

Illustration of a robotic arm firing a weapon, with no visible text or symbols

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Manager Research & Development (R & D)

B. R. Q. -

Klaus Peter Weinper

Head of Quality

Department (QD)

16.07.2018

Exploded view diagram of a power drill with numbered parts for identification

Mechanical assembly diagram showing two steps of tool manipulation (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations indicating component placement

Technical diagram showing mechanical assembly steps with numbered labels 3 and 4, including a close-up of a tool.

Diagram showing two mechanical components with numbered labels indicating assembly steps

Irrotus

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Mechanical assembly diagram showing a drill bit and screwdriver tool (no text or labels)

Diagram of a drill bit with labeled components and directional arrows indicating tool movement

Irrotus

Diagram of a drill bit with numbered instructions for tool insertion or disassembly

Diagram illustrating the process of a drill press tool with labeled components and directional arrows indicating rotation or cycle.

Illustration of a drill bit with motion arrows indicating tool movement (no text or symbols)

Koneen pysäytys:

Illustration of a weapon system with a bright beam and arrow, no text or symbols present

Illustration of a power drill with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Käynnistä kone.

Töiden jälkeen:

CA 10.8/18.0

1 Akkukuilu

2 Liittimet

3 Tuuletusraot

Manager Research & Development (R & D)

B. R. Q. - 1

Klaus Peter Weinper

Head of Quality

Department (QD)

Exploded view diagram of a power drill with numbered parts for identification

Two-step diagram showing a mechanical clamp or bracket being inserted into a tool, with no visible text or symbols.

i YΠΟΔΕΙΞΗ

Technical diagram showing mechanical assembly steps with numbered annotations

Technical diagram showing mechanical assembly steps with numbered annotations (3, 4) and a close-up of a tool interacting with a cylindrical component.

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Mechanical assembly diagram showing two stages of a drill bit with arrows indicating motion (no text or symbols present)

Diagram showing a drill bit being inserted into a motor, labeled with parts 1 and 2.

Αφαίρεση

Diagram of a drill bit with labeled parts, showing tool insertion and disassembly steps

Diagram illustrating the process of a drill press tool with three sequential steps showing tool positioning and rotation.

Illustration of a drill bit with motion arrows indicating tool movement (no text or symbols)

Illustration of a robotic arm firing a beam of light, with no visible text or symbols

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

CA 10.8/18.0

1 Y π o δ o χ ή 2 E π α φ ε ζ

3 Σχισμές αερισμού

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

B. R. Q. - 1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

16.07.2018

Exploded view diagram of a drill bit with numbered parts for identification

Mechanical assembly diagram showing two steps of tool manipulation (no text or symbols)

i BÍLGÍ

Technical diagram showing mechanical assembly steps with numbered annotations indicating component placement

Technical diagram showing mechanical assembly steps with numbered labels 3 and 4 indicating different components or states.

Diagram showing two mechanical components with numbered labels indicating assembly steps

Sökme

Three-step diagram showing mechanical tool installation with arrows indicating direction of movement (no text or symbols)

Mechanical assembly diagram showing a drill bit and screwdriver tool (no text or labels)

Diagram of a drill bit with labeled components and directional arrows indicating working principle

Sökülmesi

Diagram of a drill bit with labeled parts, showing how to move from a screwdriver to a drill bit.

Diagram illustrating the process of a drill press tool with labeled components and directional arrows indicating rotation or adjustment.

Illustration of a drill bit with motion arrows indicating tool movement (no text or symbols)

Illustration of a robotic arm firing a weapon, with no visible text or symbols

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Handwritten signature or scribble on a document, possibly from a form or document.

Eckhard Rühle

Manager Research &

Development (R & D)

16.07.2018

Klaus Peter Weinper

Head of Quality

Department (QD)

Exploded view diagram of a drill bit with numbered parts for identification

Mechanical assembly diagram showing two steps of tool installation (no text or symbols)

i WSKAZÓWKA

Technical diagram showing mechanical assembly steps with numbered annotations indicating component identification

3. 4.

Wymienny uchwyt wiertarski BF 18.0-EC

OSTROŻNIE!

Diagram showing two mechanical components with numbered labels indicating assembly steps

Demontaż

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Mechanical assembly diagram showing a drill bit being inserted into a cylindrical component, with arrows indicating direction of movement (no text or symbols present)

Diagram showing a drill bit being inserted into a motor, labeled with numbered instructions for each component.

Demontaż

Diagram of a drill bit with labeled parts, showing how to move the drill bit into a screwdriver.

Diagram illustrating the process of a drill press tool with labeled states and directional arrows indicating rotation or adjustment.

Illustration of a drill bit with motion arrows indicating tool movement (no text or symbols)

Illustration of a robotic arm firing a beam of light, with no visible text or symbols

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and an arrow indicating motion (no text or symbols present)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

B. H. Q. - 1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

Exploded view diagram of a drill bit with numbered parts for identification

Mechanical assembly diagram showing two steps of clamping a component (no text or symbols present)

i MEGJEGYZÉS

Technical diagram showing mechanical assembly steps with numbered annotations indicating component placement

Technical diagram showing mechanical assembly steps with numbered labels 3 and 4, including a close-up of a tool.

Three-step diagram showing screwdriver tool positioning and mounting process (no text or symbols)

Mechanical assembly diagram showing two stages of a drill bit with arrows indicating motion (no text or symbols)

Diagram of a drill bit with labeled components and directional arrows indicating assembly or disassembly steps

Leszerelés

Diagram of a drill bit with numbered instructions for tool manipulation

Diagram illustrating the process of a drill bit with rotation arrows and a close-up of the drill bit's motion.

Illustration of a drill bit with motion arrows indicating tool movement (no text or symbols)

A gép kikapcsolása:

Illustration of a weapon system with a pointed tool and arrow, no visible text or symbols

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

CA 10.8/18.0

1 Az akku rekesze

2 Érintkezők

3 Szellőzőnyílások

Klaus Peter Weinper Head of Quality Department (QD)

1. 1. 16.

Exploded view diagram of a power drill with numbered parts for identification

Mechanical assembly diagram showing two steps of tool manipulation (no text or symbols)

i UPOZORNĚNÍ

Technical diagram showing mechanical assembly steps with numbered annotations indicating component identification

3. 4.

Diagram showing two mechanical components with numbered labels indicating assembly steps

Demontáž

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Mechanical assembly diagram showing two stages of a drill bit with arrows indicating motion (no text or symbols)

Diagram of a drill bit with labeled components and directional arrows indicating tool movement

Demontáž

Diagram of a drill bit with numbered instructions for tool insertion or disassembly

Diagram illustrating the process of a drill press tool with labeled components and directional arrows indicating motion or operation.

Diagram illustrating a vehicle's key positioning and control buttons, with icons for rabbit and turtle positions.

Illustration of a drill bit with tool handle and motion arrows indicating movement (no text or symbols)

Vypnutí nářadí:

■ Uvolněte spínač.

UPOZORNĚNÍ

Illustration of a robotic arm firing a bright light beam, with no visible text or symbols

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Rille Bhat D-1

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD

Exploded view diagram of a drill bit with numbered parts for identification

Two-step diagram showing a mechanical clamp or bracket being inserted into a tool, with no visible text or symbols.

i UPOZORNENIE

Technical diagram showing mechanical assembly steps with numbered annotations indicating component placement

Technical diagram showing mechanical assembly steps with numbered annotations (3, 4) and directional arrows indicating process flow.

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Mechanical assembly diagram showing two stages of a drill bit with arrows indicating motion (no text or symbols present)

Nadstavec pre držiak hrotov BV 18.0-EC

POZOR!

Diagram showing a drill bit being inserted into a motor, with numbered instructions indicating the process.

Demontáž

■ Odblokovací krúžok potiahnite dopredu a odoberte nadstavec pre držiak hrotov.

Vloženie nástrojov

Diagram of a drill bit with labeled parts, showing tool insertion and disassembly steps

Diagram of a battery pack with labeled parts and directional arrows indicating ports or movement.

POZOR!

Diagram illustrating the process of a drill press tool with labeled components and directional arrows indicating motion or movement.

Illustration of a drill bit with motion arrows indicating tool movement (no text or symbols)

Vypnutie náradia:

■ Uvoľnite vypínač.

UPOZORNENIE

Illustration of a robotic arm firing a beam of light, with no visible text or symbols

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press, showing the tool's grip and usage (no text or symbols present)

CA 10.8/18.0

1 Šachta na zasunutie akumulátora
2 Kontakty
3 Vetracie štrbiny
4 Displej na zobrazenie stavu prevádzky
5 Siet'ový kábel so siet'ovou zástrčkou

Nabíjačka CA 10.8/18.0 je určená na nabíjanie akumulátorov FLEX typu

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Klaus Peter Weinper Head of Quality Department (QD)

16.07.2018

Exploded view diagram of a drill bit with numbered parts for identification

Mechanical assembly diagram showing two steps of tool application (no text or symbols)

i NAPOMENA

Prilikom isporuke akumulatori nisu potpuno napunjeni. Prije prvog puštanja u rad napunite do kraja akumulatore. U tu svrhu pogledajte „Punjač/Postupak punjenja“.

Technical diagram showing mechanical assembly steps with numbered annotations

3. 4.

Diagram showing two mechanical components with numbered labels indicating assembly steps

Demontiranje

■ Prsten za deblokadu povucite prema naprijed i skinite steznu glavu.

Umetanje alata

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Mechanical assembly diagram showing a drill bit being inserted into a pump, with arrows indicating direction of motion (no text or symbols present)

Držač nastavka BV 18.0-EC

OPREZ!

Prije svih radova na električnom alatu prekidač za odabir smjera okretanja (4) postavite u srednji položaj.

Montiranje

■ Prsten za deblokiranje povucite prema naprijed (1.) i držač nastavka do graničnika pritisnite u prihvat alata(2.).
■ Otpustite prsten za deblokadu. Provjerite dosjed.

Diagram of a drill bit with labeled components and directional arrows indicating tool movement

Demontiranje

Diagram of a drill bit with labeled parts, showing how to move the drill bit into a screwdriver.

■ Za vađenje alata aretiranje alata povucite prema nazad.

Diagram of a device with labeled parts, showing two numbered arrows pointing to a component.

OPREZ!

Kada alat nije u uporabi zaštitite kontakte akumulatora. Nepričvršćeni metalni dijelovi mogu kratko spojiti kontakte, postoji opasnost od eksplozije i požara!

Stanje napunjenosti akumulatora

Diagram illustrating the process of a drill press tool with labeled parts and directional arrows indicating rotation or movement.

Illustration of a drill bit with tool handle and motion arrows indicating movement (no text or symbols)

Illustration of a weapon system with a laser beam and directional arrow (no text or symbols)

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

1. Montirajte nosač alata (zamjenska stezna glava, kutni nastavak, držač nastavka).
2. Umetnite akumulator.
3. Umetnite alat (svrdlo, odvijač, držač nastavka).
4. Odabir okretnog momenta postavite na potrebni stupanj.
5. Brzinu postavite na potrebni stupanj.

6. Podesite potreban smjer okretanja.

7. Električni alat primite rukom i zauzmite radni položaj. Kada je motor u radu nikada ne pritišćite prekidač za odabir smjera okretanja odn. postavku okretnog momenta!

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Uključite aparat.

CA 10.8/18.0

1 Otvor za umetanje akumulatora
2 Kontakti
3 Prorezi za ventilaciju
4 Zaslon za prikaz radnog stanja
5 Mrežni kabel s mrežnim utikačem

Punjač CA 10.8/18.0 namijenjen je za punjenje FLEX akumulatora tipa

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Exploded view diagram of a drill bit with numbered parts for identification

Mechanical assembly diagram showing two steps of tool manipulation (no text or symbols)

i OPOMBA

Akumulatorske baterije ob dobavi niso popolnoma napolnjene. Pred prvo uporabo akumulatorske baterije popolnoma napolnite. V ta namen glejte poglavje „Polnilnik/Polnjenje“.

Technical diagram showing mechanical assembly steps with numbered annotations indicating component identification

3. 4.

Izmenljiva vrtalna glava BF 18.0-EC

POZOR!

Diagram showing two mechanical components with numbered labels indicating assembly steps

Demontaža

Obroč za deblokiranje povlecite naprej in snemite vrtalno glavo.

Vpenjanje nastavkov

V vrtalno glavo je mogoče vpeti svedre s premerom 1,5–13 mm, vijačne nastavke ^1/2 in držala za nastavke ^1/2 .

■ Z eno roko čvrsto držite električno orodje, z drugo pa vrtite vrtalno glavo.
– Z vrtenjem v nasprotni smeri urnega kazalca vrtalno glavo še bolj odprete.
– Z vrtenjem v smeri urnega kazalca vrtalno glavo zaprete.

1. 2. 3.

■ Vstavite nastavek.
■ Vrtalno glavo popolnoma zaprite.

i OPOMBA

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Mechanical assembly diagram showing a drill bit being inserted into a pump, with no visible text or symbols

Vpetje za nastavke BV 18.0-EC

POZOR!

Technical diagram showing a drill bit being inserted into a motor, with numbered instructions for each component.

Demontaža

Diagram of a drill bit with labeled parts, showing how to move the drill bit into a screwdriver.

■ Da nastavek odstranite, blokado nastavka povlecite nazaj.

Vstavljanje/menjava akumulatorske baterije

Napolnjeno akumulatorsko baterijo v električno orodje potisnite tako daleč, da se popolnoma zaskoči.

"clic"

Diagram illustrating the process of a drill press tool with labeled components and directional arrows indicating rotation or adjustment.

■ Stikalo za izbiro smeri vrtenja nastavite v želen položaj:

Illustration of a drill bit with tool handle and control buttons, showing motion direction (no text or symbols)

Izklop orodja:

■ Spustite stikalo.

OPOMBA

Illustration of a robotic arm firing a weapon, with no visible text or symbols

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to lift a tool, showing the correct and incorrect states (no text or symbols present)

1. Vklopite orodje.

Po končanem delu:

1. Spustite stikalo.

2. Stikalo za izbiro smeri vrtenja (4) nastavite v osrednji položaj.

Polnilnik

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Handwritten signature or scribble on a document, possibly a signature or official note

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

16.07.2018

Exploded view diagram of a power drill with numbered parts for identification

Mechanical assembly diagram showing two steps of tool installation (no text or symbols)

i INDICATIE

Technical diagram showing mechanical assembly steps with numbered labels indicating component identification

Technical diagram showing mechanical assembly steps with numbered labels 3 and 4 indicating different components or states.

Diagram showing two mechanical components with numbered callouts indicating assembly steps

Demontarea

Introducerea sculelor

Introducerea sculelor

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Mechanical diagram showing a drill bit being inserted into a pump, with arrows indicating force direction (no text or symbols present)

Cap aplicat cu suport de bituri BV 18.0-EC

PRECAUTIE!

Technical diagram showing a drill bit being inserted into a motor, with numbered instructions for each component.

Demontarea

Introducerea sculelor

Diagram of a drill bit with labeled parts, showing how to move the drill bit into a screwdriver.

Diagram illustrating the process of a drill press tool with labeled components and directional arrows indicating rotation or adjustment.

Diagram illustrating a robot's keyway with numbered buttons and checkmarks, showing a rabbit and turtle.

Illustration of a drill bit with motion arrows indicating tool movement (no text or symbols)

Illustration of a robotic arm firing a weapon, with no visible text or symbols

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill bit (no text or symbols present)

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

EN 62841 conform prevederilor Directivei 2014/30/UE, 2006/42/CE, 2011/65/UE.

Rille Bhat Q-1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

16.07.2018

Exploded view diagram of a power drill with numbered parts and exploded views for each component

Mechanical assembly diagram showing two views of a clamp or bracket with screws and a clip (no text or symbols)

i УКАЗАНИЕ

Technical diagram showing mechanical assembly steps with numbered annotations indicating component placement

Technical diagram showing mechanical assembly steps with numbered labels 3 and 4, including a close-up of a tool.

Three-step diagram showing screwdriver tool positioning and adjustment, with arrows indicating movement (no text or symbols)

Mechanical assembly diagram showing a drill bit being inserted into a cylindrical component, with arrows indicating direction of movement (no text or symbols present)

Diagram of a drill bit with labeled components and directional arrows indicating working principle

Демонтиране

Diagram of a drill bit with labeled parts, showing how to move the drill bit into a screwdriver.

Diagram illustrating the process of a drill press tool with labeled components and directional arrows indicating rotation or adjustment.

Illustration of a drill bit with motion arrows indicating tool movement (no text or symbols)

Illustration of a robotic arm firing a weapon, with no visible text or symbols

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

CA 10.8/18.0

Bolts Q.-1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

Exploded view diagram of a drill bit with numbered parts for identification

Mechanical assembly diagram showing two steps of clamping a component (no text or symbols present)

i УКАЗАНИЕ

Technical diagram showing mechanical assembly steps with numbered annotations indicating component placement

Technical diagram showing mechanical assembly steps with numbered labels 3 and 4, including a close-up of a tool.

Diagram showing two mechanical components with numbered labels indicating assembly steps

Снятие

Diagram illustrating three-step mechanical assembly steps with arrows indicating direction of movement or force

Mechanical assembly diagram showing two stages of a drill bit with arrows indicating motion (no text or symbols)

Diagram of a drill bit with labeled components and directional arrows indicating tool movement

Снятие

Technical diagram of a drill bit with numbered instructions for tool insertion or disassembly

Diagram illustrating the process of a drill press tool with labeled components and directional arrows indicating rotation or cycle.

Illustration of a drill bit with motion arrows indicating tool movement (no text or symbols)

Выключение прибора:

Illustration of a robotic arm firing a weapon, with a white arrow pointing to the motion (no text or symbols present)

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill bit (no text or symbols present)

1. Включите прибор.

CA 10.8/18.0

• AP 10.8 (2,5 A*4),
• AP 18.0 (2,5 A*4),
• AP 10.8 (5,0 A*4),
• AP 18.0 (5,0 A*4).

:30 Li-ion 8 L Li-ion

B. R. Q. - 1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

16.07.2018

Exploded view diagram of a drill bit with numbered parts for identification

Mechanical assembly diagram showing two steps of tool manipulation (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations indicating component placement

Technical diagram showing mechanical assembly steps with numbered annotations (3, 4) indicating different states or components.

Vahetatav padrun BF 18.0-EC

ETTEVAATUST!

Diagram showing two mechanical components with numbered labels indicating assembly steps

Eemaldamine

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Mechanical assembly diagram showing a drill bit and screwdriver tool (no text or labels)

Otsakuhoidikumanus BV 18.0-EC

ETTEVAATUST!

Diagram of a drill bit with labeled components and directional arrows indicating tool movement

Eemaldamine

Tömmake vabastusröngast ettepoole ja eemaldage otsakuhoidikumanus.

Tarvikute paigaldamine

Diagram of a drill bit with numbered instructions for tool insertion or disassembly

Tarviku eemaldamiseks tömmake tarvikufiksaatorit tahapoole.

Aku paigaldamine/vahetamine

Diagram of a device with labeled parts and directional arrows indicating movement or force

ETTEVAATUST!

Diagram illustrating the process of a drill press tool with three sequential steps showing tool positioning and rotation.

Diagram illustrating a robot's key positioning and status indicators, showing rabbit and turtle positions with numbered keys and checkmarks.

Illustration of a drill bit with motion arrows indicating tool movement (no text or symbols)

Illustration of a robotic arm firing a weapon, with no visible text or symbols

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to lift a tool, showing the correct and incorrect states (no text or symbols present)

1. Lülitage seade sisse.

CA 10.8/18.0

1 Aku pesa

2 K o n t a k t i d

B. R. Q. - 1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

16.07.2018

Exploded view diagram of a drill bit with numbered parts for identification

Mechanical assembly diagram showing two steps of tool installation (no text or symbols)

i NURODYMAS

Technical diagram showing mechanical assembly steps with numbered labels indicating component identification

Technical diagram showing mechanical assembly steps with numbered annotations (3, 4) and a close-up of a tool interacting with a cylindrical component.

Greito keitimo griebtuvas BF 18.0-EC

ATSARGIA!!

Diagram showing two mechanical components with numbered callouts indicating assembly steps

Išmontavimas

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Mechanical assembly diagram showing a drill bit being inserted into a pump, with arrows indicating force direction (no text or symbols present)

Diagram of a drill bit with labeled components and directional arrows indicating tool movement

Išmontavimas

Diagram of a drill bit with labeled parts, showing how to move from a screwdriver to a drill bit.

Diagram illustrating the process of a drill press tool with labeled components and directional arrows indicating rotation or adjustment.

Diagram showing a computer mouse with labeled buttons and icons, including rabbit and turtle symbols, alongside four numbered UI buttons with checkmarks.

Illustration of a drill bit with tool handle and motion arrows indicating movement (no text or symbols)

Illustration of a robotic arm firing a bright light beam, with an arrow pointing to the motion (no text or symbols present)

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Prietaiso jungimas.

Baigus darba:

1. Jungiklj atleiskite.

2. Sukimosi krypties parinkimo jungiklj (4) nustatykite per vidurj.

Krovimo prietaisas

CA 10.8/18.0

Rille Bhat Q-1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

16.07.2018

Exploded view diagram of a drill bit with numbered parts for identification

Mechanical assembly diagram showing two steps of fastening a clamping tool (no text or symbols present)

i NORĀDE

Technical diagram showing mechanical assembly steps with numbered annotations

Technical diagram showing mechanical assembly steps with numbered labels 3 and 4, including a close-up of a tool.

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Mechanical diagram showing a drill bit being inserted into a screwdriver, with no text or symbols present.

Diagram showing a drill bit being inserted into a motor, with numbered instructions for each component.

Demontāža

Diagram of a drill bit with numbered instructions for tool manipulation

■ Lai iznemtu instrumentu, pavelciet instrumenta fiksatoru uz aizmuguri.

Diagram of a battery pack with labeled parts and directional arrows indicating movement or force

UZMANĪBU!

Diagram illustrating the process of a drill press tool with three sequential steps showing tool positioning and rotation.

Diagram showing a computer mouse with labeled buttons and icons, including checkmarks and crosses, alongside four numbered UI buttons.

Illustration of a drill press with motion arrows indicating tool movement (no text or symbols)

lerīces izslēgšana:

■ Atlaidiet slēdzi.

NORÃDE

Illustration of a weapon system with a laser beam and directional arrow (no text or symbols)

Illustration of a drill bit with a screwdriver, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. leslēdziet instrumentu.

Pēc darba beigām:

CA 10.8/18.0

Rille Bhat D-1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

16.07.2018

Handwritten signature or scribble with partial text and a downward arrow, likely from a document or form.

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

Diagram of a device component with numbered parts and directional arrows indicating assembly or insertion.

CA 10.8/18.0

Illustration of a drill bit with a screwdriver inserted, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

Illustration of a drill bit with motion arrows indicating tool movement (no text or symbols)

إيقاف تشغيل الجهاز:

بتمترك المفتاح.

تنبيه!

Illustration of a robotic arm firing a weapon, with no visible text or symbols

Close-up illustration of a precision drill bit with no visible text or symbols

Diagram showing three stages of a mechanical device with labeled components and directional arrows indicating motion or movement.

Diagram of a drill bit with numbered instructions for tool insertion or disassembly

Mechanical assembly diagram showing a drill bit being inserted into a pump, with arrows indicating force direction (no text or labels present)

Diagram of a drill bit with labeled components and directional arrows indicating working principle

التفكيك

WV 18.0-ECtriangle ABC

احترس!

Three-step diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Diagram showing two mechanical components with numbered parts, likely illustrating a turning or disassembly process.

التفكيك

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Mechanical assembly diagram showing a tool interacting with a bracket (no text or symbols visible)

تنبيه!

Technical diagram showing mechanical assembly steps with numbered annotations indicating component placement

Technical diagram showing mechanical assembly steps with numbered labels 3 and 4 indicating different states or components.

إرشادات الاستعمال

Mechanical assembly diagram showing a clamp and bracket component (no text or symbols visible)

Mechanical assembly diagram showing a tool interacting with a bracket (no text or symbols visible)

تنبيه!
i

Technical diagram showing a drill bit with numbered steps for tool manipulation and assembly

نظرة عامة

Exploded view diagram of a mechanical device with numbered parts for identification
