USER MANUAL CT35 PRO PRF0177583 ELICA

Illustration of a rectangular industrial device with vertical slats and control panel (no text or symbols)

INDEX

Warnings

Installation

Working

Maintenance

WARNINGS

The air outlet of the appliance must not be connected to a duct which is used for the discharge of other fumes such as central heatings, water heaters, etc..

For exhausting the air outside, comply with the regulations in force.

The power supply of an external motor, in case of product with no motor on board, takes place through the range hood in the kitchen.

Before connecting the cooker hood to the mains supply, make sure that the mains voltage in the home corresponds to the voltage indicated in the rating labels of the product.

Before carrying out any sort of cleaning operation and maintenance, make sure that the appliance is disconnected from the power supply.

An appropriate maintenance ensures a good working and a good performance in the long run.

All models are in class I, therefore they need ground connection.

This appliance can be used by children from 8 years old or above and persons with reduced physical, sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision.

Children shall not play with the appliance.

Cleaning and maintenance shall not be made by children without supervision.

If the power cable is damaged, it must be replaced by a cable or a special assembly, available from the manufacturer or its technical assistance service.

The room must have adequate ventilation, when using the kitchen hood simultaneously with other appliances that use gas or other fuels (it does not apply to the appliances which simply release the air back into the room);

There is the possibility of fire if the cleaning operations are not carried out as indicated in the instructions;

Do not prepare flambéed food under the range hood.

ATTENTION: The accessible parts can burn if used together with the cooking ap-pliances.

When the range hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).

Before making the electrical connections, check that:

-the system ratings meet the ratings indicated on the identification plate fixed on the lower part of the worktop; -the system is fitted with efficient ground wires in accordance with the laws and current standards.

Grounding is mandatory by law. If the domestic appliance is not supplied with a cable and/or suitable plug, use material suitable for the absorption value indicated on the identification plate and the operating temperature. If wishing to make a direct connection to the mains, an omnipolar switch must be installed with a minimum 3 mm opening between the contacts and appropriate for the load indicated on the plate and in accordance with current standards (the yellow/green ground conductor must not be disconnected by a switch). When the appliance has been installed, the omnipolar switch must be easily reachable.

INSTALLATION

The minimum distance between the cooker surface and the lower part of the cooker hood must be 60cm in case of electric cooker and 65 cm in case of gas or mixed kitchens.

If the installation instructions of the appliance for gas cooking indicate a higher distance, follow the specific instructions.

Before proceeding with the installation, in order to avoid damaging the appliance, release the grease filters and the liquid waste tray.

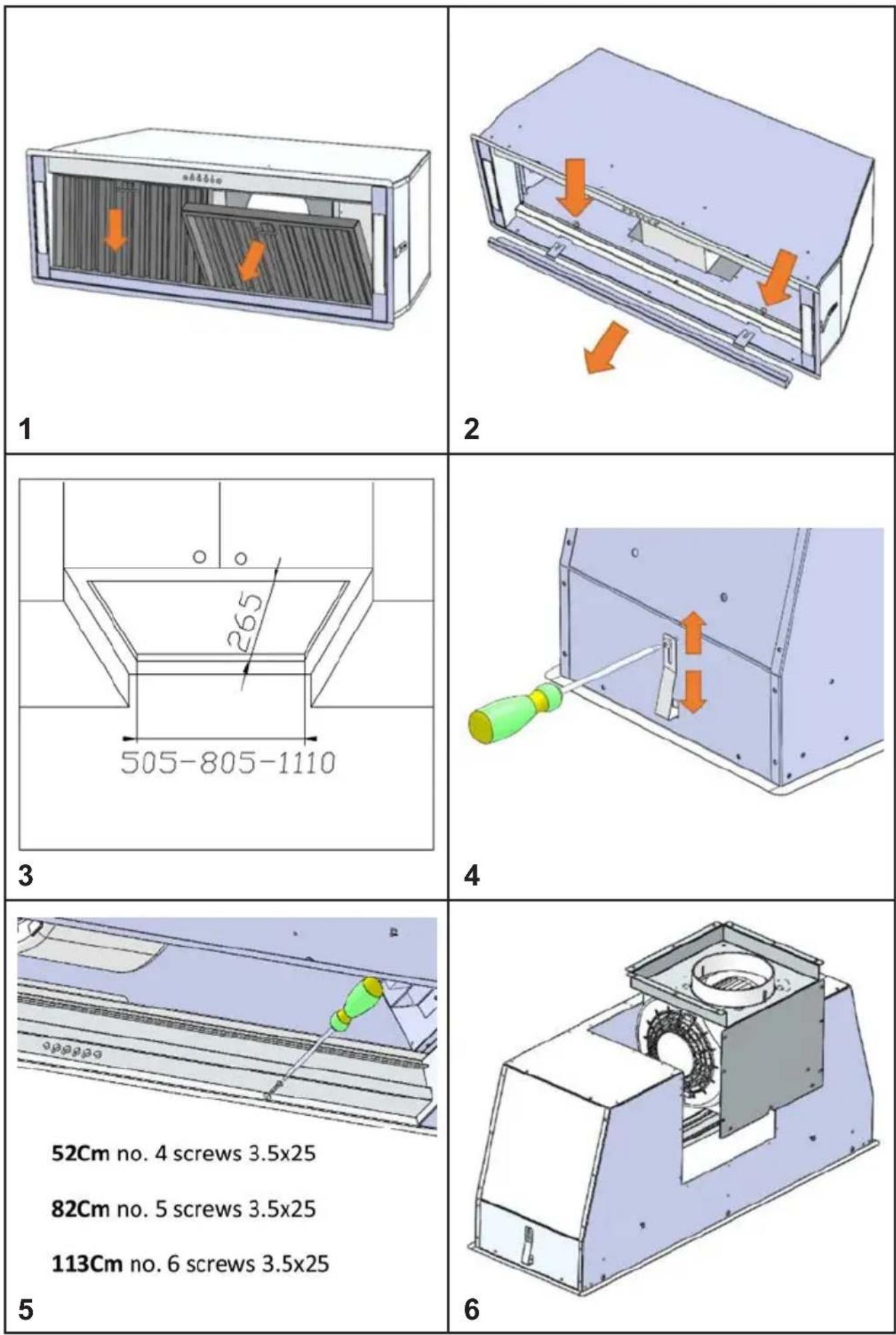

Metal grease filters can be removed by pushing the filter towards the back side of the hood and rotating it down, releasing it from its seat (fig. 1). You can release the liquid waste tray by loosening the screws (fig.2) and pulling out the metal tray.

Essential requirements before installing the appliance are the following ones:

• Realization of a suitable opening on the bottom of the cabinet to proper install the appliance (fig. 3).
• Prepare the power supply.
• Prepare an air exhausting hole and the specific ducting system.

Use an air exhausting duct, whose maximum length does not exceed 5 m. Limit the number of bends in the ducting system since every bend reduces the suction efficiency of 1 linear meter (e.g. if you use no.2 bends at 90°, the length of the ducting system must not exceed 3 meters). Use a 150 mm diameter duct for the whole length.

The material of the duct must be compliant with the regulations in force.

To install the appliance, adjust the position of the stop side-springs through the proper screws (fig. 4), position the brackets 2-3 mm over the thickness of the cabinet bottom.

Insert the built-in unit in the hole made in the cabinet until the stop click of the side-springs. Use the self-tapping screws 3,9x25 for stopping through the internal holes of the device (fig. 5).

Push the appliance towards the bottom of the cabinet in order to make the frame of the appliance perfectly adhere to the cabinet.

Restore the liquid waste tray and the grease filters.

Locking of the valve

Warning!

Before connecting the air outlet flexible pipe to the motor, make sure that the non-return valve, placed on the air outlet of the motor, is free to rotate.

Connect the flange of the hood to the exhaust hole through a suitable duct. Make the electrical connection through the power cable.

REAR AIR OUTLET

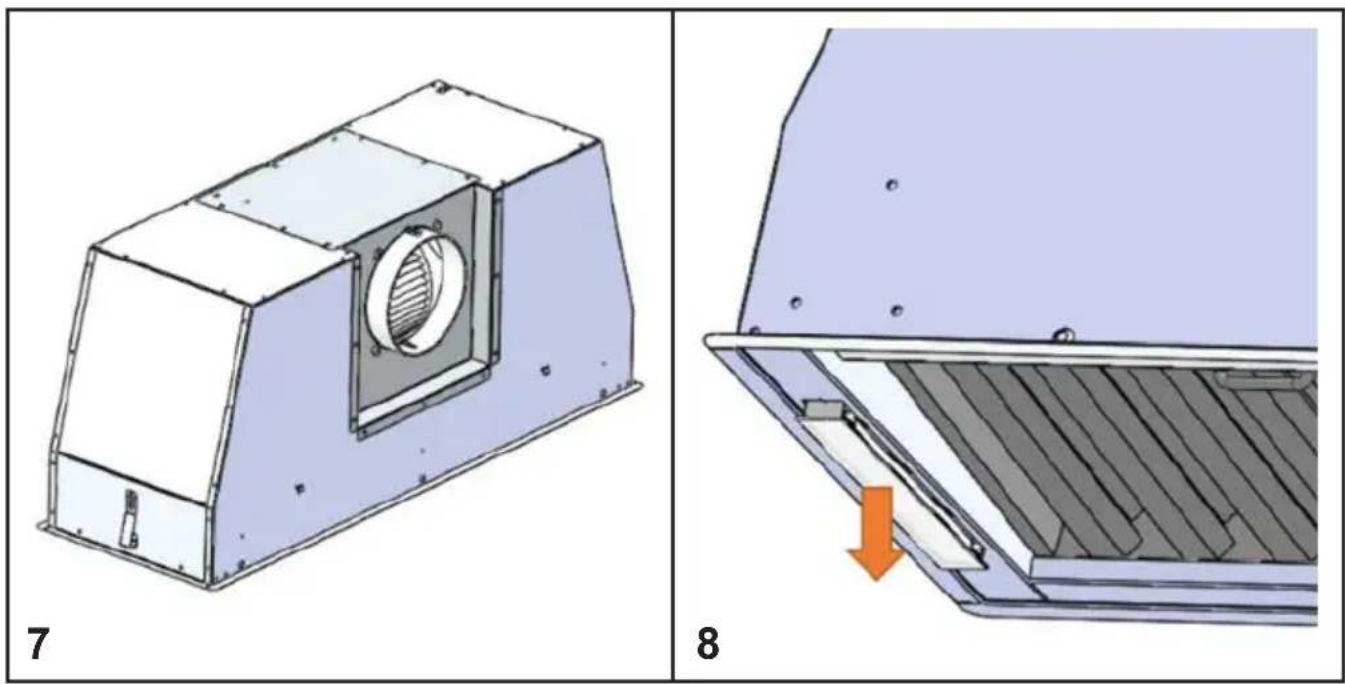

The products can be installed with the air outlet of the motor towards the back side of the product. If you want to use this option, you need to remove the motor support removing the screws (fig. 6), pull out and rotate the support, position it in its seat keeping the air outlet towards the rear side of the product (fig. 7).

Fix it with the screws previously removed.

In case of external motor, connect the power cable of the motor to the terminal board in the black plastic box, identified through the connection label.

ELECTRICAL CONNECTIONS

If the unit is supplied with power cable with no plug, please refer to the schema below.

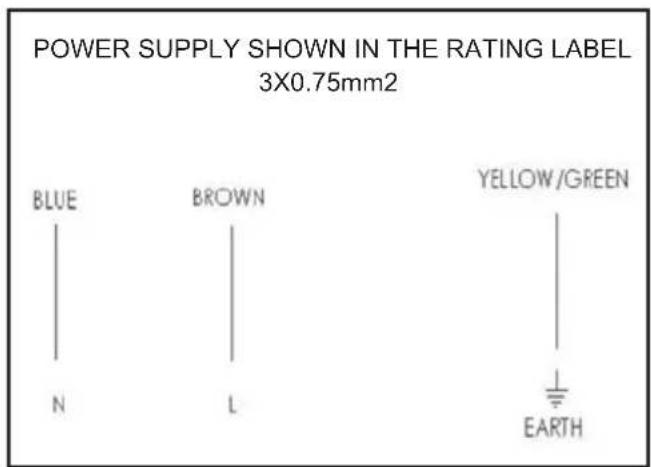

POWER SUPPLY SHOWN IN THE RATING LABEL 3X0.75mm2 BLUE BROWN YELLOW/GREEN N L EARTH

WORKING

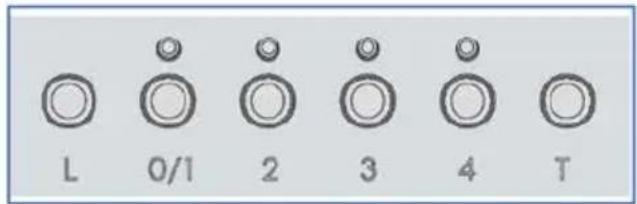

Push button

L: Light switch on/off

0/1: Motor switch on (1st speed)/off

2: Motor switch 2nd speed

3: Motor switch 3rd speed

4: Motor switch 4th speed

T: 10-minutes timer

When the 4^th speed of the motor is set, the relating LED flashes.

After 5 minutes the motor goes back to the ^rd 3 speed.

By pushing the T button (timer), 10 minutes after setting it, the range hood is switched off.

The function is highlighted by the led flashing according to the set speed. Press again the T button to disactivate this function.

The product automatically turns off after 4 hours of uninterrupted working, from the last function selected.

After 30 hours working, the push button indicates the saturation of filter by lighting all buttons, for about 30 seconds.

Press the timer button (T) to reset, while signaling.

L 0/1 2 3 4 T

MAINTENANCE

An accurate maintenance guarantees a good functioning and a long-lasting performance.

Pay attention to the grease filters.

The filter can be removed by pushing it towards the back part of the hood and rotating the filter downwards, releasing it from its seat (fig. 1). To insert the filter, just perform the opposite operation.

The grease filter can be washed by hand or in the dishwasher.

After releasing the steel filters, hold the liquid waste tray in one hand and, with the other hand, loosen the knobs as indicated in fig. 2, let the liquid waste tray swipe down taking care not to pour any liquids.

For cleaning, use ONLY a damp cloth with neutral liquid detergents.

DO NOT USE TOOLS OR INSTRUMENTS FOR CLEANING!

Avoid using abrasive products.

DO NOT USE ALCOHOL.

The replacement of the power cable must be carried out by authorized staff.

Replacement of the LED bar:

By using an appropriate tool, remove the LED bar from its seat (Fig. 8), disconnect it electronically through the appropriate connector, then replace it with a LED bar having the same features.
