EN Instruction on mounting and use

Simple line drawing of a rectangular object with horizontal bands (no text or symbols)

1x

1x

1x

2x

4x

Simple line drawing of a cable with a plug, labeled '1x' (no text or symbols on the diagram itself)

4x

8x

∅ 4,5 x 16 mm

Rectangular panel with a grid pattern, no visible text or symbols

2x

12x

M4 x10 mm

10x

∅ 3,5 x 9,5 mm

Simple line drawing of a rectangular box mounted on a vertical support with a base (no text or symbols)

1x

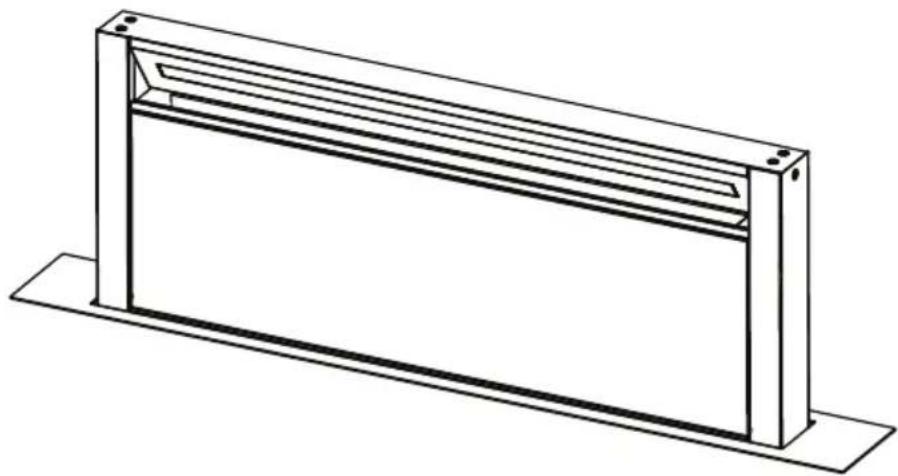

Line drawing of a rectangular electronic device with mounting brackets and a control panel (no text or symbols)

1x

M2

1x

2x

M4x15 mm

Simple line drawing of a rectangular beam with supports at both ends (no text or symbols)

Simple line drawing of a solar panel with six panels and a star symbol (no text or labels)

2x

3D-rendered gray rectangular block with a small asterisk symbol on the top left corner (no text or symbols on the block itself)

2x

KIT0121007

Simple line drawing of a mechanical component with threaded base and circular border (no text or symbols)

227x94 - ∅146mm

KIT0120996

Simple 3D illustration of a cylinder inside a circular frame (no text or symbols)

∅150x500mm

KIT0121000

Simple 3D illustration of a cylinder inside a gray circular border (no text or symbols)

∅150x1000mm

KIT0121003

Simple line drawing of a cylindrical object inside a circular frame (no text or symbols)

∅158x59mm

KIT0121006

Simple line drawing of a 3D pipe fitting inside a circular frame (no text or symbols)

90°

KIT0120991

Simple 3D illustration of a rectangular block inside a circular frame (no text or symbols)

222x89x1000mm

KIT0121001

Simple line drawing of a rectangular box with a slot, enclosed in a circular frame (no text or symbols)

227x94x80mm

KIT0121004

Simple 3D geometric shape resembling a bent pipe or elbow bracket, enclosed in a circular frame (no text or symbols)

90° 227x288x94mm

KIT0121005

Simple line drawing of a rectangular object inside a circular frame (no text or symbols)

90° 227x94mm

KIT0121008

Simple line drawing of a pipe fitting inside a circular frame (no text or symbols)

227x94 - ∅153mm

KIT0121010

Simple line drawing of a ventilation duct with horizontal slats inside a circular frame (no text or symbols)

190x190 - ∅147mm

KIT0121009

Simple line drawing of a vent with airflow or ventilation duct (no text or symbols)

INT 216X82mm EXT 290X160mm

KIT0121002

Simple line drawing of a rectangular block with curved edges, enclosed in a circular border (no text or symbols)

15° - 227x94mm

KIT0126810

Simple line drawing of a folded paper or book with no text or symbols

227x94mm

www.elica.com

www.shop.elica.com

V1

Technical line drawing of a mechanical assembly with a central component and rectangular frame (no text or symbols)

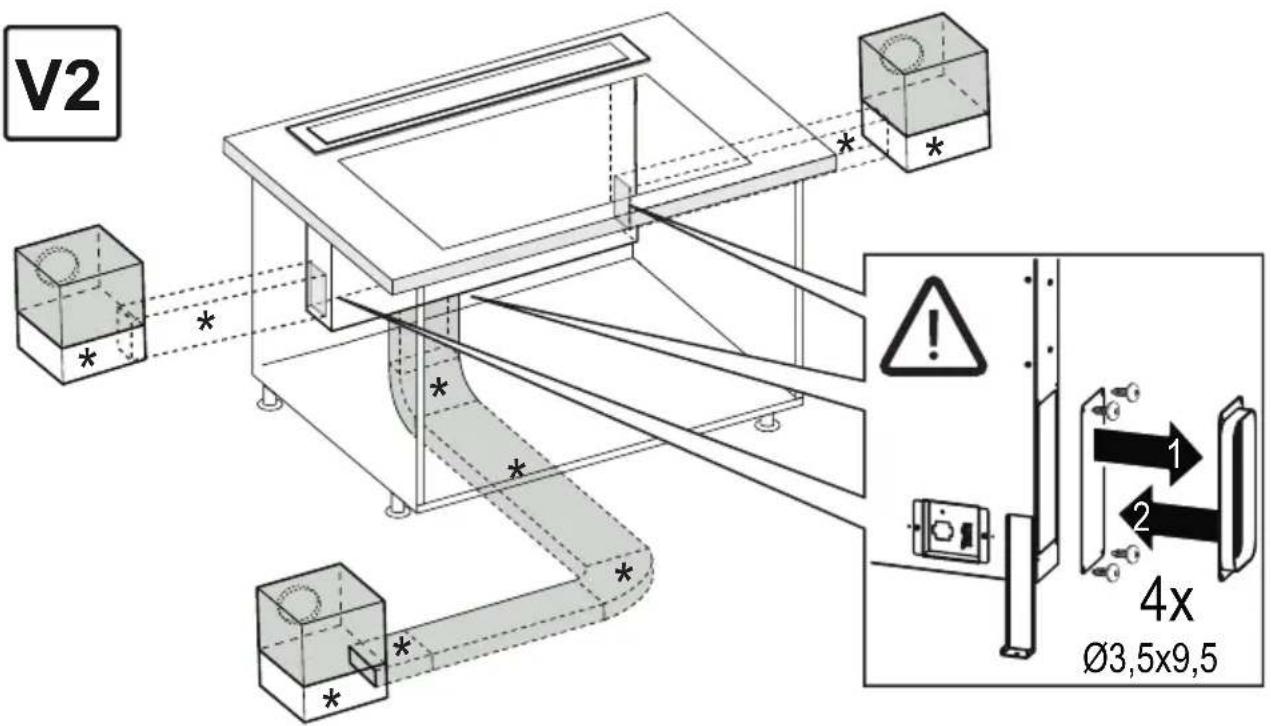

V2 1 2 4x Ø3,5x9,5

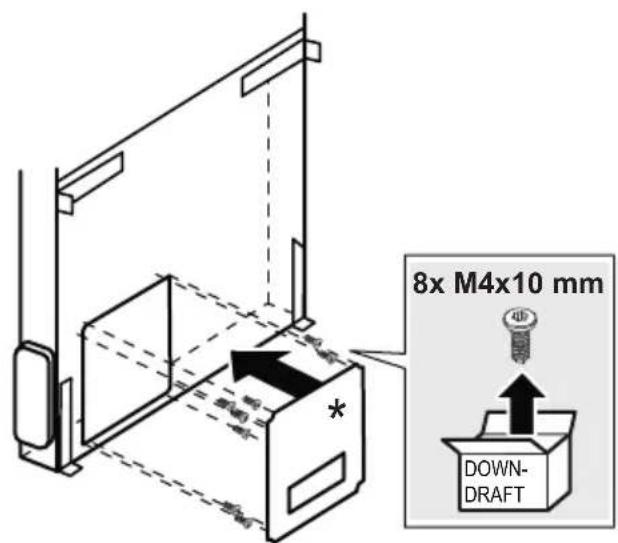

8x M4x10 mm DOWN- DRAFT

Technical line drawing of a mechanical assembly with mounting brackets and a central panel (no text or symbols)

4x ∅3,5x9,5 mm

M1

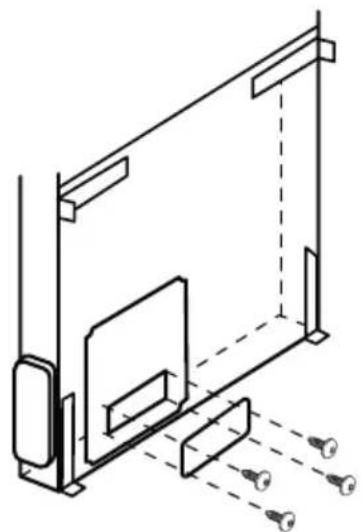

Technical line drawing of a rectangular metal enclosure or support structure (no text or symbols)

M2

a 5

Technical line drawing of a rectangular metal frame structure with mounting base (no text or symbols)

Two identical black silhouette figures of men, no text or symbols present

Illustration of two overlapping gloves, one white and one gray, with no text or symbols present.

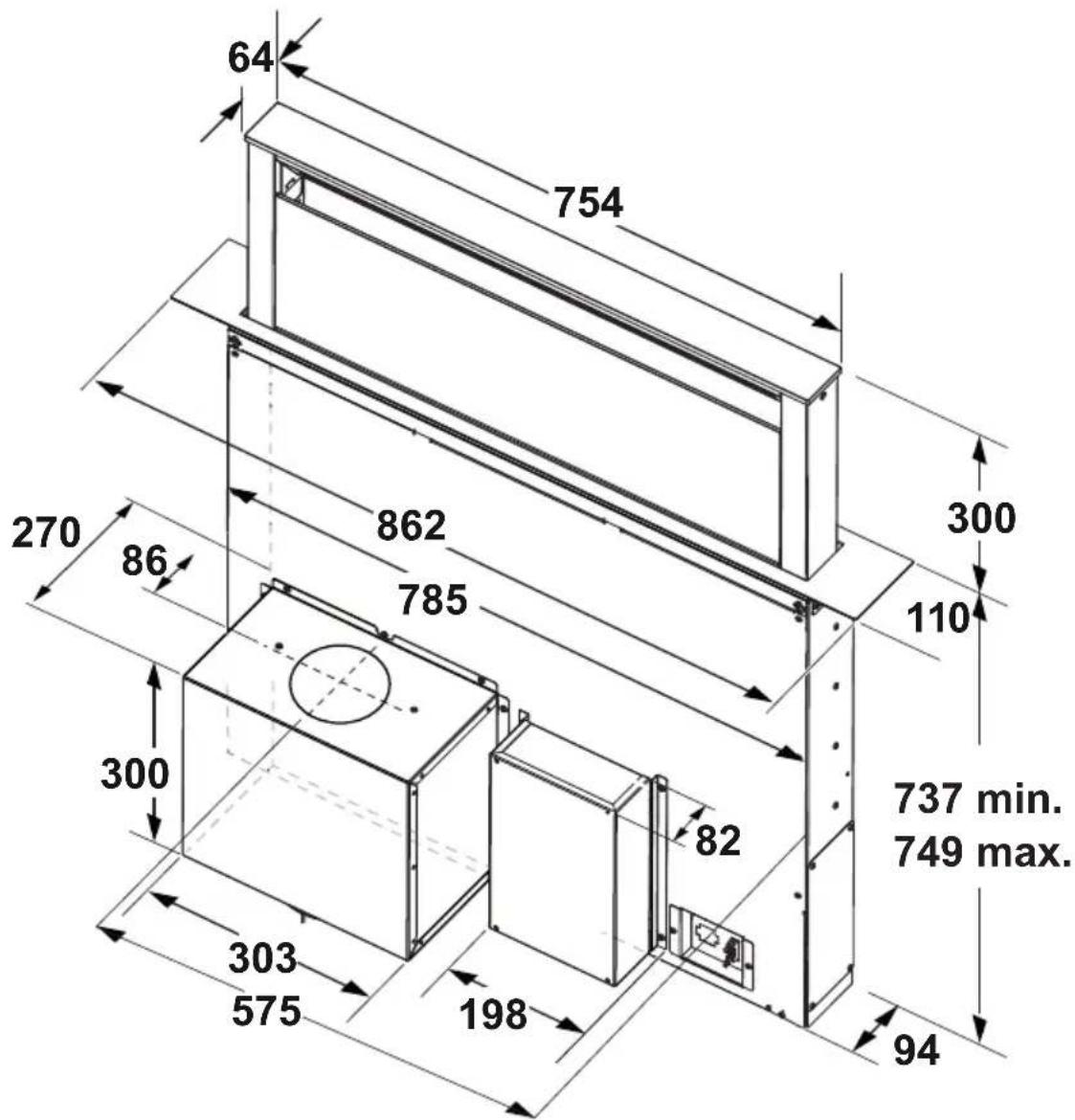

64 754 300 270 86 862 785 110 300 303 575 198 82 737 min. 749 max. 94

1

A S P

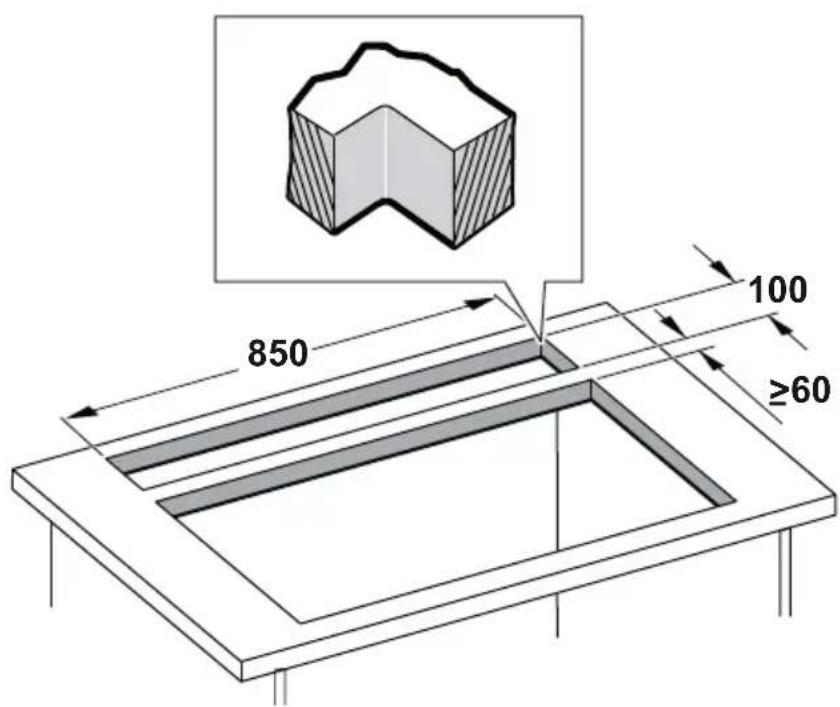

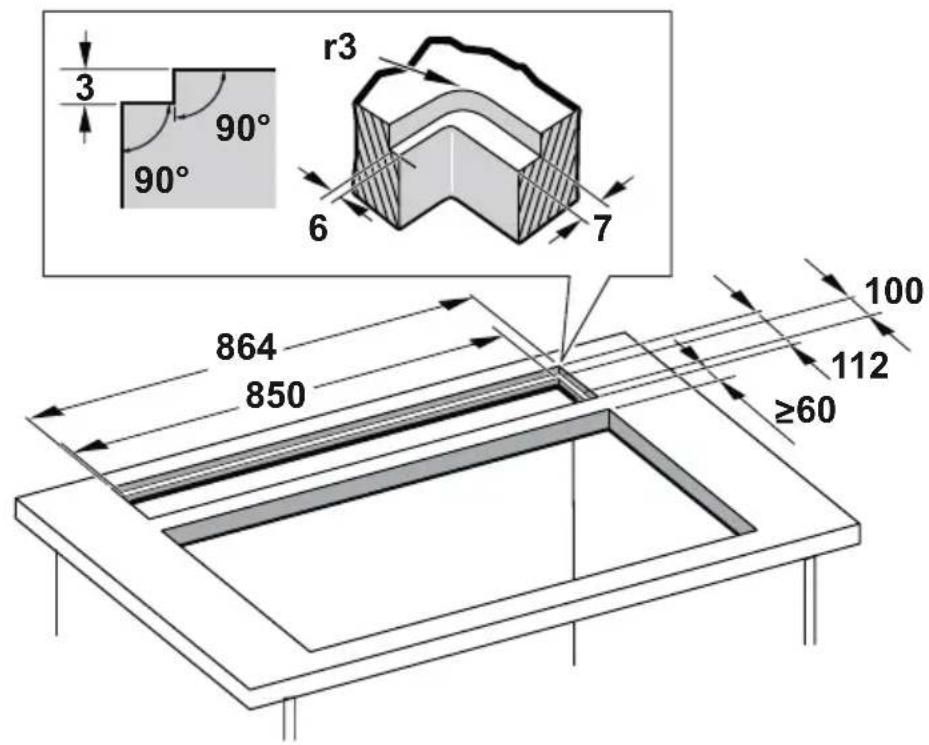

3 90° 90° r3 6 7 864 850 100 112 ≥60

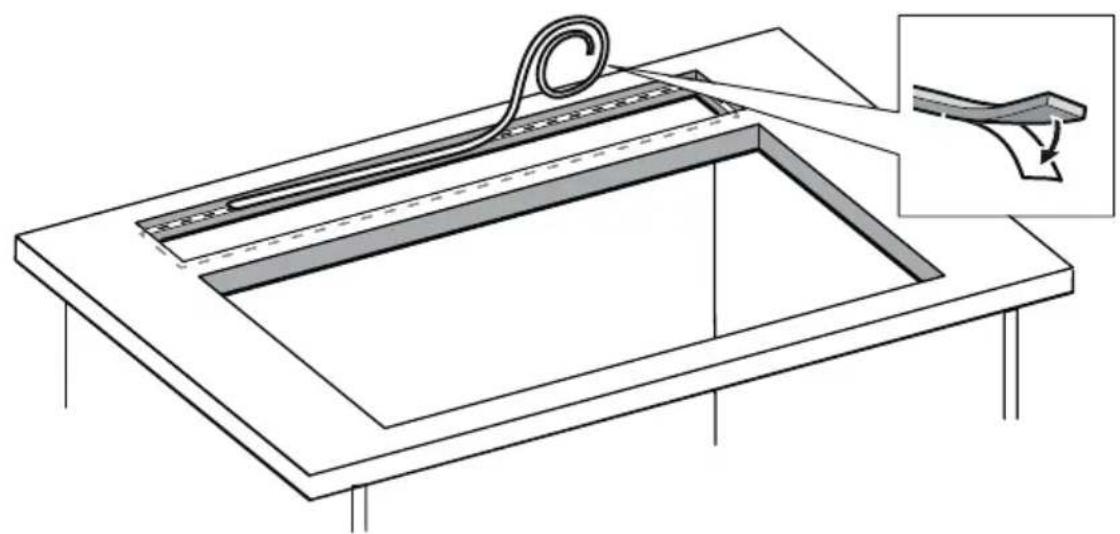

Technical line drawing of a mechanical assembly with a component and a close-up inset showing a hand holding a tool (no text or symbols present)

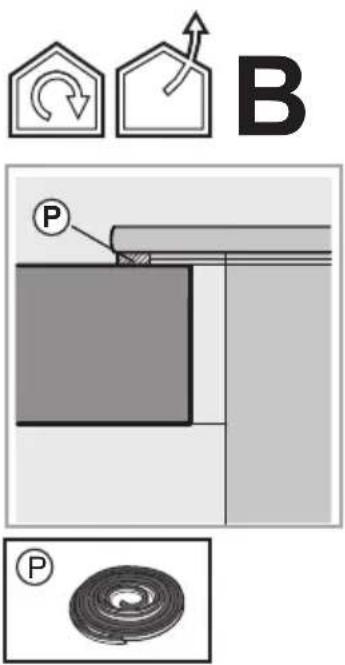

B P P

850 100 ≥60

3

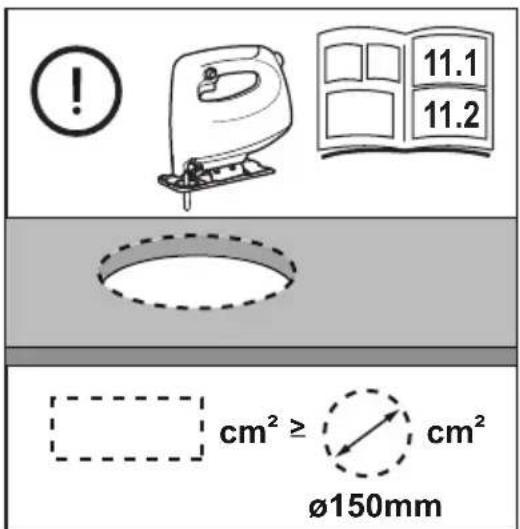

! 11.1 11.2 cm² ≥ cm² Ø150mm

Line drawing of a simple rectangular box with a recessed top and side legs (no text or symbols)

4

Diagram showing four symbols: a house with rotation arrow, a house with upward arrow, a black 'M1' crossed out, and a black box labeled 'M2'

a b

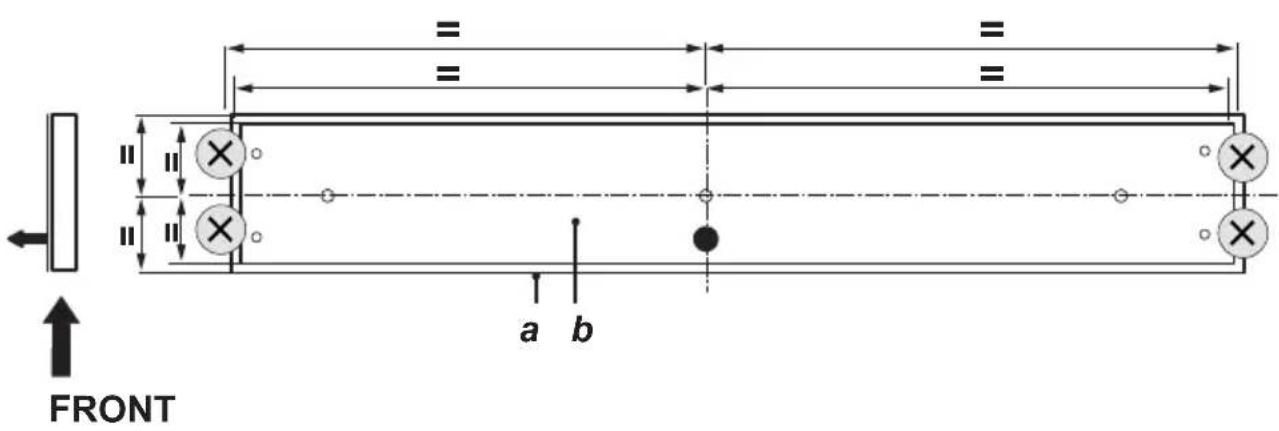

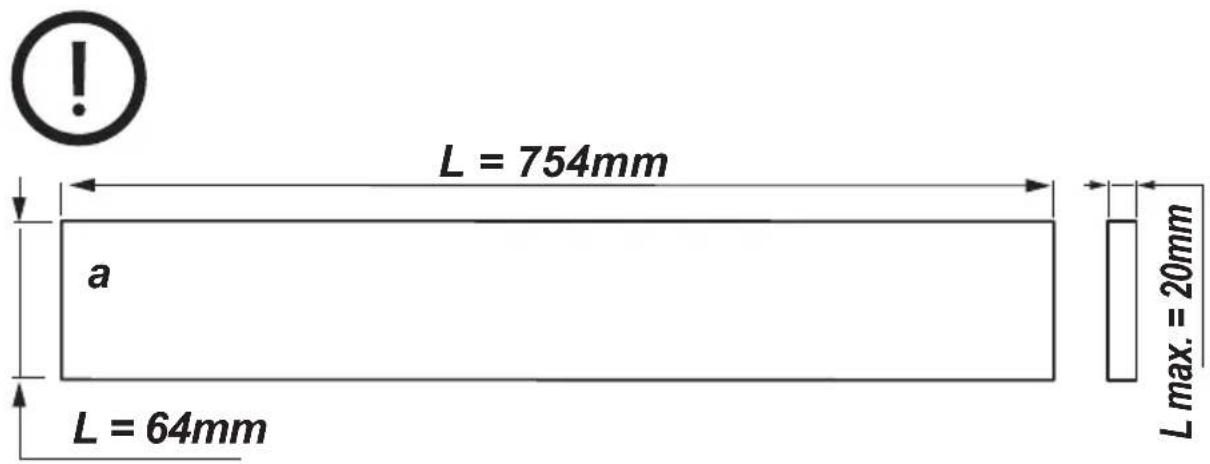

L = 754mm a L max. = 20mm L = 64mm

FRONT a b

Diagram showing four symbols: a house with rotation arrow, a house with upward arrow, a crossed-out 'M1' sign, and a box labeled 'M2'

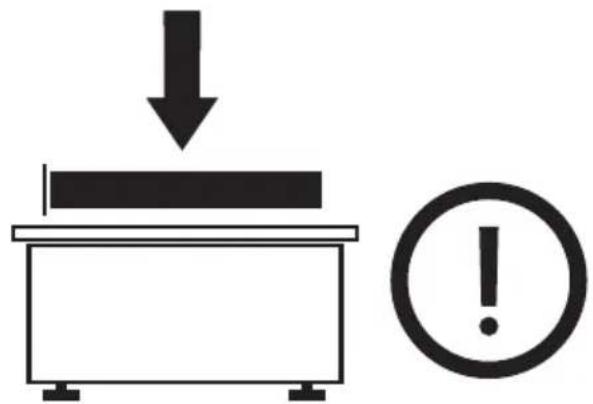

Simple line drawing of a downward arrow above a rectangular object with an exclamation mark in the circle (no text or symbols)

Illustration of a hand using a tool to lift a rectangular object, with no visible text or symbols

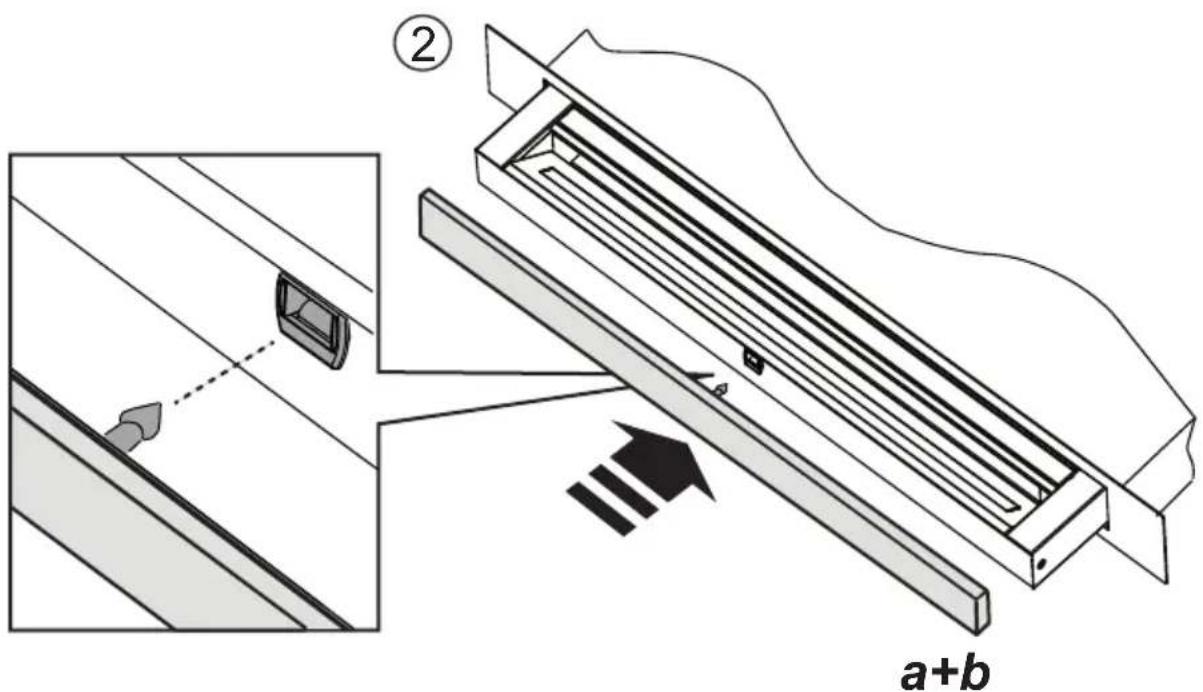

② a+b

Diagram showing four icons: a house with rotation arrow, a house with upward arrow, a crossed-out 'M1' symbol, and a box labeled 'M2'

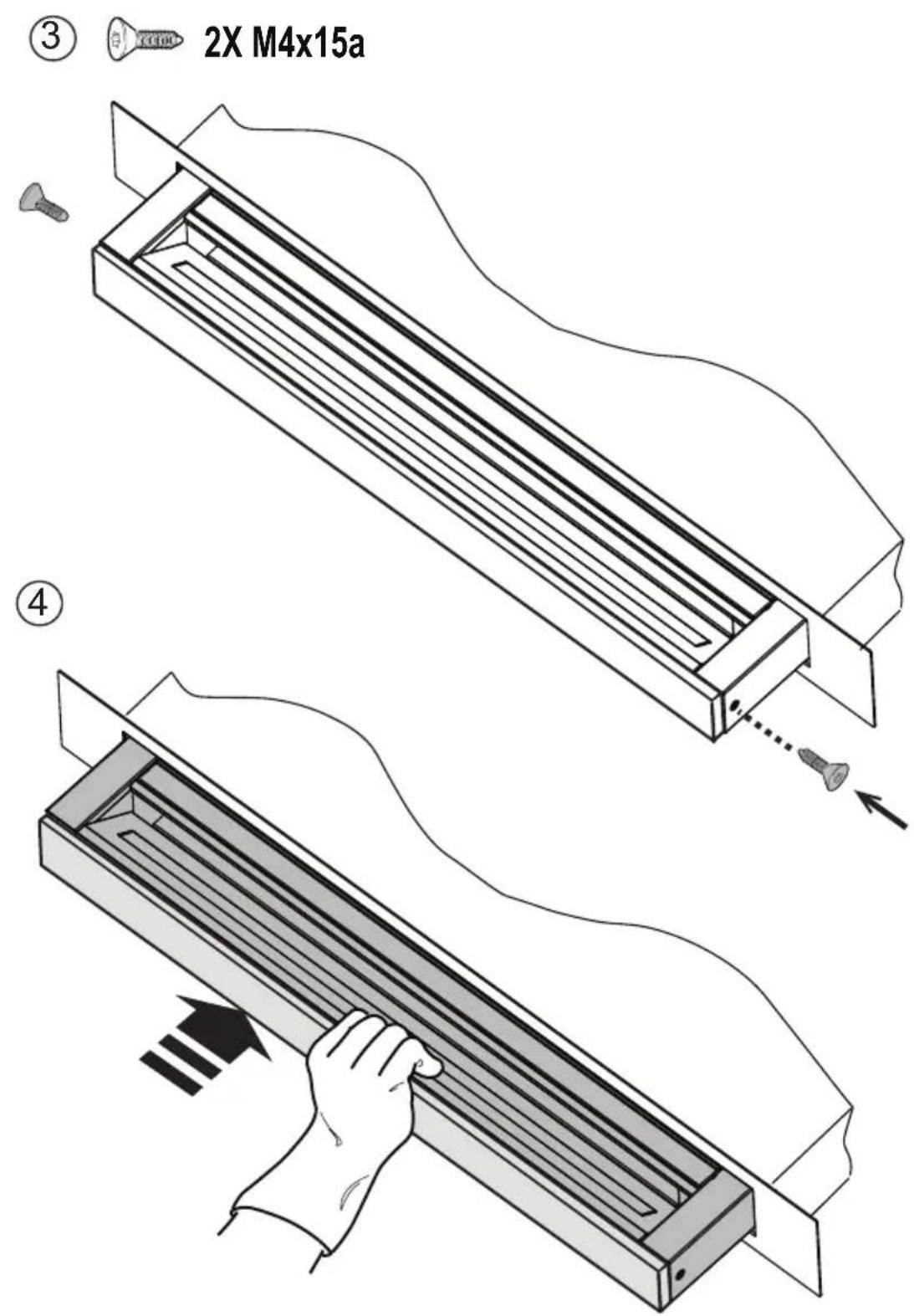

③ 2X M4x15a ④

Warning sign with exclamation mark and two human figures, commonly used to indicate safety or hazard.

Diagram of a mechanical device with an exclamation mark and directional arrows, no text or symbols present.

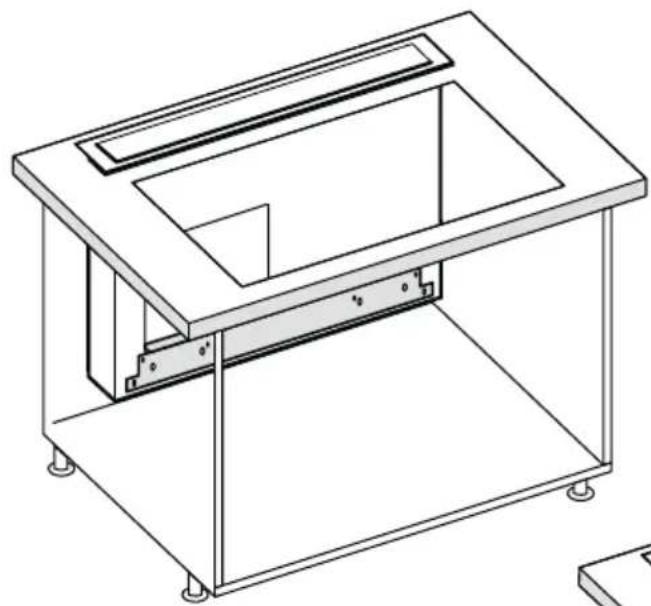

Technical line drawing of a mechanical assembly with mounting base and internal cavity (no text or symbols)

Technical diagram of a mechanical device with labeled components and a warning symbol indicating no cross-section.

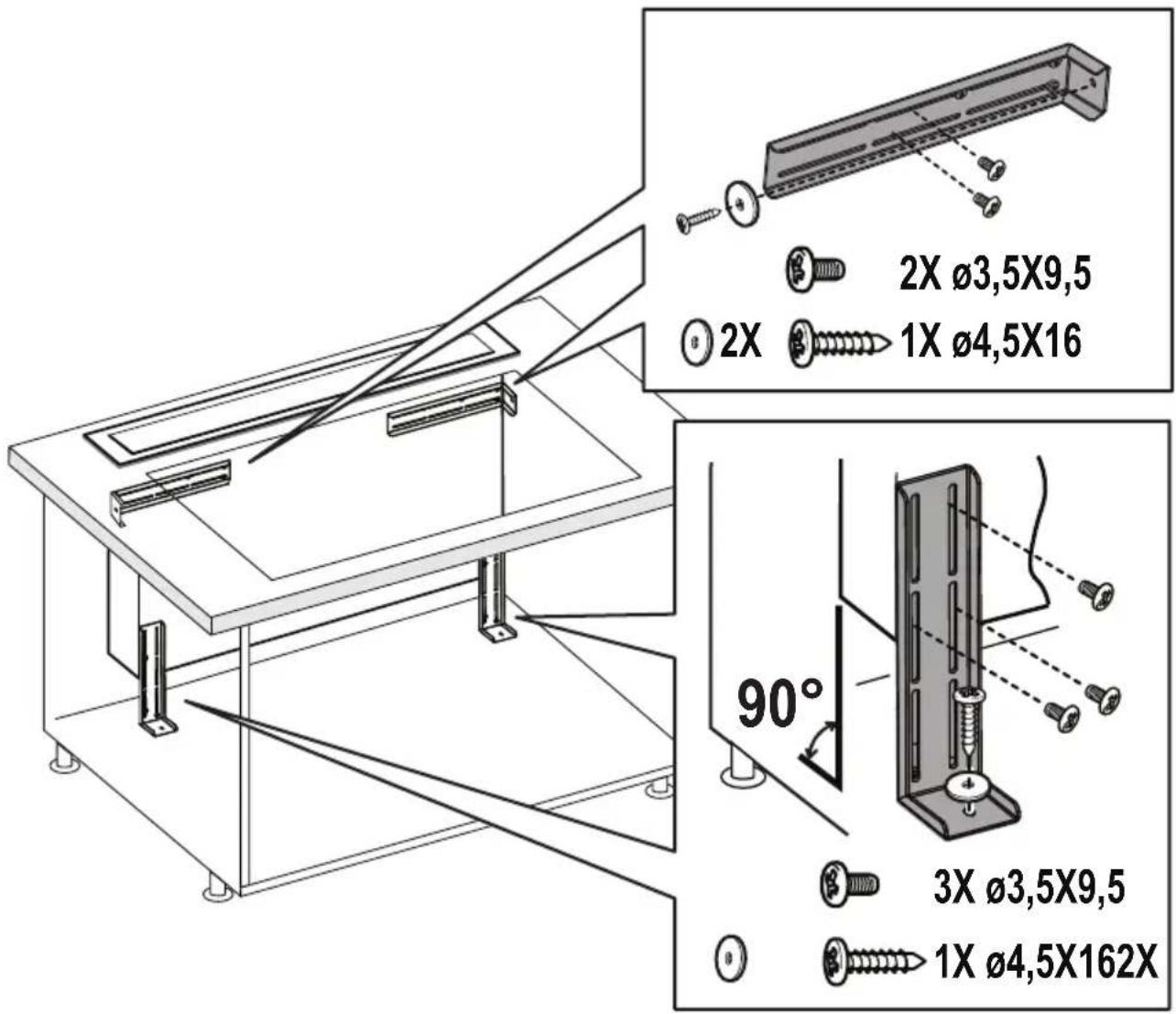

2X Ø3,5X9,5 2X 1X Ø4,5X16 90° 3X Ø3,5X9,5 1X Ø4,5X162X

FRONT

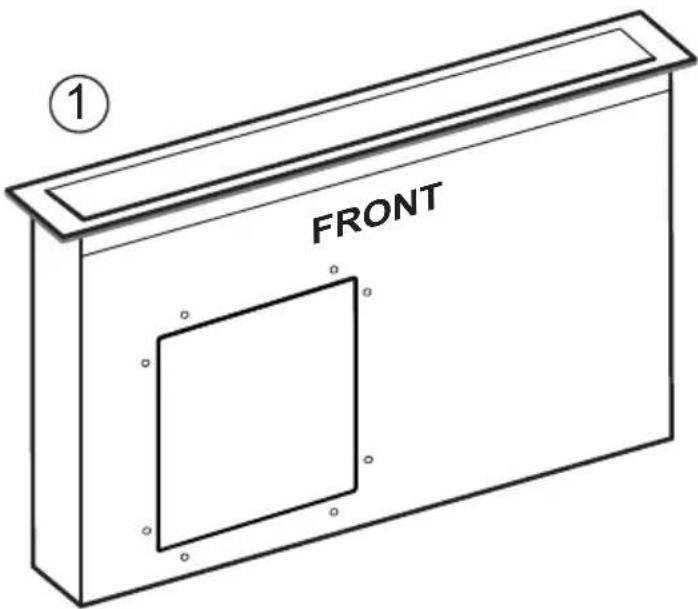

FRONT ①

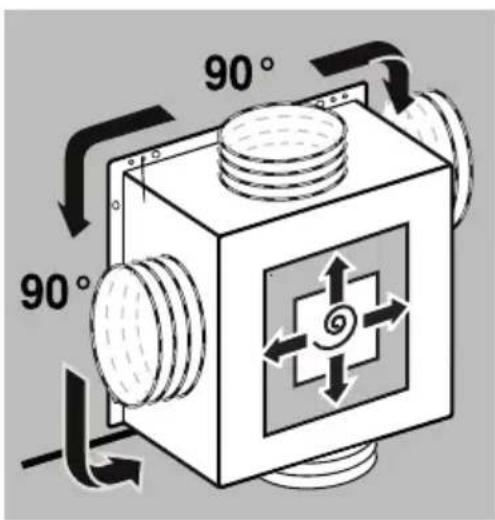

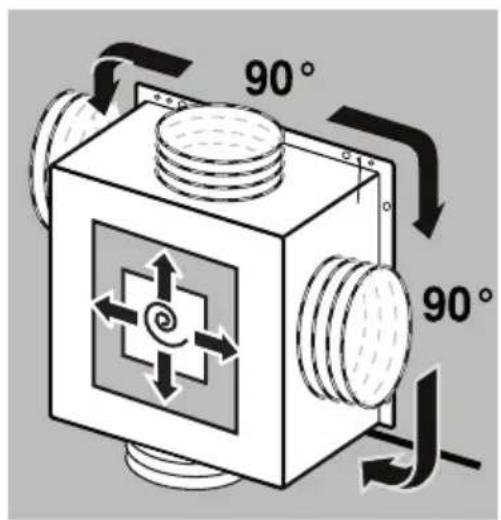

90° 90°

8X

M4 × 10

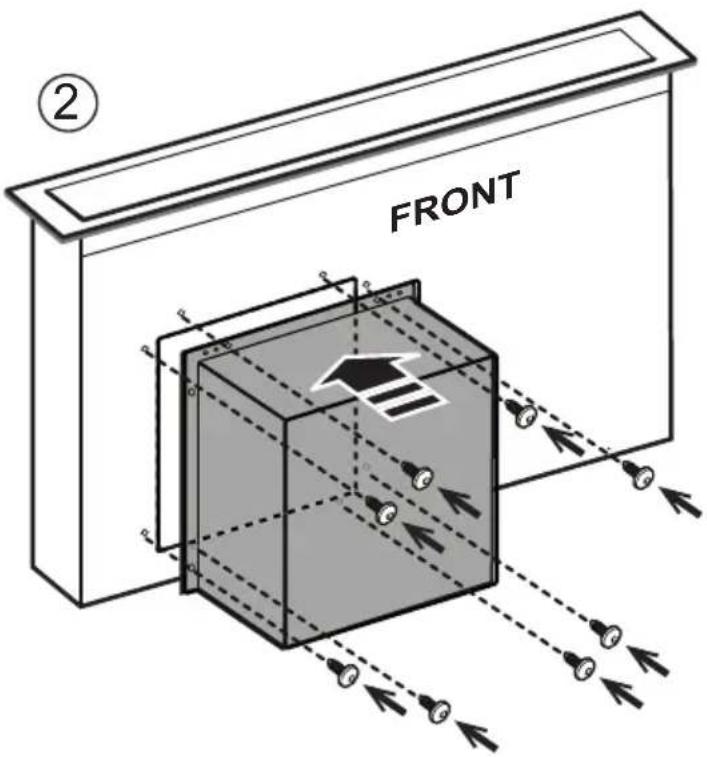

② FRONT

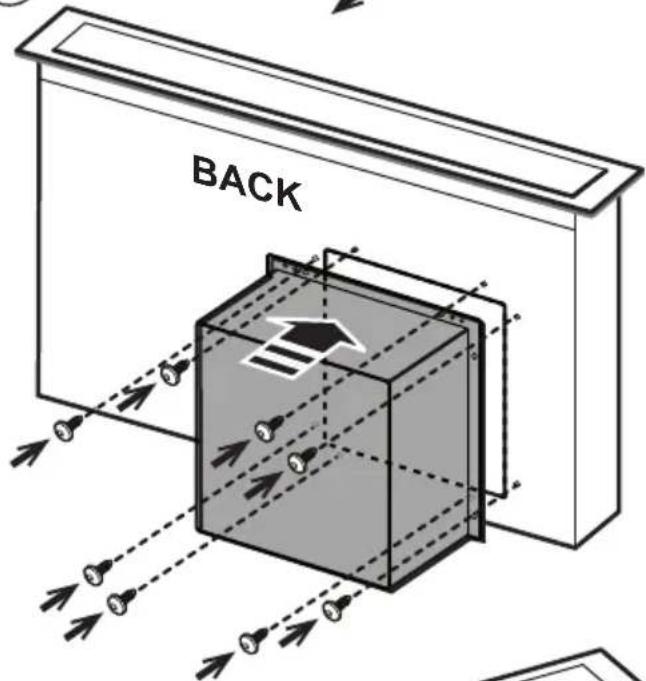

BACK

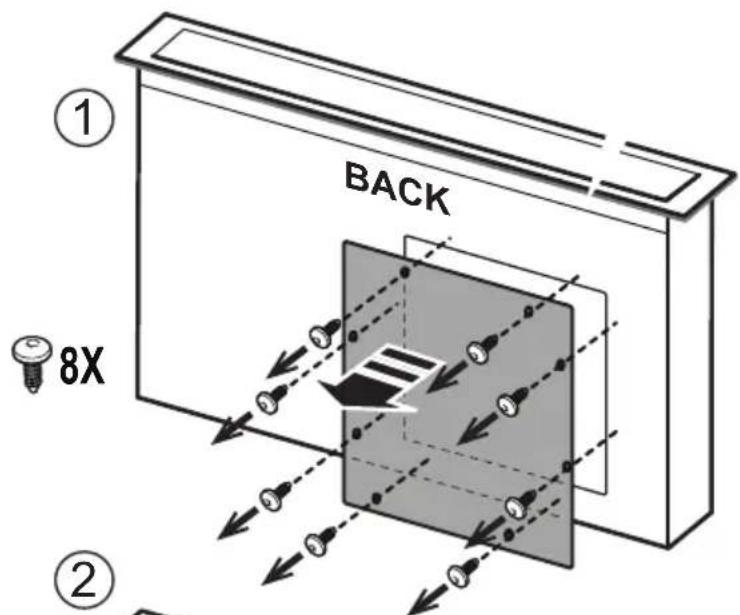

① BACK 8X ②

90° 90°

8X
M4 × 10

BACK

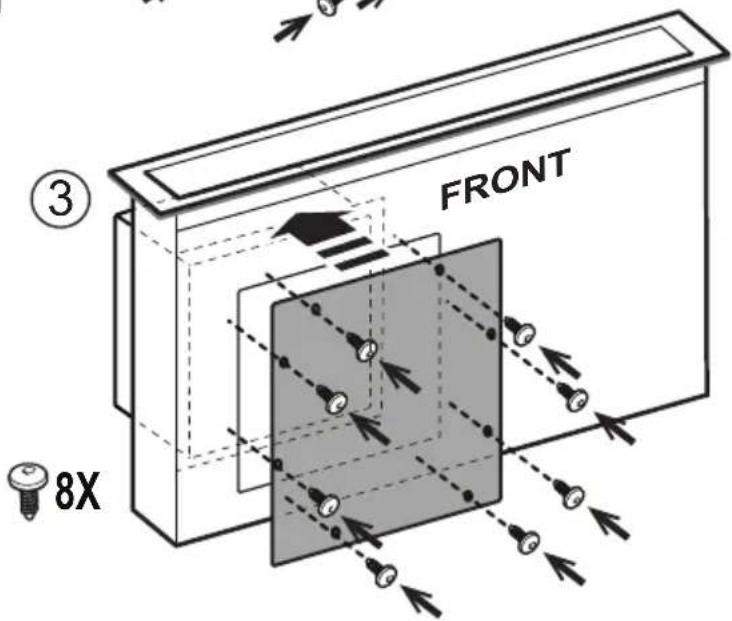

FRONT ③ 8X

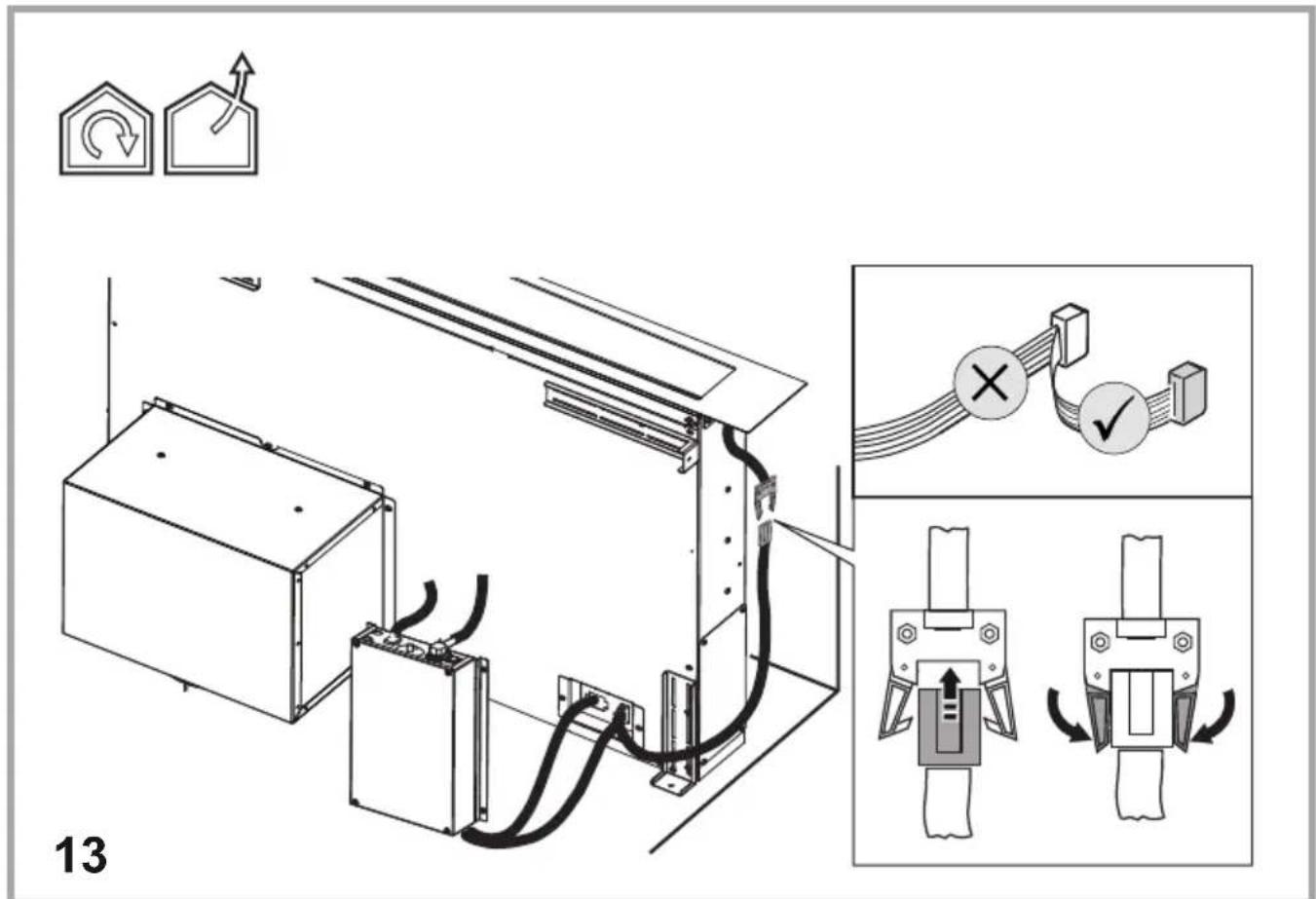

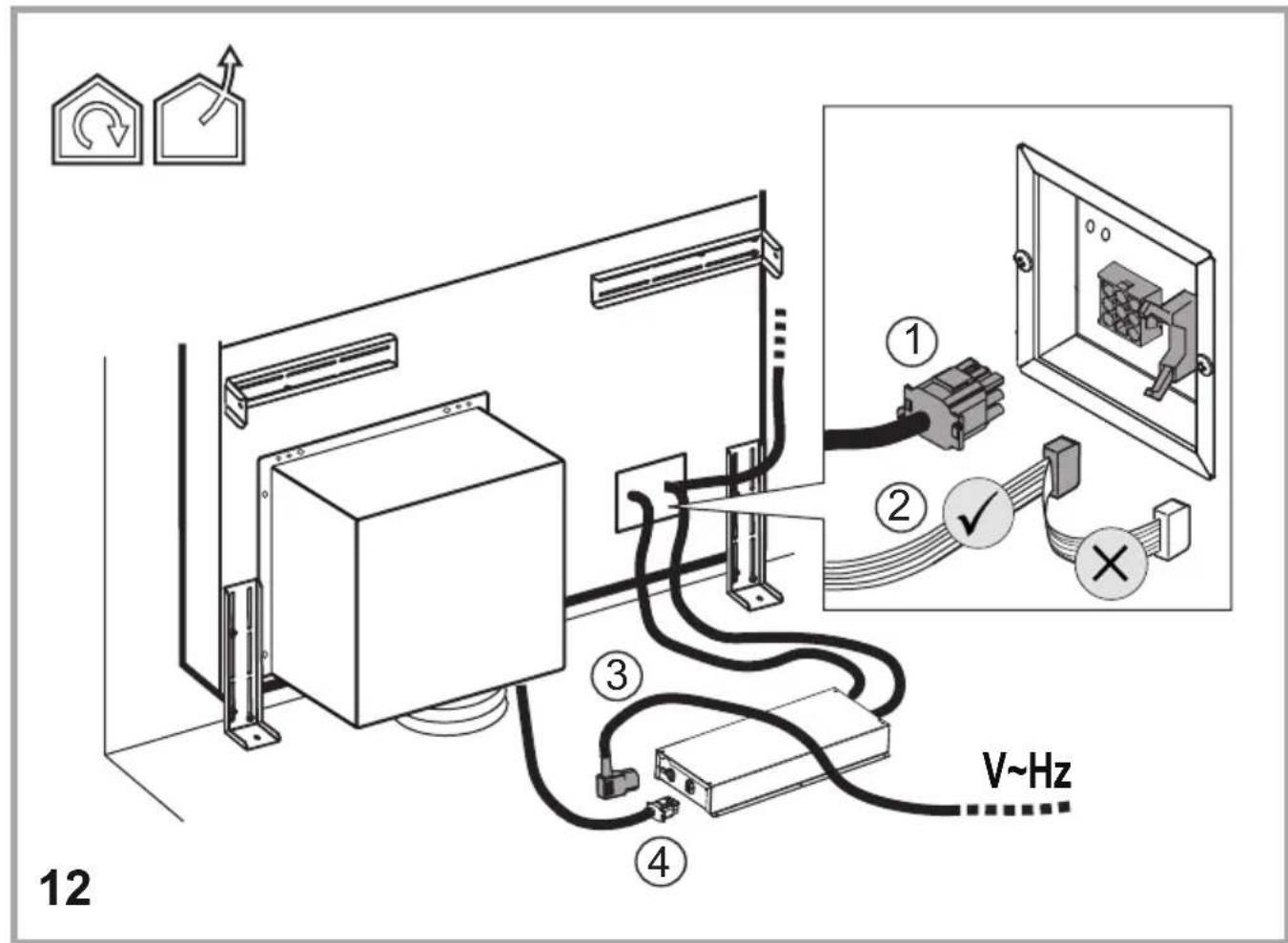

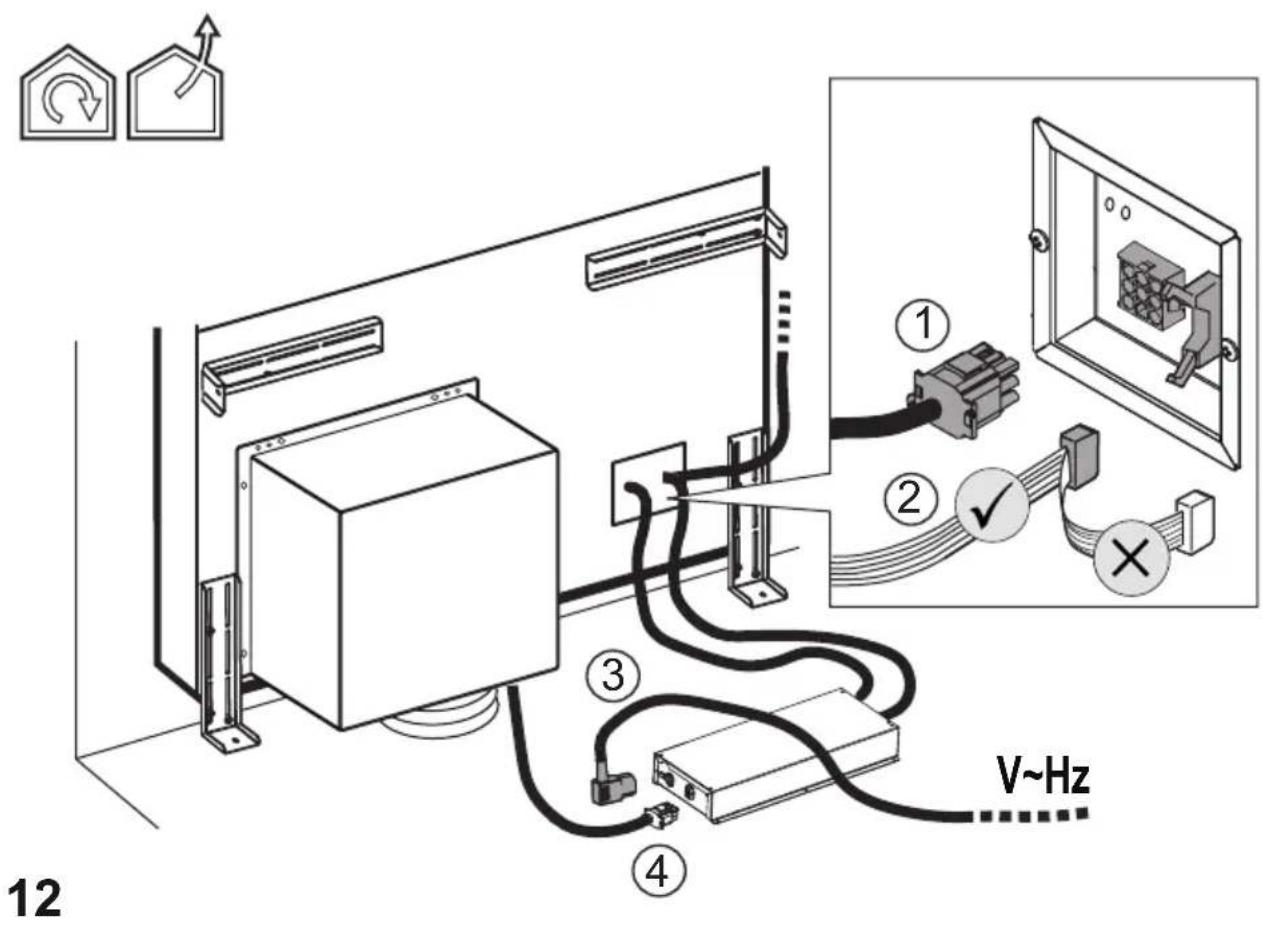

12 V~Hz

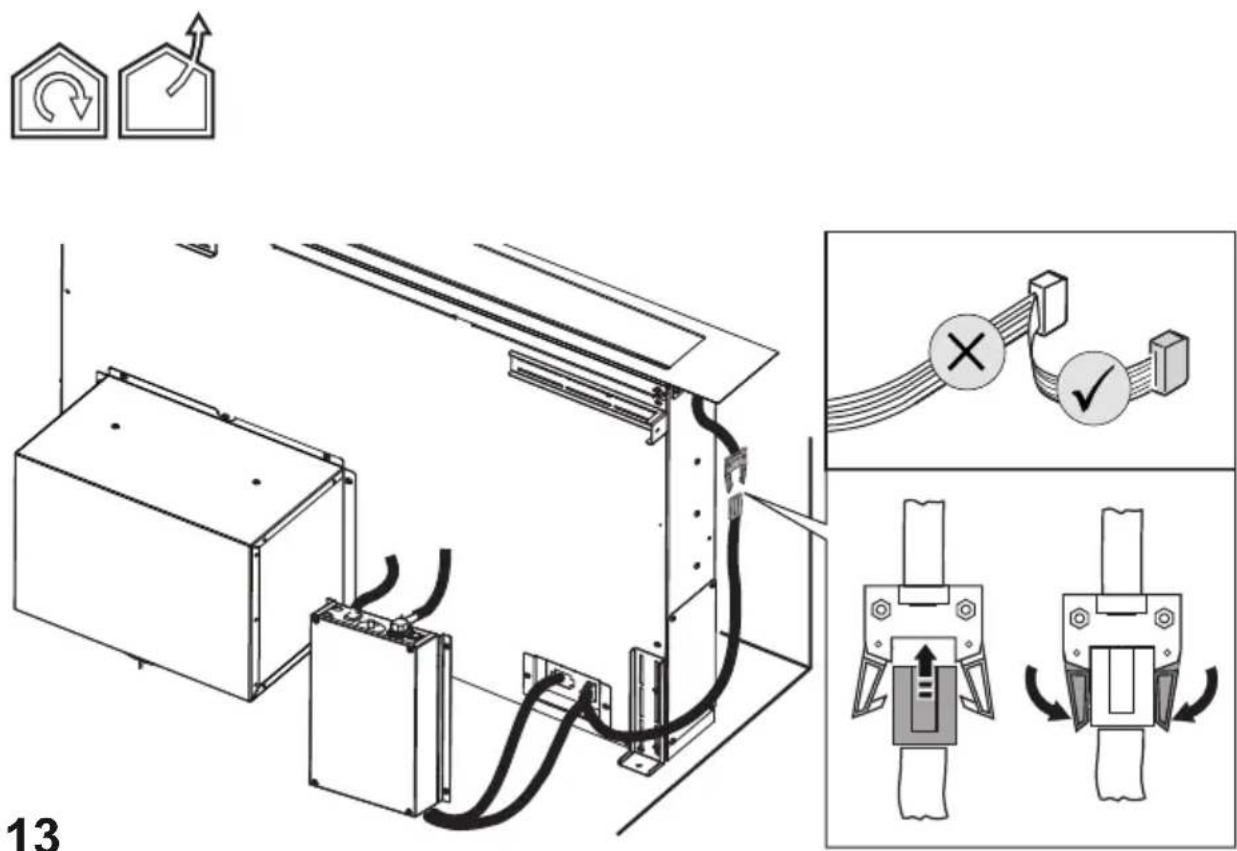

Technical diagram showing electrical wiring connections with labeled components and directional arrows, including a magnified view of the connection mechanism.

12 V~Hz

Technical diagram showing electrical wiring connections and component assembly, with labeled parts and directional arrows.

Diagram illustrating electrical circuit components with warning symbols and safety indicators

14.1

4X M4X10 V~Hz

Diagram illustrating electrical circuit components with warning symbols and connection points, including a switch symbol and warning labels.

14.2

4X Ø4,5X16

15

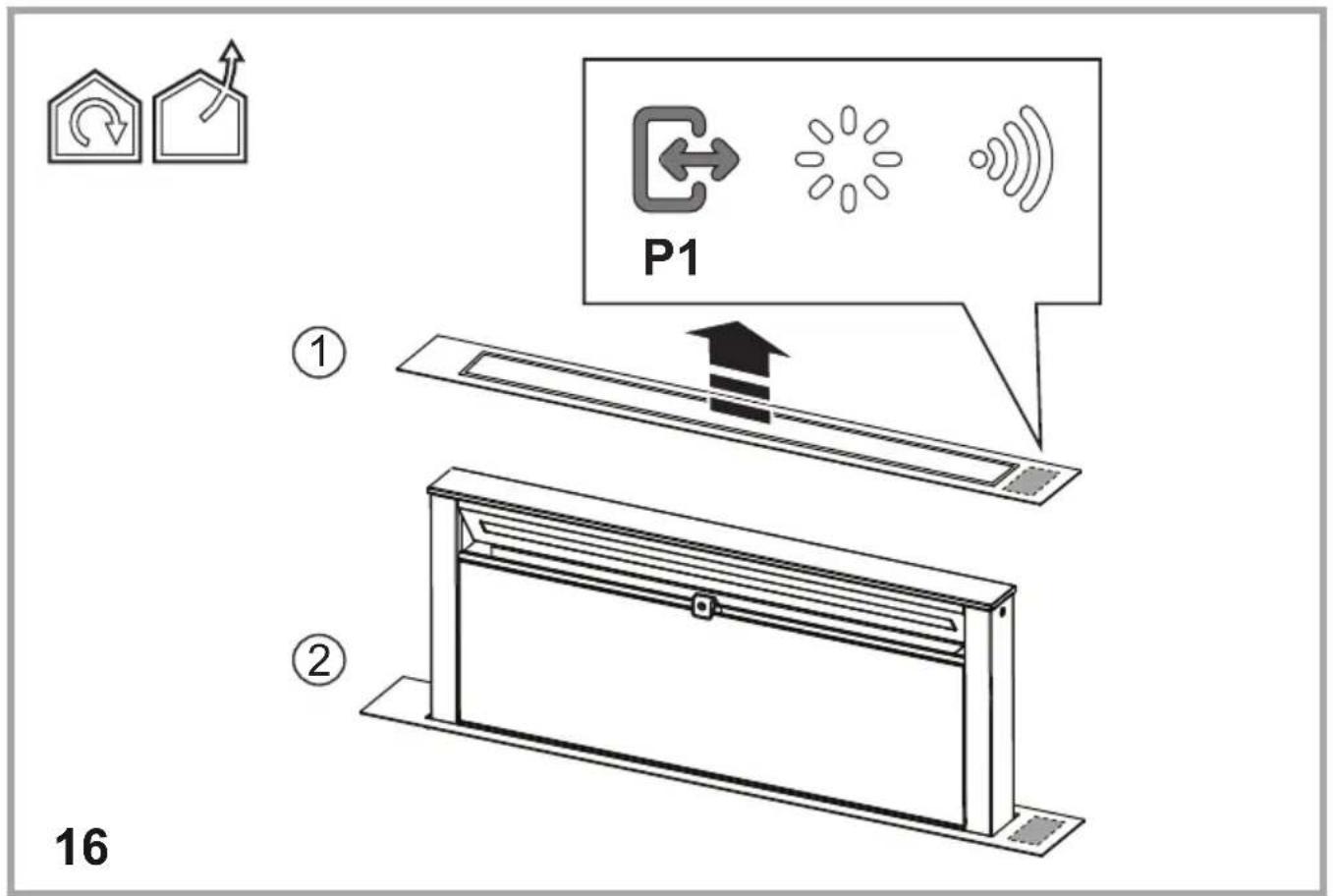

P1 ① ② 16

Diagram illustrating a mechanical assembly with numbered steps and directional arrows, including a schematic diagram of a roof structure.

Technical diagram of a mechanical device with directional arrows and component labels, showing internal structure and assembly (no readable text or symbols)

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or assembly.

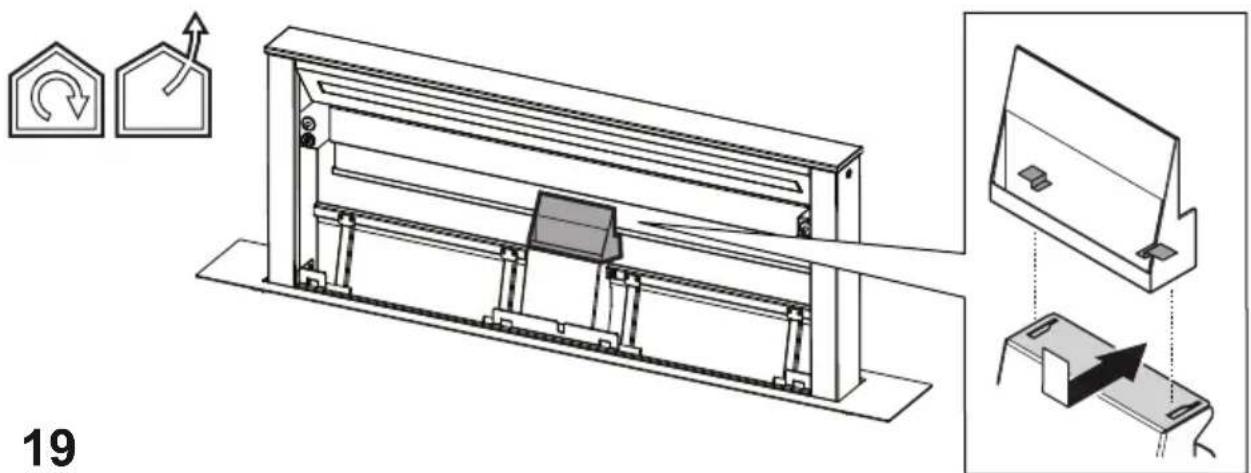

20

Technical line drawing of a mechanical assembly with three vertical supports and curved arrows indicating motion or force (no text or symbols)

Technical line drawing of a mechanical assembly with two supports and a central panel (no text or symbols)

Diagram illustrating solar panel installation with icons and 2x multiplier labels

21

23

3D diagram of a structural panel with a black arrow indicating direction (no text or symbols)

Line drawing of a hand holding a smartphone with a speech bubble (no text or symbols)

EN "Download the ELICA CONNECT APP to enjoy all the advantages of your connected product. Follow the instructions in the leaflet attached to the product"

Illustration of a speaker with sound waves, no text or symbols present

EN *You can control your Elica hood with voice commands.

Use the ELICA CONNECT APP to discover which voice assistants your hood is compatible with."

Simple line drawing of a rectangular object with a recessed rectangular cutout (no text or symbols)

Line drawing of a rectangular electronic device with a recessed top panel (no text or symbols)

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
• Read the instructions carefully: there is important information about installation, use and safety.
• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Note: The parts marked with the symbol "(*)" are optional accessories supplied only with some models or otherwise not supplied, but available for purchase.

Caution

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
  • Always wear work gloves for all installation and maintenance operations.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not be allowed to tamper with the controls or play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.
  • The premises where the appliance is

installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
• This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.
• Do not flambé under the range hood.
• Do not remove filters during cooking.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.

▲ WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
• Never use the hood without effectively mounted grids.
• The hood must NEVER be used as a support surface unless specifically indicated.
• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.
• Use the correct length for the screws which are identified in the Installation Guide.
• In case of doubt, consult an authorized service assistance center or similar qualified person.

▲ WARNING! Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

Electrical connection

The hood must be connected to the mains supply by qualified and trained technicians.

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

⚠ WARNING! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Installation

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Note: The installation must be performed so that accessibility to the hood and its electronic components is always ensured for possible technical assistance interventions.

Note: the cable that connects the remote motor to the hood is 3 metres long

Caution! Do not cut the cable between the hood and the engine to avoid losing your right to warranty!

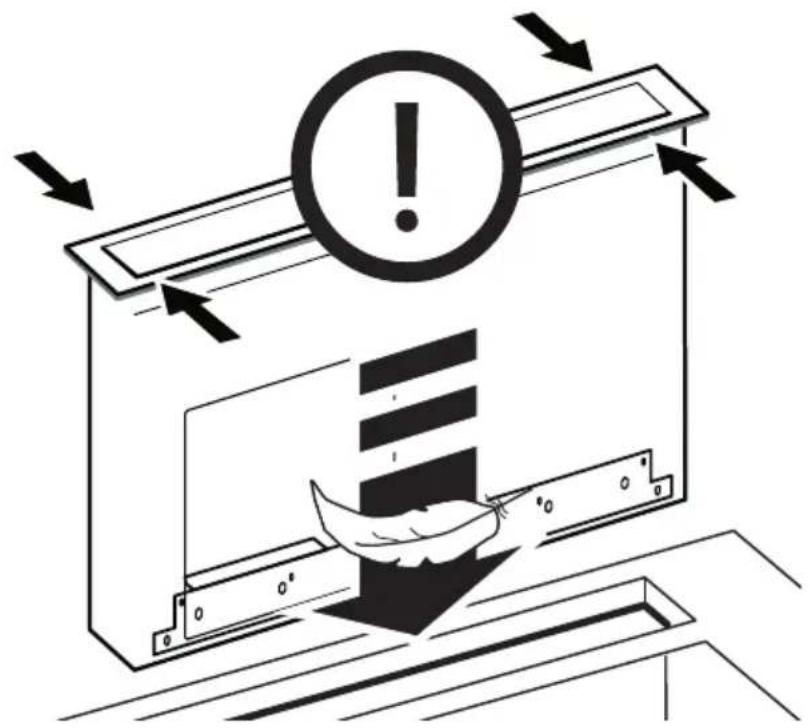

When handling the hood do not put hands within the range of action of the pull-out suction panel (trolley)

The hood is equipped with safety switches which inhibit operation when the front filter panel is unhooked.

With the intention of constantly improving our products, we reserve the right to make all the changes in their technical, functional or design characteristics, deriving from their evolution. In case of the version with external motor, the normal operation of the hood requires the use of a suction unit (external motor) of the same manufacturer.

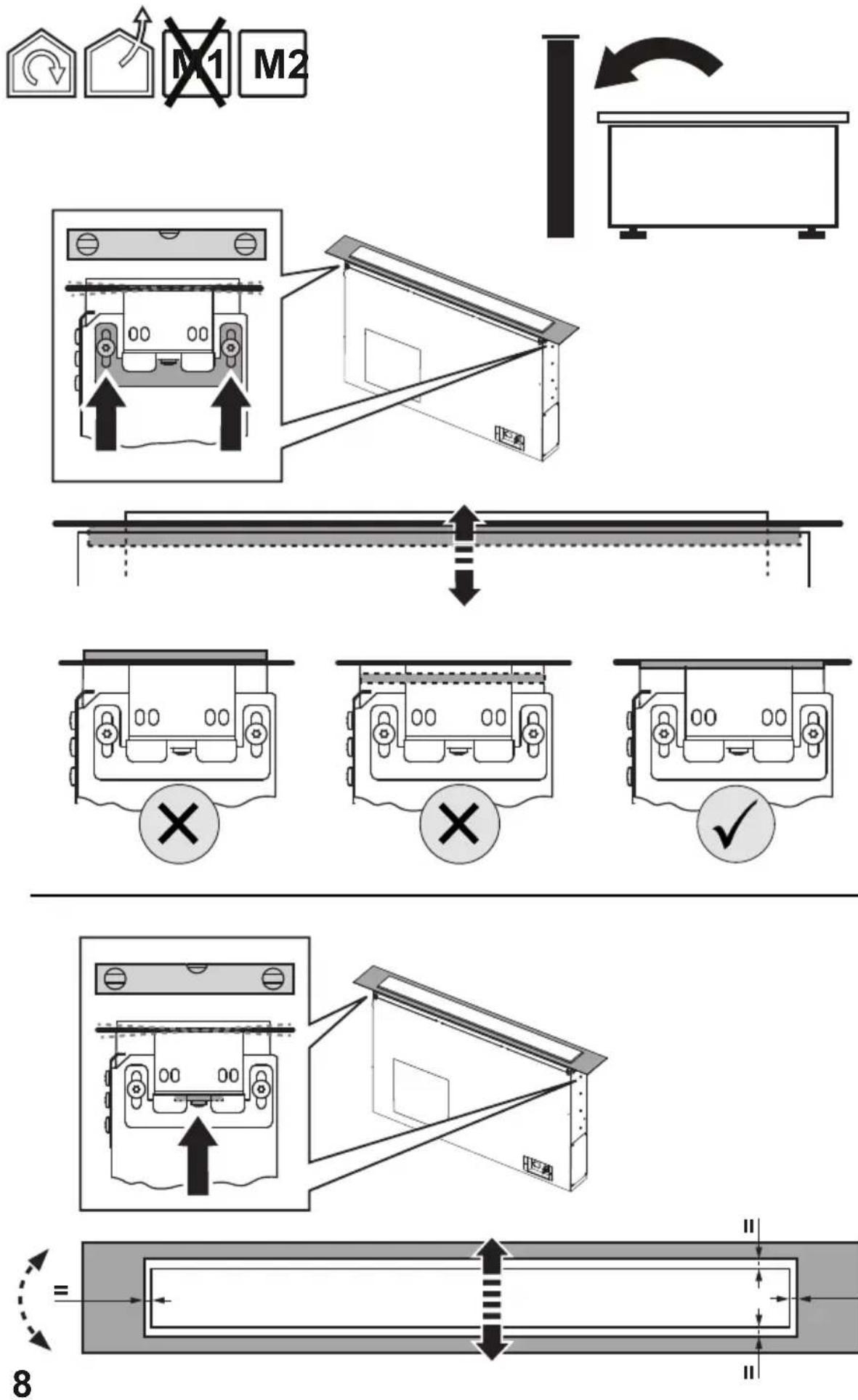

When installing the product, it is recommended to keep a minimum distance of 400mm between the worktop and any components laid on top of the hood.

This is to let the suction panel move upwards (opening) and downwards (closing) without any obstacles, and to facilitate access to the hood controls on the panel.

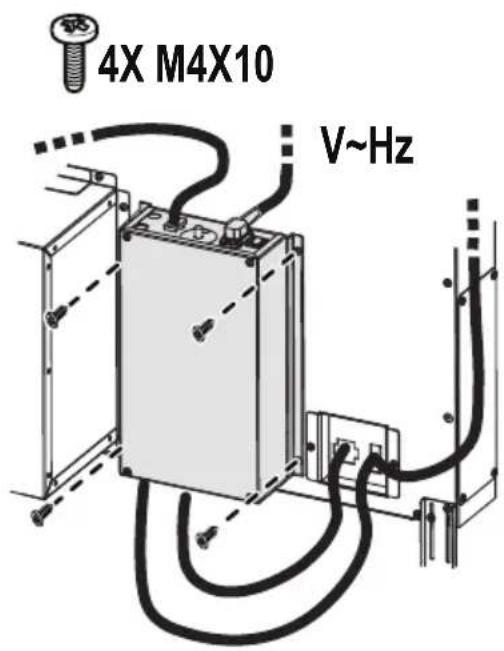

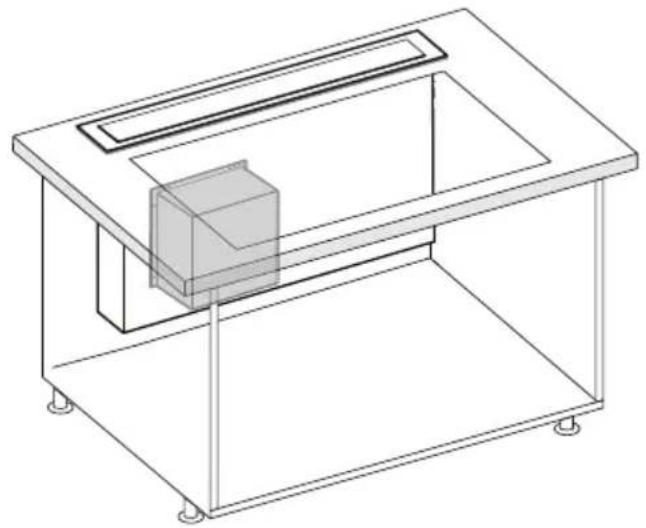

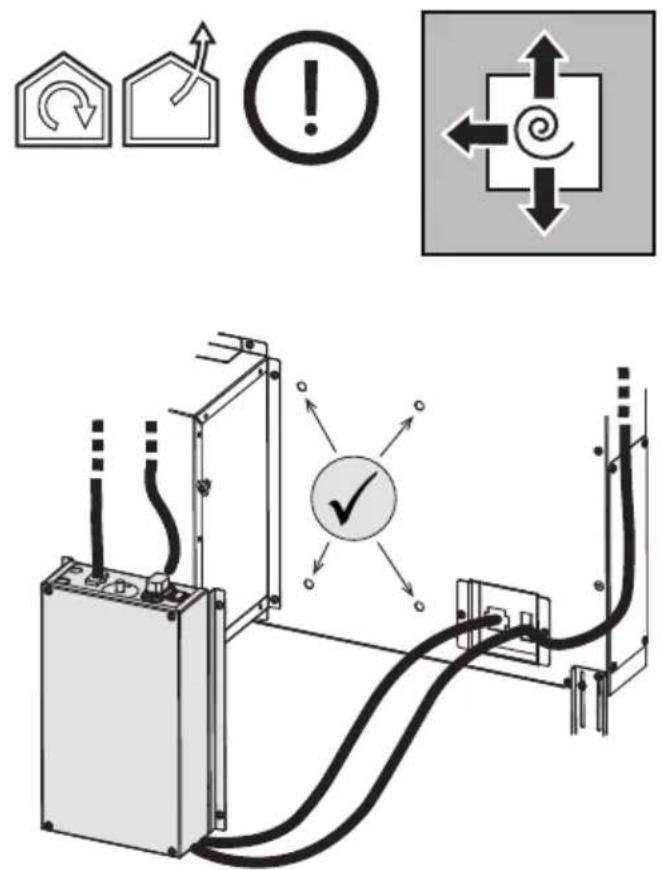

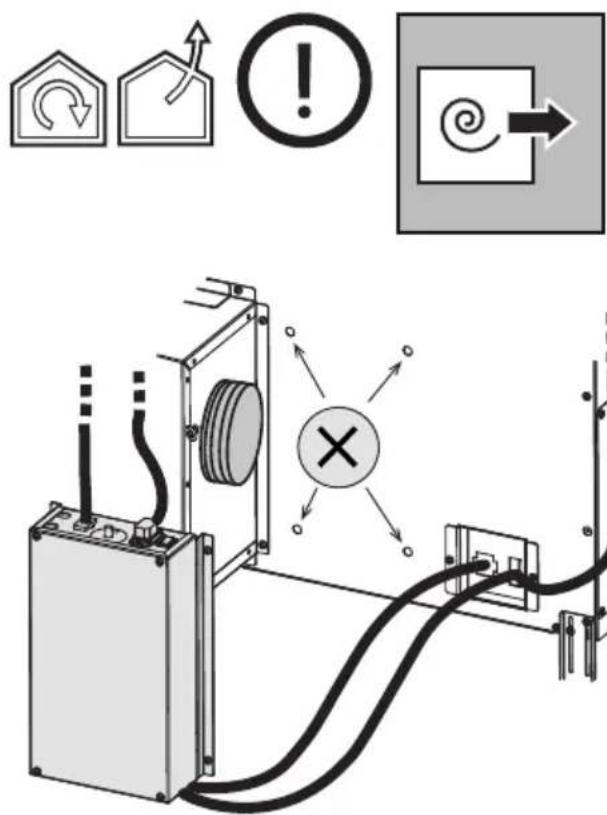

WARNING: Put the metal box containing the electronic components at a distance not shorter than 65 cm from the gas hob or 65 cm from the hood suction point.

RECOMMENDATION: We recommend you to install the metal box containing the electronic components at a distance of at least 10 cm from the ground and sufficiently from all the sources of heat (e.g.: side of an oven or hob).

• This appliance is marked according to the European

directive 2012/19/EC - UK SI 2013 No.3113 on Waste Electrical and Electronic Equipment (WEEE).

- By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
  • Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3; ETSI EN 301 489-1; ETSI EN 301 489-17; ETSI EN 300 328; IEC 62311:2019.
  Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Use

The hood is designed to be used either for exhausting or filter version.

Extraction version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

CAUTION!

The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

CAUTION!

If the hood is supplied with active charcoal filter, then it must be removed.

Filtration version

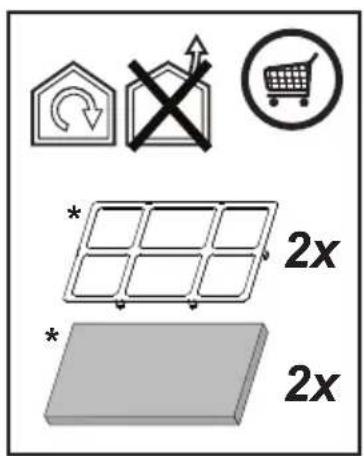

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

Note: The recycled air in the charcoal filter is sent back to the kitchen through a duct which conveys air on a side of the cabinet.

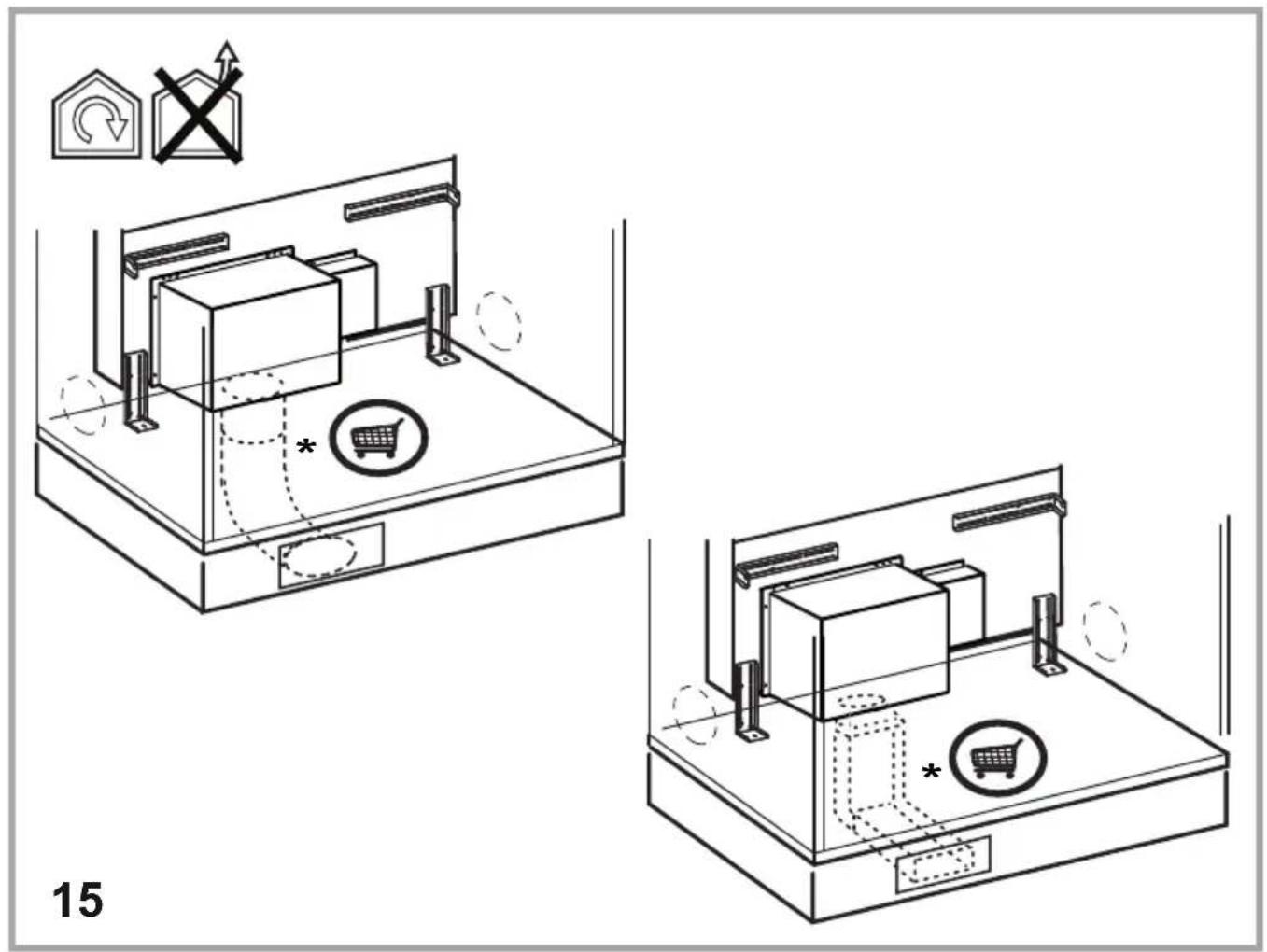

The models with no suction motor only operate in ducting mode, and must be connected to an external suction device (not supplied).

The connecting instructions are supplied with the peripheral suction unit.

Mounting

Before starting to mount the appliance, make sure that no component is damaged, otherwise contact the dealer and stop mounting. In addition, read all the instructions below carefully.

• Use an air outlet pipe no longer than 5 metres.
• Limit the number of curves in the duct since each curve reduces the suction effectiveness equivalent to 1 linear metre. (E.g.: if two 90^ curves are used, the duct should be no longer than 3 metres).
• Avoid drastic changes of direction.
• Use a duct with 150mm diameter constant for the whole length.
• Use a duct made of standard complying material.
• In case of failure to observe the instructions above, the supplier can not be held responsible for capacity or noise problems and no warranty will be granted.

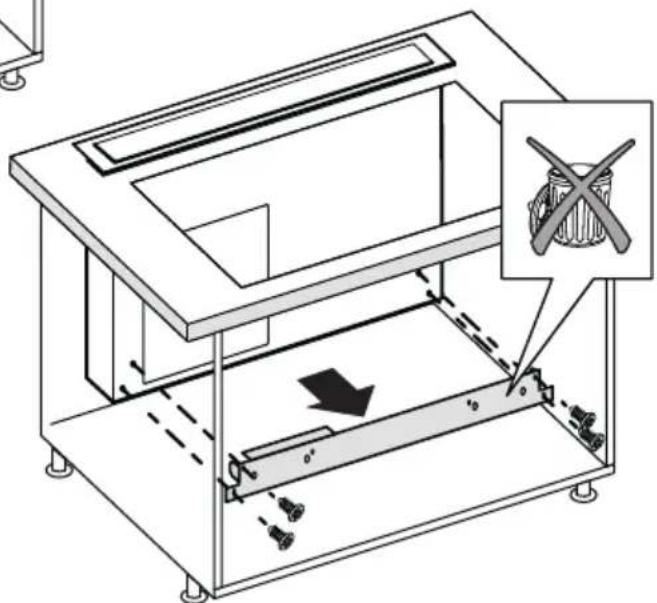

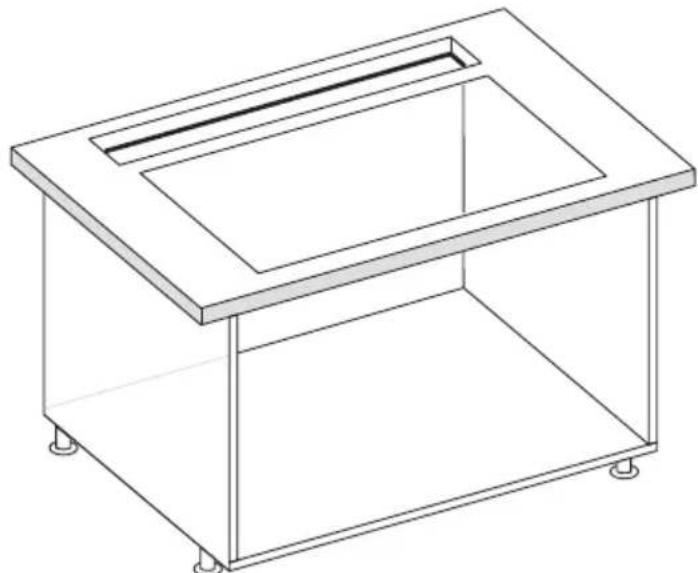

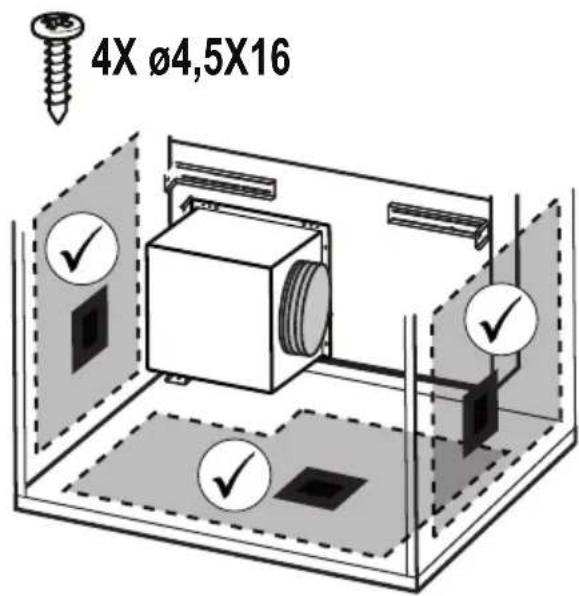

• Before making the hole, make sure that the inside of the cabinet, near the hood housing area, does not have the structure of the cabinet or other particulars which may cause problems for the proper installation. Make sure that the overall dimensions of the hood and the hob ae compatible with the cabinet and therefore the installation is feasible.
• Before inserting the screws into the cabinet, make sure that the product is perfectly perpendicular to the worktop.

Panel Assembly

(only for models where the panel is not supplied with the hood)

CAUTION!

Installation must be carried out only by qualified installers. FOR THE INSTALLER: Responsibility for installation of the hood, including verification of the conformity of any fixing kit supplied with the product, is the sole responsibility of the installer. Following is a non-exhaustive list of helpful instructions for the installer:

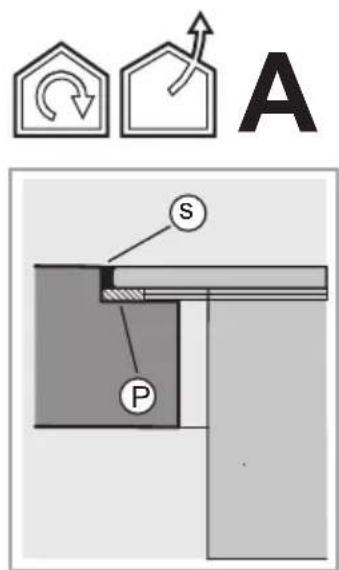

• use a fireproof PANEL (compliant with art. 30 of IEC/EN 60335-2-31), suitable for the operating temperature (at least 80^ ) and humidity (at least 93% ) reached during use;
  – total weight of PANEL used should not exceed 1,5 kg;

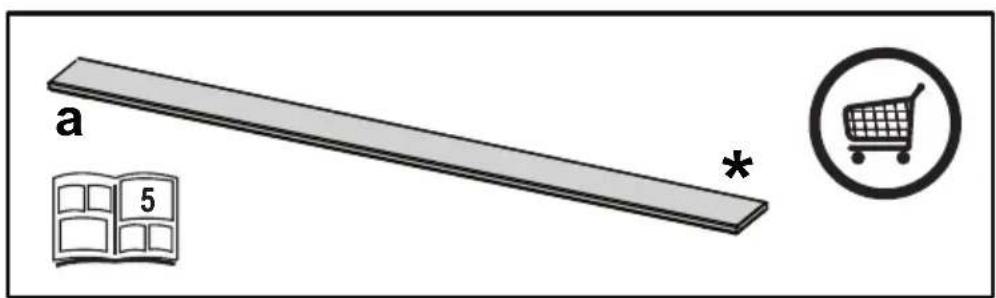

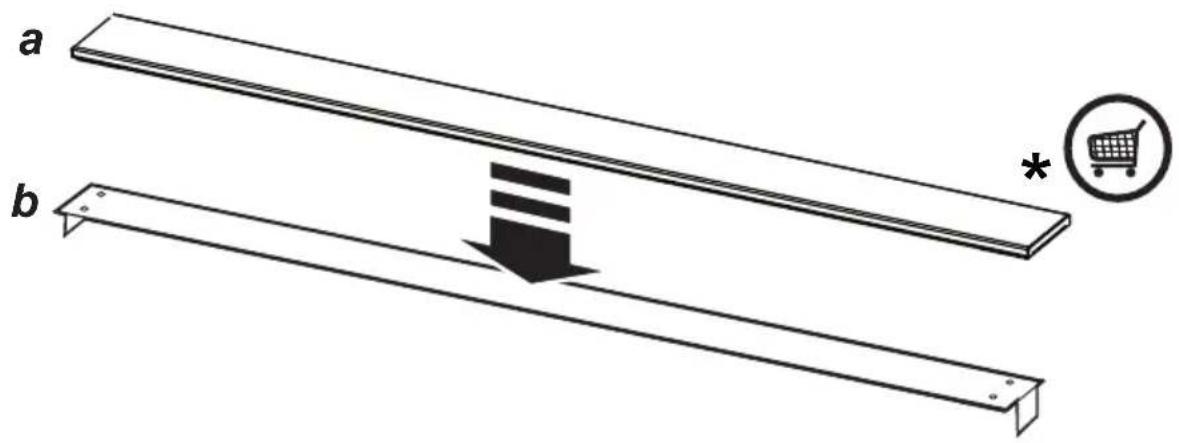

• secure the PANEL to the hood using the fixing points. See the illustrations dedicated to assembly of the panel not supplied with the hood.
• use suitable mechanical parts to fix the PANEL (not included in the assembly kit). Elica denies all liability for damage to persons or property resulting from incorrect installation of the gypsum panels and/or product.

Elica Connect

The hood features a WiFi function for remote connection via the Elica Connect app.

Minimum system requirements:

• 2.4GHz WiFi b/g/n wireless router
- Android or iOS Smartphone. Via the stores, check that the app is compatible with the operating system your Smartphone is running.

Note: The ELICA manufacturer declares that this model of household appliance with WiFi module radio equipment complies with Directive 2014/53/EU.

The radio equipment operates within the 2.4GHz ISM frequency band, the maximum radio frequency power transmitted does not exceed 20 dBm (e.i.r.p.).

Warnings:

- Data protection. The data that the connected device detects is collected to allow for all the services of the connected appliance to be used. Further information on how the collected data is processed and on the privacy policy is available at www.elica.com.

• Availability in different countries. The Elica Connect service is available in specific countries. For further information, see the dedicated section at www.elica.com.

- Future changes. Elica reserves the right to make any changes deemed useful to improve the Elica Connect service. As a result, the descriptions contained in this manual are not binding and should be treated as purely indicative.

Operation Control Display A

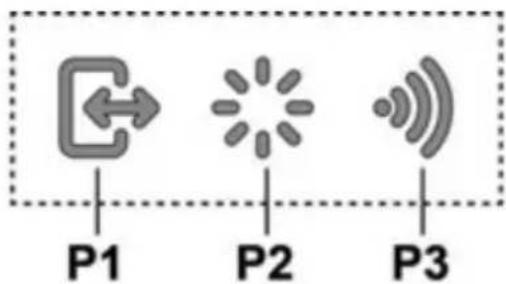

P1 P2 P3

Simple line drawing of a rectangular object with a recessed slot and a small protrusion at the bottom (no text or symbols)

P1. Intake panel opening/closing button

P2. Light ON/OFF button

P3. WiFi connection button

P1. Intake panel opening/closing button

If the panel is CLOSED, by pressing button P1, the hood will turn on and the intake panel will be raised.

This operation will also give access to control display B, which manages motor and lighting.

If the panel is OPEN, by pressing button P1, the hood will turn off and the intake panel will be closed. This operation stops all active motor and lighting functions immediately.

Note: With the panel closed or while it is moving, control display B will remain deactivated. When the panel is completely open, it will be possible to use display B.

P2. Light ON/OFF button

If the panel is CLOSED, by pressing button P2, the hood will turn on, the intake panel will be raised and the lights will turn on only when the pull-out hood is completely open.

If the panel is OPEN, it will only be possible to turn the hood lights on and off.

Note: Light button P2 does not manage Light Dimming and does not turn the hood off.

P3. WiFi button

- WiFi configuration: if the WiFi function is not configured, press for about 2 seconds to enter WiFi configuration mode and follow the instructions on the App to complete the procedure.

During the configuration procedure, the button will light up indicating the connectivity status (see WiFi status table) To interrupt the WiFi configuration procedure, press for about 2 seconds when the button is lit up and is flashing fast.

Once the WiFi function has been configured, if you want to change it, press for about 6 seconds to reset the WiFi parameters (the button will turn off) and repeat the configuration procedure.

- WiFi activation/deactivation: after the configuration, it is possible to deactivate/activate the WiFi function. Press for about 2 seconds to deactivate/activate the WiFi function. Deactivating the function does not cause the loss of the WiFi parameters.

WiFi status table

WiFi button	Device connection status
Light off	WiFi not configured or off
Light on steady	WiFi connected
Light flashing fast	Attempt to connect to the WiFi router
Light flashing slowly	Attempt to connect to the Elica cloud
Light on with short flashing light	Remote command being received (e.g. engine ignition or light turned on)

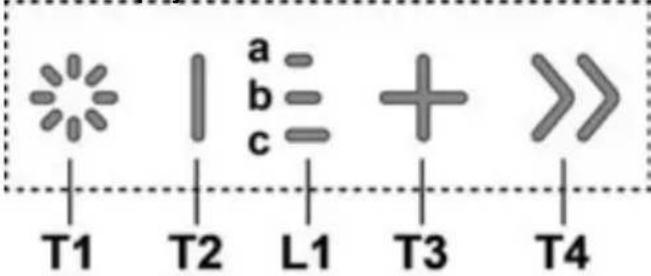

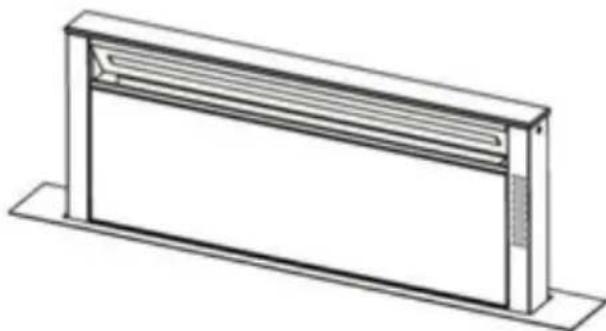

Control Display B

a b c T1 T2 L1 T3 T4

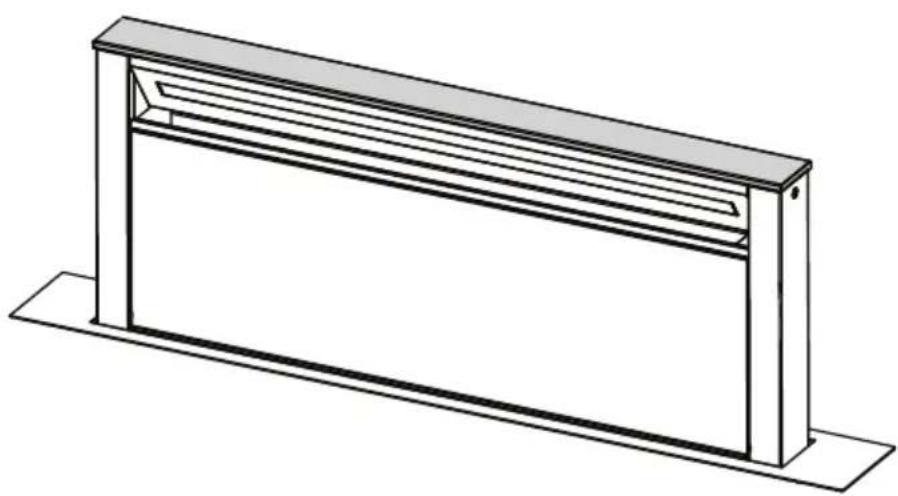

Isometric line drawing of a rectangular frame with internal horizontal slats and a flat base (no text or symbols)

T1. Light ON/OFF button

T2. Decrease intake speed / motor off button

L1. Speed indicator LED on

T3. Motor on / increase intake speed button

T4. "BOOST" - intensive speed - function button

T1: Light ON/OFF button

to turn the light on and off.

Press and hold button T1 to increase / decrease the intensity of the light.

T2: Decrease speed / motor off button

press the decrease the intake power, until the extractor hood is turned off.

press and hold to turn the hood off directly.

L1: Speed indicator LED on

the central LEDs light up according to the intake speed active/used:

1st speed, LED a will light up

2nd speed, LEDs a+b will light up

3rd speed, LEDs a+b+c will light up

T3: Increase speed button

press to turn the hood on

press to increase the intake power.

T4: "BOOST" – intensive speed - function button

press T4 to activate the intensive intake speed "BOOST 1", timed for 30 minutes

this prolonged timing has been designed to guarantee a suitable cooking time for preparations that release high amounts of smoke during cooking

Note: after the 30 minutes, the hood will go back to the previously set intake speed ***

with the motor on "BOOST 1", press T4 again to activate the intensive intake speed "BOOST 2", timed for 7 minutes

Note: after the 7 minutes, the hood will go back to the previously set intake speed ***

Note: press T4 again, during the 7 minutes, to go back to the previously set intake speed ***

with the "BOOST1" and "BOOST2" functions active, press:

T2 to go back to the previously set intake speed ***

T3 to go back to the 3rd intake speed

*** the previous intake speed remains visible via the indicator LEDs L1

if you have set the intensive speed directly with the hood off, the motor will be turned off after the set time.

While using the "BOOST" functions, the T4 symbol flashes

("BOOST 1": white light - "BOOST 2": blue light)

Filter Saturation indicator lights

At regular intervals, the hood signals the need to perform maintenance on the filters.

LED L1 (a-b-c) on and flashing light (all indicator lights flashing together): perform maintenance on the grease filter.

LED L1 (a-b-c) on and alternating light (the indicator lights turn on in sequence): perform maintenance on the active carbon filter

Note: The filter saturation indicator is visible within the first 10 seconds on turning on the hood; the saturation indicators must be reset within this time.

Reset filter saturation indicator:

Press and hold button T3

LED L1 (a-b-c) turns on and off (depending on the type of filter being reset, the indicator lights flash together or turn on in sequence); an acoustic signal will confirm the reset operation.

Activation of filter saturation indicator

Note: this operation must be performed with the hood off.

- Grease filter

This indicator is normally activated 1st prolonged press of buttons T3 and T2

if the indicator is active, button T3 turns on press button T2, to deactivate it if the indicator is not active, button T2 turns on press button T3, to activate it

- Active carbon filter

This indicator is normally deactivated 2nd prolonged press of buttons T3 and T2

if the indicator is active, button T3 turns on press button T2, to deactivate it if the indicator is not active, button T2 turns on press button T3, to activate it

Note: 3rd prolonged press of buttons T3 and T2

Maintenance

Cleaning

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Grease filter

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

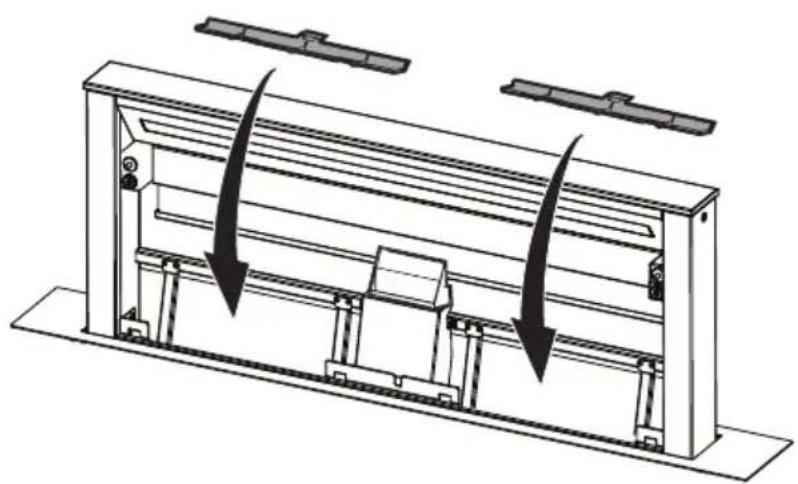

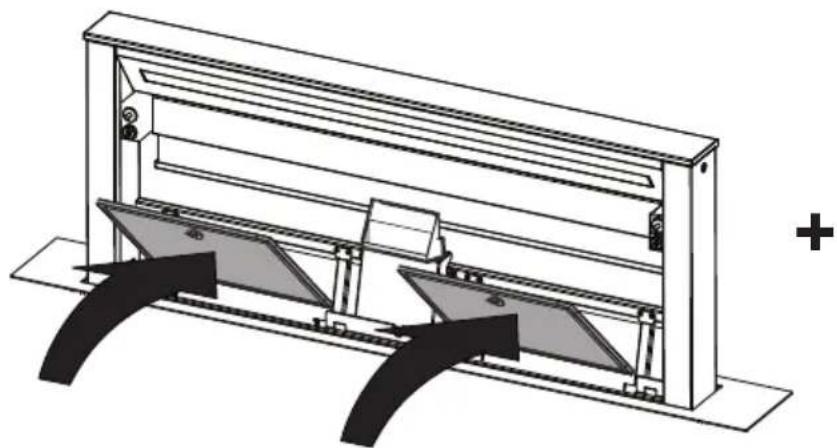

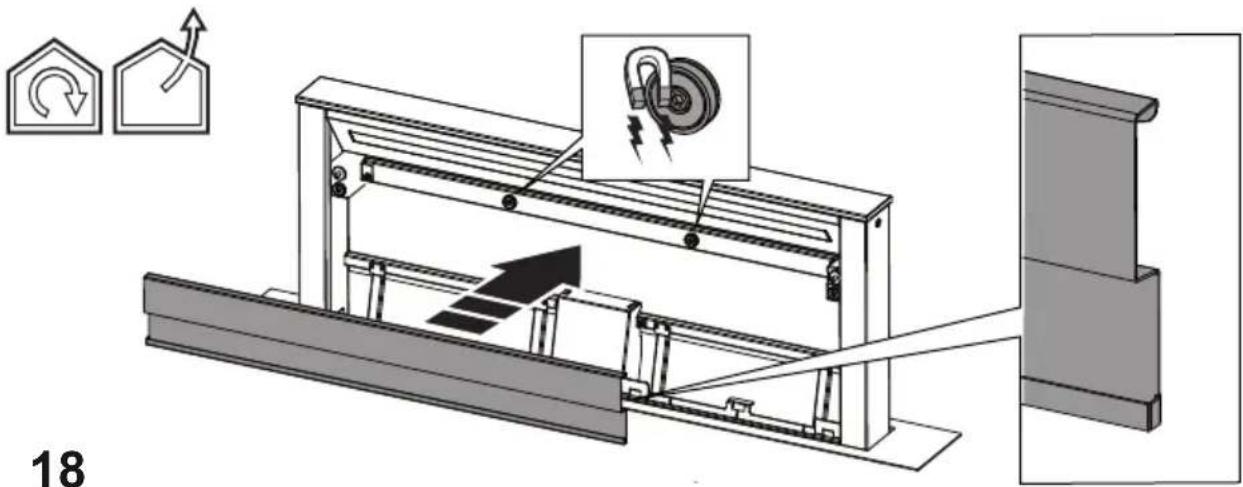

When inserting and removing grease filters and charcoal filters, please make sure that the extractable unit of the hood is in open position.

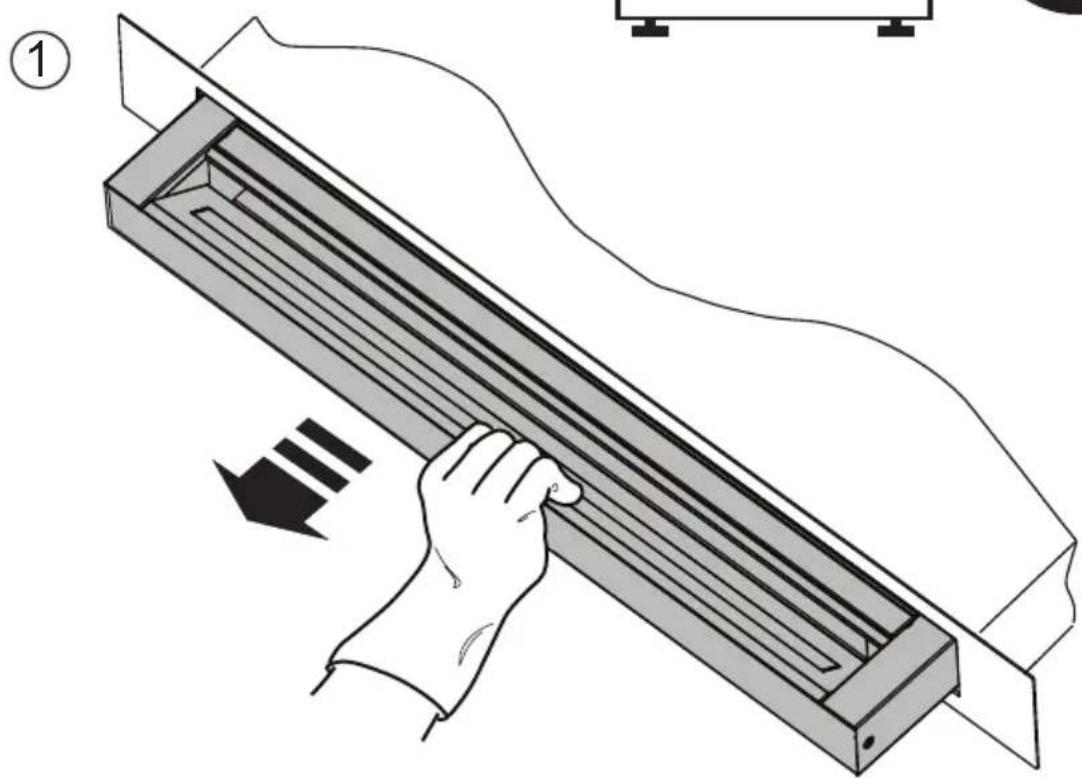

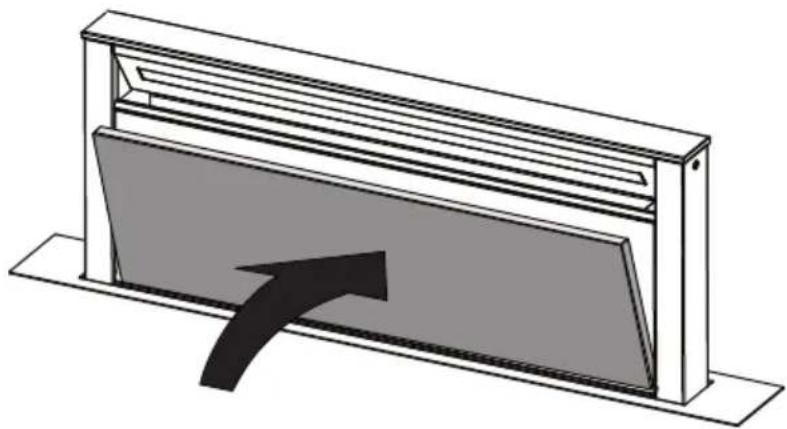

Then remove the front panel, by pulling on the upper part of each side at the same time.

The panel turns forward, so that grease filters can be inserted.

Fig. 18-21

Charcoal filter (filter version only)

It absorbs unpleasant odors caused by cooking.

Washable activated charcoal filter

The charcoal filter can be washed once every two months (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using hot water and a suitable detergent, or in a dishwasher at 65^ C (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then put it in the oven for 10 minutes at 100^ C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

After removing the grease filter, it is possible to insert the charcoal filters (not supplied).

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times longer than the traditional lamps and allow to save 90% electrical energy.

To replace lights, contact authorised spare part center.

Simple line drawing of a rectangular object with a recessed slot and a small protrusion at the bottom (no text or symbols)

Technical line drawing of a rectangular enclosure or enclosure with slatted top and base (no text or symbols)

T1. Taste Licht ON/OFF

Simple line drawing of a rectangular object with a horizontal slot and a small protrusion at the top (no text or symbols)

Line drawing of a rectangular electronic device with a recessed top panel (no text or symbols)

Simple line drawing of a rectangular object with a recessed slot, no text or symbols present.

Line drawing of a rectangular electronic device with internal components and mounting base (no text or symbols)

Activering indicator verzadiging filters

Simple line drawing of a rectangular object with a central slot and textured edges (no text or symbols)

Line drawing of a rectangular electronic device with internal components and mounting base (no text or symbols)

Simple line drawing of a rectangular object with a recessed rectangular cutout (no text or symbols)

Isometric line drawing of a rectangular panel or enclosure with internal structure, no text or symbols present

Simple line drawing of a rectangular object with a recessed slot, no text or symbols present.

Isometric line drawing of a rectangular enclosure or enclosure with slatted top and base (no text or symbols)

Simple line drawing of a rectangular object with a recessed top and a small protrusion at the bottom (no text or symbols)

Technical line drawing of a rectangular enclosure or enclosure with internal ventilation grilles (no text or symbols)

T1. Ljusknapp PÅ/AV

Simple line drawing of a rectangular object with a central slot and textured edges (no text or symbols)

Technical line drawing of a rectangular enclosure or enclosure with slatted top and base (no text or symbols)

Simple line drawing of a rectangular object with a central slot and a textured base (no text or symbols)

Line drawing of a rectangular electronic device with a recessed top panel and mounting base (no text or symbols)

Simple line drawing of a rectangular object with a recessed rectangular cutout (no text or symbols)

Line drawing of a rectangular electronic panel or enclosure with ventilation grilles (no text or symbols)

T1. Lys ON/OFF

Simple line drawing of a rectangular object with a recessed slot and textured base (no text or symbols)

Isometric line drawing of a rectangular frame with internal horizontal slats and a flat base (no text or symbols)

Simple line drawing of a rectangular object with a recessed slot and textured base (no text or symbols)

Line drawing of a rectangular electronic device with internal components, mounted on a base (no text or symbols)

Simple line drawing of a rectangular object with a recessed slot and textured base (no text or symbols)

P1. Tlačidlo otvorenia / zatvorenia odsávacieho panelu.

Line drawing of a rectangular electronic device with internal components, mounted on a base (no text or symbols)

Simple line drawing of a rectangular object with a recessed rectangular cutout (no text or symbols)

Line drawing of a rectangular electronic device with a recessed panel and mounting base (no text or symbols)

- Waste Electrical and Electronic Equipment (WEEE).

Simple line drawing of a rectangular object with a central slot and a textured base (no text or symbols)

Isometric line drawing of a rectangular enclosure or enclosure with a recessed top and base (no text or symbols)

Simple line drawing of a rectangular object with a central slot and a textured base (no text or symbols)

Isometric line drawing of a rectangular enclosure or enclosure with internal ventilation grilles (no text or symbols)

Simple line drawing of a rectangular object with a central slot and textured edges (no text or symbols)

Isometric line drawing of a rectangular enclosure or enclosure with internal horizontal panels and a flat base (no text or symbols)

T1. Кнопка ВКЛ/ВЫКЛ освещения

Simple line drawing of a rectangular object with a recessed rectangular cutout (no text or symbols)

Isometric line drawing of a rectangular enclosure or enclosure with slatted top and base (no text or symbols)

Simple line drawing of a rectangular object with a recessed slot and a small protrusion at the bottom (no text or symbols)

Line drawing of a rectangular electronic device with a recessed top panel (no text or symbols)

Technical line drawing of a rectangular enclosure or enclosure with internal ventilation grilles (no text or symbols)

T1. Valgustuse ON/OFF-nupp

Simple line drawing of a rectangular object with a central slot and textured base (no text or symbols)

Technical line drawing of a rectangular enclosure or enclosure with internal ventilation grilles (no text or symbols)

Simple line drawing of a rectangular object with a recessed rectangular cutout (no text or symbols)

Isometric line drawing of a rectangular enclosure or enclosure with slatted top and base (no text or symbols)

Simple line drawing of a rectangular object with a recessed slot and a small protrusion at the bottom (no text or symbols)

P1. Taster za otvaranje/ zatvaranje ploče za usisavanje.

P2. Dugme za svetlo ON/OFF

Isometric line drawing of a rectangular panel or enclosure with internal structure, no text or symbols present

T1. Dugme za svetlo ON/OFF
T2. Dugme za Smanjivanje brzine usisavanja / Isključivanje motora
L1. Led svetla za signalizaciju aktivne brzine
T3. Dugme za Uključivanje motora / Povećavanje brzine usisavanja

T4. Dugme za funkciju "BOOST" - intenzivne brzine -

T1: Dugme za svetlo ON/OFF

Simple line drawing of a rectangular object with a recessed rectangular cutout (no text or symbols)

Line drawing of a rectangular electronic device with a recessed top panel (no text or symbols)

Line drawing of a rectangular panel or enclosure with a recessed top and base, no text or symbols present.

Simple line drawing of a rectangular object with a recessed slot and a small square base (no text or symbols)

Line drawing of a rectangular electronic device with internal components and mounting base (no text or symbols)

Isometric line drawing of a rectangular enclosure or enclosure with slatted top and base (no text or symbols)

Simple line drawing of a rectangular object with a central slot and a textured base (no text or symbols)

Barcode image containing encoded digital information
