USER MANUAL Intimidator Spot 360X IP Chauvet

Technical line drawing of a CHUET industrial machine with no visible text or symbols on the device itself

Intentionally Left Blank Page

About This Guide

The Intimidator Spot 360X IP Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.

• DO NOT touch the product's housing when it is on because it will be hot.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.

• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT submerge this product (IP65). Regular outdoor operation is fine.

• Not for permanent outdoor installation in locations with extreme environmental conditions. This includes, but is not limited to:

• Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).

• Where the normal high or low temperatures of the location exceed the temperature ranges in this manual.
• Locations that are prone to flooding or being buried in snow.
  • Other areas where the product will be subject to extreme radiation or caustic substances.

• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
- Be sure that no ventilation slots on the unit's housing are blocked.
- Never connect this product to a dimmer or rheostat.
- Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.
- The maximum ambient temperature is 104^ (40 °C). Do not operate this product at higher temperatures.
- In the event of a serious operating problem, stop using immediately.
- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Intimidator Spot 360X IP
• Hanging bracket
  • Power c o
  r • Quick Reference Guide

To Begin

Unpack your Intimidator Spot 360X IP and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

It is possible to power link up to 5 Intimidator Spot 360X IP products on 120 V or 9 products on 230 V. Never exceed this number. Power-linking cords can be purchased separately.

Fuse Replacement

1. Disconnect the product from power.
2. Using a flat-head screwdriver, unscrew the fuse holder and pull straight out.
3. Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
4. Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes.

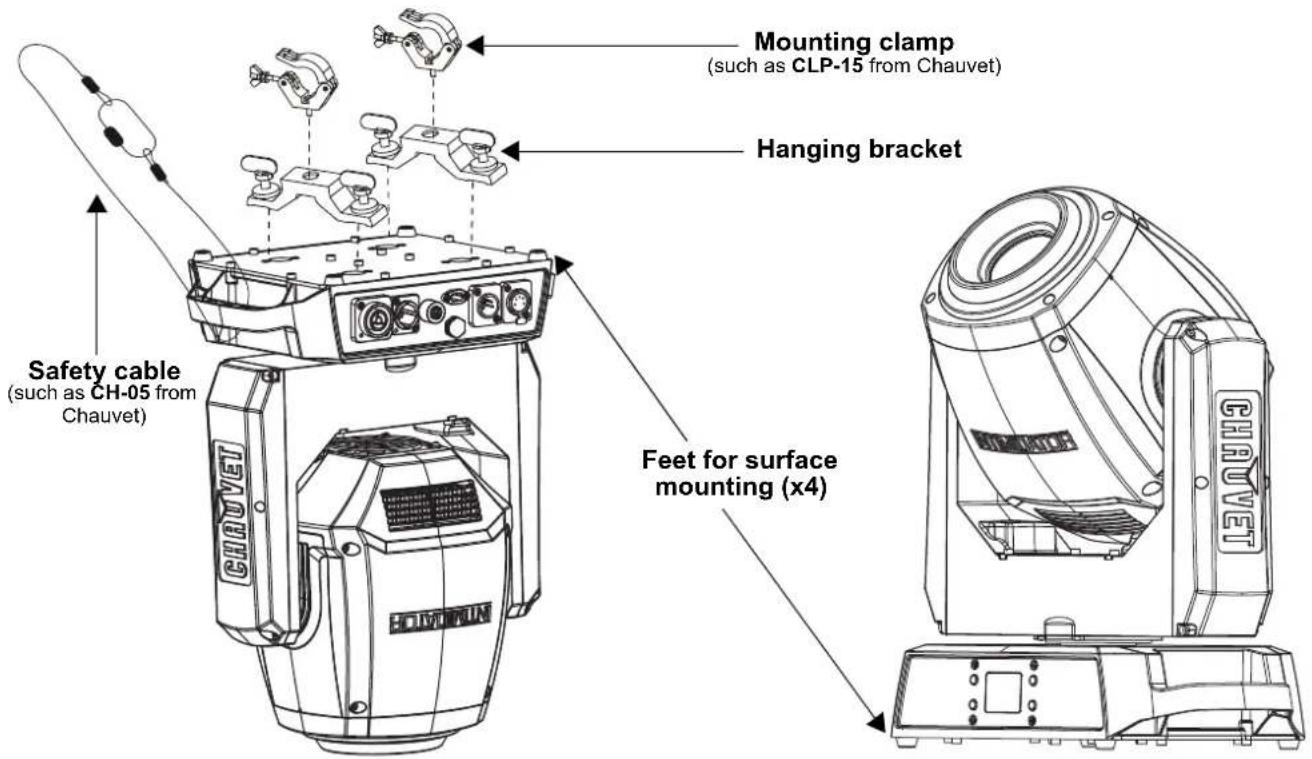

Mounting Diagram

Mounting clamp (such as CLP-15 from Chauvet) Hanging bracket Safety cable (such as CH-05 from Chauvet) Feet for surface mounting (x4)

Control Panel Description

Button Function
	Exits from the current menu or function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function
	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Map

Refer to the Intimidator Spot 360X IP product page on www.chauvetdj.com for the latest menu map.

Main Level Programming Levels Description
Address 001-512 Sets the DMX starting address
Run Mode	DMX	14CH		Selects DMX mode
		8CH
	Slave Slave	1-4 Selects Slave mode 1, 2, 3, or 4
	Auto Selects Auto mode
	Sound Selects Sound			Active mode
	RF	RF 1-4		Sets the product to work with the RFC-XL remote in group 1, 2, 3, or 4(RF remote must be bound to the product first)
		RFP Sets the product to work with public RF signal
	Manual	Pan	Manual tilt control	Manual pan control
		Tilt Manual tilt control
		Color Manual color control
		Gobo Manual rotating gobo control
		Gobo Rotate	000-255	Manual gobo rotation control
		Prism		Manual prism control
		Focus		Manual focus control
		Dimmer		Manual dimmer control
		Shutter		Manual shutter control
Setup	Pan Reverse		OFF	Normal pan operation
			ON	Reverse pan operation
	Tilt Reverse		OFF	Normal tilt operation
			ON	Reverse tilt operation
	Screen Reverse		OFF	Normal display
			ON	Reverse display
			AUTO	Automatic display orientation
	Pan Angle		540	Selects the 540° pan angle range
			360	Selects the 360° pan angle range
			180	Selects the 180° pan angle range
	Tilt Angle		270	Selects the 270° tilt angle range
			180	Selects the 180° tilt angle range
			90	Selects the 90° tilt angle range
	Totem Mode		OFF	Does not restrict the pan and tilt motion
			UP	Restricts the pan and tilt motion for overhead mounting
			DOWN	Restricts the pan and tilt motion for surface/floor mounting
	Sensitivity		001-100	Sets sound sensitivity
	DMX Loss		Hold	Holds the last setting when signal is lost
			Black	Blacks out the product when signal is lost
			Auto	Sets the unit to Auto mode when signal is lost
			Sound	Sets the unit to Sound mode when signal is lost
	USB Update		Yes	Enables/disables software update through USB-C
			No
	RF		Bind	Shows instructions on how to bind the RF remote to the product
	Reset			Resets the product
	Factory Set			Loads factory defaults
Sys Info	Ver:		V_	Displays the firmware version
	Running Mode:		_ _ _ _	Displays the current running mode
	DMX Address: _ _ _		Displays the current DMX address
	Temperature:		_ _ _	Displays the current product temperature
	LED FAN:		_ _ _	Displays LED fan information
	Base Fan1:		_ _ _	Displays base fan information

DMX Linking

The Intimidator Spot 360X IP can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.

Starting Address

To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 499.

Master/Slave Connection

The Intimidator Spot 360X IP uses the DMX data connection for its Master/Slave mode. Information about configuring the Intimidator Spot 360X IP for Master/Slave operation is in the User Manual, which is available from the Chauvet website.

RF Remote

The Intimidator Spot 360X IP can be operated with the CHAUVET RFC or RFC-XL remotes. For more information about the RF Remote, download instructions for the Intimidator Spot 360X IP User Manual from www.chauvetdj.com.

Gobos

DMX Values

8Ch	14Ch	Function	Value	Percent/Setting
1 1 Pan 000			255 0-540°
-2 Pan fine 000			255 Fine control of panning
2 3 Tilt 000			255 0-270°
-4 Tilt fine 000			255 Fine control of tilting
-5 Pan/tilt speed 000			255 Pan/Tilt speed, fast to slow
3 6 Color wheel			000 006 White
			007 013 Red
			014 020 Orange
			021 027 Yellow
			028 034 Green
			035 041 Blue
			042 048 CTO
			049 055 Cyan
			056 062 Magenta
			063 064 White
			065 189 Color indexing
			190 221 Color cycling rainbow, fast to slow
			222 223 Stop
			224 255 Reverse color cycling rainbow, slow to fast
4 7 Gobo wheel (seeGobos____)			000 007 Open
			008 015 Gobo 1
			016 023 Gobo 2
			024 031 Gobo 3
			032 039 Gobo 4
			040 047 Gobo 5
			048 055 Gobo 6
			056 063 Gobo 7
			064 071 Gobo 7 shake, slow to fast
			072 079 Gobo 6 shake, slow to fast
			080 087 Gobo 5 shake, slow to fast
			088 095 Gobo 4 shake, slow to fast
			096 103 Gobo 3 shake, slow to fast
			104 111	Gobo 2 shake, slow to fast
			112 119	Gobo 1 shake, slow to fast
			120 127 Open
			128 189 Cycle effect, slow to fast
			190 193 Stop
			194 255 Reverse cycle effect, slow to fast
5 8 Gobo rotation			000 063 Gobo indexing
			064 145 Gobo rotation, slow to fast
			146 149 Stop
			150 231 Reverse gobo rotation, slow to fast
			232 255 Gobo bounce, short to long
6	9	P r i	000 ⇔ 003 No function
			004 ⇔ 006 3-facet prism
			007 ⇔ 065 Prism rotation, slow to fast
			066 ⇔ 123 Reverse prism rotation, slow to fast
			124 ⇔ 127 3-facet prism
			128 ⇔ 131 No function
			132 ⇔ 134 5-facet prism
			135 ⇔ 193 Prism rotation, slow to fast
			194 ⇔ 251 Reverse prism rotation, slow to fast
			252 ⇔ 255 5-facet prism
7 10 Focus 000			⇔ 255 Focus
- 11 Dimmer 000			⇔ 255 0-100%
8 12 Strobe			000 ⇔ 003 Off
			004 ⇔ 007 On
			008 ⇔ 076 Strobe, slow to fast
			077 ⇔ 145 Pulse strobe, slow to fast
			146 ⇔ 215 Random strobe, slow to fast
			216 ⇔ 255 On
- 13 Function			000 ⇔ 007 No function
			008 ⇔ 015 Blackout on pan/tilt movement
			016 ⇔ 023 Blackout on color wheel movement
			024 ⇔ 031 Blackout on gobo wheel movement
			032 ⇔ 039 Blackout on pan/tilt/color wheel movement
			040 ⇔ 047 Blackout on pan/tilt/gobo wheel movement
			048 ⇔ 055 Blackout on pan/tilt/color wheel/gobo wheel movement
			056 ⇔ 095 No function
			096 ⇔ 103 Pan reset
			104 ⇔ 111 Tilt reset
			112 ⇔ 119 Color wheel reset
			120 ⇔ 127 Gobo wheel reset
			128 ⇔ 135 No function
			136 ⇔ 143 Prism reset
			144 ⇔ 151 Focus reset
			152 ⇔ 159 All reset
			160 ⇔ 255 No function
- 14 Movement macros			000 ⇔ 007 No function
			008 ⇔ 023 Movement macro 1
			024 ⇔ 039 Movement macro 2
			040 ⇔ 055 Movement macro 3
			056 ⇔ 071 Movement macro 4
			072 ⇔ 087 Movement macro 5
			088 ⇔ 103 Movement macro 6
			104 ⇔ 119 Movement macro 7
			120 ⇔ 135 Movement macro 8
			136 ⇔ 151 Sound-active movement macro 1
			152 ⇔ 167 Sound-active movement macro 2
			168 ⇔ 183 Sound-active movement macro 3
			184 ⇔ 199 Sound-active movement macro 4
			200 ⇔ 215 Sound-active movement macro 5
			216 ⇔ 231 Sound-active movement macro 6
			232 ⇔ 247 Sound-active movement macro 7
			248 ⇔ 255 Sound-active movement macro 8

Acerca de esta guía

Master/Slave verbinding

Intentionally Left Blank Page

Contact Us

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetdj.com

Chauvet U.K.

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetdj.eu ____

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Benelux

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetdj.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

France Website: www.chauvetdj.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetdj.mx

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details.

Intimidator Spot 360X IP QRG ML6 Rev. 1
