USER MANUAL LC 251i HUSQVARNA

Silhouette of a lawn mower (no text or symbols)

LC 251i, LC 251iS

EN Operator's manual 2-25

Transportation, storage and disposal.... 20

Technical data.... 22

Declaration of Conformity.... 24

Introduction

Product description

The product is a pedestrian-controlled rotary lawn mower. The grass is collected in a grass catcher. Attach the side discharge deflector for side discharge of the grass.

Intended use

Use the product to cut grass. Do not use the product for other tasks.

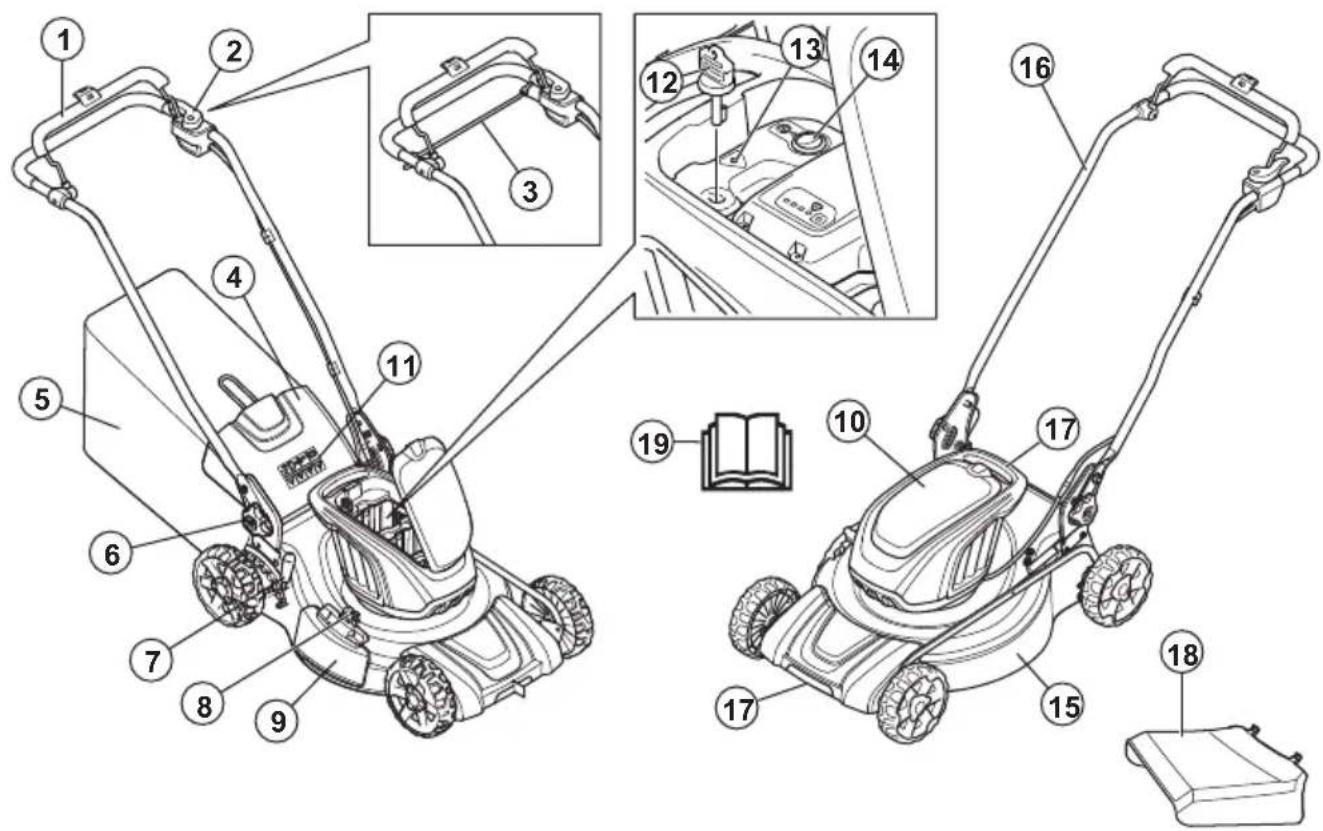

Product overview

Technical diagram of a lawn mower with numbered parts and labeled parts for identification

1. Motor brake handle

2. Start inhibitor

3. Drive bail (LC 251iS)

4. Rear cover

5. Grass catcher

6. Handle knob

7. Cutting height lever

8. Discharge lock

9. Side discharge cover

10. Battery lid

11. Symbols

12. Safety key

13. Warning indicator (error LED)

14. SavE button

15. Cutting cover

16. Handle / Handlebar

17. Lift handles

18. Side discharger

19. Operator's manual

Symbols on the product

WARNING

Read the instructions.

WARNING - Beware of thrown objects.

Keep bystanders away.

WARNING – Keep hands and feet away from the blades.

WARNING – Disconnect battery before maintenance.

The product or package of the product is not domestic waste. Recycle it at a recycling station for electrical and electronic equipment.

Noise emission to the environment label as per EU and UK directives and regulations, and New South Wales legislation "Protection of the Environment Operations (Noise Control) Regulation 2017". The guaranteed sound power level of the product is specified in Technical data on page 22 and on the label.

This attachment is in accordance with applicable EC directives.

This product conforms to applicable UK regulations.

The product is drip protected.

Release the motor brake handle to stop.

Scannable code.

Note: Other symbols/decals on the product refer to certification requirements for some markets.

Label on the product

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

DANGER – Keep hands and feet away.

Product damage

We are not responsible for damages to our product if:

• the product is incorrectly repaired.
• the product is repaired with parts that are not from the manufacturer or not approved by the manufacturer.
• the product has an accessory that is not from the manufacturer or not approved by the manufacturer.
- the product is not repaired at an approved service center or by an approved authority.

Safety

Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

General product safety warnings

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this product. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term "product" in the warnings refers to your mains-operated (corded) product or battery-operated (cordless) product.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate the product in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. The product create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating the product. Distractions can cause you to lose control.

Electrical safety

• Product plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) products. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose products to rain or wet conditions. Water entering a product will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the product. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a product outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a product in a damp location is unavoidable, use a residual current device (RCD)

protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

• Stay alert, watch what you are doing and use common sense when operating a product. Do not use a product while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating products may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the product. Carrying products with your finger on the switch or energising products that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the product on. A wrench or a key left attached to a rotating part of the product may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the product in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of products allow you to become complacent and ignore product safety principles. A careless action can cause severe injury within a fraction of a second.
• Do not force the product. Use the correct product for your application. The correct product will do the job better and safer at the rate for which it was designed.
• Do not use the product if the switch does not turn it on and off. Any product that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the product before making any adjustments, changing accessories, or storing products. Such preventive safety measures reduce the risk of starting the product accidentally.
• Store idle products out of the reach of children and do not allow persons unfamiliar with the product or these instructions to operate the product. Products are dangerous in the hands of untrained users.

Product use and care

• Maintain products and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the product's operation. If damaged, have the product repaired before use. Many accidents are caused by poorly maintained products.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the product, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the product for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the product in unexpected situations.

Battery tool use and care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use products only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritations or burns.
• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ / 265^ may cause explosion.
• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

- Have your product serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

- Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Lawnmower safety warnings

• Do not use the lawnmower in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
• Thoroughly inspect the area for wildlife where the lawnmower is to be used. Wildlife may be injured by the lawnmower during operation.
• Thoroughly inspect the area where the lawnmower is to be used and remove all stones, sticks, wires, bones, and other foreign objects. Thrown objects can cause personal injury.
• Before using the lawnmower, always visually inspect to see that the blade and the blade assembly are not worn or damaged. Worn or damaged parts increase the risk of injury.
• Check the grass catcher frequently for wear or deterioration. A worn or damaged grass catcher may increase the risk of personal injury.
• Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose, damaged, or is not functioning correctly may result in personal injury.
• Keep all cooling air inlets clear of debris. Blocked air inlets and debris may result in overheating or risk of fire.
• While operating the lawnmower, always wear non-slip and protective footwear. Do not operate the lawnmower when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with the moving blade.
• While operating the lawnmower, always wear long trousers. Exposed skin increases the likelihood of injury from thrown objects.
• Do not operate the lawnmower in wet grass. Walk, never run. This reduces the risk of slipping and falling which may result in personal injury.
• Do not operate the lawnmower on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
• When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
• Use extreme caution when reversing or pulling the lawnmower towards you. Always be aware of your surroundings. This reduces the risk of tripping during operation.

• Do not touch blades and other hazardous moving parts while they are still in motion. This reduces the risk of injury from moving parts.

• When clearing jammed material or cleaning the lawnmower, make sure all power switches are off and the battery pack is disconnected. Unexpected operation of the lawnmower may result in serious personal injury.

• When clearing jammed material or cleaning the lawnmower, make sure all power switches are off and remove the disabling device. Unexpected operation of the lawnmower may result in serious personal injury.

Residual current device

- Use a residual current device with a tripping current of maximum 30 mA.

General safety instructions

WARNING: Read the warning instructions that follow before you use the product.

• This product is dangerous if used incorrectly or if you are not careful. Injury or death can occur if you do not obey the safety instructions.
• This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this product.
  • Always be careful and use your common sense. If you are not sure how to operate the product in a special situation, stop and speak to your Husqvarna dealer before you continue.
• Keep in mind that the operator will be held responsible for accidents that involve other persons or their property.
• Keep the product clean. Make sure that you can clearly read signs and decals.
• Never allow children or people unfamiliar with these instructions to use the appliance. Local regulations may restrict the age of the operator.
  • Always monitor a person, with decreased physical capacity or mental capacity, that uses the product. A responsible adult must be there at all times.
• Do not use the product if you are tired, ill, or under the influence of alcohol, drugs or medicine. This has a negative effect on your vision, alertness, coordination and judgment.
• Do not use the product if it is damaged or does not operate correctly.
• Do not change this product or use it if it is possible that it has been changed by others.

Work safety

WARNING: Read the warning instructions that follow before you use the product.

• Use this product to cut grass lawns only. It is not permitted to use it for other tasks.
• Use personal protective equipment. Refer to Personal protective equipment on page 7.
• Make sure that you know how to stop the motor quickly in an emergency.
• Do not operate the product in rain or wet conditions. The risk of electrical shock increases if water enters the product.
• Do not operate the product unless the blade and all covers are attached correctly. An incorrectly attached blade can come loose and cause personal injury.
• Make sure that the blade does not hit objects such as stones and roots. This can do damage to the blade and bend the motor shaft. A bent axle causes heavy vibration and a very high risk that the blade becomes loose.
• If the blade hits an object or if vibrations occur, stop the product immediately. Stop the motor, turn the safety key to 0 and remove the battery. Wait until moving parts stop. Examine the product for damages. Tighten loose parts. Repair damages and replace damaged parts. Let an approved service agent do the repair.
• Never attach the motor brake handle permanently to the handle when the motor is started.
• Put the product on a stable, flat surface and start it. Make sure that the blade does not hit the ground or other objects.
  • Always stay behind the product when you operate it.
• Let all the wheels stay on the ground and keep 2 hands on the handle when you operate the product. Keep your hands and feet away from the rotating blades.
• Do not tilt the product when you start the motor or during operation of the product.
• Be careful when you pull the product rearward.
• Never lift up the product when the motor is started. If you must lift the product, first stop the motor, turn the safety key to 0 and remove the battery.
• Do not walk rearward when you operate the product.
• Stop the motor when it is necessary to tilt the product for transportation or before you move across areas without grass, for example paths made of gravel, stone and asphalt.
• Do not run with the product when the motor is started. Always walk when you operate the product.

• Stop the motor before you change the cutting height. Never make adjustments with the motor started.

• Never let the product stay out of view with the motor started. Stop the motor and make sure that the cutting equipment does not rotate.

• The vibrations in the product during operation can be different from the declared vibration value in Technical data on page 22. The difference is caused by variations in how the product is used. If you operate the product frequently or for long periods of time, take breaks regularly to prevent injury from vibrations.

Safety instructions for operation

Personal protective equipment

WARNING: Read the warning instructions that follow before you use the product.

• Personal protective equipment cannot fully prevent injury but it decreases the degree of injury if an accident does occur. Let your dealer help you select the right equipment.
• Use heavy-duty slip-resistant boots or shoes. Do not use open shoes or go with bare feet.
• Use heavy, long pants.
• Use protective gloves when necessary, for example when you attach, examine or clean the cutting equipment.
  • We recommend to use hearing protection.

Safety devices on the product

WARNING: Read the warning instructions that follow before you use the product.

• Do not use a product with safety devices that are damaged or do not operate correctly.
• Do not remove or do modifications to safety devices.
• Do a check of the safety devices regularly. If the safety devices are damaged or do not operate correctly, speak to your Husqvarna service agent.

To do a check of the cutting cover

The cutting cover decreases vibrations in the product and decreases the risk of injury from the blade.

- Examine the cutting cover to make sure that there are no damages such as cracks.

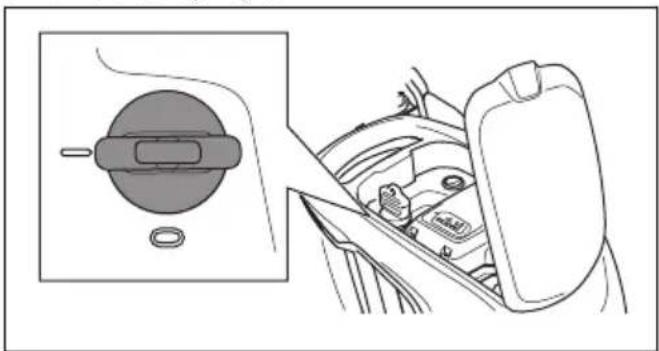

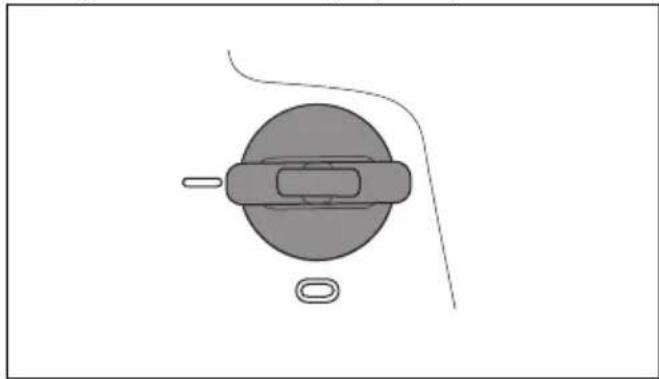

To do a check of the safety key

The safety key is below the battery lid. The safety key connects the battery that supplies the motor with power.

- Start and stop the motor to do a check of the safety key.

- If the safety key operates correctly, the motor can only start when the safety key is in position 1.

Simple line drawing of a mechanical component with no text or symbols

To do a check of the rear cover

The rear cover decreases the risk that objects eject in the direction of the operator.

• Make sure that the rear cover is not damaged.
• Make sure that the springs that close the rear cover are not damaged.
- Replace damaged springs and damaged parts.
• Make sure that the rear cover can move smoothly on the hinges.

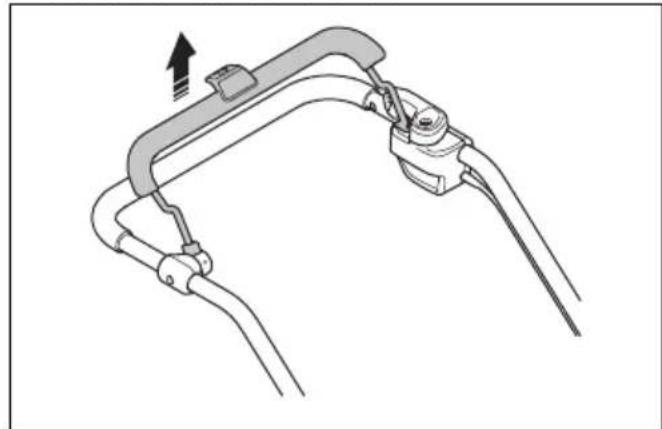

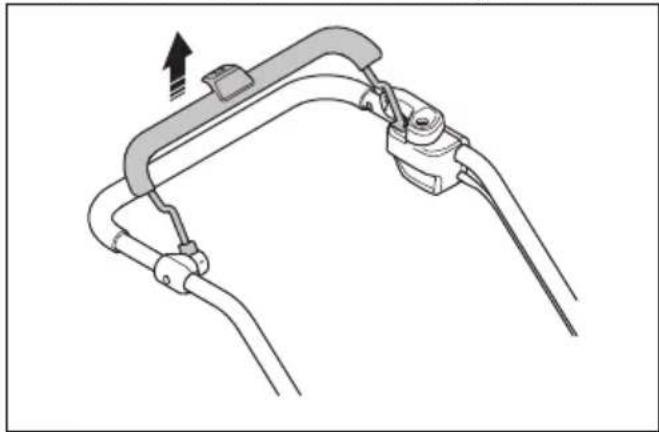

To do a check of the motor brake handle

The motor brake handle stops the motor. When the motor brake handle is released, the motor stops.

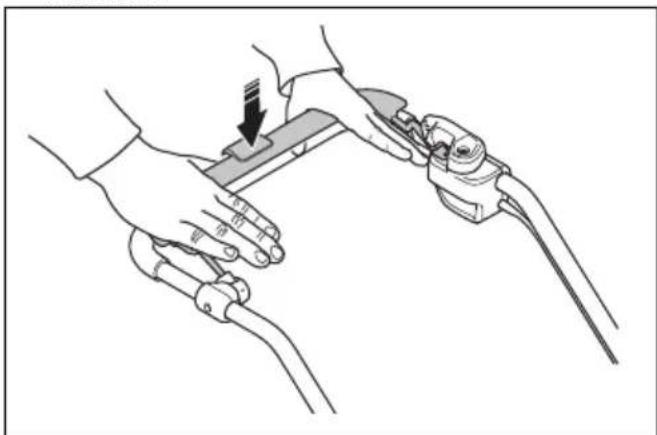

- Start the product. Refer to page 13. To start the product on

- Release the motor brake handle.

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

- Make sure that the product stops. If the motor does not stop in 3 seconds, let an approved Husqvarna service agent adjust the motor brake.

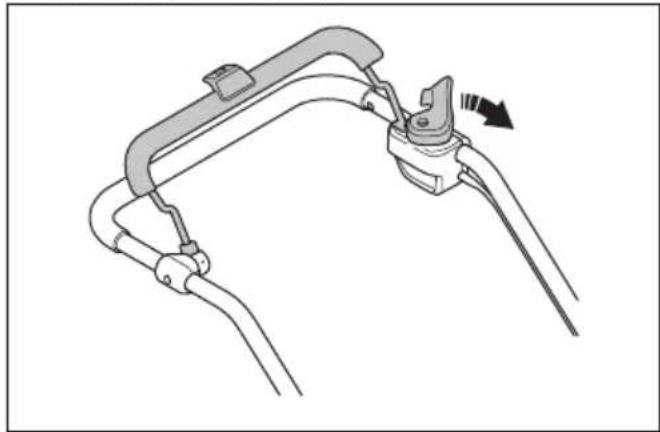

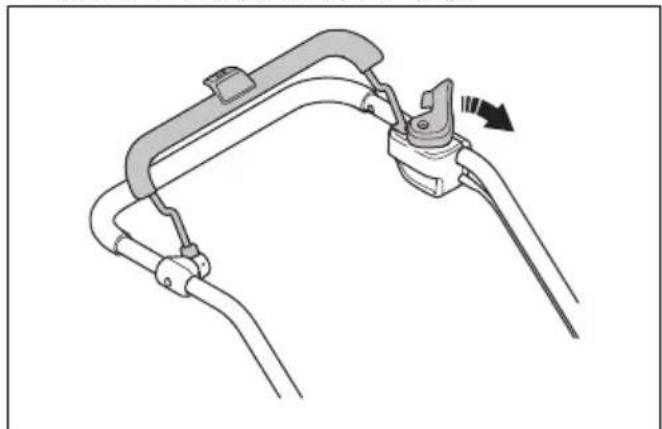

To do a check of the start inhibitor

Do a check of the start inhibitor to make sure that it prevents operation of the motor.

1. Push the motor brake handle in the direction of the handlebar. The start inhibitor stops the movement.

2. Push the start inhibitor out.

Diagram of a car hood with lever mechanism and directional arrow (no text or symbols)

1. Release the start inhibitor and make sure that it goes back to its initial position.

Battery safety

WARNING: Read the warning instructions that follow before you use the product.

• Use Husqvarna rechargeable batteries as a power supply for related Husqvarna products only. To prevent injury, do not use the battery as a power supply for other devices.
• Do not use non-rechargeable batteries.
• Risk of electrical shock. Do not connect the battery terminals to keys, coins, screws or other metal. This can cause a short circuit of the battery.
• Do not put objects into the air slots of the battery.
• Keep the battery away from sunlight, heat or open flame. The battery can explode and cause burns and/or chemical burns.
• Keep the battery away from rain and wet conditions.
• Keep the battery away from microwaves and high pressure.
• Do not try to disassemble or break the battery.
• If the battery leaks, do not let the liquid touch your body or eyes. If you have touched the liquid, clean the area with a large quantity of water and get medical aid.
• Use the battery in the product only when the ambient temperature is between 5^ - 40^ .
• Use the battery charger only when the ambient temperature is between 5^ - 40^ .
• The battery will not charge if the battery temperature is more than 50^ C .
• Do not clean the battery or the battery charger with water. Refer to To clean the battery and the battery charger on page 16.
• Do not use a damaged battery.
• Keep batteries in storage away from metal objects such as nails, coins, jewellery.

Battery charger safety

WARNING: Read the warning instructions that follow before you use the product.

• Use the QC battery chargers to charge Husqvarna replacement batteries only.
• Risk of electrical shock or short circuit. Do not put objects into the air slots of the charger. Do not try to disassemble the battery charger. Do not connect the charger terminals to metal objects. Use an approved mains socket.
• This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this product.
• Regularly make sure that the power cord of the battery charger is not damaged and that there are no cracks in it.
• Do not lift the battery charger by the power cord. To disconnect the battery charger from a mains socket, pull out the plug. Do not pull the power cord.
• Keep the power cord and extension cables away from water, oil and sharp edges. Make sure that the cable is not pinched in doors, fences or equivalent. It can cause the charger to become energized.
• Do not clean the battery charger with water.
• The battery charger can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the battery charger in a safe way and understand the hazards involved. Children shall not play with the battery charger. Cleaning and user maintenance shall not be made by children without supervision.
• Do not charge non-rechargeable batteries in the battery charger.
• Do not use the battery charger near flammable materials or materials that can cause corrosion. Do not cover the battery charger. Pull out the plug to the battery charger if there is smoke or fire.
• Do not use a damaged battery charger.
• Only charge the battery indoors in a room with good airflow and away from sunlight. Do not charge the battery in wet conditions.

Safety instructions for maintenance

WARNING: Read the warning instructions that follow before you use the product.

• To prevent accidental start during maintenance, turn the safety key to 0 and remove the battery.

Wait at minimum 5 seconds before you start the maintenance.

- Only do the maintenance work written in this operator's manual. More extensive work and professional repairs must be done by an approved service agent. Speak to your nearest service agent for more information.

- Do the maintenance work correctly to increase the lifetime of the product and decrease the risk of accidents.

- Replace damaged, worn or broken parts. Always use original spare parts from the manufacturer. Other spare parts can cause damage to the product and increase the risk of accidents.

• To prevent injury, do not remove or do modifications to safety devices.

- Put on heavy duty gloves when you use the cutting equipment. The blade is very sharp and cuts can easily occur.

- Keep the cutting edges sharp and clean for the best and safest performance.

- Let your service agent regularly examine the product and make necessary adjustments and repairs.

- Obey the instructions for how to change accessories. Only use accessories from the manufacturer.

- When not in operation, keep the product, battery and battery charger apart in a dry, indoor and locked area. Make sure that children and persons that are not approved cannot get access to the product, battery or battery charger.

Assembly

Introduction

WARNING: Before you assemble the product, read the safety chapter.

WARNING: To prevent accidental start during assembly, turn the safety key to 0, remove the battery and wait at minimum 5 seconds.

To assemble the handle

Note: It is recommended that 2 persons do this procedure.

Note: Do not remove the product from the box when you assemble the handle. The box can be used for support for the handle during the assembly.

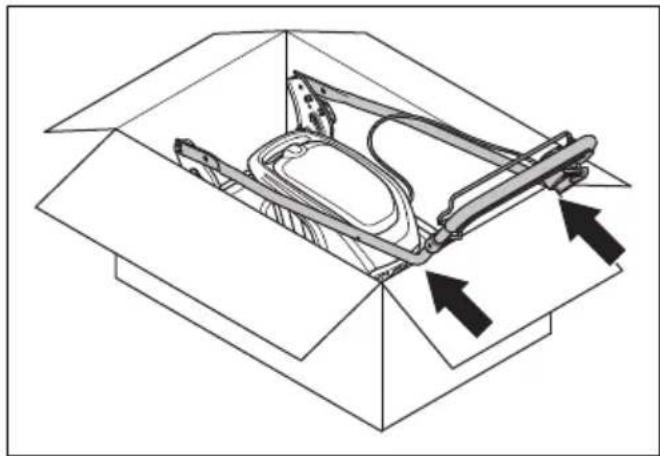

1. Lift and rotate the handle.

Diagram of a car inside an open box with mechanical components, no text or symbols present

CAUTION: Be careful and make sure that the cable does not become damaged when you rotate the handle.

1. Put the handle on top of the product. Tilt the handle against the box for support of the handle. Refer to the illustration.

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

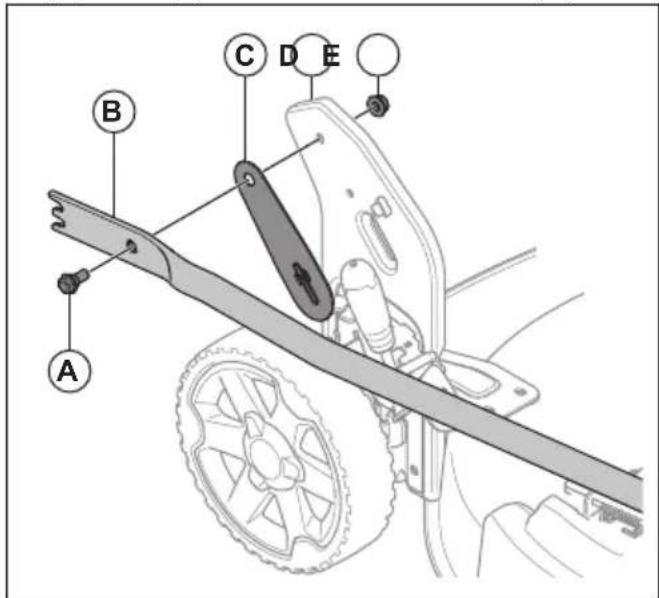

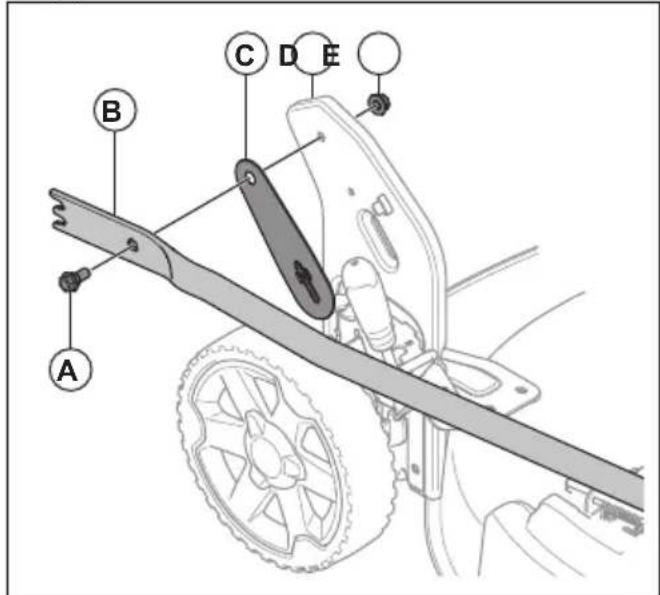

1. Push the screw (A) through the handle (B), the plastic washer (C) and the handle support bracket (D).

A B C D E

1. Tighten the nut (E) fully.

2. Remove the product from the box.

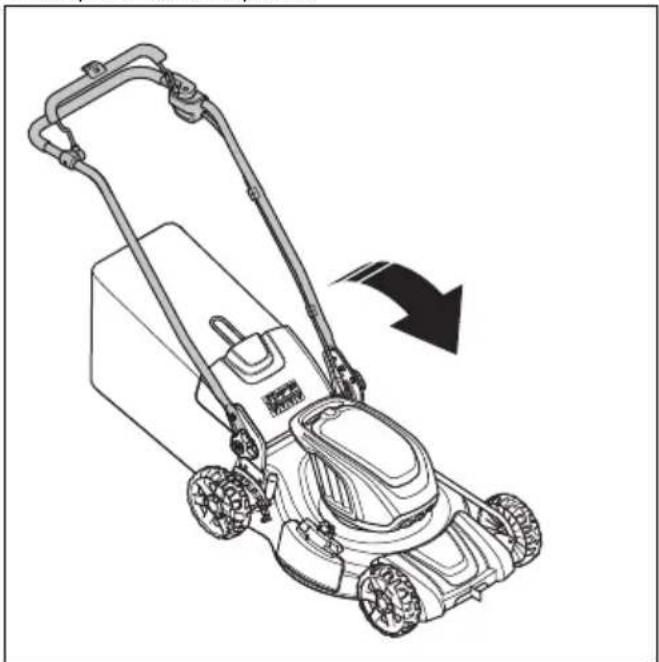

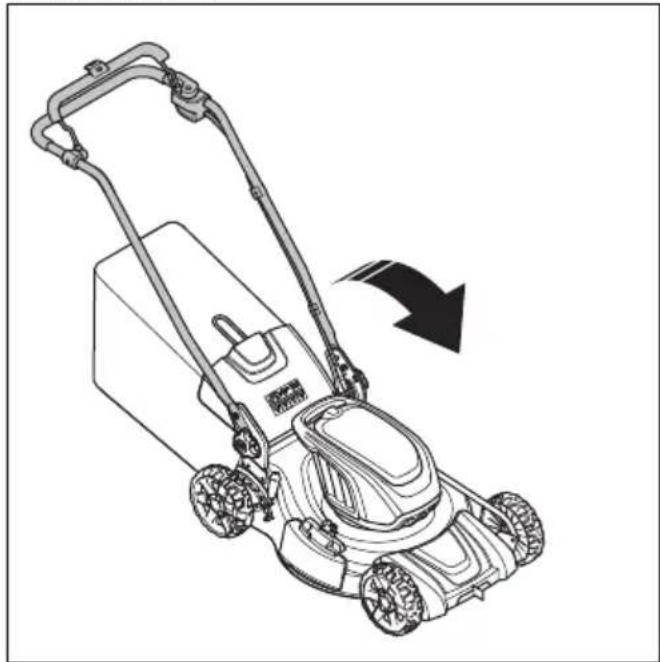

3. Fold the handle to upright position.

Line drawing of a lawn mower with motion arrows indicating maneuvering motion (no text or symbols)

1. Set the handle height to the lowest position. Refer to To adjust the handle on page 11.

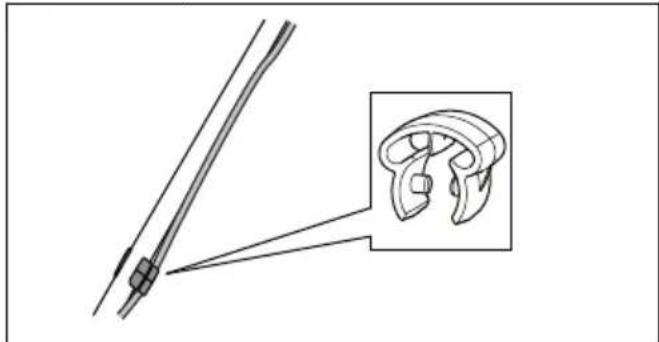

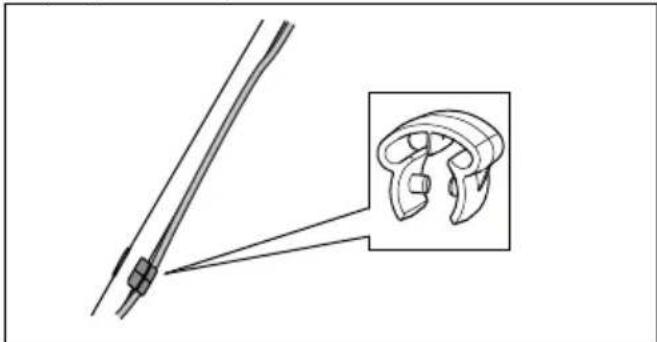

2. Attach the cable to the lower part of the handle with the cable clip.

Diagram of a medical or surgical instrument with an inset showing a magnified view of the instrument (no text or labels present)

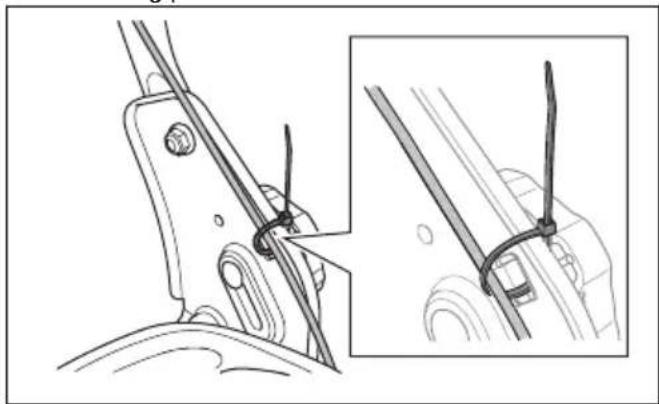

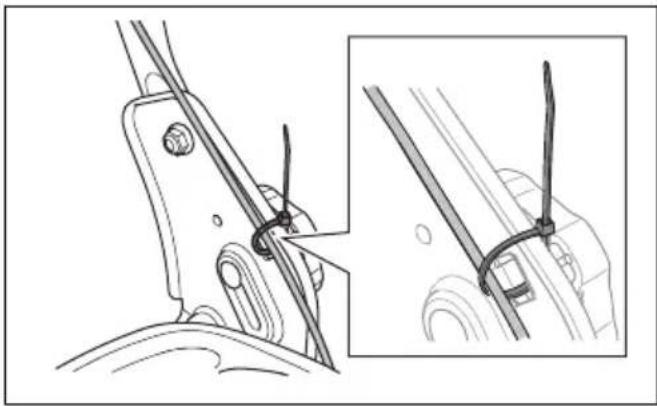

1. Attach the lower part of the cable to the handle support bracket with the cable tie. Cut off the remaining part of the cable tie.

Technical line drawing of a mechanical clamp or bracket assembly with two views (no text or symbols)

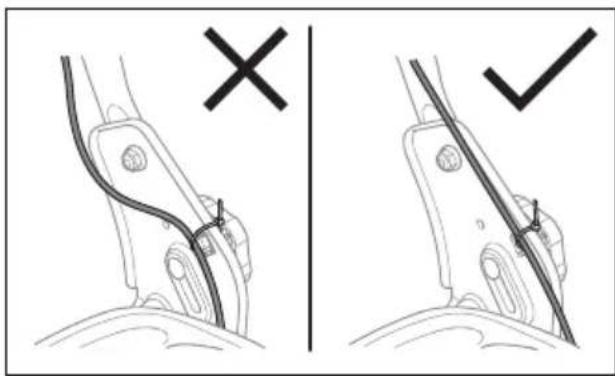

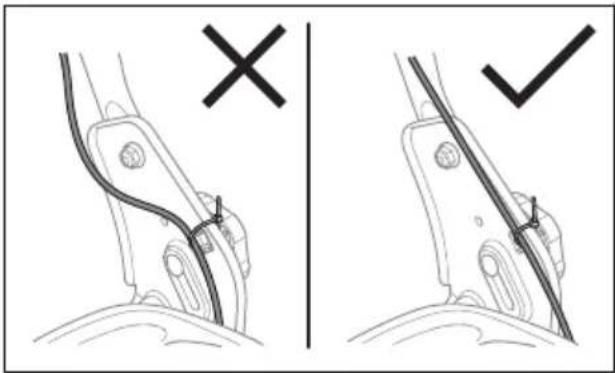

Note: Make sure that the cable is correctly attached. A cable that is too loose cause damage to the cable when the grass catcher is installed.

Technical diagram showing two mechanical assembly states with labeled cross and check symbols indicating alignment or repair points.

To adjust the handle

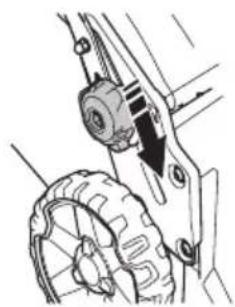

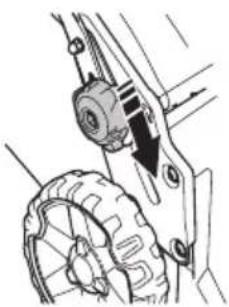

1. Loosen the lower knobs.

2. Move the knobs to the lower end of the grooves on the left and the right side of the product.

3. Set the handle height in one of the 2 available positions.

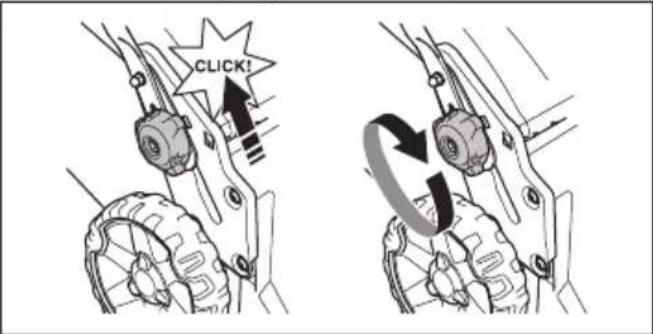

4. Move the knobs up in the direction of the handle until they stop and you hear a click.

CLICK!

1. Tighten the knobs fully.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Operation

Introduction

WARNING: Before you operate the product, you must read and understand the safety chapter.

Husqvarna Connect

Husqvarna Connect is a free app for your mobile device. The Husqvarna Connect app gives extended functions for your Husqvarna product:

• Extended product information.
• Information about, and help with, product parts and servicing.

To start to use Husqvarna Connect

1. Download the Husqvarna Connect app on your mobile device.
2. Register in the Husqvarna Connect app.
3. Do the instruction steps in the Husqvarna Connect app to connect and register the product.

To set the product in operation position

1. Make sure that the lower knobs are loose. Refer to To adjust the handle on page 11.

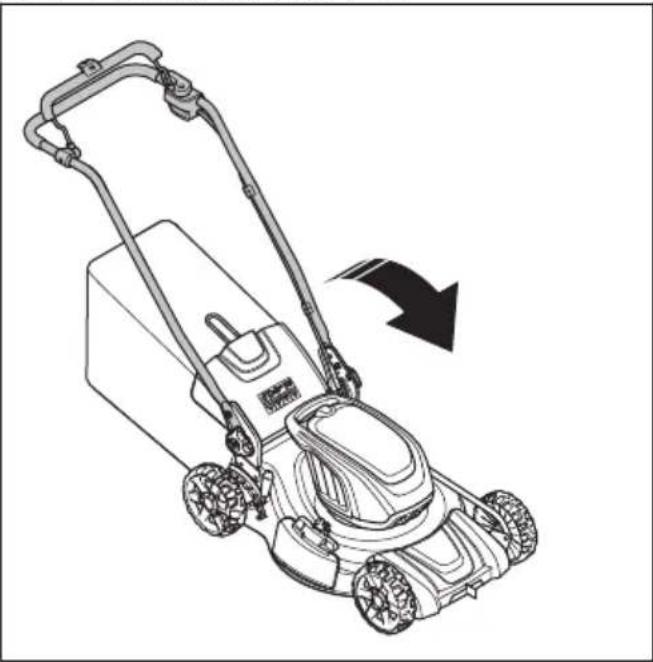

2. Fold the handle to upright position.

Line drawing of a lawn mower with motion arrows indicating maneuver (no text or symbols)

1. Move the knobs up in the direction of the handle until they stop and you hear a click.

CLICK!

1. Tighten the knobs fully.

WARNING: Do not operate the product unless the handle is fully folded up and set in one of the applicable height positions. Refer to To adjust the handle on page 11.

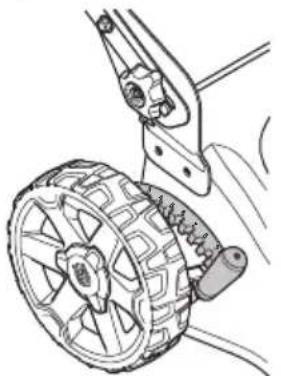

To set the cutting height

1. Move the cutting height lever rearward to increase the cutting height.
2. Move the cutting height lever forward to decrease the cutting height.

Technical line drawing of a mechanical device with a wheel and gear assembly (no text or symbols)

CAUTION: Do not set the cutting height too low. The blades can hit the ground if the surface of the lawn is not level.

Battery

WARNING: Before you use the battery, you must read and understand the safety chapter. You must also read and understand the operator's manual for the battery and the battery charger.

Keep the battery and the battery charger in correct ambient temperatures.

	Ambient temperature
Operation of the bat-tery	5 °C - 40 °C

	Ambient temperature
Charging of the battery	5 °C - 40 °C

Battery status

The display shows the remaining battery capacity and if there are problems with the battery. Push the battery indicator button to get information of the state of charge of the battery. The warning symbol on the battery is on when an error has occurred. Refer to Battery on page 18.

1 2 3 4

LED lights Battery status
All LEDs are lit Fully charged (76-100%)
LED 1, LED 2, LED 3 are lit	The battery is 51%-75% charged
LED 1, LED 2 are lit	The battery is 26%-50% charged
LED 1 is lit	The battery is 6%-25% charged.
LED 1 flashes	The battery is 0%-5% charged.

To charge the battery

Charge the battery before the first use. The battery is only 30% charged when supplied to the customer.

Note: The battery charger must be connected to the voltage and frequency specified on the rating plate.

The battery does not charge if the battery temperature is above 50^ C. The battery charger decreases the temperature of the battery before it starts to charge.

1. Connect one end of the power cord for the battery charger into the socket of the battery charger.

2. Connect the other end of the power cord for the battery charger in an grounded mains socket. The LED on the battery charger flashes green one time.

Line drawing of a device with a warning symbol and connection point (no text or labels)

1. Put the battery in the battery charger. The green light on the charger comes on when the battery is correctly connected to the battery charger.

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

1. When all LEDs on the battery have come on the battery is fully charged. Charge the battery for maximum 24 hours.
2. To disconnect the battery charger from the mains socket, pull the plug, not the power cord.
3. Remove the battery from the battery charger.

To start the product

1. Open the battery lid.
2. Put a charged battery in 1 of the battery holders. For longer operation time, put a second charged battery in the other battery holder.
3. Turn the safety key to 1.

Diagram showing a car seatbelt mechanism with a magnified inset of the seatbelt (no text or symbols present)

1. Stay behind the product.

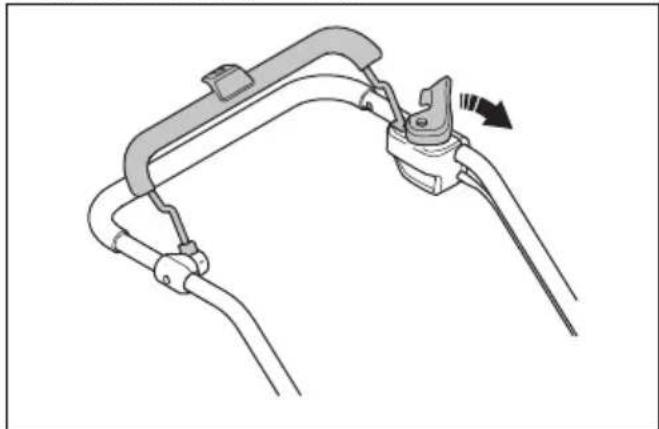

2. Loosen the start inhibitor.

Diagram of a mechanical clamp or bracket with a directional arrow indicating motion (no text or symbols present)

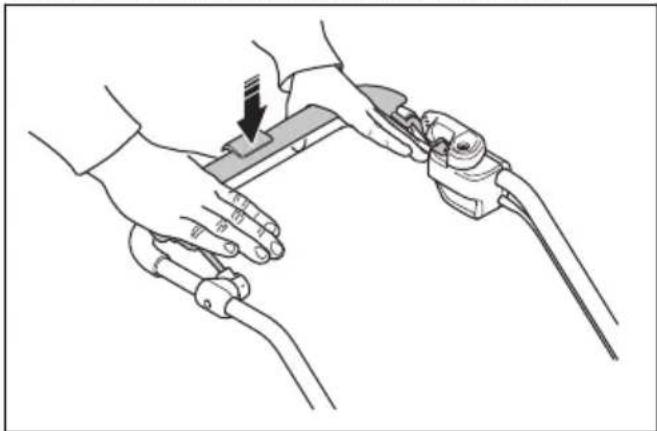

1. Push the motor brake handle in the direction of the handlebar.

Line drawing of two hands operating a tool with a clip, showing a downward arrow indicating motion (no text or symbols present)

To use the drive on the wheels (LC 251iS)

- Push the drive bail in the direction of the handlebar.

Diagram of a mechanical bracket with a curved handle and a directional arrow, no text or symbols present

• Release the drive bail to disengage the drive, for example when you go near an obstacle.
• Before you pull the product rearward, disengage the drive and push the product forward approximately 10 cm.

To use the SavE ^TM function

The product has a battery saving function (SavE ^TM ) that gives longer operation time.

- Push the SavE™ button to position 1 to start the function.

Interior view of a car dashboard with a circular vent and control panel (no text or symbols visible)

- Push the SavE ^TM button to position 0 to stop the function.

Note: The SavE ^™ function stops automatically if the ground conditions make it necessary to have a higher output. The SavE ^™ function starts automatically again when the ground conditions let it.

High load function

When the product cuts long or wet grass, the motor automatically increases rpm. The motor goes back to standard mode when high load is not necessary.

Motor stalling

During operation, the blade and motor can temporarily stop because of obstacles such as grass blockage below the cutting cover. If this occurs and you keep the motor brake handle pushed down, the product restarts automatically. If the product does not restart in 5-10 seconds, it can be necessary to clean below the cutting cover. Refer to To clean the product on page 16

WARNING: If the motor stops, the product tries to restart automatically for 5-10 seconds. Wait for a minimum of 15 seconds before you do a check of the cutting cover.

WARNING: Before a check of the cutting cover, release the motor brake handle, turn the safety key to 0, remove the battery and wait for a minimum of 5 seconds. There is a risk of injury if the obstacle is removed and the product accidentally starts.

To stop the product

WARNING: Turn the safety key to 0 before you let the product out of view.

1. Release the motor brake handle to stop the motor.

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Note: For LC 251iS. To stop the drive of the wheels, release the drive bail.

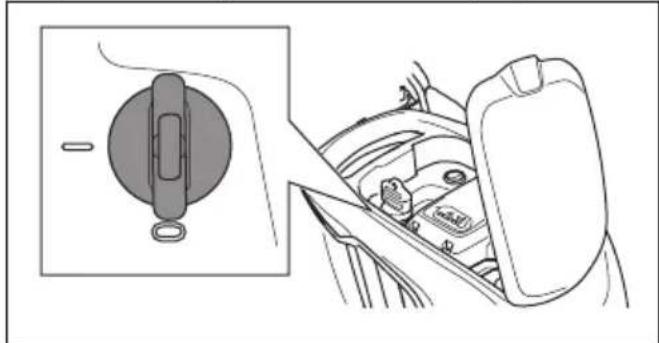

1. Open the battery lid and turn the safety key to 0.

Diagram showing a car interior with a seatbelt and dashboard, no text or symbols present

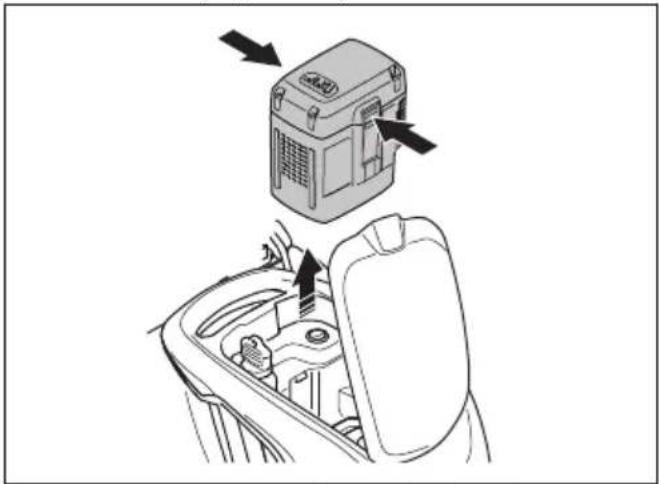

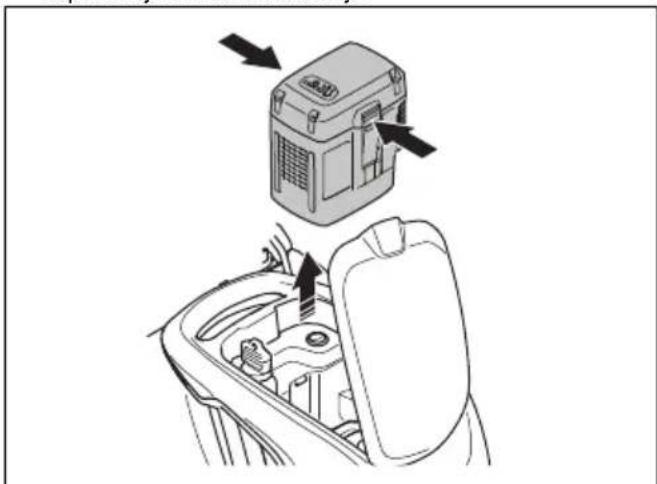

1. To remove the battery, push the 2 release buttons and pull out the battery.

Diagram showing a device with directional arrows pointing to a central component, no text or symbols present

1. Charge the battery if it is weak. For more information, refer to To charge the battery on page 12.

To use the product with the grass catcher

WARNING: Do not operate the product without a grass catcher installed or without the rear cover closed. Objects can eject and cause injury to the operator.

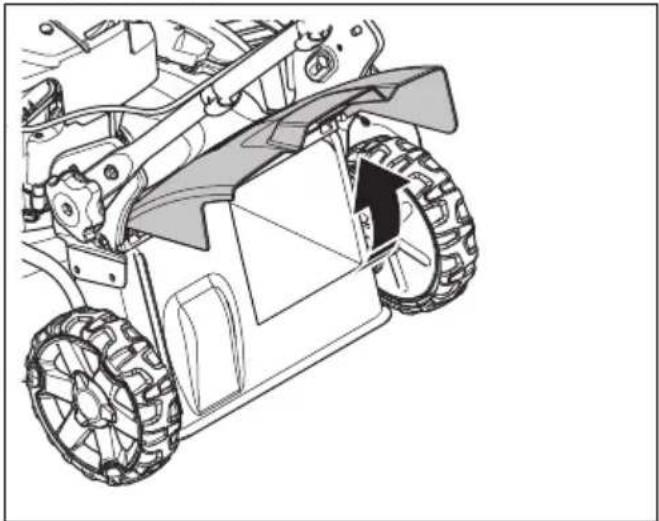

1. Lift the rear cover.

Technical line drawing of a mechanical vehicle with visible wheels and structural components (no text or symbols)

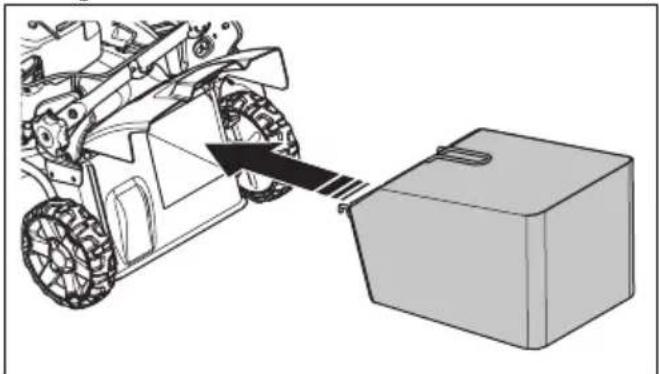

1. Put the grass catcher on the bracket.
2. Release the rear cover and put it on top of the grass bag frame.

Line drawing of a wheeled vehicle with a moving cart and a box, no text or symbols present

To change the product to side discharge mode

1. Lift the rear cover and remove the grass bag, if it is installed.
2. Close the rear cover and make sure that it is tightly closed against the product.

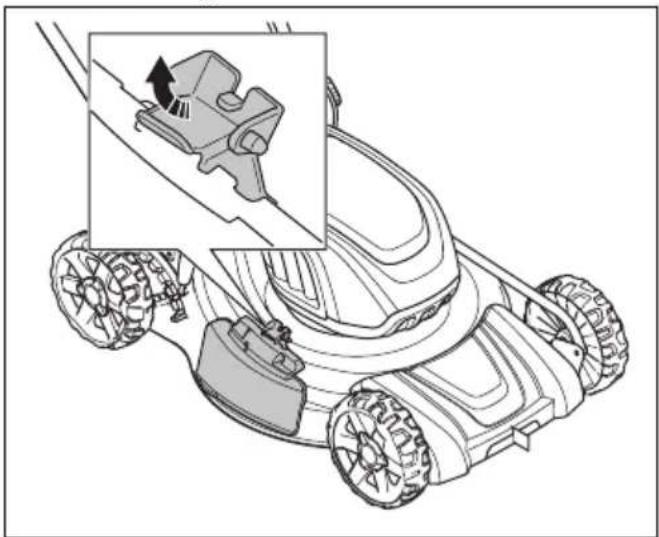

3. Lift the discharge lock.

Line drawing of a lawn mower with a close-up inset showing the blade and handle (no text or symbols)

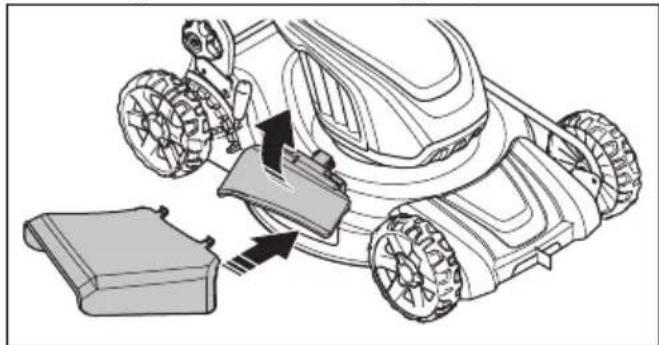

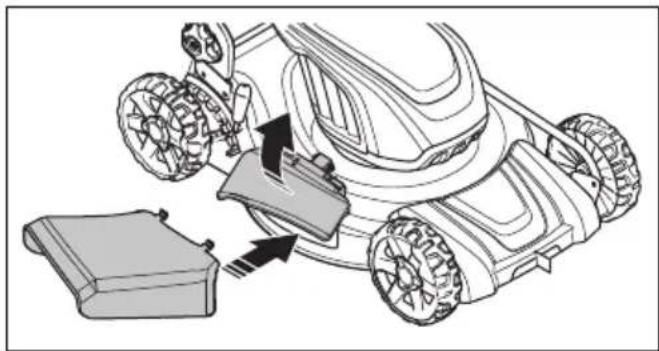

1. Open the side discharge cover and install the side discharge deflector onto the support pins.

Diagram of a robotic car with gear and battery, showing mechanical components and a close-up of the battery (no text or symbols present)

1. Let the side discharge cover close against the side discharge deflector. Make sure that the side discharge deflector is tightly in position before you operate the product.

To empty the grass catcher

CAUTION: Lift the grass catcher when you move it to prevent wear.

1. Lift the grass catcher with the frame handle.
2. Use the frame handle and the bag handle when you empty the grass catcher.

Line drawing of hands holding a tablet device with a scroll wheel, no text or symbols present

To get a good result

• Always use a sharp blade. A blunt blade gives an irregular result and the cut surface of the grass becomes yellow. A sharp blade also uses less energy than a blunt blade.
- Do not cut more than 13 of the length of the grass. Use the highest cutting height when you start to cut the grass. Examine the result and lower the cutting height to an applicable level. If the grass is very long, operate slowly and cut 2 times if it is necessary.
- Cut in different directions each time to prevent stripes in the lawn.
- Lift the rear cover and remove the grass catcher.
- If a mulch plug and a mulch blade are attached, remove them.
- Close the rear cover before you operate the product. When you operate the product, the cut grass discharges below the rear cover.

Maintenance

Introduction

WARNING: Before you do maintenance, you must read and understand the safety chapter.

For all servicing and repair work on the product, special training is necessary. We guarantee the availability of professional repairs and servicing.

For more detailed information, refer to www.husqvarna.com.

Maintenance schedule

The maintenance intervals are calculated from daily use of the product. The intervals change if the product is not used daily.

For maintenance identified with * refer to instructions in Safety on page 3.

	Each use	Monthly	Each season
Do a general inspection X
Clean the product X
Do a check of the start inhibitor * X
Make sure that the safety devices on the product are not defective * X
Examine the cutting equipment X
Examine the cutting cover * X
Do a check of the motor brake handle * X
Examine the battery for damage X
Do a check of the battery charge X
Make sure that the release buttons on the battery operates correctly and that the battery locks into the product	X
Examine the battery charger for damage and make sure that it operates correctly.		X
Examine the connections between the battery and the product. Also examine the connection between the battery and the battery charger.			X

To do a general inspection

- Make sure that the nuts and screws on the product are tightened.

- Make sure that the cables on the product are not in a position where they can get damaged.

To clean the product

- Clean plastic parts with a clean and dry cloth.

- Do not use water to clean the product. Water can enter the battery or the motor and cause short circuit or damage to the product.

- Do not use a high pressure washer to clean the product.

• Do not flush water directly on the motor.
• Use a brush to remove leaves, grass and dirt.

To clean the battery and the battery charger

WARNING: Do not clean the battery or the battery charger with water.

WARNING: Do not use any chemical substances to clean the battery.

• Make sure that the battery and the battery charger are clean and dry before you put the battery into the battery charger.
- Clean the battery terminals with compressed air or use a soft and dry cloth.
- Clean the surfaces of the battery and the battery charger with a soft and dry cloth.

To examine the cutting equipment

WARNING: To prevent accidental start, turn the safety key to 0, remove the battery and wait a minimum 5 seconds.

WARNING: Use protective gloves when you do maintenance on the cutting equipment. The blade is very sharp and cuts can easily occur.

1. Examine the cutting equipment for damage or cracks. Always replace a damaged cutting equipment.
2. Look at the blade to see if it is damaged or blunt.

Note: It is necessary to balance the blade after it is sharpened. Let a service center sharpen, replace and balance the blade. If you hit an obstacle that causes the product to stop, replace the damaged blade. Let the service center estimate if the blade can be sharpened or must be replaced.

To replace the blade

Refer to Technical data on page 22 for the correct type of blade.

WARNING: Lock the blade with a block of wood to prevent injury to fingers when you replace the blade. The blade can be moved when the motor is off and fingers can become trapped between the blade and stationary parts.

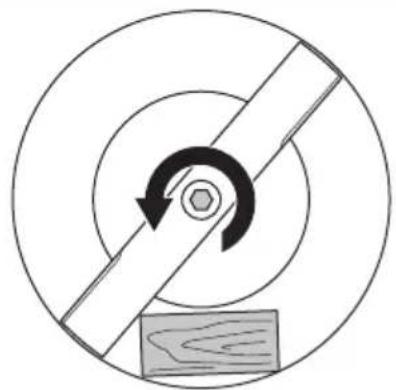

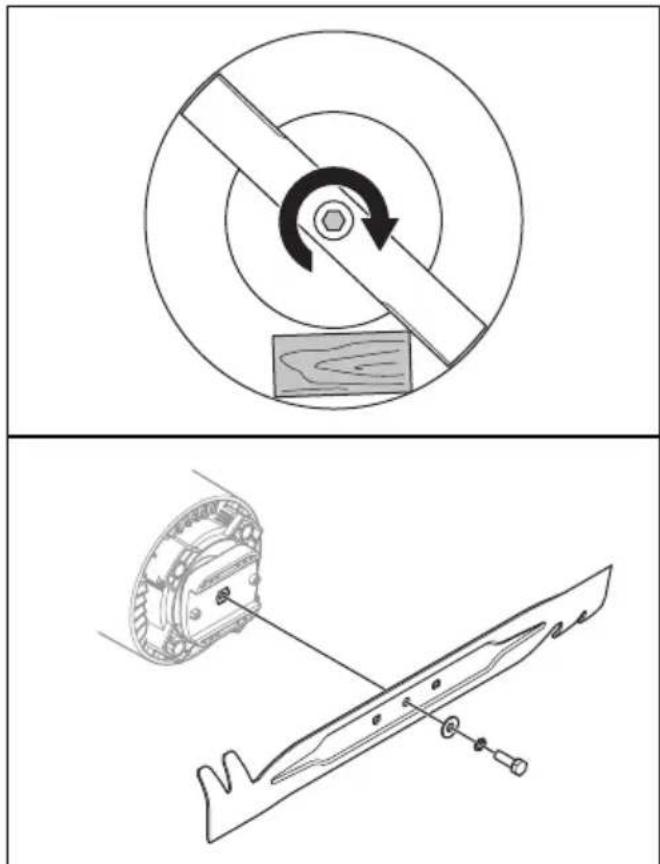

1. Lock the blade with a block of wood.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

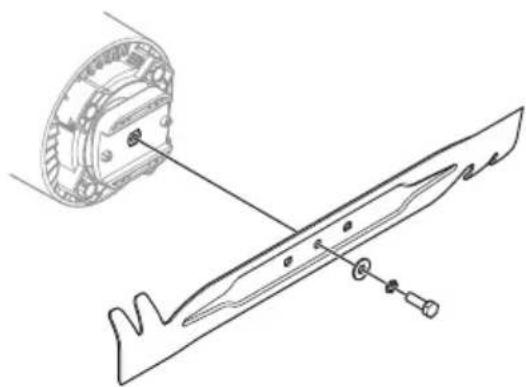

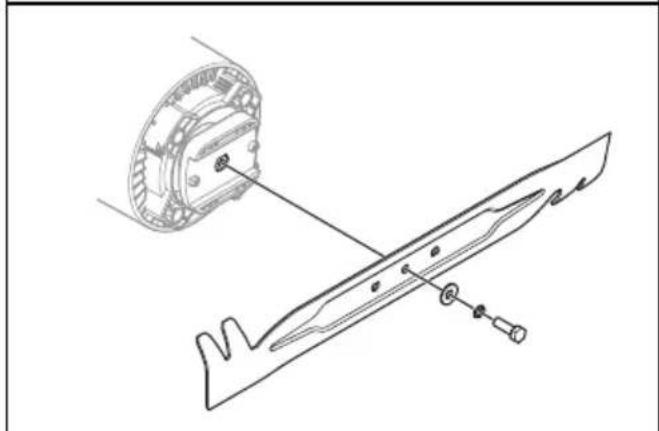

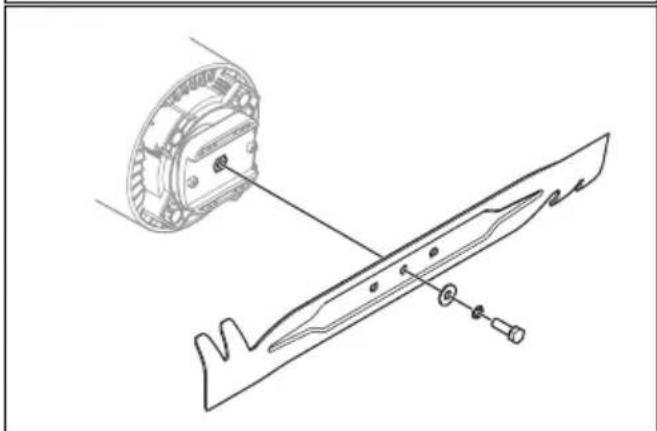

1. Remove the blade bolt, the washers and the blade.

Technical line drawing of a mechanical component with a close-up inset showing a circular component and a blade assembly (no text or symbols)

1. Examine the blade support and blade bolt to see if there are damages.
2. Examine the motor shaft to make sure that it is not bent.
3. When you attach the new blade, point the angled ends of the blade in the direction of the cutting cover.

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

1. Make sure that the blade is aligned with the center of the motor shaft.

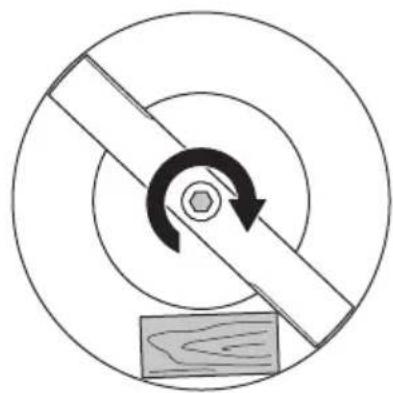

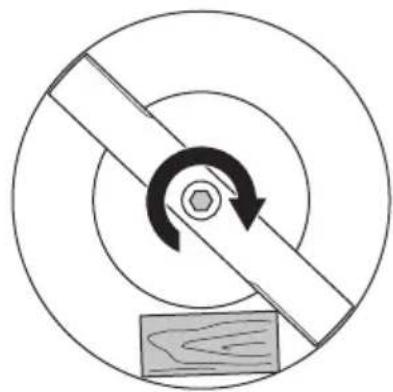

2. Lock the blade with a piece of wood. Attach the washers and tighten the bolt with a torque of 23 - 28 Nm.

Technical diagram showing mechanical components with no visible text or symbols

1. Pull the blade around by hand and make sure that it turns freely.

WARNING: Use heavy duty gloves. The blade is very sharp and cuts can easily occur.

1. Start the product to do a test of the blade. If the blade is not correctly attached, there is vibration in the product or the cutting result is unsatisfactory.

To do a check of the side discharge deflector

The side discharge deflector is attached to the side discharge opening of the product. It decreases the risk of objects to eject in the direction of the mow position of the operator.

1. Make sure that the side discharge deflector is not damaged.
2. Examine the side discharge deflector. Make sure that you do not see defects, such as cracks or broken springs that push the door to close.
3. Replace the side discharge deflector or the springs if they are damaged.

Troubleshooting

Battery

LED on the battery Cause	Solution
The green LED flashes.	The battery voltage is low.	Charge the battery. Refer toTo charge the battery on page 12.
The battery error LED flashes.	The battery is too cold or too hot to use.	Let the battery cool down or move it indoors to warm it up.When the battery has the correct temperature, it can be used again. Use the battery in the product only when the ambient temperature is 5 °C–40 °C.
	The battery is empty. Charge the battery. Refer toTo charge the battery on page 12.
The battery error LED comes on.	There is a permanent battery error.	Speak to your Husqvarna servicing dealer.

Battery charger

LED on the battery charger	Cause Solution
The error LED flashes or comes on.	The battery charger is too cold or too hot to use.	Let the battery charger cool down or move it indoors to warm it up. When the battery charger has the correct temperature, it can be used again. Use the battery charger when the ambient temperature is 5 °C–40 °C.
	Other errors. Speak to your Husqvarna servicing dealer.

Lawn mower

The warning indicator (error LED) is found below the battery lid.

Problem Error LED (number of flashes)	Cause Solution
Error LED flash-es. The product does not operate correctly.	3 The blade is blocked. Turn the safety key to 0 to prevent ac- cidental start. Remove the battery and wait a minimum of 5 seconds. Remove possible obstacles and make sure that the blade can rotate freely. If the prob- lem continues, speak to your Husqvarna servicing dealer.
	5 The motor speed drops too much, and the motor stops.	Increase the cutting height. Refer to To set the cutting height on page 12.
	6^1	The wheels or transmission is blocked. Turn the safety key to 0 to prevent ac- cidental start. Remove the battery and wait a minimum of 5 seconds. Remove the possible obstacles and make sure that the wheels can rotate freely. If the problem continues, speak to your Husq- varna servicing dealer.
	10 The motor control is too hot. Stop the motor and wait until it has be- come cool.
Error LED flashes. The product stops.	No flashes Battery connector failure. Examine the battery connector.
	3 There is overload in the mo- tor.	Increase the cutting height. Refer to To set the cutting height on page 12.
	8 The battery is weak. Charge the battery. Refer to To charge the battery on page 12.
	9 Battery error or no signal from battery.	Put the battery in the product correctly and examine the battery connector. If the error LED on the battery flashes. Refer to Battery on page 18.
	15 Incorrect start procedure. The motor brake handle has been engaged before the motor starts.	Release the motor brake handle and wait approximately 5 seconds. Push the motor brake handle down again to start the product.
Other errors. If other	errors occur, turn the safety key to 0, remove the battery and speak to your Husqvarna servicing dealer.

Transportation, storage and disposal

Introduction

WARNING: To prevent accidental start during transport and storage turn the safety key to 0, remove the battery and wait a minimum of 5 seconds.

To set the product in transport position

1. Loosen the lower knobs.
2. Move the knobs to the lower end of the grooves on the left and the right side of the product.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. Fold the handle forward.

Line drawing of a lawn mower with a directional arrow indicating left motion (no text or symbols)

Transportation

• The Dangerous Goods Legislation requirements apply to the contained Li-ion batteries.
• For commercial transports special requirements on package and labels must be obeyed.
  • Make sure that you obey the regulations for dangerous material when you prepare the product for transport. Local regulations can apply.
  • Always remove the battery for transport.
• Put tape on the battery connectors and make sure that the battery cannot move around during transport.
• Attach the product during transport.

Storage

• Before storage, let the product become cool.
  • Always remove the battery for storage.
  • To prevent accidents, make sure that the battery is not connected to the product during storage.
• Keep the battery charger in a closed and dry space.

- Keep the battery and the battery charger in a dry space where there is no moisture or frost.

- Disconnect the battery from the battery charger during storage.

- Do not keep the battery where static electricity can occur. Do not keep the battery in a metal box.

- Keep the product where the ambient temperature is between -10^ and 40^ .

- Keep the battery where the ambient temperature is between 5 °C and 25 °C and out of sunlight.

- Keep the battery charger where the ambient temperature is between 5 °C and 45 °C and out of sunlight.

• Make sure that the battery is charged to 30% - 50% before you put it in storage for long periods.

- Keep the product, battery and battery charger in a locked area out of reach for children and not approved persons.

- Clean the product and make sure that the grass catcher is empty.

- Do the maintenance procedures given in this operator's manual. Refer to Maintenance on page 16.

- Do a complete servicing before you put the product in storage for a long time.

Disposal

Symbols on the product or the packaging of the product indicate that this product cannot be handled as domestic waste. It must be submitted to an appropriate recycling station for the recovery of electrical and electronic equipment.

By ensuring that this product is taken care of correctly, you can help to counteract the potential negative impact on the environment and people that can otherwise result through the incorrect waste management of this product. For more detailed information about recycling this product, contact your municipality, your domestic waste service or the shop from where you purchased the product.

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

Technical data

Technical data

	LC 251i LC 251iS
Cutting motor
Motor type BLDC (brushless)36V BLDC (brushless)36V
Motor speed - SavE, rpm 2600/min 2600/min
Motor speed - Nominal, rpm 3000/min 3000/min
Motor speed - High load, rpm 3500/min 3500/min
Motor output - max. kW 1.4 1.4
Motor output - Nominal, kW 0.9 0.9
Drive motor
Motor output - Nominal, kW N/A 0.4
Self walk speed, km/h N/A 4.0
Speed adjustment levels N/A 1
Weight
Weight without bag (excl. battery), kg 25.5 27
Weight with bag (incl. 2 x BLi30), kg 31.5 33
Battery
Type of battery	Husqvarna Battery Series	Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 7.5 Ah battery (Bli30).	58	51
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 7.5 Ah battery (Bli30).	42	38
Noise emissions ^2
Sound power level, measured dB (A)	96	96
Sound power level, guaranteed LWA dB (A)	98	98
Sound levels ^3
Sound pressure level at the operator's ear, dB (A)	85	85
Vibration levels ^4
Handle, m/s^2	0.7 0.7
Cutting equipment
Cutting height, mm 25-75 25–75
Cutting width, mm 510 510
Blade - standard Collection 5928704-01 Collection 5928704-01
Grass catcher capacity, liter 65 65

Approved batteries Type Battery capacity,	Ah	Voltage, V Weight, lb/kg
BLi30 Lithium-ion 7.5 36 4.2/1.9
40-B140	Lithium-ion 4.0 36 2.6/1.2

Approved chargers for the specified batteries, BLi	Input voltage, V	Frequency, Hz	Power, W
40-C80	100-240	50-60	68.8
QC250	100–240 50–60	250

Declaration of Conformity

EU Declaration of Conformity

We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: [phone], declare on our sole responsibility that the product:

Description Lawn Mower
Brand Husqvarna
Type / Model LC 251i, LC 251iS
Identification Serial numbers dating from 2023 and onwards

complies fully with the following EU directives and regulations:

Regulation Description
2006/42/EC "relating to machinery"
2014/30/EU "relating to electromagnetic compatibility"
2000/14/EC "relating to the noise emissions in the environment"
2011/65/EU	"on the restriction of the use of certain hazardous substances in electrical and electronic equipment"

and that the following standards and/or technical specifications are applied: EN 62841-1:2015/AC:2015, EN IEC 62841-4-3:2021/A11:2021, EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC 63000:2018

Notified Body: 0404, SMP Svensk Maskinprovning AB, Box 4053, SE-904 03 Umeå, Sweden has certified conformity with the council's directive 2000/14/EC, conformity assessment procedure: Annex VI.

For information relating to noise emissions, refer to Technical data on page 22.

Huskvarna, 2023-12-11

$$ \Delta s \mathrm {d u} $$

Claes Losdal, Development Manager/Garden Products Husqvarna AB

Responsible for technical documentation

UK Declaration of Conformity

We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel:

[phone], declare on our sole responsibility that

the product:

Description Lawn Mower
Brand Husqvarna
Type / Model LC 251i, LC 251iS
Identification Serial numbers dating from 2023 and onwards

complies fully with the following UK regulations:

Description

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

The Supply of Machinery (Safety) Regulations 2008

Electromagnetic Compatibility Regulations 2016

The Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001, schedule 9

and that the following standards and/or technical specifications are applied: EN 62841-1:2015/AC:2015, EN IEC 62841-4-3:2021/A11:2021, EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC 63000:2018

Notified Body: 0404, SMP Svensk Maskinprovning AB, Box 4053, SE-904 03 Umeå, Sweden has certified conformity with the council's directive 2000/14/EC, conformity assessment procedure: Annex VI.

For information relating to noise emissions, refer to Technical data on page 22.

Huskvarna, 2023-12-11

UK Importer:

Husqvarna UK Ltd

Preston Road, Co. Durham

DL5 6UP

$$ \Delta \cdot 2 m $$

Claes Losdal, Development Manager/Garden Products Husqvarna AB

Responsible for technical documentation

Съдържание

Technical diagram of a lawn mower with numbered parts and labeled parts for identification

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with no text or symbols

Diagram of a mechanical clamp or bracket assembly with directional arrow (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of an open box with internal components and a mechanical lever, showing no text or symbols.

ВНИМАНИЕ: Бъдете

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Diagram of a medical or surgical device with an inset showing a cross-sectional view of the device (no text or labels present)

Technical line drawing showing mechanical assembly with bracket and cable, plus close-up detail of a tool (no text or symbols)

Technical diagram showing two mechanical assembly states with labeled cross and check symbols indicating alignment or repair points.

Mechanical assembly diagram showing two stages of gear meshing with rotational motion arrows (no text or labels)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and attached components (no text or symbols)

Line drawing of a device with a wall-mounted switch and warning symbol, connected to a cable (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Diagram showing a car interior with a steering wheel and dashboard, alongside a close-up of the wheel (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of two hands operating a robotic device with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical bracket with an arrow indicating direction (no text or symbols)

Interior view of a car showing the dashboard and seatbelt with no visible text or symbols

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram showing a car interior with a seatbelt and a side view of the wheel (no text or symbols)

Diagram showing a device with directional arrows pointing to a central component, no text or symbols present.

Technical line drawing of a wheeled vehicle with large tires and mounting brackets (no text or symbols)

Diagram showing a vehicle with a moving cart and a box, no text or symbols present

Line drawing of a lawn mower with an inset showing the blade and handle mechanism (no text or symbols)

Diagram of a robotic car with wheels and a battery, showing mechanical components and directional arrows (no text or symbols)

Line drawing of hands holding a tablet device with a scroll wheel (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the bottom (no text or symbols)

Technical line drawing of a mechanical component with a close-up inset showing a circular component and a blade assembly (no text or symbols)

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating shaft, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a circular component inserted into a housing (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with a black arrow indicating clockwise motion (no text or symbols)

Транспортиране

Diagram showing two waste sorting bins with crossed-out recycling symbols, indicating no disposal or recycling.

Технически характеристики

Технически характеристики

Technical diagram of a lawn mower with numbered parts and labeled parts for identification

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with no text or symbols

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of a car inside an open box with a mechanical lever and cable attachment (no text or symbols)

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating maneuver (no text or symbols)

Diagram of a medical or surgical device with an inset showing a magnified view of the internal structure (no text or symbols present)

Technical line drawing showing mechanical clamping or fastening process with no visible text or symbols

Technical diagram showing two mechanical assembly states with cross and check symbols indicating different connection types.

Nastavení rukojeti

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Provoz

Úvod

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and attached components (no text or symbols)

Diagram showing a device control panel with numbered labels and warning indicators, alongside a 3D model of a device.

Line drawing of a device with a warning symbol and a terminal block (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Diagram showing a car seatbelt and its side view of the dashboard (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Illustration of two hands using a tool to adjust or install a component, with a downward arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical bracket or clamp assembly (no text or symbols)

Interior view of a car showing the dashboard and steering wheel (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with directional arrow (no text or symbols)

Diagram showing a car interior with a circular component and a side view of the dashboard (no text or symbols)

Diagram showing a device inside a car intake frame with arrows indicating motion or assembly (no text or symbols present)

Technical line drawing of a wheeled vehicle with large tires and a flat roof (no text or symbols)

Diagram showing a robotic arm pulling a box to lift a cart (no text or symbols present)

Line drawing of a lawn mower with an inset showing the blade and handle mechanism (no text or symbols)

Diagram of a robotic car with wheels and a battery, showing mechanical components and motion arrows (no text or symbols)

Line drawing of hands holding a flatboard with a tool, partially covered by a pile of material (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical component with a close-up inset showing a circular component inserted into a slot (no text or symbols)

Diagram showing a blade under load with arrows indicating direction, above grass (no text or symbols)

Technical diagram showing mechanical components with no visible text or symbols

Mechanical assembly diagram showing two stages of a gear mechanism with rotational motion arrows (no text or labels)

Line drawing of a lawn mower with a black arrow indicating clockwise motion (no text or symbols)

Přeprava

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Technické údaje

Technické údaje

Technical diagram of a lawn mower with numbered parts and labeled parts for identification

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with a circular body and rectangular shaft, no text or symbols present.

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of a car inside an open box with a mechanical device and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating maneuvering motion (no text or symbols)

Diagram of a medical or surgical device with an inset showing a magnified view of the internal structure (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly with an inset showing close-up details (no text or symbols)

Technical diagram showing two mechanical assembly states labeled X and ✓, with symbols indicating connection points.

Mechanical assembly diagram showing two stages of gear meshing and rotational motion (no text or symbols)

Drift

Indledning

Line drawing of a lawn mower with motion arrows indicating maneuvering motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and attached components (no text or symbols)

Line drawing of a device with a warning symbol and connection point (no text or labels)

Line drawing of a power supply unit with a black arrow pointing to its side panel (no text or symbols present)

Diagram showing a car interior with a steering wheel and dashboard, alongside a close-up of the steering wheel (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Illustration of two hands using a tool to adjust or install a component, with a downward arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical bracket or bracket with a curved handle and arrow indicating direction (no text or symbols)

Interior view of a car showing the dashboard and steering wheel (no text or symbols visible)

- Tryk SavE ^TM -knappen til position 0 for at standse funktionen.

Diagram of a mechanical clamp or bracket assembly with directional arrow (no text or symbols)

Diagram showing a car interior with a steering wheel and dashboard, alongside a close-up of the wheel (no text or symbols present)

Diagram showing a device with directional arrows pointing to a central component, no text or symbols present.

Technical line drawing of a wheeled vehicle with visible wheels and structural components (no text or symbols)

Diagram showing a vehicle being pulled into a box, with no visible text or symbols

Line drawing of a lawn mower with a close-up inset showing the blade and handle (no text or symbols)

Diagram of a robotic car with two wheels and a battery, showing mechanical components and directional arrows (no text or symbols)

Line drawing of hands holding a tablet with a clip, showing particle dispersion (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the bottom (no text or symbols)

1. Fjern knivbolten, skiverne og kniven.

Technical line drawing of a mechanical component with a close-up inset showing a gear assembly (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a circular component (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with a directional arrow indicating left motion (no text or symbols)

Transport

Diagram showing two crossed recyclable waste bins with recycling symbols, indicating no recyclable waste or non-recyclable waste.

Tekniske data

Tekniske data

Technical diagram of a lawn mower with numbered parts and labeled parts for identification.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with a circular body and rectangular slot, no text or symbols present.

Diagram of a mechanical clamp or bracket with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a car inside an open box with a mechanical linkage and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with an arrow indicating clockwise motion (no text or symbols)

Diagram of a medical or surgical device with a magnified inset showing internal components (no text or labels)

Technical line drawing showing mechanical assembly with two views of a cable or wire clamp (no text or symbols)

Technical diagram showing two mechanical assembly states with cross and check symbols indicating alignment or repair points.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Betrieb

Einleitung

Line drawing of a lawn mower with motion arrows indicating maneuvering motion (no text or symbols)

Line drawing of a mechanical device with a wheel and attached bracket (no text or symbols)

Line drawing of a device with a warning symbol and connection point (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its side (no text or symbols present)

Diagram showing a car interior with a steering wheel and dashboard, alongside a close-up of the wheel (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Illustration of hands using a tool to adjust or install a component, showing a downward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical bracket or bracket with a curved handle and mounting bracket (no text or symbols)

Interior view of a car showing the dashboard and steering wheel (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram showing a car interior with a switch and gear shift, no text or symbols present

Diagram showing a device with arrows pointing to a component inside a car's gear (no text or symbols)

Technical line drawing of a mechanical vehicle with visible wheels and structural components (no text or symbols)

Diagram of a robotic arm pulling a box, showing mechanical components and motion direction (no text or symbols)

Line drawing of a lawn mower with a close-up inset showing the blade and handle (no text or symbols)

Technical illustration of a lawn mower with a battery and mechanical component (no text or symbols)

Line drawing of hands holding a tablet device with a scroll wheel, no text or symbols present

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical component with a close-up view showing a circular component inserted into a blade (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above a grassy field (no text or symbols)

Diagram of a mechanical gear or pulley system with rotational arrow and base plate (no text or symbols)

Technical line drawing of a mechanical component with a close-up inset showing a circular component (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with a black arrow indicating clockwise motion (no text or symbols)

Transport

Diagram showing two crossed recycling bins with a recycling symbol and no text or labels

Technical diagram of a lawn mower with numbered parts and labeled parts for identification

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with a circular body and rectangular slot, no text or symbols present.

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a car inside an open box with a mechanical component, showing no text or symbols.

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Diagram of a medical or surgical device with a magnified inset showing internal components (no text or labels)

Technical line drawing of a mechanical clamp or bracket assembly with an inset showing close-up details (no text or symbols)

Technical diagram showing two mechanical assembly states with labeled cross and check symbols indicating alignment or repair points.

Ρύθμιση της λαβής

Mechanical assembly diagrams showing gear and motor components with rotational motion arrows (no text or labels)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and attached bracket (no text or symbols)

Diagram showing a device panel with four labeled buttons and an external device, illustrating a process or connection.

Line drawing of a device with a D button and warning symbol connected to a cable (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Line drawing of a car interior showing steering wheel, dashboard, and seatbelt (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating movement (no text or symbols present)

Line drawing of two hands holding a tool with a clip, showing a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical bracket with an arrow indicating direction (no text or symbols)

Interior view of a car dashboard with control panel and driver shift (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with directional arrow (no text or symbols)

Diagram showing a car interior with a steering wheel and dashboard, alongside a close-up of the wheel (no text or symbols present)

Diagram showing a device with arrows pointing to a component inside a car intake frame (no text or symbols)

Technical line drawing of a mechanical vehicle with visible wheels and mounting brackets (no text or symbols)

Diagram of a vehicle being pulled into a box, showing motion and structural details (no text or symbols)

Line drawing of a lawn mower with an inset showing the blade assembly (no text or symbols)

Technical illustration of a lawn mower with gear and base components (no text or symbols)

Line drawing of hands holding a tablet device with a scroll wheel, no text or symbols present

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the bottom (no text or symbols)

Technical line drawing of a mechanical component with a close-up inset showing a circular component inserted into it (no text or symbols present)

Diagram showing a blade under load with arrows indicating force direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a circular component inserted into a slot (no text or symbols)

Mechanical assembly diagrams showing two configurations of a gear or cam mechanism with no visible text or symbols

Line drawing of a lawn mower with a black arrow indicating clockwise motion (no text or symbols)

Μεταφορά

Diagram showing two crossed recycling bins with a recycling symbol and no text or labels

Τεχνικά στοιχεία

Τεχνικά στοιχεία

Technical diagram of a lawn mower with numbered parts and labeled parts for identification.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with a circular body and rectangular shaft, no text or symbols present.

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical assembly inside an open box, showing internal components and motion arrows (no text or symbols)

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with an arrow indicating clockwise motion (no text or symbols)

Diagram of a medical or surgical device with an inset showing a magnified view of the internal structure (no text or symbols present)

Technical line drawing showing mechanical assembly with a close-up inset of a cable being inserted (no text or symbols)

Technical diagram showing two mechanical assembly states labeled X and ✓, with arrows indicating connection points.

Ajuste del mango

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with an arrow indicating clockwise motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and spring mechanism (no text or symbols)

Diagram showing a device with four labeled buttons connected to a rack-mounted device, indicating status or connection.

Line drawing of a device with a warning symbol and connection point (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Diagram showing a car seatbelt switch and its internal components (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of two hands operating a robotic device with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical bracket with a curved handle and a small arrow indicating direction (no text or symbols)

Interior view of a car showing the dashboard and steering wheel (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram showing a car interior with a door panel and a side view of the dashboard (no text or symbols)

Diagram showing a device with directional arrows pointing to a central component, no text or symbols present.

Technical line drawing of a tracked vehicle with visible wheels and structural components (no text or symbols)

Diagram of a vehicle with a moving cart and a box, showing motion direction (no text or symbols)

Line drawing of a lawn mower with a close-up inset showing the blade and handle mechanism (no text or symbols)

Technical illustration of a lawn mower with gear and battery components (no text or symbols)

Line drawing of hands holding a tablet device with a scroll wheel, no text or symbols present

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the bottom (no text or symbols)

Technical line drawing of a cutting tool with a close-up inset showing the blade and handle (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical gear or pulley system with rotational arrow and base block (no text or symbols)

Technical line drawing of a mechanical component with a close-up inset showing a circular housing and a blade assembly (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with rotating components (no text or labels)

Line drawing of a lawn mower with a black arrow indicating clockwise motion (no text or symbols)

Transporte

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

Datos técnicos

Datos técnicos

Technical diagram of a lawn mower with numbered parts and labeled parts for identification

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with a circular body and rectangular plate (no text or symbols)

Tagumise katte kontrollimine

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a car inside an open box with a mechanical arm and gear assembly, showing no text or symbols.

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating maneuvering motion (no text or symbols)

Diagram of a medical or surgical device with an inset showing a magnified view of the internal structure (no text or symbols present)

Technical line drawing showing mechanical clamping mechanism with no visible text or symbols

Technical diagram showing two mechanical assembly states with cross and check symbols indicating alignment or repair points.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Töö

Sissejuhatus

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and attached components (no text or symbols)

Line drawing of a device with a switch and warning symbol, connected to a wall-mounted device (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Diagram showing a car interior with a steering wheel and dashboard, alongside a close-up of the wheel (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of two hands operating a tool with a device, showing a downward arrow indicating motion (no text or symbols present)

Veo kasutamine ratastel (LC 251iS)

Diagram of a mechanical bracket with a curved handle and a triangular component, no text or symbols present

Interior view of a car dashboard with a circular vent and control panel (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with an arrow indicating direction (no text or symbols present)

Diagram showing a car interior with a circular switch and directional arrow, no text or symbols present

Diagram showing a device with arrows pointing to a component inside a car's gear (no text or symbols)

1. Laadige akut, kui see on tühjenenud. Lisateavet vt Aku laadimine Ik 183.

Technical line drawing of a mechanical vehicle with visible wheels and structural components (no text or symbols)

Illustration of a robotic arm pulling a box with a directional arrow (no text or symbols)

Line drawing of a lawn mower with a close-up inset showing the blade and handle mechanism (no text or symbols)

Diagram of a robotic car with gear and battery, showing mechanical components and directional arrows (no text or labels)

Line drawing of hands holding a flatboard with a clip, partially covered by a plastic sheet (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a circular component (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical gear or pulley system with rotational arrow and base plate (no text or symbols)

Technical line drawing of a mechanical component with a close-up inset showing a circular housing and a blade assembly (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with a directional arrow indicating motion (no text or symbols)

Transportimine

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Tehnilised andmed

Tehnilised andmed

Technical diagram of a lawn mower with numbered parts and labeled parts, including handlebars, magazine, and open case.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with no text or symbols

Diagram of a mechanical clamp or bracket with a directional arrow indicating motion (no text or symbols present)

Diagram of a car hood with a lever and handle, showing motion direction (no text or symbols)

Illustration of a car inside an open box with a mechanical component, no text or symbols present

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating maneuvering motion (no text or symbols)

Diagram of a medical or surgical device with an inset showing a magnified view of the internal structure (no text or symbols present)

Technical line drawing showing mechanical clamping mechanism with inset detail (no text or symbols)

Technical diagram showing two mechanical assembly states with labeled cross and check symbols indicating alignment or repair points.

Kahvan säätäminen

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Käyttö

Johdanto

Line drawing of a lawn mower with motion arrows indicating maneuver (no text or symbols)

Technical line drawing of a mechanical device with a wheel and spring mechanism (no text or symbols)

Line drawing of a device with a wall-mounted switch and warning symbol, connected to a cable (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols on the device itself)

Diagram showing a car interior with a steering wheel and dashboard, alongside a close-up of the wheel (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of hands using a tool to adjust or install a component, showing a downward arrow indicating motion (no text or symbols present)

Diagram of a mechanical bracket with a curved handle and a small arrow indicating direction (no text or symbols)

Interior view of a car dashboard with a circular vent and control panel (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with directional arrow indicating motion (no text or symbols)

Line drawing of a car interior showing the steering wheel and dashboard (no text or symbols)

Diagram showing a device inside a car intake seat with arrows indicating motion (no text or symbols)

Technical line drawing of a tracked vehicle with large tires and a flat blade (no text or symbols)

Line drawing of a wheeled vehicle with a box attached, showing mechanical components and a directional arrow (no text or symbols)

Line drawing of a lawn mower with an inset showing the blade and handle mechanism (no text or symbols)

Diagram of a robotic car with gear and battery, showing mechanical components and a close-up of the battery (no text or symbols present)

Line drawing of hands holding a tablet device with a scroll wheel, no text or symbols present

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a circular component (no text or symbols)

Diagram showing a blade under load with arrows indicating direction, above grass (no text or symbols)

Technical diagram showing mechanical components with no visible text or symbols

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with a black arrow indicating clockwise motion (no text or symbols)

Kuljettaminen

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Tekniset tiedot

Tekniset tiedot

Technical diagram of a lawn mower with numbered parts and labeled parts for identification.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with a circular body and rectangular head, no text or symbols present.

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical assembly inside an open box, showing a lever and housing (no text or symbols)

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating maneuver (no text or symbols)

Diagram of a medical or surgical device with an inset showing a magnified view of the internal structure (no text or symbols present)

Technical line drawing showing mechanical assembly with two views of a cable or wire clamp (no text or symbols present)

Technical diagram showing two mechanical assembly states with cross and check symbols indicating alignment or repair points.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with a directional arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and attached components (no text or symbols)

Diagram showing a device with four labeled buttons connected to a device, one with warning symbol and the other with grid lines.

Line drawing of a device with a warning symbol and connection point (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Diagram showing a car interior with a steering wheel and dashboard, alongside a close-up of the wheel (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Line drawing of two hands operating a tool with a device, showing a downward arrow indicating motion (no text or symbols present)

Line drawing of a mechanical bracket with a curved handle and a small arrow indicating direction (no text or symbols)

Interior view of a car showing the dashboard and steering wheel (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram showing a car interior with a door panel and a side view of the dashboard (no text or symbols)

Diagram showing a device with arrows pointing to a component inside a car intake frame (no text or symbols)

Technical line drawing of a wheeled vehicle with large tires and a flat roof (no text or symbols)

Diagram of a robotic arm pulling a box, showing motion and assembly (no text or symbols)

Line drawing of a lawn mower with an inset showing the blade assembly (no text or symbols)

Diagram of a lawn mower with attached battery pack and mechanical components (no text or labels)

Line drawing of hands holding a tablet device with a scroll wheel, no text or symbols present

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical component with a close-up inset showing a circular component inserted into a housing (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Technical diagram showing mechanical components with no visible text or symbols

Mechanical assembly diagram showing two stages of gear meshing and rotational motion (no text or symbols)

Line drawing of a lawn mower with a black arrow indicating clockwise motion (no text or symbols)

Transport

Diagram showing two crossed bins with recycling symbol and no text labels

Technical diagram of a lawn mower with numbered parts and labeled parts for identification.

1. Ručka kočnice motora
2. Blokada pokretanja
3. Poluga pogona (LC 251iS)
4. Stražnji poklopac
5. Sakupljač trave
6. Kotačić upravljača
7. Poluga za visinu rezanja
8. Blokada pražnjenja

9. Poklopac za bočno pražnjenje

10. Poklopac baterije

11. Simboli
12. Sigurnosni ključ
13. Indikator upozorenja (LED svjetlo pogreške)
14. Gumb SavE
15. Pokrov noža
16. Ručka/upravljač
17. Ručka za podizanje

18. Bočni otvor za izbacivanje

19. Korisnički priručnik

Simboli na proizvodu

UPOZORENJE

Pročitajte upute.

UPOZORENJE – pazite na izbačene predmete.

Promatračima onemogućite pristup.

UPOZORENJE – šake i stopala držite podalje od noževa.

UPOZORENJE – odspojite bateriju prije održavanja.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

OPASNOST – ruke i stopala držite podalje.

Oštećenje proizvoda

Simple line drawing of a mechanical component with a circular body and rectangular shaft (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

- Provjerite je li se proizvod zaustavio. Ako se motor ne zaustavi za 3 sekunde, podesite kočnicu motora kod servisera tvrtke Husqvarna.

Provjera blokade paljenja

Diagram of a mechanical clamp or bracket assembly with directional arrow indicating motion (no text or symbols)

Diagram of a car inside an open box with a mechanical component, showing internal components and motion arrows (no text or symbols)

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating maneuvering motion (no text or symbols)

1. Visinu ručke postavite u najniži položaj. Pogledajte Prilagodba ručke na stranici 252.

2. Spojite kabele na donji dio ručke uz pomoć priključne stezaljke.

Diagram of a medical or surgical device with an inset showing a magnified view of the internal structure (no text or symbols present)

1. Donji dio kabela pomoću vezice pričvrstite na potporni nosač ručke. Odrežite preostali dio vezice za kabel.

Technical line drawing of a mechanical clamp or bracket assembly with a close-up inset showing the detail (no text or symbols present)

Napomena: Provjerite je li kabel pravilno pričvršćen. Ako je postavljen sakupljač trave, labav kabel može oštetiti kabel.

Technical diagram showing two mechanical assembly states with cross and check symbols indicating alignment or repair points.

Prilagodba ručke

1. Otpustite donje vijke.
2. Pomaknite kotačiće u donji dio utora na lijevoj i desnoj strani proizvoda.

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

1. Postavite visinu ručke u jednu od dva dostupna položaja.
2. Pomičite kotačiće gore u smjeru ručke dok se ne zaustave uz škljocaj.

CLICK!

Line drawing of a lawn mower with motion arrows indicating maneuver (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and attached components (no text or symbols)

Line drawing of a device with a warning symbol and a connected panel (no text or labels)

1. Postavite bateriju u punjač baterije. Ako je baterija pravilno priključena na punjač baterije, na punjaču se uključuje zeleni indikator.

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

1. Kada na bateriji svijetle svi LED indikatori, baterija je potpuno napunjena. Bateriju punite najdulje 24 sata.
2. Za odspajanje punjača baterije od mrežne utičnice povucite priključak, ne kabel.
3. Izvadite bateriju iz punjača baterije.

Diagram showing a car interior with a steering wheel and dashboard, alongside a close-up of the steering wheel (no text or symbols present)

1. Stanite iza proizvoda.

2. Otpustite blokadu pokretanja.

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Line drawing of two hands holding a tool, one with a downward arrow indicating motion (no text or symbols)

Upotreba pogona na kotačima (LC 251iS)

Technical line drawing of a mechanical bracket or bracket with a curved handle and arrow indicating direction (no text or symbols)

Interior view of a car showing the dashboard and steering wheel (no text or symbols visible)

- Pritisnite gumb SavE ^TM u položaj 0 da biste zaustavili funkciju.

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Napomena: Za LC 251iS. Kako biste zaustavili pogon kotača, otpustite polugu pogona.

1. Otvorite poklopac baterije i okrenite sigurnosni ključ na 0.

Diagram showing a car interior with a circular switch and gear shift, no text or symbols present

1. Za uklanjanje baterije pritisnite dva gumba za otpuštanje i izvadite bateriju.

Diagram of a car interior showing a device with arrows indicating movement or operation (no text or symbols present)

1. Zamijenite slabu bateriju. Više informacija potražite pod Zamjena baterije na stranici 253.

Technical line drawing of a mechanical vehicle with visible wheels and structural components (no text or symbols)

Diagram showing a vehicle with a gear being pulled into a box, no text or symbols present

Line drawing of a lawn mower with an inset showing the blade assembly (no text or symbols)

Technical illustration of a lawn mower with attached battery pack and mechanical components (no text or symbols)

Line drawing of hands holding a flatboard with a clip, next to a blank sheet with scattered debris (no text or symbols)

Za dobar ishod

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

1. Skinite vijak noža, podloške i nož.

Technical line drawing of a mechanical component with a close-up inset showing a circular component inserted into it (no text or symbols present)

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

1. Nož mora biti poravnat sa središtem vratila motora.

2. Blokirajte nož komadom drva. Postavite podloške i zategnite vijak na zatezni moment od 23 – 28 Nm.

Diagram of a mechanical gear system with rotating wheel and wooden base (no text or symbols)

Technical line drawing of a mechanical component with a close-up inset showing a circular housing and a blade assembly (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing a gear and motor components (no text or labels)

Line drawing of a lawn mower with a directional arrow indicating rotational motion (no text or symbols)

Prijevoz

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

Tehnički podaci

Tehnički podaci

	LC 251i LC 251iS
Rezni motor
Vrsta motora BLDC (beskontaktni) 36 V BLDC (beskontaktni) 36 V
Broj okretaja motora – SavE, o/min 2600/min 2600/min
Broj okretaja motora – nazivni, o/min 3000/min 3000/min
Broj okretaja motora – veliko opterećenje, o/min 3500/min	3500/min
Snaga motora – maks. kW 1,4 1,4
Snaga motora – nazivna, kW 0,9 0,9
Pogonski motor
Snaga motora – nazivna, kW N/D 0,4
Brzina samostalnog hoda, km/h N/D 4,0
Razine prilagodbe brzine N/D 1.
Težina
Težina bez vreće (bez baterije), kg 25,5 27.
Težina s vrećom (s 2 x BLi30), kg 31,5 33.
Baterija
Vrsta baterije	Serije baterije Husqvarna	Serije baterije Husqvarna
Trajanje baterije
Trajanje baterije, min, (slobodni pogon) s uključenom funkcijom SavE, s jednom baterijom tvrtke Husqvarna od 7,5 Ah (Bli30).	58	51.
Trajanje baterije, min, (slobodni pogon) s uključenim standardnim načinom rada, s jednom baterijom tvrtke Husqvarna od 7,5 Ah (Bli30).	42	38.
Emisije buke ^42
Razina jačine zvuka, mjerena u dB (A)	96	96
Razina jačine zvuka, zajamčena LWA dB (A)	98	98
Jačina zvuka ^43
Razine tlaka zvuka na uhu rukovatelja, dB (A)	85	85
Razine vibracije44
Ručka, m/s2	0,7 0,7
Rezna oprema
Visina rezanja, mm 25 – 75 25 – 75
Širina rezanja, mm 510 510
Nož – standardni Sakupljač 5928704-01 Sakupljač 5928704-01
Zapremnina sakupljača trave, litre 65 65

Odobreni baterije Vrsta Kapacitet baterije,	Ah	Napon, V Težina, lb/kg
BLi30 Litij-ionska 7,5 36. 4,2/1,9
40-B140 Litij-ionska 4,0 36. 2,6/1,2

Odobreni punjači za navedene baterije, BLi	Ulazni napon, V	Frekvencija, Hz	Snaga, W
40-C80	100 – 240	50 – 60	68,8
QC250	100 – 240	50 – 60	250

Izjava o sukladnosti

EU izjava o sukladnosti

Mi, Husqvarna AB, SE-561 82 Huskvarna, Švedska, tel.: [phone], pod punom odgovornošću izjavljujemo da proizvod:

Opis Kosilica
Marka Husqvarna
Vrsta/model LC 251i, LC 251iS
Identifikacija Serijski brojevi iz 2023 i noviji

Technical diagram of a lawn mower with numbered parts and labeled parts for identification.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with a circular body and rectangular shaft, no text or symbols present.

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a car inside an open box with a mechanical lever and gear assembly (no text or symbols)

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating maneuvering motion (no text or symbols)

Diagram of a medical or surgical tool with an inset showing a magnified view of a curved mechanical component (no text or symbols present)

Technical line drawing showing mechanical assembly with bracket and cable, plus close-up of wire being held (no text or symbols)

Technical diagram showing two mechanical assembly states with cross and check symbols indicating alignment or repair points.

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and lever (no text or symbols)

Diagram showing a device panel with four labeled buttons and an external device, likely illustrating a control or status setup.

Line drawing of a device with a warning symbol and connection point (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Diagram showing a car interior with a steering wheel and dashboard, alongside a close-up of the wheel (no text or symbols present)

Diagram of a car hood with a lever and handle, showing motion direction (no text or symbols)

Line drawing of two hands operating a tool with a clip, showing a downward arrow indicating motion (no text or symbols present)

Diagram of a mechanical bracket with a curved handle and a small arrow indicating direction (no text or symbols)

Interior view of a car showing the dashboard and steering wheel (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram showing a car interior with a circular switch and directional arrow, no text or symbols present

Diagram showing a device inside a car intake seat with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical vehicle with visible wheels and structural components (no text or symbols)

Diagram of a robotic arm pulling a box, showing mechanical components and motion direction (no text or symbols)

Line drawing of a lawn mower with a close-up inset showing the blade and handle (no text or symbols)

Diagram of a robotic car with two wheels and a battery, showing mechanical components and motion direction (no text or symbols)

Line drawing of hands holding a tablet device with a scroll wheel (no text or symbols)

Diagram of a circular mechanical or electrical component with internal rotation arrows and a wooden block, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a circular feature (no text or symbols)

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating shaft, featuring a wooden block and a cross-section view (no text or symbols)

Technical line drawing of a blade assembly with a close-up inset showing the blade and base (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with a directional arrow indicating motion (no text or symbols)

Szállítás

Diagram showing two crossed bins with recycling symbols and a QR code, indicating no waste or non-recyclable disposal.

Műszaki adatok

Műszaki adatok

Technical diagram of a lawn mower with numbered parts and labeled parts for identification

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with a circular body and rectangular shaft (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with directional arrow indicating motion (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating movement (no text or symbols present)

Diagram of a car inside an open box with a mechanical lever and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating maneuvering motion (no text or symbols)

Diagram of a medical or surgical instrument with an inset showing its cross-section (no text or labels)

Technical line drawing of a mechanical clamp or bracket assembly with a close-up inset showing the same component (no text or symbols present)

Diagram showing two mechanical or electrical component configurations with labeled cross and check symbols

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with an arrow indicating clockwise motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and spring mechanism (no text or symbols)

Diagram showing a device panel with four labeled buttons and an external device, illustrating a process or connection.

Line drawing of a device with a warning symbol and cable, no text or labels present

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Diagram showing a car seatbelt switch and its internal components (no text or labels)

Diagram of a car hood with a lever and handle, showing motion direction (no text or symbols)

Illustration of hands operating a manual tool with a device, showing a downward arrow indicating motion (no text or symbols present)

Diagram of a mechanical bracket with an arrow indicating direction (no text or symbols)

Interior view of a car showing the dashboard and steering wheel (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with directional arrow indicating motion (no text or symbols)

Diagram showing a car interior with a door panel and a close-up of the left side of the door (no text or symbols present)

Diagram showing a car interior with a device and directional arrows indicating movement or operation (no text or symbols present)

Technical line drawing of a mechanical vehicle with visible wheels and structural components (no text or symbols)

Diagram of a vehicle with a moving cart and a box, showing motion direction (no text or symbols)

Line drawing of a lawn mower with a close-up inset showing the blade and handle (no text or symbols)

Diagram of a robotic car with two wheels and a battery, showing mechanical components and directional arrows (no text or symbols)

Line drawing of hands holding a tablet device with a pen inserted, showing particle dispersion (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical component with a close-up inset showing a gear assembly (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Technical line drawing of a mechanical component with a circular inset showing a circular feature (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with a directional arrow indicating motion (no text or symbols)

Trasporto

Diagram showing two crossed bins with recycling symbols and a QR code, indicating no waste or non-recyclable disposal.

Dati tecnici

Dati tecnici

Technical diagram of a lawn mower with numbered parts and labeled parts for identification

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with a circular body and rectangular shaft (no text or symbols)

リヤカバーの点検

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a car inside an open box with a mechanical component, showing no text or symbols.

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram of a medical or surgical instrument with an inset showing a magnified view of the instrument (no text or labels present)

Technical line drawing of a mechanical clamp or bracket assembly with an inset close-up showing the same component (no text or symbols present)

Technical diagram showing two mechanical assembly states with labeled cross and check symbols indicating alignment or repair points.

ハンドルの調節方法

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Technical line drawing of a mechanical device with a wheel and attached bracket (no text or symbols)

Line drawing of a device with a switch and warning symbol, connected to a wall-mounted device (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Diagram showing a car's seatbelt and dashboard assembly (no text or labels)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of hands using a tool to adjust or install a component, showing a downward arrow indicating motion (no text or symbols present)

Diagram of a mechanical bracket with a curved handle and a small arrow indicating direction (no text or symbols)

Interior view of a car dashboard with a circular vent and control panel (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram showing a car interior with a circular switch and directional arrow, no text or symbols present

Diagram showing a device with directional arrows pointing to a central component, no text or symbols present.

Technical line drawing of a wheeled vehicle with large tires and a flat plate (no text or symbols)

Diagram of a robotic vehicle with a moving box connected by an arrow, showing mechanical components and motion (no text or symbols)

サイドディスチャージモードへの変更

Line drawing of a lawn mower with an inset showing the blade and handle mechanism (no text or symbols)

Diagram of a robotic car with gear and battery, showing mechanical components and directional arrows (no text or labels)

Line drawing of hands holding a flatboard with a tool, no text or symbols present

良好に芝を刈る方法

Diagram of a circular mechanical or electrical component with internal rotation arrows and a wooden block, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a gear mechanism (no text or symbols)

Diagram showing a blade under load with arrows indicating direction, above grass (no text or symbols)

Technical diagram showing mechanical components with no visible text or symbols

Mechanical assembly diagram showing two stages of gear meshing and rotational motion (no text or symbols)

1. ハンドルを前方に折り畳みます。

Line drawing of a lawn mower with a black arrow indicating clockwise motion (no text or symbols)

搬送

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

主要諸元

主要諸元

A11:2021, EN IEC 55014-1:2021, EN IEC

55014-2:2021, EN IEC 63000:2018

Technical diagram of a lawn mower with numbered parts and labeled parts for identification.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with no text or symbols

Galinio gaubto patikra

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Diagram of a car inside an open box with a mechanical arm and cable, showing no text or symbols.

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with an arrow indicating motion or change (no text or symbols)

Diagram of a medical or surgical device with an inset showing a cross-sectional view of the device (no text or labels present)

Technical line drawing showing mechanical clamping mechanism with no visible text or symbols

Technical diagram showing two mechanical assembly states labeled X and ✓, with symbols indicating connection points.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Naudojimas

lvadas

Line drawing of a lawn mower with motion arrows indicating maneuver (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and spring mechanism (no text or symbols)

Line drawing of a device with a warning symbol and a terminal block (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its side panel (no text or symbols present)

Diagram showing a car seatbelt with a circular component and a close-up of the seatbelt (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Line drawing of two hands holding a tool, one using a pliers to handle a piece of material (no text or symbols)

Technical line drawing of a mechanical bracket or bracket with a handle and mounting bracket (no text or symbols)

Interior view of a car showing the dashboard and steering wheel (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Line drawing of a car interior showing the left side of the door and the right side of the seat, with no visible text or symbols.

Diagram showing a device inside a car intake frame with arrows indicating motion (no text or symbols)

Technical line drawing of a wheeled vehicle with visible wheels and structural components (no text or symbols)

Diagram showing a vehicle being pulled into a box, with no visible text or symbols

Line drawing of a lawn mower with a close-up inset showing the blade and handle mechanism (no text or symbols)

Diagram of a robotic car with a battery and mechanical components, showing no text or symbols.

Line drawing of hands holding a flatboard with a tool, no text or symbols present

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical component with a close-up inset showing a circular component inserted into it (no text or symbols)

Diagram showing a blade under load with arrows indicating direction, above a grassy field (no text or symbols)

Diagram of a mechanical gear or pulley system with rotational arrow and base block (no text or symbols)

Technical line drawing of a mechanical component with a close-up inset showing a circular housing and a blade assembly (no text or symbols)

1. Ranka pasukite peilj ir patikrinkite, ar jis laisvai sukasi.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with a directional arrow indicating motion (no text or symbols)

Transportavimas

Diagram showing two waste sorting bins with a recycling symbol and crossed-out bins, indicating no disposal or recycling.

Techniniai duomenys

Techniniai duomenys

Technical diagram of a lawn mower with numbered parts and labeled parts for identification.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with a circular body and rectangular shaft (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a mechanical clamp or bracket assembly with directional arrow indicating motion (no text or symbols)

Diagram of a car inside an open box with a mechanical lever and gear mechanism, showing no text or symbols.

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

1. Izbīdiet skrūvi (A) caur rokturi (B), plastmasas paplāksni (C) un roktura balsta kronšteinu (D).

A B C D E

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram of a medical or surgical instrument with an inset showing its cross-section (no text or labels)

Technical line drawing of a mechanical clamp or bracket assembly with an inset showing close-up details (no text or symbols)

Technical diagram showing two mechanical assembly states labeled X and ✓, with symbols like 'X' and '✓' indicating different connection points.

Roktura regulēšana

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Line drawing of a bicycle steering wheel with suspension components (no text or symbols)

Line drawing of a device with a warning symbol and a connected electrical outlet (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Diagram showing a car interior with a steering wheel and dashboard, alongside a close-up of the wheel (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with directional arrow indicating movement (no text or symbols)

Illustration of two hands operating a tool with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical bracket with a curved handle and arrow indicating direction (no text or symbols)

Interior view of a car dashboard with a circular vent and control panel (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with directional arrow indicating motion (no text or symbols)

Diagram showing a car seatbelt switch and its side panel, with no visible text or symbols.

1. Lai iznemtu akumulatoru, nospiediet abas atbrīvošanas pogas un iznemiet akumulatoru.

Diagram showing a device inside a car intake frame with arrows indicating action or operation (no text or symbols present)

Technical line drawing of a mechanical vehicle with large tires and a flat plate (no text or symbols)

Diagram of a robotic vehicle pulling a box, showing motion and force direction (no text or symbols)

Line drawing of a lawn mower with a close-up inset showing the blade and handle (no text or symbols)

Technical illustration of a robotic car with wheels and a battery, showing mechanical components without any text or symbols.

Line drawing of hands holding a tablet device with a scroll wheel (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a circular component (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a circular housing and a blade assembly (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with a directional arrow indicating motion (no text or symbols)

Transportēšana

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

Tehniskie dati

Tehniskie dati

Technical diagram of a lawn mower with numbered parts and labeled parts for identification.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple diagram of a mechanical component with a circular body and rectangular shaft, no text or symbols present.

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a mechanical assembly inside an open box, showing internal components and motion arrows (no text or symbols)

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating maneuvering motion (no text or symbols)

Diagram of a medical or surgical instrument with an inset showing its cross-section (no text or labels)

Technical line drawing showing mechanical assembly with two views of a cable or wire clamp (no text or symbols present)

Technical diagram showing two mechanical assembly states labeled X and ✓, with cross and check symbols indicating different connection points.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating maneuver (no text or symbols)

Technical line drawing of a mechanical device with a wheel and spring mechanism (no text or symbols)

Line drawing of a device with a wall-mounted switch and warning symbol, connected to a cable (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Diagram showing a car seatbelt mechanism with a magnified inset of the seatbelt (no text or symbols present)

Diagram of a car hood with a lever and handle, showing motion direction (no text or symbols)

Illustration of two hands operating a robotic device with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical bracket with an arrow indicating direction (no text or symbols)

Interior view of a car showing the dashboard and steering wheel (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram showing a car interior with a steering wheel and dashboard, alongside a close-up of the wheel (no text or symbols present)

Diagram showing a device inside a car intake frame with directional arrows indicating movement (no text or symbols present)

Technical line drawing of a grass lawn mower with visible tire tracks and mounting bracket (no text or symbols)

Diagram showing a vehicle with tire tracks being pulled into a box, no text or symbols present

Line drawing of a lawn mower with a close-up inset showing the blade and handle (no text or symbols)

Technical illustration of a robotic car with gear and battery components (no text or symbols)

Line drawing of hands holding a tablet device with a scroll wheel (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical component with a close-up inset showing a circular component and a blade assembly (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a circular housing and a blade assembly (no text or symbols)

Mechanical assembly diagrams showing gear and motor components with directional arrows (no text or labels)

Line drawing of a lawn mower with a directional arrow indicating motion (no text or symbols)

Transport

Diagram showing two crossed recycling bins with a recycling symbol, indicating no waste or non-recyclable disposal.

Technische gegevens

Technische gegevens

AC:2015, EN IEC 62841-4-3:2021/A11:2021, EN

IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC

63000:2018

Claes Losdal, Development Manager/Garden Products, Husqvarna AB

Technical diagram of a lawn mower with numbered parts and labeled parts for identification.

1. Motorbremshändtak
2. Startsperre
3. Sikkerhetsbøyle (LC 251iS)
4. Bakdeksel
5. Oppsamler
6. Håndtaksknott
7. Spak for regulering av klippehøyde
8. Utkastlås
9. Sideutkastdeksel

10. Batterideksel

11. Symboler

12. Tenningsnøkkel
13. Varsellampe (feilindikator)
14. SavE-knapp
15. Klippedeksel
16. Håndtak/styrestang
17. Løftehåndtak
18. Sideutkaster
19. Bruksanvisning

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with no text or symbols

Slik kontrollerer du det bakre dekselet

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

- Kontroller at produktet stopper. Hvis motoren ikke stopper innen tre sekunder, må du la et godkjent Husqvarna-serviceverksted justere motorbremsen.

Kontroller startsperren

Diagram of a mechanical clamp or bracket assembly with directional arrow indicating motion (no text or symbols)

Diagram of a car inside an open box with a mechanical component, showing no text or symbols.

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with an arrow indicating clockwise motion (no text or symbols)

1. Sett håndtakshøyden til laveste stilling. Se Slik justerer du håndtaket på side 416.
2. Fest kabelen til den nedre delen av håndtaket med kabelklemmen.

Diagram of a medical or surgical instrument with an inset showing a cross-sectional view of the instrument (no text or labels present)

1. Fest den nedre delen av kabelen til støttebraketten på håndtaket med kabelstripsen. Kutt av den overflødige delen av kabelstripsen.

Technical line drawing of a mechanical clamp or bracket assembly with two views (no text or symbols)

Merk: Påse at kabelen er festet riktig. En for løs kabel forårsaker skade på kabelen när oppsamleren er montert.

Technical diagram showing two mechanical assembly states with cross and check symbols indicating alignment or repair points.

Slik justerer du håndtaket

Mechanical assembly diagram showing two stages of gear meshing and rotational motion (no text or symbols)

Drift

Innledning

ADVARSEL: Før du bruker produktet, må du lese og forstå kapittelet om sikkerhet.

Husqvarna Connect

Husqvarna Connect er en kostnadsfri app for mobilenheten din. Husqvarna Connect-appen gir utvidede funksjoner for Husqvarna-produktet ditt:

Line drawing of a lawn mower with motion arrows indicating maneuvering motion (no text or symbols)

Mechanical diagram showing a wheel assembly with levers and guide rails (no text or symbols)

Line drawing of a device with a warning symbol and a terminal block (no text or labels)

1. Sett batteriet i batteriladeren. Den grønne lampen på laderen tennes när batteriet er riktig koblet til laderen.

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

1. Når alle LED-indikatorene på batteriet lyser, er batteriet fulladet. Lad batteriet i maks. 24 timer.
2. For å koble laderen fra stikkontakten må du dra i selve støpselet, ikke i ledningen.
3. Fjern batteriet fra batteriladeren.

Diagram showing a car interior with a steering wheel and dashboard, alongside a close-up of the wheel (no text or symbols present)

1. Stå bak produktet.
2. Løsne startsperren.

Diagram of a mechanical clamp or bracket assembly with directional arrow indicating motion (no text or symbols)

Line drawing of two hands holding a tool with a clip, showing a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical bracket or bracket with a curved handle and arrow indicating direction (no text or symbols)

Interior view of a car dashboard with a circular vent and control panel (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Merk: For LC 251iS. Hvis du vil stoppe hjuldriften, slipper du sikkerhetsbøylen.

Diagram showing a car interior with a door panel and a hand holding a device, no text or symbols present.

Diagram showing a device being inserted into a car interior, with arrows indicating the process (no text or symbols present)

Technical line drawing of a mechanical vehicle with visible wheels and structural components (no text or symbols)

Line drawing of a vehicle with a belt being inserted into a box (no text or symbols)

Line drawing of a lawn mower with a close-up inset showing the blade and handle (no text or symbols)

Technical illustration of a robotic car with two wheels and a battery, showing mechanical components without any text or symbols.

Line drawing of hands holding a flatboard with a ruler inserted, no text or symbols present

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a circular component (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical gear or pulley system with rotational arrow and base plate (no text or symbols)

Technical line drawing of a mechanical component with a close-up inset showing a circular housing and a blade assembly (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. Vipp styret forover.

Line drawing of a lawn mower with a directional arrow indicating motion (no text or symbols)

Transport

Diagram showing two crossed bins with a recycling symbol and crossed-out box, indicating no waste or non-recyclable disposal.

Tekniske data

Tekniske data

	LC 251i LC 251iS
Klippemotor
Motortype BLDC (børsteløs) 36 V BLDC (børsteløs) 36 V
Motorhastighet - SavE, turtall 2600/min 2600/min
Motorhastighet - nominell, turtall 3000/min 3000/min
Motorhastighet - høybelastning, turtall 3500/min 3500/min
Motoreffekt - maks. kW 1,4 1,4
Motoreffekt - nominell, kW 0,9 0,9
Drivmotor
Motoreffekt - nominell, kW Ikke tilgjengelig 0,4
Selvgående hastighet, km/t Ikke tilgjengelig 4,0
Nivåer for hastighetsjustering Ikke tilgjengelig 1
Vekt
Vekt uten pose (uten batteri), kg 25,5 27
Vekt med pose (inkl. 2 stk. BLi30), kg 31,5 33
Batteri
Batteritype Husqvarna-batteriserien Husqvarna-batteriserien
Batteriets driftstid
Batteriets driftstid, min, (frikjøring) med SavE aktivert, med ett Husqvarna 7,5 Ah-batteri (Bli30)	58	51
Batteriets driftstid, min., (frikjøring) med standardmodus aktivert, med ett Husqvarna 7,5 Ah-batteri (Bli30)	42	38
Støyutslipp ^70
Lydeffektnivå, målt dB (A)	96	96
Lydeffektnivå, garantert LWA dB (A)	98	98
Lydnivåer ^71
Lydtrykknivå ved brukerens øre, dB (A)	85	85
Vibrasjonsnivåer ^72
Håndtak, m/s ^2	0,7 0,7
Klippeutstyr
Klippehøyde, mm 25–75 25–75
Klippebredde, mm 510 510
Kniv – standard Samling 5928704-01 Samling 5928704-01
Gressoppsamlerkapasitet, liter 65 65

Godkjente batterier Type Batterikapasitet,	Ah	Spenning, V Vekt, lb/kg
BLi30 Litium-ion 7,5 36 4,2 / 1,9
40-B140	Litium-ion 4,0 36 2,6/1,2

Technical diagram of a lawn mower with numbered parts and labeled parts for identification

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with no text or symbols

Diagram of a mechanical clamp or bracket with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Diagram of a car inside an open box with a mechanical arm and cable, showing no text or symbols.

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with an arrow indicating motion or change (no text or symbols)

Diagram of a medical or surgical device with an inset showing a magnified view of the internal structure (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly with an inset showing close-up details (no text or symbols)

Technical diagram showing two mechanical assembly states with cross and check symbols indicating alignment or repair points.

Regulacja uchwytu

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

• Extended product information.
• Information about, and help with, product parts and servicing.

Line drawing of a lawn mower with motion arrows indicating maneuver (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and attached components (no text or symbols)

Line drawing of a device with a warning symbol and connection point (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Diagram showing a car seatbelt switch and its internal components (no text or labels)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Illustration of hands using a tool to adjust or install a component, showing a downward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical bracket or bracket with a curved handle and mounting holes (no text or symbols)

Interior view of a car showing the dashboard and steering wheel (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Line drawing of a car interior showing a seatbelt switch and dashboard (no text or symbols)

Diagram showing a device being inserted into a car intake frame, with arrows indicating the process (no text or symbols present)

Technical line drawing of a mechanical vehicle with visible wheels and structural components (no text or symbols)

Diagram of a tracked vehicle with a moving load box, showing mechanical components and motion direction (no text or symbols)

Line drawing of a lawn mower with a close-up inset showing the blade and handle (no text or symbols)

Diagram of a lawn mower with a base device and mechanical components, no text or symbols present

Line drawing of hands holding a tablet device with a scroll wheel (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a circular component (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a circular component and a blade assembly (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with rotating components (no text or labels)

Line drawing of a lawn mower with a black arrow indicating clockwise motion (no text or symbols)

Transport

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

Dane techniczne

Dane techniczne

AC:2015, EN IEC 62841-4-3:2021/A11:2021, EN

IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC

63000:2018

Technical diagram of a lawn mower with numbered parts and labeled parts for identification.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with a circular body and rectangular shaft (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a car handle assembly with a clip and lever mechanism (no text or labels)

Diagram of a car inside an open box with mechanical components, no text or symbols present

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating maneuver (no text or symbols)

Diagram of a medical or surgical device with an inset showing a magnified view of the internal structure (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly with an inset showing close-up details (no text or symbols)

Technical diagram showing two mechanical assembly states with cross and check symbols indicating alignment or repair points.

Ajustar o punho

Mechanical assembly diagrams showing gear and motor components with directional arrows (no text or labels)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and connecting rod (no text or symbols)

Diagram showing a device panel with four labeled buttons and an external device, illustrating a connection or status.

Line drawing of a device with a warning symbol and a wall-mounted connector (no text or labels)

Line drawing of a power supply unit with a black arrow pointing to its left side (no text or symbols present)

Diagram showing a device with a circular component and a mechanical assembly inside a vehicle (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of two hands operating a robotic device with a downward arrow indicating motion (no text or symbols)

Line drawing of a mechanical bracket with a curved handle and a small arrow indicating direction (no text or symbols)

Interior view of a car dashboard with a circular dial indicator and control panel (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram showing a car seatbelt switch and its side panel, with no visible text or symbols.

Diagram showing a device with arrows pointing to a component inside a car intake frame (no text or symbols)

Technical line drawing of a wheeled vehicle with large tires and a flat roof (no text or symbols)

Diagram of a vehicle with a moving cart and a box, showing motion direction (no text or symbols)

Line drawing of a lawn mower with an inset showing the blade assembly (no text or symbols)

Technical line drawing of a robotic lawn mower with gear and base components (no text or symbols)

Line drawing of hands holding a tablet device with a scroll wheel, no text or symbols present

Para obter bons resultados

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

Technical line drawing of a cutting blade assembly with a close-up inset showing the blade and base (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a circular housing and a blade assembly (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with a black arrow indicating clockwise motion (no text or symbols)

Transporte

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

Technical diagram of a lawn mower with numbered parts and labeled parts for identification.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with a circular body and rectangular shaft (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Diagram of a car inside an open box with a mechanical linkage and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with an arrow indicating clockwise motion (no text or symbols)

Diagram of a medical or surgical device with a magnified inset showing internal components (no text or labels)

Technical line drawing of a mechanical clamp or bracket assembly with an inset showing close-up details (no text or symbols)

Technical diagram showing two mechanical assembly states with labeled cross and check symbols indicating alignment or repair points.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and clamping mechanism (no text or symbols)

Line drawing of a device with a warning symbol and a switch, connected to a wall-mounted device (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols on the device itself)

Diagram showing a car interior with a steering wheel and dashboard, alongside a close-up of the wheel (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with directional arrows indicating movement (no text or symbols)

Illustration of hands operating a tool with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical bracket with a curved handle and arrow indicating direction (no text or symbols)

Interior view of a car dashboard with a circular dial indicator and control panel (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Nota: Pentru LC 251iS. Pentru a opri actionarea rotilor, eliberați maneta de transmisie.

Diagram showing a car interior with a circular switch and directional arrow, no text or symbols present

Diagram showing a device inside a car intake frame with directional arrows indicating movement (no text or symbols present)

Technical line drawing of a mechanical vehicle with large tires and a flat plate (no text or symbols)

Diagram of a robotic vehicle with a moving box and directional arrow, no text or symbols present

Line drawing of a lawn mower with a close-up inset showing the blade and handle mechanism (no text or symbols)

Technical illustration of a robotic car with gear and battery components, showing mechanical assembly (no text or symbols)

Line drawing of hands holding a tablet device with a scroll wheel, no text or symbols present

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical component with a circular inset showing a gear-like assembly (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating shaft, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a circular component inserted into it (no text or symbols present)

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with a black arrow indicating clockwise motion (no text or symbols)

Transportul

Diagram showing two crossed bins with recycling symbols, indicating no waste or reuse in the waste bin system.

Date tehnice

Date tehnice

Technical diagram of a lawn mower with numbered parts and labeled parts for identification.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with no text or symbols

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Diagram of a car inside an open box with a mechanical component, showing no text or symbols.

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram of a medical or surgical device with an inset showing a magnified view of the internal structure (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly with an inset showing the same component (no text or symbols present)

Technical diagram showing two mechanical assembly states with labeled cross and check symbols indicating alignment or repair points.

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with a directional arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and lever (no text or symbols)

Line drawing of a device with a warning symbol and a vertical panel (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols on the device itself)

Diagram showing a car interior with a steering wheel and dashboard, alongside a close-up of the wheel (no text or symbols present)

Diagram of a car hood with a lever and handle, showing motion direction (no text or symbols)

Illustration of hands using a tool to adjust or install a component, showing a downward arrow indicating motion (no text or symbols present)

Diagram of a mechanical bracket or clamp mechanism with no visible text or symbols

Interior view of a car showing the dashboard and air vent (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Technical line drawing showing a mechanical component with a circular knob and a side view of the interior (no text or symbols)

Diagram showing a device with arrows pointing to a component inside a vehicle's seat (no text or symbols present)

Technical line drawing of a wheeled vehicle showing front wheel, rear wheels, and engine components (no text or symbols)

Illustration of a vehicle being loaded onto a box, showing mechanical components and motion direction (no text or symbols)

Line drawing of a lawn mower with an inset showing the blade and handle (no text or symbols)

Diagram of a robotic car with a battery and mechanical components, showing no text or symbols.

Line drawing of hands holding a tablet device with a scroll wheel, no text or symbols present

Diagram of a circular mechanical or electrical component with a central rotating shaft and base, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a circular component inserted into a slot (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing internal components (no text or symbols)

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with a directional arrow indicating motion (no text or symbols)

Транспортировка

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

Технические данные

Технические данные

Technical diagram of a lawn mower with numbered parts and labeled parts for identification.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple diagram of a mechanical component with a circular body and rectangular shaft, no text or symbols present.

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a mechanical clamp or bracket assembly with directional arrow indicating motion (no text or symbols)

Diagram of a car inside an open box with a mechanical lever and gear mechanism, showing no text or symbols.

VAROVANIE: Dávajte pozor a pri otáčaní rukoväte sa uistite, že sa kábel nepoškodil.

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

1. Nasuňte skrutku (A) cez rukovát' (B), plastovú podložku (C) a podperu rukováti (D).

A B C D E

1. Maticu (E) utiahnite na doraz.
2. Vyberte výrobok z krabice.
3. Vyklopte rukovät' do vzpriamenej polohy.

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram of a medical or surgical instrument with an inset showing its cross-section (no text or labels)

Technical line drawing of a mechanical clamp or bracket assembly with an inset showing close-up details (no text or symbols)

Technical diagram showing two mechanical assembly states labeled X and ✓, with symbols like 'X' and '✓' indicating different connection points.

Nastavenie rukoväti

Mechanical assembly diagrams showing two configurations of a gear or cam mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

1. Posuňte gombíky nahor smerom k rukováti, kým sa nezastavia a nebudete počut' kliknutie.

CLICK!

1. Gombíky utiahnite na doraz.

VÝSTRAHA: Výrobok

Technical line drawing of a mechanical device with a wheel and attached bracket (no text or symbols)

Diagram showing a device control panel with numbered labels and warning indicators, alongside a labeled electronic device.

Svetlá LED	Stav batérie
Všetky LED svetlá svietia P	Ine nabitá (76 – 100 %)
Svetlá LED Stav batérie
Svieti LED 1, LED 2, LED 3	Batéria je nabitá na 51 % – 75 %
Svieti LED 1, LED 2	Batéria je nabitá na 26 % – 50 %
Svieti LED 1	Batéria je nabitá na 6 % – 25 %.
Bliká dióda LED 1	Batéria je nabitá na 0 % – 5 %.

Nabíjanie batérie

Line drawing of a device with a warning symbol and a separate panel (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

1. Ked' svietia všetky indikátory LED na batérii, batéria je plne nabitá. Batériu nabíjajte maximálne 24 hodín.

2. Pri odpájaní nabíjačky batérií od siet'ovej zásuvky t'ahajte za zástrčku, nie za šnúru.

3. Vyberte batériu z nabíjačky batérií.

Zapnutie výrobku

Diagram showing a car interior with a steering wheel and dashboard, alongside a close-up of the wheel (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of two hands operating a tool with a downward arrow indicating force or movement (no text or symbols present)

Diagram of a mechanical bracket with a curved handle and arrow indicating direction (no text or symbols)

Interior view of a car dashboard with control panel and driver shift (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Technical line drawing of a mechanical component with a circular inset showing a pin or knob (no text or symbols)

Diagram showing a device inside a car intake canal with arrows indicating flow or movement (no text or symbols present)

Technical line drawing of a mechanical vehicle with large tires and a flat plate (no text or symbols)

Diagram of a robotic arm pulling a box with an arrow indicating motion (no text or symbols present)

Line drawing of a lawn mower with a close-up inset showing the blade and handle mechanism (no text or symbols)

Diagram of a robotic lawn mower with a battery and mechanical components, no text or symbols present

Line drawing of hands holding a tablet device with a scroll wheel (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a circular component (no text or symbols)

Diagram showing a blade under load with arrows indicating force direction, above grass (no text or symbols)

Diagram of a circular mechanical or electrical component with a central rotating shaft and a wooden block, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a circular component inserted into a slot (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. Skopte držadlo dopredu.


Line drawing of a lawn mower with a directional arrow indicating motion (no text or symbols)

Preprava

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Technické údaje

Technické údaje

Technical diagram of a lawn mower with numbered parts and labeled parts for identification.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

NEVARNOST – Ne približujte rok in nog.

Škoda izdelka

Simple line drawing of a mechanical component with a circular body and rectangular shaft (no text or symbols)

Preverjanje zadnjega pokrova

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

- Prepričajte se, da se je izdelek zaustavil. Če se motor ne izklopi v 3 sekundah, mora izdelek preveriti pooblaščeni serviser Husqvarna, ki mora nato nastaviti motorno zavoro.

Preverjanje blokade vžiga

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of a car inside an open box with a mechanical device and directional arrows indicating motion (no text or symbols)

POZOR: Pazite, da med obračanjem ročaja ne poškodujete pletenice.

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with an arrow indicating clockwise motion (no text or symbols)

Diagram of a medical or surgical tool with an inset showing a cross-sectional view of the instrument (no text or labels present)

Technical line drawing showing mechanical assembly with a close-up inset of a cable being inserted (no text or symbols)

Technical diagram showing two mechanical assembly states with cross and check symbols indicating different connection types.

Nastavitev ročaja

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Delovanje

Uvod

OPOZORILO: Pred uporabo izdelka morate prebrati in razumeti poglavje o varnosti.

Husqvarna Connect

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and spring (no text or symbols)

POZOR: Ne nastavite višino rezanja prenizko. Rezila lahko trčijo ob tla, će površina travnika ni ravna.

Akumulator

Line drawing of a device with a warning symbol and a connected terminal block (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Diagram showing a car seatbelt mechanism with a magnified inset view of the seatbelt (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

1. Ročico motorne zavore potisnite v smer ročaja.

Illustration of two hands operating a tool with a clip, showing a downward arrow indicating motion (no text or symbols present)

Za pogon koles (LC 251iS)

Technical line drawing of a mechanical bracket or clamp assembly (no text or symbols)

Interior view of a car dashboard with a circular vent and control panel (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram showing a car gear shift lever and internal components (no text or symbols)

Diagram of a car interior showing a device with directional arrows indicating movement or operation (no text or symbols present)

Technical line drawing of a mechanical vehicle with large tires and a flat plate (no text or symbols)

1. Na nosilec namestite zbiralnik za travo.
2. Sprostite zadnji pokrov in ga namestite na ogrodje vreče za travo.

Line drawing of a wheeled vehicle with a box attached, showing motion direction (no text or symbols)

Priprava izdelka za stranski izmet

1. Dvignite zadnji pokrov in odstranite vrečo za travo, će je nameščena.
2. Zaprite zadnji pokrov in se prepričajte, da se tesno prilega ob izdelek.
3. Dvignite blokado izmeta.

Line drawing of a lawn mower with an inset showing the blade and handle mechanism (no text or symbols)

Diagram of a robotic car with gear and battery, showing mechanical components and a close-up of the battery (no text or symbols present)

Line drawing of hands holding a tablet device with a scroll wheel (no text or symbols)

Kako doseči dober rezultat

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the bottom (no text or symbols)

1. Odstranite vijak rezila, podložko in rezilo.

Technical line drawing of a mechanical component with a close-up inset showing a circular component (no text or symbols)

1. Preverite, ali sta nosilec in vijak rezila poškodovana.
2. Preverite motorno gred in se prepričajte, da ni zvita.
3. Ko pritrdite novo rezilo, usmerite nagnjene strani rezila v smer pokrova rezila.

Diagram showing a blade cutting through grass with arrows indicating direction (no text or symbols)

1. Prepričajte se, da je rezilo poravnano s središčem motorne gredi.

2. Rezilo blokirajte s kosom lesa. Pritrdite podložko in privijte vijak in podložko z zateznim momentom 23 - 28 Nm.

Technical diagram showing mechanical components with no visible text or symbols

1. Ročno zavrtite rezilo in se prepričajte, da se prosto obrača.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with a black arrow indicating clockwise motion (no text or symbols)

Prevoz

Diagram showing two crossed bins with a recycling symbol and no text labels

Tehnični podatki

Tehnični podatki

Technical diagram of a lawn mower with numbered parts and labeled parts for identification.

1. Ručica kočnice motora
2. Inhibitor pokretanja
3. Pritiskivač pogona (LC 251iS)
4. Zadnji poklopac
5. Hvatač trave
6. Dugme ručice
7. Poluga visine košenja
8. Blokada pražnjenja

9. Poklopac bočnog pražnjenja

10. Poklopac baterije

11. Simboli
12. Bezbednosni ključ
13. Indikator upozorenja (LED greške)
14. Dugme SavE
15. Poklopac košenja
16. Ručka/upravljač
17. Ručke za podizanje

18. Uređaj za bočno pražnjenje

19. Uputstvo za rukovaoca

Simboli na proizvodu

UPOZORENJE

Pročitajte uputstva.

UPOZORENJE – pazite se izbačenih predmeta.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

OPASNOST – udaljite šake i stopala.

Oštećenje proizvoda

Nismo odgovorni za oštećenja proizvoda u sledećim slučajevima:

• proizvod je popravljen na pogrešan način
• proizvod je popravljen korišćenjem delova koji nisu napravljeni ili odobreni od strane proizvođača
• proizvod ima opremu koja ne potiče ili nije odobrena od strane proizvođača
• proizvod nije popravljen u ovlašćenom servisnom centru ili od strane ovlašćenog stručnjaka

Bezbednost

Simple line drawing of a mechanical component with a circular body and rectangular shaft (no text or symbols)

Provera zadnjeg poklopca

Zadnji poklopac smanjuje rizik da predmeti budu izbačeni u smeru rukovaoca.

• Uverite se da zadnji poklopac nije oštećen.
• Uverite se da opruge koje zatvaraju zadnji poklopac nisu polomljene.
• Zamenite polomljene opruge i oštećene delove.
• Uverite se da se zadnji poklopac može slobodno pomerati na šarkama.

Provera ručice kočnice motora

Ručica kočnice motora zaustavlja motor. Kada je ručica kočnice motora otpuštena, motor se zaustavlja.

- Pokrenite proizvod. Pogledajte Pokretanje proizvoda na stranici 586

- Otpustite ručicu kočnice motora.

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

- Uverite se da se proizvod zaustavlja. Ako se motor ne zaustavi u roku od 3 sekunde, neka ovlašćeni Husqvarna servisni agent izvrši podešavanje kočnice motora.

Provera inhibitora pokretanja

Izvršite proveru inhibitora pokretanja kako biste se uverili da sprečava rad motora.

1. Pritisnite ručicu kočnice motora u smeru upravljača. Inhibitor pokretanja zaustavlja kretanje.

2. Pritisnite inhibitor pokretanja ka spolja.

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Diagram of a car inside an open box with a mechanical component, showing no text or symbols.

OPREZ: Budite pažljivi i pobrinite se da se kabl ne ošteti prilikom okretanja ručke.

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with an arrow indicating clockwise motion (no text or symbols)

Diagram of a medical or anatomical device with a magnified inset showing internal structures (no text or labels)

1. Pričvrstite donji deo kabla na nosač ručke pomoću kablovske vezice. Odsecite preostali deo kablovske vezice.

Technical line drawing of a mechanical clamp or bracket assembly with an inset showing close-up details (no text or symbols)

Technical diagram showing two mechanical assembly states with cross and check symbols indicating alignment or repair points.

Podešavanje ručke

1. Olabavite donju dugmad.
2. Pomerite dugmad u donji kraj žlebova na levoj i desnoj strani proizvoda.

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

1. Stavite ručku u jedan od 2 položaja za visinu.
2. Pomerite dugmad nagore u smeru ručke dok se ne zaustave i ne čujete klik zvuk.

CLICK!

1. Potpuno zategnite dugmad.

Rukovanje

Uvod

Line drawing of a lawn mower with motion arrows indicating maneuvering motion (no text or symbols)

1. Pomerite dugmad nagore u smeru ručke dok se ne zaustave i ne čujete klik zvuk.

CLICK!

1. Potpuno zategnite dugmad.

UPOZORENJE: Ne koristite

proizvod ako ručka nije potpuno otvorena i postavljena u jedan od datih položaja za visinu. Pogledajte Podešavanje ručke na stranici 584.

Diagram of a vehicle's wheel assembly with mechanical components (no text or symbols)

Line drawing of a device with a warning symbol and a terminal block (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

1. Akumulator je potpuno napunjen kada na njemu svetle sve LED lampice. Punite akumulator najviše 24 sata.
2. Da biste iskopčali punjač akumulatora iz mrežne utičnice, povucite utikač, a ne kabl za napajanje.
3. Izvadite akumulator iz punjača akumulatora.

Diagram showing a car seatbelt switch and its internal components (no text or labels)

1. Stanite iza proizvoda.

2. Olabavite inhibitor pokretanja.

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Line drawing of two hands operating a tool with a clip, showing a downward arrow indicating motion (no text or symbols present)

Korišćenje pogona na točkićima (LC 251iS)

• Gurnite pritiskivač pogona u smeru upravljača.

Technical line drawing of a mechanical bracket or bracket with a curved handle and arrow indicating direction (no text or symbols)

• Otpustite pritiskivač pogona da biste deaktivirali pogon, na primer, kada se nalazite blizu prepreke.
• Pre nego što povučete proizvod unazad, odvojte pogon i gurnite proizvod ka napred približno 10 cm.

Korišćenje funkcije SavE™

Interior view of a car showing the dashboard and steering wheel (no text or symbols visible)

- Pritisnite dugme SavE ^TM u položaj 0 da biste zaustavili funkciju.

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Napomena: Za LC 251iS. Da biste zaustavili pogon točkova, otpustite pritiskivač pogona.

Diagram showing a car seatbelt switch and its side panel, with no visible text or symbols.

1. Da biste uklonili bateriju, pritisnite 2 dugmeta za otpuštanje i izvucite bateriju.

Diagram showing a device being inserted into a car interior, with arrows indicating the process (no text or symbols present)

1. Napunite bateriju ako je prazna. Za više informacija pogledajte Punjenje akumulatora na stranici 585.

Technical line drawing of a mechanical vehicle with visible wheels and structural components (no text or symbols)

1. Postavite hvatač trave na držač.

2. Otpustite zadnji poklopac i postavite ga na vrh rama vreće za travu.

Diagram showing a vehicle with a gear being pulled into a box, no text or symbols present

Line drawing of a lawn mower with a close-up inset showing the blade and handle (no text or symbols)

1. Otvorite poklopac za bočno pražnjenje i postavite bočni usmeravač na osovinice.

Technical illustration of a lawn mower with attached battery pack and mechanical components (no text or symbols)

1. Neka se poklopac za bočno pražnjenje nasloni na usmeravač. Uverite se da usmeravač za bočno pražnjenje dobro naleže na mesto pre korišćenja proizvoda.

Pražnjenje hvatača trave

OPREZ: Podignite hvatač trave kada ga pomerite da biste sprečili habanje.

1. Podignite hvatač trave sa ručkom rama.
2. Upotrebite ručku rama i ručku trave kada praznite hvatač trave.

Line drawing of hands holding a tablet with a pen, showing material being poured into the screen (no text or symbols)

Za dobre rezultate

• Uvek koristite oštro sečivo. Tupo sečivo daje neujednačeni rezultat i pokošena površina trave postaje žuta. Oštro sečivo takođe koristi manje energije nego tupo sečivo.
• Nemojte kositi više od 13 dužine trave. Kad počnete da kosite travu, koristite najveću visinu košenja. Pregledajte rezultat i spustite visinu košenja na prihvatljivi nivo. Ako je trava veoma visoka, vozite polako i kosite 2 puta ako bude potrebno.

• Kosite u različitim smerovima svaki put da biste izbegli pruge na travnjaku.

• Podignite zadnji poklopac i uklonite hvatač trave.

• Ako su postavljeni priključak za usitnjavanje i sečivo za usitnjavanje, uklonite ih.
• Zatvorite zadnji poklopac pre rada proizvodom. Kad koristite proizvod, pokošena trava se izbacuje ispod zadnjeg poklopca.
• Poklopac košenja mora da bude čist. Naslage trave i prljavštine s unutarnje strane poklopca košenja mogu da umanje rezultate košenja. Pogledajte Čišćenje proizvoda na stranici 589

Održavanje

Uvod

Diagram of a circular mechanical or electrical component with internal rotation arrows and a wooden block (no text or symbols)

Technical line drawing of a mechanical component with a close-up inset showing a gear mechanism (no text or symbols)

Diagram showing a blade under load with arrows indicating direction, above grass (no text or symbols)

1. Pobrinite se da je nož poravnat sa sredinom osovine motora.

2. Blokirajte nož pomoću komada drveta. Postavite podloške i zategnite vijak na moment pritezanja od 23 – 28 Nm.

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Technical line drawing of a cutting tool with a close-up inset showing the blade and handle (no text or symbols)

1. Povucite nož rukom da biste proverili da li se slobodno okreće.

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing a gear and belt mechanism (no text or labels)

1. Sklopite ručku unapred.

Line drawing of a lawn mower with a directional arrow indicating clockwise motion (no text or symbols)

Transport

• Zahtevi u pogledu transporta opasnih materija primenjuju se na sadržane litijum-jonske akumulatore.

• Za komercijalni transport moraju se poštovati posebni zahtevi koji su navedeni na pakovanju i nalepnicama.

• Pobrinite se da se pridržavate propisa za transport opasnih materija prilikom pripreme proizvoda za transport. Lokalni propisi se mogu primenjivati.

• Uvek uklonite akumulator pre transporta.
• Stavite traku na konektore akumulatora i uverite se da se akumulator ne može pomerati tokom transporta.
  • Fiksimajte proizvod tokom transporta.

Skladištenje

• Pre skladištenja treba sačekati da se proizvod ohladi.
• Uvek uklonite akumulator pre skladištenja.
• Kako bi se sprečili nesrećni slučajevi, uverite se da akumulator nije povezan na proizvod tokom skladištenja.
• Držite punjač akumulatora u zatvorenom i suvom prostoru.
• Držite akumulator i punjač akumulatora u suvom prostoru gde nema vlage ili mraza.
• Iskopčajte akumulator sa punjača akumulatora tokom skladištenja.
• Ne čuvajte akumulator na mestima gde može doći do statičkog pražnjenja. Ne čuvajte akumulator u metalnoj kutiji.
• Čuvajte proizvod na mestu gde je temperatura između -10 °C i 40 °C.
• Čuvajte akumulator na mestu gde je temperatura između 5 °C i 25 °C i van direktne sunčeve svetlosti.
• Čuvajte punjač akumulatora na mestu gde je temperatura između 5 °C i 45 °C i van direktne sunčeve svetlosti.
• Pobrinite se da je akumulator napunjen na 30% - 50% pre skladištenja na duži vremenski period.
• Čuvajte proizvod, akumulator i punjač akumulatora na zaključanom mestu izvan domašaja dece i neovlašćenih osoba.
• Očistite proizvod i uverite se da je hvatač trave prazan.
• Obavljajte poslove održavanja opisane u ovom korisničkom uputstvu. Pogledajte Održavanje na stranici 589
• Obavite kompletan servis pre nego što uskladištite proizvod na duži vremenski period.

Odlaganje

Simboli na proizvodu ili njegovom pakovanju ukazuju na to da se ovim proizvodom ne može rukovati kao otpadom iz domaćinstva. On se mora odneti u odgovarajući reciklažni pogon za obnavljanje električne i elektronske opreme.

Starajući se da se na odgovarajući način pobrinete za ovaj proizvod, možete da pomognete da se ublaži mogući negativni uticaj na životnu sredinu i ljude, do kojeg bi u suprotnom došlo u slučaju nepravilnog odlaganja ovog proizvoda na otpad. Za detaljnije informacije o recikliranju ovog proizvoda, obratite se

Diagram showing two crossed bins with a recycling symbol and no text labels

Tehnički podaci

Tehnički podaci

	LC 251i LC 251iS
Motor košenja
Tip motora BLDC (bez četkica) 36 V BLDC (bez četkica) 36 V
Brzina motora – SavE, o/min 2600/min 2600/min
Brzina motora – nominalna, o/min 3000/min 3000/min
Brzina motora – veliko opterećenje, o/min 3500/min 3500/min
Izlazna snaga motora – maks. kW 1,4 1,4
Izlazna snaga motora – nominalna, kW 0,9 0,9
Pogonski motor
Izlazna snaga motora – nominalna, kW N/A 0,4
Brzina samostalnog hoda, km/h N/A 4,0
Nivoi podešavanja brzine N/A 1.
Težina
Masa bez kese (bez baterije), kg 25,5 27.
Masa sa kesom (sa 2 x BLi30), kg 31,5 33.
Baterija
Vrsta baterije Husqvarna serija baterije Husqvarna serija baterije
Vreme rada baterije
Vreme rada baterije, min, (slobodan rad) sa aktiviranom funkcijom SavE, sa jednom Husqvarna baterijom od 7,5 Ah (Bli30).	58	51.
Vreme rada baterije, min, (slobodan rad) sa aktiviranim standardnim režimom, sa jednom Husqvarna baterijom od 7,5 Ah (Bli30).	42. 38.
Emisija buke ^98
Nivo zvučne snage, mereno dB (A)	96	96
Nivo zvučne snage, garantovano LWA dB (A)	98	98
Nivoi zvuka ^99
Nivo zvučnog pritiska na uho rukovaoca, dB (A)	85	85
Nivoi vibracije ^100
Ručka, m/s ^2	0,7 0,7
Oprema za košenje
Visina košenja, mm 25–75 25–75
Širina košenja, mm 510 510
Nož – standardni Sakupljač 5928704-01 Sakupljač 5928704-01
Kapacitet hvatača trave, litre 65 65

Odobrena baterija Tip Kapacitet baterije,	Ah	Napon, V Težina, lb/kg
BLi30 Litijum-jonska 7,5 36. 4,2/1,9
40-B140 Litijum-jonska 4,0 36. 2,6/1,2

Odobreni punjači za navedene baterije, BLi	Ulazni napon, V	Frekvencija, Hz	Snaga, W
40-C80	100–240	50–60	68,8
QC250	100–240	50–60	250

Technical diagram of a lawn mower with numbered parts and labeled parts for identification

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with a circular body and rectangular shaft (no text or symbols)

Kontrollera den bakre kåpan

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a mechanical clamp or bracket assembly with directional arrows indicating movement (no text or symbols)

Illustration of a car inside an open box with mechanical components, no text or symbols present

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with an arrow indicating clockwise motion (no text or symbols)

Diagram of a medical or anatomical device with a magnified inset showing internal structures (no text or labels)

Technical line drawing of a mechanical clamp or bracket assembly with an inset showing close-up details (no text or symbols)

Technical diagram showing two mechanical assembly states with labeled cross and check symbols indicating alignment or repair points.

Justera handtaget

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Drift

Introduktion

Line drawing of a lawn mower with an arrow indicating clockwise motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and attached components (no text or symbols)

Line drawing of a device with a warning symbol and a terminal block (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Diagram showing a car seatbelt switch and its internal components (no text or labels)

1. Stå bakom produkten.

2. Lossa startspärren.

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of two hands using a tool to adjust or install a component, with a downward arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical bracket or clamp assembly (no text or symbols)

Interior view of a car dashboard with a circular vent and control panel (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Diagram showing a car gear shift lever and its internal mechanism (no text or symbols)

Diagram showing a device inside a car intake frame with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical vehicle with visible tires and mounting brackets (no text or symbols)

Line drawing of a wheeled vehicle with a box attached, showing motion direction (no text or symbols)

Line drawing of a lawn mower with an inset showing the blade and handle mechanism (no text or symbols)

Diagram of a robotic car with gear and battery, showing mechanical components and directional arrows (no text or labels)

Line drawing of hands holding a tablet with a clip, showing material being poured into the screen (no text or symbols)

Få ett bra resultat

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a circular component inserted into it (no text or symbols present)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Technical diagram showing mechanical components with no visible text or symbols

Mechanical assembly diagram showing two stages of a gear mechanism with rotational motion arrows (no text or labels)

1. Vik handtaget framåt.

Line drawing of a lawn mower with a directional arrow indicating motion (no text or symbols)

Transport

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

Tekniska data

Tekniska data

EN IEC 62841-4-3:2021/A11:2021, EN IEC

55014-1:2021, EN IEC 55014-2:2021, EN IEC

63000:2018

Technical diagram of a lawn mower with numbered parts and labeled parts for identification.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with a circular body and rectangular shaft, no text or symbols present.

Diagram of a mechanical clamp or bracket with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with directional arrow indicating motion (no text or symbols)

Illustration of a car inside an open box with a hand holding a bicycle, showing mechanical components and motion arrows (no text or symbols)

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating maneuvering motion (no text or symbols)

Diagram of a medical or surgical device with an inset showing a cross-sectional view of the internal structure (no text or labels present)

Technical line drawing of a mechanical clamp or bracket assembly with a close-up inset showing the detail (no text or symbols)

Diagram showing two mechanical assembly states labeled X and ✓, with symbols indicating connection points.

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with motion arrows indicating maneuvering motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and attached bracket (no text or symbols)

Line drawing of a device with a warning symbol and connection point (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Diagram showing a car interior with a steering wheel and dashboard, alongside a close-up of the wheel (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating movement (no text or symbols present)

Line drawing of hands using a tool to adjust or install a component, showing a downward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical bracket or bracket with a curved handle and arrow indicating direction (no text or symbols)

Interior view of a car showing the dashboard and air vent (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Diagram showing a car seatbelt switch and its side panel, no text or symbols present

Diagram showing a device with directional arrows pointing to a central component, no text or symbols present.

Technical line drawing of a mechanical vehicle with visible wheels and mounting brackets (no text or symbols)

Illustration of a robotic arm pulling a box with a directional arrow (no text or symbols)

Line drawing of a lawn mower with a close-up inset showing the blade and handle (no text or symbols)

Technical illustration of a robotic car with gear and battery components (no text or symbols)

Line drawing of hands holding a clipboard with a tool, no text or symbols present

İyi sonuç alma

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

Technical line drawing of a cutting tool with a close-up inset showing the blade and base (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical gear or pulley system with rotational arrow and base plate (no text or symbols)

Technical line drawing of a mechanical component with a close-up inset showing a circular housing and a blade assembly (no text or symbols)

Mechanical assembly diagram showing two stages of gear meshing and rotational motion (no text or symbols)

Line drawing of a lawn mower with a directional arrow indicating left motion (no text or symbols)

Taşıma

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

Teknik veriler

Teknik veriler

Technical diagram of a lawn mower with numbered parts and labeled parts, including handrails, lockers, and a device.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Simple line drawing of a mechanical component with a circular body and rectangular plate (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram of a car inside an open box with a mechanical lever and gear mechanism, showing no text or symbols.

Technical line drawing of a mechanical assembly inside a cardboard box, showing internal components and directional arrows (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Diagram of a medical or surgical instrument with an inset showing a cross-sectional view of the device (no text or labels present)

Technical line drawing showing a mechanical clamp or bracket assembly with an inset close-up of the detail (no text or symbols)

Technical diagram showing two mechanical assembly states with labeled cross and check symbols indicating alignment or repair points.

Регулювання ручки

Mechanical assembly diagram showing two stages of a gear mechanism with rotational motion arrows (no text or labels)

Line drawing of a lawn mower with a directional arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with a wheel and attached bracket (no text or symbols)

Line drawing of a device with a switch and warning symbol, connected to a wall-mounted device (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Diagram showing a car interior with a steering wheel and dashboard, alongside a close-up of the wheel (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of two hands operating a robotic device with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical bracket with a curved handle and a small arrow indicating direction (no text or symbols)

Interior view of a car dashboard with a circular vent and control panel (no text or symbols visible)

Diagram of a mechanical clamp or bracket assembly with no visible text or symbols

Diagram showing a car interior with a circular switch and directional arrow, no text or symbols present

Diagram showing a device with directional arrows pointing to a central component, no text or symbols present.

Technical line drawing of a mechanical vehicle with visible wheels and structural components (no text or symbols)

Diagram of a vehicle with a moving cart and a box, showing mechanical components and a directional arrow (no text or symbols)

Line drawing of a lawn mower with a close-up inset showing the blade and gear mechanism (no text or symbols)

Technical illustration of a robotic car with gear and battery components (no text or symbols)

Line drawing of hands holding a flatboard with a tool, partially covered by a pile of material (no text or symbols)

Diagram of a circular mechanical or electrical component with internal rotation arrows and a base block (no text or symbols)

Technical line drawing of a mechanical component with a close-up inset showing a circular component and a blade assembly (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Technical line drawing of a mechanical component with a close-up inset showing a circular housing and a blade-like structure (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with rotational motion arrows (no text or labels)

Line drawing of a lawn mower with a directional arrow indicating motion (no text or symbols)

Транспортування

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

Технічні дані

Original instructions

Оригинални инструкции

Původní pokyny
