USER MANUAL BFP2521B BRANDT

Black-and-white photo of a bowl with leaf garnish, blurred bowls in background (no text or symbols)

INSTRUCTIONS UTILISATEUR FR

FOUR

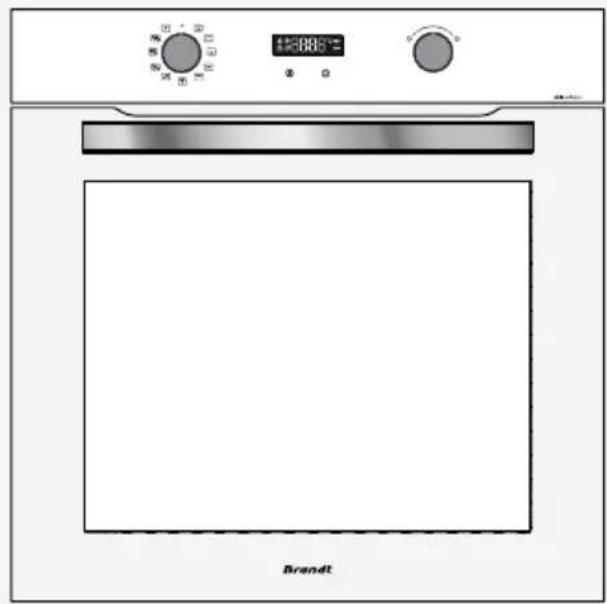

Front view of a brandt oven with control knobs and a digital display (no text or symbols on main body)

ORIGINE FRANCE® GRANTIE

Chère Cliente, Cher Client,

QR code image containing encoded data, no visible human-readable text

IMPORTANT :

Diagram of a wire rack with an arrow pointing to it, no text or symbols present

- Plat multi usages 45mm

3D CAD model of a rectangular tray or container with internal channels and a black arrow pointing to the bottom-right corner (no text or symbols)

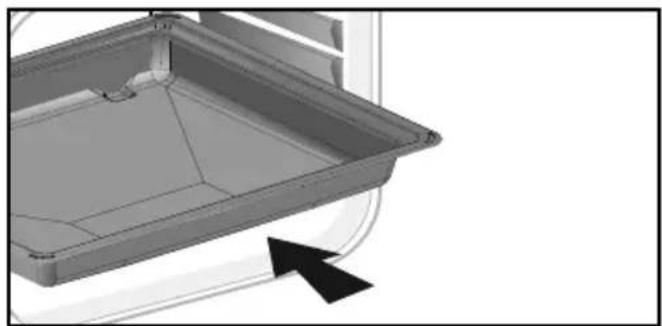

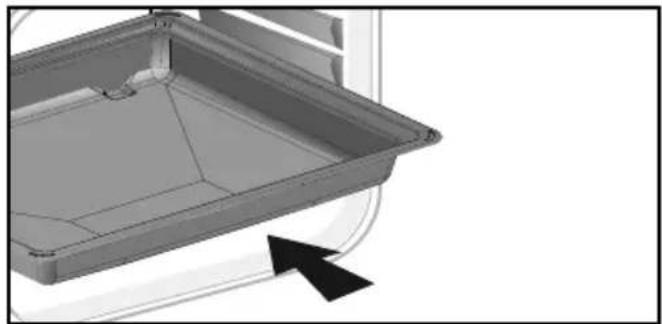

- Plat multi usages 20mm

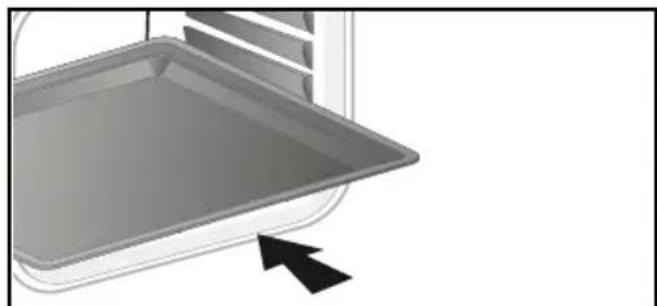

Illustration of a gray tray with an arrow pointing to it, no text or symbols present

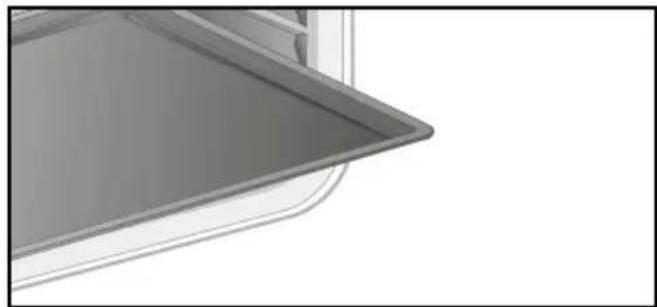

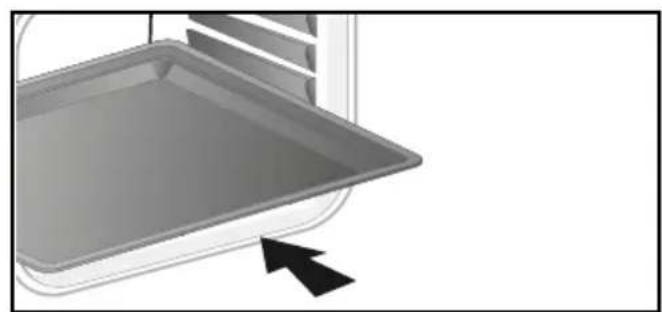

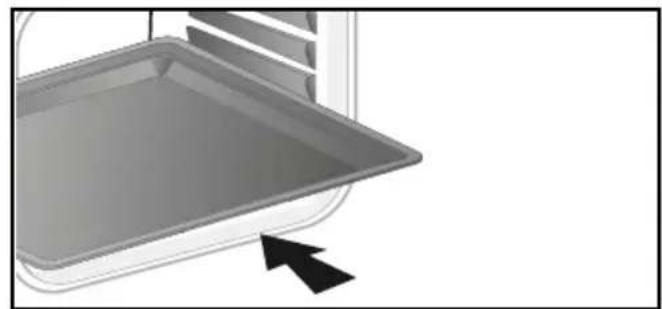

- Plaque patisserie 8mm

Partial view of a gray architectural or architectural element with curved edges, no visible text or symbols

CONSEIL :

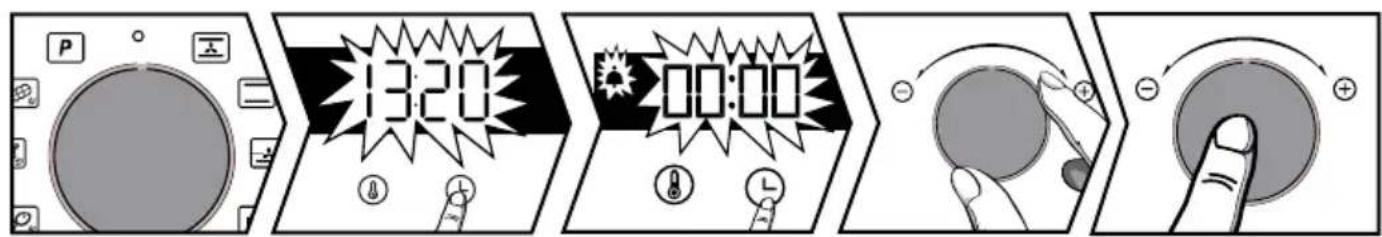

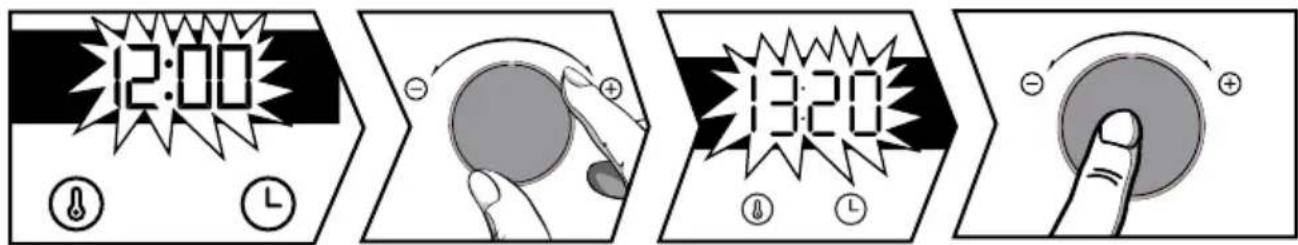

P 13:20 ⑧ X2

*Cooking mode as per standard EN 60350-1: to demonstrate compliance with requirements of the energy label of European regulation UE/65/2014.

MODES DE CUISSON

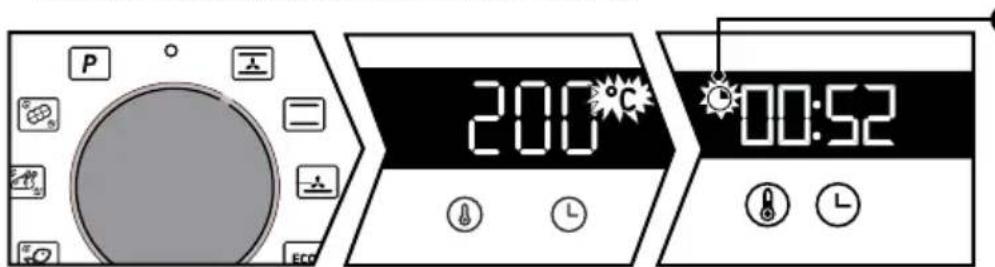

P 200°C 00:52

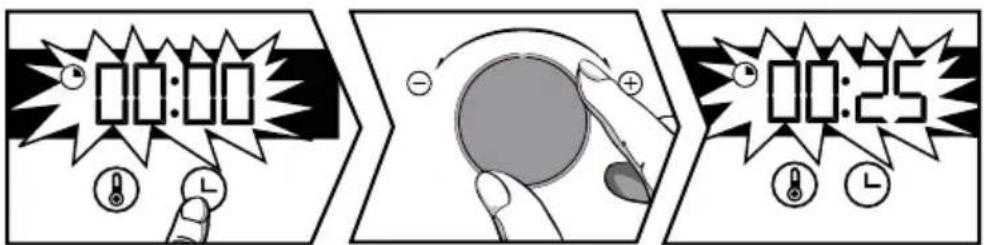

00:00 00:25

Système "Smart Assist"

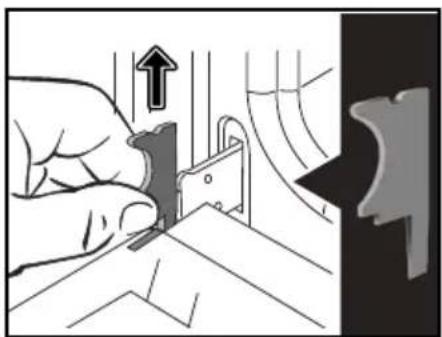

Illustration of a hand holding a small mechanical component with a downward arrow, next to a close-up of a metallic part (no text or symbols)

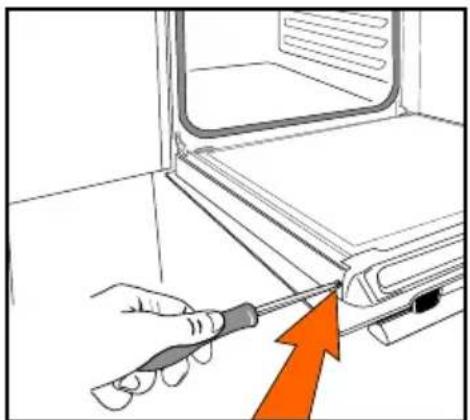

Illustration of a hand using a tool to adjust or install a kitchen appliance (no text or symbols visible)

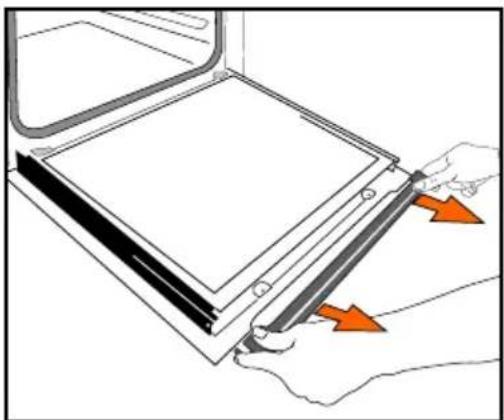

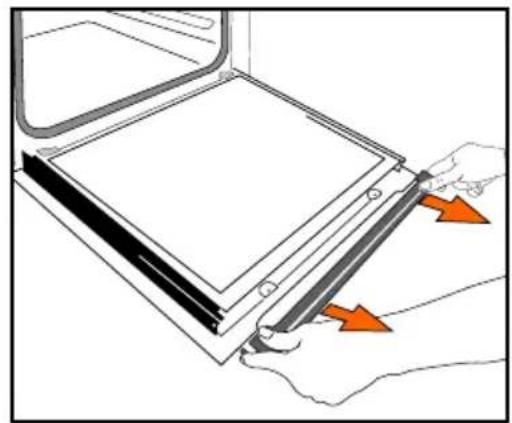

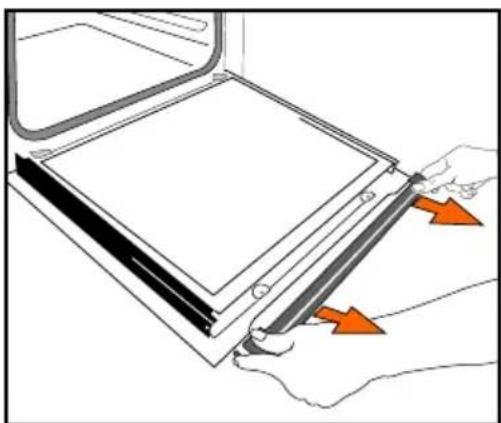

Diagram of a door frame being inserted into a tray, with orange arrows indicating force or movement (no text or symbols present)

ORTANT :

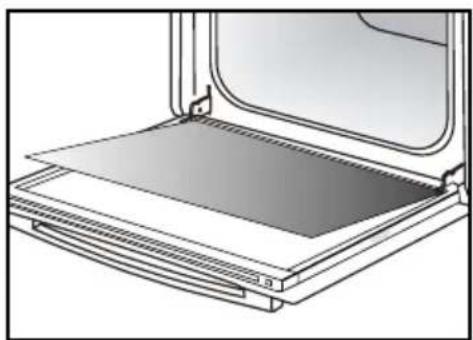

Illustration of hands installing or adjusting a panel on a door (no text or symbols visible)

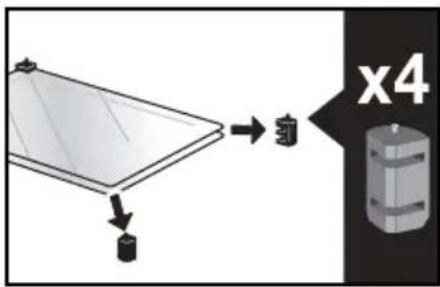

x4

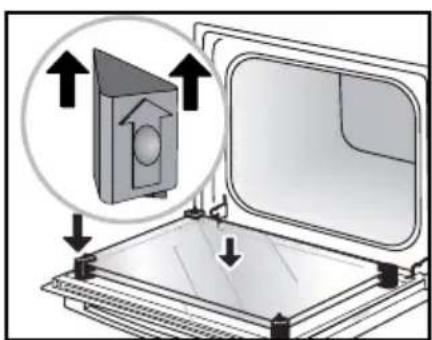

Diagram showing a device with an arrow indicating upward motion, highlighting a 3D object with directional arrows.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

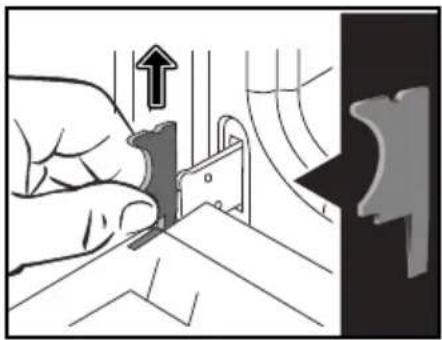

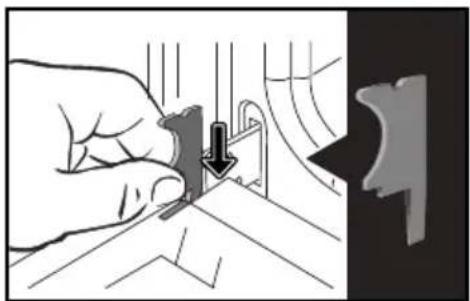

Illustration of a hand fastening a metal clip with an upward arrow, next to a close-up of the clip's edge (no text or symbols)

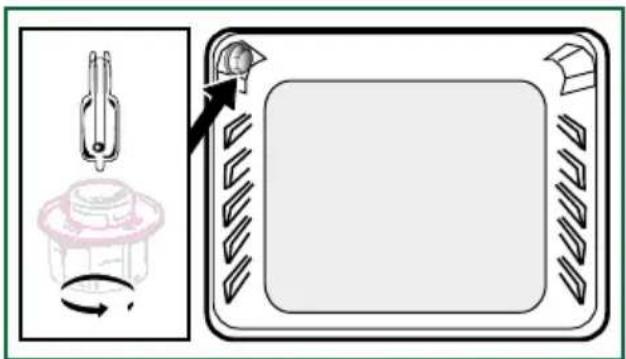

- Remplacement de la lampe

IMPORTANT :

Diagram illustrating a kitchen appliance with a fork, cup, and tray, showing a rotating handle and component placement.

RELATIONS CONSOMMATEURS

Black-and-white photo of a bowl with leaf garnish, blurred bowls in background (no text or symbols)

NÁVOD K OBSLUZE EN

TROUBA

Front view of a brandt oven with control knobs and a digital display (no text or symbols on main body)

ORIGINE FRANCE® GRANTIE

Vážený kliente,

QR code image containing encoded data, no visible human-readable text

Důležité:

Diagram of a wire mesh panel with an arrow pointing to it, no text or symbols present

3D CAD model of a mechanical part with a black arrow indicating direction (no text or symbols)

Illustration of a tray with an arrow pointing to it, no text or symbols present

Partial view of a gray architectural or architectural element with curved edges, no visible text or symbols

Upozornění:

00:00 01:25

Sytém „Smart Assist“

Illustration of a hand holding a mechanical component with a downward arrow, next to a close-up of a metallic bracket (no text or symbols)

Illustration of a hand using a tool to adjust or install a component inside a kitchen appliance (no text or symbols visible)

Illustration of a hand holding a tray with an orange arrow indicating direction (no text or symbols present)

ežité upozornění:

Illustration of hands installing or adjusting a component inside a 3D printer (no text or symbols visible)

x4

Diagram showing a device with an arrow pointing to a 3D object, indicating direction or movement of the component.

Technical line drawing of a mechanical assembly with layered components and a curved opening (no text or symbols)

Illustration of a hand fastening a metal clip into a corner, with an arrow indicating upward motion (no text or symbols present)

• Výměna žárovky

Diagram illustrating a mechanical device with rotating components and a close-up view of the component's rotation direction.

Black-and-white photo of a bowl with a mint leaf garnish, blurred bowls in background (no text or symbols)

BRUGERVEJLEDNING DA

OVN

Front view of a brandt oven with control knobs and a digital display (no text or symbols on main body)

ORIGINE FRANCE® GRANTIE

Kære kunde,

QR code image containing encoded data, no visible human-readable text

Diagram of a wire rack with an arrow pointing to it, no text or symbols present

3D CAD model of a rectangular tray or container with a black arrow pointing to the bottom section (no text or symbols visible)

Illustration of a gray tray with an arrow pointing to it (no text or symbols)

Partial view of a gray architectural or architectural element with curved edges, no visible text or symbols

! PAS PÅ:

P 13:20 ⑧ X2

P 200°C 00:52

00:00 00:25

"Smart Assist" system

Illustration of a hand holding a mechanical component with a downward arrow, next to a separate view of a mechanical part (no text or symbols)

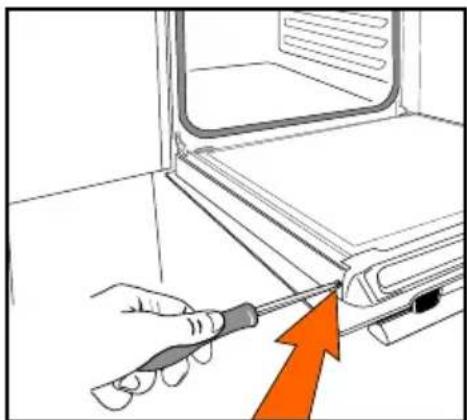

Illustration of a hand using a tool to adjust or install a kitchen appliance (no text or symbols visible)

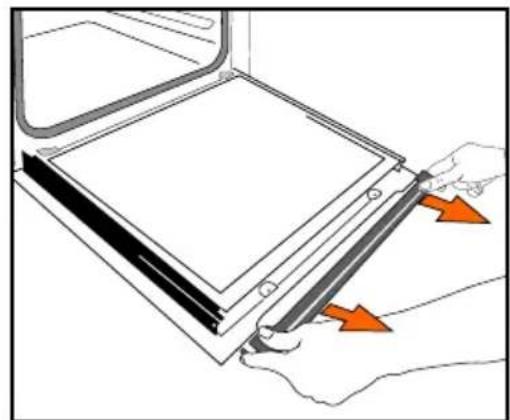

Diagram of a door frame being adjusted with an orange arrow, showing hand positioning and alignment (no text or symbols)

Illustration of hands installing or adjusting a component on a tray (no text or symbols visible)

x4

Diagram showing a device with an arrow indicating direction of movement or force, and a magnified inset highlighting the component's orientation.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Illustration of a hand fastening a metal clip into a corner, with an arrow indicating upward motion (no text or symbols present)

Diagram illustrating a kitchen appliance with a fork, cup, and tray, showing a rotating handle and component placement.

Black-and-white photo of a bowl with leaf garnish, blurred bowls in background (no text or symbols visible)

Front view of a brandt oven with control knobs and a digital display (no text or symbols on main body)

ORIGINE FRANCE® GRANTIE

QR code image containing encoded data, no visible human-readable text

Diagram of a wire rack with an arrow pointing to it, no text or symbols present

3D model of a rectangular tray with internal compartments and a black arrow pointing to the bottom-right corner (no text or symbols)

3D rendering of a gray tray with an arrow pointing to the side (no text or symbols)

Partial view of a gray rectangular object with curved edges, possibly a tray or shelf (no text or symbols visible)

! WARNHINWEIS:

P 200°C 00:52

00:00 00:25

System "Smart Assist"

Illustration of a hand holding a mechanical component with a downward arrow, next to a separate view of a mechanical part (no text or symbols)

Illustration of a hand using a tool to adjust or install a device inside a kitchen (no text or symbols visible)

Diagram of a device being processed with an orange tool, showing mechanical components and directional arrows (no text or symbols)

Illustration of hands installing or adjusting a door panel inside an oven (no text or symbols visible)

x4

Diagram illustrating a device's internal structure with directional arrows and a magnified view of the component.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Illustration of a hand fastening a metal clip into a surface, with an arrow indicating upward motion (no text or symbols present)

Diagram illustrating a kitchen appliance with a fork, cup, and tray, showing a rotating handle and a close-up of the cup's interior.

Black-and-white photo of a bowl with leaf garnish, blurred bowls in background (no text or symbols)

ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ EL

ΦΟΥΡΝΟΣ

Front view of a brandt oven with control knobs and a digital display (no text or symbols on main body)

ORIGINE FRANCE® GRANTIE

Αγαπητοί πελάτες,

QR code image containing encoded data, no visible human-readable text

Diagram of a wire rack with an arrow pointing to it, no text or symbols present

3D CAD model of a rectangular tray or container with a black arrow pointing to the bottom section (no text or symbols visible)

Illustration of a tray with an arrow pointing to the side (no text or symbols)

Partial view of a gray rectangular object with curved edges, possibly a tray or panel, against a white background (no text or symbols visible)

! ΠΡΟΕΙΔΟΠΟΙΗΣΗ:

P 13:20 ⑧ X2

00:00 01:25

Illustration of a hand holding a mechanical component with a downward arrow, next to a separate view of a mechanical part (no text or symbols)

Illustration of a hand using a tool to adjust or install a kitchen appliance (no text or symbols visible)

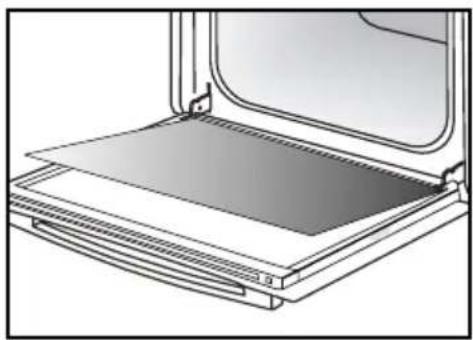

Diagram of a door frame being inserted into a tray, with orange arrows indicating force or movement (no text or symbols present)

ΣΗΜΑΝΤΙΚΟ:

Illustration of hands installing or adjusting a panel on a device (no text or symbols visible)

x4

Diagram showing a device with directional arrows and a 3D object, likely illustrating a process or assembly.

Technical line drawing of a mechanical assembly with layered components and a curved opening (no text or symbols)

Illustration of a hand fastening a metal clip into a surface, with an arrow indicating upward motion (no text or symbols present)

Diagram illustrating a kitchen appliance with a fork, a refrigerator, and a tray, showing a rotating handle mechanism.

Black-and-white photo of a bowl with leaf garnish, blurred bowls in background (no text or symbols)

USER INSTRUCTIONS EN

OVEN

Front view of a brandt oven with control knobs and a digital display (no text or symbols on main body)

ORIGINE FRANCE® GRANTIE

Dear Customer,

Thank you for purchasing and placing your trust in a BRANDT product. We have designed and made this product with you, your lifestyle and your requirements in mind so that it meets your expectations. It comes packed with more than 60 years of expertise, innovative spirit and passion.

In a continuous effort to better satisfy your needs, our customer service department is available to listen and answer all your questions and receive any suggestions you may have.

Visit our website at www.brandt.com where you will find our latest innovations, as well as useful and complementary information.

BRANDT is pleased to be on hand to offer daily support and to help you make the most of your purchase.

ORIGINE FRANCE® GARANTIE

BVCert.6011825

The “Origine France Garantie” label guarantees consumers the product traceability by providing them with a clear and objective indication of origin. BRANDT is proud to affix this label to the products made in our French plants based in Orléans and Vendôme.

http://brandt.com

IMPORTANT:

QR code image containing encoded data, no visible human-readable text

Before switching your appliance on, please read this user guide carefully to familiarise yourself quickly with its operation.

Safety instructions .... 4

installing your appliance 6

Choosing a location and installing the appliance ....6

Electrical connection 7

ENVIRONMENT 8

Environment 8

Description of your appliance 9

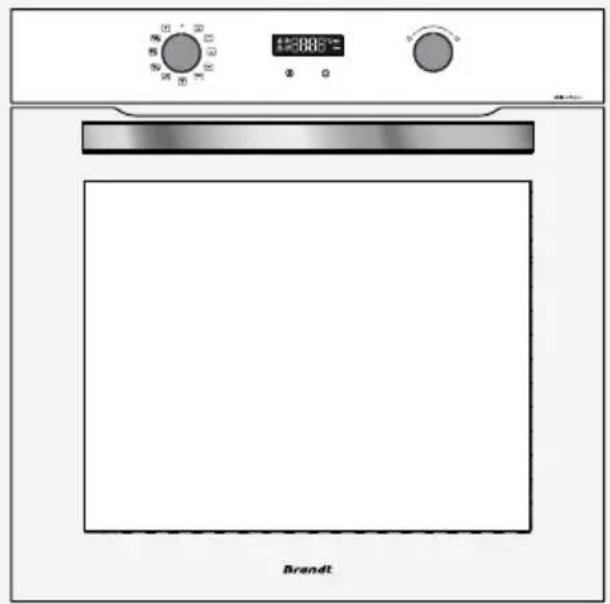

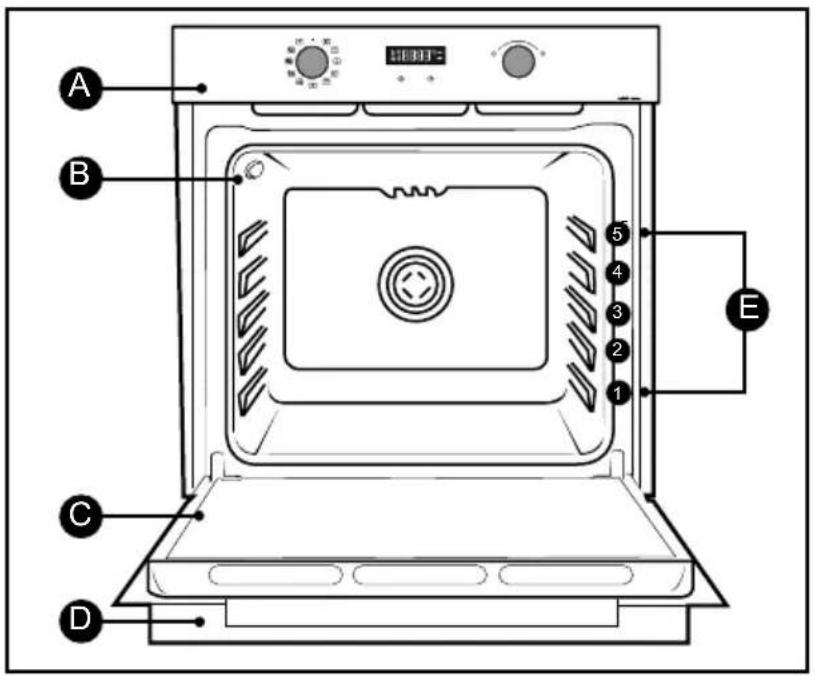

Overview of the oven 9

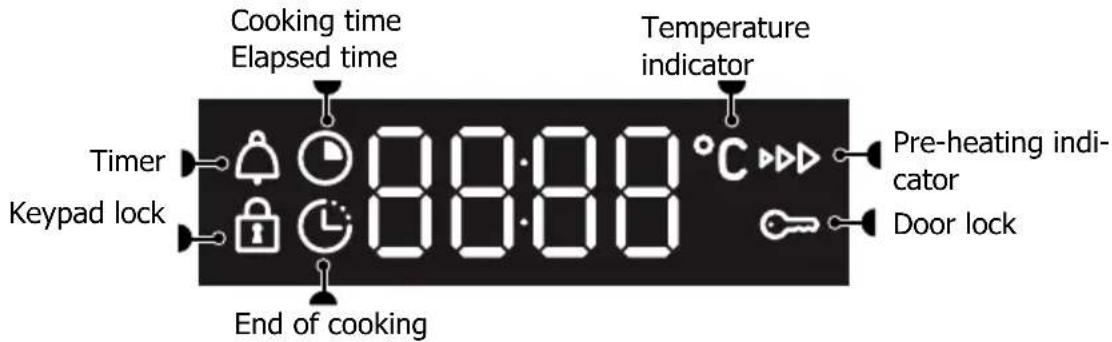

Display and control buttons 9

Accessories 10

Using your appliance 11

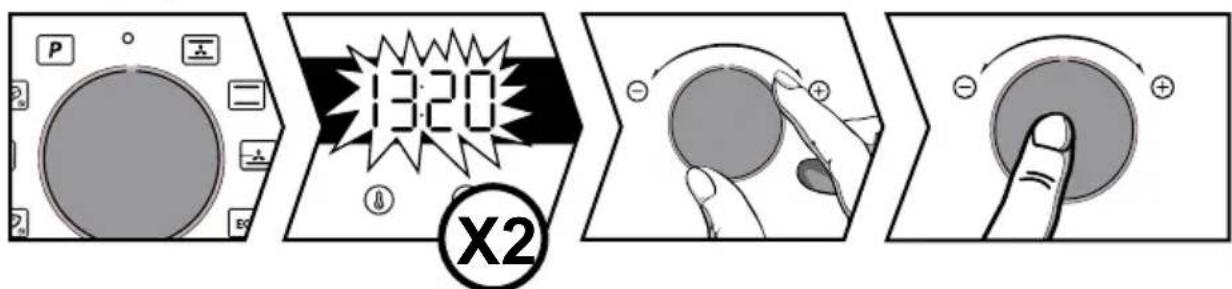

Settings 11

Settings menu 12

Cooking modes ....13

Automatic combined steam functions 14

Starting a cooking process 15

Maintenance of your appliance 16

Cleaning the interior and exterior 17

Faults and solutions .... 19

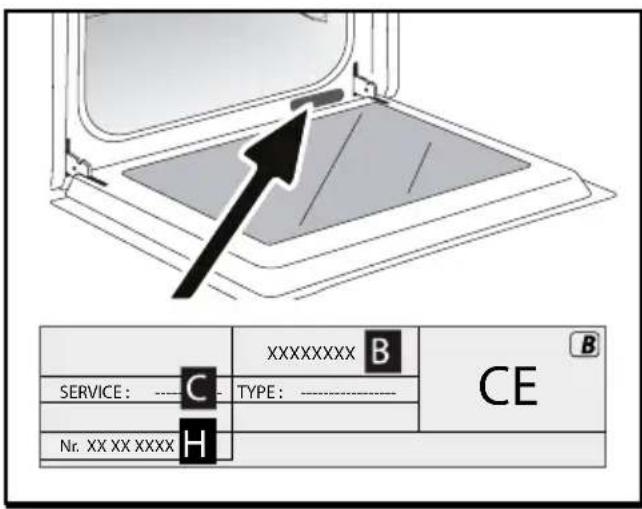

After-sales service 20

Servicing 20

COOKING AIDS 21

Baking tables 22

Functionality tests 23

IMPORTANT - READ CAREFULLY AND RETAIN FOR FUTURE USE. This user guide is available for download on the brand's website.

When you receive the appliance, unpack it or have it unpacked immediately. Check its general appearance. Make a note of any reservations on the delivery slip and keep a copy.

IMPORTANT:

This appliance may be used by children aged 8 years and older, and by persons with impaired physical sensorial or mental capacities, or without experience or knowledge, if they are supervised or have received prior instructions on how to use the appliance safely and have understood the risks involved. Children must not be allowed to play with the appliance. Cleaning and maintenance operations must not be carried out by children without supervision.

— Children must be supervised to prevent them from playing with the appliance.

WARNING:

— The appliance and its accessible parts become hot during use. Be careful not to touch the heating elements inside the oven. Children under 8 years old must not be allowed near it unless they are supervised at all times.

— This appliance is designed to cook with the door closed.
— Before pyrolytic cleaning of your oven, remove all accessories and any thick deposits.
— During cleaning, the surfaces may become warmer than under normal conditions of use. It is advisable to keep children away from the appliance.
— Do not use a steam cleaner.
— Do not use abrasive cleaning products or hard metal scrapers for cleaning the oven's glass door, as they could scratch the surface and cause the glass to shatter.

WARNING :

Make sure the appliance is dis-connected from the power before replacing the lamp in order to avoid the risk of electric shock. Change the lamp only when the appliance

has cooled down. To unscrew the view port and the light, use a rubber glove, which will make disassembly easier.

The electrical plug must re-accessible after installation.

— It must be possible to disconnect the appliance from the power supply, either using a plug or by fitting a switch on the fixed wiring system in accordance with installation rules.

— If the power cable is damaged, it should be replaced by the manufacturer, its after-sales service department or by a similarly qualified person in order to avoid danger.

— This appliance may be installed either under a worktop or in a cabinet column, as indicated on the installation diagram.

— Centre the oven in the unit so as to ensure a minimum distance of 10 mm between the appliance and the surrounding unit. The material of the unit supporting the appliance must be heat-resistant (or covered with a heat-resistant material). For greater stability, attach the oven to the unit with 2 screws through the holes provided on the side panels.

— In order to avoid overheating,

the appliance must not be installed behind a decorative door..

— This appliance is designed to be used for domestic and similar applications such as:

Kitchen areas for the staff of shops, offices and other professional premises; Farms; Use by clients of hotels, motels and other residential type establishments; guest house type environments.

— The oven must be turned off when cleaning inside the oven.

Do not modify the characteristics of this appliance; doing so could be dangerous.

Do not use your oven as a larder or to store any items after use.

CHOICE OF LOCATION AND FITTING

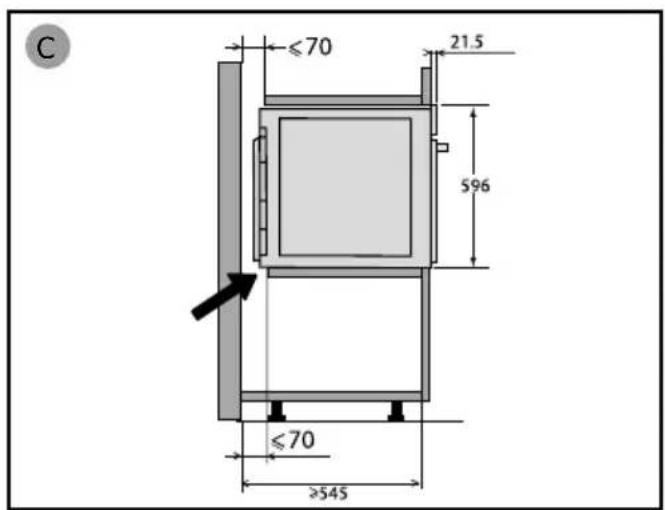

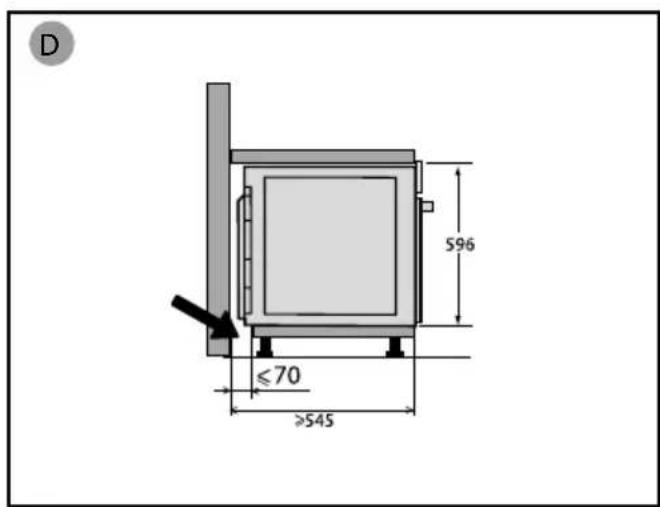

The diagrams show the dimensions of a cabinet that will be able to hold your oven.

This appliance may be installed either under a worktop (A) or in a column (B). If the cabinet is open, its opening at the back must be 70 mm maximum.

Install the oven in the furniture. To do this, remove the rubber stops and pre-drill a 2-mm diameter hole in the wall of the furniture to avoid splitting the wood. Attach the oven with the two screws. Re-position the rubber stops.

Tip

To be certain that you have properly installed your appliance, do not hesitate to call on a household appliance specialist.

WARNING :

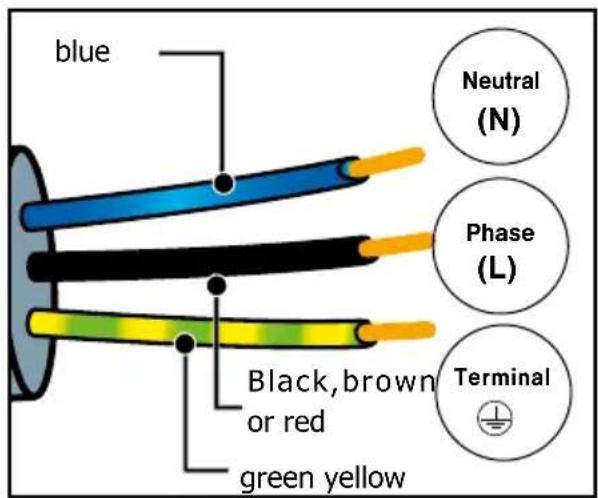

If the electrical installation in your residence requires any changes in order to hook up your appliance, contact a professional electrician. If the oven malfunctions in any way, unplug the appliance or remove the fuse corresponding to the sector where the oven is hooked up.

A ≥545 560 585 583 544 558 592 20 20 50 50

B 50 20 20 50 545 585 560 558 592 583 544

C ≤70 21.5 596 ≤70 ≥545

D ≤70 ≥545 596

ELECTRICAL CONNECTION

Your oven must be connected with a (standard) power cable with 3 conductors of 1.5mm2 (1 live + 1 neutral + earth) which must be connected to a 220-240V\~ single-phase grid by means of a 1 live + 1 neutral + earth CEI 60083 standard power socket or via an all-poles cut-off device in compliance with the installation rules.

WARNING

The safety wire (green-yellow) is connected to the appliance's terminal and must be connected to the earth terminal of the electrical set-up.

The fuse in your set-up must be 16 amperes.

We cannot be held responsible for any accident resulting from inexistent, defective or incorrect earthing.

- Prior to first use

Before using your oven for the first time, heat it with the door closed for about 15 minutes on the highest temperature. to break in the appliance. The mineral wool surrounding the oven cavity may initially give off a particular odour due to its composition. You may also notice smoke development. This is normal.

blue Neutral (N) Phase (L) Black, brown or red green yellow Terminal

CARE FOR THE ENVIRONMENT

• This appliance's packing materials are recyclable. Please recycle them and help protect the environment by depositing them in municipal containers provided for this purpose.
• Your appliance also contains many recyclable materials. It is therefore marked with this logo to indicate that used appliances must not be mixed with other waste.

The appliance recycling organised by your manufacturer will therefore be conducted in optimum conditions, in accordance with European directive 2002/96/EC on electrical and electronic equipment waste.

Consult your local authority or your retailer to locate your nearest used appliance drop-off points.

- We thank you for your help in protecting the environment.

DESCRIPTION OF THE OVEN

A B C D E 5 4 3 2 1

A Control panel
B Light
© Door
D Handle
E Shelf runners (This oven has 5 positions for the accessories: shelf 1 to 5).

DISPLAY AND CONTROL BUTTONS

- Display

Cooking time Elapsed time Temperature indicator Timer Keypad lock 88:88 End of cooking Pre-heating indi- cator Door lock

- Keys

Set temperature

Set clock and cooking time

ACCESSORIES (depending on the model)

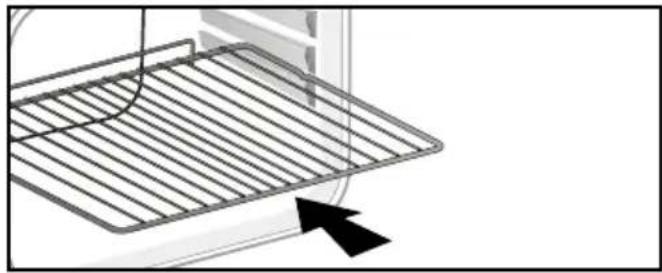

- Anti-tip safety rack

The rack can be used to support all dishes and moulds containing food for cooking or browning. It can be used for barbecues (to be placed directly on the grill).

Insert the anti-tip safety grid towards the back of the oven.

• 45 mm multi-purpose drip tray

To be inserted into the runners below the wire rack. It collects juice and fat from grilling, and can be used half-filled with water as a double-boiler.

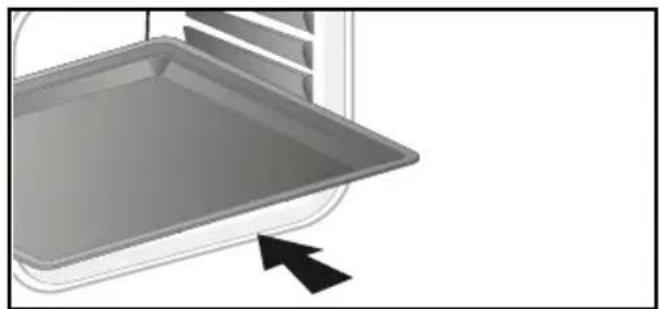

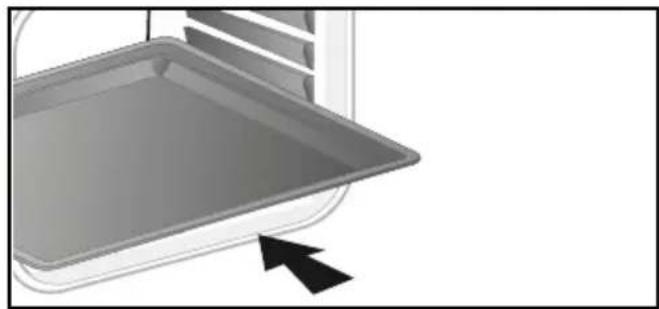

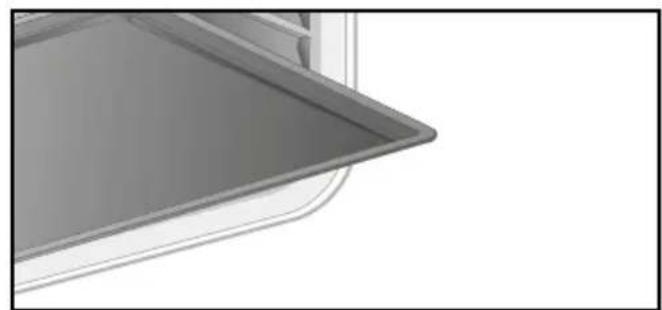

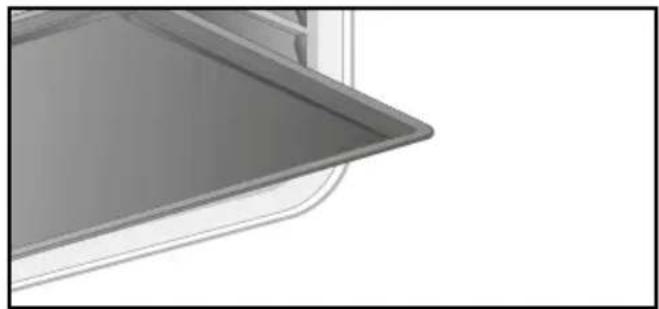

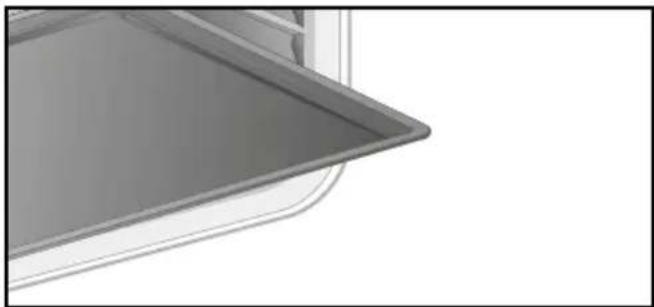

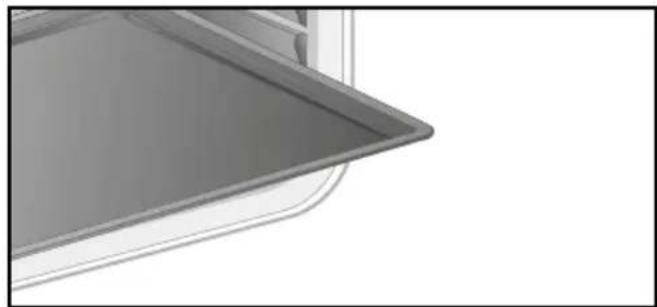

• 20mm multi-purpose drip tray

Once inserted in the runners, its tilted surface makes it easier for you to place your preparations on a dish. Can also be inserted into the runners under the grid to collect juice and fat from grilling.

- 8mm pastry tray

Insert in the shelf runners. Ideal for baking cookies, shortbread and cupcakes.

The tilted surface makes it easier for you to place your preparations on a dish. Can also be inserted into the runners under the grid to collect juice and fat from grilling.

TIP:

To avoid fumes when cooking fatty meats, we recommend you add a small amount of water or oil to the bottom of the 45 mm multi-purpose drip tray.

Diagram of a wire rack with an arrow pointing to it, no text or symbols present

3D CAD model of a rectangular tray or container with a black arrow pointing to the bottom section (no text or symbols visible)

3D rendering of a gray tray with an arrow pointing to the side (no text or symbols)

Partial view of a gray rectangular object with curved edges, possibly a tray or panel, against a white background (no text or symbols visible)

WARNING:

Remove the accessories from the oven before beginning pyrolysis cleaning.

The accessories may warp with the effect of heat, but this will not alter their function. They will return to their original shape once cooled.

SETTINGS

- Setting the clock

12:00 ① ② ③ ④ 13:20 ⑤ ⑥ ⑦ ⑧

When switching on, the display flashes at 12:00. Set the clock with + and - knob.

Confirm by pressing the knob.

If there is a power cut, the clock flashes. Reset it as above.

- Changing the time

P 13:20 ⑧ X2

The function selector must be in position 0.

Press the ⏻ key, the ⚙ symbol appears. Press again.

Set the clock with the + and - knob. Confirm by pressing the knob.

- Timer

This function can only be used when the oven is off.

P 13:20 00:00 + - +

The function selector must be in position 0.

Press the ⏻ key, the ⚙ symbol appears. The minute minder flashes. Set the timer with the + and - knob. Confirm by pressing the knob, the timer will then start and the current time reappears. Once the time has lapsed, there is a sound signal. To stop it, press any key.

Note: you can modify or cancel the timer at any time. To cancel, return to the timer's menu and set it to 00:00.

- Keypad lock indicator (child safety device).

13:20

Press and at the same time until the symbol appears on the screen. To unlock it, press the ① and ② keys until the symbol disappears from the screen.

SETTINGS MENU

You can change different parameters of your oven, to do so: press the ⏻ key until "MENU" displays to access the settings mode.

MENU

Use the knob to select the different settings. Confirm your choice by pressing the knob, active and deactivate the different parameters with the + and - knob, and confirm with the knob; see table:

	AUTO: In cooking mode, the light inside the oven automatically turns itself off after 90 seconds.ON: In cooking mode, the light stays on all the time, except in ECO mode.
	Activate/de-activate the beeping sound of the buttons
	Activate/de-activate pre-heating mode
	Activate/de-activate demonstration mode
	After-sales information

To exit the "MENU", press 📊 again.

COOKING MODES

Manual functions:

CONV VENTILATED\*

Min. temperature 35°C, max. 275°C

Recommendation: 200°C

Recommended for meat, fish and vegetables,

preferably placed in an earthenware dish.

CONVENTIONAL

Min. temperature 35^ C, max. 275^ C

Recommendation: 200°C

This cooking method is not compatible with cooking in a bain-marie.

Recommended for slow, gentle cooking: rich game, etc. For retaining the juices in red meat roasts. For simmering in a covered casserole, dishes that were begun on the hob (coq au vin, stew).

PULSED BOTTOM

Min. temperature 75°C, max. 250°C

Recommendation: 180°C

Recommended for moist dishes (quiches, tarts with juicy fruits, etc.). The pastry will be thoroughly cooked on the bottom. Recommended for recipes which rise (cake, brioche, kügelhopf, etc.) and for soufflés which will not be stopped by a crust on the top.

ECO\*

Min. temperature 35°C, max. 275°C

Recommendation: 200°C

This cooking method is not compatible with cooking in a bain-marie.

This setting saves energy while maintaining the quality of the cooking.

All types of cooking are done without preheating.

FULL GRILL

Positions 1 to 4

Recommendation: Position 4

Recommended for toast, gratin dishes, browning crème brûlée, etc.

*Cooking mode as per standard EN 60350-1: to demonstrate compliance with requirements of the energy label of European regulation UE/65/2014.

PULSED GRILL

Min. temperature 100°C, max. 250°C

Recommendation: 200°C

Roasts and poultry are juicy and crisp all over.

Insert the 45 mm multi-purpose drip tray onto the bottom shelf runners.

Recommended for all spit-roasted poultry or meat, for sealing and thoroughly cooking a leg or a rib of beef. To keep fish steaks moist.

BREAD

Min. temperature 35°C, max. 220°C

Recommendation: 205°C

Recommended cooking sequence for bread making. Do not forget to place a dish of water in the bottom to obtain a crisp, golden crust.

Automatic functions:

Brandt offers you 3 new functions that automatically combine two cooking modes: conventional and steam cooking in order to preserve the nutritional qualities of your food and cook faster.

POULTRY

Recommended to cook chicken.

FISH

Recommended to cook whole fish (Salmon, Bass, Cod, etc.).

WHITE MEAT

Recommended to preserve the juiciness and tenderness of veal roasts.

To use these 3 functions, simply add 500ml of warm water in your 45 mm multi-purpose drip tray and place it on the bottom shelf of your oven, and the dish you want to cook on level 3.

Adjust the weight on your display with the +/- knob and confirm it by pressing this knob.

START A COOKING PROGRAMME

- Start a cooking programme immediately

P 200°C 00:52

As soon as the oven starts, the operating time is displayed.

The time displayed by the programmer is not flashing.

Turn the function selector to any position.

For manual functions:

The temperature starts to increase at once. Your oven suggests a temperature which can be modified. The oven heats up and the temperature indicator flashes. A series of beeps sounds when the oven has reached the programmed temperature.

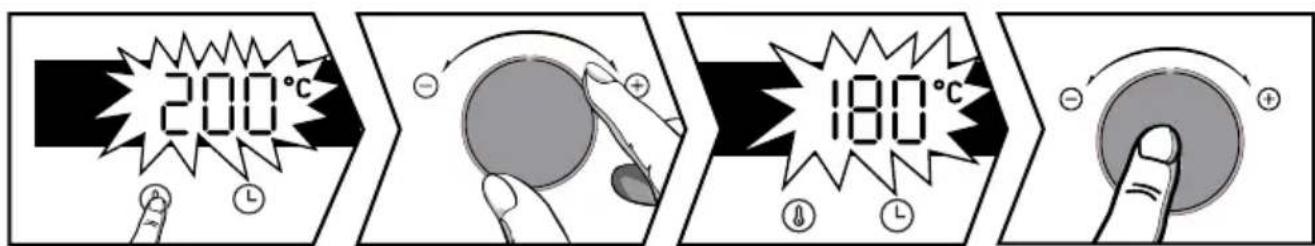

- Changing the temperature

200°C 180°C

Press Ⓞ.

Set the temperature with the + and - knob. Confirm by pressing the knob.

- Changing the cooking time

00:00 00:25

"Smart Assist" system

Your oven has the "Smart Assist" function which, when programming a cooking time, will suggest a cooking time which can be modified depending on the selected cooking mode (see table).

If you change the time, confirm by pressing the knob. The time starts to count down as soon as the cooking temperature is reached.

COOKING FUNCTIONS	Cooking time
	30 min
	30 min
	30 min
	30 min
	7 min
	15 min

Press Ⓤ Your oven suggests a cooking time which can be modified. Set the cooking time with the + and - knob. Confirm by pressing the knob..

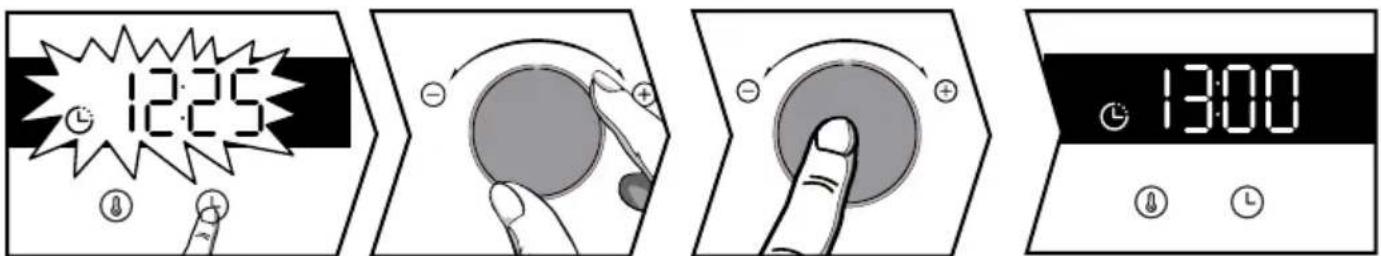

- Changing the cooking end time

12:25 8 - + + + + - 1300 ⑧ ⑤

After setting the cooking time, press ⏻; the cooking end time flashes. Set the new cooking end time with + and - knob.

Confirm by pressing the knob..

The cooking end time display stops flashing.

You oven will start later on to finish cooking at the selected time.

Note: This function is not available with the Grill setting.

CLEANING THE INNER AND OUTER SURFACES

- Cleaning the oven cavity with pyrolysis

WARNING

Remove the accessories from the oven before beginning pyrolysis cleaning. Before starting pyrolysis cleaning, remove any large overspills, if any. Remove the excess grease on the door using a damp sponge.

As a safety measure, cleaning by pyrolysis only occurs after the door locks automatically, it is then impossible to unlock the door.

- Immediate self-cleaning

The programmer must display the time of day and must not be flashing. Select the self-cleaning cycle with the function selector ☐ : select your pyrolysis cycle with the + and - knob depending on the degree of soiling of your oven, and confirm by pressing the knob.

Select between: pyr = 2-hour pyrolysis cycle, confirm by pressing the knob.

_P P-E = PyroExpress* or ECO Pyrolysis (1H30)* confirm by pressing the knob.

At the end of the cleaning cycle, 00:00 will appear on the display and the door will be unlocked. Turn the function selector back to 0.

\* PyroExpress in 59 minutes

= PyroExpress*

This specific function uses the heat built up during a previous cooking cycle to quickly and automatically clean the inside of the oven: it cleans a mildly dirty oven interior in less than an hour.

The electronic oven temperature monitor determines whether the residual heat remaining in the oven interior is sufficient to provide a good cleaning result. If this is not the case, a 90-minute ECO pyrolysis cycle will automatically begin.

- Delayed self-cleaning

You can choose to delay the start of the pyrolysis cycle: When the programme duration displays on the screen, press the ⏻ key and set the new end time with the + and - knob, then confirm by pressing the knob. The self-clean will start later on to end at the new set time. Turn the function selector back to 0 once the cleaning cycle has ended.

CLEANING THE OUTER SURFACES

Use a window washing product applied to a soft cloth. Do not use abrasive creams or scouring sponges.

Removing the over door glass panels

IMPORTANT:

Do not use scouring products, abrasive sponges or metal scrapers to clean the glass oven door as this could scratch the surface and cause the glass to shatter.

Before doing this, remove any excess grease on the inside panel with a soft cloth and washing up liquid. To clean the different inside glass panels, disassemble them as follows:

- Removing the oven door glass panels

Open the door fully and block it with the plastic wedge provided with your appliance.

Illustration of a hand holding a small mechanical component with a downward arrow, next to a close-up of a metallic part (no text or symbols)

Unscrew the two screws on either side of the door mounts using a torx screwdriver (T20), then pull the rail out towards you.

Illustration of a hand using a tool to adjust or install a device inside a kitchen (no text or symbols visible)

Diagram of a device being processed with an orange tool, showing a tray and handle (no text or symbols)

IMPORTANT:

Make sure to note the fitting orientation of the first glass panel (shiny surface towards you)

Illustration of hands installing or adjusting a panel inside a device (no text or symbols visible)

x4

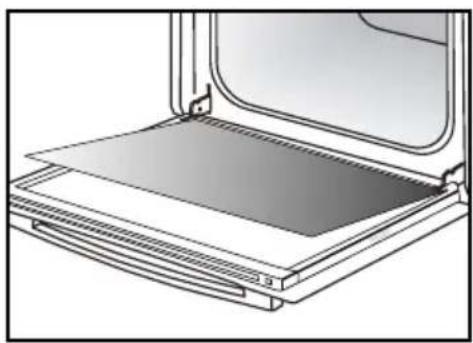

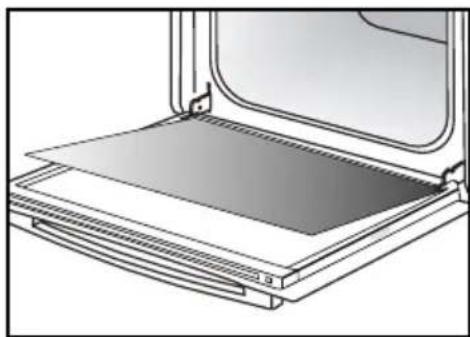

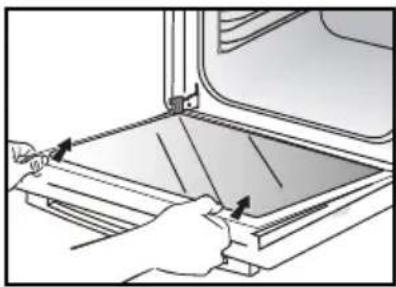

Remove the first glass panel: the door consists of two inside glass panels, with a black rubber spacer at each corner. If necessary, remove the inside panels to clean them.

Do not soak the glass panels in water. Rinse with clean water and dry off with a lint-free cloth.

- Reassembling the oven door glass panels

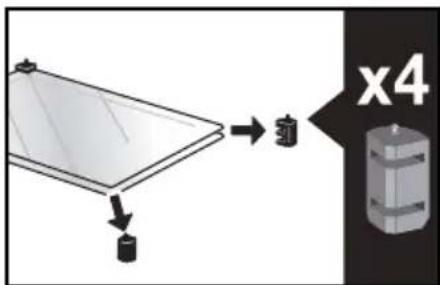

After cleaning, reposition the four rubber stops with the arrow upwards and reposition all of the glass panels.

Insert the last glass panel into the stops, reposition the rail and screw it back in. Remove the plastic wedge before closing the door. Your appliance is now ready to use again.

Diagram showing a device with an arrow indicating direction of movement, including a magnified view of the device's internal structure.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Illustration of a hand fastening a metal clip into a corner, with an arrow indicating upward motion (no text or symbols)

- Replacing the light bulb

IMPORTANT:

Make sure the appliance is disconnected from the power before replacing the bulb in order to avoid the risk of electric shock. Change the lamp only when the appliance has cooled down.

Diagram illustrating a kitchen appliance with a fork, cup, and tray, showing a rotating handle and component placement.

Bulb details:

25 W, 220-240 V\~, 300°C, G9 cap.

You can replace the bulb yourself. Unscrew the view port and remove the bulb (use a rubber glove, which will make it easier to remove). Insert the new bulb and replace the view port. This product contains a light source with energy rating G.

ANOMALIES AND SOLUTIONS

The oven is not heating.

Check that the oven is correctly connected and that your installation's fuse is not out of service. Increase the selected temperature.

The oven light is not working.

Replace the bulb or the fuse. Check that the oven is correctly connected.

The cooling fan continues to operate after the oven stops.

This is normal; the fan may continue running until a maximum of 1 hour after cooking to lower the temperature inside and outside the oven. If the fan runs for over an hour, contact the After Sales Department.

The pyrolysis cleaning cycle does not begin.

Check that the door is locked. There may be a door locking or temperature sensor fault. If the fault persists, contact the Customer Service Department.

The 🔒 symbol flashes in the display.

Door locking fault; contact the Customer Services Department.

Cooking in a bain-marie.

Please use ventilated cooking methods when cooking in a bain-marie.

Vibration noise.

Make sure the power cord is not in contact with the rear surface of the oven.

This will not have any impact on your appliance's operation, however it may cause a vibration noise when the fan is running. Remove your appliance and move the cord away. Reposition your oven.

SERVICE CALLS

Any repairs made to your appliance must be carried out by a qualified professional authorised to work on the brand. When calling, please provide the complete references of your appliance (commercial reference, service reference, serial number), so that we can handle your call better. This information appears on the manufacturer's nameplate attached to your equipment.

GENUINE REPLACEMENT PARTS

During maintenance work, request that only certified genuine replacement parts are used.

SERVICE: ----C ---- TYPE: ---- Nr. XX XX XXXX H XXXXXXXXB CE

B: Commercial reference

C: Service reference

H: Serial number

Cooking chart

TYPE OF FOOD					[C WDT (242)]					LEVEL	min.
Meat
Roast pork (1kg)					180	2					60
Roast veal (1 kg)					180	2					60-70
Roast beef rare (1kg)											45-60
Lamb (leg, shoulder 2.5 kg)			220	200						2	45
Poultry (1kg)					180	2	210	3			45
Large pieces of poultry
Chicken thighs			220	3 210	3						30-40
Pork chops			210	3							30-40
Veal ribs			210	3							20-30
Beef ribs rare (1kg)			210	3 210	3						20-30
Mutton ribs			210	3							20-30
Fish
Small fish			275	4							15-20
Medium fish (1kg to 1.5kg)					180	3					30-35
Fish fillets					200	3					15-20
Vegetables
Gratins (precooked ingredients)			275	2							15
Potato gratins					180	2					45
Lasagne					180	3					45
Stuffed tomatoes					160	2					30
Pastries
Sponge cake		3									35
Swiss roll											15-20
Brioche
Brownies					175	3	20-25
Cake - Pound cake
Clafoutis					180	3	30-35
Creams											30-40

* Depending on model

Cooking chart

TYPE OF FOOD							*		*
		LEVEL	[6B33]	LEVEL		LEVEL		LEVEL		LEVEL	[SAA3C]	LEVEL	min.
Pastries
Cookies - Shortbread biscuits	175	3											15-20
Kugelhopf			180	2 40-45
Meringues	100	2											60-90
Madeleines	220	3					200	3					5-10
Medium choux pastry	200	3	80	3 30-40
Puff pastry hors d'oeuvres	220	3					200	3					5-10
Savarin cake	180	3	30-35
Shortcrust pastry tart	200	1					195	1					30-40
Fine puff pastry tart	215	1					200	1					20-25
Other
Skewers	220	3	210	4						15-20
Hot water bath terrine pâté	200	2	190	2				80-100
Shortcrust pizza	200	2	30-40
Bread dough pizza													15-18
Quiches	220	2	35-40
Soufflé													50
Savoury pies	200	2	40-45
Bread	220						200		220				30-40
Toasted bread	180				275	4-5							2-3
Casseroles (stews)	180	2											90-180

All the T°C and cooking times are given for preheated ovens

Note: Before placing it in the oven, meat must be kept at room temperature for at least one hour.

EQUIVALENT: GAS MARKS T °C
°C	30 60	90 120 15	0 180 210	240 275
Gas marks	1 2 3	4 5 6 7 8	9 and						max

FUNCTION PERFORMANCE TESTSCEI STANDARD 60350
FOOD	*Cooking mode	LEVEL Accessories °C Min. TIME				PREHEATING
Short-bread (8.4.1)		3 45 mm pan 150 25-35 yes
Short-bread (8.4.1)		3 45 mm pan 150 20-30 yes
Short-bread (8.4.1)		2+ 4	45 mm pan + wire rack	150 20-30 yes
Short-bread (8.4.1)		3 45 mm pan 175 20-30 yes
Short-bread (8.4.1)		2+ 4	45 mm pan + wire rack	160 20-30 yes
Small cakes		3 45 mm pan 170 25-35 yes
Small cakes		3 45 mm pan 170 25-35 yes
Small cakes		2+ 4	45 mm pan + wire rack	170 20-30 yes
Small cakes		3 45 mm pan 170 30-40 yes
Small cakes		2+ 3	45 mm pan + wire rack	170 30-40 yes
Fat-free sponge cakes (8.5.1)		3 wire rack 150 30-40 yes
Fat-free sponge cakes (8.5.1)		2 wire rack 150 30-40 yes
Fat-free sponge cakes (8.5.1)		2+ 4	45 mm pan + wire rack	150 30-40 yes
Fat-free sponge cakes (8.5.1)		3 150 25-35 yes
Fat-free sponge cakes (8.5.1)		2+ 4	45 mm pan + wire rack	150 25-35 yes
Apple pie (8.5.2)		1 wire rack 170 80-120 yes
Apple pie (8.5.2)		1 wire rack 170 80-120 yes
Apple pie (8.5.2)		3 wire rack 180 80-120 yes
Browned surface (9.2.2) 5 wire		3-4 yes

* Depending on model
NOTE: When cooking on 2 levels, dishes can be removed at different times.

Brandt

Black-and-white photo of a bowl with a leaf garnish, blurred bowls in background (no text or symbols visible)

MANUAL DE USUARIO ES

HORNO

Front view of a brandt oven with control knobs and a digital display (no text or symbols on main body)

ORIGINE FRANCE® GRANTIE

QR code image containing encoded data, no visible human-readable text

We cannot be held responsible for any accident resulting from inexistent, defective or incorrect earthing.

Diagram of a wire rack with an arrow pointing to it, no text or symbols present

3D CAD model of a rectangular tray or container with a black arrow pointing to the bottom-right corner (no text or symbols)

3D rendering of a gray tray with an arrow pointing to the side (no text or symbols)

Partial view of a gray rectangular object with curved edges, possibly a tray or shelf (no text or symbols visible)

ADVERTENCIA:

P 13:20 ⑧ X2

P 200°C 00:52

00:00 00:25

Función "Smart Assist"

Illustration of a hand fastening a small mechanical component with a downward arrow, next to a separate view of a mechanical part (no text or symbols)

Illustration of a hand using a tool to adjust or install a device inside a kitchen (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a rectangular device (no text or symbols visible)

ORTANTE:

Illustration of hands installing or adjusting a panel on a door (no text or symbols visible)

x4

Diagram showing a device with directional arrows and a magnified view of the component, likely illustrating a process or assembly.

Technical line drawing of a laptop with a slide and frame, showing front panel and side panels (no text or symbols)

Illustration of a hand fastening a metal clip with an upward arrow, next to a close-up of the clip (no text or symbols)

Diagram showing a kitchen appliance with a handle, a side view of a bowl, and a close-up of the lid with a valve mechanism.

Black-and-white photo of a bowl with leaf garnish, blurred bowls in background (no text or symbols)

KÄYTTÄJÄN OHJEET FI

UUNI

Front view of a brandt oven with control knobs and a digital display (no text or symbols on main body)

ORIGINE FRANCE® GRANTIE

BVCert.6011825

Hyvä asiakas,

QR code image containing encoded data, no visible human-readable text

Diagram of a wire rack with an arrow pointing to it, no text or symbols present

3D CAD model of a rectangular tray or container with internal structure and a black arrow pointing to the bottom-right corner (no text or symbols)

Illustration of a gray tray with an arrow pointing to it (no text or symbols)

Partial view of a gray architectural or architectural element with curved edges, no visible text or symbols

! VAROITUS:

P 13:20 ⑧ X2

00:00 00:25

Illustration of a hand fastening a small mechanical component with a downward arrow, next to a separate view of a mechanical part (no text or symbols)

Illustration of a hand using a tool to adjust or install a device from a window (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a rectangular device (no text or symbols visible)

Illustration of hands installing or adjusting a door panel inside an oven (no text or symbols visible)

x4

Diagram showing a device with directional arrows and a magnified view of the screen area, likely illustrating a process or installation.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Illustration of a hand fastening a metal clip into a corner, with an arrow indicating upward motion (no text or symbols)

- Valon vaihtaminen

Diagram illustrating a kitchen appliance with a fork, cup, and tray, showing a rotating handle and a close-up of the cup's interior.

Valon ominaisuudet:

25 W, 220-240 V\~, 300 °C, kanta G9.

Black-and-white photo of a bowl with leaf garnish, blurred bowls in background (no text or symbols)

ISTRUZIONI PER L'USO IT

FORNO

Front view of a brandt oven with control knobs and a digital display (no text or symbols on main body)

ORIGINE FRANCE® GRANTIE

Gentile Cliente,

QR code image containing encoded data, no visible human-readable text

Diagram of a wire rack with an arrow pointing to it, no text or symbols present

3D CAD model of a rectangular tray or container with a black arrow pointing to the bottom section (no text or symbols visible)

3D rendering of a gray tray with an arrow pointing to the side (no text or symbols)

Partial view of a gray rectangular object with curved edges, possibly a tray or panel, against a white background (no text or symbols visible)

! AVVERTENZA:

P 13:20 ⑧ X2

P 200°C 00:52

00:00 00:25

Illustration of a hand holding a mechanical component with a downward arrow, next to a separate view of a mechanical part (no text or symbols)

Illustration of a hand using a tool to adjust or install a device inside a kitchen (no text or symbols visible)

Diagram of a device being processed with an orange tool, showing a tray and handle (no text or symbols)

ORTANTE:

Illustration of hands installing or adjusting a component on a tray (no text or symbols visible)

x4

Diagram showing a device with directional arrows and a magnified view of the screen area, likely illustrating a process or installation.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Illustration of a hand fastening a metal clip into a corner, with an arrow indicating upward motion (no text or symbols present)

Diagram illustrating a kitchen appliance with a fork, cup, and tray, showing a rotating handle and component placement.

Black-and-white photo of a bowl with leaf garnish, blurred bowls in background (no text or symbols)

GEBRUIKERSINSTRUCTIES NL

OVEN

Front view of a brandt oven with control knobs and a digital display (no text or symbols on main body)

ORIGINE FRANCE® GRANTIE

BRANDT OPTIMA N1 2T

Geachte klant,

QR code image containing encoded data, no visible human-readable text

Diagram of a wire rack with an arrow pointing to it, no text or symbols present

3D CAD model of a rectangular tray or container with internal structure and a black arrow pointing to the bottom-right corner (no text or symbols)

Illustration of a tray with an arrow pointing to it (no text or symbols)

Partial view of a gray architectural or architectural element with curved edges, no visible text or symbols

! WAARSCHUWING:

00:00 00:25

"Smart Assist" systeem

Illustration of a hand holding a mechanical component with a downward arrow, next to a separate view of a mechanical part (no text or symbols)

Illustration of a hand using a tool to adjust or install a device inside a kitchen (no text or symbols visible)

Diagram of a robotic arm gripping a rectangular device, with orange arrows indicating force or movement (no text or symbols present)

BELANGRIJK:

Illustration of hands installing or adjusting a component on a tray (no text or symbols visible)

x4

Diagram showing a device with an arrow indicating direction of movement, including a magnified view of the device's internal structure.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Illustration of a hand fastening a metal clip into a corner, with an arrow indicating upward motion (no text or symbols)

Diagram illustrating a kitchen appliance with a fork, cup, and tray, showing a rotating handle and a close-up of the cup's interior.

De deurvergrendeling is defect, bel de Service-dienst.

Black-and-white photo of a bowl with a leaf garnish, surrounded by other bowls (no text or symbols visible)

BRUKSANVISNING NO

OVN

Front view of a brandt oven with control knobs and a digital display (no text or symbols on main body)

ORIGINE FRANCE® GRANTIE

Kjære kunde

Du har nettopp kjøpt et produkt fra BRANDT og vi takker for tilliten til våre produkter.

QR code image containing encoded data, no visible human-readable text

Diagram of a wire rack with an arrow pointing to it, no text or symbols present

3D CAD model of a rectangular tray or container with a black arrow pointing to the bottom section (no text or symbols visible)

3D rendering of a gray tray with an arrow pointing to the side (no text or symbols)

Partial view of a gray rectangular object with curved edges, possibly a tray or panel, against a plain background (no text or symbols visible)

! ADVARSEL:

P 200°C 00:52

00:00 00:25

"Smart Assist"-system

Ovnen er utstyrt med funksjonen "Smart Assist" som anbefaler en steketid når du programmerer en tilberedning. Denne tiden kan endres avhengig av hvilken tilberedningsmodus du har valgt (se tabellen).

Hvis du endrer varigheten, bekreft ved å trykke på bryteren. Nedtellingen av tiden starter straks steketemperaturen er nådd.

	STEKETID
	30 min
	30 min
	30 min
	30 min
	7 min
	15 min

Trykk på Ⓤ Ovnen anbefaler en steketid som kan endres. Innstill steketiden med bryteren + eller -. Trykk på bryteren for å bekrefte valget.

Illustration of a hand holding a mechanical component with a downward arrow, next to a separate view of a mechanical part (no text or symbols)

Skru løs de to skruene på hver side av den loddrette karmen på døren med en torxnøkkel (str. 20) og trekk den vannrette karmen mot deg for å ta den av.

Illustration of a hand using a tool to adjust or install a kitchen appliance (no text or symbols visible)

Diagram of a kitchen appliance with a hand holding a tray and orange arrows indicating force or movement (no text or symbols)

Illustration of hands installing or adjusting a door panel inside an oven (no text or symbols visible)

x4

Diagram showing a device with directional arrows and a magnified view of the screen area, likely illustrating a process or installation.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Illustration of a hand fastening a metal clip into a corner, with an arrow indicating upward motion (no text or symbols present)

- Bytte lyspære

VIKTIG:

Diagram illustrating a kitchen appliance with a fork, cup, and tray, showing a rotating handle and a close-up of the cup's interior.

Black-and-white photo of a bowl with leaf garnish, blurred bowls in background (no text or symbols visible)

INSTRUKCJA OBSŁUGI PL

PIEKARNIK

Front view of a brandt oven with control knobs and a digital display (no text or symbols on main body)

ORIGINE FRANCE® GRANTIE

Szanowni Klienci!

QR code image containing encoded data, no visible human-readable text

WYBÓR MIEJSCA INSTALACJI I WBUDOWANIA

Diagram of a wire rack with an arrow pointing to it, no text or symbols present

3D CAD model of a rectangular tray or container with a black arrow pointing to the bottom section (no text or symbols visible)

3D rendering of a gray tray with an arrow pointing to the side (no text or symbols)

Partial view of a gray rectangular object with curved edges, possibly a tray or panel, against a white background (no text or symbols visible)

OSTRZEŻENIE:

P 200°C 00:52

00:00 00:25

Illustration of a hand holding a mechanical component with a downward arrow, next to a separate view of a mechanical part (no text or symbols)

Illustration of a hand using a tool to adjust or install a device inside a kitchen (no text or symbols visible)

Diagram of a device being processed with an orange tool, showing mechanical components and motion arrows (no text or symbols)

Illustration of hands installing or adjusting a panel on a door (no text or symbols visible)

x4

Diagram showing a device with directional arrows and a magnified view of the screen area, likely illustrating a process or installation.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Illustration of a hand fastening a metal clip into a corner, with an arrow indicating upward motion (no text or symbols)

• Wymiana lampki

UWAGA:

Diagram illustrating a kitchen appliance with a tool, component, and directional arrow indicating rotation or assembly.

Black-and-white photo of a bowl with leaf garnish, blurred bowls in background (no text or symbols)

Front view of a brandt oven with control knobs and a digital display (no text or symbols on main body)

ORIGINE FRANCE® GRANTIE

Caro(a) cliente,

QR code image containing encoded data, no visible human-readable text

Diagram of a wire rack with an arrow pointing to it, no text or symbols present

3D CAD model of a rectangular tray or container with internal structure and a black arrow pointing to the bottom-right corner (no text or symbols)

Illustration of a tray with an arrow pointing to it (no text or symbols)

Partial view of a gray architectural or architectural element with curved edges, no visible text or symbols

ADVERTÊNCIA:

P 13:20 ⑧ X2

P 200°C 00:52

00:00 00:25

Illustration of a hand holding a mechanical component with a downward arrow, next to a separate view of a mechanical part (no text or symbols)

Illustration of a hand using a tool to adjust or install a device inside a kitchen (no text or symbols visible)

Diagram of a device being processed with an orange tool, showing mechanical components and motion arrows (no text or symbols)

ORTANTE:

Illustration of hands installing or adjusting a door panel inside an oven (no text or symbols visible)

x4

Diagram showing a device with directional arrows and a magnified view of the screen area, likely illustrating a process or installation.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Illustration of a hand fastening a metal clip into a corner, with an arrow indicating upward motion (no text or symbols present)

Diagram illustrating a kitchen appliance with a fork, cup, and tray, showing a rotating handle and component placement.

Black-and-white photo of a bowl with leaf garnish, blurred bowls in background (no text or symbols)

NÁVOD NA POUŽITIE FR

RÚRA

Front view of a brandt oven with control knobs and a digital display (no text or symbols on main body)

ORIGINE FRANCE® GRANTIE

QR code image containing encoded data, no visible human-readable text

Diagram of a wire rack with an arrow pointing to it, no text or symbols present

3D CAD model of a rectangular tray or container with internal structure and a black arrow pointing to the bottom-right corner (no text or symbols)

Illustration of a gray tray with an arrow pointing to it (no text or symbols)

Partial view of a gray architectural or architectural element with curved edges, no visible text or symbols

! UPOZORNENIE:

Vytiahnite príslušenstvo rúry pred začatím čistenia pyrolýzou.

P 13:20 ⑧ X2

P 200°C 00:52

00:00 01:25

Illustration of a hand holding a mechanical component with a downward arrow, next to a separate view of a mechanical part (no text or symbols)

Pomocou torxového skrutkovača (T20) odskrutkujte dve skrutky umiestnené na každej strane stípikov dverí, potom odstráňte priečnik potiahnutím smerom k sebe.

Illustration of a hand using a tool to adjust or install a device inside a kitchen (no text or symbols visible)

Diagram of a door frame being inserted into a tray, with orange arrows indicating force or movement (no text or symbols present)

Illustration of hands installing or adjusting a component on a tray (no text or symbols visible)

x4

Diagram showing a device with an arrow indicating direction of movement, including a magnified view of the device's internal structure.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Illustration of a hand fastening a metal clip into a surface, with an arrow indicating upward motion (no text or symbols present)

• Výmena žiarovky

Diagram illustrating a kitchen appliance with a fork, cup, and tray, showing a rotating handle and component placement.

Black-and-white photo of a bowl with leaf garnish, surrounded by bowls of food (no visible text or symbols)

ANVÄNDARMANUAL SV

UGN

Front view of a brandt oven with control knobs and a digital display (no text or symbols on main body)

ORIGINE FRANCE® GRANTIE

Bästa kund,

QR code image containing encoded data, no visible human-readable text

VAL AV PLACERING OCH INBYGGNAD

Diagram of a wire rack with an arrow pointing to it, no text or symbols present

3D CAD model of a rectangular tray or container with a black arrow pointing to the bottom section (no text or symbols visible)

3D rendering of a gray tray with an arrow pointing to the side (no text or symbols)

Partial view of a gray rectangular object with curved edges, possibly a tray or panel, against a white background (no text or symbols visible)

! WARNING:

P 2 EC 13:20 ⑧ X

P 200° 00:52

00:00 00:25

Smart Assist-system

Illustration of a hand holding a mechanical component with a downward arrow, next to a separate view of a mechanical part (no text or symbols)

Illustration of a hand using a tool to adjust or install a kitchen appliance (no text or symbols visible)

Diagram of a door frame being adjusted with an orange arrow, showing hand placement and alignment (no text or symbols)

Illustration of hands installing or adjusting a door panel inside an oven (no text or symbols visible)

x4

Diagram showing a device with directional arrows and a magnified view of the screen area, likely illustrating a process or installation.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Illustration of a hand fastening a metal clip into a corner, with an arrow indicating upward motion (no text or symbols)

- Byta lampa

VIKTIGT:

Diagram illustrating a kitchen appliance with a fork, cup, and tray, showing a rotating handle and a close-up of the cup's interior.

Glödlampans specifikationer:

25 W, 220-240 V\~, 300 °C, G9-sockel.
