TE1074X - Cooker BRANDT - Free user manual and instructions

Product type	Cooker
Brand	Brandt
Model	TE1074X
Dimensions (H x W x D)	90 x 60 x 60 cm
Weight	50 kg
Power supply	Electric 230 V / 50 Hz
Total power	10.5 kW
Cooking type	Ceramic hob + traditional oven
Number of burners	4
Oven capacity	70 L
Oven functions	Fan-assisted, grill, natural convection
Oven cleaning	Pyrolytic
Hob type	Ceramic, rapid heating zones
Controls	Manual with rotary knobs
Display	LED screen for timer
Child safety	Control lock
Automatic shut-off	Yes, programmable
Energy class	A
Maintenance and cleaning	Clean the hob with a damp cloth; use the pyrolytic cycle for the oven
Spare parts and repairability	Parts available from Brandt after-sales service; repairability index of 8/10
General information	Built-in or freestanding electric cooker, stainless steel color
Supplied accessories	Grill grid, drip tray, baking sheet

Frequently Asked Questions - TE1074X BRANDT

How to turn on the oven of the Brandt TE1074X cooker?

Turn the oven function selector knob to the desired position (fan-assisted, grill, etc.) then set the temperature with the thermostat knob. The indicator light turns on and off when the temperature is reached.

How to use the pyrolytic function to clean the oven?

Remove all racks and accessories from the oven. Select the pyrolytic function using the dedicated knob. The temperature rises to about 500°C to burn residues. Once the cycle is finished (about 2 hours), wipe the ashes with a damp cloth.

What to do if the cooking zones do not heat up?

Check that the appliance is properly plugged in and that the circuit breaker has not tripped. Make sure the controls are in the heat setting. If the problem persists, contact Brandt after-sales service.

How to activate child lock?

Press the lock keys simultaneously (often the + and - buttons) for a few seconds until an indicator lights up. To deactivate, repeat the operation.

What is the capacity of the Brandt TE1074X oven?

The oven has a capacity of 70 litres, sufficient for preparing large dishes or roasts.

How to set the timer?

Press the timer button, then use the + or - buttons to set the desired time. The timer will beep at the end of the countdown and can turn off the oven if programmed.

Can I use aluminum utensils on the ceramic hob?

It is not recommended to use aluminum utensils as they may scratch the surface. Prefer flat-bottomed, smooth pans, preferably stainless steel or enameled cast iron.

How to replace the oven light bulb?

Unplug the appliance. Remove the protective glass by turning, then unscrew the defective bulb. Replace it with a new bulb resistant to 300°C (type G9, 25W). Reassemble the glass and plug back in.

What is the energy class of the cooker?

The Brandt TE1074X cooker is rated A in energy efficiency, ensuring reduced consumption.

Where can I find the serial number of my appliance?

The serial number is on the rating plate located at the back of the appliance or at the bottom of the oven frame. It is required for any after-sales service request.

USER MANUAL TE1074X BRANDT

GUIDE D'INSTALLATION ET D'UTILISATION

FR - Table de cuisson

GUIDE FOR INSTALLATION AND USE

GB - Cooking Hob

Brandt

Chère Cliente, Cher Client,

Simple circular diagram with a horizontal bar and curved arrows, no text or symbols present

Line drawing of a cooking pot with crossed black lines indicating resistance (no text or symbols)

Line drawing of a cooking pot on a stove (no text or symbols)

Fig.2

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Fig.5

Technical diagram of a mechanical assembly with labeled component C (no text or symbols present)

Fig.6

Technical line drawing of a mechanical pipe fitting (no text or symbols)

Fig.7

Technical line drawing of a pipe fitting with a flanged end (no text or symbols)

Technical drawing of a mechanical component with no visible text or symbols

Fig.9/A

câble L marron (phase)

Thank you for buying a BRANDT hob.

Our design staff have produced a new generation of kitchen equipment, to make everyday cooking a pleasure.

You will find that the clean lines and modern look of your Brandt hob blends in perfectly with your kitchen décor. It is easy to use and performs to a high standard.

Brandt also makes a range of products that will enhance your kitchen such as hobs, extractor hoods, built-in dishwashers and refrigerators. There are models to complement your new Brandt hob.

Of course, we make every effort to ensure that our products meet all your requirements, and our Customer Service department is at your disposal, to answer all your questions and to listen to all your suggestions (details enclosed).

Brandt has always been a leader in the development of new products, thus enhancing the quality of everyday life by providing increasingly efficient products, that are easy to use, respect the environment, and are attractive and reliable.

The BRANDT name.

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on advances to their technical, functional and/or esthetic properties.

Before installing and using your appliance, please carefully read this Guide for Installation and Use, which will allow you to quickly familiarise yourself with its operation.

TABLE OF CONTENTS

Installation room pag.6

Gas connection pag.7

Electric connection pag.7

Replacing the nozzles pag.7

Adjusting the burners pag.7

Replacing the power supply cable pag.8

MODEL pag.8 -

TECHNICAL CHARACTERISTIC TABLES pag.9 -

GENERAL NOTICE

It is very important that you keep this booklet together with the equipment for any future consultation.

If this equipment should be sold or transferred to another person, make sure that the new user receives the booklet, so that he can learn how to operate the appliance and read the corresponding notice.

This is a Class 3 appliance.

This appliance complies with the following Directives:

EEC 2009/142/CE (Gas)

EEC 2004/108/CE (Electromagnetic Compatibility)

2006/95/CE (Low Voltage)

EEC 89/109 (Contact with foods)

T - he installation must be carried out by experienced and qualified personnel, in conformity with the regulations in force.

This appliance is not intended for use by person (including children) with reduced physical, sensory or -mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance. -

- While the appliance is running, watch the children and make sure they neither stay near the equipment, nor touch the surfaces that have not cooled down completely.

- Before powering the equipment, check that it is properly adjusted for the type of gas at disposal (see the "installation" paragraph).

Before carrying out the maintenance or cleaning the equipment, cut power supply off and make it cool - down.

- Make sure that air circulates around the gas equipment. Insufficient ventilation produces a lack of oxygen. In case of an intense or prolonged use of the equipment, it may be necessary to improve aeration, for - example by opening a window or increasing the mechanical suction power, if it exists.

- The products of combustion must be discharged outside through a suction hood or an electric fan (see the "installation" paragraph).

For any possible operation or modification, apply to an authorized Technical Assistance Centre and - demand original spare parts.

The product label, with the serial number, is sticked under the hob.

The manufacturer refuses all responsibility for possible damages to things or people, resulting from a wrong installation or from an improper, incorrect or unreasonable use of this equipment.

INSTRUCTIONS FOR THE USER

It is necessary that all the operations regarding the installation, adjustment and adaptation to the type of gas available are carried out by qualified personnel, in conformity with the regulations in force.

The specific instructions are described in the booklet section intended for the installer.

USING THE BURNERS

The symbols silk-screen printed on the side of the knob indicate the correspondence between the knob and the burner.

Automatic start-up with valves

Turn the corresponding knob anticlockwise up to the maximum position (large flame, fig. 1) and press the knob.

Simple diagram of a circular object with a horizontal bar and two flame icons, no text or symbols present.

Fig.1

Once the burner has been started up, keep the knob pressed for about 6 seconds.

Using the burners

In order to obtain the maximum yield without waste of gas, it is important that the diameter of the pot is suitable for the burner potential (see the following table), so as to avoid that the flame goes out of the pot bottom (fig. 2).

Simple line drawing of a cooking pot with crossed lines indicating resistance (no text or symbols)

Line drawing of a cooking pot on a gas stove (no text or symbols)

Fig.2

Use the maximum capacity to quickly make the liquids reach the boiling temperature, and the reduced capacity to heat food or maintain boiling. All of the operating positions must be chosen between the maximum and the minimum ones, never between the minimum position and the closing point.

Use the maximum capacity to quickly make the liquids reach the boiling temperature, and the reduced capacity to heat food or maintain boiling. All of the operating positions must be chosen between the maximum and the minimum ones, never between the minimum position and the closing point.

The gas supply can be interrupted by turning the

knob clockwise up to the closing position.

If there is no power supply, it is possible to light the burners with matches, setting the knob to the start-up point (large flame, fig. 1).

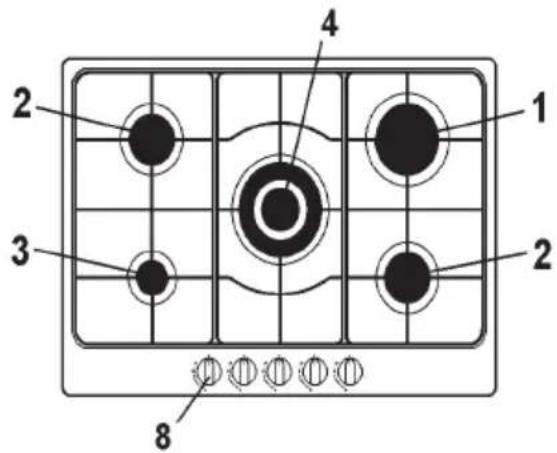

BURNERS Power W ∅ of pots
Auxiliary	1000 10 - 14 cm
Semi-rapid	1750 16 - 18 cm
Rapid	3000 20 - 22 cm
Triple crown	3800 24 - 26 cm

Notice

When the equipment is not working, always check - that the knobs are in the closing position (see fig.1).

If the flame should blow out accidentally, the safety - valve will automatically stop the gas supply, after a few seconds. To restore operation, set the knob to the lighting point (large flame, fig. 1) and press.

While cooking with fat or oil, pay the utmost - attention as these substances can catch fire when overheated.

- Do not use sprays near the appliance in operation.

Do not place unstable or deformed pots on the - burner, so as to prevent them from overturning or overflowing.

Make sure that pot handles are placed properly.

When the burner is started up, check that the - flameis regular and, before taking pots away, always lowerthe flame or put it out.

INSTRUCTIONS FOR THE USER

CLEANING

Before any operation, disconnect the appliance from the electric grid.

Don't use a steam cleaner for the cleaning the hob.

It is advisable to clean the appliance when it is cold.

Enamelled parts

The enamelled parts must be washed with a sponge and soapy water or with a light detergent.

Do not use abrasive or corrosive products.

Do not leave substances, such as lemon or tomato juice, salt water, vinegar, coffee and milk on the enamelled surfaces for a long time.

Stainless steel an alluminum parts

Stainless steel can be stained if it remains in contact with highly calcareous water or aggressive detergents for an extended period of time.

The stainless steel parts should also be cleaned with soapy water and then dried with a soft cloth.

Burners and racks

These parts can be removed to make cleaning easier.

The burners must be washed with a sponge and soapy water or with a light detergent, wiped well and placed in their housing perfectly.

Make sure that the flame-dividing ducts are not clogged.

Check that the feeler of the safety valve and the start-up electrode are always perfectly cleaned, so as to ensure an optimum operation.

The racks can be washed in the dishwasher.

Gas taps

The possible lubrication of the taps must be carried out by specialized personnel, exclusively.

In case of hardening or malfunctions in the gas taps, apply to the Customer Service.

INSTRUCTIONS FOR THE INSTALLER

IMPORTANT NOTICE:

THE OPERATIONS INDICATED BELOW MUST BE FOLLOWED BY QUALIFIED PERSONNEL EXCLUSIVELY, IN CONFORMITY WITH THE REGULATIONS IN FORCE. THE MANUFACTURING FIRM REFUSES ALL RESPONSIBILITY FOR DAMAGES TO PEOPLE, ANIMALS OR THINGS, RESULTING FROM THE FAILURE TO COMPLY WITH SUCH PROVISIONS.

INSTALLATION

Installing the top

The appliance is designed to be embedded into heat-resistant pieces of furniture.

The walls of the pieces of furniture must resist a temperature of 75^ C besides the room one.

The gas hobs are equipped with type X degree protection against overheating. Therefore, the appliance can be installed next to cabinets, provided the height of the cabinet doses not exceed that of the hob.

The equipment must not be installed near inflammable materials, such as curtains, cloths, etc.

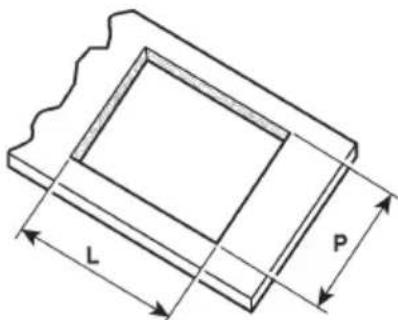

Make a hole in the top of the piece of furniture, with the dimensions indicated in fig. 3, at a distance of

at least 50 mm from the appliance border to the adjacent walls.

Fig.3

MODEL L (mm) P (mm)
TE1074X 560 480

Any possible wall unit over the cook-top must be placed at a distance of at least 760 mm from the top.

It is advisable to isolate the appliance from the piece of furniture below with a separator, leaving a depression space of at least 10 mm (fig. 4).

If the hob is going to be installed on the top of an oven, precautions must be taken to guarantee an installation in accordance with current accident prevention standards. Pay particular attention

Fig.4

to the position of the electric cable and gas pipe: they must not touch any hot parts of the oven.

Moreover, if the hob is going to be installed on the top of a built in oven without forced cooling ventilation, proper air vents must be installed to guarantee an adequate ventilation, with the lower air entering with a cross section of at least 200cm ^2 , and the higher air exiting with a cross section of at least 60 cm ^2 .

Fastening the top

Every cook-top is equipped with a special washer. A set of hooks is also supplied for mounting the cook-top.

For the installation proceed as follows:

- Remove the racks and burners from the top.

- Turn the appliance upside down and lay the washer S along the external border (fig. 5).

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Fig.5

Technical diagram of a mechanical assembly with labeled component C (no text or symbols beyond label)

Fig.6

- Introduce and place the cook-top in the hole made in the piece of furniture, then block it with the V screws of the fastening hooks G (fig.6).

Installation room

This appliance is not provided with a device for exhausting the products of combustion. Regarding room ventilation rules where appliance is installed

INSTRUCTIONS FOR THE INSTALLER

make reference to the legislation, in conformity with the local regulations.

FOR THE U.K. ONLY

The room containing this hotplate should have an air supply in accordance with BS 5440: Part 2:1989.

All rooms require an openable window, or - equivalent and some rooms will require a permanent vent a well.

For room volumes up to 5 m ^3 -an air vent of 100cm ^2 is required.

For room volumes between 5 m ^3 and 10 m ^3 an air vent of 50 cm ^2 is required.

If the room is greater than 5 m ^3 -and has a door that opens directly to the outside, then no air vent is required.

If there are other fuel burning appliances in the same room BS 5440: Part 2:1989 should be consulted to determine the air vent requirements.

Gas connection

Make sure that the appliance is adjusted for the gas type available (see the label under the appliance). Follow the instructions indicated in the chapter “gas transformations and adjustments”

Technical line drawing of a mechanical pipe fitting (no text or symbols)

Fig.7

Technical line drawing of a pipe fitting with a flanged end and threaded port (no text or symbols)

for the possible adaptation to different gases. The appliance must be connected to the gas system by means of stiff metal pipes or

flexible steel pipes having continuous walls, in compliance with the regulations in force.

Some models are equipped with both cylindrical A and conical B connectors for gas supply (fig. 7).

Please select the type which is correct for the supply concerned.

The connection must not stress the gas ramp.

Once the installation is over, check the connection seal with a soapy solution.

Electric connection

The connection to the electric grid must be carried out by qualified personnel and in conformity with the regulations in force.

The voltage of the electric system must correspond to the value indicated in the label under the appliance. Make sure that the electric system is provided with an effective ground connection in compliance with the regulations and provisions of the law. Grounding is compulsory.

If the appliance is not equipped with a plug, apply a standardized plug to the power supply cable.

This device must be at a suitable opening distance from the contacts in order to allow the entire disconnection in case of overvoltage category III, in accordance with installation rules.

GAS TRANSFORMATIONS AND ADJUSTMENTS Replacing the nozzles

If the equipment is adjusted for a type of gas that is different from the one available, it is necessary to replace the burner nozzles.

The choice of the nozzles to replace must be made according to the table of the “technical characteristics” as enclosed.

Act as follows:

- Remove the racks and burners.

- By means of a straight spanner L, unscrew the nozzle U (fig.8) and substitute it with the corresponding one.

- Tighten the nozzle strongly.

Fig.8

Adjusting the burners

The lowest flame point must always be properly adjusted and the flame must remain on even if there is an abrupt shift from the maximum to the minimum position.

If this is not so, it is necessary to adjust the lowest flame point as follows:

-start the burner up;

turn the tap up to the minimum position (small flame);

remove the knob from the tap rod;

introduce a flat-tip screwdriver C in the hole of control panel of the tap (fig. 9) and turn the bypass screw V (fig.9/A) up to a proper adjustment of the lowest flame point.

Fig.9

Technical drawing of a mechanical component with no visible text or symbols

Fig.9/A

As regards G30 gas burners, the by-pass screw must be tightened completely.

INSTRUCTIONS FOR THE INSTALLER

MAINTENANCE

Replacing the power supply cable

If the power supply cable should be replaced, it is necessary to use a cable with a section of 3 × 0.75 mm^2 type HO5VV-F or H05RR-F, complying with the regulations in force.

The connection to the terminal board must be effected as shown in fig.10:

brown cable L (phase)

blue cable N (neutral)

green-yellow cable ⏻ (ground)

Fig.10

MODEL

TE1074X

1 Rapid burner 3000 W
2 Semi-rapid burner 1750 W
3 Auxiliary burner 1000 W
4 Triple ring burner 3800 W
8 Control knob for burner

TECHNICAL CHARACTERISTIC TABLES

BURNERS		GASg/h L/h 1/100	NORMAL PRESSUREmm 1/100 mm	NOMINAL RATE		INJECTOR DIAMETER	TAPE BY PASS DIAMETER	NOMINAL HEAT INPUT (W)
N°	DESCRIPTION mbar			Max.	Min.
1	RAPID	G30 / G31 28	- 30 / 37 225 - 85	42	3000	950
		G20	20	-	290	115Y	Reg.	3000	950
2	SEMI-RAPID	G30 / G31 28	- 30 / 37 126 - 65	31	1750	600
		G20	20	-	165	97Z	Reg.	1750	600
3	AUXILIARY	G30 / G31 28	- 30 / 37	71	- 50	27 1000	450
		G20	20	-	99	72X	Reg.	1000	450
4	TRIPLE CROWN	G30 / G31 28	- 30 / 37 278 - 98	60	3800	2100
		G20	20	-	367	135K	Reg.	3800	2100

This product complies with EU Directive 2002/96/EC.

The crossed-out dustbin symbol reported on the appliance indicates that the appliance must be disposed of separately from other domestic refuse at the end of its useful life. It must therefore be delivered to a waste recycling centre specifically for electric and electronic equipment or returned to the retailer at the moment of purchase of a new equivalent appliance.

The user is responsible for delivering the appliance to the appropriate collection centre at the end of its useful life, Failure to do so may result in a fine, as provided for by laws governing waste disposal.

Differential collection of waste products for eventual recycling, treatment and environmentally friendly disposal helps reduce possible negative effects on the environment and health, and also enables the materials making up the product to be recycled.

For more detailed information on the available refuse collection systems, refer to the local Municipal Solid Waste disposal centre or the shop where the product was purchased.

Producers and importers are responsible for fulfilling their obligations as regards recycling, treatment and environmentally friendly disposal by directly or indirectly participating in the collection system.

The manufacturing firm refuses all responsibility for any possible imprecision in this booklet, due to misprints or clerical errors. It reserves the right to make all the changes that it will consider necessary in its own products, without effecting the essential characteristics of functionality and safety.
