USER MANUAL Cyclowash Ultimate EZICLEAN

• This product is intended for domestic use. Do not use it outdoors.
• Do not disassemble, repair or reassemble the unit without permission.
• Do not modify or attempt to repair the unit except as specified in the user's manual.
• Do not use in an environment where there is a risk of fire or explosion.
• Do not use to pick up flammable materials, such as petrol or lighter fluid.
• Do not use to pick up toxic materials.
• Do not use to pick up foaming liquids.
• Do not use to pick up pigments and corrosive liquids.
• Do not use to pick up hard or sharp objects, such as nails, screws, glass.
• Do not use to pick up things that bury or smoke, such as hot ashes, cigarettes.
• Do not place any objects in the openings, keep the openings free of dust and anything that could reduce the air flow.
• Do not wash or soak the main body and electronic accessories in water.
• Do not allow metal and conductive materials to come into contact with the battery.
• This product is not a toy. Special care is required when used by or near children.

• Do not touch the charging plug and docking station with wet hands.

• Keep out of direct sunlight.

• Do not place near cigarette butts, lighters or other open fires.
• Keep your head, fingers and other body parts away from openings and moving parts of the unit.
• Only the original AC adapter may be used.
• When the metal part of the power plug is dusty, wipe it with a dry cloth.
• The AC adapter is applied to a voltage of 100-240V AC. Connect it properly to the socket and keep it out of the reach of children.
• The operating temperature of the product ranges is 0 - 40^ . Do not use in a high temperature environment.
• Plastic film can be dangerous, keep away from babies and children.
• Unplug the charger from the electrical outlet when not in use or before cleaning.
• Keep the unit away from metal objects, such as coins, paper clips when the battery is not in use.
• Do not place the lighted UV lamp near a human body or animal.
• Do not use the battery if it is damaged.
• Do not block the air inlet or outlet in case of overheating.
• Do not shake the hoover hard to prevent water from getting into the motor.
• The output terminals of the battery and the charging station must not be short-circuited.
• Remove the battery from the appliance before recycling.
• Empty the dirty water tray after each use.

Please read the following information carefully before using your robot hoover or its accessories. Do not disassemble the appliance or attempt to repair it yourself. In case of malfunction, please contact your dealer for professional advice. Stairs: The device uses sensors to prevent falling down steps, stairs or over an edge. In some situations, the sensors may malfunction. This device cannot detect steps that are less than 8cm high. Steps less than 8cm high may cause the robot to fall. Highly reflective or dark surfaces on some steps or stairs, such as glass or polished ceramic, may cause the device to fall. If available, use the virtual wall or place a mat on the bottom step to prevent your robot from falling. Avoid using your robot hoover on mezzanines, landings or unbounded high surfaces.

The symbol on this device indicates that it cannot be disposed of with household waste. You must dispose of it at a recycling centre for electrical and electronic waste. Disposal must be carried out in accordance with local waste regulations. For further information on the treatment, recovery and recycling of this appliance, please contact your local municipality, your local waste disposal service or the dealer

of the appliance.

INSTALLATION OF YOUR DEVICE

Insert the handle into the product until you hear a click.

To remove the handle, press the latch into the hole on the back of the product with a screwdriver. Then pull the handle.

Press the dirty water tank cover and pull it out.

To replace the dirty water tank in the product, first insert the bottom of the tank and then press the top until you hear a «click».

Press the clean water tank cover to remove it from the brush unit.

Align the clean water tank in the slots of the brush unit and press until you hear a «click».

Pull the roller brush latch out and up to remove it from the brush assembly.

Align the first end of the roller brush with the slot and then put the other end of the brush in the slot of the brush block to reinstall the roller brush.

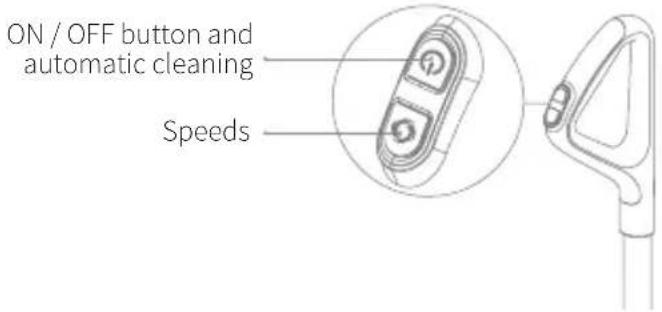

STARTING YOUR DEVICE

1/ Press the ON/OFF button to start the machine. The default speed is the minimum speed. Press the ON/OFF button again to turn off the unit.

2/ Press the Speed button to change the speed.

3/ Place the product on its storage base, plug it in and press the ON/OFF button to start the automatic cleaning of the roller brush.

FILL THE TANK WITH CLEAN WATER

METHOD 1:

Open the cap of the clean water tank.

Fill the measuring cup with clear, cold water. Caution: Using warm or hot water may damage the appliance.

Fill the tank with clean water using the measuring cup.

METHOD 2:

Remove the clean water tank from the brush unit by pressing the brush unit cover.

Open the cap of the clean water tank.

Fill the measuring cup with clear, cold water. Caution: Using warm or hot water may damage the appliance.

Fill the tank with clean water using the measuring cup and replace it in the brush unit of the machine.

EMPTY THE DIRTY WATER TANK

Remove the dirty water tank from the appliance.

Turn the dirty water tank cover to open it.

Remove the HEPA filter.

Empty the dirty water tank and rinse it with clean water.

AUTOMATIC BRUSH CLEANING

Place the unit on its storage base

Connect the appliance to a power outlet

Press the ON/OFF button to start the automatic cleaning

It is recommended to fill the water tank by at least 1/4 and empty the dirty water tank before starting the automatic brush cleaning. Please do not interrupt the automatic cleaning during operation. Please make sure that the appliance is plugged in during automatic cleaning.

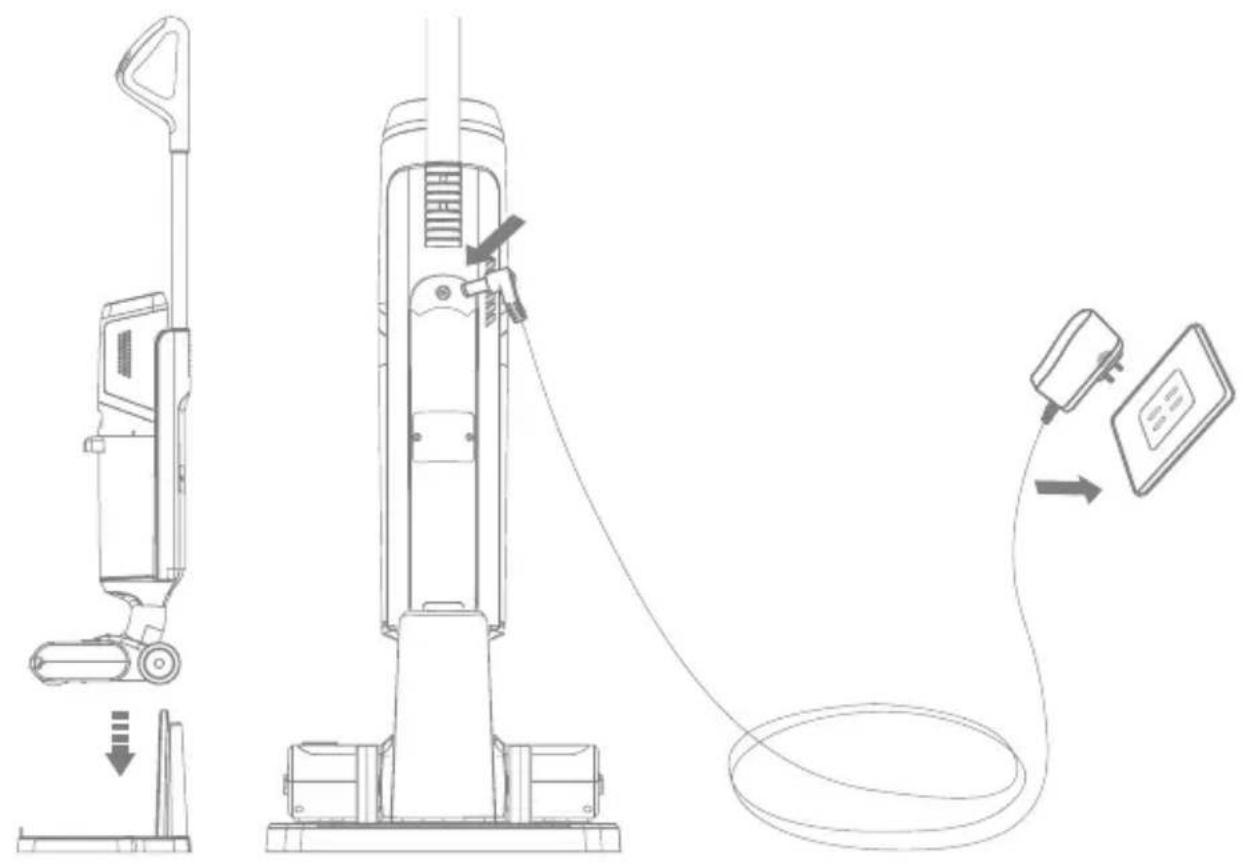

CHARGING YOUR DEVICE

Place the unit on its storage base and connect the adapter to the back of the unit. Plug the unit into an electrical outlet. Store the adapter when charging is complete.
Caution: Keep the adapter away from water. After charging, do not leave the adapter plugged into an electrical outlet to avoid causing a fire. If you do not wish to use your device for a long period of time, be sure to fully charge it every 3 months to prevent the battery from wearing out.

TRANSPORTING YOUR DEVICE

When transporting your appliance, please ensure that the brush unit is at 90^ .

This is because the clean water tank cap has been pierced to equalise the pressure in the tank. Water could leak out if you do not transport it correctly.

CLEANING THE FILTER AND ITS HOUSING

Remove the filter from the dirty water tank.

Remove the dirty water tank cap.

Separate the two parts by rotating them.

Clean all parts with clean water and leave to dry for 24 hours.

CLEAN THE CLEAN WATER TANK

Remove the clean water tank from the brush unit.

Clean the clean water tank with clean water
It is recommended to clean the clean water tank regularly to ensure its proper functioning.

Press the clean water tank cover to remove it from the brush unit.

Align the clean water tank in the slots of the brush unit and press until you hear a «click».

Remove hair with a pair of scissors or a sharp object. Do not run the brush under water to avoid damaging the motor.

Align the first end of the roller brush with the slot and then put the other end of the brush in the slot of the brush block to reinstall the roller brush.
