Read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain.

WARNING

• The device is only intended for domestic/private use, not for commercial use.

• This device may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely, and are fully aware of the consequent risks of use.
  • Children must not play with the device.

• If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of.

• Under no circumstances should you open or repair the device yourself, as faultless functionality can no longer be guaranteed thereafter.
  Failure to adhere to this instruction will void the warranty.

Dear customer,

Thank you for choosing one of our products. Our name stands for high-quality, thoroughly tested products for applications in the areas of heat, gentle therapy, blood pressure/diagnosis, weight, massage, beauty, air and babycare.

With kind regards,

Your Beurer team.

Table of contents

1. Included in delivery 26
2. Getting to know your device 26
3. Signs and symbols ...... 27
4. Notes 28
5. Intended use 30
6. Device description ...... 32
7. Initial use/charging process 33
8. Use.... 34
   8.1 Preparing for use.... 34
   8.2 Switching on the cellulite releaZer / selecting vibration setting.... 35
   8.3 Tips for use 36
   8.4 Treatment on the outside of the thigh 36
   8.5 Treatment on the rear of the thigh 38
9. Cleaning and maintenance 39
10. Disposal 39
11. Technical data 41
12. Warranty / Service 41

1. Included in delivery

Check that the device packaging has not been tampered with and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.

1x cellulite releaZer / 1x micro-USB charging cable / 1x mains adapter / 1x these instructions for use

2. Getting to know your device

What is cellulite?

Cellulite, also known as orange peel skin, is something that lots of women have. Oestrogen, the female sex hormone is to blame. It is primarily responsible for orange peel skin with its dimpling and bumps on the bottom and thighs. Cellulite is not an illness and it normally isn't painful. Cellulite is a purely cosmetic problem.

What causes cellulite?

Humans have lobules in their subcutaneous skin and these lobules are separated from one another by septae.

In women, the septae run perpendicular to the surface of the skin. This means that women have softer and more flexible skin than men. The disadvantage of this is that women's softer skin provides less resistance to the pressure of the fatty tissue below. The subcutaneous fat therefore penetrates into the top layers of skin more easily and makes the skin bulge out visibly.

How does the cellulite releaZer work?

When used correctly, the cellulite releaZer increases microcirculation in the tissue by using vibration.

3. Signs and symbols

The following symbols appear in these instructions for use:

	WARNINGWarning notice indicating a risk of injury or damage to health.
	IMPORTANTSafety note indicating possible damage to the device/accessory.
	NoteNote on important information.
	Observe the instructions for use.
	Manufacturer.
	Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive – WEEE.
	Only use indoors.
	The device is double protected and therefore corresponds to protection class 2.
IP20	Protected against solid foreign objects 12.5 mm in diameter and larger.
	Protection class 6.
	Direct voltage.
	Short-circuit-proof safety isolating transformer.
	Switching mains part.

4. Notes

WARNING

Safety notes regarding the use of the cellulite releaZer

• Keep the packaging material away from children. Choking hazard!

• Cleaning and user maintenance must not be performed by children unless supervised.

• The cellulite releaZer is not a medical device. It is a massage treatment device.

• Before use, ensure that the device and accessories have no visible damage. If you have any doubts, do not use the device and contact your retailer or the specified Customer Service address.
• Repairs must only be carried out by Customer Services or authorised retailers. Under no circumstances should you open or repair the cellulite releaZer yourself, as faultless functionality can no longer be guaranteed thereafter. Failure to comply with this instruction will void the warranty. Never attempt to repair the device yourself!
• Only use the device with the supplied accessories.

Notes on handling batteries

• If your skin or eyes come into contact with fluid from a rechargeable battery cell, flush out the affected areas with water and seek medical assistance.
• Choking hazard! Small children may swallow and choke on batteries. Store batteries out of the reach of small children.
• Observe the plus (+) and minus (-) polarity signs.
• Protect batteries from excessive heat.
• Risk of explosion! Never throw batteries into a fire.
• Do not disassemble, split or crush the batteries.
• Only use chargers specified in the instructions for use.
• Batteries must be charged correctly prior to use. The instructions from the manufacturer and the specifications in these instructions for use regarding correct charging must be observed at all times.
• Fully charge the battery prior to initial use (see Chapter 7. Initial use/charging process).

- In order to achieve as long a battery service life as possible, fully charge the battery at least twice per year.

5. Intended use

WARNING

Only use the cellulite releaZer for massage treatment of cellulite.

The cellulite releaZer is intended for private use only. The cellulite releaZer is not a medical device; rather it is a massage treatment device. The cellulite releaZer may only be used for the purpose for which it was designed and in the manner specified in the instructions for use. Any form of improper use can be dangerous. The manufacturer is not liable for damage resulting from improper or incorrect use.

• Do not use the cellulite releaZer if you suffer from a medical abnormality or injury in the area to be massaged (e.g. open wounds).
• Do not use the cellulite releaZer during pregnancy.
• Do not use the cellulite releaZer whilst sleeping.
• Do not use the cellulite releaZer in a vehicle.
• Do not use the cellulite releaZer on animals.
• Do not use the cellulite releaZer whilst undertaking any activity where an unexpected reaction could be dangerous.
• Do not use the cellulite releaZer on your head.
• Do not use the cellulite releaZer on your face.
• Do not use the cellulite releaZer on your genitals.
• Do not use the cellulite releaZer after the consumption of substances that lead to impaired cognitive function (e.g. pain medication, alcohol).
• Do not use the cellulite releaZer for longer than 15 minutes (risk of overheating) and leave the device to cool down for at least 15 minutes before using

it again. The cellulite releaZer has an automatic switch-off function meaning that it switches off automatically after 15 minutes of use.

- Do not use the cellulite releaZer either before or after sunbathing. Doing so increases the risk of sunburn.

If you are unsure whether the cellulite releaZer is suitable for you, please consult your doctor.

Please consult your doctor before using the cellulite releaZer

- if you suffer from a severe illness or have recently had surgery,

- if you have a pacemaker, implant or other aids,

- in the case of feverish colds, varicose veins, thrombosis, phlebitis, jaundice, diabetes, nerve disorders (e.g. sciatica) or acute inflammations,

- if you are from suffering pain, the cause of which is unknown.

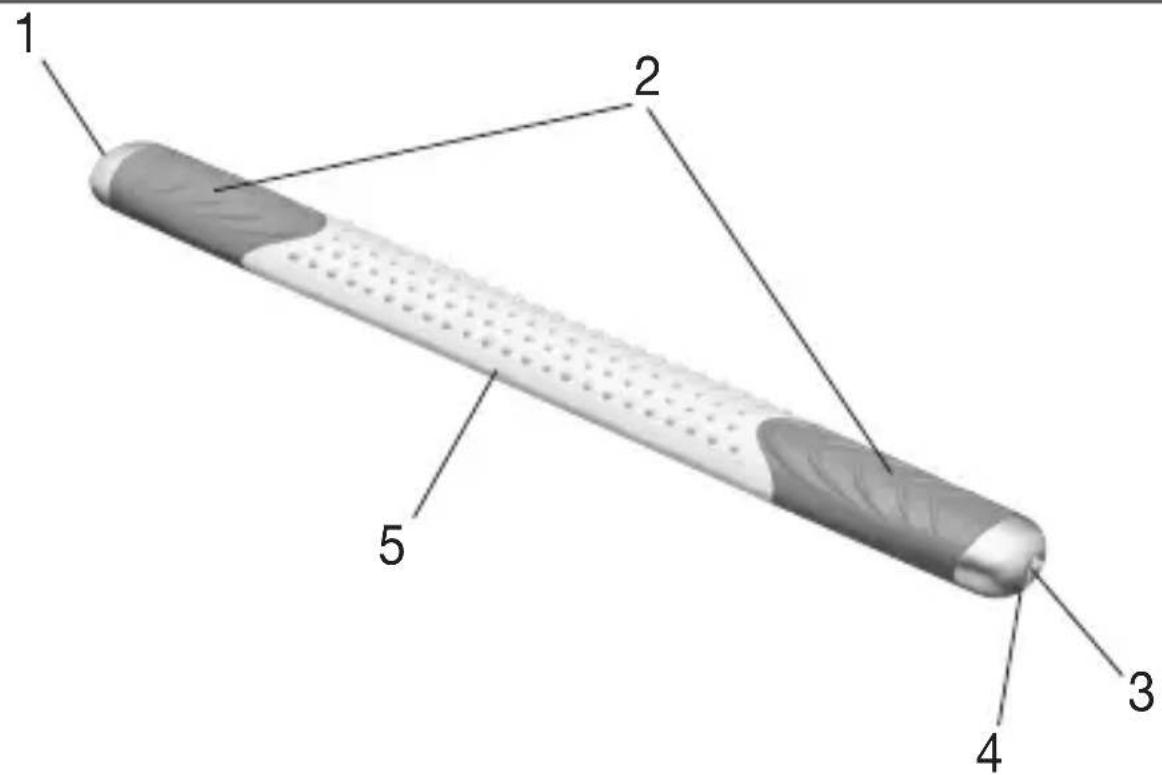

6. Device description

1 2 5 3 4

1. Micro USB connection 4. Function light
2. Handles 5. Four treatment surfaces	(smooth, nubs, blunt edge, and sharp edge)
3. ON/OFF button
Function light status	Charging function(charging cable plugged in)
Function lights flash in a circle Charging
Function lights illuminate continuously	Charging complete
The left and right function lights flash alternately	Low battery

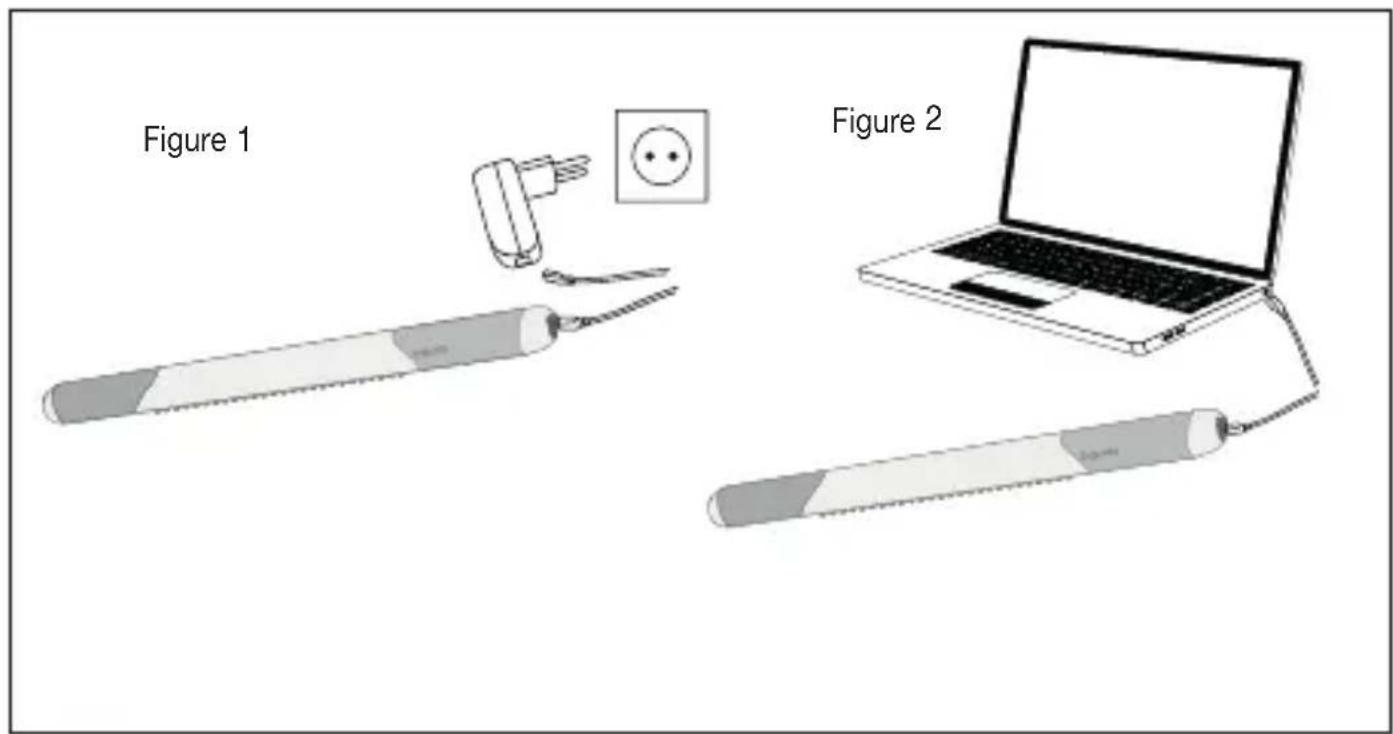

7. Initial use/charging process

Note

Before using the cellulite releaZer for the first time, let it charge for a minimum of 3.5 hours. Proceed as follows:

- Connect the charging cable to the mains adapter and the cellulite releaZer (Figure 1). Then insert the mains adapter into a suitable socket. Alternatively, you can also charge the cellulite releaZer with the charging cable via the USB port on your computer or laptop (Figure 2).

When the device is charging, the function lights flash in a circle. When the cellulite releaZer is fully charged, the function lights illuminate continuously. If the left and right function lights flash alternately during operation, you have to charge the cellulite releaZer.

Figure 1 Figure 2

8. Use

8.1 Preparing for use

Before you start using the device, you should gently rub massage oil onto the parts of the body to be treated.

Do not use any oils or creams with a strong cooling or heating effect, as they may cause skin irritation.

1. Put a couple of drops of massage oil onto the palm of your hand.

2. Now rub the massage oil evenly onto the parts of the body to be massaged.

3. Before treatment, wipe your hands with a towel to prevent them from slipping when using the device and to prevent damage to the silicone surface on the handles.

8.2 Switching on the cellulite releaZer / selecting vibration setting

Press the ON/OFF button to switch on the cellulite releaZer. The function light now illuminates blue and the first vibration setting is activated. The cellulite releaZer has a total of four different vibration settings.

Action Vibration setting
1st press of the button =	The cellulite releaZer switches on and the function light illuminates blue. Low vibration setting.
2nd press of the button =	The second function light illuminates blue. Medium vibration setting.
3rd press of the button =	The third function light illuminates blue. High vibration setting.
4th press of the button =	The fourth function light flashes blue. Intermittent vibration setting.
5th press of the button =	The cellulite releaZer switches off and the function light goes out.

8.3 Tips for use

• During use, hold the cellulite releaZer with both hands using the handles.
• For optimum results, use the cellulite releaZer every two days.
• Severe reddening or bruises may occur at the treated areas after use. This is completely normal and indicates that you have used the cellulite re-leaZer correctly.

i Note

You can use the cellulite releaZer on all areas where you have cellulite. The examples in the following chapter showing the outside of the thigh (iliotibial band) and the rear of the thigh (biceps femoris muscle) demonstrate how the cellulite releaZer should be used.

8.4 Treatment on the outside of the thigh

The treatment time for the outside of the thigh is approx. 7 minutes and consists of a total of three treatment phases. To start treatment, proceed as follows:

1. Follow the instructions in the "Preparing for use" chapter.
2. Place the leg to be treated on a chair, stool or the edge of the bath tub, for example. Carry out the entire treatment on the thigh whilst standing.

3. Select your desired vibration setting (1, 2, 3 or 4) using the ON/OFF button. The cellulite releaZer starts to vibrate.

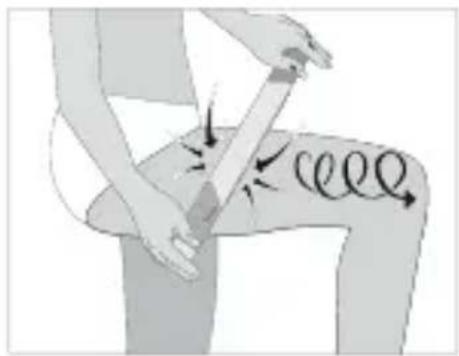

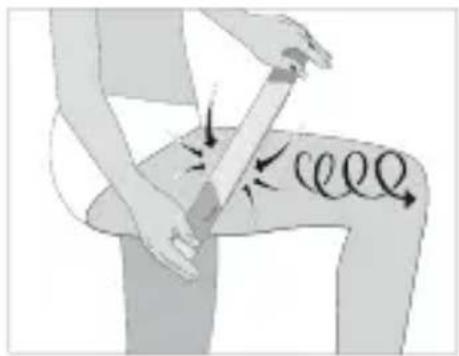

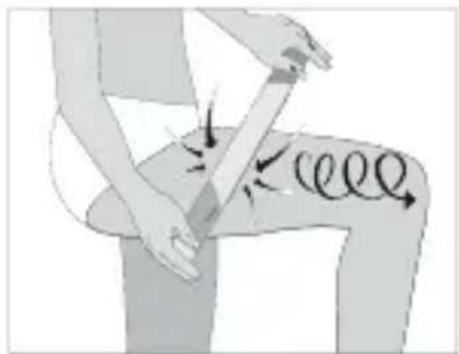

4. Treatment phase I: Treat the outside of the thigh with the nub side using small, fast, circular movements and moderate pressure (for approx. 3 minutes).

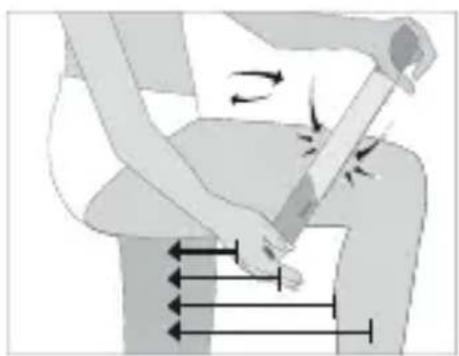

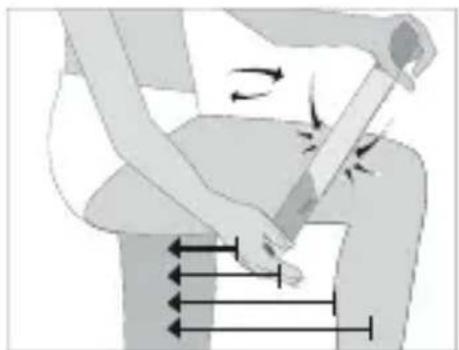

5. Treatment phase II: Treat the outside of the thigh with the nub side using slow, deep, circular movements and increased pressure (for approx. 3 minutes).
6. Treatment phase III: The third treatment phase is drainage. Glide the device towards the centre of the body/heart using the coloured edge and moderate pressure. When doing so, start the movement at the upper part of the outside of the thigh and slowly move the starting point down towards the knee. One stroke should be approximately 10 cm long. Carry out this process 5 times moving down the outside of the thigh until you reach the knee area. At the end, move the device over the tissue of the entire outside of the thigh once.

Illustration showing a person performing a seated leg massage with directional arrows indicating motion or movement.

Illustration of a person performing a seated leg press exercise with motion arrows indicating movement (no text or symbols)

Illustration of a person sitting on a chair with arrows indicating motion or pressure direction (no text or symbols)

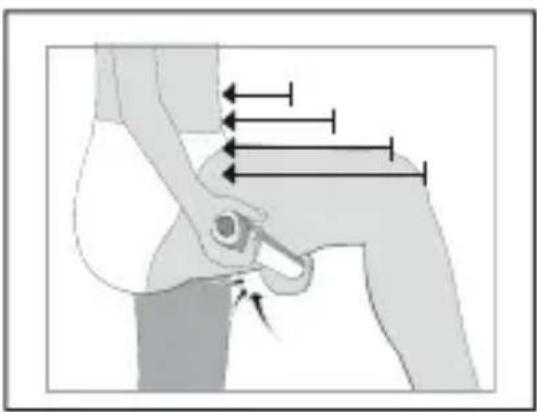

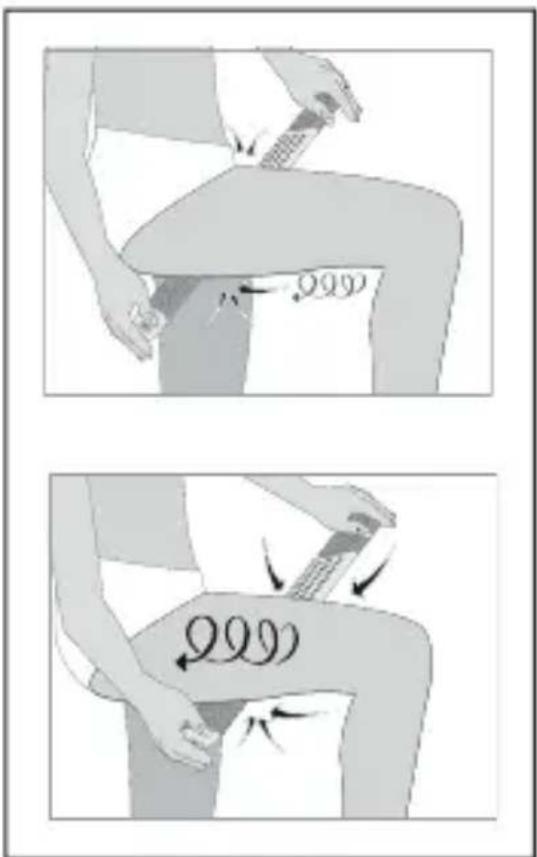

8.5 Treatment on the rear of the thigh

The treatment time for the rear of the thigh and buttocks is approx. 7 minutes and consists of a total of three treatment phases. To start treatment, proceed as follows:

1. Follow the instructions in the "Preparing for use" chapter.
2. Place the leg to be treated on a chair or stool. Carry out the entire treatment on the thigh whilst standing.

3. Select your desired vibration setting (1, 2, 3 or 4) using the ON/OFF button. The cellulite releaZer starts to vibrate.

4. Treatment phase I: Treat the rear of the thigh with the nub side using small, fast, circular movements and moderate pressure (for approx. 3 minutes).

5. Treatment phase II: Treat the rear of the thigh with the nub side using slow, deep, circular movements and increased pressure (for approx. 3 minutes).

6. Treatment phase III: The third treatment phase is drainage. Glide the cellulite re-leaZer towards the centre of the body/heart using the coloured edge and moderate pressure. When doing so, start the movement at the upper part of the rear of the thigh (buttocks) and slowly move the starting point down towards the knee. The first stroke should be approximately 10 cm

Illustration showing two-step abdominal massage technique with Chinese text labels and motion arrows

long. Carry out this process 5 times moving down the rear of the thigh until you reach the knee area, extending each successive stroke by a couple of centimetres. At the end, move the device over the tissue of the entire rear of the thigh once.

9. Cleaning and maintenance

The service life of the cellulite releaZer depends on careful use.

IMPORTANT

• Clean the cellulite releaZer with a wet or dry cloth after each use. Do not use any abrasive cleaning products.
• Protect the cellulite releaZer from knocks, dust, chemicals, drastic changes in temperature, electromagnetic fields and nearby sources of heat (ovens, heaters).

10. Disposal

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life.

Dispose of the device at a suitable local collection or recycling point in your country. Dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Battery disposal

The empty, completely fl at batteries must be disposed of through specially designated collection boxes, recycling points or electronics retailers. You are legally required to dispose of the batteries. To remove the battery from the device, pry open the cover on the micro USB connection using a screw-driver. Loosen the four screws on the battery holder. Then remove the battery.

Medical diagram showing hip joint measurement with labeled arrows indicating measurement direction

The codes below are printed on batteries containing harmful substances:

Pb = Battery contains lead Cd = Battery contains cadmium Hg = Battery contains mercury

11. Technical data

SupplyInput:Output:	100-240 V~; 50/60 Hz; 0.2 A5.0 V=1.0 A
Dimensions 48 x 5 x 3 cm
Weight Approx. 570 g
Battery:CapacityNominal voltageType designation	2200 mAh3.7 VLithium-ion

12. Warranty / Service

Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Germany (hereinafter referred to as “Beurer”) provides a warranty for this product, subject to the requirements below and to the extent described as follows.

The warranty conditions below shall not affect the seller's statutory warranty obligations which ensue from the sales agreement with the buyer.

The warranty shall apply without prejudice to any mandatory statutory provisions on liability.

Beurer guarantees the perfect functionality and completeness of this product.

The worldwide warranty period is 3 years, commencing from the purchase of the new, unused product from the seller.

The warranty only applies to products purchased by the buyer as a consumer and used exclusively for personal purposes in the context of domestic use. German law shall apply.

During the warranty period, should this product prove to be incomplete or defective in functionality in accordance with the following provisions, Beurer shall carry out a repair or a replacement delivery free of charge, in accordance with these warranty conditions.

If the buyer wishes to make a warranty claim, they should approach their local retailer in the first instance: see the attached “International Service” list of service addresses.

The buyer will then receive further information about the processing of the warranty claim, e.g. where they can send the product and what documentation is required.

A warranty claim shall only be considered if the buyer can provide Beurer, or an authorised Beurer partner, with

- a copy of the invoice/purchase receipt, and

- the original product.

The following are explicitly excluded from this warranty:

– deterioration due to normal use or consumption of the product;
- accessories supplied with this product which are worn out or used up through proper use (e.g. batteries, rechargeable batteries, cuffs, seals, electrodes, light sources, attachments and nebuliser accessories);
- products that are used, cleaned, stored or maintained improperly and/or contrary to the provisions of the instructions for use, as well as products that have been opened, repaired or modified by the buyer or by a service centre not authorised by Beurer;
– damage that arises during transport between manufacturer and customer, or between service centre and customer;
– products purchased as seconds or as used goods;
– consequential damage arising from a fault in this product (however, in this case, claims may exist arising from product liability or other compulsory statutory liability provisions).

Repairs or an exchange in full do not extend the warranty period under any circumstances.

FRANÇAIS

Simple line icon of an open book inside a rounded square frame (no text or symbols)

Remarques relatives aux batteries

Figure 1 Figure 2

8. Utilisation

Illustration showing three sequential steps of a seated leg presser or exercise technique with motion arrows and labels like '###' and directional arrows.

Illustration showing two-step abdominal massage technique with Chinese text labels indicating motion direction

Anatomical illustration of a hip joint with measurement arrows indicating measurement points (no text or labels present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line icon of an open book inside a rounded square frame (no text or symbols)

Illustration of a person performing a bandage exercise on the knee, with motion arrows indicating movement (no text or symbols present)

Illustration of a person performing a seated leg press or exercise with motion arrows indicating movement (no text or symbols)

Illustration of a person using a bench presser to lift a seat (no text or symbols present)

Illustration showing two-step abdominal massage technique with labeled motion arrows and '200' annotations

Anatomical illustration of a human hip joint with measurement arrows indicating measurement points (no text or labels present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line icon of an open book inside a rounded square frame (no text or symbols)

Illustration of a person performing a bandage exercise with directional arrows indicating movement (no text or symbols)

Illustration of a person performing a seated leg pressure with motion arrows indicating movement (no text or symbols)

Illustration of a person performing a seated exercise with directional arrows indicating movement (no text or symbols)

Illustration showing two-step abdominal massage technique with directional arrows and '200' labels indicating movement direction.

Anatomical illustration of a hip joint with measurement arrows indicating measurement points (no text or labels present)

Symbol of a trash bin crossed with no visible text or labels

Simple line icon of an open book inside a rounded square frame (no text or symbols)

Illustration of a person performing a bandage exercise on the knee, with arrows indicating motion direction (no text or symbols)

Illustration of a person performing a seated leg press exercise with motion arrows indicating movement (no text or symbols)

Illustration of a person sitting on a chair with arrows indicating motion or pressure direction (no text or symbols)

Illustration showing two-step abdominal massage technique with directional arrows and '200' labels indicating movement direction.

Medical diagram showing hip joint measurement with labeled arrows indicating measurement points

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Simple line icon of an open book inside a rounded square frame (no text or symbols)

Illustration of a person sitting on a bench with a bandage and motion arrows indicating movement (no text or symbols)

Illustration of a person performing a seated leg press exercise with motion arrows indicating movement (no text or symbols)

Illustration of a person sitting on a chair with arrows indicating motion or pressure direction (no text or symbols)

Illustration showing two-step abdominal massage technique with Chinese text labels indicating motion direction

Anatomical illustration of a hip joint with measurement arrows indicating measurement points (no text or labels present)

9. Ремонти очистка

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Simple line icon of an open book inside a rounded square frame (no text or symbols)

Illustration of a person performing a bandage exercise with directional arrows indicating movement (no text or symbols)

Illustration of a person performing a seated leg press or exercise with motion arrows indicating movement (no text or symbols)

Illustration of a person sitting on a chair with arrows indicating movement or pressure direction (no text or symbols)

Illustration showing two-step abdominal massage technique with directional arrows indicating motion and rotation.

Anatomical illustration of a hip joint with measurement arrows indicating measurement points (no text or labels present)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present
