Safety instructions 69

Installation 71

Product description 72

Control panel 72

Before first use 73

Daily use 75

Clock functions 81

Using the accessories 82

Additional functions 84

Hints and tips 85

Care and cleaning 88

Troubleshooting 92

Technical data 93

Energy efficiency94

Menu structure 95

Environmental concerns

96

Subject to change without notice.

⚠️ Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damage. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging away from children and dispose of it appropriately.

• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.

• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

General Safety

• Only a qualified person can install this appliance and replace the cable.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
  • Always use oven gloves to remove or insert accessories or ovenware.
• Before any maintenance, cut the power supply.
• WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
• Do not use the appliance before installing it in the built-in structure.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

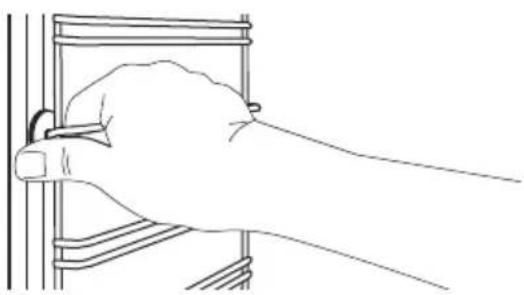

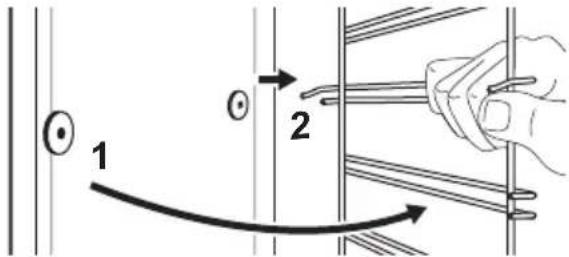

• To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.

Safety instructions

Installation

Warning! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Install the appliance in a safe and suitable place that meets installation requirements.
• Keep the minimum distance from other appliances and units.
• Before mounting the appliance, check if the oven door opens without restraint.

Cabinet minimum height (Cabinet under the worktop mini-mum height)	580 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of the appliance	589 mm
Height of the back of the appliance	571 mm
Width of the front of the appliance	595 mm
Width of the back of the appliance	559 mm
Depth of the appli-ance	569 mm
Built in depth of the appliance	548 mm
Depth with open door	1022 mm

Ventilation opening minimum size. Opening placed on the bottom rear side	560x20 mm
Mains supply cable length. Cable is placed in the right corner of the back side	1500 mm
Mounting screws 4x25 mm

Electrical connection

Warning! Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
  • Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

• If the mains socket is loose, do not connect the mains plug.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

Use

Warning! Risk of injury, burns and electric shock or explosion.

• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open the door.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

Warning! Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel:

• do not put ovenware or other objects in the appliance directly on the bottom.

• do not put aluminium foil directly on the bottom of cavity of the appliance.

• do not put water directly into the hot appliance.

• do not keep moist dishes and food in the appliance after you finish the cooking.

• be careful when you remove or install the accessories.

• Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.

• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.
  • Always cook with the appliance door closed.
• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

Care and Cleaning

Warning! Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Make sure the appliance is cold. There is a risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.
• Be careful when you remove the door from the appliance. The door is heavy!
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Fat and food remaining in the appliance can cause fire.
• If you use an oven spray, obey the safety instructions on the packaging.

Internal lighting

Warning! Risk of electric shock.

• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.
• This product contains a light source of energy efficiency class G.
• Use only lamps with the same specifications.

Service

- To repair the appliance contact the Authorised Service Centre.

- Use original spare parts only.

Disposal

Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door to prevent children and pets to get closed in the appliance.

- Packaging material:

The packaging material is recyclable. Plastic parts are marked with international abbreviations such as PE, PS, etc. Dispose of the packaging material in the containers provided for this purpose at your local waste management facility.

Installation

Warning! Refer to Safety chapters.

Assembly

Refer to the Assembly Instructions for the installation.

Electrical installation

Warning! Only a qualified person must do the electrical installation.

The manufacturer is not responsible if you do not follow the safety precautions from the Safety chapters.

This oven is only supplied with a main cable.

Cable

Cable types applicable for installation or replacement:

H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-F (T90), H05 BB-F

For the section of the cable refer to the total power on the rating plate. You can also refer to the table:

Total power (W) Section of the cable mm^2

maximum 1380 3 x 0.75

maximum 2300 3 x 1

maximum 3680 3 x 1.5

The earth cord (green / yellow cable) must be 2 cm longer than phase and neutral cables (blue and brown cables).

Product description

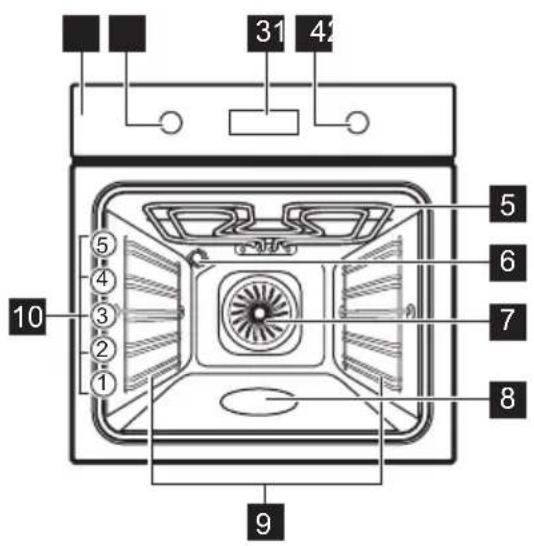

General overview

31 42 5 6 7 8 9 10

1 Control panel
2 Knob for the heating functions
3 Display
4 Control knob
5 Heating element
6 Lamp
7 Fan
8 Cavity embossment
9 Shelf support, removable
10 Shelf positions

Accessories

• Wire shelf x 1
  For cookware, cake tins, roasts.

- Baking tray x 1

For cakes and biscuits.

• Grill- / Roasting pan x 1
  To bake and roast or as pan to collect fat.
• Telescopic runners x 1 set
  For shelves and trays.

Control panel

Control panel overview

				OK
Timer	Fast Heat Up	Light Lock		Confirm setting	Press Turn	the knob
Select a heating function to turn on the appliance.
Turn the knob for the heating functions to the off position to turn the appliance off.

Display

Display with key functions.

Display indicators

Basic indicators
Lock Assisted Cooking Settings Fast Heat Up
Timer indicators
Minute minder STOP End time Time Delay Uptimer
Progress bar - for temperature or time. The bar is fully red when the appliance reaches the set temperature.
Steam cooking indicator

Before first use

Warning! Refer to Safety chapters.

Initial cleaning

Before the first use, clean the empty appliance and set the time:
			00:00 Set the time. Press OK

Initial preheating

Preheat the empty oven before the first use.
Step 1 Remove all accessories and removable shelf supports from the oven.
Step 2	Set the maximum temperature for the function: ☐Let the oven operate for 1 h.
Step 3	Set the maximum temperature for the function: ⚙Let the oven operate for 15 min.
i The oven can emit an odour and smoke during preheating. Make sure that the room is ventilated.

How to use: Mechanical child lock

The oven has the mechanical child lock installed. It is the door lock on the right side of the oven, below the control panel.

To open the oven door with the child lock:
Step 1 Push	and hold up the child lock.
Step 2 Pull	the door handle to open the door.Close the oven door without pushing the child lock.

To remove the child lock:
Step 1 Open	the door and remove the child lock with the torx key supplied with the oven.
Step 2 Fix the	the screw back after removing the child lock.

Daily use

Warning! Refer to Safety chapters.

How to set: Heating functions

Step 1 Turn	the knob for the heating functions and select a heating function.
Step 2 Turn	the control knob to set the temperature.
- press and hold to turn on the function: Fast Heat Up. It is available for some oven functions.

Steam cooking
Make sure that the oven is cold.
Step 1 Step 2 Step 3 Step 4
			Preheat the empty oven for 10 min to create humidity. Put food in the oven.
Fill the cavity embossment with tap water.	Select the steam heating function.	Set the temperature.
i The maximum capacity of the cavity embossment is 250 ml. Do not refill the cavity em-bossment during cooking or when the oven is hot.

When the steam cooking ends:
Step 1 Step 2 Step	3
Turn the knob for the heating functions to the off position to turn off the oven.	Carefully open the door. Re-leased humidity can cause burns.	Make sure that the oven is cold. Remove the remaining water from the cavity em-bossment.

Heating functions

Heating function Application
True Fan Cooking	To bake on up to three shelf positions at the same time and to dry food. Set the temperature 20 - 40 °C lower than for Conventional Cooking.
Conventional Cooking	To bake and roast food on one shelf position.
SteamBake	To add humidity during the cooking. To get the right colour and crispy crust during baking. To give more juiciness during reheating. To preserve fruit or vegetables.
Pizza Function	To bake pizza. To make intensive browning and a crispy bottom.
Bottom Heat	To bake cakes with crispy bottom and to preserve food.
Frozen Foods	To make convenience food (e.g., french fries, potato wedges or spring rolls) crispy.
Moist Fan Baking	This function is designed to save energy during cooking. When you use this function, the temperature in the cavity may differ from the set temperature. The residual heat is used. The heating power may be reduced. For more information refer to "Daily Use" chapter, Notes on: Moist Fan Baking.
Grill	To grill thin pieces of food and to toast bread.
Turbo Grilling	To roast large meat joints or poultry with bones on one shelf position. To make gratins and to brown.
≡Menu	To enter the Menu: Assisted Cooking, Settings.

True Fan Cooking, Conventional Cooking: When you set the temperature below 80 °C the lamp automatically turns off after 30 sec.

Notes on: Moist Fan Baking

This function was used to comply with the energy efficiency class and ecodesign requirements (according to EU 65/2014 and EU 66/2014). Tests according to:

IEC/EN 60350-1

The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible.

When you use this function the lamp automatically turns off after 30 sec.

For the cooking instructions refer to "Hints and tips" chapter, Moist Fan Baking.

How to set: Assisted Cooking

Every dish in this submenu has a recommended heating function and temperature. Use the function to prepare a dish quickly with default settings. You can also adjust the time and the temperature during cooking.

For some of the dishes you can also cook with:

• Weight Automatic

Step 1 Step 2 Step 3 Step 4
		5
Enter the menu. Select Assisted Cooking. Press OK		Select the dish. Press OK.	Insert the dish to the oven. Confirm setting.

Assisted Cooking

Legend
	Weight Automatic available.
	The amount of water for the steam function.
	Preheat the appliance before you start cooking.
	Shelf level.

The display shows P and a number of the dish that you can check in the table.

When the function ends check if the food is ready.

	Dish Weight	Shelf level / Accessory
[22VH]	Roast Beef, rare	1 - 1.5 kg; 4 - 5 cm thick pieces	Fry the meat for a few minutes on a hot pan.Insert to the appliance.
[DSHT]	Roast Beef, medium
[HGYT]	Roast Beef, well done
4	Steak, medium 180	-220 g per piece; 3 cm thick slices	roasting dish on wire shelfFry the meat for a few minutes on a hot pan. Insert to the appliance.
5	Beef roast / braised (prime rib, top round, thick flank)	1.5 - 2 kg	roasting dish on wire shelfFry the meat for a few minutes on a hot pan.Add liquid. Insert to the appliance.
6	Roast Beef, rare (slow cooking)	1 - 1.5 kg; 4 - 5 cm thick pieces	2; baking trayUse your favourite spices or simply salt and fresh grounded pepper. Fry the meat for a few minutes on a hot pan. Insert to the appliance.
7	Roast Beef, medium (slow cooking)
8	Roast Beef, well done (slow cooking)
9	Fillet, rare (slow cooking)	0,5 - 1.5 kg; 5 - 6 cm thick pieces	2; baking trayUse your favourite spices or simply salt and fresh grounded pepper. Fry the meat for a few minutes on a hot pan. Insert to the appliance.
10	Fillet, medium (slow cooking)
11	Fillet, done (slow cooking)
12	Veal roast (e.g. shoulder)	0.8 - 1.5 kg; 4 cm thick pieces	roasting dish on wire shelfUse your favourite spices. Add liquid. Roast covered.
13	Pork roast neck or shoulder	1.5 - 2 kg	roasting dish on wire shelfTurn the meat after half of the cooking time.
14	Pulled pork (slow cooking)	1.5 - 2 kg	2; baking trayUse your favourite spices. Turn the meat after half of the cooking time to get an even browning.
15	Loin, fresh 1 - 1.5 kg	5 - 6 cm thick pieces	2; roasting dish on wire shelfUse your favourite spices.
16	Spare Ribs 2 - 3 kg;	use raw, 2 - 3 cm thin spare ribs	deep panAdd liquid to cover the bottom of a dish. Turn the meat after half of the cooking time.

	Dish Weight	Shelf level / Accessory
17	Lamb leg with bones	1.5 - 2 kg; 7 - 9 cm thick pieces
18	Whole chicken 1 - 1	.5 kg; fresh
19	Half chicken 0.5 - 0.8 kg	-
20	Chicken breast 180	- 200 g per piece
21	Chicken legs, fresh	-
22	Duck, whole 2 - 3 kg	-
23	Goose, whole 4 - 5 kg	-
24	Meat loaf 1 kg	-
25	Whole fish, grilled	0.5 - 1 kg per fish
26	Fish fillet-	-
27	Cheesecake -	-
28	Apple cake -	-
29	Apple tart	-
30	Apple pie -
31	Brownies 2 kg of dough
32	Chocolate muffins	-
33	Loaf cake -
34	Baked potatoes 1 kg
35	Wedges 1 kg
36	Grilled mixed vegetables	1 - 1.5 kg
37	Croquets, frozen 0.5 kg
38	Pommes, frozen 0.75 kg
39	Meat / vegetable lasagna with dry noodle plates	1 - 1.5 kg
40	Potato gratin (raw potatoes)	1 - 1.5 kg
41	Pizza fresh, thin	-
42	Pizza fresh, thick	-
43	Quiche -
44	Baguette / Cia-batta / White bread	0.8 kg
45	All grain / rye / dark bread all grain in loaf pan	1 kg

Clock functions

Clock functions

Clock Function Application
[0883]Minute minder	When the timer ends, the signal sounds.
Cooking time	When the timer ends, the signal sounds and the heating function stops.
Time Delay	To postpone the start and / or end of cooking.
Uptimer	Maximum is 23 h 59 min. This function has no effect on the operation of the oven.To turn on and off the Uptimer select: Menu, Settings.

How to set: Clock functions

How to set: Time of day
Step 1 Step 2 Step 3
≡
To change the time of day enter the menu and select Settings, Time of day. Refer to "Menu structure" chapter.	Set the clock.	Press: OK

How to set: Minute minder
Step 1	The display shows:0:00	Step 2 Step 3
Press: ⏻		Set the Minute minder	Press: OK
i Timer starts counting down immediately.
How to set: Cooking time
Step 1 Step 2		The display shows:0:00STOP	Step 3 Step 4
Choose a heating function and set the temperature.	Press repeatedly:💡.		Set the cooking time.	Press: OK
i Timer starts counting down immediately.

How to set: Time Delay
Step 1 Step 2		The display shows: the time of daySTART	Step 3 Step 4		The display shows:--STOP	Step 5 Step 6
Select the heating function.	Press repeatedly:		Set the start time.	Press:OK		Set the end time.	Press:OK.
i Timer starts counting down at a set start time.

Using the accessories

Warning! Refer to Safety chapters.

devices. The high rim around the shelf prevents cookware from slipping of the shelf.

Inserting accessories

A small indentation at the top increases safety. The indentations are also anti-tip

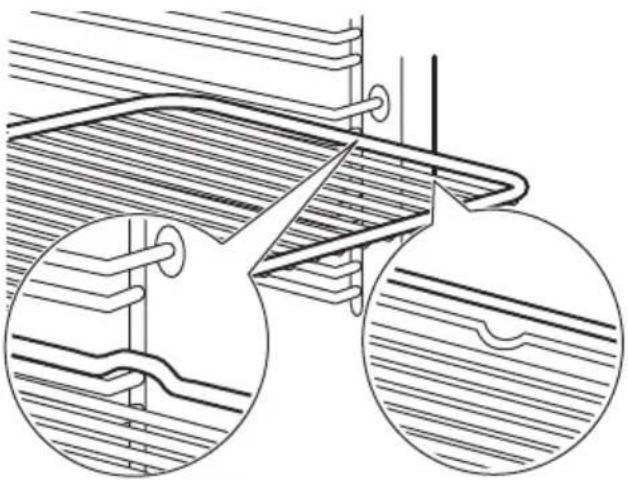

Wire shelf:Push the shelf between the guide bars of the shelf support and make sure that the feet point down.

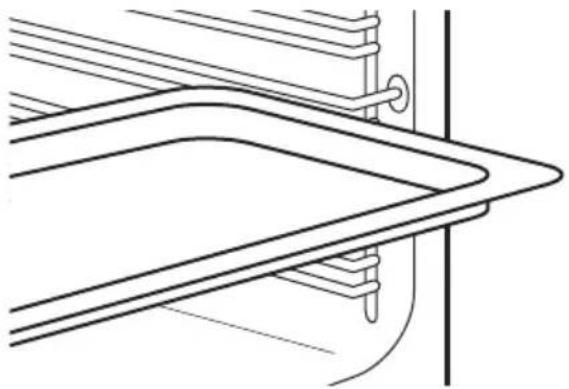

Baking tray / Deep pan:Push the tray between the guide bars of the shelf support.

How to use: telescopic runners

Keep the installation instructions for the telescopic runners for future use.

Caution! Do not clean the telescopic runners in the dishwasher. Do not lubricate the telescopic runners.

With telescopic runners you can put in and remove wire shelves and trays easily.

Step 1 Pull out the right and left hand telescopic runners.
Step 2 Put the wire shelf on the telescopic runners and carefully push them into the oven.Make sure you push back the telescopic runners fully in the oven before you close the oven door.

Additional functions

Lock

This function prevents an accidental change of the appliance function.
Turn it on when the appliance works - the set cooking continues, the control panel is locked.Turn it on when the appliance is off - it cannot be turned on, the control panel is locked.
	- press and hold to turn on the function.A signal sounds.	- press and hold to turn it off.
3 x flashes when the lock is turned on.

Automatic switch-off

For safety reasons the appliance turns off after some time, if a heating function works and you do not change any settings.

(°C) (h)
30 - 115 12.5
120 - 195 8.5
200 - 245 5.5

250 - maximum 3

The Automatic switch-off does not work with the functions: Light, Time Delay.

Cooling fan

When the appliance operates, the cooling fan turns on automatically to keep the surfaces of the appliance cool. If you turn off the appliance, the cooling fan can continue to operate until the appliance cools down.

Hints and tips

Cooking recommendations

i

The temperature and cooking times in the tables are guidelines only. They depend on the recipes and the quality and quantity of the ingredients used.Your appliance may bake or roast differently to the appliance you had before. The hints below show recommended settings for temperature, cooking time and shelf position for specific types of the food.If you cannot find the settings for a special recipe, look for the similar one.

Moist Fan Baking

For the best results follow suggestions listed in the table below.

		(°C) (min)
Sweet rolls, 16 pieces	baking tray or dripping pan	180 2 20 - 30
Rolls, 9 pieces baking pan	tray or dripping	180 2 30 - 40
Pizza, frozen, 0.35 kg	wire shelf 220 2 10 - 15
Swiss Roll baking tray or dripping pan	170 2 25 - 35
Brownie baking tray or dripping pan	175 3 25 - 30
Soufflè, 6 pieces ceramic ramekins on wire shelf	200 3 25 - 30
Sponge flan base flan base tin on wire shelf	180 2 15 - 25
Victoria sandwich baking dish on wire shelf 170 2 40 - 50
Poached fish, 0.3 kg	baking tray or dripping pan	180 3 20 - 25
Whole fish, 0.2 kg baking tray or dripping pan	180 3 25 - 35
Fish fillet, 0.3 kg pizza pan on wire shelf 180 3		25 - 30
Poached meat, 0.25 kg	baking tray or dripping pan	200 3 35 - 45
Shashlik, 0.5 kg baking tray or dripping pan		200 3 25 - 30
Cookies, 16 pieces baking tray or dripping pan		180 2 20 - 30
Macaroons, 24 pieces	baking tray or dripping pan	180 2 25 - 35
Muffins, 12 pieces baking tray or dripping pan		170 2 30 - 40
Savory pastry, 20 pieces	baking tray or dripping pan	180 2 25 - 30
Short crust biscuits, 20 pieces	baking tray or dripping pan	150 2 25 - 35
Tartlets, 8 pieces baking tray or dripping pan		170 2 20 - 30
Vegetables, poached, 0.4 kg	baking tray or dripping pan	180 3 35 - 45
Vegetarian omelette	pizza pan on wire shelf 20	0 3 25 - 30
Mediterranean vegetables, 0.7 kg	baking tray or dripping pan	180 4 25 - 30

Moist Fan Baking - recommended accessories

Use the dark and non-reflective tins and containers. They have better heat absorption than the light colour and reflective dishes.

Pizza pan	Baking dish	Ramekins	Flan base tin
Dark, non-reflective 28 cm diameter	Dark, non-reflective 26 cm diameter	Ceramic 8 cm diameter, 5 cm height	Dark, non-reflective 28 cm diameter

Cooking tables for test institutes

Information for test institutes

Tests according to IEC 60350-1.

				(°C) (min)
Small cakes, 20 per tray	Conven-tional Cooking	Baking tray	3 170 20 - 35	-
Small cakes, 20 per tray	True Fan Cooking	Baking tray	3 150 - 160	20 - 35 -
Small cakes, 20 per tray	True Fan Cooking	Baking tray	2 and 4 150	- 160 20 - 35	-
Apple pie, 2 tins ∅20 cm	Conven-tional Cooking	Wire shelf 2	180 70 - 90	-
Apple pie, 2 tins ∅20 cm	True Fan Cooking	Wire shelf 2	160 70 - 90	-
Fatless sponge cake, cake mould ∅26 cm	Conven-tional Cooking	Wire shelf 2	170 40 - 50	Preheat the oven		for 10 min
Fatless sponge cake, cake mould ∅26 cm	True Fan Cooking	Wire shelf 2	160 40 - 50	Preheat the oven		for 10 min
				(°C) (min)
Fatless sponge cake, cake mould ∅26 cm	True Fan Cooking	Wire shelf 2	and 4 160 40	- 60 Preheat the oven	for 10 min
Short bread	True Fan Cooking	Baking tray	3 140 - 150	20 - 40 -
Short bread	True Fan Cooking	Baking tray	2 and 4 140	- 150 25 - 45 -
Short bread	Conventional Cooking	Baking tray	3 140 - 150	25 - 45 -
Toast, 4 - 6 pieces	Grill Wire shelf 4 max. 1 - 5 Preheat the oven					for 10 min
Beef burger, 6 pieces, 0.6 kg	Grill Wire shelf, dripping pan	4 max. 20 - 30 Put the wire shelf				on the fourth level and the dripping pan on the third level of the oven. Turn the food halfway through the cooking time. Preheat the oven for 10 min

Care and cleaning

Warning! Refer to Safety chapters.

Notes on cleaning

	Clean the front of the appliance only with a microfibre cloth with warm water and a mild detergent. Clean and check the door gasket around the frame of the cavity.
(	Use a cleaning solution to clean metal surfaces.
	Clean stains with a mild detergent.
Everyday Use	Clean the cavity after each use. Fat accumulation or other residue may cause fire.
	Moisture can condense in the appliance or on the door glass panels. To decrease the condensation, let the appliance work for 10 minutes before cooking. Do not store the food in the appliance for longer than 20 minutes. Dry the cavity only with a microfibre cloth after each use.

Accessories	Clean all accessories after each use and let them dry. Use only a microfibre cloth with warm water and a mild detergent. Do not clean the accessories in a dishwasher.
	Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.

How to clean: Cavity embossment

Clean the cavity embossment to remove limestone residue after cooking with steam.

Step 1 Step 2 Step	3
Pour: 250 ml of white vinegar into the cavity embossment. Use maximum 6% vinegar without any additives.	Let the vinegar dissolve the limestone residue at the ambient temperature for 30 minutes.	Clean the cavity with warm water and a soft cloth.
For the function: SteamBake clean the oven for every 5 - 10 cooking cycles.

How to remove: Shelf supports

Remove the shelf supports to clean the oven.

Step 1 Turn off the oven and wait until it is cold.
Step 2 Pull the front of the shelf support away from the side wall.
Step 3 Pull	the rear end of the shelf support away from the side wall and remove it.
Step 4 Install	the shelf supports in the opposite sequence.The retaining pins on the telescopic runners must point to the front.

How to remove and install: Door

The oven door has three glass panels. You can remove the oven door and the internal glass panels to clean them. Read the whole "Removing and installing door" instruction before you remove the glass panels.

Caution! Do not use the oven without the glass panels.

Step 1 Open the door fully and hold both hinges.

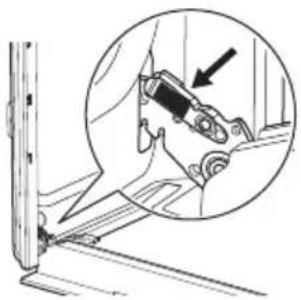

Step 2 Lift and pull the latches until they click.
Step 3 Close the oven door halfway to the first opening position. Then lift and pull to remove the door from its seat.
Step 4 Put the door on a soft cloth on a stable surface.
Step 5 Hold	the door trim (B) on the top edge of the door at the two sides and push inwards to release the clip seal.

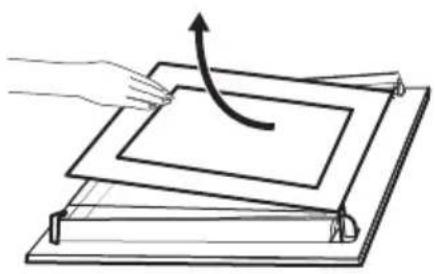

Step 6 Pul	the door trim to the front to remove it.
Step 7 Hold	the door glass panels by their top edge and carefully pull them out one by one. Start from the top panel. Make sure the glass slides out of the supports completely.
Step 8 Clean the glass panels with water and soap. Dry the glass panels carefully. Do not clean the glass panels in the dishwasher.
Step 9 After cleaning, install the glass panels, the door trim and the oven door, close the latches on the both hinges.
If the door is installed correctly, you will hear a click when closing the latches.

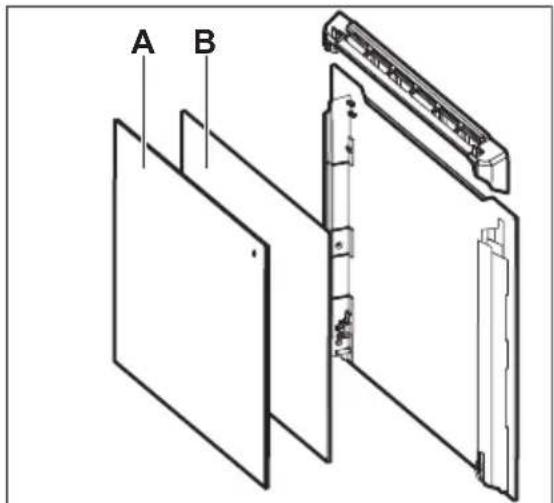

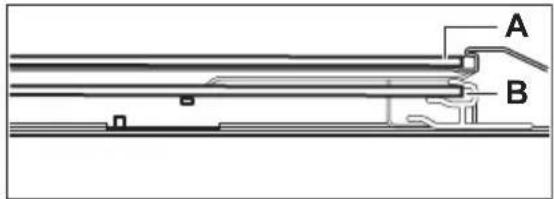

Make sure that you put the glass panels (A and B) back in the correct sequence. Check for the symbol / printing on the side of the glass panel, each of the glass panels looks different to make the disassembly and assembly easier. The screen-printing zone must face the inner side of the door. Make sure that after the installation the surface of the glass panel frame on the screen-printing zones is not rough when you touch it. When installed correctly the door trim clicks. Make sure that you install the middle panel of glass in the seats correctly.

A B

A B

How to replace: Lamp

Warning! Risk of electric shock. The lamp can be hot.

Always hold the halogen lamp with a cloth to prevent grease residue from burning on the lamp.

Before you replace the lamp:
Step 1 Step 2 Step	3
Turn off the oven. Wait until the oven is cold.	Disconnect the oven from the mains.	Put a cloth on the bottom of the cavity.

Back lamp

Step 1 Turn the glass cover to remove it.

Step 2 Clean the glass cover.

Step 3 Replace the lamp with a suitable 300 °C heat-resistant lamp.

Step 4 Install the glass cover.

Troubleshooting

Warning! Refer to Safety chapters.

What to do if...

In any cases not included in this table please contact with an Authorised Service Centre.

The appliance does not turn on or does not heat up
Problem Check if...
The appliance does not heat up. The automatic switch-off is deactivated.
The appliance does not heat up. The fuse is not blown.
The appliance does not heat up. The Lock is off.

Components
Problem Check if...
The lamp is turned off.Moist Fan Baking - is turned on.
The lamp does not work. The lamp is burnt out.
The door gasket is damaged. Do not use the appliance. Contact an Authorised Service Centre.
Error codes
The display shows... Check if...
00:00 There was a power cut. Set the time of day.
If the display shows an error code that is not in this table turn the house fuse off and on to restart the appliance. If the error code recurs contact an Authorised Service Centre.

Cleaning
Problem Check if...
The water leaks out of the cavity emboss-ment.	There is too much water in the cavity em-bossment.

Service data

If you cannot find a solution to the problem yourself, contact an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the appliance cavity. Do not remove the rating plate from the appliance cavity.

We recommend that you write the data here:
Model (MOD.) ......
Product number (PNC) ......
Serial number (S.N.) ......

Technical data

Technical data

Dimensions (internal)	WidthHeightDepth	480 mm361 mm416 mm
Area of baking tray 1438 cm2
Top heating element 2300 W
Bottom heating element 1000 W
Grill 2300 W
Ring 2400 W
Total rating 2990 W
Voltage 220 - 240 V
Frequency 50 - 60 Hz
Number of functions 9

Energy efficiency

Product Information and Product Information Sheet

Supplier's name IKEA
Model identification	FORNEBY 305.577.90 FORNEBY 605.568.88
Energy Efficiency Index 81.2
Energy efficiency class A+
Energy consumption with a standard load, conventional mode	0.93 kWh/cycle
Energy consumption with a standard load, fan-forced mode	0.69 kWh/cycle
Number of cavities 1
Heat source Electricity
Volume 72 l
Type of oven Built-In Oven
Mass	FORNEBY 305.577.90	33.0 kg
	FORNEBY 605.568.88	33.0 kg
IEC/EN 60350-1- Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Methods for measuring performance.

Energy saving

The appliance has features which help you save energy during everyday cooking.

Make sure that the appliance door is closed when the appliance operates. Do not open the appliance door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.

Use metal cookware to improve energy saving.

When possible, do not preheat the appliance before cooking.

Keep breaks between baking as short as possible when you prepare a few dishes at one time.

Cooking with fan

When possible, use the cooking functions with fan to save energy.

Residual heat

The fan and lamp continue to operate. When you turn off the appliance, the display shows the residual heat. You can use that heat to keep the food warm.

When the cooking duration is longer than 30 min, reduce the appliance temperature to minimum 3 - 10 min before the end of cooking. The residual heat inside the appliance will continue to cook.

Use the residual heat to warm up other dishes.

Keep food warm

Choose the lowest possible temperature setting to use residual heat and keep a meal

warm. The residual heat indicator or temperature appears on the display.

Cooking with the lamp off

Turn off the lamp during cooking. Turn it on only when you need it.

Moist Fan Baking

Function designed to save energy during cooking.

When you use this function the lamp automatically turns off after 30 sec. You may turn on the lamp again but this action will reduce the expected energy savings.

Menu structure

Menu

Step 1 Step	2 Step 3 Step 4 Step 5
≡ - select to enter the Menu.	Select the option from Menu struc-ture and press OK.	Select the set-ting.	OK - press to confirm setting.	Adjust the value and press OK
Turn the knob for the heating functions to the off position to exit the Menu.

Menu structure
Assisted Cooking ✗	Settings ⚙️

Settings
01 Time of day Change 02 Display brightness			1 - 5
03 Key tones 1 - Beep		2 - Click3 - Sound off	04 Buzzer volume 1 - 4
05 Optimer On / Off06 Light On / Off
07 Fast Heat Up On / Off08 Demo mode Activation					code: 2468
09 Software version Check 10	Reset all settings Yes / No

Environmental concerns

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Sisältö

Technical line drawing of a mechanical assembly with two circular insets showing detailed cross-sections (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with two circular insets showing detailed cross-sections (no text or symbols)

Technical line drawing of a mechanical assembly with two circular insets showing detailed cross-sections (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Abstract pattern of black and white horizontal lines with no text or symbols
