Brand	Fuxtec
Model	FX-DS5L
Product type	Manual pressure garden sprayer
Maximum filling capacity	5 liters
Total tank capacity	8.0 liters
Permissible working pressure	2.5 bar
Max. flow rate	1.5 l/min at 2.5 bar
Permissible working temperature	1°C to 30°C
Nozzle orifice	1.3 mm
Spray angle	35°
Spray pattern	Hollow cone
Recoil force	< 20 N
Pump type	Manual lever pump
Tank material	Plastic resistant to plant protection products
Lance material	Plastic
Power supply	Manual (hand pump)
Intended use	Domestic and garden (liquid fertilizers, herbicides, BBA-approved plant protection products)
Maintenance and cleaning	Rinse with clean water after use, air dry; clean the pump once a year and grease moving parts
Safety	Do not spray on people/animals; do not use in strong wind; wear protective clothing; do not smoke/eat during use
Spare parts and repairability	Lance filter and nozzle cleanable or replaceable; seals replaceable
Storage	Keep away from frost and heat sources; out of reach of children
Package contents	FX-DS5L sprayer, user manual

Frequently Asked Questions - FX-DS5L Fuxtec

What is the maximum filling capacity of the FX-DS5L?

The maximum filling capacity is 5 liters, for a total tank capacity of 8 liters (including the air space required for pressurization).

How to pressurize the sprayer?

Operate the pump lever several times while the lance is closed. Once pressure is felt, open the spray lance. If pressure build-up is insufficient, check that the connections are tightened and the seals are in good condition.

What to do if the sprayer does not spray even though it is under pressure?

Check that the lance filter and nozzle are clean. Clean them if necessary. If the problem persists, check the condition of the seals and replace them if needed.

How to clean the sprayer after use?

After use, empty the tank and rinse it with clean water. Run the pump with clean water to wash all components. Allow to air dry. Once a year, clean the pump thoroughly and grease moving parts.

What types of products can I use with the FX-DS5L?

The sprayer is designed for liquid fertilizers, herbicides, and BBA-approved plant protection products. Do not use solvents, aggressive or corrosive chemicals, or petroleum-based products.

What safety precautions should I take?

Wear protective clothing, do not eat/smoke during application. Do not spray on people or animals. Never blow into the nozzles. Keep the device and products out of reach of children.

Can I use the sprayer in windy weather?

No, it is forbidden to use the device on days of strong wind to avoid product drift.

How to store the sprayer in winter?

Protect the device from frost and heat sources. Empty the tank and lance completely, clean and dry thoroughly before storing in a dry place out of reach of children.

What periodic maintenance is recommended?

Clean the filter and nozzle regularly. Once a year, disassemble and clean the pump, then grease moving parts. Check the condition of the seals and replace them if necessary.

Where can I find spare parts?

Wear parts such as seals, filter, and nozzle are available from the manufacturer or authorized dealers. Refer to the manual for part numbers or contact Fuxtec customer service.

USER MANUAL FX-DS5L Fuxtec

Line drawing of a spray sprayer with a long handle and hose against a black background (no text or symbols)

Silhouette of a stylized fox head (no text or symbols)

FUXTEC

Illustration of a spray gun with hose and control lever (no text or symbols)

CE

Baujahr 2019

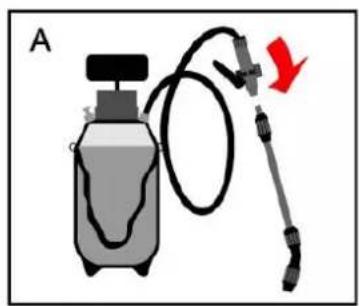

Illustration of a spray gun with a hose and lever, labeled 'A' (no text or symbols on the diagram itself)

Simple diagram of a mechanical component with a red arrow indicating downward motion (no text or symbols)

1.

Simple line drawing of a mechanical component with a red circular motion indicator (no text or symbols)

1.

Mechanical component diagram showing a lever with a red upward arrow indicating motion (no text or symbols)

7. Wartung

Read these instructions thoroughly before initial operation. They are an integral part of this device.

This device is only intended for the application of aqueous sprays in the home and allotment garden sectors. Usage of liquid fertilizers, weed-killers and plant protection products (PSM) approved by the Federal Biological Research Centre for Agriculture and Forestry (BBA) is permissible. No known damaging effects of these approved PSMs on the product materials used were known at the time of manufacture. If in doubt, please contact your pesticide manufacturer.

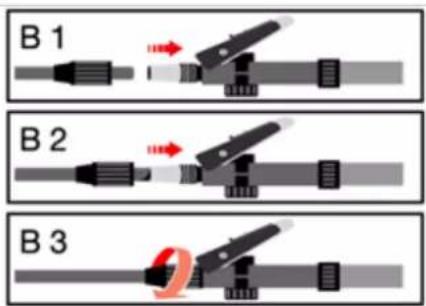

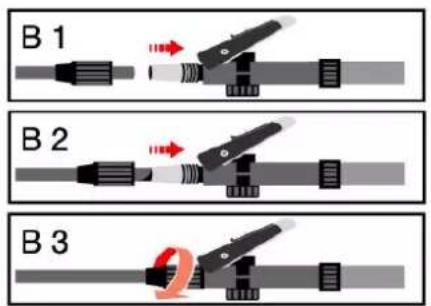

Assembly

Illustration of a spray gun with a bottle and hose, showing a red arrow indicating motion (no text or symbols)

Illustration of a spray gun with a hose and a red checkmark (no text or symbols)

Start Up

Each time before the device is used, the device should be checked to ensure that it is in a safe and serviceable condition or at least it should be checked for visible damages. Only add as much spraying fluid as necessary. Pay attention during filling that nothing spills over and that nothing sprays back. Use a funnel and a strainer for this.

Opening and Closing the Compression Sprayer

1.

Mechanical component diagram showing a lever with a red downward arrow (no text or symbols)

1.

Mechanical component with a red circular motion indicator and a rectangular shaft (no text or symbols)

1.

Mechanical component diagram showing a lever and shaft assembly with a red upward arrow indicating motion (no text or symbols)

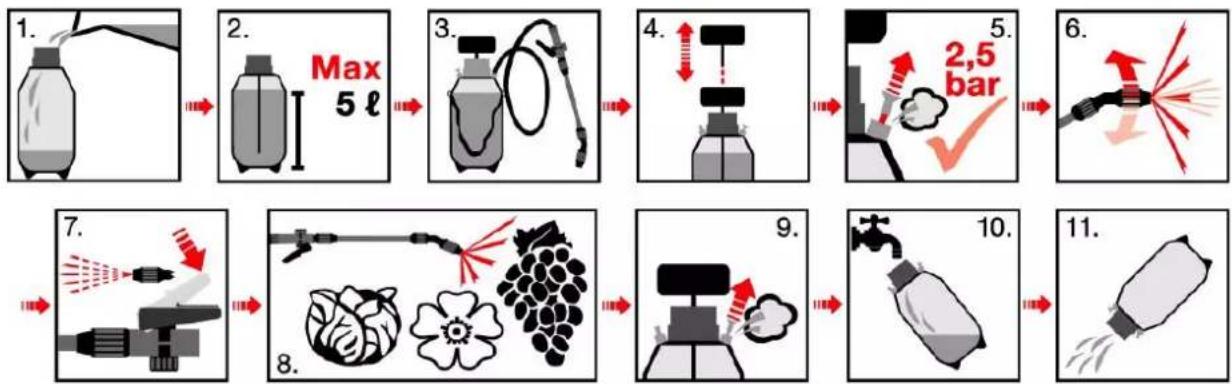

Instructions

Maintenance

After use, wash out the container with clean water. Then operate the unit with clean water until all of the components have been washed out. Leave open to dry.

The pump should be cleaned thoroughly once a year and all moving parts should be greased or oiled.

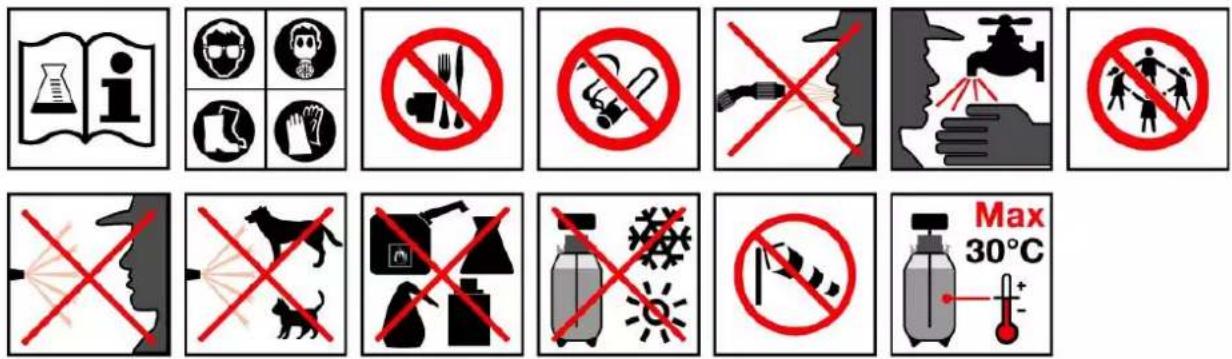

Safety Instructions

• Pay attention to the instructions for dosage and usage in the directions for use of the plant preservatives, and wear protective clothing if necessary.
• Do not eat, drink or smoke while working with plant protective agents.
• Never blow out nozzles and other small parts with the mouth.
• Wash hands and face thoroughly after finishing work.
• Keep plant protective agent device and protective agents away from children.
• Do not spray on humans or animals.
• Not intended for spraying of solvents, acidic or corrosive chemical agents and petroleum products.
• Protect device from heat sources and frost.
• Use of the device on windy days is forbidden.
• Admissible liquidity temperatures 1^ - 30^ .

Troubleshooting

The pump is pressurized but does not emit any liquid:

a) Check whether the filter and the nozzle of the spray lance are clean and clean if necessary.
No pressure is building up on the pump:
b) Activate the pump lever several times while the spray lance is closed and then open the pray lance.
c) When a little fluid is in the container, activate the pump lever until a certain resistance is felt.
d) Check whether all closures are tightly screwed.
e) Check whether the seals are intact. Replace if need be.

Technical Data

Max. filling quantity	:	5 Liter
Total volume	:	8,0 Liter
Admissible operating pressure	:	2,5 bar
Max. volume flow	:	1,5l/min, 2,5 bar
Admissible operating temperature	:	1°C – 30°C
Spraying figure	:	Hollow cone
Bore	:	1,3 mm
Recoil energy at jet	:	<20N
Spraying angle	:	35°

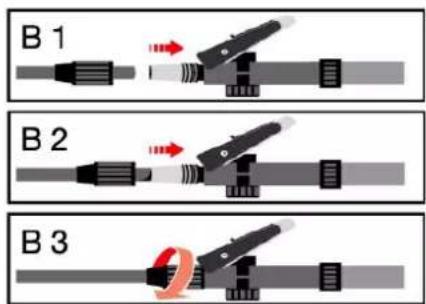

11. Manuel Français

Illustration of a spray gun with a hose and lever, showing a red arrow indicating motion (no text or symbols)

Illustration of a spray gun with a hose and a checkmark, no text or symbols present

Mise en service

Mechanical component diagram showing a lever with a red downward arrow (no text or symbols)

1.

Simple diagram of a mechanical lever with a red circular motion indicator (no text or symbols)

1.

Mechanical component diagram showing a lever and base with a red upward arrow (no text or symbols)


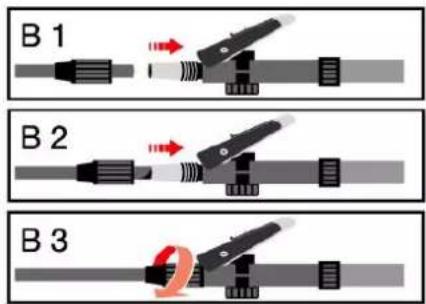

Maintenance

Illustration of a spray gun with attached hose and valve, showing fluid flow direction (no text or symbols)

Illustration of a spray gun with a red checkmark indicating inspection or clearance (no text or symbols present)

Messa in esercizio

Mechanical component diagram showing a lever with a red downward arrow (no text or symbols)

1.

Simple diagram of a mechanical lever with a red circular motion indicator (no text or symbols)

1.

Mechanical component diagram showing a lever with a red upward arrow indicating motion (no text or symbols)
