USER MANUAL LUNKY XL Kindercraft

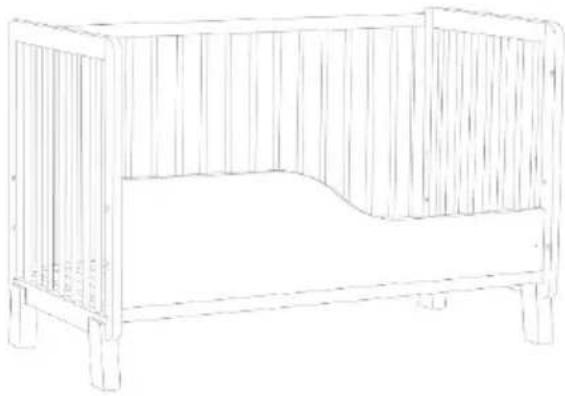

Line drawing of a baby crib with vertical metal frames and support legs (no text or symbols)

Line drawing of a baby crib with vertical bars and a horizontal seam (no text or symbols)

kinderkraft.com

/kinderkraftofficial

kinderkraft

@kinderkraftofficial

(AR) سرير الأطفال
(CZ) DĚTSKÁ POSTÝLKA
(DE) KINDERBETT
(EN) BABY COT
(ES) CAMA INFANTIL
(FR) LIT BÉBÉ
(HU) GYEREKÁGY
(IT) LETTINO PER BAMBINI

الاستخدام دليل

NÁVOD K OBSLUZE

BEDIENUNGSANLEITUNG

USER MANUAL

MANUAL DE USO

GUIDE D'UTILISATION

HASZNÁLATI ÚTMUTATÓ

ISTRUZIONI PER UTENTE

(NL) BABY BED
(PL) ŁÓŻECZKO DZIECIĘCE
(PT) BERÇO INFANTIL
(RO) PĂTUT PENTRU BABELUŞ ŞI COPII
(RU) ДЕТСКАЯ КРОВАТКА
(SK) DETSKÁ POSTIELKA
(SV) BARNSÄNG

GEBRUIKSAANWIJZING

INSTRUKCJA OBSŁUGI

MANUAL DE INSTRUÇÕES

INSTRUCTIUNI DE UTILIZARE

Thank you for choosing a product by Kinderkraft. Our designs are child-oriented – safety and quality always comes first, stay comfortable knowing that you have made the best choice.

IMPORTANT, RETAIN FOR FUTURE

REFERENCE: READ CAREFULLY

SAFETY INSTRUCTIONS AND PRECAUTIONS

WARNING

• Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of the cot;
• Do not place this child's bed near heat sources, windows and other furniture.

• Do not use the cot if any part is broken, torn or missing and use only spare parts approved by the manufacturer; spare parts may be only delivered by manufacturer.

• Do not leave anything in the cot or place the cot close to another product, which could provide a foothold or present a danger of suffocation or strangulation, e.g. strings, blind/curtain cords. Another products should be placed either tight to any wall or have a gap of 300 mm between the wall and the side of the bed;

• Do not use more than one mattress in the cot.
• The lowest position of the base is the safest. When a child starts to sit down without the assistance – use only this level.
• Thickness of the mattress shall be such that the internal height (measured from the top of mattress to the upper edge of the cot frame) was at least 500 mm in the lowest position of the cot base and at least 200 mm in the highest position of the cot base.
  • Maximum thickness of the mattress: 10 cm.
• Mattress should have size 140 x 70 cm. Length and width shall be that there shall be no gap more than 30 mm between the mattress and the sides and ends.
• All assembly elements and fittings should always be tightened properly and checked regularly and retightened as necessary.
• Cot with high sides: To prevent injury from falls, if the child is able to climb out of the cot, the cot shall no longer be used for that child.
• The bed is intended for children from birth to 4 years of age. Note! The sofa-bed function of the baby cot is intended for children from 18 months to 4 years of age.

• For transport or storage it is possible to disconnect the main parts of the cot.

• List of cot components - page 5

1	Front (x2)	A	Screw M6 x 75
2	Side wall (x2)	B	Screw M6x55 (x7)
3	Bottom	C	Screw M6x42 (x8)
4	Side panel	D	Confirmat 7 x 40 (x8)
5	Left leg (x2)	E	Wheel nut M6 x 15 (x8)
6	Right leg (x2)	F	Allen key

2. Cot assembly:

The installation should take place on a soft surface that will not damage the surface of the elements. Installation should be carried out by two people. Start assembling the cot by connecting the element (1) and legs (5,6) with the confirmat (D) and the Allen key (F) included in the set (fig. I). Repeat the same operation on the second element (1). Connect the resulting elements to the bottom (3) with the mounting kit (B) + (E) and Allen key (fig. II). ATTENTION: The cot has a 3-step bottom height adjustment. Connect the side (2) to the structure assembled in the previous steps by screwing it in with screws (C) and an Allen key (fig. IIIa). Repeat the same

operation on the other side. To use is as a toddler bed, remove one of the sides (2) beforehand, and install it there using the screws (B) and wheel nuts (E) on the side (4) (fig IIIb). In addition, connect the centre of the side panel (4) to the bottom using screw A and nut E. NOTE: The toddler bed can only be used with the bottom in the lowest position. The cot is ready for use once the mattress is inserted and all attachments are firmly secured.

3. Maintenance and cleaning

Frame - clean with a soft, clean and dry cloth.

	Handwash.		Do not wash. Clean the product gently with a damp cloth and a mild detergent.
	Do not bleach		Do not iron
	Do not dry in a tumble dryer		Do not dry clean

Do not fold or store the product when it is wet and never store it in wet conditions, as it can lead to mould growth.

4. Warranty

1. All Kinderkraft products are covered by a 24-month warranty. The warranty period starts from the date the product is handed over to the Buyer. The warranty is only valid in the member states of the European Union, excluding overseas territories (as currently defined, including in particular: Azores, Madeira, Canary Islands, French Overseas Departments, Åland Islands, Athos, Ceuta, Melilla, Helgoland, Büsingen am Hochrhein, Campione d'Italia and Livigno) and the territory of the United Kingdom of Great Britain and Northern Ireland excluding the British Overseas Territories (e.g. Bermuda, Cayman Islands, Falkland Islands).
2. The manufacturer's warranty does not apply to countries not listed above. The conditions of the additional warranty may be determined by the Seller.
3. In some countries, it is possible to extend the warranty to a limited period of 120 months (10 years). The complete terms and conditions and the warranty extension registration form are available at WWW.KINDERKRAFT.COM
4. The warranty is valid only in the territory indicated in paragraph 2.
5. Claims must be made by completing the form available at WWW.RMA.KINDERKRAFT.COM
6. The warranty does not cover:

A. Cosmetic damage, including but not limited to: scratches, dents and cracks in plastic, unless the failure is due to a material or manufacturing defect;
B. Damage resulting from misuse or poor maintenance - including but not limited to: mechanical damage to products caused by misuse or poor maintenance;
• Refer to the instructions for use and installation of the product contained in the user manual;
C. Damage caused by improper assembly, installation or disassembly of products and/or accessories;

• Refer to the instructions for use and installation of the product contained in the user manual;
D. Damage caused by corrosion, mould or rust, resulting from improper maintenance, care and storage;
E. Damage caused by normal wear and tear or otherwise resulting from the normal passage of time;
- This includes: tears or punctures in inner tubes; tyre damage; tyre tread damage; fading of fabrics resulting from mechanical use (e.g. on joints and covering of moving parts);
F. Damage or erosion caused by sun, perspiration, detergents, storage conditions or frequent washing, etc;
G. Damage caused by accident, abuse, misuse, fire, contact with liquid, earthquake or other external causes;
H. Products that have been modified to change functionality without 4Kraft's written consent;
I. Products from which the serial number or lot number has been removed or tampered with in any way;
J. Damage caused by the use of third party components or products - including but not limited to: cup holders, umbrellas, reflectors, bells;
K. Damage caused by transport or by ground handling service providers.

1. The warranty period for accessories included with the product is 6 months from the date of sale, excluding the faults described above.

2. These warranty conditions are complementary to the Customer's statutory rights with respect to 4KRAFT sp. z o.o. The warranty does not exclude, limit or suspend the Customer's rights under warranty for defects in goods sold.

3. The full text of the Terms and Conditions of the Warranty is available on the website WWW.KINDERKRAFT.COM

All rights to this data are entirely reserved to 4Kraft Sp. z o.o. Any unauthorized use or misuse, including usufruct, copying, duplication and sharing, wholly or partially, without consent of 4Kraft Sp. z o.o. may result in legal consequences.

ES

¡Estimado Cliente!

3. Maintenance and cleaning

1. List of cot components - page 5

(EN) In the interests of our Clients - we are at your disposal! If you have a problem with the product you received, contact us in the most convenient way for you!
