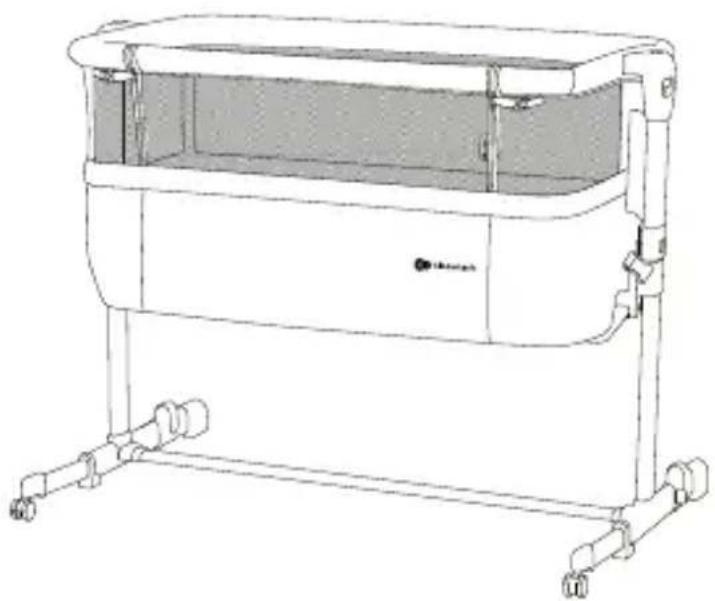

USER MANUAL NESTE AIR Kindercraft

Line drawing of a baby crib with wheels and a back panel, no text or symbols present

kinderkräft.com

All rights to this data are entirely reserved to 4Kraft Sp. z o.o. Any unauthorized use or misuse, including usufruct, copying, duplication and sharing, wholly or partially, without consent of 4Kraft Sp. z o.o. may result in legal consequences.

AR....14

CS 19

DE....23

EN....29

ES....34

FR 39

HU 44

IT 49

NL 54

PL....59

PT 64

RO....68

RU....73

SK 78

SV 83

Technical line drawing of a mechanical assembly with no visible text or symbols

1

Abstract geometric line drawing with interlocking rectangular shapes (no text or symbols)

2

Simple U-shaped line drawing with no text, numbers, or symbols

3

Simple line drawing of a rectangular frame with two side handles and a horizontal bar at the center (no text or symbols)

4

Simple line drawing of a U-shaped object with two curved ends (no text or symbols)

5

6

Empty white square with a thin gray border (no text or symbols)

7

Simple line drawing of a closed suitcase with handle (no text or symbols)

8

Two abstract wavy line patterns with no text or symbols

9

Line drawing of a hand pressing down on a wooden table with a black arrow indicating the motion (no text or symbols)

C1

Line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

D

Diagram showing two cylindrical components with a downward arrow indicating compression or disassembly (no text or symbols)

E

Technical line drawing of a mechanical component with two hands holding a curved bracket (no text or symbols)

L

Diagram of a car interior showing a horizontal beam with a dashed arrow indicating direction (no text or symbols)

M N

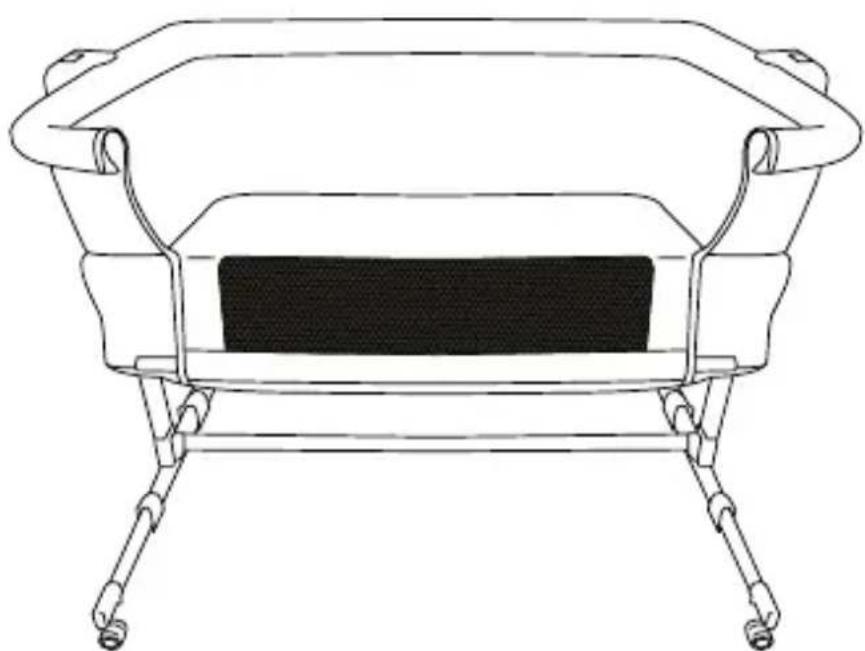

Line drawing of a baby crib with adjustable arms and wheels (no text or symbols)

0

Diagram illustrating hand motion with labeled points A and B, showing directional arrows indicating movement or force.

P

Line drawing of two hands holding a small object with arrows indicating direction (no text or symbols)

R

S 1 2

T

Min. 2 cm Min. 20cm Min. 29,5 cm Max. 41,5 cm Min. 9 cm

Min. 2 cm Min. 20cm Min. 49,5 cm Max. 61,5 cm

Max. 7 cm

NOI

U

Line drawing of a four-legged armchair with a black cushioned seat (no text or symbols)

W

Line drawing of two hands holding a small object, no text or symbols present

X

Diagram of a vehicle suspension system with directional arrows indicating movement (no text or labels)

Line drawing of a vehicle steering wheel assembly with no text or symbols

Y

OK

NO! !

Z

AB

عزيزى العميل!

Thank you for choosing a product by Kinderkraft. Our designs are child-oriented – safety and quality always comes first, stay comfortable knowing that you have made the best choice.

IMPORTANT, RETAIN

FOR FUTURE

REFERENCE, READ

CAREFULLY

SAFETY INSTRUCTIONS AND PRECAUTIONS. WARNING:

• Do not use this product without reading the instructions for use first.
• Stop using the product as soon as the child can sit or kneel or pull itself up.
• Placing additional items in the product may cause suffocation.
• Do not place the product close to another product, which could present a danger of suffocation or strangulation, e.g. strings, blind/curtain cords, etc.
• Do not use more than one mattress in the product.
• The product should be placed on a horizontal floor.

- Young children should not be allowed to play unsupervised in the vicinity of the crib.

- The crib should be locked in the fixed position when the child is left unattended.

- All assembly fittings should always be tightened properly.

- Care should be taken that no screws are loose, because a child could trap parts of the body or clothing (e.g. strings, necklaces, ribbons for babies' dummies, etc.), which would pose a risk of strangulation.

- Be aware of the risk of burning cigarettes, open fires and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of the crib

- Crib: maximum inclination allowed – 2 levels.

- DO NOT use crib if any parts are missing, damaged, or broken. Contact 4Kraft Sp. z o.o. for replacement parts and instructional literature if needed. DO NOT substitute parts.

- Only use the mattress sold with this crib, do not add a second mattress on this one, suffocation hazards.

- For the bedside sleeper mode, use of straps (8) is required. DO NOT use bedside sleeper if any parts are missing, damaged, or broken. Contact 4Kraft sp. z o.o. for replacement parts and instructional literature if needed. DO NOT substitute parts

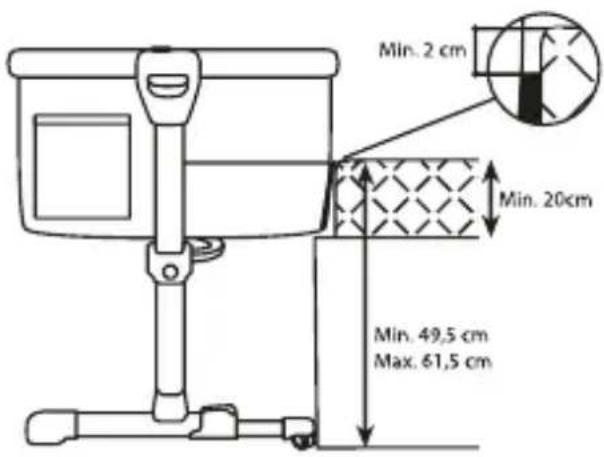

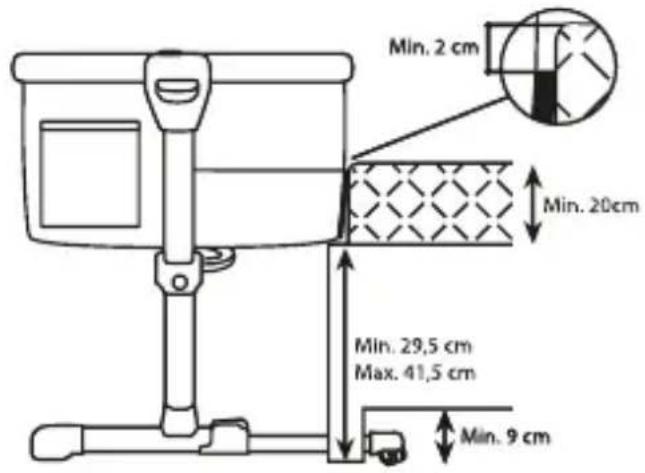

- Height from the floor of the adult's bed for which the bedside sleeper is suitable can be found on picture U.

• Information on the types of adult bed for which the bedside sleeper is suitable can be found on picture U.

- User shall not use other attachment system.

- Bedside sleepers shall never be used in an inclined position

- To prevent a suffocation hazard from entrapment, the bedside sleeper shall be properly secured to the adult bed using the attachment system.

- There shall never be a gap between the lower side of the bedside sleeper and the mattress of the adult bed.

- Check the tightness of the attachment system before each use by pulling the bedside sleeper in a direction away from adult bed.

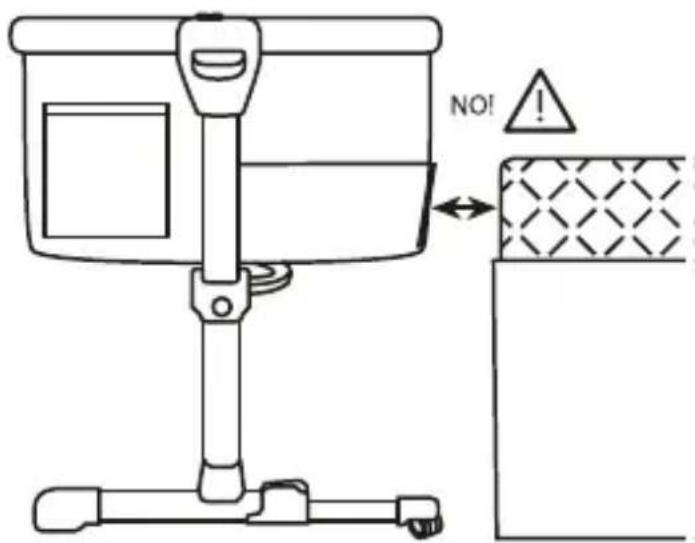

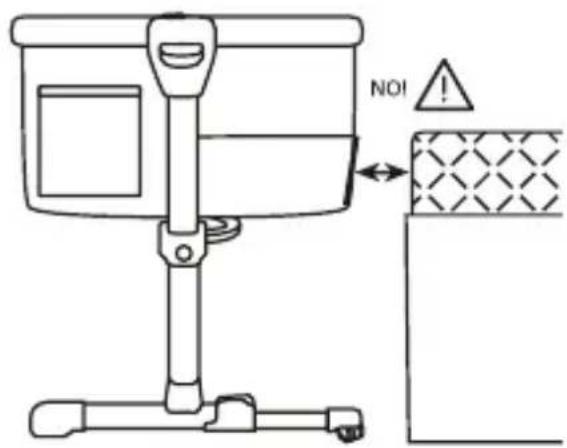

- If there is any gap between the bedside sleeper and the adult bed, DO NOT use product.

- Gaps should not be filled with pillows, blankets or other items.

- DANGER! – Always completely raise the drop side when not attached to the adult’s bed

- To avoid hazards from the child’s neck being caught on the top rail on the side that is next to the adult bed, the top rail must not be higher than the adult bed mattress.

- To avoid the risk of your child being strangled the attachment system to the adult's bed shall always be kept away from and out of the crib.

1. List of baby cot components - page 3

1	Side frame x2	6	Crossbar
2	Cot material	7	Mattress

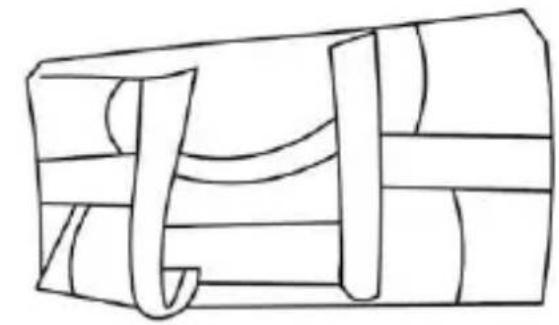

3	Main frame of the cot	8	Carrying Bag
4	Middle support of the cot's bottom	9	Fastening straps
5	Side bracket in the cot padding

2. Mounting of the cot:

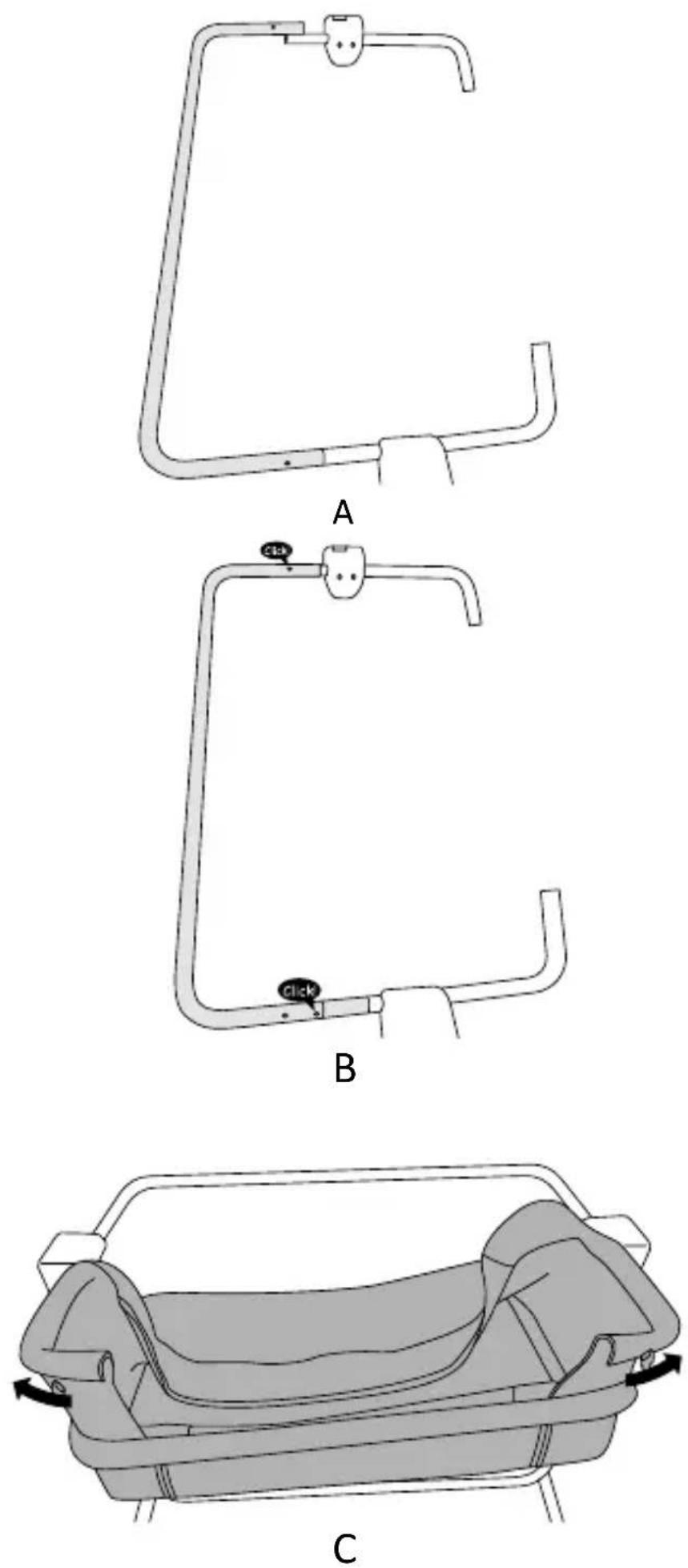

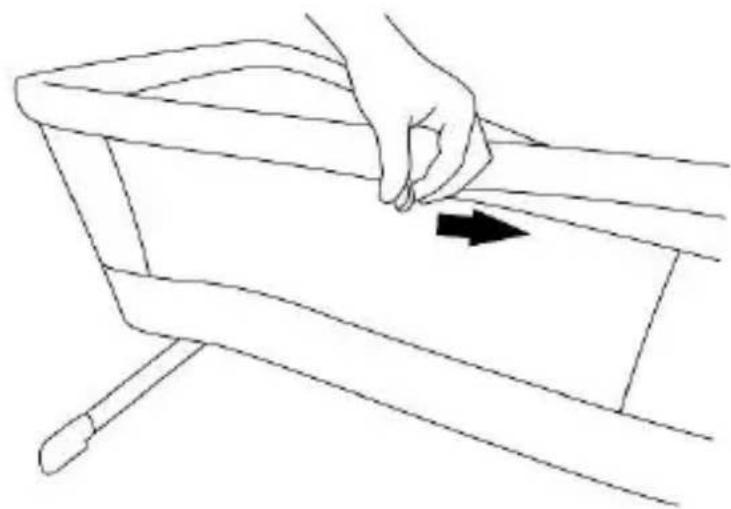

Prepare an appropriate surface to avoid damaging the product during assembly. Connect the side frames (1) with the main frame (3) of the cot (figure A) – you'll hear a “click” if it's assembled correctly (figure B). Slide the material (2) onto the exposed areas of the side frame (figure C). Place the material onto the tube of the main frame and fasten the zipper (figure C1).

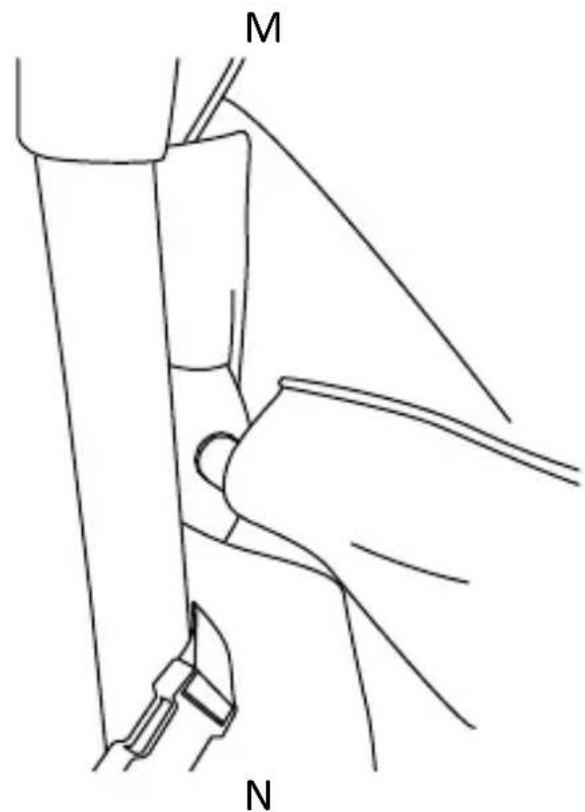

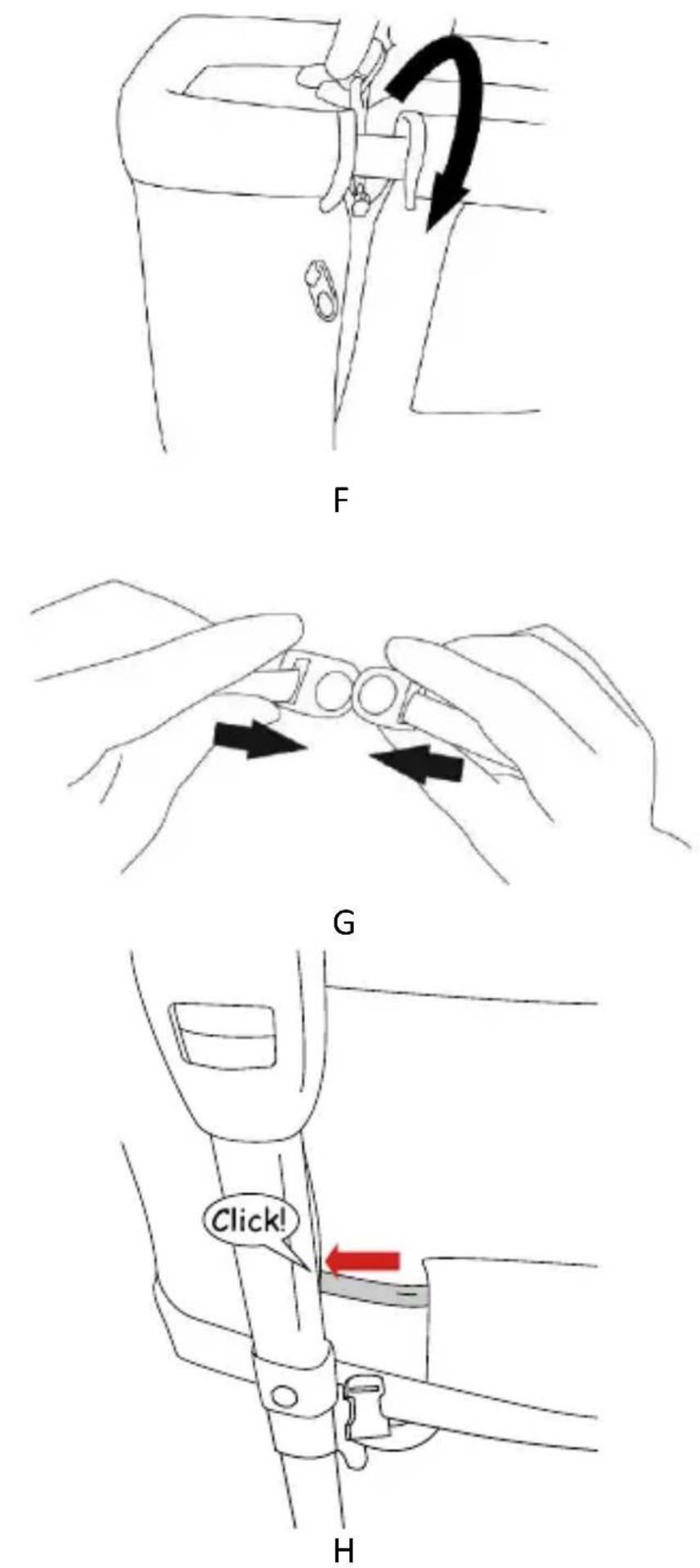

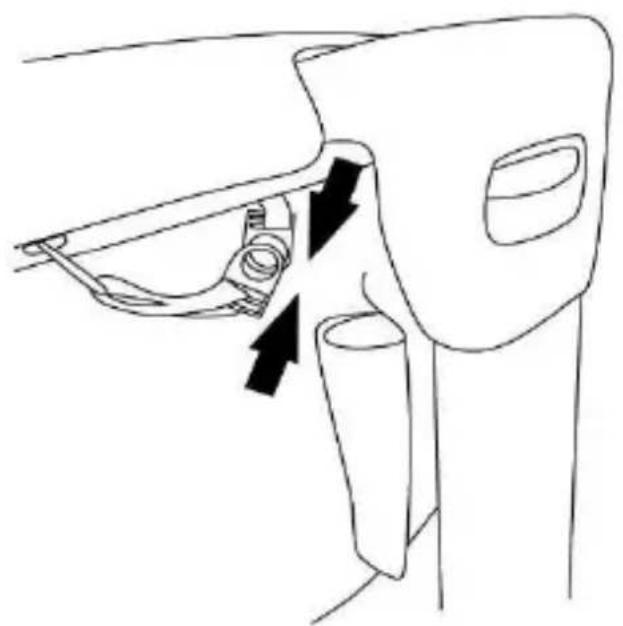

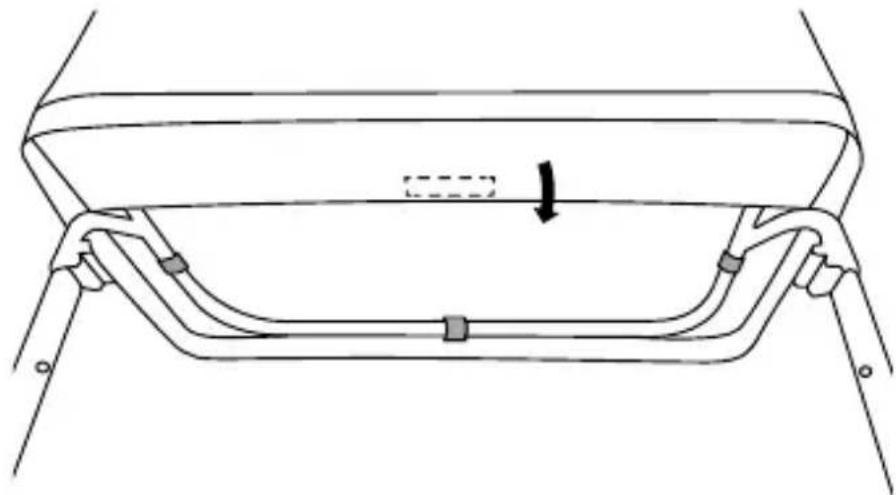

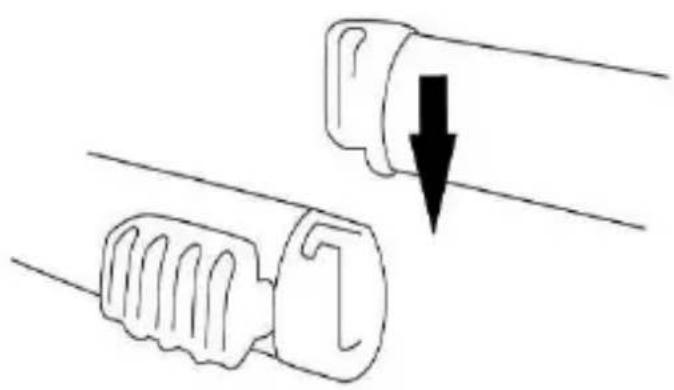

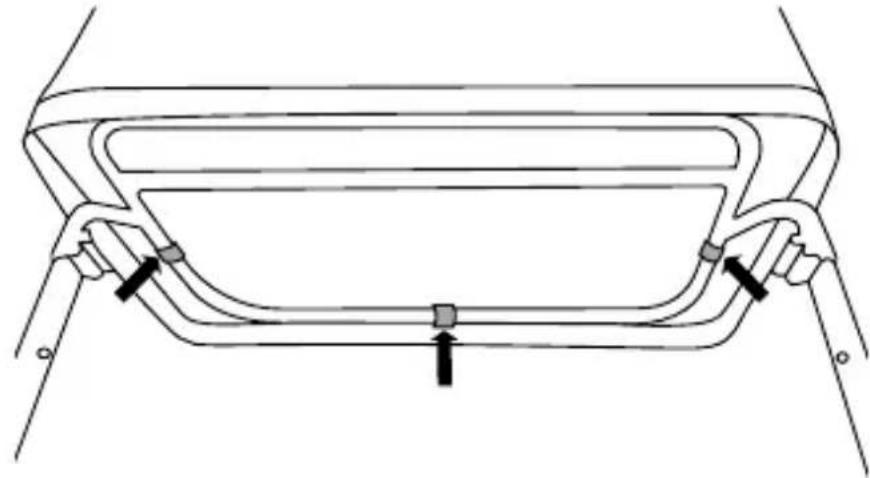

CAUTION! Remember to secure the zipper to prevent opening (figure D). Connect the tube of the drop-down side to the top part of the frame (figure E) and secure using the zipper on both ends (figure F). CAUTION! Remember to secure the zipper to prevent opening (figure G). Slide the ends of the side bracket (5) in the cot padding material into the relevant openings in both side frames (figure H). Next, connect the bracket to the legs of the cot by sliding it in along both sides into the relevant openings (figure H, I). You'll hear a "click" if it's assembled correctly. Place the cot on the side opposite to the drop-down side. Slide the bar (6) into the legs and make sure that the latches on both sides are secured (figure J). Place the cot back in the vertical position. Connect the bottom bracket (4) to the legs of the cot, and slide it in along both sides until it locks – you'll hear a distinctive "click" when this happens (figure K). Affix the bottom bracket (4) to the base of the cot using three small hook-and-loop closures (figure L). Slide the material of the cot over the bottom bracket, and affix with a large hook-and-loop closure (figure M). Wrap the hook-and-loop closures around the brackets on the side of the cot (figure N). Place the mattress in the cot. The assembled product is shown in figure O.

3. Height adjustment:

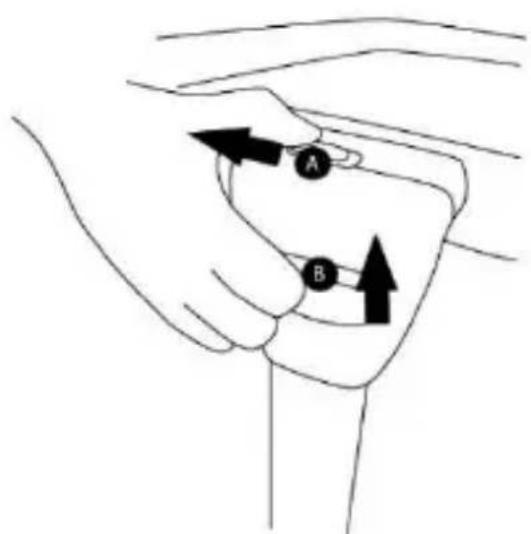

The cot is adjustable to 5 different heights. To adjust the desired height hold the cot with your foot, move button A sideways while pressing button B and adjust the frame of the cot to the desired height (fig.P).

4. Bedside cot:

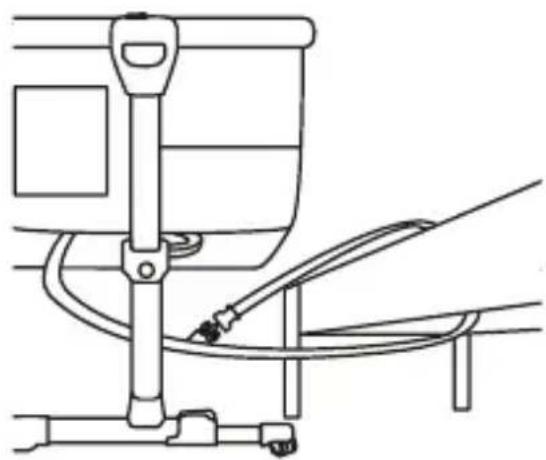

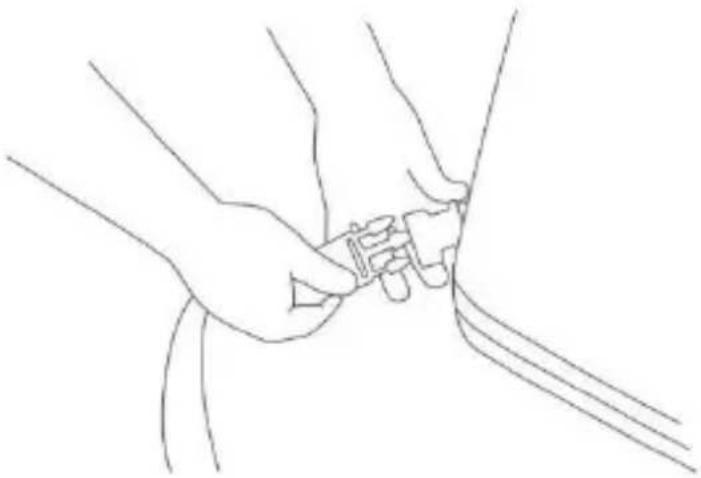

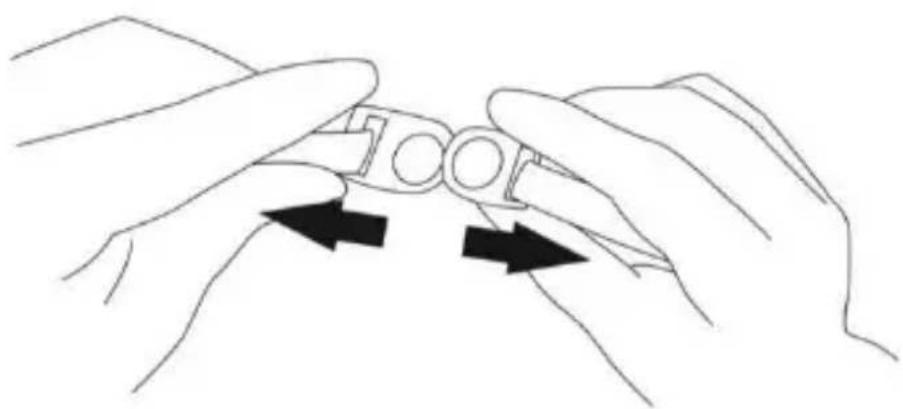

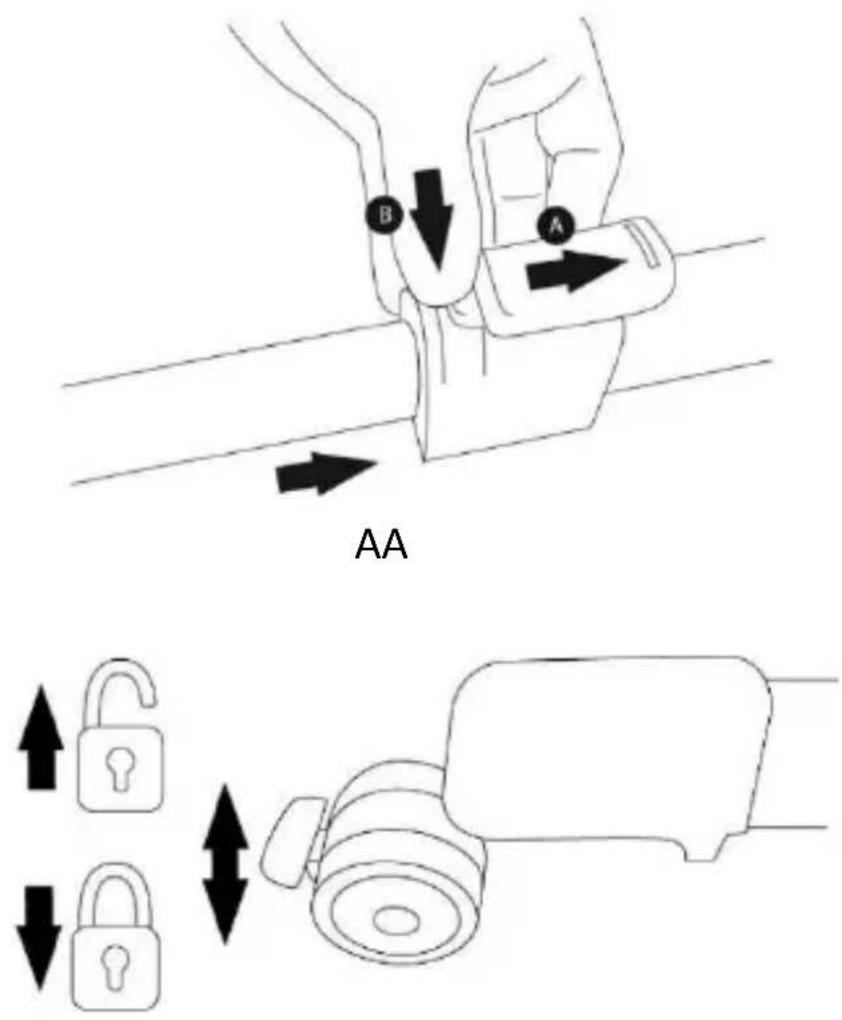

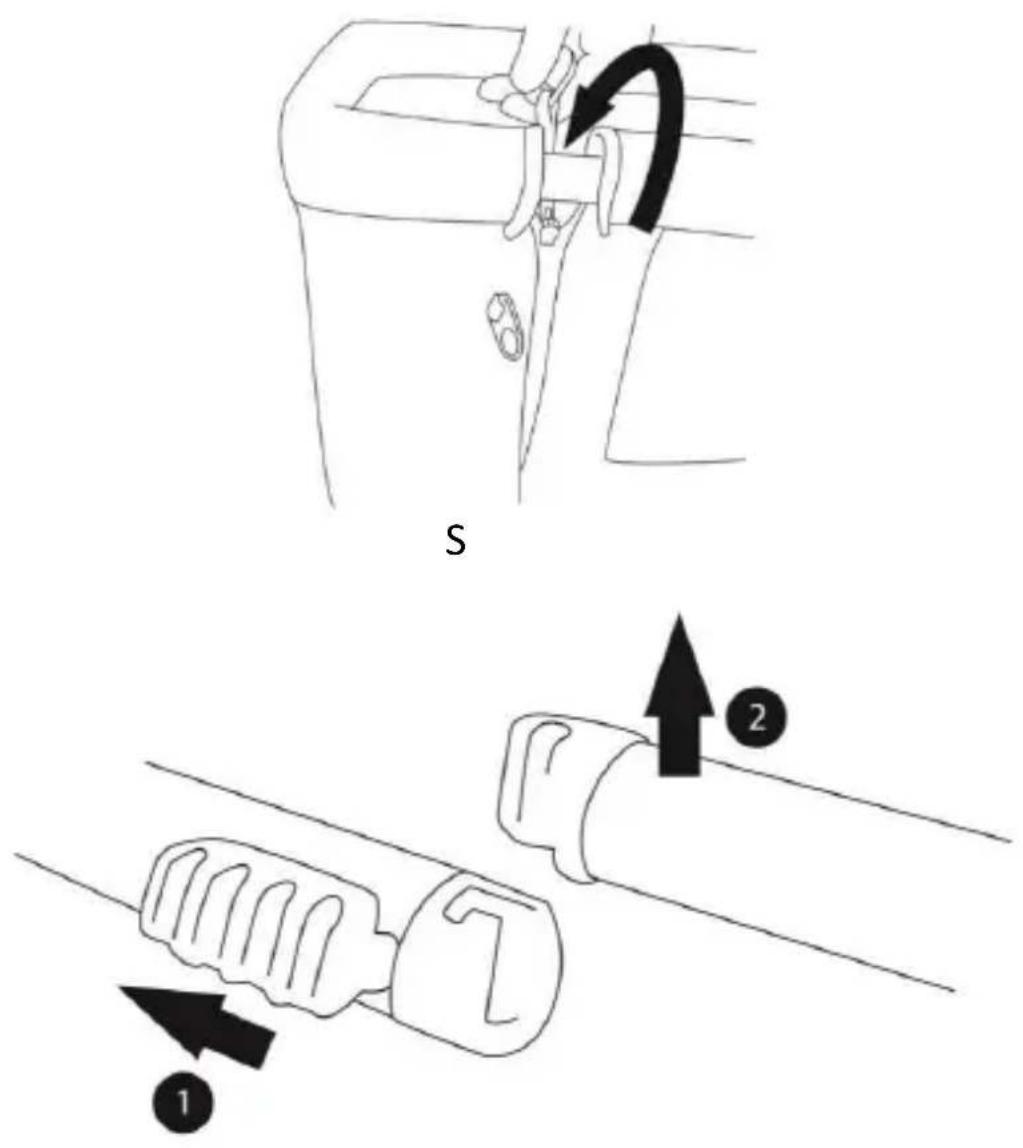

To connect the cot to the parents' bed, remove the safety devices at the locks (fig. R). Unlock the zips on both sides (fig. S). Slide the lever and slide out the tube of the side panel (fig. T). Repeat on the other side. Remove the side panel of the cot (fig. W) and pull the tube out of it. Adjust the height of the cot to the parents' bed (fig. U). Fasten the buckle of the fastening straps to the cot (fig. X). Interleave the straps either through the whole bed or only through its side bar (fig. Y) and adjust so that the cot is fixed securely to the parents' bed (fig. Z). Roll the loose parts of the straps (9) under the cot. To move the cot as close as possible to the base of the parent's bed, move button A sideways (fig. AA) and at the same time press button B. Move the

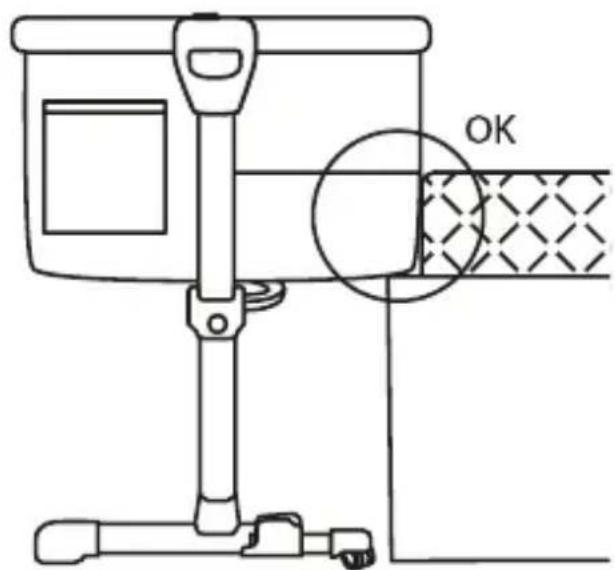

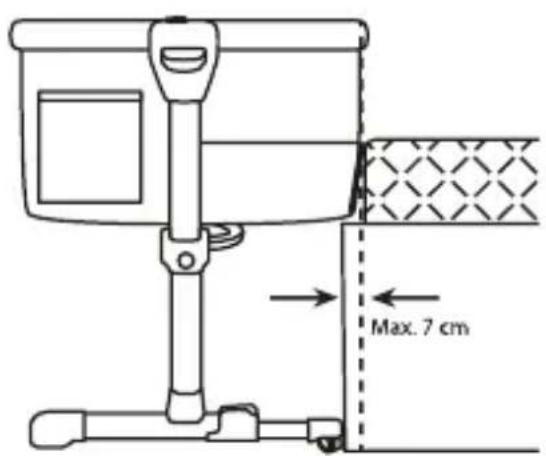

legs to the desired distance. ATTENTION! Make sure that the straps are properly adjusted and the cot is adjacent to the mattress of the parents' bed (fig. Z).

5. Locking the wheels:

The cot has 2 wheels that allow to move the cot and to connect it with the parents' bed. To lock the wheels, press the locking button down. To unlock, move the button upwards (fig. AB).

6. Maintenance and cleaning

Frame - clean with a soft, clean and dry cloth.

	Wash at max. 30°C, gentle process.		Do not wash. Clean the product gently with a damp cloth and a mild detergent.
	Do not bleach		Do not iron
	Do not dry in a tumble dryer		Do not dry clean

Do not fold or store the product when it is wet and never store it in wet conditions, as it can lead to mould growth.
