USER MANUAL BAEF125AWB DAIKIN

UV Streamer Air Purifier Unit

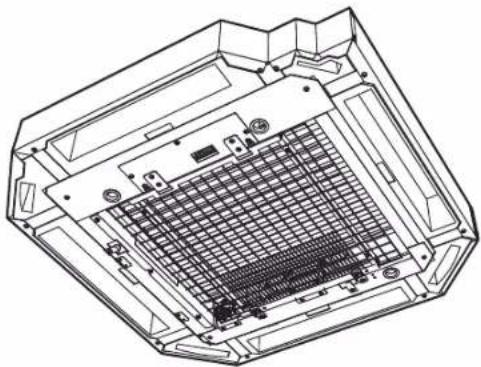

Technical line drawing of an electronic device interior showing internal grid structure (no text or symbols)

MODEL

BAEF125AWB

• Thank you so much for purchasing our product.
  • This operation manual contains safety precautions.
  Be sure to read this manual before using to ensure correct use.
  After reading, keep this manual where the operator can easily find it.
  Furthermore, be sure to hand over this manual in the event of a personnel change.
• As this operation manual is only for the UV streamer air purifier unit, please read it together with the operation manuals for the remote controller and indoor unit.

Scan the QR code below to find the full documentation set and more information about your product on Daikin website.

BEFORE USING

Safety Precautions ALWAYS OBSERVE 1
Names and Functions of Parts 5
User interface.... 6

OPERATION

How to Operate 7

MAINTENANCE

Care and Cleaning
DAILY CARE.... 7

MISCELLANEOUS

Troubleshooting.... 8

Optional Accessories....9

Specifications 9

Warranty and After-sales Service ..... 10

3P701969-3

Safety Precautions

ALWAYS OBSERVE

Read this operation manual carefully before using to ensure correct use.

- The precautions shown here are classified into the following 2 types. Observe all the following, since each contains important information regarding safety.

WARNING	Improper handling may most likely result in serious injury or death.
CAUTION	Improper handling may result in minor or moderate injury or property damage.There may be serious consequences depending on the circumstances.

- The meanings of the "graphic symbols" used in the text are as follows.

	Never attempt. Never wet the product with water.				Be sure to establish an earth connection.
	Never touch the product with wet hands.		Be sure to follow the instructions.

WARNING

• Do not put your finger, a stick, or the like into the air inlet, air outlet or the airflow direction blade.
  Doing so may result in injury as the fan runs at high speed.
• Do not disassemble, modify, or repair. Doing so may result in malfunction, water leak, electric shock, or fire. Make a request to your dealer.
• Do not use in places filled with vapour of oil, such as cooking oil or machine oil. Doing so may result in cracking, electric shock or ignition of fire.
• Do not use in places with excessive oil smoke such as cooking rooms, or in places with flammable gas, corrosive gas, or metallic dust. Doing so may result in malfunction, electric shock, or fire.
• Do not use any flammable gas (such as hairspray and insecticide) near the unit. Do not wipe the unit with benzine or thinner.

Doing so may result in ignition of fire or cracking.

MUST NOT

MUST NOT

MUST NOT

MUST NOT

MUST NOT

Precautions for Use

• Do not allow the intake of flammable gas, hairspray, tobacco fumes, or incense fumes. Doing so may result in combustion or malfunction.

• Do not operate with wet hands. Doing so may result in electric shock.

• When performing an inspection, be sure to stop operation and turn off the power breaker. Failure to do so may result in electric shock or injury.

• In the event of an anomaly (such as burning smell), stop operation and turn off the power breaker immediately. Continuing operation with an anomaly may result in malfunction, electric shock, or fire. Contact your dealer.
• UV-C radiation is harmful when your eyes and skin are exposed to them. The rays can attribute to cataracts, eye inflammation, premature macular degeneration, blindness and skin cancer.

MUST NOT

NO WET HANDS

CAUTION

• Do not allow the intake of flammable gas, hairspray, tobacco fumes, or incense fumes. Doing so may result in combustion or malfunction.
• Never disassemble the remote controller. Touching the inside with your hands may result in electric shock or malfunction. Make a request for inspection and adjustment to your dealer.
• When using a smoke or fog type pesticide for indoor use, stop the air conditioner to prevent the intake of chemicals. Failure to do so will result in chemical accumulation inside the unit, which may cause hypersensitivity and adverse health effects depending on your constitution.
• When using together with a humidifier, do not allow direct intake of vapour. Doing so may result in electric shock or fire due to short circuit.
• Do not open or remove the protective net or pleated filter. Doing so may result in malfunction of the UV streamer air purifier unit. When conducting maintenance or the like, please request to your dealer or the contact centre. (Refer to the back cover.)

MUST NOT

MUST NOT

MUST NOT

MUST NOT

MUST NOT

Precautions for Use

• Do not operate with wet hands. Doing so may result in electric shock.
• Do not wash the UV streamer air purifier unit with water. Doing so may result in electric shock or fire due to short circuit.
• Ventilate the room frequently when using together with a burning appliance. Running this unit is not a substitute for ventilation. (Cause of carbon monoxide poisoning) This unit cannot remove carbon monoxide.
• Be careful of your scaffolding when working at height. Unstable scaffolding may result in injury due to falling or tipping over.
• To clean the outer surface of the unit, wipe with a soft, dry cloth, and do not use thinner or benzine. Failure to do so may result in cracking, discolouration, or malfunction.

NO WET HANDS

DO NO WET

WARNING

Precautions regarding Installation

• Do not install by yourself. Improper installation may result in malfunction, water leak, electric shock, or fire. Make a request to your dealer.
• Do not install optional accessories (separate sale) by yourself. Be sure to only use optional accessories specified by the manufacturer. Improper installation may result in malfunction, water leak, electric shock, or fire. Make a request to your dealer or the contact centre. (Refer to the back cover.)
• Do not relocate or re-install by yourself. Improper installation may result in malfunction, water leak, electric shock, or fire. Make a request to your dealer.
• Do not use damaged wires, nor splice wires. Doing so may result in electric shock or fire.

MUST NOT

MUST NOT

MUST NOT

MUST NOT

• Establish an earth connection. Incomplete earth wiring may result in electric shock or fire. Do not connect the earth wire to a gas pipe, water pipe, lightning rod, or telephone wire.
• Follow the installation manual and perform installation work. Improper installation may result in electric shock or fire. Furthermore, the unit may fall and cause injury.
• Install in a place that can withstand the weight. Insufficient strength or improper installation may result in injury due to falling.

Connect the earth wiring

Safety Precautions

UV UNIT Regarding the Deep Ultraviolet (UVC) LED

This product is equipped with a deep ultraviolet (UVC) LED to purify air.

The deep ultraviolet (UVC) LED is harmful to your eyes and skin. Accidental use or emission due to the damage of the Unit can harm your eyes and skin. Especially for those with photosensitivity, symptoms may appear even for a short exposure. If you feel unwell, consult a doctor.

• Do not run the unit with the protective net, pleated filter or other parts removed. Deep ultraviolet rays may leak and cause harm to your eyes and skin.
• Do not run the unit if it is damaged or found visible damage on the outside of the unit. Deep ultraviolet rays may leak and cause harm to your eyes and skin.
• Do not run the unit with the protective net, pleated filter or other parts removed. Deep ultraviolet rays may leak and cause harm to your eyes and skin.
• Do not run the unit if it is damaged or found visible damage on the outside of the unit. Deep ultraviolet rays may leak and cause harm to your eyes and skin.

MUST NOT

MUST NOT

• Do not touch the UV unit. Doing so may result in malfunction of the UV streamer air purifier unit.
• Do not look inside the unit while it is running.

Deep ultraviolet rays may leak and cause harm to your eyes and skin.

may to UV unit

MUST NOT

MUST NOT

- Do not modify LED or use it outside the Unit. LED is designed to be inside the UV Streamer Air Purifier Unit only.

MUST NOT

- Do not misuse the Unit for other objectives rather than those mentioned in the user manual. Do not use the Unit if the outer shell of the unit has been damaged.

Otherwise, deep ultraviolet rays may leak out. And it can harm your eyes and skin.

MUST NOT

CAUTION

Precautions regarding Installation

• Do not use in places with high temperatures such as directly above a stove. Doing so may result in discolouration or deformation.
• Do not install in machinery and chemical factories or other places where harmful gases, such as acids, alkalis, organic solvents or paints, flammable gases or gases containing corrosive components are generated.

Doing so may result in gas poisoning or combustion.

- Do not install in a humid place such as a bathroom.

Doing so may result in electric shock or short circuit.

MUST NOT

MUST NOT

MUST NOT

• Do not use the unit as a substitute for an exhaust fan or cooker hood in a kitchen, etc. Doing so may shorten the pleated filter life or cause malfunction.
• Do not install the remote controller in a place where it may be exposed to water. If water gets inside the equipment, it may not only result in electric shock, but may also cause the internal electronic components to malfunction.

MUST NOT

DO NO WET

Regarding the installation site

- Do not use in the following places:

- Places that use a lot of hairspray such as barbers' and hairdressers'.

• Places with flammable atmosphere such as factories.
• Places full of mist from cutting oil or other mineral oil.

- Places with a lot of oil splashes and steam such as kitchens. - Salty places such as beach areas.

- Places exposed to sulphurous gas such as hot spring areas.

• Places full of acid or alkaline vapour.
• Places with high voltage fluctuations such as factories.
• On vehicles and ships.
• Places with machines that generate electromagnetic waves.
• Places where UV detectors are installed.
• Smoke-filled places such as smoking rooms.
• Places with hot and humid environment.
• Places that require a high ceiling mode setting and 2/3 way blow mode setting of the indoor unit.

Regarding the electrical work

• Qualification is necessary to carry out electrical work. Do not attempt to do such work yourself, but make a request to your dealer.
• Are you using a dedicated circuit for your air conditioner? Failure to do so may result in heat generation, fire, or malfunction.
• The replacement of damaged wiring must be performed only by a qualified person.

To prevent danger, do not attempt to perform rewiring by yourself, but make a request to your dealer.

- The Unit must be shut down and turn off the breaker before checking the unit.

To protect users against electrical hazard and deep ultraviolet rays.

Treated article of a biocidal product	Air resin filter
Active substance Silver phosphate glass
Content < 0,02 %
CAS Nr. 308069-39-8
Active substance function Antiviral and antibacterial effect
Safe Information	RoHS compliant, non toxic or corrosiveThere are no specific PPE recommendationsDisposal shall comply with government and legal regulations governing the disposal of material, store in the room temperatureEye contact - wash with waterSkin contact - wash with water, shouldn't affect the skinInhalation - no specific hazards indicated
Treated article of a biocidal product	Skeleton
Active substance Polyhexamethylene	biguanide hydrochloride
Content 20 - 25 %
CAS Nr. 32289-58-0
Active substance function Biocidal product
Safe Information	Acute toxicity (Oral): Category 4Acute toxicity (Inhalation): Category 2Eye irritation: Category 1Skin sensitisation: Sub-Category 1BSpecific Target Organ Toxicity: Category 1Acute aquatic toxicity: Category 1Chronic aquatic toxicity: Category 1Hazard statements:H317 May cause an allergic skin reaction.H319 Causes serious eye irritation.H332 Harmful if inhaled.H351 Suspected of causing cancer.H372 Causes damage to organs through prolonged or repeated exposure.H410 Very toxic to aquatic life with long lasting effects.Eye contact - wash with plenty of water, medical attention is requiredSkin contact - take off contaminated clothing, wash with plenty of waterInhalation - move to fresh air, consult a physicianSwallowed - clean mouth with water and drink afterwards plenty of waterMust be disposed of as hazardous waste in compliance with local national regulations, the product shouldn't be allowed to enter drains, water courses or the soil.
Treated article of a biocidal product	Skeleton
Active substance Didecyldimethylammonium chloride
Content 45 - 55 %
CAS Nr. 68424-95-3
Active substance function Biocidal product
Safe Information	Causes burns. Harmful if swallowed. Handle in accordance with good industrial hygiene and safety practice.Corrosive, FlammableInhalation - move to fresh air. Call a physician immediately. If breathing is irregular or stopped, administer artificial respirationSkin contact - after contact with skin, wash immediately with plenty of soap and water.Call a physician immediately. Take off all contaminated clothing immediatelyEye contact - immediately flush eye(s) with plenty of water. Call a physician immediatelyIngestion - call a physician immediately. Clean mouth with water and drink afterwards plenty of water. Do not induce vomiting without medical advice. Never give anything by mouth to an unconscious personDispose of in accordance with local regulations. Contact waste disposal services.

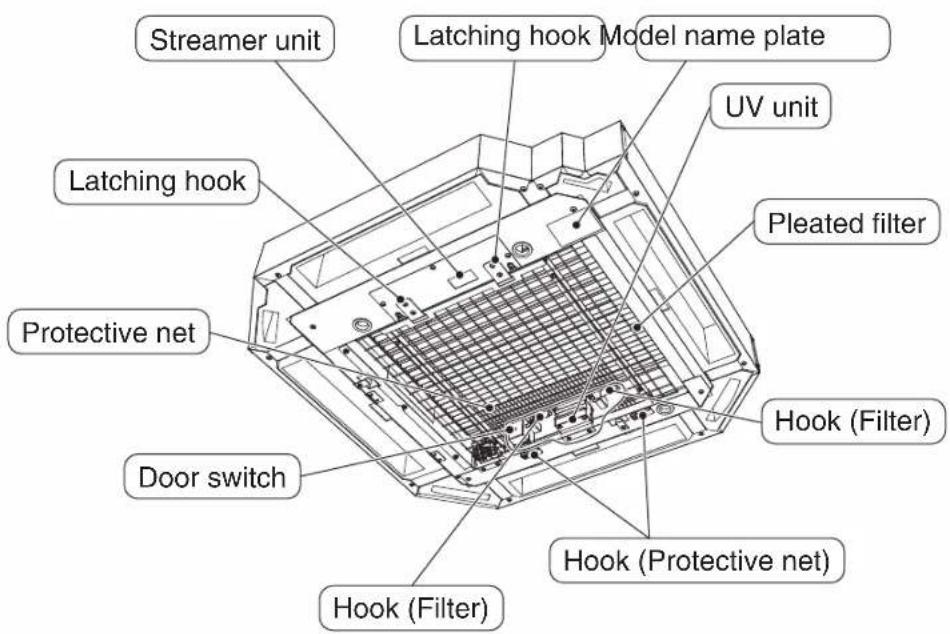

Names and Functions of Parts

Streamer unit Latching hook Model name plate UV unit Latching hook Pleated filter Protective net Hook (Filter) Door switch Hook (Filter) Hook (Protective net)

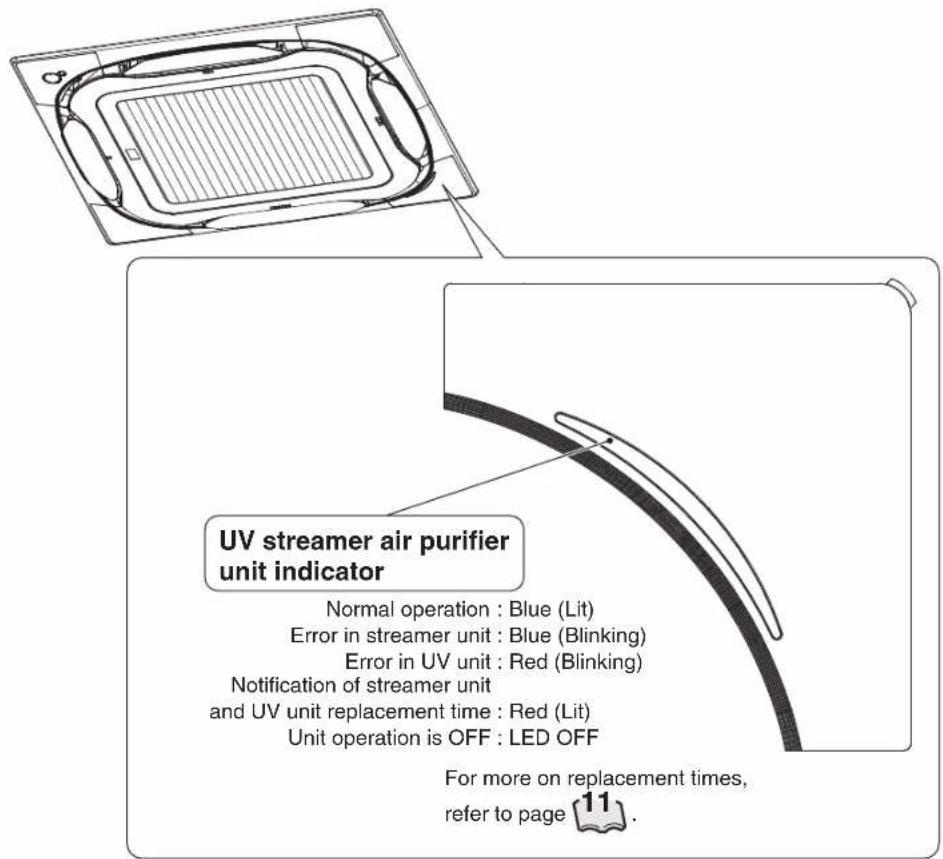

Corner cover with operation display

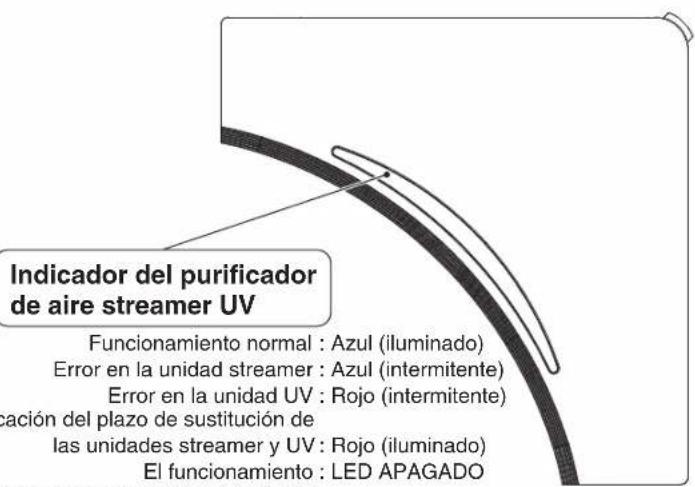

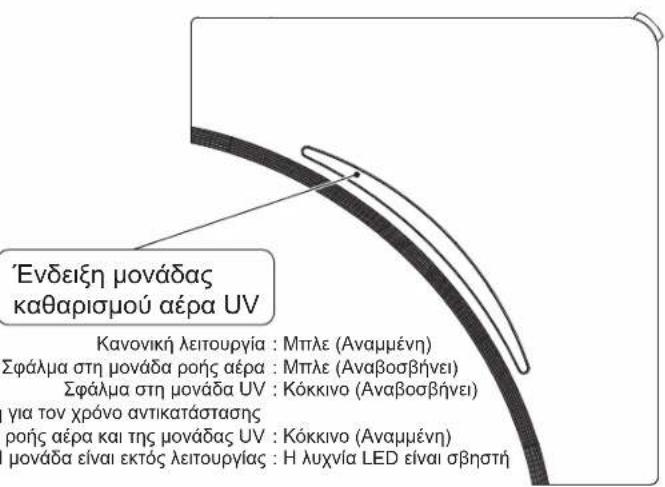

UV streamer air purifier unit indicator Normal operation : Blue (Lit) Error in streamer unit : Blue (Blinking) Error in UV unit : Red (Blinking) Notification of streamer unit and UV unit replacement time : Red (Lit) Unit operation is OFF : LED OFF For more on replacement times, refer to page 11.

User interface

■ The UV streamer air purifier unit does not come with a remote controller. The UV streamer air purifier unit purifies air while the indoor unit is operating.

For operating instructions, refer to the operation manual of the remote controller. See the air cleaning/purification icon on the display of the wired remote controller during the normal operation. It is not possible to see the air cleaning/purification icon on the wireless remote controller display (in this case, follow the operation display on the corner cover).

• When it is time to replace the filter, the filter sign is indicated on the display of the wired remote controller. In case of wireless remote controller, the filter sign is indicated on the receiver on the decoration panel).
  ■ Malfunction of the UV streamer air purifier unit is indicated on the display of the wired remote controller. In case of wireless remote controller, the malfunction of the UV streamer air purifier unit is indicated on the receiver on the decoration panel.
  If an error displays, carry out an inspection in accordance with the operation manuals of the UV streamer air purifier unit and wired or wireless remote controller.

For details, follow the installation and operation manual of the wired or wireless remote controller.

The errors of the UV streamer air purifier unit kit will not be visible in the Onecta application for Sky air units. In this case it is necessary to see the errors displayed in the wired or wireless remote controller.

How to Operate

Check before operation

• Are the pleated filter and protective net properly installed?
  (If the pleated filter and protective net are not properly installed, the UV streamer air purifier unit will not operate correctly.)
• Is the air filter of the indoor unit properly installed?

How to Operate

Preparation

Turn on the power breaker of the air conditioner.

1

Run the air conditioner. (For operating instructions, refer to the operation manual of the remote controller.)

NOTES

• The UV streamer air purifier unit purifies air while the air conditioner is operating. (Air purification is possible also in FAN ONLY operation.)
• In order to purify the air effectively, the UV Streamer Air Purifier Unit is designed to work in cycles (in one-day cycle, the UV Streamer Air Purifier Unit will take 6 hours to work, divided into 3-hour working -> 3-hour off -> 3-hour working)
• When the UV streamer air purifier unit is installed, air volume, performance and operation sound of the indoor unit may be altered
• The pleated filter can be used up to 12 months (2,500 hours). The pleated filter lifetime may vary depending on the room conditions. In rooms with lot of pollutants (smoke, pets, high traffic areas...) pleated filter may require more frequent changes.
• The pleated filter CANNOT be renewed by washing.

Care and Cleaning

DAILY CARE

• Read the service manual before opening the appliance.
• For details on how to clean the air filter and suction grille, refer to the operation manual of the indoor unit.
• If the protective net or pleated filter needs to be opened or removed for maintenance, please request to your dealer or the contact centre. (Refer to the back cover.)

WARNING

- When performing an inspection, be sure to stop operation and turn off the power breaker. Failure to do so may result in electric shock or injury.

CAUTION

• Do not open or remove the protective net or pleated filter.
  Doing so may result in UV streamer air purifier unit malfunction.
  When requiring for maintenance or the like, please request to your dealer or the contact centre. (Refer to the back cover.)
• Do not wash the UV streamer air purifier unit with water.
  Doing so may result in electric shock or fire due to short circuit.

MUST NOT

• To clean the outer surface of the unit, wipe with a soft, dry cloth, and do not use thinner or benzine.
  Failure to do so may result in cracking, discolouration, or malfunction.

DO NO WET

• Be careful of your scaffolding when working at height.
  Unstable scaffolding may result in injury due to falling or tipping over.

Troubleshooting

Also refer to the operation manual of the indoor unit.

The following cases are not troubles.

Symptom Cause
Hissing and crackling noises are coming out	Hissing and crackling noises are coming out from the streamer unit.	They are noises associated with discharge.
The air smells	The odour from the air outlet is concerning. In rare cases, odour from the pleated filter may be noticed at the beginning of use.Also, odour may come out from the air outlet due to the small amount of ozone generated during streamer discharge.
The filter is discoloured	The pleated filter turns yellow. The filter may discolour due to the UV beams.
The blue LED does not turn on	The blue LED goes off during operation. The blue LED turns off when the fan is stopped.
UV beams cannot be confirmed	UV beams cannot be confirmed by the naked eye.	Since deep ultraviolet rays (UVC) are not visible, they cannot be confirmed by the naked eye.
Low-register or buzzing operating sound is generated	The low-register or buzzing operating sound is the result of mounting the UV streamer air purifier unit.	In rare cases, mounting the unit may cause an operating sound.
The indicator on the corner cover with operation display keeps blinking	Keeps blinking even if the operation is stopped.	The blinking of the indicator does not go off even when operation is stopped.Contact your dealer for parts replacement.(Refer to Page 9.)
The UV unit or streamer unit does not run	The UV unit or streamer unit is not running while the air conditioner is operating.	Depending on the conditions of use, the UV unit and streamer unit may stop to protect parts.

Check before requesting service.

Symptom	Cause	Measures
Completely dead	The power breaker may be turned off. • If the power breaker grip is in the OFF position, turn it on.• If the power breaker grip is in the TRIP position, contact your dealer without turning it on.
	There may be a power outage. Run again after the power is restored.
Poor airflow and noisy	The air filter may be clogged and dirty. Clean the air filter.(Refer to the operation manual supplied with the indoor unit.)
	The pleated filter may be clogged and dirty. Replace the pleated filter.(Refer to Page [9].)For more on replacement times, refer to page [11].

- When an error is indicated during operation, the UV streamer air purifier unit stops automatically. (The air conditioner continues operating.)

- If the problem persists even after checking the above, do not attempt to repair by yourself, but contact your dealer. When contacting your dealer, provide the symptoms and model name. The model name is found on the model name plate (Refer to Page 5).

Troubleshooting

Contact your dealer in the following cases.

WARNING

- In the event of an anomaly (such as burning smell), stop operation and turn off the power breaker immediately.

Continuing operation with an anomaly may result in malfunction, electric shock, or fire. Contact your dealer.

Symptom	Contact your dealer after taking the following step
A safety device such as the power fuse, power breaker or earth leakage circuit breaker has tripped.	Cut off the power supply.
The operation switch does not function reliably.	Cut off the power supply.

Optional Accessories

Optional replacement accessories of this product are available.

For details consult your dealer or the contact centre.

WARNING

- Do not install separately sold optional accessories by yourself.

Be sure to only use optional accessories specified by the manufacturer.

Improper installation may result in malfunction, water leak, electric shock, or fire.

Make a request to your dealer or the contact centre. (Refer to the back cover.)

MUST NOT

Optional replacement accessories

Product name Part number
Pleated filter BAF55A125
UV unit 3F725961-1
Streamer unit EST2R55-3A

Order optional replacement accessories from your dealer, or the contact centre group in charge of parts.

Specifications

Model name BAEF125AWB
Power supply Single phase 220-240V 50Hz / 220V 60Hz
Product name UV streamer air purifier unit
External dimensions (mm)	Height 100
	Width 840
	Depth 840
Power consumption (W) 6
Product weight (kg)		12

Warranty and After-sales Service

After-sales Service

WARNING

- Do not disassemble, modify, or repair. Doing so may result in malfunction, water leak, electric shock, or fire. Make a request to your dealer.

MUST NOT

- Do not install by yourself. Improper installation may result in malfunction, water leak, electric shock, or fire. Make a request to your dealer.

MUST NOT

■ When requesting repair, you will be asked to provide the following information.

• Model name
• Serial number and installation date
• In as much detail as possible (including information displayed on the remote controller display)
• Your name, address, phone number

When unsure

For after-sales service, consult your dealer or the contact centre.

Repair

Consult your dealer or the contact centre.

If functionality can be maintained by repair, we will implement repair at the customer's request for a fee.

■ Retention period of functional parts for repair

Functional parts for repair refer to parts required for maintaining the product functionality.

The company will retain functional parts for repair of this UV streamer air purifier unit for 9 years after discontinuation of production.

■ Recommendation to have a maintenance contract

After several seasons of use, performance of the UV streamer air purifier unit may degrade as its interior becomes dirty. The company recommends that you conclude a maintenance contract (charged) since disassembly and internal cleaning of the unit require specialized skills.

■ Guideline for inspection and maintenance cycle

[Note that maintenance cycle does not indicate warranty period.]

- Read the service manual before opening the appliance.

Table 1 assumes the following conditions of use.

(1) Normal conditions of use with no frequent running and stopping.
(Although it depends on the model, the standard number times the unit runs and stops in normal use is no more than 6 times per hour.)

(2) The operating time of the product is assumed to be 10 hours/day, 2,500 hours/year.

- Table 1. List of "inspection cycles" and "maintenance cycles"

Main part name Inspection cycle		Maintenance cycle [Replacement or repair]
Printed circuit boards 1 year 25,000 hours

NOTE 1. This table shows the main parts. For details, check based on the maintenance contract.

NOTE 2. This maintenance cycle indicates the approximate period until the maintenance to ensure long and safe use of the product. Use it for appropriate maintenance design (budgeting the maintenance costs and the like). Also, depending on the details of the maintenance contract, the inspection and maintenance cycles may be shorter than in this table.

NOTE 3. The “maintenance cycle” and “replacement cycle” need to be shortened when the conditions of use (long operating time, frequent running and stopping, etc.) or the environment of use (high temperature, high humidity, etc.) becomes severe. For details, consult your dealer or the contact centre.

Warranty and After-sales Service

■ Guideline for the replacement cycle of consumable parts [Note that replacement cycle does not indicate warranty period.]

• Table 2. List of "replacement cycles"

Main part name Inspection cycle Replacement cycle
Pleated filter 6 months 1 year
UV unit	1 year	7 years
Streamer unit 7 years
Fuse 10 years

NOTE 1. This table shows the main parts. For details, check based on the maintenance contract.

NOTE 2. This replacement cycle indicates the approximate period until the replacement to ensure long and safe use of the product. Use it for appropriate maintenance design (budgeting the part replacement costs and the like).

NOTE 3. The replacement cycle for the UV and streamer units depends on the operating hours.

■ Relocation and disposal

When relocating the UV streamer air purifier unit due to moving or other reasons, since it requires specialized skills, consult your dealer or the contact centre.

- When disposing of the product, do so properly in accordance with local regulations.

MEMO

Sicherheitshinweise

IMMER BEACHTEN

Technical line drawing of a rectangular electronic component with internal channels and mounting holes (no text or symbols)

Technical line drawing of a device casing with internal components, showing no text or symbols

NO

Technical line drawing of a rectangular electronic component with internal channels and mounting holes (no text or symbols)
