1. Table of contents

1. Table of contents ...... 23
2. Safety 24
3. The use of the manual 26
4. Important information ....27

4.1 Trademarks ...... 28

1. Package content......28
2. Technical Specifications.... 28
3. Appearance of the phone 30
4. eSIM function ...... 31

8.1 Starting and activating the eSIM card ......32
8.2 Disabling and deleting the profile .... 33

1. Buttons....33
2. Using the touch screen 34

10.1. Touch 34
10.2 Swipe 34
10.3 Triple click 34
10.4 Hold and swipe 35
10.5 Slide in and out 35

1. Communication 35

2. 1 Making calls .... 35

3. 2 SMS - Messages .... 35

4. Battery management 36

5. Maintenance of the device 36

6. Troubleshooting.... 36

7. Correct disposal of used equipment 37

8. Correct disposal of used battery 38

CAUTION!	Statement
The manufacturer is not responsible for the consequences of situations caused by improper use of the phone or failure to follow the instructions in the operating manual.	The software version can be upgraded without earlier notice. The manufacturer's representative reserves the right to decide on the correct interpretation of this manual.

2. Safety

—DO NOT RISK—

All wireless devices may cause interferences, which could affect the quality of other connections. Do not switch the device on in places which are prohibited from using cell phones, or when it may cause interferences or other dangers. Always abide by any kinds of prohibitions, regulations and warnings conveyed by the staff.

Black and white icon of a stylized document or book with an exclamation mark (no text or symbols)

—RESTRICTIONS IN USE—

Wi-Fi wireless connectivity uses the 2.4 GHz band and the 5 GHz band. The 5 GHz Wi-Fi band shall not be used outdoors in the European Union. Please observe the national and local regulations at the place of use.

—QUALIFIED SERVICE—

Only qualified personnel or an authorized service center may install or repair this product. Repairing the device by an unqualified or unauthorized service technician may result in damage to the device and void the warranty.

—ALARM CALLS—

Making alarm calls may not be possible in some areas or circumstances. It is recommended to find an alternative way to notify emergency services if you are going to this type of remote areas.

—PETROL STATIONS—

Do not use your mobile phone while refuelling at a petrol station or in the vicinity of chemicals.

CAUTION! In places where there is a risk of explosion (i.e. Petrol stations, chemical factories etc.), it is advisable to turn off the phone. Please refer to regulations governing the use of GSM equipment in these places.

—WI-FI (WLAN)—

In the European Union Member States, a WLAN network may be used indoors without any restrictions.

—ROAD SAFETY—

Apart from emergency situations, using the phone while driving should be carried out only with use of a headset or a speakerphone, which ensures safety and does not limit motor abilities of the user. If one does not own a headset and still wants to use the phone, one should pull over and stop the car. Pay attention to the legal regulations of the country you are in, concerning the use of mobile phone while driving.

—WATER AND OTHER LIQUIDS—

The device has resistance certificate IP69. It means that the device is dust-proof and waterproof when all of the rubber seals are intact and properly put in place. As far as possible protect the device from water and other liquids. Water and other fluids do not have a positive effect on phone electronic components. If wet, wipe and dry the device as soon as possible. Make sure the USB cable is dry before connecting it to the phone's charging socket. Plugging the cable into a wet or damp outlet exposes it to slow corrosion and may cause problems with charging your phone.

—CHILDREN,&PHYSICALLY/MENTALLY DISABLED PEOPLE—

This device should not be operated by people (including children) with limited physical or mental abilities, as well as by people with no earlier experience in operation of electronic equipment. They may use the device only under supervision of people responsible for their safety. This device is not a toy. Memory card and SIM card are small enough to be swallowed by a child and cause choking. Keep the device and its accessories out of reach of children.

—BATTERY AND ACCESSORIES—

Avoid exposing the battery to very high/low temperatures (below 0^ C / 32^ F and over 40^ C / 104^ F). Extreme temperatures may influence capacity and battery life. Avoid contact with liquids and metal objects as it may cause partial or complete battery damage. The battery should be used according to its purpose. Do not destroy, impair or throw the battery into flames - it might be dangerous and may cause fire. Worn-out or impaired battery should be placed in a dedicated container. Installing an incorrect battery type can cause an explosion. Never open the battery. Please dispose of battery according to the instructions. Disconnect an unused charger from power grid. In case of the charger wire damage, it should not be repaired but replaced with a new one cable or a new charger.

Use only original manufacturer's accessories.

Warning sign depicting a human ear with sound waves, commonly used for hearing or listening to the ear.

—HEARING—

To avoid hearing damage, do not use the device at high volume levels for a long period of time, do not put operating device directly to the ear.

Yellow triangular warning sign with black sun and eye symbol (no text)

—EYESIGHT—

To avoid eyesight damage do not look closely onto the flash light during its work. A strong bean of light may cause permanent eye damage!

3. The use of the manual

Pictures of the device and screenshots contained in this user manual

may differ from the actual product. Accessories attached to the smartphone set may differ from the illustrations included in manual. Options described in the manual are found in Android system. Those descriptions may differ, depending on the version of the operating system and applications installed on the device.

Without prior written consent of the manufacturer, no part of this manual may be photocopied, reproduced, translated or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording or storing in any systems of storing and sharing information.

4. Important information

The majority of applications which can be installed on the device are mobile apps. Modus operandi of such applications may be different from their counterparts installed on a personal computer. Apps installed on the device may vary depending on country, region, and hardware specifications. The manufacturer is not liable for problems caused by third party software. The manufacturer is not responsible for anomalies that may occur when editing the registry settings and modifying the operating system software. Attempts to modify the operating system can cause malfunctions and problems with applications. It may cause a loss of warranty.

System Android™

Android 13 delivers even more personal, safe and effortless experiences on your device. Featuring a totally reimagined UI just for you, new privacy features that are designed for your safety and put you in control, and more seamless ways to get right to your gameplay or even switch to a new device.

Google Play

Google Play is your entertainment unbound. It brings together all of the entertainment you love and helps you explore it in new ways,

anytime, anywhere. We’ve brought the magic of Google to music, movies, TV, books, magazines, apps and games, so you get more from your content every day.

4.1 Trademarks

• Google, Android, Google Play are Google LLC trademarks.
• Oracle and Java are a registered trademarks of Oracle and / or its affiliates.
• Wi-Fi® Wi-Fi logo are a registered trademarks Wi-Fi Alliance association.
• All other trademarks and copyrights belong to their respective owners.

Manufacturer

mPTech Ltd.

00-511 Warsaw, Poland

Manufactured in China

5. Package content

We advise you to keep the packaging in case of any complaints. Keep the packaging out of the reach of children.

For environmental reasons, this package does not include a charger. This device can be powered by most USB power adapters and a cable with a USB Type-C plug.

6. Technical Specifications

Processor: MediaTek Helio G36, 2.2GHz

Display: 6.52" HD+ 1600x720px

Rear camera (main): 50 Mpx + LED

Front camera (selfie): 8 Mpx

Night vision camera: 24Mpx

RAM memory: 6 GB + 6 GB (Virtual RAM)

Internal memory: 64 GB

Card reader: microSD (up to 256 GB)

Operating system: Android 13

Dual SIM: nanoSIM+nanoSIM+microSD

Connector: USB-C

Connectivity: 2.4/5GHz, 802.11 a/b/g/n/ac, GPS, Bluetooth 5.0

2G: 850/900/1800/1900 MHz

3G: 850/900/1700/1900/2100 MHz

4G: 700/800/850/900/1700/1800/1900/2100/2300/2500/2600

MHz

Battery:

HS2302: Li-Poli 6320 mAh

HS2302e: Li-Ion 6320 mAh

Weight netto: 300g

Dimensions: 173 x 83 x 13.55 mm

It is recommended to use the charger: Hammer RAPIDCHARGE DUO

Power supply technical specifications

The power delivered by the charger must be between min 7,5 Watts required by the radio equipment, and max 10 Watts in order to achieve the maximum charging speed.

USB PD fast charging

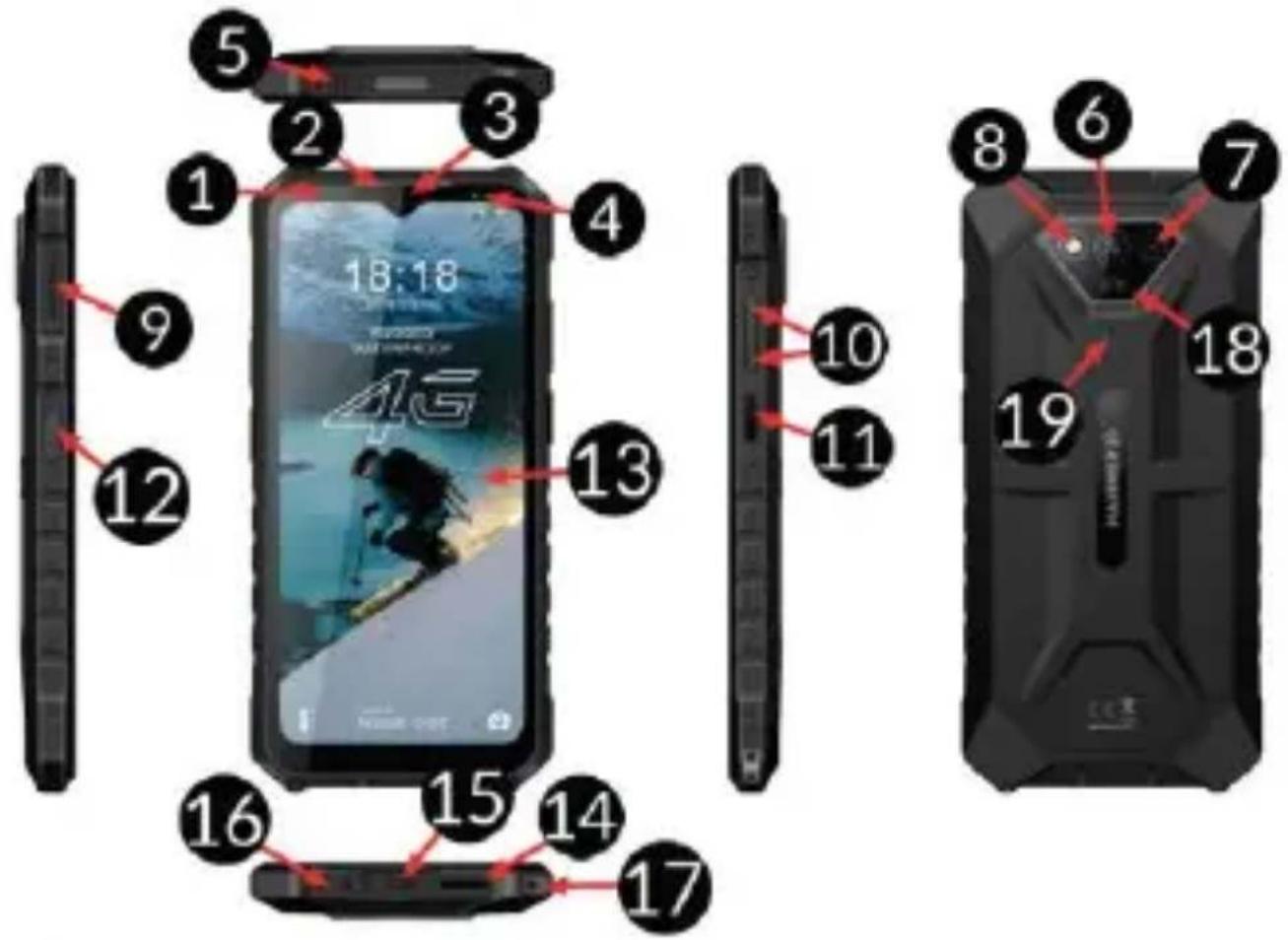

1. Appearance of the phone


18:18 4G 12 9 5 2 3 4 10 11 13 16 15 14 17 18 19 8 6 7 19

	Function
1	Brightness and proximity sensors
2	Internal speaker
3	8 Mpx digital camera lens (selfie)
4	Notification diode
5	Minijack socket 3.5 mm
6	50 Mpx digital camera lens (rear)
7	Night vision camera 24 Mpx
8	Camera flash / Torch
9	The tray for SIM cards/ microSD
10	Volume control buttons
11	Blockade on/off button
12	Programmable button
13	Touchscreen 6.52”
14	External speaker
15	Multifunctional USB-C port
16	Microphone
17	Lanyard attachment
18	Infrared LED
19	Venting hole

8. eSIM function

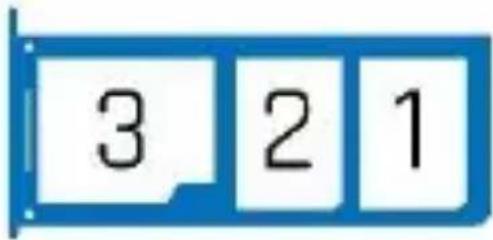

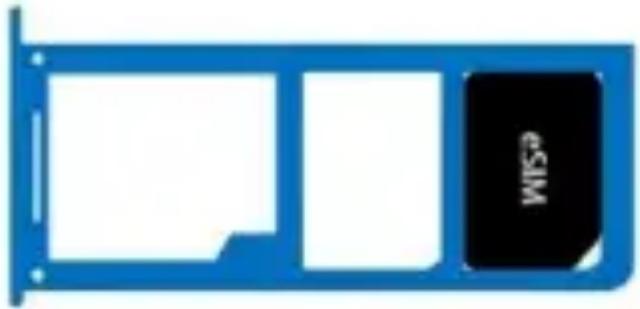

The smartphone is equipped with a tray for SIM / eSIM / microSD cards, thanks to which you can use the phone in the following configurations:

1. SIM 1 card + SIM 2 card + microSD card

2. eSIM card + SIM 2 card + microSD card

3 2 1

eSIM is only supported by slot 1!

The smartphone supports eSIM technology. To take full advantage of it, you must additionally purchase a special card with nano eSIM from the manufacturer's store.

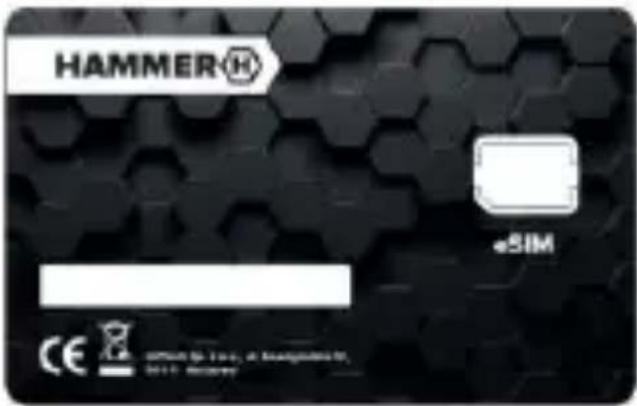

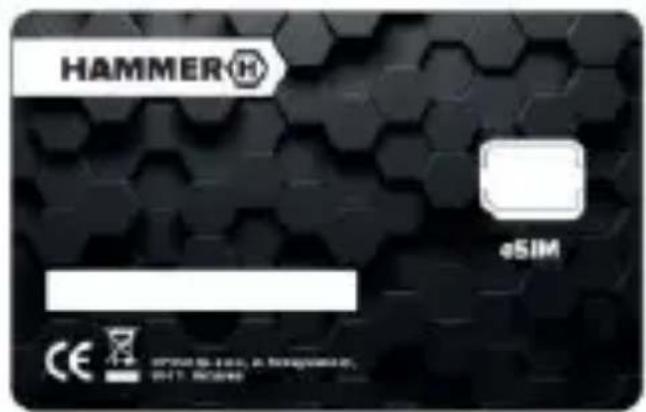

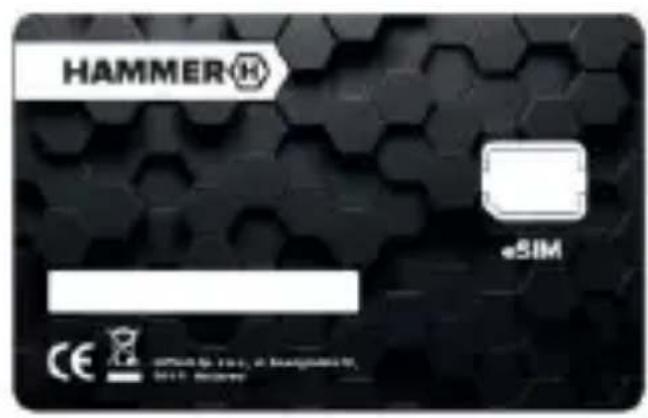

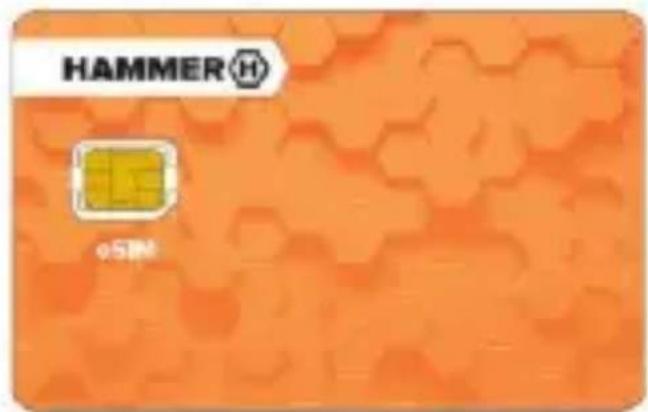

HAMMER® eSIM

HAMMER® eSIM CE SPR10 56-100, A. Rongkunlau, 2017: 2020

After purchasing the card, the first step is to break the nano eSIM card from the larger card. Then place it in slot 1 of the tray. The next

step will be to launch and activate the eSIM card.

8.1 Starting and activating the eSIM card

An Internet connection (Wi-Fi or cellular data) is required to install the eSIM profile). Make sure your smartphone has a nano eSIM card in the appropriate slot.

Blue rectangular device with two white panels and a black 'MIS' label on the right side (no readable text or symbols)

Go to [Settings] and select [Mobile Network/eSIM] from the menu list (if a regular SIM card is inserted, go to [eSIM]) to start the card installation. Activating the eSIM card involves downloading its profile by going through the configuration.

If the SIM card is in the phone and already has an eSIM profile assigned by the carrier, the phone will automatically download and install this profile.

If adding a new eSIM card, remove the SIM card before configuration!

To set up a new eSIM profile, you will need to enter a special QR code you receive from your carrier, which you can scan with a QR code scanner or enter manually by going to the [Need help?] tab while scanning.

After scanning or entering the code, the card's profile will download automatically.

Once the profile is downloaded, [Menu] > [Settings] > [Mobile Network/eSIM] will show a tab with the name of the operator and eSIM signature, and a network coverage icon in the top status bar. You can also see the process of launching and activating an eSIM card on the page linked below:

QR code image containing encoded data, no visible human-readable text

8.2 Disabling and deleting the profile

To disable the eSIM card's profile, go to [Settings] > [Mobile Network/eSIM] > [eSIM card's operator name] expand advanced options, then in the [Operator] tab go to the settings icon and select Disable/Enable. Once the card is disabled, the coverage icon will disappear from the top bar.

To remove the selected eSIM card profile completely, select Delete.

If you don't want to use the eSIM function at all and your preferred configuration is, for example, to have 2 regular SIM cards, for this you need to remove the eSIM card and put one of the standard nano-sized SIM cards in its place.

9. Buttons

Menu (virtual)

Pressing it will cause the list of open apps to appear, where you can switch in-between or turn them off.

Home (virtual)

One quick press takes you to phone desktop. A longer press launches Google Assistant.

Back (virtual)

Press to exit the application / return to the previous screen.

Blockade on/off button

• One quick press locks/unlocks the screen.
• One short press of the lock + volume up button launches the

phone's shutdown or restart menu.

- Pressing the button for about 2 sec. will cause:

○ If the smartphone is off - the device would switch on.
○ If the smartphone is turned on - calling the Google assistant.

Volume increase and decrease buttons

Pressing during a voice call will cause an increase or decrease of the audio connection volume.

10. Using the touch screen

The smartphone's touchscreen makes it easy to select items, perform operations and gestures. The touchscreen can be controlled by the following actions:

10.1. Touch

Touch one to start options, app, menu.

Hand cursor clicking a green circular button with purple border (no text or symbols)

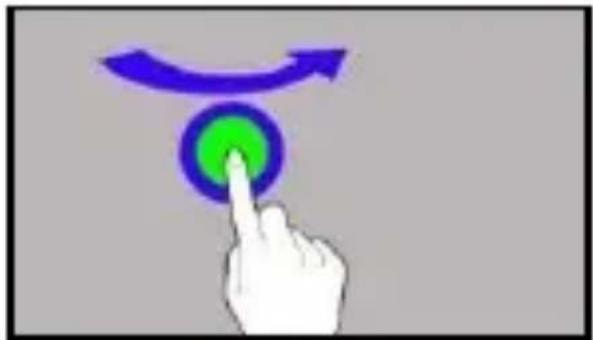

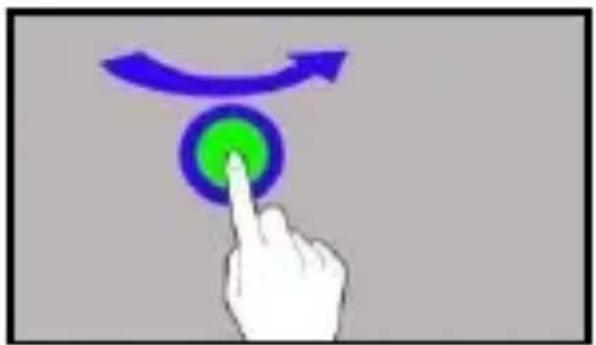

10.2 Swipe

Quickly swipe up, down, to the left or to the right, to scroll the list or the screen.

Hand pressing a button with a green circular icon and curved arrows above it (no text or symbols)

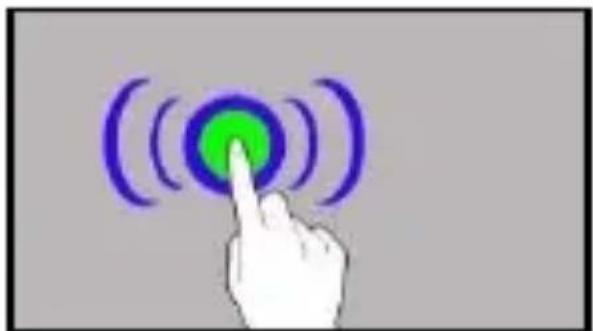

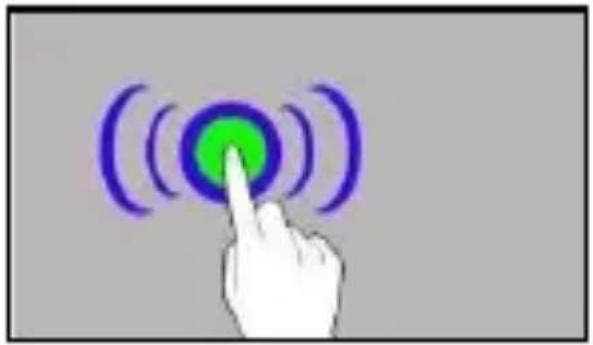

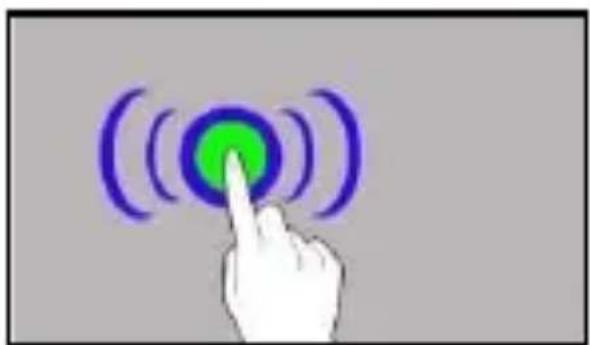

10.3 Triple click

Quickly tap the screen three times to start zooming - if this option is enabled in your smartphone settings.

Hand pressing a button with a green circular icon and purple wave signals (no text or symbols)

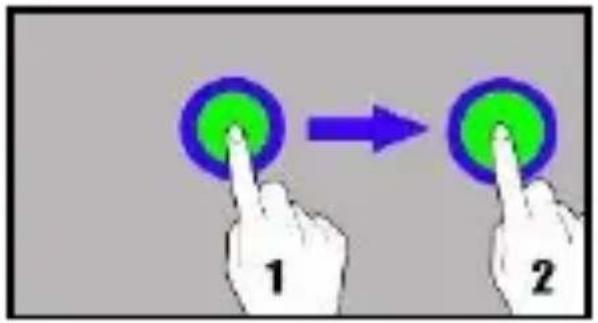

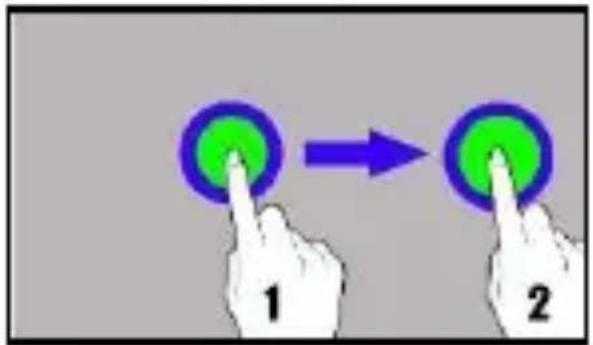

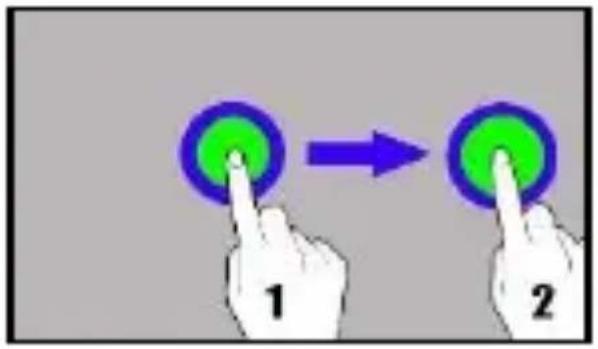

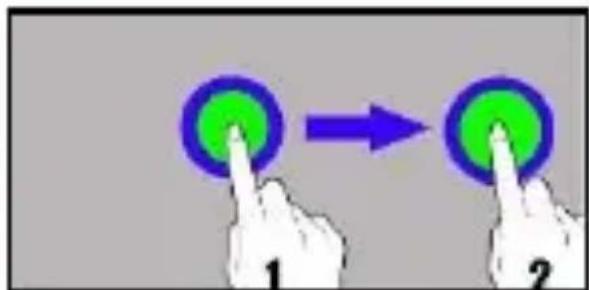

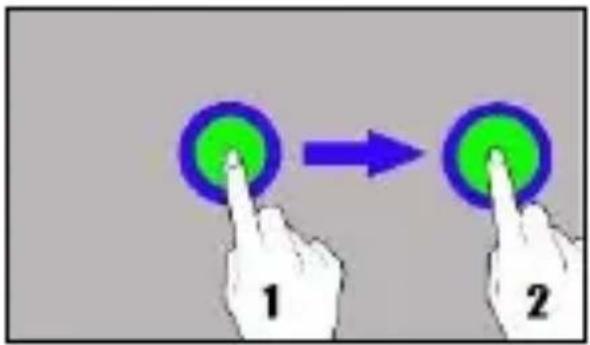

10.4 Hold and swipe

Touch an element (an icon perhaps) and hold it for about 1 seconds. Then you can delete/uninstall that element.

1 2

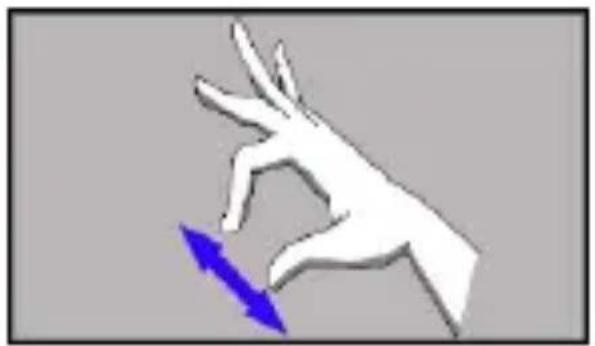

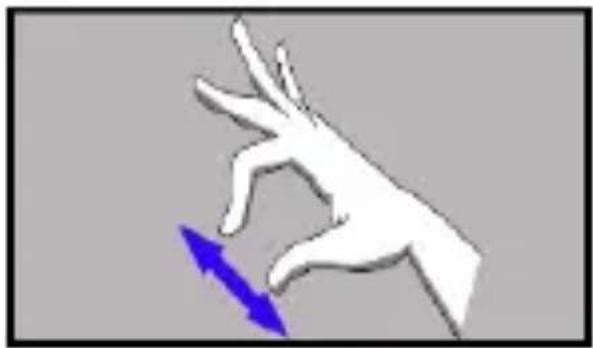

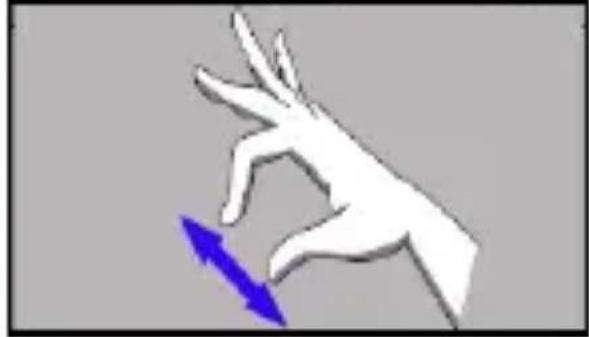

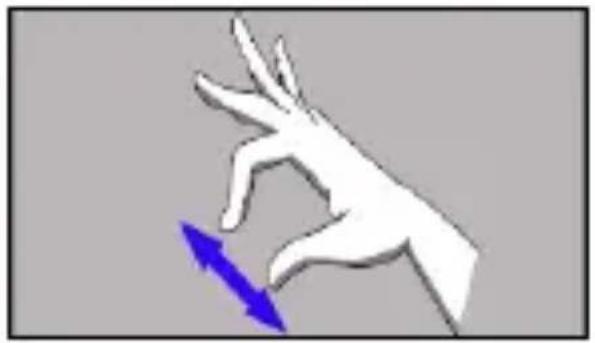

10.5 Slide in and out

Touch the screen with two fingers and slide them together or apart to zoom in or out a photo or a map.

White hand holding a blue arrow, pointing downward (no text or symbols)

11. Communication

11. 1 Making calls

To make a call touch [Phone] icon placed on the main screen or in Android applications menu. Insert the phone number you wish to call. Press "green handset" placed at the bottom of the screen and choose which SIM card you wish to use.

11. 2 SMS - Messages

You can manage your messages using the [Messages]

application in the home screen or smartphone menu. Start the

application and touch the icon , type the phone

number, name of the contact or select a contact from the list. When you have chosen the contact a screen will appear where you type the message itself. Type the message body.

Before you send a text message you can transform it into a

multimedia message by pressing symbol ,situated in the left corner of the textbox and adding a sticker, audio or location. To add a photo from the gallery or directly from your camera, tap the symbol

. To send the message press

12. Battery management

This feature is available when you first start up your phone [Initial setup] or later at any time under [Settings] > [Battery] > [Battery status].

Battery management allows you to extend the battery life by setting a charging limit. With this feature, you can disable the limit completely (which means charging to 100%) or set one of the available thresholds: 70%, 80% or 90%. The device will stop charging when the selected level is reached, e.g. 80%.

In the battery status settings section, you will also find useful information such as the battery's date of manufacture, date of first use and number of full charge cycles.

13. Maintenance of the device

Follow the instructions below.

• For cleaning use only a dry cloth. Never use any agent with a high concentration of acids or alkalis.
• Use the original accessories only. Violation of this rule may result in an invalidation of the warranty.

14. Troubleshooting

Message	Possible solution
Input PIN	If the SIM card is secured with the PIN code you have to enter the PIN when turning the phone or and press.
Network fail	In areas where signal or reception is weak, calls may not be possible. Also receiving calls may not be possible. Move to another location and try again.
No one can call me	The phone has to be on and within GSM network reach.
The connection cannot be established	Check if the typed-in phone number is correct. Check if the phone number entered to the [Contacts] is correct. Enter the correct phone number if necessary.
I cannot hear the caller./ The caller cannot hear me	The mic. should be close to mouth. Check if the built-in mic. is not covered. When a headset is ur use, check if it has been connected correctly. Check if the built-in speaker isn’t covered.

15. Correct disposal of used equipment

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

The device is marked with a crossed-out garbage bin, in accordance with the European Directive 2012/19/EU on used electrical and electronic Equipment (Waste Electrical and Electronic equipment - WEEE). Products marked with this symbol should not be disposed of or dumped with

other household waste after a period of use. The user is obliged to get rid of used electrical and electronic equipment by delivering it to designated recycling point in which dangerous waste are being recycled. Collecting this type of waste in designated locations, and the actual process of their recovery contribute to the protection of natural resources. Proper disposal of used electrical and electronic equipment is beneficial to human health and environment. To obtain information on where and how to dispose of used electrical and electronic equipment in an environmentally friendly manner, user

should contact their local government office, the waste collection point, or point of sale, where the equipment was purchased.

16. Correct disposal of used battery

Simple line drawing of a trash bin with no text or symbols

According to the EU directive 2006/66/EC with changes contained in EU directive 2013/56/UE on the disposal of batteries, this product is marked with crossed-out garbage bin symbol. The symbol indicates that the

batteries used in this product should not be disposed with regular household waste, but treated according to the legal directives and local regulations. It is not allowed to dispose of batteries and accumulators with unsorted municipal waste. Users of batteries and accumulators must use the available collection points of these items, which allows them to return, recycle and disposal. Within the EU, the collection and recycling of batteries and accumulators is a subject to separate procedures. To learn more about existing procedures of recycling of batteries and accumulators please contact your local office or an institution for waste disposal or landfill.

NÁVOD

HAMMER HS2302\_HS2302e

1. Obsah balení

Black icon of a book with an exclamation mark (no text or symbols)

—OMEZENÍ VYUŽITÍ—

Warning sign depicting a human ear with sound waves, commonly used in hearing or voice signals.

—SLUCH—

Yellow triangular warning sign with a black eye symbol and sunburst (no text)

—ZRAK—

4G: 700/800/850/900/1700/1800/1900/2100/2300/2500/2600

MHz

Baterie:

HS2302: Li-Poli 6320 mAh

HS2302e: Li-Ion 6320 mAh

Hmotnost: 300g

1. SIM 1 card + SIM 2 card + microSD card

2. eSIM card + SIM 2 card + microSD card

3 2 1

Blue rectangular frame with two white rectangular cutouts and a black card labeled 'MISA' on the right (no other text or symbols)

QR code image containing encoded data, no visible human-readable text

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

10.2 Posunout

Hand pressing a button with a blue circular icon and curved arrow above it (no text or symbols)

Hand pressing a circular button with green center and purple arcs, symbolizing wireless or signal input (no text or symbols)

10.4 Držte a posuňte

White hand gesture with a blue arrow pointing downward (no text or symbols)

11. Komunikace

11. 1 Volání

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Black and white icon of a stylized book with an exclamation mark (no text or symbols)

—OBMEDZENIA V POUŽITÍ—

Warning sign depicting a human ear with sound waves, commonly used for hearing or listening to the ear.

—SLUCH—

Yellow triangular warning sign with black sun and eye symbol (no text)

—ZRAK—

4G: 700/800/850/900/1700/1800/1900/2100/2300/2500/2600

MHz

Batérie:

HS2302: Li-Poli 6320 mAh

HS2302e: Li-Ion 6320 mAh

Váha netto: 300g

Rozmery: 173 x 83 x 13.55 mm

1. SIM 1 card + SIM 2 card + microSD card

2. eSIM card + SIM 2 card + microSD card

3 2 1

Blue rectangular frame with two white rectangular cutouts and a black 'VISD' button (no text or symbols on the main elements)

QR code image containing encoded data, no visible human-readable text

Two-step diagram showing a hand pressing a green circular button with a blue arrow indicating rotation (no text or symbols)

Hand icon pointing at a green circular button with purple wave signals (no text or symbols)

10.4 Držte a posuňte

White hand gesture with a blue arrow pointing downward (no text or symbols)

11. Komunikácia

11. 1 Volanie

Ak chcete uskutočnit hovor, stlačte ikonu [Telefón]

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with no text or symbols

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

Yellow triangular warning sign with a black ear symbol and sound waves, indicating wireless or audio hazard.

—HALLÁS—

Yellow triangular warning sign with sun and eye symbol (no text)

—LÁTÁS—

Honlap: www.myphone.pl

Gyártás helye Kína

5. Csomag tartalma

4G: 700/800/850/900/1700/1800/1900/2100/2300/2500/2600

MHz

Akkumulátor:

HS2302: Li-Poli 6320 mAh

HS2302e: Li-Ion 6320 mAh

Súly netto: 300g

Méretek: 173 x 83 x 13.55 mm

1. SIM 1 card + SIM 2 card + microSD card

2. eSIM card + SIM 2 card + microSD card

3 2 1

HAMMER® e-50M

HAMMER® eSIM CE OFFICE BY: T. Lee, 42300000000, 2019. Newspaper

Blue rectangular frame with white cutouts and a black 'WISP' button (no text or symbols beyond the label)

QR code image containing encoded data, no visible human-readable text

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

10.2 Csúsztatás

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

10.3 Tripla kattintás

Hand pressing a button with a green circular icon and purple curved lines, symbolizing wireless or digital signal (no text or symbols present)

Diagram showing two hands pointing at a green circular button with a blue arrow indicating direction, labeled 1 and 2.

White hand gesture with a blue arrow pointing downward (no text or symbols)

11. Kommunikáció

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Simple line drawing of a trash bin with diagonal lines indicating no text or symbols (no text or labels)

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

Warning sign depicting a human ear with sound waves, commonly used for hearing or listening to the ear.

Yellow triangular warning sign with sun and eye symbol (no text)

—SEHKRAFT—

Display: 6.52" HD+ 1600x720px

Kartenleser: microSD (max. 256 GB)

4G: 700/800/850/900/1700/1800/1900/2100/2300/2500/2600

MHz

Batterie:

HS2302: Li-Poli 6320 mAh

HS2302e: Li-Ion 6320 mAh

Gewicht netto: 300g

1. SIM 1 card + SIM 2 card + microSD card

2. eSIM card + SIM 2 card + microSD card

Blue rectangular object with white and black sections, no visible text or symbols

QR code image containing encoded data, no visible human-readable text

Hand cursor clicking a green circular button with a purple ring (no text or symbols)

10.2 Verschieben

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand pressing a circular button with purple and green waves, symbolizing wireless or digital signal (no text or symbols)

Abstract illustration of a hand reaching toward an angle with a blue arrow indicating direction (no text or symbols)

11. Kommunikation

11.1 Telefonieren

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no text or symbols (no text or labels)

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

—RESTRIZIONI D'USO—

Yellow triangular warning sign with a black outline of an ear and sound waves, indicating hearing or alert.

acceso!

Yellow triangular warning sign with a sun and eye symbol (no text)

-UDITO-

4G: 700/800/850/900/1700/1800/1900/2100/2300/2500/2600

MHz

Batteria:

HS2302: Li-Poli 6320 mAh

HS2302e: Li-Ion 6320 mAh

Peso netto: 300g

Dimensioni: 173 x 83 x 13.55 mm

1. SIM 1 card + SIM 2 card + microSD card
2. eSIM card + SIM 2 card + microSD card

3 2 1

Blue rectangular object with two white rectangular sections and a black square labeled 'NISU' on the right side (no other text or symbols)

QR code image containing encoded data, no visible human-readable text

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

10.2 Spostare

Hand pressing a button with a green circular icon and curved arrows above it (no text or symbols)

Hand pressing a button with a green circular icon and purple wave signals (no text or symbols)

White hand with a blue arrow pointing downward, no text or symbols present

11. Comunicazione

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Black exclamation mark symbol on white background (no text or numbers)

Yellow triangular warning sign with a black outline depicting a human ear and sound waves

—AUDICIÓN—

Yellow triangular warning sign with sun and eye symbol (no text)

—VISTA—

4G: 700/800/850/900/1700/1800/1900/2100/2300/2500/2600

MHz

Batería:

HS2302: Li-Poli 6320 mAh

HS2302e: Li-Ion 6320 mAh

Peso netto: 300g

Dimensiones: 173 x 83 x 13.55 mm

1. SIM 1 card + SIM 2 card + microSD card

2. eSIM card + SIM 2 card + microSD card

3 2 1

Blue rectangular device with white panels and a black square labeled 'VISA' (no text or symbols on the device itself)

QR code image containing encoded data, no visible human-readable text

Hand pressing a circular button with a green center and blue ring (no text or symbols)

10.2 Deslizar

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

10.3 El click triple

Hand cursor clicking a circular button with purple waves, no text or symbols present

10.4 Sujetar y mover

Abstract illustration of a hand reaching toward a blue arrow (no text or symbols)

11. Comunicación

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

Yellow triangular warning sign with a black circular symbol indicating sound or hearing

—AUDICIÓN—

Yellow triangular warning sign with sun and eye symbol (no text)

—VISTA—

Câmara principal (atrás): 50 Mpx + LED

Câmara frontal: 8 Mpx

4G: 700/800/850/900/1700/1800/1900/2100/2300/2500/2600

MHz

Bateria:

HS2302: Li-Poli 6320 mAh

HS2302e: Li-Ion 6320 mAh

Peso netto: 300g

1. SIM 1 card + SIM 2 card + microSD card
2. eSIM card + SIM 2 card + microSD card

3 2 1

Blue rectangular object with white and black sections, no visible text or symbols

QR code image containing encoded data, no visible human-readable text

8.2 Desactivar e apagar o perfil

Hand pressing a button with a green circular icon and blue curved arrow above it (no text or symbols)

10.3 El click triple

Hand touching a circular button with green and purple segments, symbolizing wireless or signal input (no text or symbols present)

10.4 Sujetar y mover

White hand reaching toward a blue arrow, no text or symbols present

11. Comunicación

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

1. Communication ....166

11.1 Effectuer des appels ......166
11.2 Messages textes ....167

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

—SERVICE PROFESSIONNEL—

Yellow triangular warning sign with sun and eye symbol (no text)

aux yeux!

Warning sign depicting a human ear with sound waves, commonly used for hearing or listening to the ear.

4G: 700/800/850/900/1700/1800/1900/2100/2300/2500/2600

MHz

Batterie:

HS2302: Li-Poli 6320 mAh

HS2302e: Li-Ion 6320 mAh

Poids netto: 300g

Dimensions: 173 x 83 x 13.55 mm

1. SIM 1 card + SIM 2 card + microSD card
2. eSIM card + SIM 2 card + microSD card

3 2 1

Blue rectangular object with white gaps and a black square labeled 'CPU' (no text or symbols on the object itself)

QR code image containing encoded data, no visible human-readable text

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

10.3 Triple-clic

Hand pressing a button with a green circular icon and purple waveform lines (no text or symbols)

White hand gesture with a blue directional arrow pointing downward (no text or symbols)

11. Communication

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

—KASUTAMISPIIRANGU—

Yellow triangular warning sign with a black line drawing of an ear and sound waves, indicating hearing or noise hazard.

—KUULMINE—

Yellow triangular warning sign with a sun and eye symbol (no text)

—NÄGEMINE—

Veebileht: www.myphone.pl

Toodetud Hiinas

5. Pakendi sisu

4G: 700/800/850/900/1700/1800/1900/2100/2300/2500/2600

MHz

Aku:

HS2302: Li-Poli 6320 mAh

HS2302e: Li-Ion 6320 mAh

Kaal netto: 300g

Mõõdud: 173 x 83 x 13.55 mm

Soovitatav on kasutada laadija: Hammer RAPIDCHARGE DUO

1. SIM 1 card + SIM 2 card + microSD card
2. eSIM card + SIM 2 card + microSD card

3 2 1

eSIM-i toetab ainult pesa nr 1!

HAMMER® SIM CE OFFICE BY: 100, A Management, 2019. Newport

Blue rectangular object with white gaps and a black square labeled 'MP' (no text or symbols on the object itself)

QR code image containing encoded data, no visible human-readable text

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

10.2 Pühkimine

Hand pressing a button with a green circular icon and blue curved arrows above it (no text or symbols)

10.3 Kolmekordne klôps

Hand cursor clicking a green circular button with purple waveform indicators (no text or symbols)

1 2

White hand reaching toward a blue arrow, no text or symbols present

11. Suhtlemine

11.1 Helistamine

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Black and white icon of a stylized letter 'D' with an exclamation mark (no text or symbols)

Yellow triangular warning sign with a black outline depicting a human ear and sound waves

—DZIRDE—

Yellow triangular warning sign with sun and eye symbol (no text)

—REDZE—

4G: 700/800/850/900/1700/1800/1900/2100/2300/2500/2600

MHz

Akumulatoraa:

HS2302: Li-Poli 6320 mAh

HS2302e: Li-Ion 6320 mAh

Svars netto: 300g

Izmēri: 173 x 83 x 13.55 mm

1. SIM 1 card + SIM 2 card + microSD card
2. eSIM card + SIM 2 card + microSD card

3 2 1

eSIM atbalsta tikai 1. slots!

HAMMER® eSIM CE ©2016.10.14, © 2016/07/03, © 2016/07/04

Blue rectangular object with white gaps and a black square labeled 'PAC' (no text or symbols on the object itself)

QR code image containing encoded data, no visible human-readable text

If you don't want to use the eSIM function at all and your preferred configuration is, for example, to have 2 regular SIM cards, for this you need to remove the eSIM card and put one of the standard nano-sized SIM cards in its place.

9. Pogas

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand pressing a circular button with green center and purple arcs, no text or symbols present

Abstract 3D graphic of a hand with a blue arrow pointing downward (no text or symbols)

11. Sakari

11.1 Zvanu veikšana

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Black and white icon of a stylized book with an exclamation mark (no text or symbols)

—PAGALBOS SKAMBUČIAI—

Yellow triangular warning sign with a black outline depicting a hearing or sound symbol

—KLAUSA—

Yellow triangular warning sign with sun and eye symbol (no text)

—REGÉJIMAS—

4G: 700/800/850/900/1700/1800/1900/2100/2300/2500/2600

MHz

Baterijos:

HS2302: Li-Poli 6320 mAh

HS2302e: Li-Ion 6320 mAh

Svoris netto: 300g

Matmenys: 173 x 83 x 13.55 mm

Rekomenduojama naudoti jkroviklj: Hammer RAPIDCHARGE DUO

1. SIM 1 card + SIM 2 card + microSD card
2. eSIM card + SIM 2 card + microSD card

3 2 1

HAMMER® e-50M

HAMMER® eSIM CE ©2018-04-16, © MARCHITECTS, 2018.05.2019

Blue rectangular object with white gaps and a black square labeled 'PCB' (no text or symbols on the object itself)

QR code image containing encoded data, no visible human-readable text

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand pressing a circular button with purple and green concentric arcs (no text or symbols)

1 2

White hand gesture with a blue arrow pointing downward (no text or symbols)

11. Bendravimas

11.1 Skambinimas

Simple line drawing of a trash bin with crossed x- and y-axes, no text or symbols present.

Simple line drawing of a trash bin with no text or symbols

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

Yellow triangular warning sign with a white ear symbol and sound waves, indicating hearing or noise hazard.

Yellow triangular warning sign with a black eye symbol and sunburst (no text)

—ЗРЕНИЕ—

4G: 700/800/850/900/1700/1800/1900/2100/2300/2500/2600MHz

Аккумулятор:

HS2302: Li-Poli 6320 mAh

HS2302e: Li-Ion 6320 mAh

Вес сеть: 300g

1. SIM 1 card + SIM 2 card + microSD card
2. eSIM card + SIM 2 card + microSD card

3 2 1

Blue rectangular icon with white and black sides, no text or symbols present

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Black and white icon of an exclamation mark on a stylized book or document (no text or symbols)

Yellow triangular warning sign with a white ear and sound waves symbol

Yellow triangular warning sign with a black eye symbol and sunburst (no text)

—VEDEREA—

Camera principală (spate): 50 Mpx + LED

Camera frontala: 8 Mpx

4G: 700/800/850/900/1700/1800/1900/2100/2300/2500/2600MHz

Bateriei:

HS2302: Li-Poli 6320 mAh

HS2302e: Li-Ion 6320 mAh

Greutate netto: 300g

Dimensiuni: 173 x 83 x 13.55 mm

1. SIM 1 card + SIM 2 card + microSD card
2. eSIM card + SIM 2 card + microSD card

3 2 1

Blue rectangular object with white panels and a black square labeled 'PCB' (no text or symbols on the object itself)

QR code image containing encoded data, no visible human-readable text

Three-step diagram showing hand press application: clicking, moving, and clicking with a green circular button.

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

Yellow triangular warning sign with a black ear symbol and sound waves, indicating hearing or alert risk.

Yellow triangular warning sign with black sun and eye symbol (no text)

4G: 700/800/850/900/1700/1800/1900/2100/2300/2500/2600

MHz

Акумулаторна батерия:

HS2302: Li-Poli 6320 mAh

HS2302e: Li-Ion 6320 mAh

Нетно тегло: 300g

Размери: 173 x 83 x 13.55 mm

Blue rectangular device with two white panels and a black 'WISP' label on the right side (no readable text or symbols beyond the label)

QR code image containing encoded data, no visible human-readable text

Hand pressing a green circular button with a blue ring (no text or symbols)

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Touch an element (an icon perhaps) and hold it for about 1 seconds. Then you can delete/uninstall that element.

10.5 Slide in and out

Touch the screen with two fingers and slide them together or apart to zoom in or out a photo or a map.

Hand touching a circular button with green center and purple arcs, no text or symbols present

1 2

White hand reaching toward a blue arrow, no text or symbols present

11. Комуникация

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with no text or symbols
