USER MANUAL Construction 2 Thermal 5G Hammer

Black and white icon of an exclamation mark on a stylized book or document (no text or symbols)

—POŁĄCZENIA ALARMOWE—

Warning sign with yellow triangle and black outline depicting a hearing or sound symbol

Yellow triangular warning sign with sun and eye symbol (no text)

4G (LTE): 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

QR code image containing encoded data, no visible human-readable text

1. Wygląd telefonu

Exploded view diagram of a smartphone showing front, side, top, and back views with numbered labels

8. Funkcja eSIM

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

11.2 Przesunięcie

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand pressing a button with a green circular icon and purple wave signals (no text or symbols)

White hand with blue directional arrows pointing downward (no text or symbols)

12. Komunikacja

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

https://www.hammerphones.com/support-warranty/

1. Table of contents

1. Table of contents......21
2. Safety....22
3. The use of the manual 24
4. Important information ....25

4.1 Trademarks......25

1. Package content ......26
2. Technical specifications ....26
3. Appearance of the phone....27
4. eSIM function ......28

8.1 Starting and activating the eSIM card....28
8.2 Disabling and deleting the profile....29

1. SIM card installation....29

2. Buttons ....30

3. Using the touch screen ....30

11.1. Touch....31
11.2 Swipe....31
11.3 Triple click....31
11.4 Hold and swipe....31
11.5 Slide in and out....31

1. Communication ....32

12.1 Making calls....32
12. 2 SMS - Messages ....32

1. Battery management....32
2. Maintenance of the device....33
3. Troubleshooting ....33
4. Correct disposal of used equipment....34
5. Correct disposal of used battery....34

Caution!	Statement
The manufacturer is not responsible for the consequences of situations caused by improper use of the phone or failure to follow the instructions in the operating manual.	The software version can be upgraded without earlier notice. The manufacturer's representative reserves the right to decide on the correct interpretation of this manual.

2. Safety

—DO NOT RISK—

All wireless devices may cause interferences, which could affect the quality of other connections. Do not switch the device on in places which are prohibited from using cell phones, or when it may cause interferences or other dangers. Always abide by any kinds of prohibitions, regulations and warnings conveyed by the staff.

—RESTRICTIONS IN USE—

Wi-Fi wireless connectivity uses the 2.4 GHz band and the 5 GHz band. The 5 GHz Wi-Fi band shall not be used outdoors in the European Union. Please observe the

national and local regulations at the place of use.

—QUALIFIED SERVICE—

Only qualified personnel or an authorized service center may install or repair this product. Repairing the device by an unqualified or unauthorized service technician may result in damage to the device and void the warranty.

—ALARM CALLS—

Making alarm calls may not be possible in some areas or circumstances. It is recommended to find an alternative way to notify emergency services if you are going to this type of remote areas.

—PETROL STATIONS—

Do not use your mobile phone while refueling at a petrol station or in the vicinity of chemicals.

CAUTION! In places where there is a risk of explosion (i.e. Petrol stations, chemical factories etc.), it is advisable to turn off the phone. Please refer to regulations governing the use of GSM equipment in these places.

—ROAD SAFETY—

Apart from emergency situations, using the phone while driving should be carried out only with use of a headset or a speakerphone, which ensures safety and does not limit motor abilities of the user. If one does not own a headset and still wants to use the phone, one should pull over and stop the car. Pay attention to the legal regulations of the country you are in, concerning the use of mobile phone while driving.

—CHILDREN,&PHYSICALLY/MENTALLY DISABLED PEOPLE—

This device should not be operated by people (including children) with limited physical or mental abilities, as well as by people with no earlier experience in operation of electronic equipment. They may use the device only under supervision of people responsible for their safety. This device is not a toy. Memory card and SIM card are small enough to be swallowed by a child and cause choking. Keep the device and its accessories out of reach of children.

—WATER AND OTHER LIQUIDS—

The device has resistance certificate IP69. It means that the device is dust-proof and waterproof when all of the rubber seals are intact and properly put in place.

IP69 - The symbol indicates protection against flooding with a jet of pressurized water (force applied to the surface of the device 0.9-1.2 N, water temperature up to +80°C). The jet of water directed at angles of 0°, 30°, 60° and 90° for 30 seconds.

As far as possible protect the device from water and other liquids. Water and other fluids do not have a positive effect on phone electronic components. If wet, wipe and dry the device as soon as

possible.

The device is not resistant to salt water!

Make sure the USB cable is dry before connecting it to the phone's charging socket. Plugging the cable into a wet or damp outlet exposes it to slow corrosion and may cause problems with charging your phone.

—BATTERY AND ACCESSORIES—

Avoid exposing the battery to very high/low temperatures (below 0°C/32°F and over 40°C/104°F). Extreme temperatures may influence capacity and battery life. Avoid contact with liquids and metal objects as it may cause partial or complete battery damage. The battery should be used according to its purpose. Do not destroy, impair or throw the battery into flames - it might be dangerous and may cause fire. Worn-out or impaired battery should be placed in a dedicated container. Installing an incorrect battery type can cause an explosion. Never open the battery. Please dispose of battery according to the instructions. Disconnect an unused charger from power grid. In case of the charger wire damage, it should not be repaired but replaced with a new one cable or a new charger. Use the original manufacturer's accessories only.

Warning sign with yellow triangle and black outline depicting a hearing or sound symbol

—HEARING—

To avoid hearing damage, do not use the device at high volume levels for a long period of time, do not put operating device directly to the ear!

Yellow triangular warning sign with sun and eye symbol (no text)

—EYESIGHT—

To avoid eyesight damage do not look closely onto the flash light during its work. A strong bean of light may cause permanent eye damage!

3. The use of the manual

Pictures of the device and screenshots contained in this user manual may differ from the actual product. Accessories attached to the

smartphone set may differ from the illustrations included in manual. Options described in the manual are found in Android system. Those descriptions may differ, depending on the version of the operating system and applications installed on the device. Without prior written consent of the manufacturer, no part of this manual may be photocopied, reproduced, translated or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording or storing in any systems of storing and sharing information.

4. Important information

The majority of applications which can be installed on the device are mobile apps. Modus operandi of such applications may be different from their counterparts installed on a personal computer. Apps installed on the device may vary depending on country, region, and hardware specifications. The manufacturer is not liable for problems caused by third party software. The manufacturer is not responsible for anomalies that may occur when editing the registry settings and modifying the operating system software. Attempts to modify the operating system can cause malfunctions and problems with applications. It may cause a loss of warranty.

System Android™

This device runs on the Android operating system.

Google Play

Google Play is your entertainment without borders. It brings together all your favorite entertainment and helps you discover it in new ways, anytime, anywhere. We've brought the magic of Google to movies, TV, books, apps and games, so you can get more from your content every day.

4.1 Trademarks

- Google, Android, Google Play are Google LLC trademarks.

• Oracle and Java are a registered trademarks of Oracle and / or its affiliates.
• Wi-Fi® Wi-Fi logo are a registered trademarks Wi-Fi Alliance association.
• All other trademarks and copyrights belong to their respective owners.

5. Package content

We advise to keep the container in case of any complaints. Keep the container out of reach of children.

For environmental reasons, this package does not include a charger. This device can be powered by most USB power adapters and a cable with a USB Type-C plug.

6. Technical specifications

Processor: MediaTek 6300 (24E), Octa-core, 6nm

Display: 6.58" FHD+, 1080x2408 px

Rear camera (main): 108 Mpx + 32 Mpx

Front camera (selfie): 32 Mpx

RAM: 8 GB

Internal memory: 256 GB, microSD max. 1TB

Operating system: Android 14

Dual SIM: nanoSIM+microSD

Connector: USB-C

Connectivity: Wi-Fi 2.4GHz+5GHz, 802.11ac/a/b/g/n, Bluetooth 5.3, NFC, GPS, Beidou, Glonass, Galileo

2G (GSM): 850/900/1800/1900 MHz

3G (UMTS): 850/900/1900/2100 MHz

4G (LTE): 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Sensors: Fingerprint reader, accelerometer, gyroscope, proximity sensor, light sensor, compass

Battery:

HS2404 – Li-Poli 6500 mAh

HS2404e - Li-Ion 6500 mAh

Dimensions: 172x80x13.5 mm

Weight netto: 306 g

Power supply technical specifications

The power delivered by the charger must be between min 5 Watts required by the radio equipment, and max 30 Watts in order to achieve the maximum charging speed.

USB PD fast charging

It is recommended to use the charger: Hammer RAPIDCHARGE

The charger can be purchased on our website: https://www.myphone.pl/product/myphone-swiftcharge-duo

QR code image containing encoded data, no visible human-readable text

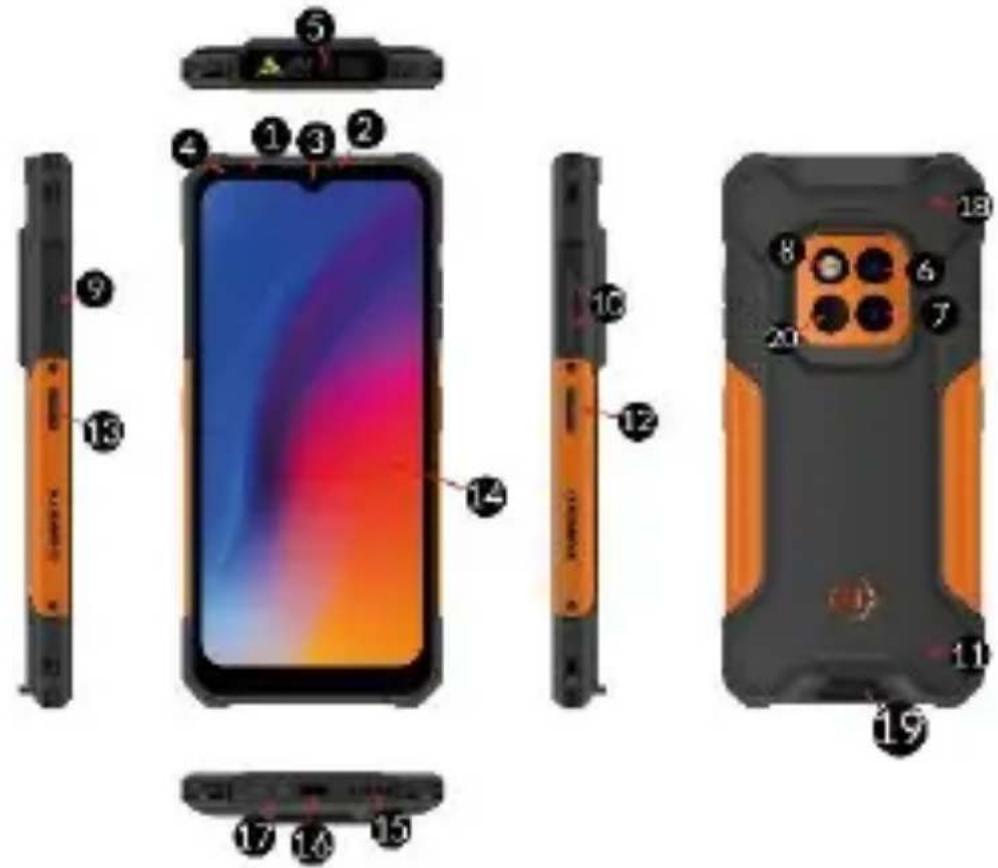

1. Appearance of the phone

	Function
1	Brightness and proximity sensors
2	Internal speaker
3	Digital camera lens (selfie)
4	Notification diode
5	Laser rangefinder
6	Digital camera lens (main)
7	Digital camera lens (auxiliary)
8	Camera flash / Torch
9	The tray for SIM cards/ microSD
10	Volume control buttons
11	Service hole! Do not insert any objects inside. Damage will result in the loss of warranty!
12	Blockade on/off button
13	Programmable button
14	Touchscreen 6.58”
15	External speaker
16	Multifunctional USB-C port
17	Microphone 1
18	Microphone 2
19	Lanyard holder
20	Thermal camera

Exploded view diagram of a smartphone showing internal components and labeled parts with numbers

8. eSIM function

An Internet connection (Wi-Fi or cellular data) is required to install the eSIM profile).

8.1 Starting and activating the eSIM card

Go to [Settings] and select [Mobile Network/eSIM] from the menu

list (if a regular SIM card is inserted, go to [eSIM]) to start the card installation. Activating the eSIM card involves downloading its profile by going through the configuration.

If adding a new eSIM card, remove the SIM card before configuration!

To set up a new eSIM profile, you will need to enter a special QR code you receive from your carrier, which you can scan with a QR code scanner or enter manually by going to the [Need help?] tab while scanning.

After scanning or entering the code, the card's profile will download automatically.

Once the profile is downloaded, [Menu] > [Settings] > [Mobile Network/eSIM] will show a tab with the name of the operator and eSIM signature, and a network coverage icon in the top status bar.

8.2 Disabling and deleting the profile

To disable the eSIM card's profile, go to [Settings] > [Mobile Network/eSIM] > [eSIM card's operator name] expand advanced options, then in the [Operator] tab go to the settings icon and select Disable/Enable. Once the card is disabled, the coverage icon will disappear from the top bar.

To remove the selected eSIM card profile completely, select Delete.

9. SIM card installation

Hammer is equipped with a tray for SIM / microSD cards, thanks to which you can use the phone in the following configurations:

1. microSD card

2. nanoSIM card

1 2

The tray is located on the left side of the phone. To open it, gently

pry it open with your fingernail and slide it out.

MicroSD/nanoSIM cards should be inserted as indicated by the embossed recess.

10. Buttons

Menu (virtual)

Pressing it will cause the list of open apps to appear, where you can switch in-between or turn them off.

Home (virtual)

One quick press takes you to phone desktop. A longer press launches Google Assistant.

Back (virtual)

Press to exit the application / return to the previous screen.

Blockade on/off button

• One quick press locks/unlocks the screen.
• Pressing the button for about 2 sec. will cause:

○ If the smartphone is off - the device would switch on.
- if the smartphone is switched on, call up a menu to shut down the device, reboot the system.

Volume increase and decrease buttons

Pressing during a voice call will cause an increase or decrease of the audio connection volume.

Programmable button

Pressing on an unlocked smartphone launches a user-defined action or application You can change its function using the settings menu.

11. Using the touch screen

The smartphone's touchscreen makes it easy to select items, perform operations and gestures. The touchscreen can be controlled by the following actions:

11.1. Touch

Touch one to start options, app, menu.

Hand cursor clicking a green circular button with purple ring (no text or symbols)

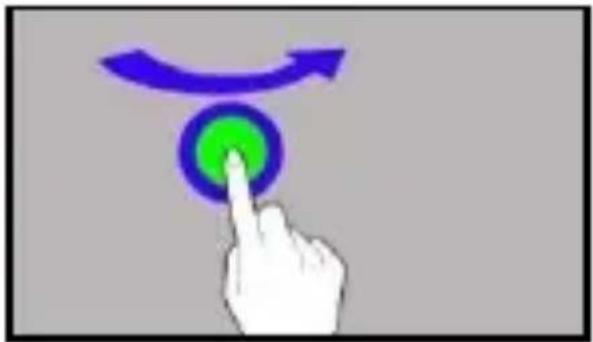

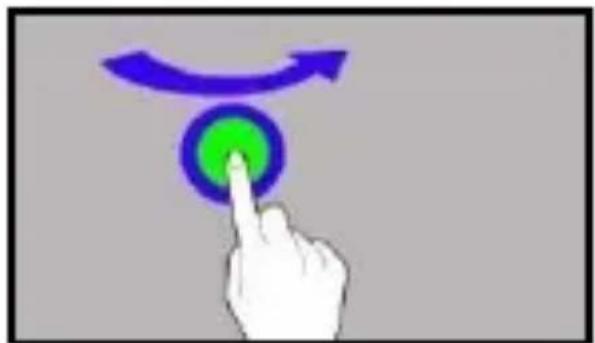

11.2 Swipe

Quickly swipe up, down, to the left or to the right, to scroll the list or the screen.

Hand pressing a button with a green center and blue curved arrow above it (no text or symbols)

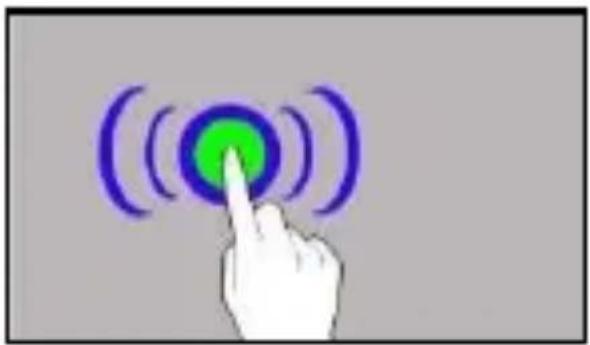

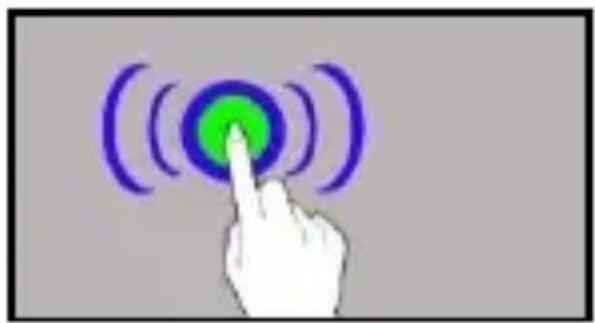

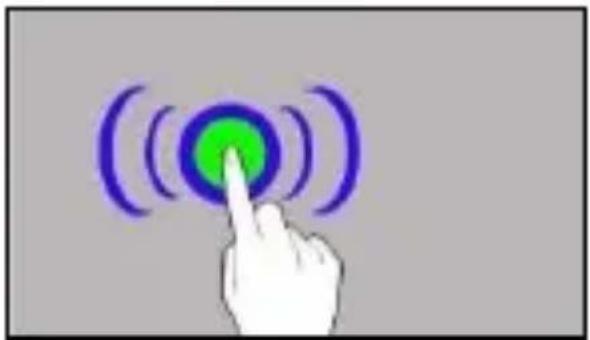

11.3 Triple click

Quickly tap the screen three times to start zooming - if this option is enabled in your smartphone settings.

Hand touching a circular button with purple and green concentric rings (no text or symbols)

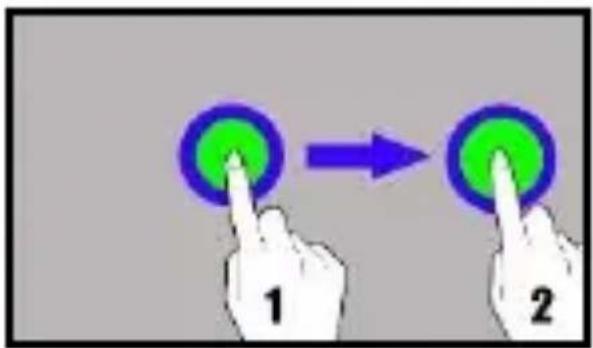

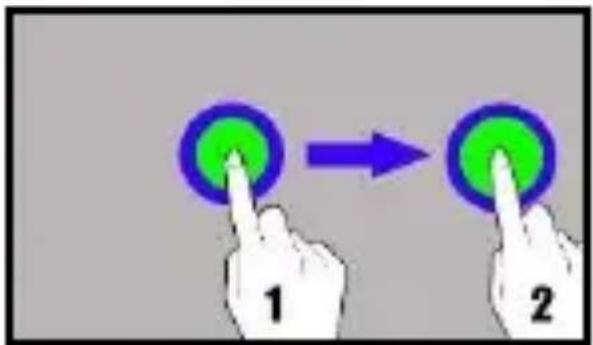

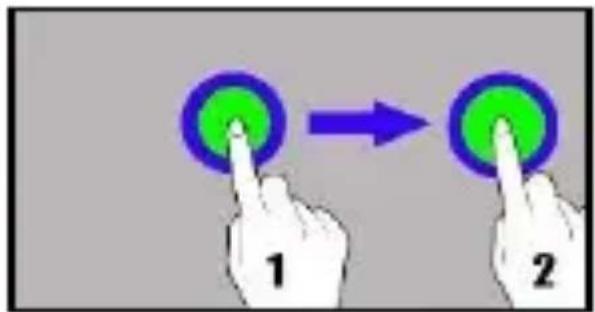

11.4 Hold and swipe

Touch an element (an icon perhaps) and hold it for about 1 seconds. Then you can delete/uninstall that element.

1 2

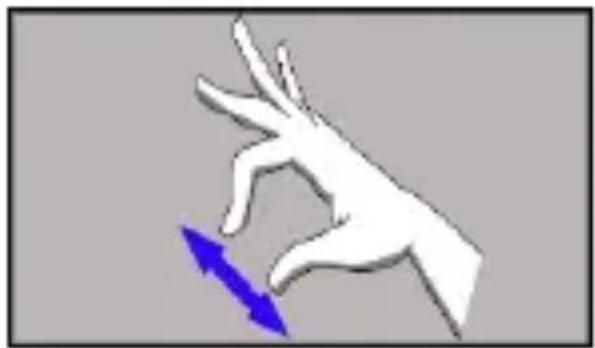

11.5 Slide in and out

Touch the screen with two fingers and slide them together or apart to zoom in or out a photo or a map.

White hand reaching toward a blue arrow symbol (no text or labels)

12. Communication

12.1 Making calls

To make a call touch [Phone] icon, placed on the main screen or

in Android applications menu and select the keyboard icon Insert the phone number you wish to call. Press "green handset" placed at the bottom of the screen and choose which SIM card you wish to use.

12. 2 SMS - Messages

You can manage your messages using the [Messages]

application in the home screen or smartphone menu. Start the

application and touch the icon, type the phone number,

name of the contact or select a contact from the list. When you have chosen the contact a screen will appear where you type the message itself. Type the message body.

Before you send a text message you can transform it into a

multimedia message by pressing symbol 📋, situated in the left corner of the textbox and adding a sticker, audio or location. To send

the message press .

13. Battery management

This feature is available when you first start up your phone [Initial setup] or later at any time under [Settings] > [Battery] > [Battery status].

Battery management allows you to extend the battery life by setting a charging limit. With this feature, you can disable the limit completely (which means charging to 100%) or set one of the available thresholds: 70%, 80% or 90%. The device will stop charging when the selected level is reached, e.g. 80%.

In the battery status settings section, you will also find useful

information such as the battery's date of manufacture, date of first use and number of full charge cycles.

14. Maintenance of the device

Follow the instructions below.

• For cleaning use only a dry cloth. Never use any agent with a high concentration of acids or alkalis.

• Use the original accessories only. Violation of this rule may result in an invalidation of the warranty.

• Troubleshooting

Message	Possible solution
Input PIN	If the SIM card is secured with the PIN code you have to enter the PIN when turning the phone or and press.
Network fail	In areas where signal or reception is weak, calls may not be possible. Also receiving calls may not be possible. Move to another location and try again.
No one can call me	The phone has to be on and within GSM network reach.
The connection cannot be established	Check if the typed-in phone number is correct. Check if the phone number entered to the [Contacts] is correct. Enter the correct phone number if necessary.
I cannot hear the caller./ The caller cannot hear me	The mic. should be close to mouth. Check if the built-in mic. is not covered. When a headset is un use, check if it has been connected correctly. Check if the built-in speaker isn’t covered.

16. Correct disposal of used equipment

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

The device is marked with a crossed-out garbage bin, in accordance with the European Directive 2012/19/EU on used electrical and electronic Equipment (Waste Electrical and Electronic equipment - WEEE). Products marked with this symbol should not be disposed of or dumped with other household waste after a period of use. The user is obliged to get rid of used electrical and electronic equipment by delivering it to designated recycling point in which dangerous waste are being recycled. Collecting this type of waste in designated locations, and the actual process of their recovery contribute to the protection of natural resources. Proper disposal of used electrical and electronic equipment is beneficial to human health and environment. To obtain information on where and how to dispose of used electrical and electronic equipment in an environmentally friendly manner, user should contact their local government office, the waste collection point, or point of sale, where the equipment was purchased.

17. Correct disposal of used battery

Simple line drawing of a trash bin with crossed diagonals (no text or symbols)

According to the EU directive 2006/66/EC with changes contained in EU directive 2013/56/UE on the disposal of batteries, this product is marked with crossed-out garbage bin symbol. The symbol indicates that the batteries used in this product should not be disposed with regular household waste, but treated according to the legal directives and local regulations. It is not allowed to dispose of batteries and accumulators with unsorted municipal waste. Users of batteries and accumulators must use the available collection points of these items, which allows them to return, recycle and disposal.

Within the EU, the collection and recycling of batteries and accumulators is a subject to separate procedures. To learn more about existing procedures of recycling of batteries and accumulators

please contact your local office or an institution for waste disposal or landfill.

UŽIVATELSKÁ PŘÍRUČKA

HAMMER HS2404\_HS2404e

1. Obsah balení

Warning sign with a yellow triangle and a black outline depicting an ear with sound waves

—SLUCH—

Yellow triangular warning sign with sun and eye symbol (no text)

—ZRAK—

4G (LTE): 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

https://www.myphone.pl/product/myphone-swiftcharge-duo

QR code image containing encoded data, no visible human-readable text

1. Vzhled telefonu

Exploded view diagram of a smartphone showing internal components and labeled parts with numbers

8. Funkce eSIM

9. SIM card installation

1. microSD card
2. nanoSIM card

1 2

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand pressing a circular button with purple arcs, symbolizing wireless or signal input (no text or symbols present)

11.4 Držte a posuňte

White hand gesture with a blue arrow pointing downward (no text or symbols)

12. Komunikace

12. 1 Volání

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with crossed diagonals (no text or symbols)

Yellow triangular warning sign with a black-and-white icon of an ear and sound waves

—SLUCH—

Yellow triangular warning sign with sun and eye symbol (no text)

—ZRAK—

NFC, GPS, Beidou, Glonass, Galileo

2G (GSM): 850/900/1800/1900 MHz

3G (UMTS): 850/900/1900/2100 MHz

4G (LTE): 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Senzory: Čítačka odtlačkov prstov, akcelerometer, gyroskop, senzor

priblíženia, svetelný senzor, kompas

Batérie:

HS2404 – Li-Poli 6500 mAh

HS2404e - Li-Ion 6500 mAh

Rozmery: 172x80x13.5 mm

Váha netto: 306 g

https://www.myphone.pl/product/myphone-swiftcharge-duo

QR code image containing encoded data, no visible human-readable text

1. Vzhl'ad telefónu

Exploded view diagram of a smartphone showing internal components and labeled parts with numbers

8. Funkcia eSIM

1. microSD card
2. nanoSIM card

1 2

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

11.3 Trojité kliknutie

Hand pressing a button with a green circular icon and purple wave signals (no text or symbols)

11.4 Držte a posuňte

White hand reaching toward a blue arrow symbol (no text or labels)

12. Komunikácia

12. 1 Volanie

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Warning sign with yellow triangle and ear icon, indicating sound or hearing hazard

—HALLÁS—

Yellow triangular warning sign with sun and eye symbol (no text)

—LÁTÁS—

NFC, GPS, Beidou, Glonass, Galileo

2G (GSM): 850/900/1800/1900 MHz

3G (UMTS): 850/900/1900/2100 MHz

4G (LTE): 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

QR code image containing encoded data, no visible human-readable text

1. Készülék részei

Exploded view diagram of a smartphone showing internal components and labeled parts with numbers

8. eSIM funkció

1. microSD card
2. nanoSIM card

1 2

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

11.2 Csúsztatás

Hand pressing a button with a green circular icon and blue curved arrows above (no text or symbols)

11.3 Tripla kattintás

Hand pressing a button with a green circular icon and purple curved lines, symbolizing wireless or signal input (no text or symbols present)

11.4 Nyomvatartás

White hand gesture with a blue directional arrow pointing downward (no text or symbols)

12. Kommunikáció

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Black icon of an exclamation mark on a document (no text or symbols)

Warning sign depicting a human ear with sound waves, commonly used for hearing or listening to the ear.

Yellow triangular warning sign with sun and eye symbol (no text)

—SEHKRAFT—

4G (LTE): 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

https://www.myphone.pl/product/myphone-swiftcharge-duo

QR code image containing encoded data, no visible human-readable text

Exploded view diagram of a smartphone showing internal components and labeled parts with numbers

8. eSIM-Funktion

1. microSD card
2. nanoSIM card

1 2

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

11.2 Verschieben

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand pressing a button with a green circular icon and purple wave-like pulses (no text or symbols)

White hand gesture with blue directional arrows indicating movement or force (no text or symbols)

12. Kommunikation

12.1 Telefonieren

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Warning sign with a yellow triangle and black outline depicting an ear with sound waves

acceso!

Warning sign with sun and eye symbol, commonly used for safety or hazard prevention

-UDITO-

Telecamera frontale (selfie): 32 Mpx

RAM: 8 GB

Memoria interna: 256 GB, microSD max. 1TB

4G (LTE): 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

https://www.myphone.pl/product/myphone-swiftcharge-duo

QR code image containing encoded data, no visible human-readable text

Exploded view diagram of a smartphone showing internal components and labeled parts with numbers

8. Funzione eSIM

1. microSD card
2. nanoSIM card

1 2

Hand pressing a button with a green circular button and curved arrow above it (no text or symbols)

Hand pressing a button with a green circular icon and purple wave signals (no text or symbols)

White hand gesture with a blue double-headed arrow pointing downward (no text or symbols)

12. Comunicazione

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with crossed diagonals (no text or symbols)

Black exclamation mark symbol on white background (no text or numbers)

Yellow triangular warning sign with sun and eye symbol (no text)

—VISTA—

4G (LTE): 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

https://www.myphone.pl/product/myphone-swiftcharge-duo

QR code image containing encoded data, no visible human-readable text

Exploded view diagram of a smartphone showing front, back, and internal components with numbered labels

8. Funzione eSIM

1. microSD card
2. nanoSIM card

1 2

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

11.2 Deslizar

Hand pressing a button with a green circular icon and curved arrows above (no text or symbols)

11.3 El click triple

Hand touching a circular button with green and purple signal waves (no text or symbols)

White hand gesture with blue directional arrows indicating movement or force (no text or symbols)

12. Comunicación

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic, and a solid black rectangle below (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Black exclamation mark symbol on white background (no text or numbers)

Yellow triangular warning sign with a black circular icon depicting a human ear and sound waves

-AUDICIÓN-

Yellow triangular warning sign with sun and eye symbol (no text)

—VISTA—

Câmara principal (atrás): 108 Mpx + 32 Mpx

Câmara frontal (selfie): 32 Mpx

RAM: 8 GB

Memória interna: 256 GB, microSD max. 1TB

5.3, NFC, GPS, Beidou, Glonass, Galileo

2G (GSM): 850/900/1800/1900 MHz

3G (UMTS): 850/900/1900/2100 MHz

4G (LTE): 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

https://www.myphone.pl/product/myphone-swiftcharge-duo

QR code image containing encoded data, no visible human-readable text

Exploded view diagram of a smartphone showing front, back, and internal components with numbered labels

8. Função eSIM

1. microSD card
2. nanoSIM card

1 2

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

11.2 Deslizar

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

11.3 El click triple

Hand pressing a button with a green circular icon and purple waveform lines (no text or symbols)

White hand with blue directional arrows pointing downward (no text or symbols)

12. Comunicación

Simple line drawing of a trash bin with crossed x- and y-axes, no text or symbols present.

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

1. Communication ....156

—SERVICE PROFESSIONNEL—

Warning sign with yellow triangle and black outline depicting a human ear with sound waves

aux yeux!

—VUE—

Yellow triangular warning sign with sun and eye symbol (no text)

NFC, GPS, Beidou, Glonass, Galileo

2G (GSM): 850/900/1800/1900 MHz

3G (UMTS): 850/900/1900/2100 MHz

4G (LTE): 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

QR code image containing encoded data, no visible human-readable text

Exploded view diagram of a mobile phone showing front, back, and interior views with numbered labels

8. Fonction eSIM

1. microSD card
2. nanoSIM card

1 2

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

11.3 Triple-clic

Hand pressing a circular button with green center and purple arcs, symbolizing wireless or digital signal (no text or symbols)

White hand with blue directional arrows pointing to a specific point (no text or symbols)

12. Communication

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with crossed diagonals (no text or symbols)

Warning sign depicting a human ear with sound waves, commonly used in hearing or auditory monitoring.

—KUULMINE—

Yellow triangular warning sign with sun and eye symbol (no text)

—NÄGEMINE—

4G (LTE): 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

USB PD fast charging

Soovitatav on kasutada laadija: Hammer RAPIDCHARGE

https://www.myphone.pl/product/myphone-swiftcharge-duo

QR code image containing encoded data, no visible human-readable text

1. Telefoni välimus

Exploded view diagram of a smartphone showing front, back, and interior views with numbered labels

8. eSIM-funktsioon

1. microSD card
2. nanoSIM card

1 2

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

11.3 Kolmekordne klöps

Hand pressing a button with concentric circular waves, no text or symbols present

White hand gesture with blue directional arrows indicating movement or action (no text or symbols)

või lahku.

12. Suhtlemine

12.1 Helistamine

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

—PAGALBOS SKAMBUČIAI—

Warning sign with yellow triangle and black outline depicting a human ear with sound waves

—KLAUSA—

Yellow triangular warning sign with sun and eye symbol (no text)

—REGÉJIMAS—

4G (LTE): 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

https://www.myphone.pl/product/myphone-swiftcharge-duo

QR code image containing encoded data, no visible human-readable text

1. Telefono išvaizda

Exploded view diagram of a smartphone showing internal components and labeled parts with numbers

8. eSIM funkcija

Norint jdiegti eSIM profilj, reikia interneto ryšio (Wi-Fi arba mobiliojo ryšio duomenų).

1. microSD card
2. nanoSIM card

1 2

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

11.2 Braukimas

Hand pressing a button with a green circular icon and curved arrows above (no text or symbols)

Hand pressing a button with a green circular icon and purple arcs, symbolizing wireless or digital signal (no text or symbols present)

White hand holding a small object with a blue arrow pointing downward (no text or symbols)

12. Bendravimas

10.1 Skambinimas

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

Yellow triangular warning sign with a black-and-white icon of an ear and sound waves

—DZIRDE—

Yellow triangular warning sign with sun and eye symbol (no text)

—REDZE—

5.3, NFC, GPS, Beidou, Glonass, Galileo

2G (GSM): 850/900/1800/1900 MHz

3G (UMTS): 850/900/1900/2100 MHz

4G (LTE): 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Sensori: Pirkstu nospiedumu lasītājs, akselerometrs, žiroskops, tuvuma sensors, gaismas sensors, kompas

Akumulatoraa:

HS2404 – Li-Poli 6500 mAh

HS2404e - Li-Ion 6500 mAh

https://www.myphone.pl/product/myphone-swiftcharge-duo

QR code image containing encoded data, no visible human-readable text

1. Tālruṇa izskats

Exploded view diagram of a smartphone showing internal components and labeled parts with numbers

8. eSIM funkcija

1. microSD card
2. nanoSIM card

1 2

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

11.2 Pavilkšana

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand pointing at a circular button with green center and purple arcs (no text or symbols)

White hand with a blue arrow pointing downward, no text or symbols present

12. Sakari

12.1 Zvanu veikšana

Lai zvanītu, pieskarieties [Tālruṇa]

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Black exclamation mark icon on white background, no text or symbols present

Warning sign with a yellow triangle and black outline depicting an ear with sound waves

Yellow triangular warning sign with sun and eye symbol (no text)

Conectivitate: Wi-Fi 2.4GHz+5GHz, 802.11ac/a/b/g/n, Bluetooth 5.3, NFC, GPS, Beidou, Glonass, Galileo

2G (GSM): 850/900/1800/1900 MHz

3G (UMTS): 850/900/1900/2100 MHz

4G (LTE): 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

https://www.myphone.pl/product/myphone-swiftcharge-duo

QR code image containing encoded data, no visible human-readable text

Exploded view diagram of a smartphone showing internal components and labeled parts with numbers

8. eSIM function

1. microSD card
2. nanoSIM card

1 2

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

11.2 Glisare

12. Comunicarea

12.1 Efectuarea apelurilor

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Black exclamation mark symbol on white background (no text or numbers)

Warning sign with yellow triangle and black outline indicating a hearing or sound disturbance symbol

Yellow triangular warning sign with sun and eye symbol (no text)

4G (LTE): 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

https://www.myphone.pl/product/myphone-swiftcharge-duo

QR code image containing encoded data, no visible human-readable text

Exploded view diagram of a smartphone showing internal components and labeled parts with numbers

8. функция eSIM

1. microSD card
2. nanoSIM card

1 2

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand pressing a circular button with green center and purple arcs, symbolizing wireless or signal input (no text or symbols)

1 2

White hand with blue directional arrows indicating movement or force (no text or symbols)

12. Связь

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Warning sign with a yellow triangle and black outline depicting an ear with sound waves

Yellow triangular warning sign with sun and eye symbol (no text)

4G (LTE): 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

https://www.myphone.pl/product/myphone-swiftcharge-duo

QR code image containing encoded data, no visible human-readable text

Exploded view diagram of a smartphone showing internal components and labeled parts with numbers

8. eSIM функция

1. microSD card
2. nanoSIM card

1 2

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

Hand pressing a button with a green circular icon and curved arrows above it (no text or symbols)

Hand pressing a circular button with purple and green concentric arcs (no text or symbols)

1 2

White hand with blue directional arrows pointing downward (no text or symbols)

12. Комуникиране

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)
