HAMMER HS2301\_HS2301e

1. Table of contents

1. Table of contents......21
2. Safety....22
3. The use of the manual ....25
4. Important information ....25

4.1 Trademarks......26

1. Package content ......26
2. Technical Specification ......26
3. Appearance of the phone....27
4. eSIM installation....29

8.1 Starting and activating the eSIM card....29
8.2 Disabling and deleting the profile....30

1. SIM card installation....30
2. Buttons ....30
3. Using the touch screen ....31

11.1 Touch....31
11.2 Swipe....32
11.3 Triple click....32
11.4 Hold and swipe....32
11.5 Slide in and out....32

1. Communication ....32

12.1 Making calls....32
12.2 SMS - Messages ....33
13. Battery management (Android 14)......33

1. Maintenance of the device....34
2. Correct disposal of used equipment ....34
3. Correct disposal of used battery....34

CAUTION!	Statement
The manufacturer is not responsible for the consequences of situations caused by improper use of the phone or failure to follow the instructions in the operating manual.	The software version can be upgraded without earlier notice. The manufacturer's representative reserves the right to decide on the correct interpretation of this manual.

2. Safety

—DO NOT RISK—

All wireless devices may cause interferences, which could affect the quality of other connections. Do not switch the device on in places which are prohibited from using cell phones, or when it may cause interferences or other dangers. Always abide by any kinds of prohibitions, regulations and warnings conveyed by the staff.

Black icon of a stylized book with an exclamation mark (no text or symbols)

—RESTRICTIONS IN USE—

Wi-Fi wireless connectivity uses the 2.4 GHz band and the 5 GHz band. The 5 GHz Wi-Fi band shall not be used outdoors in the European Union. Please observe the national and local regulations at the place of use.

—ROAD SAFETY—

Apart from emergency situations, using the phone while driving should be carried out only with use of a headset or a speakerphone, which ensures safety and does not limit motor abilities of the user. If one does not own a headset and still wants to use the phone, one should pull over and stop the car. Pay attention to the legal regulations concerning the use of mobile phone while driving. Some electronic components of the car without adequate protection can be affected by waves emitted by the phone; it is therefore advisable to use the phone in the car only when the external antenna of the

vehicle is secured. Use the services of a professional when installing the phone in the car.

—ALARM CALLS—

Making alarm calls may not be possible in some areas or circumstances. It is recommended to find an alternative way to notify emergency services if you are going to this type of remote areas.

—QUALIFIED SERVICE—

Only qualified personnel or an authorized service center may install or repair this product. Repairing the device by an unqualified or unauthorized service technician may result in damage to the device and void the warranty.

—PETROL STATIONS—

Do not use your mobile phone while refuelling at a petrol station or in the vicinity of chemicals.

CAUTION! In places where there is a risk of explosion (i.e. Petrol stations, chemical factories etc.), it is advisable to turn off the phone. Please refer to regulations governing the use of GSM equipment in these places.

—CHILDREN,&PHYSICALLY/MENTALLY DISABLED PEOPLE—

This device should not be operated by people (including children) with limited physical or mental abilities, as well as by people with no earlier experience in operation of electronic equipment. They may use the device only under supervision of people responsible for their safety. This device is not a toy. Memory card and SIM card are small enough to be swallowed by a child and cause choking. Keep the device and its accessories out of reach of children.

—WATER AND OTHER LIQUIDS—

The device has resistance certificate IP69. It means that the device is dust-proof and waterproof when all of the rubber seals are intact and properly put in place.

IP69 - The symbol indicates protection against flooding with a jet of pressurized water (force applied to the surface of the device 0.9-1.2 N, water temperature up to +80°C). The jet of water directed at angles of 0°, 30°, 60° and 90° for 30 seconds.

As far as possible protect the device from water and other liquids. Water and other fluids do not have a positive effect on phone electronic components. If wet, wipe and dry the device as soon as possible.

The device is not resistant to salt water!

Make sure the USB cable is dry before connecting it to the phone's charging socket. Plugging the cable into a wet or damp outlet exposes it to slow corrosion and may cause problems with charging your phone.

—BATTERY AND ACCESSORIES—

Avoid exposing the battery to very high/low temperatures (below 0°C / 32°F and over 40°C / 104°F). Extreme temperatures may influence capacity and battery life. Avoid contact with liquids and metal objects as it may cause partial or complete battery damage. The battery should be used according to its purpose. Do not destroy, impair or throw the battery into flames - it might be dangerous and may cause fire. Worn-out or impaired battery should be placed in a dedicated container. Installing an incorrect battery type can cause an explosion. Never open the battery. Please dispose of battery according to the instructions. Disconnect an unused charger from power grid. In case of the charger wire damage, it should not be repaired but replaced with a new one cable or a new charger. Use the original manufacturer's accessories only.

Yellow triangular warning sign with a black outline depicting a human ear and sound waves

—HEARING—

To avoid hearing damage, do not use the device at high volume levels for a long period of time, do not put operating device directly to the ear.

Yellow triangular warning sign with sun and eye symbol (no text)

—EYESIGHT—

To avoid eyesight damage do not look closely onto the flash light during its work. A strong bean of light may cause permanent eye damage!

3. The use of the manual

Pictures of the device and screenshots contained in this user manual may differ from the actual product. Accessories attached to the smartphone set may differ from the illustrations included in manual. Options described in the manual are found in Android system. Those descriptions may differ, depending on the version of the operating system and applications installed on the device.

Without prior written consent of the manufacturer, no part of this manual may be photocopied, reproduced, translated or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording or storing in any systems of storing and sharing information.

4. Important information

The majority of applications which can be installed on the device are mobile apps. Modus operandi of such applications may be different from their counterparts installed on a personal computer. Apps installed on the device may vary depending on country, region, and hardware specifications. The manufacturer is not liable for problems caused by third party software. The manufacturer is not responsible for anomalies that may occur when editing the registry settings and modifying the operating system software. Attempts to modify the operating system can cause malfunctions and problems with applications. It may cause a loss of warranty.

System Android™

This device runs on Android operating system.

Google Play

Google Play is your entertainment without borders. It brings together all your favorite entertainment and helps you discover it in new ways, anytime, anywhere. We've brought the magic of Google to movies, TV, books, apps and games, so you can get more from your content every day.

4.1 Trademarks

• Android and Google Play and trademarks of Google LLC.
• Oracle and Java are a registered trademarks of Oracle and / or its affiliates.
• Wi-Fi® Wi-Fi logo are a registered trademarks Wi-Fi Alliance association.
• All other trademarks and copyrights belong to their respective owners.

Manufacturer

mPTech Ltd.

00-511 Warsaw, Poland

Manufactured in China

5. Package content

• Smartphone
• Battery
• USB-C cable
• User manual

If any of the above items is missing or damaged, please contact your dealer.

For environmental reasons, this package does not include a charger. This device can be powered by most USB power adapters and a cable with a USB Type-C plug.

6. Technical Specification

Display: 6.59" FHD+, 2412×1080 px

Processor: MediaTek Dimensity 7050, 2x2.6 GHz + 6x2.0 GHz

Main camera (rear): 50 Mpx + 8 Mpx (night vision)

Front camera: 16 Mpx

RAM memory: 8 GB

Internal memory: 256 GB

Operating system: Android 13

Dual SIM: nanoSIM + nanoSIM + microSD

Water and dust resistance: IP69

Connector: USB-C

Connectivity: NFC, Wi-Fi 2.4GHz/5.0GHz (802.11 a/b/g/n/ac/ax),

dual band GPS/A-GPS, Glonass, Galileo, Beidou, Bluetooth 5.2

Sensors: Fingerprint sensor (Side-mounted), Proximity sensor,

Ambient light sensor, Accelerometer, Gyroscope, Compass

2G (GSM): 850/900/1800/1900 MHz

UMTS: 850/900/1900/2100 MHz

LTE: 700/800/900/1800/2100/2600MHz

5G: 700/1800/2100/2500/2600/3500/3700MHz

Battery:

HS2301 Li-poli 5000 mAh

HS2301e Li-Ion 5000 mAh

Dimensions: 171.79 x 83.8 x 12 mm

Weight netto: 281 g

Power parameters:

The power delivered by the charger must be between min 5 Watts required by the radio equipment, and max 18 Watts in order to achieve the maximum charging speed.

USB PD, PumpExpress fast charging

Fast charging system Pump Express (5V/7V/9V/12V and maximum 18W)

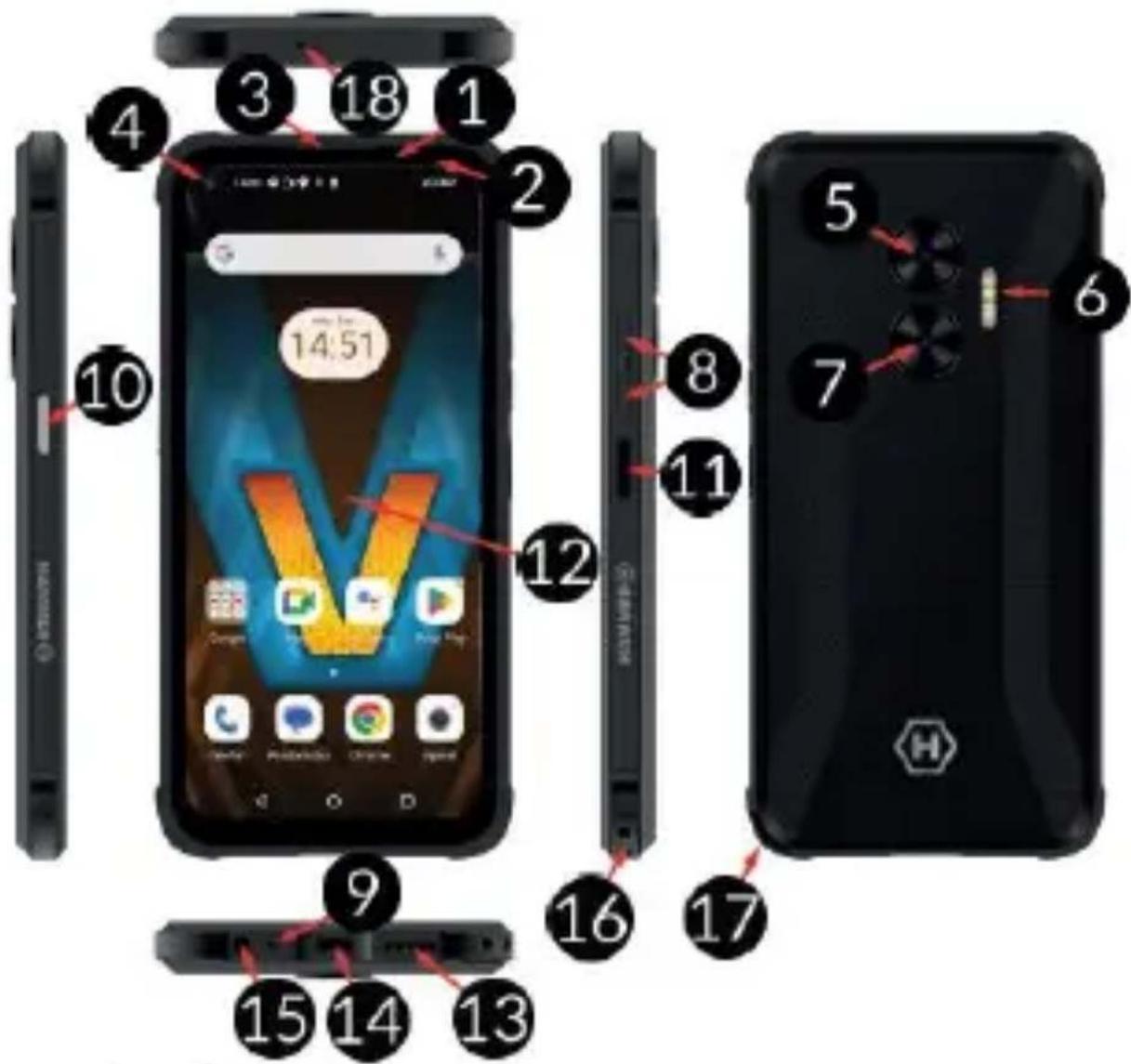

7. Appearance of the phone

Diagram of a smartphone with numbered parts for identification and assembly, highlighting the V app interface.

	Functions
1	Notification diode
2	Brightness and proximity sensors
3	Internal speaker
4	Digital camera lens 16 Mpx (selfie)
5	Digital camera lens 50 Mpx (main)
6	Lighting diode / Camera flashlight
7	Night vision camera 8 Mpx
8	Volume control buttons
9	Microphone 1
10	Programmable button
11	Blockade on/off button
12	Touchscreen 6.59”
13	External speaker
14	Multifunctional USB-C port
15	Minijack 3.5mm
16	Lanyard attachment
17	Gap
18	Microphone 2

8. eSIM installation

An Internet connection (Wi-Fi or cellular data) is required to install the eSIM profile.

8.1 Starting and activating the eSIM card

Go to [Settings] and select [Mobile Network/eSIM] from the menu list (if a regular SIM card is inserted, go to [eSIM]) to start the card installation. Activating an eSIM card involves downloading its profile by scanning the QR code or manually entering the activation code.

If adding a new eSIM card, remove the SIM card before configuration!

To set up a new eSIM profile, you will need to enter a special QR code you receive from your carrier, which you can scan with a QR code scanner or enter manually by going to the [Need help?] tab while scanning.

After scanning or entering the code, the card's profile will download automatically.

Once the profile is downloaded, [Menu] > [Settings] > [Mobile Network/eSIM] will show a tab with the name of the operator and eSIM signature, and a network coverage icon in the top status bar.

8.2 Disabling and deleting the profile

To disable the eSIM card's profile, go to [Settings] > [Mobile Network/eSIM] > [eSIM card's operator name] expand advanced options, then in the [Operator] tab go to the settings icon and select Disable/Enable. Once the card is disabled, the coverage icon will disappear from the top bar.

To remove the selected eSIM card profile completely, select Delete.

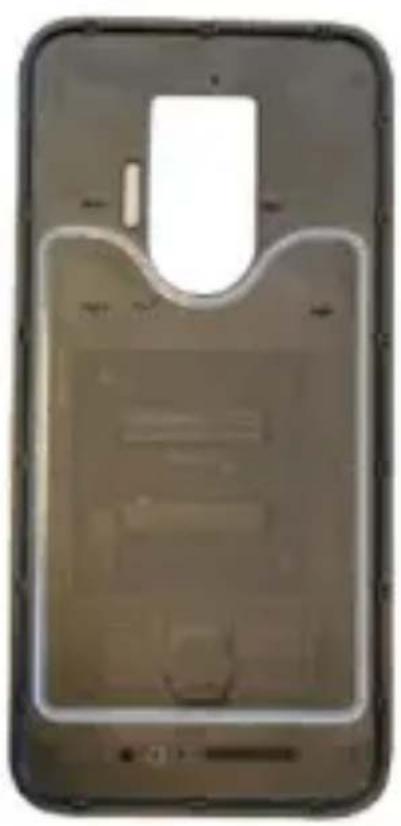

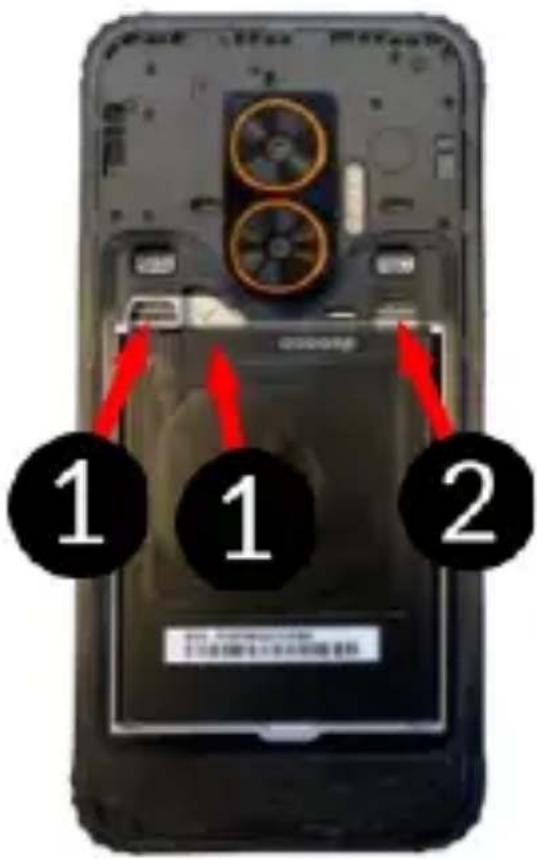

9. SIM card installation

To install the SIM card, remove the phone's flip cover, then slide the card into the selected slot.

1 1 2

Front view of a smartphone case with a U-shaped cover and internal display panel (no visible text or symbols)

1. SIM 1 slot
2. SIM 2 slot
3. microSD slot

10. Buttons

Menu (virtual)

Pressing it will cause the list of open apps to appear, where you can

switch in-between or turn them off.

Home (virtual)

One quick press takes you to phone desktop. A longer press launches Google Assistant.

Back (virtual)

Press to exit the application / return to the previous screen.

Blockade on/off button

• One quick press locks/unlocks the screen.
• Pressing the button for about 2 sec. will cause:

○ If the smartphone is off - the device would switch on.
- if the smartphone is switched on, call up a menu to shut down the device, reboot the system.

Volume increase and decrease buttons

Pressing during a voice call will cause an increase or decrease of the audio connection volume.

Programmable button

Pressing on an unlocked smartphone launches the camera app. You can change its function using the settings menu.

11. Using the touch screen

The smartphone's touchscreen makes it easy to select items, perform

operations and gestures. The

touchscreen can be controlled by the following actions:

11.1 Touch

Touch one to start options, app, menu.

Hand cursor clicking a green circular button with a purple ring (no text or symbols)

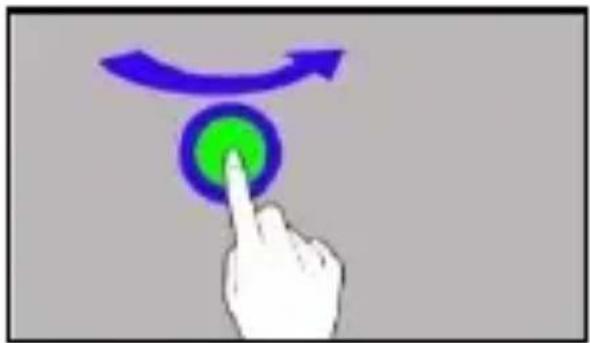

11.2 Swipe

Quickly swipe up, down, to the left or to the right, to scroll the list or the screen.

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

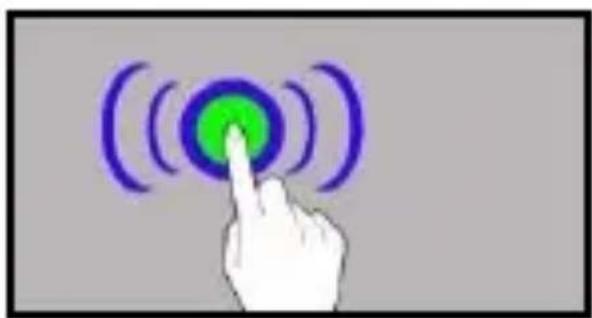

11.3 Triple click

Quickly tap the screen three times to start zooming - if this option is enabled in your smartphone settings.

Hand pressing a button with a green circular icon and purple wave signals (no text or symbols)

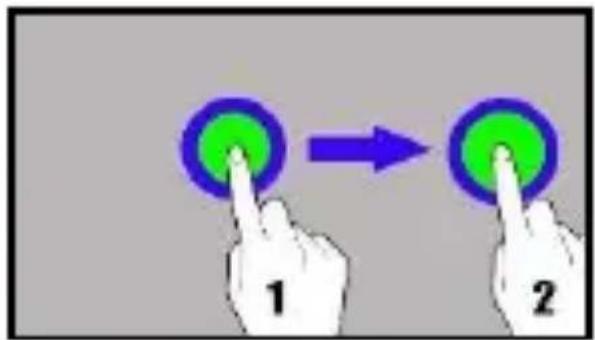

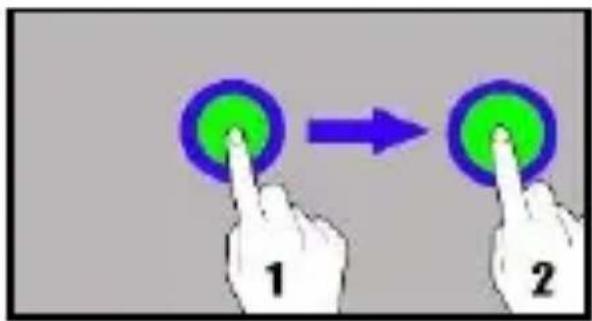

11.4 Hold and swipe

Touch an element (an icon perhaps) and hold it for about 1 seconds. Then you can delete/uninstall that element.

1 2

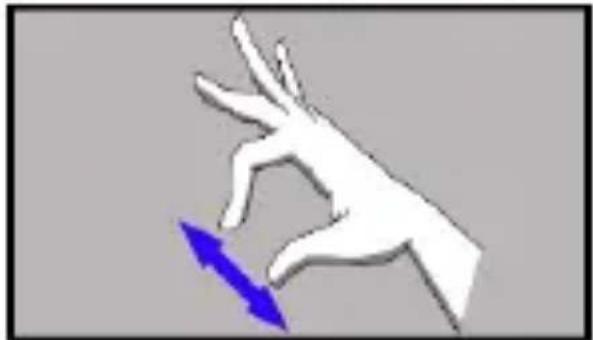

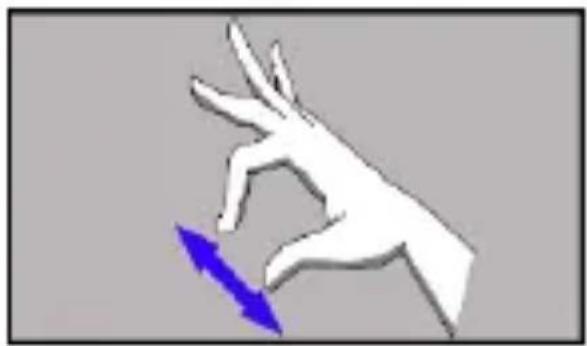

11.5 Slide in and out

Touch the screen with two fingers and slide them together or apart to zoom in or out a photo or a map.

White hand holding a small object with a blue arrow pointing downward (no text or symbols)

12. Communication

12.1 Making calls

To make a call touch [Phone] icon placed on the main screen or in Android applications menu. Insert the phone number you wish to call. Press "green handset" placed at the bottom of the screen and choose which SIM card you wish to use.

12.2 SMS - Messages

You can manage your messages using the [Messages]

application in the home screen or smartphone menu. Start the

application and touch the icon, type the phone

number, name of the contact or select a contact from the list. When you have chosen the contact a screen will appear where you type the message itself. Type the message body. Before you send a text message you can transform it into a multimedia message by pressing

symbol ,situated in the left corner of the textbox and adding a sticker, audio or location. To add a photo from the gallery or directly

from your camera, tap the symbol. To send the message press

13. Battery management (Android 14)

This feature is available when you first start up your phone [Initial setup] or later at any time under [Settings] > [Battery] > [Battery status].

Battery management allows you to extend the battery life by setting a charging limit. With this feature, you can disable the limit completely (which means charging to 100%) or set one of the available thresholds: 70%, 80% or 90%. The device will stop charging when the selected level is reached, e.g. 80%.

In the battery status settings section, you will also find useful information such as the battery's date of manufacture, date of first use and number of full charge cycles.

14. Maintenance of the device

Follow the instructions below.

• For cleaning use only a dry cloth. Never use any agent with a high concentration of acids or alkalis.
• Use the original accessories only. Violation of this rule may result in an invalidation of the warranty.

15. Correct disposal of used equipment

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

The device is marked with a crossed-out garbage bin, in accordance with the European Directive 2012/19/EU on used electrical and electronic Equipment (Waste Electrical and Electronic equipment - WEEE). Products marked with this symbol should not be disposed of or dumped with other household waste after a period of use. The user is obliged to get rid of used electrical and electronic equipment by delivering it to designated recycling point in which dangerous waste are being recycled. Collecting this type of waste in designated locations, and the actual process of their recovery contribute to the protection of natural resources. Proper disposal of used electrical and electronic equipment is beneficial to human health and environment.

To obtain information on where and how to dispose of used electrical and electronic equipment in an environmentally friendly manner, user should contact their local government office, the waste collection point, or point of sale, where the equipment was purchased.

16. Correct disposal of used battery

Simple line drawing of a trash bin with no text or symbols

According to the EU directive 2006/66/EC with changes contained in EU directive 2013/56/UE on the disposal of batteries, this product is marked with crossed-out garbage bin symbol. The symbol indicates that the batteries used in this product should not be disposed with regular household waste, but treated according to the legal directives and

local regulations.

It is not allowed to dispose of batteries and accumulators with unsorted municipal waste. Users of batteries and accumulators must use the available collection points of these items, which allows them to return, recycle and disposal. Within the EU, the collection and recycling of batteries and accumulators is a subject to separate procedures. To learn more about existing procedures of recycling of batteries and accumulators please contact your local office or an institution for waste disposal or landfill.

Uživatelský manuál

HAMMER HS2301\_HS2301e

1. Obsah balení

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

—OMEZENÍ VYUŽITÍ—

Yellow triangular warning sign with a black outline of a human ear and sound waves, indicating hearing or noise.

—SLUCH—

Yellow triangular warning sign with a black eye symbol and sunburst (no text)

—ZRAK—

www.myphone-mobile.com

Vyrobeno v Číně

5. Obsah balení

LTE: 700/800/900/1800/2100/2600MHz

5G: 700/1800/2100/2500/2600/3500/3700MHz

Baterie:

HS2301 Li-poli 5000 mAh

HS2301e Li-Ion 5000 mAh

Diagram of a smartphone with numbered parts for identification and assembly, highlighting the V app interface.

Front view of a smartphone case with visible internal components and a central screen (no text or symbols)

1. SIM 1 slot
2. SIM 2 slot
3. microSD slot

10. Tlačítka

Menu (virtuální)

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

11.2 Posunout

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand icon with a green circular button and purple waveform, pointing at it (no text or symbols)

1 2

11.5 Posuňte dovnitř a ven

White hand with a blue arrow pointing downward, no text or symbols present

12. Komunikace

12.1 Volání

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with diagonal lines indicating no text or symbols (no text or labels)

HAMMER HS2301\_HS2301e

1. Obsah balenia

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

predpisy.

—OBMEDZENIA V POUŽITÍ—

Warning sign with yellow triangle and ear icon, indicating sound or hearing hazard

zariadenie

—SLUCH—

Yellow triangular warning sign with sun and eye symbol (no text)

—ZRAK—

LTE: 700/800/900/1800/2100/2600MHz

5G: 700/1800/2100/2500/2600/3500/3700MHz

Batérie:

HS2301 Li-poli 5000 mAh

HS2301e Li-Ion 5000 mAh

Rozmery: 171.79 x 83.8 x 12 mm

Váha netto: 281 g

Diagram of a smartphone with numbered parts for identification and assembly, highlighting the V app interface.

Front view of a smartphone casing with visible internal components and a central screen (no text or symbols)

1. SIM 1 slot
2. SIM 2 slot
3. microSD slot

10. Tlačidlá

Menu (virtuálne)

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

11.2 Posunút

Hand pressing a green circular button with a curved arrow above it (no text or symbols)

11.3 Trojité kliknutie

Hand touching a circular button with purple and green concentric rings (no text or symbols)

11.4 Držte a posuňte

White hand with a blue arrow pointing downward, no text or symbols present

12. Komunikácia

12.1 Volanie

Ak chcete uskutočnit hovor, stlačte ikonu [Telefón]

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with no text or symbols

HAMMER HS2301\_HS2301e

1. Tartalomjegyzék

Black exclamation mark icon on white background, no text or symbols present

Yellow triangular warning sign with a black outline of a human ear and sound waves

—HALLÁS—

Yellow triangular warning sign with a stylized eye and sun symbol (no text)

—LÁTÁS—

LTE: 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Akkumulátor:

HS2301 Li-poli 5000 mAh

HS2301e Li-Ion 5000 mAh

Méretek: 171.79 x 83.8 x 12 mm

Súly netto: 281 g

Diagram of a smartphone with numbered parts for identification and assembly, highlighting the V app interface.

Exterior view of a smartphone casing with visible internal components and mounting holes (no text or symbols)

10. Gombok

Menü (virtuális)

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

11.3 Tripla kattintás

Hand pressing a button with a green circular icon and purple wave signals (no text or symbols)

11.4 Nyomvatartás

White hand gesture with a blue directional arrow pointing downward (no text or symbols)

12. Kommunikáció

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or labels)

Simple line drawing of a trash bin with no text or symbols

HAMMER HS2301\_HS2301e

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

Warning sign depicting a human ear with sound waves, commonly used for hearing or listening to the ear.

—GEHÖR—

Yellow triangular warning sign with sun and eye symbol (no text)

—SEHKRAFT—

4G: 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Batterie:

HS2302: Li-Poli 5000 mAh

HS2302e: Li-Ion 5000 mAh

Diagram of a smartphone with numbered parts for identification and assembly, highlighting the V app interface and status.

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

11.2 Verschieben

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand icon pointing at a green circular button with purple curved lines, no text or symbols present

White hand holding a large object with a blue arrow pointing downward (no text or symbols)

12. Kommunikation

12.1 Telefonieren

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

HAMMER HS2301\_HS2301e

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

—RESTRIZIONI D'USO—

Warning sign with yellow triangle and ear icon, indicating sound or hearing hazard

acceso!

-UDITO-

Yellow triangular warning sign with a stylized eye and sunburst symbol (no text)

—VISTA—

4G: 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Batteria:

HS2302: Li-Poli 5000 mAh

HS2302e: Li-Ion 5000 mAh

Dimensioni: 171.79 x 83.8 x 12 mm

Peso netto: 281g

Diagram of a smartphone with numbered parts for identification and assembly, highlighting the V app interface.

Funzione

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand touching a circular button with purple and green concentric rings (no text or symbols)

Illustration of a hand reaching toward an angle with a blue directional arrow (no text or symbols)

12. Comunicazione

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

HAMMER HS2301\_HS2301e

1. Índice

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

Yellow triangular warning sign with a black outline depicting a human ear and sound waves

Yellow triangular warning sign with a stylized eye and sun symbol (no text)

—VISTA—

4G: 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Batería:

HS2302: Li-Poli 5000 mAh

HS2302e: Li-Ion 5000 mAh

Dimensiones: 171.79 x 83.8 x 12 mm

Peso netto: 281g

Diagram of a smartphone with numbered parts for each stage, highlighting the V app's virtual status and control interface.

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

11.2 Deslizar

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

11.3 El click triple

Hand pressing a circular button with purple and green concentric rings (no text or symbols)

White hand gesture with blue directional arrows indicating movement or force (no text or symbols)

12. Comunicación

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

HAMMER HS2301\_HS2301e

1. Índice

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

Warning sign with yellow triangle and black outline depicting a human ear with sound waves

-AUDICIÓN-

Yellow triangular warning sign with sun and eye symbol (no text)

—VISTA—

Câmara principal (atrás): 50 Mpx + 8 Mpx (nocturna)

Câmara frontal: 16 Mpx

Memória RAM: 8 GB

4G: 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Bateria:

HS2302: Li-Poli 5000 mAh

HS2302e: Li-Ion 5000 mAh

Diagram of a smartphone with numbered parts for each stage, highlighting the V app's virtual status and control interface.

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

11.3 El click triple

Hand touching a circular button with green and purple segments, symbolizing wireless or signal input (no text or symbols present)

White hand gesture with blue directional arrows indicating movement or force (no text or symbols)

12. Comunicación

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

HAMMER HS2301\_HS2301e

1. Communication ....160

Black icon of a stylized book with an exclamation mark (no text or symbols)

—SERVICE PROFESSIONNEL—

Yellow triangular warning sign with sun and eye symbol (no text)

aux yeux!

—VUE—

Warning sign with yellow triangle and black outline depicting a human ear with sound waves

4G: 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Batterie:

HS2302: Li-Poli 5000 mAh

HS2302e: Li-Ion 5000 mAh

Dimensions: 171.79 x 83.8 x 12 mm

Poids netto: 281g

Diagram of a smartphone with numbered parts for identification and assembly, highlighting the V app interface and status.

Hand pressing a button with a green circular icon and curved arrows above (no text or symbols)

11.3 Triple-clic

Hand pressing a button with a green circular icon and purple wave signals (no text or symbols)

White hand reaching toward a blue arrow, no text or symbols present

12. Communication

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

HAMMER HS2301\_HS2301e

1. Sisukord

1. Sisukord....163
2. Ohutus....164
3. Juhendi kasutamine....167
4. Oluline teave ....167

4.1 Kaubamärgid 168

Black and white icon of an exclamation mark on a stylized book or document (no text or symbols)

—KASUTAMISPIIRANGU—

Yellow triangular warning sign with a black-and-white line drawing of an ear and sound waves

—KUULMINE—

Yellow triangular warning sign with sun and eye symbol (no text)

—NÄGEMINE—

Veebileht: www.myphone-mobile.com

Toodetud Hiinas

5. Pakendi sisu

• Mobiiltelefon
• Aku
• USB-C kaabel
• Kasutusjuhend

4G: 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Aku:

HS2302: Li-Poli 5000 mAh

HS2302e: Li-Ion 5000 mAh

Mõõdud: 171.79 x 83.8 x 12 mm

Kaal netto: 281 g

Toiteparameetrid:

USB PD, PumpExpress fast charging

Diagram of a smartphone with numbered parts for each of the screen, showing internal components and UI elements.

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

11.2 Pühkimine

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

11.3 Kolmekordne klöps

Hand cursor clicking a circular button with green and purple signal waves (no text or symbols)

White hand gesture with a blue arrow pointing downward (no text or symbols)

lahku.

12. Suhtlemine

12.1 Helistamine

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

HAMMER HS2301\_HS2301e

1. Saturs

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

Yellow triangular warning sign with a black outline depicting a human ear and sound waves

—DZIRDE—

4G: 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Akumulatoraa:

HS2302: Li-Poli 5000 mAh

HS2302e: Li-Ion 5000 mAh

Izmēri: 171.79 x 83.8 x 12 mm

Svars netto: 281 g

Energijas parametri:

Diagram of a smartphone with numbered parts for identification and assembly, highlighting the V app interface.

Diagram showing a smartphone back panel with labeled parts and red arrows indicating assembly steps

1. SIM 1
2. SIM 2
3. microSD

10. Pogas

Hand cursor clicking a green circular button with a blue-purple ring (no text or symbols)

11.2 Pavilkšana

Hand pressing a button with a green circular icon and blue curved arrow above it (no text or symbols)

Hand pressing a circular button with green center and purple arcs, symbolizing wireless or digital signal (no text or symbols)

White hand with a blue arrow pointing downward, no text or symbols present

12. Sakari

12.1 Zvanu veikšana

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

Simple line drawing of a trash bin with diagonal lines indicating no text or symbols

HAMMER HS2301\_HS2301e

1. Turinys

Black exclamation mark symbol on white background (no text or numbers)

—PAGALBOS SKAMBUČIAI—

Warning sign with yellow triangle and black outline depicting a hearing or sound artifact

—KLAUSA—

Yellow triangular warning sign with sun and eye symbol (no text)

—REGÉJIMAS—

4G: 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Baterijos:

HS2302: Li-Poli 5000 mAh

HS2302e: Li-Ion 5000 mAh

Matmenys: 171.79 x 83.8 x 12 mm

Svoris netto: 281 g

Maitinimo parametrai:

Diagram of a smartphone with numbered parts for identification and assembly, highlighting the V app interface.

Close-up of a smartphone casing with a U-shaped cover and internal circuitry (no visible text or symbols)

1. SIM 1
2. SIM 2
3. microSD

10. Mygtukai

Meniu (virtualus)

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

11.2 Braukimas

Hand pressing a button with a green circular icon and curved arrows above (no text or symbols)

Hand pressing a green circular button with purple waveform indicators (no text or symbols)

White hand reaching toward a blue arrow, no text or symbols present

12. Bendravimas

12.1 Skambinimas

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

HAMMER HS2301\_HS2301e

1. Содержание

Black and white icon of an exclamation mark on a stylized book or document (no text or symbols)

Yellow triangular warning sign with a black outline of an ear and sound waves, indicating hearing or noise hazard.

Yellow triangular warning sign with sun and eye symbol (no text)

4G: 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Аккумулятор:

HS2302: Li-Poli 5000 mAh

HS2302e: Li-Ion 5000 mAh

Diagram of a smartphone with numbered parts for identification and assembly, highlighting the V app interface.

Front view of a smartphone casing with visible internal components and mounting holes (no text or symbols)

1. SIM 1
2. SIM 2
3. microSD

10. Кнопки

Меню (виртуальное)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

HAMMER HS2301\_HS2301e

1. Continut

Black and white icon of an exclamation mark on a stylized book or document (no text or symbols)

Warning sign with yellow triangle and black outline depicting a hearing or sound symbol

Yellow triangular warning sign with sun and eye symbol (no text)

—VEDEREA—

4G: 700/800/900/1800/2100/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Bateriei:

HS2302: Li-Poli 5000 mAh

HS2302e: Li-Ion 5000 mAh

Dimensiuni: 171.79 x 83.8 x 12 mm

Greutate netto: 281 g

Parametrii de alimentare:

Diagram of a smartphone with numbered parts for identification and assembly, highlighting the V app interface and status.

Close-up of a smartphone casing with a U-shaped cover and internal circuitry (no visible text or symbols)

1. SIM 1
2. SIM 2
3. microSD

10. Butoanele

Meniu (virtual)

White hand gesture with blue directional arrows indicating movement or force (no text or symbols)

12. Comunicarea

12.1 Efectuarea apelurilor

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

HAMMER HS2301\_HS2301e

1. Съдържание

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

Yellow triangular warning sign with a black outline of a human ear and sound waves, indicating hearing or alert.

Yellow triangular warning sign with sun and eye symbol (no text)

LTE: 700/800/900/1800/2100/2600MHz

5G: 700/1800/2100/2500/2600/3500/3700MHz

Акумулаторна батерия:

HS2302: Li-Poli 5000 mAh

HS2302e: Li-Ion 5000 mAh

Нетно тегло: 281

Размери: 171.79 x 83.8 x 12 mm

Diagram of a smartphone with numbered parts for identification and assembly, highlighting the V app interface and status.

Close-up of a smartphone back panel showing internal components and a central slot (no text or symbols visible)

10. Бутони

Меню (виртуално)

Touch an element (an icon perhaps) and hold it for about 1 seconds. Then you can delete/uninstall that element.

11.5 Slide in and out

Touch the screen with two fingers and slide them together or apart to zoom in or out a photo or a map.

1 2

White hand reaching toward a blue arrow, no text or symbols present

12. Комуникация

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or labels)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)
