USER MANUAL Robot 600 Easy Plus Inox TAURUS

Line drawing of a handheld electric shaver with a vertical shaft and base (no text or symbols)

A B G ml 500 400 300 200 100 D E MAX C F

E
F

Fig.1
Fig.2	Fig.3.1 Fig.3.2Fig.3.3Fig.3.4

Fig.4

1 CLICKCLICK 2 → 2 1

Fig.4.1 Fig.4.2 Fig.4.3
Fig.5

Line drawing of a vertical cylindrical device with a flanged top and base (no text or symbols)

Español

Batidora de varilla

ROBOT 600 EASY

ROBOT 600 EASY INOX

ROBOT 600 EASY PLUS INOX

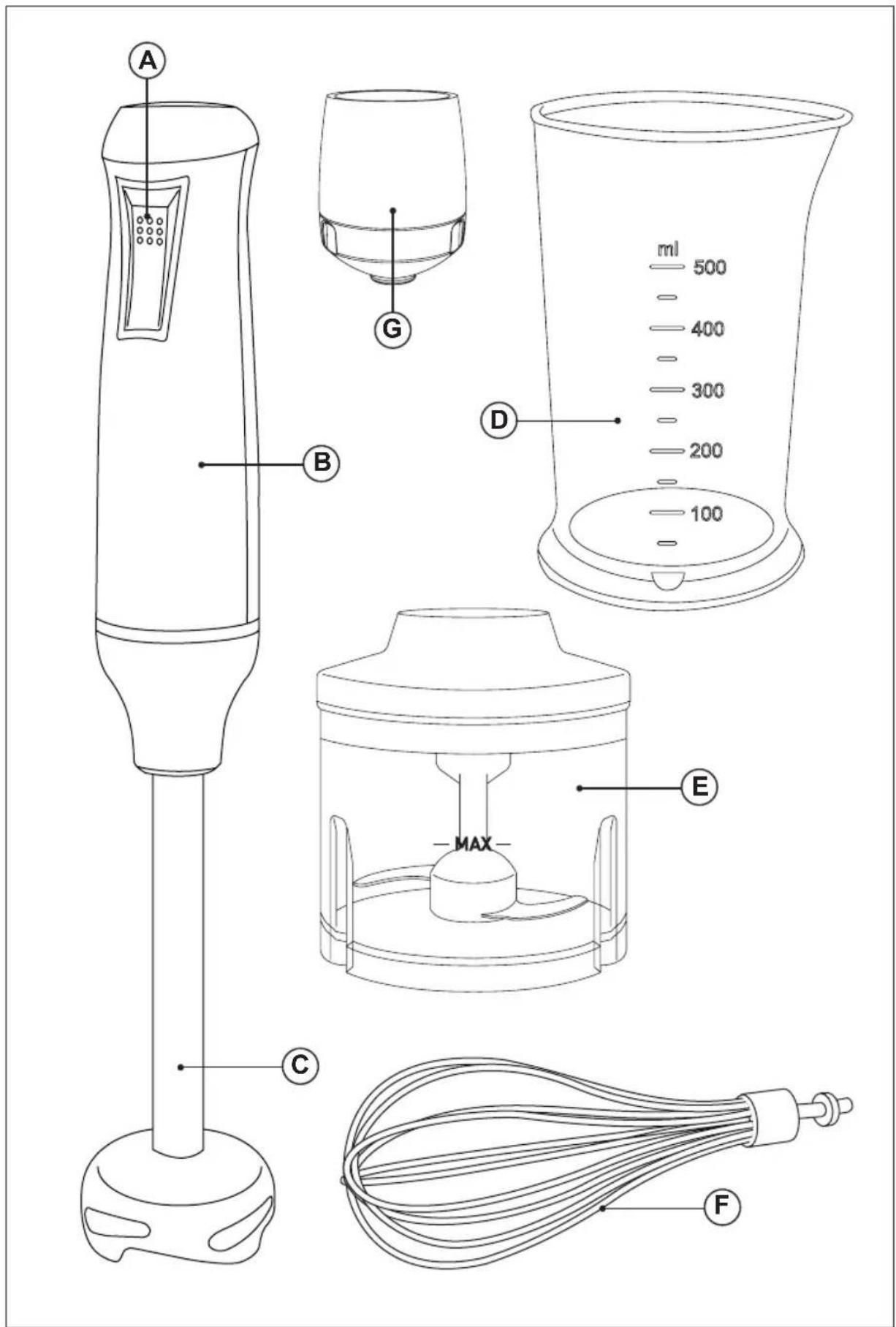

DESCRIPCIÓN

A Pulsador

B Cuerpo motor

C Varilla

D Vaso medidor (*)

E Picador (**)

F Batidor emulsionador (**)

G Adapter fitting (**)

(*) Only available in the models Robot 600 Easy Inox and Robot 600 Easy Plus Inox.

(**) Only available in the model Robot 600 Easy Plus Inox.

- If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

USE AND CARE

- Fully extend the appliance's power cable before each use.

- Do not use the appliance if its accessories are not properly fitted.

- Do not use the appliance if the accessories attached to it are defective. Replace them immediately.

- Do not use the appliance if it is empty.

- Do not use the appliance if the on/off switch does not work.

- Respect the MAX level indicator. (Fig.1).

- When using hot liquids do not fill the jug more than half way. At all times, when mixing hot liquids in the jug, select the slowest speed on the speed selector.

- Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

- Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

- Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.

- Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

- Do not use the appliance on any part of the body of a person or animal.

- Do not use the appliance with frozen goods or those containing bones.

- Do not use the appliance for more than 1 minute at a time. Do not use cycles of more than 1 minute. When using 1-minute cycles allow a resting period of at least 1 minute between each cycle. Under no circumstances should the appliance be operated for more time than necessary.

- As a reference in the annexed table appears several recipes, that include the amount of food to process, the recommended operating time to elaborate each recipe, as well as the time of maximum operation of the apparatus under each one of these conditions of load.

INSTRUCTIONS FOR USE

BEFORE USE:

- Make sure that all products' packaging has been removed.

- Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

- Prepare the appliance according to the function you wish to use.

USE:

- Extend the cable completely before plugging it in.

- Connect the appliance to the mains.

- Turn the appliance on, by using the on/off button.

- Select the desired function.

- Work with the food you want to process.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Stop the appliance by releasing the pressure on the on/off button.
• Unplug the appliance from the mains.
• Clean the appliance.

ACCESSORIES:

STICK BLENDER ACCESSORY (FIG.2):

• This accessory is used for making sauces, soups, mayonnaise, milkshakes, baby food ...
• Attach the stick to motor body and turn in the direction of the arrow (Fig.2).
• Put the food to be prepared in the jar and switch the appliance on.

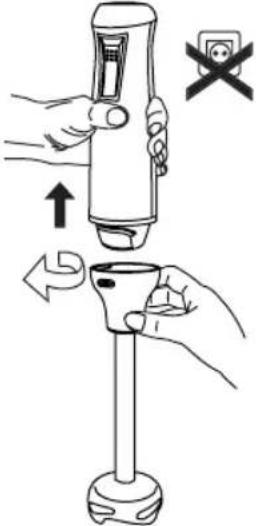

• For further cleaning, detach and remove the stick by turning in the opposite direction of the arrow.

CHOPPER ACCESSORY (FIG.3):

• This accessory is used to chop vegetables or meat...
• To avoid damage to the appliance, remove bones, nerves, cartilage, etc. from the meat.
• Attach the adapter fitting to the motor body and turn in the direction of the arrow (Fig.3.1).

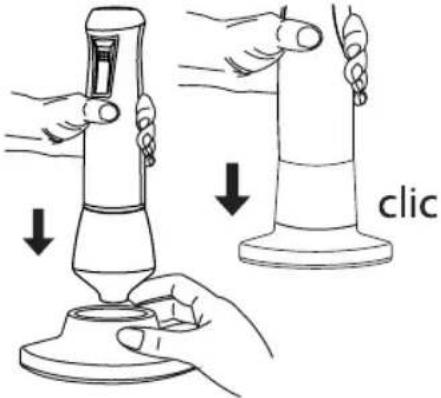

• Attach the unit to the cover until you hear a click (Fig. 3.2).

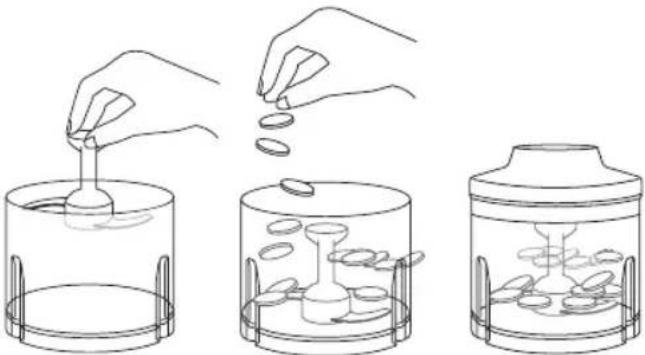

• Put the food to be prepared in the chopping container and attach the cover firmly (Fig.3.3).
• Switch the appliance on. Be careful: do not switch the appliance on if the whole unit is not properly fitted and connected together.
• Stop the appliance when the food reaches the desired texture.

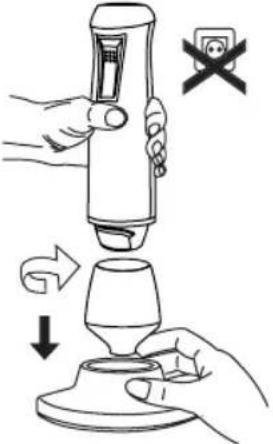

• Detach the unit from the lid, and release the adapter fitting (Fig.3.4).

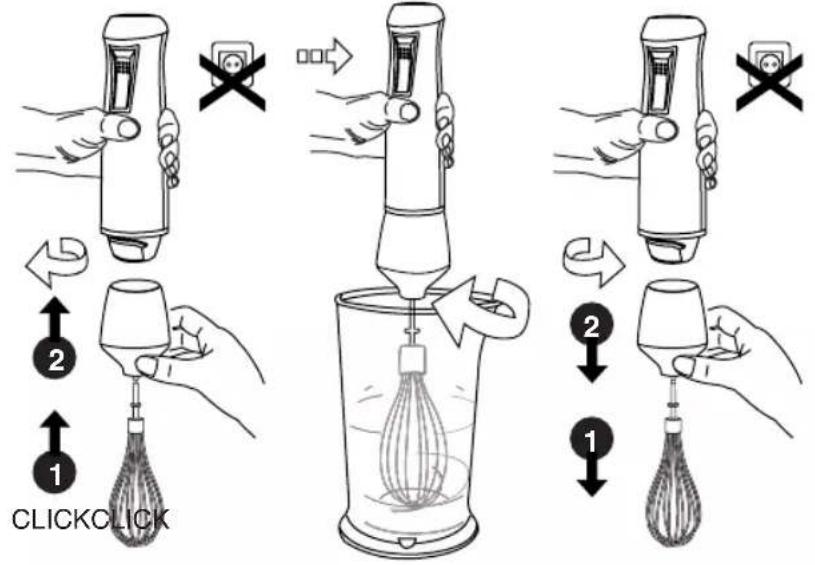

WHISK ACCESSORY (FIG.4):

• This accessory is used to whip cream, beat egg whites...
• Insert the whisk into the adapter fitting (Fig. 4.1). Join this unit to the motor unit turn in the direction of the arrow (Fig.4.1).
• Put the food into a large receptacle and switch the appliance on (Fig. 4.2). For best results, turn the whisk clockwise.
• Remove the whisk accessory and release the adapter fitting. (Fig.4.3).

Note 2: To free the whisk (F) from the adapter fitting (G), pull the ring on the whisk.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• During the cleaning process, take special care with the blades, as they are very sharp.
• It is advisable to clean the appliance regularly and remove any food remains.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
• The following pieces may be washed in a dishwasher (using a soft cleaning program):
• Measuring cup.
• Stick blender
• The draining/drying position of the articles washable in the dishwasher or in the sink must allow the water to drain away easily (Fig.5).
• Then dry all parts before its assembly and storage.

Food preparation:

Recipe Accessory Quantity Preparation Time
Mayonnaise	[20GW]	250 ml Put 1 egg in the jug with a pinch of salt and some drops of vinegar or lemon.Add oil until the indicated level. Turn the appliance on without moving until the oil binds.	35 s
Fruit smoothies		---- Add fruit and activate the blender until the mixture has a smooth consistency.	----
Béchamel sauce		600 ml Melt 30 gr. of butter in a pan on a slow heat. Add 100 gr. of flour and 30 gr. of fried onions (already cut up with the slicer). Slowly add 500 ml of milk.	15 s
Whipped cream		250 ml Place cold cream (0 to 5°C) into a cold receptacle and beat with blender, making vertical movements. Be careful not to overbeat as the cream will turn to butter.	2 min
Whipped egg whites		3 claras Add the whites to a receptacle and whip with blender, making vertical movements.	2 min
Spanish Serrano ham	[ZSTX]	35 g Previously chop into 1 cm chunks. Mince until the desired texture is obtained.	3 s
Baby food: fruit and biscuit mush		300 g Cut up and place 100 gr. of apple, 100 gr. of banana, 50 gr. of biscuits and the juice of one orange in the jug.	25 s
Mashed potatoes		400 g Potatoes can be blended while still in the saucepan.	30 s
Grated bread		50 g Cut up stale bread and place into goblet.Blend until desired consistency is achieved.	1,5 min
Grated cheese		100 g Cut into 1cm cubes and blend until desired consistency is achieved.	30 – 50 s
Minced boiled egg		2 eggs Cut into four pieces and blend until desired consistency is achieved.	10 s
Minced meat (raw or cooked)		150 g Before blending, cut into 1cm cubes. 30 s
Carrot		200 g Peel, dice and blend until desired consistency is achieved.	30 s
Nuts		200 g Remove shell and blend until desired consistency is achieved.	30 s

Français

Mixeur

ROBOT 600 EASY

ROBOT 600 COMPLET INOX

ROBOT 600 EASY PLUS INOX

DESCRIPTION

A Touche

B Corps moteur

C Fouet

D Verre-doseur (*)

E Hachoir (**)

ACCESSORI BATEDOR (FIG.4):

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/
