Succo Easy Mill - Blender TAURUS - Free user manual and instructions

Brand	TAURUS
Model	Succo Easy Mill
Product type	Blender with grinder
Jug material	Glass
Jug capacity	Approximately 1.5 L (according to MAX mark)
Blade material	Stainless steel
Number of speeds	2 speeds + Pulse function
Pulse function	Yes (position « P »)
Grinder accessory	Yes, for dry foods only
Thermal safety	Overheat protection device
Self-cleaning function	Yes (water + detergent, Pulse mode)
Removable blades	Yes (ejectable knives for cleaning)
Max liquid temperature	80 °C
Max continuous usage time	2 minutes
Minimum rest time	1 minute between each cycle
Dishwasher safe	Jug, lid, measuring cup, grinder container (delicate mode)
Power cord length	Approximately 1.2 m (estimate)
Net weight	Approximately 2.5 kg
Dimensions (W x D x H)	Approximately 25 x 20 x 40 cm
Warranty	In accordance with current legislation, approved after-sales service
Intended use	Domestic

Frequently Asked Questions - Succo Easy Mill TAURUS

How to use the Pulse function?

To use the Pulse function, set the speed selector to the « P » position. The appliance runs at full power as long as you hold the button down. Release it to stop. It is recommended to perform cycles of a maximum of 3 seconds, repeating until the desired result.

Can I blend hot foods?

Yes, but the temperature of liquids must not exceed 80 °C. Additionally, the volume of hot liquid must not exceed half of the jug's capacity. Use only the slowest speed (position 1) for hot liquids.

How to clean the blender?

Unplug the appliance and let it cool. Clean the motor unit with a damp cloth and a little detergent. Parts such as the jug, lid, measuring cup, and grinder container are dishwasher safe (delicate mode). You can also use the self-cleaning function by adding water and a little detergent, then activating Pulse mode.

Are the parts dishwasher safe?

Yes, the jug, lid, measuring cup, and grinder container are dishwasher safe. Use a delicate cycle to avoid damage. Make sure to dry all parts thoroughly before reassembling.

What should I do if the appliance stops on its own?

This is probably due to the thermal protection that prevents overheating. Unplug the appliance and wait about 15 minutes before plugging it back in. If it does not restart, contact an approved technical support service.

How to use the grinder?

Open the grinder lid by turning it to the right. Put dry ingredients (do not exceed the maximum capacity). Close the lid by turning it to the right until it clicks. Plug in the appliance and select the desired speed. To stop, set the selector to « 0 ».

What is the maximum capacity of the jug?

The maximum capacity is indicated by the MAX mark on the jug. It is approximately 1.5 liters. Never exceed this level to avoid overflowing or malfunction.

How long can I use the blender continuously?

The blender must not be used for more than 2 minutes continuously. After each cycle, let the appliance cool for at least 1 minute before using it again. This extends its lifespan and prevents overheating.

Are the blades removable for cleaning?

Yes, the blades are ejectable. To remove them, loosen the fixing ring by turning counterclockwise. Remove the blades and the seal for cleaning. After cleaning, reassemble by turning the ring counterclockwise. Be careful, blades are very sharp.

Where can I find after-sales service?

Approved after-sales service is available on the website http://taurus-home.com/. You will find the nearest service center as well as warranty information. Keep your proof of purchase for any claims.

USER MANUAL Succo Easy Mill TAURUS

White taurus blender with visible brand name and control knob (no text-heavy elements)

EN. Instructions for use

FR. Mode d'emploi

Line drawing of a blender with a key inserted, showing the blade and handle (no text or symbols)

Downloaded by: pd-oliana on 11-08-2022 09:16 CEST

(Original instructions)

Jar blender

SUCCO EASY MILL

DESCRIPTION

A Measuring cup

B Lid

C Jar

D Blade set

E Fixing ring blades

F Motor body

G Speeds knob

H Pulse function

I Grinding cup

J Seal ring

K Chopping blade

USE AND CARE:

Fully extend the appliance's power cable before each use.

Do not use the appliance if its accessories are not properly fitted.

Do not use the appliance if the accessories attached to it are defective. Replace them immediately.

Do not use the appliance while the jug is empty.

Do not use the appliance if the on/off switch does not work.

Do not move the appliance while in use.

Do not turn the appliance over while it is in use or connected to the mains.

Do not force the appliance's work capacity.

Respect the MAX level indicator.

When using hot liquids do not fill the jug more than half way. At all times, when mixing hot liquids in the jug, select the slowest speed on the speed selector.

Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

Make sure that dust, dirt or other foreign

objects do not block the fan grill on the appliance.

Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.

Never use liquids that are boiling or ingredients whose temperature exceeds 80^ C.

Do not use the jar immediately after taking it out of the dishwasher or the refrigerator, ensure that the jar is at room temperature.

Check that the lid is closed properly before starting the appliance.

Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

Do not use the appliance for more than 2 minutes at a time. In case of operate in cycles; allow the appliance a resting period of at least 1 minute between each cycle. Under no circumstances should the appliance be operated for more time than necessary.

Do not use the appliance with frozen goods or those containing bones.

CAUTION: Do not use the appliance if the glass is cracked or broken.

As a reference in the annexed table appears several recipes, that include the amount of food to process, and the operating time of the apparatus.

Ingredients	Quantity Speed	Time
Coffee 50 g 2	or Pulse	30 s
Soybean	90 g 2 or Pulse	30 s

INSTRUCTIONS FOR USE

BEFORE USE:

Make sure that all products' packaging has been removed.

Before using the product for the first time, clean the parts that will come into contact with

Downloaded by: pd-oliana on 11-08-2022 09:16 CEST

food in the manner described in the cleaning section.

Prepare the appliance according to the function you wish to use.

USE:

Extend the cable completely before plugging it in.

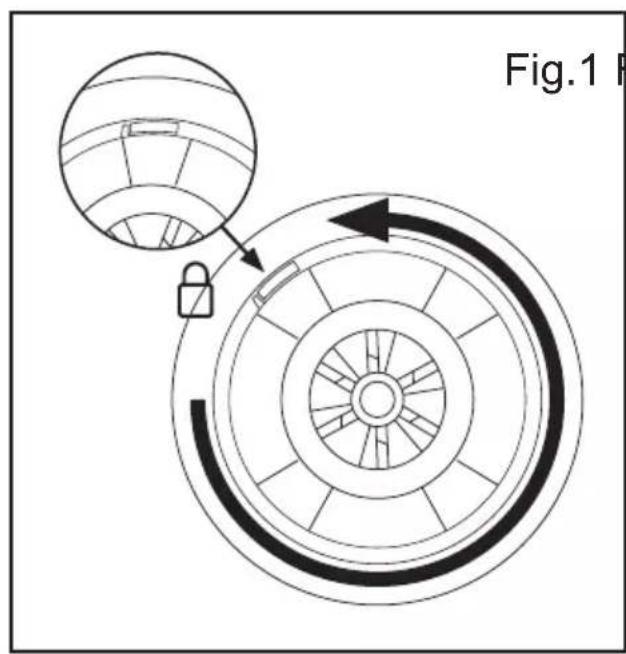

Ensure the blade fixing ring is fixed properly to the jar (by turning counter clockwise) before putting on the motor body. (Fig.1).

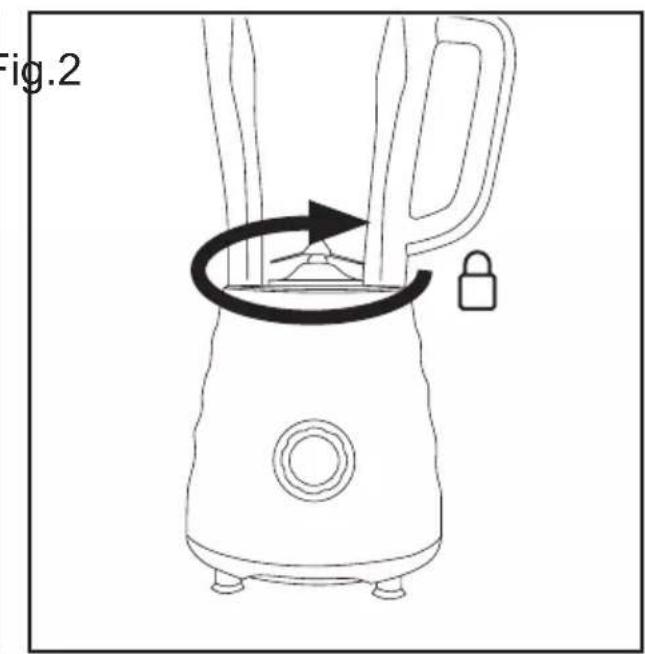

Place the jar onto to the motor unit; turn clockwise until the lock clicks into place. (Fig. 2).

Put the ingredients, after having first chopped them into small piece, into the jar with liquid (do not exceed the maximum marker).

Put the lid on the jar until you hear the click; make sure it is properly fixed in place.

Put the measuring cup in the lid.

Connect the appliance to the mains.

Start the appliance by operating the speed control knob.

To avoid a fierce, start up of the appliance, it is advisable to start off from the lowest speed position “1” and, once the fan has been switched on, and progressively once the unit has started, increase the power to “2”.

If you wish to add more ingredients pull out the measuring cup.

Add the ingredients and replace the measuring cup.

To stop the appliance set the speed back to "0".

Serve the drink through the grate on the lid, that will filter the mixture.

ELECTRONIC SPEED CONTROL:

The speed of the appliance can be regulated by using the speed regulator control (G). This function is very useful, as it makes it possible to adapt the speed of the appliance to the type of work that needs to be done.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

Stop the appliance, selecting position 0 on the selector control.

Unplug the appliance from the mains.

Turn the mixing jar anticlockwise and remove it from the motor body.

Lift the jar from the motor body.

Clean the appliance.

"PULSE" FUNCTION

The appliance works in highest speed to achieve optimal performance.

Select the option "P" in the speed knob to operate and release the button when you wish to stop operating.

We recommend working by pressing the button in cycles of 3 seconds and repeating the operation until you obtain the desired result.

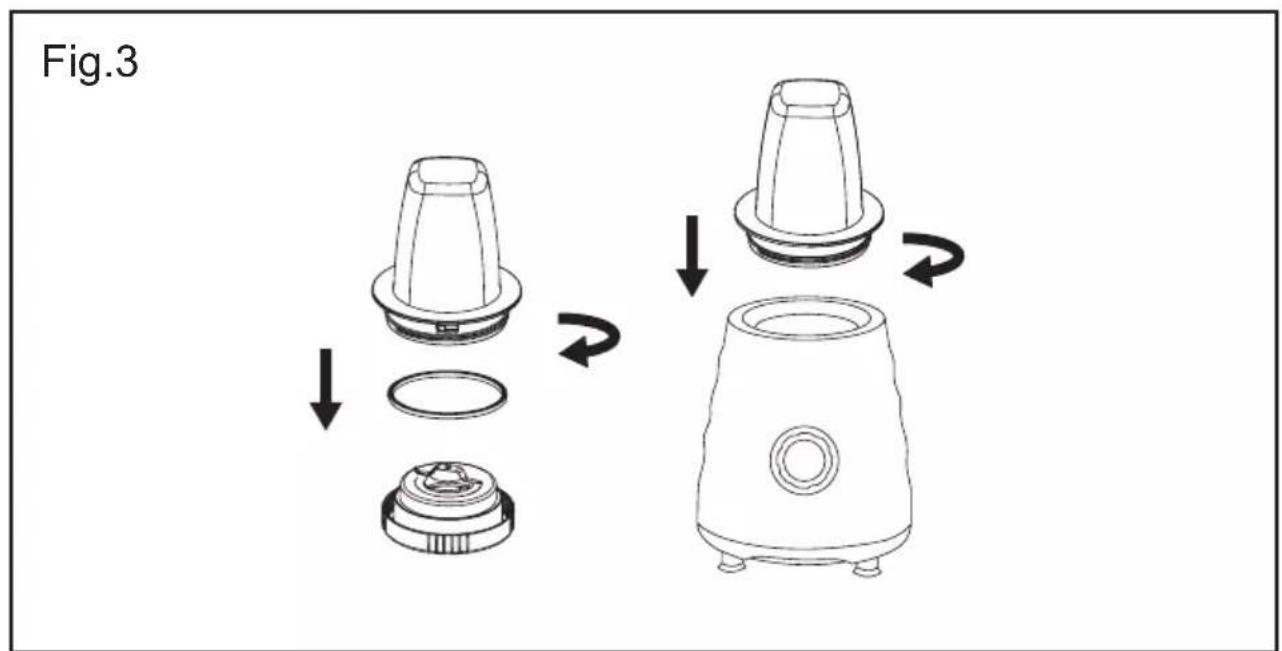

MILL ACCESSORY:

Open the lid by turning it in clockwise direction.

Put the ingredient into the grinder bowl (only dry ingredients). Do not overfill the bowl.

Place the lid onto the grinder bowl. Turn the mill unit clockwise until the lock clicks into place. (Fig.3).

Connect the appliance to the mains.

Choose desired speed to start grinding.

To stop the appliance set the speed back to "0".

ONCE YOU HAVE FINISHED USING THE MILL UNIT:

Select the "0" position at the speed selector.

Unplug the appliance to the mains.

Turn the mill unit counter clockwise and lift it from the motor body.

Turn the lid clockwise to open it.

Clean the appliance.

SAFETY THERMAL PROTECTOR:

The appliance has a safety device, which protects the appliance from overheating.

If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.

CLEANING

Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.

Never submerge the appliance in water or any other liquid or place it under running water.

During the cleaning process, take special care with the blades, as they are very sharp.

It is advisable to clean the appliance regularly and remove any food remains.

The following pieces may be washed in a dishwasher (using a soft cleaning program):

Jar

Lid

Measuring cup

Grinding cup

The draining/drying position of the articles washable in the dishwasher or in the sink must allow the water to drain away easily.

Then dry all parts before its assembly and storage.

SELF-CLEANING FUNCTION:

Put water and a small amount of washing up liquid in the jar.

Select the function "Pulse".

REMOVABLE BLADES FOR EFFECTIVE CLEANING:

Loosen the blade fixing ring by turning it in clockwise direction.

Remove the blade set and the sealing ring and clean them.

After cleaning, replace the blade set and turn it in opposite direction.

Downloaded by: pd-oliana on 11-08-2022 09:16 CEST

ELEKTRISCHE SNELHEIDSCONTROLE:

Downloaded by: pd-oliana on 11-08-2022 09:16 CEST

Downloaded by: pd-oliana on 11-08-2022 09:16 CEST

Downloaded by: pd-oliana on 11-08-2022 09:16 CEST

НАЧИН НА УПОТРЕБА

ЗАБЕЛЕЖКИ ПРЕДИ УПОТРЕБА:

Downloaded by: pd-oliana on 11-08-2022 09:16 CEST

Downloaded by: pd-oliana on 11-08-2022 09:16 CEST

Downloaded by: pd-oliana on 11-08-2022 09:16 CEST

Downloaded by: pd-oliana on 11-08-2022 09:16 CEST

Downloaded by: pd-oliana on 11-08-2022 09:16 CEST

من اللازم.

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/
