USER MANUAL NT 75/1 Me Kärcher

Line drawing of a vacuum cleaner with coiled hose and control panel (no text or symbols)

Deutsch 7

English 13

Français 19

Italiano 25

Español 31

Português 37

Nederlands 43

Türkçe 49

Svenska 55

Suomi 60

Norsk 66

Dansk 71

Eesti 77

Latviešu 82

Lietuviškai 88

Polski 94

Magyar 100

Čeština 106

Slovenčina 112

Slovenščina 118

Românește 124

Hrvatski 130

Srpski 136

Ελληνικά 142

Русский 148

Українська 155

Български 162

中文 168

العربيه 173

Illustration of an open book with a black arrow indicating rotation (no text or symbols)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, including internal components and component labels.

B

Technical line drawing of a vacuum cleaner with attached hoses and components (no text or labels)

Technical diagram showing a mechanical component with labeled parts 1 and 2, indicating a step in assembly or installation.

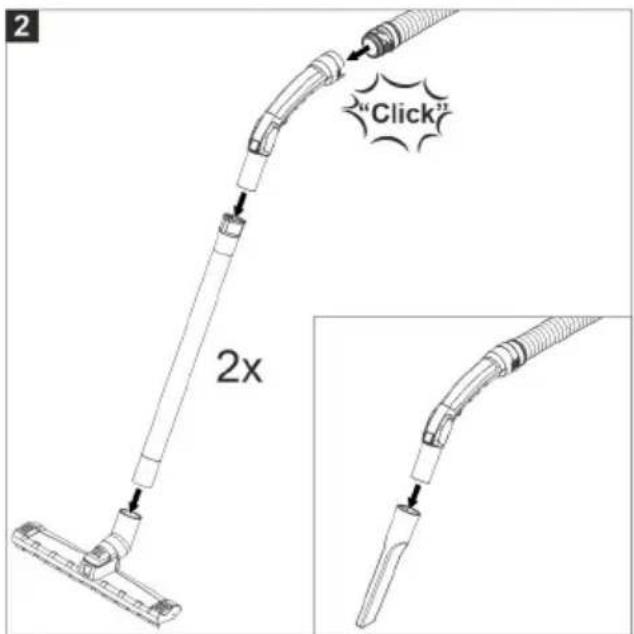

2 "Click" 2x

Line drawing of a vacuum cleaner with hoses and control panel, shown with an inset close-up of the device's grip (no text or symbols present)

Diagram of a car's wheel assembly with a hand and circular motion indicators (no text or symbols)

Illustration of a hand holding a rectangular object with intersecting diagonal lines (no text or symbols)

Mechanical assembly diagram showing a hand operating a component with arrows indicating motion (no text or symbols present)

E

F 1. 2. 3. 4. 5. 5.

Technical line drawing of a mechanical component with a highlighted circular component and an arrow indicating direction (no text or symbols)

Technical diagram of a mechanical component with directional arrows indicating motion or flow (no text or symbols present)

1 3 2 1

Medical illustration showing a surgical procedure on a device, with no visible text or symbols.

K 1 2

Technical line drawing of a circular industrial or mechanical component with internal ribs and pipes (no text or symbols)

M 1. 2. 1.

3D technical illustration of a mechanical assembly with a grid-patterned lid and internal compartments (no text or symbols)

Technical diagram showing a device with labeled parts and a circular diagram indicating rotation or assembly steps.

Inhalt

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Technische Daten

Environmental protection.... 13

Intended use.... 13

Description of the device 13

Symbols on the device 14

Safety instructions 14

Preparation....14

Starting up 14

Operation.... 15

Transport 15

Storage.... 16

Care and service 16

Troubleshooting guide.... 17

Disposal.... 17

Warranty 17

Accessories and spare parts 17

Declaration of Conformity.... 17

Technical data 18

General notes

these original instructions and the enclosed safety notes no. 59562490 before using the device for the first time.

Proceed accordingly.

Keep both books for future reference or for future owners.

• If the operating instructions and safety instructions are not observed, the device can be damaged and dangers could arise for users and other persons.
• Notify the dealer immediately in the case of shipping damage.
• When unpacking, check the package contents for missing accessories or signs of damage.

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic devices contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can

pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.de/REACH

Intended use

• This wet/dry vacuum cleaner is designed to remove dry dirt and liquids.
• The device is suitable for vacuuming dry, conductive, combustible dusts in zone 22 dust class H.
• The device is not suitable for extracting metallic dusts that lead to hydrogen formation on contact with water.

• Type 22 devices are suitable for holding combustible dust in zone 22. They are not suitable for connection to dust-generating machines.

• Type 22 devices are not suitable for the intake of dusts or liquids with high risk of explosion and for mixtures of combustible dusts with liquids.

• The vacuum cleaner is intended for the removal of combustible dusts in potentially explosive environments classified as Zone 22.
• This device is suitable for commercial use, e.g. in production areas in industry and crafts, in warehouses, in transport and in agriculture.
• Any other use will be regarded as improper use.

Description of the device

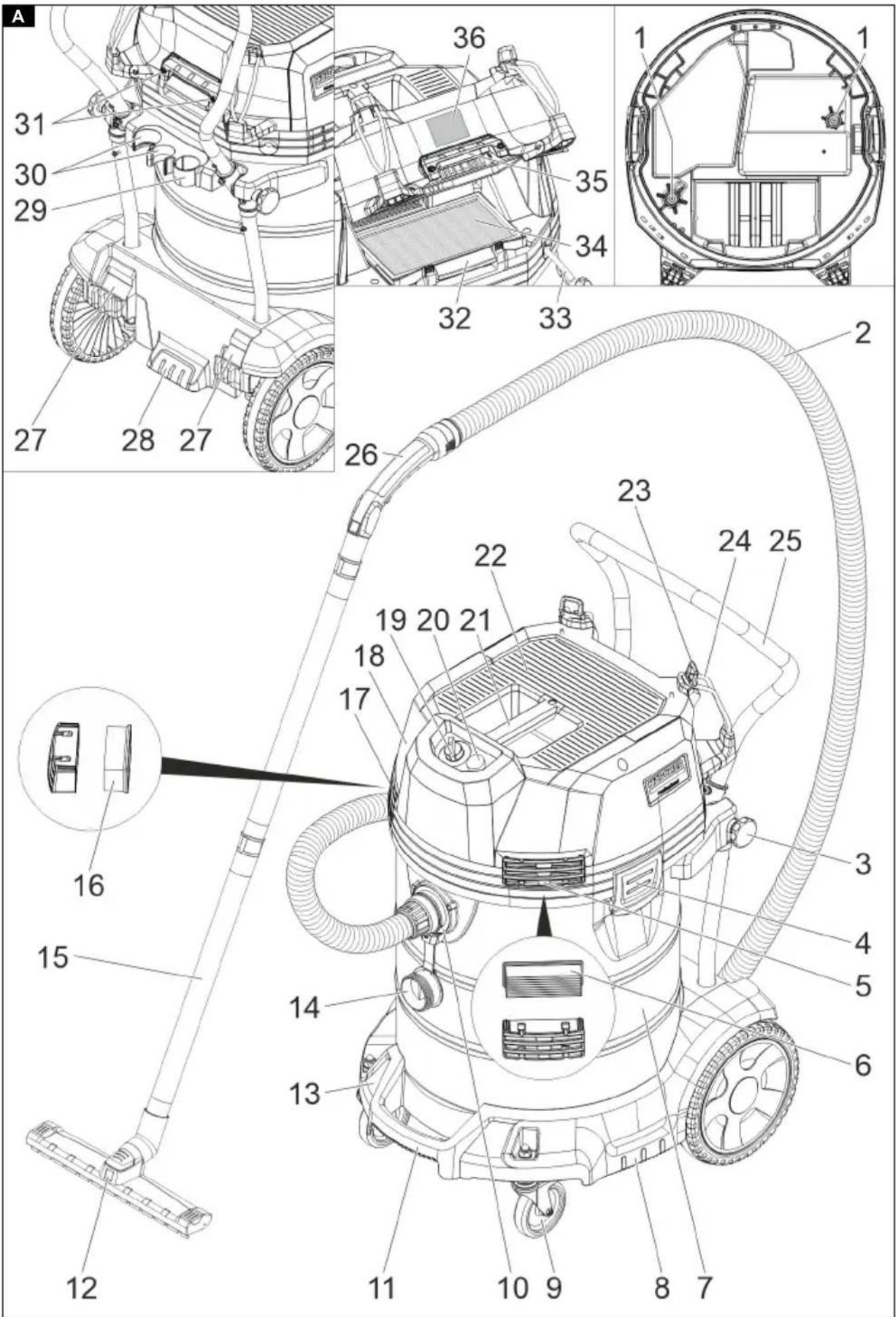

Illustration A

1 Electrodes
② Suction hose
③ Push handle fastening screw
④ Suction head lock
⑤ Filter casing, left
⑥ Cooling air filter, left

⑦ Dirt receptacle

⑧ Recessed grip

⑨ Steering roller with parking brake

⑩Suction hose port

⑪ Chassis handle

⑫ Floor nozzle

⑬Chassis

⑭Plug

⑮Suction pipe

16 Cooling air filter, right

⑰Filter casing, right

⑱Suction head

⑲Rotary switch

20 "Vacuum pressure" indicator light

21 Carrying handle

22Filter cover

23 Fastening eyelet

24 Hose hook

25 Push handle, adjustable

26 Angle piece

27 Rest for floor nozzle

28 Tilting aid

29 Holder for crevice nozzle

30 Suction pipe holder

③1Lock latch of the filter cover

32Filter frame

33 Power cable

34 Flat fold filter

Symbols on the device

Dust class

H H

WARNING: This machine contains dust that is harmful to your health. Emptying and maintenance, including removal of the dust bag, may only be performed by technical specialists wearing suitable personal protective equipment. Do not operate the device without the complete filtration system.

Zone 22, safety filter bag

Do not vacuum any sources of ignition! Suitable for vacuuming inflammable dusts of dust explosion classes in zone 22.

Safety filter bag

Order number 6.904-420.0

Safety instructions

⚠️DANGER

Risk of injury, explosion and damage

Observe the following safety instructions when handling the device.

• The electrical connection (mains plug) must be made outside the hazardous area (Zone 22).
• The included accessories are electrically conductive. Only the accessories listed in the appendix (standard accessories / special accessories) may be used!
• Do not vacuum without filter elements in place, otherwise the suction motor will be damaged and there will be a health risk due to increased fine dust emissions!
• Observe the safety regulations for the materials being vacuumed. During proper/improper operation, parts (e.g. air outlet) of the vacuum cleaner can reach up to 105 °C.
• The minimum ignition temperature (MIT) of the dust cloud is ≥160 ^ and the MIT of dust with a dust thickness of 5 mm is ≥180 ^ .
• The use of an extension cord is prohibited.

Behavior in the event of an emergency

⚠️DANGER

Risk of injury and damage in the event of a short-circuit or other electrical faults

Danger of electric shock, danger of burns

Switch off the device and unplug the mains plug.

Preparation

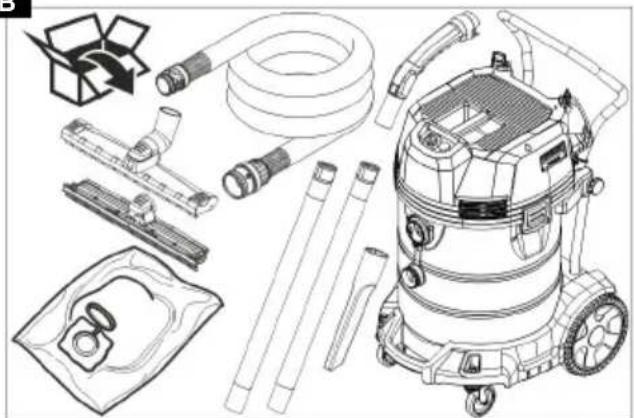

1. Unpack the device and install the accessories. Illustration B

Starting up

⚠ WARNING

Danger from dust that is harmful to your health

Respiratory sicknesses through inhalation of dust.

Do not vacuum without correctly installed filter elements, otherwise a danger to health from increased fine dust emission is present.

Note

The device is not suitable for the vacuuming of dusts with extremely low minimum ignition energy (ME <

1 mJ), e.g. toner, mesh, aluminium powder, lead acid suitable.

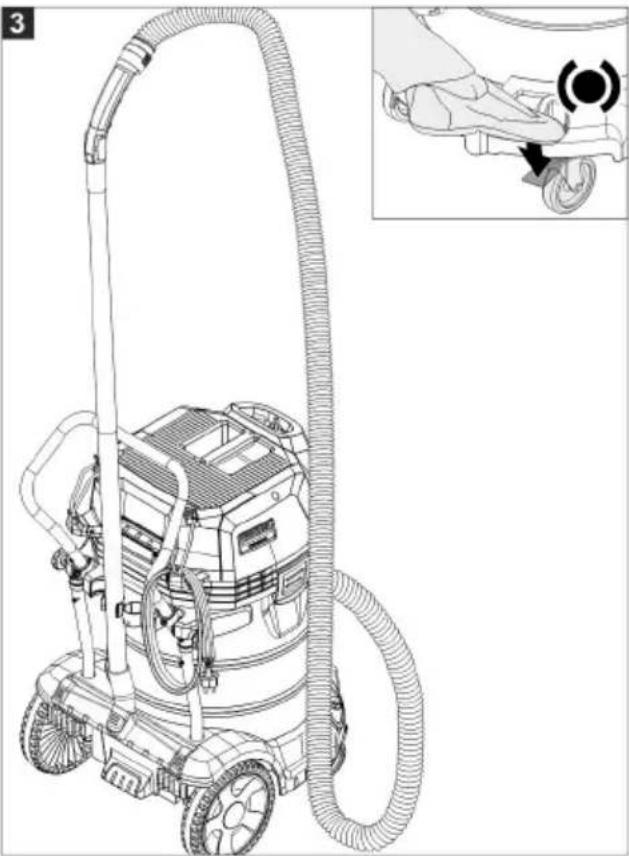

1. Bring the device into the working position and secure it with the parking brake if necessary.

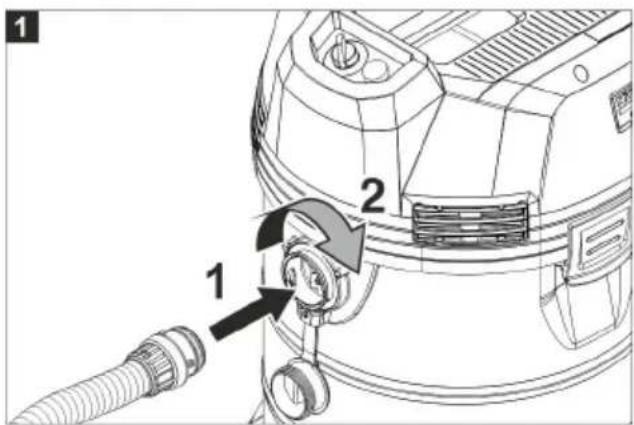

2. Plug the suction hose into the suction hose port.
3. Check the filling level in the dirt receptacle before starting work and empty the receptacle if necessary.
4. Attach the desired accessory.

Automatic suction power monitor

The device is equipped with a suction power monitor. If the air speed in the suction hose drops below a speed of 20 m/s, the "vacuum pressure" indicator light flashes red (see Help with malfunctions).

Note

The indicator light can light up intermittently during normal operation (e.g. when working with a floor nozzle) when the air quantity is reduced (cross-section reduction) and the vacuum pressure increases as a result.

Note

In these cases, however, it is not a defect, but an indication that the air quantity has reduced and the vacuum pressure has increased, as indicated above.

Anti-static system

Static charges are discharged through the earthed connection nozzles. This prevents sparking and electric shocks with electrically conducting accessories (included in the scope of delivery).

Dry vacuuming

- The unit is equipped with a safety filter bag with sealing cap, order number 6.904-420.0 (5 pieces).

Note

All types of dust up to dust class H can be vacuumed with this device. The use of a dust collection bag (for order no. see filter systems) is required by law.

Note

The device is an industrial vacuum cleaner for vacuuming dry, conducting, combustible dusts with workplace limit values (AGW).

- Unused flat fold filters may only be stored and transported in their packaging (cardboard box).

- The slats of the flat fold filter many not be touched during installation.

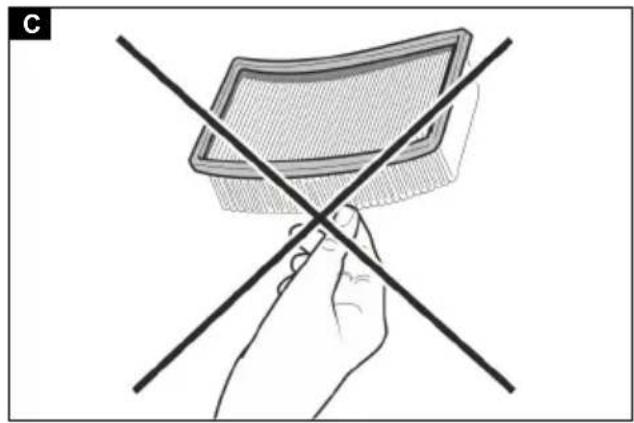

Illustration C

⚠ WARNING

Danger from dust that is harmful to your health

Respiratory sicknesses through inhalation of dust.

Do not vacuum without a flat fold filter and safety filter bag, otherwise a danger to health from increased fine dust emission is present.

Installing the safety filter bag

1. Unlock and remove the suction head.

2. Attach the safety filter bag. Pull the opening of the safety filter bag completely over the shoulder of the suction hose port.

Illustration D

1. Pull the safety filter bag over the container. Make sure that the earthing foil is placed over the metal PIN on the suction hose port and that this makes contact through the PIN and the metal spring on the suction head. Insert the inner paper filter bag into the container in an L-shape.

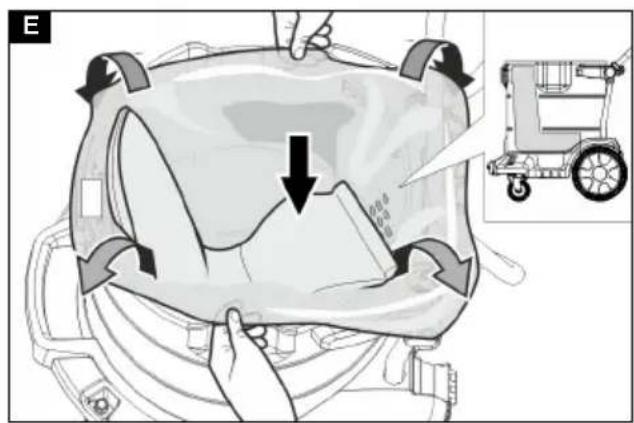

Illustration E

1. Fit and lock the suction head.

Wet vacuum cleaning

⚠️DANGER

Danger from dust that is harmful to your health

Respiratory sicknesses through inhalation of dust. No dusts harmful to health may be vacuumed when performing wet vacuum cleaning.

Installing the squeegees

1. Remove the brush strip.

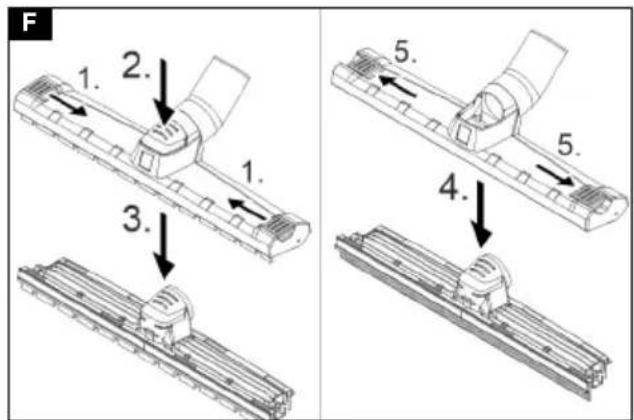

Illustration F

1. Install the squeegees.

Closing the suction connection

1. Fit a plug exactly into the suction connection.

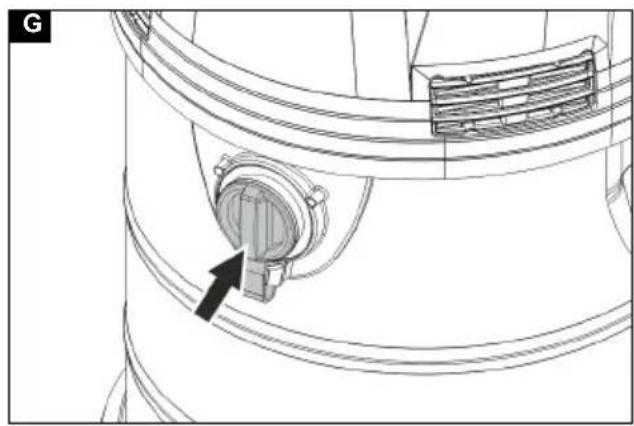

Illustration G

1. Push the plugs in until they engage.

2. Close the suction connection tightly with the plug by turning it clockwise.

Note

The bayonet connection ensures a precise fit.

Removing the safety filter bag

- The safety filter bag must always be removed when vacuuming wet substances.

1. Unlock and remove the suction head.

2. Fold up the safety filter bag.

Illustration H

1. Take off the protective film and close the ventilation holes with a self-adhesive tab.

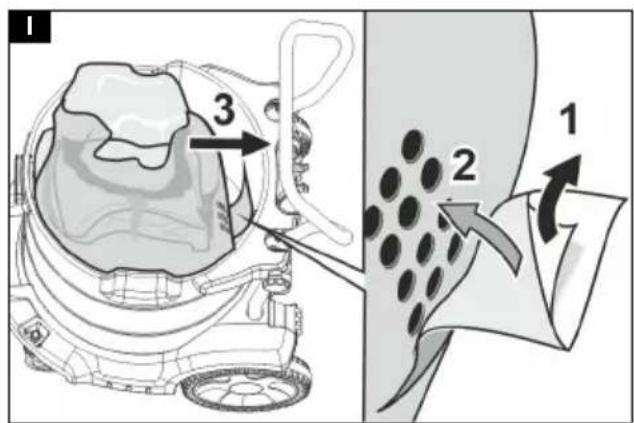

Illustration I

1. Pull the safety filter bag out towards the back.

2. Seal the suction connection opening of the safety filter bag tightly with a sealing cap.

Illustration J

1. Close the safety filter bag tightly with the attached cable tie.

Illustration K

1. Remove the safety filter bag.

2. Clean the container inside with a moist cloth.

3. Dispose of used safety filter bag in dust-tight bag in accordance with statutory regulations.

4. Fit and lock the suction head.

General

ATTENTION

Risk of damage to the suction motor.

Never remove the flat fold filter when vacuuming.

- The device switches off automatically when the maximum fluid level is reached.

- When vacuuming non-conductive liquids (e.g. drill emulsion, oils and grease) the device does not automatically switch off when the container is full. The filling level must be continuously monitored and the container emptied on a timely basis.

- On completion of wet vacuum cleaning: dry the flat fold filter Clean the electrodes with a brush. Clean the container with a moist cloth and dry it off.

Operation

Each time before use

1. Check the mains cable for damage, have a damaged cable replaced immediately by the authorised Customer Service or a qualified electrician.

2. Check flat fold filter for damage, replace damaged filter immediately.

Rotary switch

Device OFF

Device ON

Switching on the device

1. Connect the mains plug.

2. Switch on the device at the turn switch.

Cleaning mode

1. Perform cleaning.

Switching off the device

1. Switch off the device at the turn switch.

2. Pull out the mains plug.

Each time after use

1. Empty the container.

2. Vacuum off the inside and outside of the device and clean with a moist cloth.

3. A vacuum cleaner with at least the same or better classification must be used for vacuuming the device.

4. Remove the accessories and, if necessary, flush with water and allow to dry.

Folding the push handle in/out

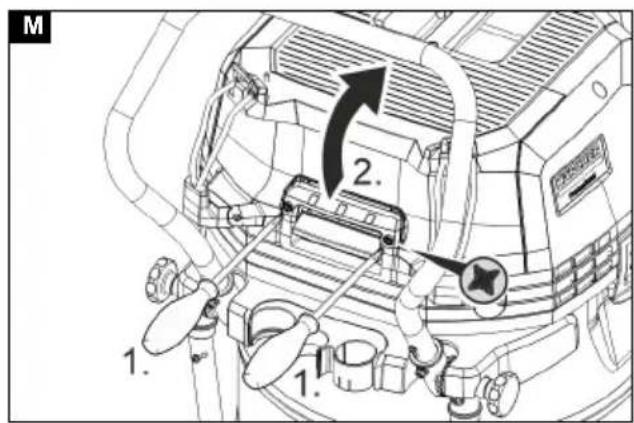

1. Release the push handle fastening screws and adjust the push handle.

Storing the device

1. Store the suction hose and mains cable as shown in the illustration.

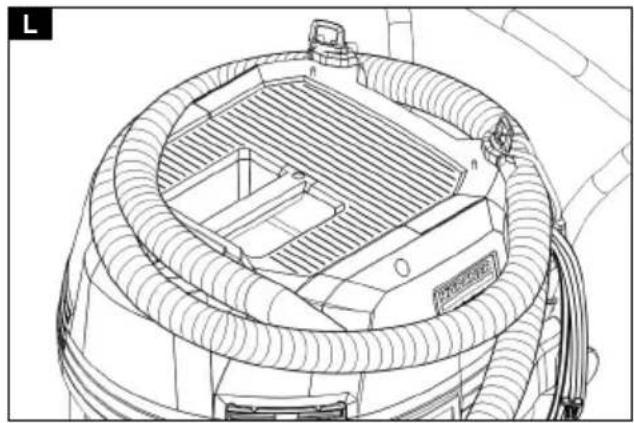

Illustration L

1. Store the device in a dry room and secure it against unauthorised use.

Transport

△CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during transportation.

When transporting the device, ensure that it is securely fastened.

The following measures must be taken for the dust-free transport of the device:

1. Clean the suction hose and accessories with a damp cloth.

2. Close the suction connection, see wet vacuum cleaning.

3. Remove the suction hose with floor nozzle from the support. Carry the device by the carrying handle and suction pipe.

4. When transporting the device in vehicles, secure it to prevent it from slipping or overturning in accordance with the respective valid guidelines.

Storage

△CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during storage.

The device may only be operated indoors.

Care and service

⚠️DANGER

Danger of electric shock

Injuries due to touching live parts

Switch off the device.

Remove the mains plug.

Dust extraction machines are safety devices for the prevention or elimination of hazards according to the German DGUV regulation 1 (German accident prevention regulation, principles of prevention).

ATTENTION

Care agents containing silicone

These can attach plastic components.

Do not use care agents containing silicone for cleaning.

• You can perform basic maintenance and care work yourself.
• Clean the surface of the device and the interior of the container regularly with a moist cloth.

Replacing the flat fold filter

⚠️DANGER

Danger from dust that is harmful to your health

Respiratory sicknesses through inhalation of dust. Accumulated dust must be transported in dust-proof containers. Do not transfer the contents. The dust bag may only be disposed of by qualified staff.

⚠ WARNING

Danger from dust that is harmful to your health

Respiratory sicknesses through inhalation of dust.

Do not use the main filter element after removing it from the device.

Permanently installed filters may only be replaced in suitable areas (e.g. decontamination stations) by a technical expert.

Order number of flat fold filter PTFE H: 6.907-671.0

1. Turn both fastening pins of the filter cover counterclockwise with a screwdriver. Fastening pins are pushed out.

Illustration M

1. Open the filter cover.

2. Remove the filter frame.

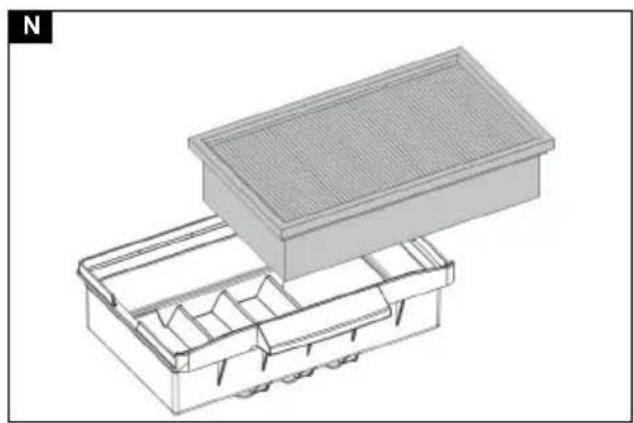

Illustration N

1. Remove the flat fold filter.
2. Remove any dirt deposits from the clean air side.
3. Clean the filter frame and the supporting surface of the filter frame with a damp cloth.
4. Fit the new flat fold filter. During insertion, ensure that the flat fold filter is flush on all sides.
5. Insert the filter frame.

6. Close the filter cover until it audibly latches into place.

7. Press in both fastening pins of the filter cover with a screwdriver and tighten clockwise.

Changing the safety filter bag

⚠️DANGER

Danger from dust that is harmful to your health

Respiratory sicknesses through inhalation of dust. Accumulated dust must be transported in dust-proof containers. Do not transfer the contents. The dust bag may only be disposed of by qualified staff.

1. Close the suction connection, see wet vacuum cleaning.

Illustration G

1. Unlock and remove the suction head.

2. Fold up the safety filter bag.

Illustration H

1. Take off the protective film and close the ventilation holes with a self-adhesive tab.

Illustration I

1. Pull the safety filter bag out towards the back.

2. Seal the suction connection opening of the safety filter bag tightly with a sealing cap.

Illustration J

1. Close the safety filter bag tightly with the attached cable tie.

Illustration K

1. Remove the safety filter bag.

2. Clean the container inside with a moist cloth.

3. Dispose of used safety filter bag in dust-tight bag in accordance with statutory regulations.

4. Fit the new safety filter bag. Pull the opening of the safety filter bag completely over the shoulder of the suction hose port.

Illustration D

1. Pull the safety filter bag over the container. Make sure that the earthing foil is placed over the metal PIN on the suction hose port and that this makes contact through the PIN and the metal spring on the suction head. Insert the inner paper filter bag into the container in an L-shape.

Illustration E

1. Fit and lock the suction head.

Cleaning the cooling air filter

1. Vacuum the cooling air filter from the outside (when installed) at regular intervals.

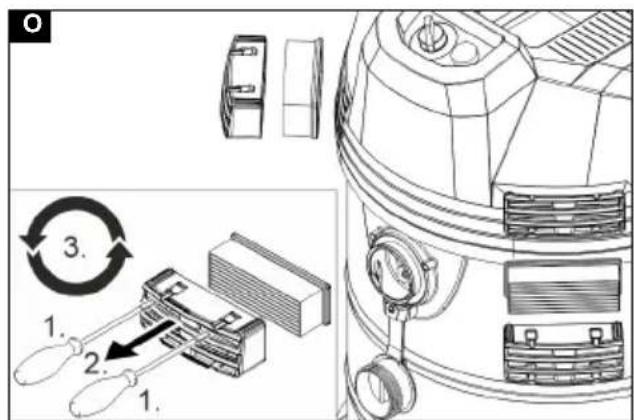

Changing the cooling air filter

Note

The cooling air filter may only be changed in conjunction with the filter casing to ensure proper functioning of the suction unit.

Order number of cooling air filter set (2x filter casing, 2x cooling air filter): 4.101-163.0

1. Allow the device to cool down.
2. Insert 2 flat-blade screwdrivers into the filter casing openings on the suction head as far as they will go. Illustration O
3. Press both flat-blade screwdrivers down and carefully lever out the filter casing.
4. Remove the filter casing (with cooling air filter).
5. Insert a new cooling air filter in the new filter casing according to the illustration.
6. Insert the new filter casing (with cooling air filter) into the suction head and snap it into place.

Cleaning the electrodes

1. Unlock and remove the suction head.
2. Clean the electrodes with a brush.
3. Fit and lock the suction head.

Troubleshooting guide

⚠️DANGER

Danger of electric shock

Injuries due to touching live parts

Switch off the device.

Remove the mains plug.

Note

The device must be switched off immediately if a malfunction occurs (e.g. filter breakage). The malfunction must be eliminated before switching the device on again.

Suction turbine does not start up

1. Check the socket and the power supply fuse.
2. Check the mains cable, mains plug and electrodes on the device.
3. Switch on the device.

Suction turbine switches off

1. Empty the container.
2. Fit the new flat fold filter.
3. Replace flat fold filter.
   The thermal protection has switched off the motor due to overheating
4. Allow the device to cool down. Clean or replace the cooling air filter.

Suction turbine does not switch on again after emptying the container

1. Switch off the device and wait for 5 seconds. Switch on the device.
2. Clean the electrodes with a brush.

Suction power decreases

1. Remove any blockages from the suction nozzle, suction pipe, suction hose or flat fold filter.
2. Dispose of the filled safety filter bag.
3. Correctly engage the filter cover.
4. Replace the flat fold filter.

Escaping dust when vacuuming

1. Check that the flat fold filter is correctly fitted and correct if necessary.
2. Replace the flat fold filter.

The automatic switch-off mechanism (wet vacuum cleaning) does not trigger

1. Clean the electrodes with a brush.
2. Continuously monitor the filling level when vacuuming non-conductive liquids.

"Vacuum pressure" indicator light flashes red

1. The safety filter bag must be replaced when it is full and the air flow drops below the specified minimum flow rate.
2. Replace the flat fold filter.
3. Remove any blockages from the suction nozzle, suction pipe or suction hose.

Customer Service department

If the malfunction cannot be corrected, the device must be checked by the Customer Service department.

Disposal

At the end of its service life, the device is to be disposed of in accordance with statutory regulations.

Warranty

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing flaw is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

Further warranty information (if available) can be found in the service area of your local Kärcher website under "Downloads".

Accessories and spare parts

⚠️DANGER

Risk when used with non-permitted accessories

Risk of explosion

Only use accessories approved by the manufacturer for use with type 22. The use of other accessories may cause a risk of explosion.

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Declaration of Conformity

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.

Product: Wet/dry vacuum cleaner

Type: 1.667-xxx

Currently applicable EU Directives

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

2014/34/EU

Harmonised standards used

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

National standards used

Designation

II 3 D Ex h IIIC T105 °C Dc X

The signatories act on behalf of and with the authority of the company management.

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Declaration of Conformity (UK)

We hereby declare that the product described below complies with the relevant provisions of the following UK Regulations, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the product is modified without our prior approval.

Product: Wet/dry vacuum cleaner

Type: 1.667-xxx

Currently applicable UK Regulations

S.I. 2008/1597 (as amended)

S.I. 2012/3032 (as amended)

S.I. 2016/1091 (as amended)

S.I. 2016/1107 (as amended)

Designated standards used

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

National standards used

Designation

II 3 D Ex h IIIC T105 °C Dc X

The signatories act on behalf of and with the authority of the company management.

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Technical data

		NT 75/1Me Ec HZ22
Electrical connection
Mains voltage V 220-240
Phase ~ 1
Power frequency Hz 50-60
Degree of protection IP64
Protection class I
Nominal power W 1200
Device performance data
Tank content I 75
Fluid filling quantity I 58
Air quantity (max.)	m3/h (l/s)	135(37,5)
Vacuum (max.) kPa	(mbar)	22,0(220)
Air quantity (max., suction motor)	m3/h (l/s)	234 (65)
Vacuum (max., suction motor)	kPa(mbar)	25,0(250)
Ignition protection class (EN 60079-11, in dust collection con-tainer)	◇	ia
Ignition protection class (EN 60079-31, in the environment)	◇	tc
Ignition protection class (EN ISO 80079-37, in the environment)	◇	h
Dimensions and weights
Typical operating weight	kg	24,1
Length x width x height	mm	695 x540 x1012
Filter area of the flat fold filter	m2	0,6
Diameter of the suction hose	mm	40
Length of the suction hose	m	4,0
Ambient conditions
Ambient temperature	°C	0...+40
Relative humidity	%	30-90
Determined values in acc. with EN 60335-2-69
Sound pressure level LpA	dB(A)	67
Uncertainty KpA	dB(A)	1
Hand-arm vibration value m/s	2	<2,5
Uncertainty K	m/s2	0,2
Mains cable
Power cord type	mm2	H07RN-F 3x1,5
Part number (EU)		6.652-126.0
Cable length m 10

Subject to technical modifications.

Contenu

2006/42/CE (+2009/127/CE)

2011/65/UE

2014/30/UE

2014/34/UE

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Winnenden, 2022/10/01

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Dati tecnici

NT 75/1

Me Ec H

Z22

2006/42/CE (+2009/127/CE)

2011/65/UE

2014/30/UE

2014/34/UE

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Datos técnicos

NT 75/1Me Ec HZ22

Conexión eléctrica

2006/42/CE (+2009/127/CE)

2011/65/UE

2014/30/UE

2014/34/UE

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2022/10/01

Dados técnicos

NT 75/1Me Ec HZ22

Ligação eléctrica

	Apparaat UIT
	Apparaat AAN

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Technische gegevens

2006/42/AT (+2009/127/AT)

2011/65/AB

2014/30/AB

2014/34/AB

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2022/10/01

Teknik bilgiler

NT 75/1

Me Ec H

Z22

Elektrik bağlantısı

Vakum (maks., vakum motoru)

kPa (mbar)

25,0 (250)

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

D-71364 Winnenden (Germany)

Tfn: [phone]

Tekniska data

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Puh.: [phone]

Winnenden, 2022/10/01

Tekniset tiedot

Sone 22, sikkerhetsfilterpose

Zone 22√

Støvutslipp under suging

2006/42/EF (+2009/127/EF)

2011/65/EU

2014/30/EU

2014/34/EU

Anvendte harmoniserte standarder

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Winnenden, 2022/10/01

Tekniske data

NT 75/1Me Ec HZ22

Elektrisk tilkobling

Nettspenning V 220-240

Fase ~ 1

Nettfrekvens Hz 50-60

Beskyttelsesgrad IP64

Beskyttelsesklasse I

Nominell effekt W 1200

2006/42/EF (+2009/127/EF)

2011/65/EU

2014/30/EU

2014/34/EU

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Tekniske data

NT 75/1Me Ec HZ22

Elektrisk tilslutning

Tsoon 22, turvafiltrikott

2006/42/EÜ (+2009/127/EÜ)

2011/65/EL

2014/30/EL

2014/34/EL

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2022/10/01

Tehnilised andmed

NT 75/1Me Ec HZ22

Elektriühendus

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2022/10/01

Tehniskie dati

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2022/10/01

Techniniai duomenys

2006/42/WE (+2009/127/WE)

2011/65/UE

2014/30/UE

2014/34/UE

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2022/10/01

Dane techniczne

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2022/10/01

Műszaki adatok

2006/42/ES (+2009/127/ES)

2011/65/EU

2014/30/EU

2014/34/EU

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2022/10/01

Technické údaje

2006/42/ES (+2009/127/ES)

2011/65/EÚ

2014/30/EÚ

2014/34/EÚ

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Technické údaje

2006/42/ES (+2009/127/ES)

2011/65/EU

2014/30/EU

2014/34/EU

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2022/10/01

Tehnični podatki

Directive UE relevante

2006/42/UE (+2009/127/UE)

2011/65/UE

2014/30/UE

2014/34/UE

Norme armonizate aplicate

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germania)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Date tehnice

NT 75/1Me Ec HZ22

Conexiune electrică

2006/42/EZ (+2009/127/EZ)

2011/65/EU

2014/30/EU

2014/34/EU

Primijenjene uskladene norme

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Opunomoćenik za dokumentaciju:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Njemačka)

Tel.: [phone]

Telefaks: [phone]

Winnenden, 2022/10/01

Tehnički podaci

NT 75/1

Me Ec H

Z22

2006/42/EZ (+2009/127/EZ)

2011/65/EU

2014/30/EU

2014/34/EU

Primenjene harmonizovane norme

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Lice ovlašćeno za dokumentaciju:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2022/10/01

Tehnički podaci

NT 75/1Me Ec HZ22

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

Winnenden, 2022/10/01

Τεχνικά στοιχεία

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2022/10/01

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2022/10/01

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2022/10/01

Технически данни

NT 75/1Me Ec HZ22

www.kaercher.com/REACH

按规定使用

Black hand icon giving a thumbs-up gesture (no text or symbols)

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

Icon showing a gear and wrench inside a square frame (no text or symbols)

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)

QR code image with a central logo, likely linking to a digital resource or website.
