USER INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE OPERATING THE UNIT AND RETAIN FOR FUTURE REFERENCE.

Getting started 12		Loading Instructions	15
Safety warning and notice 12		Remote control	16
Contents of the box 14		Troubleshooting	17
Controls and inputs 14		Technical specifications	17
Product features	14	Warning about batteries	17
Connecting a Bluetooth device.	15	Care for the environment	19
Pairing a Bluetooth device	15	Additional information	19
How to record	15	Declaration of conformity	19

Getting started

• Take the appliance out of the box.
- Remove all the packaging from the product.
- Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the outside.

Safety warning and notice

You must read and understand all the instructions before using this appliance. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the appliance casing.
2. Never place this appliance on top of other electrical equipment.
3. Protect the power cord from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the appliance. Make sure that the power rating corresponds to the voltage shown on the rating plate at the rear of the appliance. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cord. Ensure you have completed all the other connections before connecting the mains plug.
4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all appliance repairs to qualified repairers. Repair is needed when since has been damaged in any fashion, and in particular:

6. if the power cord is damaged;

7. in the event of a liquid spill or objects being inserted into the appliance;
8. if the appliance is exposed to rain or dampness;
9. if the appliance does not operate normally;

10. or if the appliance has been dropped or impacted.

11. The series panel is located on the bottom of the appliance.

12. Never block the air vents.

13. Make sure you have enough space for ventilation. Place the product on a stable surface.

14. This device must be used in a moderate climate, away from direct sunlight, naked flames or sources of heat, heaters, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.

15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.

16. Always unplug the device before cleaning it. Never lubricate any part of this appliance.

Clean it with a soft cloth. Do not use abrasive products or harsh cleaners.

1. Ensure that you always have easy access to the power cord, plug or adapter to disconnect this appliance from the mains if necessary.

2. Do not use this appliance near water. It must not be dripped on or splashed. Do not use this appliance in a damp or wet environment.

3. Disconnect this appliance in the event of a storm, or if you intend not to use it for a long period of time.

4. This appliance can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the appliance, and they understand the risks involved. Children must not play with the appliance or the power cord (risk of strangulation). Children must not clean or maintain the appliance without supervision.

5. This device must only be supplied with very low safety voltage as indicated on the device.

6. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.

7. When in operation, the appliance must be at a minimum distance of 20 cm from the human body.

8. This device is for household use only; do not use outdoors.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

Two triangular warning symbols: a lightning bolt symbol and an exclamation mark with a dot, commonly used in safety or hazard prevention.

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated voltages, inside the device, that may present a risk of electric shock.

In the user manual, an exclamation mark in a triangle indicates important operating and maintenance instructions.

Class II material
Direct current
Alternating current
For indoor use only

Contents of the box

• Illuminated Speaker
• Charging cable
• AUX cable
• User manual
• Remote control
• Wired Microphone
• Mains adapter

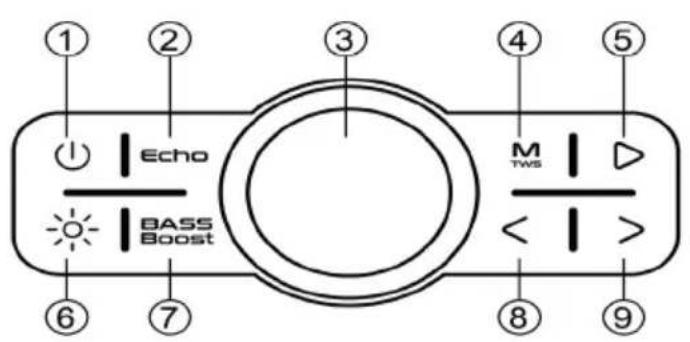

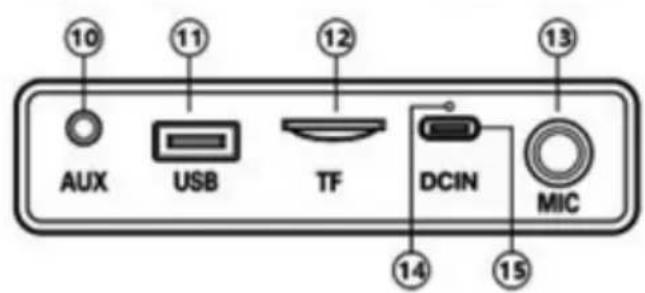

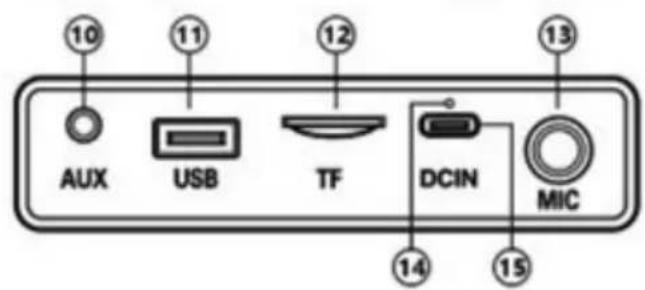

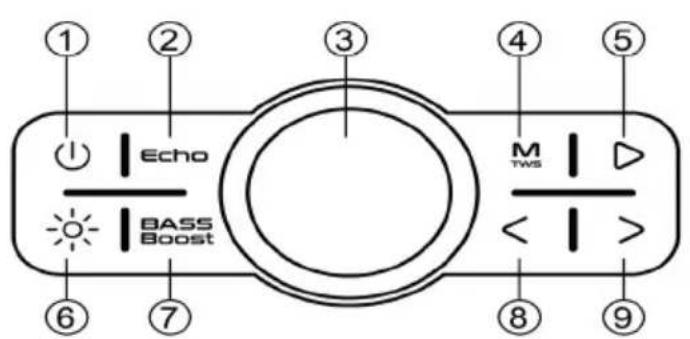

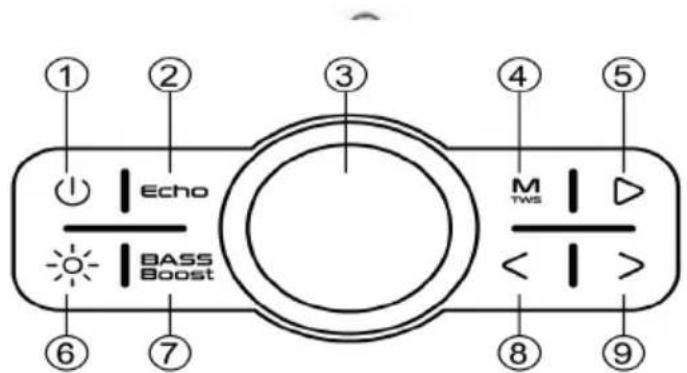

Controls and inputs

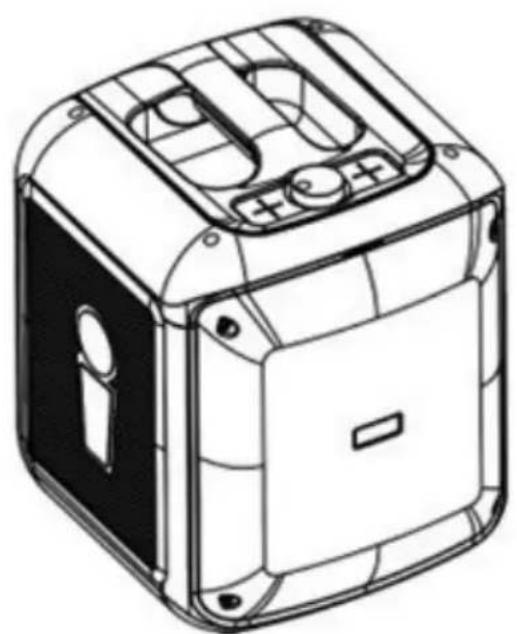

Technical line drawing of a mechanical device casing with mounting holes and internal components (no text or symbols)

① ② ③ ④ ⑤ ⑥ ⑦ Echo BASS Boost M TWS < > ⑧ ⑨

10 11 12 13 AUX USB TF DCIN MIC 14 15

Product features

1. 【💡】: Long press to turn on/off. (Press and hold for 10 seconds to restore to factory settings.)
2. 【ECHO】: Short press to activate the echo effect.
3. 【VOLUME】: Turn the volume control clockwise to increase and counterclockwise to decrease the volume.

4. 【M】: Press briefly to scroll through the operating modes. Bluetooth, AUX-in, USB, micro-SD card.
   Long press for pairing function.

5. 【▷】: Short press to play or pause.

In Bluetooth mode, long press on the play button to disconnect Bluetooth.

1. 【☀️】: Lighting is on by default, Short press to scroll through different lighting modes. Long press to turn off the lighting, short press to turn it back on.

2. 【BASS Boost】: Press briefly to enhance the bass effect.

3. 【<】: Press briefly to return to the previous track. In USB or micro-SD card mode, press and hold for quick return.

4. 【>】: Short press to move to the next track. In USB or micro SD card mode, press and hold for fast forward.

5. 【AUX】: AUX audio input.

6. 【USB】: Insert a USB key to play MP3 music tracks (maximum capacity for USB of 64 GB, does not work beyond 64 GB).
7. 【TF】: Insert a micro-SD card to play MP3 tracks (maximum capacity for 64 GB micro-SD card, does not work beyond 64 GB).
8. 【MIC】: Plug in a wired microphone for karaoke mode.
9. 【Charging indicator light】: The red light goes on during charging, and goes out when charging is complete.
10. 【DC IN】: Charging port: Connect a USB-C charging cable to the mains adapter for charging.

Connecting a Bluetooth device.

Turn on to enter Bluetooth mode. Then search for PARTYBTHPMAX in your mobile device Bluetooth settings. If a message asks you for the pairing password, enter '0000' and click confirm connection.

Pairing a Bluetooth device

1. In Bluetooth mode, press and hold the M/TWS button on each speaker at the same time. An audio chime will be heard. Then connect your device (phone, tablet, etc.) to PARTYBTHPMAX. Long press again to disconnect the paired device.
2. The optimal connection distance between two Bluetooth speakers is about 5 metres.

How to record

1. Insert a micro-SD card or USB media.
2. Insert a wired microphone (into the microphone socket).
3. Short press the Record button to start recording your voice. Short press again to stop recording and listen to it. You can navigate between recordings using the << and >> buttons, and delete a recording by holding the record button for 5 sec. To return to USB or Bluetooth drive mode, press the Mode button. Please note: You cannot record music in this mode.

Loading Instructions

1. To preserve battery performance, avoid using the appliance while charging.
2. To charge the device, use the 18 W charger with the USB-C charging cable. The red light goes on during charging, and goes out when charging is complete.
3. If the battery level is below 15%, a low battery alarm will sound.

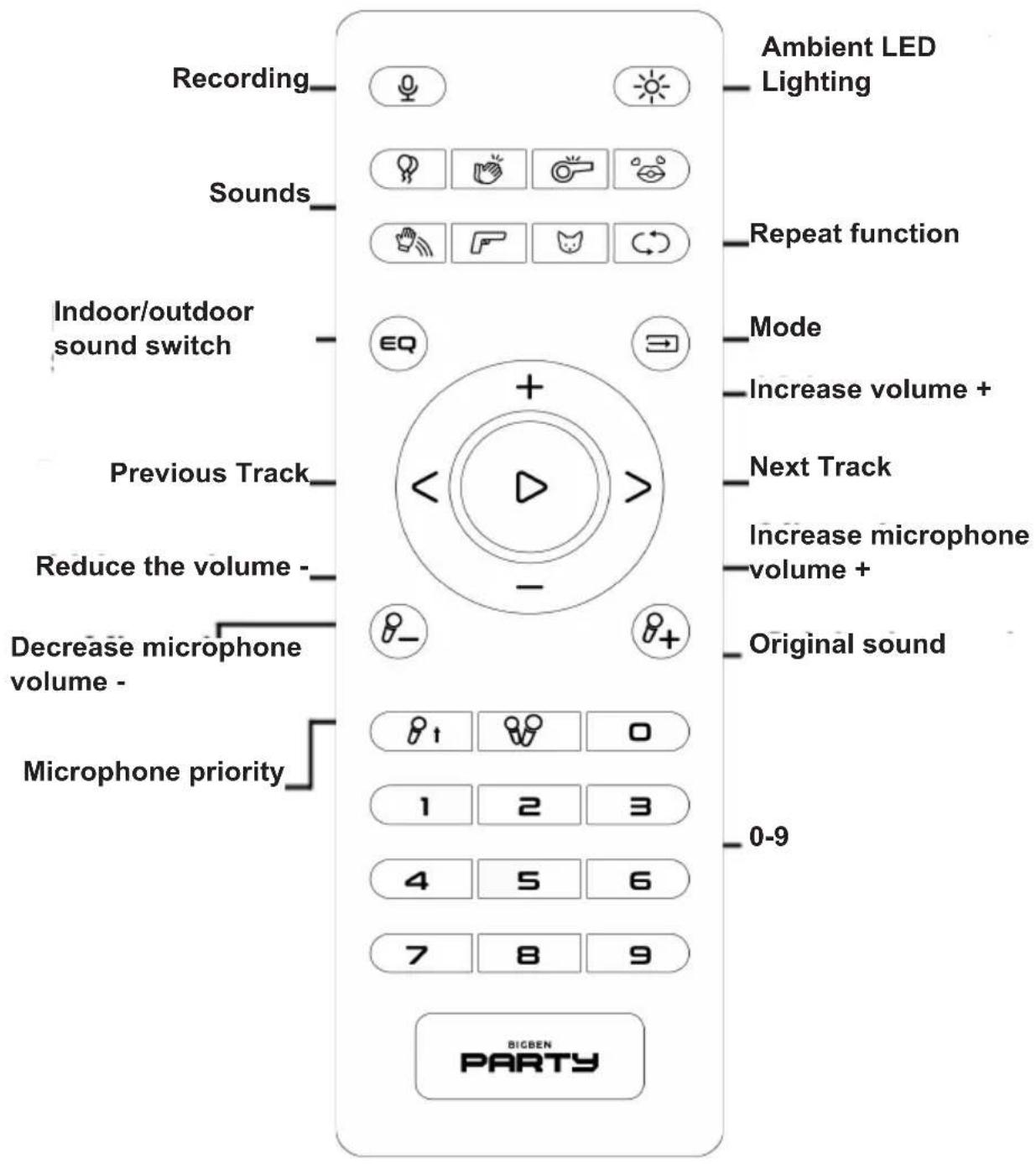

Remote control

Recording Sound Indoor/outdoor sound switch Previous Track Reduce the volume - Decrease microphone volume - Microphone priority Ambient LED Lighting Repeat function Mode Increase volume + Next Track Increase microphone volume + Original sound 0-9 81 0 1 2 3 4 5 6 7 8 9 BIGBEN PARTY

1. Under normal circumstances, the remote control should be used within range, which is approximately 6 metres and 30 degrees from the device's receiver.
2. When using the remote control, aim at the device's receiver. There must be a clear line of sight between the remote control and the device.
3. The remote control may malfunction if the device's receiver is placed under strong lighting. In this case, please move the device to avoid direct exposure.
4. Please check the remote control's batteries regularly and replace them if necessary. Never mix new and used batteries in the remote control.

Troubleshooting

1. The unit automatically turns off as soon as it is turned on.

The battery is low, please fully charge it before use.

1. The device turns off or restarts automatically.

The battery is low, please fully charge it before use.

1. The charging indicator light does not come on, the device is not charging.

Please make sure the charging cable is plugged in properly and is not damaged. Use the 18 W adapter to charge the device.

1. The speaker remains silent in Bluetooth mode.

Make sure that a Bluetooth device is paired, that it is in playback mode, and that the volume is not set to minimum.

1. The speaker makes no sound in micro-SD/USB mode

Verify that the microSD card or USB stick is inserted correctly into the correct port that the music format of the microSD card or USB stick is appropriate, and the volume of the device is not set to the minimum (Note: Micro-SD cards/USB sticks mainly play MP3 compressed audio files and WMA Lossless audio files).

1. Recording is not working

Check for sufficient space on the micro-SD card or USB stick, and delete files to free up space if necessary. You must be in micro-SD card or USB stick mode to record, and insert a wired microphone or turn on a wireless microphone.

1. A recording cannot be deleted

Connect the USB stick to a computer to manage and delete files.

1. The sound of the recording is too low, or is distorted

Increase the microphone output volume.

1. The device goes into power-saving mode, turns off automatically

In Bluetooth mode, if the speaker is not connected to a Bluetooth device and there is no action for 15 minutes, the speaker goes into power-saving mode and turns off automatically.

Technical specifications

Power supply: 5 V---3 A / 12 V --1.5 A / 9 V-2 A

RMS power 30 W/Tweeter, 10 W/Woofer

Frequency Response:45Hz-18KHz

S/N: ≥ 85 dB

Battery: 3,7 V 18650 6000 mAh

Product dimensions: 264 x 283 x 329 mm

WARNING: Risk of hearing impairment

Set a low volume on the playback device before connecting the headphones to the sound

source.

To prevent hearing damage, avoid excessive volume, particularly over extended periods or frequent use. Excessive volume can result in permanent hearing impairment.

Warning about batteries

This product contains one or more batteries.

- Use batteries correctly to prevent any injury or fire caused by a leak, overheating, explosion, erosion or other damage.

• Keep new and used batteries out of the reach of children or any vulnerable person. Stop using the device if the battery compartment does not close properly.
• If the liquid from an alkaline battery comes into contact with skin or eyes, rinse immediately with fresh water and consult a physician.
• If an alkaline battery leaks, clean the liquid with a cloth and replace the battery with a new one.
• Do not swallow batteries. If swallowed, a battery can cause severe internal burns in 2 hours and can cause death. If batteries are swallowed, contact a poison centre immediately and consult a physician.
• Use AA Ni-MH, alkaline or lithium batteries.
• Do not charge these batteries. Charging non-rechargeable batteries generates gas or heat emissions that can cause explosions or fires.
• Do not use different types of batteries or a mixture of new and old batteries.
• Insert the batteries according to the correct polarity (+ and -).
• Do not allow the same battery poles to be in contact.
• Remove spent batteries quickly. There is a risk of the battery exploding if it is not replaced or if the appliance is unused for a long period of time.
• Replace the battery with an identical or equivalent model.
• The batteries (or battery pack) must not be exposed to excessive heat, such as sunlight, fire, etc.
• Do not heat batteries or dispose of them in a fire or in water.
• Do not use metal pliers or metal objects such as the point of a pen or tweezers to remove batteries. Avoid deforming, crushing or piercing batteries.
• Do not disassemble the batteries.
• Cover the ends of the batteries with tape to prevent explosions and combustion when these are scrapped.
• Scrap batteries and an environmentally friendly way.
• Do not dispose of batteries in ordinary household waste.
• Be sure to comply with the local recycling regulations when scrapping batteries.

BATTERY WARNING

KEEP OUT OF REACH OF CHILDREN

Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.

Blue circular icon with white human and child silhouettes, no text or symbols present

Note: the maximum connection distance is approximately 10 metres. Place your Bluetooth speaker as close as possible to the device to avoid disruption of the connection.

The device may turn off in an environment with electrostatic discharge. The user must then recharge the battery and reset the device.

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When the crossed-out wheelie bin symbol appears on a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local sorting and collection system for electrical and electronic products. Please act according to local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are helping to prevent potentially negative consequences for the environment and human health.

Additional information

• The word Bluetooth ^® , the brand and logo are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.
• This product is manufactured and sold under the responsibility of Bigben Interactive.
• All other products, services, corporate names, trademarks, trade names, and logos referenced herein are the property of their respective owners.

Declaration of conformity

- Bigben Interactive hereby declares that the PARTYBTHPMAX electrical sound equipment is compliant with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.bigben.fr/support

Warranty

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.
