Product type	Electric sharpener
Brand	Hendi
Model	224403
Power supply	230-240 V ~ 50 Hz
Power consumption	1500 W
Intended use	Sharpening knives and scissors
Number of sharpening slots	2 (left and right)
Sharpening angles	20° for standard knives
Compatible blade types	Standard, Japanese, serrated, thin knives, scissors
Sharpening steps	3 steps (pressure 1.5 kg, 0.6 kg, 0.03 kg)
Wheel mounting system	Replaceable sandpaper
Start-up	On/off button on the left side
Maintenance and cleaning	Exterior cleaning with damp cloth; remove metal dust
Sandpaper replacement	Possible, instructions in manual
Safety instructions	Do not immerse; unplug before cleaning; keep out of reach of children
Warranty	1 year

Frequently Asked Questions - 224403 Hendi

How to sharpen a standard knife with model 224404?

Insert the blade into the appropriate slot at a 20° angle, then perform the 3 steps: pressure of 1.5 kg (step 1), 0.6 kg (step 2), and 0.03 kg (step 3). Repeat on both sides until the desired result is achieved.

What types of knives can I sharpen?

The device can sharpen standard, Japanese, serrated, thin knives, as well as scissors. Follow specific procedures for each type.

How to clean the Hendi 224403 sharpener?

Always unplug the device before cleaning. Clean the exterior with a damp cloth and mild detergent. Never immerse the device in water. Turn it over to remove metal dust.

Can I replace the sandpaper on the wheels?

Yes. Turn the screws on the wheels to disassemble them, cut off the old paper, place new paper following the indicated direction (overlap to the right for the left wheel and vice versa), then reinstall the cover.

What is the electrical power of the device?

The device operates on 230-240 V ~ 50 Hz and consumes 1500 W.

What to do if the device does not start?

Check that the plug is properly connected and the outlet is powered. Make sure the on/off button is pressed. If the problem persists, contact a qualified technician.

How to sharpen scissors with this device?

Remove the cover by turning the screw mechanism at the base. Place the blade edge against the wheels at the desired angle. Sharpen only the cutting side, then replace the cover.

Is it dangerous to use the device near water?

Yes. Keep the device and plug away from water and any liquid. Do not use it in a humid environment. If it falls into water, unplug immediately and have it checked by a professional.

How to turn off and store the device after use?

Press the Off button on the left side, then unplug the power cord. Wash and dry the sharpened blades before storing them.

What to do in case of visible damage to the device?

Do not use the device. Immediately contact your supplier or an authorized repairer. Do not attempt to repair it yourself.

USER MANUAL 224403 Hendi

Please read these user instructions carefully before connecting the appliance to prevent damage due to improper use. Please pay special attention to the safety regulations.

Safety regulations

Incorrect operation and improper use of the appliance can seriously damage the appliance and injure users.
The appliance may only be used for the purpose for which it was intended and designed. The manufacturer is not liable for any damage caused by incorrect operation and improper use.
- Keep the appliance and electrical plug away from water and any other liquids. In the unlikely event that the appliance should fall into water, immediately pull the plug out of the socket and have the appliance checked by a certified technician. Not following these instructions could give rise to life-threatening situations.
- Never try to open the casing of the appliance yourself.
- Do not insert any objects in the casing of the appliance.
- Do not touch the plug with wet or damp hands.
- Regularly check the plug and cord for any damage. Should the plug or cord be damaged have it/them repaired by a certified repair company.
- Do not use the appliance after it has fallen or is damaged in any other way. Have it checked and repaired, if necessary, by a certified repair company.
- Do not try to repair the appliance yourself. This could give rise to life-threatening situations.
- Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. To pull the plug out of the socket, always pull on the plug and not on the cord.
- Make sure that no one can accidentally pull the cord (or extension cord) loose or trip over the cord.
Always keep an eye on the appliance when in use.
- Children do not understand that incorrect use of electrical appliances can be dangerous. Therefore, never let children use home appliances without supervision.
- Always pull the plug out of the socket when the appliance is not being used and always before cleaning.
- Warning! As long as the plug is in the socket the appliance is connected to the power source.
- Turn off the appliance before pulling the plug out of the socket.
- Never carry the appliance by the cord.
This appliance is solely used for sharpening knives and scissors.
- Do not use any extra devices that are not supplied along with the appliance.
- Only connect the appliance to an earthed 230 VAC electrical socket.
- Avoid overloading.
- Turn off the appliance after use by removing the plug from the socket.
Always remove the plug from the socket when filling or cleaning the deep fryer.
The electrical installation must satisfy the applicable national and local regulations.

Special safety regulations

• Caution! Make sure the cord does not come in contact with hot components while using the appliance.
• Keep the knife and sharpening wheels dry at all costs.

Preparations before using for the first time

• Check to make sure the appliance is undamaged. In case of any damage, contact your supplier immediately and do NOT use the appliance.
• Remove all the packing material.
• Clean the appliance with luke-warm water and a soft cloth.
• Level the appliance.
• Position the appliance in such a way that the plug is accessible at all times.
• Make sure the appliance and the knife are dry. Oil is not needed.

Operation

• Plug the appliance into the main socket.
• On/Off button on the left side.
• Place a knife inside an opening and pull it towards you slowly. De left opening sharpens the left side of the blade, whilst the right opening sharpens the right side of the blade.

ATTENTION! De order is not important but remember, after sharpening the one side, always follow up by sharpening the other side.

• Use the following steps for sharpening standard knives. (Also displayed on the appliance)

• Turn on the appliance.

• Lower the knife into an opening under an angle of 20^

ATTENTION! Make sure the knife does not mover forward while lowering it into an opening.

This can cause the sandpaper to be cut.

• Step1. Push the knife down with a pressure of 1.5 kg( 3 - 3,5Ibs)
  ATTENTION! Repeat this step for both the left and right opening before continuing with the next step.
• Step 2. Push the knife down with a pressure of 0.6kg (1,5 lbs)

ATTENTION! Repeat this step for both the left and right opening before continuing with the next step.
- Step 3. Push the knofo down with a pressure of 0.03kg (2 oz)

ATTENTION! Repeat this step for both the left and right opening before continuing with the next step.

-Repeat above 3 steps until satisfied with the results.
- To measure the pressure needed, place the appliance on a scale and read while sharpening how much pressure is needed.

• Use the following steps for sharpening special knives like Japanese knives and serrated knives. Depending on the type of knife some steps are skipped.

• To sharpen a (sashimi) knife with a cutting edge on only 1 side use the above 3 steps, only this time only on the side of the cutting edge. Use step 3 to remove any burr from the flat side using light pressure.

• To sharpen serrated blades follow the same steps as for the sashimi knife.

• To sharpen thin knives skip Step1.

• Use the following steps to sharpen scissors.

• Remove the cover by rotating the screw mechanism on the bottom .

• Place the knives cutting edge under the appropriate angle against the sharpening wheels until the required results are reached.

• Once the desired result has been reached turn of the appliance.
  Always wash the knife and dry it with a soft cloth after sharpening it.

• Should the appliance not be used for a longer period, press the Off button on the left side of the appliance and remove the plug from the main socket.

Cleaning and maintenance

Always remove the plug from the socket before cleaning the appliance.
- Beware: Never immerse the appliance in water or any other liquid!
- Clean the outside of the appliance with a damp cloth (water with mild detergent).
- Never use aggressive cleaning agents or abrasives. Do not use any sharp or pointed objects. Do not use petrol or solvents! Clean with a damp cloth and detergent if necessary. Do not use abrasive materials.
- Turn the screw on the bottom to remove the cover. Turn the appliance upside-down to remove any knife dust and chips. A brush may be used for this.
- Turn the 2 screws on the sharpening wheels in the mentioned direction to remove the wheels from the appliance. Cut the sandpaper of the wheels.

Place the new sharpening abrasive on the wheels, and re-attach the wheels to the appliance and re-attach the cover.

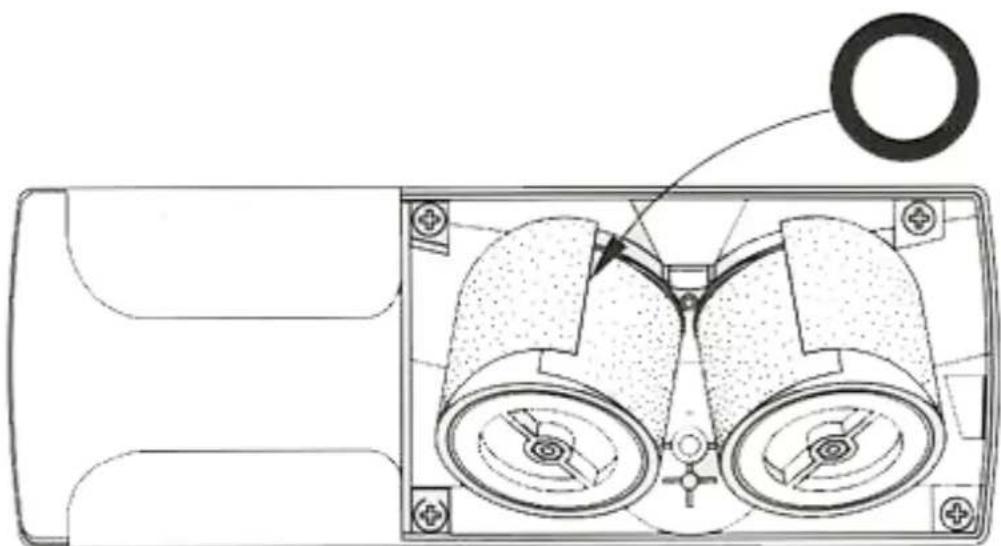

ATTENTION!

When using single layer sandpaper make sure the overlapping part of the paper is faced to the right on the left wheel and to the left on the right wheel.

Technical details

AC power supply: 230~240 VAC/50 Hz
Power consumption 1500 W

Guarantee

Any defect affecting the functionality of the appliance and which occurs within one year of its purchase will be repaired or replaced free of charge provided the appliance has been used and maintained in accordance with the instructions and has not been abused or used improperly in any way. This is without prejudice to your statutory rights. If the warranty applies, state where and when the appliance was bought and include proof of purchase (e.g. till receipt).

In line with our policy of continuous product development we reserve the right to change the product, its packaging or documentation without notice.

Discarding

When discarding the appliance at the end of its useful life, please observe the regulations and guidelines in force at that time.
