USER MANUAL 970294 Hendi

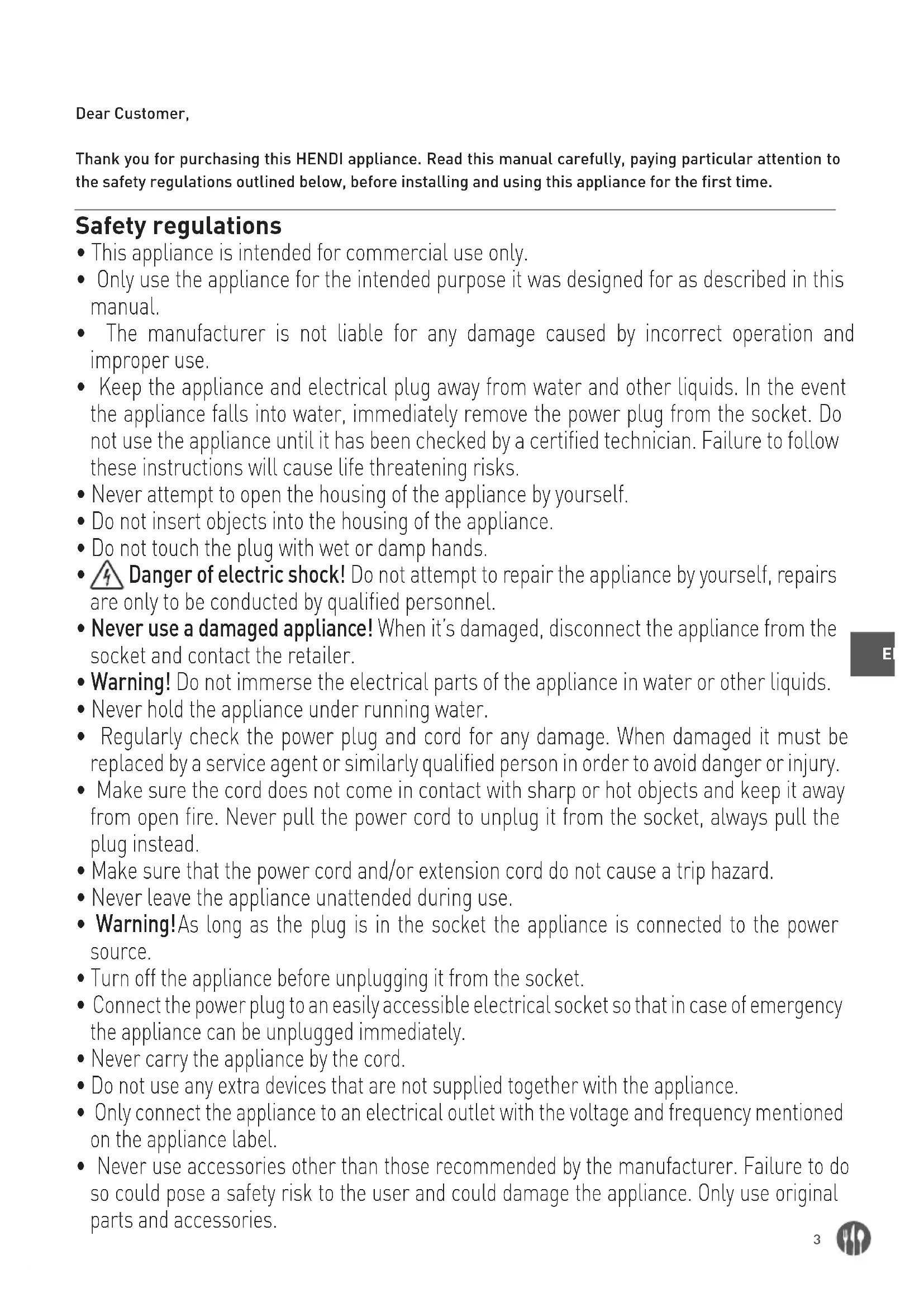

• This appliance is intended for commercial use only.

• Only use the appliance for the intended purpose it was designed for as described in this manual.

• The manufacturer is not liable for any damage caused by incorrect operation and improper use.

• Keep the appliance and electrical plug away from water and other liquids. In the event the appliance falls into water, immediately remove the power plug from the socket. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.

• Never attempt to open the housing of the appliance by yourself.

• Do not insert objects into the housing of the appliance.

• Do not touch the plug with wet or damp hands.

• Danger of electric shock! Do not attempt to repair the appliance by yourself, repairs are only to be conducted by qualified personnel.

• Never use a damaged appliance! When it’s damaged, disconnect the appliance from the socket and contact the retailer.

• Warning! Do not immerse the electrical parts of the appliance in water or other liquids.

• Never hold the appliance under running water.

• Regularly check the power plug and cord for any damage. When damaged it must be replaced by a service agent or similarly qualified person in order to avoid danger or injury.

• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.

• Make sure that the power cord and/or extension cord do not cause a trip hazard.

• Never leave the appliance unattended during use.

• Warning! As long as the plug is in the socket the appliance is connected to the power source.

• Turn off the appliance before unplugging it from the socket.

• Connect the power plug to an easily accessible electrical socket so that in case of emergency the appliance can be unplugged immediately.

• Never carry the appliance by the cord.

• Do not use any extra devices that are not supplied together with the appliance.

• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

• Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.

• This appliance should not be operated by persons with reduced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.

• This appliance should, under any circumstances, not be used by children.

• Keep the appliance and its power cord out of reach of children.

• WARNING: ALWAYS switch off the appliance and unplug from power socket before cleaning, maintenance or storage. Special Safety Regulations

• CAUTION! Unplug before cleaning, maintenance or repair!

• CAUTION! Two-person handling required!

• CAUTION! Read instruction manual before operation, cleaning or maintenance!

• The food to be sliced must be thawed, unpacked and free from bones before it can be sliced with the appliance. Do not use the appliance for slicing frozen food, vegetables or for any other purpose.

• Use the appliance only as described in the manual.

• Any other use might lead to damage to the appliance or personal injury.

• This appliance should be operated by trained personnel.

• Do not place the appliance on a heating object (gasoline, electric, charcoal cooker, etc.) Keep the appliance away from any hot surfaces and open flames. Always operate the appliance on a level, stable, clean, heat-resistant and dry surface.

• Danger of injury! Care is needed when handling the blade, especially when removing the blade for cleaning. Wear protective gloves (not supplied) if necessary.

• Caution! Securely route the power cord if necessary in order to prevent unintentional tripping over and falling.

• Do not use the appliance before it is properly assembled with the blade, blade guard and the food holder.

• Do not use the appliance near explosive or flammable materials, credit cards, magnetic discs or radios.

• Never bypass any safety interlocks on the appliance.

• WARNING: Keep all ventilation openings in the appliance clear of obstruction.

• WARNING: ALWAYS switch OFF the appliance and unplug from electrical power supply before cleaning, maintenance or storage.

• WARNING: ALWAYS keep hands, long hair and clothing away from the moving parts.

• Allow at least 20 cm spacing around the appliance for ventilation purpose during use.

• WARNING! Take great care when handling the cutting discs. Wear protective gloves (not supplied) if necessary.5

• This appliance is intended for professional use.

The appliance is designed only for slicing foodstuff, e. g. meats, cheese, breads, etc. Any other use may lead to damage to the appliance or personal injury.

• Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the de- vice. Grounding installation This appliance is classified as protection class I and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is fitted with a power cord that has a grounding wire and grounded plug. The plug must be plugged into an outlet that is properly installed and grounded. Information on the slicer General precautions

• The slicer must be operated only by highly qual- ified people who are fully aware of the safety measures described in this manual.

In case of personnel rotation, training is to be pro- vided in advance

Although the slicer is equipped with safety devices in the dangerous points, it is recommended not to touch the blade and the moving components.

Before starting cleaning and maintenance opera- tions, disconnect the slicer plug from the supply

Assess the residual risks carefully when protec- tion devices are removed to carry out cleaning and maintenance

• Cleaning and maintenance require great concen- tration.

A regular control of the electric supply cord is abso- lutely necessary; a worn-out or damaged cord can expose users to great electric shock hazard

If the slicer shows malfunctions, it is recommended not to use or attempt to repair the device; please call the “SERVICE CENTRE”

Do not use the slicer for frozen products, meat and fish with bones and any products other than foodstuffs.

Do not use the slicer without the meat pusher when the meat is nearly finished.

Do not place yourself in a dangerous position, the blade may cause injuries. The manufacturer and/or the seller is not liable in the following cases: - if the slicer has been tampered by non-author- ized personnel; - if some parts have been substituted by non-orig- inal spare parts; - if the instructions included in this manual are not followed accurately; - if the slicer is not cleaned and oiled with the right products. Safety systems installed in the slicer The slicer is equipped with:

a micro-switch which stops the slicer in case the tie rod for blade guard is removed; the micro-switch prevents from restarting the slicer if the guard has not been set in the switch-off position

a relay in the control box which requires the restart of the slicer when a power cut occurs

Even though slicers are provided with electrical and mechanical protections (when the slicer is operat- ing and for maintenance and cleaning operations), there are still RESIDUAL RISKS that cannot be eliminated completely; these risks are specified in this manual under WARNING. The blade and other parts of the machine can cause cuts and injuries.6

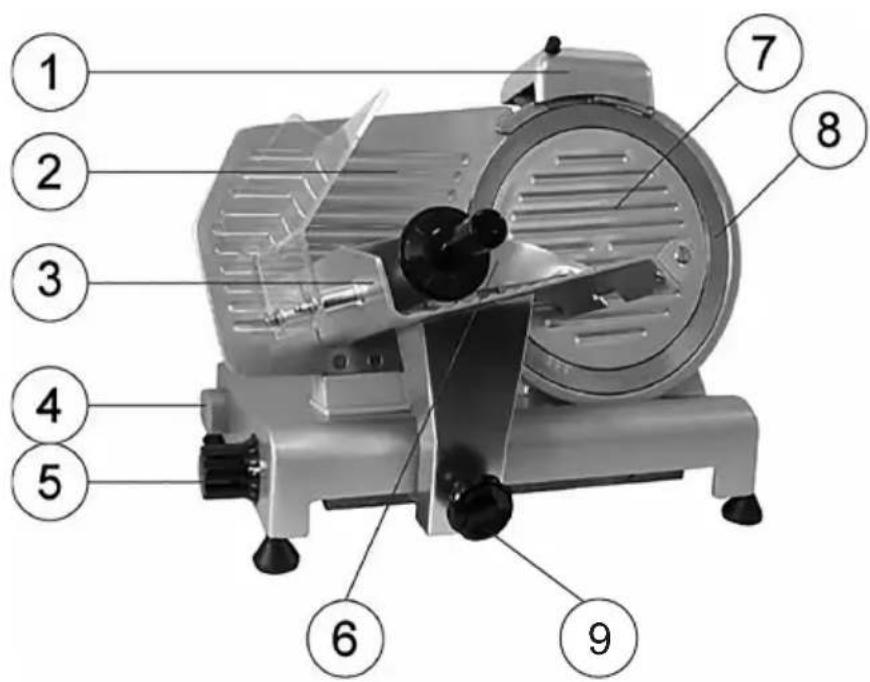

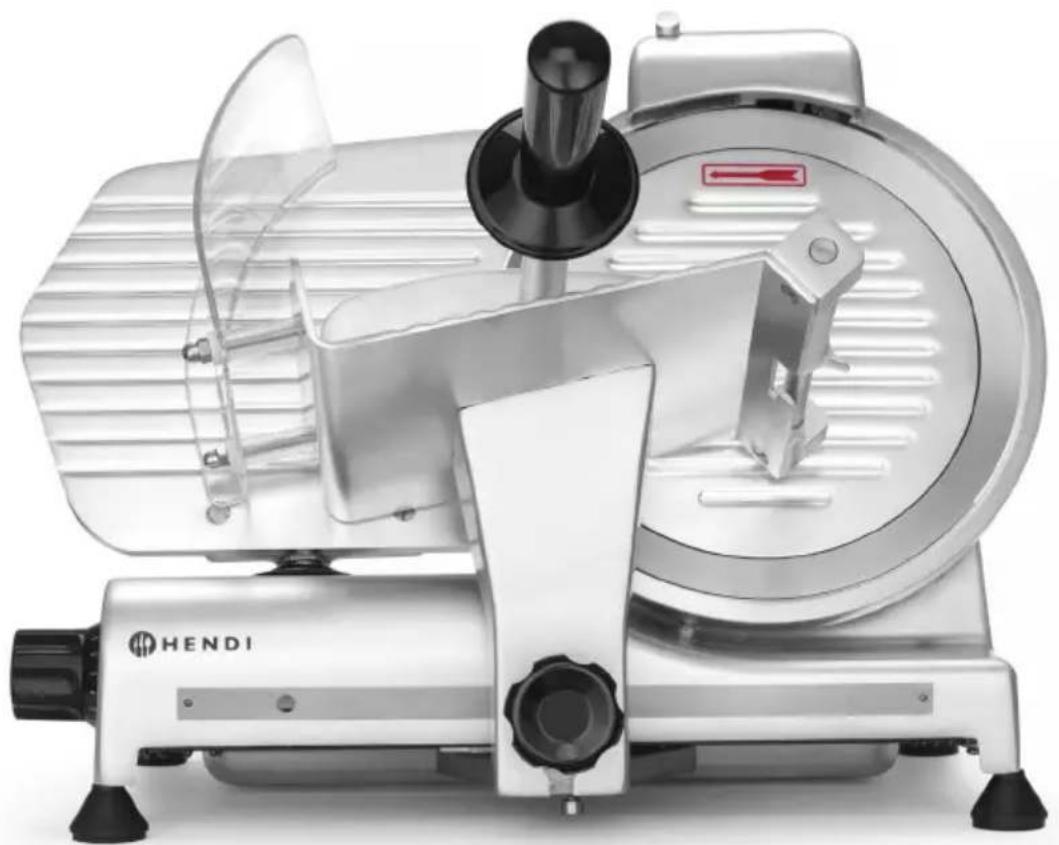

Main parts of the appliance 1 Blade sharpener 2 Stop plate 3 Carriage 4 On/off switch [White (I): ON; Black (O): OFF] 5 Slice thickness dial 6 Product clamp 7 Blade guard 8 Blade 9 Carriage lock 10 Blade guard bolt (not displayed)

Preparations before using for the first time

• Check to make sure no parts are missing. If any parts are missing, contact your supplier.

• Remove all the packing material.

• Keep the packaging if you intend to store your ap- pliance in the future.

• Check the appliance for completeness and trans- port damages. In case of incomplete delivery or damage, contact supplier immediately. DO NOT use the appliance. (See ==> Warranty).

• Clean the blade. Be careful: the blade is very sharp. (Use gloves if necessary, not included)

• Keep open a space of at least 10 cm around the appliance to allow for adequate ventilation.

• Position the appliance in such a way that the plug is always accessible.

• If the sharpening device is not attached, proceed as follows:

1. Top view of the appliance 2. Attach the sharpening module

in such a way that the blade does not move between the wheels.

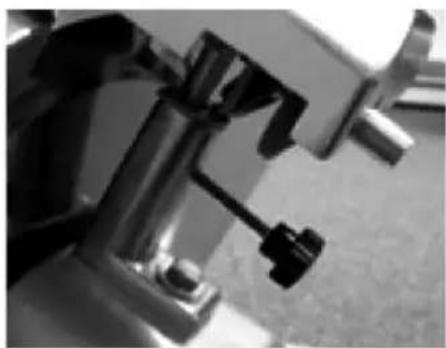

3. Secure the sharpening device

to the machine by tightening the holder. Check to make sure that the sharpening de- vice is well secured before us- ing the machine. NOTE! The sharpening device is equipped with a safety switch. If the sharpening device is not properly at- tached, you will not be able to use the appliance.7

• Attach the hand guard.

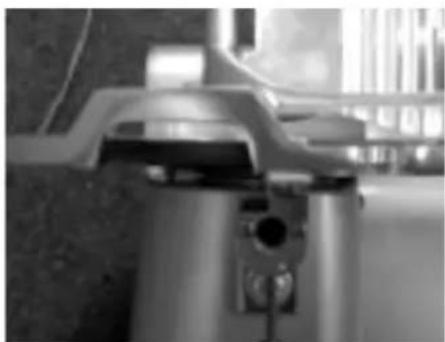

1. Place both screws in

3. Place the two wash-

ers over the white bolts.

dome nuts. NOTE! You are advised not to use the appliance if the hand guard is not attached as instructed! These are safety features that will prevent possible injury. If you do not attach these features, there will be a risk of injury. Instructions for use

• Position the appliance so that the on/off switch is facing the user.

• If the blade sharpener has not been installed, proceed as follows: - Position the blade sharpener in its support so that the blade does not extend between the gears. - Tighten the safety screw on the blade sharpen- er. - Note! The appliance is equipped with a safe- ty switch and will turn off automatically if the sharpening device is removed)

• Push the plug in the wall socket.

• Turn the dial with the graduated scale to the de- sired slice thickness.

• Switch ON the appliance by pressing the “WHITE (I)” button of the ON/OFF switch.

• Put the food product on the carriage and adjust the clamp to hold the product firmly in place. Make sure the product is positioned against the stop plate.

• Once the product has been sliced, switch OFF the appliance by pressing the “BLACK (O)” button of the ON/OFF switch.

• Turn the thickness dial back to “0”.8

Loading and slicing of foodstuffs

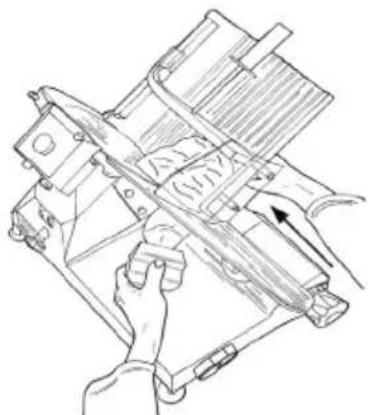

WARNING: Products to be cut must be loaded on the

food tray only when the dial knob is set to the “0” position. Pay attention to the blade and the sharp edges. The procedure is as follows:

once the product has been loaded onto the food tray and placed against the plate, stop it with the arm provided with gripping points;

adjust the dial knob so as to obtain the desired cutting thickness;

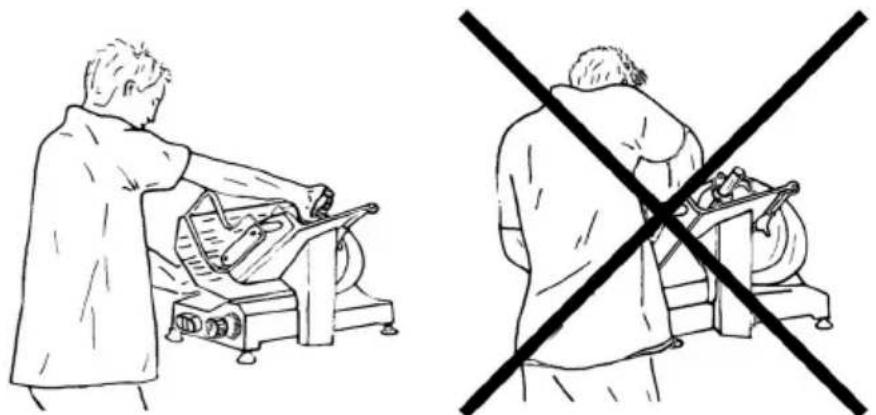

to avoid accidents, the operator has to face the ma- chine and adopt a correct position: put the ring hand on the meat pusher, and then the left one beside the deflector (do not touch the blade);the body must be perpendicular to the working surface (see FIG. 1a). WARNING: Pay maximum attention: no part of your body should contact the blade (see FIG. 1b)

push the switch-on button “I”;

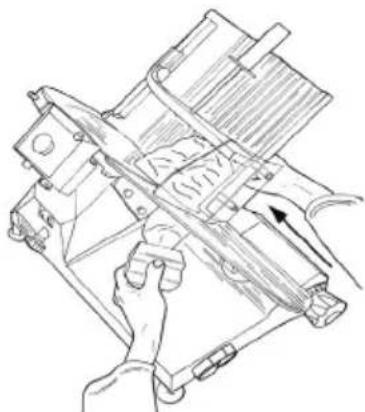

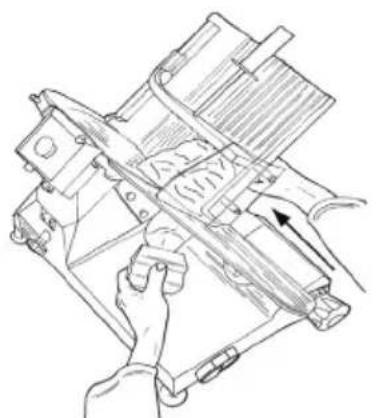

smoothly push the carriage (food tray + meat pusher + stem) towards the blade without exert- ing pressure on foodstuffs with the meat pusher since they have their own force of gravity which exerts pressure on the thickness gauge. The blade will easily cut foodstuffs and slicers will be guided by the deflector onto the collecting plate (see FIG. 2);

do not operate the slicer without foodstuffs;

once foodstuffs have been cut, set the dial knob in the “0” position and switch off the machine by setting the switch to the “0” position;

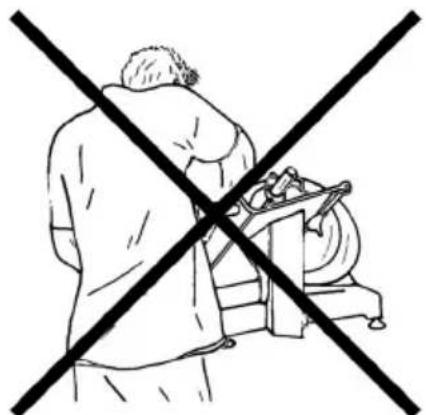

resharpen the blade as soon as slices show a rough or frayed surface and the cutting be- comes difficult (see Sharpening the blade). Fig. 1a. Right position Fig. 1b. Bad position Fig. 2. Cutting meat9

WARNING: Before proceeding with blade sharpen-

ing, remain alert to the RESIDUAL RISKS (see Elec- trical safety system) that refer to the hazard of inju- ry if the instructions below are not followed. The blade must be sharpened periodically and as soon as it becomes blunt; the detailed instructions below are to be followed:

clean the blade accurately with alcohol to remove grease after the plug has been disconnected from the socket;

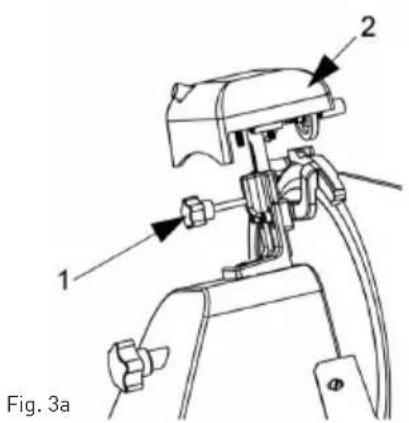

unscrew the knob (1, Fig.3a), lift (a) the sharpener (2, Fig.3a) up to the locking position and rotate it 180°. Then let it move to the end so that the blade is posi- tioned between the two sharpeners. Lock the knob

switch-on the slicer by pushing the button “I” (ON);

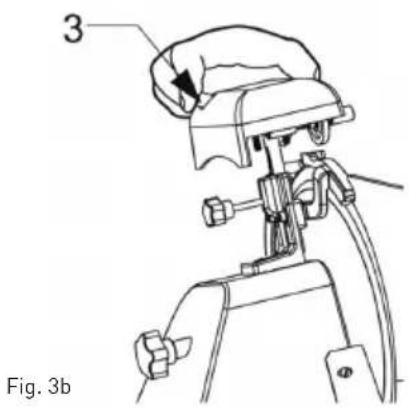

push the small button (3, Fig. 3b), let the blade rotate against the sharpener for 30/40 sec. to produce a sharp burr on the blade edge;

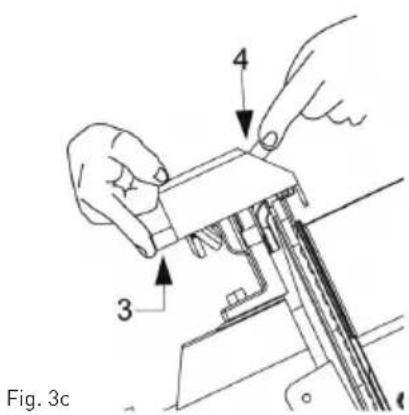

push buttons simultaneously for 3/4 seconds (1 and 2, Fig 3c) and then leave them simultaneous- ly;

it is recommended to clean the sharpeners upon the end of sharpening (see Cleaning of the sharpener);

once sharpening has been completed, return the slice to its original setting with the reverse pro- cedure.

after sharpening, the blade should be cleaned (See Cleaning of the blade guard and blade) NOTE: Do not prolong the burring operation beyond 3/4 sec. in order to prevent the dangerous twisting of the blade cutting edge. The blade should be replaced when it cannot be sharpened any further or when the gap between edge of the blade and the blade guard exceeds 6 mm. Fig. 3a Fig. 3b Fig. 3c10

Ordinary cleaning General features

The slicer cleaning must be carried out at least once a day or more frequently, if necessary.

Cleaning must be extremely accurate for those parts of the slicer which are directly or indirectly in contact with foodstuffs.

The slicer must not be cleaned with water-cleaner and high pressure water jets; use water and neutral detergent instead. Do not use other detergents. Tools, brushes and other devices likely to damage the slicer’s surface must not be used

Before carrying our any cleaning operation it is necessary to:

disconnect the power supply plug from the socket to isolate the slicer from the rest of the electric circuit completely;

set the dial knob adjusting the plate to the “0” position.

WARNING: Pay attention to residual risks due to

cutting and/or sharp edges. Wear protective gloves (not supplied) if necessary. Slicer cleaning procedure Cleaning of the food tray The carriage (food tray + arm + stem) is easily re- movable:

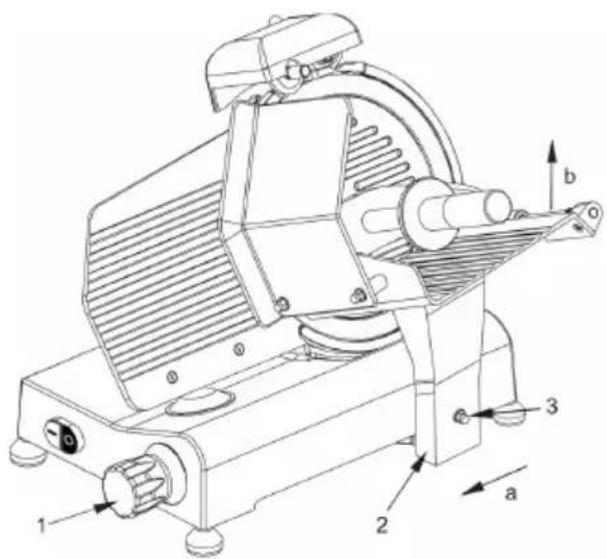

set the dial knob in the “0” position (1)

set the carriage (2) at the end of its run (a) near the controls

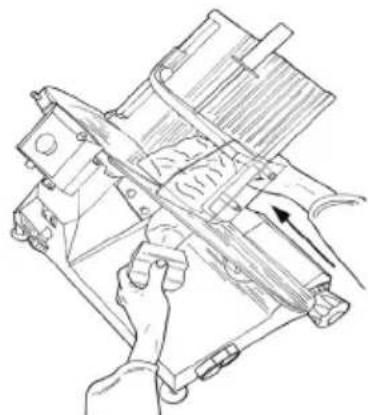

unscrew the screw (3), slide the carriage upwards (b);

after having removed the carriage, it is possible to clean accurately the food tray with hot water and neutral detergent (pH 7). Carriage removal Cleaning of the blade guard and blade

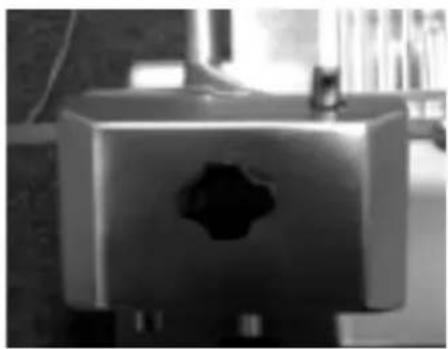

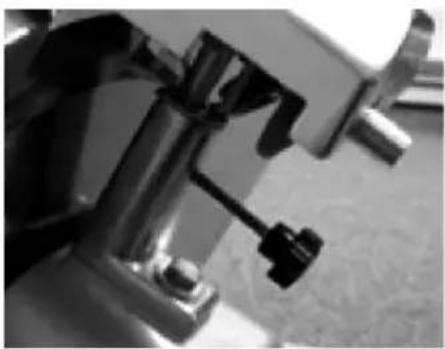

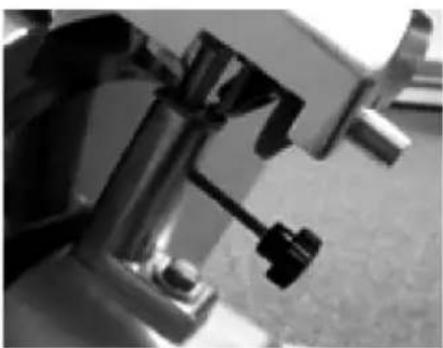

Remove the blade guard cover by unscrewing the pin at the back of the appliance (see Fig. 4).

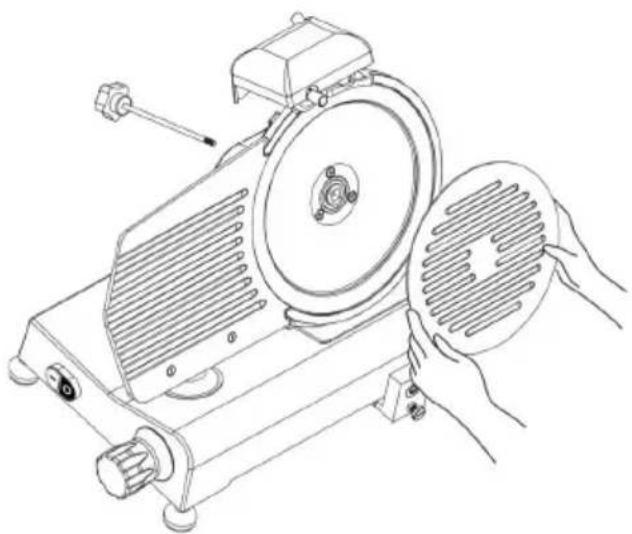

WARNING: The blade cleaning must be carried out

with a wet cloth with metal gloves on. To clean the opposite surface of the blade it is nec- essary to remove the blade (see Fig. 5). The blade is to be removed as follows:

disassemble the blade guard (see Fig. 5);

remove the sharpener (a) and turn the thickness blade with the dial knob to make the Plexiglas blade removal tool (b) (not supplied) adhere to the blade

loosen the 3 or 4 screws (f) (according to the model) that fix the blade; Fig. 4 – Blade guard removal11

lean the Plexiglas blade removal tool on the blade to obtain the coupling of the blade holes with the two screws (e), turn the blade until it reaches the correct position;

slightly tighten the screw (e).

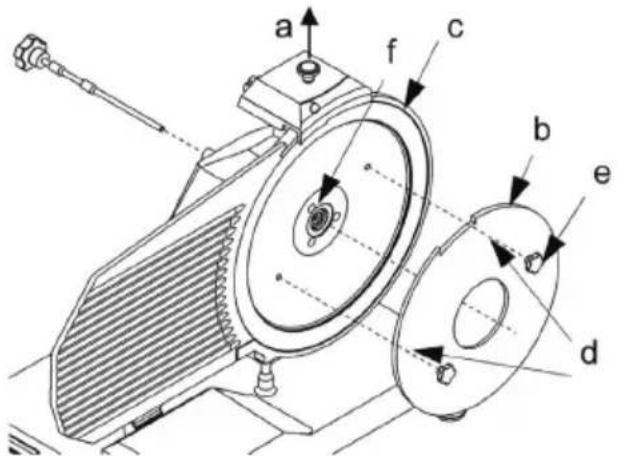

WARNING: The blade guard must be cleaned with

hot water and neutral detergent. Fig. 5 – Assembling the Plexiglas blade removal tool (b) Cleaning of the sharpener The sharpener cleaning operation is carried out by rubbing the grinding moles with a brush. The moles must be placed in the safety position which means that they must be turned towards the side opposite to the blade. Cleaning of the deflector To remove the deflector unscrew the two screws (a) locking the deflector (see Fig. 6). Clean the deflector with hot water and neutral de- tergent. Fig. 6 - View of the deflector Maintenance General features Before starting maintenance it is necessary to:

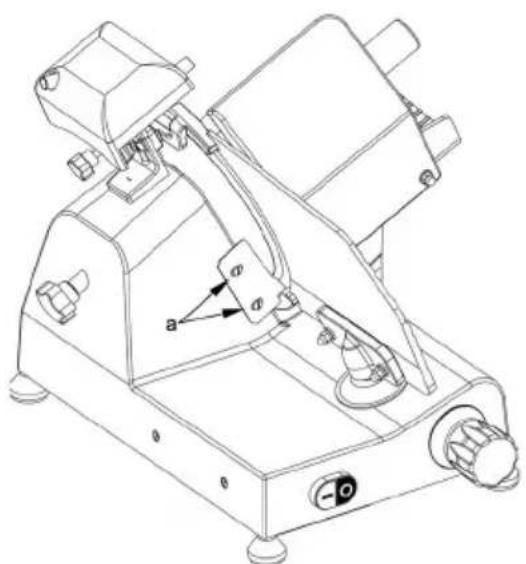

Disconnect the power supply cord plug from the socket to isolate the slicer from the electric cir- cuit completely.

Place the dial knob adjusting the thickness plate in the “0”position. Belt The belt is not to be adjusted. Generally, it must be replaced after 3 or 4 years; in this case please call your authorized “SERVICE CENTER”. Feet Feet may deteriorate and lose elasticity, thus reducing the stability of the slicer. In this case they must be replaced. Call your authorized “SERVICE CENTER” to replace the feet.12

Power supply cord Periodically check the power supply cord for any symptoms of worn-out and, if this is the case, please call the “SERVICE CENTER” to have it replaced. Blade Check that the blade does not lose more than 10mm of its original diameter. To have it replaced call the “SERVICE CENTER”. Sharpener - grinding moles Check that the grinding moles retain their abrasive property during sharpening operations. Call the “SERVICE CENTRE” if it is necessary to replace the grinding moles to prevent the blade damage. Lubrication of sliding guides From time to time pou some oil drops onto the round sliding guide along which the carriage moves back and forth. This operation can be performed through the opening (OIL) next to the dial knob. Label of the push-button panel If the labels of the push-button panel have been damaged, call the “SERVICE CENTER” for replacement. Machine disposal Putting the machine out of service If for some reason there is a necessity to put the machine out of service, make sure nobody can use it: disconnect it from the mains and eliminate any the electrical connections. Storage

• Before storage, always make sure the appliance has already been disconnected from the electri- cal outlet and cooled down completely.

• Store the appliance in a cool, clean and dry place. Troubleshooting If the appliance does not function properly, please check the below table for the solution. If you are still unable to solve the problem, please contact the supplier/service provider. Problem Possible cause Solution Appliance does not slice evenly Blunt blade Sharpen blade Dirty appliance Clean the appliance Appliance stops slicing Overheated motor Let the machine cool off for an extended period. The motor’s safety thermostat will reset itself automatically. Carriage does not slide Dirty slide bar Clean the slide bar and lubricate with Vaseline Some food stick to the blade. Switch off the appliance & unplug it. Let it come to a complete stop. Remove any blockage. Wipe the blade with a damp cloth. Blade stops when product is being cut v-belt worn out or dirty Contact the supplier. When in doubt, always contact your supplier!13

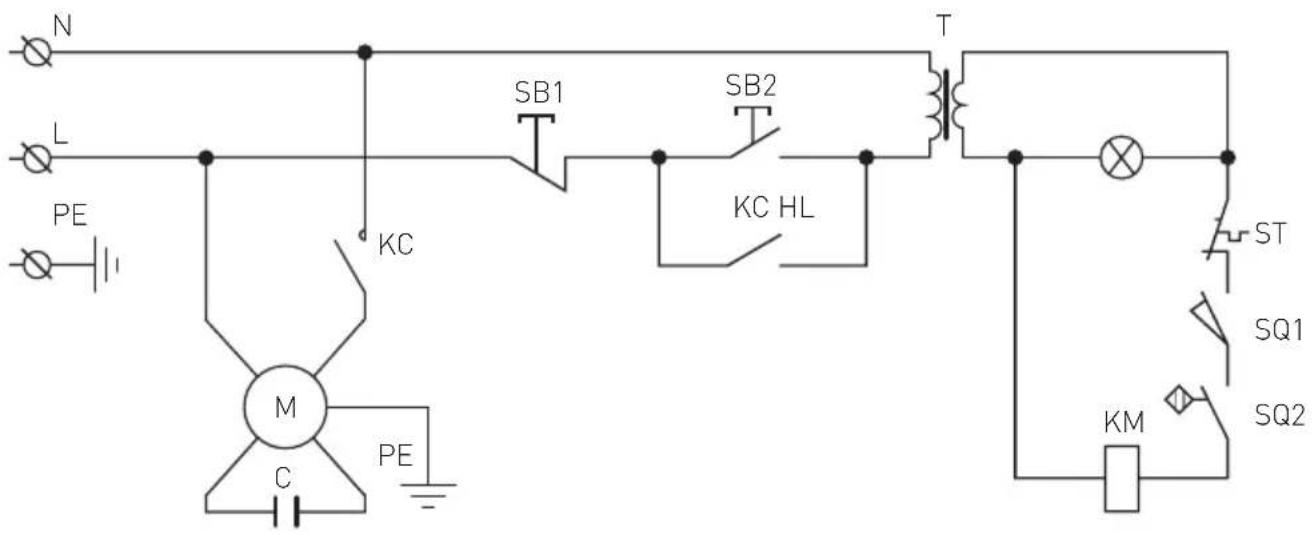

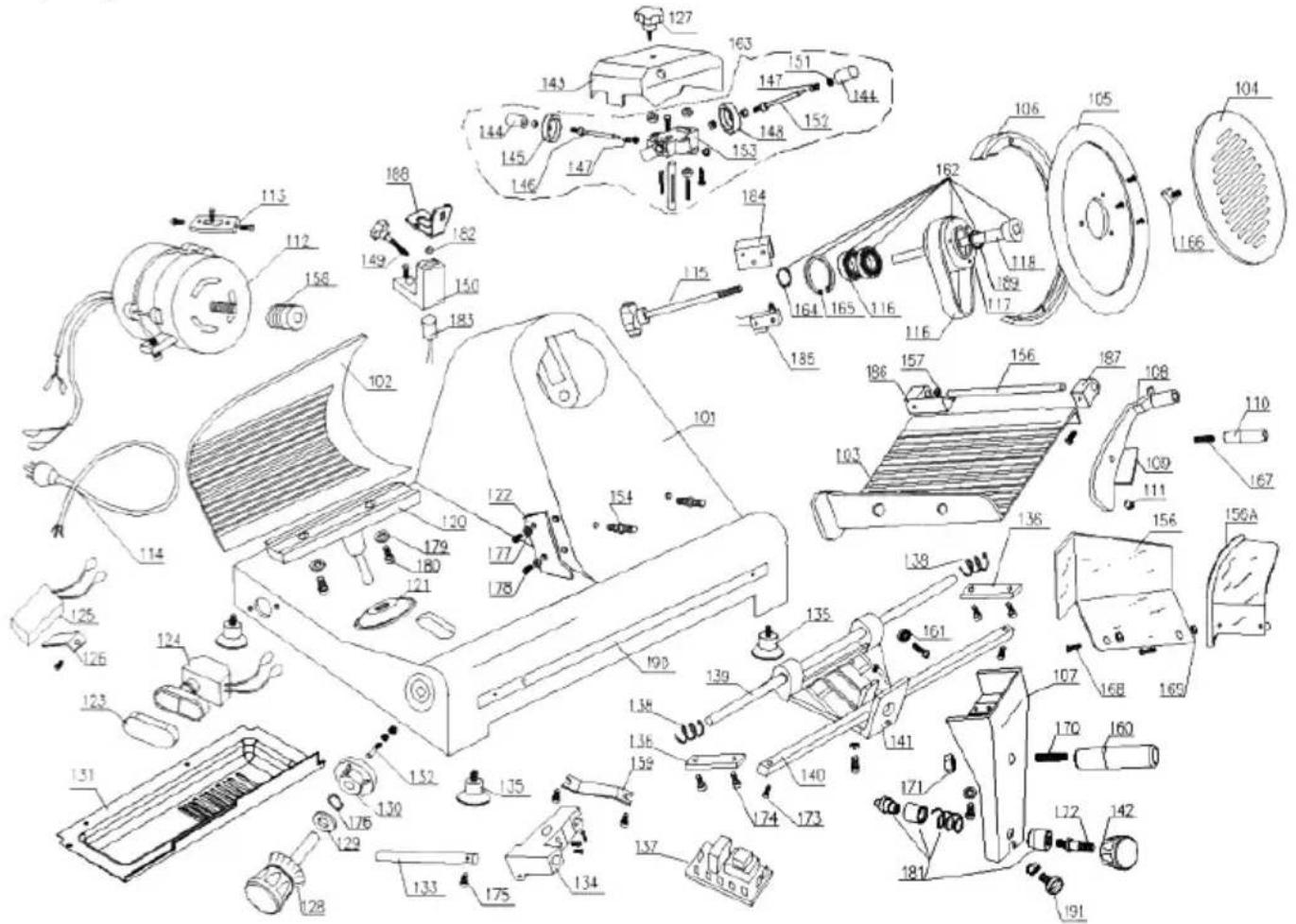

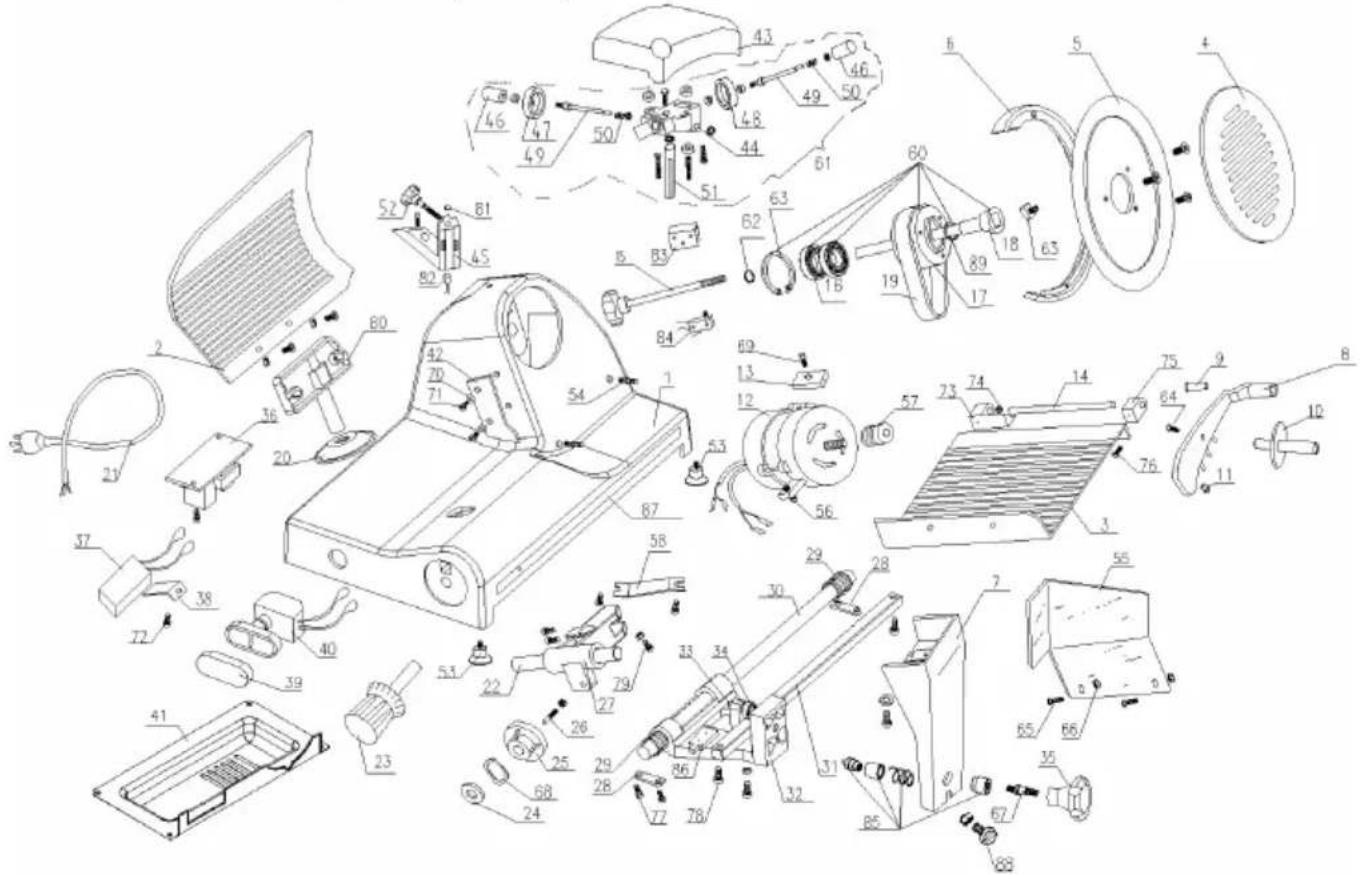

52 Sharpener tighten knob 1 78 Slide axle briquetting bolt 4 53 Active clapboard mandril 1 79 Quadrate axis locking screw 2 54 Rubber foot 4 80 Slider adjust bolt 1 55 Pin of blade guarding ring 2 81 Magnet 1 56 Meat blocking board 1 82 Magnet switch 1 57 Slide axle bracket 2 83 Aluminium block 1 58 Small belt wheel of motor 1 84 Microswitch 1 59 Slide driver 1 85 Stainless steel lock 1 60 Belt wheel setting 1 86 Limited block 1 61 Sharpener setting 1 87 Stainless steel bar 1 62 Ø15 Spring gasket for bearing 1 88 Set screw for tray bracket 1 63 Ø15 Spring gasket for bearing 1 89 Oil seal 1 64 Blade guard disc square-head nut 116

Technical specifications Item no. 210031 210048 210000 210017 210086 970294 Operating voltage and frequency 220-240V~ / 50 Hz Rated input power 200W 280W 320W 420W 320W 280W Blade diameter 195 mm 220 mm 250 mm 300 mm 250 mm 220 mm Waterproof protection class IP33 Protecion class Class I Noise level < 70 dB (A) Dimension 400x400x (H)330 mm 440x420x (H)350 mm 485x420x (H)395 mm 600x480x (H)450 mm 485x420x (H)395 mm 440x420x (H)350 mm Net weight (approx) 13.5 kg 14 kg 16 kg 26 kg 16 kg 14 kg Remark: Technical specification is subjected to change without prior notification. Warranty Any defect affecting the functionality of the ap- pliance which becomes apparent within one year after purchase will be repaired by free repair or re- placement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appli- ance is claimed under warranty, state where and when it was purchased and include proof of pur- chase (e.g. receipt). In line with our policy of continuous product devel- opment we reserve the right to change the product, packaging and documentation specifications with- out notice. Discarding & Environment When decommissioning the appliance, the prod- uct must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a des- ignated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate col- lection and recycling of your waste equipment at the time of disposal will help conserve natural re- sources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.19
