USER MANUAL TK2000 CHAUVIN ARNOUX

4.10 CONDITIONS CLIMATIQUES

4.12 CONFORMITÉ AUX NORMES

Thank you for purchasing a digital thermometer. For best service from your device:

■ read these operating instructions carefully,
■ comply with the precautions for use.

WARNING, risk of DANGER! The operator must refer to these instructions whenever this danger symbol appears.

Earth.

The CE marking indicates compliance with the European Low Voltage Directive (2014/35/EU), Electromagnetic Compatibility Directive (2014/30/EU), and Restriction of Hazardous Substances Directive (RoHS, 2011/65/EU and 2015/863/EU).

The UKCA marking certifies that the product is compliant with the requirements that apply in the United Kingdom, in particular as regards Low-Voltage Safety, Electromagnetic Compatibility, and the Restriction of Hazardous Substances.

The rubbish bin with a line through it indicates that, in the European Union, the product must undergo selective disposal in compliance with Directive WEEE 2012/19/EU. This equipment must not be treated as household waste.

Definition of measurement categories

■ Measurement category IV corresponds to measurements taken at the source of low-voltage installations.
Example: power feeders, counters and protection devices.
■ Measurement category III corresponds to measurements on building installations. Example: distribution panel, circuit-breakers, machines or fixed industrial devices.
■ Measurement category II corresponds to measurements taken on circuits directly connected to low-voltage installations.
Example: power supply to electro-domestic devices and portable tools.

PRECAUTIONS FOR USE

This instrument is compliant with safety standard IEC/EN 61010-2-030 or BS EN 61010-2-030, for voltages 30 V with report to ground. Failure to observe the safety instructions may result in electric shock, fire, explosion, and destruction of the instrument and of the installations.

■ The operator and/or the responsible authority must carefully read and clearly understand the various precautions to be taken in use. Sound knowledge and a keen awareness of electrical hazards are essential when using this instrument.
■ Observe the conditions of use, namely the temperature, the relative humidity, the altitude, the degree of pollution, and the place of use.
■ Do not use the instrument if it seems to be damaged, incomplete, or poorly close.
■ Before each use, check the condition of the housing. Any item of which the insulation is deteriorated (even partially) must be set aside for repair or scrapping.

■ The thermometer casing must be kept within the temperature range of -20 to +50°C in line with the scope of use of cold junction compensation in K-type thermocouples.
■ The probe connectors can tolerate up to +200°C continuously (see §2 - Connection).
■ All troubleshooting and metrological checks must be done by competent, accredited personnel..

WARRANTY

Except as otherwise stated, our warranty is valid for 12 months starting from the date on which the equipment was sold. The extract from our General Conditions of Sale is available on our website.

www.group.chauvin-arnoux.com/en/general-terms-of-sale

The warranty does not apply in the following cases:

■ Inappropriate use of the equipment or use with incompatible equipment;
■ Modifications made to the equipment without the explicit permission of the manufacturer's technical staff;
■ Work done on the device by a person not approved by the manufacturer;
■ Adaptation to a particular application not anticipated in the definition of the equipment or not indicated in the user's manual;
■ Damage caused by shocks, falls, or floods.

CONTENTS

1. PRESENTATION...... 17
2. PROBE/THERMOMETER CONNECTION 18
3. START UP 19
4. CHARACTERISTICS ...... 20
5. PROBES AND EXTENSIONS 24
6. MAINTENANCE 26
7. DELIVERY CONDITION 27

1. PRESENTATION

TK2000 and TK2002 Digital Thermometers operate with K-type thermoelectric probes (Nickel-Chrome / Nickel-Aluminium) and offer measurement ranges of -50°C to +1000°C

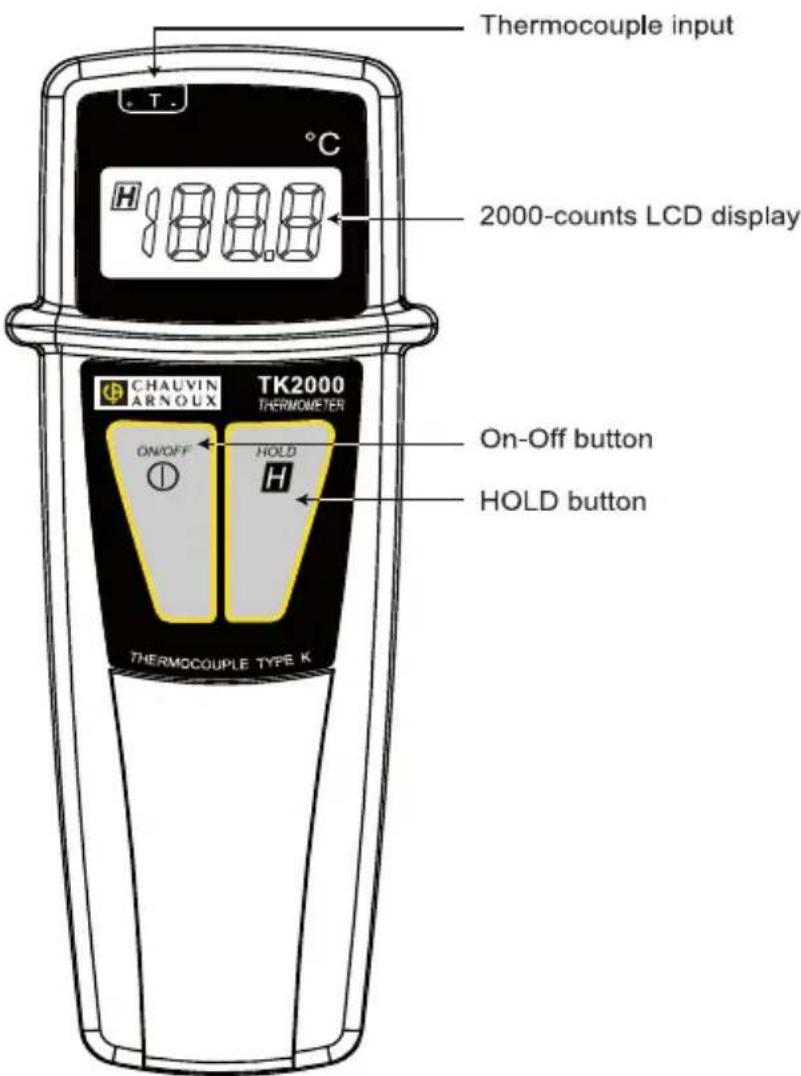

TK2000 :

Thermocouple input 2000-counts LCD display GHAUVIN ARNOUX TK2000 THERMOMETER ON/OFF HOLD H HOLD button THERMOCOUPLE TYPE K

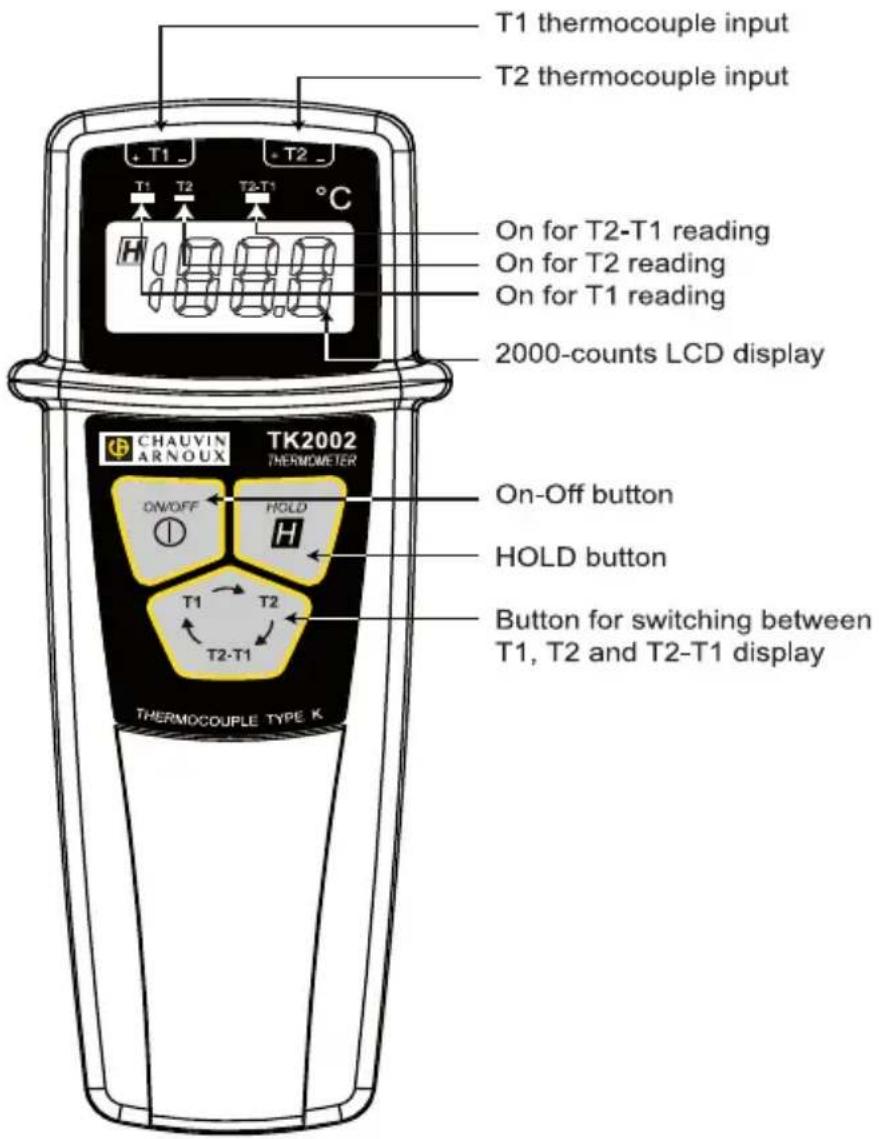

TK2002 :

T1 thermocouple input T2 thermocouple input T1 T2 T2-T1 °C On for T2-T1 reading On for T2 reading On for T1 reading 2000-counts LCD display CHAUVIN ARNOUX TK2002 THERMOMETER ON/OFF HOLD H T1 T2 T2-T1 THERMOCOUPLE TYPE K On-Off button HOLD button Button for switching between T1, T2 and T2-T1 display

You can choose from a wide range of specialised probes, extension cables and a handle to tailor temperature measurements to your requirements (see §5 - Probes).

2. PROBE / THERMOMETER CONNECTION

The thermometers have either one (TK2000) or two (TK2002) female connectors. Each probe is fitted with a male connector with 2 flat locating pins (polarised plug). The pins are made of compensated material different to that of the K-type thermocouple, but give the same e.m.f. in the usage temperature range.

Made of thermosetting plastic, the connectors can tolerate temperatures up to +200°C continuously.

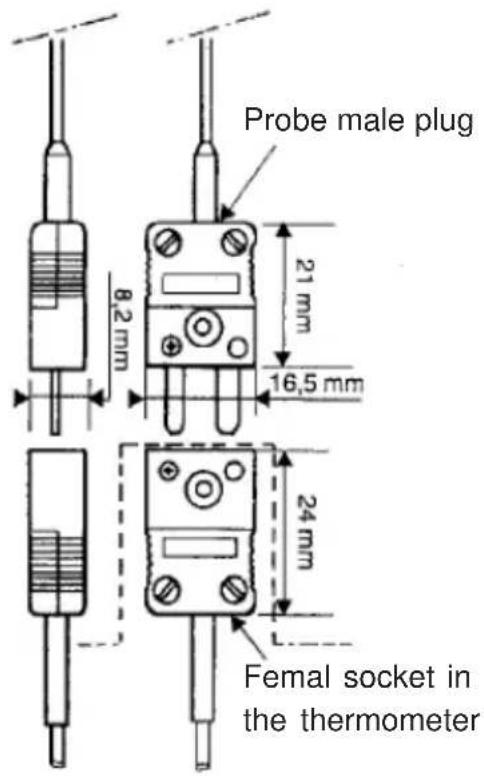

Probe male plug 8.2 mm 21 mm 16.5 mm 24 mm Femal socket in the thermometer

3. START-UP

These thermometers function with K-type thermocouple probes only.

■ Connect the probe(s) to the thermometer in T1 or T1 and T2.
■ Press ON and release (if the "battery low" symbol in the bottom left of the screen is displayed continuously, change the battery).
■ Put the probe in contact with the temperature measuring environment (ensure compliance with probe specifications).
■ Wait a few seconds (see probe response time).
- Read the measurement value when the reading has stabilised.

The TK2002 gives the value for thermocouple T1. LED "T1" goes off and LED "T2" comes on when the measurement switch button is pressed. Temperature on T2 is displayed and if there is no T2 thermocouple, the unit displays 1000 with the number 1 flashing.

LED "T2" goes off and LED "T2-T1" comes on when the measurement switch button is pressed again. The T2-T1 temperature difference is displayed and if there is no T2 thermocouple, the unit displays 1000 with the number 1 flashing.

To measure two temperatures of over 200^ C with a difference of less than 200^ C, the T1-T2 reading is given to a tenth of a degree.

■ Press the ON/OFF button when the measurement is complete.

It does not switch off automatically.

4. CHARACTERISTICS

Plug-in probe with a specific measurement range. E.g. with the SK7 air probe, the thermometer-probe measuring ranges -50°C to +250°C.

4.1 MEASURING RANGE

From -50^ to +1000^ in two measurement ranges: -50^ to +199.9^ and +200^ to +1000^ .

-50°C to +199.9°C with a resolution of 0.1°C.
■ +200°C to +1000°C with a resolution of 1°C.

NB: The range changes automatically at +200°C when the temperature is rising and at below 180°C when the temperature is falling.

4.2 DISPLAY

■ 2000-counts liquid crystal display (13.5mm).
■ Automatic reading of the "-" sign.
■ Display to a tenth of a degree : -50^ to +199.9^ .
If the range 1000^ C > 2000 counts is exceeded : when the couple is disconnected or off, the figure 1000 is displayed with the number 1 flashing.

4.3 THERMOMETER ACCURACY (in the 25°C reference range\*\*)

■ From -50.0°C to 0.0°C : + linearity +/-1°C*.
■ From 0.0°C to 199.9°C : + linearity +/-0.5°C +/-1.5%*.
■ From +200°C to +1000°C : + linearity +/-0.5°C +/-1.5%*.

* See reading correction curves below.

** Outside the 25°C reference range, account must be taken of the error from cold junction compensation.

4.4 WARNING

■ The measurement points must be at the same electrical potential (TK 2002).

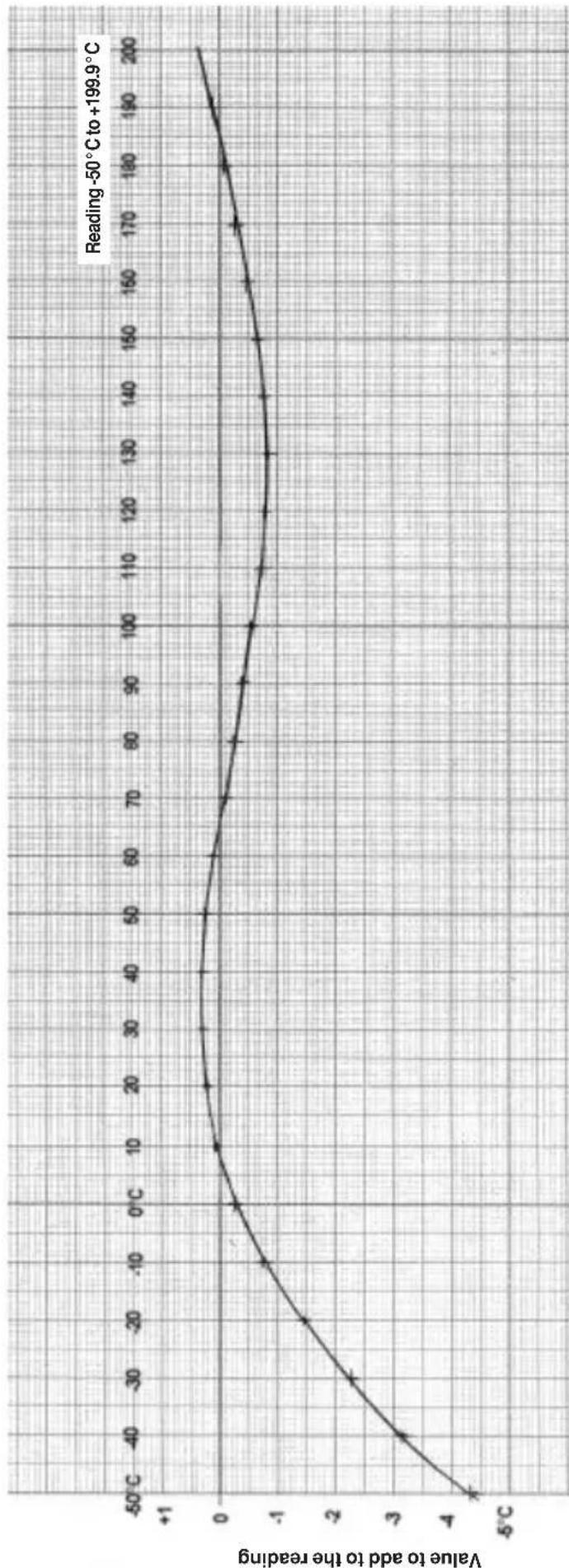

TK2000-TK2002 reading correction curve from -50°C to +199.9°C

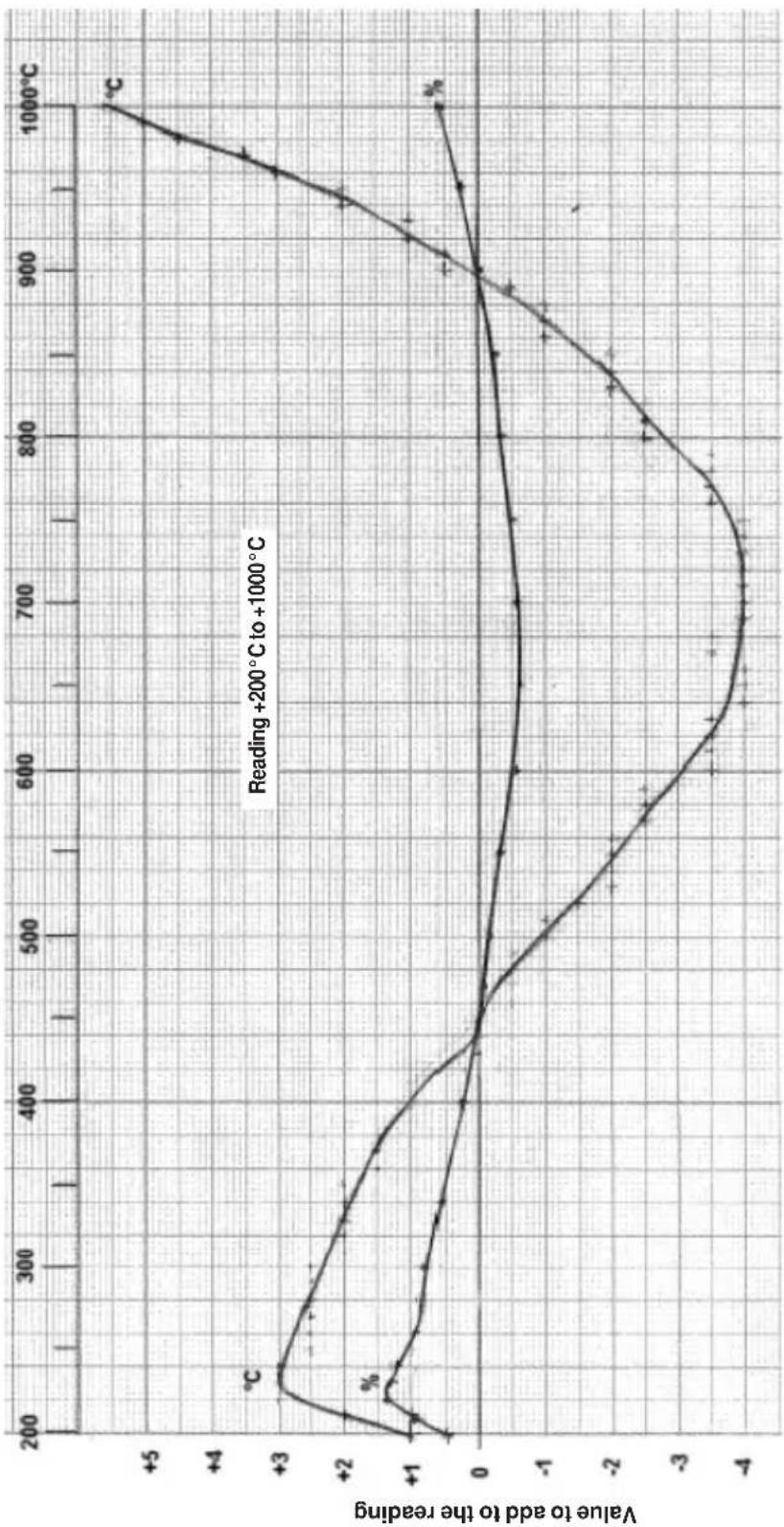

TK2000-TK2002 reading correction curve from +200°C to +1000°C

Lineary table, degrees to add to the reading (outside of thermocouple accuracy):

Lineary correction : -2.8°C

Corrected reading : +797.2°C

Uncertainty of +/-1.5% +/-0.5°C : +/-12.5°C

The actual temperature is +797.2°C +/-12.5°C.

4.5 THERMOCOUPLE ACCURACY

■ K-type, low tolerance, class I: +/-1.5°C from -40°C to +375°C and +/-0.4% for T° from 375°C to 900°C
■ K-type, normal tolerance, class II : +/-2.5°C from -40°C to +330°C and +/-0.75% for T° from 330°C to 900°C

4.6 EXTENSION CABLE ACCURACY

■ Type KZ, Nickel-Chrome / Nickel-Aluminium or WZ, Iron / Copper-Nickel: +/-3°C (junction temperature: 0°C to +200°C). French standards NFC 42 323 NFC 42 324.

4.7 RESPONSE TIME

Depends on the probe used (see §5 - Probes).

4.8 POWER SUPPLY

■ Battery : 9V Alkaline (type 6LR61 - NEDA 1604).
■ Consumption : TK2000 = 17mA approx., TK2002 = 21mA.
■ Battery life : TK2000 = 30 continuous hours approx. : 360 5-minute measurements. TK2002 = 24 continuous hours approx. : 280 5-minute measurements.
■ Low battery indicated by the battery symbol in the bottom left of the display.
■ When the ON/OFF button is pressed to stop the device, if held down, the symbol is displayed when the low battery threshold is on the point of being reached (0.6V).

4.9 EFFECT OF CONDUCTOR RESISTANCE (plug-in probe or extension)

Negligible up to 500Ω (see extension characteristics).

Do not use long length conductors in environments with interference or near electric or magnetic fields.

4.10 CLIMATIC CONDITIONS

Operating range of the thermometer casing: -20^ to +50^ (related to the scope of use of cold junction compensation in the casing).

Reference range for the cold junction: +25°C +/- 2°C

IP level: IP65

4.11 DIMENSIONS AND MASS

63 x 163 x 37.5mm (without probe) approx. 200g.

4.12 COMPLIANCE WITH STANDARDS

• Electrical safety : EN 61010-1
• Electromagnetic compatibility :

Emissions and immunity in an industrial setting compliant with EN61326-1

5. PROBES AND EXTENSIONS

5.1 REMINDERS

NB : For all the probes below, the actual thermocouple is located at the end of the probe and attached to the sheath (thermocouple at earth ground).

■ Probe response time : the response time for a thermocouple subject to a temperature scale represents the time at the end of which the e.m.f. reaches total variation. For a thermocouple in a high heat capacity environment, with good thermal conductivity and good heat exchange, the response time will be short (intrinsic response time).

On the other hand, if the environment is thermally unfavourable (e.g. still air), the actual response time may be 100 times or more that of the thermocouple. The values specified below were established in clearly defined conditions, i.e.

■ For surface, flexible and auto-grip probes by contact on a polished stainless steel plate coated with silicone grease.
■ The air probe in disturbed air (1m/s).
■ Other probes, by immersion in disturbed water at 90^ C (disturbance speed : 0,3 to 0,5 m/s).
■ The temperature ranges for each type of probe are given for use in a chemically neutral environment.

Using these probes in a corrosive environment can significantly reduce their life cycle or restrict the recommended operating range depending on the case.

5.2 SUMMARY OF CHARACTERISTICS

NB : All the accessories are detailed in the "K-type Probes and Extensions" user manual.

Their reference is given in §7 - How to order.

Reference	Measuring range	Response time	Length
Probe without handle
SK1 needle probe	-50 to +800°C	1s	15cm
SK2 bendable probe	-50 to +1000°C	2s	1m
SK3 semi-rigid probe	-50 to +1000°C	6s	50cm
SK4 surface probe	-50 to +250°C	1s	15cm
SK5 spring surface probe -50 to	+500°C 1s 15cm
SK6 flexible probe -50 to +285°C	Contact:1s, air: 3s 1m
SK7 air probe -50 to +250°C 5s	15cm
SK8 auto-grip probe -50 to +140°C	10s	32cm
SK8: "velcro" ribbon for auto-grip 10mm < ∅ < 90mm
PK9 retractable needle	-20 to +250°C 5s 5.5cm
PK9: (For automobile tyre penetration up to 15mm)
SK19 magnetic surface probe	-50 to +200°C 7s 1m
Probes with handle and extendable spiral cord
SK11 needle probe	-50 to +600°C	12s	13cm
SK13 general purpose probe	-50 to +1100°C	12s	30cm
SK14 angle surface probe	-50 to +450°C 8 s	13cm
SK15 spring surface probe	-50 to +900°C 2s 13cm
SK17 air probe	-50 to +600°C 3s 13cm
1m extensions
CK1	Amb. T° 0 to +100°C	Male / Female	1m
CK2	Amb. T° 0 to +100°C	Male / 2 stripped wires	1m
Handle
PP1	Can be adapted to CK1 and CK2 extensions.

6. MAINTENANCE

Only use the specified spare parts for maintenance.

The manufacturer cannot be held liable for any accident occurring following repairs carried out by a third-party to its after-sales service or approved repairers.

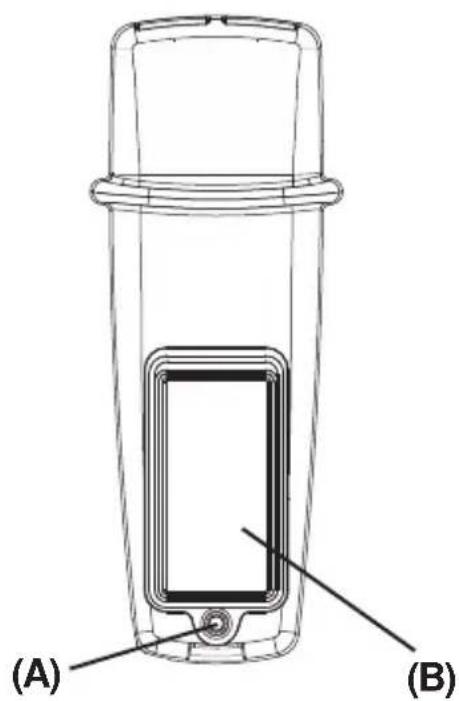

(A) (B)

6.1 CHANGING THE BATTERY

Always remove the probe before opening the thermometer.

The 9V battery can be accessed at the back of the device.

Take out screw (A) to remove the cover.

Change battery (B) (9V type 6F22).

Warning : the battery connector must be on the opposite side to the screw.

Put the cover back and screw on.

6.2 STORAGE

If the thermometer is not used for a period exceeding 60 days, remove the battery and store it separately.

6.3 CLEANING

Use a cloth dampened with soapy water to clean the casing. Wipe over with a damp cloth. Dry quickly with a dry cloth or dryer.

TK2000 digital thermometer

Supplied in a cardboard box with:

■ a flexible probe,
■ a 9V battery,
■ a user manual in 5 languages.

TK2002 digital thermometer

Supplied in a cardboard box with:

■ a flexible probe,
■ a 9V battery,
■ a user manual in 5 languages.

7.1. ACCESSORIES

Probe without handle

SK1 needle probe 800°C
SK2 bendable probe 1000°C
SK3 semi-rigid probe 1000°C
SK4 surface probe 250°C
SK5 surface probe 500°C
SK6 flexible probe 285°C
SK7 air probe 250°C
SK8 auto-grip probe 140°C
SK19 surface probe 200°C

Probe with handle

SK11 needle probe 600°C
SK13 general purpose probe 1100°C
SK14 surface probe 450°C
SK15 surface probe 900°C
SK17 air probe 600°C

Extensions

CK1 needle probe 600°C
CK2 general purpose probe extension 1100°C

PP1 handle

7.2. SPARES

9V alkaline battery

For the accessories and spares, consult our web site:

www.chauvin-arnoux.com

ca. 63 x 163 x 37.5mm (onhe Fühler) 200g.

4.7 TEMPI DI RISPOSTA

6.1 REEMPLAZO DE LA PILA
