USER MANUAL ProSpray 3.29 WAGNER

Airless high-pressure spraying unit

4.7 Digital Electronic Spray Control (DESC) 8

12.5 TempSpray....19

12.6 Pump-Runner 20

Technical diagram of a spray gun pump assembly with numbered parts for identification

Technical diagram of a spray gun pump assembly with labeled parts and exploded view

Technical diagram of a mechanical assembly with labeled parts, showing a hand operating a component labeled '4'.

Technical diagram of a spray gun assembly with numbered components and exploded view

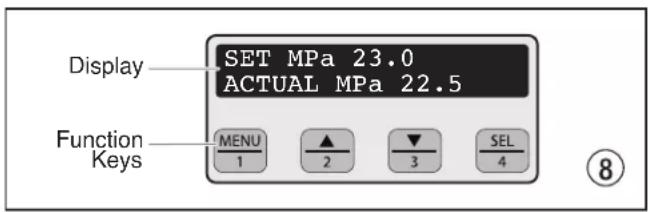

4.7 Digital Electronic Spray Control (DESC)

4/Select [Auswahl] Taste

Menüfensters Volume Pumped

Menüfensters Unit Serial #

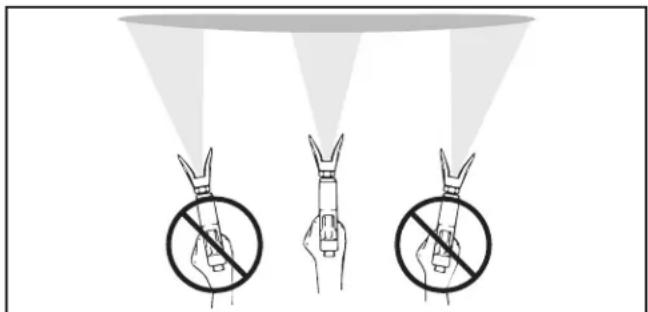

Diagram showing three hands holding a flashlight with prohibition signs, illustrating safety or lighting conditions.

Technical diagram of a device with numbered components, likely a sensor or connector assembly

Technical diagram of a mechanical assembly with numbered parts labeled 1, 2, and 3

14

Illustration of a mechanical device with no visible text or symbols

Line drawing of a mechanical power spool with visible coil and base (no text or symbols)

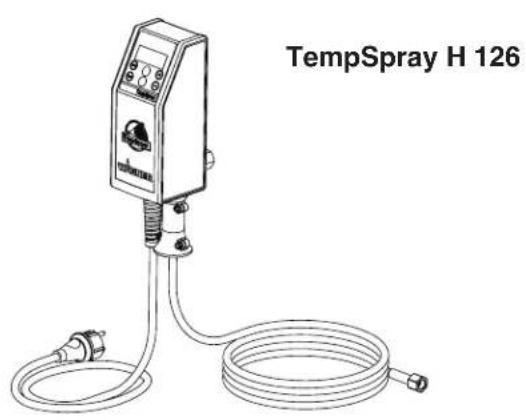

TempSpray H 226 TempSpray H 326

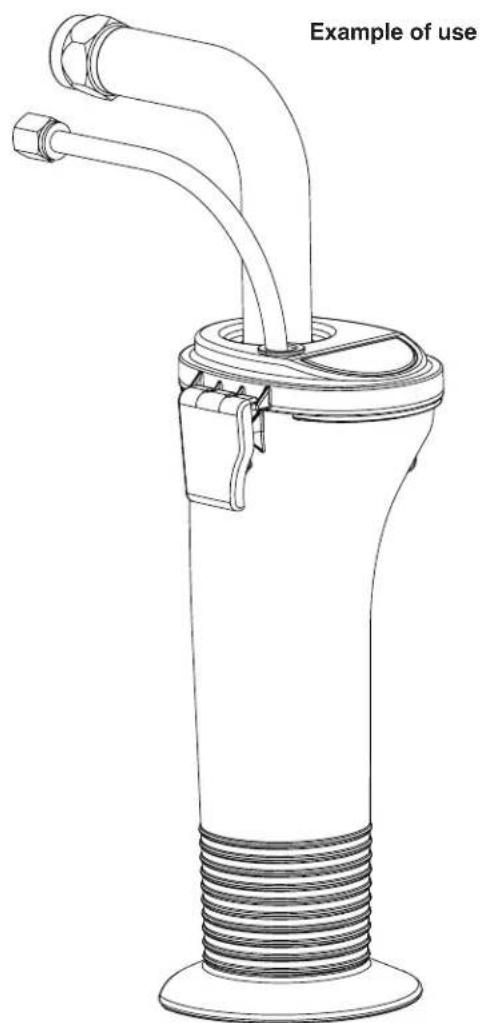

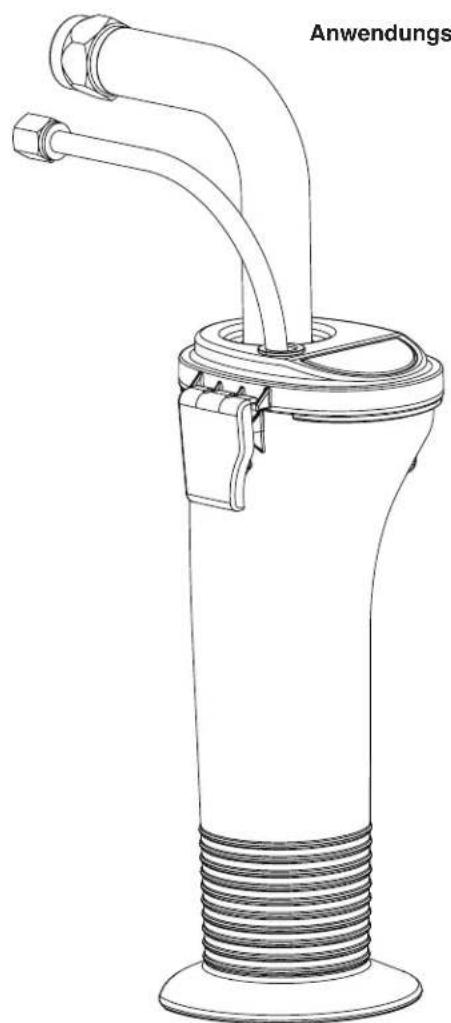

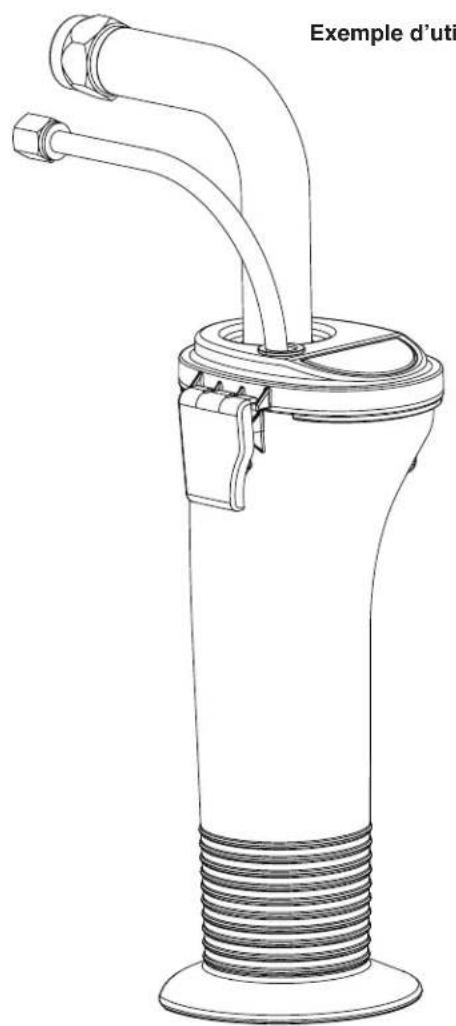

12.6 Pump-Runner

(Best. Nr. 2306987)

Line drawing of a cylindrical mechanical component with threaded base and top clamped end (no text or symbols)

Wagner Colora S.R.L.

Via Fermi, 3

20040 Burago Molgora

(Milano) Italy

Tel. [phone]

Fax: [phone]

[e-mail]

Wagner Spraytech

Benelux B.V.

Zonneban 10, 3542 EC

Utrecht

Netherlands

Tel. [phone]

Fax: [phone]

[e-mail]

Wagner Spraytech

Scandinavia A/S

Helgeshøj Allé 28

DK-2630 Tåstrup

Denmark

Tel. [phone]

Fax: [phone]

[e-mail]

Warning!

Attention: Danger of injury by injection!

Airless units develop extremely high spraying pressures.

Never put your fingers, hands or any other parts of the body into the spray jet!

Never point the spray gun at yourself, other persons or animals. Never use the spray gun without safety guard.

Do not treat a spraying injury as a harmless cut. In case of injury to the skin through coating materials or solvents, consult a doctor immediately for quick and expert treatment. Inform the doctor about the coating material or solvent used.

The operating instructions state that the following points must always be observed before starting up.

1. Faulty units must not be used.

2. Secure Titan spray gun using the safety catch on the trigger.

3. Ensure that the unit is properly earthed. The connection must take place through a correctly earthed two-pole and earth socket outlet.

1. Check allowable operating pressure of high-pressure hose and spray gun.

1. Check all connections for leaks.

The instructions regarding regular cleaning and maintenance of the unit must be strictly observed.

Before any work is done on the unit or for every break in work the following rules must be observed:

0 bar

1. Release the pressure from spray gun and hose.

2. Secure the Titan spray gun using the safety catch on the trigger

1. Switch off unit.

Be safety-conscious!

Contents

Page

1. Safety regulations for Airless spraying .....24

1.1 Earthing instructions....25

1. General view of application....26

2.1 Application....26

2.2 Coating materials 26

1. Description of unit ......26

3.1 Airless process 26

3.2 Functioning of the unit .....26

3.3 Legend for explanatory diagram ProSpray 3.29 / 3.31 ....27

3.4 Explanatory diagram ProSpray 3.29 / 3.31 .....27

3.5 Technical data 28

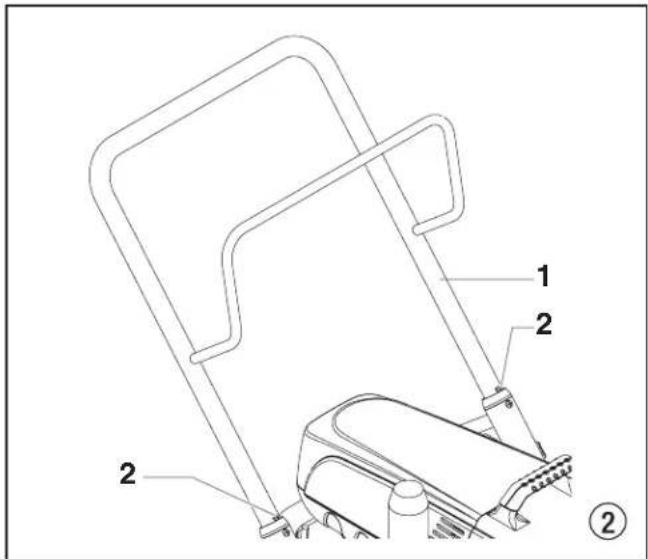

3.6 Transportation 28

3.7 Transportation in vehicle 28

1. Starting operation ......28

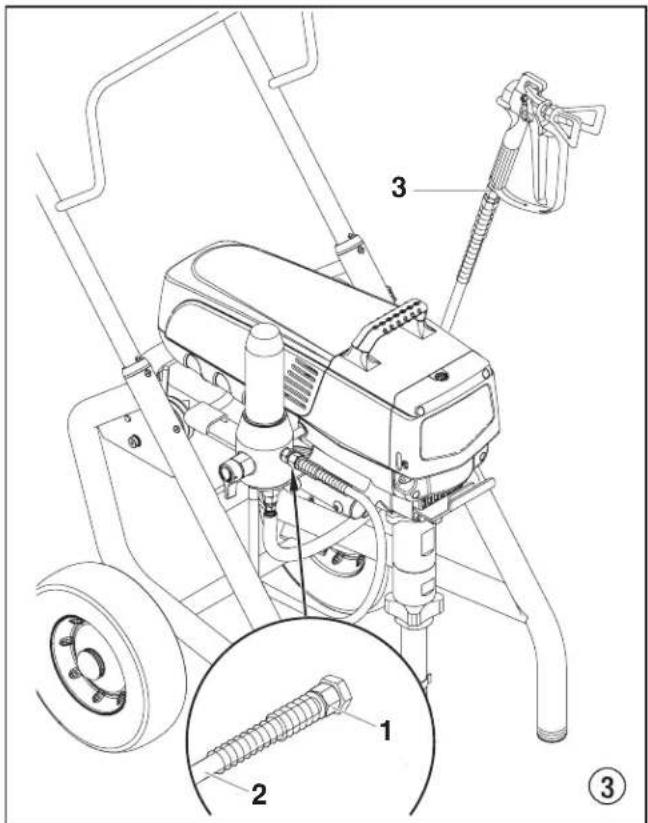

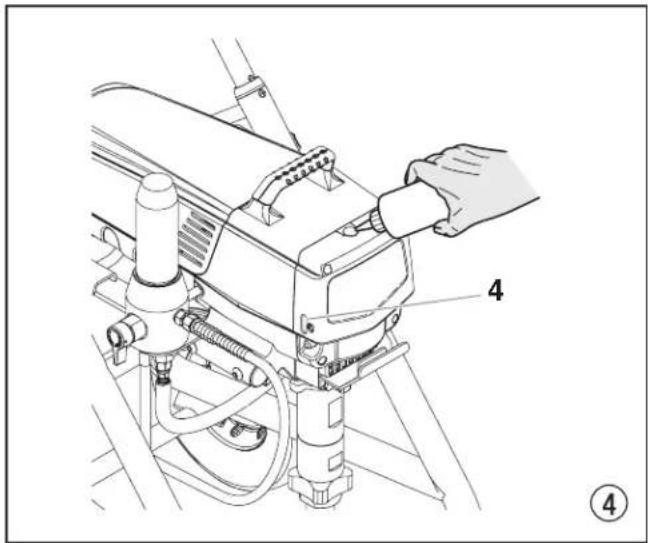

4.1 High-pressure hose, spray gun and separating oil 28

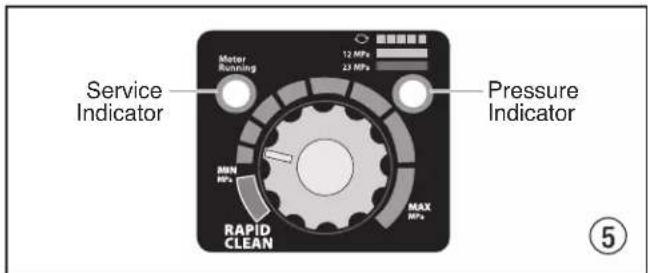

4.2 Control panel indicators .....29

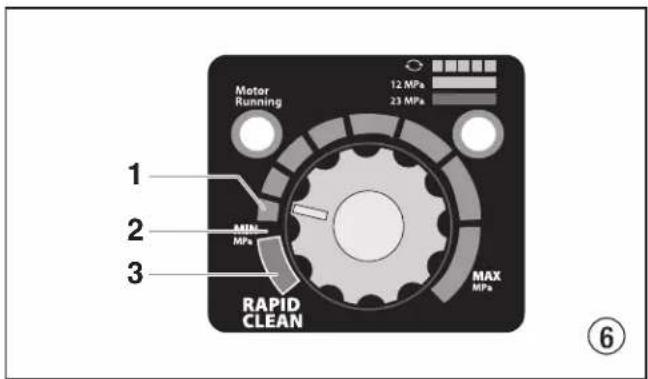

4.3 Pressure control knob settings 29

4.4 Connection to the mains network .....29

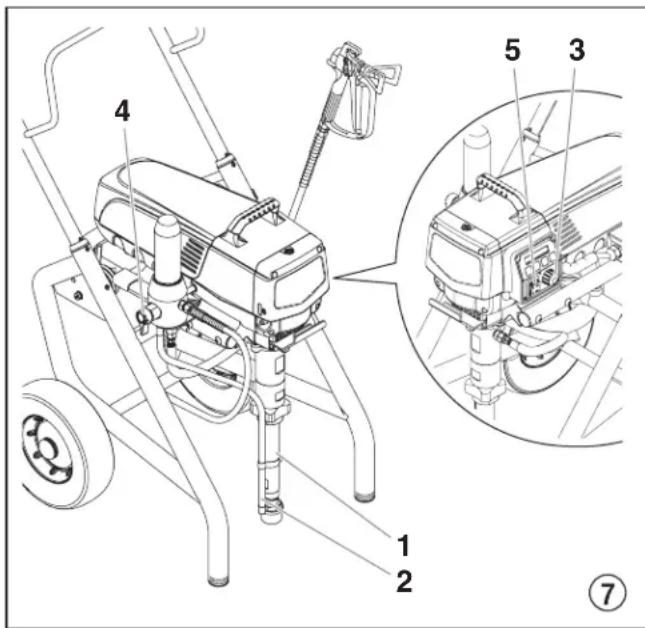

4.5 Cleaning preserving agent when starting-up of operation initially ....30

4.6 Taking the unit into operation with coating material ....30

4.7 Digital Electronic Spray Control (DESC) 30

1. Spraying technique ....32

2. Handling the high-pressure hose ....32

6.1 High-pressure hose 32

1. Interruption of work ....32

2. Cleaning the unit (shutting down) ....33

8.1 Cleaning unit from outside 33

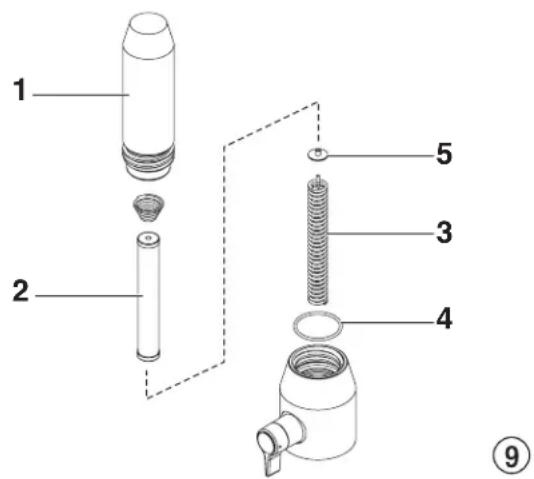

8.2 Cleaning the high-pressure filter 33

8.3 Cleaning Airless spray gun 34

Page

1. Remedy in case of faults ....34

2. Servicing ....36

10.1 General servicing 36

10.2 High-pressure hose 36

1. Repairs at the unit ....36

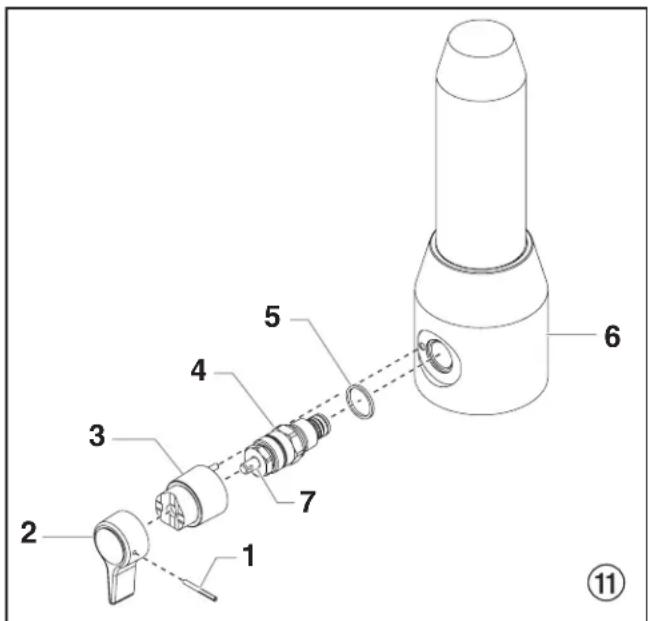

11.1 Relief valve....36

11.2 Inlet and outlet valve 36

11.3 Packings....37

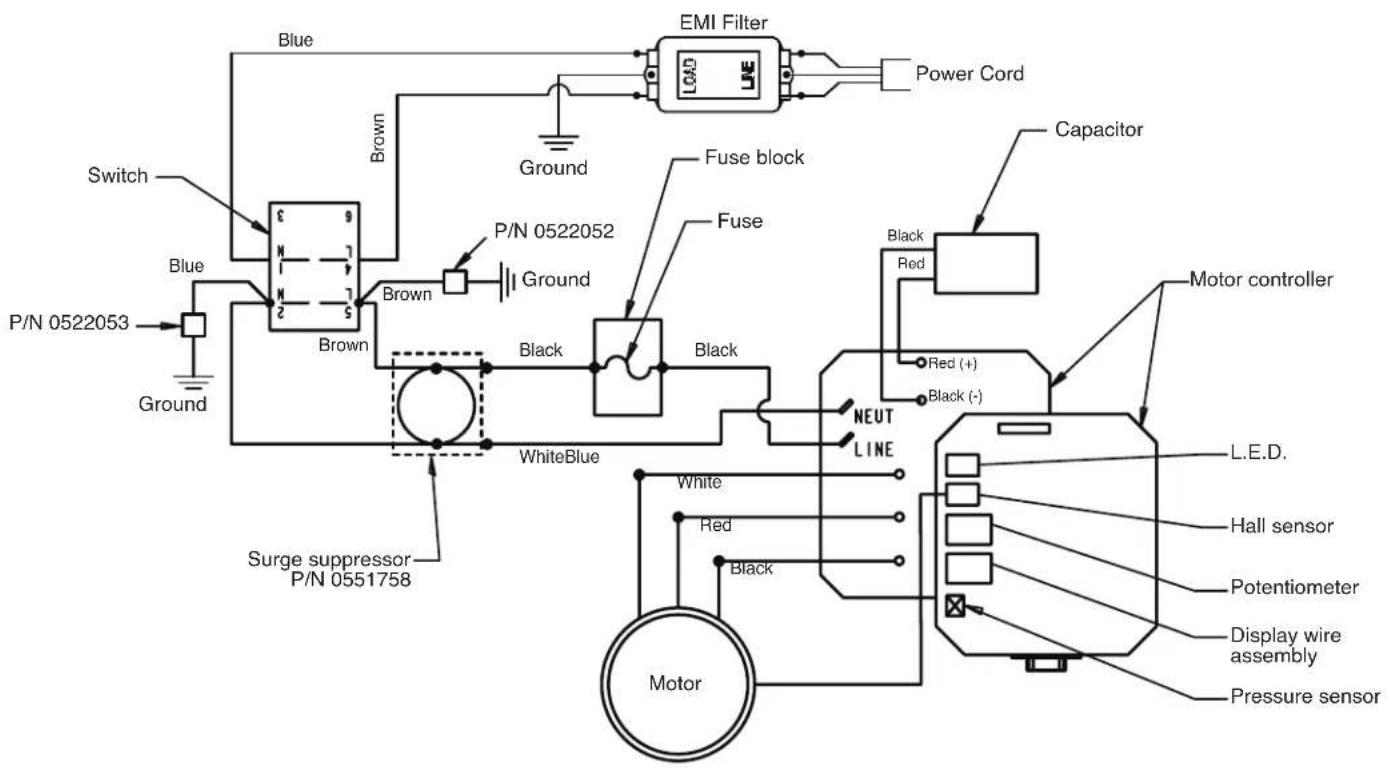

11.4 ProSpray 3.29 / 3.31 connection diagram ....38

1. Appendix ......39

12.1 Selection of tip....39

12.2 Servicing and cleaning of Airless hard-metal tips ....39

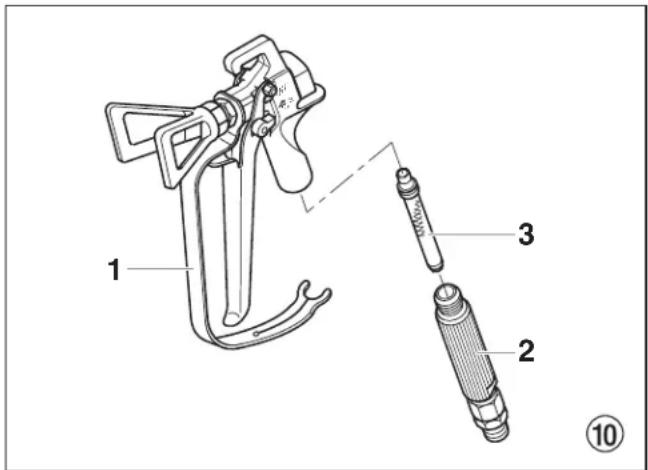

12.3 Spray gun accessories 39

12.4 Airless tip table 40

12.5 TempSpray....41

12.6 Pump-Runner 42

Sales and service companies....43

Accessories for ProSpray 3.29 / 3.31....88

Spare parts list for main assembly 90

Spare parts list for fluid section....92

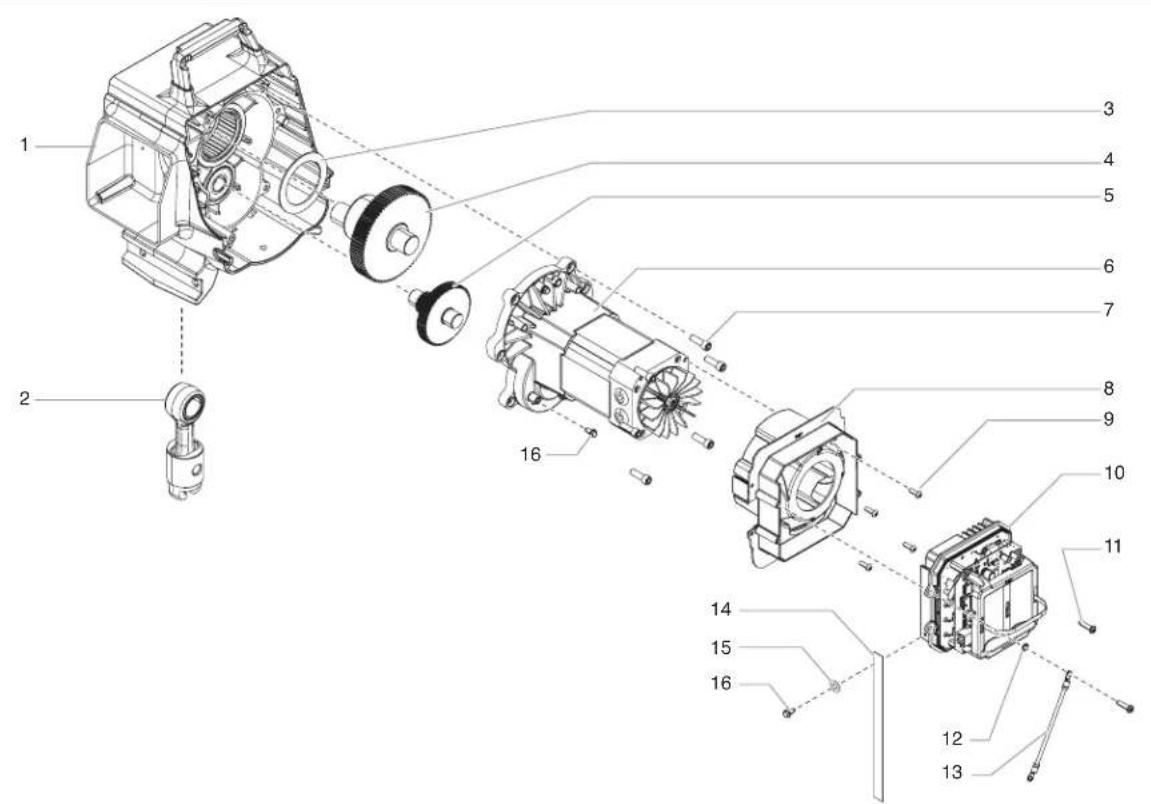

Spare parts list for drive assembly 94

Spare parts list of filter assembly 95

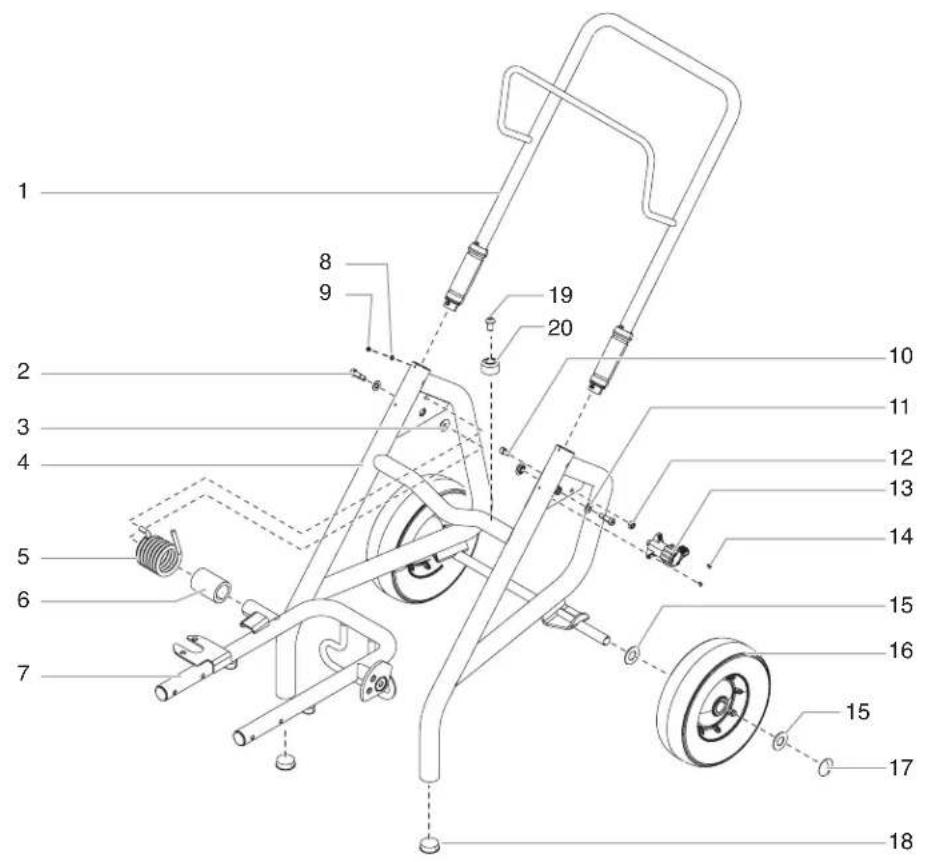

Spare parts list for upright cart 96

Important notes on product liability 99

3+2 years guarantee for professional finishing .....99

CE Declaration of conformity ....102

1. Safety regulations for Airless spraying

This manual contains information that must be read and understood before using the equipment. When you come to an area that has one of the following symbols, pay particular attention and make certain to heed the safeguard.

This symbol indicates a potential hazard that may cause serious injury or loss of life. Important safety information will follow.

This symbol indicates a potential hazard to you or to the equipment. Important information that tells how to prevent damage to the equipment or how to avoid causes of minor injuries will follow.

A hazard symbol such as this one refers to a specific, task-related risk. Be sure to heed the safeguard.

Notes give important information which should be given special attention.

HAZARD: INJECTION INJURY

A high pressure stream produced by this equipment can pierce the skin and underlying tissues, leading to serious injury and possible amputation.

DO NOT TREAT AN INJECTION INJURY AS A SIMPLE CUT! Injection can lead to amputation. See a physician immediately.

The maximum operating range of the unit is 221 bar (22.1 MPa, 3200 PSI) fluid pressure.

0 bar

PREVENTIÓN:

• NEVER aim the gun at any part of the body.
- NEVER allow any part of the body to touch the fluid stream. DO NOT allow body to touch a leak in the fluid hose.
- NEVER put your hand in front of the gun. Gloves will not provide protection against an injection injury.

- ALWAYS lock the gun trigger, shut the fluid pump off and release all pressure before servicing, cleaning the tip guard, changing tips, or leaving unattended. Pressure will not be released by turning off the engine. The PRIME/SPRAY valve or pressure bleed valve must be turned to their appropriate positions to relieve system pressure.

• ALWAYS keep tip guard in place while spraying. The tip guard provides some protection but is mainly a warning device.
• NEVER use a spray gun without a working trigger lock and trigger guard in place.
• ALWAYS remove the spray tip before flushing or cleaning the system.

- The paint hose can develop leaks from wear, kinking and abuse. A leak can inject material into the skin. Inspect the hose before each use.

- All accessories must be rated at or above the maximum operating pressure range of the sprayer. This includes spray tips, guns, extensions, and hose.

NOTE TO PHYSICIAN:

Injection into the skin is a traumatic injury. It is important to treat the injury as soon as possible. DO NOT delay treatment to research toxicity. Toxicity is a concern with some coatings injected directly into the blood stream. Consultation with a plastic surgeon or reconstructive hand surgeon may be advisable.

HAZARD: EXPLOSION OR FIRE

Solvent and paint fumes can explode or ignite. Severe injury and/or property damage can occur.

PREVENTION:

• Provide extensive exhaust and fresh air introduction to keep the air within the spray area free from accumulation of flammable vapors.
• Avoid all ignition sources such as static electricity sparks, electrical appliances, flames, pilot lights, hot objects, and sparks from connecting and disconnecting power cords or working light switches.
• Plastic can cause static sparks. Never hang plastic to enclose spray area. Do not use plastic drop cloths when spraying flammable materials.
• Always flush unit into separate metal container, at low pump pressure, with spray tip removed. Hold gun firmly against side of container to ground container and prevent static sparks.

- Do not smoke in spray area.

- Fire extinguisher must be present and in good working order.

- Place sprayer at least 6.1 m (20 feet) from the spray object in a well ventilated area (add more hose if necessary). Flammable vapors are often heavier than air. Floor area must be extremely well ventilated. The pump contains arcing parts that emit sparks and can ignite vapors.

- The equipment and objects in and around the spray area must be properly grounded to prevent static sparks.

- Use only conductive or earthed high pressure fluid hose. Gun must be earthed through hose connections.

- Power cord must be connected to a grounded circuit (electric units only).

- The unit must be connected to an earthed object. Use the green earthing wire to connect the unit to a water pipe, steel beam, or other electrically earthed surface.

- Follow material and solvent manufacturer's warnings and instructions. Be familiar with the coating material's MSDS sheet and technical information to ensure safe use.

- Do not use materials with a flashpoint below 21^ (70° F). Flashpoint is the temperature at which a fluid can produce enough vapors to ignite.

- Use lowest possible pressure to flush equipment.

	HAZARD: EXPLOSION HAZARD DUE TO INCOMPATIBLE MATERIALSWill cause severe injury or property damage.
	PREVENTION:Do not use materials containing bleach or chlorine.Do not use halogenated hydrocarbon solvents such as methylene chloride and 1,1,1 - trichloroethane.They are not compatible with aluminum and may cause an explosion. If you are unsure of a material's compatibility with aluminum, contact your coating's supplier.

	HAZARD: EXPLOSION HAZARD DUE TO INCOMPATIBLE MATERIALSWill cause severe injury or property damage.
	PREVENTION:Do not use materials containing bleach or chlorine.Do not use halogenated hydrocarbon solvents such as methylene chloride and 1,1,1 - trichloroethane.They are not compatible with aluminum and may cause an explosion. If you are unsure of a material's compatibility with aluminum, contact your coating's supplier.
	HAZARD: GENERALThis product can cause severe injury or property damage.
	PREVENTION:Read all instructions and safety precautions before operating equipment.Follow all appropriate local, state, and national codes governing ventilation, fire prevention, and operation.Pulling the trigger causes a recoil force to the hand that is holding the spray gun. The recoil force of the spray gun is particularly powerful when the tip has been removed and a high pressure has been set on the airless pump. When cleaning without a spray tip, set the pressure control knob to the lowest pressure.Use only manufacturer authorized parts. User assumes all risks and liabilities when using parts that do not meet the minimum specifications and safety devices of the pump manufacturer.Before each use, check all hoses for cuts, leaks, abrasion or bulging of cover. Check for damage or movement of couplings. Immediately replace the hose if any of these conditions exist. Never repair a paint hose. Replace it with another earthed high-pressure hose.Make sure power cord, air hose and spray hoses are routed in such a manner to minimize slip, trip and fall hazard.Clean up all material and solvent spills immediately to prevent slip hazard.ALWAYS follow the material manufacturer's instructions for safe handling of paint and solvents.
	Do not use this unit in workshops that are covered under the explosion prevention regulations.
	Always unplug cord from outlet before working on equipment (electric units only).Always keep the power cord plug in sight during usage to prevent any accidental shutdown or startup.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
	Wear ear protection. This unit can produce noise levels above 85 dB(A).This equipment is designed to operate at high pressures and recoil forces may occur. Under certain circumstances, such forces could result in repetitive strain injury.Device weighs in excess of 36 kg. Three-person lift is required.Never leave this equipment unattended. Keep away from children or anyone not familiar with the operation of airless equipment.Do not move unit while unit is running.Do not spray on windy days.

	HAZARD: HAZARDOUS VAPORSPaints, solvents, insecticides, and other materials can be harmful if inhaled or come in contact with body. Vapors can cause severe nausea, fainting, or poisoning.
	PREVENTION:Use a respirator or mask if vapors can be inhaled.Read all instructions supplied with the mask to be sure it will provide the necessary protection.Wear protective eyewear.Wear protective clothing as required by coating manufacturer.

1.1 Earthing Instructions

PE

Electric models must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having an earthing wire with an appropriate earthing plug. The plug must be plugged into an outlet that is properly installed and earthed in accordance with all local codes and ordinances.

DANGER — Improper installation of the earthing plug can result in a risk of electric shock. If repair or replacement of the cord or plug is necessary, do not connect the green earthing wire to either blade terminal. The wire with insulation having a green outer surface with or without yellow stripes is the earthing wire and must be connected to the earthing pin.

Check with a qualified electrician or serviceman if the earthing instructions are not completely understood, or if you are in doubt as to whether the product is properly earthed. Do not modify the plug provided. If the plug will not fit the outlet, have the proper outlet installed by a qualified electrician.

Work or repairs at the electrical equipment:

These may only be carried out by a skilled electrician. No liability is assumed for incorrect installation.

A list of the materials used in the construction of the equipment will be made available on request to validate compatibility with the coating materials to be used.

2. General view of application

2.1 Application

Materials Object Size		Model
		PS 3.21	PS 3.23	PS 3.25	PS 3.29	PS 3.31	PS 3.34	PS 3.39
Release agents, oils, undercoats, primers, fillers, synthetic resin-based paints, acrylic paints recommended nozzle size: FineFinish 0.008" - 0.014"	up to 200 m^2 200 m^2 - 800 m^2 more than 800 m^2
Emulsion paints, latex paints recommended nozzle size: 0.017" - 0.027"	up to 200 m^2 200 m^2 - 800 m^2 more than 800 m^2
Anti-corrosive agents, flame retardants, fabric adhesive recommended nozzle size: 0.021" - 0.031"	up to 200 m^2 200 m^2 - 800 m^2 more than 800 m^2
Airless-scrapers recommended nozzle size: 0.027" - 0.039"	up to 200 m^2 200 m^2 - 800 m^2 more than 800 m^2

2.2 Coating materials

Processible coating materials

Pay attention to the Airless quality of the coating materials to be processed.

Dilutable lacquers and paints or those containing solvents, two-component coating materials, dispersions, latex paints.

No other materials should be used for spraying without WAGNER's approval.

Filtering

Despite suction filter and insertion filter in the spray gun, filtering of the coating material is generally advisable.

Stir coating material before commencement of work.

Attention: Make sure, when stirring up with motor-driven agitators that no air bubbles are stirred in. Air bubbles disturb when spraying and can, in fact, lead to interruption of operation.

Viscosity

With this unit it is possible to process highly viscous coating materials of up to around 25.000 MPa·s.

If highly viscous coating materials cannot be taken in by suction, they must be diluted in accordance with the manufacturer's instructions.

Two-component coating material

The appropriate processing time must be adhered to exactly. Within this time rinse through and clean the unit meticulously with the appropriate cleaning materials.

Coating materials with sharp-edged additional materials

These have a strong wear and tear effect on valves, high-pressure hose, spray gun and tip. The durability of these parts cane be reduced appreciably through this.

3. Description of unit

3.1 Airless process

The main areas of application are thick layers of highly viscous coating material for large areas and a high consumption of material.

A piston pump takes in the coating material by suction and conveys it to the tip. Pressed through the tip at a pressure of up to a maximum of 221 bar (22.1 MPa), the coating material is atomised. This high pressure has the effect of micro fine atomisation of the coating material.

As no air is used in this process, it is described as an AIRLESS process.

This method of spraying has the advantages of finest atomisation, cloudless operation and a smooth, bubble-free surface. As well as these, the advantages of the speed of work and convenience must be mentioned.

3.2 Functioning of the unit

In the following there is a short description of the technical construction for better understanding of the function.

WAGNER ProSpray units are electrically driven high-pressure spraying units.

A gear unit transfers the driving force to a crankshaft. The crankshaft moves the pistons of the material feed pump up and down.

The inlet valve is opened automatically by the upwards movement of the piston. The outlet valve is opened when the piston moves downward.

The coating material flows under high pressure through the high-pressure hose to the spray gun. When the coating material exits from the tip it atomizes.

The pressure regulator controls the volume and the operating pressure of the coating material.

3.3 Legend for explanatory diagram ProSpray 3.29 / 3.31

1 Spray gun
2 High-pressure hose
3 Oil cup for EasyGlide (EasyGlide prevents increased wear of the packings)
4 Oil level gauge
5 Pail hook
6 Oil button
7 Suction tube
8 Return hose

9 Cart

10 Relief valve

11 Digital Electronic Spray Control (DESC)
12 Control panel indicators
13 Pressure control knob
14 ON/OFF switch

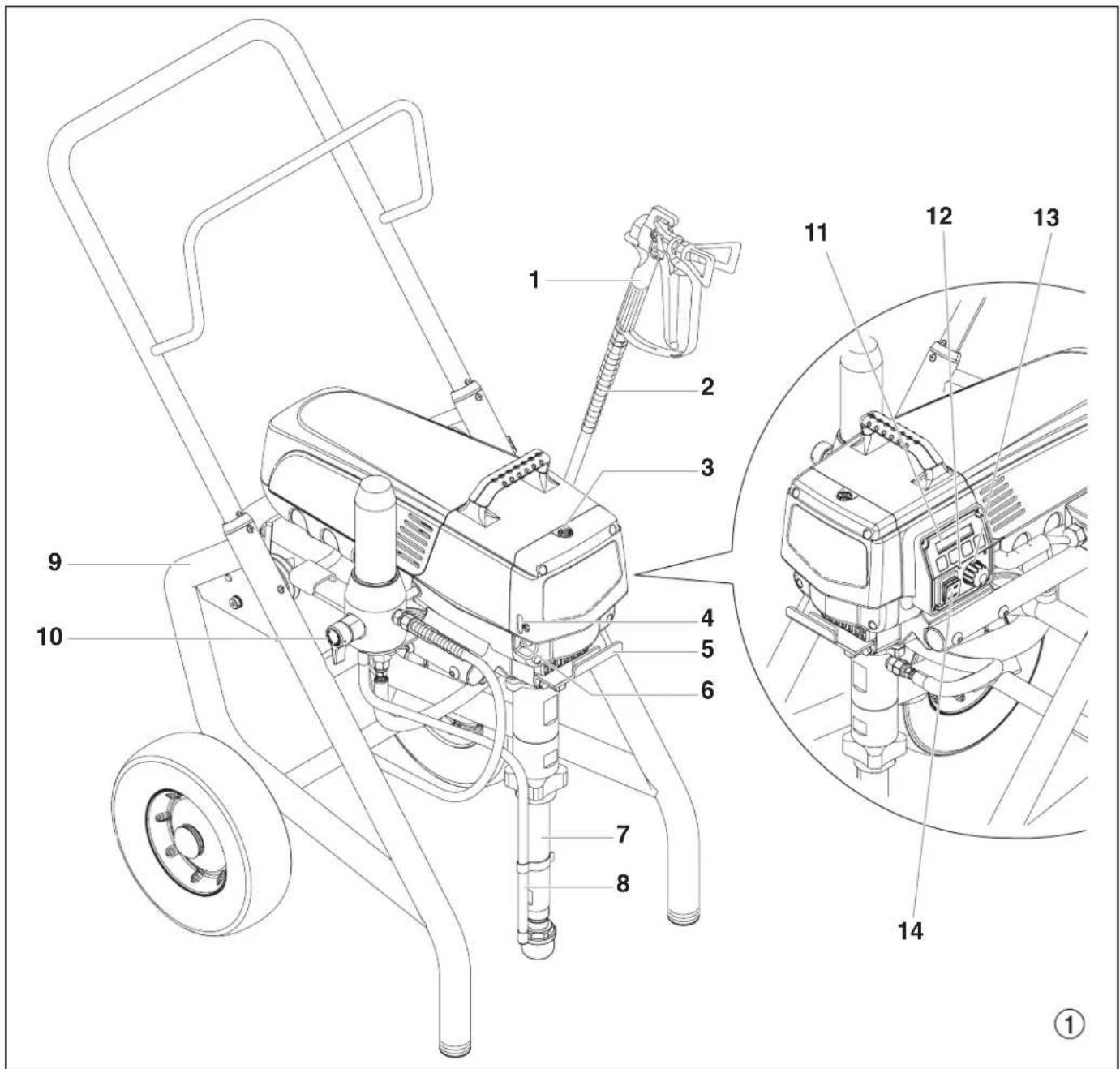

3.4 Explanatory diagram ProSpray 3.29 / 3.31

Technical diagram of a spray gun pump assembly with numbered parts for identification

3.5 Technical data

ProSpray 3.29 ProSpray 3.31

Voltage: 220\~240 Volt, 50/60 Hz

Max. current consumption: 7.5 A 8 A

Power cord: 3 x 1.5 mm ^2 -6 m

Acceptance capacity: 1725 Watt 1840 Watt

Max. operating pressure: 221 bar (22.1 MPa)

Volume flow at 12 MPa

(120 bar) with water: 3.0 l/min 3.8 l/min

Max tip size: 0.029 inch – 0.032 inch – 0.73 mm 0.81 mm

Max. temperature of the

coating material: 43°C

Max viscosity: 25.000 mPa·s

Weight: 43.5 kg

Special high-pressure hose: DN 6 mm, 15 m, connection thread M 16 x 1.5

Dimensions (L X W X H): 590 x 529 x 726 mm

Max sound pressure level: 80 dB (A) *

* Place of measuring: 1 m in distance from the unit and 1.6 m above the floor, 12 MPa (120 bar) operating pressure, reverberant floor.

3.6 Transportation

Pushing or pulling the unit

Pull out the handle (Fig. 2, Item 1) until it will come no further. Insert the handle – push the buttons (2) on the spars, and then push in the handle.

Technical diagram of a mechanical device with labeled parts 1, 2, and numbered annotations

3.7 Transportation in vehicle

Secure the unit with a suitable fastening.

4. Starting operation

4.1 High-pressure hose, spray gun and separating oil

1. Screw the high-pressure hose (2) to the coating material outlet (Fig. 3, Item 1).
2. Screw the spray gun (3) with the selected tip onto the high-pressure hose.
3. Tighten the union nuts at the high-pressure hoses firmly so that coating material does not leak.

Technical diagram of a spray gun pump assembly with labeled parts and exploded view

1. Remove the oil cup cap with a straight-slot screwdriver.
2. Fill the oil cup with EasyGlide (Fig. 4) until the oil gauge (4) is showing that it is full.

Attention

EasyGlide prevents increased wear and tear to the packings.

1. Replace oil cup cap.
2. Press oil button 2-5 times to prime the oiler. Press once for every eight hours of usage to lubricate the fluid section.

Technical diagram of a mechanical assembly with labeled parts, showing a hand operating a component labeled '4'.

4.2 Control Panel Indicators

The following is a description of the control panel indicators.

Service Indicator Meter Running 12 MPa 23 MPa Pressure Indicator MIN MPa Rapid Clean MAX MPa ⑤

Pressure Indicator

The pressure indicator shows the current operating pressure of the sprayer. It has three different indications: blinking yellow, solid yellow, and solid green.

Blinking Yellow

When the pressure indicator is blinking yellow, the sprayer is operating between 0 and 1.4 MPa (14 bar). A blinking yellow pressure indicator means:

• The sprayer is plugged in and turned "ON"
• The sprayer is at priming pressure (little or no pressure)
- It is safe to move the relief valve between positions
• It is safe to change or replace the spray tip

If the pressure indicator begins blinking yellow when the pressure control knob is set at a higher pressure and the relief valve is in the SPRAY position, either the spray tip is worn or the sprayer is in need of service/repair.

Solid Yellow

When the pressure indicator is solid yellow, the sprayer is operating between 1.4 MPa (14 bar) and 12 MPa (120 bar). A solid yellow pressure indicator means:

- The sprayer is at the proper pressure setting for spraying stain, lacquer, varnish, and multi-colors

Solid Green

When the pressure indicator is solid green, the sprayer is operating between 12 MPa (120 bar) and 23 MPa (230 bar). A solid green pressure indicator means:

• The sprayer is at the proper pressure setting for spraying oil-based and latex house paints
• The sprayer is operating at peak performance at a high pressure setting
• If the pressure indicator goes to solid yellow when the pressure is set so that it starts at solid green, it indicates one of the following:

a. Tip Wear Indicator — when spraying with latex or at high pressure the solid yellow appears. This means the tip is worn and needs to be replaced.

b. Tip Too Large — when a tip that is too large for the sprayer is put in the gun, the pressure indicator will turn from solid green to solid yellow.

c. Fluid Section Wear — if a solid yellow pressure indicator appears when using a new tip and the pressure is set at maximum, service may be required (worn packings, worn piston, stuck valve, etc...).

Service Indicator

The Service indicator is on when the motor is commanded to run. This indicator is used by service centers to troubleshoot motor problems.

4.3 Pressure control knob settings (Fig. 6)

1. Minimum pressure setting
2. Black zone – no pressure generation
3. Blue zone – pulsating pressure for cleaning

Motor Running 12 MPa 23 MPa 1 2 MIN MPa MAX MPa 3 RAPID CLEAN ⑥

4.4 Connection to the mains network

The unit must be connected to an appropriately-grounded safety outlet.

Before connecting the unit to the mains supply, ensure that the line voltage matches that specified on the unit's rating plate.

4.5 Cleaning preserving agent when starting-up of operation initially

1. Immerse the suction tube (Fig. 7, Item 1) and return hose (2) into a container with a suitable cleaning agent.
2. Turn the pressure control knob counterclockwise (3) to minimum pressure.

3. Open the relief valve (4), valve position PRIME

4. Switch the unit (5) ON.

5. Wait until the cleaning agent exudes from the return hose.

6. Pull the trigger of the spray gun.

7. Spray the cleaning agent from the unit into an open collecting container.

Technical diagram of a spray gun with labeled parts and exploded view, showing internal components and assembly details.

4.6 Taking the unit into operation with coating material

1. Immerse the suction tube (Fig. 7, Item 1) and return hose (2) into the coating material container.
2. Turn the pressure control knob counterclockwise (3) to minimum pressure.
3. Open the relief valve (4), valve position PRIME
4. Switch the unit (5) ON.
5. Wait until the coating material exudes from the return hose.
6. Trigger the spray gun several times and spray into a collecting container until the coating material exits the spray gun without interruption.
7. Increase the pressure by slowly turning up the pressure control knob.

Check the spray pattern and increase the pressure until the atomization is correct.

Always turn the pressure control knob to the lowest setting with good atomization.

1. The unit is ready to spray.

4.7 Digital Electronic Spray Control (DESC)

The Digital Electronic Spray Control (DESC) increases the functionality of the sprayer. It is installed directly below the pressure control knob on the control panel. It consists of a display and four function keys. The display shows various menu screens that allow the user to customize and monitor sprayer operation using the function keys.

Display SET MPa 23.0 ACTUAL MPa 22.5 Function Keys MENU 1 ▲ 2 ▼ 3 SEL 4 ⑧

The pressure control knob overrides the Digital Electronic Spray Control (DESC) settings. Anytime the pressure control knob is turned, the sprayer pressure will change accordingly.

Function Keys

The function keys are numbered 1–4. Each key is labeled with an additional function as well.

#1/Menu Key

Pressing the #1 key scrolls through the available menu screens or performs a function described on the active menu screen.

Pressing the #2 key performs a function described on the active menu screen or increases a value.

Pressing the #3 key performs a function described on the active menu screen or decrease a value.

#4/Select Key

Pressing the #4 key selects the active menu screen or performs a function described on the active menu screen.

Menu Screens

Several menu screens are available for the user to customize and monitor sprayer operation. They include Main Screen, Volume Pumped, Job Volume, Unit Serial #, Timers, Job Timers, Service Time, Security Code, Prime, and Rapid Clean.

Main Screen

The Main Screen is the default screen for the control system at sprayer startup

SET MPa 23.0 ACTUAL MPa 22.5

Pressing the #2 key switches between PSI and MPa units of measure. Press the #1 key to scroll through the remaining menu screens.

For sprayers equipped with an nine-language Digital Electronic Spray Control (DESC): Pressing the #2 key at the Main Screen switches between MPa and Bar units of measure.

Pressing the #3 key at the Main Screen changes the language of the text on the display. There are a total of nine languages available. Each time the #3 key is pressed, a different language will appear. The languages, in order of appearance, are: English, Spanish, French, German, Danish, Italian, Swedish, Dutch and Portuguese.

Volume Pumped Screen

The Volume Pumped screen shows the total number of gallons or liters sprayed by the sprayer.

To select the Volume Pumped screen, press the #4 key.

VOLUME	PUMPED
	SELECT-4

GALLONS	X
MENU-1	LITRES-2
LITRES	X
MENU-1	GALLONS-2

Job Volume Screen

The Job Volume screen allows the user to reset a liter counter to track usage on specific jobs.

To select the Job Volume screen, press the #4 key.

JOB VOLUMESELECT-4

GALLONS XXXXRESET-3M

Unit Serial # Screen

The Unit Serial # screen shows the sprayers serial number.

To select the Unit Serial # screen, press the #4 key.

UNIT SERIAL #SELECT-4M

SER #XXXXXXXXXMENU-1

Timers Screen

The Timers screen shows the total time the sprayer has been turned on as well as the total time the sprayer has been run

To select the Timers screen, press the #4 key.

TIMERSSELECT-4M

ON TIME	XXXX
RUN TIME	XXXX

Job Timers Screen

The Job Timers screen allows the user to reset the "ON TIME" and "RUN TIME" to track time on specific jobs.

To select the Job Timers screen, press the #4 key. "JOB ON" screen will appear. Press #3 to reset. Press #1 to continue to "JOB RUN" screen. Press #3 to reset. Press #1 to scroll through the remaining menu screens.

JOB TIMERSSELECT-4M

JOB ON X

RESET-3M

JOB RUN X

RESET-3M

Service Time Screen

The Service Time screen allows the user to set a service time interval (in hours).

Below the set time, the screens shows the current amount of hours on the sprayer since the last activation of the service timer. To select the Service Timer screen, press the #4 key.

To set the service time, press the #2 (up) and/or the #3 (down) keys to the

SERVICE TIMESELECT-4M

SERVICE @	XX
RUN HOURS	XX

desired time (run hours will increase/decrease in increments of 25 for each time you press a key).

When the service time interval is set and met by the run hours, the display will show a "Service Required" screen. The pump will remain functional. To return to the Main Screen, press the #1 key. Doing so will reset the "Service @" and "Run Hours" displayed on the Service Screen back to 0.

Security Code Screen

The Security Code screen allows the user to set a four digit security code

SECURITY CODECHANGE-2M

to prevent unauthorized use of the sprayer. If a security code has been set, the control system display will ask for the code at startup. If the correct code is entered, the display will show the Main Screen and the sprayer will operate. If the wrong code is entered, the display will continue to ask for the correct code and the sprayer will be disabled. To set or change the security code, press the #2 key.

If the sprayer is new, no security code is set and the Main Screen will appear at startup. When setting a security code for the first time, the "Enter Old Code Number" screen will appear, and you will need to enter "1111".

Enter the old security code number to access the screen that allows the code change. If the wrong code is entered, the display will continue to ask for the correct code and the security code cannot be changed.

Enter the new security code. Once the new code is entered, the display will automatically ask that the new code be re-entered for verification. If the same new code is re-entered, the display will confirm that the new code has been accepted and return to the Main Screen. If the new code is re-entered incorrectly to the "Enter New Code Number" scree repeat.

ENTER NEW CODE

NUMBER XXXX

RE-ENTER NEW NUMBER XXXX

NEW CODE NUMBERACCEPTED

If you forget or misplace your security code, you can contact Wagner customer service for assistance.

To inactivate the security function, enter "1111" at the "Enter New Code Number" screen (this is the default code that leaves the sprayer unlocked). As a result, the Main Screen will appear at sprayer startup.

Prime Screen

The Prime screen appears when the pressure control knob is set at the "MIN" setting.

PRIME

Rapid Clean Screen

The Rapid Clean screen appears when the pressure control knob is set at the

RAPID CLEAN

RAPID CLEAN position and the PRIME/SPRAY valve is in the PRIME position.

If there is no action at any menu screen for 30 seconds, the display will go back to the Main Screen.

5. Spraying technique

Injection hazard. Do not spray without the tip guard in place. NEVER trigger the gun unless the tip is completely turned to either the spray or the unclog position. ALWAYS engage the gun trigger lock before removing, replacing or cleaning tip.

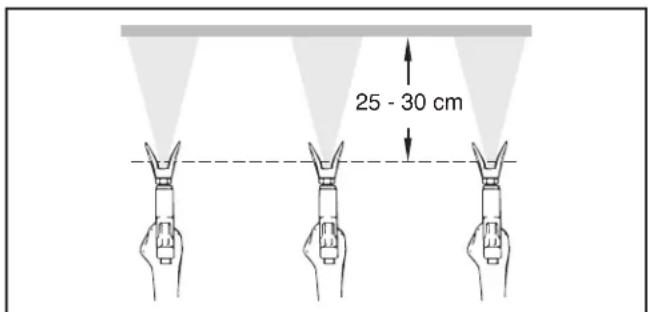

The key to a good paint job is an even coating over the entire surface. Keep your arm moving at a constant speed and keep the spray gun at a constant distance from the surface. The best spraying distance is 25 to 30 cm between the spray tip and the surface.

25 - 30 cm

Keep the spray gun at right angles to the surface. This means moving your entire arm back and forth rather than just flexing your wrist.

Diagram showing three hands holding a light bulb with no text or symbols, possibly illustrating a lighting or safety concept.

Keep the spray gun perpendicular to the surface, otherwise one end of the pattern will be thicker than the other.

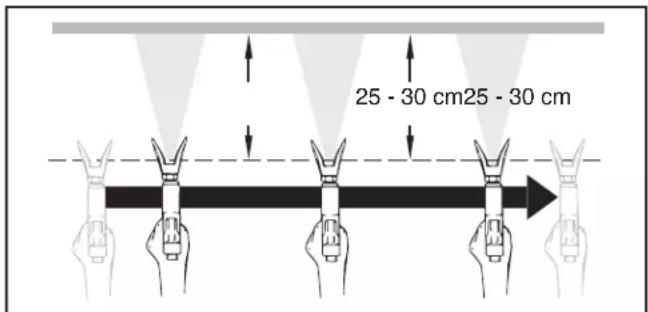

Trigger gun after starting the stroke. Release the trigger before ending the stroke. The spray gun should be moving when the trigger is pulled and released. Overlap each stroke by about 30%. This will ensure an even coating.

25 - 30 cm25 - 30 cm

If very sharp edges result or if there are streaks in the spray jet – increase the operating pressure or dilute the coating material.

6. Handling the high-pressure hose

Avoid sharp bending or kinking of the high-pressure hose. The smallest bending radius amounts to about 20 cm.

Do not drive over the high-pressure hose. Protect against sharp objects and edges.

Danger of injury through leaking high-pressure hose. Replace any damaged high-pressure hose immediately.

Never repair defective high-pressure hoses yourself!

6.1 High-pressure hose

The unit is equipped with a high-pressure hose specially suited for piston pumps.

Only use WAGNER original-high-pressure hoses in order to ensure functionality, safety and durability.

7. Interruption of work

1. Open the relief valve, valve position PRIME
2. Switch the unit OFF.
3. Turn the pressure control knob counterclockwise to minimum pressure.
4. Pull the trigger of the spray gun in order to release the pressure from the high-pressure hose and spray gun.
5. Secure the spray gun, refer to the operating manual of the spray gun.
6. If a standard tip is to be cleaned, see Page 39, Section 12.2.

If a non-standard tip is installed, proceed according to the relevant operating manual.

1. Depending on the model, leave the suction tube or the suction hose and return hose immersed in the coating material or swivel or immerse it into a corresponding cleaning agent.

If fast-drying or two-component coating material is used, ensure that the unit is rinsed with a suitable cleaning agent within the processing time.

8. Cleaning the unit (shutting down)

A clean state is the best method of ensuring operation without problems. After you have finished spraying, clean the unit. Under no circumstances may any remaining coating material dry and harden in the unit.

The cleaning agent used for cleaning (only with an ignition point above 21 °C) must be suitable for the coating material used.

- Secure the spray gun, refer to the operating manual of the spray gun.

Clean and remove tip.

For a standard tip, refer to Page 39, Section 12.2.

If a non-standard tip is installed, proceed according to the relevant operating manual.

1. Remove suction hose from the coating material.

2. Switch the unit ON.

3. Pull the trigger of the spray gun in order to pump the remaining coating material from the suction hose, high-pressure hose and the spray gun into an open container.

The container must be earthed in case of coating materials which contain solvents.

Caution! Do not pump or spray into a container with a small opening (bunghole)! Refer to the safety regulations.

1. Immerse suction hose with return hose into a container with a suitable cleaning agent.
2. Turn the pressure control knob into the blue zone - pulsating pressure for unit cleaning.
3. Open the relief valve, valve position PRIME
4. Pump a suitable cleaning agent in the circuit for a few minutes.
5. Pull the trigger of the spray gun.
6. Pump the remaining cleaning agent into an open container until the unit is empty.
7. Switch the unit OFF.

8.1 Cleaning unit from outside

First of all pull out mains plug from socket.

Danger of short circuit through penetrating water! Never spray down the unit with high-pressure or high-pressure steam cleaners.

Wipe down unit externally with a cloth which has been immersed in a suitable cleaning agent.

8.2 Cleaning the high-pressure filter

Clean the filter cartridge regularly.

A soiled or clogged high-pressure filter can cause a poor spray pattern or a clogged tip.

1. Turn the pressure regulator knob into the black zone until it stops (no pressure).
2. Open the relief valve, valve position PRIME
3. Switch the unit OFF.

Unplug the power plug from the outlet.

1. Unscrew the filter housing (Fig. 9, Item 1). with a strap wrench.
2. Pull the filter cartridge (2) from the bearing spring (3).
3. Clean all the parts with the corresponding cleaning agent. If necessary, replace the filter cartridge.
4. Check the O-ring (4), replace it if necessary.
5. Place the bearing ring (5) against the bearing spring (3). Slide the filter cartridge (2) over the bearing spring.
6. Screw in filter housing (1) and tighten it as far as possible with the strap wrench.

1 2 3 4 5 ⑨

8.3 Cleaning Airless spray gun

1. Rinse Airless spray gun with an appropriate cleaning agent.
2. Clean tip thoroughly with appropriate cleaning agent so that no coating material residue remains.
3. Thoroughly clean the outside of the Airless spray gun.

Intake filter in Airless spray gun

Disassembly (Fig. 10)

1. Pull protective guard (1) forward vigorously.
2. Screw grip (2) out of the gun housing. Remove intake filter (3).
3. Intake filter congested or defective – replace.

Assembly

1. Place intake filter (3) with the long cone into the gun housing.
2. Screw in grip (2) into the gun housing and tight en.
3. Slot in protective guard (1).

1 2 3 ⑩

9. Remedy in case of faults

Type of malfunction	Possible cause	Measures for eliminating the malfunction
A. Unit does not start	1. No voltage applied.	1. Check voltage supply.
	2. Pressure setting too low.	2. Turn up pressure control knob.
	3. ON/OFF switch defective.	3. Replace.
B. Unit does not draw in material	spray).
	2. Filter projects over the fluid level and sucks air.	2. Refill the coating material.
	3. Filter clogged.	3. Clean or replace the filter.
	4. Suction hose/suction tube is loose, i.e. the unit is sucking in outside air.	4. Clean connecting points. Tighten suction tube.
C. Unit draws in material, but the pressure does not build up	1. Tip heavily worn.	1. Replace
	2. Tip too large.	2. For selection of a smaller tip, see Tip table on Page 40.
	3. Pressure setting too low.	3. Turn pressure control knob clockwise to increase.
	4. Filter clogged.	4. Clean or replace the filter.
	5. Coating material flows through the return hose when the relief valve is	5. Remove and clean or replace relief valve.
	6. Packings sticky or worn.	6. Remove and clean or replace packings.
	7. Valve balls worn.	7. Remove and replace valve balls.
	8. Valve seats worn.	8. Remove and replace valve seats.
D. Coating material exits at the top of the fluid section	1. Upper packing is worn.2. Piston is worn.	1. Remove and replace packing.2. Remove and replace piston.
E. Increased pulsation at the spray gun	1. Incorrect high-pressure hose type.2. Tip worn or too large.3. Pressure too high.	1. Only use WAGNER original-high-pressure hoses in order to ensure functionality, safety and durability.2. Replace tip.3. Turn pressure control knob to a lower number.
F. Poor spray pattern	1. Tip is too large for the coating material which is to be sprayed.2. Pressure setting incorrect.3. Volume too low.4. Coating material viscosity too high.	1. Replace tip, see Tip table on Page 40.2. Turn pressure control knob until a satisfactory spraying pattern is achieved.3. Clean or replace all filters.4. Thin out according to the manufacturer's instructions.
G. Unit loses power	1. Pressure setting too low.	1. Turn pressure control knob clockwise to increase.

Digital Electronic Spray Control (DESC) Error Messages

The following error message screens appear whenever the Digital Electronic Spray Control (DESC) detects a problem with the sprayer. Once a problem occurs and the error message appears, the sprayer will shut down.

Before proceeding, relieve any pressure remaining in the system (valve position PRIME

reduce the risk of an injection injury, injury from moving parts or electric shock. Always unplug the sprayer before servicing!

Check Transducer Screen

The Check Transducer screen appears when the transducer has become disconnected or is defective. Take the authorized service center for repair.

CHECK ANSDUCER

Check Motor Screen

The Check Motor screen appears when the motor or motor sensor is defective.

CHECK MOTOR

Take the sprayer to a Wagner authorized service center for repair.

Low Voltage Screen

The Low Voltage screen appears when

LOW VOLTAGE

the sprayer shuts down because of low input voltage. Check the power supply and correct the problem. Restart the sprayer.

High Motor Temperature Screen

The High Motor Temperature screen appears when the temperature of

the motor has risen too high. Take the sprayer to a Wagner authorized service center for repair.

High Control Temperature Screen

The High Control Temperature screen appears when the temperature of the

Digital Electronic Spray Control (DESC) has risen too high. Take the sprayer to a Wagner authorized service center for repair.

High Mechanical Load

The High Mechanical Load screen appears when the sprayer shuts down

because of high current or when the sprayer goes into current fold back mode. Take the sprayer to a Wagner authorized service center for repair.

HIGH MOTOR TEMPERATURE

HIGH CONTROL TEMPERATURE

HIGH MECHANICAL LOAD

10. Servicing

10.1 General servicing

Servicing of the unit should be carried out once annually by the WAGNER service.

1. Check high-pressure hoses, device connecting line and plug for damage.

2. Check the inlet valve, outlet valve and filter for wear.

10.2 High-pressure hose

Inspect the high-pressure hose visually for any notches or bulges, in particular at the transition in the fittings. It must be possible to turn the union nuts freely.

11. Repairs at the unit

Switch the unit OFF.

Before all repair work: Unplug the power plug from the outlet.

11.1 Relief valve

1. Use a drift punch of 2 mm to remove the grooved pin (Fig. 11, Item 1) from the relief valve handle (2).
2. Remove the relief valve handle (2) and cam base (3).
3. Using a wrench, remove the valve housing (4).
4. Ensure that the seal (5) is seated correctly, then screw the new valve housing (4) completely into the filter block (6). Tighten securely with a wrench.
5. Align the cam base (3) with the hole in the filter block (6). Lubricate the cam base with grease and slide on the cam base.
6. Bring the hole in the valve shaft (7) and in the relief valve handle (2) into alignment.
7. Insert the grooved pin (1) to secure the relief valve handle in position.

Technical diagram of a flashlight with numbered components and labeled parts

11.2 Inlet and outlet valve

1. Remove the four screws in the front cover and then remove the front cover.

Danger of crushing - do not reach with the fingers or tool between the moving parts.

1. Turn the pressure control knob to minimum pressure. The DESC screen should say "PRIME".
2. Press the #1 key on the DESC control panel. The "CREEP MODE" screen will now appear.
3. Slowly turn the pressure control knob clockwise to increase the pressure. The crankshaft/slider assembly will begin to move very slowly.
4. When it reaches the bottom, dead-center of its stroke, turn the pressure control knob back to minimum pressure. The crankshaft/slider assembly should stop.
5. Unplug the power plug from the outlet.
6. Pull off clamp on suction tube and remove return hose.

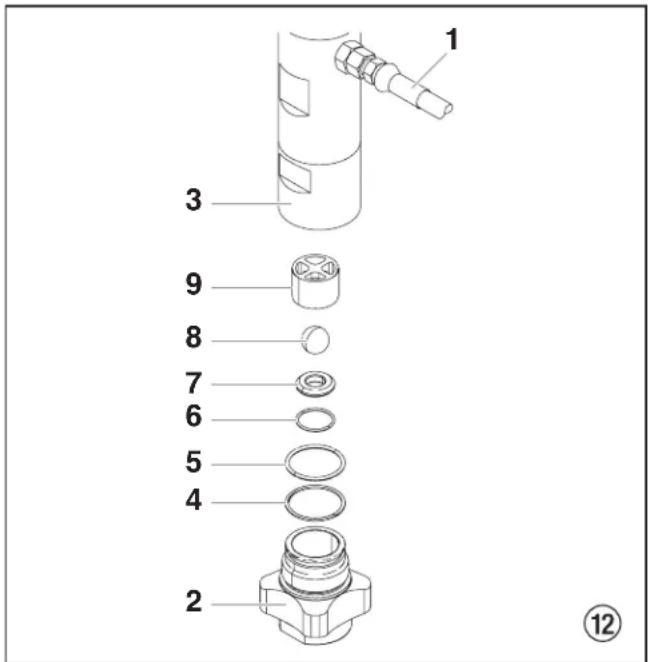

7. Unscrew the connection hose (Fig. 12, item 1) from the high-pressure filter.
8. Turn the knob on the side of the cart clockwise to unlock the cart. Tilt the cart backwards until it locks into place.
9. Loosen and unscrew inlet valve housing (2) from the lower housing (3) with light blows from a hammer or unscrew with an adjusting wrench.
10. Remove bearing ring (4), O-ring (5), O-ring (6), inlet valve seat (7), inlet valve ball (8) and upper ball guide (9).
11. Clean all the parts with the corresponding cleaning agent.

Check the inlet valve housing (2), inlet valve seat (7) and inlet valve ball (8) for wear and replace the parts if necessary. If the worn inlet valve seat (7) is unused on one side, install it the other way around.

1. Carry out installation in the reverse order.

Lubricate O-ring (5) with machine grease and ensure proper seating in the inlet valve housing (2).

1 2 3 4 5 6 7 8 9 ⑫

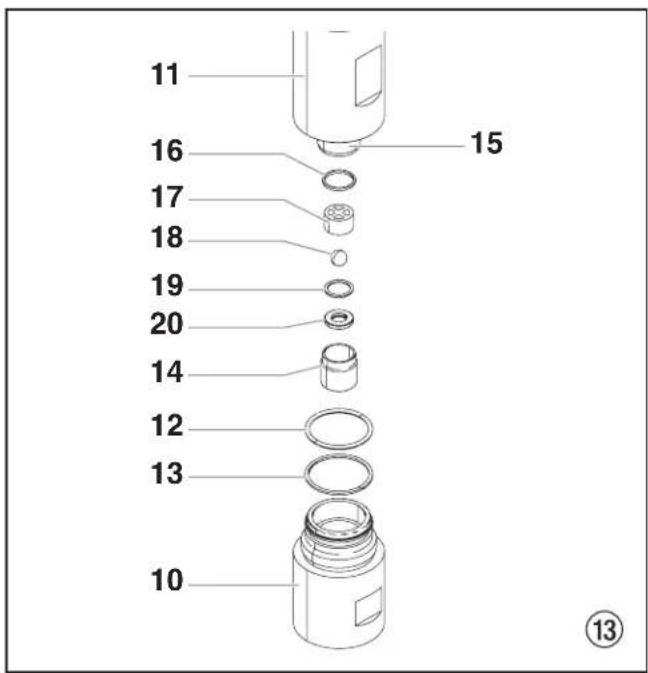

1. Unscrew lower housing (Fig. 13, Item 10) with adjusting wrench while holding the upper housing (11) securely with a second adjusting wrench.
2. Remove bearing ring (13) and O-ring (12).
3. Screw out outlet valve housing (14) from the piston (15) with 3/8 inch hexagon socket head wrench.
4. Remove the upper seal (16), upper ball guide (17), outlet valve ball (18), washer (19) and outlet valve seating (20).
5. Clean all the parts with the corresponding cleaning agent. Check outlet valve housing (14), outlet valve seat (20), outlet valve ball (18) and upper ball guide (17) for wear and replace parts if necessary. If the worn outlet valve seat (20) is unused on one side, install it the other way around.
6. Carry out installation in the reverse order. Lubricate O-ring (12) with machine grease and ensure proper seating in the lower housing (10).

11 16 17 18 19 20 14 12 13 10 15 ⑬

11.3 Packings

1. Remove inlet valve housing in accordance with the steps in Chapter 11.2, Page 36.
2. It is not necessary to remove the outlet valve.

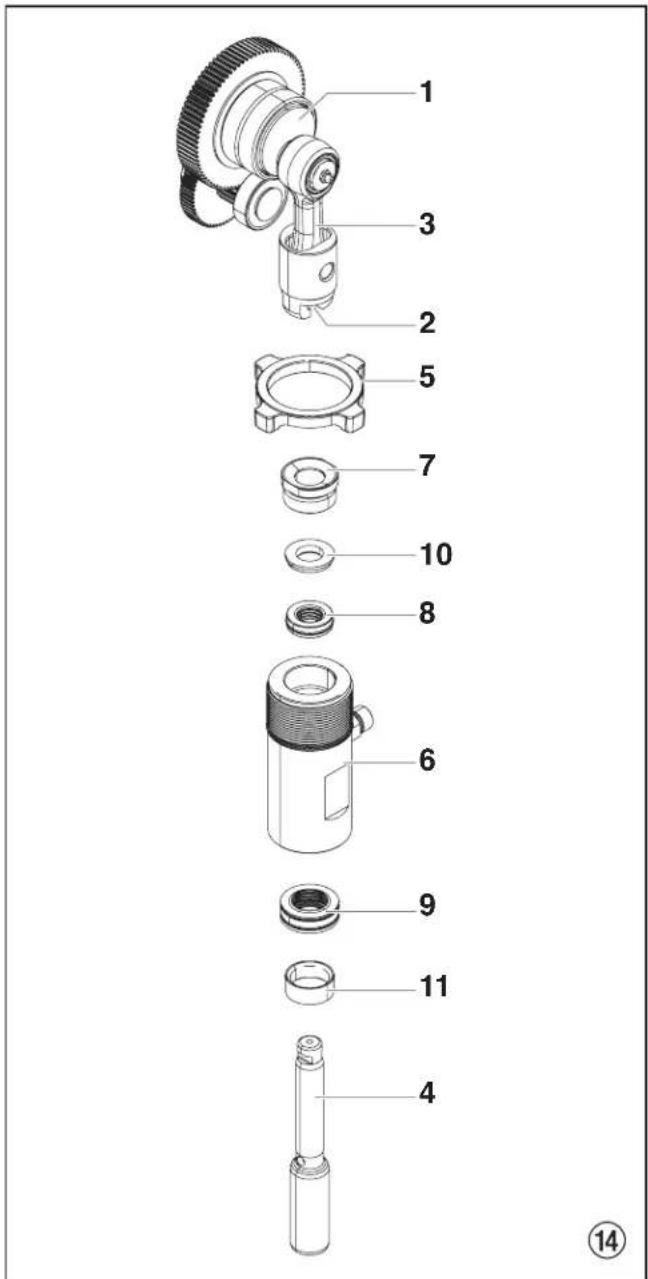

3. Loosen lock nut (Fig. 14, Item 5) counterclockwise with light blows from a hammer.
4. Unscrew upper housing (6) counterclockwise from the gear unit housing.
5. Clamp upper housing (6) at the wrench surfaces vertically in a vice.

Do not tighten vice excessively to prevent crushing.

1. Screw out threaded joint (7).

2. Slide the piston rod (4) forward until the piston is out of the T-slot (2) on the slider assembly (3).

3. Push piston (4) downward out of the upper housing (6). Check piston for wear and replace if necessary.

4. Remove upper packing (8) and lower packing (9) from the upper housing (6).

Do not damage inside of upper housing.

Exploded view diagram of a mechanical assembly with numbered parts for identification

1. Remove the transportation devices from the upper and lower packings. (The transportation device from the upper packing is required for installation of the piston.)

2. Lubricate upper packing (8) and lower packing (9) with machine grease.

3. Insert upper packing (Fig. 15) with O-ring (1) and protruding lip (2) downward into the upper housing (6).

1 2 ⑮

1. Place intermediate ring (Fig. 14, Item 10) on the upper packing (8).
2. Screw threaded joint (Fig. 14, Item 7) into the upper housing (6) and tighten to 34 - 41 Nm.
3. Insert lower packing (Fig. 16) in such a way that the side with the smaller distance between the O-ring (1) and the protruding lip (2) faces upward.

2 1 ⑯

1. Move the lower packing to the end position using the installation tool.

2. Push installation tool (included in scope of delivery of the upper packing as a transportation device) for the piston (Fig. 14, Item 4) onto the piston from above.

3. Lubricate installation tool and piston (4) with machine grease.

4. Push piston (4) through the lower and upper packings until the upper end of the piston protrudes from the threaded joint (7).
5. Remove installation tool from piston (4).
6. Slide the top of the piston (4) into the T-slot (2) on the slider assembly (3).
7. Screw lock nut (5) at the upper housing (6) until it touches.
8. Lubricate the threading of the upper housing (6) with machine grease.

Remove upper housing from the vice.

1. Screw upper housing (6) into the gear unit housing until the lock nut (5) touches and the connector for the connection hose faces the rear.
2. Tighten lock nut (5) with light hammer blows.
3. Insert guide ring (11) into the lower housing (Fig. 13, Item 10) and screw lower housing into upper housing and tighten.
4. Screw on and tighten connection hose.
5. Screw in inlet valve housing (Fig. 12, item 2), see Chapter 11.2, Item 13.
6. Screw on and tighten suction tube.
7. Fasten return hose with clamp at suction tube.
8. Install front cover.

11.4 ProSpray 3.29 / 3.31 connection diagram

12. Appendix

12.1 Selection of tip

To achieve faultless and rational working, the selection of the tip is of the greatest importance.

In many cases the correct tip can only be determined by means of a spraying test.

Some rules for this:

The spray jet must be even.

If streaks appear in the spray jet the spraying pressure is either too low or the viscosity of the coating material to high.

Remedy: Increase pressure or dilute coating material. Each pump conveys a certain quantity in proportion to the size of the tip:

The following principle is valid: large tip = low pressure

small tip = high pressure

There is a large range of tips with various spraying angles.

12.2 Servicing and cleaning of Airless hard-metal tips

Standard tips

If a different tip type has been fitted, then clean it according to manufacturer's instructions.

The tip has a bore processed with the greatest precision. Careful handling is necessary to achieve long durability. Do not forget the fact that the hard-metal insert is brittle! Never throw the tip or handle with sharp metal objects.

The following points must be observed to keep the tip clean and ready for use:

1. Switch off the gasoline engine.
2. Dismount the tip from the spray gun.
3. Place tip in an appropriate cleaning agent until all coating material residue is dissolved.
4. If there is pressure air, blow out tip.
5. Remove any residue by means of a sharp wooden rod (toothpick).
6. Check the tip with the help of a magnifying glass and, if necessary, repeat points 4 to 6.

12.3 Spray gun accessories

Line drawing of a mechanical device with no visible text or symbols

Flat jet adjusting tip

up to 250 bar (25 MPa

Tip marking Bore mm		Spray width at about 30 cm removal of spray object Pressure 100 bar (10 MPa)	Use	Flat jet adjusting tip Order No.
15	0.13 - 0.46	5 - 35 cm	Paints	0999 057
20	0.18 - 0.48	5 - 50 cm	Paints, fillers	0999 053
28	0.28 - 0.66	8 - 55 cm	Paints, dispersions	0999 054
41	0.43 - 0.88	10 - 60 cm	Rust protection paints - dispersions	0999 055
49	0.53 - 1.37	10 - 40 cm	Large-area coats	0999 056

Contact protection

for the flat jet adjustment tip

Order No. 0097 294

Tip extension with slewable knee joint (without tip)

Length 100 cm Order no. 0096 015
Length 200 cm Order no. 0096 016
Length 300 cm Order no. 0096 017

Tip extension

15 cm, F-thread, Order no. 0556 051
30 cm, F-thread, Order no. 0556 052
45 cm, F-thread, Order no. 0556 053
60 cm, F-thread, Order no. 0556 054

15 cm, G-thread, Order no. 0556 074

30 cm, G-thread, Order no. 0556 075

45 cm, G-thread, Order no. 0556 076

60 cm, G-thread, Order no. 0556 077

12.4 Airless tip table

WAGNER

Trade Tip 2 up to 270 ba (27 MPa)

without tip

F thread (11/16 - 16 UN) for Wagner spray guns Order no. 0556 042

without tip

G thread (7/8 - 14 UN) for Graco/Titan spray guns Order no. 0556 041

Application Tip Spray Bore Spraying marking angle inch/mm width mm
Natural paints 407 40° 0.007 / 0.18 160 0552 407 Clear paints Oils	Spray gun filter "RED"	507	50°	0.007 / 0.18	190
		209	20°	0.009 / 0.23	145	0552 209
		309	30°	0.009 / 0.23	160	0552 309
		409	40°	0.009 / 0.23	190	0552 409
		509	50°	0.009 / 0.23	205	0552 509
		609	60°	0.009 / 0.23	220	0552 609
Synthetic-resin paints PVC paints		111	10°	0.011 / 0.28	85
		211	20°	0.011 / 0.28	95
		311	30°	0.011 / 0.28	125	0552 311
		411	40°	0.011 / 0.28	195	0552 411
		511	50°	0.011 / 0.28	215	0552 511
		611	60°	0.011 / 0.28	265	0552 611
Paints, primers Zinc chromate base Fillers		113	10°	0.013 / 0.33	100	0552 113
		213	20°	0.013 / 0.33	110	0552 213
		313	30°	0.013 / 0.33	135	0552 313
		413	40°	0.013 / 0.33	200	0552 413
		513	50°	0.013 / 0.33	245	0552 513
		613	60°	0.013 / 0.33	275	0552 613
		813	80°	0.013 / 0.33	305	0552 813
Fillers Spray plasters Rust protection paints		115	10°	0.015 / 0.38	90
		215	20°	0.015 / 0.38	100	0552 215
		315	30°	0.015 / 0.38	160	0552 315
		415	40°	0.015 / 0.38	200	0552 415
		515	50°	0.015 / 0.38	245	0552 515
		615	60°	0.015 / 0.38	265	0552 615
		715	70°	0.015 / 0.38	290	0552 715
		815	80°	0.015 / 0.38	325	0552 815
Spray plasters Rust protection paints Red lead Latex paints		217	20°	0.017 / 0.43	110	0552 217
		317	30°	0.017 / 0.43	150	0552 317
		417	40°	0.017 / 0.43	180	0552 417
		517	50°	0.017 / 0.43	225	0552 517
		617	60°	0.017 / 0.43	280	0552 617
		717	70°	0.017 / 0.43	325	0552 717
		219	20°	0.019 / 0.48	145	0552 219
		319	30°	0.019 / 0.48	160	0552 319
		419	40°	0.019 / 0.48	185	0552 419
		519	50°	0.019 / 0.48	260	0552 519
		619	60°	0.019 / 0.48	295	0552 619
		719	70°	0.019 / 0.48	320	0552 719
		819	80°	0.019 / 0.48	400	0552 819
Mica paints Zinc dust paints Dispersions	Spray gun filter "WHITE"	221	20°	0.021 / 0.53	145	0552 221
		421	40°	0.021 / 0.53	190	0552 421
		521	50°	0.021 / 0.53	245	0552 521
		621	60°	0.021 / 0.53	290	0552 621
		821	80°	0.021 / 0.53	375	0552 821
Rust protection paints		223	20°	0.023 / 0.58	155	0552 223
		423	40°	0.023 / 0.58	180	0552 423
		523	50°	0.023 / 0.58	245	0552 523
		623	60°	0.023 / 0.58	275	0552 623
		723	70°	0.023 / 0.58	325	0552 723
		823	80°	0.023 / 0.58	345	0552 823
Dispersions Binder, glue and filler paints		225	20°	0.025 / 0.64	130	0552 225
		425	40°	0.025 / 0.64	190	0552 425
		525	50°	0.025 / 0.64	230	0552 525
		625	60°	0.025 / 0.64	250	0552 625
		825	80°	0.025 / 0.64	295	0552 825
		227	20°	0.027 / 0.69	160	0552 227
		427	40°	0.027 / 0.69	180	0552 427
		527	50°	0.027 / 0.69	200	0552 527
		627	60°	0.027 / 0.69	265	0552 627
		827	80°	0.027 / 0.69	340	0552 827
		629	60°	0.029 / 0.75	285	0552 629
		231	20°	0.031 / 0.79	155	0552 231
		431	40°	0.031 / 0.79	185	0552 431
		531	50°	0.031 / 0.79	220	0552 531
		631	60°	0.031 / 0.79	270	0552 631
		433	40°	0.033 / 0.83	220	0552 433
		235	20°	0.035 / 0.90	160	0552 235
		435	40°	0.035 / 0.90	195	0552 435
		535	50°	0.035 / 0.90	235	0552 535
		635	60°	0.035 / 0.90	295	0552 635
		839	80°	0.039 / 0.99	480
		243	20°	0.043 / 1.10	185	0552 243
Large-area coatings		543	50°	0.043 / 1.10	340	0552 543
		552	50°	0.052 / 1.30	350	0552 552

1) Spray width at about 30 cm to the object and 100 bar (10 MPa) pressure with synthetic-resin paint 20 DIN seconds.

12.5 TempSpray

The paint material is heated to the required temperature uniformly by an electric heating element, which is located inside the hose (regulated from 20°C to 60°C).

Advantages:

• Constant paint temperature even at low outside temperatures
• Considerably better working of high viscosity coating materials
  • Increased application efficiency
  • Savings in solvents due to reduction in viscosity
  • Adaptable to all airless units

Order No. Description
23116592311852	TempSpray H 126 (ideal for lacquer jobs)Basic unit 1/4" incl. stainless steel hose, DN6, 1/4", 10mSpraypack consisting of: basic unit (2311659), Airless gun AG 14 NPS 1/4", incl. Trade Tip 2 nozzler holder (F-thread) and Trade Tip 2 Fine Finish 410
23116602311853	TempSpray H 226 (ideal for dispersions/materials with high viscosity)Basic unit 1/4" incl. Hose reel, heated hose DN10, 15m, hose 1/4" DN4, 1mSpraypack consisting of: Basic unit (2311660), Airless gun AG 14 NPS 1/4", incl. Trade Tip 2 nozzler holder (F-thread) and Trade Tip 2 nozzle 419
23116612311854	TempSpray H 326 (ideal for dispersions/materials with high viscosity)Basic unit 1/4" incl. Hose reel, heated hose DN10, 30m, hose 1/4" DN4, 1mSpraypack consisting of: Basic unit (2311661), Airless gun AG 14 NPS 1/4", incl. Trade Tip 2 nozzler holder (F-thread) and Trade Tip 2 nozzle 421

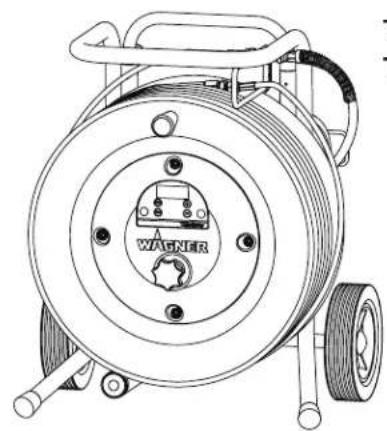

TempSpray H 126

Line drawing of a mechanical power spool with visible coil and base (no text or symbols)

TempSpray H 226 TempSpray H 326

12.6 Pump-Runner

(Order No. 2306987)

Universal accessories for cleaning, clean transportation and preservation of the pump unit.

Features:

• Simpler cleaning – the cleaning liquid circulates constantly through the pump making thorough cleaning of the interior
  • No cleaning necessary during work stoppage or change of location because the paint in the pump cannot dry out or leak
• Better protection
• Simple assembly

Suitable for the following models:

Diaphragm Pumps Double-stroke piston pumps
SF 21	Finish 270/370	PS 24	PS 3.25
SF 23	Nespray Deco	PS 26	PS 3.29
SF 27	Nespray 31	PS 30	PS 3.31
SF 31		PS 34	PS 3.34
SF 7000

Order this at the same time: EasyClean, cleaning and preservation agent (118ml) Order no. 0508 620.

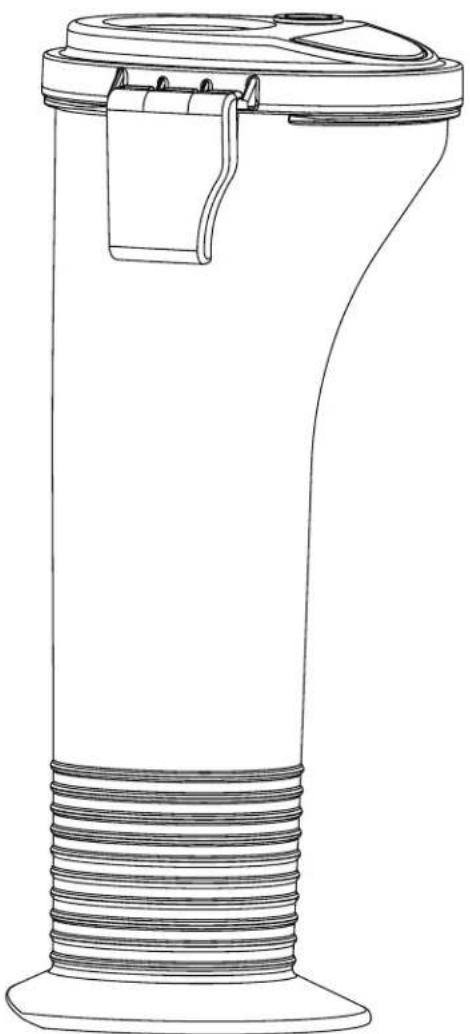

Line drawing of a mechanical component with threaded base and handle (no text or symbols)

Technical line drawing of a mechanical device with two tubes and threaded base (no text or symbols)

Tel.

Tel.

Tel.

Tel.

Tel.

Tel.

Tel.

Tel.

Attention!

4.7 Digital Electronic Spray Control (DESC) 52

12.5 TempSpray....63

12.6 Pump-Runner 64

Technical diagram of a spray gun pump assembly with numbered parts for identification

Technical diagram of a mechanical device with labeled parts 1, 2, and 2, showing structural components.

Technical diagram of a spray gun pump assembly with labeled parts and close-up insets showing components 1 and 2.

Technical diagram of a mechanical assembly with labeled parts, showing a hand operating a component labeled '4'.

Technical diagram of a mechanical pump assembly with numbered components and exploded view

4.7 Digital Electronic Spray Control (DESC)

Diagram showing three hands holding a light bulb with no text or symbols, possibly illustrating a lighting or anti-smoking concept.

Technical diagram of a device with numbered components, likely a flashlight or sensor assembly.

Technical diagram of a mechanical device with labeled parts 1 and 3

12

Illustration of a mechanical device with no visible text or symbols

Line drawing of a temperature sensor device with coiled tubing and connector (no text or symbols on the device itself)

Technical line drawing of a mechanical power spool with visible coil and base (no text or symbols)

TempSpray H 226 TempSpray H 326

12.6 Pump-Runner

(Réf. No. 2306987)

Line drawing of a cylindrical mechanical component with threaded base and clamped top (no text or symbols)

Line drawing of a mechanical device with coiled tubing and two protruding pipes (no text or symbols)

WAGNER

USINES ET POINTS DE VENTE

Allemagne

4.7 Digital Electronic Spray Control (DESC) 74

12.5 TempSpray....85

12.6 Pump-Runner 86

Technical diagram of a spray gun pump assembly with numbered parts for identification

3.5 Dati tecnici

ProSpray 3.29

ProSpray 3.31

Tensione: 220\~240 Volt, 50/60 Hz

Corrente assorbita max.: 7,5 A 8 A

Technical diagram of a mechanical device with labeled parts 1, 2, and numbered annotations

Technical diagram of a spray gun pump assembly with labeled parts and close-up insets showing components 1 and 2.

Technical diagram of a mechanical assembly with labeled parts, showing a hand operating a component labeled '4'.

Technical diagram of a mechanical pump assembly with numbered components and exploded view

4.7 Digital Electronic Spray Control (DESC)

No SERIESELEZ-4M
# SER.	XXXXXXXXXMENU-1

Diagram showing three hands holding a flashlight with no text, illustrating the prohibition of lighting or anti-smoking.

Technical diagram of a device with numbered components, likely a flashlight or sensor assembly

Illustration of a mechanical device with no visible text or symbols

Line drawing of a mechanical power spool with visible components and no text or symbols

TempSpray H 226

TempSpray H 326

12.6 Pump-Runner

(N° ord. 2306987)

Line drawing of a mechanical component with threaded base and handle (no text or symbols)

Line drawing of a mechanical device with threaded base and two protruding pipes (no text or symbols)

WAGNER®

Exploded view diagram of an electronic device with numbered components and corresponding close-ups of internal parts.

Pos Item Pos.	Best. Nr. Part No. N° de pièce N° ord.	Benennung	Description	Désignation	Denominazione
1 0290	270 Motorabdeckung Motor shroud Couverture du moteur			Copertura del motore
2 0508	559 Schraube (2) Screw (2) Vis (2) Vite (2)
3 0290	269 Verkleidungsunterteil Belly pan Cuvette Puntale
4 9802	266 Schraube (2) Screw (2) Vis (2) Vite (2)
5 0290	228 Klappe Door Porte Sportello
6 0509	218 Schraube (2) Screw (2) Vis (2) Vite (2)
7	0552 240A	Hochdruckfilter	Filter assembly	Filtre haute pression	Filtro de alta pressione
8	0290 262	Doppelstutzen	Fitting	Raccord	Accessorio
9	0507 785	Rücklaufschlauch	Return tube	Tuyau de retour	Tubo flessibile di ritorno
10	0507 387	Schlauch	Hose	Tuyau	Flessibile
11	9802 266 Schraube (2) Screw (2) Vis (2) Vite (2)
12	0290 225	Elektronikabdeckung	Electronic cover	Couvercie électronique	Copertura elettronica
13	9805 317 Schraube (2) Screw (2) Vis (2) Vite (2)
14	0290 212	Griffhülle, hinten	Handle cover, back	Couvre poignée, arrière	Copertura maniglia, parte posteriore
15	0558 493	Kabel-Jumper	Power cord jumper	Bretelle de cordon d'alimentation	Ponticello del cavo di alimentazione
16	0290 213	Griffhülle, vorne	Handle cover, front	Couvre poignée, avant	Copertura maniglia, parte anteriore
17	----	Baugruppe Antrieb	Drive assembly	Carter d'enrenages	Gruppo azionamento
18	0509 218 Schraube (4) Screw (4) Vis (4) Vite (4)
19	0558 321A	Baugruppe Bedienfeld, vollständig, umfasst (Pos. 34-41)	Control panel assembly, complete (includes items 34-41)	Ensemble panneau de commande, complet (comprend les éléments 34 à 41)	Gruppo pannello di controllo, completo (comprende articoli n. 34-41)
20	9852 345	Sicherung, 10A	Fuse, 10A	Fusible, 10A	Fusible, 10A
21	9804 916	Schraube	Screw	Vis	Vite
22	0522 210	Montageplatte	Mounting plate	Plaque de montage	Piastra di montaggio
23	0290 279	Frontabdeckung / Baugruppe Öler	Face plate / oiler assembly	Ensemble graisseur / plaque frontale	Gruppo disco portapezzo / oliatore
24	0509 218 Schraube (4) Screw (4) Vis (4) Vite (4)
25	0290 260	Eimerhaken	Pail hook	Crochet de seau	Gancio di secchio
26	9821 503	Schoibe (2)	Washer (2)	Rondolle (2)	Rondolla (2)
27	0290 271 Schraube (2) Screw (2) Vis (2) Vite (2)
28	0290 238	Farbstufe	Fluid section assembly	Ensemble de pompe à pointure	Stadio della vernice
29	0507 783	Klammer	Clip	Agrafe de fixation	Fermaglio
30	0507 782	Ansaugrohr	Suction tube	Tube d'aspiration	Tubo di aspirazione
31	0290 253	Stopfen	Grommit	Bouchon	Spina
32	0551 778	Baugruppe Meßwertaufnehmer	Transducer assembly	Capteur de pression	Trasduttore di pressione
33	9805 348 Schraube (4) Screw (4) Vis (4) Vite (4)
34	0290 252	Abdeckung Bedienfeld	Control panel cover with label	Capot du panneau de commande	Copertura dei pannello di controllo
35	0507 749	Mutter mit Dichtring	Nut with seal	Écrou étanche	Dado con guarnizione
36	0290 202	Stellschraube	Set screw	Vis de réglage	Vite di regolazione
37	0290 218	Druckregler	Knob	Bouton de réglage de pression	Manopola di regolazione della pressione
38	9850 936	Schalter	Switch	Interrupteur	Interruttore
39	0508 579	Potentiometer	Potentiometer	Potentiomètre	Potenziometro
40	0522 007	Baugruppe LED	LED assembly	Ensemble DEL	Gruppo LED
41	0290 220 Bildschirm Digital Electronic Spray Control (DESC)		Digital Electronic Spray Control (DESC) display	Affichage DESC (Digital Electronic Spray Control)	Display sistema di controllo digitale (DESC)
42	0522 036	Kondensator	Capacitor assembly	Condensateur	Condensatore
43	0551 543	Kabelbinder	Tie wrap	Attache de câble	Legatura del cavo
44	0558 454	Halterungsabdeckung	Bracket cover	Couvercle de support	Copertura della staffa
45	0509 218 Schraube (4) Screw (4) Vis (4) Vite (4)
46	9800 340 Schraube (2) Screw (2) Vis (2) Vite (2)
47	0551 980	Sicherungsmutter (2)	Lock nut (2)	Contre-écrou (2)	Dado di blocco (2)
48	0522 424	EMI filter, 20A	EMI filter, 20A	Filtre EMI, 20 A	Filtro EMI, 20A
49	9805 240 Schraube (3) Screw (3) Vis (3) Vite (3)
50	0558 453	Halterung	Bracket	Support	Staffa
51	0551 714	Zugentlastung (2)	Cord grip (2)	Bride de cordon (2)	Presa cavo (2)
52	5006 536	Filter	Inlet screen	Filtre	Filtro
53	9805 403	Stellschraube	Set screw	Vis de réglage	Vite di regolazione
54	9810 103	Mutter (2)	Nut (2)	Écrou (2)	Dado (2)
55	0524 353	Mutter	Nut	Écrou	Dado
	0551 758	Schwankung Entstörer (nicht gezeigt)	Surge protector (not shown)	Bondir suppressor (non représenté)	Limitatore disovracorrente (non illustrato)
	0522 052	Leitung (nicht gezeigt)	Wire assembly (not shown)	Ensemble fil (non représenté)	Filo metallico (non illustrato)
	0522 053	Leitung (nicht gezeigt)	Wire assembly (not shown)	Ensemble fil (non représenté)	Filo metallico (non illustrato)

Ersatzteilliste Spare parts list Liste des pièces de rechange Elenco dei ricambi

ProSpray 3.29 / 3.31

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 9 10 23 24

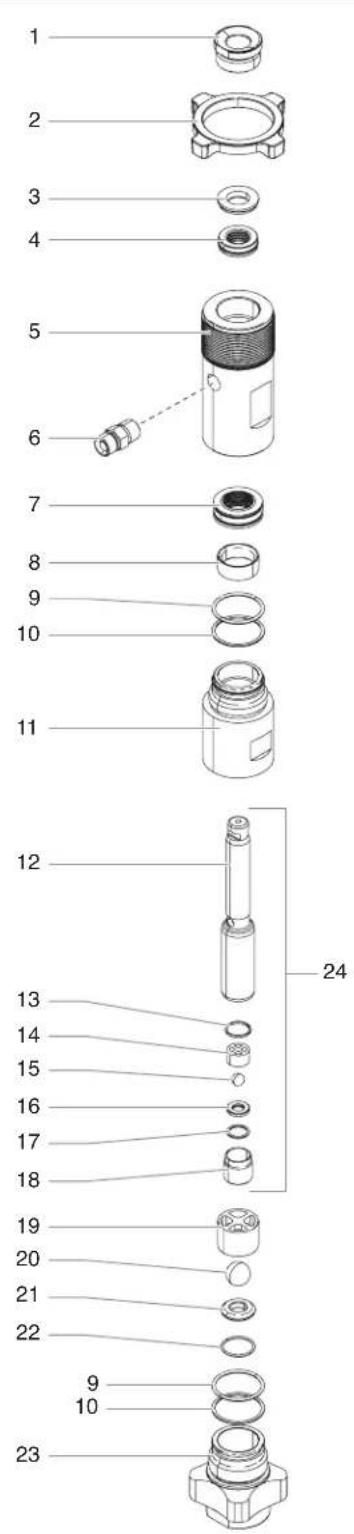

Pos Item Pos.	Best. Nr. Part No. N° de pièce N° ord.	Benennung	Description	Désignation	Denominazione
1 0290 263 Führungs	smutter Retainer Écrou de guidage Dado di guida
2 0290 255 Arretierm	utter Jam nut Ecrou d'arrêt Dado di arresto
3 0290 276 Abstandh	alter Spacer Entretoise Disanziatore
4	----	Obere Packung	Upper packing	Garniture supérieure	Guarnizione superiore
5	0290 249	Oberes Gehäuse	Upper housing	Boîtier supérieur	Corpo superiore
6	0508 343	Doppelstutzen	Fitting	Raccord double	Bocchettone doppio
7	----	Untere Packung	Lower packing	Garniture inférieure	Guarnizione inferiore
8	0508 712	Führungsring	Guide ring	Bague de guidage	Anello di guida
9	0507 730	O-ring (2)	O-ring (2)	Joint torique (2)	O-ring (2)
10	0507 731	O-ring (2)	O-ring (2)	Joint torique (2)	O-ring (2)
11	0290 250	Unteres Gehäuse	Lower housing	Boîtier inférieure	Corpo inferiore
12	0290 251	Kolben	Piston rod	Piston	Pistone
13	0507 734	Obere Dichtung	Upper seal	Joint supérieur	Guarnizione superiore
14	0507 452	Obere Kugelführung	Upper ball guide	Guide de bille supérieur	Guida della sfera superiore
15	9841 502	Auslassventilkugel	Outlet valve ball	Bille du clapet de refoulement	Sfera della valvola di scarico
16	0294 516	Auslassventilsitz	Outlet valve seat	Siège du clapet de refoulement	Sede della valvola di scarico
17	0507 454 Scheibe	Washer	Rondelle	Rondella
18	0507 733	Auslassventilgehäuse	Outlet valve retainer	Corps du clapet de refoulement	Corpo della valvola di scarico
19	0507 729	Untere Kugelführung	Lower ball guide	Guide de bille inférieur	Guida della sfera inferiore
20	51519	Einlassventilkugel	Inlet valve ball	Bille du clapet d'admission	Sfera della valvola di entrata
21	00310	Einlassventilsitz	Inlet valve seat	Siège du clapet d'admission	Sede della valvola di entrata
22	0509 582	O-ring	O-ring	Joint torique	O-ring
23	0508 717	Einlassventilgehäuse	Inlet valve housing	Corps du clapet d'admission	Corpo della valvola di entrata
24	0290 237 Baugruppe Kolben (inklusive der Elemente 12-18)	Piston assembly (includes items 12-18)	Ensemble piston (comprend les éléments 12 à 18)	Gruppo pistone (comprende articoli n. 12-18)
	0508 221 Repacking Kit (inklusive der Elemente 3-4, 7, 10, 15-16, 20 und 22).	Repacking kit (includes items 3-4, 7, 10, 15-16, 20 and 22)	Kit de remplacement des garnitures (comprend les éléments 3 à 4, 7, 10, 15-16, 20, et 22).	Kit di riconfezionamento (comprende articoli 3-4, 7, 10, 15-16, 20, e 22).
	0552 150 Montagewerkzeug untere Packung	Lower packing insertion tool	Outil de montage garniture inférieure	Attrezzo di montaggio guarnizione inferiore

Ersatzteilliste Spare parts list Liste des pièces de rechange Elenco dei ricambi

ProSpray 3.29 / 3.31

Exploded view diagram of a mechanical assembly with numbered parts for identification

20

Pos Item Pos. Pos.	Best. Nr. Part No. N° de pièce N° ord.	Benennung	Description	Désignation	Denominazione
1 0558	323A Baugruppe Gehäuse Housing assembly Logement Gruppo alloggiamento
2 0290	241 Schiebeeinheit Slider assembly Coulisseau Gruppo cursore
3	0290 254	Anlaufscheibe	Thrust washer	Disque de butée	Ralla
4	0290 239	Kurbelwelle	Gear/crankshaft assembly	Vilebrequin	Albero a gomiti
5	0290 240	Getrieberad, Stufe 1	1st stage gear	Roue dentée, étage 1	Ruota dentata, stadio 1
6	0558 324A	Baugruppe motor	Motor assembly	Ensemble de moteur	Gruppo motore
7	0508 559	Schraube (6)	Screw (6)	Vis (6)	Vite (6)
8	0558 558	Zwischenwand	Baffle assembly	Paroi intermédiaire	Parete intermedia
9	0509 218	Schraube (4)	Screw (4)	Vis (4)	Vite (4)
10	0558 535	Elektroniksteuerung (PS 3.29)	Electronic control assembly (PS 3.29)	Ensemble de commandes électroniques (PS 3.29)	Gruppo dei comandi elettronici (PS 3.29)
	0558 536 Elektroniksteuerung (PS 3.31) Electronic control assembly (PS 3.31)			Ensemble de commandes électroniques (PS 3.31)	Gruppo dei comandi elettronici (PS 3.31)
11	9802 266	Schraube (2)	Screw (2)	Vis (2)	Vite (2)
12	9822 106	Scheibe	Washer	Rondelle	Rondella
13	0522 040	Leiter Montage	Wire assembly	Fil de montage	Filo di montaggio
14	0558 559	Erdungsstreifen	Ground strap	Courroie de terre	Cinturino a terra
15	9822 631	Scheibe	Washer	Rondelle	Rondella
16	9800 340	Grundschraube (2)	Ground screw (2)	Vis de terre (2)	Vite a terra (2)

Ersatzteilliste Spare parts list Liste des pièces de rechange Elenco dei ricambi

ProSpray 3.29 / 3.31

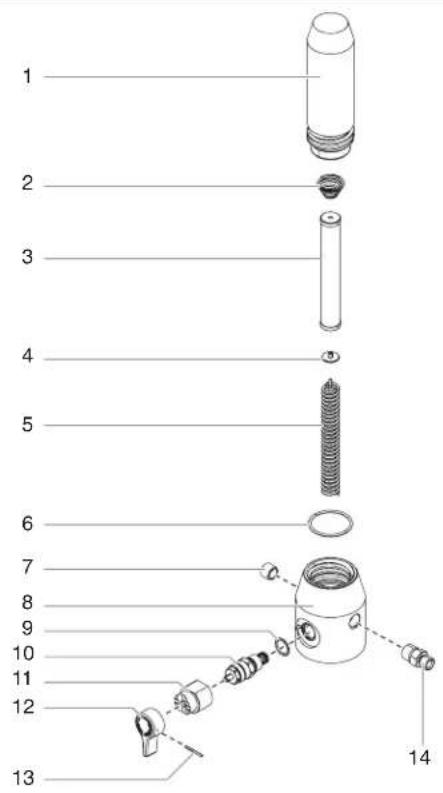

1 2 3 4 5 6 7 8 9 10 11 12 13 14

21

Pos Item Pos. Pos.	Best. Nr. Part No. N° de pièce N° ord.	Benennung	Description	Désignation	Denominazione
1 050	8 723 Filtergehäuse	Filter housing Corps de filtre Scatola del filtro
2 140	58 Konusfeder Conical spring Ressort Molla conica
3 050	8 748 Filterpatrone, 60 Maschen (Standardausrüstung)	Filter, 60 mesh (standard) Filtre, 60 mailles (standard) Filtro, 60 maglie (standard)
	0508 451	Filterpatrone, 30 Maschen	Filter, 30 mesh	Filtre, 30 mailles	Filtro, 30 maglie
	0508 452	Filterpatrone, 100 Maschen	Filter, 100 mesh	Filtre, 100 mailles	Filtro, 100 maglie
4	0508 603	Stützscheibe	Bearing ring	Rondelle	Rondella
5	0508 749	Stützfeder	Bearing spring	Ressort	Molla di spinta
6	0551 951	O-ring	O-ring	Joint torique	O-ring
7	0507 739	Rohrverschlussschraube	Pipe plug	Bouchon fileté	Tappo tubo
8	0290 264	Gehäuse	Housing	Logement	Alloggiamento
9	0507 745	Dichtungsring	Gasket	Joint	Guarnizione
10	0507 690	Baugruppe Bypass-Ventil	Bypass valve assembly	Ensemble by-pass	Gruppo valvola di by-pass
11	0507 931	Nockengrund	Cam base	Support de came	Base della camma
12	0508 774	Ventilschalter	Relief valve knob	Bouton du robinet	Impugnatura della valvola
13	5006 543	Kerbstift	Groove pin	Goupille cannelée	Perno scanalato
14	0088 162	Doppelstutzen	Fitting	Raccord double	Bocchettone doppio
	0507 254 Entlastungsventil mit Handgriff (beinhaltet Pos. 9 – 13)		Relief valve w/ handle (includes items 9 – 13)	Vanne de décharge avec la poignée (comprend les éléments Pos. 9 à 13)	Valvola di sfiato con la maniglia (comprende articoli 9 – 13)

Ersatzteilliste Spare parts list Liste des pièces de rechange Elenco dei ricambi

ProSpray 3.29 / 3.31

Technical diagram of a mechanical device with numbered parts for identification

22

Pos Item Pos.	Best. Nr. Part No. N° de pièce N° ord.	Benennung	Description	Désignation	Denominazione
1 02	90 207 Handgrift	(inklusive der Elemente 8-9)	Handle assembly (includes items 8-9)	Poignée (comprend les éléments 8-9)	Impugnatura (comprende articoli n 8-9)
2 98	05 352 Schraube	(2) Screw (2) Vis (2) Vite (2)
3 02	90 257 Buchse	Bushing Bague Boccola
4 02	90 235 Grundgestell	stell Cart weldment Châssis de base Telaio di base
5 98	94 275 Stützfeder	Spring Ressort Molla
6 02	90 294 Buchse	Sleeve Douille Bussola
7 02	90 244 Baugruppe	Wagen Carriage assemb ly Ensemble chariot Gruppo di trasporto
8	0509 386	Scheibe (4)	Washer (4)	Rondelle (4)	Rondella (4)
9 02	95 608 Schraube	(4) Screw (4) Vis (4) Vite (4)
10	0279 481 Schraube	Screw	Vis	Vite
11	9820 305	Scheibe (2)	Washer (2)	Rondelle (2)	Rondella (2)
12	0555 319	Arretiermutter	Jam nut	Ecrou d'arrêt	Dado di arresto
13	0290 236	Baugruppe Nocken	Cam assembly	Ensemble came	Gruppo camma
14	9805 353 Schraube	(2) Screw (2) Vis (2) Vite (2)
15	0294 534	Abstandhalter (4)	Spacer (4)	Entretoise (4)	Distanziatore (4)
16	0278 373	Rad (2)	Wheel (2)	Roue (2)	Ruota (2)
17	9890 104	Radkappe (2)	Axle cap (2)	Chapeau de roue (2)	Coppa coprimozzo (2)
18	9885 571	Verschlussstopfen (2)	Plug (2)	Bouchon (2)	Tappo (2)
19	54458	Schraube (2) Screw (2) Vis (2) Vite (2)
20	13538	Fuß (2)	Pad (2)	Pied (2)	Piede (2)

D

Division Professional Finishing

Otto Lilienthal Strasse 18

88677 Markdorf

Important notes on product liability

As a result of an EC regulation being effective as from January 1, 1990, the manufacturer shall only be liable for his product if all parts come from him or are released by him, and if the devices are properly mounted and operated.

If the user applies outside accessories and spare parts, the manufacturer's liability can fully or partially be inapplicable; in extreme cases usage of the entire device can be prohibited by the competent authorities (employer's liability insurance association and factory inspectorate division).

Only the usage of original WAGNER accessories and spare parts guarantees that all safety regulations are observed.

3+2 years guarantee for professional finishing

Wagner professional guarantee

(Status 01.02.2009)

1. Scope of guarantee

All Wagner professional colour application devices (hereafter referred to as products) are carefully inspected, tested and are subject to strict checks under Wagner quality assurance. Wagner exclusively issues extended guarantees to commercial or professional users (hereafter referred to as “customer”) who have purchased the product in an authorised specialist shop, and which relate to the products listed for that customer on the Internet under www.wagner-group.com/profi-guarantee.

The buyer's claim for liability for defects from the purchase agreement with the seller as well as statutory rights are not impaired by this guarantee.

We provide a guarantee in that we decide whether to replace or repair the product or individual parts, or take the device back and reimburse the purchase price. The costs for materials and working hours are our responsibility. Replaced products or parts become our property.

2. Guarantee period and registration

The guarantee period amounts to 36 months. For industrial use or equal wear, such as shift operations in particular, or in the event of rentals it amounts to 12 months.

Systems driven by petrol or air are also guaranteed for a 12 month period.

The guarantee period begins with the day of delivery by the authorised specialist shop. The date on the original purchase document is authoritative.

For all products bought in authorised specialist shops from 01.02.2009 the guarantee period is extended to 24 months providing the buyer of these devices registers in accordance with the following conditions within 4 weeks of the day of delivery by the authorised specialist shop.

Registration can be completed on the Internet under www.wagner-group.com/profi-guarantee. The guarantee certificate is valid as confirmation, as is the original purchase document that carries the date of the purchase. Registration is only possible if the buyer is in agreement with having the data being stored that is entered during registration.

When services are carried out under guarantee the guarantee period for the product is neither extended nor renewed.

Once the guarantee period has expired, claims made against the guarantee or from the guarantee can no longer be enforced.

3. Handling

If defects can be seen in the materials, processing or performance of the device during the guarantee period, guarantee claims must be made immediately, or at the latest within a period of 2 weeks.

The authorised specialist shop that delivered the device is entitled to accept guarantee claims. Guarantee claims may also be made to the service centres named in our operating instructions. The product has to be sent without charge or presented together with the original purchase document that includes details of the purchase date and the name of the product. In order to claim for an extension to the guarantee, the guarantee certificate must be included.

The costs as well as the risk of loss or damage to the product in transit or by the centre that accepts the guarantee claims or who delivers the repaired product, are the responsibility of the customer.

4. Exclusion of guarantee

Guarantee claims cannot be considered

• for parts that are subject to wear and tear due to use or other natural wear and tear, as well as defects in the product that are a result of natural wear and tear, or wear and tear due to use. This includes in particular cables, valves, packaging, jets, cylinders, pistons, means-carrying housing components, filters, pipes, seals, rotors, stators, etc. Damage due to wear and tear that is caused in particular by sanded coating materials, such as dispersions, plaster, putty, adhesives, glazes, quartz foundation.
• in the event of errors in devices that are due to non-compliance with the operating instructions, unsuitable or unprofessional use, incorrect assembly and/or commissioning by the buyer or by a third party, or utilisation other than is intended, abnormal ambient conditions, unsuitable coating materials, unsuitable operating conditions, operation with the incorrect mains voltage supply/frequency, over-operation or defective servicing or care and/or cleaning.
• for errors in the device that have been caused by using accessory parts, additional components or spare parts that are not original Wagner parts.
• for products to which modifications or additions have been carried out.
• for products where the serial number has been removed or is illegible
• for products to which attempts at repairs have been carried out by unauthorised persons.
• for products with slight deviations from the target properties, which are negligible with regard to the value and usability of the device.
• for products that have been partially or fully taken apart.

5. Additional regulations.

The above guarantees apply exclusively to products that have been bought by authorised specialist shops in the EU, CIS, Australia and are used within the reference country.

If the check shows that the case is not a guarantee case, repairs are carried out at the expense of the buyer.

The above regulations manage the legal relationship to us concludingly. Additional claims, in particular for damages and losses of any type, which occur as a result of the product or its use, are excluded from the product liability act except with regard to the area of application.

Claims for liability for defects to the specialist trader remain unaffected. German law applies to this guarantee. The contractual language is German. In the event that the meaning of the German and a foreign text of this guarantee deviate from one another, the meaning of the German text has priority.

J. Wagner GmbH

Division Professional Finishing

Otto Lilienthal Strasse 18

88677 Markdorf

Federal Republic of Germany

F

Division Professional Finishing

Otto Lilienthal Strasse 18

88677 Markdorf

Division Professional Finishing

Otto Lilienthal Strasse 18

88677 Markdorf

In observance of the European Directive 2002/96/EC on waste electrical and electronic equipment and implementation in accordance with national law, this product is not to be disposed of together with household waste material but must be recycled in an environmentally friendly way!

Wagner or one of our dealers will take back your used Wagner waste electrical or electronic equipment and will dispose of it for you in an environmentally friendly way. Please ask your local Wagner service centre or dealer for details or contact us direct.

D

2004/108/EC, 2006/42/EC, 2006/95/EC.

2004/108/EC, 2006/42/EC, 2006/95/EC.

CE Declaration of conformity

Herewith we declare that the supplied version of

WAGNER ProSpray 3.29 · 3.31

Complies with the following provisions applying to it:

2004/108/EC, 2006/42/EC, 2006/95/EC.

Applied harmonized standards, in particular:

EN 1953, EN 55014, EN 60335-1, EN 61000-3, EN62233

Summary of compliance with National Differences:

AT, BE, CH, CZ, DE, DK, ES, FI, FR, GB, HU, IT, NL, NO, PL, PT, SE, SI, SK

Date: 26.02.2010

I

2004/108/EC, 2006/42/EC, 2006/95/EC.

Signature - Person responsible for documentation

Signature - Responsable de la documentation
