USER MANUAL HTO5A3 001 HAIER

This appliance is intended for domestic and indoor use only as described in this user guide. Please ensure that this guide is fully understood before operating the appliance. WARNING To eliminate suocation hazard for young children, discard all packaging materials immediately after removing the product. This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Keep the appliance and its cord out of reach of children less than 8 years. If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorised Haier service engineer must replace the power cord. Use only attachments, consumables or spares recommended or supplied by Haier. Only use the appliance in accordance with the power specication on the rating plate. WARNING Risk of scalding! The outer surface may get hot when the appliance is in use and after operation. The heating element is subject to residual heat after use. Do not touch hot metal surfaces in particularly of the top surface and toasting slots. The bread may burn, therefore do not use the toaster near or below combustible material, such as curtains. Do not operate the appliance by means of an external timer or separate remote-control system. Use on worktop only. Do not place the toaster near the edge of a worktop. Do not pull or carry the appliance by the power cord. Always unplug the appliance from the socket by pulling the plug instead of the cord. Do not place the power cord over sharp edges or near hot surfaces. Do not use an extension cord. Never immerse the appliance or main unit in water or other liquid. WARNING Risk of re! Do not cover the appliance or crumb tray with combustible material while in use. WARNING Risk of injury! A

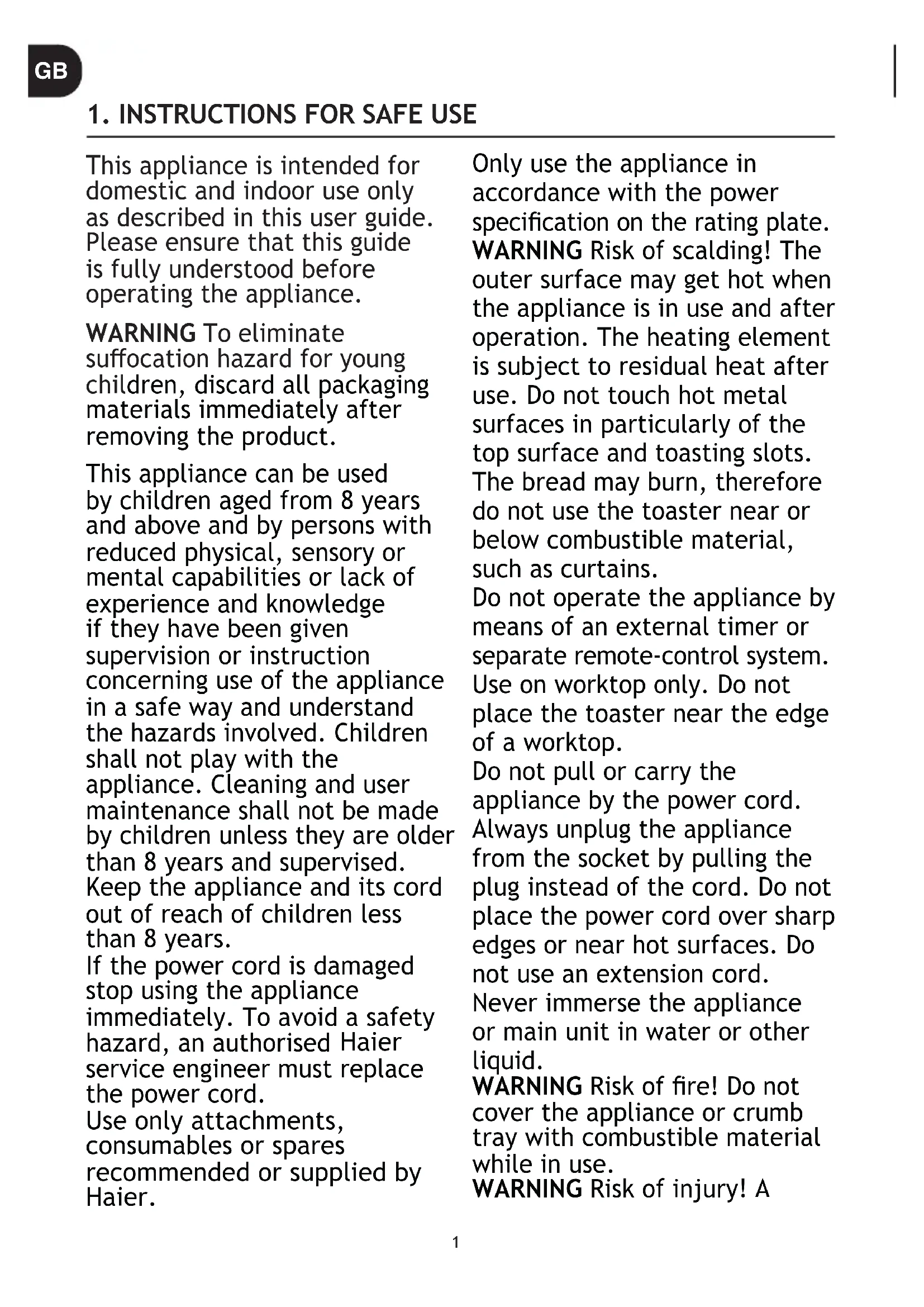

1. INSTRUCTIONS FOR SAFE USE

GB2 misuse of the appliance can potentially lead to injury. CAUTION Take care when inserting or removing the bread during use. Pay attention to clean surfaces which are intended to come into contact with food! Please note the information on cleaning in the instructions. The appliance is intended to toast food with recommended size and quantity in the instructions. It must not be used for other than intended use. Do not insert food that is too big for the toasting slots or too little for the rack to carry. Do not insert the food which may drip during the toasting process. Do not insert forks or other utensils into the toaster to remove bread. As well as damaging the toaster, there is a high risk of electric shock. Prevent food touch with heating elements. Excessive or oversized food loads, paper, carboard, plastic or metal foil packages must not be inserted which may cause risk of re. Do not operate the toaster on an inclined surface and move it when working. Do not operate the toaster without crumb tray equipped. Do not leave the toaster unattended while in use. Regularly clean the crumb tray, otherwise it may smoke or burn. Do not put anti-dust lid on the appliance unless the temperature cools down completely. Unplug from the socket after use and before cleaning the appliance or any maintenance task. Allow the appliance to cool down before removing any parts and before cleaning. Do not continue to use your appliance if it appears faulty. Haier Service: To ensure the continued safe and ecient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised Haier service engineer. For indoor use only. Do not put anti-dust lid on the appli- ance when the temperature is high. The Environment The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city oce, your household and waste disposal service or the shop where you purchased the appliance. This appliance complies with the European Directives 2014/35/EU, 2014/30/EU and 2011/65/EU. CANDY HOOVER GROUP S.r.l. Via Comolli,16, 20861 Brugherio (MB) Italy GB3 increase or decrease browning level to your desired setting. [1]

3. Select the preferred function between

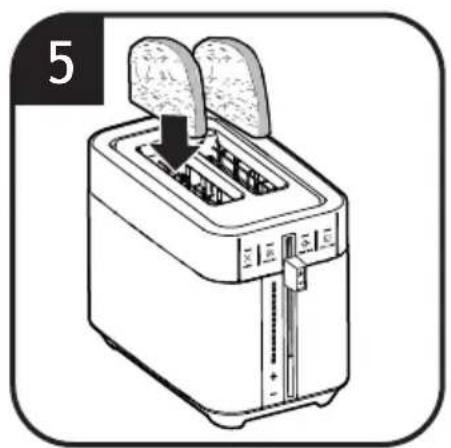

4. Insert the slices of bread into the toasting

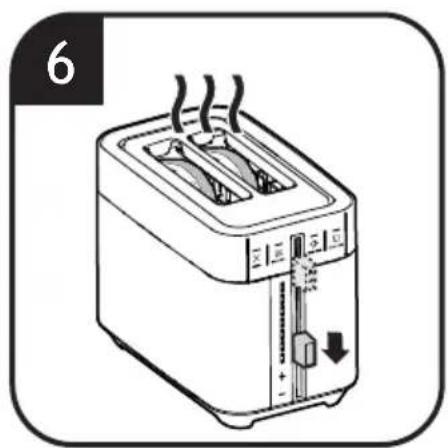

5. Press down the lift lever until it locks into

the lower position to start the toasting. [6]

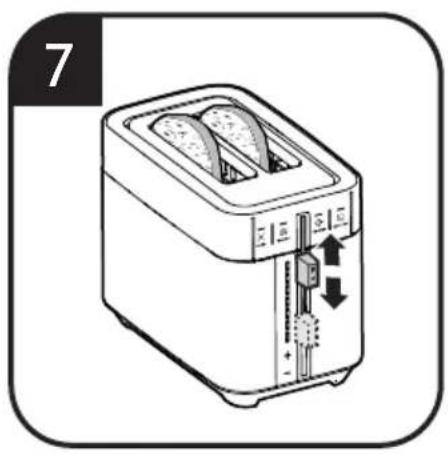

6. You can “lift and look” the browning level

of the toast at any time without canceling the toasting cycle simply rising the lift lever and pulling it back in place after checking the toasting level. [7]

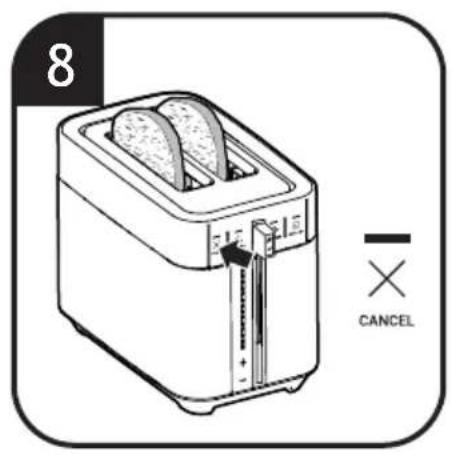

7. You can cancel the toasting cycle by simply

touching the “cancel” button ( ). [8]

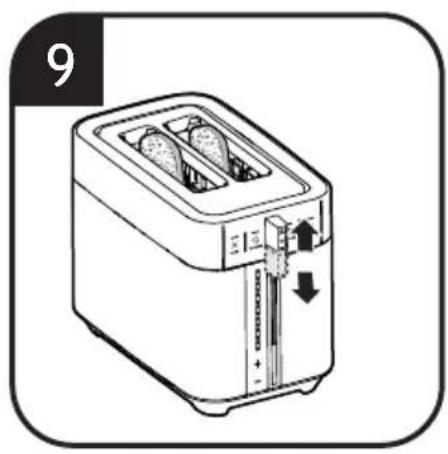

8. When the toasting cycle is nished, your

toast will pop up automatically. If the bread is small, you can pull up the lift lever to grab it easily and safely. [9]

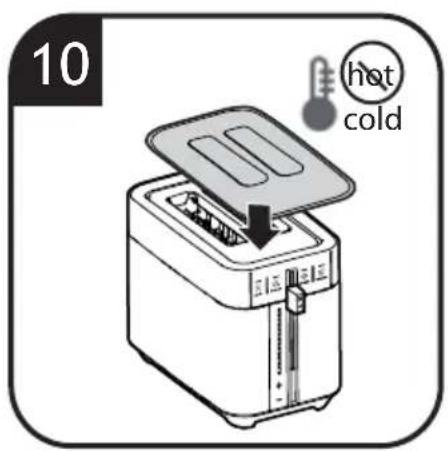

9. After the toaster is cooled, you can put on

the anti-dust lid. [10] NOTE: The lift lever can not lock into lower position if the plug is o; Caution:

1. The bread toasting slots become very hot

during operation. Do not touch!

2. Never operate the toaster without the

crumb tray in place. Otherwise, the table surface will become too hot and have crumbs. Tips of making a perfect toast:

1. For slightly dry bread, use a lower setting

than you normally would.

2. For very fresh bread or whole wheat

bread, use a higher setting than normal.

3. For best results, ensure the bread slices

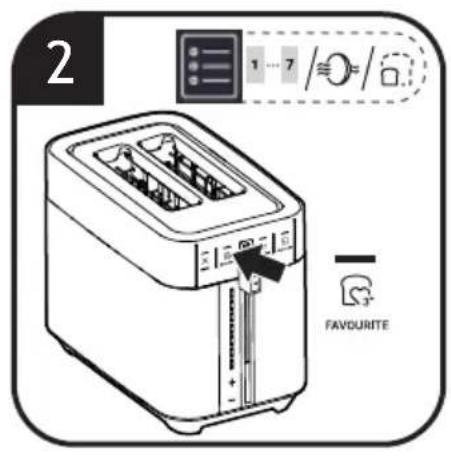

are of even thickness, freshness and size. Cancel function [A, 8] If you wish to stop the cycle before it is nished, simply touch the “cancel” button. Favourite function [B, 2] Use this button to memorize the most frequent combination of settings used. . Select your settings by pressing Browning level / Crispy side / Small slice . Press “Favourite” button for 3 seconds . You will hear a beep sound with LED blinking 2 times indicating the setting has been recorded COMPONENTS & FEATURES: A. Cancel function B. Favourite funtion C. Crispy side function D. Small slice function E. Lift lever F. Browning level LED indicators G. Browning level “+/-” buttons H. Crumb tray

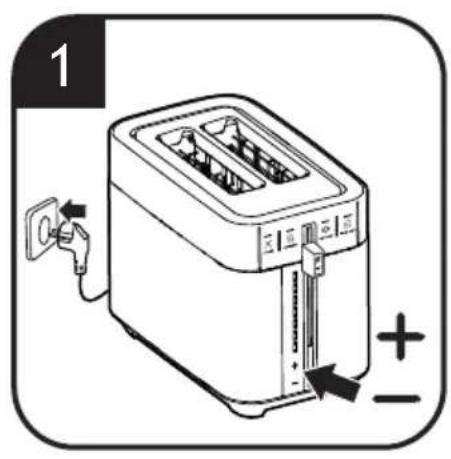

1. Plug in your toaster, the browning level

LED indicator lights will illuminate in a vertical animation (around 1 sec), level 1 will remain illuminated on rst use. [1]

2. Touch the browning level “+/-”buttons to

2. Getting to know your Toaster

4. Using your Toaster

• Remove any packaging material from the unit.

• Remove all accessories from the package and read this manual carefully. Please pay particular attention to operational instructions, warnings and important safeguards to prevent any injury or property damage.

• Clip excess cord into the cord storage clips underneath the toaster.

• As with all new heating elements, your toaster may emit a slight burning or “new” smell when it is rst switched on. This is normal. The smoke is harmless and will soon disappear.

• To eliminate the “new” smell at the rst use, operate the toaster on a medium setting without any bread inside. Ensure the room is well ventilated during this operation. IMPORTANT: Do not probe inside the toaster with a metal object. GB4

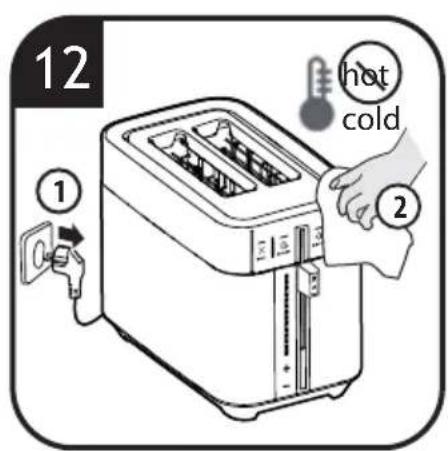

1. Always unplug the toaster from the

electrical outlet and cool completely before cleaning. [12]

2. To clean the exterior surface, simply wipe it

with a clean damp cloth and dry thoroughly. You can apply dish detergent to a cloth, but not to the toaster, before cleaning. [12]

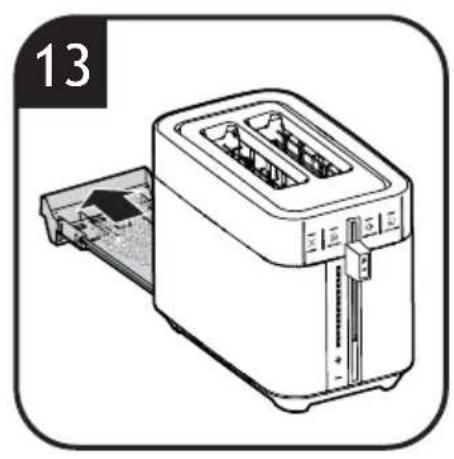

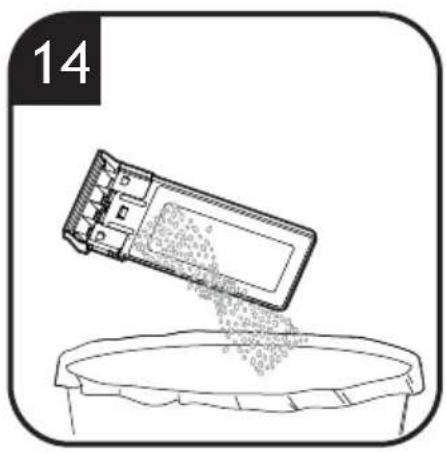

3. To remove crumbs, push the crumb tray

handle and it will pop-out. Slide out the crumb tray and discard crumbs. Wipe clean and replace. It is recommend to empty the crumb tray after each use. [13,14]

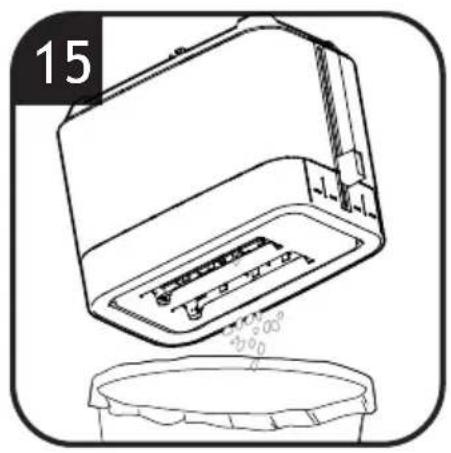

4. To remove any pieces of bread remaining in

the toasting slots, turn the toaster upside down and gently shake. Never insert any hard or sharp instruments into the toasting slots, as this could damage the toaster and cause a safety hazard. [15]

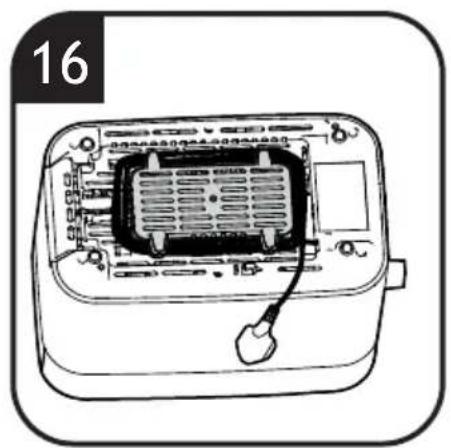

5. Never wrap the cord around the outside of

the toaster. Use the cord storage cleats on the underside of the toaster. [16] IMPORTANT:

• Use only water for crumb tray cleaning.

• Do not immerse the toaster in water for cleaning.

Toaster does not operate

• Solution: check if the toaster is plugged in. Check if the electricity is working in your home. Lift lever can’t lock into lower position

• Cause: toaster not plugged in

• Solution: check if the toaster is plugged in. Uneven browning

• Cause: bread slices of dierent size, freshness or thickness being toasted at same time

• Solution: use bread slices that are of even thickness,freshness and size. Toast colour too light or too dark

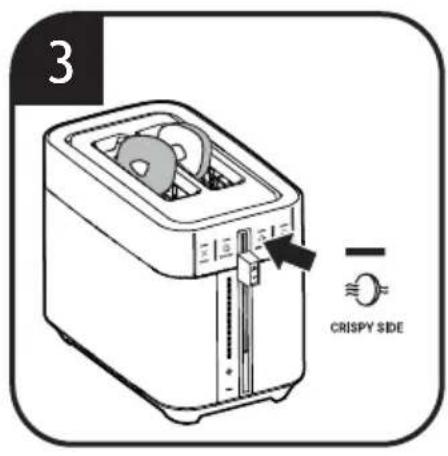

• Cause: incorrect browning level setting being used You could change the preset to a new one simply by repeating the steps again. Crispy Side function [C, 3] The crispy side function allows to toast bread or bagel with internal sides only, while warming up the external sides. Bagels must be sliced in half before toasting and put the internal side toward the toasting slots centre. The LED light will remain lit while the crispy side function is in use. Small Slice function [D, 4] For small slice bread it is suggested to use this button. The heat power will be adjusted from continuous heating to intermittent heating to achieve the desired browning. The LED light will remain lit while the small slice function is in use. Lift and Look function [7] When you’d like to check the current browning level and don’t want to cancel the toasting cycle, you can just pull up the lift lever and have a look and then put it down. High lift function [9] When the slice bread is small and is dicult to grab after pop-up. You can pull up the lift lever to grab it easily and safely. Anti-Dust lid [10] When you don’t use your toaster, you can put on the anti-dust lid to avoid dust accumulate on the top surface or inside toasting slots. Never put it on when the toasting slots are still in high temperature. Standby mode After you plug in your toaster, without any operation for 15 seconds, the toaster will turn to standby mode automatically with all LED light OFF. You can touch any button or press down the lift lever to wake it up. Pressing down the lever will make the toasting process start with the latest used setting. Mute function [11] Your product is tted with a mute function, this will turn o all acoustic sounds from the appliance. The mute function can be turned on by pressing and holding the small slice button for 3 seconds. To turn o this function, press and hold the small slice button again for 3 seconds and the function is deactivated. GB5 Electrical connection 220-240V~50-60Hz Power 950-1150W Spares and Consumables Always replace parts with genuine spares. These are available from your local dealer. When ordering parts always quote your model number. Quality Factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO

Your Guarantee The guarantee conditions for this appliance are as dened by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

• Solution: select a higher or lower browning level setting. Burning smell or smoke from toasting slots

• Cause: crumb tray is full, food particles stuck to element or loose in toasting slots

• Solution: unplug and wait few minutes to have the internal elements cooling down before cleaning the toasting slots. Remove any loose food particles in toasting slots; remove and clean the crumb tray. All LED light OFF at the plugged in status

• Cause: without any operation for 15s
