N23 Lite - Smartphone myPhone - Free user manual and instructions

Brand	myPhone
Model	N23 Lite
Product type	Smartphone
Processor	SC9863A Octa-core 1.6 GHz, 28 nm
Operating system	Android 13 GO
RAM memory	3 GB
Internal storage	32 GB
Screen	6.517 inch touchscreen
Main camera	13 MP
Front camera	5 MP
Dimensions	164.5 x 76 x 9.1 mm
Weight	189 g
Connectivity	Wi-Fi 802.11b/g/n, GPS, Bluetooth 4.2, NFC
Dual SIM	Yes (nanoSIM + nanoSIM + microSD)
Connector	USB-C
Headphone jack	3.5 mm mini-jack
Fingerprint sensor	Yes
Kit contents	Phone, USB cable, user manual
Maintenance	Clean with a dry cloth, no acidic products
Safety	Do not repair yourself, use original accessories
Warranty	Void if unauthorized repair

Frequently Asked Questions - N23 Lite myPhone

How to make a call with the myPhone N23 Lite?

Open the Phone app on the home screen, enter the number, then press the green handset and choose the desired SIM card.

How to send an SMS or MMS?

Open Messages, tap the new message icon, enter the number or contact, type the text. For an MMS, tap the add symbol to insert a photo, audio, or sticker.

How to use the fingerprint reader?

Go to Settings > Security > Fingerprints and register your fingerprint. Use it to unlock the screen or validate purchases.

How to insert SIM and microSD cards?

Use the tray located on the side of the phone. Insert the nanoSIM and microSD cards into the designated slots, then close the tray.

How to clean and maintain the device?

Use a dry, soft cloth. Do not use acidic or alkaline products. Avoid exposure to water and humidity.

What to do if the touchscreen does not respond?

Restart the phone by holding the Power button. If the problem persists, check for software updates in Settings > System > Software update.

How to activate NFC?

Go to Settings > Connected devices > Connection preferences > NFC and turn on the switch.

How to take a photo with the camera?

Open the Camera app, frame the subject and press the shutter. Use the volume buttons to zoom or as a shutter.

How to reset the phone to factory settings?

Go to Settings > System > Reset options > Erase all data. Back up your data before.

Where to find the IMEI number of the phone?

Dial *#06# on the phone keypad. The IMEI will be displayed on the screen.

USER MANUAL N23 Lite myPhone

INSTRUKCJA OBSŁUGI SMARTFONA

myPhone MS2301/MS2301e

1. Spis treści

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

-WODA I INNE PŁ YNY-

Warning sign with yellow triangle and black outline depicting a human ear with sound waves

ucha!

-DŻWIĘKI-

Yellow triangular warning sign with sun and eye symbol (no text)

uszkodzenia wzroku!

-WZROK-

4G: 800/850/900/1800/2100/2300/2600

Akumulator:

MS2301 – Li-Poli 4000 mAh

MS2301e - Li-Ion 4000 mAh

Hand pressing a green circular button with a blue ring (no text or symbols)

9.2 Przesunięcie

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand pressing a button with a green circular icon and purple curved lines, symbolizing wireless or signal input (no text or symbols)

White hand reaching toward a blue arrow, no text or symbols present

10. Komunikacja

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with two crossed lanes (no text or symbols)

myPhone MS2301/MS2301e

1. Table of contents

1. Table of contents ...... 18
2. Safety....19
3. The use of the manual 21
4. Important information ....22

4.1 Trademarks.... 23

1. Package content.... 23
2. Technical Specifications.... 23
3. Appearance of the phone....24
4. Buttons....25
5. Using the touch screen 25

9.1. Touch 25
9.2 Swipe 26
9.3 Triple click....26
9.4 Hold and swipe....26
9.5 Slide in and out 26

1. Communication....27

10.1 Making calls 27
10.2 SMS - Messages....27

1. Maintenance of the device....27
2. Correct disposal of used equipment 28
3. Correct disposal of used battery 28

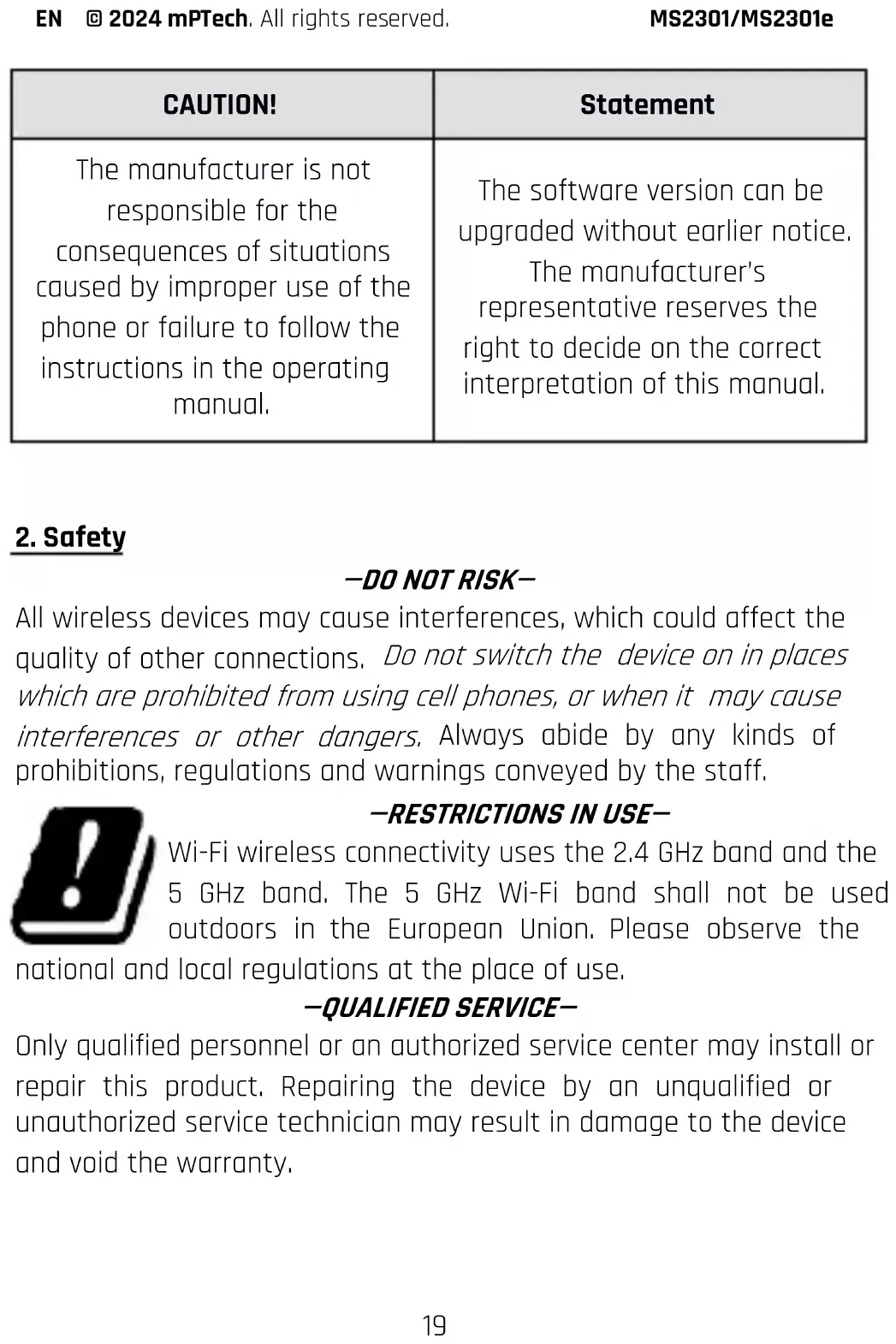

CAUTION!	Statement
The manufacturer is not responsible for the consequences of situations caused by improper use of the phone or failure to follow the instructions in the operating manual.	The software version can be upgraded without earlier notice.The manufacturer's representative reserves the right to decide on the correct interpretation of this manual.

2. Safety

-DO NOT RISK-

All wireless devices may cause interferences, which could affect the quality of other connections. Do not switch the device on in places which are prohibited from using cell phones, or when it may cause interferences or other dangers. Always abide by any kinds of prohibitions, regulations and warnings conveyed by the staff.

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

—RESTRICTIONS IN USE—

Wi-Fi wireless connectivity uses the 2.4 GHz band and the 5 GHz band. The 5 GHz Wi-Fi band shall not be used outdoors in the European Union. Please observe the

national and local regulations at the place of use.

-QUALIFIED SERVICE-

Only qualified personnel or an authorized service center may install or repair this product. Repairing the device by an unqualified or unauthorized service technician may result in damage to the device and void the warranty.

-ALARM CALLS-

Making alarm calls may not be possible in some areas or circumstances. It is recommended to find an alternative way to notify emergency services if you are going to this type of remote areas.

—PETROL STATIONS—

Do not use your mobile phone while refuelling at a petrol station or in the vicinity of chemicals.

CAUTION! In places where there is a risk of explosion (i.e. Petrol stations, chemical factories etc.), it is advisable to turn off the phone. Please refer to regulations governing the use of GSM equipment in these places.

-ROAD SAFETY-

Apart from emergency situations, using the phone while driving should be carried out only with use of a headset or a speakerphone, which ensures safety and does not limit motor abilities of the user. If one does not own a headset and still wants to use the phone, one should pull over and stop the car. Pay attention to the legal regulations of the country you are in, concerning the use of mobile phone while driving.

—WATER AND OTHER LIQUIDS—

Protect the device from water and other liquids. It can influence work and the life span of electronic components. Avoid using the device in environments with high humidity like kitchens, bathrooms or during rainy weather. Particles of water can cause the liquefaction of moisture in the device, and this may have a negative impact on the work of electronic components.

-CHILDREN,&PHYSICALLY/MENTALLY DISABLED PEOPLE-

This device should not be operated by people (including children) with limited physical or mental abilities, as well as by people with no earlier experience in operation of electronic equipment. They may use the device only under supervision of people responsible for their safety.

This device is not a toy. Memory card and SIM card are small enough to be swallowed by a child and cause choking. Keep the device and its accessories out of reach of children.

-BATTERY AND ACCESSORIES-

Avoid exposing the battery to very high/low temperatures (below 0°C/32°F and over 40°C/104°F). Extreme temperatures may influence capacity and battery life. Avoid contact with liquids and metal objects as it may cause partial or complete battery damage. The battery should be used according to its purpose. Do not destroy, impair or throw the battery into flames - it might be dangerous and may cause fire. Worn-out or impaired battery should be placed in a dedicated container. Installing an incorrect battery type can cause an explosion. Never open the battery. Please dispose of battery according to the instructions. Disconnect an unused charger from power grid. In case of the charger wire damage, it should not be repaired but replaced with a new one cable or a new charger. Use the original manufacturer's accessories only.

Warning sign with a yellow triangle containing a black-and-white icon of an ear and sound waves, indicating noise or hearing.

-HEARING-

To avoid hearing damage, do not use the device at high volume levels for a long period of time, do not put device directly to the ear.

Yellow triangular warning sign with sun and eye symbol (no text)

-EYESIGHT-

To avoid eyesight damage do not look closely onto the flash light during its work. A strong bean of light may

cause permanent eye damage!

3. The use of the manual

Pictures of the device and screenshots contained in this user manual may differ from the actual product. Accessories attached to the smartphone set may differ from the illustrations included in manual.

Options described in the manual are found in Android system. Those descriptions may differ, depending on the version of the operating system and applications installed on the device.

Without prior written consent of the manufacturer, no part of this manual may be photocopied, reproduced, translated or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording or storing in any systems of storing and sharing information.

4. Important information

The majority of applications which can be installed on the device are mobile apps. Modus operandi of such applications may be different from their counterparts installed on a personal computer. Apps installed on the device may vary depending on country, region, and hardware specifications. The manufacturer is not liable for problems caused by third party software. The manufacturer is not responsible for anomalies that may occur when editing the registry settings and modifying the operating system software. Attempts to modify the operating system can cause malfunctions and problems with applications. It may cause a loss of warranty.

System Android™

Android 13 GO focuses on better communication with other people, modern management of connected devices, and privacy and security enhancements.

Google Play

Google Play is your entertainment without borders. It brings together all your favorite entertainment and helps you discover it in new ways, anytime, anywhere. We've brought the magic of Google to movies, TV, books, apps and games, so you can get more from your content every day.

4.1 Trademarks

• Google, Android, Google Play are Google LLC trademarks.
• Oracle and Java are a registered trademarks of Oracle and / or its affiliates.
• Wi-Fi® Wi-Fi logo are a registered trademarks Wi-Fi Alliance association.
• All other trademarks and copyrights belong to their respective owners.

Manufacturer

mPTech Ltd.

00-511 Warsaw, Poland

Manufactured in China

5. Package content

• Mobile phone
• USB cable
• User manual

If any of the above items is missing or damaged, please contact your dealer.

6. Technical Specifications

Processor: SC9863A Octa-core 1.6GHz, 28nm

Display: 6.517" HD+ 1600x720

Rear camera (main): 13 Mpx

Front camera (selfie): 5 Mpx

RAM memory: 3 GB

Internal memory: 32 GB

Operating system: Android 13 GO

Dual SIM: nanoSIM+nanoSIM+microSD

Connector: USB-C

Connectivity: Wi-Fi 802.11b/g/n, GPS, Bluetooth 4.2, NFC

2G: 850/900/1900/2100

3G: 900/2100

4G: 800/850/900/1800/2100/2300/2600

Battery:

MS2301 - Li-Poli 4000 mAh

MS2301e - Li-Ion 4000 mAh

Additional functions: Fingerprint reader

Weight netto: 189g

Dimensions: 164.5 x 76 x 9.1mm

It is recommended to use the charger: myPhone SWIFTCHARGE DUO

Charger input parameters: AC 100-240V, 50/60Hz 1A

Charger output parameters:

USB-C: 3.3-11V/2.0A, 5V/3.0A, 9V/2.22A, 12V/1.67A (20W MAX)

USB-A: 5V/3.0A,9V/2.0A, 12V/1.5A (18W MAX)

USB-C+USB-A: 5V/3.0A (15W MAX)

1. Appearance of the phone

	Function
1	5 Mpx digital camera lens (selfie)
2	Camera flash / Torch
3	13 Mpx digital camera lens (rear)
4	The tray for SIM cards/ microSD
5	Volume control buttons
6	Blockade on/off button
7	External speaker
8	Multifunctional USB-C port
9	Minijack socket 3.5 mm
10	Microphone
11	Touchscreen 6.517"

8. Buttons

Menu (virtual)

Pressing it will cause the list of open apps to appear, where you can switch in-between or turn them off.

Home (virtual)

One quick press takes you to phone desktop. A longer press launches Google Assistant.

Back (virtual)

Press to exit the application / return to the previous screen.

Blockade on/off button

• One quick press locks/unlocks the screen.
- One short press of the lock + volume up button launches the phone's shutdown or restart menu.
- Pressing the button for about 2 sec. will cause:
- If the smartphone is off - the device would switch on.
- If the smartphone is turned on - calling the Google assistant.

Volume increase and decrease buttons

Pressing during a voice call will cause an increase or decrease of the audio connection volume.

9. Using the touch screen

The smartphone's touchscreen makes it easy to select items, perform operations and gestures. The touchscreen can be controlled by the following actions:

9.1. Touch

Touch one to start options, app, menu.

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

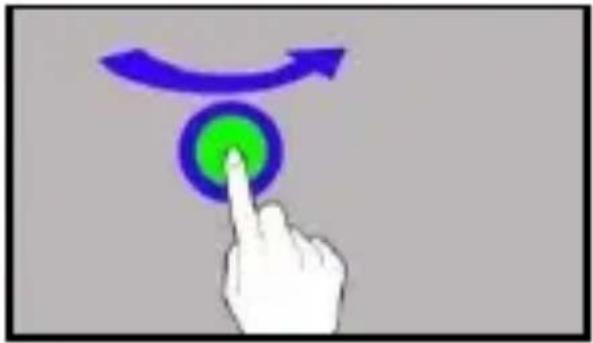

9.2 Swipe

Quickly swipe up, down, to the left or to the right, to scroll the list or the screen.

Hand pressing a button with a green center and curved arrow above it (no text or symbols)

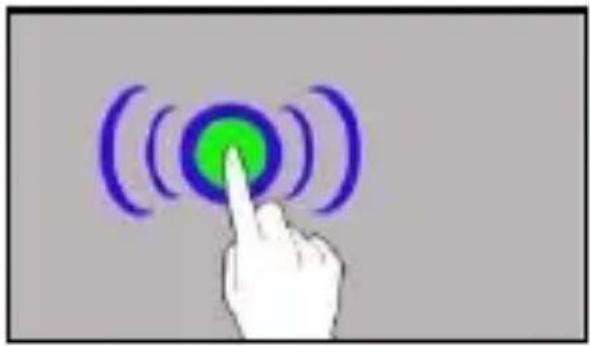

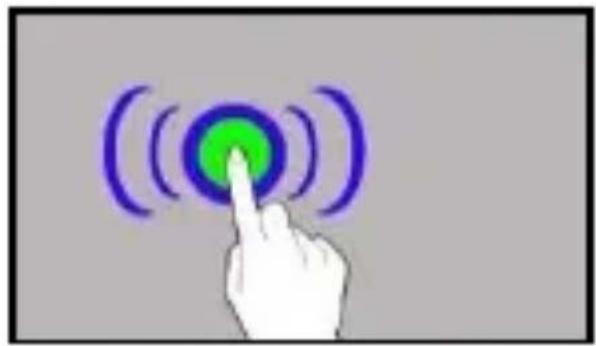

9.3 Triple click

Quickly tap the screen three times to start zooming - if this option is enabled in your smartphone settings.

Hand pressing a button with a green circular icon and purple wave signals (no text or symbols)

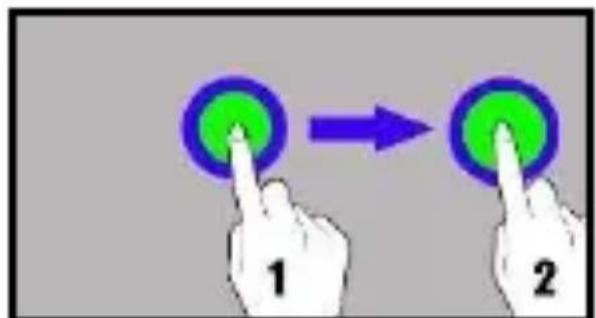

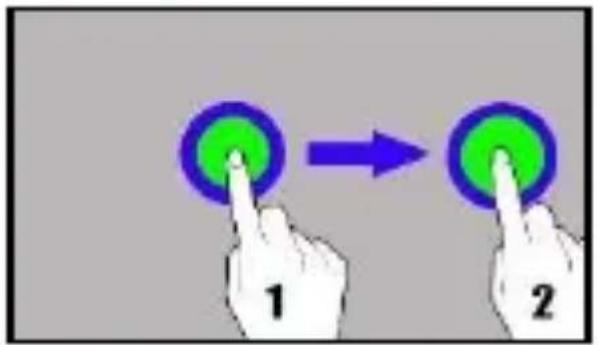

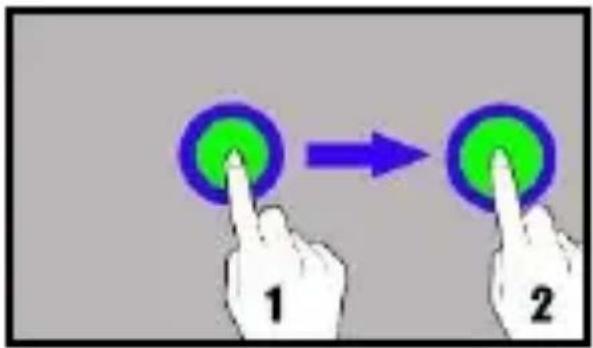

9.4 Hold and swipe

Touch an element (an icon perhaps) and hold it for about 1 seconds. Then you can delete/uninstall that element.

1 2

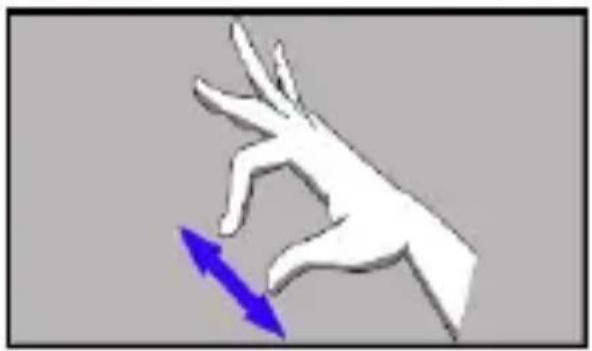

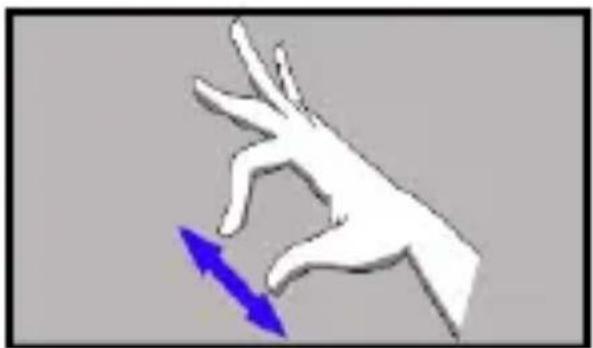

9.5 Slide in and out

Touch the screen with two fingers and slide them together or apart to zoom in or out a photo or a map.

White hand reaching toward a blue arrow symbol (no text or labels)

10. Communication

10.1 Making calls

To make a call touch [Phone] icon placed on the main screen or in Android applications menu. Insert the phone number you wish to call. Press "green handset" placed at the bottom of the screen and choose which SIM card you wish to use.

10.2 SMS - Messages

You can manage your messages using the [Messages] application in the home screen or smartphone menu. Start the

Start chat

application and touch the icon , type the phone

number, name of the contact or select a contact from the list. When you have chosen the contact a screen will appear where you type the message itself. Type the message body.

Before you send a text message you can transform it into a

multimedia message by pressing symbol, situated in the left corner of the textbox and adding a sticker, audio or location. To add a photo from the gallery or directly from your camera, tap the symbol

To send the message press

SMS

11. Maintenance of the device

Follow the instructions below.

• For cleaning use only a dry cloth. Never use any agent with a high concentration of acids or alkalis.
• Use the original accessories only. Violation of this rule may result in an invalidation of the warranty.

12. Correct disposal of used equipment

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

The device is marked with a crossed-out garbage bin, in accordance with the European Directive 2012/19/EU on used electrical and electronic Equipment (Waste Electrical and Electronic equipment - WEEE). Products marked with this symbol should not be disposed of or dumped with other household waste after a period of use. The user is obliged to get rid of used electrical and electronic equipment by delivering it to designated recycling point in which dangerous waste are being recycled. Collecting this type of waste in designated locations, and the actual process of their recovery contribute to the protection of natural resources. Proper disposal of used electrical and electronic equipment is beneficial to human health and environment.

To obtain information on where and how to dispose of used electrical and electronic equipment in an environmentally friendly manner, user should contact their local government office, the waste collection point, or point of sale, where the equipment was purchased.

13. Correct disposal of used battery

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

According to the EU directive 2006/66/EC with changes contained in EU directive 2013/56/UE on the disposal of batteries, this product is marked with crossed-out garbage bin symbol. The symbol indicates that the batteries used in this product should not be disposed with regular household waste, but treated according to the legal directives and local regulations.

It is not allowed to dispose of batteries and accumulators with unsorted municipal waste. Users of batteries and accumulators must use the available collection points of these items, which allows them to return, recycle and disposal. Within the EU, the collection and recycling of batteries and accumulators is a subject to separate

procedures. To learn more about existing procedures of recycling of batteries and accumulators please contact your local office or an institution for waste disposal or landfill.

RYCHLÝ NÁVOD

myPhone MS2301/MS2301e

1. Obsah balení

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

-OMEZENÍ VYUŽITÍ-

Warning sign depicting a human ear with sound waves, commonly used for hearing or listening to the ear.

-SLUCH-

Yellow triangular warning sign with a stylized eye and sun symbol (no text)

-ZRAK-

4G: 800/850/900/1800/2100/2300/2600

Baterie:

MS2301 - Li-Poli 4000 mAh

MS2301e - Li-lon 4000 mAh

USB-C: 3.3-11V/2.0A, 5V/3.0A, 9V/2.22A, 12V/1.67A (20W MAX)

USB-A: 5V/3.0A,9V/2.0A, 12V/1.5A (18W MAX)

USB-C+USB-A: 5V/3.0A (15W MAX)

7. Vzhled telefonu

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

9.2 Posunout

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand touching a circular button with purple and green concentric rings (no text or symbols)

9.4 Držte a posuňte

White hand reaching toward a blue arrow, no text or symbols present

10. Komunikace

10.1 Volání

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a trash bin with diagonal lines crossing through it, no text or symbols present.

myPhone MS2301/MS2301e

1. Obsah balenia

Black and white icon of a stylized book with an exclamation mark (no text or symbols)

-OBMEDZENIA V POUŽITÍ-

Warning sign depicting a human ear with sound waves, commonly used for hearing or listening to the ear.

-SLUCH-

Yellow triangular warning sign with sun and eye symbol (no text)

-ZRAK-

4G: 800/850/900/1800/2100/2300/2600

Batérie:

MS2301 - Li-Poli 4000 mAh

MS2301e - Li-Ion 4000 mAh

USB-C: 3.3-11V/2.0A, 5V/3.0A, 9V/2.22A, 12V/1.67A (20W MAX)

USB-A: 5V/3.0A,9V/2.0A, 12V/1.5A (18W MAX)

USB-C+USB-A: 5V/3.0A (15W MAX)

1. Vzhl'ad telefónu

	Funkcia
1	Objektív fotoaparátu 5 Mpx (selfie)
2	Blesk fotoaparátu / Svietidlo
3	Objektív fotoaparátu 13 Mpx (zadné)
4	Slot pre SIM kart / microSD
5	Tlačidlá pre zvýšenie/zníženie hlasitosti
6	Tlačidlo Zap/Vyp
7	Externý reproduktor
8	Multifunkčný konektor USB-C
9	Konektor slúchadiel minijack 3.5 mm
10	Mikrofón
11	Dotyková obrazovka 6.517"

8. Tlačidlá

Menu (virtuálne)

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

9.2 Posunút'

Hand pressing a button with a green circular icon and curved arrows above (no text or symbols)

9.3 Trojité kliknutie

Hand pressing a circular button with green center and purple arcs, symbolizing wireless or signal input (no text or symbols)

9.4 Držte a posuňte

White hand reaching toward a blue arrow symbol (no text or labels)

10. Komunikácia

10.1 Volanie

Simple line drawing of a trash bin with crossed x's and no text or symbols

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

myPhone MS2301/MS2301e

1. Tartalomjegyzék

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

Warning sign with yellow triangle and black outline depicting a hearing or sound symbol

-HALLÁS-

Yellow triangular warning sign with sun and eye symbol (no text)

-LÁTÁS-

4G: 800/850/900/1800/2100/2300/2600

Akkumulátor:

MS2301 - Li-Poli 4000 mAh

MS2301e - Li-Ion 4000 mAh

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

9.2 Csúsztatás

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand pressing a button with concentric arcs, symbolizing wireless signal or notification (no text or symbols present)

9.4 Nyomvatartás

White hand with a blue arrow pointing downward, no text or symbols present

10. Kommunikáció

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

myPhone MS2301/MS2301e

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

-LIMITAZIONI D'USO-

4G: 800/850/900/1800/2100/2300/2600

Batteria:

MS2301 - Li-Poli 4000 mAh

MS2301e - Li-Ion 4000 mAh

USB-C: 3.3-11V/2.0A, 5V/3.0A, 9V/2.22A, 12V/1.67A (20W MAX)

USB-A: 5V/3.0A,9V/2.0A, 12V/1.5A (18W MAX)

USB-C+USB-A: 5V/3.0A (15W MAX)

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

9.2 Spostare

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand pressing a circular button with purple and green concentric rings (no text or symbols)

White hand gesture with a blue arrow pointing downward (no text or symbols)

10. Comunicazione

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

myPhone MS2301/MS2301e

1. Índice

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

-RESTRICCIONES DE USO-

Yellow triangular warning sign with a black ear symbol and sound waves, indicating hearing or audio hazard.

-AUDICIÓN-

Yellow triangular warning sign with sun and eye symbol (no text)

-VISTA-

4G: 800/850/900/1800/2100/2300/2600

Batería:

MS2301 - Li-Poli 4000 mAh

MS2301e - Li-Ion 4000 mAh

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

9.2 Deslizar

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

9.3 El click triple

Hand pressing a button with a green circular icon and purple wave signals (no text or symbols)

9.4 Sujetar y mover

Simple line drawing of a trash bin with crossed lines and a solid black rectangle below (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

myPhone MS2301/MS2301e

Black and white icon of an exclamation mark on a stylized book or document (no text or symbols)

Yellow triangular warning sign with a black line drawing of an ear and sound waves, indicating noise or hearing.

-GEHÖR-

Yellow triangular warning sign with a stylized eye and sun symbol (no text)

-SEHKRAFT-

Display: 6.517" HD+ 1600x720

4G: 800/850/900/1800/2100/2300/2600

Batterie:

MS2301 - Li-Poli 4000 mAh

MS2301e - Li-Ion 4000 mAh

USB-C: 3.3-11V/2.0A, 5V/3.0A, 9V/2.22A, 12V/1.67A (20W MAX)

USB-A: 5V/3.0A,9V/2.0A, 12V/1.5A (18W MAX)

USB-C+USB-A: 5V/3.0A (15W MAX)

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

9.2 Verschieben

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

Hand pressing a button with a green circular icon and purple curved lines, symbolizing a touch or signal (no text or symbols present)

1 2

White hand gesture with a blue arrow pointing downward (no text or symbols)

10. Kommunikation

10.1 Telefonieren

Simple line drawing of a trash bin with crossed diagonals and a solid black rectangle below (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

myPhone MS2301/MS2301e

1. Communication....110

Black and white icon of an exclamation mark on a stylized document or book (no text or symbols)

-RESTRICCIONES DE USO-

—SERVICE PROFESSIONNEL—

Yellow triangular warning sign with sun and eye symbol (no text)

yeux!

-VUE-

Affichage: 6.517" HD+ 1600x720

4G: 800/850/900/1800/2100/2300/2600

Batterie:

MS2301 - Li-Poli 4000 mAh

MS2301e - Li-Ion 4000 mAh

USB-C: 3.3-11V/2.0A, 5V/3.0A, 9V/2.22A, 12V/1.67A (20W MAX)

USB-A: 5V/3.0A,9V/2.0A, 12V/1.5A (18W MAX)

USB-C+USB-A: 5V/3.0A (15W MAX)

Hand pressing a button with a green circular icon and blue curved arrow above it (no text or symbols)

9.3 Triple-clic

Hand pressing a button with a green circular icon and purple wave-like pulses (no text or symbols)

Illustration of a hand reaching toward an angle with a blue arrow indicating direction (no text or symbols)

10. Communication

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

myPhone MS2301/MS2301e

1. Índice

Black and white icon of an exclamation mark on a stylized book or document (no text or symbols)

Yellow triangular warning sign with a black-and-white icon of an ear and sound waves

-AUDICIÓN-

Yellow triangular warning sign with an eye and sun symbol (no text)

-VISTA-

Câmara principal (atrás): 13 Mpx

Câmara frontal: 5 Mpx

Memória RAM: 3 GB

4G: 800/850/900/1800/2100/2300/2600

Bateria:

MS2301 - Li-Poli 4000 mAh

MS2301e - Li-Ion 4000 mAh

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

PT © 2023 mPTech. Todos os direitos reservados, opción, aplicación o menú.

9.2 Deslizar

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

9.3 El click triple

Hand pressing a circular button with green center and purple arcs, symbolizing wireless or digital signal (no text or symbols)

9.4 Sujetar y mover

White hand reaching toward a blue arrow, no text or symbols present

10. Comunicación

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

myPhone MS2301/MS2301e

1. Sisukord

1. Sisukord....125
2. Ohutus.... 126
3. Juhendi kasutamine.... 128
4. Oluline teave....129

4.1 Kaubamärgid 129

Black exclamation mark symbol on white background (no text or numbers)

-KASUTAMISPIIRANGU-

Warning sign with yellow triangle and black outline depicting a human ear with sound waves

Yellow triangular warning sign with sun and eye symbol (no text)

- NÄGEMINE -

Veebileht: www.myphone-mobile.com

Toodetud Hiinas

5. Pakendi sisu

4G: 800/850/900/1800/2100/2300/2600

Aku:

MS2301 - Li-Poli 4000 mAh

MS2301e – Li-Ion 4000 mAh

USB-C: 3.3-11V/2.0A, 5V/3.0A, 9V/2.22A, 12V/1.67A (20W MAX)

USB-A: 5V/3.0A,9V/2.0A, 12V/1.5A (18W MAX)

USB-C+USB-A: 5V/3.0A (15W MAX)

7. Telefoni välimus

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

9.2 Pühkimine

Hand pressing a button with a green circular icon and curved arrow above it (no text or symbols)

9.3 Kolmekordne klöps

Hand cursor clicking a circular button with green center and purple arcs (no text or symbols)

White hand with a blue arrow pointing downward, no text or symbols present

10. Suhtlemine

10.1 Helistamine

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

myPhone MS2301/MS2301e

1. Turinys

Black exclamation mark symbol on white background (no text or numbers)

-PAGALBOS SKAMBUČIAI-

Yellow triangular warning sign with a black outline of an ear and sound waves, indicating hearing or audio hazard.

-KLAUSA-

Yellow triangular warning sign with a stylized eye and sunburst symbol (no text)

- REGÉJIMAS-

4G: 800/850/900/1800/2100/2300/2600

Baterijos:

MS2301 - Li-Poli 4000 mAh

MS2301e – Li-Ion 4000 mAh

Hand pressing a button with a green circular icon and curved arrows above (no text or symbols)

Hand pressing a button with a green circular icon and purple wave signals (no text or symbols)

White hand holding a small object with a blue arrow pointing downward (no text or symbols)

10. Bendravimas

10.1 Skambinimas

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Simple line drawing of a trash bin with diagonal lines crossing through it, no text or symbols present.

myPhone MS2301/MS2301e

1. Saturs

Black and white icon of a stylized document or book with an exclamation mark (no text or symbols)

- LIETOŠANAS IEROBEŽOJUMI-

Yellow triangular warning sign with a black outline of a human ear and sound waves symbol

-DZIRDE-

Yellow triangular warning sign with a stylized eye and sun (no text or symbols)

-REDZE-

4G: 800/850/900/1800/2100/2300/2600

Akumulatoraa:

MS2301 - Li-Poli 4000 mAh

MS2301e – Li-Ion 4000 mAh

USB-C: 3.3-11V/2.0A, 5V/3.0A, 9V/2.22A, 12V/1.67A (20W MAX)

USB-A: 5V/3.0A,9V/2.0A, 12V/1.5A (18W MAX)

USB-C+USB-A: 5V/3.0A (15W MAX)

7. Tālruṇa izskats

Hand gesture showing finger pressing a green circle with a blue arrow indicating rotation (no text or symbols)

Hand pressing a circular button with green center and purple arcs, no text or symbols present

Abstract graphic of a hand reaching toward a blue arrow (no text or symbols)

10. Sakari

10.1 Zvanu veikšana

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

myPhone MS2301/MS2301e

1. Continut

Black and white icon of a stylized book with an exclamation mark (no text or symbols)

Warning sign with yellow triangle and black outline depicting a human ear with sound waves

Yellow triangular warning sign with an eye and sun symbol (no text)

4G: 800/850/900/1800/2100/2300/2600

Bateriei:

MS2301 – Li-Poli 4000 mAh

MS2301e – Li-Ion 4000 mAh

USB-C: 3.3-11V/2.0A, 5V/3.0A, 9V/2.22A, 12V/1.67A (20W MAX)

USB-A: 5V/3.0A, 9V/2.0A, 12V/1.5A (18W MAX)

USB-C+USB-A: 5V/3.0A (15W MAX)

Two-step diagram showing a hand pressing a green circular button with a blue arrow indicating rotation (no text or symbols)

9.3 Clic triplu

Hand touching a circular button with green and purple segments, symbolizing wireless or digital signal (no text or symbols present)

1 2

White hand reaching toward a blue arrow, no text or symbols present

10. Comunicarea

10.1 Efectuarea apelurilor

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

myPhone MS2301/MS2301e

1. Содержание

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

Warning sign with yellow triangle and black outline depicting a human ear with sound waves

Yellow triangular warning sign with an eye and sun symbol (no text)

4G: 800/850/900/1800/2100/2300/2600

Аккумулятор:

MS2301 - Li-Poli 4000 mAh

MS2301e - Li-lon 4000 mAh

White hand with blue directional arrows pointing downward (no text or symbols)

10. Связь

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with no text or symbols

myPhone MS2301/MS2301e

1. Съдържание

Black and white icon of an exclamation mark on a stylized book or document (no text or symbols)

Yellow triangular warning sign with a black outline depicting an ear and sound waves

Yellow triangular warning sign with sun and eye symbol (no text)

00-511 Warsaw, Poland

www.myphone-mobile.com

5. Съдържание пакет

4G: 800/850/900/1800/2100/2300/2600

Батерия:

MS2301 - Li-Poli 4000 mAh

MS2301e - Li-lon 4000 mAh

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic discharge (no text or symbols)

Simple line drawing of a trash bin with no text or symbols
