USER MANUAL HAMMER Active 2 myPhone

SKRÓCONA INSTRUKCJA OBSŁUGI SMARTFONA

HAMMER Active 2

Nr partii: 201811

Dane producenta:

mPTech Sp. z o. o.

ul. Nowogrodzka 31

00-511 Warszawa

Polska

Infolinia: ([phone]

E-mail: [e-mail]

-WODA I INNE PŁ YNY-

10. Komunikacja

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

00-511 Warsaw, Poland

Website: www.myphone-mobile.com

Manufactured in China

1. Table of contents

1. Table of contents 10
2. Safety 10
3. The use of the manual 11
4. Important information....11
5. Package content....12
6. Appearance of the phone 12
7. Installation of the SIM card(s), memory card and battery......13
8. Buttons....14
9. Using the touch screen 14

9.1 Touch.... 14
9.2 Swipe 14
9.3 Triple click....15
9.4 Hold and swipe 15
9.5 Slide in and out....15

1. Communication ....15

10.1 Making calls....15
10.2 SMS - Messages....15

1. Maintenance of the device ....16
2. Surroundings security 16
3. The use of the manual....16

13.1 Consents....16
13.2 Trademarks....16

1. Correct disposal of used equipment....17
2. Correct disposal of used battery 17

2. Safety

-PETROL STATIONS-

Always turn off the phone while refueling your car on petrol station. Do not use your device close to chemicals.

-ROAD SAFETY-

Do not use this device while driving any kind of vehicle.

-WI-FI (WLAN)-

In the European Union Member States, a WLAN network may be used indoors without any restrictions.

© 2018 mPTech. All rights reserved.

HAMMER Active 2 - EN

-CHILDREN AND PHYSICALLY OR MENTALLY DISABLED PEOPLE-

This device should not be operated by people (including children) with limited physical or mental abilities, as well as by people with no earlier experience in operation of electronic equipment. They may use the device only under supervision of people responsible for their safety. This device is not a toy. Memory card and SIM card are small enough to be swallowed by a child and cause choking. Keep the device and its accessories out of reach of children.

-WATER AND OTHER LIQUIDS-

The device has resistance certificate IP68. It means that the device is dust-proof and waterproof when all of the rubber seals are intact and properly put in place. As far as possible protect the device from water and other liquids. Water and other fluids do not have a positive effect on phone electronic components. If wet, wipe and dry the device as soon as possible.

-QUALIFIED SERVICE-

Only qualified personnel or an authorized service center may install or repair this product. Repairing by an unauthorized or unqualified service may cause device damage and warranty loss.

-BATTERY AND ACCESSORIES-

The battery can be replaced only by an authorized service. Avoid exposing the battery to very high/low temperatures (below 0°C/32°F and over 40°C/104°F). Extreme temperatures may influence capacity and battery life. Avoid contact with liquids and metal objects as it may cause partial or complete battery damage. The battery should be used only according to its purpose. Do not destroy, impair or throw the battery into flames - it is dangerous and may cause fire. Worn-out or impaired battery should be placed in a dedicated container. Excessive charging the battery can cause damage. Therefore a single battery charge should not last longer than 1 day. Installing an incorrect battery type can cause an explosion. Never open the battery. Please dispose of battery according to the instructions. Disconnect an unused charger from power grid. In case of the charger wire damage, it should not be repaired but replaced with a new one. Use the original manufacturer's accessories only.

3. The use of the manual

The device and screen shots contained in this manual may differ from the actual product. Accessories attached to the smartphone set may differ from the illustrations included in manual. Options described in the manual are found in Android™ system. Those descriptions may differ, depending on the version of the operating system and applications installed on the device.

4. Important information

The majority of applications which can be installed on the device are mobile apps. Modus operandi of such applications may be different from their counterparts installed on a personal computer. Apps installed on the device may vary depending on country, region, and hardware specifications.

© 2018 mPTech. All rights reserved.

HAMMER Active 2 - EN

The manufacturer is not liable for problems caused by third party software. The manufacturer is not responsible for anomalies that may occur when editing the registry settings and modifying the operating system software. Attempts to modify the operating system can cause malfunctions and problems with applications. It may cause a loss of warranty.

Android System

Android operating system - incredible opportunities are within your hand - all applications are available at any time; the latest Gmail™ email client or browser, it is only the beginning of what you can find in this device - the rest you will find in the online Google™ Play.

Google Play

All manufacturer's smartphones can use the applications purchased in Google Play. To do this you should register a individual Google account providing e-mail and password. After registration and acceptance of the rules you can use paid and free applications listed in the Google Play.

5. Package content

• HAMMER ACTIVE 2 phone
- Charger (adapter + USB cable)
- Tool for taking out the SIM cards/microSD tray
- User manual + Warranty card

If any of the above items is missing or damaged, please contact your dealer.

1. Appearance of the phone

	Symbol	Function
1		Notification diode.
2		Brightness and proximity sensors.
3		Internal speaker.
4		2 Mpx digital camera lens (selfie).
5		Headphone port minijack 3.5 mm (under a waterproof plug).
6		8 Mpx digital camera lens (main).
7		Camera flash / flashlight.
8		The tray for SIM cards / microSD (under a waterproof seal).
9		Volume up / down buttons.
10		Blockade on/off buton.
11		Programmable buton.
12		Touchscreen 5".
13		External speaker.
14		Multifunctional microUSB port (under a waterproof plug).
15		Microphone.
16		Installation methods for SIM and microSD cards - hybrid Dual SIM.
		Service hole Do not insert any objects inside. Damage will result in the loss of warranty.

7. Installation of the SIM card(s), memory card and battery

The device is a cellular phone made in hybrid Dual SIM technology (up to 2 SIM cards handling and 1 microSD) allowing the use of two mobile networks or one SIM card and microSD card at the same time.

To insert the SIM card (s) correctly, turn off the device, open the device by opening the waterproof seal (8) with your fingernail, slide out the tray and then precisely place the SIM card(s) on it as shown in the notches and picture (16). Then carefully and gently insert the tray into place and close the gasket securely.

To insert the memory card correctly, turn off the device, open the waterproof seal (8) with your fingernail, slide out the tray, and then precisely place the microSD card (instead of one of the SIM cards) on it as shown in the notch and picture (16). Then carefully and gently insert the tray into place and close the gasket securely.

8. Buttons

Menu

- Pressing it will cause the list of open apps to appear, where you can switch in-between or turn them off.

Home

• One quick press takes you to phone desktop.

Back

- Pressing will cause exit from the application / return to the previous screen.

Blockade on/off button

• One quick press locks/unlocks the screen.

• Pressing the button for about 2 sec. will cause:

• If the smart phone is off - the device would switch on.

• if your smartphone is on - activates a menu to shut down the device or reboots the system.

Volume increase and decrease buttons

- Pressing during a voice call will cause an increase or decrease of the audio connection volume.

9. Using the touch screen

A touch screen of the smartphone lets you easily select items or perform operations. The touchscreen can be controlled by the following actions:

9.1 Touch

Touch one to start options, app, menu.

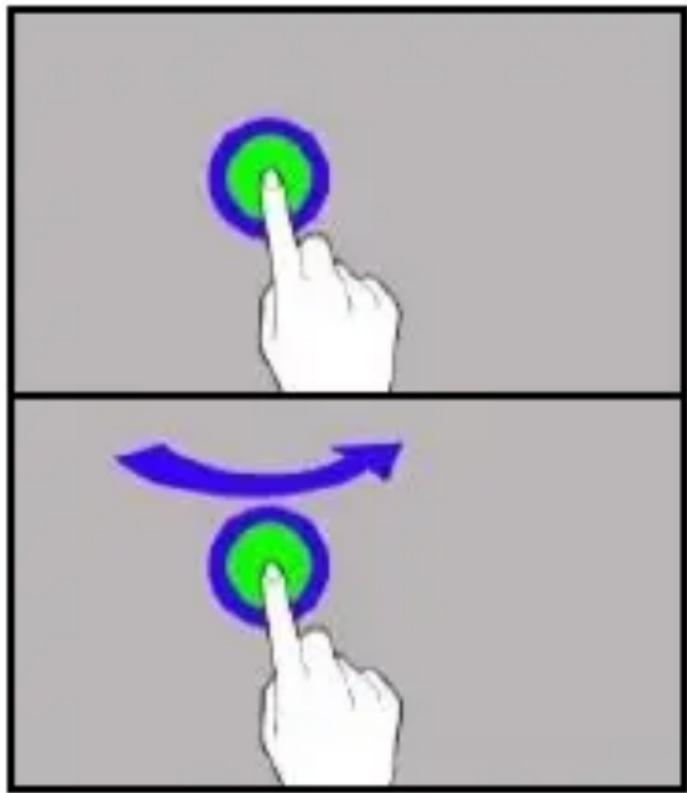

9.2 Swipe

Quickly swipe up, down, to the left or to the right, to scroll the list or the screen.

Two-step diagram showing a hand pressing a green circular button with a finger, and a curved arrow indicating rotation (no text or symbols)

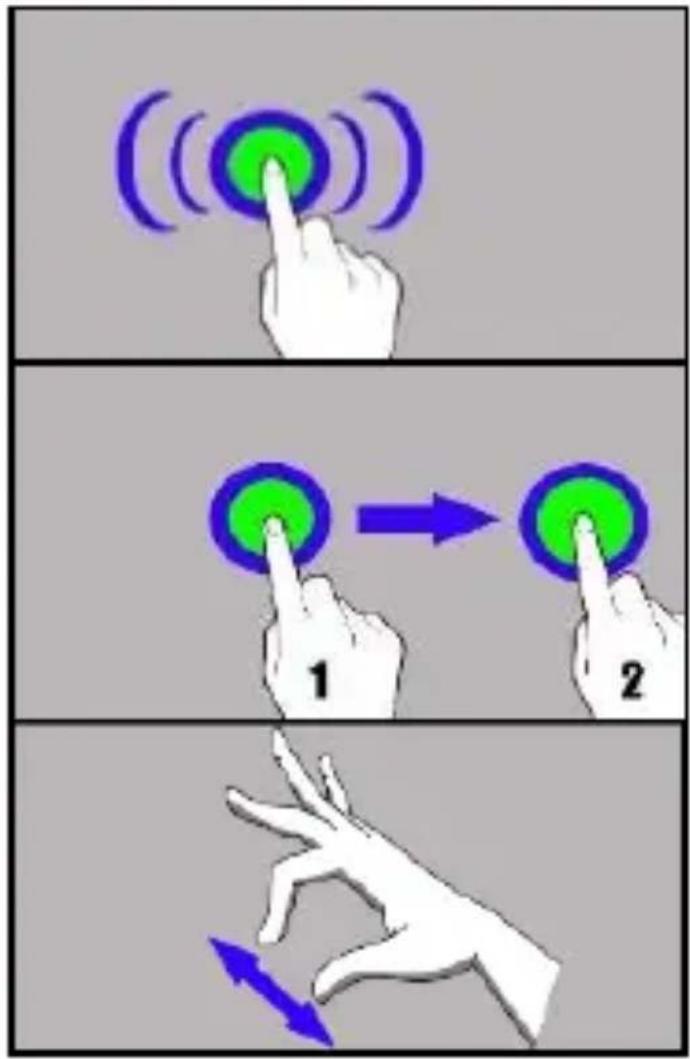

9.3 Triple click

Quickly tap the screen three times to start zooming - if this option is enabled in your smartphone settings.

9.4 Hold and swipe

Touch an element (an icon perhaps) and hold it for about 1 seconds. Then you can delete/uninstall that element.

9.5 Slide in and out

Touch the screen with two fingers and slide them together or apart to zoom in or out a photo or a map.

10. Communication

10.1 Making calls

Three-step diagram illustrating finger movement and rotation of a green circular button, labeled 1, 2, and directional arrows.

To make a call touch "Phone" icon placed on the main screen or in

Android applications menu and choose the keyboard icon . Insert the phone number you wish to call. Press "handset" placed at the bottom of the screen and choose which SIM card you wish to use.

10.2 SMS - Messages

You can manage your messages using the [Messages] application in the home screen or smartphone menu. Run an application and touch icon

, insert number and name. When you have chosen the contact a screen will appear where you type the message itself. Type the message body. To

send the message press. Before you send a text message you can transform it into a multimedia message by pressing symbol situated in the left side of the screen and adding a file (picture, video, music etc.).

11. Maintenance of the device

Follow the instructions below.

• Keep the device and its accessories out of reach of children.
• Avoid contact with liquids; it can cause damage to electronic components of the device.
• Avoid very high temperatures for it can shorten the life of device electronic components, melt the plastic parts and destroy the battery.
• Do not try to disassemble the device. Tampering with the device in an unprofessional manner may cause serious damage to the phone or destroy it completely.
• For cleaning use only a dry cloth. Never use any agent with a high concentration of acids or alkalis.
• Use only the original accessories. Violation of this rule may result in an invalidation of the warranty.

12. Surroundings security

Attention	Statement
The manufacturer is not responsible for any consequences caused by improper usage of the device and not obeying the above instructions.	The software version can be upgraded without earlier notice.

13. The use of the manual

13.1 Consents

Without prior written consent of the manufacturer, no part of this manual may be photocopied, reproduced, translated or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording or storing in any systems of storing and sharing information.

13.2 Trademarks

• Google, Android, Google Play and other marks are trademarks of Google LLC.
• Oracle and Java are a registered trademarks of Oracle and / or its affiliates.
• Wi-Fi® Wi-Fi logo are a registered trademarks Wi-Fi Alliance association.
• All other trademarks and copyrights belong to their respective owners.

The Android robot has been reconstructed or modified on the basis of a project created and made available by Google. Its use is subject to the terms and conditions described in the Creative Commons 3.0 Authorization License

14. Correct disposal of used equipment

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

The device is marked with a crossed-out garbage bin, in accordance with the European Directive 2012/19/EU on used electrical and electronic Equipment (Waste Electrical and Electronic equipment - WEEE). Products marked with this symbol should not be disposed of or dumped with other household waste after a period of use. The user is obliged to get rid of used electrical and electronic equipment by delivering it to designated recycling point in which dangerous waste are being recycled. Collecting this type of waste in designated locations, and the actual process of their recovery contribute to the protection of natural resources. Proper disposal of used electrical and electronic equipment is beneficial to human health and environment. To obtain information on where and how to dispose of used electrical and electronic equipment in an environmentally friendly manner user should contact their local government office, the waste collection point, or point of sale, where the equipment was purchased.

15. Correct disposal of used battery

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

According to the EU directive 2006/66/EC with changes contained in EU directive 2013/56/UE on the disposal of batteries, this product is marked with crossed-out garbage bin symbol. The symbol indicates that the batteries used in this product should not be disposed with regular household waste, but treated according to the legal directives and local regulations. It is not allowed to dispose of batteries and accumulators with unsorted municipal waste. Users of batteries and accumulators must use the available collection points of these items, to be returned, recycled and disposed of. Within the EU, the collection and recycling of batteries and accumulators is a subject to separate procedures. To learn more about existing procedures of recycling of batteries and accumulators please contact your local office or an institution for waste disposal or landfill.
