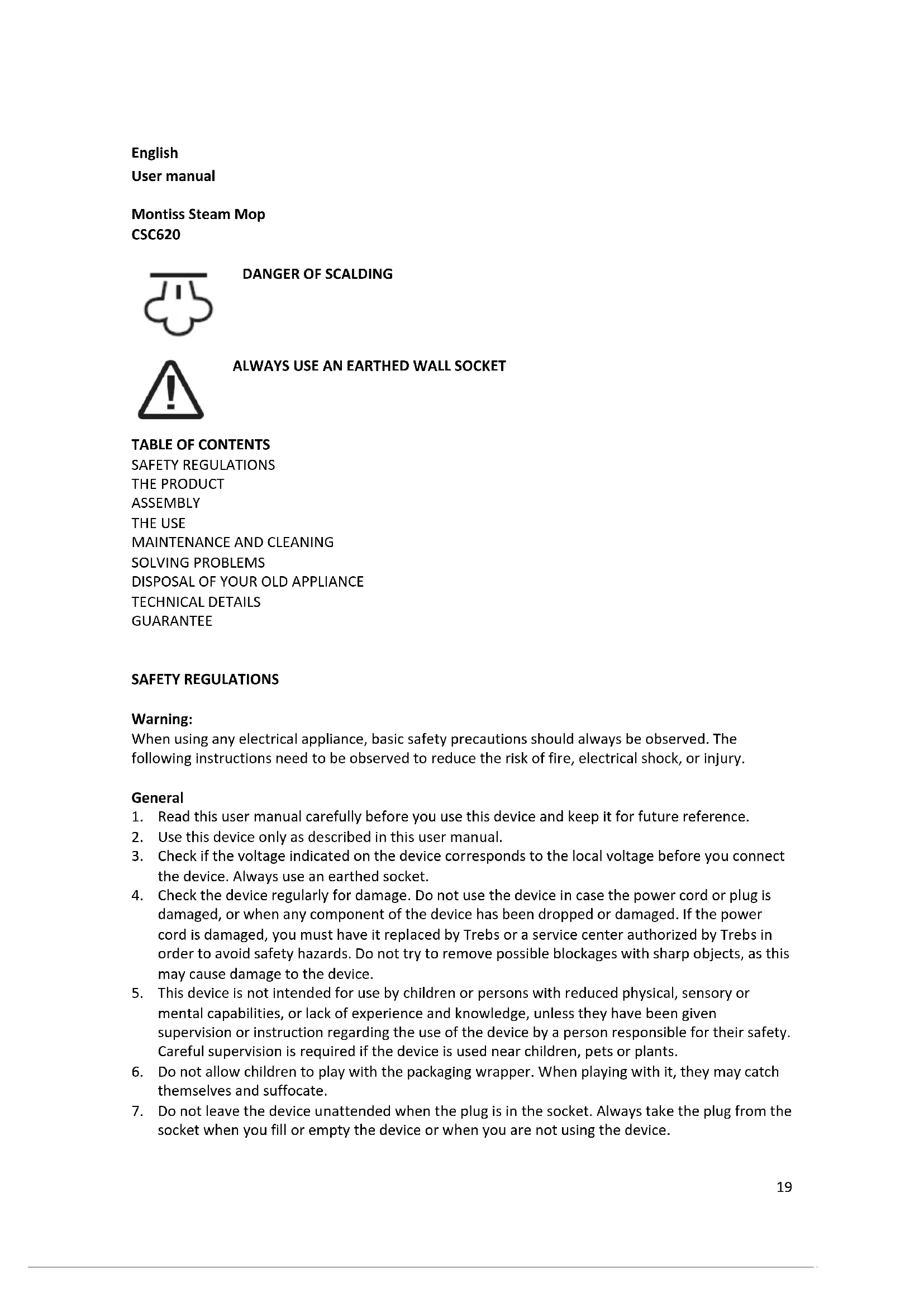

USER MANUAL CSC620 Montiss

SAFETY REGULATIONS THE PRODUCT ASSEMBLY THE USE

MAINTENANCE AND CLEANING

DISPOSAL OF YOUR OLD APPLIANCE

When using any electrical appliance, basic safety precautions should always be observed. The following instructions need to be observed to reduce the risk of fire, electrical shock, or injury. General

1. Read this user manual carefully before you use this device and keep it for future reference.

2. Use this device only as described in this user manual.

3. Check if the voltage indicated on the device corresponds to the local voltage before you connect

the device. Always use an earthed socket.

4. Check the device regularly for damage. Do not use the device in case the power cord or plug is

damaged, or when any component of the device has been dropped or damaged. If the power cord is damaged, you must have it replaced by Trebs or a service center authorized by Trebs in order to avoid safety hazards. Do not try to remove possible blockages with sharp objects, as this may cause damage to the device.

5. This device is not intended for use by children or persons with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction regarding the use of the device by a person responsible for their safety. Careful supervision is required if the device is used near children, pets or plants.

6. Do not allow children to play with the packaging wrapper. When playing with it, they may catch

themselves and suffocate.

7. Do not leave the device unattended when the plug is in the socket. Always take the plug from the

socket when you fill or empty the device or when you are not using the device.20

8. Never pull the power cord to disconnect the plug from the socket; instead, hold the plug and

gently pull to disconnect.

9. Do not pull or carry the device by its power cord and do not use the power cord as a handle. Do

10. Do not use the product if the micro fibre cleaning pad is not installed correctly

11. Keep the device, the plug and the power cord away from open flames and hot surfaces.

12. Make sure the device is completely cooled down before attaching or removing accessories or

before storing the device. Loosely wind the power cable around the cord clips on the handle when you store it away. Always store the device indoors.

13. Never immerse the device and/or the power cord in water or other liquids.

14. Never attempt to grasp an electric device if it has fallen in water or other liquids. In such a case,

immediately disconnect the plug.

15. Do not touch the device or the plug with wet hands. Do not operate the device without

16. Do not use any accessories that are not recommended by the supplier; especially those

accessories that have not been supplied with the device.

17. Never use the device in rooms where certain vapors may be present (thinner, combustible

materials, paint and lacquers on an oil basis, combustible liquids and gases). Risk of explosion.

18. Do not use the device on stairs.

19. Always check whether the water tank is intact and whether it has been mounted on the device in

20. This device is only intended for domestic use, NOT for industrial use.

21. Damage caused by improper use of steam on objects, materials, persons and/or animals or by

not observing the instructions in these directions for use is excluded from guarantee. Steam function

The power and heat of the steam may have adverse consequences for certain materials. Always check, before putting the device into operation, whether a surface or material is actually suitable for treatment with steam. Do this by executing a test on a hidden surface of the material you wish to treat.

1. The force and heat of the steam may damage certain materials. Some fabrics may react to the

temperature of the steam. For example: unpainted wood or leather can be bleached by the action of steam. Shining plastic materials may become dull by treatment with steam. Acrylic fiber, velvet and linen react very sensitively to the temperature of steam.

2. Do NOT use the device on unpainted floors or waxed floors.

3. Do not keep the device too long on one spot! This can cause damage to materials!

4. Burns can occur from touching hot parts, hot water or steam. Be cautious when draining the

device after use as there may be hot water in the device.

5. The device heats up during operation, therefore only touch handle or buttons.

6. Never directly steam towards people, animals or plants.

7. Do not apply steam directly to very cold glass surfaces, electric devices or at parts containing

electrical components such as the electrical components inside an oven.

8. Ensure that the device does not operate on an empty water tank.

9. Do not fill the water tank with more than 350 ml of water. Overfilling may result in a possible

10. Never remove the water tank while using the device. Always take the plug out of the socket

before you refill or empty the water tank.

11. Do not add cleaning solutions, scented perfumes, oils or any other chemicals to the water used in

this device, as this may damage the device or make it unsafe for use.21

THE PRODUCT A. Handle B. Tubes 1 C. Tubes 2 D. Measuring cup E. Clean needles F. Main Body G. Steam head H. Microfiber cleaning pad

1 Handle 2 Hang up hook 3 Card line sets 4 Tubes 1 5 Tubes connected sets 6 Tubes2 7 Power switch 8 Water tank pushers 9 Water tank 10 Water tank nut 11 Power cord 12 Swive head

lide the handle tube (B) into the handle (A) until it clicks into place

5. Slide the handle tube (C) into the handle (A) until it clicks into place

6. Slide the handle tube (C) with handle installed to the main body (D), until it clicks into place

Please note: The handle can be removed from the steam mop body for easy storage by pressing th

ndle tube button. Attaching the steam head

1. Slide the bottom end of main body (D) onto the

steam head (E) until Steam head Spindle 12 clicks into place Please note: The steam head (E) can be removed from the main body (D) by pressing

alient point on the steam head (E) spindle

ttaching a Micro-fibre pad and carpetslider

1. Place the micro-fibre pad (F) in between the steam

head (E) and the carpet glider (G) and press down firmly. This will hold the micro-fibre pad in plac

ue to the design of the steam mop head.

A23 Filling the water tank Remove the water tank from the main body, open the water tank cup anticlockwise, fill the water tank from the tap and close. Install the water tank back onto the main body (D) until it clicks into place. Operation Plug the steam mop into the mains power supply. When it turns on the indicator light will turn red to show that it is heating up. The steam mop will take approximately 30 seconds to warm up. Once it has reached the correct temperature, the indicator light will change blue. The steam mop is now ready to use.

MAINTENANCE AND CLEANING

Ensure that no water penetrates the device. Never submerge it in water or any other liquid. Do not turn on the steam mop during use. Cleaning the device

1. Take the plug from the socket before you start cleaning the device. Always allow the device to

cool down properly before you start cleaning it.

2. Take the microfiber cleaning pad from the device. The microfiber cleaning pad is washable.

3. Clean the non-electrical parts of the steam mop in warm soapy water and dry thoroughly. Wipe it

clean with a soft, dry cloth. Do not use harsh or abrasive cleaners or detergents Attention: Never immerse the electrical components in water or any other liquid. Please note: This steam mop is not suitable for dishwasher use Cleaning the microfiber cleaning pad The micro fiber cleaning pad can be washed at 40° (do not use bleach or fabric softener, do not tumble dry!). Leave the microfiber cleaning pad to dry for 24 hours. Remove Limescale If the steam mop begins to produce steam slower than usual or stops producing steam completely, you may need to remove limescale. Limescale can develop over time on the metal parts and greatly affects performance. It is necessary to remove limescale on a regular basis, every 25-50 times you use a full tank of water or at least once a month, especially in areas with hard water. To remove the limescale:

1. Prepare a solution of white vinegar and tap water and add it to the water tank.

2. Secure and position the steam mop to ensure that the steam released is aimed away from the

floor or surrounding objects and surfaces

3. Plug the steam mop into the mains power supply and turn it on. Allow it to produce steam until

all of the solution is used

4. Repeat the above procedure as often as necessary, then fill the tank with fresh water

5. Fill the tank to the maximum level with fresh water, switch it on and release steam until the

water tank is empty If there is a blockage in the steam nozzle, use the cleaning needle to clean the blockage along with the descaling solution. Insert the cleaning needle into the steam nozzle hole to clear the blockage.

Warning: Be sure that the steam mop is switched off and has cooled fully.

After using the cleaning needle, add the descaling solution to the tank and follow the steps to remove limescale.24

STORAGE Before storing the steam mop, ensure that it has cooled and dried fully. Ensure that the water tank is empty, remove the micro-fibre pad and wash ready for next use. Store in a clean dry place. SOLVING PROBLEMS Problem Possible solution

1. The device is not producing steam

2. The device does not turn on

The water tank may be empty, add water to refill the water tank The steam nozzle may be blocked. Clean the steam mops nozzle There is no power to the steam mop. Make sure the steam mop is plugged in to the mains power supply. The fuse or breaker might be blown. Check the fuse by replacement or reset the breaker. If the device still does not turn on contact customer service. The power cord might not be plugged in. Plug the power cord into a working mains power supply.

DISPOSAL OF YOUR OLD APPLIANCE

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is

covered by the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the municipal waste

stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for

the environment and human health.

4. For more detailed information about disposal of your appliance, please contact your city office,

waste disposal service or the shop where you purchased the product.25

TECHNICAL DETAILS Model number CSC620 Power 1.300 W Nominal voltage 220- 240 V Nominal frequency 50 Hz Montiss Cleaning solutions, made under supervision of Trebs Thermiekstraat 1a 6361 HB Nuth The Netherlands www.trebs.nl SERVICE If you have any further questions about the product after reading this manual, please contact the Trebs customer service; [e-mail] GUARANTEE This guarantee covers your device for a period of 24 months from the date of purchase for service and replacement of parts, on the condition that you have used the device correctly as described in the user manual. This guarantee does not exclude national legislation that may exist in the country of purchase in regards to warranty regulations. When you make a claim under this guarantee, you must submit the original invoice or receipt with clear mention of the date of purchase, name of retailer and the description and model number of the device. You are advised to keep these documents in a safe place. This device is intended for domestic use only. Damage and/or malfunctions as the result of industrial or commercial use are excluded from the warranty. The guarantee for this device expires if:

• The original invoice or receipt has in one way or another been changed or made illegible;

• The model or serial number on the device has been changed, removed, deleted or made illegible;

• Repairs have been executed by unauthorized repair workshops or persons who are not authorized to do so;

• The damage is the result of an external cause, such as fire damage, water damage, transport damage, atmospheric discharges, insufficient or improper maintenance;

• The device has been operated in another country than for which originally designed, approved, released and produced, as well as defects occurred as the result of such modifications;

• The device has not been used according to the guidelines and directions in the user manual supplied with the device. In the unlikely event your device is not functioning well or shows any defect, please contact your retailer. To avoid any inconvenience, we advise you to read the user manual carefully before contacting them.26 Français Mode d’emploi Montiss nettoyeur à vapeur CSC620
