CSC631 - Steam cleaner Montiss - Free user manual and instructions

Product type	Steam cleaner
Brand	Montiss
Model	CSC631
Rated voltage	230 V
Rated frequency	50 Hz
Power	1500 W
Water tank capacity	370 ml
Steam output	26 g/min (average steam)
Continuous steam duration	12 minutes
Preheat time	30 seconds
Ingress protection rating	IPX4
Overpressure protection	Yes
Removable water tank	Yes
Included accessories	Steam squeegee/garment steamer, small scrub brush, large scrub brush, angle nozzle, grout tool, stripping head, 2 steam cloths, microfiber cloth, accessory adapter
Main functions	Steam cleaning, ironing, disinfecting
Recommended use	Hard floors, windows, grout, clothing, curtains, cooking surfaces
Tank maintenance	Descaling with white vinegar (1/3 vinegar, 2/3 water)
Pad maintenance	Machine washable (hot water, mild detergent), flat drying
Warranty	24 months (domestic use)
Trademark	Trebs BV, Netherlands

Frequently Asked Questions - CSC631 Montiss

How to fill the water tank?

Open the tank cap, pour 370 ml of water using the measuring cup provided, then close. You can also remove the tank and fill it directly at the tap.

How long does it take for the appliance to heat up?

The preheat time is approximately 30 seconds. The indicator changes from red to blue when the machine is ready.

Can I use descaling or detergent products in the tank?

No, never use descaling, aromatic, alcohol, or detergent products. Only white vinegar is recommended for descaling.

What to do if steam output is low or nonexistent?

Check that the tank has enough water, the appliance is plugged in and turned on, and the nozzle is not blocked. If the problem persists, descaling may be necessary.

What types of surfaces can I clean?

Use it on hard floors (tile, linoleum), windows, grout, cooking surfaces, clothing, and curtains. Avoid leather, waxed furniture, delicate synthetic fabrics, and porous surfaces.

How to descale the appliance?

Mix 1/3 white vinegar and 2/3 water in the tank. Run the appliance to produce steam, then rinse with clean water. Repeat if necessary.

Can I leave the appliance unattended?

No, never leave the appliance unattended during use or descaling. Unplug it after use.

Are the microfiber pads washable?

Yes, they are machine washable in hot water with a mild detergent. Dry them flat. Do not use bleach or fabric softener.

What to do if the appliance does not turn on?

Check the power cord, fuse, and circuit breaker. If the problem persists, contact customer service. Do not attempt to repair yourself.

How to store the appliance after use?

Turn off and unplug the appliance. Empty the tank, clean the exterior with a dry cloth. Allow to cool completely before storing in a dry place, out of reach of children.

USER MANUAL CSC631 Montiss

White portable steam cleaner with a handle and black buttons, standing on a base (no visible text or symbols)

Gebruiksaanwijzing

User manual

Bedienungsanleitung

Mode d'emploi

Index

Nederlands 3

Deutsch....15

English 28

Français....40

Nederlands

VEILIGHEIDSINSTRUCTIES

Technical diagram showing exploded view of various household appliances with labeled parts A through L

ONDERDELEN VOOR DE PRODUCTASSEMBLAGE

Technical diagram of a mechanical device with numbered parts for identification

GEBRUIK

FUNCTIES

Technical line drawings of a device with internal components and directional arrows, showing assembly steps (no text or symbols)

Abstract line drawing of a curved, layered shape with a central circular element (no text or symbols)

C D 12 D N D N

ACCESSOIRES HANDREINIGER

Technical diagram showing exploded view of mechanical components with labeled parts A through L

KOMPONENTEN FÜR DIE MONTAGE DES PRODUKTS

Technical diagram of a mechanical device with numbered parts for identification

GEBRAUCH

FUNKTIONEN

Diagram showing two views of a device with directional arrows indicating movement or force (no text or symbols present)

Methode Zwei:

Three-step line drawing of a mechanical device with a paper being inserted (no text or symbols)

Abstract line drawing of a triangular shape with internal curved lines and a central circular element (no text or symbols)

C D 12 D N D N

ZUBEHÖR DES MOBILEN DAMPFREINIGERS

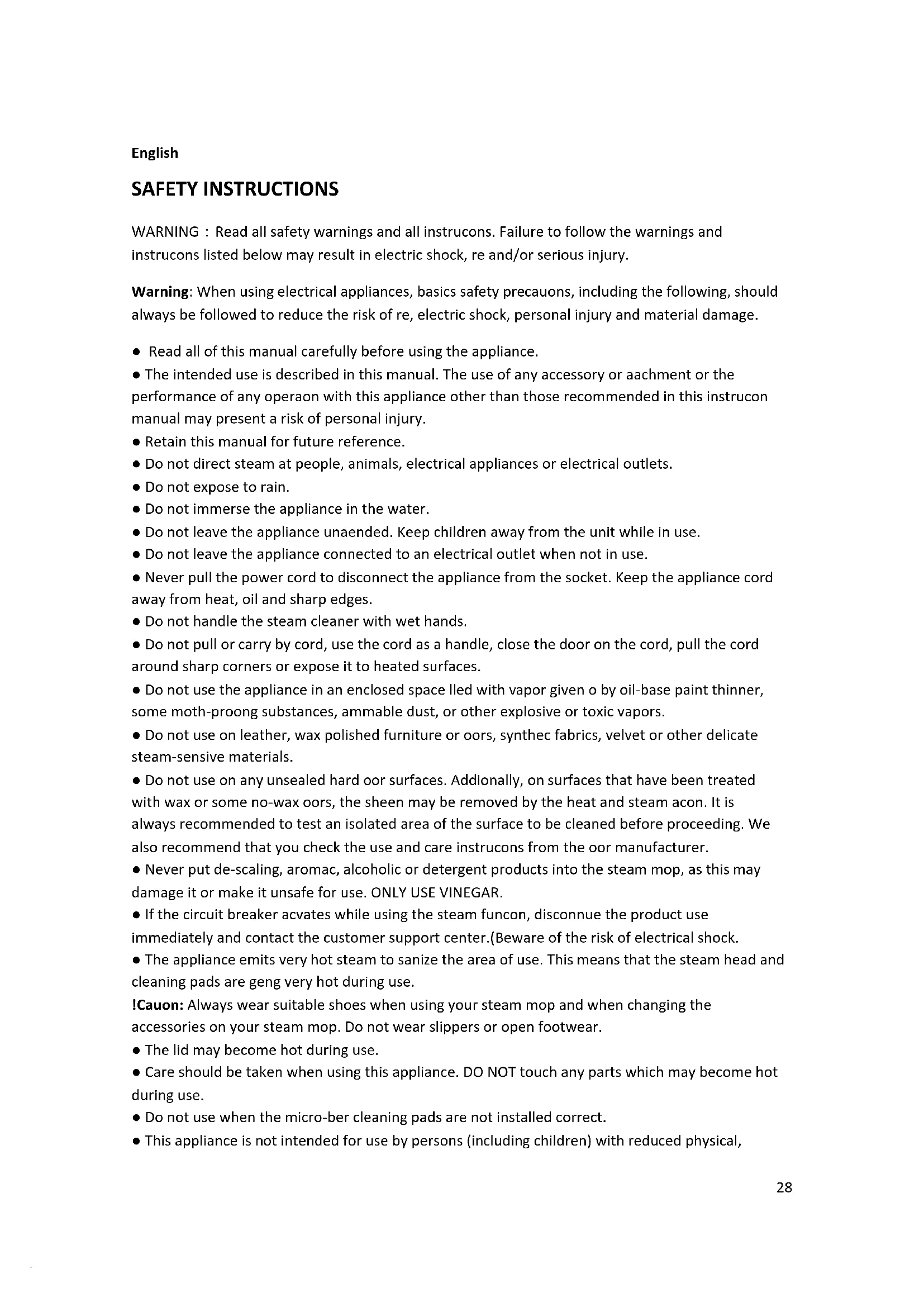

WARNING : Read all safety warnings and all instrucons. Failure to follow the warnings and instrucons listed below may result in electric shock, re and/or serious injury.

Warning: When using electrical appliances, basics safety precautions, including the following, should always be followed to reduce the risk of re, electric shock, personal injury and material damage.

• Read all of this manual carefully before using the appliance.
• The intended use is described in this manual. The use of any accessory or aachment or the performance of any operaon with this appliance other than those recommended in this instrucon manual may present a risk of personal injury.
• Retain this manual for future reference.
• Do not direct steam at people, animals, electrical appliances or electrical outlets.
• Do not expose to rain.
• Do not immerse the appliance in the water.
• Do not leave the appliance unaended. Keep children away from the unit while in use.
• Do not leave the appliance connected to an electrical outlet when not in use.
• Never pull the power cord to disconnect the appliance from the socket. Keep the appliance cord away from heat, oil and sharp edges.
• Do not handle the steam cleaner with wet hands.
• Do not pull or carry by cord, use the cord as a handle, close the door on the cord, pull the cord around sharp corners or expose it to heated surfaces.
• Do not use the appliance in an enclosed space lled with vapor given o by oil-base paint thinner, some moth-proong substances, ammable dust, or other explosive or toxic vapors.
• Do not use on leather, wax polished furniture or oors, synthec fabrics, velvet or other delicate steam-sensitive materials.
• Do not use on any unsealed hard oor surfaces. Additionally, on surfaces that have been treated with wax or some no-wax oors, the sheen may be removed by the heat and steam acon. It is always recommended to test an isolated area of the surface to be cleaned before proceeding. We also recommend that you check the use and care instrucons from the oor manufacturer.
• Never put de-scaling, aromac, alcoholic or detergent products into the steam mop, as this may damage it or make it unsafe for use. ONLY USE VINEGAR.
• If the circuit breaker acvates while using the steam funcon, disconnue the product use immediately and contact the customer support center.(Beware of the risk of electrical shock.
• The appliance emits very hot steam to sanitize the area of use. This means that the steam head and cleaning pads are geng very hot during use.
  !Cauon: Always wear suitable shoes when using your steam mop and when changing the accessories on your steam mop. Do not wear slippers or open footwear.
• The lid may become hot during use.
• Care should be taken when using this appliance. DO NOT touch any parts which may become hot during use.
• Do not use when the micro-ber cleaning pads are not installed correct.
• This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instrucon concerning the use of the appliances by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

It is important for you to read and understand this manual. The informaon it contains relates to protecng YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this informaon.

! DANGER : Indicates an imminently hazardous situaon which, if not avoided, will result in death or serious injury.
! WARNING : Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
! CAUTION : Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE : Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.

Residual risks:

Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use, etc.

Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can't be avoided. These include

• Injuries caused by touching any moving parts.
• Injuries caused by touching any hot parts.
• Injuries caused when changing any parts or accessories.
• Injuries caused by prolonged use of the appliance. When using any appliance for prolonged periods ensure you take regular breaks.

THE PRODUCT

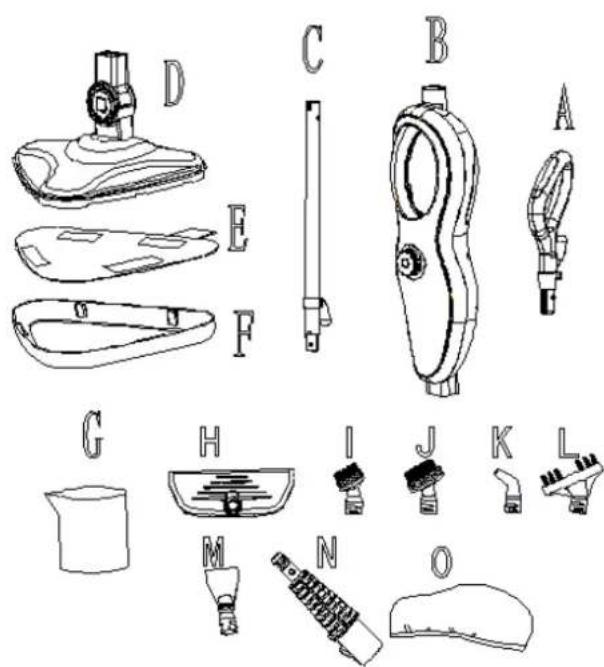

STANDARD FEATURES

A Handle

B Main body

C Tube

D Steam head

E Microber pad

F Carpet Glider

G Measuring Cup

H Window Squeegee / Clothes steamer

I Small Scrub Brush

J Big Scrub Brush

K Angle Nozzle

L Grout Cleaning Tool

M Scraping Tool

N Accessory Adaptor

O Garment Steamer Cloth

Technical diagram showing exploded view of cleaning components with labeled parts A through L

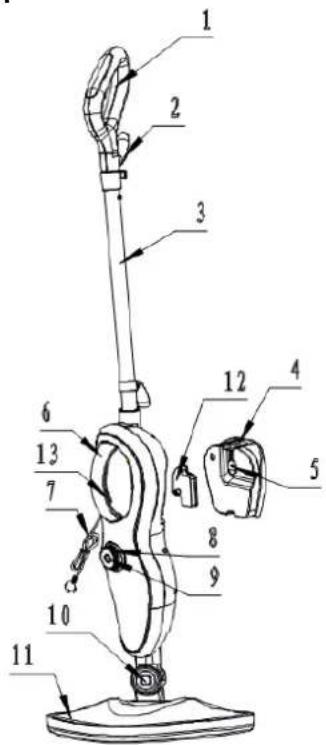

PRODUCT COMPONENTS TO ASSEMBLY THE PRODUCT

1 Handle

2 Hang up hook

3 Tube

4 Water tank

5 Water tank cap

6 Handheld handle

7 Power cord

8 Steam control knob

9 Power switch

10 Steam head Spindle

11 Steam head

12 Filter

13 Main body steam buon

Technical diagram of a mechanical device with numbered parts for identification

THE USE

FUNCTIONS

● removable water tank
- connuous steam output (up to 5 minutes connuously working, the steam averaged) 26g/min
● Steam output me : 12 minutes
● Red and blue light, warm-up and work instrucons
● Pressure relief protecon, keeping the pressure in the heang unit constant
● The angle of the rotaon axis in the cleaner is greater
● A lter funcon in water inlet

ASSEMBLY

NOTE: Each steam mop is 100% tested in the factory to ensure product performance and safety. When assembling your new steam mop for the rst me you may noce water residue inside of the unit.

!WARNING: Before aempng any of the following operaons, make sure that the appliance is switched o and unplugged and that the appliance is cold and contains minimal or no water.

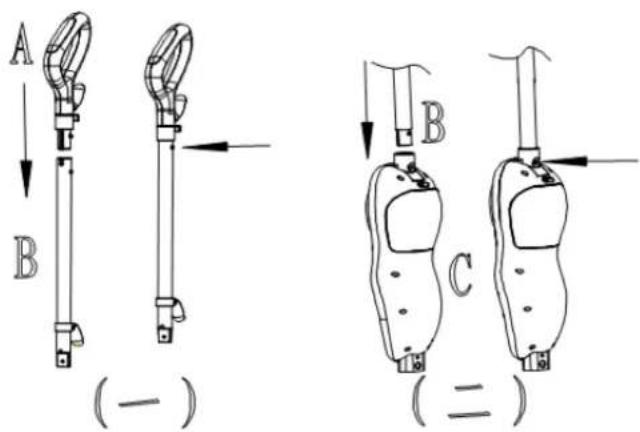

Aaching the handle:

1 Slide the handle tube (B) into the handle (A) unl it clicks into place.
2 Slide the handle tube (C) with handle installed to the main body (F), unl it clicks into place.
3 The handle can be removed from the steam mop body for easy storage by pressing the handle tube buon.

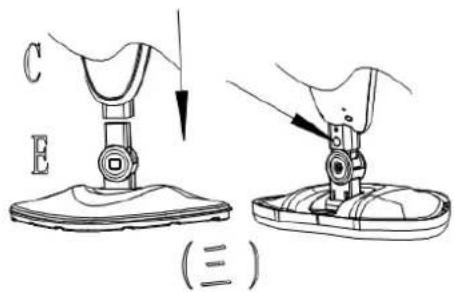

Aaching the steam head:

1 Slide the boom end of main body (C) onto the steam head (E) unl steam head spindle 9 clicks into place.
2 The Steam head (E) can be removed from the main body (C) by pressing salient point on the steam head (E) spindle.

Aaching a cleaning pad:

1 Because of barb design at the boom of steam head (C), just place a micro-ber cleaning pad (F) to the steam head, they can bond hard.
2 Place the front of your shoe onto the cleaning pad removal tab and press down rmly.

C E (三)

C F (四)

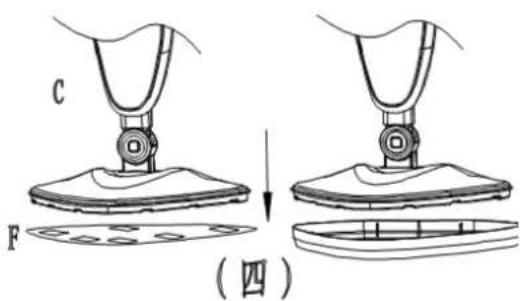

Aaching Carpet Gilder:

1 Press the micro-ber cleaning pad (L) with main body to carpet gilder (F) by vercal pressure until it fell into place.
2 Place the front of your shoe onto the cleaning pad removal tab and press down rmly, the carpet gilder will remove the steam head.

OPERATION

1 Filling the water tank

Method one :

Open the water tank cup (5), II 370 ml water use measuring cup, And then to close water tank cup (5).

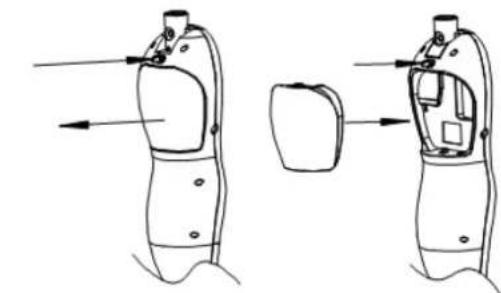

Method two :

Remove the water tank from the main body, open the water tank cup (5), ll the water tank from the water faucet and then close the water tank cup(5). Install the water tank (5) to the main body © unl it clicks into place.

Diagram showing two views of a device with internal components and directional arrows (no text or symbols)

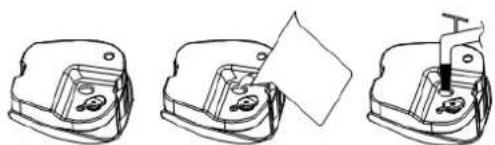

Three line drawings of a mechanical device with a paper or plastic sheet, shown from different angles (no text or symbols)

2 Plug in the appliance to a grounded outlet.
3 When switch the appliance on, the indicator light will turn red, it indicates preheang. If the light does not illuminate, please check the "troubleshoong" secon for more details.

4 The product cold warm-up me of 30 seconds, aer the compleon of the preheat indicator color conversion is blue, the product began to work.

NOTICE: If power failure in the middle of the warm-up or power-o aer the warm-up is complete, turn the power supply on again, according to the interval of the power is turned on again, the product may repeat the above warm-up operaon.

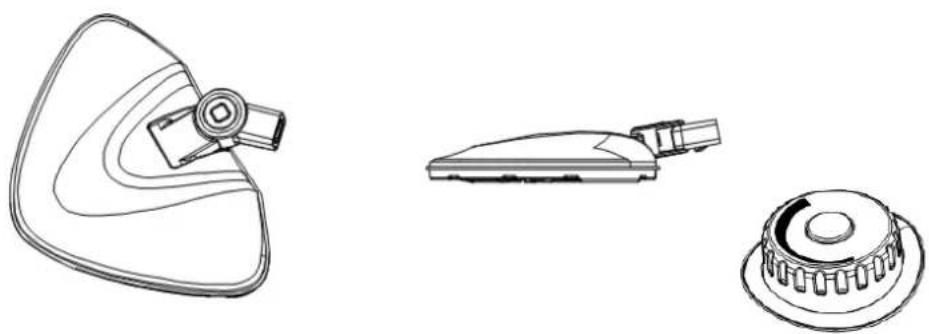

5 When normal cleaning, the steam head has a big rotary angle, can clean corners and also can clean low spaces.

Line drawings of three different kitchen appliances: a triangular fan, a flat tool, and a circular base (no text or symbols)

6 Add control volume by turn steam control knob (8) clockwise, and counterclockwise to reduce the user can adjust the steam volume according dierent objects.

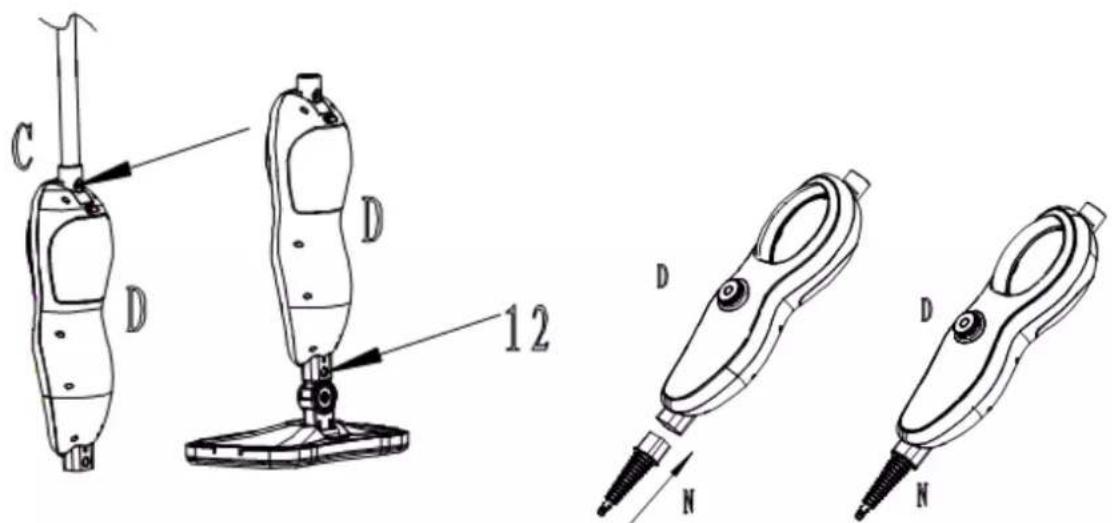

7 Using the hand steamer:

• Press the tube buon to remove the tube (2C) from the main body (D).
• Press salient point at the steam head spindle (12) to remove the steam head from the main body (D).
• Slide the steam handle (Q) into the main body (D) until it clicks into place, press the steam handle switch to start steam.
  • Install the accessory adaptor (N) at the top of the main body (D), unl clicks into place.
• Choose the appropriate accessories (check accessories use list), according to arrow indicator to align and implant to accessory adaptor (F), then turn anclockwise, until it clicks into place.
• Press salient point at the accessory adaptor (N) to remove the adaptor from the main body (D).

C D 12 D N D N

ACCESSORIES HAND STEAMER

!CAUTION!Before cleaning any electrical appliance, check and follow the appliance manufacture's cleaning guidelines.
ACCESSORY	REQUIRED ACCESSORIES THAT MUST BE CONNECTED TO THE ACCESSORY ADAPTOR	SUGGESTD USE
Window Squeegee/Garment Steaming Tool		Shower glass doors, mirrors, glass, removing soap scum and grime.Garment tool for taking wrinkles out of garments, steaming draperies, tablecloths and more.
Small and Medium Scrub brushes		Oven, microwaves, stove tops, showers, bathtubs, faucet xtures, le, grout, toys, refrigerators, etc.
Angle Nozzle	###	Stove tops, around faucet edges, grout, microwaves, sinks, hard to reach areas, etc.
Grout cleaning Tool		Cleaning all grout lines, sanded or non-sanded.
Scraping Tool		Scraping baked on food, grime and grease. Removing residue or other dicult substances from surfaces such as stove tops and ovens.
Garment Steamer Cloth		For use when steaming garments, draperies, tablecloths, etc.
Microber Pad		For general cleaning of hard oors and refreshing carpets.

CLEANING AND MAINTENANCE

BE SURE THAT THE UNIT IS DISCONNECTED FROM THE POWER OUTLET WHEN PERFORMING CLEANING

Drain the remaining water into the tank and clean the tank aer every use.

How to decalcify the Water Tank interior:

To clean calcium deposits that build up inside the water tank, add one or two tablespoons of white vinegar to a full water tank, close it and then shake the content. DO NOT TURN THE STEAMER ON.

Cleaning procedure to remove lime scale:

If your steam mop begins to produce steam more slowly than usual or stops producing steam, you may need to remove lime scale. Lime scale can develop over me on the metal parts and greatly aect mop performance.

It is necessary to remove lime scale on regular basis every 25-50 mes you use a full tank of water or at least once a month, especially in areas with hard water.

The frequency of lime scale removal depends upon the hardness of you tap water and how oen you use the steam mop.

By using cleaning soluon:

1 Prepare a soluon of 1/3 white vinegar and 2/3 tap water and add to the water tank.
2 Secure and posion the unit to ensure steam released is aimed away from the oor or surrounding objects and surface. Plug the unit and turn it ON by pressing the power switch and allow the unit to produce. The steam unit will use the vinegar/water.
3 Repeat the above procedure as many mes as necessary unit a normal steam ow rate is achieved.
4 Fill the water tank with fresh water and rinse out.
5 Fill the water tank with fresh water, each to the unit and release steam through the system unit until the water tank is empty.

Cleaning microber pads:

1 Machine washable on "warm" seng. Always use a mild detergent.
2 For best care results, lay at to dry.
3 IMPORTANT : Allow the steamer to fully cool down before performing any maintenance or troublesomeong checks.
4 IMPORTANT : Never use bleach or fabric soener when washing the microber cleaning pad.

Storage:

1 Aer the steamer is used, turn power o and then unplug the power cord.
2 Take out the water tank and empty the residual water in the tank and clean the external surface with a dry cloth. Unl the steam mop cools down, clean the appliances.
3 Remove the cleaning pad and wash it so that it will be ready for next use.
4 Store the product in a protected, dry area. Keep the water funnel and measuring cup for future use.
5 Keep out of reach of children.

WARNING

Don't leave the steamer unaended during the lime scale removal process and/or while in use

NOTICE:

Preform a test cleaning on a suitable isolated area aer each lime scale removal to ensure that there is no debris le in the system.

This product contains no serviceable parts. Do not try to repair it yourself. Any servicing that requires disassembly other than cleaning must be performed by a qualified appliance repair technician.

ALL servicing should be done by an authorized service representave.

NOTICE : Aer cleaning, take out the water tank before cut o the power, and then let the product work for a while, unl there is no steam. It can make pipe without water, good to store.

TROUBLESHOOTING

USE TROUBLESHOOTING GUIDE AS A FIRST STEP TO RESOLVE ANY PROBLEMS YOU MAY BE EXPERIENCING.

All servicing should be done by an authorized service representave.

!WARNING!: TO REDUCE THE RISK OF PERSONAL INJURY, UNPLUG THE STEAMER BEFORE SERVICING AND ALLOW TO COOL

PROBLEM	POSSIBLE REASON	POSSIBLE SOLUTION
Reduced steam or no steam	Water tank may be empty	Fill water into the water tank
	Steam nozzle may be blocked	Clean steam nozzle
	There is no power to the unit	Make sure unit is plugged in
	Didn't press power buon	Press power buon
Unit will not turn on	Blown fuse or breaker	Replace fuse or reset breaker in home
	Power cord not plugged in	Plug cord into a working circuit
	Internal fuse is blown	Contact with customer service

DISPOSAL OF YOUR OLD APPLIANCE

1 When this crossed-out wheeled bin symbol is aached to a product it means the product is covered by the European Direcve 2002/96/EC.
2 All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collecon facilities appointed by the government or the local authorities.
3 The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4 For more detailed informaon about disposal of your appliance, please contact your city oce, waste disposal service or the shop where you purchased the product.

TECHNICAL DETAILS

• Rated voltage : 230V
  • Rated frequency : 50Hz
  • Output power : 1500W (+5%, -10%)
  • water tank capacity : 370mL
  • Waterproof level : IPX4
  • Model number: CSC631

Monss is a registered brand name of:

Trebs BV

Thermiekstraat 1a

6361HB Nuth

The Netherlands

www.trebs.nl

GUARANTEE

This guarantee covers your device for a period of 24 months from the date of purchase for service and replacement of parts, on the condition that you have used the device correctly as described in the user manual. This guarantee does not exclude naonal legislaon that may exist in the country of purchase in regards to warranty regulations.

When you make a claim under this guarantee, you must submit the original invoice or receipt with clear menon of the date of purchase, name of retailer and the descripon and model number of the device. You are advised to keep these documents in a safe place.

This device is intended for domesc use only. Damage and/or malfuncons as the result of industrial or commercial use are excluded from the warranty.

The guarantee for this device expires if:

• The original invoice or receipt has in one way or another been changed or made illegible;
• The model or serial number on the device has been changed, removed, deleted or made illegible;
• Repairs have been executed by unauthorized repair workshops or persons who are not authorized to do so;
• The damage is the result of an external cause, such as re damage, water damage, transport damage, atmospheric discharges, insucient or improper maintenance;
• The device has been operated in another country than for which originally designed, approved, released and produced, as well as defects occurred as the result of such modicaons;
• The device has not been used according to the guidelines and direcons in the user manual supplied with the device.

Accessories and parts of the product that are susceptible to wear and tear are not included in this guarantee. Should you wish to reorder these, please visit www.trebs.nl

In the unlikely event your device is not funconing well or shows any defect, please contact your retailer. To avoid any inconvenience, we advise you to read the user manual carefully before contacting them.

Francais

Technical diagram showing exploded view of various household appliances with labeled parts A through L

PIÈCES DU PRODUIT SERVANT À SON ASSEMBLAGE

1 Poignée

Technical diagram of a mechanical device with numbered parts for identification

UTILISATION

FONCTIONS

Diagram showing two views of a device with directional arrows indicating movement or force (no text or symbols present)

Three line drawings of mechanical components with no visible text or symbols

Pure technical line drawing of a mechanical component with no text or symbols

C D 12 D N D N

ACCESSOIRES DU VAPORISATEUR MANUEL
