USER MANUAL BXHHB500E BLACK & DECKER

Fig.3.1 Fig.3.2 Fig.2 Fig.2.4 Fig.2.5 Fig.3.3ENGLISH (Original instructions)

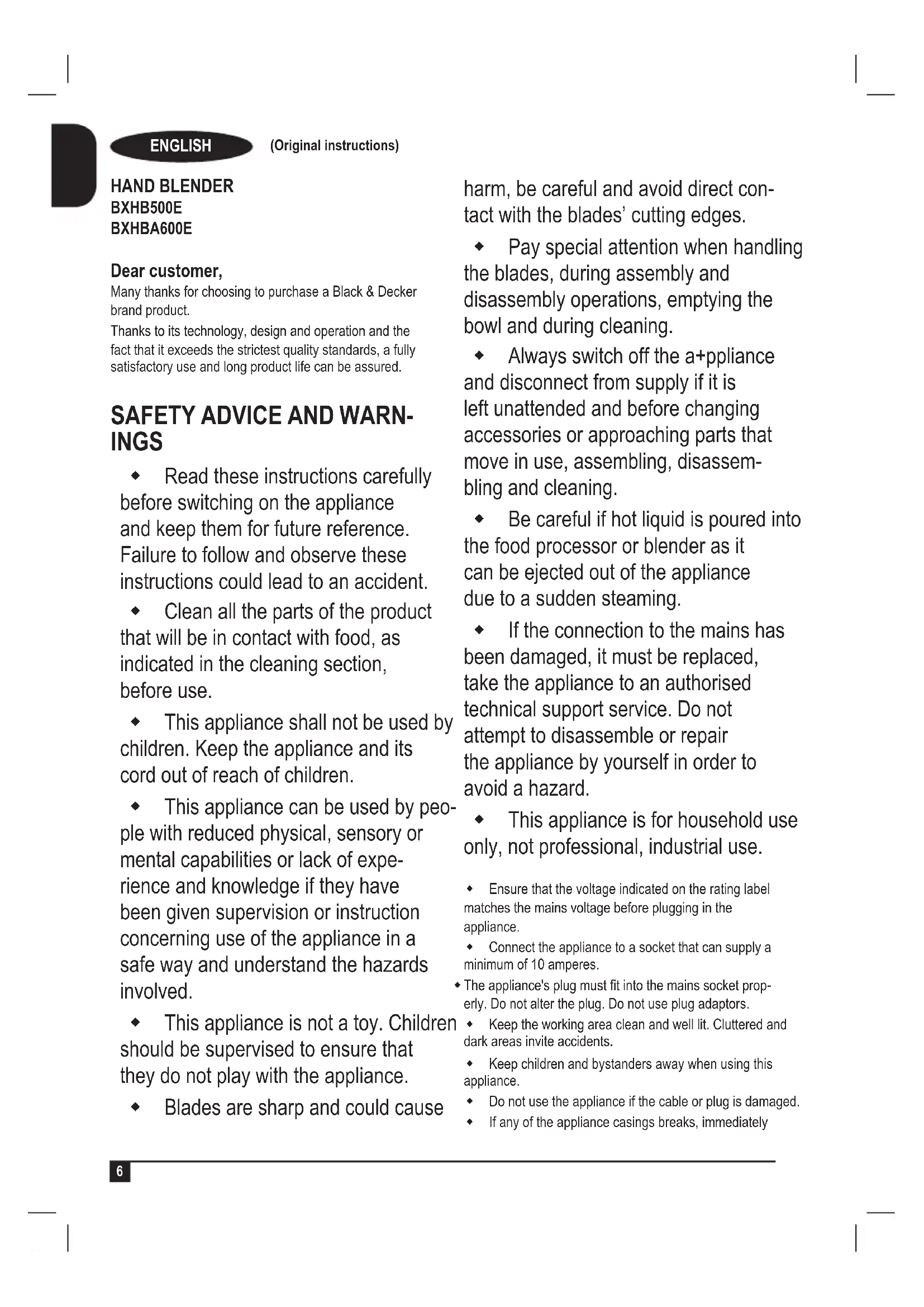

HAND BLENDER BXHB500E BXHBA600E Dear customer, Many thanks for choosing to purchase a Black & Decker brand product. Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

SAFETY ADVICE AND WARN-

INGS Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident. Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. This appliance can be used by peo- ple with reduced physical, sensory or mental capabilities or lack of expe- rience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance. Blades are sharp and could cause harm, be careful and avoid direct con- tact with the blades’ cutting edges. Pay special attention when handling the blades, during assembly and disassembly operations, emptying the bowl and during cleaning. Always switch off the a+ppliance and disconnect from supply if it is left unattended and before changing accessories or approaching parts that move in use, assembling, disassem- bling and cleaning. Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming. If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard. This appliance is for household use only, not professional, industrial use. Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance. Connect the appliance to a socket that can supply a minimum of 10 amperes. The appliance's plug must t into the mains socket prop- erly. Do not alter the plug. Do not use plug adaptors. Keep the working area clean and well lit. Cluttered and dark areas invite accidents. Keep children and bystanders away when using this appliance. Do not use the appliance if the cable or plug is damaged. If any of the appliance casings breaks, immediatelyENGLISH (Original instructions)

disconnect the appliance from the mains to prevent the possibility of an electric shock. Do not use the appliance if it has fallen on the oor, if there are visible signs of damage or if it has a leak. Do not use the appliance with damp hands or feet, or when barefooted. Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance. Do not wrap the power cord around the appliance. Do not clip or crease the power cord. Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock. Do not use or store the appliance outdoors. Do not touch the plug with wet hands. Take the necessary measures to avoid starting the appliance involuntarily. Do not touch any of the appliance’s moving parts while it is operating.

Fully unroll the appliance's power cable before each use. Do not use the appliance if its accessories are not properly tted. Do not use the appliance if the accessories attached to it are defective. Replace them immediately. Do not use the appliance if the on/off switch does not work. Do not use the appliance if it is tipped up and do not turn it over. Do not turn the appliance over while it is in use or connected to the mains. Respect the MAX level indicator of the measuring cup. When using hot liquids do not ll the jug more than half way. At all times, when mixing hot liquids in the jug, select the slowest speed on the speed selector. Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge. Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly. Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation. Never use boiling liquids. Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance. Do not use the appliance on any part of the body of a person or animal. Do not use the appliance with frozen goods or those containing bones. Do not use the appliance for longer than 1 minute at a time, or to complete cycles lasting more than 1 minutes. In the latter case always ensure rest periods of at least 1 minute between cycles. Never keep the appliance working for longer than the required time. The annexed illustrative table shows a number of reci- pes, including the amount of food to be processed, the recommended time to prepare each recipe, as well as the maximum operation time of the device under each of these load conditions. SERVICE Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

A Speed control regulator B Button C Turbo D Motor body E Stick-blender accessory F Measuring cup G Chopper H Whisk I Adapter tting If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service. Instructions for use Before use: Make sure that all the product’s packaging has been removed. Before using the product for the rst time, clean the parts that will come into contact with food in the mannerENGLISH (Original instructions)

described in the cleaning section. Prepare the appliance according to the function you wish to use. Use: Unroll the cable completely before plugging it in. Connect the appliance to the mains. Turn the appliance on using the on/off switch. In the model with speed control regulator, select the desired speed. Work with the food you want to process. Electronic speed control (MODEL BXH- BA600E): The speed of the appliance can be regulated simply by using the speed regulator control (A). This function is very useful, as it makes it possible to adapt the speed of the appliance to the type of work that needs to be done. Turbo function (MODEL BXHBA600E): The appliance has a Turbo function. By activating the Turbo function (C) all the power of the motor becomes available, thus obtaining a ner nish in the nal texture of the product. Once you have nished using the appliance: Stop the appliance by releasing the pressure on the on/ off button. Unplug the appliance to the mains. Clean the appliance Accessories: Stick blender accessory (Fig.1): This accessory is used to make sauces, soups, mayon- naise, milkshakes, baby food... Attach the stick blender to the motor body by turning it in the direction indicated by the arrow (Fig. 1.1). Pour the foodstuffs into the measuring cup and operate it by pressing the start button. Detach the stick blender by turning it in the opposite direction to the arrow and remove it for later cleaning. Chopping accessory (MODEL BXHBA600E) (Fig.2): This accessory is used to chop vegetables, nuts, meat… Fit the adapter tting to the motor unit by turning it in the direction of the arrow (Fig. 2.1). Attach the unit to the cover until hear the clic (Fig. 2.2). Put the food to be prepared in the chopping container and attach the cover rmly. Switch the appliance on (be careful: do not switch the appliance on if the whole unit is not properly tted and connected together). Stop the appliance when the food reaches the desired texture. Detach the unit from the lid, and release the adapter tting. Whisk accessory (Fig.3): This accessory is used to whip cream, beat egg whites… Insert the whisk into the adapter tting. Fit the adapter tting to the motor unit by turning it in the direction of the arrow. (Fig. 3.1). Place the food in a wide container and turn on the device. For optimum results, move the whisk clockwise. Remove the whisk accessory and release the adapter tting (Fig. 3.2). Note1: Do not work at high speeds with this accessory attached, as this would cause defects in the whisk (spinning its wires). Note2: To free the whisk (H) from the adapter tting (I), pull the ring on the whisk. CLEANING Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task. Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry. Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance. Never submerge the appliance in water or any other liquid or place it under running water. During the cleaning process, take special care with the blades, as they are very sharp. It is advisable to clean the appliance regularly and remove any food remains. If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance’s useful life and could become unsafe to use. The following pieces may be washed in a dishwasher (using a soft cleaning program): Measuring cupENGLISH (Original instructions)

Chopper (without Blades) Whisk The draining/drying position of the articles washable in the dishwasher or in the sink must allow the water to drain away easily. Then dry all parts before its assembly and storage.

ANOMALIES AND REPAIR

Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

WARRANTY AND TECHNICAL ASSISTANCE

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our ofcial technical assistance services. You can nd the closest one by accessing the following web link: http://www.2helpu.com/. You can also request related information, by contacting us (see the last page of the manual). You can download this instruction manual and its updates at http://www.2helpu.com/. For EU product versions and/or in the case that it is requested in your country:

ECOLOGY AND RECYCLABILITY OF THE

PRODUCT The materials of which the packaging of this appliance consists are included in a collection, classication and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material. The product does not contain concentrations of substances that could be considered harmful to the environment. This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE). This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related productsENGLISH (Original instructions)

FOOD PREPARATION Recipe Recommended accessory Quantity Method Speed Time Mayonnaise 250 ml Add 1 egg, salt, some drops of vinegar or lemon to the receptacle. Fill with oil up to the level indicated and switch on, do not move or agitate until the oil has been bound. 10 35s Fruit milks- hakes ------- Add the fruit and mix with blender until smooth. 15 ------- Béchamel sauce 600 ml Melt 30g of butter in a saucepan over a low heat, add 100g of lour and 30g of fried onion (beforehand chop using the mincer attachment) and gradually add 500ml of milk. 10 15 s Whipped cream 250 ml Place cold cream (0 to 5ºC) into a cold receptacle and beat with blender, making vertical move- ments. Be careful not to overbeat as the cream will turn to butter. 1-5 2 min Whipped egg whites

3 whites Add the whites to a receptacle and whip with blender, making vertical movements.

2-4 min Mashed potatoes 400 g Potatoes can be blended while still in the saucepan. 20 30 s Baby food 300 g Cut up 100g of apples, 100g of banana, 50g of biscuits and place into a receptacle. Add orange juice and blend. 20 25 s Grated bread 50 g Cut up stale bread and place into goblet. Blend until desired consistency is achieved.

1,5 min Grated cheese 100 g Cut into 1cm cubes and blend until desired consistency is achieved.

50 s Minced boiled egg 2 eggs Cut into four pieces and blend until desired consistency is achieved. 20 10 s Minced meat (raw or cooked) 150 g Before blending, cut into 1cm cubes. 20 30 s Carrot 200 g Peel, dice and blend until desired consistency is achieved. 20 30 s Nuts 200 g Remove shell and blend until desired consistency is achieved. 20 30 s Chopped Spa- nish Serrano ham

35 g Previously chop into 1 cm chunks Mince until the desired texture is obtained 20 3 sFRANÇAIS (Instructions initiales)
