18200001 - Other kitchen appliances Gastronoma - Free user manual and instructions

Type of appliance	Electric hand mixer
Brand	Gastronoma
Model	18200001
Power supply	230 V, 50 Hz
Number of speeds	6 speeds + Turbo function
Included accessories	2 beaters, 2 dough hooks
Maximum continuous use	5 minutes
Required cooling time	20 minutes
Body material	Plastic
Accessory material	Metal
Cleaning the body	Damp cloth with a little dish soap
Cleaning accessories	Warm water and dish soap, thorough drying
Safety	Unplug before cleaning; do not touch moving parts
Warranty	Valid under conditions, void if modified or misused
Disposal	Do not dispose with household waste, comply with WEEE directive
Importer	Adexi A/S, Denmark
Dimensions (approx)	Approximately 20 x 10 x 15 cm
Weight (approx)	Approximately 0.8 kg
Manual available in	French, Danish, German, English, Finnish, Norwegian, Swedish

Frequently Asked Questions - 18200001 Gastronoma

How to clean the hand mixer?

Turn off and unplug the appliance. Clean the exterior with a damp cloth and a little dish soap. Wash the beaters and dough hooks in warm water with dish soap, then dry them thoroughly. Do not use abrasive detergents.

Can I use the mixer continuously for more than 5 minutes?

No, do not run the appliance continuously for more than 5 minutes. After 5 minutes of use, let it cool for 20 minutes before using again.

What to do if the appliance does not work?

Check that the appliance is properly plugged into a 230 V, 50 Hz outlet. Make sure the speed selector is not set to 0. If the problem persists, contact customer service via the website www.adexi.eu. Never attempt to repair the appliance yourself.

How to insert the beaters or dough hooks?

Make sure the speed selector is set to 0. Insert the beaters or hooks into the fixation holes. The dough hooks can only be inserted one way. Plug in the appliance and lower the accessories into the bowl before starting to avoid splashes.

Can I wash the accessories in the dishwasher?

The manual recommends washing the beaters and hooks in warm water with a little dish soap and drying them thoroughly. It does not mention the dishwasher, so it is better to wash them by hand to avoid damage.

Why does the Turbo button not work?

The Turbo button (3) temporarily increases the speed. It must be held down to work. When released, the speed returns to the setting on the selector. Make sure the selector is not set to 0.

Is the appliance suitable for kneading bread?

Yes, the appliance is supplied with dough hooks suitable for kneading dough. However, do not exceed 5 minutes of continuous use and respect the cooling times. Use a suitable bowl.

How to turn off the appliance?

Set the speed selector to position 0 to turn off the appliance. Wait for the accessories to stop completely before touching them. Then unplug the appliance.

What to do in case of breakdown?

Consult the manual for frequently asked questions. If you do not find a solution, visit www.adexi.eu for contact information. Repairs must be carried out by an authorized repairer under warranty.

Where can I download the manual?

The manual is available for free in PDF format on notice-facile.com for the Gastronoma model 18200001. You can also request a translation by selecting your language and providing your email address.

USER MANUAL 18200001 Gastronoma

Technical diagram of a handwasher with labeled parts including handle, spring, and housing

BRUG

Technical diagram of a handheld electric lamp with labeled parts including a 1/2 connector, internal components, and housing compartments.

BRUK

Technical diagram of a handheld electric motor with labeled parts including handle, spring, and housing

ANVÄNDNING

Technical diagram of a handheld electric lamp with labeled parts including 1/2, 3, 4, 5, 6, and 7.

KÄYTTÖ

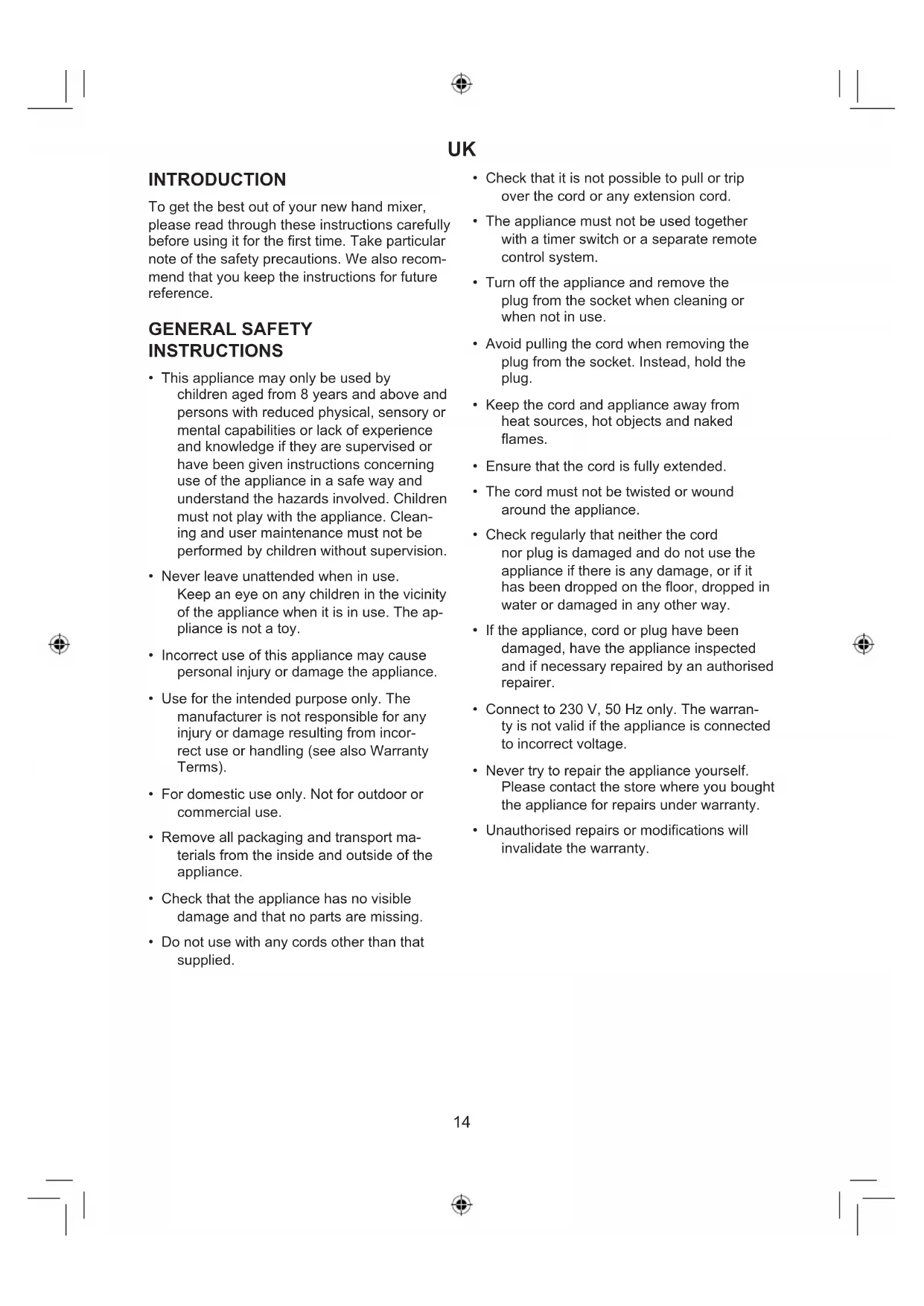

To get the best out of your new hand mixer, please read through these instructions carefully before using it for the first time. Take particular note of the safety precautions. We also recommend that you keep the instructions for future reference.

GENERAL SAFETY INSTRUCTIONS

• This appliance may only be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been given instructions concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children without supervision.
• Never leave unattended when in use. Keep an eye on any children in the vicinity of the appliance when it is in use. The appliance is not a toy.
• Incorrect use of this appliance may cause personal injury or damage the appliance.
• Use for the intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Warranty Terms).
• For domestic use only. Not for outdoor or commercial use.
• Remove all packaging and transport materials from the inside and outside of the appliance.
• Check that the appliance has no visible damage and that no parts are missing.

• Do not use with any cords other than that supplied.

• Check that it is not possible to pull or trip over the cord or any extension cord.

• The appliance must not be used together with a timer switch or a separate remote control system.
• Turn off the appliance and remove the plug from the socket when cleaning or when not in use.
• Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.
• Keep the cord and appliance away from heat sources, hot objects and naked flames.
• Ensure that the cord is fully extended.
• The cord must not be twisted or wound around the appliance.
• Check regularly that neither the cord nor plug is damaged and do not use the appliance if there is any damage, or if it has been dropped on the floor, dropped in water or damaged in any other way.
• If the appliance, cord or plug have been damaged, have the appliance inspected and if necessary repaired by an authorised repairer.
• Connect to 230 V, 50 Hz only. The warranty is not valid if the appliance is connected to incorrect voltage.
• Never try to repair the appliance yourself. Please contact the store where you bought the appliance for repairs under warranty.
• Unauthorised repairs or modifications will invalidate the warranty.

UK

SPECIAL SAFETY INSTRUCTIONS

• Always use with a bowl.
- Do not leave the appliance running for more than 5 minutes at a time. If the appliance has been running for 5 minutes, allow it to cool down for 20 minutes before you use it again.
- Never touch the whisks or dough hooks while in operation, as there is a risk of personal injury.
- Switch off the appliance and wait until the whisks or dough hooks have stopped revolving before touching them.
- Never stick kitchen utensils or other objects into the whisks or dough hooks while in operation, as there is a risk of personal injury and damage to the appliance.
- Never eject the whisks or dough hooks while the appliance is in operation.
- Switch the appliance off, unplug it and remove the whisks/dough hooks before cleaning or when not in use.
- Do not cover the ventilation holes.
- Never insert anything into the ventilation holes.

Before use

- Before using for the first time (or after prolonged storage without use), wash any parts that will come into contact with food.

MAIN COMPONENTS

1/2. Release button/Speed selector

1. Turbo button
2. Handle
3. Dough hooks
4. Whisks
5. Air vents

Technical diagram of a handheld electric lamp with labeled parts including a 1/2 connector, internal components, and housing compartments.

USE

• Check that the speed selector (2) is set to 0 (= off).
• Insert the whisks (6) or dough hooks (5) into the mounting holes. Note that the dough hooks can only be inserted in one way.
• Plug the appliance in.
• Lower the whisks or dough hooks into the bowl with ingredients before switching it on to avoid splashes.
• Turn the speed selector (2) to any position between 1 and 6. The higher the number the speed selector is set to, the faster the appliance will run. You can increase the speed further by pressing and holding the turbo button (3).
• Turn off the appliance by moving the speed selector to position 0 once you have finished using it.
• Unplug the appliance and press the release button (1) to remove the whisks or dough hooks.

UK

CLEANING

• Always switch the appliance off at the wall socket and unplug before cleaning.
- Clean the outside of the appliance using a damp cloth and, if necessary, a little washing-up liquid.
- Wash the whisks or dough hooks in hot water with a little washing-up liquid and dry thoroughly.
- Never use abrasive detergents or solvents.

INFORMATION ON DISPOSAL AND RECYCLING OF THIS PRODUCT

Please note that this Adexi product is marked with this symbol:

This means that this product must not be disposed of along with ordinary household waste, as electrical and electronic waste must be disposed of separately.

According to the WEEE directive, every member state must ensure correct collection, recovery, handling and recycling of electrical and electronic waste. Private households in the EU can take used equipment to special recycling stations free of charge. In certain member states, used appliances can be returned to the retailer where they were bought on the condition you buy new products. Contact your retailer, distributor or the municipal authorities for further information on what to do with electrical and electronic waste.

WARRANTY TERMS

The warranty does not apply:

• if the above instructions have not been followed
• if the appliance has been interfered with
• if the appliance has been mishandled, subjected to rough treatment, or has suffered any other form of damage
• if the appliance is faulty due to faults in the electricity supply.

Due to the constant development of our products in terms of function and design, we reserve the right to make changes to the product without prior warning.

FREQUENTLY ASKED QUESTIONS

If you have any questions regarding the use of the appliance and cannot find the answer in this user guide, please try our website at www.adexi.eu.

You can also see contact details on our website if you need to contact us for technical questions, repairs, accessories or spare parts.

IMPORTER

Adexi A/S

Grenåvej 635A

DK-8541 Skødstrup

Denmark

www.adexi.eu

We cannot be held responsible for any printing errors.

DE

EINLEITUNG

Technical diagram of a handwasher with labeled parts including motor, handle, and housing

GEBRAUCH

Technical diagram of a handheld electric lamp with labeled parts including 1/2, 3, 4, 5, 6, and 7.

COMPOSANTS PRINCIPAUX

CONDITIONS DE LA GARANTIE
