USER MANUAL CL700 Klein Tools

-14° –1000°F(-26° – 538°C) IP40 CAT IV 600V CAT III 1000V2 GENERAL SPECIFICATIONS Klein Tools CL700 is an automatically ranging true root mean square (TRMS) digital clamp-meter that measures AC current via the clamp, and measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages.

• Operating Altitude: 6562 ft. (2000m)

• Relative Humidity: <80% non-condensing

• Operating Temp: 32° to 104°F (0° to 40°C)

• Storage Temp: 14° to 140°F (-10° to 60°C)

• Accuracy: Values stated at 65° to 83°F (18° to 28°C)

• Temp Coefcient: 0.1 x (Quoted Accuracy) per °C above 28°C or below 18°C, corrections are required when ambient working temp is outside of Accuracy Temp range

• Dimensions: 9.09" x 3.82" x 1.54" (231 x 97 x 39 mm)

• Weight: 11.8 oz. (335 g) including batteries

• Calibration: Accurate for one year

• Accuracy: ± (% of reading + # of least significant digits)

• Drop Protection: 6.6 ft. (2m)

• Safety Rating: CAT IV 600V, CAT III 1000V, Class 2, Double insulation CAT III: Measurement category III is applicable to test and measuring circuits connected to the distribution part of the building’s low-voltage MAINS installation. CAT IV: Measurement category IV is applicable to test and measuring circuits connected at the source of the building’s low-voltage MAINS installation.

33° to 752°F ±(1.0% + 5.4

753° to 1000°F ±(2.0% + 9

1° to 400°C ±(1.0% + 3

OTHER MEASUREMENT APPLICATIONS

Maximum Input: 600V AC RMS or 600V DC

• Diode Test: Max. 1.5mA, open circuit voltage ~3.0V DC

• Continuity Check: Audible signal <50Ω, test current <0.35mA

• Sampling Frequency: 3 samples per second

• Low Impedence (Low Z): Input impedence >3kΩ Max input 600V RMS

• Auto Power off: After ~30 minutes of inactivity

• Overload: "OL" indicated on display, overload protection 1000V in Voltage setting, 600V RMS in all other settings

To ensure safe operation and service of the meter, follow these instructions. Failure to observe these warnings can result in severe injury or death.

• Before each use verify meter operation by measuring a known voltage or current.

• Never use the meter on a circuit with voltages that exceed the category based rating of this meter.

• Do not use the meter during electrical storms or in wet weather.

• Do not use the meter or test leads if they appear to be damaged.

• Probe assemblies to be used for MAINS measurements shall meet IEC/EN 61010-031 with a voltage RATING of CAT IV 600V or better.

• Ensure meter leads are fully seated, and keep fingers away from the metal probe contacts when making measurements.

• Use caution when working with voltages above 25V AC RMS or 60V DC. Such voltages pose a shock hazard.

• To avoid false readings that can lead to electrical shock, replace batteries when a low battery indicator appears.

• Do not attempt to measure resistance or continuity on a live circuit.

• Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.

• To avoid risk of electric shock, disconnect leads from any voltage source before removing battery door.

• To avoid risk of electric shock, do not operate meter while battery door is removed.

WARNINGS - NCV FUNCTION

• When NCV Function is initiated, a blinking or steady red glow and an audible beep indicate voltage present. If no indication, voltage could still be present.

• Before and after each use of the NCVT, verify operation by testing a known working circuit that is within the rating of this unit.

• Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.

• The NCV tester WILL NOT detect voltage if:

• The wire is shielded.

• The operator is not grounded or is otherwise isolated from an effective earth ground.

• The NCV tester MAY NOT detect voltage if:

• The user is not holding the tester.

• The user is insulated from the tester with a glove or other materials.

• The wire is partially buried or in a grounded metal conduit.

• The tester is at a distance from the voltage source.

• The field created by the voltage source is blocked, dampened, or otherwise interfered with.

• The frequency of the voltage is not a perfect sine wave between 50 and 60Hz.

• The tester is outside of operation conditions (listed in Specifications section).

• Operation may be affected by differences in socket design and insulation thickness and type; tester may not be compatible with some types of standard or tamper resistant (TR) electrical outlets.

• Do not apply to uninsulated hazardous live conductors.

• Detection above 50V is specified under “normal” conditions as specified below. The tester may detect at a different threshold at different conditions, or may not detect at all unless:

• The tip of the tester is within 0.25" of an AC voltage source radiating unimpeded.

• The user is holding the body of the tester with his or her bare hand.

• The user is standing on or connected to earth ground.

• The air humidity is nominal (50% relative humidity).

• The tester is held still.6 ENGLISH

AC/DC Resistance (in Ohms) Audible Continuity Double Insulated Class II Ground Diode Capacitance

Temperature (Fahrenheit / Celsius) Low Impedance V Voltage (Volts) A Amperage (Amps) Warning or Caution To ensure safe operation and service of this meter, follow all warnings and instructions detailed in this manual. Risk of Electrical Shock Suitable for uninsulated hazardous live conductors

Clamp trigger (press to open clamp)

Test lead holder for test probe

NOTE: There are no user-serviceable parts inside meter.

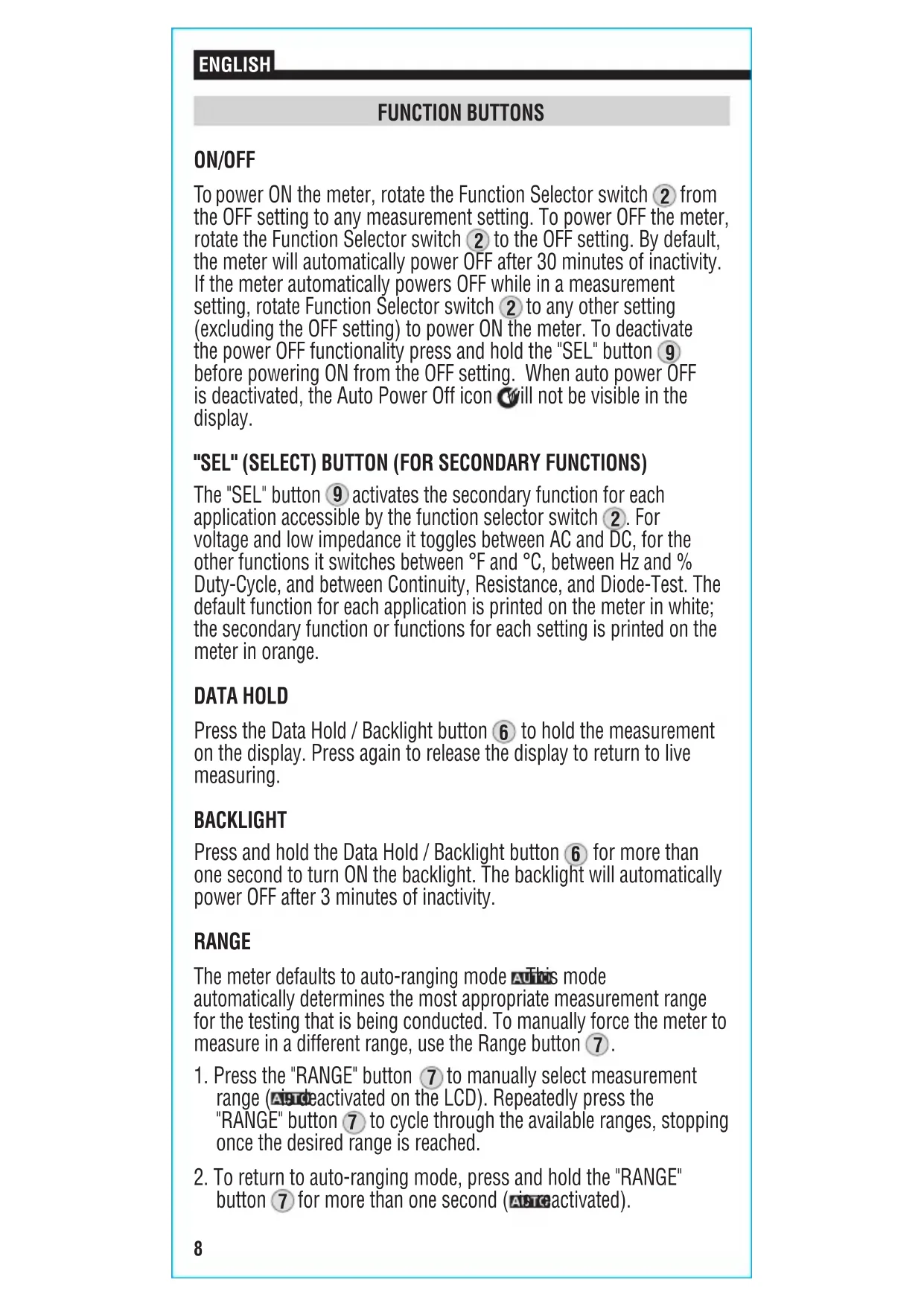

from the OFF setting to any measurement setting. To power OFF the meter, rotate the Function Selector switch

to the OFF setting. By default, the meter will automatically power OFF after 30 minutes of inactivity. If the meter automatically powers OFF while in a measurement setting, rotate Function Selector switch

to any other setting (excluding the OFF setting) to power ON the meter. To deactivate the power OFF functionality press and hold the "SEL" button

before powering ON from the OFF setting. When auto power OFF is deactivated, the Auto Power Off icon will not be visible in the display. "SEL" (SELECT) BUTTON (FOR SECONDARY FUNCTIONS) The "SEL" button

activates the secondary function for each application accessible by the function selector switch

. For voltage and low impedance it toggles between AC and DC, for the other functions it switches between °F and °C, between Hz and % Duty-Cycle, and between Continuity, Resistance, and Diode-Test. The default function for each application is printed on the meter in white; the secondary function or functions for each setting is printed on the meter in orange. DATA HOLD Press the Data Hold / Backlight button

to hold the measurement on the display. Press again to release the display to return to live measuring. BACKLIGHT Press and hold the Data Hold / Backlight button

for more than one second to turn ON the backlight. The backlight will automatically power OFF after 3 minutes of inactivity. RANGE The meter defaults to auto-ranging mode . This mode automatically determines the most appropriate measurement range for the testing that is being conducted. To manually force the meter to measure in a different range, use the Range button

to manually select measurement range ( is deactivated on the LCD). Repeatedly press the "RANGE" button

to cycle through the available ranges, stopping once the desired range is reached.

for more than one second ( is reactivated).9 FUNCTION BUTTONS MAX/MIN When the "MAX/MIN" button

is pressed, the meter keeps track of the Maximum and Minimum values and the difference between the Maximum and Minimum values as the meter continues to take samples.

to toggle between the Maximum value (MAX) and the Minimum value (MIN). If a new Maximum or Minimum occurs, the display will update with the new value.

for more than one second to return to normal measuring mode.

to test for AC voltage using the integrated non-contact voltage meter. Approach the conductor under test leading with the sensing antenna

. The meter delivers visual warning signals when AC voltage is detected.

When working with test leads, one test probe may be mounted in the test lead holder

to facilitate natural two-handed operation with the clamp in one hand and a single test probe in the other.10 ENGLISH OPERATING INSTRUCTIONS

CONNECTING TEST LEADS

Do not test if leads are improperly seated. Results could cause intermittent display readings. To ensure proper connection, firmly press leads into the input jack completely. TESTING IN CAT III / CAT IV MEASUREMENT LOCATIONS Ensure the test lead shield is pressed firmly in place. Failure to use the CATIII / CATIV shield increases arc-flash risk.

TESTING IN CAT II MEASUREMENT LOCATIONS

CAT III / CAT IV shields may be removed for CAT II locations. This will allow testing on recessed conductors such as standard wall outlets. Take care not to lose the shields. INCORRECT CORRECT 0.7" (18 mm) 5/32" (4 mm) 5/32 (4 mm)11 OPERATING INSTRUCTIONS AC CURRENT (LESS THAN 600A) AC Current is measured by pressing the clamp trigger

and placing it around a current-carrying wire. When measuring, care should be taken to ensure that the clamp

completely closed with trigger

fully released, and that the wire passes perpendicularly through the center of the clamp

in line with the arrow markings

NOTE: Current measurement can be made by clamping around single conductors, but not cables containing both live and neutral wires. In this case a line splitter is required, Klein Cat. No. 69409 is recommended. To measure current:

to the AC current A setting.

around wire. The current measurement will be shown in the display. The meter will auto-range to display the measurement in the most appropriate range. Disconnect test leads when measuring with the clamp. HOT WIRE GROUND WIRE LIVE CABLE NEUTRAL WIRE12 OPERATING INSTRUCTIONS AC/DC VOLTAGE (LESS THAN 1000V) Insert RED test lead into VΩ jack

, and BLACK test lead into COM jack

to the AC/DC voltage V setting. The meter defaults to AC measurement. To measure DC, press the "SEL" button

to toggle between AC and DC modes. The AC or DC icon on the LCD indicates which mode is selected. Note or on the display.

1. Apply test leads to the circuit to be tested to measure voltage.

The meter will auto-range to display the measurement in the most appropriate range. NOTE: If "–" appears on the LCD, the test leads are being applied to the circuit in reverse. Swap the position of the leads to correct this. NOTE: When in a voltage setting and the test leads are open, readings of order mV may appear on the display. This is noise and is normal. By touching the test leads together to close the circuit the meter will measure zero volts. AC/DC LoZ VOLTAGE (LESS THAN 600V)

1. Insert RED test lead into VΩ jack

, and BLACK test lead into COM jack

to the AC/DC LoZ voltage setting. The meter defaults to AC measurement. To measure DC, press the "SEL" button

to toggle between AC and DC modes. The AC or DC icon on the LCD indicates which mode is selected. Note Note or on the display.

2. Apply test leads to the circuit to be tested to measure voltage.

The meter will auto-range to display the measurement in the most appropriate range. Do not attempt to measure voltages greater than 600V in LoZ setting. ENGLISH Black lead Red lead Black lead Red lead13 RESISTANCE MEASUREMENTS

1. Insert RED test lead into VΩ jack

, and BLACK test lead into COM jack

to the Continuity/Resistance/Diode-Test setting. NOTE: The meter defaults to Continuity testing in this mode. Press the "SEL" button

once to enter Resistance testing mode. The Resistance icon will appear on the display.

2. Remove power from circuit.

3. Measure resistance by connecting test leads to circuit. The

meter will auto-range to display the measurement in the most appropriate range. NOTE: When in a Resistance setting and the test leads are open (not connected across a resistor), or when a failed resistor is under test, the display will indicate O.L. This is normal. DO NOT attempt to measure resistance on a live circuit. CONTINUITY

1. Insert RED test lead into VΩ jack

, and BLACK test lead into COM jack

to the Continuity/Resistance/Diode-Test setting. NOTE: The meter defaults to Continuity testing in this mode. Ensure that the Continuity Testing icon is visible on the display. If not, press the "SEL" button

repeatedly until the icon is shown.

2. Remove power from circuit.

3. Test for continuity by connecting conductor or circuit with test

leads. If resistance is measured less than 50Ω, an audible signal will sound and display will show a resistance value indicating continuity. If circuit is open, display will show "OL". DO NOT attempt to measure continuity on a live circuit. OPERATING INSTRUCTIONS Black lead Red lead Black lead Red lead14 ENGLISH OPERATING INSTRUCTIONS DIODE TEST

1. Insert RED test lead into VΩ jack

, and BLACK test lead into COM jack

to the Continuity/Resistance/Diode-Test setting. NOTE: The meter defaults to Continuity testing in this mode. Press the "SEL" button

twice to enter Diode testing mode. The Diode icon will appear on the display.

2. Touch test leads to diode. A reading of 200-800mV on display

indicates forward bias, "OL" indicates reverse bias. An open device will show "OL" in both polarities. A shorted device will show approximately 0mV. FREQUENCY / DUTY-CYCLE

1. Insert RED test lead into VΩ jack

and BLACK test lead into COM jack

to the Frequency/Duty-Cycle setting. NOTE: The meter defaults to Frequency testing in this mode. To enter Duty-Cycle testing mode, press the "SEL" button

once. Ensure that the appropriate icon (either

) appears on the display.

2. Measure by connecting test leads across the circuit.

1. Insert RED test lead into VΩ jack

, and BLACK test lead into COM jack

to the Capacitance setting.

2. Remove power from circuit.

3. Measure capacitance by connecting test leads across the capacitor.

The meter will auto-range to display the measurement in the most appropriate range. Black lead Red lead Black lead Red lead15 TEMPERATURE

1. Insert K-type thermocouple (with adapter) into the VΩ

jacks (observe polarity markings on thermocouple and meter), and rotate function selector switch

once. Ensure that the appropriate icon (either

) appears on the display. NOTE: The meter may be set to default to the Celsius scale by powering-ON the meter from the OFF position with the Data Hold & Backlight button

depressed. To re-set the default to the Fahrenheit scale repeat the power-ON sequence.

2. To measure temperature, make contact between the

thermocouple tip and the object being measured. When thermocouple tip and object are in thermal equilibrium, the measurement on the display will stabilize. The meter will auto- range to display the measurement in the most appropriate range. Remove thermocouple before switching meter to other measurement functions.

he thermocouple included with the original purchase is suitable for temperatures below 356°F / 180°C only. To measure higher temperatures, a K-type thermocouple with the appropriate measurement range should be used.

1. Remove power from circuit.

2. Measure capacitance by connecting test leads across the capacitor.

The meter will auto-range to display the measurement in the most appropriate range. OPERATING INSTRUCTIONS Black lead Red lead RED BLACK K-Type Thermocouple (with adapter) ThermocoupleAdapter16 MAINTENANCE BATTERY REPLACEMENT When indicator is displayed on LCD, batteries must be replaced.

1. Remove screw from battery door.

2. Replace 2 x AAA batteries (note proper polarity).

3. Replace battery door and fasten securely with screw.

o avoid risk of electric shock, disconnect leads from any voltage source before removing battery door. To avoid risk of electric shock, do not operate meter while battery door is removed. CLEANING Be sure meter is turned off and wipe with a clean, dry lint-free cloth. Do not use abrasive cleaners or solvents. STORAGE Remove the batteries when meter is not in use for a prolonged period of time. Do not expose to high temperatures or humidity. After a period of storage in extreme conditions exceeding the limits mentioned in the General Specifications section, allow the meter to return to normal operating conditions before using.

See this product’s page at www.kleintools.com for FCC compliance information. Canada ICES-003 (B) / NMB-003 (B) WARRANTY www.kleintools.com/warranty DISPOSAL / RECYCLE Do not place equipment and its accessories in the trash. Items must be properly disposed of in accordance with local regulations. Please see www.epa.gov/recycle for additional information. CUSTOMER SERVICE KLEIN TOOLS, INC. 450 Bond Street Lincolnshire, IL 60069 1-800-553-4676 [e-mail] www.kleintools.com ENGLISHESPAÑOL
