USER MANUAL FX-CTC850 Fuxtec

Line drawing of a two-wheeled stroller with front panel and wheels (no text or symbols)

Orange icon of a person reading a book (no text or symbols)

Manual\_FX-CTC850\_Int24\_rev1

Inhalt

DEUTSCHE VERSION 5

ENGLISH VERSION....16

VERSION FRANCAISE 26

1. Scope of delivery.... 17
2. Assembly 18
3. Disassembly / Transport....22
4. Use / Care / Maintenance 25

VERSION FRANCAISE 26

Black FUXTEC baby stroller with open rear wheels and canopy cover (no text or symbols visible)

Black stroller with black frame and four wheels, no visible text or symbols

1. Lieferumfang

2x

2x

1x

1x

1x

Line drawing of a wheel with spokes and wheels, no text or symbols present

2x

Technical line drawing of a mechanical gear assembly (no text or symbols)

1x

Technical line drawing of a mechanical gear assembly (no text or symbols)

1x

1x

Line drawing of a rectangular electronic device with a black handle and wheels (no text or symbols)

1x

Simple line drawing of a rectangular device with a handle and arrow indicating rotation (no text or symbols)

Illustration of a mechanical assembly with multiple cylindrical components and mounting holes (no text or symbols)

Manual_FX-CTC850_Int24_rev1

2. Aufbau

Raised Pressed

Technical line drawing of a wheeled vehicle chassis with a foot and gear, showing no text or symbols

Line drawing of a person's leg and foot in a mobility vehicle with attached lock mechanism (no text or symbols)

Technical line drawing of a wheeled cart with wheels and overhead-mounted sensors (no text or symbols)

Illustration of a four-wheeled cart with blue directional arrows indicating rotation or movement (no text or symbols)

Mechanical assembly diagram showing linkage components and motion arrows (no text or labels)

Mechanical assembly diagram showing a rotating arm and a close-up of a mechanical component with a blue arrow indicating rotation (no text or symbols present)

Technical line drawings of a robotic vehicle chassis and its connected mechanical framework (no text or symbols)

Diagram showing a vehicle chassis before and after assembly, with no visible text or symbols

Original user manual FUXTEC folding wagon

CTC-850

Black and white photo of a FUXTEC baby stroller with wheels and canopy (no text or symbols visible)

Black stroller with four wheels and adjustable arms, no visible text or symbols

5. Scope of delivery

Line drawing of a rectangular electronic device with a scroll wheel (no text or symbols)

1x

Simple line drawing of a rectangular device with a scroll wheel and directional arrow (no text or symbols)

Illustration of a mechanical assembly with multiple cylindrical components and mounting holes (no text or symbols)

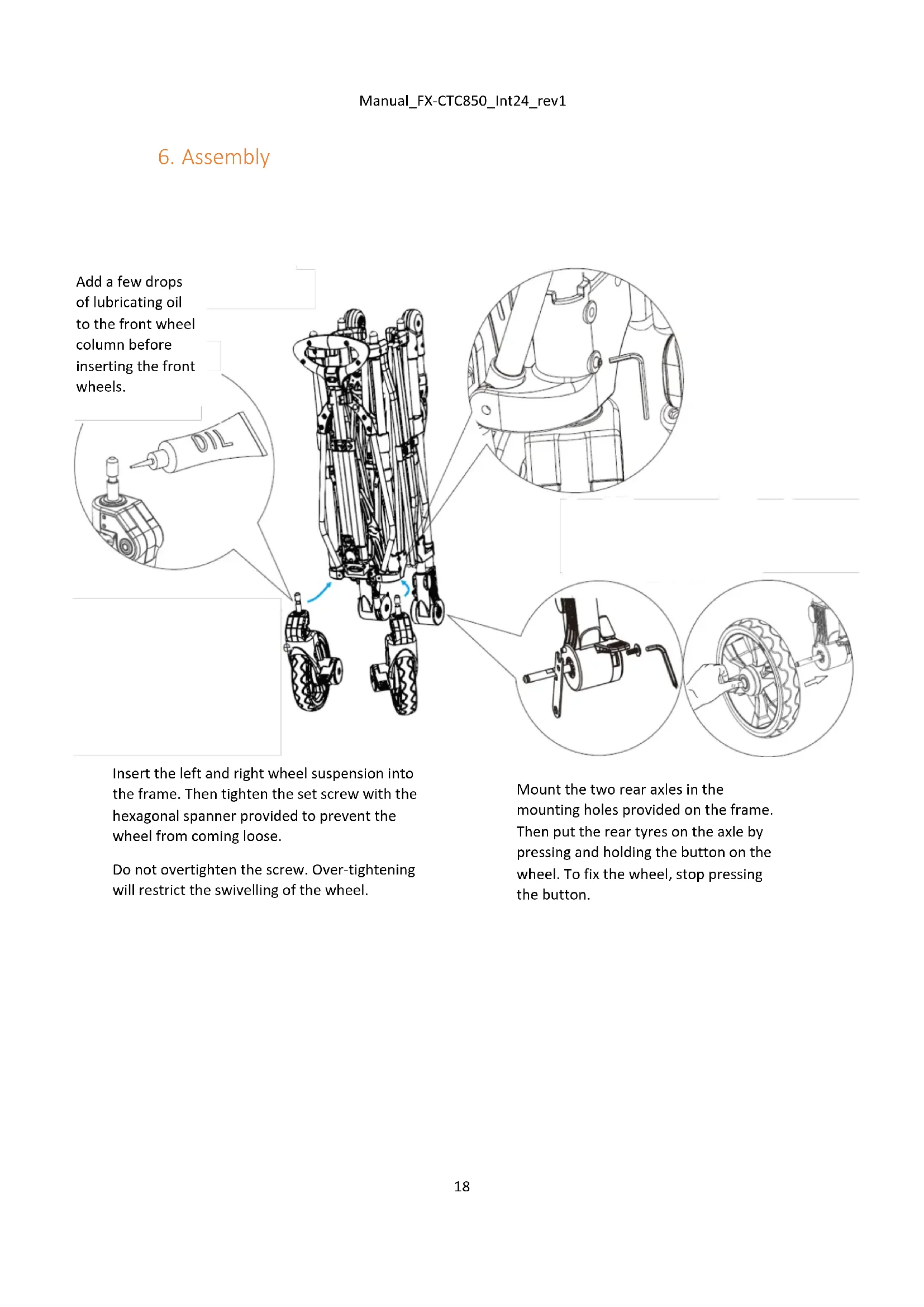

6. Assembly

Add a few drops of lubricating oil to the front wheel column before inserting the front wheels.

Insert the left and right wheel suspension into the frame. Then tighten the set screw with the hexagonal spanner provided to prevent the wheel from coming loose.

Do not overtighten the screw. Over-tightening will restrict the swivelling of the wheel.

Mount the two rear axles in the mounting holes provided on the frame. Then put the rear tyres on the axle by pressing and holding the button on the wheel. To fix the wheel, stop pressing the button.

To be able to unfold the wagon, first loosen the retaining clip.

Make sure that the locking button of the push handle is pressed before unfolding to avoid damage.

Raised Pressed

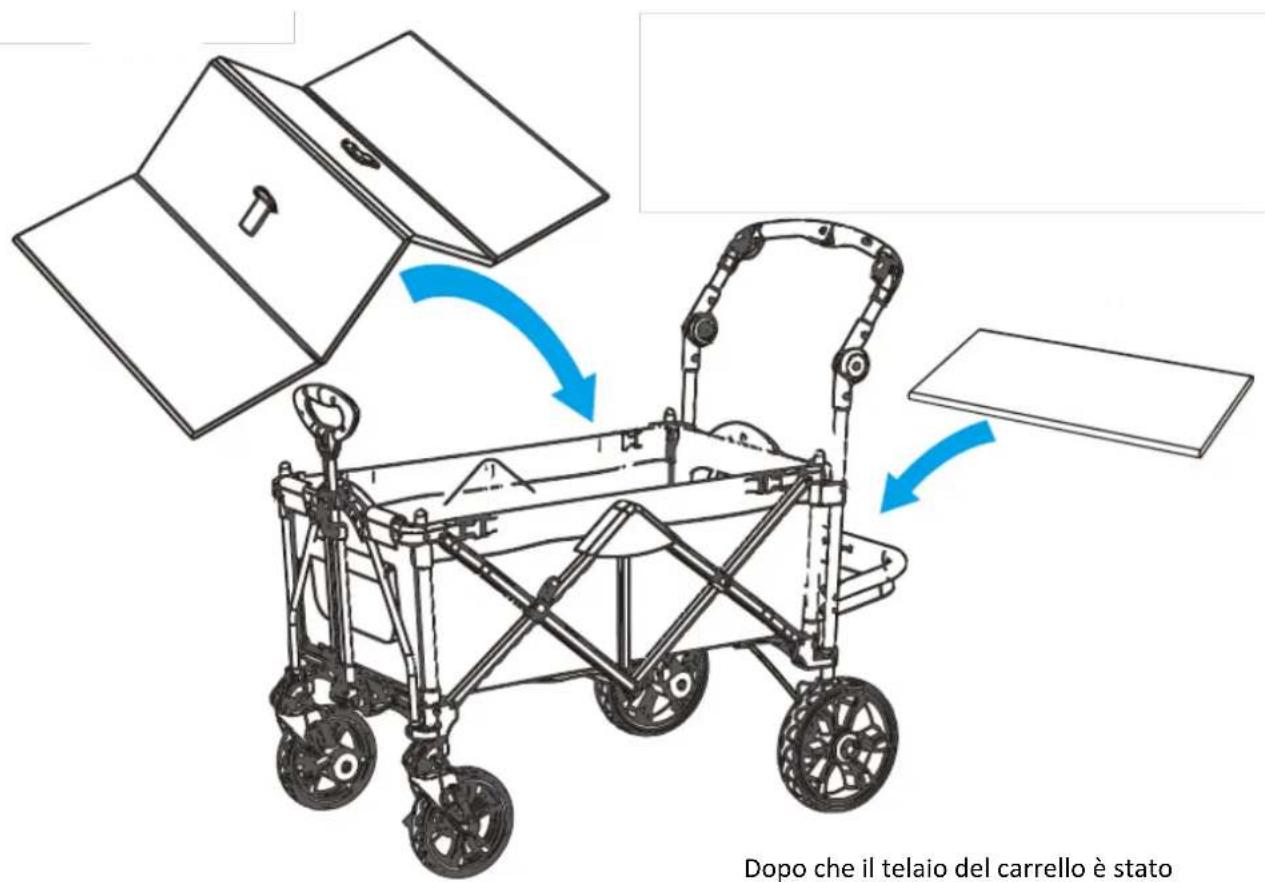

After the wagon frame has been fully unfolded, place the wagon shelves in the designated places to increase stability.

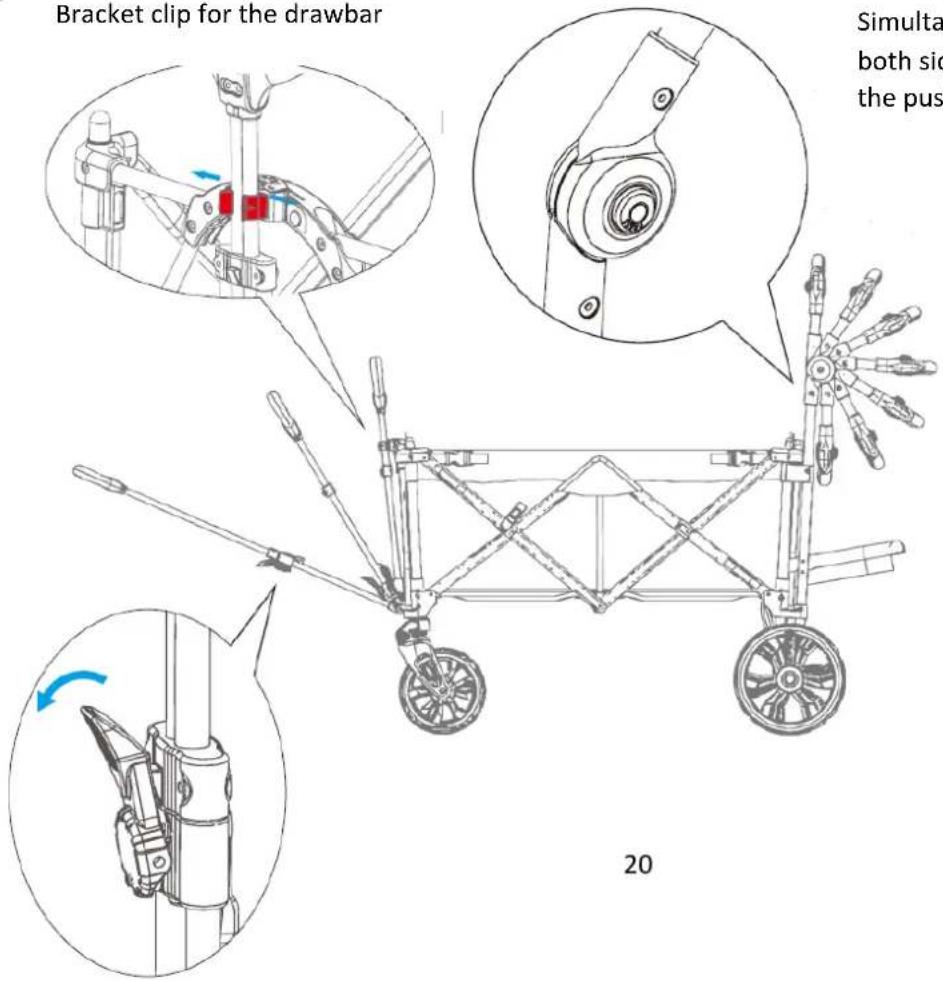

Bracket clip for the drawbar

Bracket clip for the drawbar Simulta both sid the pus 20

Simultaneously press the buttons on both sides to adjust the height of the push handle.

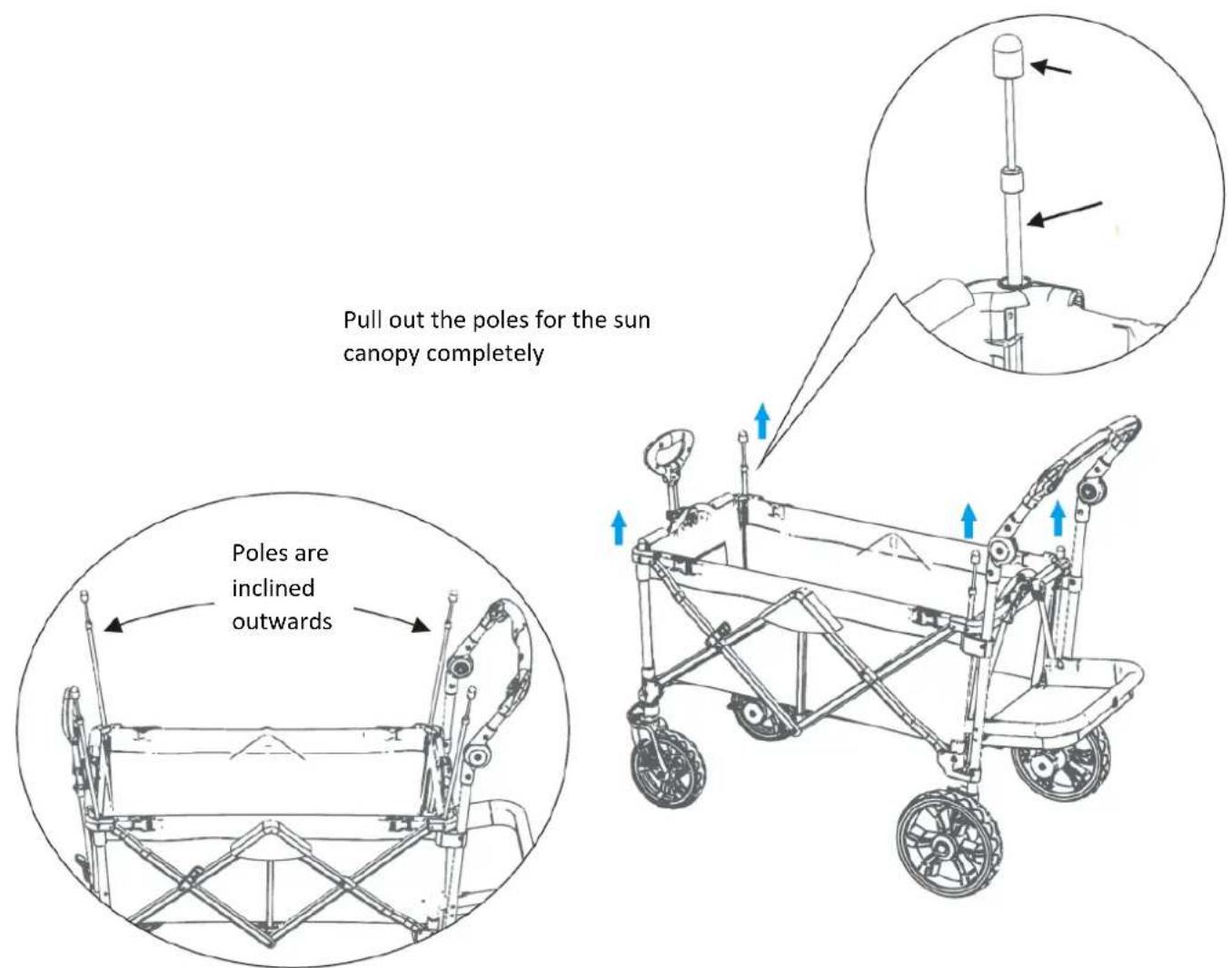

Pull out the poles for the sun canopy completely Poles are inclined outwards

Mount the sun canopy. To do this, carefully bend the poles of the canopy inwards.

The sun canopy is also kept under tension by the tension of the poles.

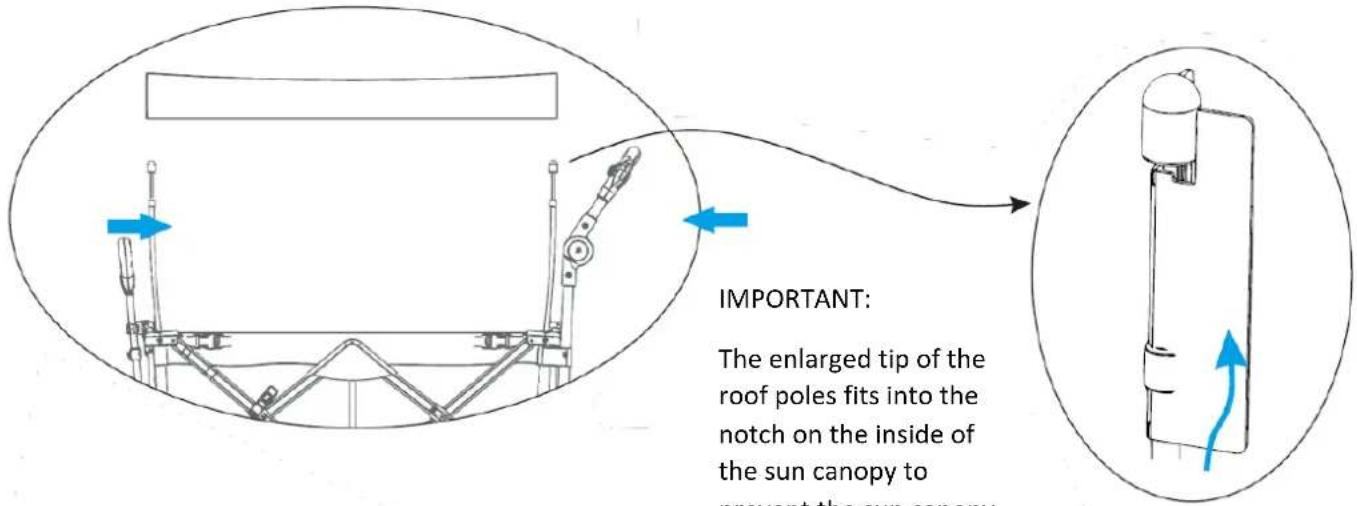

IMPORTANT: The enlarged tip of the roof poles fits into the notch on the inside of the sun canopy to prevent the sun canopy.

21 from slipping off.

Technical line drawing of a wheeled vehicle chassis with a foot and gear, showing no text or symbols

To activate the rear brakes (on both sides), press the brake lever on the left rear wheel with your foot.

To release the brakes, simply lift the lever with your foot!

Line drawing of a person's foot and legs in a bicycle-like structure with no text or symbols

To activate the front brakes (on both sides), press the brake lever on the respective front wheel with your foot.

To release the brakes, simply lift the lever with your foot!

1. Disassembly / Transport


Technical line drawing of a wheeled cart with wheels and control panel, showing three blue arrows pointing downward (no text or symbols present)

Hold the roof poles carefully and bend them slightly inwards. Now the roof is no longer under tension and you can carefully remove it. Then push the poles down into the frame as far as they will go.

Illustration of a Mars rover with blue directional arrows indicating rotational motion (no text or symbols)

Remove the respective shelves and stow them in the side pockets of the wagon.

Technical line drawing of a vehicle chassis frame with no visible text or symbols

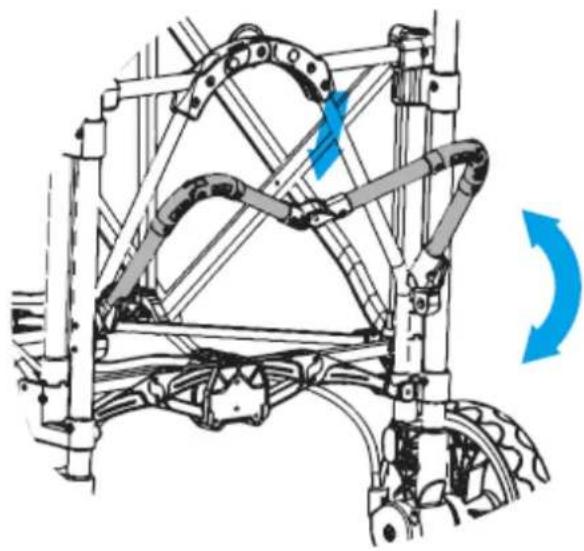

Start by folding the interior extension inwards so that it does not cause resistance when folding the wagon frame.

If this step is not carried out, the wagon may be damaged during folding due to the resistance.

Mechanical assembly diagram showing a rotating arm and a close-up of a mechanical component with a blue arrow indicating rotation (no text or symbols present)

Press the buttons on both sides of the push handle and start folding it inwards.

Technical line drawings of a robotic vehicle chassis and its connected mechanical framework (no text or symbols)

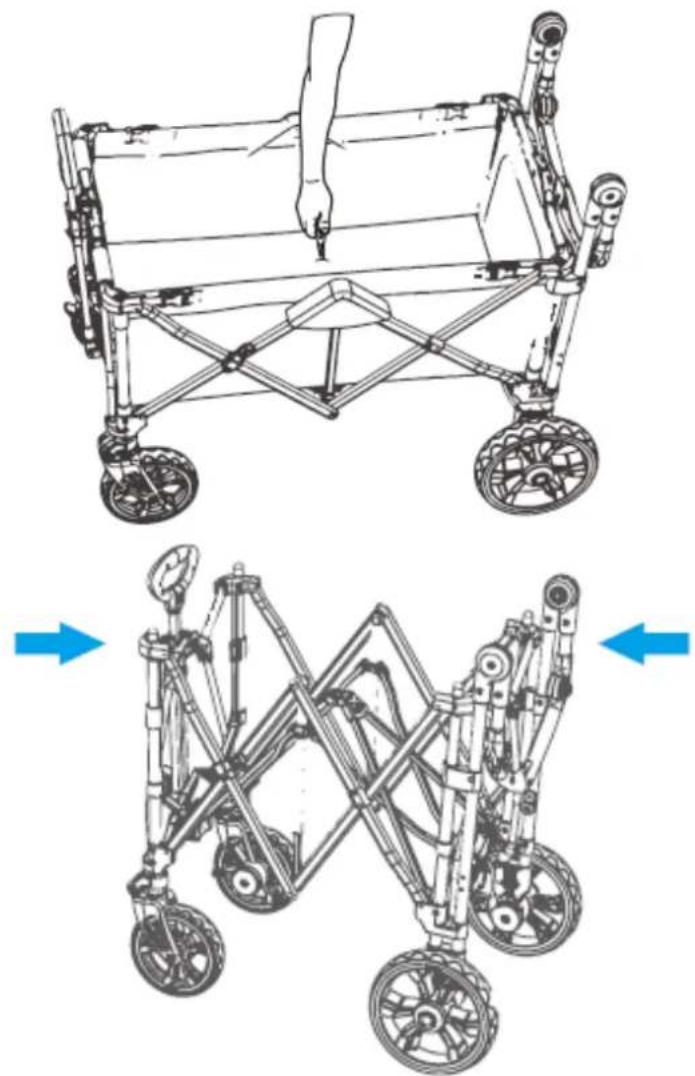

Pull the tab in the middle of the wagon floor straight up.

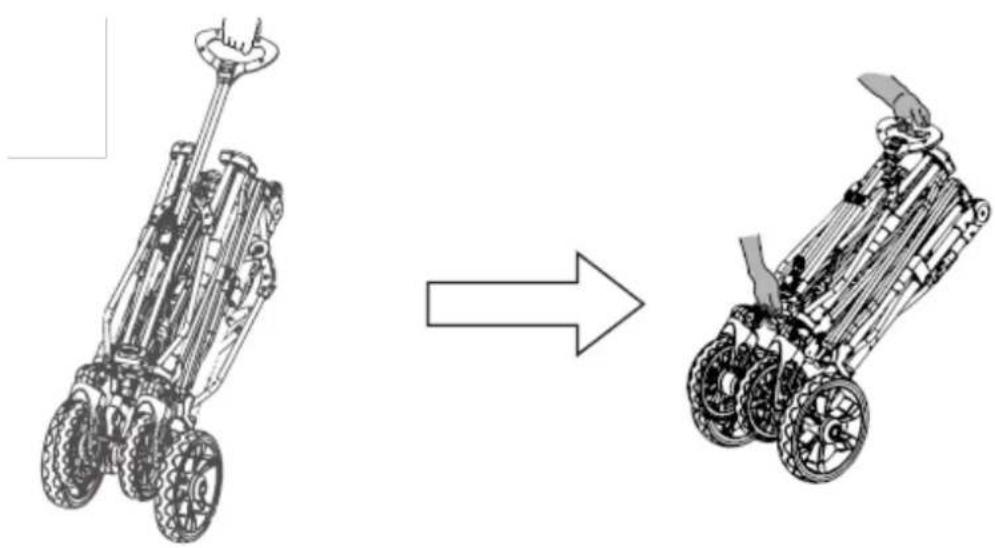

Then press all four corners of the wagon together. When the wagon is completely folded, secure it in the folded position using the retaining clip.

Diagram showing a vehicle chassis before and after assembly, with no visible text or symbols

With the help of the extended drawbar, the wagon can be pulled without any problems. To lift the wagon, please hold it by the frame and the handle of the drawbar.

8. Use / Care / Maintenance

1. Check your wagon and its accessories regularly for damage and wear. Check the fabric regularly for tears, chafing or other signs of damage. Check metal parts for dents or cracks. If parts are damaged, do not use the product. Check for bent, broken, missing or loose fasteners. Tighten any loose fasteners and replace any broken or missing fasteners.
2. Wash this product regularly with warm water and a mild soap solution. Do not use harsh cleaners or solvents.
3. Clean the wheel axle and apply lubricating oil. Check and service it at least once a year.
4. Store this product in a cool, dry place and protect it from direct sunlight.
5. Do not exceed the maximum load of 75kg.
6. Do not tow the wagon behind bicycles or motor vehicles.
7. Do not use the wagon near hot food to avoid soiling or damaging the fabric.
8. Do not exceed the 3 kg load capacity of the foot extension.
9. Do not use stairs or escalators.
10. Do not leave children unattended in the wagon. Always use the brakes when the wagon is not moving.
11. To avoid crushing hazards, do not allow children to fold or unfold the wagon without adult supervision.
12. Do not use child car seats or other third party seating devices.
13. Do not modify the structure and function of the pushchair. The modification creates the risk of destabilisation.
14. Apply the wheel brakes before loading or unloading children or cargo or releasing the handles.
15. The CTC800 is not a substitute for a pushchair. Children transported in the wagon must be able to sit independently. Seat belts are recommended for children under 3 years of age.
16. Never lean on or apply excessive pressure to the push handle at the rear of the pushchair. Exert excessive pressure on the push handle. This handle is a comfort handle and cannot be compared to the handling of a pushchair.
17. Do not stand or step on the rear shelf to climb into the pushchair.
18. The warranty does not cover damage caused by accidents, misuse, normal wear and tear, or third-party parts and accessories.
19. Make sure that the trolley is assembled correctly before use.
20. Before use, make sure that all locking devices are correctly engaged or disengaged.
21. Do not sit on the side walls to avoid the risk of tipping over.
22. Please read this information carefully before use and keep the instructions in a safe place.
