Product type	Transport cart for children and objects
Brand	Fuxtec
Model	FX-CT800
Maximum load capacity	75 kg (objects) / 2 children (3-6 years)
Recommended child age	3 to 6 years
Cart weight (approx.)	13 kg
Unfolded dimensions (L x W x H, approx.)	100 x 60 x 85 cm
Fabric canopy	Included, removable
Interior extension	Included, clip-on
Push handle	Included
Rear basket	Integrated, max load 3 kg
Maximum load on extension	2 kg
Main material	Fabric and metal frame
Cleaning	Damp cloth; cover hand-washable, no detergent
Safety	Safety belt, parking brake, folding lock
Optional accessories	Mattress, rain cover, sun protection, belt, cooler bag
Warranty	According to conditions, starts on purchase date
Customer service	FUXTEC GmbH, [e-mail]

Frequently Asked Questions - FX-CT800 Fuxtec

What is the maximum weight the FX-CT800 cart can carry?

The cart can carry up to 75 kg of objects or up to 2 children aged 3 to 6 years.

How to clean the cart?

Clean the fabric with a damp cloth without detergent. The fabric cover is hand-washable only, not machine washable.

Is the cart foldable?

Yes, the cart folds easily. Before folding, remove the interior extension to avoid damaging the fixtures.

How to install the fabric canopy?

Remove the carbon rods from the frame corners, place the canopy on the mounting rail with the tip in the plastic corner reinforcements, then secure the 4 corners.

Does the cart have a brake?

Yes, the FX-CT800 is equipped with a parking brake operated by a pedal. Activate it when the child gets on or off.

Can I use the cart for jogging?

No, the cart is designed for walking use on flat surfaces. It is not suitable for running or rough terrain.

Where to buy additional accessories?

Accessories (mattress, rain cover, etc.) are available on the fuxtec.fr website under the section Accessories for folding carts.

What is the warranty period?

The warranty starts on the purchase date. Keep the proof of purchase. It does not cover wear parts or damage due to improper use.

Can I transport hot objects in the cart?

No, the cart is not suitable for transporting hot objects (food from the oven, hot drinks, etc.) due to the risk of damage.

How to contact customer service?

Contact FUXTEC GmbH by email at [e-mail] or by phone at 070329560888. For warranty returns, first contact customer service.

USER MANUAL FX-CT800 Fuxtec

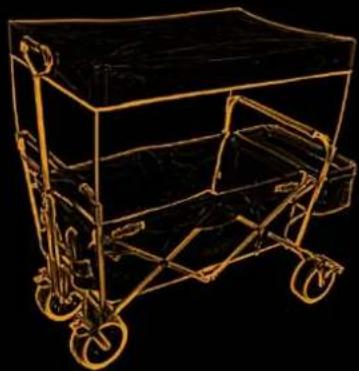

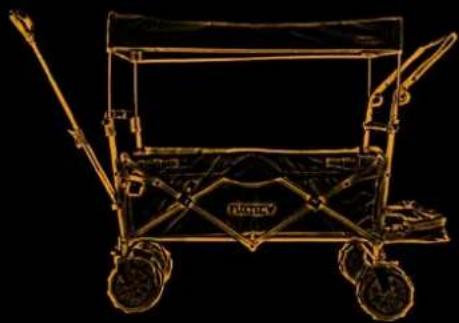

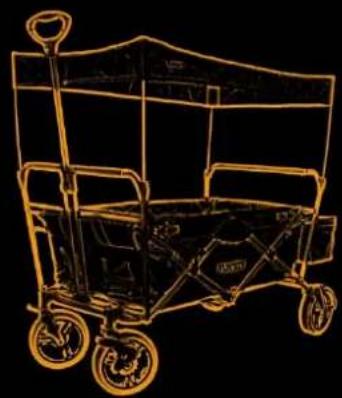

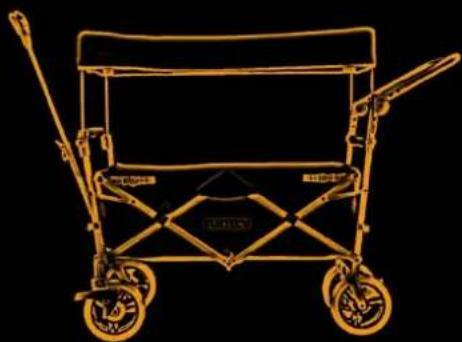

Line drawing of a four-wheeled cart with handle and wheels (no text or symbols)

Line drawing of a four-wheeled cart with attached suspension and handlebars (no text or symbols)

Line drawing of a four-wheeled cart with wheels and handle, no text or symbols present

Line drawing of a wireframe cart with wheels and handle, no text or symbols present

Illustration of a vintage-style yellow wheeled cart with wheels and handlebars (no text or symbols)

Orange icon of a person reading a book (no text or symbols)

Deutsch....7

English Version....16

1. Introduction and safety....16
2. Scope of delivery....16
3. Instructions and product information....17
4. Instructions for regular inspection, maintenance and cleaning ....18
5. Safety instructions....18
6. Assembly instructions....21
7. Optional accessories for FUXTEC handcarts 23
8. General description....24
9. Warranty....24
10. Disposal....24
11. Customer 24
12. Copyright 25

Close-up of hands adjusting a black fabric item (no visible text or symbols)

Close-up of a person wearing a black ergonomic chair with a curved arm and arrow pointing to the arm (no text or symbols visible)

Close-up of hands handling a dark object with visible wires (no text or symbols)

Close-up of a hand holding a thin black tool, possibly a pen or measuring tool, against a plain background (no text or symbols visible)

Close-up of a fabric or carpet with a metal object inserted, no visible text or symbols

Close-up of a structural joint or bracket with vertical metal bars (no text or symbols visible)

Close-up of a hand holding a pen over a dark fabric sheet (no visible text or symbols)

Exterior view of a modern modular childcare wagon with wheels and a flat roof (no text or symbols visible)

Achtung

Top-down view of a gray and orange medical or emergency device with attached equipment (no visible text or symbols)

Blue plastic cylindrical component with multiple compartments and mounting holes (no visible text or symbols)

Black and white photo of a four-wheeled baby care cart with a metal handle and wheels (no visible text or symbols)

Red and black children's stroller with transparent cover, no visible text or symbols

Orange and black safety harness with loop handle (no text or symbols visible)

Blue and gray plastic bag with 'FUNTEC' branding, no visible text or symbols on the bag itself

13. INTRODUCTION AND SAFETY

General information

Read this original instruction manual carefully before using the product for the first time and follow all instructions. Keep the document in a safe place for future reference or for subsequent owners. Familiarise yourself with the functions and proper use of the product. Observe all safety instructions listed in the service manual. Always act responsibly and considerably towards third parties. The operator is responsible for accidents or hazards caused to third parties.

14. SCOPE OF DELIVERY

(1) Child transport trolley
(2) Fabric roof (depending on model*)
(3) Interior extension (depending on model**)

	*Fabric roof	**Interior extension
FX-CT100	×	×
FX-CT350	√	×
FX-CT500	√	×
FX-CT700	√	×
FX-CT800	√	√
FX-CTB800	√	√

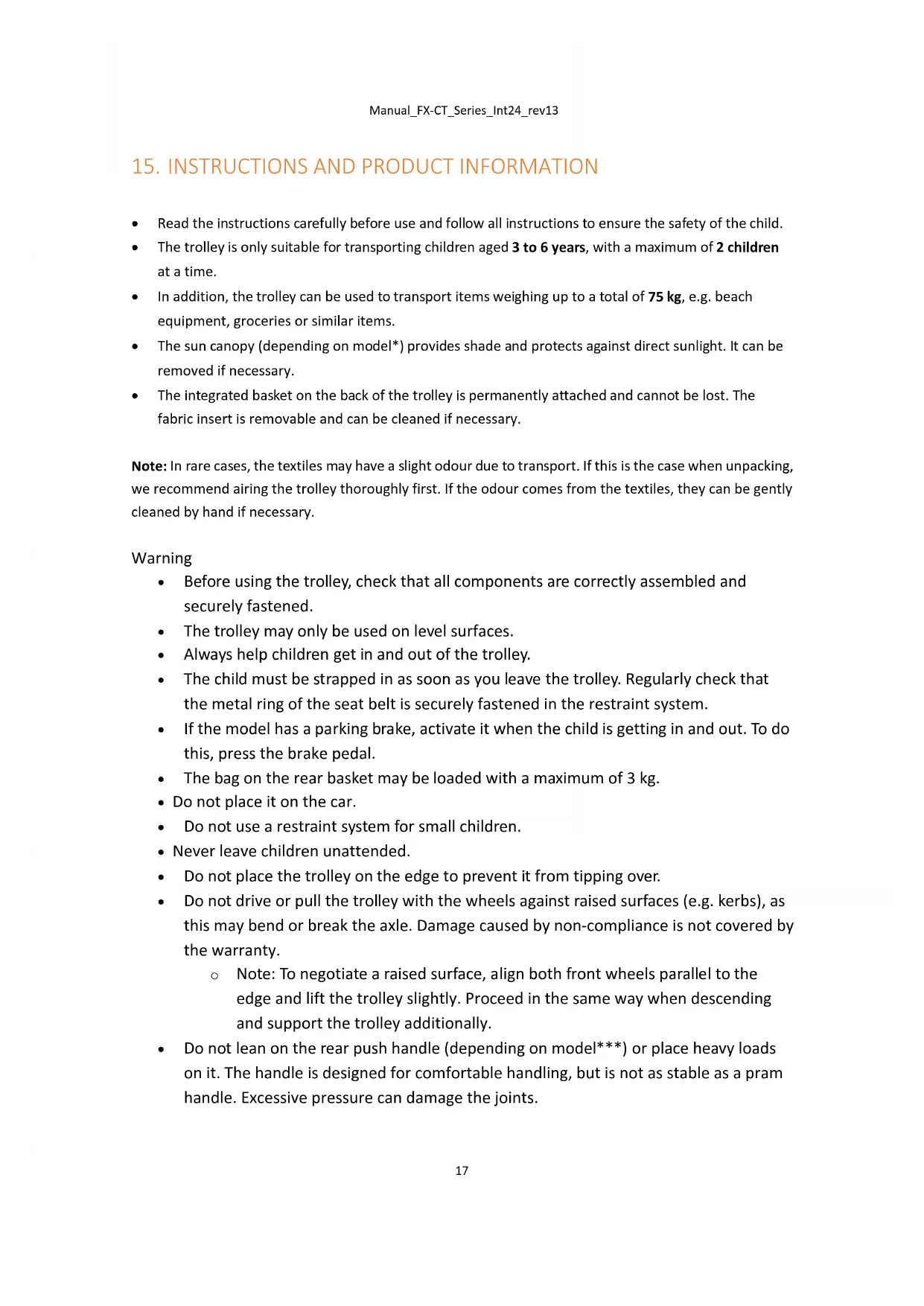

15. INSTRUCTIONS AND PRODUCT INFORMATION

• Read the instructions carefully before use and follow all instructions to ensure the safety of the child.
• The trolley is only suitable for transporting children aged 3 to 6 years, with a maximum of 2 children at a time.
• In addition, the trolley can be used to transport items weighing up to a total of 75 kg, e.g. beach equipment, groceries or similar items.
• The sun canopy (depending on model*) provides shade and protects against direct sunlight. It can be removed if necessary.
• The integrated basket on the back of the trolley is permanently attached and cannot be lost. The fabric insert is removable and can be cleaned if necessary.

Note: In rare cases, the textiles may have a slight odour due to transport. If this is the case when unpacking, we recommend airing the trolley thoroughly first. If the odour comes from the textiles, they can be gently cleaned by hand if necessary.

Warning

• Before using the trolley, check that all components are correctly assembled and securely fastened.
• The trolley may only be used on level surfaces.
  • Always help children get in and out of the trolley.
• The child must be strapped in as soon as you leave the trolley. Regularly check that the metal ring of the seat belt is securely fastened in the restraint system.
• If the model has a parking brake, activate it when the child is getting in and out. To do this, press the brake pedal.
• The bag on the rear basket may be loaded with a maximum of 3 kg.

- Do not place it on the car.

- Do not use a restraint system for small children.

- Never leave children unattended.

- Do not place the trolley on the edge to prevent it from tipping over.

- Do not drive or pull the trolley with the wheels against raised surfaces (e.g. kerbs), as this may bend or break the axle. Damage caused by non-compliance is not covered by the warranty.

Note: To negotiate a raised surface, align both front wheels parallel to the edge and lift the trolley slightly. Proceed in the same way when descending and support the trolley additionally.

- Do not lean on the rear push handle (depending on model*** ) or place heavy loads on it. The handle is designed for comfortable handling, but is not as stable as a pram handle. Excessive pressure can damage the joints.

- The interior extension (depending on model**) is clipped onto the outside of the frame and is not suitable for storing bags or similar items. Weights over 2 kg can damage the fastenings and should therefore be avoided.

	*Fabric roof	**Interior extension	***Push handle
FX-CT100	×	×	×
FX-CT350	√	×	×
FX-CT500	√	×	×
FX-CT700	√	×	√
FX-CT800	√	√	√
FX-CTB800	√	√	√

16. INSTRUCTIONS FOR REGULAR INSPECTION, MAINTENANCE AND CLEANING

To clean the child transport trolley, please first remove any coarse dirt or foreign objects and then clean the fabric with a damp cloth.

Please do not use cleaning agents or other chemicals to clean the product. The fabric cover is not machine washable – it can only be washed by hand.

17. SAFETY INSTRUCTIONS

Safety instructions

(in accordance with EU Regulation 2023/988 – General Product Safety Regulation)

Please read these safety instructions carefully before using the device for the first time and keep them for future reference. Failure to observe these instructions may result in injury or damage to property.

1. General safety

• Use the handcart exclusively for its intended purpose: transporting objects and/or – if expressly permitted – children in accordance with the manufacturer's instructions.
• Caution: This product is not suitable for attachment or fastening to a bicycle or motorised vehicle.
  • The handcart may only be moved or controlled by an adult and responsible person.
  • Assembly must only be carried out by adults.
  • Never exceed the maximum load capacity of 75 kg.

2. Mechanical and physical safety

2.1 Stability

- Load the handcart in such a way that it cannot tip over to the side or backwards.

- Ensure that the load is evenly distributed to ensure stability when pulling or pushing.

2.2 Load capacity and strength

• Only use the handcart if it can carry the weight stably and without permanent deformation.
• Avoid driving over very uneven surfaces with excessive loads.

2.3 Durability of wheels and axles

• Before each use, make sure that the wheels and axles are secure and undamaged.
• Check that the wheels cannot come loose from the axles accidentally during transport.
• Only use the hand truck on suitable surfaces and avoid extreme loads on the wheels.

2.4 Safety of folding mechanisms and hinges

• Caution: There is a risk of fingers and hands getting caught in the frame when folding and unfolding the trolley – keep hands and fingers away from moving parts.
• Ensure that the folding and locking mechanisms are fully engaged before loading or moving the trolley.
  • Regularly check that the brakes and locks hold reliably under load.

2.5 Protection against injury from sharp edges

• Only use the hand truck if all corners and edges are smooth or protected.
• Check that screws, nuts or other fasteners are covered so that there is no risk of injury.
• Ensure that moving parts are equipped with finger guards.

3. Child and personal safety

If the handcart is intended for transporting children:

• Never leave children unattended in or on the handcart.
• Secure children with the safety belt provided (if available).
• Do not use on stairs, in lifts or on slopes.
  • Children must not use the handcart for playing or climbing.
• Warning: If the product is attached to a vehicle contrary to the safety instructions, ensure that children are adequately protected and secured.

4. Operation & use

• Only use the handcart on level, firm ground.
• Avoid use on steep slopes (risk of tipping and rolling away).
• Load evenly to prevent instability.
• Pull or push at a controlled speed.
• The trolley is not suitable for transporting hot items such as food straight from the oven, hot drinks, pans, grills or hotplates.

5. Technical condition & maintenance

- Before each use, perform a functional check of all moving parts, tyres, brakes (if fitted) and locks.

• Replace defective or loose parts immediately or have them repaired.
• Only carry out maintenance and repairs in accordance with the manufacturer's instructions.

6. Storage & transport

• Store the handcart in a dry and clean place to prevent damage to the material and mould.
• Remove loose parts and objects from the handcart before transport.

7. Additional information according to GPSR

• These instructions contain all the information necessary for safe use.
- Improper use or failure to follow these instructions may result in injury.
- Dispose of damaged parts or the entire handcart properly to prevent danger to third parties.

18. ASSEMBLY INSTRUCTIONS

Close-up of hands holding a black fabric item (no visible text or symbols)

Step 1: Open the Velcro fasteners on the transport bag and ensure that the front and rear carrying handles are not caught in each other.

Close-up of a black mechanical device with a black arrow pointing to a component (no visible text or symbols)

(Optional for certain models, e.g. CT500)

Please unlock the black or red clip on the side before opening.

Failure to unlock may result in breakage.

Pull the clip and then unfold the hand truck.

Close-up of hands handling a dark object with visible wear and a small mark (no text or symbols)

Step 2: Pull the front and rear frame profiles apart and unfold the trolley to reach its fully extended position.

Close-up of a hand holding a tool, possibly a cutting or wire, against a plain background (no text or symbols visible)

Step 3: (optional): If you wish to use the roof (depending on model*), pull the carbon struts out of the frame at the corners.

Close-up of a metal object inserted into a cloth-like material, no visible text or symbols

Step 4: Place the roof over the top of the extended mounting bar provided for this purpose, with the end cap in the cut-out section of the plastic corner reinforcements. Do not use any additional support parts inside the plastic corner reinforcements.

Close-up of a wooden frame structure with vertical supports and a central rod (no text or symbols visible)

Step 5: (view from inside the roof) Secure all 4 corners of the hood.

Note: The plastic corner reinforcements are located on the inside of the cover.

Close-up of a hand holding a pen over a dark fabric or paper sheet (no visible text or symbols)

Step 6: Fold the trolley as follows:

If extended, push the roof frame back into the mechanism. Pull the loop inside the trolley upwards and fold the trolley together. Fasten the Velcro fastener to the frame.

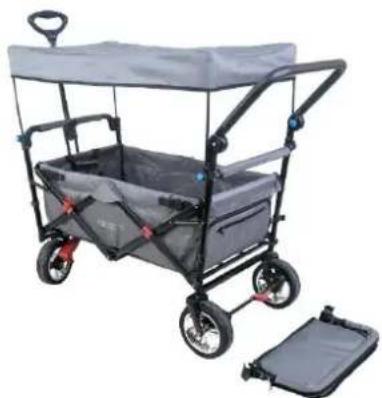

Exterior view of a modern modular childcare wagon with wheels and a matching case (no text or symbols visible)

Caution

Please remove the interior extension (depending on model**) from your handcart before folding it up. Otherwise, the extension's retaining devices will be damaged.

19. OPTIONAL ACCESSORIES FOR FUXTEC HANDCARTS

Top-down view of a portable electric vehicle with orange and gray casing (no text or symbols visible)

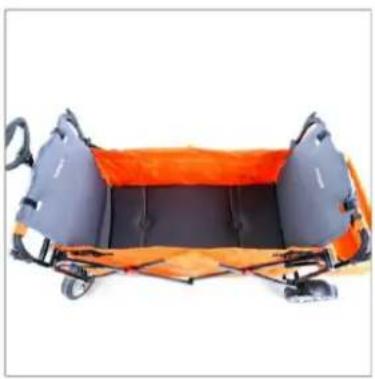

Short and long mats (available for all CT500 and CT700 models)

Blue plastic cylindrical component with multiple side slots and mounting holes (no visible text or symbols)

Illustration of a red and black children's cart with wheels and a handle, no text or symbols visible.

Black and white photo of a four-wheeled baby stroller with a transparent canopy cover (no visible text or symbols)

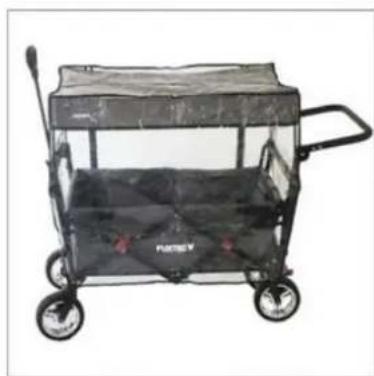

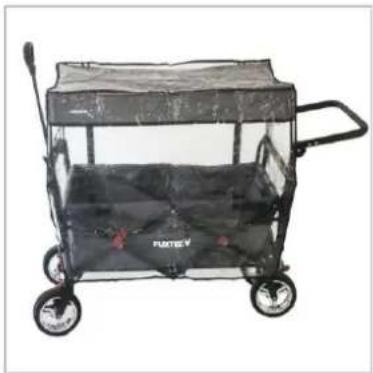

Transparent rain cover (available for CT500, CT700 + CT800)

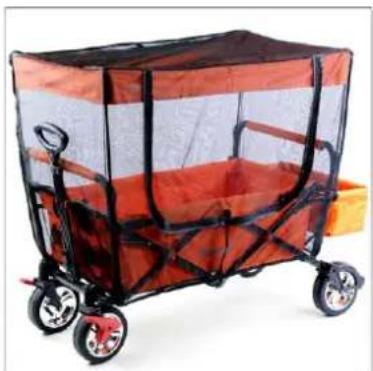

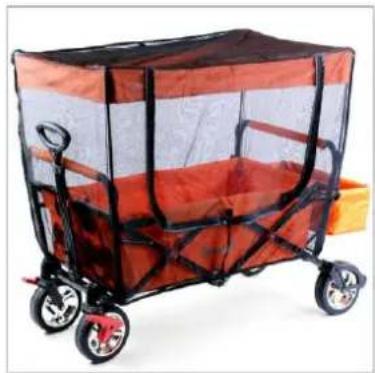

Sun protection and mosquito net (available for CT500, CT700 + CT800)

Orange and black safety harness with loop handle (no text or symbols)

Seat belts in different colours (available for all models)

Blue Fijitec-style bag with black handle and 'FUKTECV' logo (no additional text or symbols)

Thermic bags in different colours (available for all models)

20. GENERAL DESCRIPTION

Item number	Item description
FX-CT100	FUXTEC folding wagon FX-CT100
FX-CT350	FUXTEC folding wagon FX-CT350
FX-CT500	FUXTEC folding wagon FX-CT500
FX-CT700	FUXTEC folding wagon FX-CT700
FX-CT800	FUXTEC folding wagon FX-CT800
FX-CTB800	FUXTEC folding wagon beach FX-CTB800

21. WARRANTY

The warranty period begins on the date of purchase. Please keep the proof of purchase in a safe place. The warranty does not cover wear and tear parts and does not apply to damage caused by improper use, improper handling, the use of force, technical modifications, the use of unauthorised accessories or spare parts, or repair attempts by unauthorised persons. Warranty work may only be carried out by authorised specialist companies or service partners. These conditions apply in addition to the statutory warranty rights, which may vary from country to country.

22. DISPOSAL

The packaging material consists mainly of recyclable materials. Please dispose of all packaging components in accordance with local waste separation regulations. By recycling the packaging, you are making a valuable contribution to environmental protection and the sustainable use of resources.

23. CUSTOMER

If you have any questions about warranty, repairs or spare parts, please contact:

FUXTEC GmbH

Kappstraße 69

71083 Herrenberg

Germany

Phone: [phone]

Email: [e-mail]

Note: Please do not send any returns or repairs to this address. For returns under warranty, please contact our customer service.

24. COPYRIGHT

All rights reserved. The contents of this manual are protected by copyright. Their use is permitted within the scope of operation. Any further use or reproduction is not permitted without the written consent of FUXTEC GmbH. FUXTEC GmbH reserves the right to make changes to this operating manual without prior notice.

VERSION FRANÇAISE

25. INTRODUCTION ET SÉCURITÉ

Remarques générales

Close-up of hands adjusting a black fabric item (no visible text or symbols)

Close-up of a person wearing a black ergonomic device with a curved arm and a black arrow pointing to a detail (no visible text or symbols)

Close-up of hands handling a dark mechanical component (no visible text or symbols)

Close-up of a hand holding a tool, possibly a cutting or wire, with no visible text or symbols.

Close-up of a metal object inserted into a cloth-like material, no visible text or symbols

Close-up of a wooden frame structure with vertical supports and a central rod (no text or symbols visible)

Close-up of a hand holding a pen over a dark fabric or paper sheet (no visible text or symbols)

Exterior view of a modern modular childcare wagon with wheels and a canopy (no text or symbols visible)

Attention

Interior view of a vehicle chassis with orange and blue components (no visible text or symbols)

Blue plastic cylindrical component with multiple side slots and mounting holes (no text or symbols visible)

Exterior view of a four-wheeled baby care cart with a metal frame and handle (no visible text or symbols)

Exterior view of a red and black transparent children's cart with wheels (no text or symbols visible)

Orange and black weightlifting belt with loop handle (no text or symbols)

Blue FijiTech bag with black handle and logo (no visible text or symbols on body)

Simple line drawing of a two-hinged cart or container with handles (no text or symbols)

ÉLÉMENTS D'EMBALLAGE À SÉPARER ET À DÉPOSER DANS LE BAC DE TRI

35. SERVICE CLIENT

Close-up of hands adjusting a black fabric item (no visible text or symbols)

Close-up of a person wearing a black ergonomic device with a curved arm and arrow indicator (no text or symbols)

Close-up of hands handling a dark object with visible wear and a small mark (no text or symbols)

Close-up of a hand holding a tool, possibly a cutting or wire, against a plain background (no text or symbols visible)

Close-up of a metal tool inserted into a cloth-like material, no visible text or symbols

Close-up of a wooden frame structure with vertical supports and a central rod (no text or symbols visible)

Close-up of a hand holding a pen over a dark fabric or garment (no visible text or symbols)

Exterior view of a modern outdoor wagon with a gray canopy and two wheels (no text or symbols visible)

Attenzione

Top-down view of a portable electric vehicle with orange canopy and blue side panels (no text or symbols visible)

Blue plastic cylindrical device with segmented panels and mounting holes (no visible text or symbols)

Black and white photo of a four-wheeled toy cart with a handle and wheels (no visible text or symbols)

Cartoon-style orange and black children's cart with wheels, no visible text or symbols

Orange and black safety belt device with black straps (no text or symbols visible)

Blue FijiTech bag with black handle and logo (no visible text or symbols on body)

Close-up of hands adjusting a black fabric item (no visible text or symbols)

Close-up of a person wearing a black ergonomic device with a curved arm and arrow indicator (no text or symbols)

Close-up of hands handling a dark mechanical component (no visible text or symbols)

Close-up of a hand holding a tool, possibly a cutting or wire, with no visible text or symbols.

Close-up of a metal object inserted into a cloth-like material, no visible text or symbols

Close-up of a structural joint or bracket with vertical metal bars (no text or symbols visible)

Close-up of a hand holding a pen over a dark fabric sheet (no visible text or symbols)

Exterior view of a modern outdoor wagon with a gray canopy and two side compartments (no text or symbols visible)

Atención

Top-down view of a portable electric scooter with orange back cover and blue side panels (no text or symbols visible)

Blue plastic cylindrical device with segmented panels and mounting holes (no visible text or symbols)

Black and white photo of a four-wheeled outdoor cart with a handle and wheels (no visible text or symbols)

Illustration of a red and black children's cart with wheels and a handle, no text or symbols visible.

Orange and black safety harness with loop handle (no text or symbols)

Blue Fiji 30-wheeled bag with black handle and 'FUKTECY' logo (no additional text or symbols visible)

Close-up of hands adjusting a black fabric item (no visible text or symbols)

Close-up of a person wearing a black ergonomic device with a curved arm and arrow indicator (no text or symbols)

Close-up of hands handling a dark mechanical component (no visible text or symbols)

Close-up of a hand holding a tool, possibly a cutting or wire, with no visible text or symbols.

Close-up of a metal object inserted into a cloth-like material, no visible text or symbols

Close-up of a wooden frame structure with vertical supports and a central rod (no text or symbols visible)

Close-up of a hand holding a pen over a dark fabric or paper sheet (no visible text or symbols)

Exterior view of a modern modular childcare wagon with wheels and a canopy (no text or symbols visible)

Atenção

Top-down view of a gray and orange inflatable boat with wheels and equipment (no text or symbols visible)

Blue plastic cylindrical device with multiple compartments and mounting holes (no visible text or symbols)

Black and white photo of a four-wheeled baby stroller with a metal frame and handle (no visible text or symbols)

Illustration of a red and black children's cart with wheels and a handle, no text or symbols visible.

Orange and black safety harness with loop handle (no text or symbols)

Blue and gray plastic bag with 'FUXTEC' branding, no visible text or symbols on the bag itself

78. OPBOUWINSTRUCTIES

Close-up of hands holding a black fabric item (no visible text or symbols)

Close-up of a black mechanical device with a black arrow pointing to a component (no visible text or symbols)

Close-up of hands handling a dark object with visible wear and a small mark (no text or symbols)

Close-up of a hand holding a tool, possibly a pen or tool, against a plain background (no text or symbols visible)

Close-up of a metal tool inserted into a cloth-like material, no visible text or symbols

Close-up of a wooden frame with vertical metal bars and a central rod (no text or symbols visible)

Close-up of a hand holding a pen over a dark fabric or cloth (no visible text or symbols)

Exterior view of a modern modular childcare wagon with wheels and a matching seat (no text or symbols visible)

Let op

Top-down view of a gray and orange portable vehicle with wheels and side-mounted sensors (no visible text or symbols)

Blue plastic cylindrical device with segmented panels and mounting holes (no visible text or symbols)

Black and white photo of a four-wheeled toy cart with a handle and wheels (no visible text or symbols)

Illustration of a red and black children's cart with wheels and a handle, no text or symbols visible.

Orange and black safety harness with loop handle (no text or symbols)

Blue FijiTech bag with black strap and 'FLUKTECW' logo (no additional text or symbols visible)

Close-up of hands adjusting a black fabric item (no visible text or symbols)

Close-up of a person wearing a black ergonomic device with a curved arm and arrow indicator (no text or symbols)

Close-up of hands handling a dark object with visible wear and a small mark (no text or symbols)

Close-up of a hand holding a tool, possibly a cutting or wire, against a plain background (no text or symbols visible)

Close-up of a metal object inserted into a cloth-like material, no visible text or symbols

Close-up of a wooden frame structure with vertical supports and a central rod (no text or symbols visible)

Close-up of a hand holding a pen over a dark fabric or paper sheet (no visible text or symbols)

Exterior view of a modern modular childcare wagon with wheels and a canopy (no text or symbols visible)

Obs

Exterior view of a modern office building (no signage)

Blue plastic bag with multiple compartments and mounting holes, isolated on white background (no text or symbols)

Green and black plastic-wrapped cart with orange interior, no visible text or symbols

Exterior view of a four-wheeled baby care cart with a metal frame and handle (no visible text or symbols)

Orange and black safety harness with loop handle (no text or symbols visible)

Blue FijiTech bag with black strap and 'FUXTECV' logo (no additional text or symbols visible)

E-post: [e-mail]

99. INSTRUKCJA OBSŁUGI I INFORMACJE O PRODUKCIE

Close-up of hands holding a black fabric item (no visible text or symbols)

Close-up of a black mechanical device with a black arrow pointing to a component (no visible text or symbols)

Close-up of hands handling a dark object with visible wear and a small mark (no text or symbols)

Close-up of a hand holding a tool, possibly a cutting or wire, against a plain background (no text or symbols visible)

Close-up of a metal object inserted into a cloth-like material, no visible text or symbols

Close-up of a wooden frame with vertical metal bars and a central rod (no text or symbols visible)

Close-up of a hand holding a pen over a dark fabric or cloth (no visible text or symbols)

Exterior view of a modern modular childcare wagon with wheels and a matching seat (no text or symbols visible)

Uwaga

Top-down view of a gray and orange inflatable boat with wheels and equipment (no text or symbols visible)

Blue plastic cylindrical component with multiple compartments and mounting holes (no visible text or symbols)

Black and white photo of a four-wheeled toy cart with a canopy cover (no visible text or symbols)

Exterior view of a red and black children's cart with wheels and a handle (no text or symbols visible)

Orange and black safety harness with loop handle (no text or symbols visible)

Blue Fijitec-style bag with black strap and 'FUXTEC' logo, no visible text or symbols on the bag itself.
