Product type	Child transport wagon (2-seater)
Brand	Fuxtec
Model	FX-CTL900
Maximum load capacity	75 kg (wagon) + 5 kg (rear bag)
Recommended age	From 6 months
Number of children	Up to 2 children
Frame material	Sturdy aluminum
Fabric cover	Removable and washable fabric
Canopy	Removable fabric canopy with integrated net
Safety harness	5-point harness (shoulders, waist, crotch)
Parking brake	Brake on rear axle
Front wheels	2 swivel wheels with suspension and quick release
Rear wheels	2 wheels on removable rear axle with brake
Adjustable handlebar	Height and tilt adjustable handlebar
Tow bar	Front telescopic tow bar
Rear bag	Removable bag with ventilated shoe compartment
Protective cover	Protective cover included
Carry bag	Carry bag with drawstring closure
Folding	Foldable, reduced volume after folding
Maintenance	Clean with soapy water; treat axles with silicone spray
Warranty	24 months (statutory warranty)
Empty weight	Not specified in manual (estimate: approx. 15-20 kg)
Dimensions (unfolded)	Not specified

Frequently Asked Questions - FX-CTL900 Fuxtec

What is the maximum load capacity of the Fuxtec FX-CTL900?

The maximum load capacity of the wagon is 75 kg, with an additional 5 kg allowed in the removable rear bag.

From what age can I use this wagon for my child?

The wagon is suitable for children from 6 months. Before this age, neck and back development is not sufficient for safe use.

How to fold and unfold the FX-CTL900 wagon?

To unfold, unlock the safety clip, pull the wagon to the sides and fold the fabric over the frame. To fold, remove the canopy, lower the telescopic rods, attach the clip inside the frame, then fold the wagon by pulling the tab. Ensure no child is nearby.

How to maintain the wheels and axles?

Regularly remove the wheels and treat the axles, joints, and suspension with a silicone-based spray (no grease or oil). This ensures smooth and quiet rolling and reduces wear.

Is the safety harness adjustable?

Yes, the 5-point harness (shoulders, waist, crotch) is adjustable by moving the strap adjusters. Always adapt it to the child's size and readjust if the sitting position changes.

Can I use the wagon for jogging or rollerblading?

No, this wagon is not suitable for jogging, skateboarding, or rollerblading. It is designed for use on passable paths in push or pull mode.

How to clean the fabric cover?

Clean the fabric with a sponge and warm soapy water. Do not use harsh or abrasive products (chlorine, etc.). For plastic parts and the chassis, also use a mild soapy solution.

What are the maximum weights allowed in the rear bag?

The rear bag must not be loaded with more than 5 kg. Excessive load may affect the wagon's stability.

How to engage and disengage the parking brake?

To engage the brake, press the lever until the brake rod engages in the rear wheel gears. To disengage, lift the lever. Always engage the brake before placing or removing a child.

Is the wagon warranted and what does the warranty cover?

Yes, the wagon comes with a 24-month statutory warranty from the purchase date, covering material and manufacturing defects. Wear parts and damage from improper use are excluded. Keep the original receipt.

USER MANUAL FX-CTL900 Fuxtec

Illustration of a yellow FUXTEC vehicle with transparent canopy and black frame structure (no text or symbols)

Black and white photo of a portable flatbed device with a handle extending upward (no visible text or symbols)

Black plastic wheeled cart with four wheels, no visible text or symbols

Schutzhülle

Black fabric bag with loose strap (no text or symbols visible)

Close-up of a black and white Fiji-branded bag with visible branding (no text or symbols on the bag itself)

Interior view of a suit jacket showing internal bedding and fabric (no visible text or symbols)

Kühlbox - offen

2. Aufbauanleitung

Close-up of a hand adjusting a black mechanical component with a handle (no visible text or symbols)

Close-up of a black bicycle leg mechanism with no visible text or symbols

Hand holding a black frame structure with metal supports (no text or symbols visible)

Close-up of a hand holding a black bicycle tire with a handle, mounted on a metal frame (no visible text or symbols)

Two black metal tools or clamps arranged diagonally (no text or symbols visible)

Two hands holding a tool, viewed from above (no text or symbols visible)

2. Schritt:

Hand holding a metal frame next to a small wheeled cart (no text or symbols visible)

3. Schritt:

Top-down view of a vehicle chassis with visible wheels, doors, and structural supports (no text or symbols)

Hand holding a canopy cover over a small outdoor cart (no text or symbols visible)

4. Schritt:

Close-up of a hand placing a dark fabric bag onto a chair-like structure (no text or symbols visible)

Black plastic wheeled cart with four wheels and handle handles (no text or symbols visible)

Illustration of a hand holding a small object inside a vehicle, with a blue arrow indicating direction (no text or symbols)

Black SUV e-wheeled cart with wheels and a circular arrow indicating left side (no text or symbols on the cart itself)

Close-up of a metal panel with a circular hole and a black strap, no visible text or symbols

Hand holding a canopy cover next to a small wheeled cart (no text or symbols visible)

1. Schritt:

Interior view of a metal-framed storage unit with a central circular component (no text or symbols visible)

1. Schritt:

Close-up of a mechanical component with a circular inset showing a central cylindrical feature (no text or symbols visible)

1. Schritt:

Top-down view of a black-and-white photo of a children's stroller with a handle and internal compartments (no text or symbols visible)

1. Schritt:

Black and white photo of a radial mechanical tool or fan with eight blades, no visible text or symbols.

1. Schritt:

Person pushing a FAXTEC waffle cart against a plain wall (no text or symbols visible)

Close-up of a person's legs and feet wearing a small wheeled cart, no visible text or symbols

Close-up of a dark-colored shipping bag with straps and straps, circled in white (no visible text or symbols)

Close-up of a black plastic buckle with textured straps and a dark strap (no text or symbols visible)

1.Schritt:

Close-up of a hand adjusting a black plastic component with screws, no visible text or symbols

Close-up of a dark panel with two circular annotations highlighting features (no text or symbols present)

1. Scope of delivery: 20

2. Assembly instruction.... 21

2.1 Mounting the front wheels/swivel wheels.... 21

2.2 Mounting the rear wheel axle.... 22

2.3 Fixing the rear wheels 22

2.4 Assembly of the roofing 22

2.5 Attaching the rear bag.... 24

1. Intended use.... 24

3.1. Removing and attaching the protective cover 24

3.2 Unfolding the wagon 25

3.3 Folding the wagon 26

3.4 Adjusting the push handle and pull bar 27

3.5 Moving the wagon....27

3.6 Operating and releasing the parking brake.... 28

3.7 Use of the roofing.... 28

3.8 Use of safety belts 29

3.9 Removing the fabric cover.... 29

3.10 Maintenance and care.... 30

1. Care instructions.... 31

2. Warranty....31

3. Warnings and safety instructions.... 32

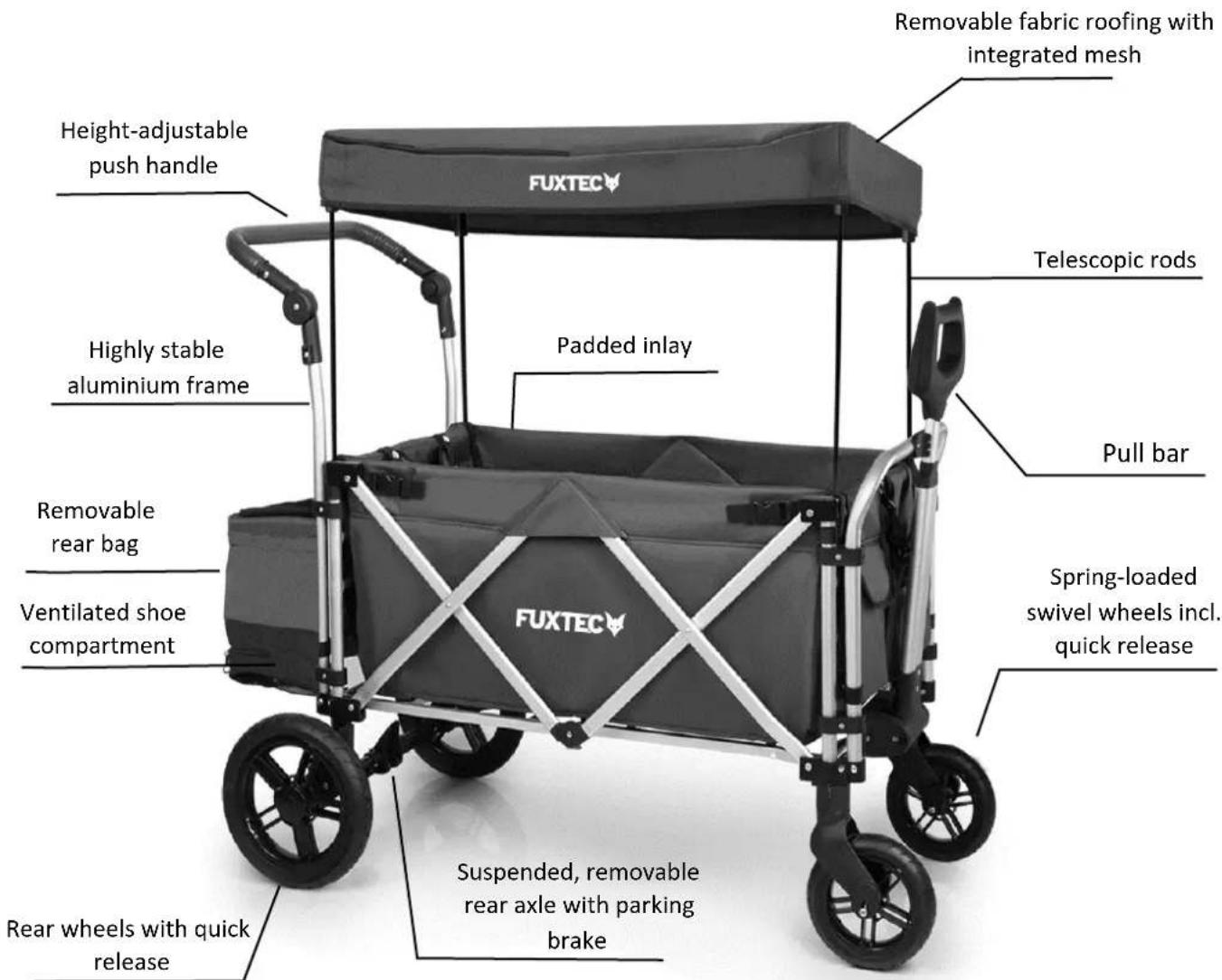

Original FUXTEC CTL-900 Folding/Foldable Wagon

Congratulations on your original FUXTEC wagon.

To make you and your child feel safe when using the FUXTEC CTL-900 wagon, you have chosen a high-quality product from FUXTEC and thus created an excellent choice. High-quality manufacturing and continuous, strict quality controls assure you that you will enjoy your FUXTEC wagon for a long time.

After receiving: Please check immediately, that the wagon is delivered in full. Are parts missing? Also, please check all functions of the wagon carefully and report any problems within the reporting period. In this case, our customer service will be happy to help you.

You can contact us directly at [e-mail].

1. Scope of delivery:

Black and white photo of a FijiXX wind turbine with visible blades and handle (no text or symbols)

Aluminium frame + Fabric cover

Roof incl. carrying bag

Rear bag incl. shoe compartment

2 swivel front wheels

Rear axle incl. parking brake + 2 rear wheels

Black portable cart with four wheels and handles, no visible text or symbols

Protective cover

Black fabric bag with loose strap (no text or symbols visible)

Transport bag - roof rack

Black and white photo of a Fiji-branded cargo bag with visible branding (no text or symbols on the bag itself)

Coolbox - closed

Interior view of a suit jacket showing open compartments with visible bedding and fabric (no text or symbols)

Coolbox - open

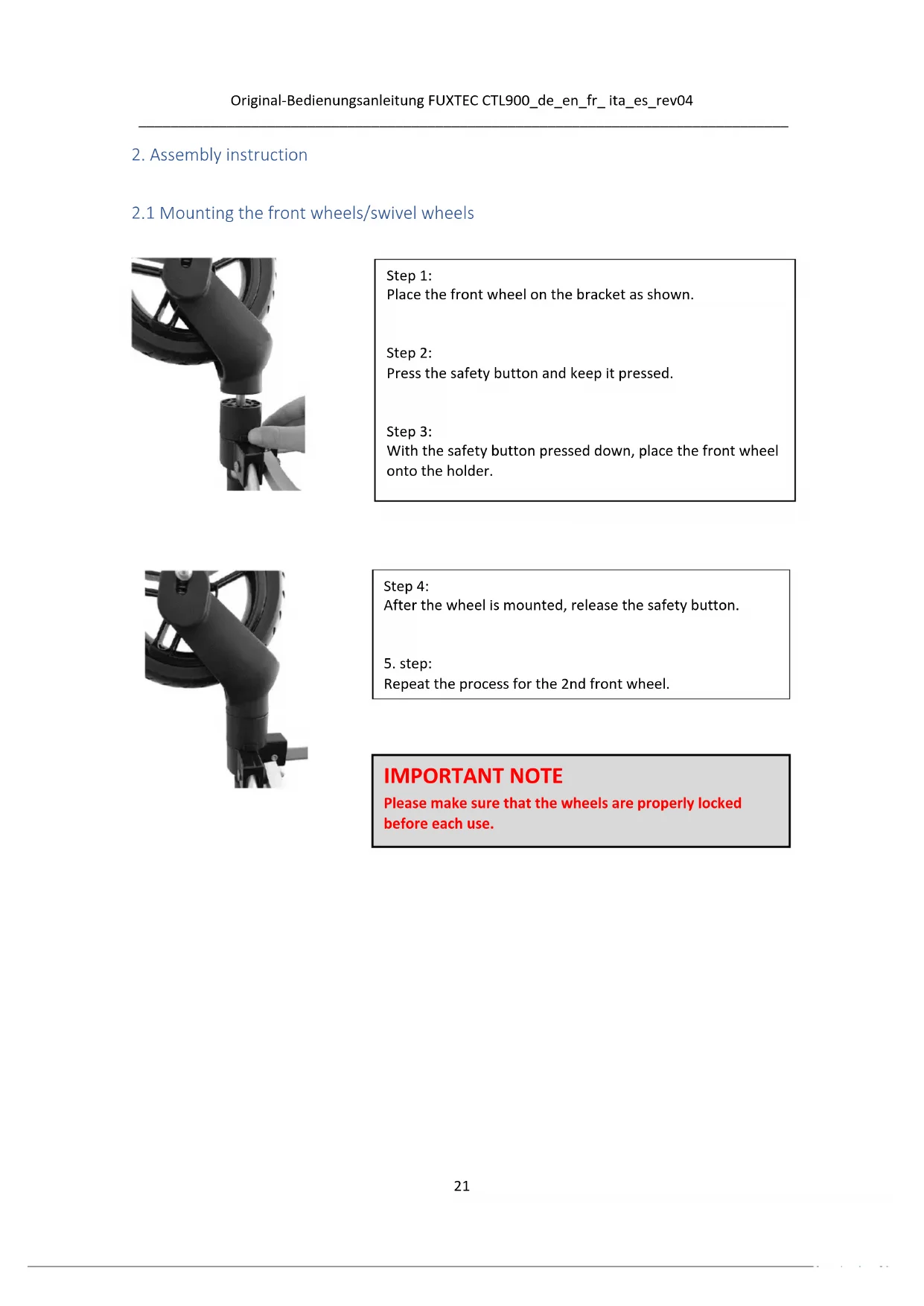

2. Assembly instruction

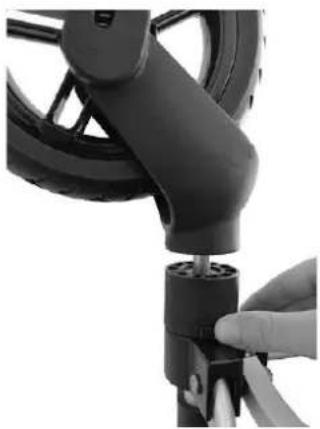

2.1 Mounting the front wheels/swivel wheels

Close-up of a hand adjusting a black bicycle seatbelt mechanism (no text or symbols visible)

Step 1: Place the front wheel on the bracket as shown.

Step 2: Press the safety button and keep it pressed.

Step 3: With the safety button pressed down, place the front wheel onto the holder.

Close-up of a black bicycle steering wheel and lever mechanism (no text or symbols visible)

Step 4: After the wheel is mounted, release the safety button.

1. step: Repeat the process for the 2nd front wheel.

IMPORTANT NOTE Please make sure that the wheels are properly locked before each use.

2.2 Mounting the rear wheel axle

Hand holding a black frame structure with metal supports (no text or symbols visible)

Step 1:

Position the rear axle as shown

Step 2:

Press the rear wheel axle onto the frame until it engages.

Step 3:

Please check carefully that the rear wheel axle is engaged and then firmly connected to the frame.

2.3 Fixing the rear wheels

Close-up of a black and white bicycle tire with a hand adjusting the wheel (no text or symbols visible)

Step 1:

Pull the safety bolt as shown.

Step 2:

While holding the pulled out safety bolt, put the wheel on the rear axle. When the wheel is in the desired position, release the safety bolt.

Step 3:

Repeat the procedure for the 2nd rear wheel.

2.4 Assembly of the roofing

Two black metal tools or clamps arranged in a triangular pattern (no text or symbols visible)

Step 1:

Remove the two pairs of roof bars from the transport bag.

Two hands holding a tool, viewed from above (no text or symbols visible)

Step 2: Join the bars of a pair along the middle retaining rubber band.

Hand operating a metal frame with a cart filled with material, no visible text or symbols

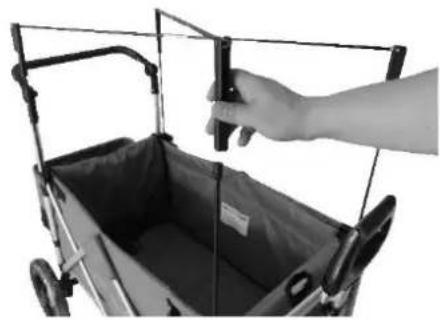

Step 3: Please place the attachments of the holding rods diagonally on the telescopic rods - as shown in the picture on the left.

Top-down view of a vehicle chassis with visible wheels and structural supports (no text or symbols)

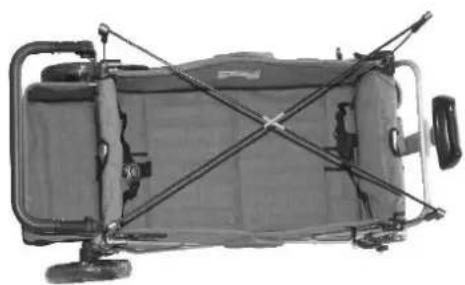

"Top view" of the correctly positioned roof bars.

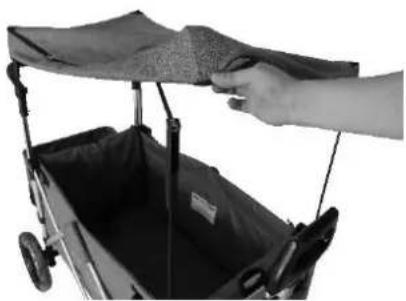

Hand holding a canopy cover over a small wheeled cart (no text or symbols visible)

Step 4: Stretch the fabric roof over the wagon using the telescopic rods.

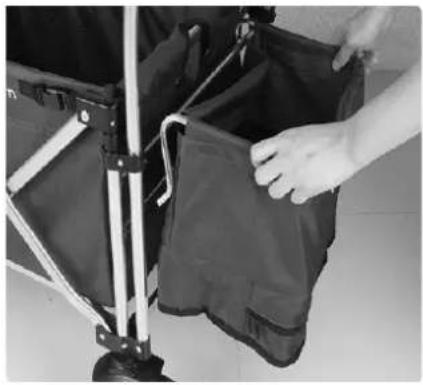

2.5 Attaching the rear bag

Close-up of a hand placing a dark fabric bag onto a chair-like structure (no text or symbols visible)

Hook the rear bag into the horizontal frame struts below the push handle as shown.

3. Intended use

3.1. Removing and attaching the protective cover

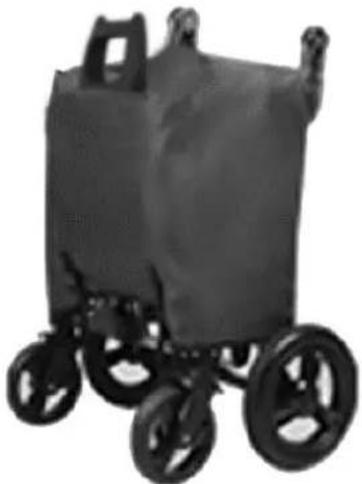

Black plastic cart with four wheels and handle, no visible text or symbols

Step 1:

Place the wagon in front of you as shown.

Step 2:

Loosen the two safety clips on the lower part of the wagon

Step 3:

Open the velcro and pull the protective cover upwards.

To attach the protective cover, proceed in the reverse order.

3.2 Unfolding the wagon

Illustration of a hand holding a car seatbelt, with a blue arrow indicating direction (no text or symbols)

Step 1:
Loosen the safety clip.

Illustration of a hand holding a pen with a red X mark, enclosed in a circle (no text or symbols)

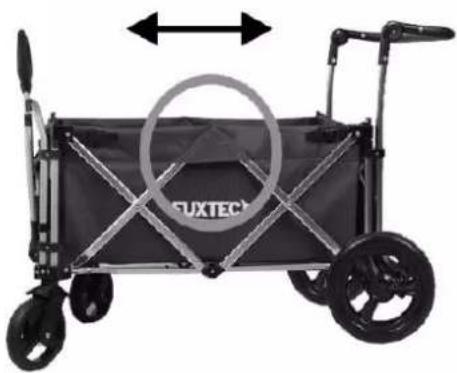

Black and white photo of a wheeled cart with wheels and a side-mounted handle, no visible text or symbols.

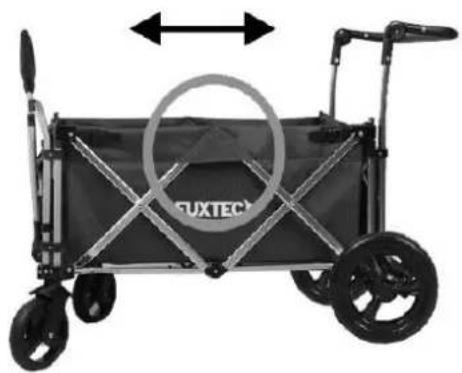

Step 2:
Pull the wagon apart and lay the fabric over the frame.

Close-up of a metal panel with a circular highlight and a black strap, no visible text or symbols

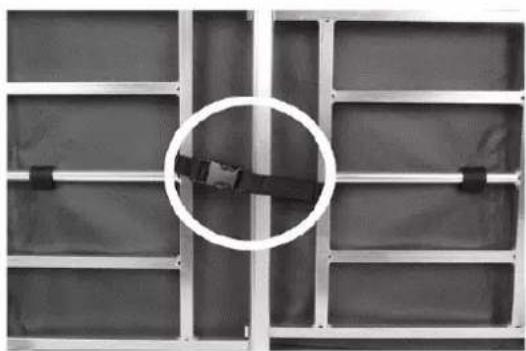

Fix the safety clip outside the aluminium frame to prevent accidental folding of the wagon during use.

Important note:

Before folding, the safety clip must be fixed inside the frame.

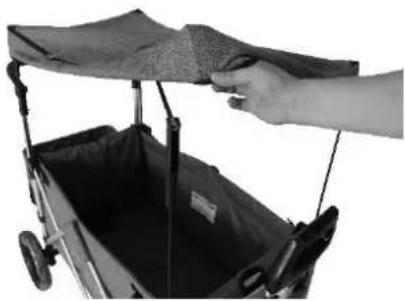

3.3 Folding the wagon

Hand holding a canopy cover next to a small wheeled cart (no text or symbols visible)

Step 1:

Remove the roofing and retract the telescopic rods into the frame.

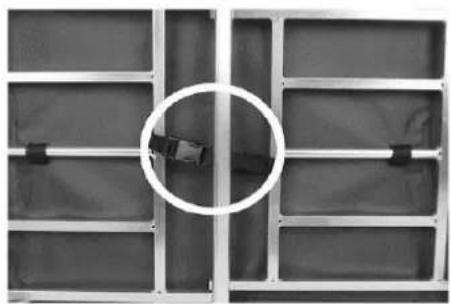

Interior view of a metal enclosure with vertical supports and a central circular object (no text or symbols visible)

Step 2:

Fix the safety clip inside the frame as shown.

Close-up of a dark mechanical component with a circular mesh pattern, no visible text or symbols

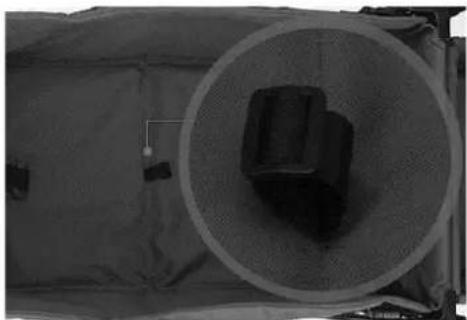

Step 3:

Pull on the fabric tab shown to pull the wagon together. Then press the wagon together by hand.

Black-and-white photo of a children's stroller with a handle and seat cover (no text or symbols visible)

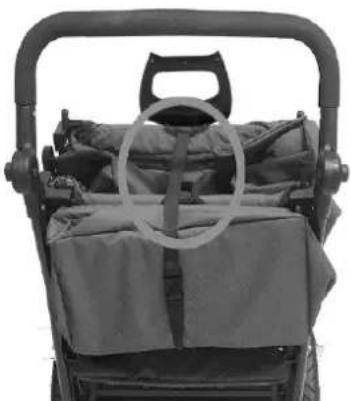

Step 4:

Close the safety clip. To reduce the size of the wagon, you can also easily pull the safety strap.

3.4 Adjusting the push handle and pull bar

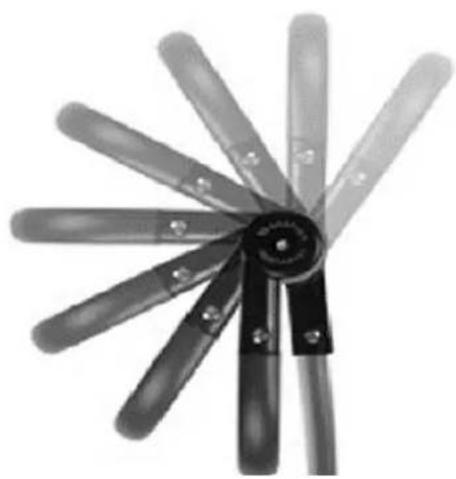

Black and white photo of a radial mechanical tool with multiple blades, no visible text or symbols

Step 1:

Press both buttons on the push bar at the same time to adjust the angle. The handle can lock in different positions.

Step 2:

To use the telescopic pull bar, simply pull it out of the frame holder by the handle.

3.5 Moving the wagon

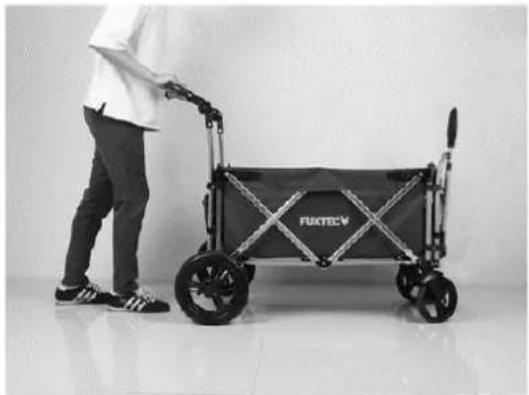

Person pushing a Fuatev cart on a plain surface (no text or symbols visible)

Use the rear push handle to push the wagon along paved paths. In more difficult terrain, please use the telescopic pull bar at the front end of the wagon.

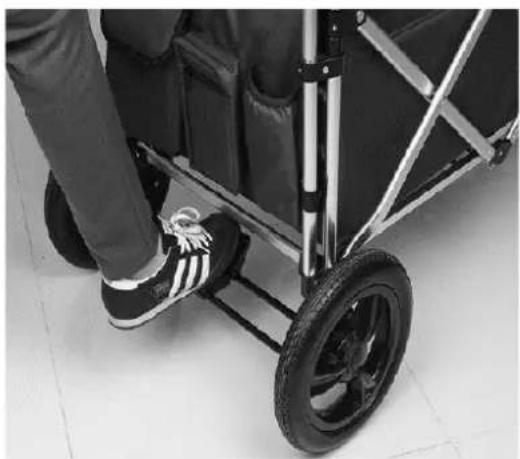

3.6 Operating and releasing the parking brake

Close-up of a person's lower legs and feet wearing a stroller, no visible text or symbols

To lock the brake, press it down. Make sure that the brake rod engages with the gear wheels of the tyres when braking. To release the lock, lift the brake lever.

Important note:

Please make sure that you lock the parking brake when you put your child in or take it out of the wagon.

3.7 Use of the roofing

The roof has a built-in net, with which you can see inside the car at any time.

Step 1: To expose the net, open the zip.

Step 2: Once the cover is completely open, it can be attached to the other end of the wagon using the velcro fasteners at the corners.

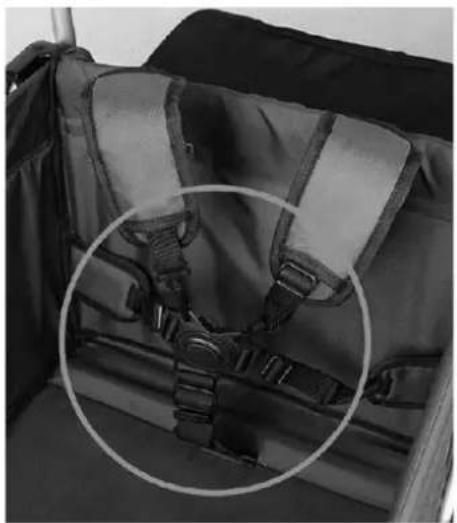

3.8 Use of safety belts

Close-up of a dark-colored shipping bag with visible straps and straps, circled in white (no text or symbols)

Insert the combined shoulder belt/pelvis belt buckles into the buckle to close the 5-point safety belt.

Adjusting the belt:

Adjust the belt by moving the belt adjusters on the shoulder, lap and crotch straps to the required position.

CAUTION! Always adjust the 5-point safety belt when you change your child's sitting position.

Opening the belt:

Press the middle button on the buckle and pull the combined shoulder belt/pelvis belt buckle tabs out of the buckle.

IMPORTANT NOTE

Always use the safety belt system!

CAUTION! When the belt is on or open, its ends must not be within the reach of small children. These are small parts and there may be a risk of suffocation.

3.9 Removing the fabric cover

Close-up of a black plastic buckle with textured straps and a dark strap (no text or symbols visible)

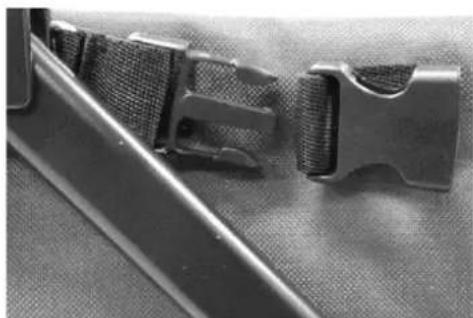

Step 1:

Open all plug connections on the fabric cover.

Close-up of a hand adjusting a black plastic panel with screws, mounted on a metal frame (no visible text or symbols)

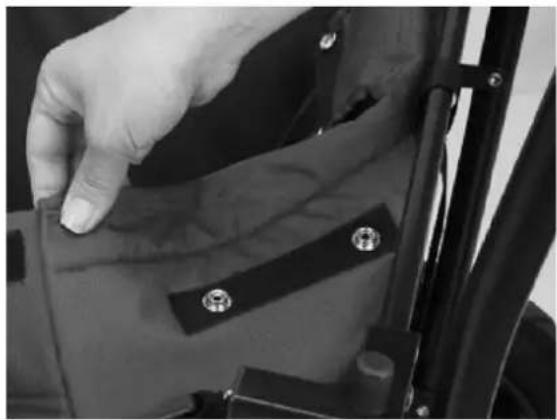

Step 2: Loosen all velcro fasteners and press buttons at the front and back of the wagon.

Close-up of dark rectangular objects with a circled detail, no visible text or symbols

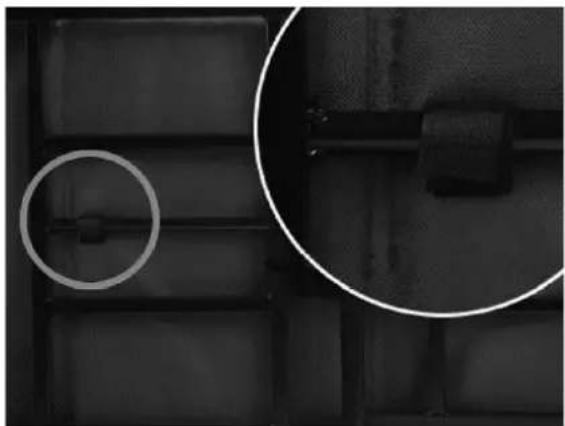

Step 3: Open all velcro fasteners on the underside of the wagon. Afterwards, you can remove the loose fabric cover from the frame.

3.10 Maintenance and care

The product should be checked and cleaned regularly.

• Please regularly check all essential parts for damage. Make sure that the mechanical components are working correctly.
• Please regularly check that all screws, rivets, bolts and other fastenings are tight.
• Do not use grease or oil for lubrication, but a silicone-based spray.
• Too heavy a load, improper folding or the use of unauthorised accessories can damage or destroy the wagon.
• Never load more than 5 kg into the rear bag.
  – Store the folded wagon only in a well-ventilated place to prevent mould growth.
• The textile parts may lose colour if exposed to heavy use over an extended period (e.g. intensive sunlight); however, this does not constitute a reason for complaint.
• Do not use the wagon if parts are bent, worn or broken.
• Do not use accessories that have not been approved by FUXTEC GmbH for use with the CTL 900.

4. Care instructions

The textiles of the wagon can be cleaned with a sponge and warm soapy water. Do not use any harsh or abrasive cleaning agents (chlorine, etc.) to clean the textile cover, but only a light soap solution or a special textile cleaning agent.

The plastic parts, as well as the chassis, should also be cleaned with a soap solution. After using the wagon in rain or wet, always clean and dry the frame. If the fabric upholstery is soaked, allow the wagon to dry in the upright or stretched state.

You should remove the wheels regularly and treat the axles and all articulated joints and suspension with a silicone-based spray (no grease or oil). In this way, you can ensure that your wagon runs smoothly and quietly and limit premature wear and tear. By taking care of your wagon, make sure that no rust film is formed, as this is not a reason for complaint.

5. Warranty

This product is manufactured to the highest quality standards. When purchasing a new product, the manufacturer grants the legal warranty of 24 months, beginning with the date of sale. The warranty only covers defects which are due to material or manufacturing faults and the non-fulfilment of guaranteed characteristics. When asserting the warranty, the original sales receipt with the date of sale must be enclosed. Warranty repairs are carried out exclusively by FUXTEC GmbH. A warranty claim exists only if the product is used as intended.

Excluded from the statutory warranty are all damages caused by the following events:

• Abuse, overloading or neglect.
• Commercial use (industry, trade, rental).
• Repairs by non-authorised services.
• Damage caused by external influences, foreign bodies, substances or accidents.

Wear parts are excluded from the warranty.

6. Warnings and safety instructions

IMPORTANT!

Please keep this manual in a safe place for future reference. Failure to follow these instructions may compromise your child's safety. It is essential that all persons using the wagon and its accessories know how to handle it, even if the person concerned only uses the wagon for a short time. Please note that this manual cannot exclude all possible risks that a child may be exposed to as a result of using this product. The user is responsible for the safety of the child. If you have any further questions, the FUXTEC customer service will be happy to help you.

IMPORTANT!

Please read the instructions carefully and familiarise yourself with the wagon before using it with your child.

If your wagon is used by other people who are not familiar with it (e.g. grandparents), always explain how to use it in advance.

The safety of your child may be compromised if you do not follow these instructions.

Keep the instructions carefully for future reference.

Do not use accessories that have not been approved by FUXTEC GmbH for use with the CTL-900.

Only original spare parts made or recommended by FUXTEC GmbH should be used with the CTL-900.

If you have any questions regarding the use of the CTL-900 or its accessories, please contact the customer service of FUXTEC GmbH.

IMPORTANT! The maximum load capacity of the wagon is 75kg (plus another 5kg on the attachable rear bag).

WARNING! This seating unit is not suitable for children under six months.

WARNING! This product is not suitable for jogging or skating.

WARNING! Before use, make sure that all locks are closed.

WARNING! Never lean on the push handle at the rear of the wagon or do not practice excessive pressure on the push handle. This handle is comfortable and is not compare the handling of a pram.

WARNING! When carrying the wagon, make sure that the safety locks are not accidentally opened.

WARNING! When folding up the stand, make sure that you and others do not get trapped.

WARNING! Do not fold the wagon when there are one or more children in it.

WARNING! Do not let your child play with the wagon.

WARNING! Make sure that your child is out of reach when folding and unfolding the wagon to avoid injury.

WARNING! Use a safety belt as soon as your child can sit independently.

WARNING! Never leave your child unattended.

WARNING! When parking the wagon, always apply the brake before inserting or removing the child.

WARNING! Loads attached to the push handle impair the stability of the wagon.

WARNING: Protect children from intense sunlight. The soft top does not provide complete protection against dangerous UV radiation.

WARNING! Always use the crotch strap in combination with the lap belt.

WARNING! Always adjust the belt to the correct position when you change the sitting position of your child.

WARNING! Use this wagon only for the intended number of children (2).

WARNING! Loads attached to the handle or the backrest or the sides of the wagon impair the stability of the wagon.

IMPORTANT! Park the wagon only with the brakes applied.

IMPORTANT! always check that the brake is correctly applied.

Black and white photo of a Fijixx motorcycle with triangular frame design (no visible text or symbols)

Black plastic wheeled cart with four wheels, no visible text or symbols

Black fabric bag with loose strap, no visible text or symbols

Black and white photo of a portable cargo bag with visible branding (no text or symbols on the bag itself)

Glacière - fermée

Interior view of a suitcase showing a wrapped package with visible text and symbols (no readable document text)

Glacière - ouverte

Close-up of a hand adjusting a black bicycle seatbelt with a handle (no text or symbols visible)

Close-up of a black bicycle seat with visible wheel and bracket (no text or symbols)

Hand holding a black frame structure with metal supports (no text or symbols visible)

Étape 1 :

Close-up of a hand gripping a black bicycle tire with a handle (no text or symbols visible)

Étape 1 :

Two black metal tools or clamps arranged diagonally (no text or symbols visible)

Étape 1 :

Two hands holding a tool, viewed from above (no text or symbols visible)

Étape 2 :

Hand operating a metal frame with a handle, next to a small container filled with material (no visible text or symbols)

Étape 3 :

Top-down view of a vehicle's rear compartment with visible wheels, arms, and structural supports (no text or symbols)

Hand holding a canopy cover over a small wheeled cart (no text or symbols visible)

Étape 4 :

Close-up of a hand placing a dark fabric bag onto a chair (no text or symbols visible)

Black plastic wheeled cart with four wheels and handle handles (no visible text or symbols)

Illustration of a hand holding a car seatbelt, with a blue arrow pointing to the seatbelt (no text or symbols present)

Simple line drawing of a hand holding a tool with a red X mark, enclosed in a circle (no text or symbols)

Black and white photo of a SXTEC utility wagon with wheels and handlebars, no visible text or symbols on the cart itself.

Close-up of a metal panel with a circular highlight highlighting a black strap (no text or symbols)

Hand holding a canopy cover next to a small wheeled cart (no text or symbols visible)

Étape 1 :

Interior view of a metal enclosure with a circular inset showing a small object, no visible text or symbols.

Étape 2 :

Close-up of a mechanical component with a circular mesh pattern and central rectangular block (no visible text or symbols)

Étape 3 :

Black-and-white photo of a children's stroller with a handle and seat cover (no text or symbols visible)

Étape 4 :

Black and white photo of a radial mechanical tool or fan with eight blades, no visible text or symbols.

Étape 1 :

Person pushing a FijiTech waffle cart on a plain surface (no text or symbols visible)

Close-up of a person's legs and feet wearing a small wheeled cart, no visible text or symbols

Close-up of a dark-colored shipping bag with visible straps and straps, circled in white (no text or symbols)

Close-up of a black plastic buckle with textured straps, partially secured by a dark metal frame (no text or symbols visible)

Étape 1 :

Close-up of a hand adjusting a black plastic panel with screws, mounted on a mechanical bracket (no visible text or symbols)

Close-up of dark rectangular objects with a magnified inset showing a circular feature (no text or symbols visible)

Simple line drawing of a four-bar cart with handles and woven patterns (no text or symbols)

ÉLÉMENTS D'EMBALLAGE À SÉPARER ET À DÉPOSER DANS LE BAC DE TRI

Contenuto

Black Fiji 300 electric vehicle charging tray with visible branding (no text or symbols on body)

Black plastic wheeled cart with four wheels (no visible text or symbols)

Fodera protettiva

Black fabric bag with a loose strap, no visible text or symbols

Black and white photo of a two-wheeled cargo bag with visible branding (no text or symbols on the bag itself)

Borsa frigo - chiusa

Open suitcase with folded fabric and visible internal compartments (no text or symbols)

Borsa frigo - aperta

Close-up of a hand adjusting a black bicycle seatbelt mechanism (no text or symbols visible)

Close-up of a black bicycle seatbelt mechanism (no text or symbols visible)

Hand holding a black frame structure with metal supports (no text or symbols visible)

Passo 1:

Close-up of a hand gripping a black bicycle tire with a handle (no text or symbols visible)

Passo 1:

Two black metal tools or clamps arranged in a triangular pattern (no text or symbols visible)

Passo 1:

Two hands holding a tool, viewed from above (no text or symbols visible)

Hand holding a small cart with a handle, no visible text or symbols

Top-down view of a vehicle chassis with visible wheels and structural beams (no text or symbols)

Hand holding a canopy cover over a small wheeled cart (no text or symbols visible)

Close-up of a hand placing a dark fabric bag onto a chair-like structure (no text or symbols visible)

Black plastic wheeled cart with four wheels and handle handles (no text or symbols visible)

Passo 1:

Illustration of a hand holding a car interior with a blue arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with a red X mark, no text or symbols present

Black and white photo of a wheeled cart with wheels and a side-mounted handle, no visible text or symbols.

Close-up of a metal panel with a circular white inset showing a black cable or connector (no text or symbols visible)

Hand holding a canopy cover next to a small wheeled cart (no text or symbols visible)

Interior view of a metal enclosure with a circular inset showing a small object, no visible text or symbols.

Close-up of a mechanical component with a circular inset showing a central component (no visible text or symbols)

Back view of a children's stroller with a handle and cushioned seat (no text or symbols visible)

Black and white photo of a radial mechanical tool or knob with eight blades, no visible text or symbols.

Passo 1:

Person pushing a Fuatev cart on a plain surface (no text or symbols visible)

Close-up of a person's legs and feet wearing a stroller, no visible text or symbols

Close-up of a dark-colored shipping bag with visible straps and straps, circled in white (no text or symbols)

Close-up of a metallic buckle strap and clasp on a textured surface (no text or symbols visible)

Passo 1:

Close-up of a hand adjusting a black plastic component with screws, no visible text or symbols

Close-up of a dark panel with two circular annotations highlighting features (no text or symbols present)

Black Fiji 300 electric vehicle charging tray with visible branding (no text or symbols on body)

Black plastic wheeled cart with four wheels (no visible text or symbols)

Forro de protección

Black fabric bag with a string tied at the bottom (no text or symbols visible)

Black and white photo of a portable cargo bag with visible branding (no text or symbols on the bag itself)

Bolsa refrigerante - cerrada

Interior view of a luggage case with open lid showing folded fabric and visible text (no readable document text)

Close-up of a hand adjusting a black mechanical component with a handle (no visible text or symbols)

Paso 1:

Close-up of a black bicycle leg mechanism with no visible text or symbols

Paso 4:

Hand holding a black frame structure with metal supports (no text or symbols visible)

Paso 1:

Close-up of a hand holding a black bicycle tire with a handle, mounted on a stand (no visible text or symbols)

Paso 1:

Two black metal tools or clamps arranged in a triangular pattern (no text or symbols visible)

Paso 1:

Two hands holding a tool, viewed from above (no text or symbols visible)

Paso 2:

Hand holding a metal frame next to a small wheeled cart (no text or symbols visible)

Paso 3:

Top-down view of a vehicle's front compartment with visible structural beams and wheels (no text or symbols)

Hand holding a canopy cover over a small wheeled cart (no text or symbols visible)

Paso 4:

Close-up of a hand placing a dark fabric bag onto a chair-like structure (no text or symbols visible)

Black plastic cart with four wheels and handle, no visible text or symbols

Paso 1:

Illustration of a hand holding a bicycle seatbelt, with a blue arrow pointing to the seatbelt (no text or symbols present)

Paso 1:

Illustration of a hand holding a foot with a red X mark, enclosed in a circle (no text or symbols)

Black and white photo of a wheeled cart with wheels and a side-mounted handle, no visible text or symbols.

Paso 2:

Close-up of a metal panel with a circular inset showing a cable or connector (no text or symbols visible)

Hand holding a canopy cover next to a small wheeled cart (no text or symbols visible)

Paso 1:

Interior view of a metal enclosure with a circular inset showing a small object, no visible text or symbols.

Paso 2:

Close-up of a dark mechanical component with a circular inset showing a central component (no visible text or symbols)

Paso 3:

Back view of a portable stroller with a handle and front panel (no visible text or symbols)

Paso 4:

Black and white photo of a radial mechanical tool with multiple blades (no text or symbols visible)

Paso 1:

Person pushing a FUATECV children's cart on a plain surface (no text or symbols visible)

Close-up of a person's legs and feet wearing a small wheeled cart, no visible text or symbols

Close-up of a dark fabric bag with straps and straps, circled in white (no text or symbols visible)

Close-up of a metallic buckle strap and clasp securing a textured fabric (no text or symbols visible)

Paso 1:

Close-up of a hand adjusting a black plastic component with screws, no visible text or symbols

Paso 2:

Close-up of a dark mechanical component with two circular annotations highlighting features (no text or symbols present)

Paso 3:
