Product Type	2-in-1 Electric Mill for Dry and Wet Ingredients
Brand	Duronic
Model	CG421
Container Capacity	2 x 220 ml (max 160 ml for dry ingredients)
Dimensions (L x W x H)	21 x 11.5 x 11.5 cm
Power Supply	220-240 V ~ 50/60 Hz
Power	200 W
Blade Type	Wet container: sharp straight blades; dry container: blunt serrated blades
Main Functions	Grinding coffee, spices, herbs, dried fruits, etc.; two dedicated containers to avoid flavor mixing
Activation	By pressing the lid (touch sensors)
Maximum Operating Time	30 seconds per cycle, followed by a 3-minute rest; after 3 cycles, 30-minute rest
Materials	Motor base in plastic, containers in glass (?) or plastic? (not specified, assumed plastic)
Cleaning	Motor base: damp cloth; containers and lids: warm soapy water and brush, do not put in dishwasher
Safety	Touch activation sensors preventing operation without lid; stops if obstructed; overheating protection
Warranty	1 year (Shine-Mart Ltd)
Included Accessories	2 containers, 2 lids, mill lid, brush/spoon
Usage	Household use only
Country of Origin	Not specified, probably China

Frequently Asked Questions - CG421 Duronic

Can I grind wet ingredients with this mill?

Yes, the CG421 is a 2-in-1 mill with a dedicated container for wet ingredients (straight blades). Use it for fresh herbs, garlic, etc. Do not exceed 30 seconds of grinding.

What is the maximum capacity of each container?

Each container has a capacity of 220 ml, but for optimal grinding, do not exceed 160 ml for dry ingredients and 160 ml for wet ingredients (MAX mark).

How long can I use the mill continuously?

The recommended operating time is 30 seconds maximum per cycle. After each cycle, let the appliance rest for 3 minutes. After 3 cycles, let it rest for 30 minutes to avoid overheating.

How to clean the containers and blades?

Unplug the appliance. Use the provided brush to remove residue under the blades. Wash the containers and lids with warm soapy water and a soft cloth. Do not put in dishwasher and do not immerse the motor base. Dry completely before reassembling.

What to do if the mill does not start?

Make sure the lid is properly engaged and the touch sensors on the motor base are clean and unobstructed. Check the plug and power cord. If the problem persists, contact customer service.

Can I grind coffee for espresso?

Yes, use the dry container (serrated blades). The grind fineness depends on the grinding time: the longer you press, the finer the grind. For espresso, aim for about 30 seconds.

Are the containers dishwasher safe?

No, the containers and lids should not be washed in the dishwasher. Clean them by hand with warm soapy water.

How to avoid persistent odors?

New motors may emit an odor during first uses; it disappears after a few cycles. To avoid flavor mixing, clean the containers thoroughly after each use, especially after strong spices.

What to do if the mill makes an abnormal noise?

Check that the base is on a flat and stable surface. Make sure the lid, container, and blade are properly secured. If the noise persists, a part may be damaged; stop use and contact customer service.

What is the warranty for this product?

The CG421 comes with a 1-year warranty from the date of purchase, covering electrical or manufacturing defects. Keep your proof of purchase. The warranty does not cover normal wear and tear or misuse.

USER MANUAL CG421 Duronic

Creative Consumer Products

Product photo of a Duronic coffee maker with open lid and powder being poured into its contents (no text or symbols visible)

CG421

ronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

DURONIC

Contents

English Manual 5

Features and Specifications

Model Number	Capacity Dimensions Power Voltage
CG421 2 x 2	20ml cups	21 x 11.5 x 11.5cm	200W	220-240V / 50-60Hz

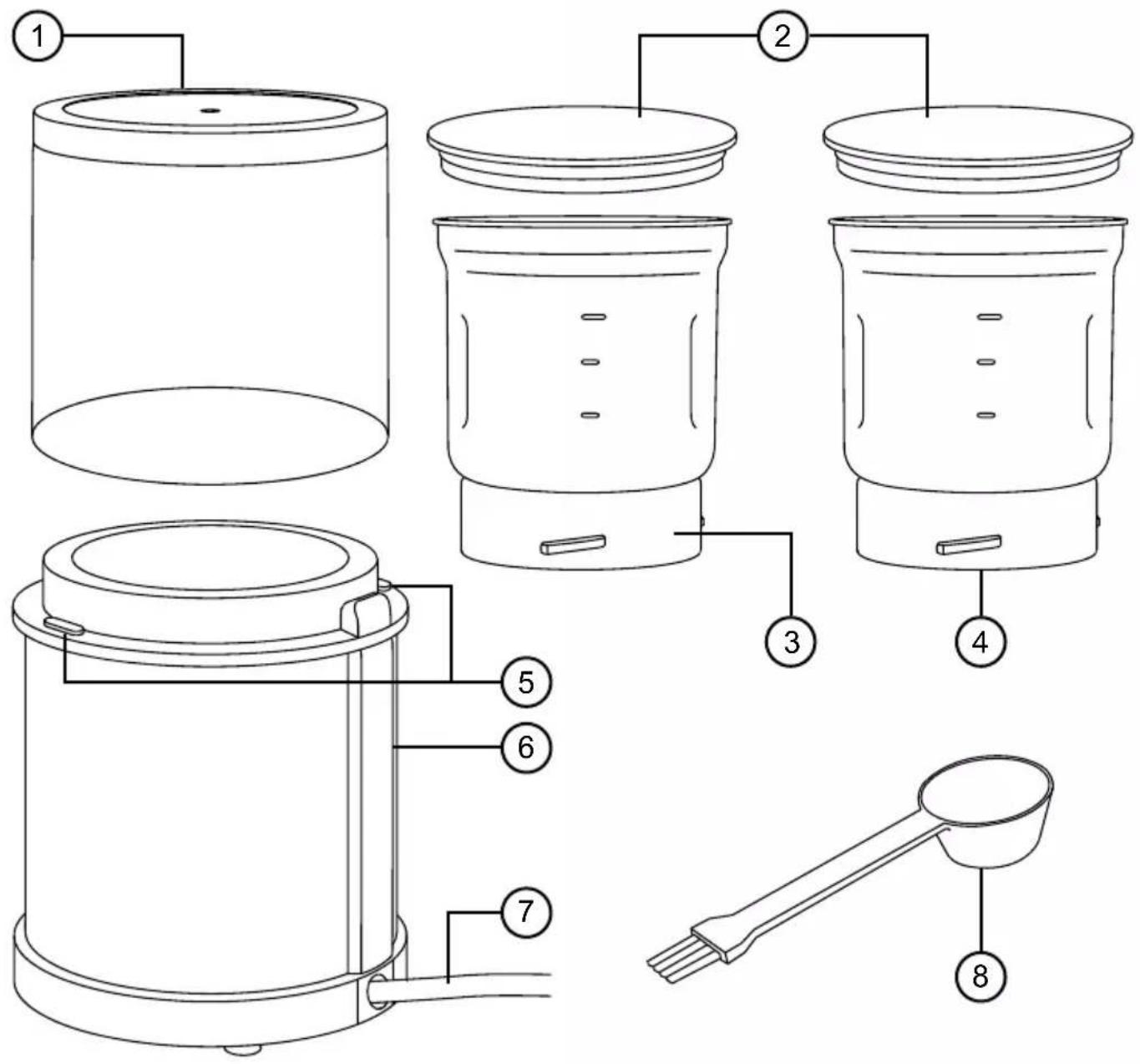

1. Grinder cover
2. Cup lid
3. Wet ingredient cup

4. Dry ingredient cup

5. Activation touch sensors

6. Grinder motor unit
7. Power cable

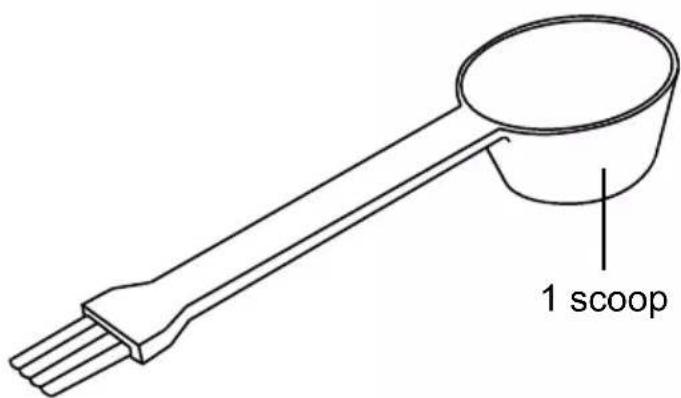

8. Brush/Scoop

DURONIC

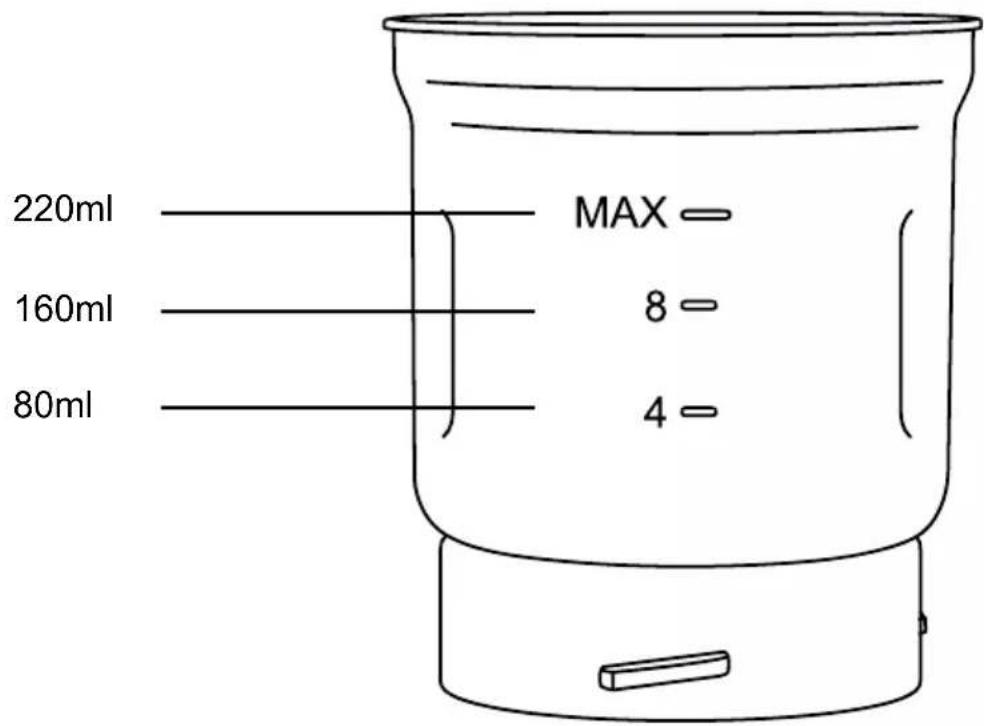

Capacity and Conversion Chart

Scoops	Milliliters (ml)	Fluid Ounce (fl.oz)
11 220 7.7
8 160 5.6
4 80 2.8

*estimated amounts

DURONIC

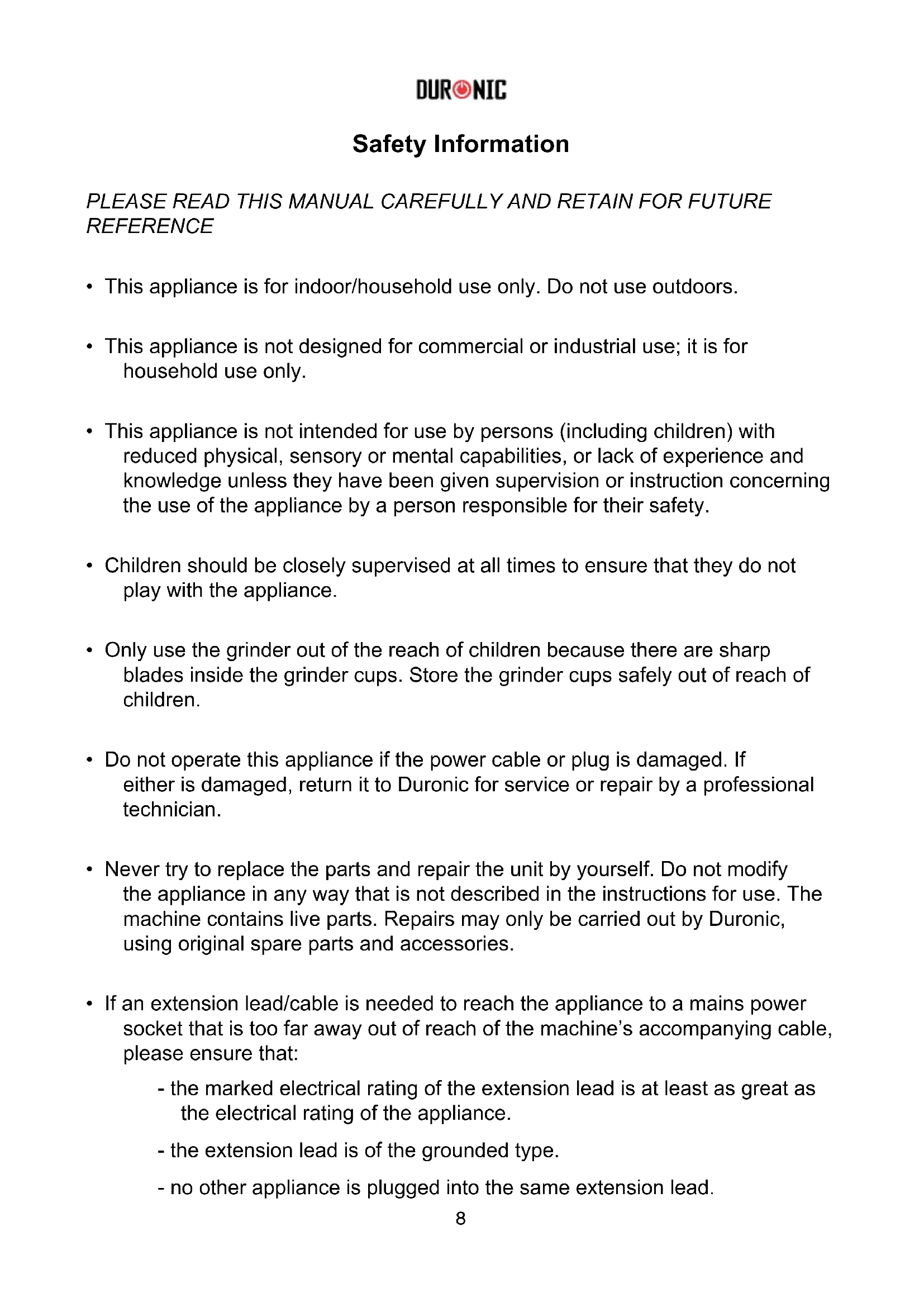

Safety Information

PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE

- This appliance is for indoor/household use only. Do not use outdoors.

- This appliance is not designed for commercial or industrial use; it is for household use only.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

- Children should be closely supervised at all times to ensure that they do not play with the appliance.

- Only use the grinder out of the reach of children because there are sharp blades inside the grinder cups. Store the grinder cups safely out of reach of children.

- Do not operate this appliance if the power cable or plug is damaged. If either is damaged, return it to Duronic for service or repair by a professional technician.

- Never try to replace the parts and repair the unit by yourself. Do not modify the appliance in any way that is not described in the instructions for use. The machine contains live parts. Repairs may only be carried out by Duronic, using original spare parts and accessories.

- If an extension lead/cable is needed to reach the appliance to a mains power socket that is too far away out of reach of the machine's accompanying cable, please ensure that:

- the marked electrical rating of the extension lead is at least as great as the electrical rating of the appliance.

- the extension lead is of the grounded type.

- no other appliance is plugged into the same extension lead.

DURONIC

- the extension cable is safely positioned to avoid it being pulled on by children or animals or being tripped over.

• Always operate the appliance on a dry, smooth, even and stable surface. Do not place the grinder on or next to a hot surface.
- Position the grinder and its power cable to the rear of the work surface, well out of reach of children.
- Disconnect the mains plug from the power socket if you are going to be absent for long periods.
- Never disconnect the plug by pulling on the power cable.
• Unplug from the mains plug outlet when not in use and before cleaning.
- This appliance is not intended to be operated using an external timer or separate remote-control system.
- Do not let the power cable hang over the edge of the table or counter, or touch hot surfaces.
- Do not use the appliance for anything other than grinding.
- Do not operate the grinder with wet hands.
• To clean, wipe the machine body with a well-wrung wet cloth. Do not submerge it in water or other liquids. Wash the cups and lids with warm water and soap. Dry properly before placing the cups back into the machine.
- Do not switch the grinder on if the cups are empty or use the grinder for more than 30 seconds at a time as this will overheat the motor.

Caution: The blades inside the grinder cups are sharp. Be careful when emptying and cleaning the cups.

DURONIC

Introduction

Grind your own coffee beans to create fresher and more aromatic coffee, or grind up spices for better flavour in your cooking and baking.

Grinding your own ingredients at home can save money, can eliminate unnecessary excess packaging from store-bought jars and packets, and more importantly, will enable you to create tastier ingredients to use in your kitchen!

The CG421 2-in-1 electric grinder will effortlessly grind through both dry and wet ingredients. It comes with two cups equipped with different blades which are suited for both coffee grinding and spice/herb grinding.

Before First Use

1. Remove all of the packaging materials. Check that there are no parts missing.
2. Clean the outside of the grinder body by wiping it with a wet well-wrung sponge or cloth.
3. Wash the cups and lids with warm soapy water and dry thoroughly.

DURONIC

Operating Instructions

1. Place your grinder base onto your kitchen countertop positioned to the rear of the surface. Plug the power cable into the closest mains plug socket. Do not switch it on yet.
2. Select which grinding cup to use and place it onto the machine base, turning it clockwise to lock it in place.
3. Fill the cup with the ingredients you want to grind and place the lid on top. Then place the grinder cover on top.
4. Switch the machine on at the plug. To start grinding, press down on the top of the lid and release when you wish to stop. The contents can be ground finely or coarsely depending on how long you run the grinder for.

Note: Do not use the grinder continuously for more than 30 seconds at a time. The recommended run time is 30 seconds on, 3 minutes off. After 3 cycles of this, leave the grinder to cool down for 30 minutes to avoid the motor overheating.

Caution:

• Do not add ingredients to the cup while the grinder is switched on at the plug.
• If the rotation of the blade becomes obstructed, switch the grinder off at the plug and unplug from the wall socket before attempting to clean the obstruction.

DURONIC

Cleaning and Maintenance

It is essential to keep your grinder clean so that you can enjoy the best results every time you use it.

Coffee beans and spices contain oils that will naturally collect in the grinder, particularly around the blade, and these can quickly become stale. The stale oils and residue can taint the taste of anything else you grind in the grinder, so it is important to clean the cups regularly.

Switch off and unplug the grinder before cleaning.

1. To clean the motor unit, wipe the machine body with a well-wrung wet cloth. Dry with a dry cloth or leave to air dry.

2. To clean the cups, use the brush to clean out any dry grounds or residue from under the blades. Then use warm soapy water and a soft cloth to gently clean the lid, inside of the cup and around the blade. Dry properly before placing a cup back into the machine or before storing away.

3. Dry properly before placing a cup back into the machine or before storing away.

Caution:

• Be careful when cleaning the blades as they are sharp and can cause injury!
• The cups should not be washed in a dishwasher OR submerged in very hot water.
• Do not reassemble the grinder when parts are wet as this may create a fire hazard. Ensure each part is dry before reassembling or storing away.

DURONIC

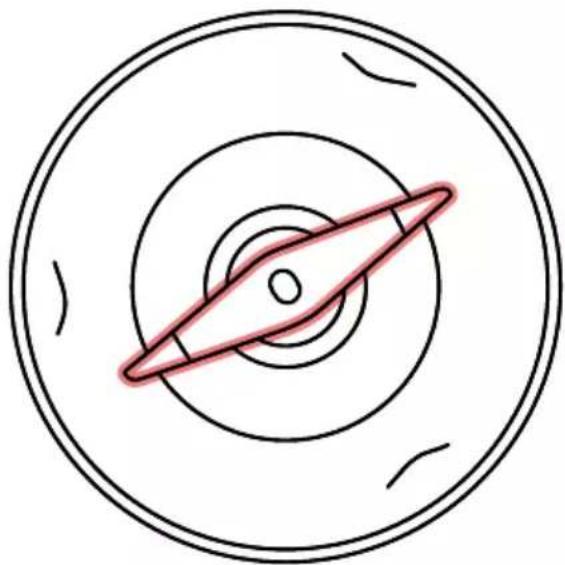

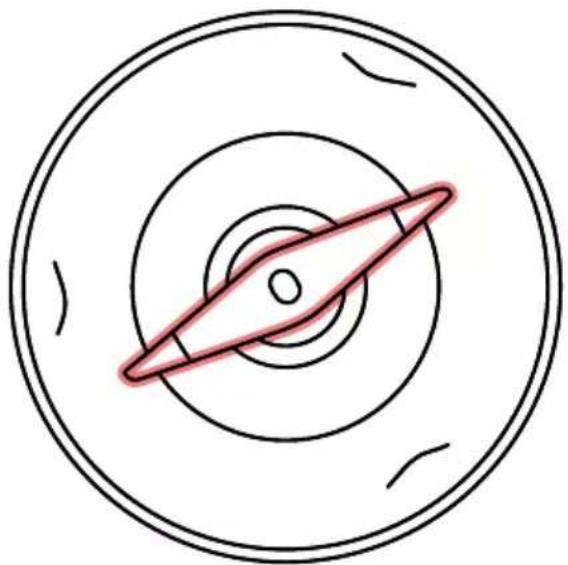

Filling and Grinding Guidelines (WET CUP)

Simple circular diagram with concentric rings and a central pointer, no text or symbols present.

Straight, sharp edge

Ingredients / Combinations	Grinding Time
Mint leaf 10g, cucumber slices 30g, yoghurt 20g, water 15ml	20s
Pepper 10g, ginger 10g, curry powder 10g, coriander leaf 10g, water 35ml	20s
Masala 20g, water 40ml 30s
Black pepper 20g, water 50ml 30s
Cardamom 10g, water 40ml 30s
Caraway 30g, water 30ml 30s
Caraway seed 10g, water 40ml 30s

DURONIC

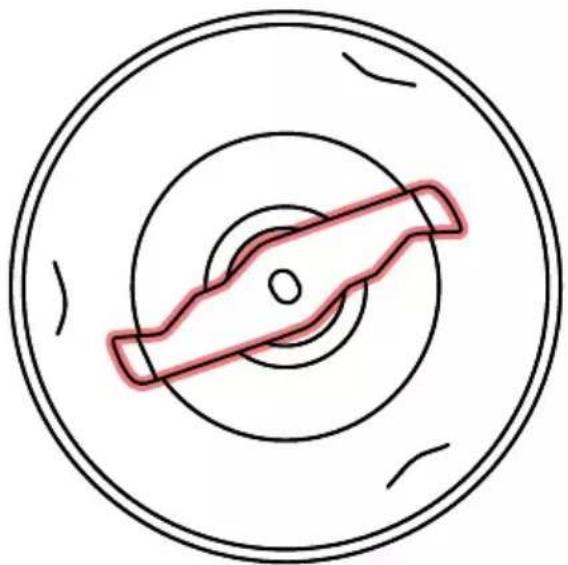

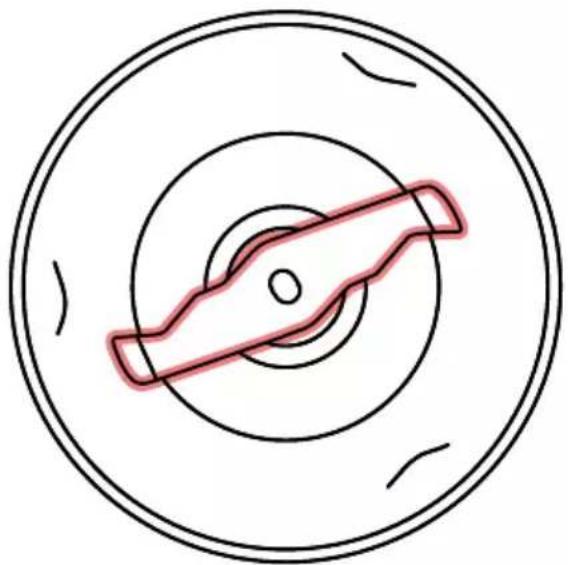

Filling and Grinding Guidelines (DRY CUP)

Circular diagram with concentric rings and a central red arrow, no text or symbols present

Jagged, blunt edge

Ingredients / Combinations	Grinding Time
Soy beans 50g 30s
Dried peppers 20g 15s
Rice 60g 30s
Sichuan Pepper 20g 20s
Ginger 50g 20s
Coffee Beans 75gFor the perfect cup of coffee, we recommend 7-8g of ground coffee for a small coffee/tea cup or 11-12g for a medium mug.	30s

Troubleshooting Guide

Problem	Possible Cause	Suggested Solutions
The grinder does not work after being switched on	The grinder lid was not properly in place so it did not connect with the power activating buttons on the motor unit.	Check the grinder lid and ensure it is properly in place.
	The 3 touch sensors on the top of the motor unit may be obstructed by something.	Check and clean/clear the 3 sensors if they are dirty or have anything obstructing them.
The grinder stops working during operation	Check if the power cable/ plug is loose.	If the power cable is loose, push it back into the socket and switch it on.
	Check if the motor unit is too hot.	If the motor unit has overheated the grinder will need to rest and cool down before you can continue using it. If it does not work after cooling down, please contact Duronic for further advice.
The machine starts to make a bad smell	With new products that contain a motor it is normal for it to emit a smell upon first use.	The smell should fade upon use of the grinder. If the smell persists after a few uses, contact Duronic for advice.
Abnormal vibration or noise	Unstable positioning of the grinder unit.	Reposition the grinder on a smooth even surface.
	The lid, grinding pot, blade or base is loose or damaged.	If any parts are damaged, do not use the grinder. Contact Duronic directly where you should be able purchase the replacement part you need.

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instruction's contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
