KS5000 - Kitchen scales Duronic - Free user manual and instructions

Product type	Kitchen scale
Brand	Duronic
Model	KS5000
Maximum capacity	5 kg
Accuracy	1 g
Measurement units	g, lb, oz, ml, fl.oz
Bowl included	2.5 L stainless steel (depending on variant)
Power supply	2 AAA batteries (not included)
Functions	Tare, auto-off (60 s), backlight
Dimensions (approx.)	20 x 15 x 3 cm
Weight (approx.)	0.5 kg
Material	Plastic, stainless steel (bowl)
Warranty	1 year
Care and cleaning	Clean with a damp cloth, do not immerse
Safety	Overload indicator, replace batteries when low
Spare parts and repairability	Not specified, contact customer service

Frequently Asked Questions - KS5000 Duronic

How to turn the scale on and off?

Press the ON/OFF button to turn on. Hold it for 2 seconds to turn off manually.

How to change the measurement unit?

Press the UNIT button to switch between g, lb, oz, ml and fl.oz.

How to use the TARE function?

Place an empty container on the scale, press TARE (or ON/OFF depending on model) to zero it, then add ingredients.

What to do if the screen shows 'Err' or 'Overload'?

Immediately remove weight to avoid damaging the scale. The maximum capacity is 5 kg.

How to replace the batteries?

Remove the battery compartment cover on the back, replace the 2 AAA batteries observing polarity, then close.

The scale turns off by itself, is that normal?

Yes, the scale has an auto-off after 60 seconds of inactivity.

How to clean the scale?

Use a slightly damp cloth. Do not use abrasive products and do not immerse it in water.

What is the accuracy of the scale?

The graduation is 1 g (0.1 oz / 1 ml / 0.1 fl.oz) depending on the chosen unit.

Does the scale work with a bowl?

Yes, a 2.5 L stainless steel bowl is included with certain models. Place it on the platform before weighing.

What to do if the scale shows nothing?

Check the batteries: replace them if the battery indicator is low. Make sure the scale is on a flat surface.

USER MANUAL KS5000 Duronic

Creative Consumer Products

Digital kitchen scale with a glass digital display showing 49.7g, surrounded by fresh strawberries and blueberries (no text or symbols on the main subject)

KS5000 BK/SS, RD/SS, SR/SS, BKCR Kitchen Scale

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

DURONIC

Contents

English Manual 4

Features and Specifications

Model	Bowl Type	Min Weight	Max Weight	Units Graduation Battery
KS5000BKSS (Black)	2.5L Stainless Steel	5g 5kg		g / lb / oz / ml / fl.oz	1g / 0.1oz / 1ml / 0.1floz	2 x AAA
KS5000RDSS (Red)
KS5000SSSS (Silver)
KS5000BKCR (Black)	2L Clear Plastic

• ON/OFF TARE button

- UNIT button

- Weight indicator

- Battery indicator

- Backlight

- Weighing platform

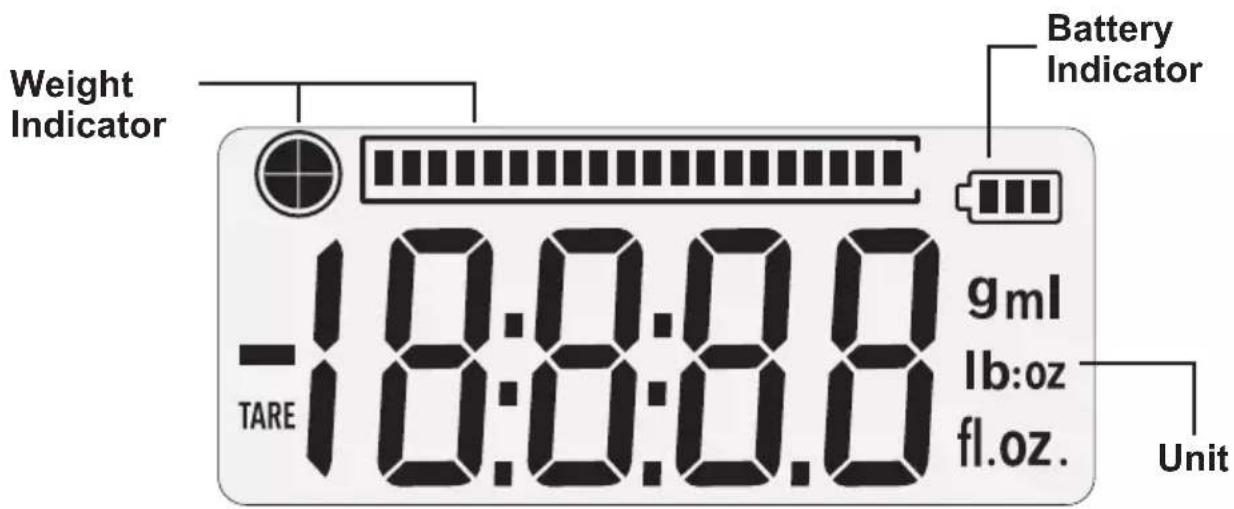

Screen Display

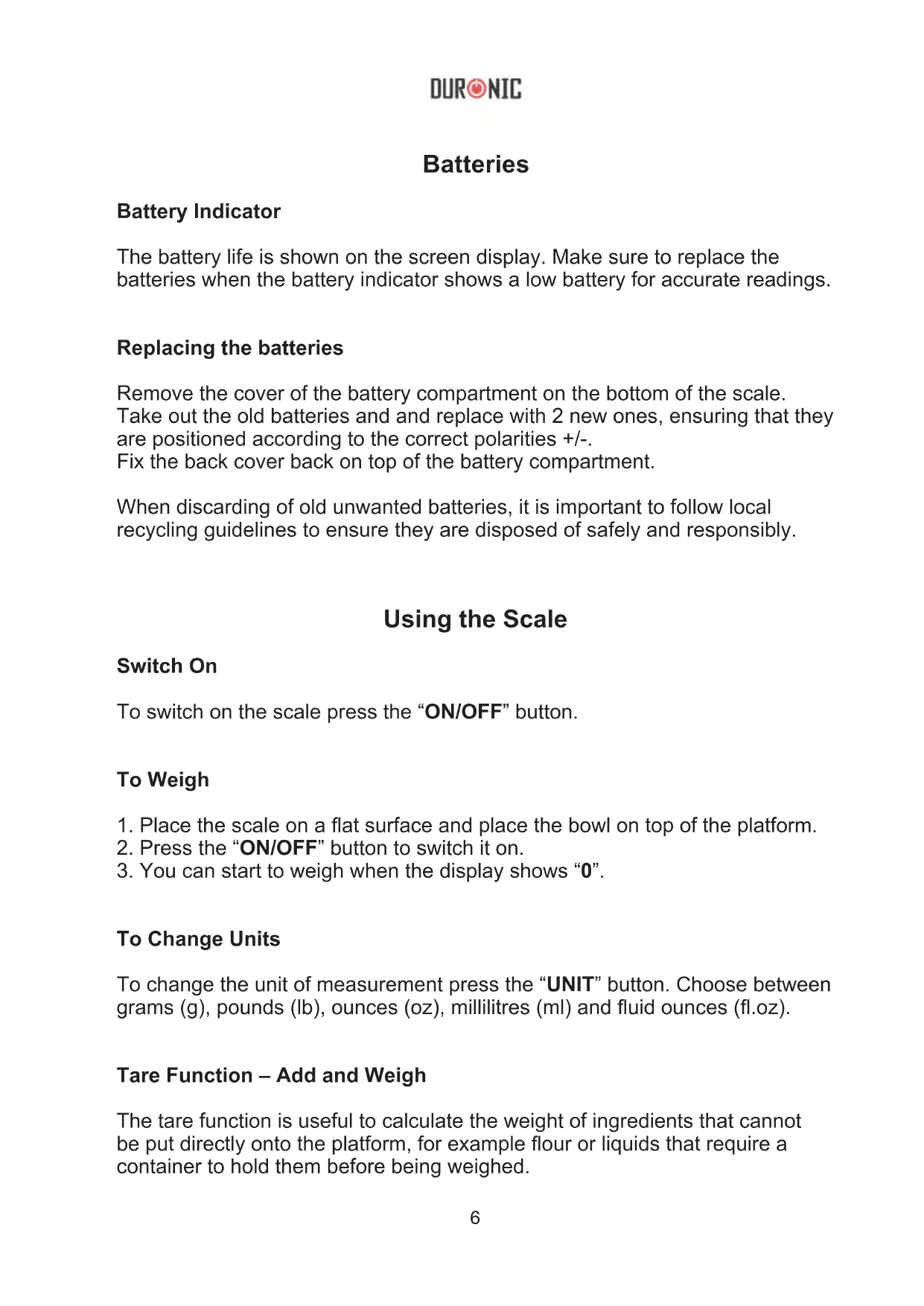

Batteries

Battery Indicator

The battery life is shown on the screen display. Make sure to replace the batteries when the battery indicator shows a low battery for accurate readings.

Replacing the batteries

Remove the cover of the battery compartment on the bottom of the scale. Take out the old batteries and replace with 2 new ones, ensuring that they are positioned according to the correct polarities +/-. Fix the back cover back on top of the battery compartment.

When discarding of old unwanted batteries, it is important to follow local recycling guidelines to ensure they are disposed of safely and responsibly.

Using the Scale

Switch On

To switch on the scale press the "ON/OFF" button.

To Weigh

1. Place the scale on a flat surface and place the bowl on top of the platform.
2. Press the "ON/OFF" button to switch it on.
3. You can start to weigh when the display shows "0".

To Change Units

To change the unit of measurement press the "UNIT" button. Choose between grams (g), pounds (lb), ounces (oz), millilitres (ml) and fluid ounces (fl.oz).

Tare Function – Add and Weigh

The tare function is useful to calculate the weight of ingredients that cannot be put directly onto the platform, for example flour or liquids that require a container to hold them before being weighed.

The tare function is also useful for weighing different ingredients into the measuring bowl as you go along, for instance once you've added the first ingredient to weigh, press the "ON/OFF" button and the scale will return to zero "0", which allows you then weight the next ingredient accurately.

Automatic Switch Off

The scale will automatically switch off after 60 seconds of no use.

Manual Switch Off

You can manually switch the scale off at any time by pressing and holding the "ON/OFF" button for 2 seconds.

	Low batteryThis symbol gives advance warning that the battery will run out soon.
	No battery power remainingThis means it's time to change the batteries.
	Negative weightThis is shown when weight is lifted off of the platform while the scale is under the Tare setting.
	OverloadThis means that the maximum weight limit has been exceeded.Remove some ingredients to prevent damaging the scale.

Cleaning and Care

When using this scale, please ensure it is used on a dry, flat even surface.

The scale is not waterproof, therefore should not be exposed to moisture or submerged under water.

To clean the scale, use a slightly damp cloth to wipe over it. Do not use any chemical or abrasive cleaning products to clean the scale.

If you plan to not use the scale for a long time, remove the batteries before storing away.

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

CE

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
