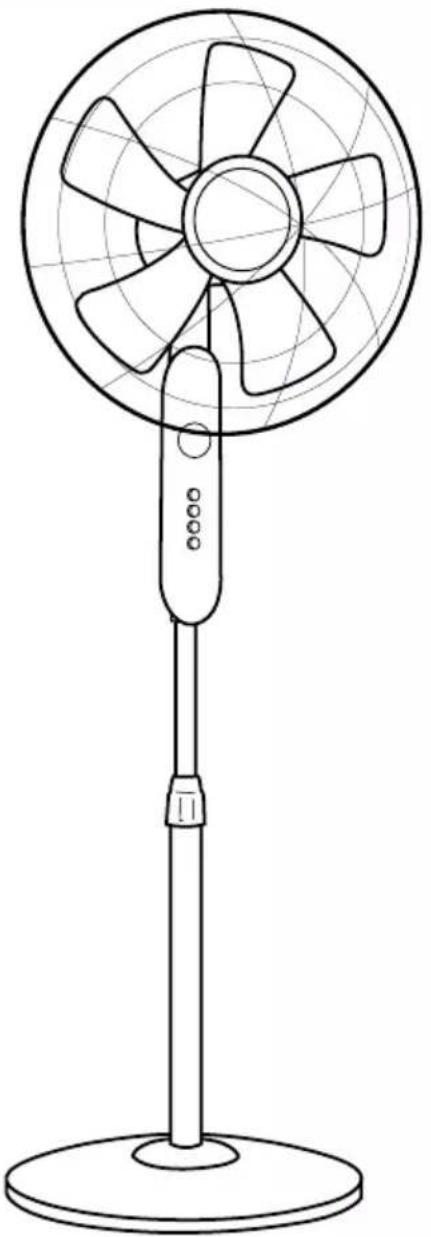

FN45 - Standing Fan

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

DURONIC

Contents

English Manual 4

1. In order to prevent the risk of an electrical shock, do not open or attempt to make any repairs to the fan yourself. This should be done by a qualified technician.

2. Never insert foreign objects or accessories through the grill of the fan.

3. Always unplug the appliance first before manually handling the fan or any of the parts.

4. Make sure that the fan is on a flat, even and stable surface when operating as this enables safe usage and will prevent the fan from falling.

5. Do not use outdoors as the weather (eg. rain) may affect its performance, as well as the aesthetics of the fan. Additionally, never submerge the fan under water as this may cause internal damage to the motor.

6. Do not operate the fan with a damaged cable or plug. Do not operate the fan if it malfunctions, or has been dropped or damaged in any way.

7. Do not operate the fan in the presence of flammable fumes.

8. Do not use the fan near curtains, plants, or where other objects can become caught in the blades.

9. To disconnect the fan, pull the plug out of the mains power outlet. Do not pull it using the cable.

10. Do not run the cable under carpeting or cover the cable with rugs, runners, or similar covers.

11. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not injure themselves or cause harm to their surroundings.

12. If you notice any anomalies such as an unusual noise from the fan, turn the appliance off and unplug it immediately.

13. This product is made for household domestic use only and not for commercial purposes.

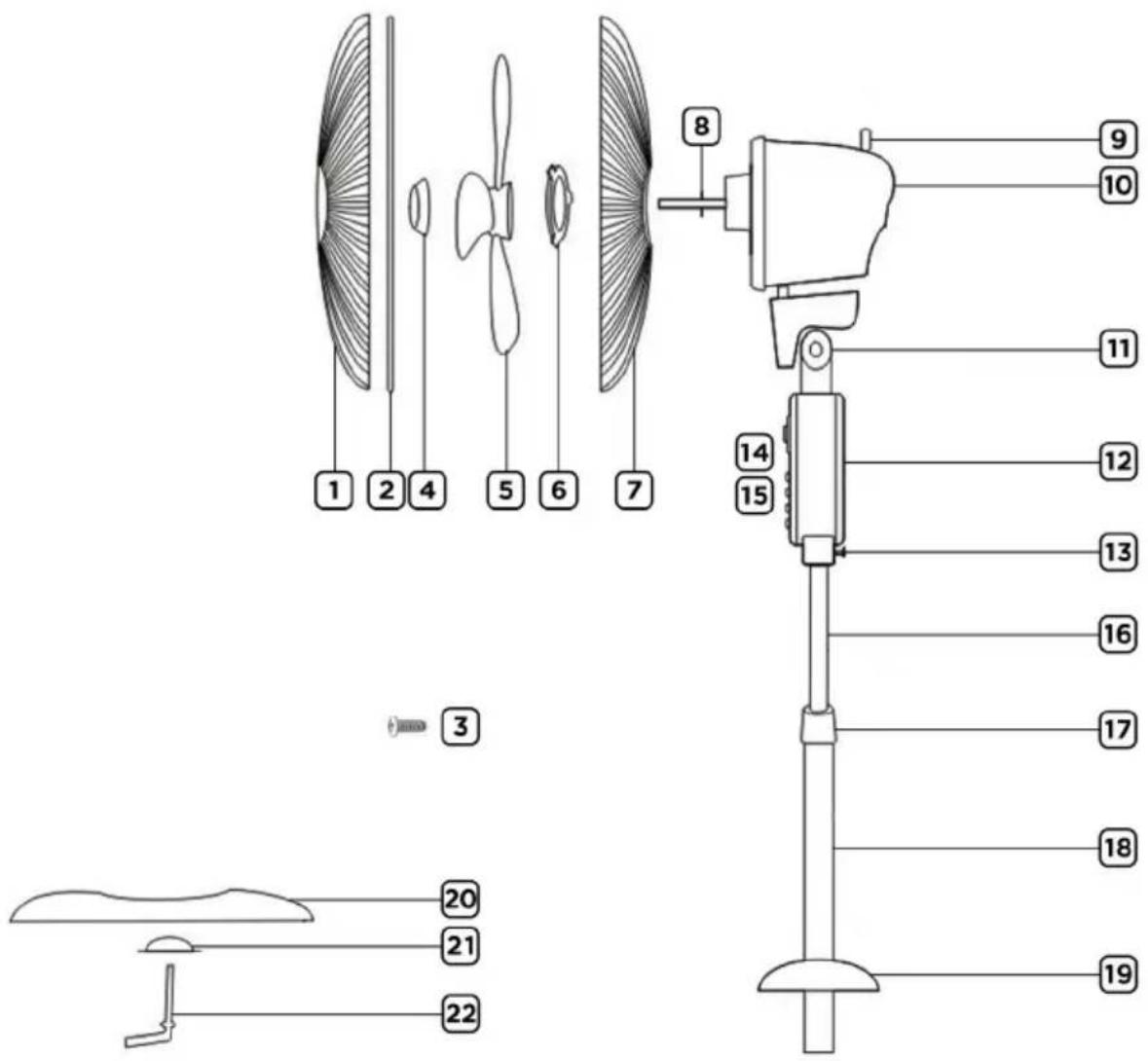

Fan Components

Technical diagram of a fan assembly with numbered parts and exploded view, including propeller, motor, and base components.

1 Front Cover 12 Control Box
2 Cover Ring 13 Control Box Screw
3 Cover Ring Screw 14 Control Panel
4 Blade Cap 15 Power Switch
5 Fan Blade 16 Pole Inner Tube
6 Fastening Nut 17 Pole Tightening	Cap
7 Back Cover 18 Pole Exterior Tube
8 Motor Shaft Pin 19 Cap
9 Oscillation Lock 20 Base
10 Fan Head/Motor 21 Fixing Plate	for Base
11 Tilting Joint 22 Tightening Screw

DURONIC

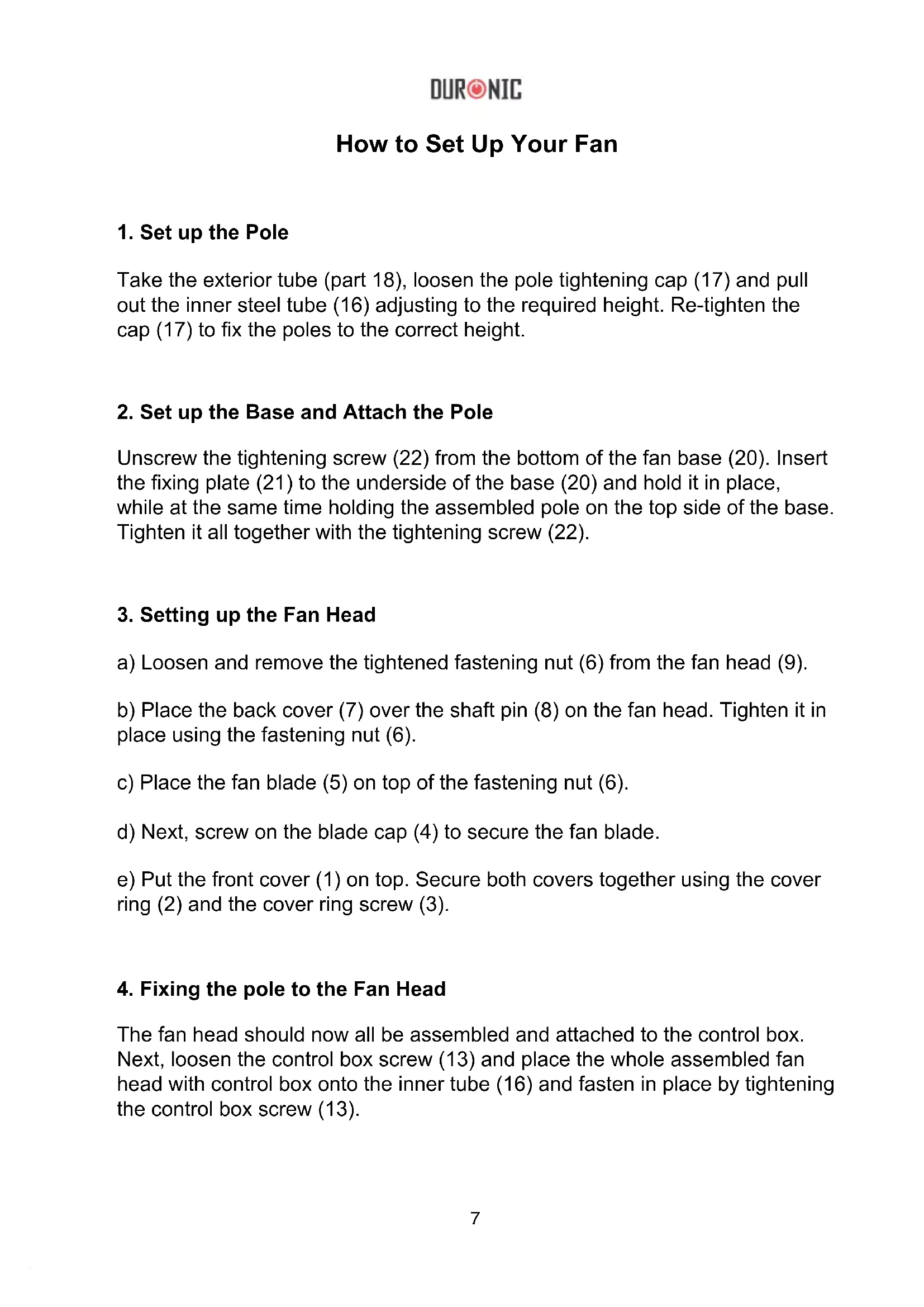

How to Set Up Your Fan

1. Set up the Pole

Take the exterior tube (part 18), loosen the pole tightening cap (17) and pull out the inner steel tube (16) adjusting to the required height. Re-tighten the cap (17) to fix the poles to the correct height.

2. Set up the Base and Attach the Pole

Unscrew the tightening screw (22) from the bottom of the fan base (20). Insert the fixing plate (21) to the underside of the base (20) and hold it in place, while at the same time holding the assembled pole on the top side of the base. Tighten it all together with the tightening screw (22).

3. Setting up the Fan Head

a) Loosen and remove the tightened fastening nut (6) from the fan head (9).
b) Place the back cover (7) over the shaft pin (8) on the fan head. Tighten it in place using the fastening nut (6).
c) Place the fan blade (5) on top of the fastening nut (6).
d) Next, screw on the blade cap (4) to secure the fan blade.
e) Put the front cover (1) on top. Secure both covers together using the cover ring (2) and the cover ring screw (3).

4. Fixing the pole to the Fan Head

The fan head should now all be assembled and attached to the control box. Next, loosen the control box screw (13) and place the whole assembled fan head with control box onto the inner tube (16) and fasten in place by tightening the control box screw (13).

DURONIC

How to Use the FN65

1. Adjustment of the Wind Direction

The angle of the fan head is adjustable upwards or downwards by slightly lifting or pressing the mesh cover.

1. Adjustment of the Rotation/Oscillation

Pressing the oscillation lock on top of the motor head will activate the rotation function. Pull the button up again to stop the fan head oscillating.

1. Adjusting the Wind Speed

This fan has 3 speed settings which can be selected by pressing the numbered buttons on the control pad: button 1 = low wind, 2 = medium wind, 3 = high wind. Press button 0 to stop the fan.

1. Setting the Timer

This fan has a built-in timer which will automatically turn off the fan after a selected time. Simply turn the timer dial to the desired time, choose from 10, 20, 30, 40, 50 and 60 minutes.

Troubleshooting

1. Make sure the blade is tightly inserted into the shaft pin of the motor.

2. Make sure the back of the cover is properly inserted onto the groove on the fan head.

3. Make sure the edges of the blade are not damaged.

4. Make sure the mesh covers have not been damaged and do not come into contact with the fan blade.

DURONIC

Maintenance and Storage

1. Unplug the fan and store it in a cool, dry location when not in use.

2. Never submerge the fan in water. To keep the fan clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild detergent if necessary. After cleaning, wipe the unit dry by using a soft dry cloth.

3. Do not use alcohol, gasoline, abrasive powders, furniture polish, or brushes to clean the fan as this may cause damage and deterioration to the surface of the fan.

4. Always ensure the fan is completely dry after cleaning before operating again.

Technical Specification

Model Voltage Frequency Power
FN45 220V-240V 50Hz 60W

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of

Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste

Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked

waste to your Local Authority Civic waste site,

where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
