USER MANUAL FN16 Duronic

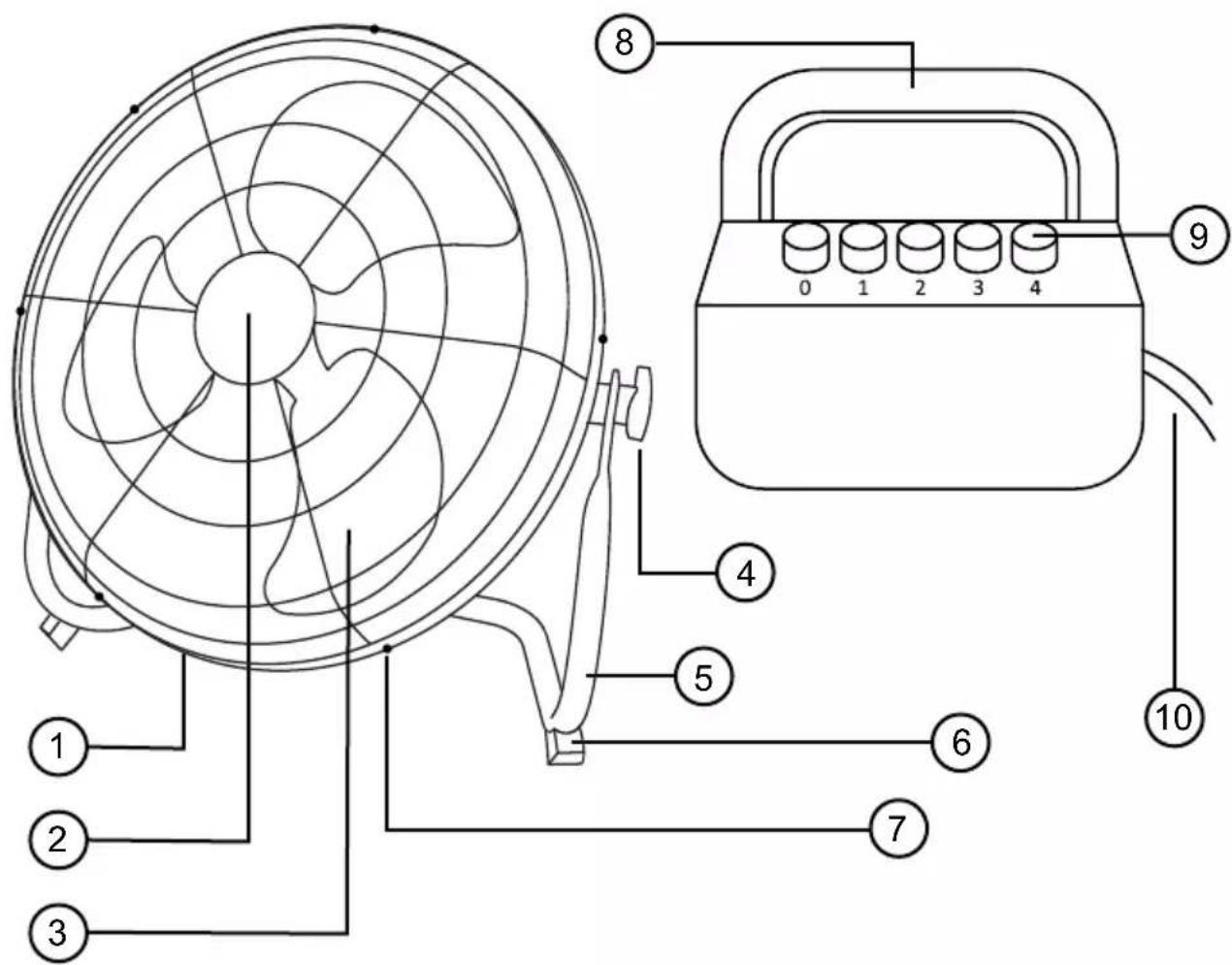

English Manual4 Features and Specications Components

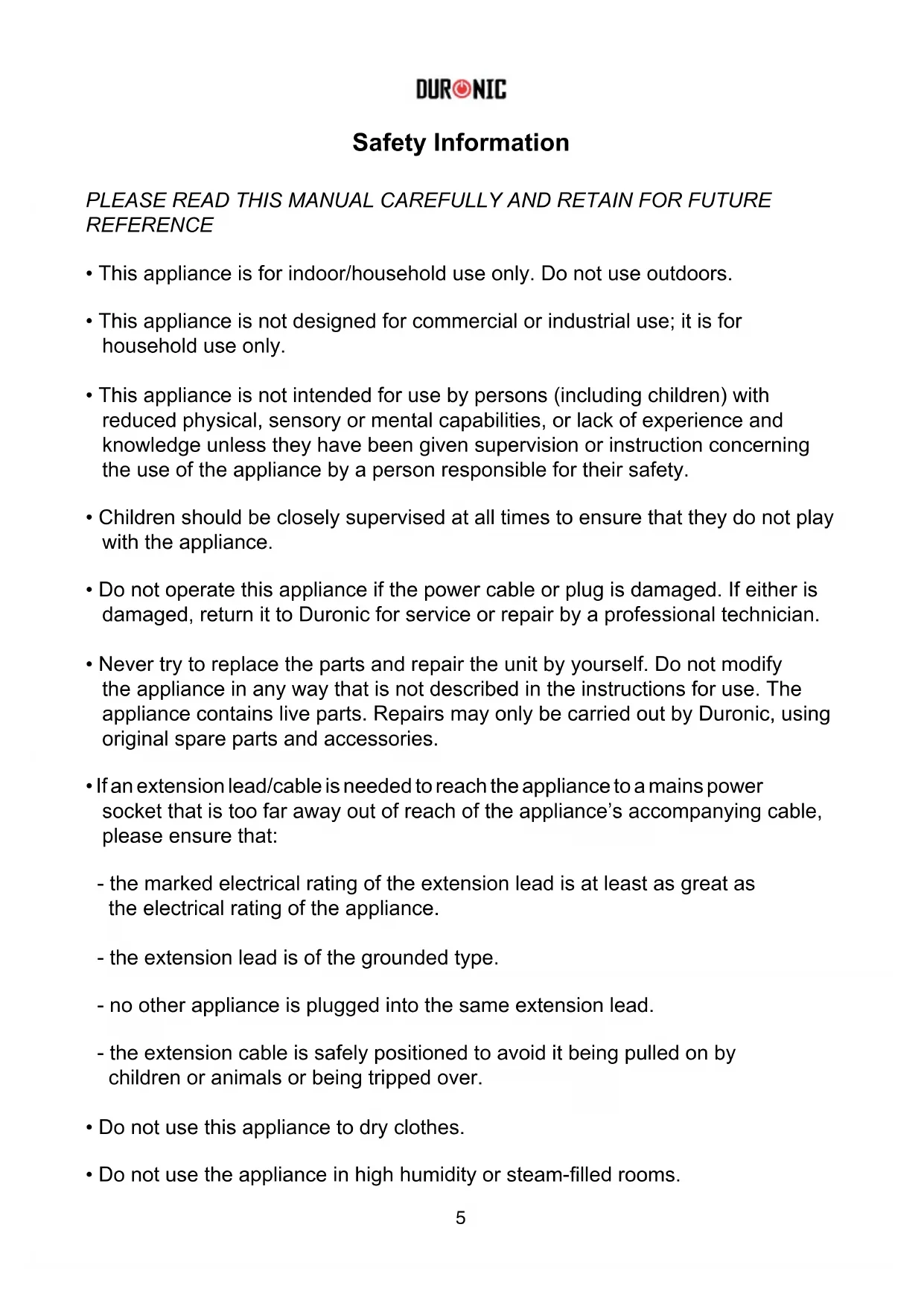

• This appliance is for indoor/household use only. Do not use outdoors.

• This appliance is not designed for commercial or industrial use; it is for household use only.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

• Children should be closely supervised at all times to ensure that they do not play with the appliance.

• Do not operate this appliance if the power cable or plug is damaged. If either is damaged, return it to Duronic for service or repair by a professional technician.

• Never try to replace the parts and repair the unit by yourself. Do not modify the appliance in any way that is not described in the instructions for use. The appliance contains live parts. Repairs may only be carried out by Duronic, using original spare parts and accessories.

• If an extension lead/cable is needed to reach the appliance to a mains power socket that is too far away out of reach of the appliance’s accompanying cable, please ensure that: - the marked electrical rating of the extension lead is at least as great as the electrical rating of the appliance. - the extension lead is of the grounded type. - no other appliance is plugged into the same extension lead. - the extension cable is safely positioned to avoid it being pulled on by children or animals or being tripped over.

• Do not use this appliance to dry clothes.

• Do not use the appliance in high humidity or steam-lled rooms. Safety Information6

• Do not use this appliance near water or in the immediate surroundings of a bath, a shower or a swimming pool.

• Do not allow water or any other liquids to run into the interior of the appliance, as this could create a re and/or electrical hazard.

• Always turn the fan off and disconnected from the power supply when not in use.

• Do not use the fan while sleeping or place it near a person who is sleeping.

• Do not cover or place anything on top of the fan.

• Never touch the fan blades during use.

• Do not use any abrasive cleaners or solvents, as this will damage the fan.

• Ensure the appliance is switched off and the power cord is unplugged from the electrical outlet before cleaning, servicing, or relocating the appliance.

• Never insert ngers or metal objects into the vents and openings of the fan.

• Do not push any objects in the air inlet and outlet grills as this may cause an electric shock, re or damage the fan.

• Avoid placing the power cable in areas where it can become a tripping hazard. Do not place the power cable under carpet or cover it with rugs, runners or similar.

• To avoid a circuit overload when using this appliance, do not operate another high-wattage appliance on the same electrical circuit.

• Always plug the fan directly into a wall socket. Avoid using extension leads where possible as they may overheat and cause a risk of re.

• Do not use this fan with an external programmer, timer switch or any other device which would switch the device on automatically unless this has already been pre-built into the appliance by the manufacturer. Safety Information (continued)7

• Do not wrap the power cable and plug around the appliance, as this may create kinks in the cable and cause the insulation to weaken or split, particularly where it enters the appliance.

• Do not operate the appliance with the fan safety guards removed.

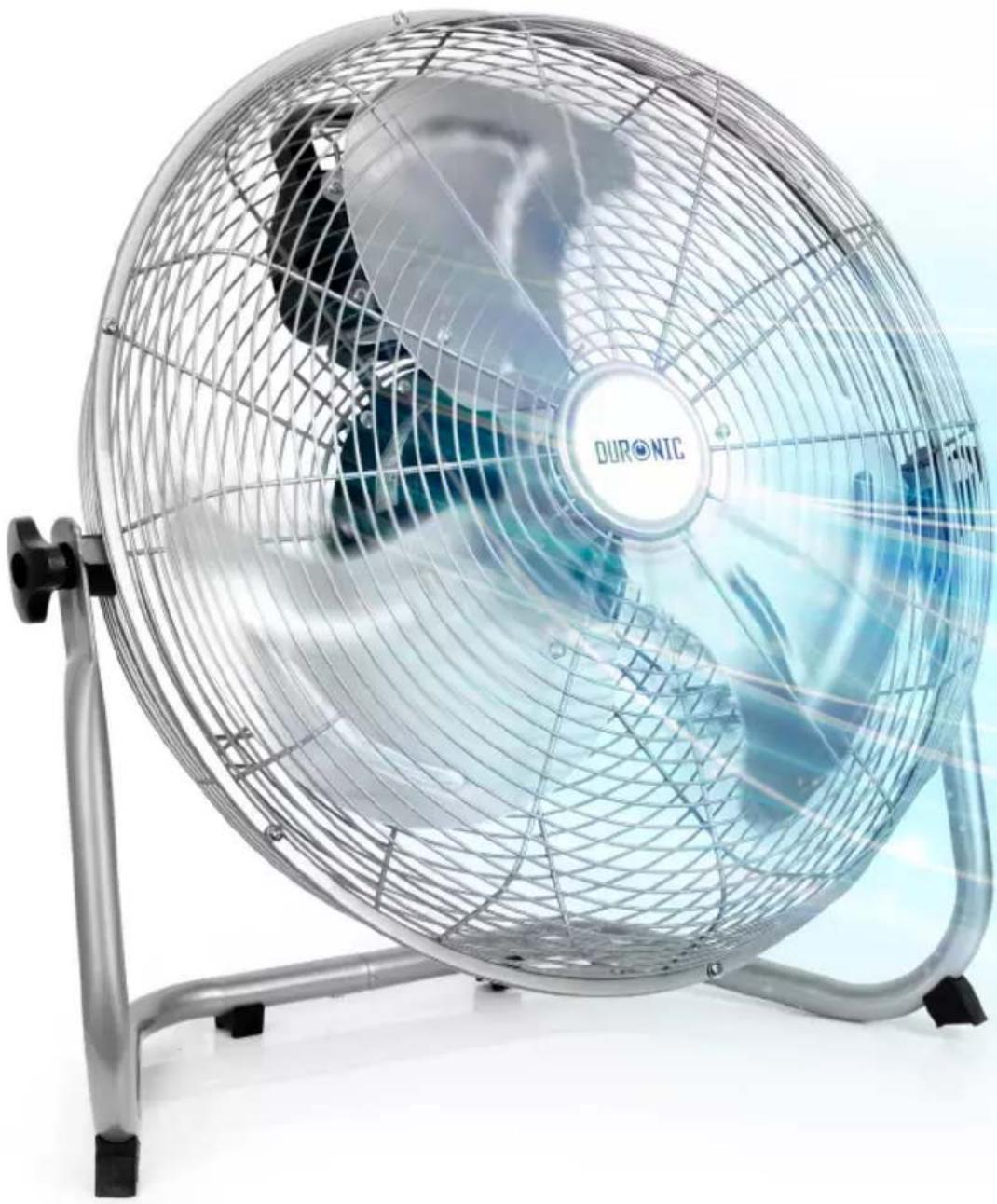

• Do not use the fan near petrol, paints, ammable gases, ovens, or other sources of heat. Safety Information (continued) Introduction This high velocity fan is ideal for the home, workplace, garage or even the gym. It has 4 speed options to choose from, a 90° tilting head that lets you direct the ow of air from oor to ceiling which gives you complete control at all times. The powerful motor paired with the stainless-steel blades churn out refreshing air rapidly and efciently, quickly cooling down the room and space around it. Designed to not only function well but also look good, the modern chrome design will look great wherever you put it. This fan comes in two sizes: FN16 = 16” and FN20 = 20”8

1. Remove all of the packaging materials. Check that there are no parts missing.

2. Position the fan on a dry level surface ensuring to be in close vicinity to a plug

3. Avoid placing the power cable(10) in areas where it can become a tripping

hazard. Do not place the power cable under carpet or cover it with rugs, runners or similar items.

4. Plug in the power cable into the nearest wall socket.

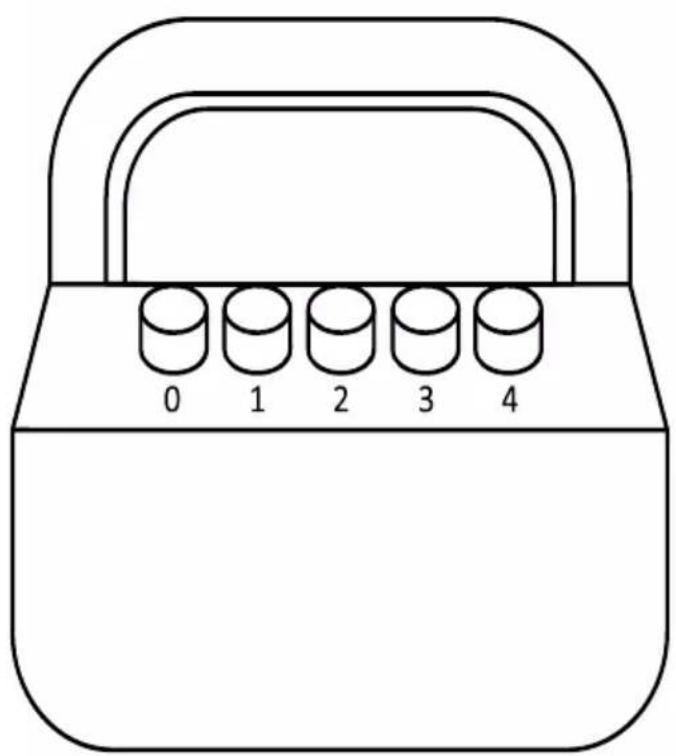

Use the Control Buttons(9) at the back of the fan to control the speed and turn the fan On and Off:

3 - Medium/High Power

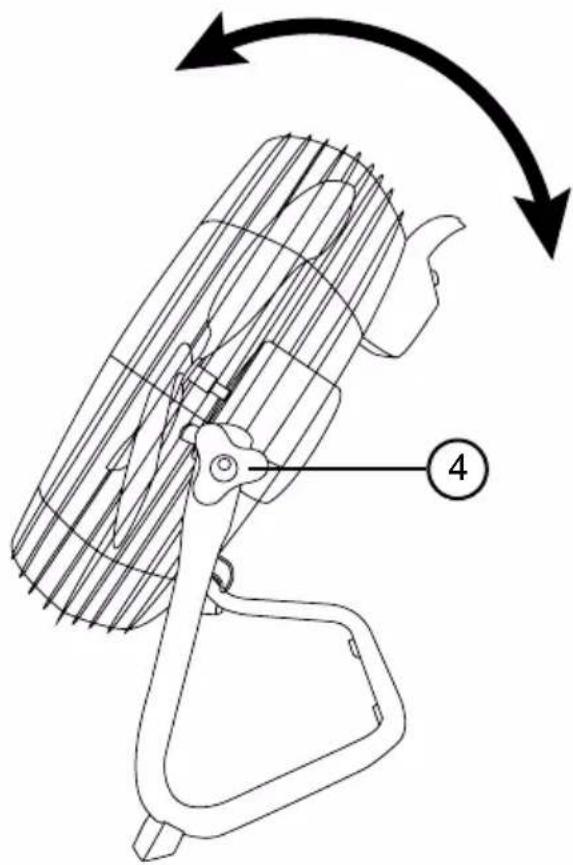

1. To make adjustments to the angle

of the fan, switch it off and adjust it by hand to the desired angle using minimal force.

2. If the fan doesn’t adjust using minimal

force, loosen the adjusting Nuts(4) slightly at the side of the fan by turning them anti-clockwise.

3. Adjust the fan head to the desired

angle and then tighten the nuts again by turning them clockwise.

Cleaning and Maintenance

1. Unscrew the Safety Screws(7) around the rim of the Safety Grill(1).

2. Lift off the top half of the safety grill upward to release it.

3. Use a duster or soft dry cloth to remove any dust build-up on the Fan Blades(3)

4. Place the top half of the safety grill back on to the fan and screw back in place.10
