FN20 - Fan Duronic - Free user manual and instructions

Product type	High-speed column fan
Brand	Duronic
Model	FN20
Dimensions (L x W x H)	61 x 60 x 25 cm
Weight	5.6 kg
Power	120 W
Voltage	220-240 V
Airflow	4200 m³/h
Rotation speed	13000 rpm
Noise level	Below 50 dB
Cable length	2.2 m
Number of speeds	4 (0-4)
Head tilt	90° (floor to ceiling)
Blade material	Stainless steel
Design	Modern chrome
Intended use	Indoor domestic (home, office, garage, gym)
Included components	Safety grille, motor, blades, adjustment nuts, base, rubber feet, safety screws, carrying handle, switches, power cable
Control type	Rear rotary switches
Cleaning	Remove front grille, dust with a feather duster or soft cloth
Safety	Protective grille, automatic shut-off in case of tipping (not specified but likely), do not use near water

Frequently Asked Questions - FN20 Duronic

How to adjust the speed of the FN20 fan?

The control switches at the rear of the fan allow you to choose from 4 speeds: 0 (off), 1 (low), 2 (medium-low), 3 (medium-high) and 4 (high).

Can I tilt the fan head?

Yes, the head can be manually tilted up to 90°. For easier adjustment, slightly loosen the adjustment nuts on the side, adjust the angle, then retighten.

How to clean the Duronic FN20 fan?

Unscrew the safety screws on the front grille, remove the upper half of the grille, dust the blades and grille with a feather duster or a soft dry cloth, then reassemble everything.

What are the dimensions of the FN20?

The FN20 measures 61 x 60 x 25 cm and weighs 5.6 kg, which corresponds to a blade diameter of 20 inches.

Is the fan noisy?

The noise level is below 50 dB, making it quiet and suitable for use in a bedroom or office.

Can I use this fan outdoors?

No, this fan is designed only for indoor use. Do not use it outdoors or in humid environments.

What to do if the fan does not start?

Check that the power cable is properly plugged in and that the outlet works. Make sure the speed selector is not set to 0. If the problem persists, contact Duronic after-sales service.

Is the fan under warranty?

The manual does not mention a specific warranty, but Duronic products are generally covered by a legal guarantee of conformity. Check the terms on the official website.

Can I disassemble the fan to repair it myself?

It is not recommended to repair the device yourself. Repairs must be carried out by Duronic or a professional technician using original parts.

How to dispose of the fan at the end of its life?

In accordance with the WEEE directive, do not dispose of the appliance with household waste. Take it to an approved recycling point where it will be treated free of charge.

USER MANUAL FN20 Duronic

Features and Specifications

Model Size	Power & Voltage	Air Delivery Decibels	Cable Length
FN16	52x50x24cm - 4.1kg	75W	3000m³/h - 13000rpm <50db 2.2m
		220-240V
FN20	61x60x25cm - 5.6kg	120W	4200m³/h - 13000rpm <50db 2.2m
		220-240V

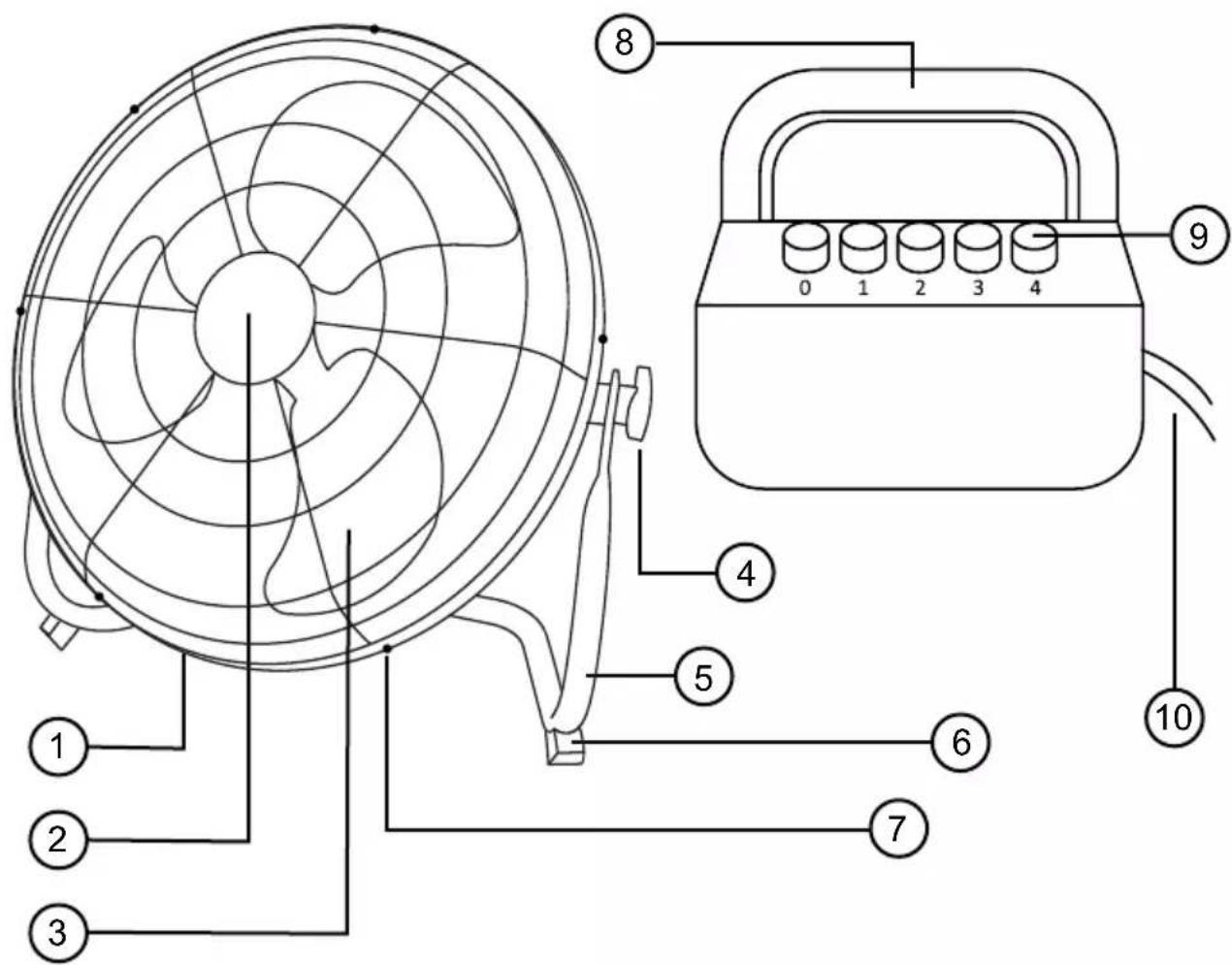

Components

1. Safety grill
2. Motor
3. Fan blades
4. Adjusting nuts

5. Stand

6. Rubber feet

7. Safety Screws
8. Carry handle
9. Control Buttons
10. Power cable & plug

DURONIC

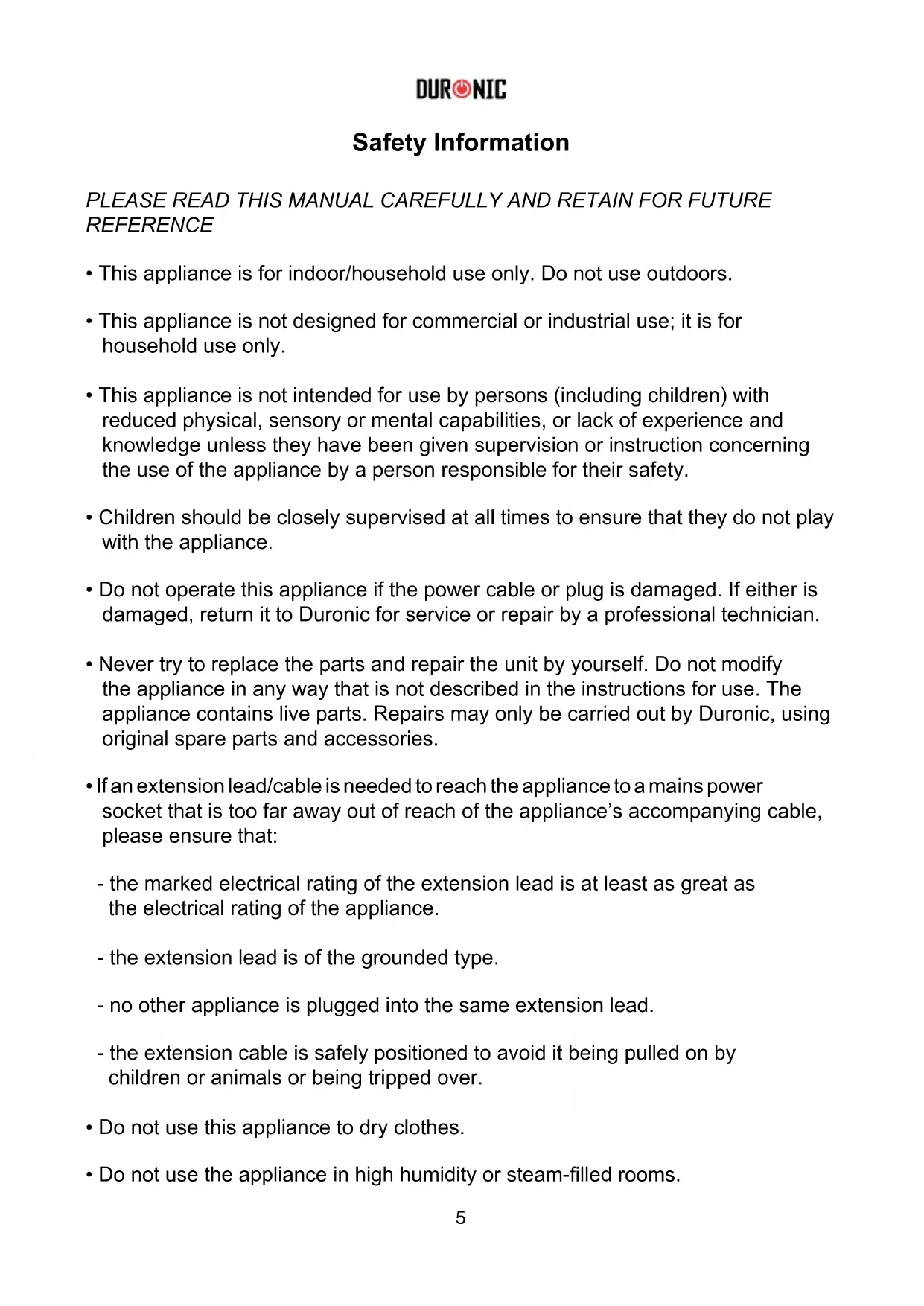

Safety Information

PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE

• This appliance is for indoor/household use only. Do not use outdoors.
• This appliance is not designed for commercial or industrial use; it is for household use only.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be closely supervised at all times to ensure that they do not play with the appliance.
• Do not operate this appliance if the power cable or plug is damaged. If either is damaged, return it to Duronic for service or repair by a professional technician.
• Never try to replace the parts and repair the unit by yourself. Do not modify the appliance in any way that is not described in the instructions for use. The appliance contains live parts. Repairs may only be carried out by Duronic, using original spare parts and accessories.
• If an extension lead/cable is needed to reach the appliance to a mains power socket that is too far away out of reach of the appliance's accompanying cable, please ensure that:
• the marked electrical rating of the extension lead is at least as great as the electrical rating of the appliance.
• the extension lead is of the grounded type.
• no other appliance is plugged into the same extension lead.
• the extension cable is safely positioned to avoid it being pulled on by children or animals or being tripped over.
• Do not use this appliance to dry clothes.
• Do not use the appliance in high humidity or steam-filled rooms.

DURONIC

Safety Information (continued)

• Do not use this appliance near water or in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not allow water or any other liquids to run into the interior of the appliance, as this could create a fire and/or electrical hazard.
• Always turn the fan off and disconnected from the power supply when not in use.
• Do not use the fan while sleeping or place it near a person who is sleeping.
• Do not cover or place anything on top of the fan.
• Never touch the fan blades during use.
• Do not use any abrasive cleaners or solvents, as this will damage the fan.
• Ensure the appliance is switched off and the power cord is unplugged from the electrical outlet before cleaning, servicing, or relocating the appliance.
• Never insert fingers or metal objects into the vents and openings of the fan.
• Do not push any objects in the air inlet and outlet grills as this may cause an electric shock, fire or damage the fan.
• Avoid placing the power cable in areas where it can become a tripping hazard. Do not place the power cable under carpet or cover it with rugs, runners or similar.
• To avoid a circuit overload when using this appliance, do not operate another high-wattage appliance on the same electrical circuit.
• Always plug the fan directly into a wall socket. Avoid using extension leads where possible as they may overheat and cause a risk of fire.
• Do not use this fan with an external programmer, timer switch or any other device which would switch the device on automatically unless this has already been pre-built into the appliance by the manufacturer.

Safety Information (continued)

• Do not wrap the power cable and plug around the appliance, as this may create kinks in the cable and cause the insulation to weaken or split, particularly where it enters the appliance.
• Do not operate the appliance with the fan safety guards removed.
• Do not use the fan near petrol, paints, flammable gases, ovens, or other sources of heat.

Introduction

This high velocity fan is ideal for the home, workplace, garage or even the gym. It has 4 speed options to choose from, a 90^ tilting head that lets you direct the flow of air from floor to ceiling which gives you complete control at all times.

The powerful motor paired with the stainless-steel blades churn out refreshing air rapidly and efficiently, quickly cooling down the room and space around it.

Designed to not only function well but also look good, the modern chrome design will look great wherever you put it.

This fan comes in two sizes: FN16 = 16" and FN20 = 20"

Before First Use

1. Remove all of the packaging materials. Check that there are no parts missing.
2. Position the fan on a dry level surface ensuring to be in close vicinity to a plug socket.
3. Avoid placing the power cable(10) in areas where it can become a tripping hazard. Do not place the power cable under carpet or cover it with rugs, runners or similar items.
4. Plug in the power cable into the nearest wall socket.

How to Use

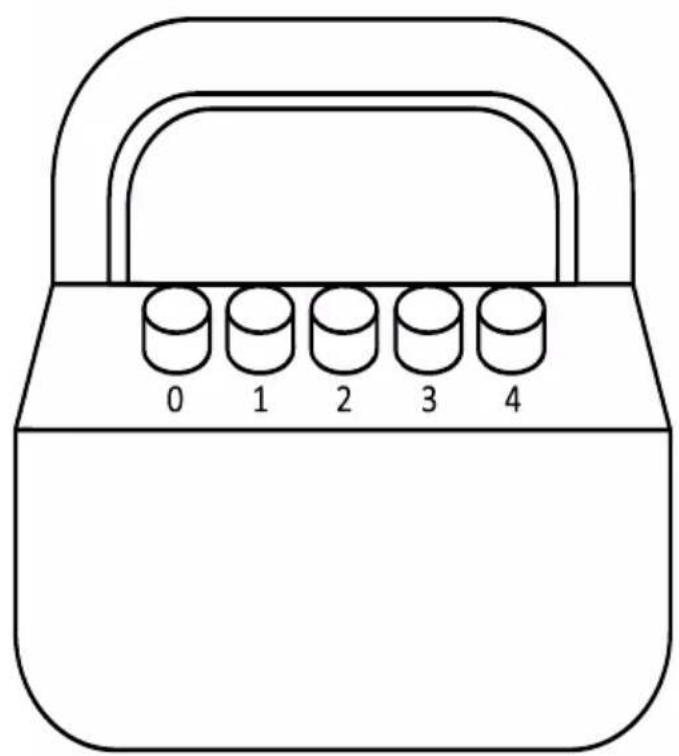

POWER AND SPEED CONTROL

Use the Control Buttons(9) at the back of the fan to control the speed and turn the fan On and Off:

0 - Off
1 - Low Power
2 - Low/Medium Power
3 - Medium/High Power
4 - High Power

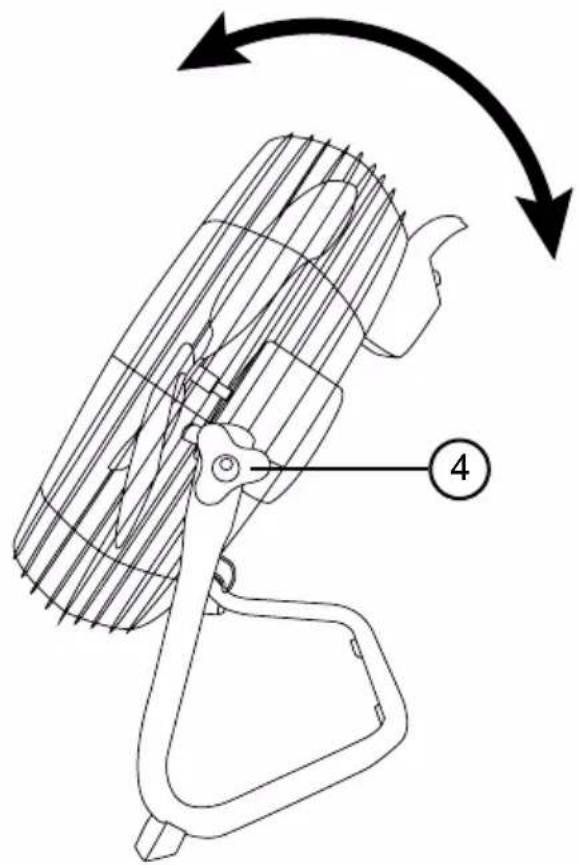

ADJUSTING THE ANGLE

1. To make adjustments to the angle of the fan, switch it off and adjust it by hand to the desired angle using minimal force.
2. If the fan doesn't adjust using minimal force, loosen the adjusting Nuts(4) slightly at the side of the fan by turning them anti-clockwise.
3. Adjust the fan head to the desired angle and then tighten the nuts again by turning them clockwise.

Cleaning and Maintenance

1. Unscrew the Safety Screws(7) around the rim of the Safety Grill(1).
2. Lift off the top half of the safety grill upward to release it.
3. Use a duster or soft dry cloth to remove any dust build-up on the Fan Blades(3) and safety grill.
4. Place the top half of the safety grill back on to the fan and screw back in place.

Features and Specificities

Model	Grootte	Vermogen & Voltage	Lucht bezorging	Decibel	Kabel-lenge
FN16	52x50x24cm	75W	3000m³/h	<50db	2.2m
	- 4.1kg	220-240V	- 13000rpm
FN20	61x60x25cm	120W	4200m³/h	<50db 2.2m
	- 5.6kg	220-240V	- 13000rpm

Componenten

VERMOGEN EN SNELHEIDSREGELING

Features and Specifications

Modell	Storlek Luft	Ström & verans Spanning		Decibel	Kabell- ängd
FN16	52x50x24cm	75W	3000m³/h	<50db 2.2m
	- 4.1kg	220-240V	- 13000rpm
FN20	61x60x25cm	120W	4200m³/h	<50db 2.2m
	- 5.6kg	220-240V	- 13000rpm

Komponenter

1. Sakerhetsgaller
2. Motor
3. Flaktblad
4. Justermuttrar

5. Ställ

6. Gummifotter

7. Sakerhetsskruvar
8. Bärhandtag
9. Kontrollknappar
10. Strömkabel & stickpropp

Sakerhetsinformation

VÄNLIGEN LÄS DENNA MANUAL NOGA OCH SPARA FÖR FRAMTIDA REFERENS

Safety Information (continued)

Information for consumers on the disposal of Waste Electrical & Electronic Equipment (WEEE).

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Information for consumers on the disposal of Waste Electrical & Electronic Equipment (WEEE).
