Product type	Pedestal fan
Brand	Duronic
Model	FN30
Power supply	220-240 V ~ 50 Hz
Power	60 W
Number of speeds	3
Oscillation function	Yes, automatic rotation can be activated
Tilt adjustment	Yes, manual tilt up/down
Control type	Push buttons on control panel
Main material	Plastic and metal
Assembly required	Yes, with base, tubes, grilles and blades
Included accessories	Rear grille, front grille, blades, tubes, base, safety screw, ring
Safety	Protective grille, do not open, do not use if damaged
Maintenance	External cleaning with soft damp cloth, non-corrosive detergent
Warranty	1 year by Shine-Mart Ltd
Intended use	Domestic, indoor
Standards	CE marking, WEEE compliant
Recycling	Do not dispose of with household waste, take to recycling center
Country of import	Imported by Shine-Mart Ltd, RM3 8SB, United Kingdom

Frequently Asked Questions - FN30 Duronic

How to assemble the FN30 fan?

Insert the support tube into the base and tighten the safety screw. Attach the rear grille to the motor head, then the blades to the output shaft, finally the front grille with the ring. Place the head onto the extension tube and tighten the rear screw.

How to clean the fan?

Unplug the appliance. Clean the exterior with a soft damp cloth. Use a non-corrosive detergent if necessary. Wipe dry with a cloth. Never immerse in water.

What to do if the fan does not work?

Check that the plug is properly inserted and that the grilles do not touch the blades. If the problem persists, refer to the troubleshooting section of the manual.

Can I use the fan outdoors?

No, the fan is designed for indoor domestic use. Outdoor use can damage it due to humidity and weather conditions.

How to adjust the air direction?

Manually tilt the fan head up or down by pushing or lifting the grilles.

How to activate automatic rotation?

Press the rotation button (13) on the control panel to activate oscillation. Press again to lock it in a fixed position.

Can children use the fan?

Children must not use the appliance without supervision. Persons with reduced capabilities must be supervised.

What to do if the fan makes an abnormal noise?

Check that the blades are properly fixed to the output shaft and that the rear grille is correctly inserted. If the noise persists, do not use it and contact a technician.

What is the warranty of the fan?

The fan is warranted 1 year by Shine-Mart Ltd from the date of purchase, subject to domestic use condition and proof of purchase.

Can I repair the fan myself?

No, do not open the appliance. Repairs must be carried out by a qualified technician to avoid any risk of electrocution.

USER MANUAL FN30 Duronic

White outdoor fan with three blades and a stand, no visible text or symbols

FN30 - Standing Fan

DURONIC

Contents

English Manual 5

1. In order to prevent the risk of an electrical shock, do not open or attempt to make any repairs to the fan yourself. This should be done by a qualified technician.

2. Never insert foreign objects or accessories through the grill of the fan.

3. Always unplug the appliance first before manually handling the fan or any of the parts.

4. Make sure that the fan is on a flat, even and stable surface when operating as this enables safe usage and will prevent the fan from falling.

5. Do not use outdoors as the weather (such as rain) may affect the performance, as well as the aesthetics of the fan. Additionally, never submerge the fan under water as this may cause internal damage to the motor.

6. Do not operate the fan with a damaged cord or plug or after the fan malfunctions, or has been dropped or damaged in any manner.

7. Do not operate the fan in the presence of flammable fumes.

8. Do not use the fan near curtains, plants, or where other objects can become caught in the blades.

9. To disconnect the fan, pull the plug out of the mains plug socket. Do not pull the cable.

10. Do not run the cable under carpeting or cover the cable with rugs, runners, or similar covers.

11. T his appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

12. If you notice any anomalies such as an unusual noise from the fa n, turn the appliance off and unplug it immediately.

13. This product is made for household domestic use only and not for commercial purposes.

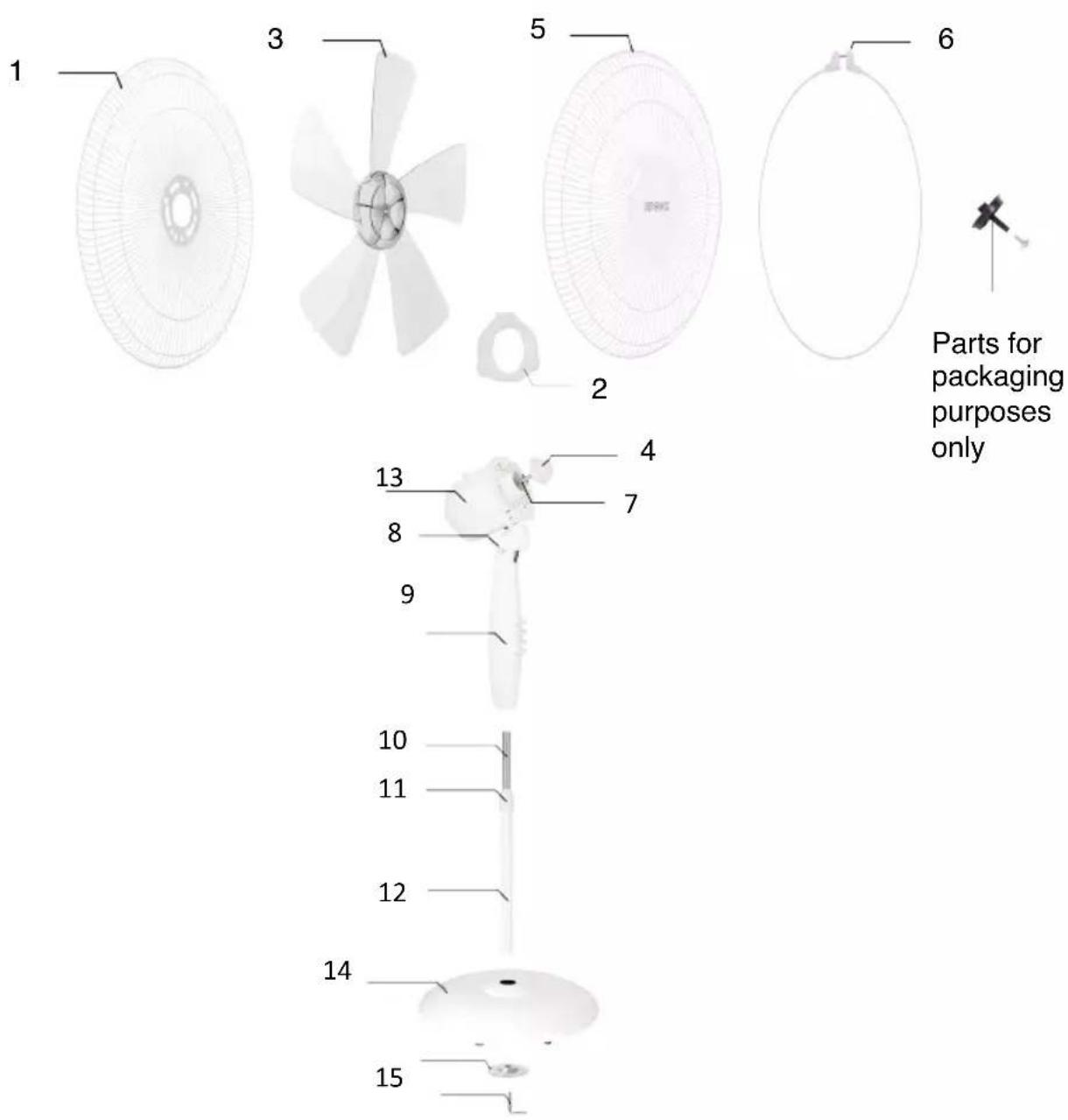

Fan Components

1 3 5 6 Parts for packaging purposes only 2 4 7 8 9 10 11 12 14 15

1. Back cover
2. Cover fastener
3. Blade
4. Blad fastenere
5. Front Cover

6. Plastic Ring

7. Output shaft

8. Joint
9. Panel
10. Extension tube
11. External joint

12. Support tube

13. Head rotating button

14. Base
15. Connecting Screw

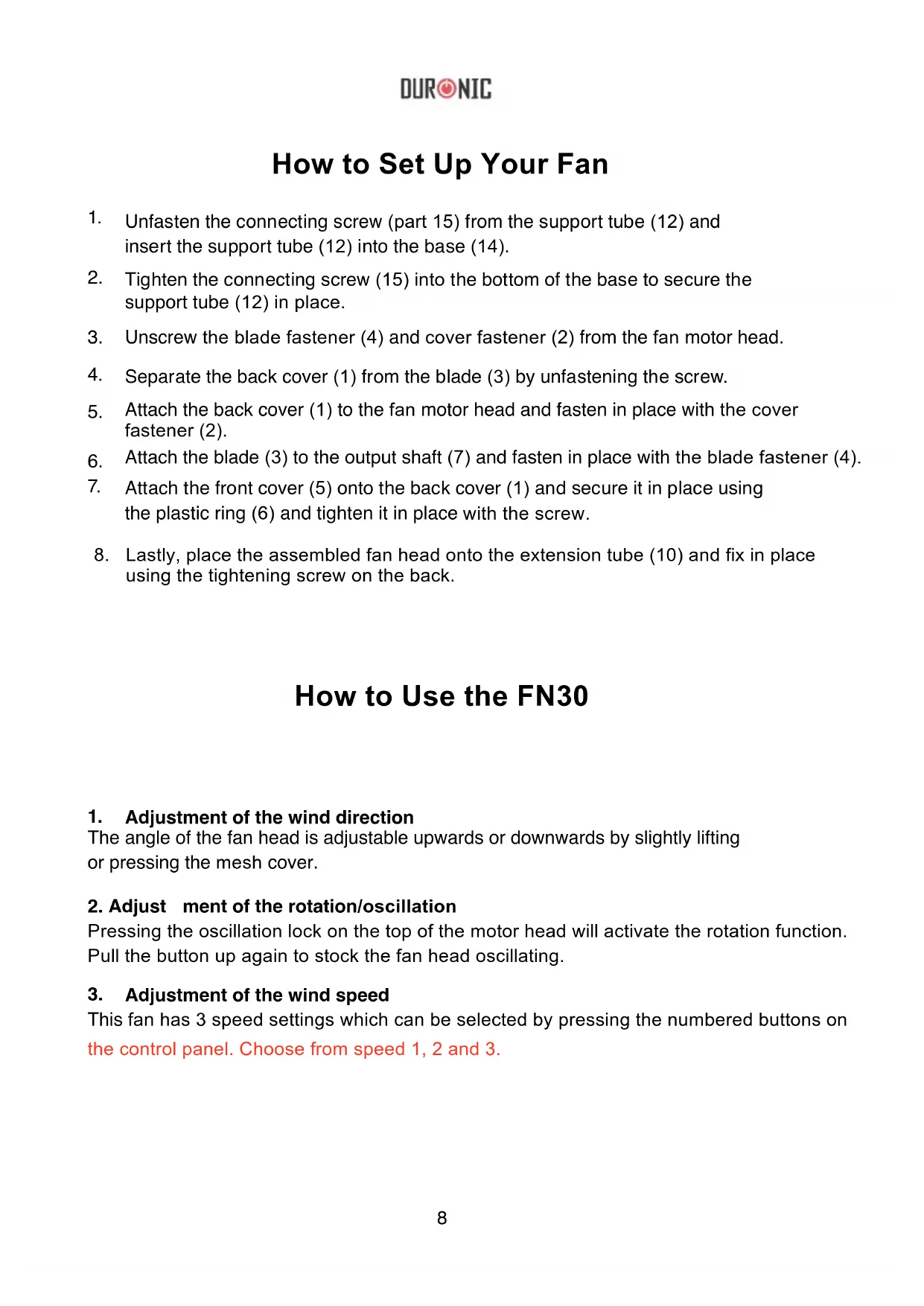

How to Set Up Your Fan

1. Unfasten the connecting screw (part 15) from the support tube (12) and insert the support tube (12) into the base (14).
2. Tighten the connecting screw (15) into the bottom of the base to secure the support tube (12) in place.
3. Unscrew the blade fastener (4) and cover fastener (2) from the fan motor head.
4. Separate the back cover (1) from the blade (3) by unfastening the screw.
5. Attach the back cover (1) to the fan motor head and fasten in place with the cover fastener (2).
6. Attach the blade (3) to the output shaft (7) and fasten in place with the blade fastener (4).
7. Attach the front cover (5) onto the back cover (1) and secure it in place using the plastic ring (6) and tighten it in place with the screw.
8. Lastly, place the assembled fan head onto the extension tube (10) and fix in place using the tightening screw on the back.

How to Use the FN30

1. Adjustment of the wind direction

The angle of the fan head is adjustable upwards or downwards by slightly lifting or pressing the mesh cover.

2. Adjust ment of the rotation/oscillation

Pressing the oscillation lock on the top of the motor head will activate the rotation function. Pull the button up again to stock the fan head oscillating.

3. Adjustment of the wind speed

This fan has 3 speed settings which can be selected by pressing the numbered buttons on the control panel. Choose from speed 1, 2 and 3.

Troubleshooting

If the fan does not function please check whether the power plug is correctly inserted into the socket. Make sure that the cover does not come into contact with the blade. If a noise can be heard when the fan is on, please check the following:

1. Make sure the blade is tightly inserted into the output shaft of the motor.
2. Make sure the back of the cover is properly inserted onto the groove of the output shaft.
3. Make sure the edges of the blade are not damaged.

Maintenance and Storage

1. Unplug the unit and store the fan in a cool, dry location when not in use.
2. Never submerge the fan in water. To keep the fan clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild detergent if necessary. After cleaning, wipe the unit dry by using a soft dry cloth.
3. Do not use alcohol, gasoline, abrasive powders, furniture polish, or brushes to clean the fan as this may cause damage and deterioration to the surface of the fan.
4. Always ensure the fan is completely dry after cleaning before operating again.

Specifications

Model Voltage Frequency Power
FN30 220V-240V 50Hz 60W

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of

Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste

Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked

waste to your Local Authority Civic waste site,

where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
