GLH60 - Lamp Duronic - Free user manual and instructions

Product type	LED horticultural grow lamp
Brand	Duronic
Model	GLH60
Dimensions (L x W x H)	40 x 17 x 6 cm
Weight	2.04 kg
Power supply	100-240 V ~ 50/60 Hz
Power consumption	600 W
Number of LEDs	60 (39 red, 19 blue, 2 UV)
Beam angle	120°
Luminous flux (PPFD)	863.38 lm / 810 µmol/m²/s
Light spectrum	Special for plants (red 660 nm, blue 450 nm, IR 935 nm)
LED lifespan	50,000 hours
Operating temperature	-15 °C to 55 °C
Cable length	1.5 m
Lighting modes	VEG (blue), BLOOM (red), VEG&BLOOM (combined)
Included accessories	Digital hygrometer, suspension cable
Cleaning and maintenance	Unplug before cleaning, use a dry cloth. Do not immerse.
Safety	Indoor use only, do not repair yourself, avoid moisture
Spare parts and repairability	Contact the manufacturer or a certified professional
Warranty	1 year (Shine-Mart Ltd)

Frequently Asked Questions - GLH60 Duronic

What are the different lighting modes of the GLH60 lamp?

The lamp offers three modes: VEG (blue light for growth), BLOOM (red light for flowering) and VEG&BLOOM (both simultaneously). You can activate the corresponding switches.

How to install the GLH60 lamp?

Attach the supplied suspension cable above the lamp, then hang it from a solid support. Follow the recommended heights according to the plant's life cycle.

What is the recommended hanging height for each growth stage?

Seedlings: 61 cm with 8h on/16h off. Growth: 56-61 cm with 14h/10h. Vegetative: 51-56 cm with 14h/10h. Flowering: 46 cm with 12h/12h.

How to clean the GLH60 lamp?

Unplug the lamp before cleaning. Use a dry cloth to remove dust. Do not immerse in water and avoid corrosive products.

What is the lifespan of the LEDs?

The LEDs have an estimated lifespan of 50,000 hours, which corresponds to several years of continuous use.

Can I use the lamp outdoors?

No, the lamp is designed for indoor/domestic use only. Do not expose it to moisture or weather.

What to do if the cable or plug is damaged?

Do not attempt to repair yourself. Contact Duronic or call a certified professional to replace the components.

How to use the included digital hygrometer?

Insert a 1.5V AAA battery. To set the time, hold MODE for 2 seconds, then adjust with ADJ. The hygrometer measures temperature (-10°C to +50°C) and humidity (10% to 99% RH).

What is the warranty of the GLH60 lamp?

The lamp comes with a 1-year warranty offered by Shine-Mart Ltd, owner of the brand Duronic. Keep the proof of purchase.

What to do if my plant leaves appear dry or discolored?

This may indicate too much light. Reduce the lighting duration or change the mode (for example, switch to VEG mode if you were in BLOOM). Monitor your plants.

USER MANUAL GLH60 Duronic

Creative Consumer Products

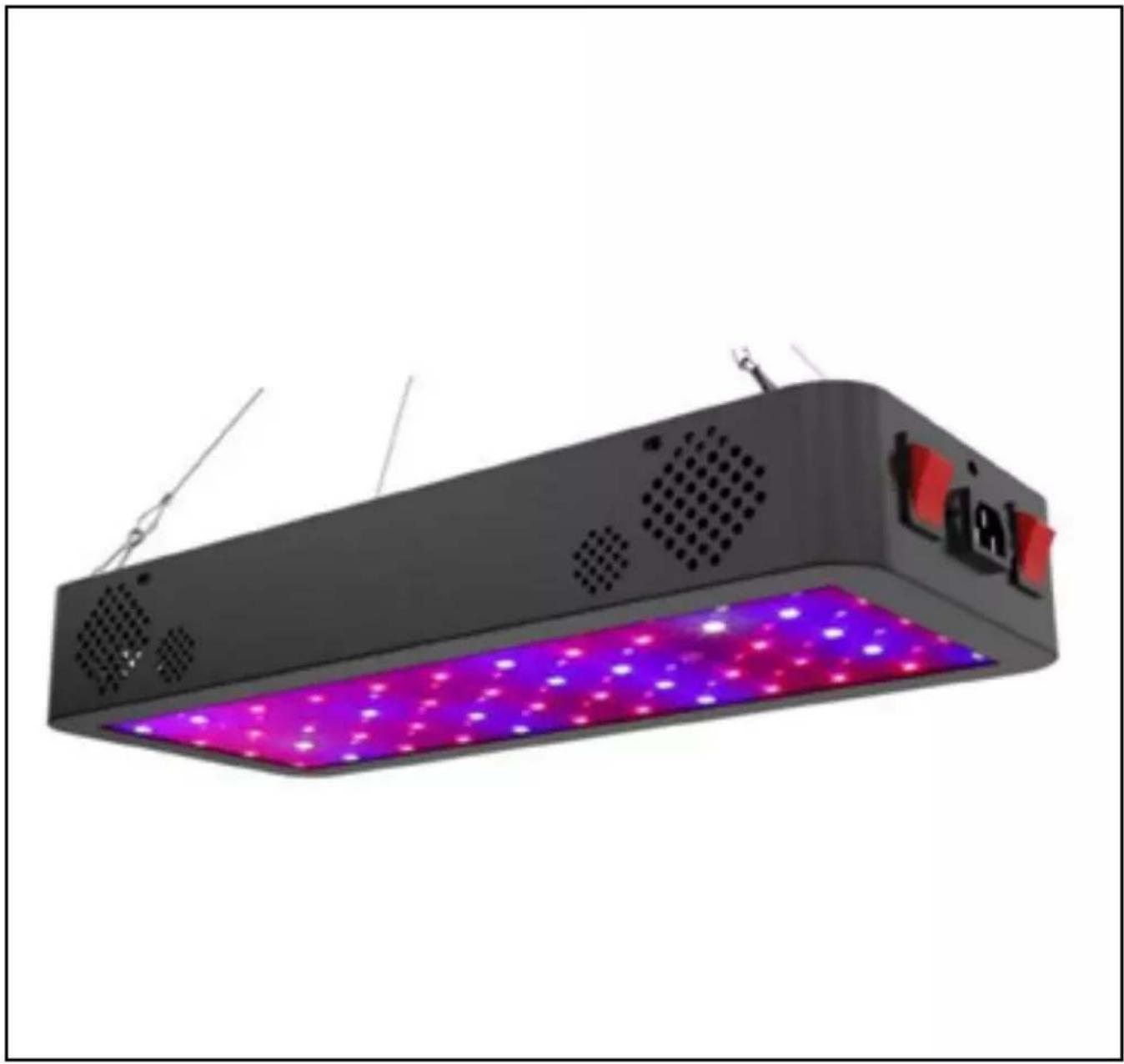

Exterior view of a black rectangular LED light fixture with purple and pink LED lighting (no text or symbols visible)

GLH60 / GLH90 Hanging LED Grow Light

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

DURONIC

Contents

English Manual 5

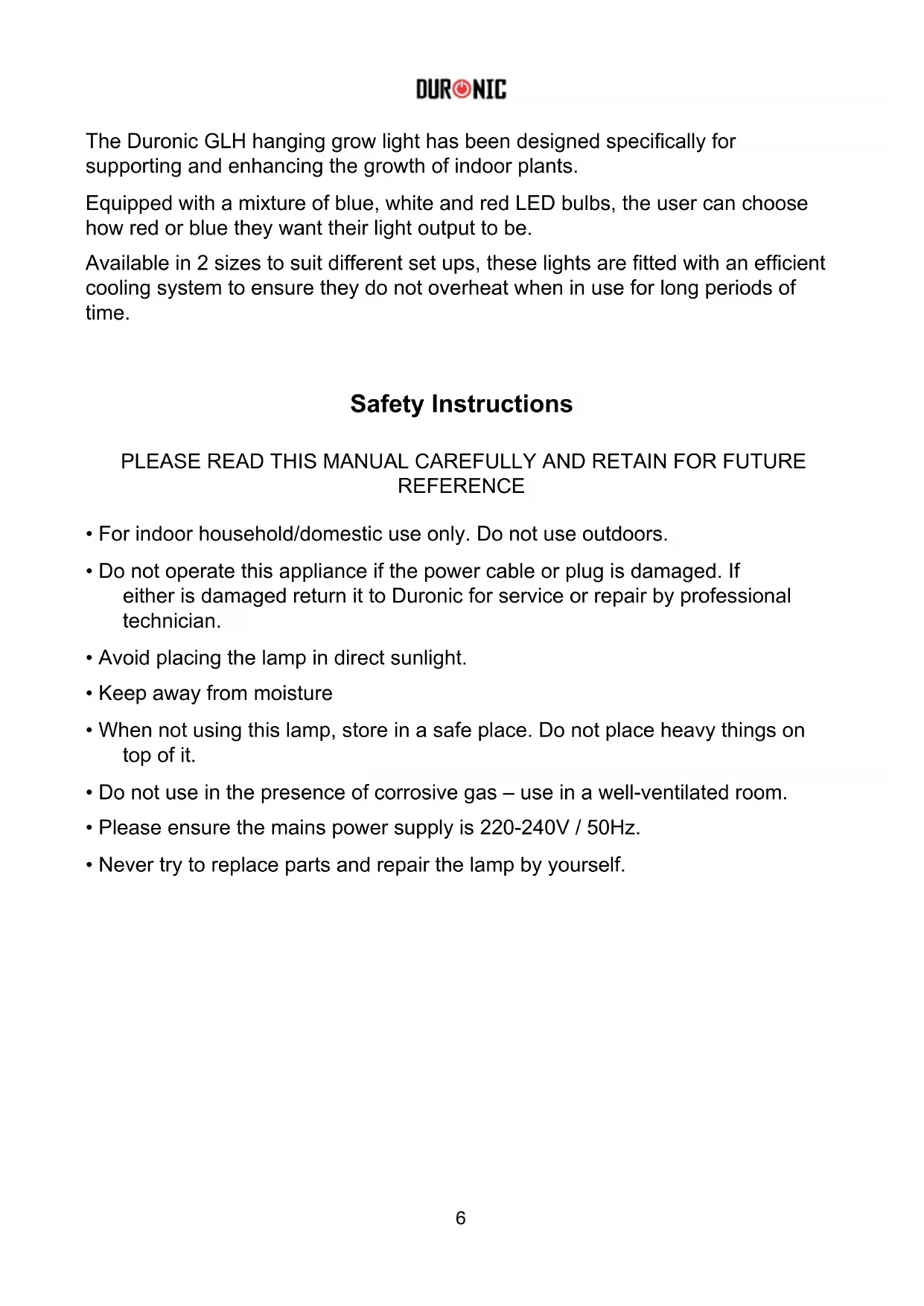

The Duronic GLH hanging grow light has been designed specifically for supporting and enhancing the growth of indoor plants.

Equipped with a mixture of blue, white and red LED bulbs, the user can choose how red or blue they want their light output to be.

Available in 2 sizes to suit different set ups, these lights are fitted with an efficient cooling system to ensure they do not overheat when in use for long periods of time.

Safety Instructions

PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE

• For indoor household/domestic use only. Do not use outdoors.
• Do not operate this appliance if the power cable or plug is damaged. If either is damaged return it to Duronic for service or repair by professional technician.
• Avoid placing the lamp in direct sunlight.
• Keep away from moisture
• When not using this lamp, store in a safe place. Do not place heavy things on top of it.
• Do not use in the presence of corrosive gas – use in a well-ventilated room.
• Please ensure the mains power supply is 220-240V / 50Hz.
• Never try to replace parts and repair the lamp by yourself.

Specifications

Model Number GLH60 GLH90
Number of LEDs 60 (39x red, 19x blue, 2x UV)		60 (39x red, 19x blue, 2x UV)
LED bulb wattage 10W COB LEDs 10W COB LEDs
LED angle 120° 120°
PPFD / PAR 863.38 lm 810 umol/m2
Bulb lifespan 50,000 hours 50,000 hours
Spectrum Special Spectrum for plants		Special Spectrum for plants
Wavelengths RED: 660	Blue: 450IR: 935 nm	RED: 660Blue: 450IR: 935 nm
Frequency 50HZ-60HZ 50HZ-60HZ
Working	-15°~ 55°	-15°~ 55°
Voltage	100V-240V	100V-240V
Cable length	1.5M	1.5M
Dimensions	40 x 17 x 6 cm	40 x 18.5 x 6 cm
Weight	2.04kg	2.04kg
Power	600W	900W

Introduction

LED grow lights are the newest trend for the cultivation of indoor plants. Using an advanced full spectrum LED grow light will provide your plant/s with a broad spectrum of light that is similar to natural sunlight and so enhances the process of photosynthesis.

Red and blue LED lights have been proven best for encouraging plant growth, and so this light provides the user with the option to use red, blue or a combination of the two colours to obtain the best kind of light for their plant/s.

The main part of the GLH light is blue (peak 450nm) and red (peak 660nm), which supplies the most efficient wavelength to enhance photosynthesis performance. This model allows you to choose between having more red or blue light, or a balance of the two.

DURONIC

Installation

Setting up your grow light is simple to do.

Remove all packaging and set aside.

Attach the hanging wire to the top of the light unit as shown (right).

Find a suitable place to hang the light, taking into account the optimal distance needed for the growth of your plants.

Hang up onto a place strong enough to support the weight of the light.

Simple line drawing of a rope tied with a hook and hook attachment, no text or symbols present

Care and Maintenance

Before cleaning ensure the lamp is unplugged from the mains socket.

Do not submerge this lamp in water or any other liquid.

Do not use corrosive cleaning products on it.

To clean, simply use a dry cloth to dust and clean all over the lamp.

If not being used for a long period of time, store inside a protective box in a cool dry place.

DURONIC

Using Your Grow Light

For best results create a space specifically for growing your plants.

Placing reflective walls around the space will enhance the effects of the LED lights as they will redirect escaping photons back towards the plants.

Recommended Hanging Height and Time Guide

Plant Lifecycle	Power On	Power Off	Mounting Height
Seeding stage 8h 16h 24”
Growing stage 14h 10h 22-24’
Vegetable stage 14h 10h 20-22”
Bloom stage 12h 12h 18”

DURONIC

It is important to consider the optimal hanging height and distance the lamp will be from your plants. To get the best results from your grow light, we recommend the heights and time cycles in the table above for a successful yield.

Note: keep an eye on your plants to see how receptive they are to the light mode you are using. If the leaves start to look dry, limp or discoloured, consider changing the mode or using the light for less time.

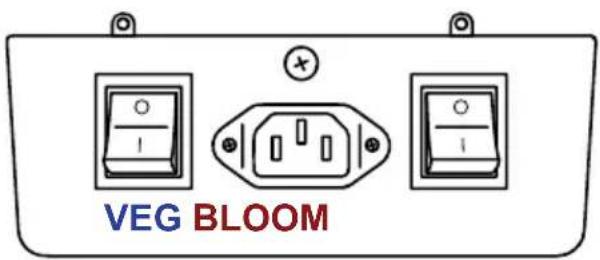

VEG BLOOM

The 3 Light Modes

VEG: blue light mode

BLOOM: red light mode

VEG & BLOOM: red and blue light combined

To activate VEG & BLOOM mode both switches need to be switched on together

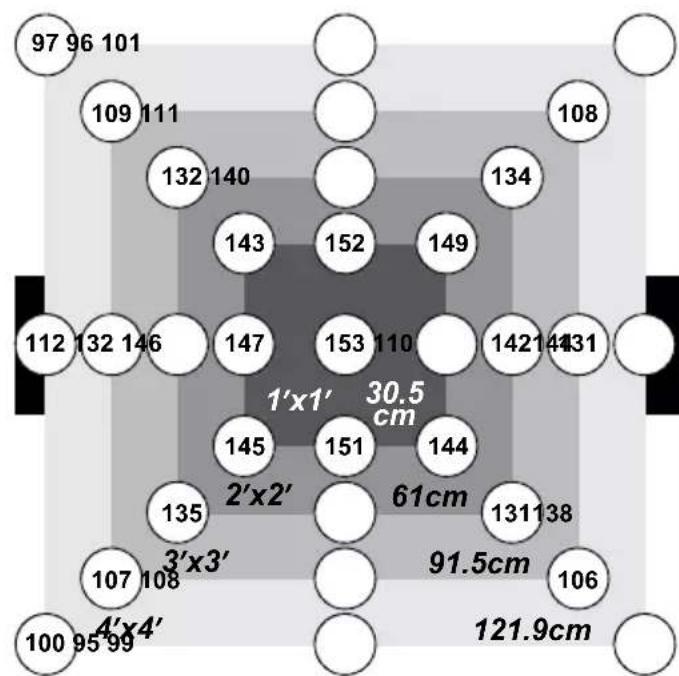

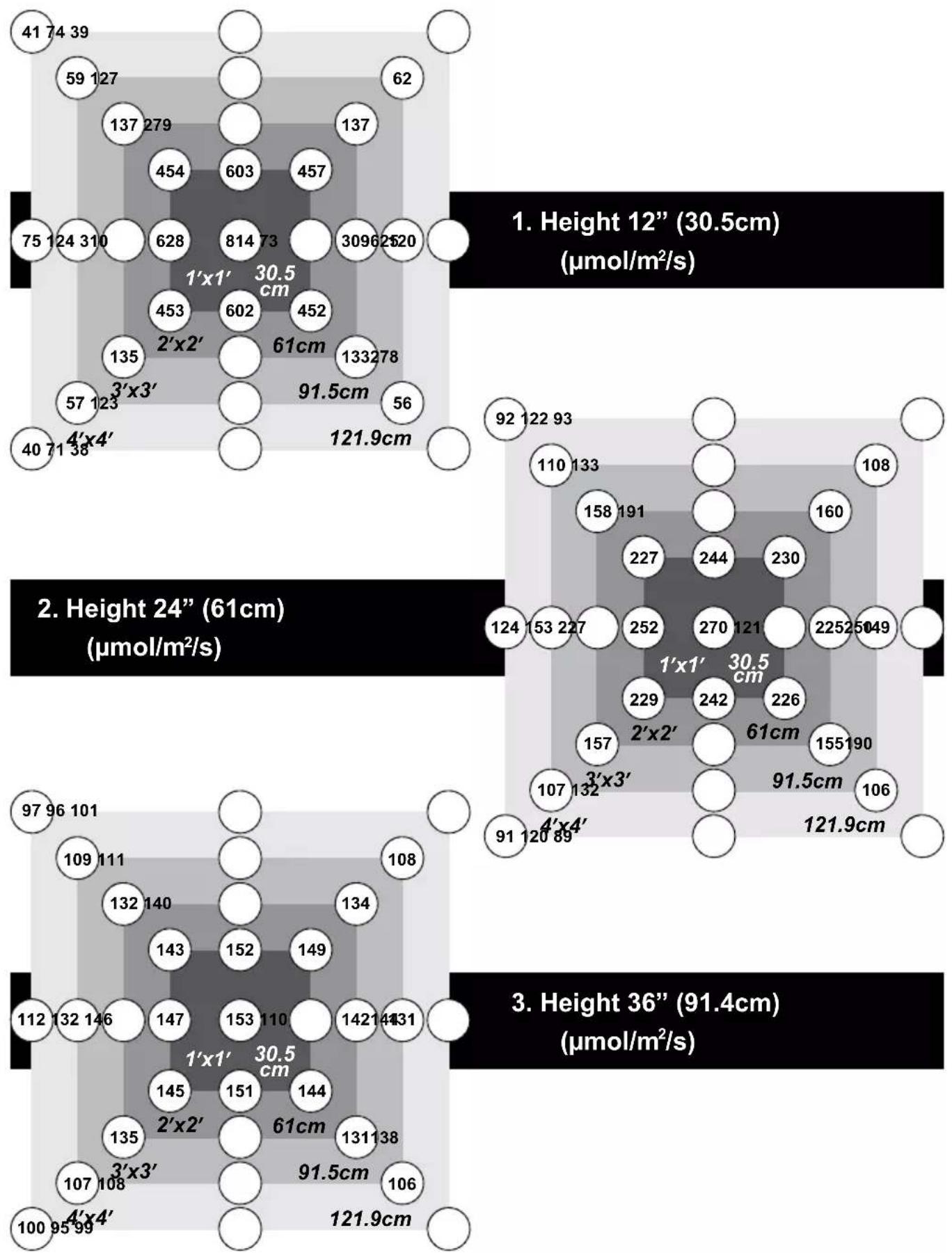

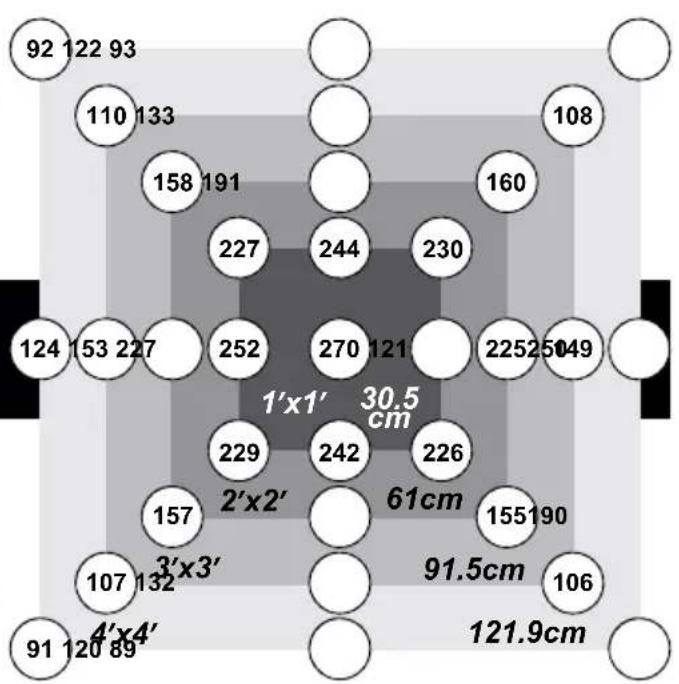

PPFD value at different heights (GLH60)

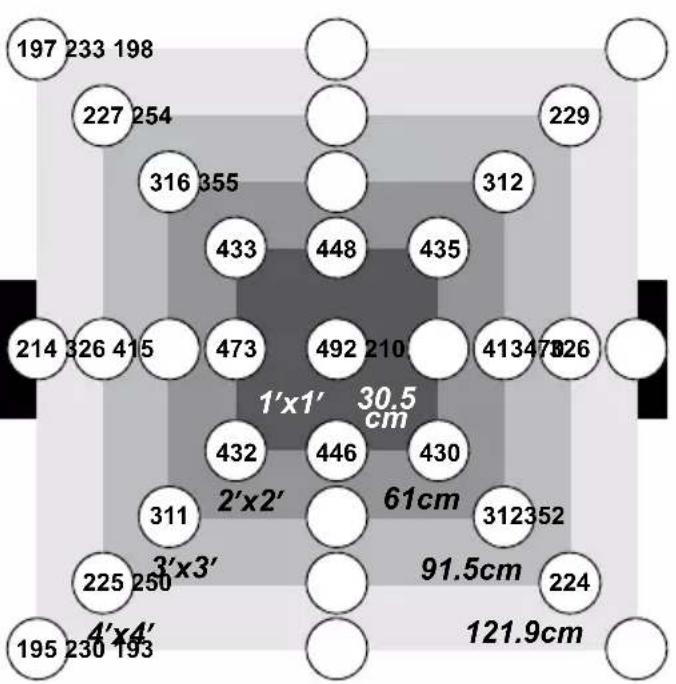

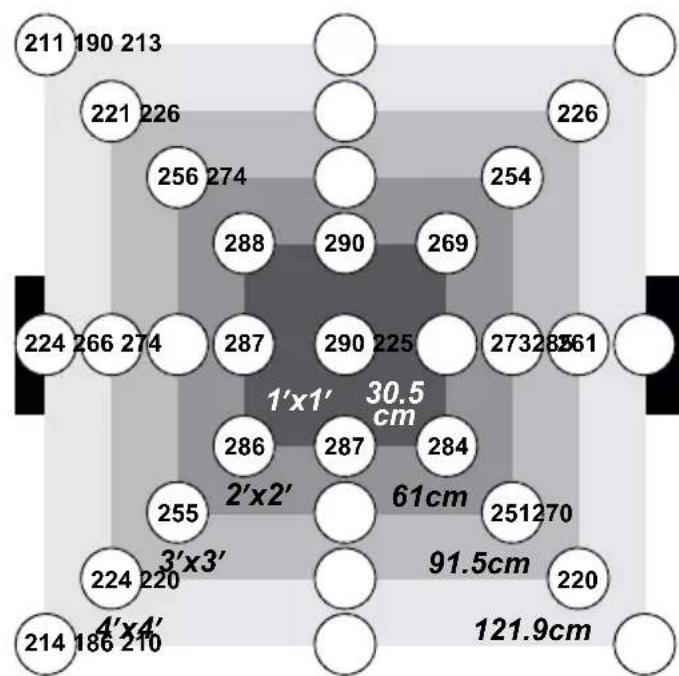

PPFD value at different heights (GLH90)

DURONIC

Digital Hygrometer

Included with your GLH grow light is a digital hygrometer which can be used to measure the humidity and temperature in the surrounding environment. This is ideal for using alongside your growing plants to monitor and ensure that they have the correct amount of humidity for them to thrive and grow well.

FUNCTIONS

• Measures temperature and humidity
- Provides measurements in both ^ C / ^
• Daily alarm

• Calendar display
  • Memory function: records minimum/maximum temperature and humidity

SPECIFICATIONS

Temperature measurement range	-10°C~+50°C (-14°F~+122°F)
Temperature measurement accuracy	±1°C (1.8°F)
Temperature resolution +0.1°C (0.2°F)
Humidity measurement range	10%--99%RH
Humidity measurement accuracy	±5%RH
Humidity resolution 1%
Battery required AAA 1.5V

BUTTONS

MODE: allows you to switch between time – clock format – set calendar/set the alarm.

ADJ: allows you to adjust the values when changing the settings.

MEMORY: allows you to display or clear the saved temperature and humidity values.

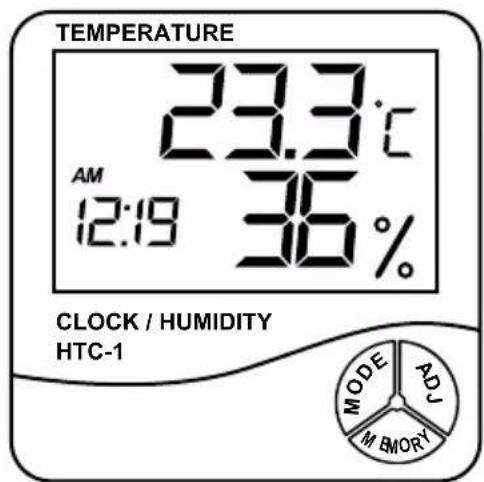

TEMPERATURE 23.3°C AM 12:19 36% CLOCK / HUMIDITY HTC-1 MODE ADJ M BORY

SAFETY INSTRUCTIONS

• Keep the digital hygrometer clean and in good condition.
• Protect the device from static electricity, high temperatures, thermal shock caused by rapid ambient temperature change, and anything that lets off an electro-magnetic field.
• Do not get the device wet or use it in damp/ wet locations or areas where there is condensation.
• Do not use the device in areas where there is steam, dust or smoke. These conditions may result in erroneous readings.
• DO NOT use the meter for any purpose other than that for which it is designed.

HOW TO USE

Ensure the batteries are inserted properly into the battery compartment.

The hygrometer can be wall mounted or can be freestanding using the flip-out stand on the back of the device.

Set the time

1. Press and hold the 'MODE' button for 2 seconds until you hear a beep sound and the clock minutes start to flash.
2. Press the 'ADJ' button to adjust the minute digits.
3. Press the 'MODE' button again to adjust the hour digits in the same way.

Set the clock format

1. Press the 'MODE' button again you can set the clock to either a 12-hour format or 24-hour format.
2. Press the 'ADJ' button to select which format you prefer.

DURONIC

Digital Hygrometer (continued)

Set the calendar

1. Press the 'MODE' button again to move from clock mode to calendar mode.
2. You will see the year show on the screen, which you can adjust by pressing the 'ADJ' button.
3. Press the 'MODE' button again which will show the month and day. First the month digits will be flashing, so you can set this by using the 'ADJ' button.
4. Next, press the 'MODE' button again, now the day will be flashing. Press the 'ADJ' to set the day.
5. Press 'MODE' once more to exit the calendar mode and return to the home screen.

Set the alarm

1. From the home screen, you will see the ‘:’ between the time digits is flashing
2. Press the 'MODE' button once to change the mode to 'alarm mode'.
3. Once in 'alarm mode' the display will show the current alarm time set.
4. To change the alarm time, press and hold the 'MODE' button down until it beeps and the minute digits start flashing.
5. Press the 'ADJ' button to change the minute digits.
6. Then press the 'MODE' button again which will make the hour digits flash. Press the 'ADJ' button to change the hour digits.
7. Press 'MODE' once more to choose between a silent or sounded alarm.

Change the units of measurement

To change the units, lift up the kickstand on the back of the device and press the small button underneath it. This will allow you to change it from Centigrade to Fahrenheit.

The Memory

The memory function records the highest and lowest levels of humidity and temperature.

1. To view the recorded highest and lowest levels from the previous day, press the 'MEMORY' button. This will show last recorded highest levels. Press 'MEMORY' again to show the lowest recorded levels.
2. To return to the home screen press the 'MEMORY' button again or leave it idle for 20 seconds and it will return to the home screen.
3. If you want to delete the recorded measurements, press and hold the 'MEMORY' button. Once deleted, the screen will return back to the home screen.

Note: if you experience any issues with the hygrometer, remove the battery and re-insert it again. This will resent the device and should resolve any problem you were experiencing.

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instruction's contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Follow Us

Simple line drawing of a rope tied with a hook and hook attachment (no text or symbols)

1. Höhe 61 cm (24") (μmol/m²/s)


1. Höhe 91,4 cm (36") (μmol/m²/s)

1. Höhe 30,5 cm (12") (μmol/m²/s)

1. Höhe 61 cm (24") (μmol/m²/s)


1. Höhe 91,4 cm (36") (μmol/m²/s)

Digitales Hygrometer

Simple line drawing of a rope tied with a hook and hook attachment (no text or symbols)

1. Altura de 30.5 cm (12") (μmol/m²/s)

1. Altura de 61 cm (24") (μmol/m²/s)


1. Altura de 91.4 cm (36") (μmol/m²/s)

Simple line drawing of a rope tied with a hook and rope, no text or symbols present

Cura e manutenzione

Simple line drawing of a rope knot with a hook and base, no text or symbols present

DURONIC

Cyfrowy higrometr

EU DECLARATION OF CONFORMITY
(In accordance with EN ISO/IEC 17050-1)

Declaration number:	DOCIP 2194867
Name and address of manufacturer / EU-AR:	UK Representative: Shine-Mart Ltd1 Spilsby Road RM3 BSB Harold Hill, Romford United KingdomEU Representative: Shinemart GmbHBrandenburger Str. 40 Ratingen 40880 Germany

THIS DECLARATION OF CONFORMITY IS ISSUED UNDER THE SOLE RESPONSIBILITY OF:

Name and address of manufacturer:	Shine-Mart Ltd1 Spilsby RoadRM3 8SB Harold Hill, RomfordUnited Kingdom
Product identification:	GLH90GLH60

THE PRODUCTS MENTIONED IN THIS DECLARATION ARE IN CONFORMITY WITH:

EU Community Legislation:

Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU [OJEU L174/88-110, 01.07.2011]Electromagnetic Compatibility (EMC) Directive 2014/30/EU [OJEU L96/79-106, 29.03.2014]Ecodesign energy-related products Directive 2009/125/EC [OJEU L285/10-35, 31.10.2009]Low Voltage Directive (LVD) 2014/35/EU [OJEU L96/357-374, 29.03.2014]

Harmonised standards:

Safety of electrical equipmentEN 60598-1:2015 + AC:2015 + AC:2016 + AC:2017 + A1:2018 + EN 60598-1:2008 + A11:2009 + EN IEC 60598-1:2021 + A11:2022EN 60598-2-4:2018EN IEC 62031:2020 + A11:2021 + EN 62031:2008 + A1:2013 + A2:2015EN 62471:2008Exposure of humans to electromagnetic fields (EMF)EN 62493:2015 + A1:2022 + EN 62493:2010Electromagnetic Compatibility (EMC)EN IEC 55015:2019 + A11:2020EN 61000-3-2:2014 + EN IEC 61000-3-2:2019 + A1:2021EN 61000-3-3:2013 + A1:2019 + A2:2021 + A2:2021/AC:2022-01EN 61547:2009 + EN IEC 61547:2023Restricted substances in electrical productsEN IEC 63000:2018Ecodesign, Energy performanceRegulation (EU) 2019/2020 - Ecodesign lighting

SIGNED FOR AND ON BEHALF OF:

Place and date of issue:	Harold Hill, Romford, 1 May 2021
Signature:	Sarad
Name, function:	Abdus Samad, Product Development Manager
Company name:	Shine-Mart Ltd
