USER MANUAL SADV1 Duronic

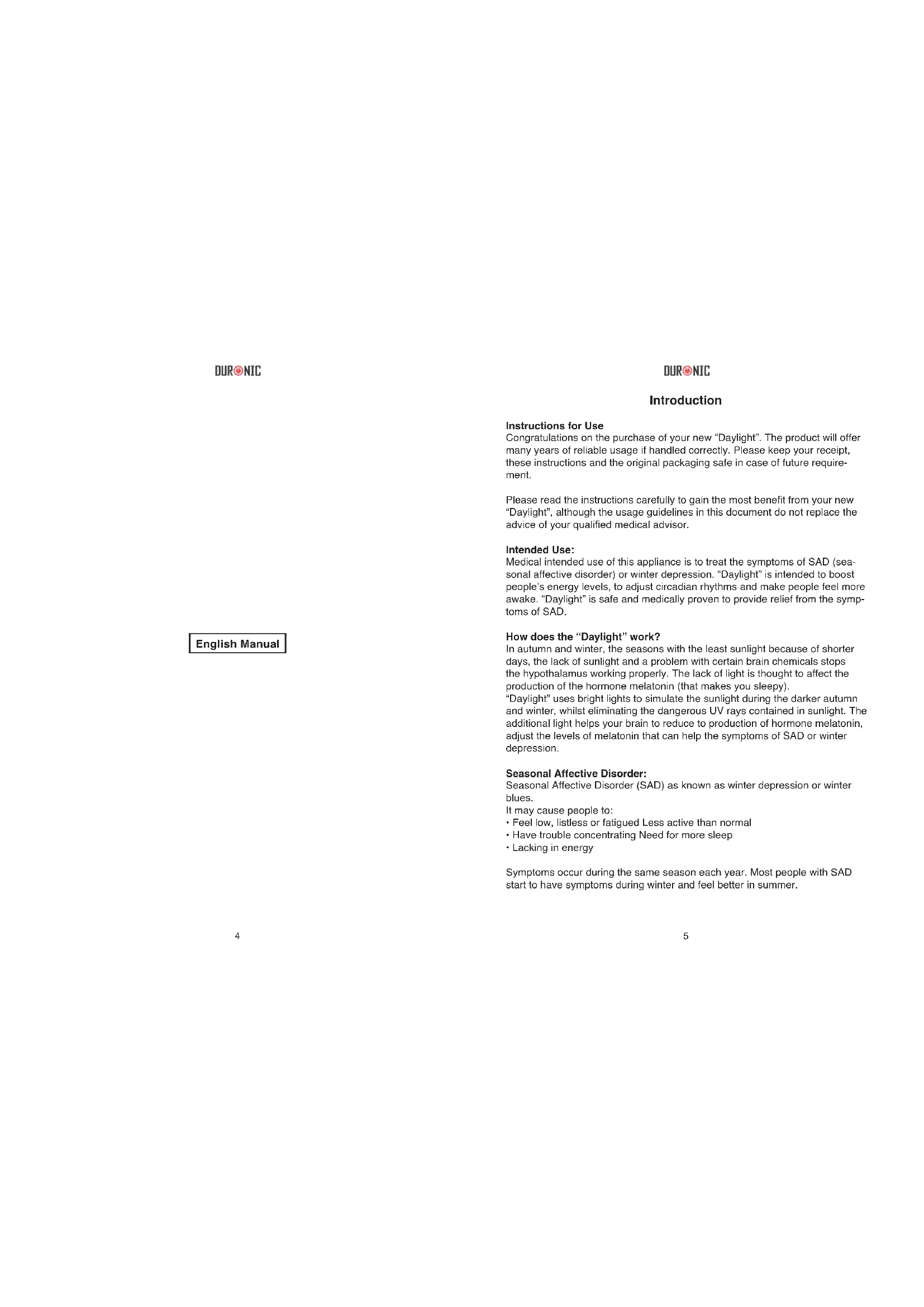

Contents4 5 English Manual Introduction Instructions for Use Congratulations on the purchase of your new “Daylight”. The product will offer many years of reliable usage if handled correctly. Please keep your receipt, these instructions and the original packaging safe in case of future require- ment. Please read the instructions carefully to gain the most benet from your new “Daylight”, although the usage guidelines in this document do not replace the advice of your qualied medical advisor. Intended Use: Medical intended use of this appliance is to treat the symptoms of SAD (sea- sonal affective disorder) or winter depression. “Daylight” is intended to boost people’s energy levels, to adjust circadian rhythms and make people feel more awake. “Daylight” is safe and medically proven to provide relief from the symp- toms of SAD. How does the “Daylight” work? In autumn and winter, the seasons with the least sunlight because of shorter days, the lack of sunlight and a problem with certain brain chemicals stops the hypothalamus working properly. The lack of light is thought to affect the production of the hormone melatonin (that makes you sleepy). “Daylight” uses bright lights to simulate the sunlight during the darker autumn and winter, whilst eliminating the dangerous UV rays contained in sunlight. The additional light helps your brain to reduce to production of hormone melatonin, adjust the levels of melatonin that can help the symptoms of SAD or winter depression. Seasonal Affective Disorder: Seasonal Affective Disorder (SAD) as known as winter depression or winter blues. It may cause people to:

• Feel low, listless or fatigued Less active than normal

• Have trouble concentrating Need for more sleep

• Lacking in energy Symptoms occur during the same season each year. Most people with SAD start to have symptoms during winter and feel better in summer.6 7 Contradiction: The following conditions may be contradiction for use of this appliance:

• suffer(ed) from severe depression

• recent eye surgery or a diagnosed eye condition whereby doctor has ad- vised you to avoid bright light on specic medication (i.e. certain antidepressants, psychotropic drugs or malaria tablets);

• have high blood pressure with vitreous hemorrhage;

• skin sensitive to light, such as systemic lupus erythematosus Always consult your doctor before your start using this appliance if you have any of the above conditions. Possible side effects: The following side effects you may experience:

• Sleeping problems Nausea Measures to avoid, minimize or alleviate these side effects:

• Increase the treatment distance

• Avoid using the appliance during the late evening or before sleep

• Stop using the appliance for a few days to make the side effects disappear and then try again. Notes Please read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain.

• Do not use this appliance in wet surroundings (e.g. in the bathroom or near a shower). Do not immerse appliance in water or any other liquid.

• This appliance is suitable in home healthcare environment.

• Before use, ensure that all packaging materials are removed and that there is no visible damage to the appliance or accessories. When in doubt, do not use the appliance and contact your dealer or the customer service address provided.

• This appliance is only intended for use on the human body.

• Close supervision is necessary when this appliance is used by,

• Children should be supervised to ensure that they do not play with the appliance.

• There is no need for any special training for this appliance.

• Keep the cord away from hot objects and open ames.

• Connect the appliance only to the mains voltage listed on the type plate.

• Always remove the mains plug and let the appliance cool off before you touch it.

• Do not touch the appliance with wet hands while it is plugged in; do not allow any water to be sprayed onto it. The appliance must be operated only when it is completely dry.

• Protect the appliance from strong impacts.

• Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.

• If the cord or the appliance is damaged, contact customer service or the dealer, since special tools are needed to make repairs. Never try to repair the appliance yourself.

• Disconnection from the power supply network is only guaranteed when the mains part is unplugged.

• The plug is used as disconnect to the mains supply, do not to position the appliance so that it is difcult to operate the disconnection device.

• This appliance is not suitable for use in the presence of ammable anesthetic mixtures with air or with oxygen or nitrous oxide.

• This appliance requires no calibration, preventive inspection and mainte- nance.

• This appliance is not repairable and contains no user serviceable parts.

• The appliance is protected against unauthorized use. Do not modify this appliance without authorization of the manufacturer.

• If this appliance is modied, appropriate inspection and testing must be conducted to ensure continued safe use of the equipment.

• This appliance is not intended for commercial or clinical use, but only for individual, private household use.

• If you are taking medication such as pain relievers, antihypertensives or antidepressants, consult your doctor before using this appliance.

• People with retinal diseases as well as diabetics need to be examined by an ophthalmologist before using this appliance.

• Please do not use if you have an eye disease such as cataracts, glaucoma, diseases of the optic nerve in general and inammation of the vitreous humour.

• If you have health concerns of any kind, contact your general practitioner.8 9 EMC information

Warning: Use of this appliance adjacent to or stacked with other device

should be avoided because it could result in improper operation. If such use is necessary, this appliance and the other device should be observed to verify that they are operating normally. If the appliance does not light on or ickering, it means that the appliance is not operating normally.

Warning: Do not change any cable without authorization of the manufacturer.

Use of cables other than those specied or provided by the manufacturer of this appliance could result in increased electromagnetic emissions or de- creased electromagnetic immunity of this appliance and result in improper operation.

Warning: Don’t near active HF surgical equipment and the RF shielded room

of an ME system for magnetic resonance imaging, where the intensity of EM disturbances is high.

Warning: Portable RF communications equipment (including peripherals such

as antenna cables and external antennas) should be used no closer than 30 cm to any part of this appliance, including power cable. Otherwise, degrada- tion of the performance of this equipment could result. If the appliance does not light on or ickering due to the electromagnetic dis- turbances, do not use it and try to place the appliance in other location. For maintaining the basic safety and essential performance with regard to electromagnetic disturbances for the expected service life, please precaution to take if the use location is near (e.g. less than 1,5 km from) from AM, FM or TV broadcast antennas. Maintenance and Repairs

• Avoid exposing the screen to direct sunlight, spotlight or any other heat source.

• Do not use alcohol or ammonia base liquid to clean the screen.

• The cleaning information provided in the section “Cleaning”.

• Please do not attempt to repair the appliance yourself. This could result in serious injuries. Failure to observe this regulation shall void the warranty.

• If this appliance is damaged in any way or it is not working, it should not be operated. Please try to x the problem according to FAQ table. If the problem is still not resolved, please contact customer service or the dealer, since special tools are needed to make repairs. Never try to repair the appliance yourself. Safety and performance standards The “Daylight” has been designed and manufactured to conform to the highest standards of safety and performance including electromagnetic compatibility (EMC). The “Daylight” conforms to the applicable requirements of the following: This appliance meets the requirement of Medical Device Directive 93/42/EEC for medical appliances. The appliance is complied with the following emission and immunity standard, and test level: Emissions Test Standard Compliance RF emissions CISPR 11 Harmonic emissions IEC 61000-3-2 Voltage uctuations/ icker emissions IEC 61000-3-3 Group 1, Class B Class A Comply Test Frequency (MHz) Band (MHz) Service Modulation Modulation (W) Distance (M) Immunity Test Level (V/M) 385 380 - 390 TETRA 400 Pulse modulation 18Hz

(Test specication for ENCLOSURE PORT IMMUNITY to RF wireless communications equipment) Guidance and manufacturer’s declaration - electromagnetic Immunity10 11 Immunity Test Standard Electrostatic discharge (ESD)

Surge IEC 61000-4-5 Voltage dips, interruptions and variations on power supply input lines

Power frequency (50/60 Hz) magnetic eld

Conducted RF IEC 61000-4-6 Radiated RF IEC 61000-4-3 IEC 60601-1-2 Test Level +8kV contact +2kV, +4kV, +8kV, +15kV air +2kV, for power supply lines +1kV signal input/ output 100 kHz repetition frequency +0.5kV, +1kV differential lines +0.5kV, +1kV, +1kV common mode 0 % UT; 0.5 cycle. At 0°, 45°, 90°, 135°, 180°, 225°, 270° and 315°. 0 % UT; 1 cycle and 70 % UT; 25/30 cycles; Single phase: at 0°. 0 % UT; 250/300 cycle 30 A/m 50Hz/ 60Hz 3 V 0,15 MHz – 80 MHz 6 V in ISM and amateur radio bands between 0,15 MHz and 80 MHz 80 % AM at 1 kHz 10 V/m 80 MHz – 2,7 GHz 80 % AM at 1 kHz Compliance Level +8 kV contact +2kV, +4kV, +8kV, +15kV air +2kV, for power supply lines Not applicable 100 kHz repetition frequency +0.5kV, +1kV differential lines Not Applicable 0 % UT; 0.5 cycle. At 0°, 45°, 90°, 135°, 180°, 225°, 270° and 315°. 0 % UT; 1 cycle and 70 % UT; 25/30 cycles; Single phase: at 0°. 0 % UT; 250/300 cycle 30 A/m 50Hz/ 60Hz 3 V 0,15 MHz – 80 MHz 6 V in ISM and amateur radio bands between 0,15 MHz and 80 MHz 80 % AM at 1 kHz 10 V/m 80 MHz – 2,7 GHz 80 % AM at 1 kHz Note: UT is the a.c. mians voltage prior to application of the test level. Warning instruction indicating a risk of injury or damage to health Read operating instructions before use Caution: Consult accompanying documents Class II Equipment Date of Manufacture Manufacturer Keep Dry Safety note indicating possible damage to the appliance/ acces- Species serial number of the “Daylight” OFF/ ON Authorized Representative in the European Community Ingress Protection Rating O / I IP20 EC/REP The following symbols appear in this manual, on the “Daylight” or on its accessories:

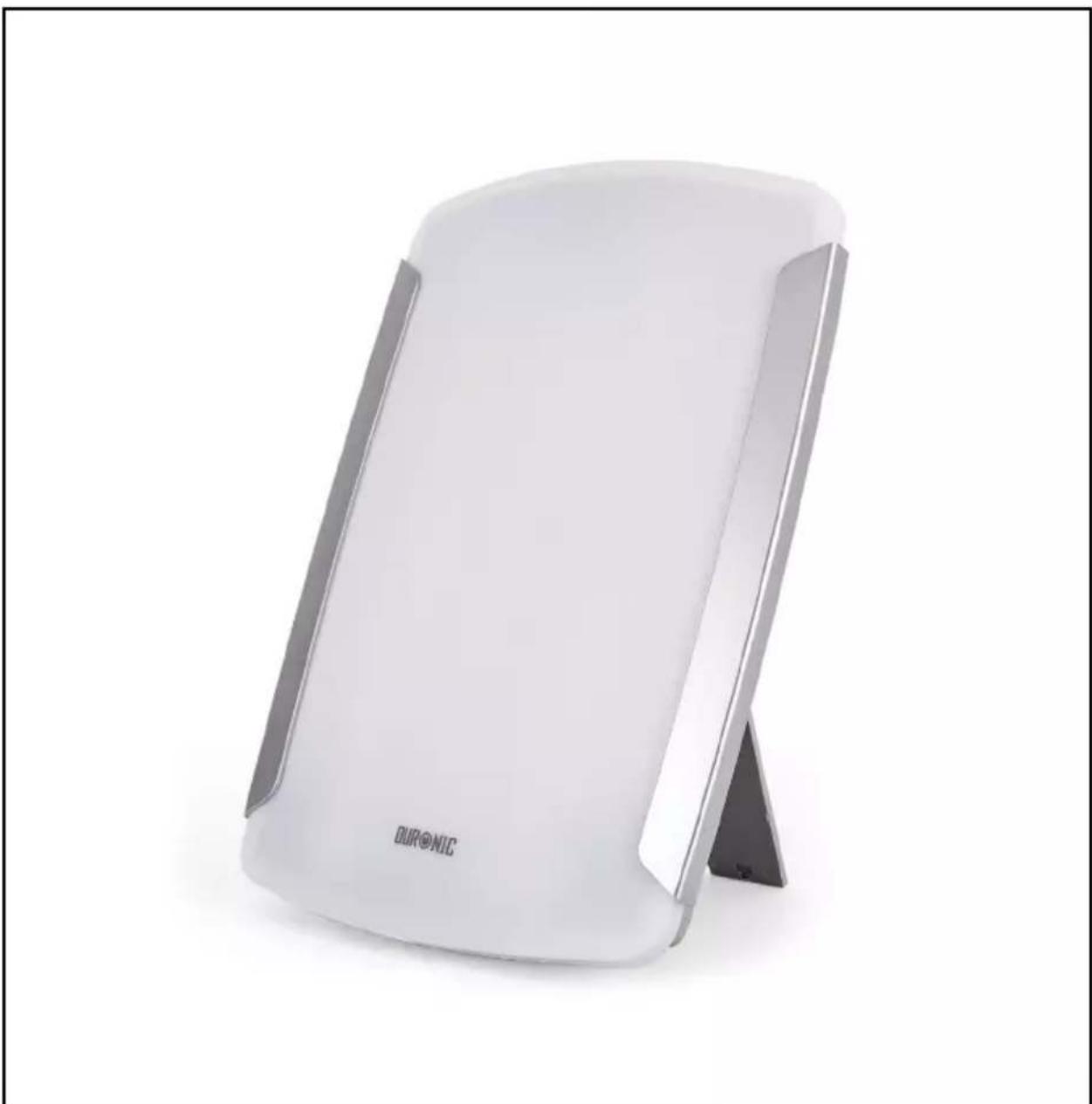

Unit Description Setup

1. Remove the appliance from the packaging.

2. Fold the stand out and place the appliance on a solid surface, such as a

3. Place the appliance approximately 20-60 cm from your eyes, the light must

bathe your face from the side. Mains Connection Connect the appliance only to the mains voltage listed on the type plate. Push the plug completely into the mains socket. Note

• Push the plug completely into the mains socket.

• Ensure that there is a socket near the place where the appliance will stand.

• Lay the mains cable in such a way that no one can trip over it. Fastening of Daylight on the wall There is a mounting hole on the back side of the appliance. At this mounting hole the appliance can be xed on the wall with screw. Depending on the type of wall, an appropriate screw must be used, may be with pegs. E.g. for concrete wall, M4, 25mm long Stainless Steel Self-Tapping Screw which is screwed into a anchor. The screw and the anchor are not included in the scope of delivery.12 13 Operation Before use, please check the appliance for damage or faults. \If you notice any damage or faults on the appliance, do not use it and contact customer services or your supplier.

Press the ON/OFF button once of the appliance to turn on.

You can read, write, make telephone calls or work while you use the appliance. When using the appliance, try to maintain the recommended distance between your eyes and the appliance. Usage guidelines are as follows: Distance Duration 60 cm Approx. 2 Hours 40 cm Approx. 60 Minutes 20 cm Approx. 30 Minutes In effect, the closer you are to the source of light, the less time you need to use it. Note

• Do not look directly into the light continuously.

• Some eye pain or mild headaches may be experienced during initial sessions but these should pass. If in doubt just lower your treatment times until you feel comfortable again.

• Do not leave the appliance unattended in the duration.

• Do not touch the appliance in the duration. Let the appliance cool down for at least 15 minutes before repositioning it.

• Do not block vent holes in the duration.

Enjoying light over longer periods During the darkest period of the year, repeat the treatment for at least 7 consecutive days, or longer, depending on your individual requirements.

Press the ON/OFF button of the appliance to switch off the light. Pull the mains plug from the socket. Let the appliance cool down for at least 15 minutes before storing it away. Cleaning

• Do not touch the appliance with wet hands.

• Clean using a damp cloth, to which you can apply a little detergent if necessary.

• Do not let water run into the appliance or spill water onto the appliance.

• Cleaning can be done once per month. Storage When this appliance is not being used, it should be stored in a dry location out of reach of children. Do not keep the appliance connected to a power source. Follow the storage instructions provided in the section “Technical Specication”. Replacing the lamp tubes In the event that the lights are faulty, or when they come to end of their life, the two light tubes can be replaced. NOTE: Do not replace the lamp tubes which are not provided by the supplier. To do so, proceed as follows:

• Always unplug the appliance and let it cool off.

• For safety reasons, do not remove any components or screws other than those specied below. Warning Before you clean the appliance, always switch it off, unplug it and let it cool off.

1. Slacken the retaining screws on the back us-

ing a screwdriver, lay the apparatus on its back and remove the screen. Note The four brackets on the front of the screen will become loose when the screws are slackened. Take care not to lose them, or the screen cannot be retted correctly.

2. Cut the cable ties and bend the tube’s two

transparent retaining clips by pulling them gently upwards. Note Cable ties are used for transport protection only.14 15 Cleaning up a Broken Tube

3. Carefully pull the tube up over the housing rim

(1) and out of the housing, then sideways out of the frame (2).

4. When inserting the tube, following these

instructions in reverse order. The light tubes contain a small amount of mercury sealed within the glass tubing, when a tube breaks in your home, some of this mercury is released as mercury vapor. To minimize exposure to mercury vapor, we recommend that users follow the cleanup and disposal steps as follows: Before Cleanup:

• Have people and pets leave the room and air out the room for 5-10 minutes by opening a window or door to the outdoor environment.

• Shut off the central forced air heating/ air-conditioning system, if you have one.

• Collect material needed to clean up broken tube, just like: stiff paper or cardboard, sticky tape, damp paper towels or disposable wet wipes. During Cleanup:

• Vacuuming is not recommended unless broken glass remains after all other cleanup steps have been taken. Vacuuming could spread mercury-containing powder or mercury vapor.

• Be thorough in collecting broken glass and visible powder.

• Place cleanup materials in a sealable container. After Cleanup:

• Promptly place all bulb debris and cleanup materials outdoors in a trash container or protected area until materials can be disposed of properly. Avoid leaving any bulb fragments or cleanup materials indoors.

• If practical, continue to air out the room where the bulb was broken and leave the heating/air conditioning system shut off for several hours. Disposal FAQ Please note that this appliance is marked with the WEEE symbol on the left. This means that this appliance must not be disposed of together with ordinary household waste, as electrical and electronic waste must be disposed of separately. If you have any questions, please contact your local authorities responsible for waste disposal. Possible Causes Solutions Main Power OFF Turn on the switch No Power The appliance is not cor- rectly connected to your power Loose Light Tube Re-install the light tube Defective Light Tube Change the light tube Light tube at end of life Change the light tube Loose Light Tube Re-install the light tube No Light One side of the product is out of order16 17 Technical Specication Dimension (WHD) 340 x 480 x 80 mm Weight 2.0kg Lighting Elements 2 x 36W tubes (2G 11), Daylight (full spectrum) Nominal data for replacement Lighting elements

1. Class II equipment

3. Protection against ingress of

5. Mode of operation: Continuous

operation. Maximum length of power cord 1800 mm Location of emission aperature Screen Treatment area Around 1600 cm2 Risk Group of light source equipment Exempt Group classied by IEC 60601-2-57:2011 Product Service Life Model Number: SADV1 Brand: Duronic Details: Shine-mart Ltd, trademark owners of Duronic products. 1 Spilsby Road Romford, RM3 8SB, United Kingdom Maximum output of optical radiation for the “Daylight”: Radiance Output Risk group classied by IEC 60601-2-57:2011 Max. value EUVA: Eye UV-A Exempt Group 8×10-3 W·m-2 ES: Actinic UV skin & eye Exempt Group 5×10-5 W·m-2 EIR: Infrared radiation hazard exposure limits for the eye Exempt Group 2×10-3 W·m-2 EH: Thermal hazard for the skin Exempt Group 10 W·m-2 LB: Blue light Exempt Group 2×101 W·m-2·sr-1 R: Retinal thermal Exempt Group 2×102 W·m-2·sr-1 Contact Information The “Daylight” is manufactured by: Zero-Plus International Limited Room 1004, 10/F., Join-In Hang Sing Centre, 71-75 Container Port Road, Kwai Chung, New Territories, Hong Kong European Authorised Representative: Globalmind Consumer Electronics GmbH Ernst-Mantius-Str.11, 21029 Hamburg, Germany Important If this appliance is damaged in any way or it is not working and you cannot find the answer to your question in FAQ. Please contact customer service or the retailer for assistance.18 Warranty 1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.

2. The product must be installed and used in accordance with the instructions

contained in this operating manual.

3. It must be used only for domestic purposes.

4. It does not cover wear and tear, malicious damage, misuse, neglect,

inexpert repairs or consumable parts.

5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.

6. Shine-Mart Ltd are not liable to carry out any type of servicing work,

7. Valid in the UK only

This product is tted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB Information on waste Disposal for Consumers of Electrical & Electronic Equipment. This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge. If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain. Manuel d’utilisation en français
