USER MANUAL FX-MS152 Fuxtec

Your new device has been developed and designed to meet FUXTEC's high standards, such as easy operation and user safety. Properly treated, this device will serve you well for years to come.

WARNING: To reduce the risk of injury, the user must read and understand

We are continually striving to improve our products. Therefore technical data and illustrations may change!

Type FX-MS152 FX-MS162 Engine air-cooled; 2-stroke air-cooled; 2-stroke Cubic capacity 51.7cm

Maximum speed of the engine 9,000 min

Idle speed of the engine 3,000 min

Maximum speed of the spindle (thread spool) 6,600 min

at the operator's position 99.5dB(A) (K=3dB) 101,0 dB(A) (K=3dB) Measured L

Maximum thread diameter Φ3.0mm Φ3.0mm Diameter of the metal blade 305mmx1.6mm-2T / 255mmx1.6mm-3T/ 255mmx1.6mm-4T/ 255mmx1.6mm-8T 305mmx1.6mm-2T / 255mmx1.6mm-3T/ 255mmx1.6mm-4T/ 255mmx1.6mm-8T Rotation direction of the cutting device Counterclockwise (see the mark on the plate) Counterclockwise (see the mark on the plate) Number of handles 2 pieces 2 pieces Dry weight (without fuel, cutting assembly, carrying strap) 7.2kg 7.65kg Fuel tank capacity (L)

Fuel consumption (kg/h) (in accordance with ISO 8893)

22. Symbols and safety instructions on the device

ALWAYS WEAR EYE PROTECTION, EAR PROTECTION,

WEAR FOOT PROTECTION.

WEAR GLOVES (sharp edges!).

ALWAYS KEEP 15 METERS AWAY FROM

EXHAUST GASES OF THIS PRODUCT CONTAIN

Do not allow others to use this Device unless they have been fully instructed and have read and understood the user manual.Original Bedienungsanleitung FUXTEC FX-MS152 / FX-MS162_de_en_fr_ita_es_rev17

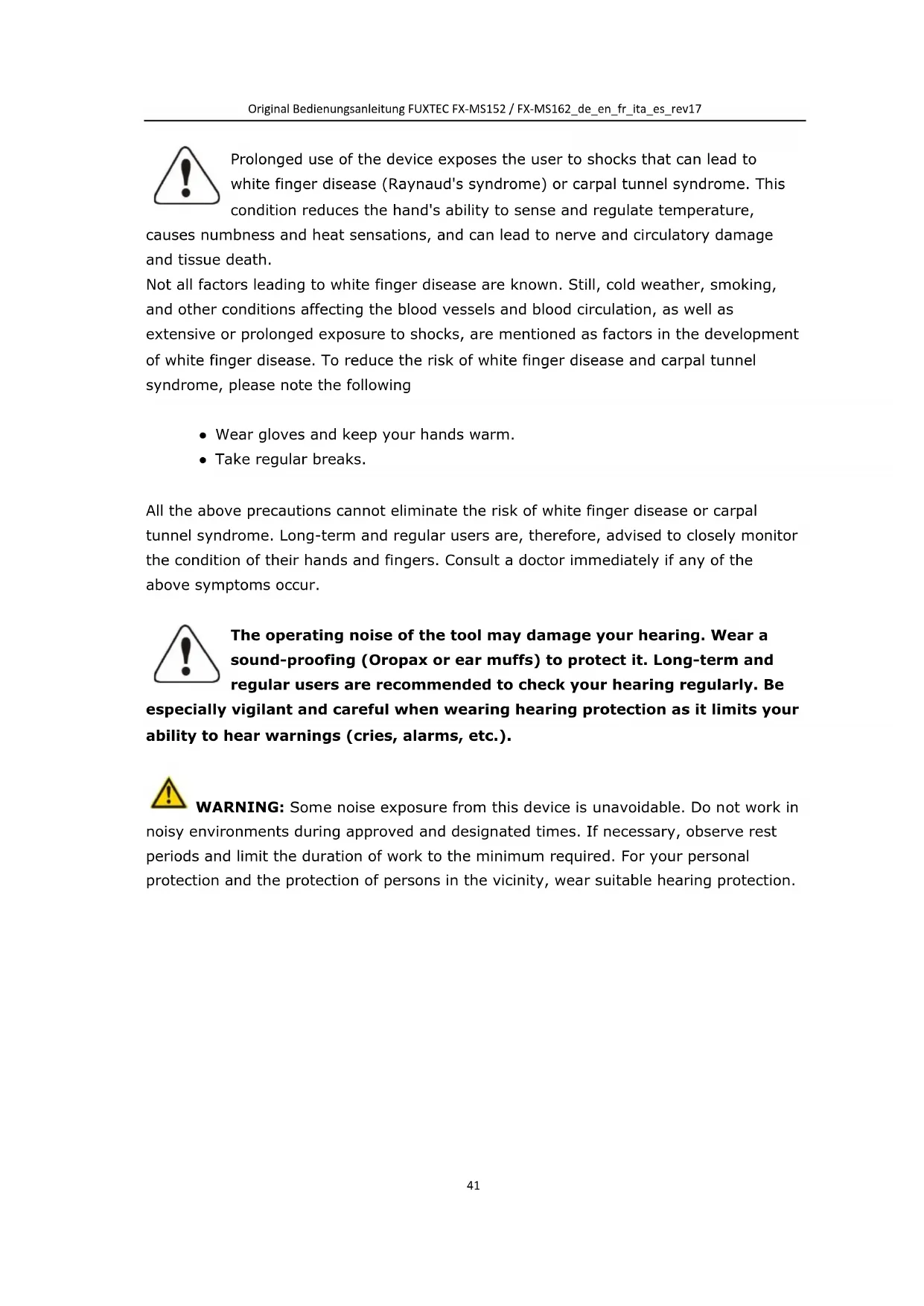

Prolonged use of the device exposes the user to shocks that can lead to white finger disease (Raynaud's syndrome) or carpal tunnel syndrome. This condition reduces the hand's ability to sense and regulate temperature, causes numbness and heat sensations, and can lead to nerve and circulatory damage and tissue death. Not all factors leading to white finger disease are known. Still, cold weather, smoking, and other conditions affecting the blood vessels and blood circulation, as well as extensive or prolonged exposure to shocks, are mentioned as factors in the development of white finger disease. To reduce the risk of white finger disease and carpal tunnel syndrome, please note the following ● Wear gloves and keep your hands warm. ● Take regular breaks. All the above precautions cannot eliminate the risk of white finger disease or carpal tunnel syndrome. Long-term and regular users are, therefore, advised to closely monitor the condition of their hands and fingers. Consult a doctor immediately if any of the above symptoms occur. The operating noise of the tool may damage your hearing. Wear a sound-proofing (Oropax or ear muffs) to protect it. Long-term and regular users are recommended to check your hearing regularly. Be especially vigilant and careful when wearing hearing protection as it limits your ability to hear warnings (cries, alarms, etc.).

WARNING: Some noise exposure from this device is unavoidable. Do not work in

noisy environments during approved and designated times. If necessary, observe rest periods and limit the duration of work to the minimum required. For your personal protection and the protection of persons in the vicinity, wear suitable hearing protection.Original Bedienungsanleitung FUXTEC FX-MS152 / FX-MS162_de_en_fr_ita_es_rev17

23. Intended use and general safety instructions

This device may only be used for mowing or trimming grass, weeds, and undergrowth. Never use it for other purposes, as this can cause serious injuries! Correct safety instructions must be followed. DO NOT EXPOSE YOURSELF OR OTHERS TO DANGER. Follow these general safety instructions: ● Always wear safety glasses for eye protection. Long hair must be tied back. Do not wear loose clothing or jewelry that can get caught in moving parts of the device. Always wear safe, non-slip and robust safety shoes. It is recommended that legs and feet are fully protected to guard against flying objects during operation. ● Check the entire device for loose parts (nuts, bolts, screws, etc.). Service or replace them if necessary before using the device. Do not use accessories with this drive head other than those recommended by the manufacturer. Otherwise, severe injury to the user or bystanders and damage to the device may result. ● Keep the handles free of oil and fuel. ● Always use the handles and shoulder strap when cutting. ● Do not smoke when mixing the fuel or filling the tank ● Do not mix fuel in an enclosed space or near open fires. Ensure adequate ventilation / aeration. ● Mix and store the fuel mixture in a marked container approved for such use according to local regulations ● Never remove the fuel filler cap while the engine is running. ● Do not operate the device in enclosed spaces or buildings. Exhaust gases contain dangerous carbon monoxide. ● Do not attempt to adjust the device while running or carrying it. Always fix the device on a flat, free surface. ● Do not use the device if it is damaged. Never remove any protective devices from the device. This can cause serious injury to the operator or bystanders and further damage to the device. ● Check the area to be cut and remove any objects that may be entangled in the nylon cutting head or cutting blade. Also, remove any objects that the device may throw around while cutting. ● Never leave the device unattended. ● Do not stretch out far forward. Always maintain a firm stand and balance. Never let the device run while standing on a ladder or any other unstable standingOriginal Bedienungsanleitung FUXTEC FX-MS152 / FX-MS162_de_en_fr_ita_es_rev17

position. ● Children must not have access to the device. Spectators should stand at least 15 meters away from the working area. ● Keep hands and feet away from the nylon cutting head or metal blade during operation. ● Do not use the device if you are tired, ill, or under the influence of medication, drugs, or alcohol. ● Use an undamaged nylon cutting head. If you hit a stone or any other obstacle, stop the device and check the nylon cutting head. Never use a defective or unbalanced nylon cutting head. ● Before starting, after failure or impact, always check the device and make sure it is in good condition. ● Attention! Local regulations may limit the use of the device ● Always keep the device with the cutting tool in good condition. Note, improper maintenance, the use of non-compliant spare parts or removal, or modification of safety devices can cause damage to the device, and severe injury to the person working with it. ● Secure the device well during transport to prevent fuel loss, damage to the device, and injury. Always fit the transport protection of the cutting blade before transporting or stowing the device. ● On devices with a clutch, regularly check that the cutting attachment stops rotating when the engine is idling. ● Always check the device for loose fasteners, fuel leaks, damaged parts, etc. before each use. Replace used parts before use. ● It is necessary to take sufficient breaks and change the working position. ● Do not store the device in a closed area where fuel vapors can reach an open fire from water heaters, stoves, etc. Store the device in a well-ventilated area only. ● IMPORTANT: When filling the fuel, make sure that the engine is off and cooled down. Never refuel when the device is running or hot.Original Bedienungsanleitung FUXTEC FX-MS152 / FX-MS162_de_en_fr_ita_es_rev17

● Make sure that your product is only equipped with original accessories. Only use original parts that are specified by the manufacturer. The use of any other accessories or attachments may cause injury to the user and damage to the device. ● Clean the device thoroughly, especially the fuel tank and air filter. After using the device, remove all fuel. ● If you approach a user of the device as a spectator, carefully attract his attention and confirm that the user will stop the device. Please do not startle or distract the user. Otherwise, you could cause an unsafe situation. ● Never touch the nylon cutting head or metal blade when the device is running. If it is necessary to replace the guard or cutting tool, be sure that the engine and cutting tools have stopped. ● The engine must be OFF before you change the device's working range. ● If necessary, have the device repaired by an authorized workshop. If the device is defective, do not continue to run it. ● When starting or operating the device, never touch hot parts such as the exhaust, ignition cables, or spark plug. ● After the device has stopped, the exhaust pipe is still hot. Never place the device near inflammable materials (dry grass, flammable gases or liquids, etc.). ● Pay particular attention to the fact that the ground can be slippery when operating the device in the rain or immediately after the rain. ● If you slip or fall to the ground, release the throttle immediately. ● Before removing the blockage, stop the device and remove the spark plug connector. Before adjusting or repairing the device, make sure that the device is stopped, and the spark plug socket is removed. ● Ensure that you do not drop the device or hit it against obstacles. ● If the device is to be stored for a more extended period, let the device cool down first. Then drain the fuel from the fuel tank and carburetor, clean the device and place it in a safe place. ● Carry out constant checks to ensure the safe and efficient operation of the device. For a complete inspection, please contact us. ● Keep the device away from fire or sparks. ● Be careful when using the device. There is a risk of kick-back and recoil. ● Use extreme caution when using this device with the cutting blade. A cutting blade kick-back is a reaction that can occur when the rotating cutting blade hits an object that cannot be cut. This contact causes the cutting blade to stop for a moment and then suddenly repels from the hit object with accelerated force. This kick-back reaction can beOriginal Bedienungsanleitung FUXTEC FX-MS152 / FX-MS162_de_en_fr_ita_es_rev17

severe enough that the operator loses control of the device. A cutter blade kick- back can occur without warning if the cutter blade encounters an obstacle that becomes blocked or jams. This is more likely in areas where it is difficult to see the material being cut. For easy and safe cutting, approach the weeds to be cut from your right to your left side. If an object or stick of wood is hit unexpectedly, this can reduce a cutter blade kick-back.

25. Notes on working with the metal blade

A metal blade with 3 teeth is delivered with the device. It is used for cutting bushes and weeds. The use of a saw blade with this device is prohibited.

WARNING DANGER Do not cut with blunt, cracked or damaged metal sheets. Before working, check the surface for obstacles such as stones, metal bars or other objects. If they cannot be removed, mark this position to avoid collision with the blade. Lines can become entangled on the blade head and flap or be swirled in the air. WARNING DANGER Do not use the motor scythe for cutting out trees. WARNING DANGER Always use the shoulder strap. Adjust and fix the belt and belt clamping plate on the device so that the device hangs a few cm above the ground. The cut-out head and the protective shield should be aligned horizontally in all directions. Pre-tension the devices on the right side of your body.Original Bedienungsanleitung FUXTEC FX-MS152 / FX-MS162_de_en_fr_ita_es_rev17

WARNING DANGER Also, wear head, eye, face and hearing protection, and safety shoes. Do not wear rings, jewelry or loose, dangling clothes that could get caught in the device. Do not wear footwear with unprotected toes and do not work barefoot or without leg protection. In certain situations, you must wear head protection.Original Bedienungsanleitung FUXTEC FX-MS152 / FX-MS162_de_en_fr_ita_es_rev17

26. Putting on the shoulder harness

The shoulder strap is equipped with a quick- release device (see picture). You can quickly remove the shoulder strap by pulling on the quick-release device. Read the manual carefully. Be thoroughly familiar with the control and correct use of the device. Understand how to stop and shut down the device. Understand how to quickly release a clamped attachment. Do not allow anyone to enter the DANGER ZONE while working. The DANGER ZONE is an area of 15 meters in radius (approximately 16 steps). Insist that people in the DANGER ZONE wear eye protection against flinging objects. If the device must be used where people are unprotected, work at a low, reduced speed to reduce the risk of skidding.Original Bedienungsanleitung FUXTEC FX-MS152 / FX-MS162_de_en_fr_ita_es_rev17

1. Nylon thread head

*8 The throttle lock prevents accidental acceleration of the engine. The throttle stick can only be pressed when the throttle stick lock is pressed. **10 Activate the throttle lock only when starting. During regular work, both hands must continuously be on the handles.Original Bedienungsanleitung FUXTEC FX-MS152 / FX-MS162_de_en_fr_ita_es_rev17

28. Mounting the device

Attaching the handle The handle must be fitted before use. Follow the illustrations below for correct installation. Mounting the handle tube for use Place cup B up and down on the shaft tube, screw both cups and the shaft tube together. Place the handle in the provided clamping bush, which is already attached to the shaft tube. Now place the other shell on top and screw both half-shells and the grip tube together. Please pay attention to the "Component Overview" in chapter 7 to ensure that the handle is in the correct position!

Mounting the drive axle 1). Place the drive axle against the main shaft so that the hole of the axle is aligned with the locking pin of the connecting piece.

2). Actuate the locking pin and insert the drive axle into the main shaft. Release the locking pin and ensure that the locking pin engages in the hole.

Installing the protective shield Install the protective shield with the opening facing downwards towards the gearbox housing. Tighten the holder of the guard so that the blade guard does not move or slide down during operation. Mounting the metal blade Steps:

1. place the spanner in the hole from the gear head.

2.Remove the nut, the cover and the upper spacer from the from the gearbox shaft so that you have all the components in front of you (see picture on the right).

3. first place the lower spacer washer on the thread and then

place the metal blade exactly over it!

4. slide the upper spacer over the gear shaft on the unmarked side

5. Put on the silver ring = cover and screw on the union nut.

Installation of the lawn trimmer (thread spool) Step 1: Insert the key (1) into the hole in the gearhead so that the gear shaft is locked. Unscrew and remove the nut. Since it is a safety nut, please make sure that there is a left-hand thread here. Step 2: mount the lower spacer (here point 2, the same washer as above when mounting the knife 2) and install the thread spool on the gear shaft. The remaining accessories, such as the upper spacer washer/washer or the silver ring, are not required for mounting the thread spool! Then tighten it by hand. Warning! Ensure that all components are correctly assembled and installed and that all screws are tightened.

Use unleaded petrol with 2-stroke engine oil in a 40:1 ratio. During the first few operations, a mixture ratio of 25:1 can be selected to initially lubricate all device parts optimally.

WARNING: Never use just fuel in your engine. This will cause permanent engine

damage and voids the manufacturer's warranty for this product. Never use a fuel mixture that has been stored for more than 90 days.

WARNING: This must be a premium grade, 2-stroke air-cooled engine oil.

FUEL MIXTURE Mix fuel with 2-stroke oil in a container provided for this purpose. Note the following the mixture table on the following page for the correct fuel/oil ratio. Shake the tank to ensure complete mixing.

WARNING: Failure to lubricate the engine eliminates the liability of the device

manufacturer. Petrol and oil must be mixed in the ratio 40:1. Recommended fuel It is recommended to use unleaded petrol with an octane number of 90 # or higher to reduce carbon deposition in the combustion chamber. Do not use old or dirty petrol. Keep the fuel tank dust-free and avoid water getting into the tank. Sometimes misfiring can occur in case of overload, which is normal. If the backfiring can be heard under average load, we recommend replacing the petrol. If the misfire is still present afterward, please contact our customer service.

⚫ Petrol is highly flammable and can cause an explosion in case of sparks ⚫ Refuel only in well-ventilated rooms and allow the engine to cool down before filling. Do not smoke during refueling. Open fires and sparks must be avoided. ⚫ Do not overfill the tank (see figure max. filling level). ⚫ After refueling, check that the fuel filler cap is closed correctly. ⚫ Avoid any spillage of petrol. ⚫ Keep the device away from children. Petrol Two-stroke engine oil (40:1) Petrol Two-stroke engine oil (40:1) 1 liter

1. Place the device on a firm and flat surface.

Slide the engine stop switch down.

2. Set the choke lever upwards to "COLD START."

3. Press the carburetor pump about 8-10 times (until petrol flows in the line)

4. Pull out the starter rope with a short-stroke until resistance is felt

(about 100mm). A continuous, mainly fast train will provide a strong spark, and the engine will respond after 2-3 trains.

5. Important: After the engine has responded, return the choke lever to the "WARM

START" position and immediately pull the starter again until the engine starts (see also the video "Starting the device" on our homepage).

6. Let the engine warm-up for about 10 minutes in idle speed.

NOTE: If the engine does not start after repeated attempts, please read the troubleshooting chapter. NOTE: Always pull the starter cord straight out. Pulling the starter at an angle will cause the rope to rub against the eyelet. The oblique pulling can cause the starter cable to fray or break. Always hold the starter handle firmly when the rope is pulled back. Never allow the rope to be thrown back from the pulled-out position. This could damage the starter device.

30. Warm start of the engine

1. Place the device on a firm and flat surface.

2. Slide the engine stop switch down.

3. Slide the choke to the "WARM START" position.

4. Pull out the starter rope with a short-stroke until resistance is felt

(about 100mm). A continuous, mainly fast pull will provide a strong spark and start the engine. If the engine does not start, please proceed again according to "Cold starting the engine."

31. Stopping the device

Unlock the throttle. Let the engine return to neutral. Move the engine stop switch on the handle upwards until it stops. If it does not stop, pull out the spark plug connector in an emergency. Never leave the device unattended while it is running.

32. Trimming techniques

ADDITIONAL SAFETY INSTRUCTIONS

Before running your device, read notes in chapters 3 and 4 of this manual. CAUTION IF YOU are NOT familiar with the trimming techniques, practice with the DEVICE in the "STOP" position (turned off). ALWAYS TRIM OR CUT AT HIGH ENGINE SPEEDS. Never run the device slowly at the beginning of (or during) trimming operation. ALWAYS MAKE AWAY DISTANCE IN THE WORKING AREA from cans, bottles, rocks, etc.Original Bedienungsanleitung FUXTEC FX-MS152 / FX-MS162_de_en_fr_ita_es_rev17

Whirling objects can cause serious injury to users or bystanders and damage the device. If an object is accidentally knocked, immediately stop the ENGINE and check the device. Never run the device with damaged or defective parts. Never lift the nylon cutting head above knee height during operation. Never run the device on a slope if there is a chance of sliding or losing stability.

RELEASING THE NYLON THREAD

To release new thread, run the engine at full throttle and tap the nylon cutting head onto the lawn. The threaded head automatically releases further threads. The blade in the protective shield cuts off the excess thread. CAUTION: Remove grass deposits regularly to prevent overheating of the drive axle. Grass deposits occur when fibers of the weed are entangled around the shaft under the protective shield. This prevents the shaft from cooling correctly. Remove grass deposits with a screwdriver or similar tool only when the device is switched off.

When the device is appropriately equipped with a protective shield and nylon cutting head, your device will trim unsightly weeds and large diameter tall grass in areas along fences, walls, land, and around trees. NOTE: Pay particular attention when trimming on brick or stone walls, etc., where rapid weed wear will occur.

MORE PRECISE TRIMMING

Swing the trimmer's nylon cutting head horizontally from side to side. Do not tilt the nylon cutting head while working. For correct cutting height, trim in a test area beforehand. Keep nylon cutting head at the same level for even depth of cut.

TRIMMING AROUND TREES

Trim around logs with a slow approach; the thread should not collide with the log. Walk around the tree from left to right—approach grassOriginal Bedienungsanleitung FUXTEC FX-MS152 / FX-MS162_de_en_fr_ita_es_rev17

or weeds with the tip of the thread.

33. Replacing Nylon Thread

1. Switch off the engine.

2. Place the trimmer on the ground so that the drive axle with the coil is exposed and

remove the nylon head.

3. Open the nylon head by operating the release.

4. Cut the new thread to 5m and wind it tightly around the thread take-ups in a

clockwise direction.

5. Remove the excess thread.

6. After the thread pick-up is wrapped, fasten the thread ends as shown in the

7. feed the thread ends through the holes in the outer spool section.

8. 8. Press the inner and outer bobbin together and turn them against each other until

Regular checks and adjustments must be made to ensure that the petrol engine maintains its performance. Periodic maintenance also provides a long service life. See the following table for the regular maintenance cycle.

months or 100h Every 2 years or 300h Air filter

Connecting elements such as screws and nuts Check (tighten if necessary)

Idle speed Check and adjust

Valve clearance Check and adjust

Combustion chamber Clean up

WARNING a. Increase maintenance intervals if working in dusty environments. b. All maintenance work - except for that listed in the operating manual - must be carried out at regular intervals. Work must be carried out by qualified maintenance personnel.Original Bedienungsanleitung FUXTEC FX-MS152 / FX-MS162_de_en_fr_ita_es_rev17

Cleaning the air filter CAUTION: Never run the engine without the air filter. A dirty air filter puts pressure on engine performance, increases fuel consumption, and makes starting more difficult. If you notice a loss of engine power: 1 Remove the screw on the filter cover and take out the filter. 2 Clean the filter with soap and water. Never use petrol or benzene! 3 Let the filtered air dry. 4 Put the filter back in place and fasten the filter cover with the screw.

Spark plug maintenance To ensure the normal operation of the engine, the ignition distance of 0.6 -0.7mm must be maintained and must be free of carbon deposits. Always carry out the following steps with the engine switched off:

1. Carefully remove the spark plug connector. Do not pull on the cable but directly on the

2. Use the spark plug wrench supplied to unscrew the spark plug.

3. Visually check the spark plug for damage and electrode burn-off,

Remove the carbon deposits.

4. Check the gap with a feeler gauge and bend the electrode to the correct

distance of 0.6 to 0.7mm.

5. Check the spark plug washer and tighten the spark plug to a torque of 12-15 Nm.

WARNING The spark plug must be screwed down tightly; otherwise, the engine runs hot and is damaged. Sharpen the shielded knife

1. Remove cutting blade (E) from a protective shield (F).

2. Clamp the knife in a vice.

Sharpen the knife with a flat-file. Please make sure that you maintain the angle of the cutting edge. Only move the grinding blade in one direction during the sharpening process.

35. Storage of the device

WARNING: Failure to follow these steps may result in the formation of

deposits in the carburetor. This will make it challenging to start later and can cause permanent damage.

1. Perform all general maintenance as described in the maintenance section of your

user manual are recommended.

2. Clean the exterior of the device, drive axle, protective shield, and nylon cutting head.

3. Drain the fuel from the fuel tank.

4. After draining the fuel, start the engine.

5. Let the engine run in neutral until it stops by itself. This will clean the carburetor of

8. Pour 1 teaspoon of clean 2-stroke oil into the combustion chamber. Pull the starter

cord slowly several times to coat internal components. Replace the spark plug if necessary.

9. Store the device in a cool, dry place away from any source of ignition such as an oil

burner, water heater, etc.

TRANSPORT PROTECTION Make sure that the device is well-secured during transport to avoid fuel loss, damage, or injury. Install transport protection for metal sheets during transport and storage.Original Bedienungsanleitung FUXTEC FX-MS152 / FX-MS162_de_en_fr_ita_es_rev17

1. Difficulties during commissioning

Spark plug Carbon deposit between the diodes of the spark plug Clean the spark plug. Adjust the gap 0.6~0.7mm, replace the spark plug other Ignition coil defective flywheel magnet too weak Replace the ignition coil or flywheel Weak ignition spark

Compression Too much petrol in the combustion chamber, bad fuel or water in the tank Remove the spark plug and allow to dry, replace fuel. The carburetor does not pump oil anymore. Oil line blocked Cleaning the carburetor and cleaning the pipes

regular oil supply, but weak compression Piston rings worn, spark plug not screwed down, cylinder head not tight, wrong valve clearance or ignition timing. replace screw tight to replace or adjust regular oil supply and proper ignition spark Poor contact between ignition cap and spark plug Replace or checkOriginal Bedienungsanleitung FUXTEC FX-MS152 / FX-MS162_de_en_fr_ita_es_rev17

2. Difficulties during operation

Situation Cause Solution The engine does not reach the speed Choke is in "COLD START" position, the exhaust system is blocked no air supply, moving elements worn, ignition spark weak too large valve clearance, cylinder head sooty Open choke, replace exhaust system Check or replace ignition coil, adjust flywheel, spark plug Operating materials are leaking Lines to carburetor blocked Spark plug spacing incorrect Replace lines and carburetor Adjust gap dimension Motor- Noises Wrong choke position, Camshaft damaged Check/replace camshaft Carburetor leaking Failure of the check valve on the tank cap Replace the fuel filler cap Carburetor gasket is worn out Replace carburetor or gasket

If no troubleshooting solves the problem, please contact the FUXTEC customer service. Only use original parts approved by the manufacturer. Otherwise, there is a risk of danger. Customer Service Have your purchased device repaired only by qualified personnel and only with original spare parts. This will ensure that the safety of the device is maintained. Please contact the manufacturer FUXTEC GmbH directly at www.fuxtec.co.uk at any time regarding maintenance work and the procurement of spare parts.Original Bedienungsanleitung FUXTEC FX-MS152 / FX-MS162_de_en_fr_ita_es_rev17

Warranty The warranty period is 24 months from the date of purchase. Please keep your proof of purchase in a safe place. Excluded from the warranty are wearing parts and damage caused by improper use, use of force, technical modifications, use of incorrect accessories or non-original spare parts, and repair attempts by non-qualified personnel. Warranty repairs may only be carried out by authorized specialist dealers. Disposal note Please contact your local municipality for the disposal of the device. Please dispose of all operating materials such as petrol and oil in advance.Original Bedienungsanleitung FUXTEC FX-MS152 / FX-MS162_de_en_fr_ita_es_rev17

37. EC Declaration of Conformity

that the device described below, by its design and construction and in the version marketed by us, complies with the relevant essential health and safety requirements of the EC directives. Designation of the device: Petrol motor scythe/lawn trimmer Engine type: FX-MS152 Trademark: FUXTEC Power consumption/displacement 52cm³ / 62cm³ Measured sound power level LWA =107.7dB Guaranteed sound power level LWA=113dB Conformity procedure 2000/14/EC according to Annex V Relevant EC straightening thread:

EC machine straightening thread 2006/42/EC EC directive on electromagnetic compatibility (EMC) 2004/108/EC EC-directive thread Noise emission (2000/14/EWG & 2005/88/EC) Applied harmonized Standards:

EN ISO 14982 Manufacturer signature/date:

Name and address of the person authorized to compile the technical documentation established within the Community
