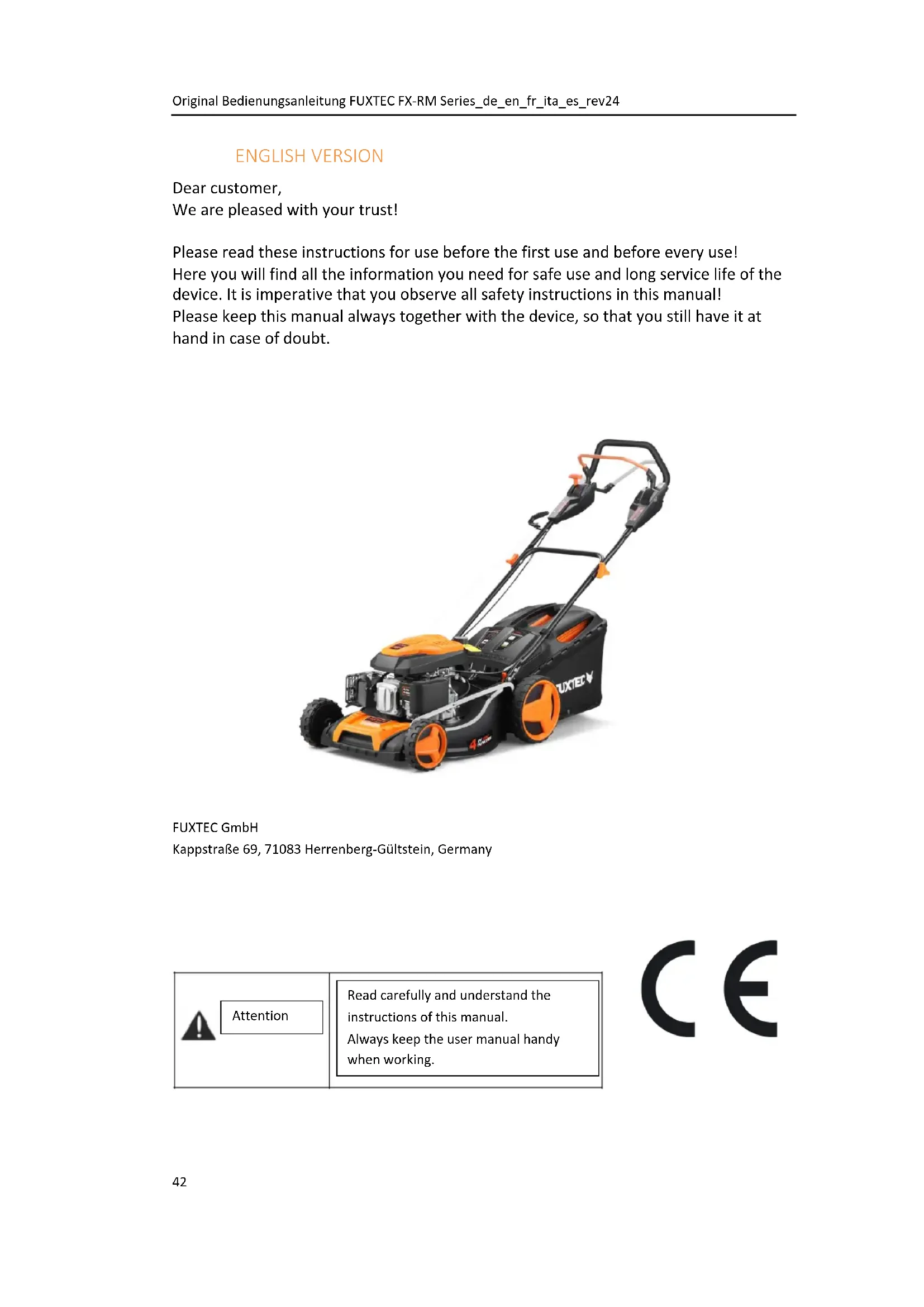

ENGLISH VERSION Dear customer, We are pleased with your trust! Please read these instructions for use before the first use and before every use! Here you will find all the information you need for safe use and long service life of the device. It is imperative that you observe all safety instructions in this manual! Please keep this manual always together with the device, so that you still have it at hand in case of doubt.

Read carefully and understand the instructions of this manual. Always keep the user manual handy when working. AttentionManual_FX-RM_Series_Int24_rev24

The intended use of this device includes

• Mowing lawns The device must not

• be used in any other way than described in this manual.

• be used in commercial applications.

• be used with accessories other than those specified by the manufacturer.

• be changed, modified, or operated in any other way than according to the manufacturer's specifications. Observance of these user manuals is essential for safe assembly and use. This device is exclusively for private domestic use according to the specified intended use. All other applications are excluded. Vibration and noise reduction To reduce the effects of vibration and noise, limit working hours, use settings for lower vibration and noise emissions, and wear personal protective equipment. Observe the following points to keep vibration and noise levels low: Use the product only as intended according to its design and instructions. Ensure that the product is in perfect condition and well maintained. Use the right accessories and ensure that it is in good condition. Hold the product firmly but not cramped by the handles provided. Maintain the product according to this manual and keep it well lubricated. Plan your working hours according to this manual to spread a higher load over a more extended period.Manual_FX-RM_Series_Int24_rev24

Emergency Familiarize yourself with the use of the product by reading the user manual thoroughly. Remember the safety instructions and follow them carefully. This will help you to avoid risks and dangers. Always be attentive when using the product so that you can recognize dangers early and react to them. Rapid intervention can prevent severe injury and damage to property. Turn off the product and disconnect the cordless high hedge trimmer, depending on the model. Have the product repaired by a qualified expert, if necessary, before using the product again. Residual risks Even if you operate this lawnmower according to the instructions, there will always be residual risks. The following hazards can occur in connection with the design and construction of this lawnmower:

1. Injuries and damage to property caused by flying parts.

2. Hearing damage if you do not wear suitable hearing protection or use the lawnmower

for an extended period.

3. Damage to health resulting from hand-arm vibrations if the lawnmower is used for an

extended period or is not guided correctly and maintained.Manual_FX-RM_Series_Int24_rev24

Adjustable cutting height (mm)

Trimmings collection capacity (l)

Nominal speed (rpm) 3,000 3,000

Unit power (KW) at rated speed

Engine type OHV 4-Stroke OHV 4-Stroke OHV 4-Stroke

Adjustable cutting height (mm) 25 – 75

Trimmings collection capacity (l)

Petrol type Lead-free gasoline Lead-free gasoline Lead-free gasoline

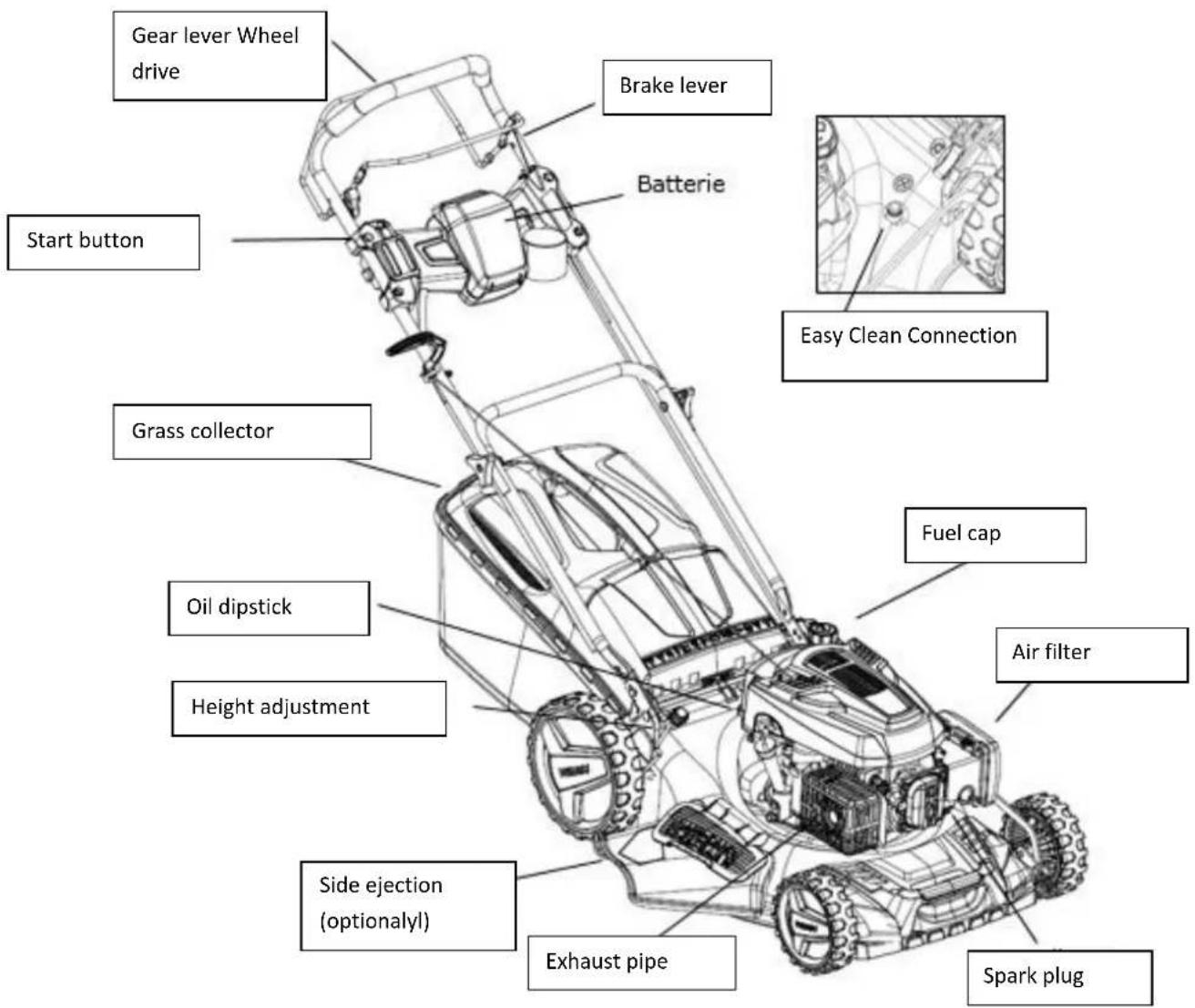

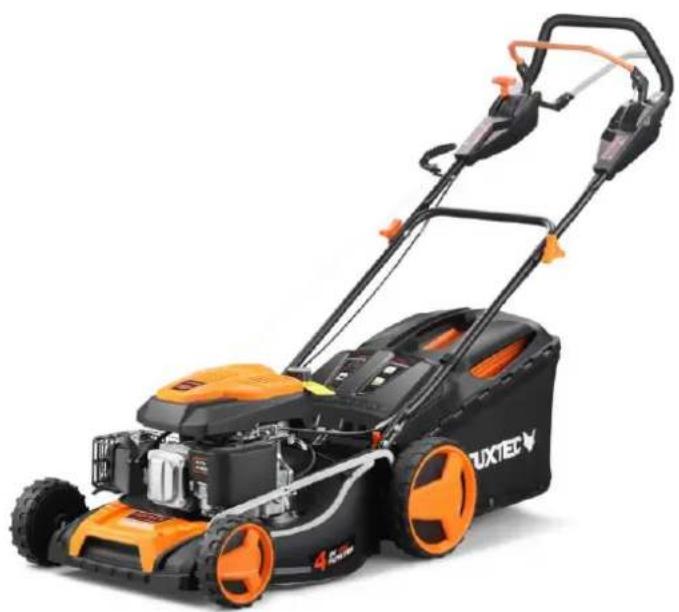

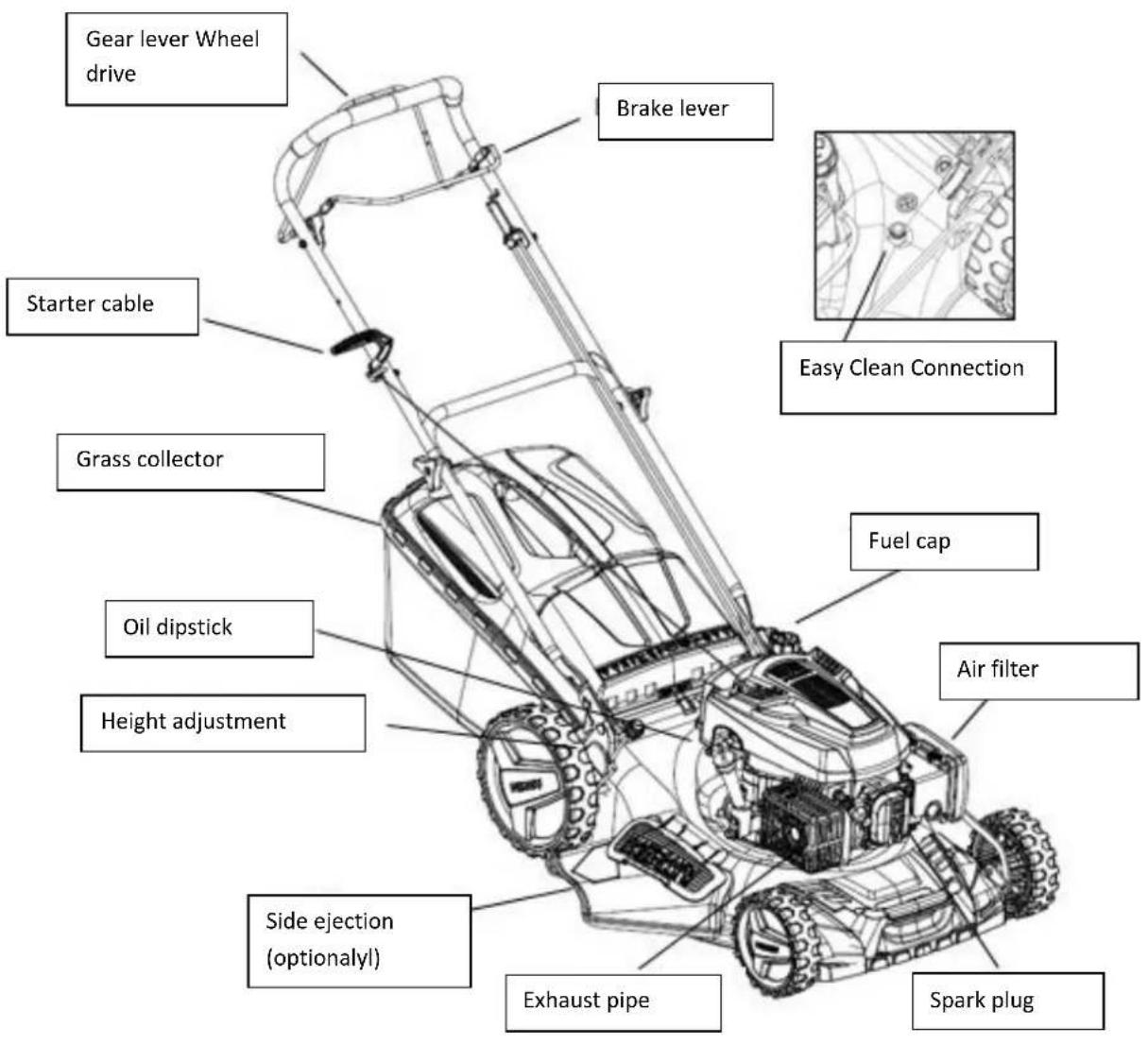

20. Your device at a glance

21. Preface and preparation

• Read the instructions carefully. Familiarize yourself with the operating elements and the proper use of the device.

• Never allow children or other persons who are not familiar with the use of the device to use the mower. Local regulations may limit the age of the operator.

• Never mow when persons, especially children or pets, are nearby.

• Remember that the user is responsible for accidents and damage to other people or property.

Preparation a) Always wear sturdy shoes and long pants when mowing. Do not operate the device if you are barefoot or wearing sandals b) Thoroughly check the areas where the device is to be used and remove all objects that could be whirled up by the device c) WARNING - Fuel is highly flammable - Store the oil in appropriate and designated containers - Only fill the tank outdoors and never smoke when filling the device - Fill up with fuel before starting the device. Never remove the cap of the fuel tank or fill it up while the engine is still running - If fuel is spilled, do not attempt to start the engine under any circumstances, but move the device away from this location. Do not start the engine until the fuel vapors have evaporated. - Close all fuel tanks and container caps securely. d) Replace defective mufflers. e) Visually inspect the device before use to check that the blades, bolts, and blade holders are not worn or damaged. Replace worn or damaged bolts and blades in sets.Manual_FX-RM_Series_Int24_rev24

1. Do not use the device in an enclosed space where dangerous carbon monoxide can

2. Mow only in daylight or under good artificial light.

3. If possible, avoid using the device in humid conditions.

4. Make sure that you have a firm stand on hangers.

5. Never run with the device, but walk.

6. Always mow crossways with the device on slopes and not up and down.

7. Be especially careful when changing direction.

8. Do not mow excessively steep slopes.

9. Be especially careful when mowing backward or in your direction.

10. Turn off the engine if the mower needs to be tilted due to transportation to move it to

another mowing area.

11. Never use the device with defective protective shields or without protective devices,

such as slipped discharge chutes or cuttings catcher.

12. Do not change the engine settings or increase the speed.

13. Disconnect the blades and tighten the starter cord slightly before starting the engine.

14. Start or start the engine carefully according to the instructions. Keep your feet away

15. Do not tilt the mower when starting the engine unless the device needs to be inclined

to start. In this case, do not tilt the device more than necessary and only lift the part of the device that is away from the user.

16. Do not start the engine when someone is standing in front of the exhaust port.

17. Do not place your hands or feet near the rotating parts. Stay away from the exhaust

18. Never lift or transport the mower while it is still in operation.

19. Stop the engine and remove the spark plug connector from the spark plug:

a. Before cleaning a blockage or clogged pipes b. Before you check, clean, or perform any work on the device. c. After you have collided with a foreign object. Check

20. the device for damage and repair it before put the device back into operation.

a) Make sure that all nuts, screws, and bolts are tight so that the device can work safely b) Never store the device with fuel in the tank in buildings where vapors of open flames or sparks can be generated c) Let the engine cool down completely before storing the device in closed rooms d) Keep the engine, silencer, battery compartment, and fuel tank free of grass clippings, leaves, and grease to reduce the risk of fire e) Check the grass catcher regularly for wear or loss of functionality f) Always replace worn or damaged parts for safety reasons g) If the fuel tank has to be emptied, this should be done outdoorsManual_FX-RM_Series_Int24_rev24

The following icons are found on the device to remind you of the care and warnings that are required. The meaning of the symbols: IMPORTANT: This device could amputate hands and feet and throw objects. Failure to observe the following safety instructions may result in severe injury or even death.

WARNING : Always remove the spark plug connector from the spark plug to prevent accidental

operation of the device when adjusting, transporting, or repairing it.

WARNING: Engine exhaust fumes, some of its components contain or emit carcinogenic and

harmful chemicals. ATTENTION : The exhaust muffler and other parts of the engine become very hot during the use of the device and remain hot for some time after the device is turned off. Stay away from the hot parts of the appliance to avoid burns from contact with the parts.Manual_FX-RM_Series_Int24_rev24

25. General operating and safety instructions

- Please read the user manual carefully. Familiarize yourself with the control elements and the proper use of the device. - Never place your hands and feet near the rotating parts of the device. Stay away from the outlet opening at all times - Let only responsible users who are familiar with the operation of the device use this device. - Thoroughly check the area where the device is to be used and remove all objects that could be thrown around by the device. - Never use the device when persons, especially children or pets, are nearby. - Always wear sturdy shoes and long pants when using the device. Do not operate the device if you are barefoot or wearing open sandals. - Do not pull the device backward unless necessary. Always look down and behind you before and while moving the device backward. - Never operate the mower with defective or unprotected guards, such as improperly installed deflectors and clippings. - Use only accessories recommended by the manufacturer - Stop the knives when crossing gravel driveways, paths, or roads. - Stop the engine and disconnect the spark plug connector from the spark plug, - before you remove blockages and clear the cutting channel. - before you check, clean, or carry out any work on the device. - after you have detected a foreign object. check the device for damage and repair it before you put the lawnmower back into operation. - if the lawn mower vibrates unusually strongly, you should check it immediately - Turn off the engine and wait until the blades have come to a complete stop before removing the clippings. - Use the device only in daylight or in areas that are well lit with artificial light. - Do not operate the device if you are under the influence of alcohol or drugs. - Never use the device on wet grass. An unstable stand can lead to slipping. Hold the handles firmly while mowing. Never run when using the device. - Release the self-propelled mechanism before starting the engine - Replace defective silencers. - Always wear safety glasses or safety goggles with side shields when using the mower - Remove obstacles like stones, and the tree remains, etc. - Watch out for pits, furrows, or bumps. Tall grass can hide foreign objects. - Do not mow at differences in height, ditches, or dams. The user of the device may lose his footing and balance - Do not mow on excessively steep slopes. - Note that the user of the device is responsible for accidents or injuries to other people or property - Be alert and switch off the device when children enter the work area. - With rotating devices, you should mow horizontally and not vertically over the slope. - Never allow children or persons not familiar with the operation of this lawnmower. Local regulations may limit the age of the user. - WARNING - Gasoline is extremely flammable. - Store gasoline in containers designed for this purpose. - Fill the tank outdoors only. Never smoke while filling the tank. - Add gasoline before starting the engine. Never remove the filler cap or fill the tank with gasoline while the engine is running or still hot. - Never start the engine if the oil is spilled. Move the device to another location. Avoid any kind of ignition or sparking until the petrol fumes are entirely removed.Manual_FX-RM_Series_Int24_rev24

- Carefully replace all fuel tank and container caps - Inspect the blades, bolts, and cutters for visible wear and damage before using the device. Replace worn or damaged blades and bolts in sets to avoid imbalance. - Never change the safety devices. Check their proper function regularly. - Keep the device free from grass, leaves, and other residues. Remove any oil or fuel residues. Let the device cool down before storing it. - Be incredibly attentive when changing the mowing direction on slopes. - Never attempt to adjust the cutting height while the engine is running. - The crop catcher and its parts are subject to wear, damage, and abrasion, which could expose rotating parts. This can lead to objects being thrown. Check the individual parts regularly and, if necessary, replace them with original spare parts recommended by the manufacturer. - The blades are sharp and cut precisely. Be careful when servicing the blades. Wrap the blades in a cloth or wear protective gloves. - Do not change the engine speed controller and do not overload the motor - Be especially careful when moving the mower backward or towards you. - Stop the blades when the mower needs to be tilted for transport, especially when crossing surfaces other than grass. - Disconnect all blades and control clutches before starting the engine. - Start the engine carefully as described in the instructions, keeping your feet away from the blades - Do not tilt the lawnmower when you turn on the engine, except when the lawnmower needs to be inclined to start. In this case, you should not tilt it more than necessary. Only lift the part that is away from the user. - Do not start the engine if you are standing in front of the outlet duct - Never transport or carry a lawnmower while the engine is still running. - Reduce the brake setting while turning off the engine and if the engine is equipped with a shut-off valve. Turn off the fuel supply at the end of the mowing operation. Go slowly when using a transport device.Manual_FX-RM_Series_Int24_rev24

Read this manual thoroughly and carefully before installing and using your lawnmower. IMPORTANT : The lawnmower is sold WITHOUT OIL OR FUEL. Your new lawnmower has been assembled and tested at the factory. REMOVE ANY CARDBOARD PARTS FROM THE LAWNMOWER Remove the device from the box and check the entire packaging thoroughly for loose parts. IMPORTANT: For assembly steps 1-3, depending on the model, your lawnmower will be delivered entirely pre-assembled (assembly variant 1) or in two packages (assembly variant 2). We, therefore, ask you to consider two assembly variants in the following. Assembly step 4 is the same for all variants.

1. Remove the lawnmower from the packaging

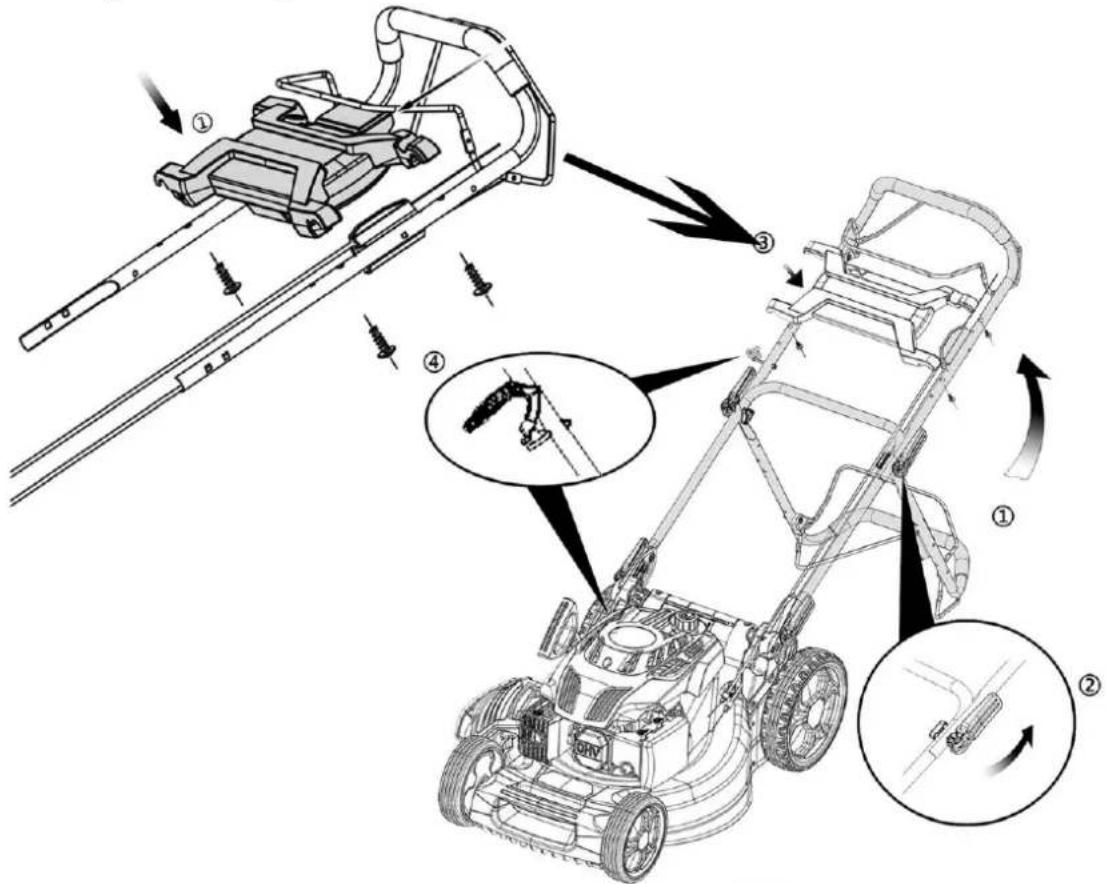

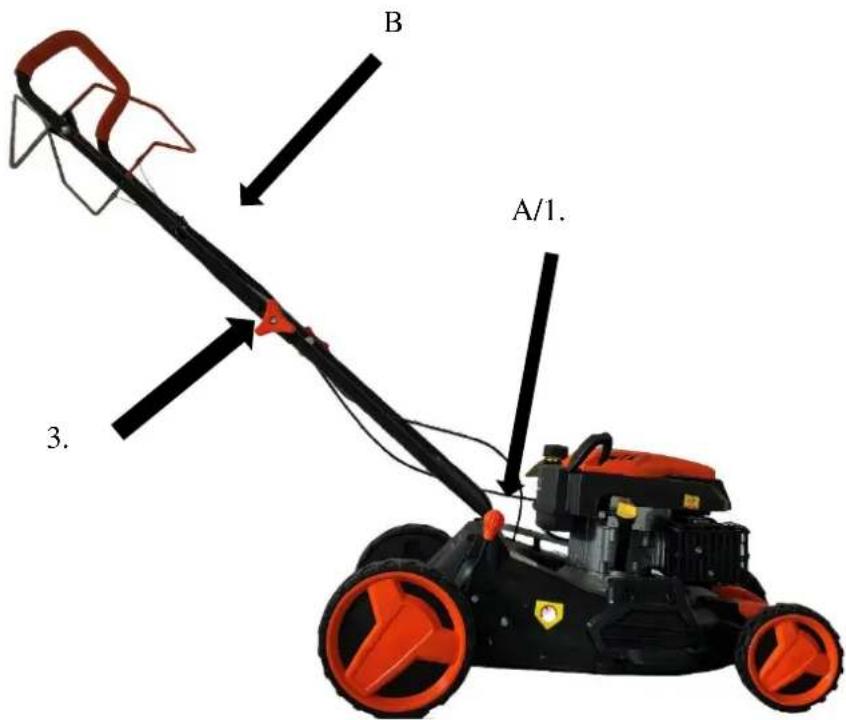

2. Insert the lower spar (A) into the body and mount it laterally on the right and left with

3. Insert upper spar (B) and tighten with orange wing nut, then tighten screws + nuts on

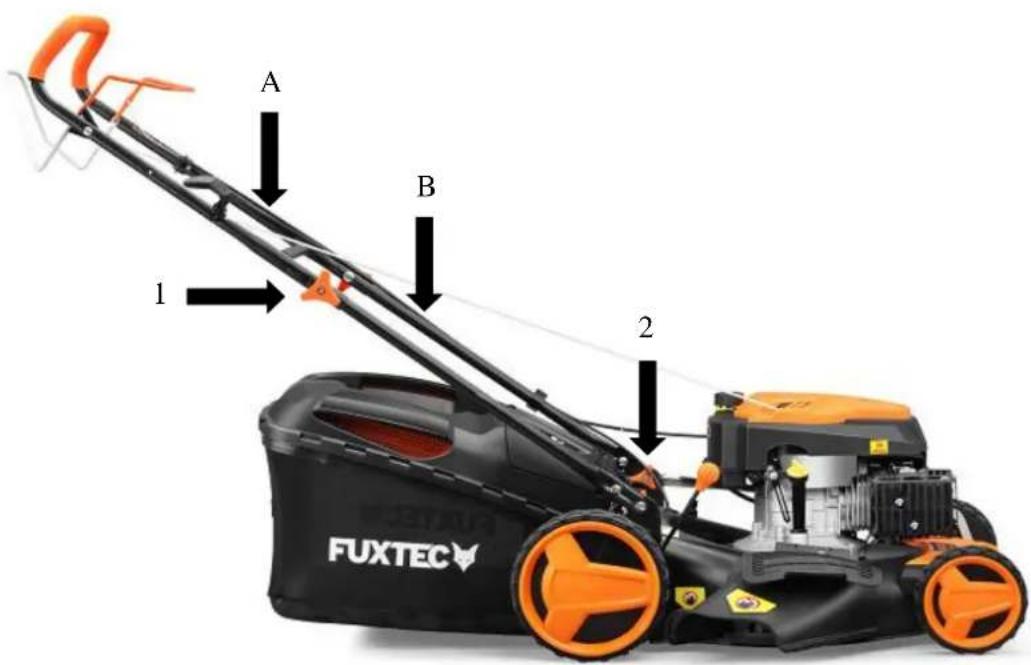

1. Remove the lawnmower from the packaging

2. Remove the lower spar (B) from the accessory pack (or main pack) and screw it to the

central unit (upper hole) with screws + nuts (2)

3. Screw upper spar (A) to mounted lower spar (B) using orange wing nuts + screws (1).

Important : On some models, the front wheels are removed to prevent damage to the axle during shipping. The wheels are simply screwed onto the axle with the nuts supplied.

ADJUSTING THE CUTTING HEIGHT

Raise the wheels for low cutting height and lower the wheels for high cutting height. Adjust the cutting height according to your needs centrally using the height adjustment handle (see illustration on page 2). The middle position is the most suitable position for most lawns.

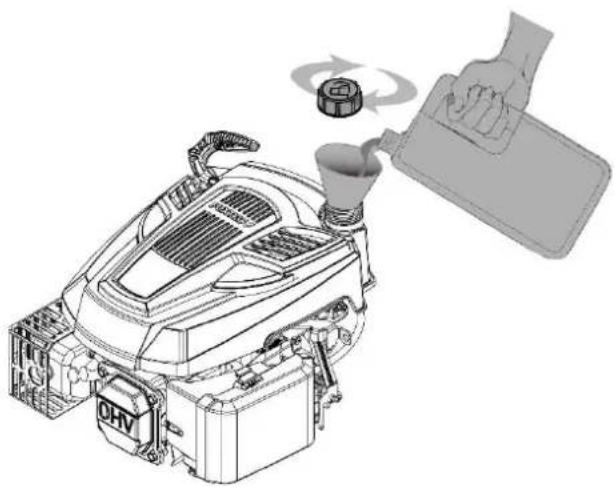

FILL OIL BEFORE STARTING THE ENGINE

Before each subsequent use, check the oil level and, if necessary, top up with SAE30 engine oil. Refer to the table in Chapter 1 Product Specification for the filling quantity.

Your lawnmower is delivered to you without 4- stroke oil.

ATTENTION : DO NOT overfill the engine with oil. It could lead to the smoke formation in the muffler when starting.

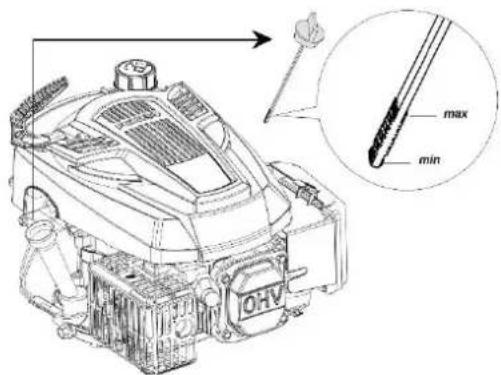

1. Make sure that the lawnmower is level

2. Remove the dipstick from the oil filler tube

3. Insert the dipstick and pull it out slowly to check the oil level

IMPORTANT: - Check the oil level before each use. Add oil if necessary. Fill up to the oil gauge on the dipstick. - Change the oil every 25 working hours or every season. You will likely need to change the oil more often in dusty and dirty conditions. Refer to chapter 10 "Changing the oil." Refuel with SUPER GASOLINE 95 octane (no mixture) Fill the fuel tank to the bottom of the filler neck. Do not overfill the tank. Use fresh, clean unleaded fuel. Never mix oil with gasoline. Purchase fuel in quantities that can be used within 30 days to guarantee the freshness of the fuel. Prolonged storage of the lawnmower will change the chemical composition of the gasoline, which can cause starting difficulties and unsteady running of the engine. ATTENTION : Remove any oil or gasoline residue. Do not store, spill, or use gasoline near naked flames.Manual_FX-RM_Series_Int24_rev24

ATTENTION: Fuels mixed with alcohol (called gasohol) or the use of ethanol or methane can attract moisture, causing separation and formation of acid during storage. Acidic gases can damage the engine's fuel system while the device is in storage. Drain the tank system if the device is stored for more than 30 days to avoid damage to the motor. Empty the fuel tank, start the engine and let it run until the fuel line and carburetor are empty. Use fresh gasoline the next time you use the device. Never use engine or carburetor cleaning agents inside the fuel tank. This can lead to permanent damage.Manual_FX-RM_Series_Int24_rev24

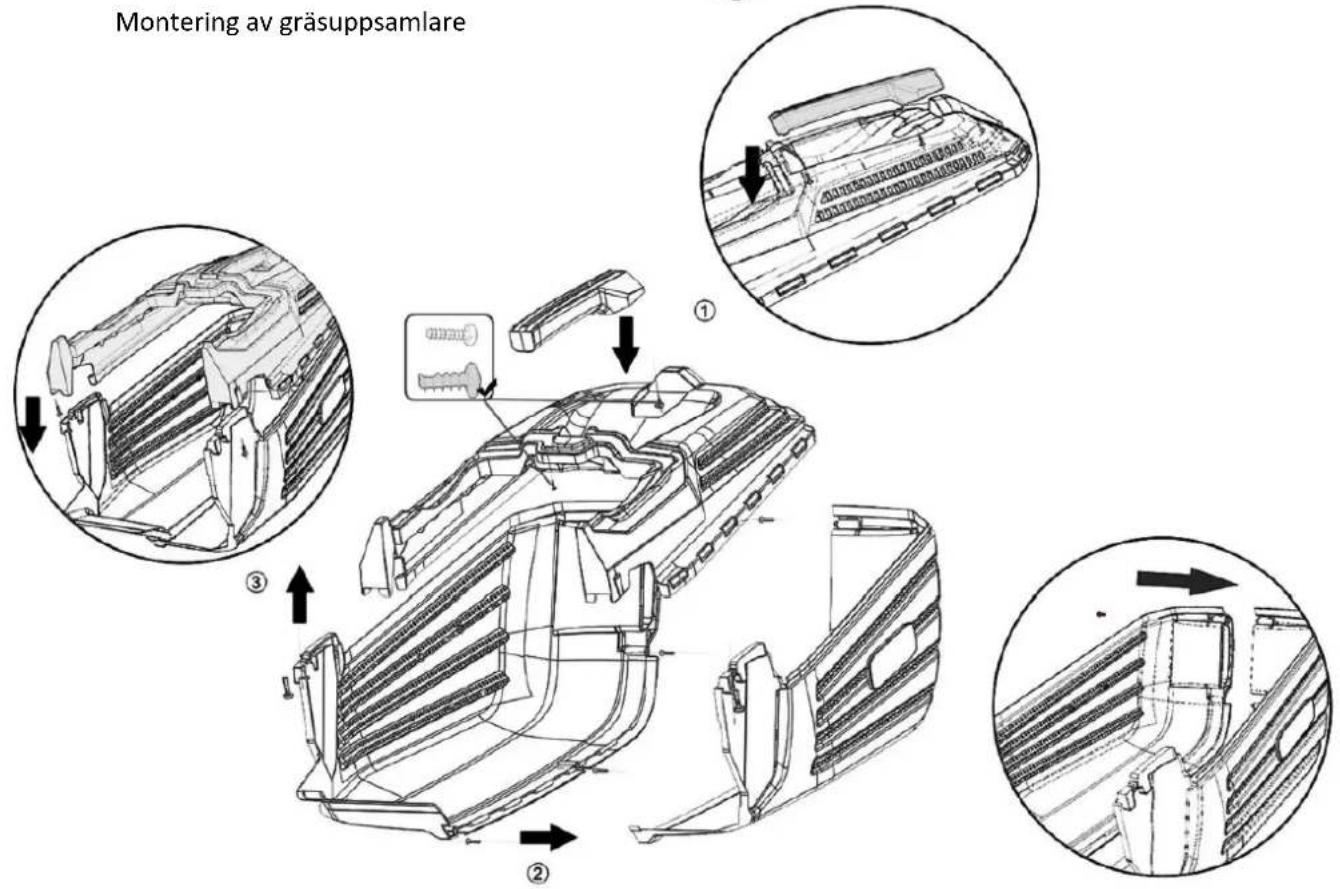

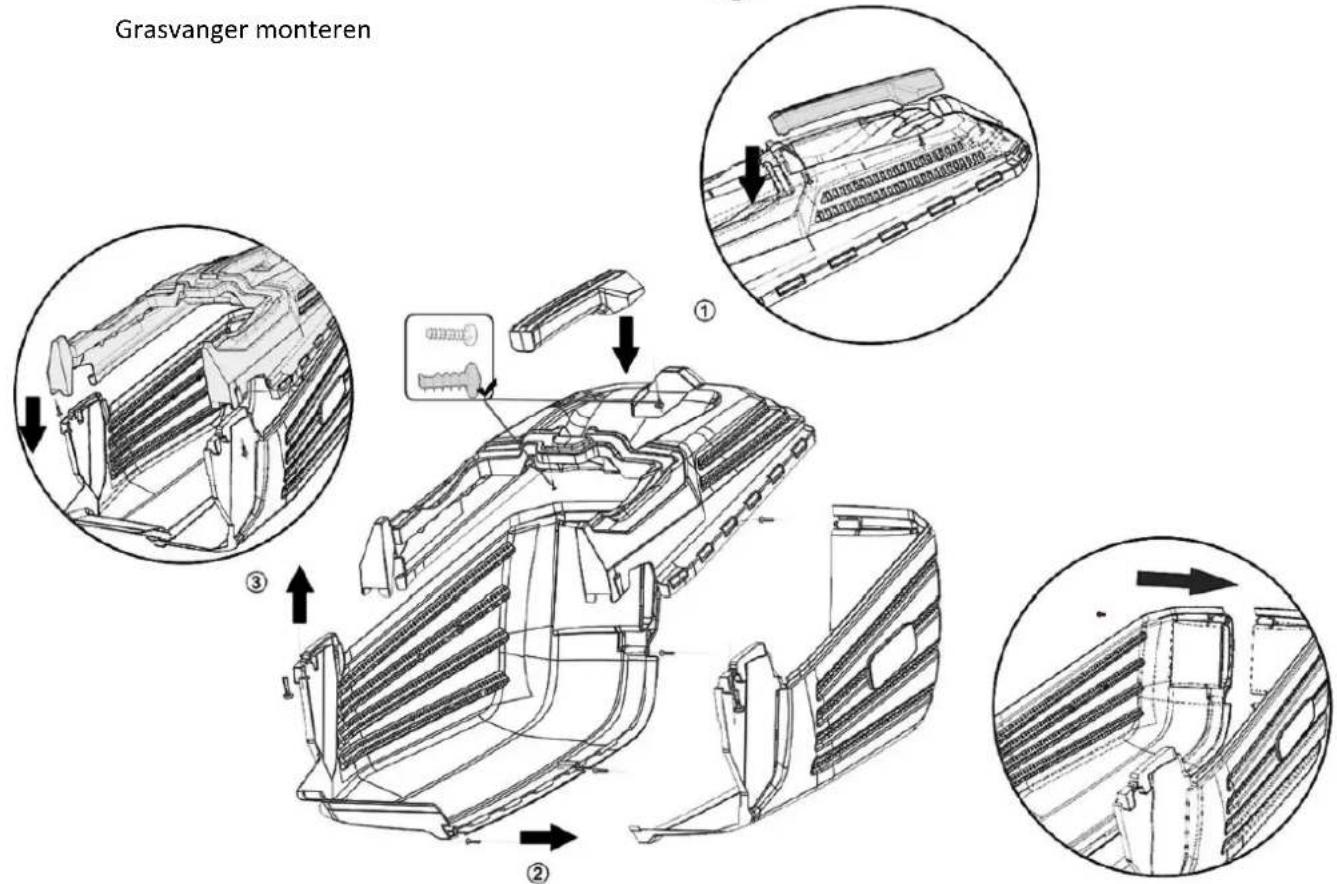

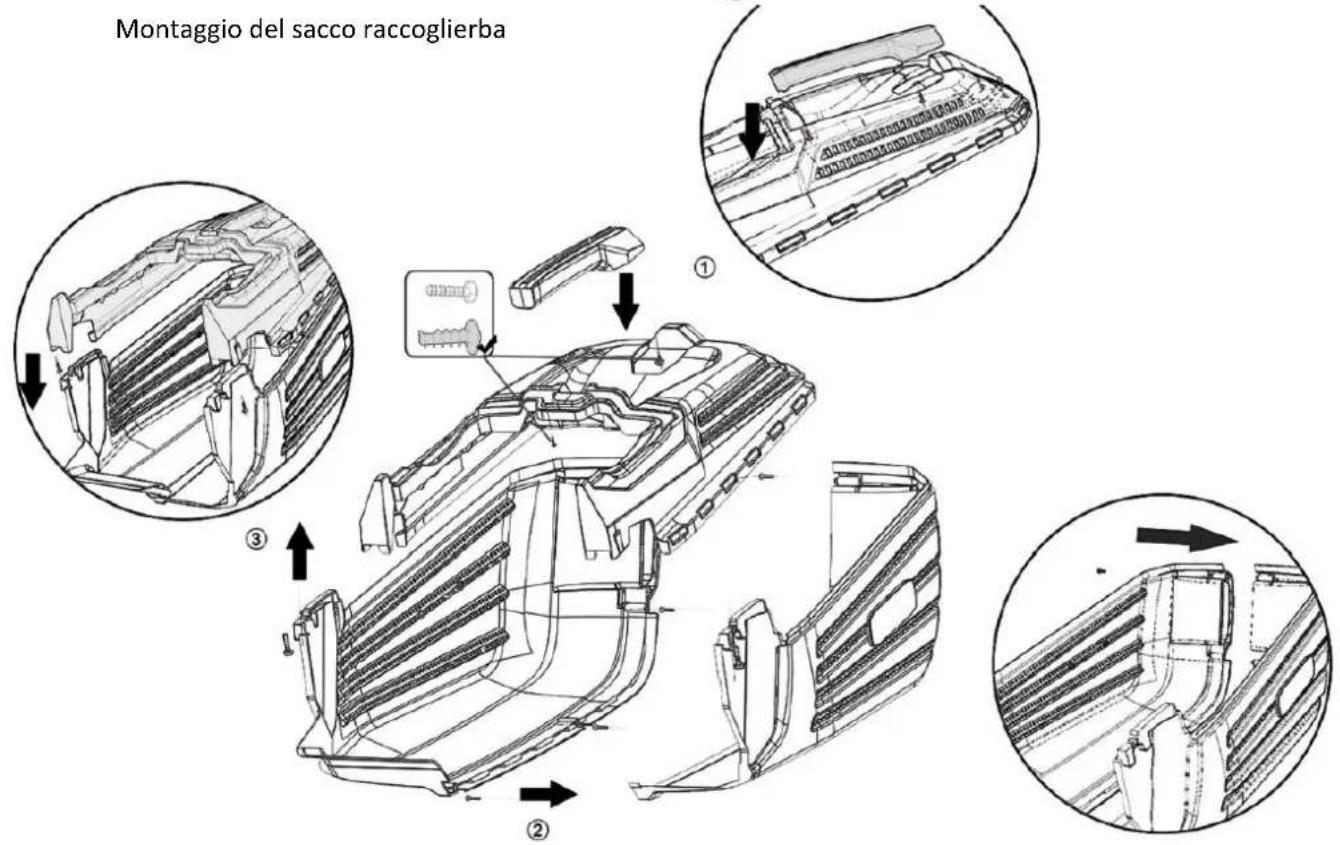

Mounting the tie bar apparatus Mounting grass catcher bagManual_FX-RM_Series_Int24_rev24

1. fill fuel and oil after assembling the machine. Make sure

that the brake lever and the self-propelled lever are released. (Fig.1) Open the battery cover and check that the battery is inserted correctly. (Fig.2) Press the battery button to display the power status. Check if the remaining power is sufficient (at least 2 lights should be on). (Fig.3)

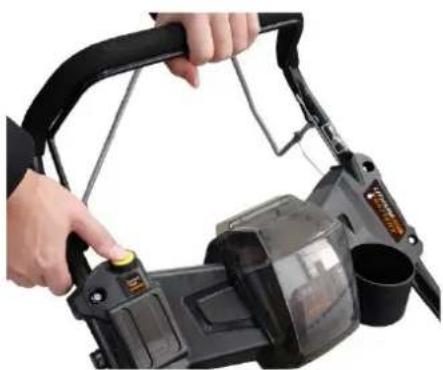

4. hold the brake lever with your left hand. (Fig.4)

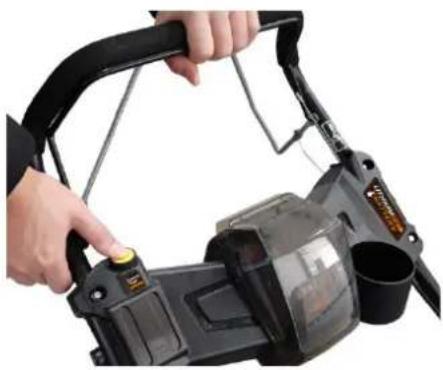

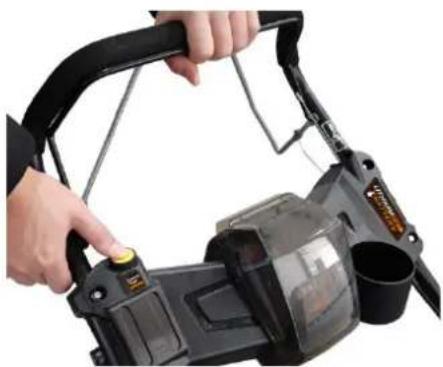

5. press the start button with your right hand. (Fig.5)

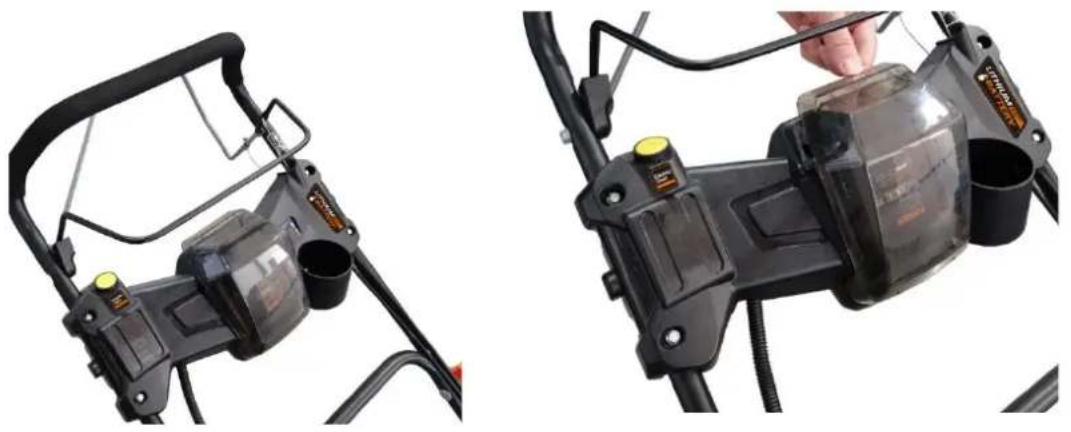

Power supply status: LED indicator LED light indicates operating status (undervoltage / sufficient / full)

1 bar: Red LED light - battery indicates low voltage alarm. 2 bars: Red and orange LED light - battery indicates sufficient voltage 3 bars: Red, orange and green LED light - battery indicates full voltage

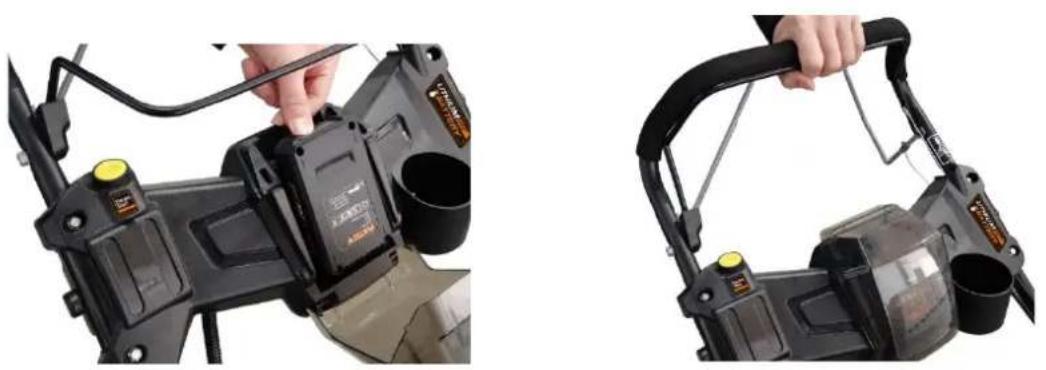

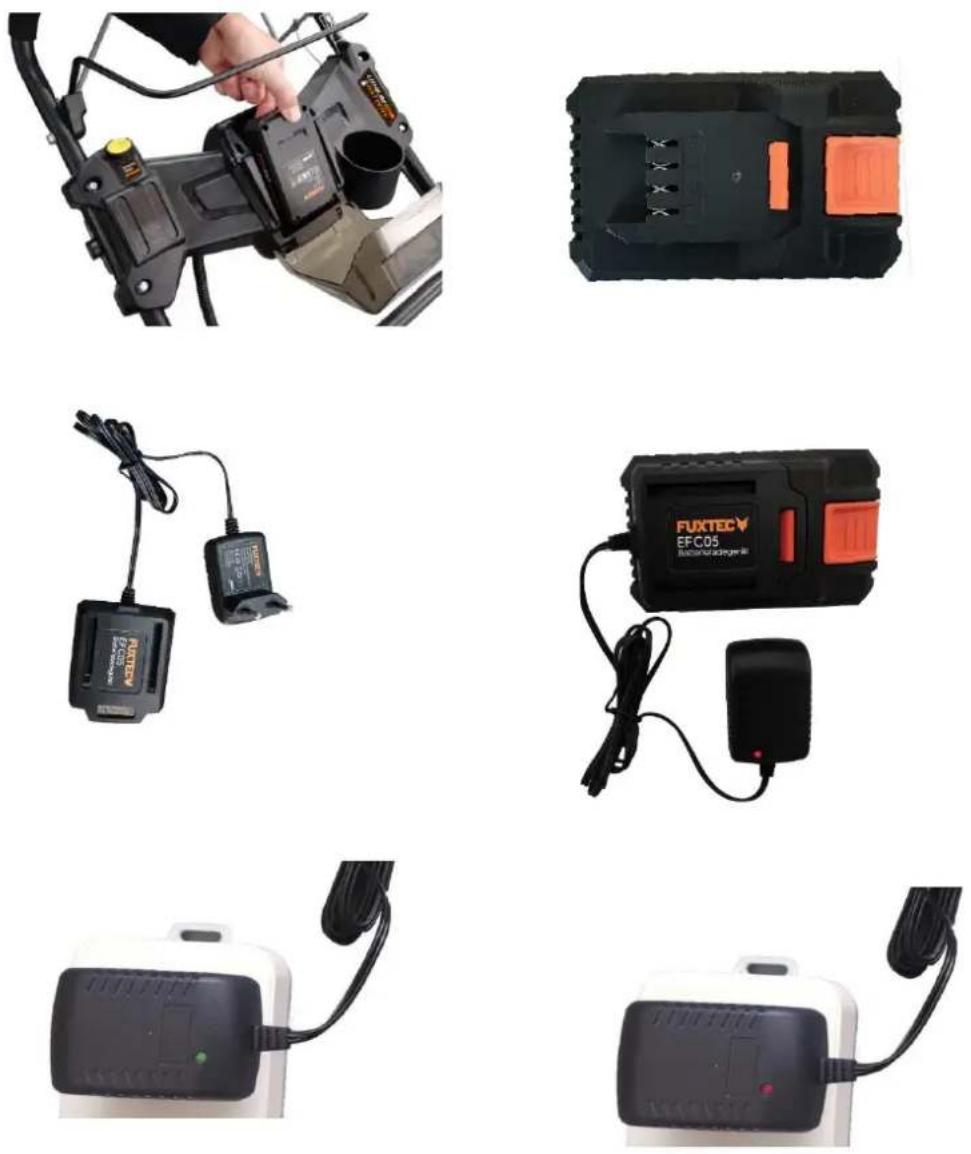

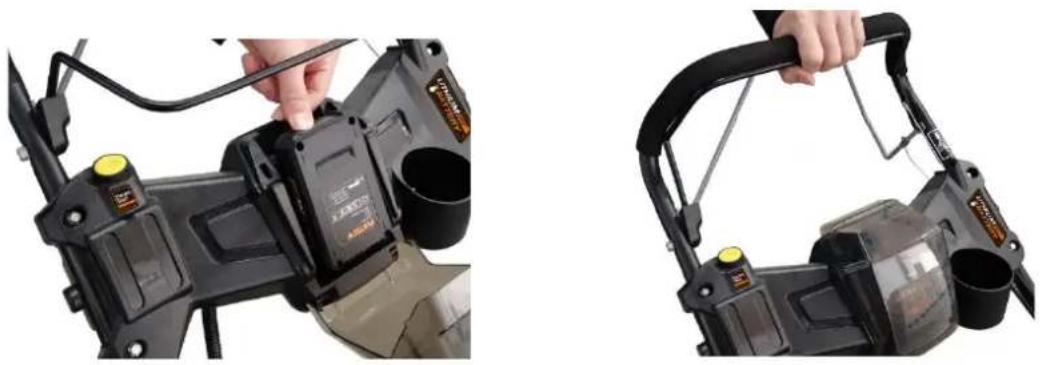

Important: The removable battery is considered a removable key or device and is marked accordingly

The starter battery should be stored in a dry room at a minimum of 10° Celsius and a maximum of 25° Celsius when not in use for a longer period of time. If stored for several months, you should fully charge the battery every 6 months (see the following notes on charging).Manual_FX-RM_Series_Int24_rev24

Please remove the battery from the console if the remaining electricity is no longer sufficient. Connect the battery to the charger and connect the charger to the mains. Caution. Before removing the battery, make sure that the brake lever is released and the machine is stopped.

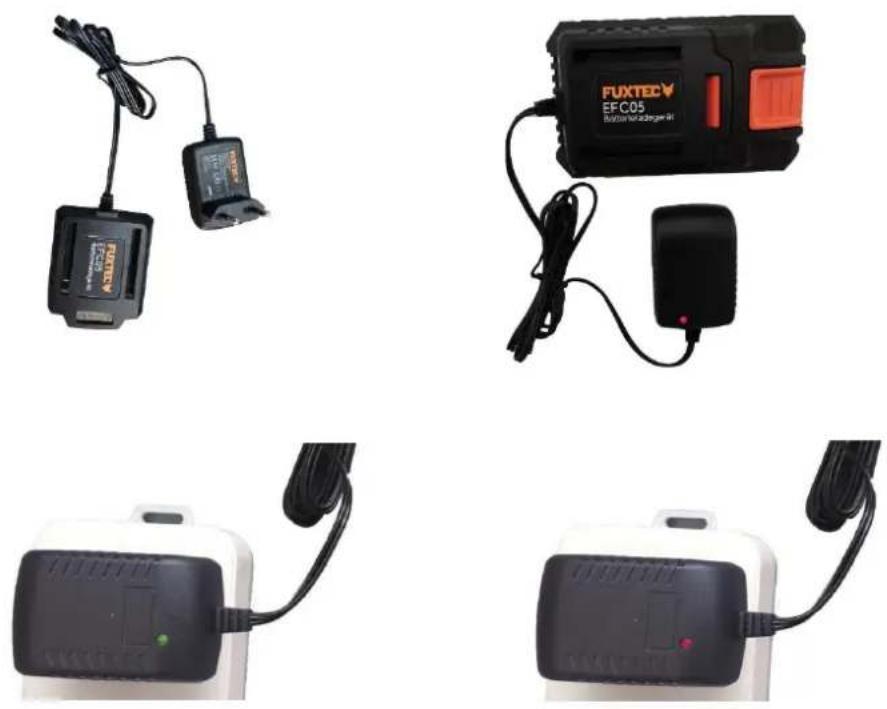

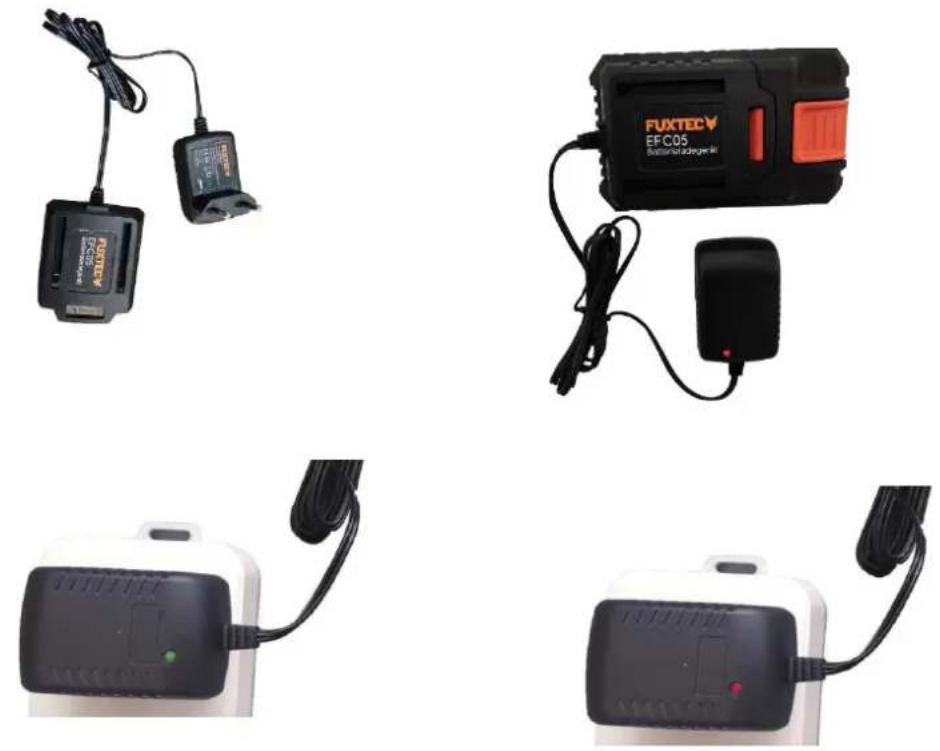

- LED indicator on the charger: Green LED steady light: The battery is fully charged and can be removed. Red LED steady light: The battery is being charged.Manual_FX-RM_Series_Int24_rev24

Start (except FX-RM5196eS, FX-RM5196eSPRO, FX-RM5396PeSPROsee previous pages) Make sure that the engine is filled with sufficient oil and gasoline before you start it. Pull the brake lever (upper lever) against the handle and pull the starter cable slightly until resistance is felt. Then pull the starter cable smoothly until the engine starts. On the 4646eco model, please press the primer pump 3-5 times before pulling the starter cable to fill the carburetor with gasoline. NOTE: Do not operate the wheel drive lever at the same time. Only when the engine has started, and you want to use the self-propulsion do you operate the lower lever. Due to a protective layer on the engine, a slight smoke may be produced when you use the device for the first time. This is a standard procedure. Pull the brake lever towards the push handle. Do not let the pull starter snapback. Stop Release the brake lever to stop the motor.

WARNING: The blade will continue to rotate for a few seconds after the engine is turned off.

Unplug the spark plug connector when leaving the mower unattended. MOWING INSTRUCTIONS - In certain circumstances, such as high grass, it may be necessary to raise the cutting height to reduce the thrust and engine load, which can also lead to grass residue. It may also be required to reduce the basic speed and push the mower twice over this area - Reduce the cutting width by covering the previous cut again to perform heavy cutting work - The pores in the grass catcher bag can become clogged with dirt and dust, which means that the catcher can pick up fewer cuttings. To avoid this, you should regularly wash the catcher with a water hose and let it dry completely before reusing it. - Keep the upper part of the engine around the starter free of grass and chopped grass clippings. This will improve engine airflow and prolong engine life.Manual_FX-RM_Series_Int24_rev24

ATTENTION: The brake lever must be pulled when starting the engine. Release it to stop the engine. Wheel drive shifts lever - To engage the powered forward movement of the device.

The engine speed has been preset by the manufacturer to ensure that the device delivers maximum performance. On some models, you can set a variable speed by a lever on the handlebar. Please operate this lever only when the device is in drive mode. Push handle Shift lever wheel drive brake leverManual_FX-RM_Series_Int24_rev24

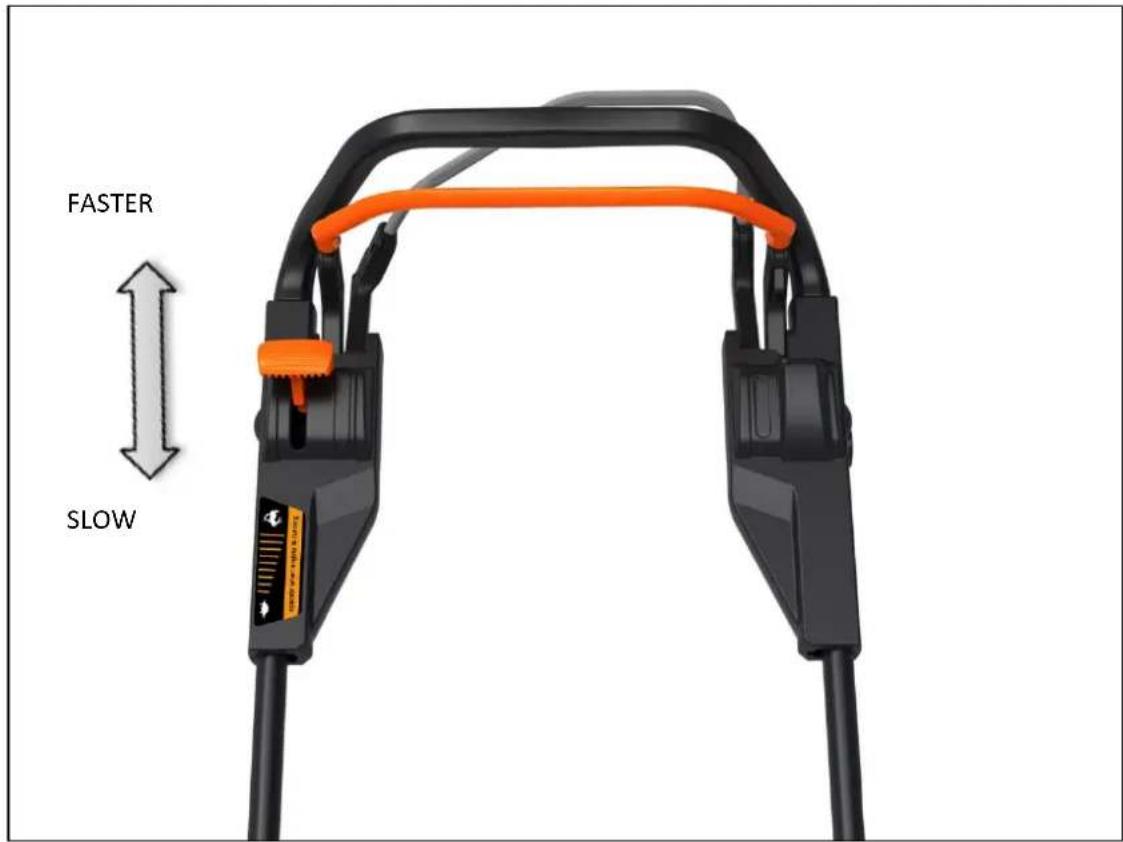

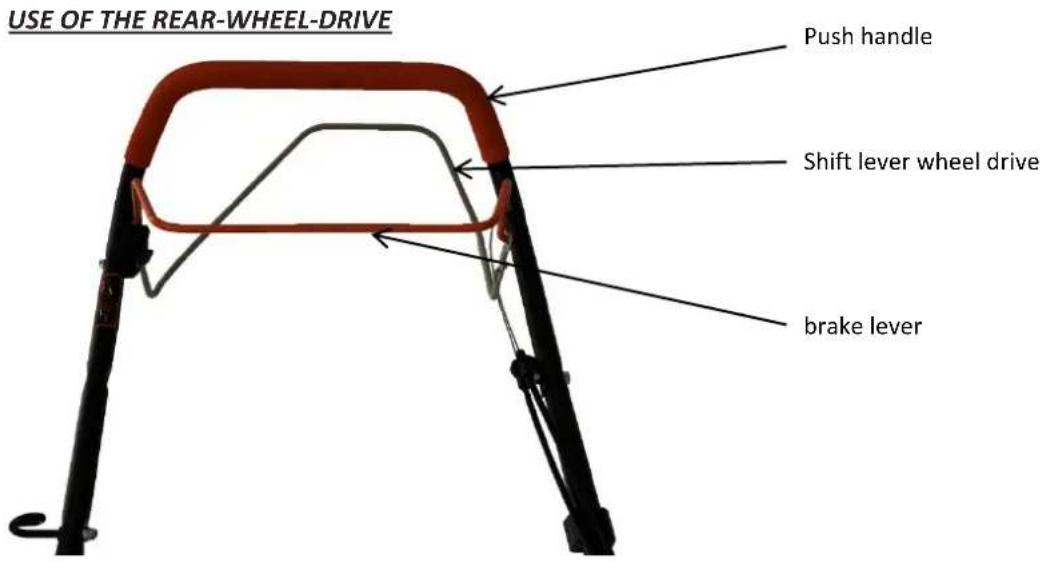

FlexSpeed drive (RM5196PRO,FX-RM5196eSPRO,FX-RM5396PeSPRO) The speed control of the FlexSpeed transmission is located on the upper bracket. This option gives you the possibility to adjust the speed of the rear-wheel-drive differently. If you push the lever forward in the direction of the engine, the forward motion slows down. This is especially advisable on uneven terrain. If you pull the lever towards your body, the speed increases, and the mower moves forward faster. Use this option only on large flat areas without obstacles in your mowing area.

Important: The speed of the FlexSpeed gear unit may only be controlled while the engine is running! Otherwise, the gear unit may be damaged.

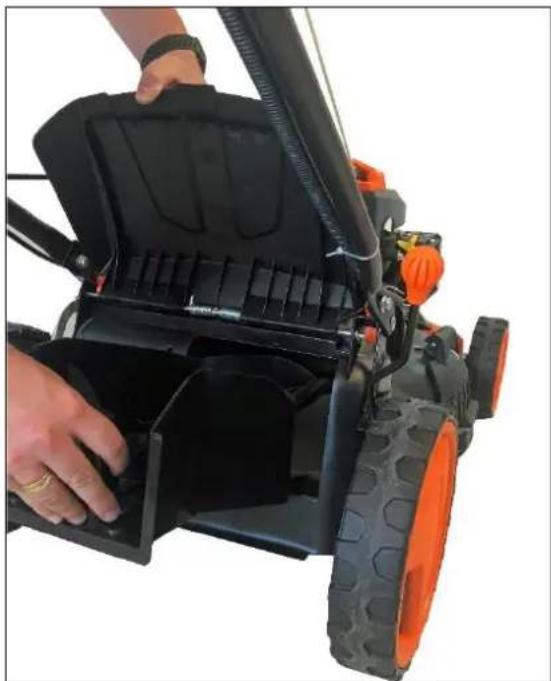

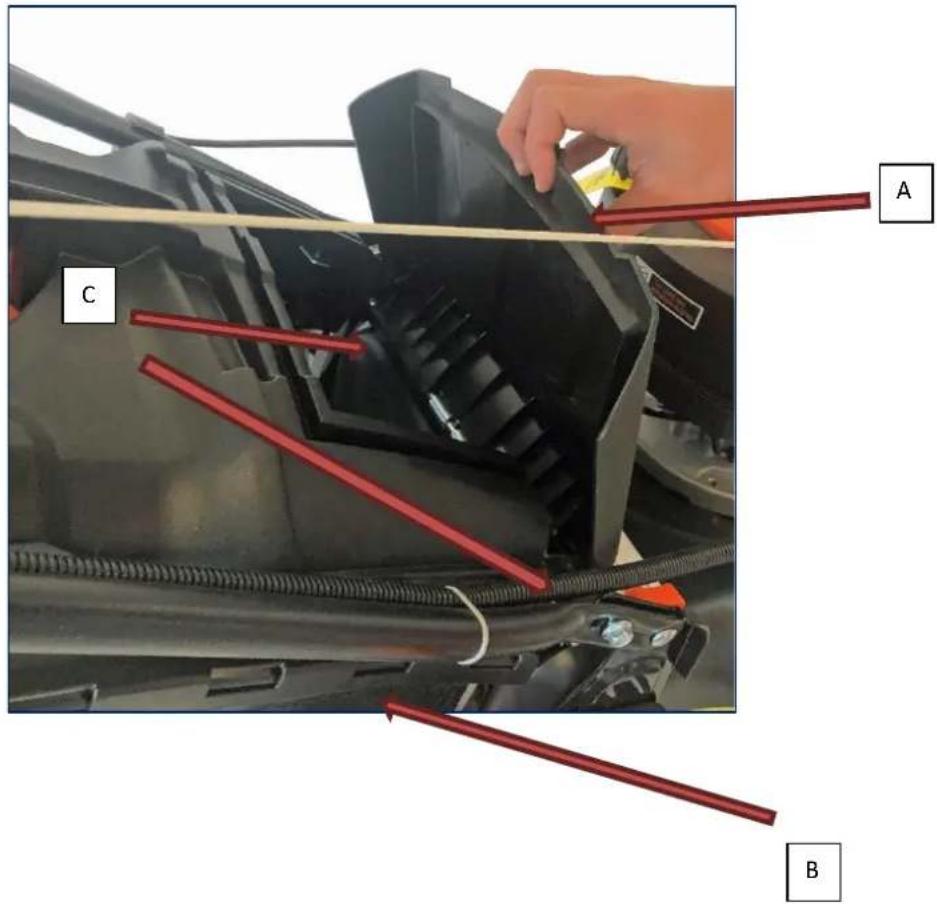

Using the grass catcher box Open and hold the rear flap (A), then take the grass catcher bag (B) and hook it in (C)

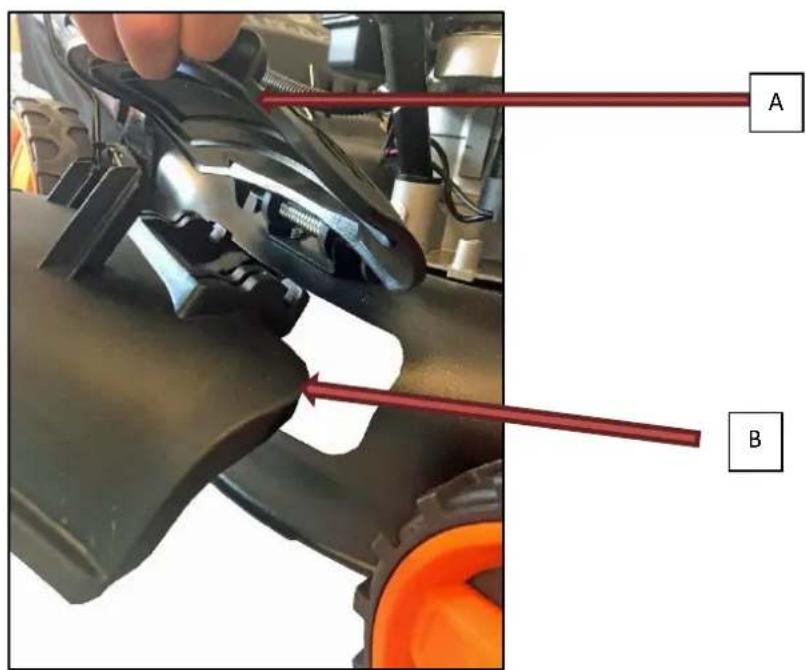

Using the Mulch kit Open and hold rear flap (A), then insert mulch kit (B) into the opening provided. Close rear flap (A) - Ready Note: A mulching blade is already mounted and does NOT need to be mounted additionally.

29. Maintenance and cleaning (EASY CLEAN)

IMPORTANT- regular, careful maintenance is necessary to ensure that the safety level and performance of the device remain unchanged.

1) Keep all nuts, screws, and bolts tightened to ensure that the device is in perfect working

condition. Regular maintenance is necessary for the safety and performance of the device

2) Never store the device with the tank still full in a building where escaping vapors can reach a

flame, spark, or heat source.

3) Let the engine cool down completely before storing the device in closed rooms.

4) Keep the engine, exhaust silencer, and fuel tank free of grass, leaves, or excess grease.

Never leave containers with cuttings in rooms.

5) For safety reasons, do not use the device when parts are worn or damaged. Parts should be

replaced. Repairing damaged parts is not sufficient. Use original spare parts. Parts that are not of the same quality can damage the device and endanger your safety.

6) If the fuel tank needs to be emptied, you should do this outdoors and with the engine cold.

7) Wear solid working gloves when removing or reattaching the blade.

8) Check that the blades are firmly and evenly seated after sharpening.

9) Regularly check the self-closing protective shield and grass catcher bag for wear and tear.

10) When operating, transporting, or tilting the device, please observe the following:

- Wear solid working gloves; - Hold the device in places that provide a firm grip. Pay attention to weight distribution. CLEANING (EASY CLEAN function) The mulching inserts (or also called mulching kit) shown here depend on the model and may differ from the illustrations.Manual_FX-RM_Series_Int24_rev24

Clean the device carefully with water after each cutting operation. Remove the grass and mud deposits that have accumulated inside the undercarriage. This will avoid drying out and possible difficulties when starting the engine again. You can use the EASY CLEAN connection to clean the inner housing (cutting unit). Simply connect a water hose to the connection on the top of the housing and slowly turn on the water while the cutting mechanism is running. The rotation of the cutting mechanism distributes the water evenly in the inner housing and can thus flush away dirt residues.

The paint on the inner side of the undercarriage may flake off over time due to aggressive operations. In this case, you should paint over the paint with rust- resistant paint to protect the undercarriage from the corrosion of the metal.

Check the V-belt 1-2 times a year and remove any cuttings from it. Once a year, the drive wheels should be cleaned inside. Remove both wheels. Use a brush or compressed air to remove grass and dirt from the gear wheel and gear rim. Easy Clean connectionManual_FX-RM_Series_Int24_rev24

30. Care, maintenance, and storage

CHANGING THE CUTTING BLADES

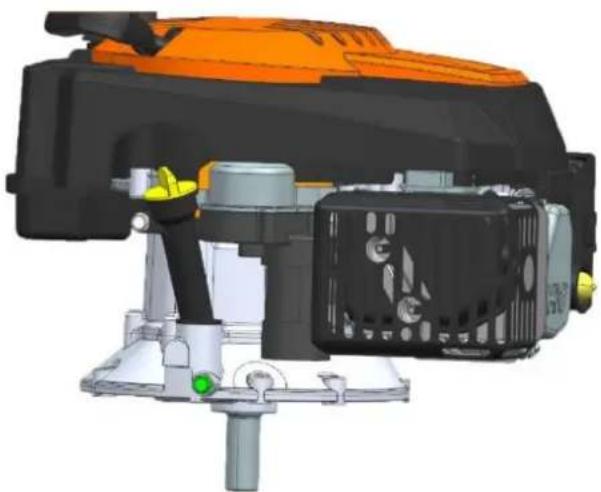

Remove the screw to replace the blade. Empty the fuel tank before removing the blade.

Replace everything, as shown. Fasten the screw properly. The fastening torque is 45Nm. Also, replace the blade screw when replacing the blade. OIL CHANGE

1. Switch off the engine and let it stop completely.

2. Disconnect the spark plug cable and keep it away from the spark plug.

3. Empty the oil into a suitable container. Tilt the lawnmower by 45 degrees and use a FUXTEC

suction pump to suck off the oil through the filler neck. Alternatively, you can tilt the mower more to drain the oil through the filler neck.

4. Keep the engine balanced. Remove the dipstick. Slowly add approximately 0.5L of new

recommended oil (FUXTEC 4MAX 4 stroke oil) into the container until the dipstick reads the top of the container. Do not overfill the container.

5. Check the level with the dipstick

WARNING: Avoid skin contact

with the oil. Wash your hands thoroughly with soap and water after changing the oil. ATTENTION: Used oil is a hazardous waste product. We recommend that you take used oil to your local disposal center for proper disposal. Do not dispose of the device with household waste.Manual_FX-RM_Series_Int24_rev24

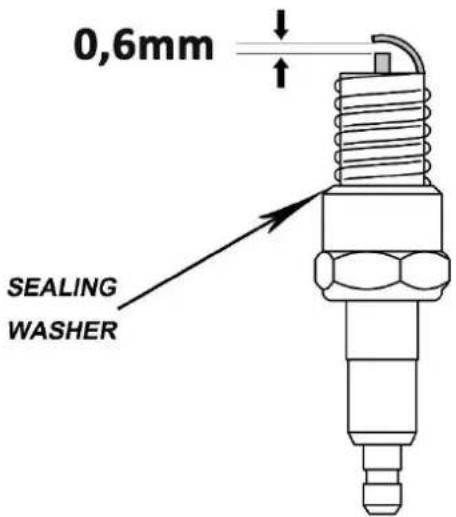

Spark plug Remove the spark plug and clean it with a wire brush after the engine has cooled down sufficiently. Using a feeler gauge, set the gap to 0.6 mm. Replace the spark plug, and be careful not to overtighten it.

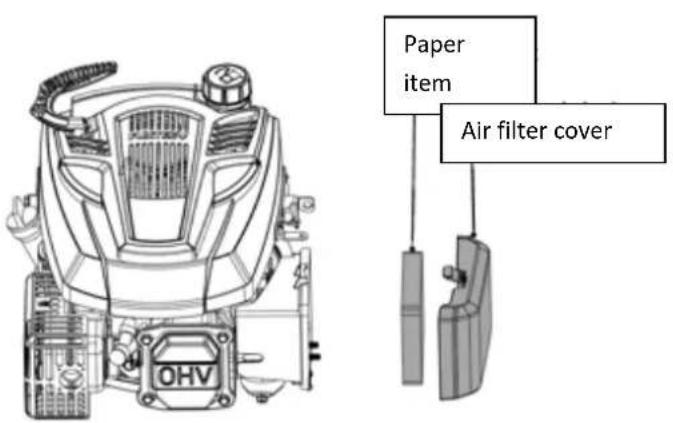

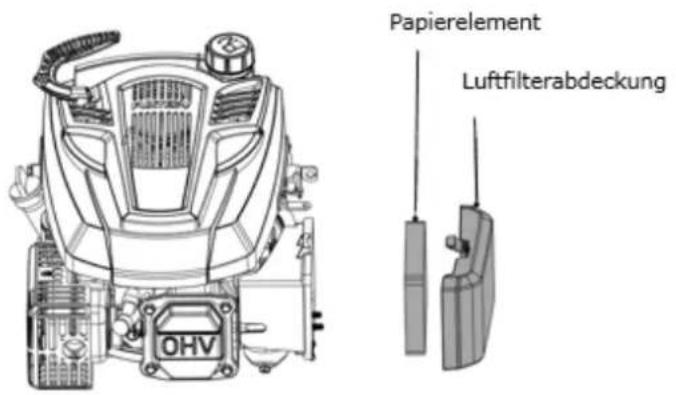

Air Filter Disconnect the air filter cover. Replace the air filter when dirty to prevent objects from entering the air intake.

Emptying the fuel tank and carburetor Option A (Recommended): Use a FUXTEC suction pump to suck the gasoline out of the tank or let the mower run empty. Option B:

1. Place a manufacturer's recommended gasoline canister under the carburetor and use a

funnel to avoid spills. Tilt the lawnmower forward to prevent spillage.

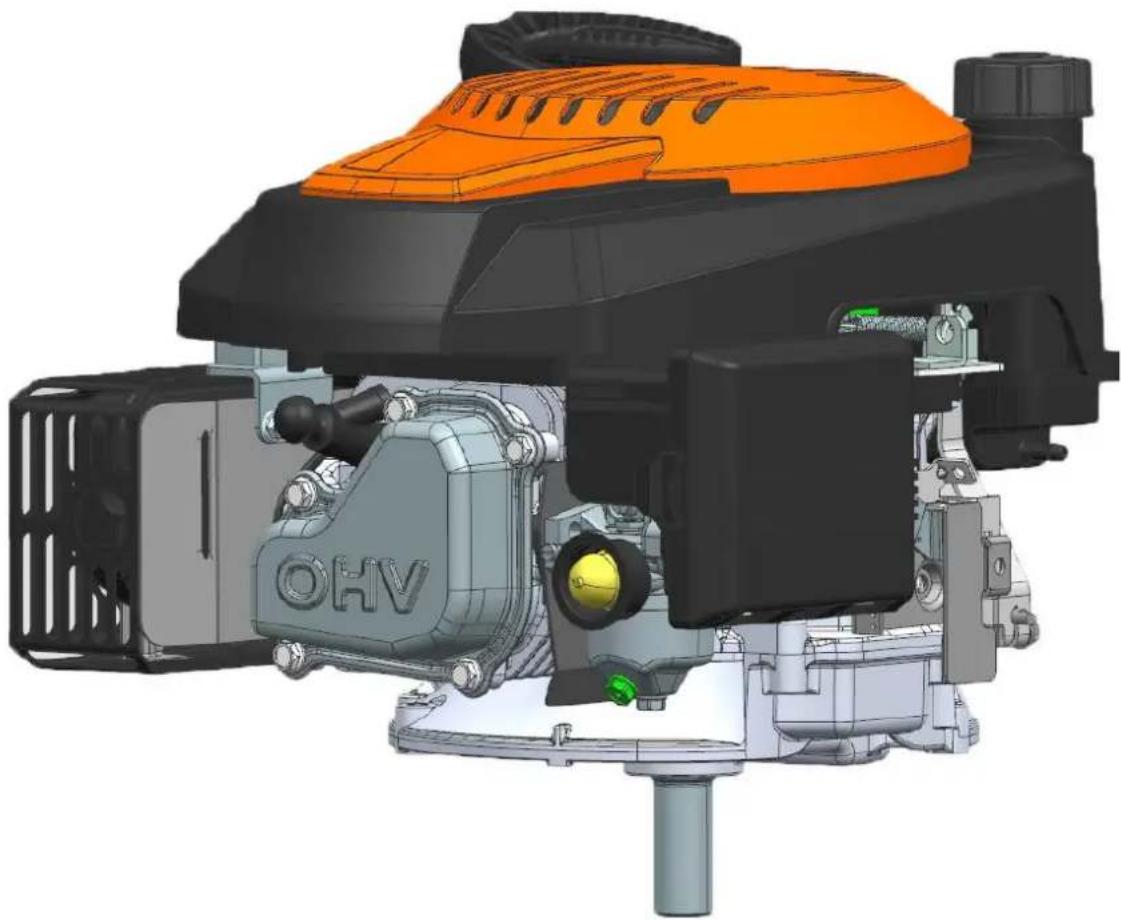

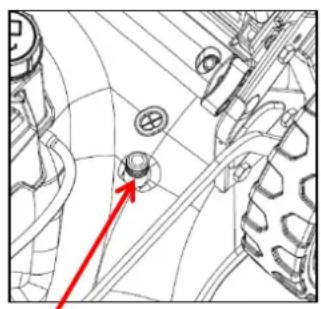

2. Loosen the drain plug (GREEN in the illustration) and drain the gasoline through a funnel.

3. Tighten the drain plug after all gasoline has drained into the canister. Fasten the drain plug

Note: We also offer different suction pumps to pump the fuel directly from the tank and even with the electric pump with which you can refuel.Manual_FX-RM_Series_Int24_rev24

Maintenance schedule Regular maintenance Before each use First month or 5 operating hours Every 3 months or

operating hours Every 6 months or 50 operating hours Once a year or

operating hours Every 2 years or

operating hours Engine oil Check

Fuel tank and filter Check

clean After 200 operating hours

Troubleshooting The engine does not start Possible causes Troubleshooting

No more fuel in the tank Refill Impure gasoline: Engine stored without care, proper emptying of the tank or filled with contaminated gasoline Empty the tank and the carburetor. Fill up with new fuel (super unleaded)

the spark plug Spark plug defective, dirty, or incorrectly attached Replace the spark plug Spark plug flooded with gasoline Dry and reinstall properly

forgotten to operate the brake lever at start While the starter is pulled, the upper lever must be pulled to the handle

Fuel filter or carburetor contaminated Replace or clean the components

5. Electrical contact

When tightening the engine brake lever, the contact plate at the end of the Bowden cable does not close Bend back the holder to create the electrical contact

STORAGE The gasoline should not remain in the tank for more than a month. Clean the mower thoroughly and store it in a dry place in the house. THE ENVIRONMENT To protect our environment, we recommend that you observe the following points and instructions: - Always use unleaded gasoline - Always use a funnel and a fuel canister with a liquid level indicator to avoid spilling fuel during refilling - Do not fill the tank completely - Do not overfill the device with engine oil - When changing the oil, make sure that the used oil is completely collected. Avoid spilling. Take the used oil to a recycling station - Replace the silencer if it is defective. Only use original spare parts when carrying out repairs - Seek professional help if the carburetor requires corrections - Clean the air filter according to the instructions CUSTOMER SERVICE FUXTEC provides original spare parts. We recommend that you take the device to an authorized service center for annual maintenance and inspection of the protective devices. For more information about service and spare parts, please contact FUXTEC Customer Service.Manual_FX-RM_Series_Int24_rev24

The warranty period is 24 months from the date of purchase. Please keep your proof of purchase in a safe place. Excluded from the warranty are wearing parts and damage caused by improper use, use of force, technical modifications, use of wrong accessories or non-original spare parts, and repair attempts by non-qualified personnel. Authorized dealers may only carry out repairs.

The device is in packaging to avoid transport damages. This packaging is raw material and can therefore be reused or returned to the raw material cycle. The device and its accessories consist of different materials, such as metal and plastic. Dispose of defective components in hazardous waste disposal. Ask your local dealer or the municipal administration.Manual_FX-RM_Series_Int24_rev24

Carbuator 4839P From year of manufacture 2018

4646ECO,4346,4346ECO

Blade FX-RM4346,4346ECO

Blade holder FX-RM4346,4346ECO

Recoil starter all models

Spark plug all models

Driving belt FX-RM4346
