Brand	Amica
Model	AFM 4011
Product type	Air fryer (Air Fryer)
Rated power	1550 - 1850 W
Rated voltage	220 - 240 V ~ 50/60 Hz
Basket capacity	5 L
Tank capacity (oil)	6.8 L
Cooking programs	Air fry, Roast, Toast, Broil, Reheat, Bake, Frozen food, Dehydrate
Temperature range	80 °C - 200 °C (except Dehydrate: 30 °C - 90 °C)
Timer	1 - 60 min (except Dehydrate: 1 - 24 h)
Control panel	Touchscreen with digital display
Memory function	Yes (up to 2 hours in case of power outage)
Safety	Automatic stop when drawer is removed, protection against operation without basket, hot surfaces
Cleaning	Basket and drawer hand washable with mild detergent; do not put in dishwasher
Maintenance	Wipe the appliance with a soft, clean cloth; do not use caustic detergents
Weight	Approximately 5 kg (estimate)
Dimensions (L x W x H)	Approximately 35 x 30 x 35 cm (estimate)
Included accessories	Frying basket, basket drawer, handle
Repairability	Spare parts available through authorized service; power cable replaceable only by a professional

Frequently Asked Questions - AFM 4011 AMICA

Why does my fryer emit white smoke or a strange smell during first use?

This is normal. The white smoke or unpleasant smell comes from the burning of manufacturing residues. Let the appliance run empty for 10 to 15 minutes at 200 °C to eliminate these residues.

How do I clean the basket and drawer of the fryer?

Wash the frying basket and drawer with a mild detergent and some warm water. Use a non-abrasive sponge. Do not put in dishwasher and do not use caustic detergents.

Can I use oil in this fryer?

This fryer uses hot air and requires very little or no oil. For crispy results, you can brush the food with a little oil, but never pour oil into the tank.

Why won't my fryer turn on?

Check that the basket drawer is fully inserted. The appliance has a safety feature that prevents operation if the drawer is not properly closed. Also make sure the plug is connected and you have pressed the power button.

How do I set the temperature and cooking time?

Use the 'Temp' and 'Time' buttons on the touch panel to adjust the temperature (80-200 °C) and duration (1-60 minutes). For the Dehydrate program, the temperature can be set between 30 and 90 °C and the time up to 24 hours.

Should I preheat the fryer before use?

Yes, it is recommended to preheat the appliance for 3 to 6 minutes before placing the food for better cooking results.

What does the 'shake' indicator that lights up during cooking mean?

The 'shake' indicator lights up halfway through cooking to tell you to take out the drawer, shake the basket or turn the food to ensure even cooking. The appliance stops automatically and resumes after replacing the drawer.

Can I use metal or silicone accessories in the fryer?

Use heat-resistant utensils (wood, silicone) to remove food. Avoid metal utensils that could scratch the non-stick coating.

How to avoid burns during use?

Never touch the inside of the appliance while it is operating. Wait for the appliance to cool down completely before cleaning. Be careful of hot steam emitted from the air outlets and when removing the basket.

Where can I find spare parts or have my fryer repaired?

Contact a service authorized by Amica. The damaged power cable must be replaced only by a professional. Refer to the manual for after-sales service contact information.

USER MANUAL AFM 4011 AMICA

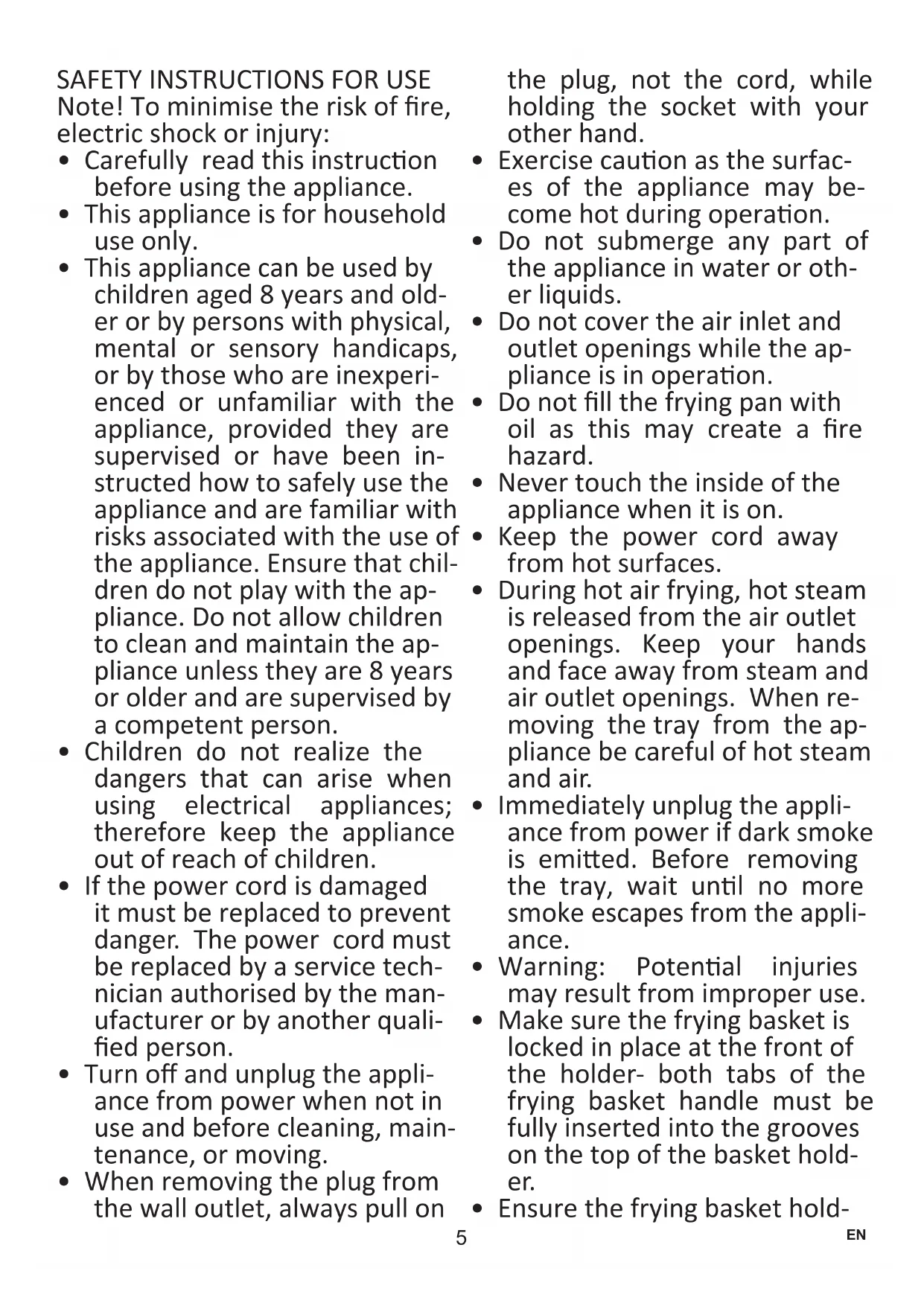

SAFETY INSTRUCTIONS FOR USE Note! To minimise the risk of fire, electric shock or injury:

• Carefully read this instruction before using the appliance.
  This appliance is for household use only.
• This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Do not allow children to clean and maintain the appliance unless they are 8 years or older and are supervised by a competent person.
  Children do not realize the dangers that can arise when using electrical appliances; therefore keep the appliance out of reach of children.
• If the power cord is damaged it must be replaced to prevent danger. The power cord must be replaced by a service technician authorised by the manufacturer or by another qualified person.
• Turn off and unplug the appliance from power when not in use and before cleaning, maintenance, or moving.
• When removing the plug from the wall outlet, always pull on

the plug, not the cord, while holding the socket with your other hand.

• Exercise caution as the surfaces of the appliance may become hot during operation.
• Do not submerge any part of the appliance in water or other liquids.
• Do not cover the air inlet and outlet openings while the appliance is in operation.
• Do not fill the frying pan with oil as this may create a fire hazard.
• Never touch the inside of the appliance when it is on.
• Keep the power cord away from hot surfaces.
• During hot air frying, hot steam is released from the air outlet openings. Keep your hands and face away from steam and air outlet openings. When removing the tray from the appliance be careful of hot steam and air.
• Immediately unplug the appliance from power if dark smoke is emitted. Before removing the tray, wait until no more smoke escapes from the appliance.
• Warning: Potential injuries may result from improper use.
• Make sure the frying basket is locked in place at the front of the holder- both tabs of the frying basket handle must be fully inserted into the grooves on the top of the basket holder.
• Ensure the frying basket hold

er is fully inserted and the handle is securely attached to the frying basket holder while the air fryer is running. WARNING: The air fryer will not operate if the frying basket holder is not completely inserted.

• Do NOT operate this appliance using an external timer or a separate remote control system.
• Do not use the appliance for purposes other than those for which it is intended.

Electrical requirements:

Make sure that the voltage indicated on the nameplate corresponds to that of your home electrical mains. Alternating current must be used, typically marked .

In accordance with European Directive 2012/19/EU and Polish legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used. The user

is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes. Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

SPECIFICATION:

Model: AFM 4011
Rated voltage: 220 - 240V^ 50 - 60Hz
Rated power: 1550-1850W
Capacity:
-Fryingbasket-5l
-Oil pan-6,81

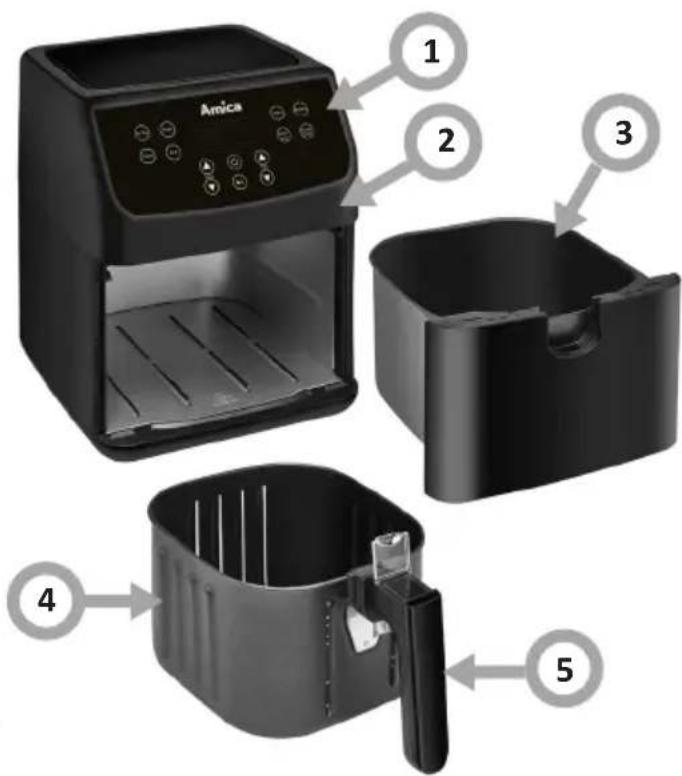

FEATURES AND COMPONENTS

1. Touch control panel
2. Motor unit
3. Frying basket holder
4. Frying basket
5. Handle

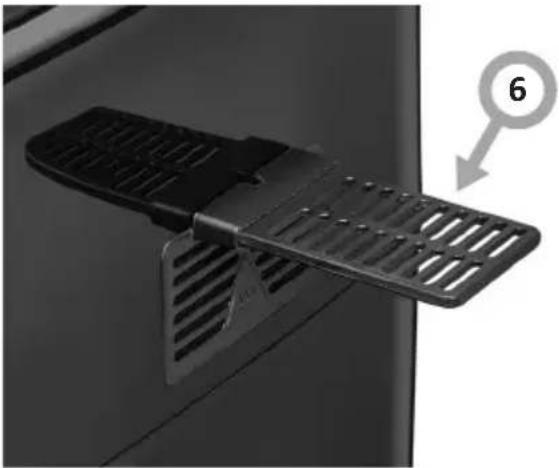

6. Spacer bracket

Note! The spacer bracket prevents the appliance from being pushed closely against the wall. Proper spacing from the wall allows efficient ventilation.

OPERATE THE APPLIANCE:

Touch the power switch to turn on the appliance (you can now select functions). Select the function (temperature and time can be adjusted with the Temp and Time arrows - see the table for temperature and time settings for individual functions). When you have adjusted the time and temperature to your needs, touch the and the appliance will start. Touch the button again to stop cooking.

Programme	Temperature Time
	Default setting	Adjust-ment range	Default setting	Adjust-ment range
Air fry (fat-free frying)	200°C	80-200°C	15 minutes	1-60 minutes
Roast .	200°C		40 minutes
Toast .	200°C		25 minutes
Broil (crisping)	200°C		10 minutes
Reheat .	115°C		12 minutes
Bake .	180°C		15 minutes
Frozen food (frozen products)	200°C		15 minutes
Dehydrate (drying)	52°C 30-90°C 10 hours			1-24 hours

OPERATE THE APPLIANCE

1. Place the appliance on a flat and stable surface so that the power cord reaches the wall socket. Ensure that the appliance is used in a well ventilated room and do not place the appliance near any flammable substances.
2. Insert the frying basket into the holder and secure it, then slide it into the body of the appliance.
3. For best results, let the appliance heat up for about 3-6 minutes before you place food in the appliance
4. Pull out the frying basket holder and place the food in the frying basket.
5. Place the holder with the frying basket in the appliance. Touch The appliance will beep and start cooking. The set time and temperature will be shown on the display.
6. Select the function on the control panel. The appliance shows the default cooking temperature and time or you can set temperature and time according to your needs. Then touch the!The appliance starts to cook your food.
7. Halfway through the cooking time, the appliance beeps five times and the "shake" light comes on. Pull out the frying basket holder (the appliance will stop), stir or turn the food over to ensure even frying, and then slide the frying basket holder with the frying basket back into the appliance. The appliance will resume cooking.
8. The appliance will beep when programme ends. Unplug the appliance from the wall outlet, remove the frying basket with the holder, place it on a flat, heat-resistant surface, and then remove the cooked food using the strainer spatula.

Note!

• If the frying basket holder is not fully inserted, the appliance will not operate. The frying basket holder must be fully removed from the appliance to deactivate the appliance protection function. The appliance retains its settings for two hours after a power outage. When you remove the frying basket holder and stir the food during frying, fully insert the frying basket holder into the appliance to continue cooking.

• Be careful to avoid scalding by steam or tipping over of the frying basket, which may result in burns from hot oil or food. Also use a spatula to take out the food.

• A small amount of white smoke or an unpleasant odour may be emitted during first use of the appliance. This is normal and there is no need to worry.
• The quantity, thickness and shape of the food and whether the food is thoroughly thawed can affect the total frying time. Frying smaller portions will reduce the cooking time.
• Be careful when turning hot food. To avoid injury or damage to property, do not turn food by shaking the appliance.
• After using the appliance, never place the frying basket holder on

a heat-sensitive surface. Always place the frying basket holder on a suitable heat resistant surface or mat.

CLEANING AND CARE:

1. To avoid burns, only clean the appliance when it cools down.
2. After use, to avoid damage to the coating from food residues and oil stains, clean the frying basket and its holder.
3. To prevent damage to the appliance, avoid using caustic detergents.
4. Wipe the appliance with a soft and clean cloth. To prevent water from getting inside the appliance do not clean the appliance with an excessively damp cloth, which can lead to a short circuit and fire. 5. Do not clean the appliance with other cleaning appliances and do not wash it in the dishwasher. This may lead to damage or affect the use of the appliance.
5. Wash the frying basket and its holder with water and a little mild detergent.

POKNY K BEZPEČNÉMU POUŽÍVÁNÍ

TEXHIYHI XAPAKTEPNUK:

Mодень: AFM 4011

HomHaJIbHa Hanpyra: 220-240 V\~, 50-60 Hz

HomHaJIbHa NotyKHiCt b: 1550-1850 BT

06'em:

• Kownk dncmaeHHra -5n
  -EMHictb/yawa nn oii-6,8n

OCHAUENHRIKOHCTPYKLIIPNCTPOHO

1.CeHcOpHa naHeJIy npaBInHH
2. Kopnyc
3. WyxnaДЯ коиkaДЯ CmakeHHA
4.KoWNKJIMCMaKeHHN
5.Pyka
6.BiDiSiHHK

Ybara!IpewiTka Cnykntb 《6amnpom》，Kn3an06irae npntnc KaHHIO npictpoIO do CTIN. RaHacniDOK, ce 3a6e3neyuE HaneKHy BEHTnlaioIO.

OBCLYTOBYBAHHI NAHEJI YNPABLIHHH:

Uo6 yBIMKHyTN npnlaT, TOpKHITbcr nepemnkaa (npnaad ybiJe B peKIM BVbOpy fYHKui). Notim BnBepiT bOHy 3 fYHKui 3a 3aMOBvBaHHAM (TemnepaTy Ta Yac MoXHa HalaWtByaTH 3a DOnOMorIO CTpINOk «TemnepaTypa» Ta «Yac» — iJanaOH TemnepaTypa Ta Yacy dIra KoxHoi fYHKui B Ta5nui). KoJI NaHaWTyBaHHa Yacy Ta TemnepaTypu 6dyTb HalaWTOBaHI BiNObiDHO do Baunx Notpe6, TopKHITcR KHONKn (hprncpii NoHre npauOBaTH). Uo6 3ynHHIn Tnpouec npriOTyBaHH, 3HOBy TOpKHITcR KHONKN
